FEATURED Aluminum and Steel Plate Dollies

model: VPLDO-A-2430

Aluminum and Steel Plate Dollies

SERIES: VPLDO 12Products 1Options

Powder Coat

Quick Ship

Diamond Plate Dollies for Industrial Material Handling and Workstation Transport

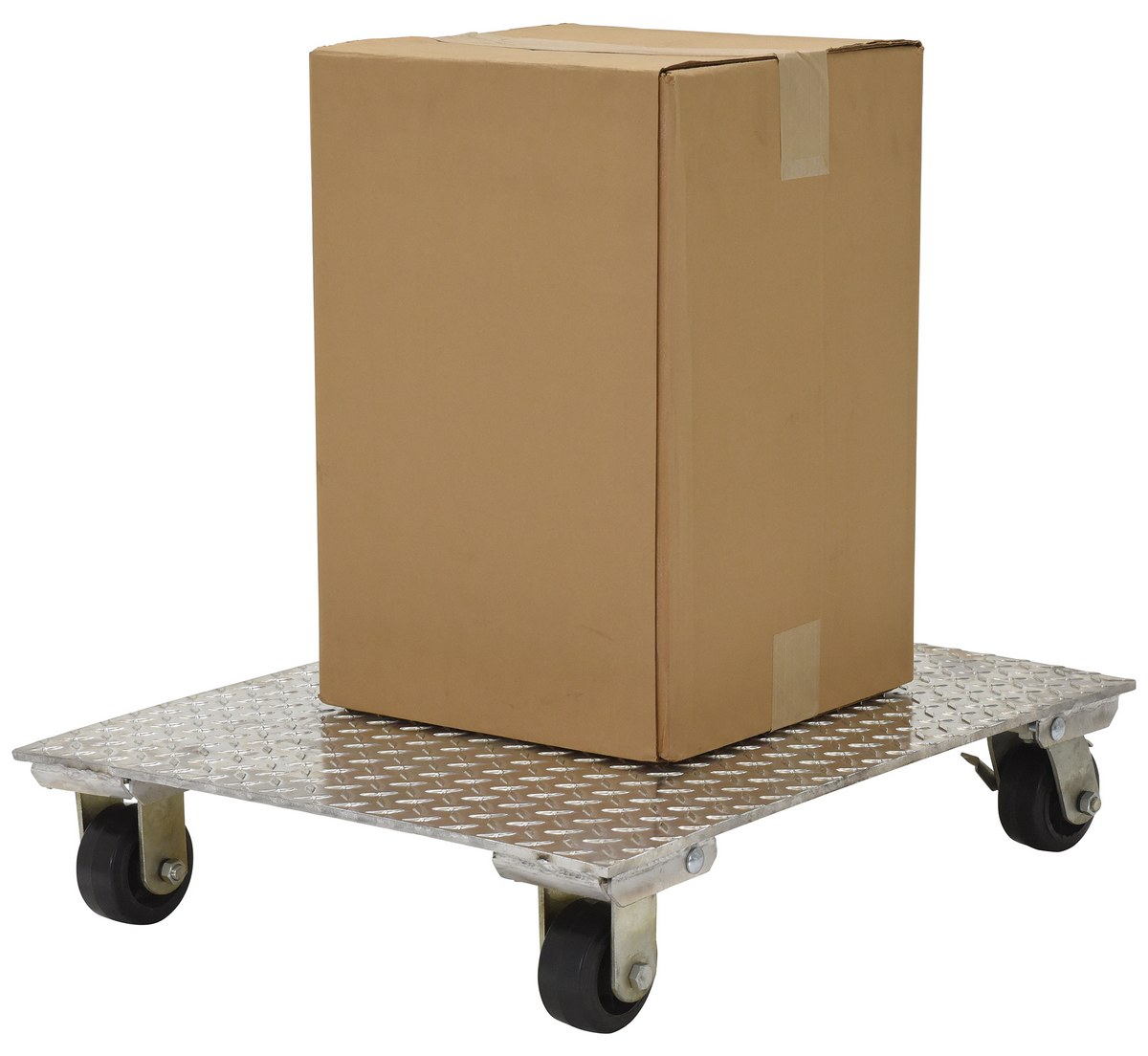

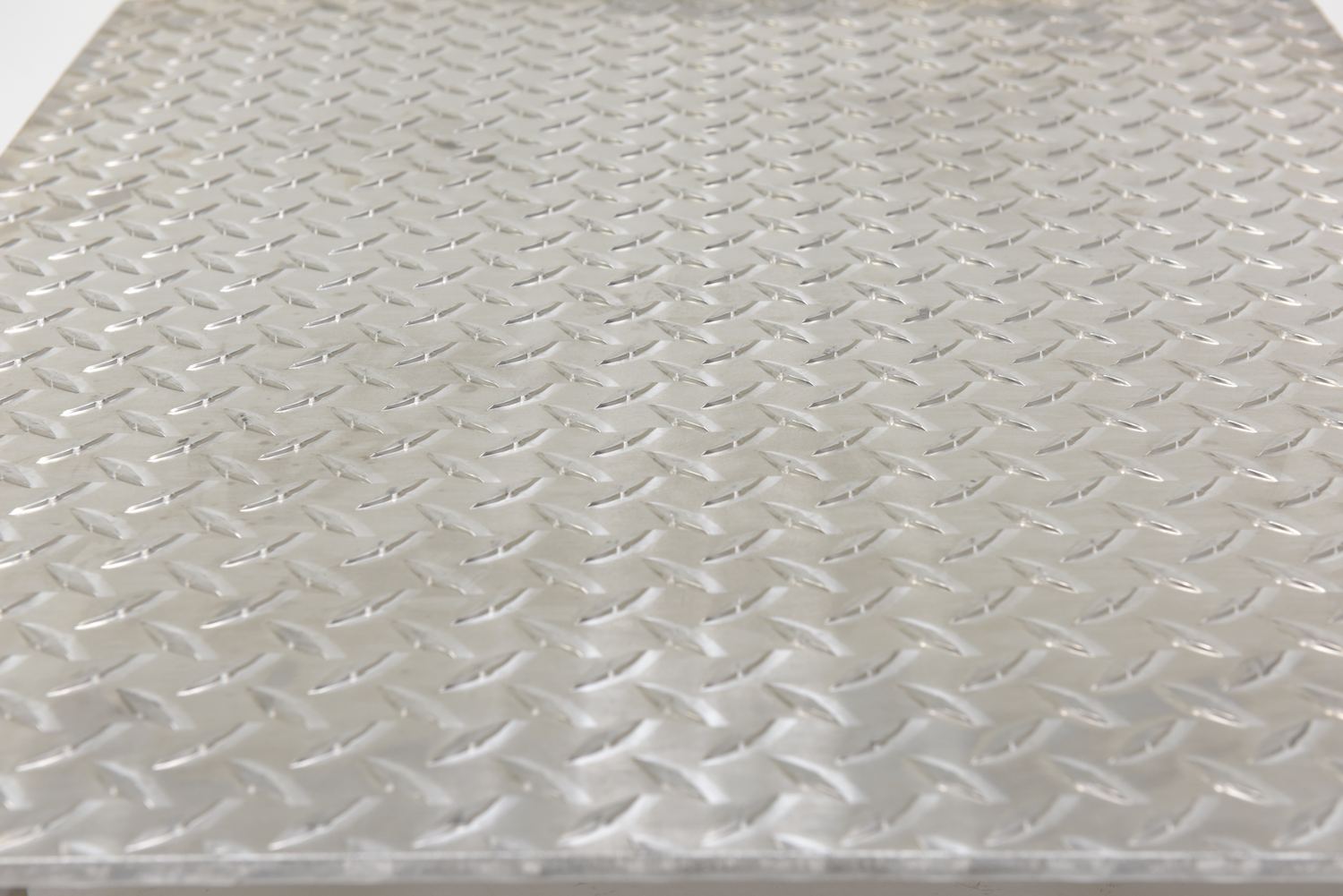

Aluminum and steel plate dollies provide a durable, low-profile solution for moving products, boxes, crates, parts, and supplies between workstations in warehouses, distribution centers, manufacturing plants, maintenance areas, and material handling facilities. The raised diamond tread plate deck helps add grip during transport while providing a rugged surface for daily use.

Aluminum and Steel Construction

This family includes aluminum plate dollies for lighter handling and corrosion-resistant performance, along with steel plate dollies for rugged strength in demanding environments. Both styles are built for dependable load movement where durability, stability, and long service life matter.

Deck Sizes and Capacity

Models support 1,200 lb. uniform static capacity and are available in 14 inch x 18 inch, 18 inch x 24 inch, and 24 inch x 30 inch deck sizes. The compact platform design helps users position and transport materials efficiently through aisles, storage areas, and production spaces.

Caster Layouts and Accessories

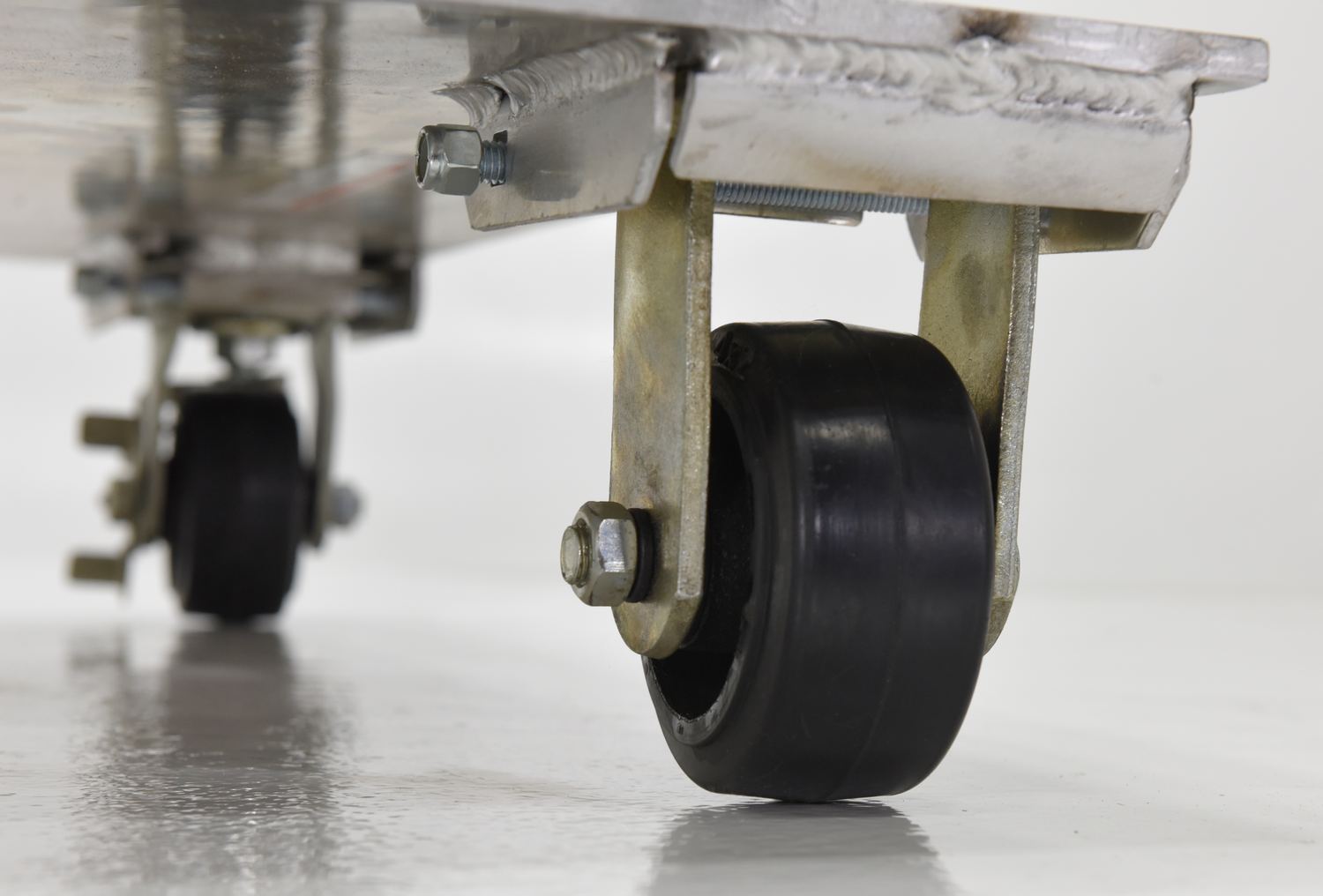

Four inch x 2 inch mold-on-rubber casters provide smooth rolling performance, with standard configurations using two rigid and two swivel casters with brake. All-swivel models are available for tighter maneuvering. Optional pull straps and metal hooks can be added for improved operator control during frequent transport tasks.

Aluminum and Steel Plate Dollies

model: VPLDO-A-2430

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

VPLDO/A-1418-AS

VPLDO/A-1824-AS

VPLDO/A-2430-AS

VPLDO/S-1418-AS

VPLDO/S-1824-AS

VPLDO/S-2430-AS

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.

Model	Image	Description					Wt (lbs.)
STRAP-8		7 Foot 3 Inches Long Nylon Loop Pull Strap					2
HOOK-8		4 Foot Long Metal Hook					3

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Owner's Manuals

0

No owner's manuals for this product family.

Survey Sheets

1

Approval Drawings

0

No approval drawings for this product family.

Testing Certificates

12

Open Certificate

VPLDO/A-1418-AS

Open Certificate

Open Certificate

VPLDO/A-1824-AS

Open Certificate

Open Certificate

VPLDO/A-2430-AS

Open Certificate

Open Certificate

VPLDO/S-1418-AS

Open Certificate

Open Certificate

VPLDO/S-1824-AS

Open Certificate

Open Certificate

VPLDO/S-2430-AS

Open Certificate

SDS Sheets

0

No SDS sheets for this product family.

Label Page PDFs

12

VPLDO/A-1418-AS

VPLDO/A-1824-AS

VPLDO/A-2430-AS

VPLDO/S-1418-AS

VPLDO/S-1824-AS

VPLDO/S-2430-AS

Other PDFs

0

No other PDFs for this product family.

Print Friendly

Related or Similar Products:

More From Industrial Dollies

Dolly Converter

Dolly Converter

Heavy-Duty Dollies

Heavy-Duty Dollies

Fiberwood Dollies

Fiberwood Dollies

Keg Transport Dolly

Keg Transport Dolly

Keg Transport Skate

Keg Transport Skate

Steel Dolly Sets

Steel Dolly Sets

Aluminum and Steel Plate Dollies

Diamond Plate Dollies for Industrial Material Handling and Workstation Transport

Aluminum and steel plate dollies provide a durable, low-profile solution for moving products, boxes, crates, parts, and supplies between workstations in warehouses, distribution centers, manufacturing plants, maintenance areas, and material handling facilities. The raised diamond tread plate deck helps add grip during transport while providing a rugged surface for daily use.

Aluminum and Steel Construction

This family includes aluminum plate dollies for lighter handling and corrosion-resistant performance, along with steel plate dollies for rugged strength in demanding environments. Both styles are built for dependable load movement where durability, stability, and long service life matter.

Deck Sizes and Capacity

Models support 1,200 lb. uniform static capacity and are available in 14 inch x 18 inch, 18 inch x 24 inch, and 24 inch x 30 inch deck sizes. The compact platform design helps users position and transport materials efficiently through aisles, storage areas, and production spaces.

Caster Layouts and Accessories

Four inch x 2 inch mold-on-rubber casters provide smooth rolling performance, with standard configurations using two rigid and two swivel casters with brake. All-swivel models are available for tighter maneuvering. Optional pull straps and metal hooks can be added for improved operator control during frequent transport tasks.

Model #		Description	Attributes	Net Wt. (lbs)

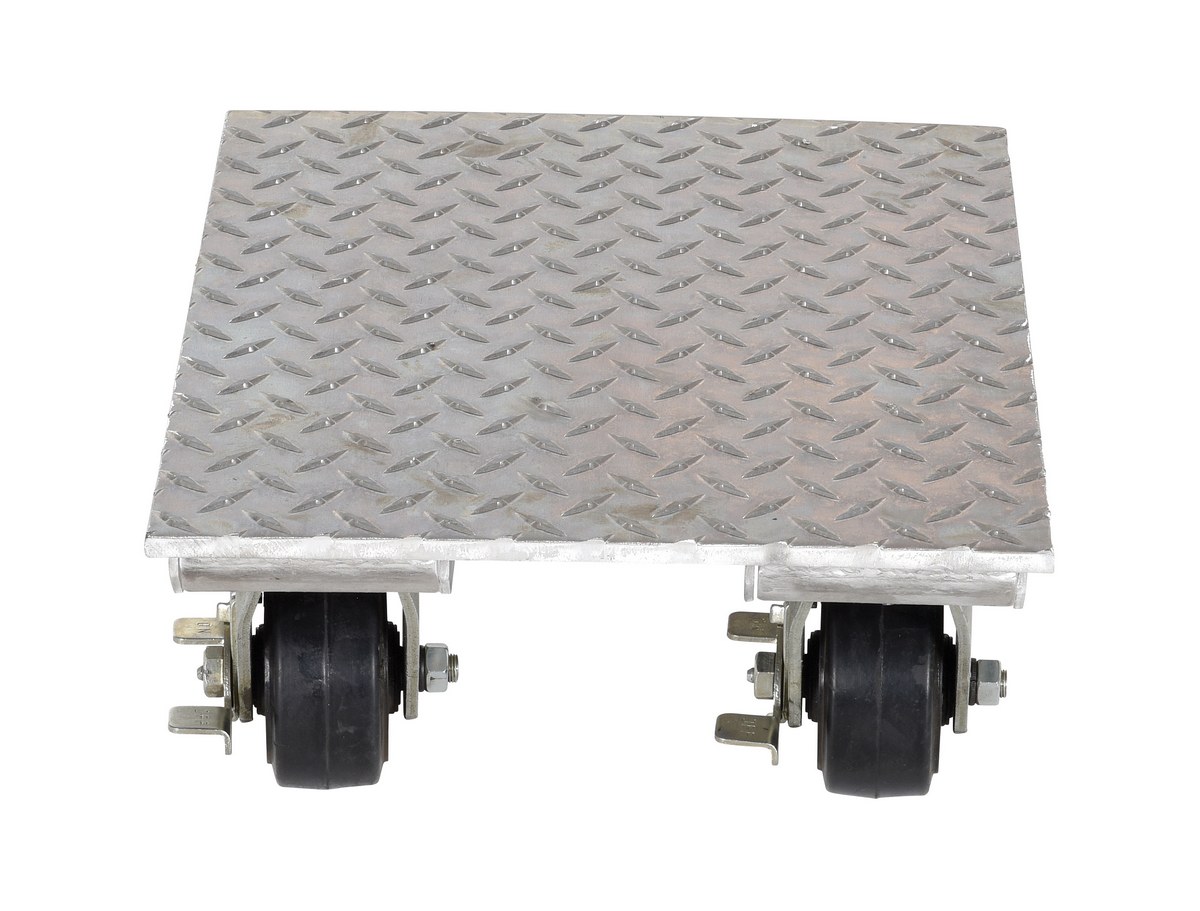

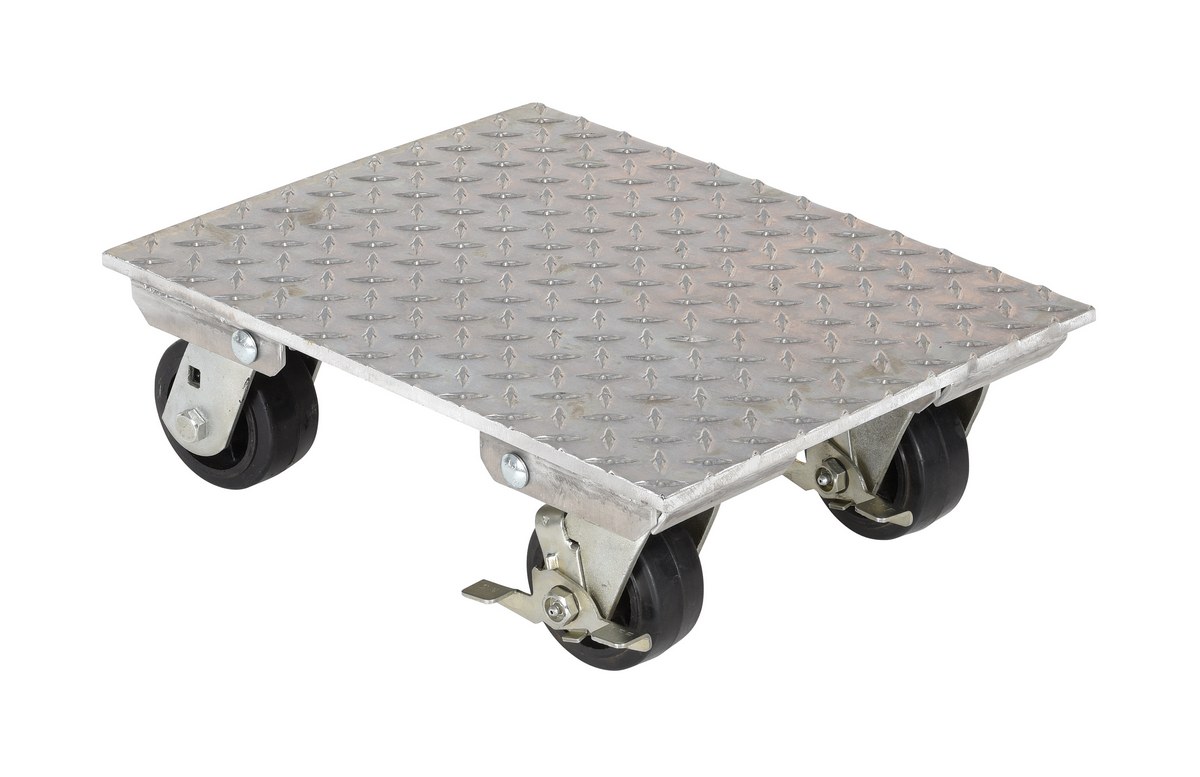

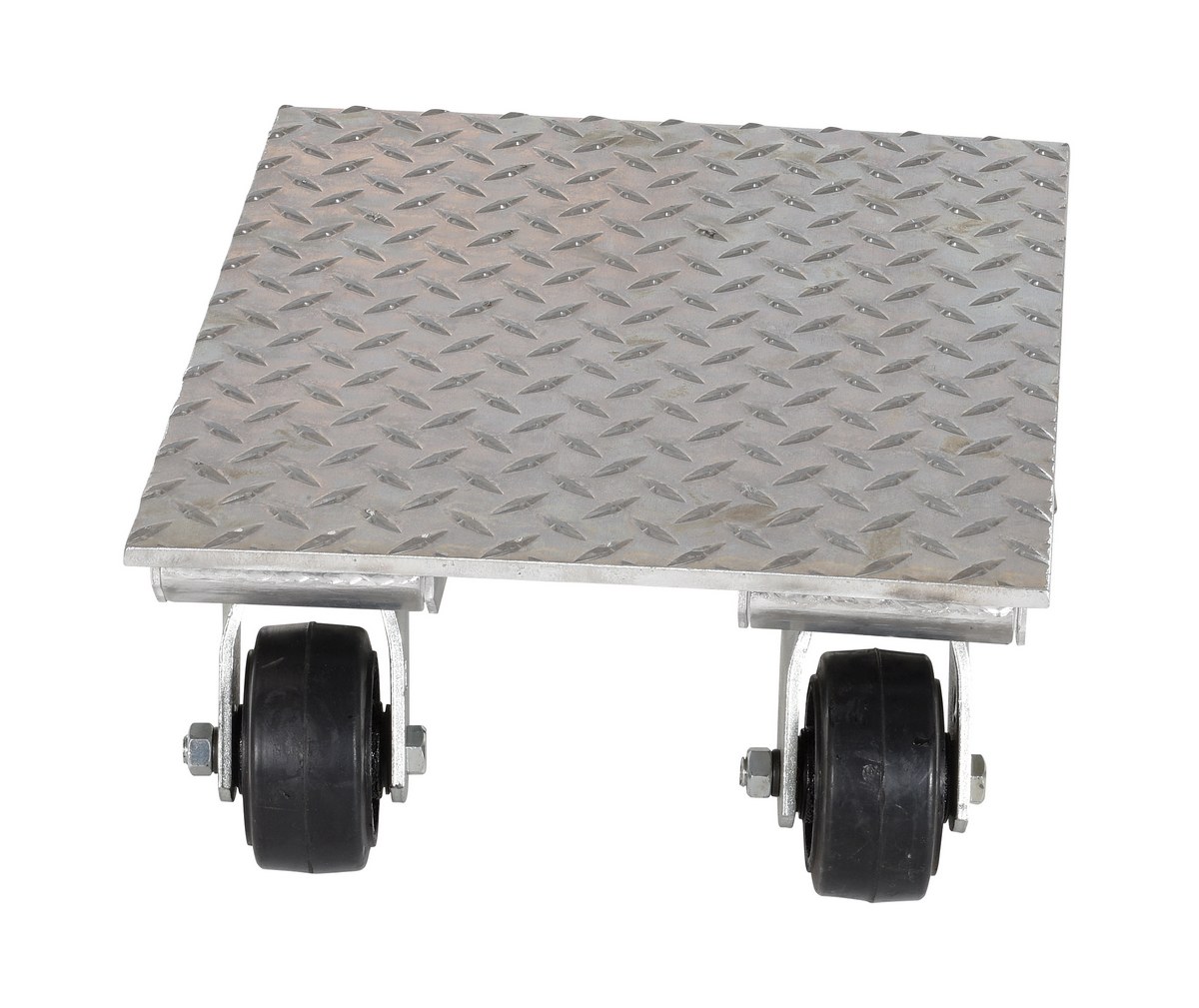

VPLDO/A-1418		Aluminum Plate Dolly 14 In. x 18 In. 1,200 Lb. Capacity Silver	Uniform Static Capacity (lb.): 1,200 Deck Size Width/Length (in.): 14 x 18	27
VPLDO/A-1418-AS		Aluminum Plate Dolly 14 In. x 18 In. Swivel 1,200 Lb. Capacity Silver	Uniform Static Capacity (lb.): 1,200 Deck Size Width/Length (in.): 14 x 18	37

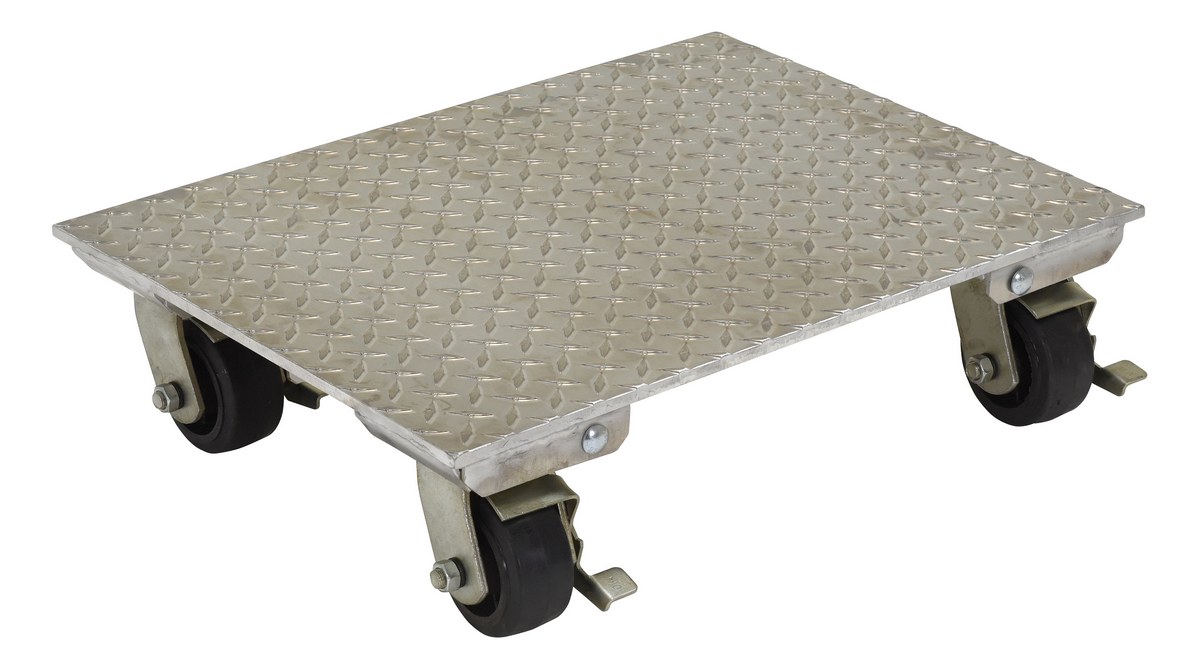

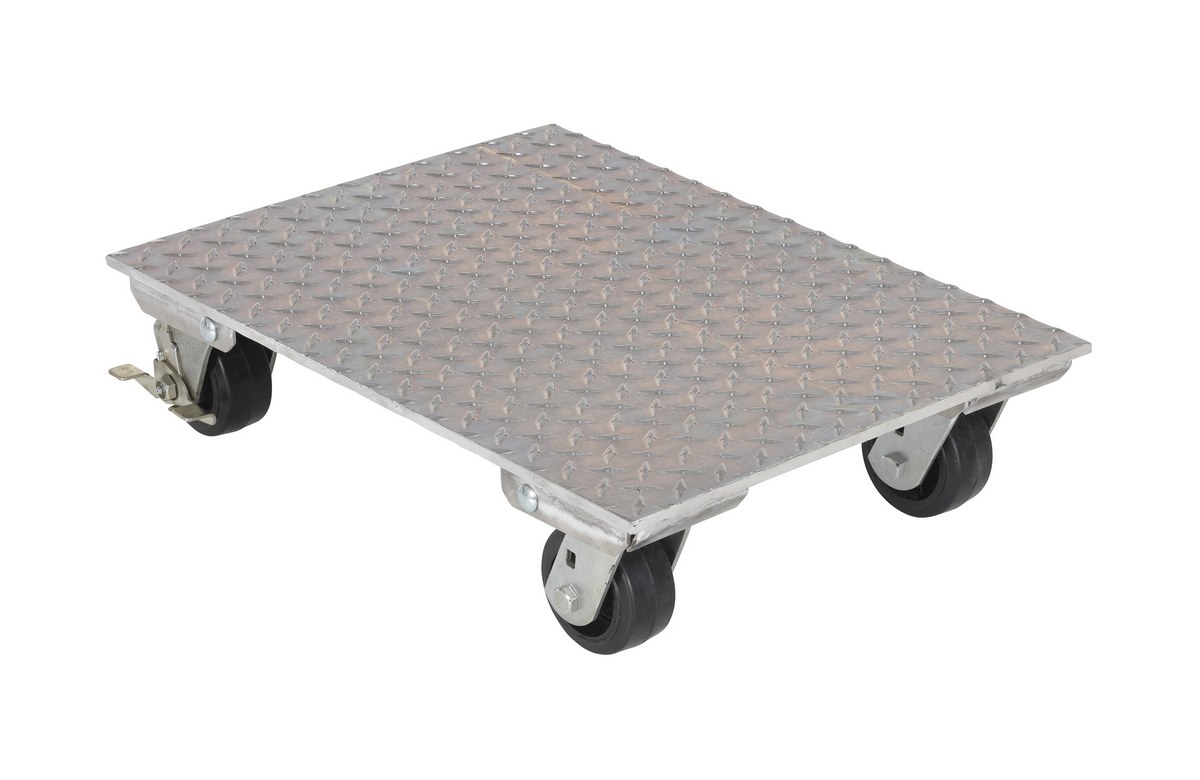

VPLDO/A-1824		Aluminum Plate Dolly 18 In. x 24 In. 1,200 Lb. Capacity Silver	Uniform Static Capacity (lb.): 1,200 Deck Size Width/Length (in.): 18 x 24	43
VPLDO/A-1824-AS		Aluminum Plate Dolly 18 In. x 24 In. Swivel 1,200 Lb. Capacity Silver	Uniform Static Capacity (lb.): 1,200 Deck Size Width/Length (in.): 18 x 24	43

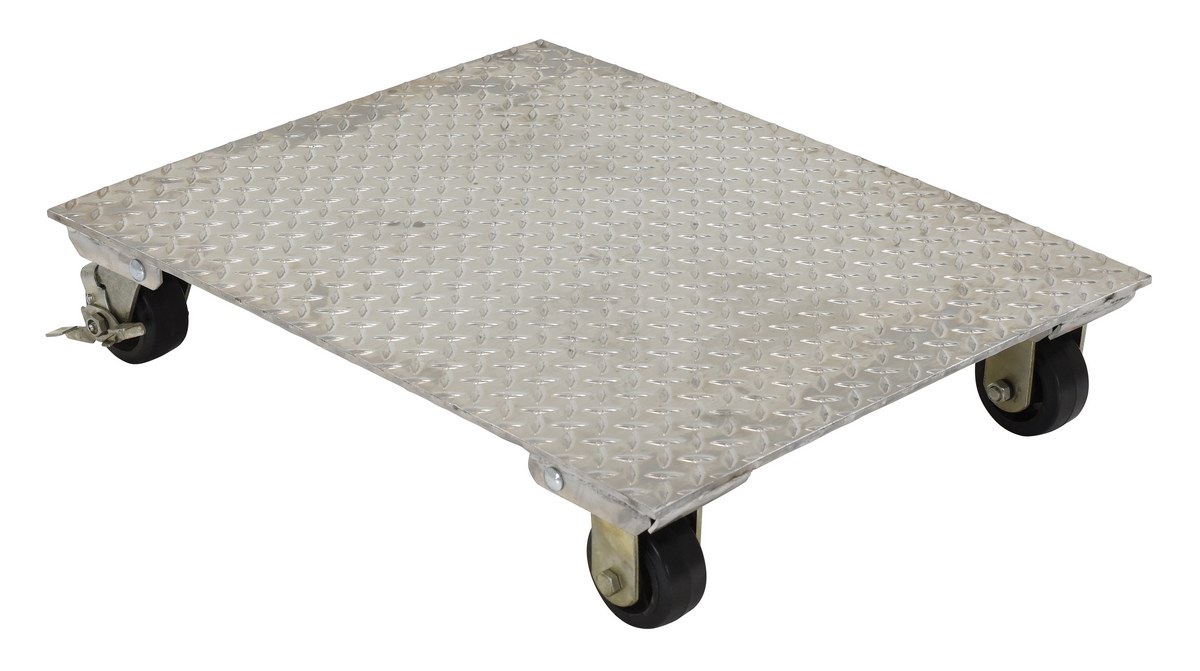

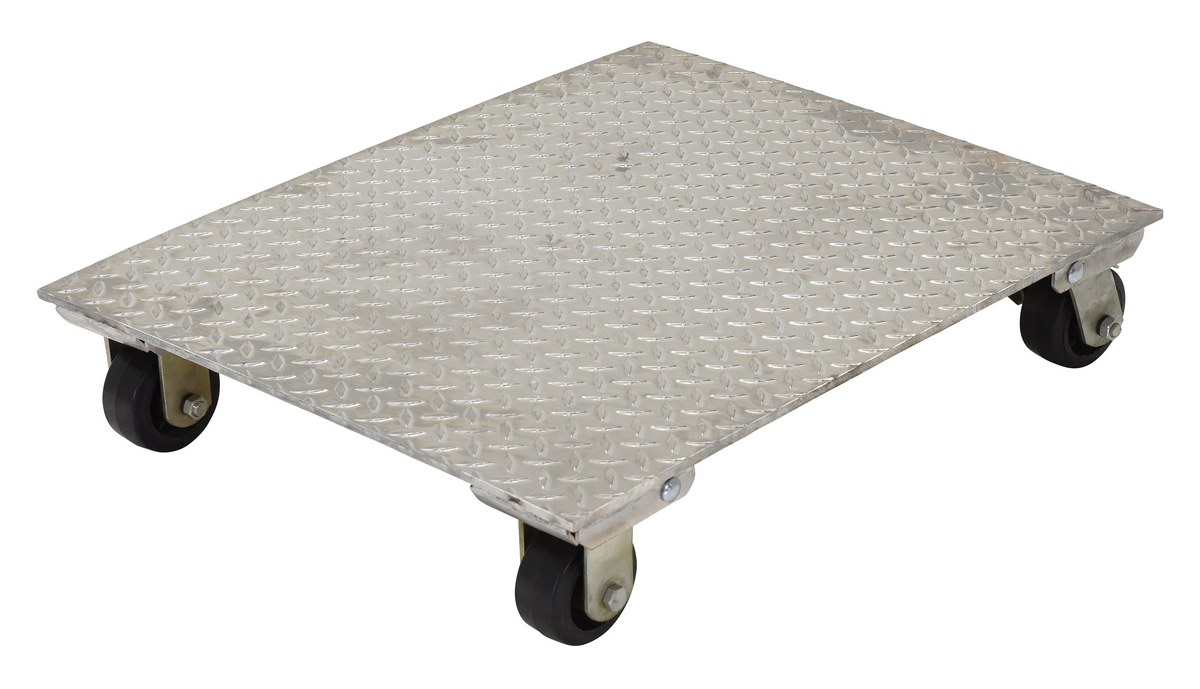

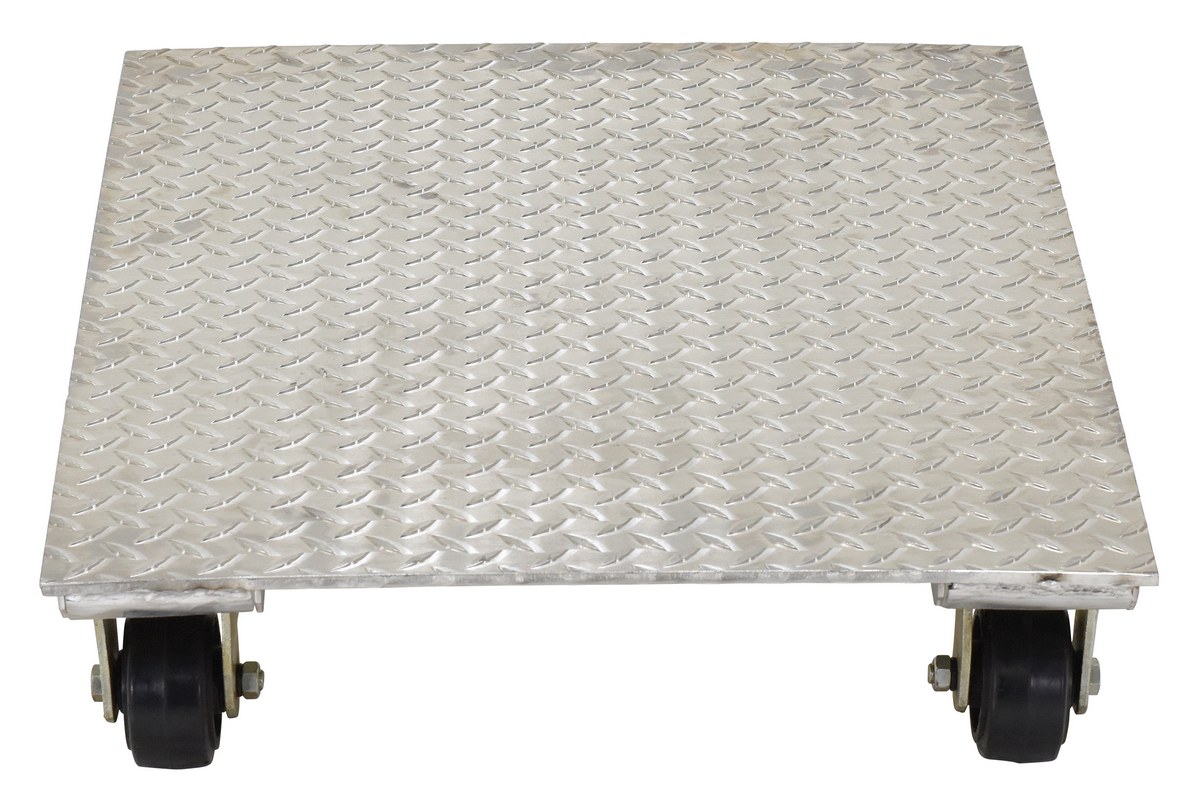

VPLDO/A-2430		Aluminum Plate Dolly 24 In. x 30 In. 1,200 Lb. Capacity Silver	Uniform Static Capacity (lb.): 1,200 Deck Size Width/Length (in.): 24 x 30	48
VPLDO/A-2430-AS		Aluminum Plate Dolly 24 In. x 30 In. Swivel 1,200 Lb. Capacity Silver	Uniform Static Capacity (lb.): 1,200 Deck Size Width/Length (in.): 24 x 30	47

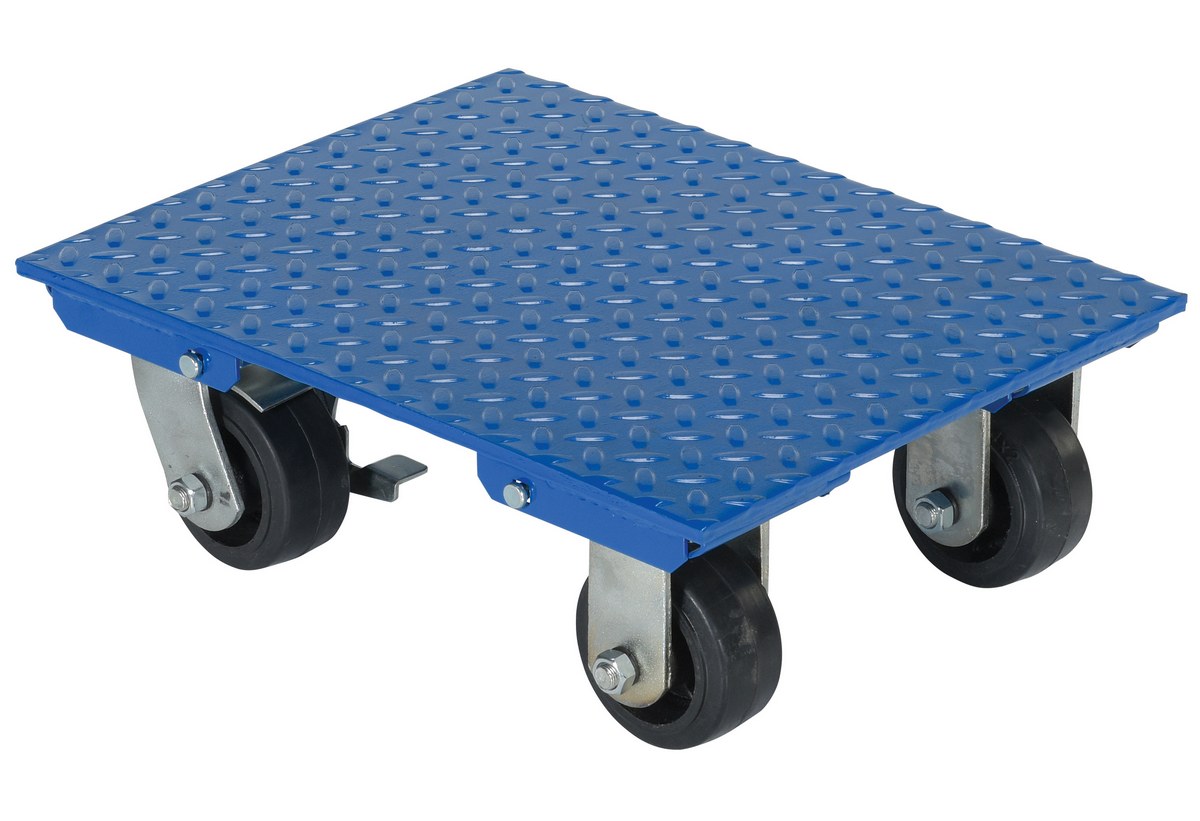

VPLDO/S-1418		Steel Plate Dolly 14 In. x 18 In. 1,200 Lb. Capacity Blue	Uniform Static Capacity (lb.): 1,200 Deck Size Width/Length (in.): 14 x 18	51

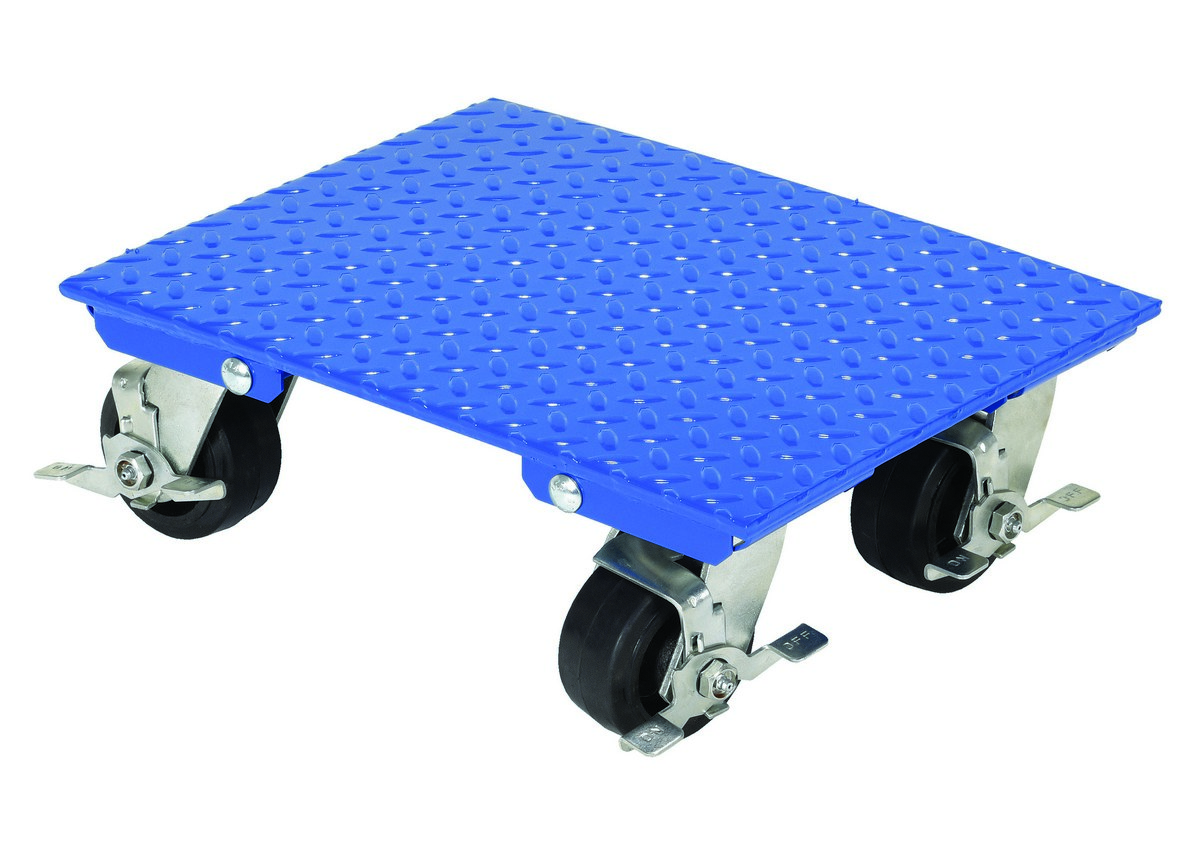

VPLDO/S-1418-AS		Steel Plate Dolly 14 In. x 18 In. Swivel 1,200 Lb. Capacity Blue	Uniform Static Capacity (lb.): 1,200 Deck Size Width/Length (in.): 14 x 18	51

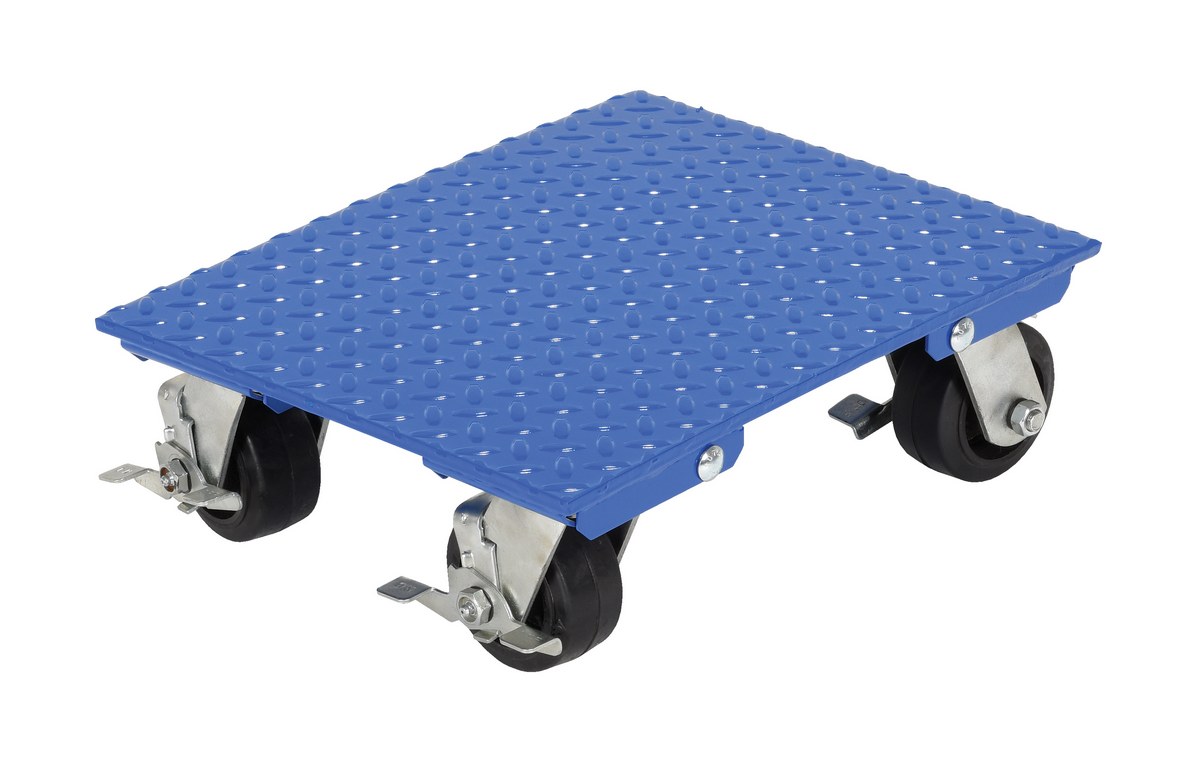

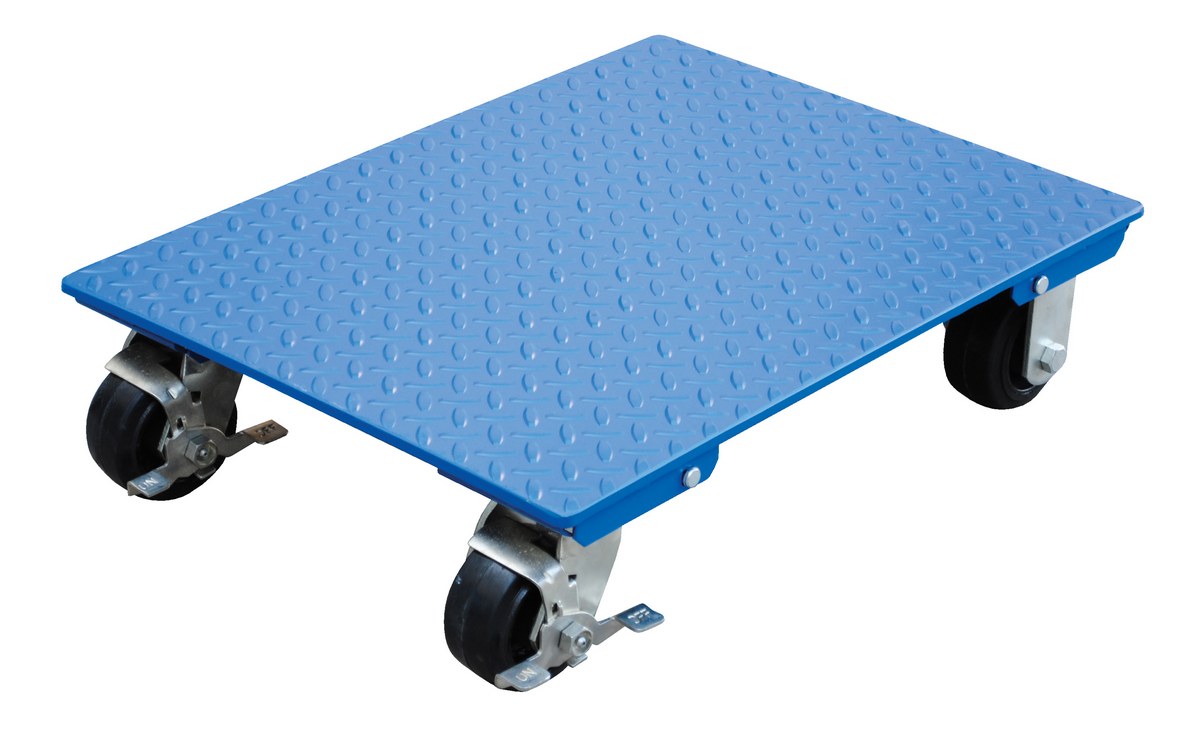

VPLDO/S-1824		Steel Plate Dolly 18 In. x 24 In. 1,200 Lb. Capacity Blue	Uniform Static Capacity (lb.): 1,200 Deck Size Width/Length (in.): 18 x 24	73
VPLDO/S-1824-AS		Steel Plate Dolly 18 In. x 24 In. Swivel 1,200 Lb. Capacity Blue	Uniform Static Capacity (lb.): 1,200 Deck Size Width/Length (in.): 18 x 24	73
VPLDO/S-2430		Steel Plate Dolly 24 In. x 30 In. 1,200 Lb. Capacity Blue	Uniform Static Capacity (lb.): 1,200 Deck Size Width/Length (in.): 24 x 30	149
VPLDO/S-2430-AS		Steel Plate Dolly 24 In. x 30 In. Swivel 1,200 Lb. Capacity Blue	Uniform Static Capacity (lb.): 1,200 Deck Size Width/Length (in.): 24 x 30	45

Options

Model	Image	Description					Wt (lbs.)
STRAP-8		7 Foot 3 Inches Long Nylon Loop Pull Strap					2
HOOK-8		4 Foot Long Metal Hook					3
