Steel Machine Rollers & Accessories

model: VHMS-2-KIT



Featured Industrial Carts & Dollies


Appliance Carts
Portable Carpet Dollies & Dispensers
Work-Height Platform Trucks
Stair Hand Truck (Four Handles)
Hand Trucks with Fold-Down Platform
A-Frame Carts
Platform Carts with Versatile Dividers
Semi-Live Steel Skids & Lever Jack
Powered Stair Climber
model chart

Product Family Overview

Print Friendly
Steel Machine Rollers & Accessories
SERIES: VHMS,VHMH

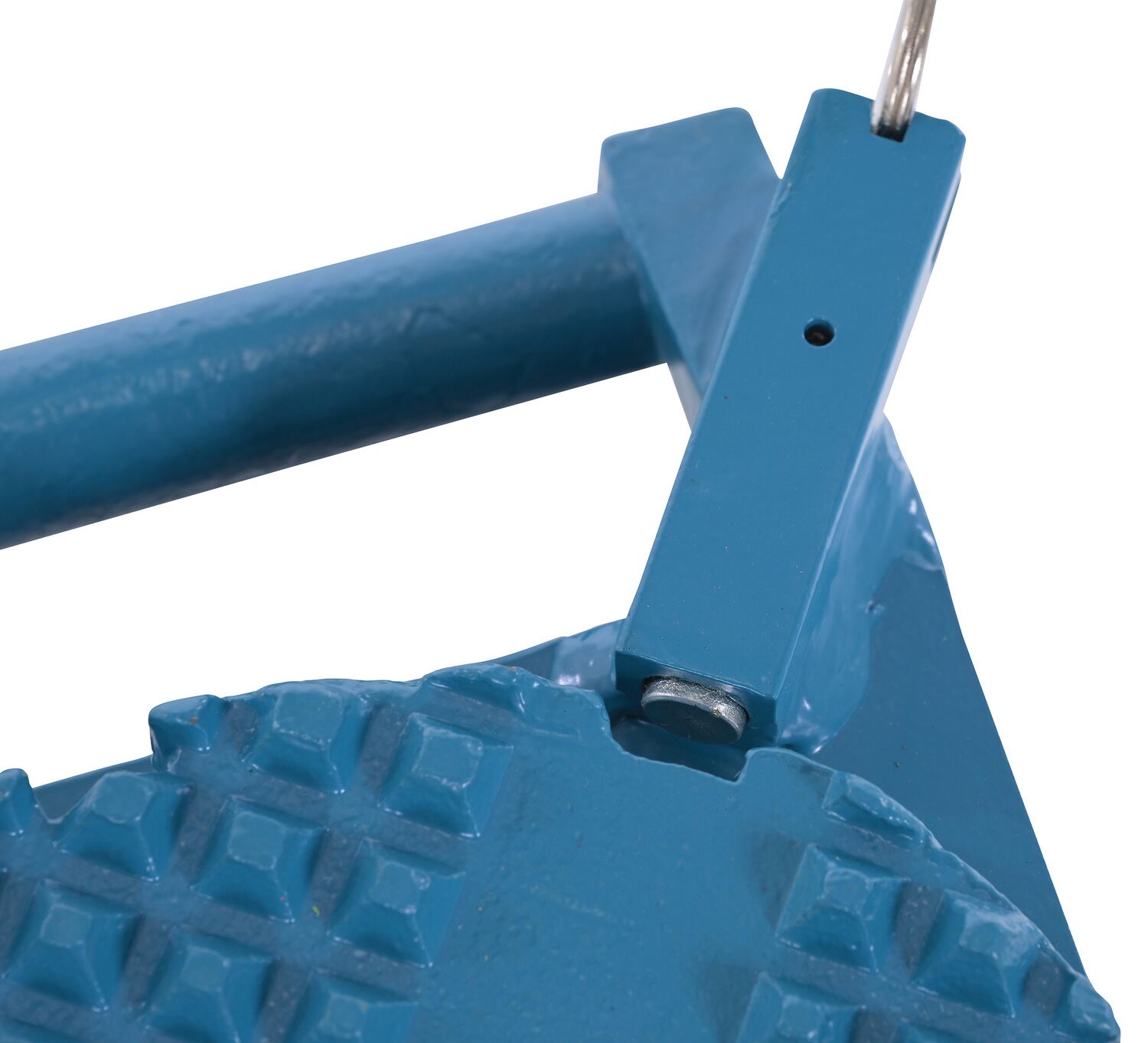

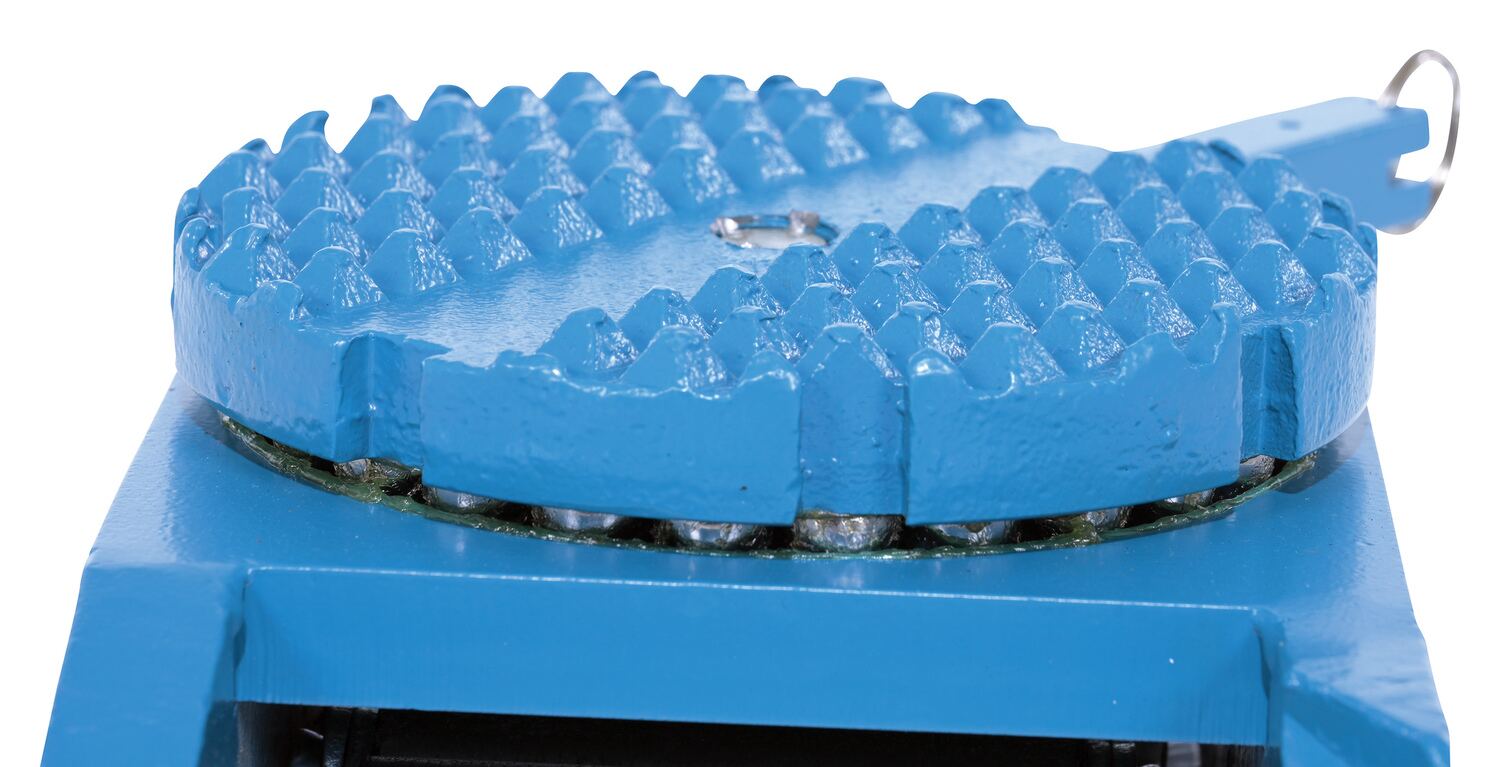

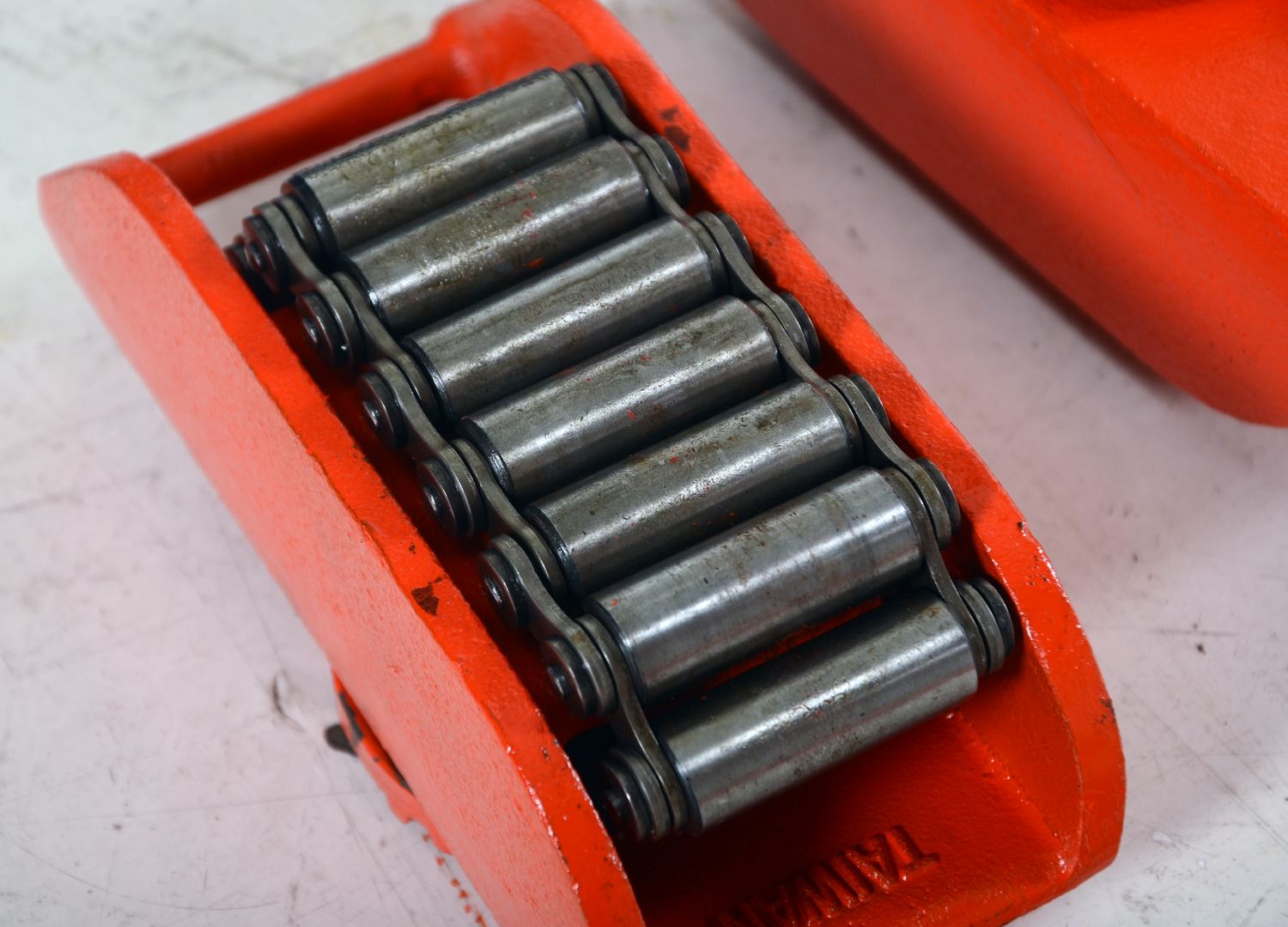

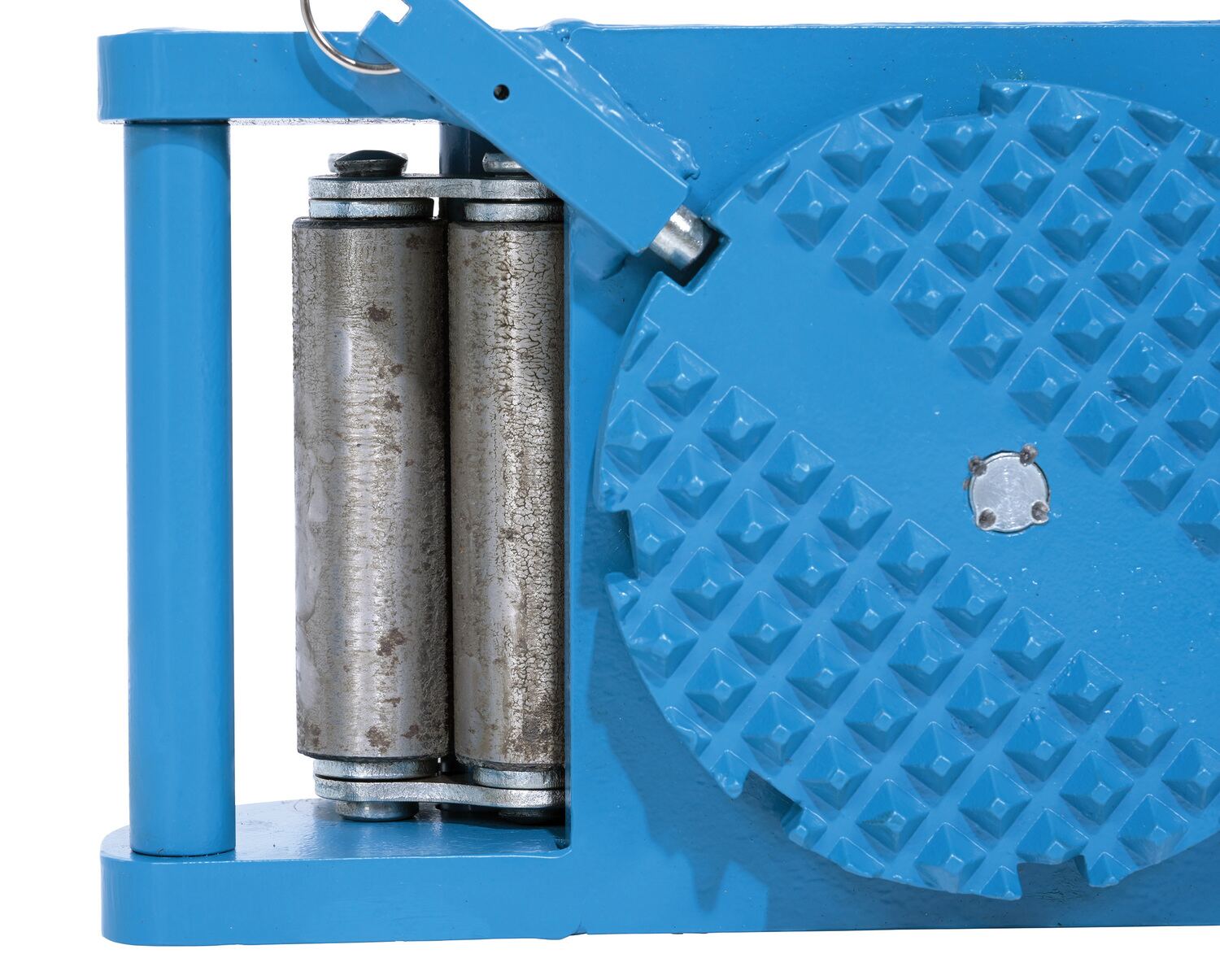

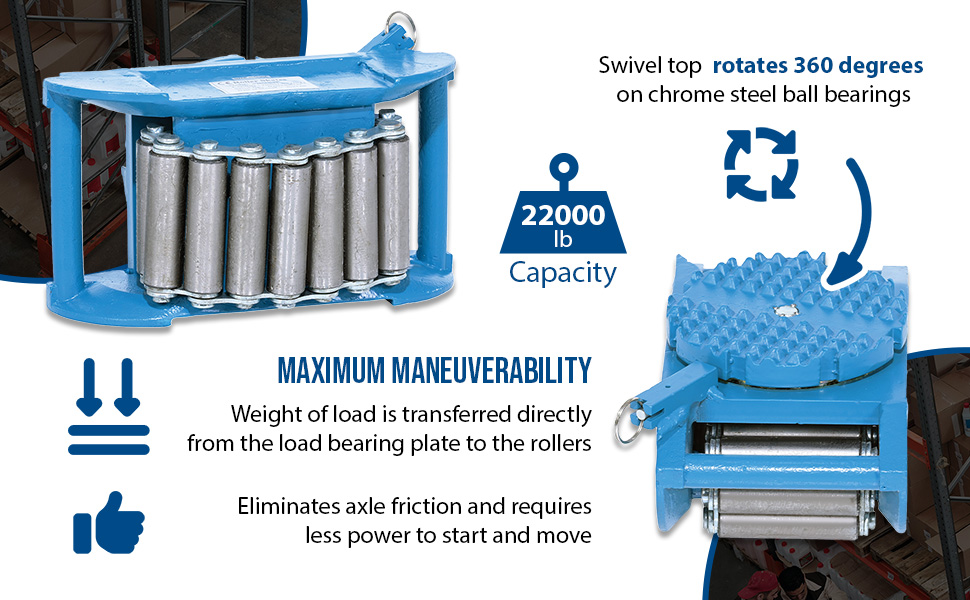

Made of high-strength annealed ductile iron, these Steel Machine Rollers have swivel tops that rotate 360 degrees on chrome steel ball bearings to allow for easier turning. The rollers form a "tank track" to revolve around a center load bearing plate in the frame to provide maximum maneuverability. The weight of the load is transferred directly from the load bearing plate to the rollers, eliminating axle friction and requiring less power to start and move. A spring loaded locking mechanism on the swivel tops, except on model VHMS-2, can be engaged in detents at 45 degrees intervals. These units are virtually maintenance free. Steering bars split in two and connect with sleeve for easy storage.

Made of high-strength annealed ductile iron, these Steel Machine Rollers have swivel tops that rotate 360 degrees on chrome steel ball bearings to allow for easier turning. The rollers form a "tank track" to revolve around a center load bearing plate in the frame to provide maximum maneuverability. The weight of the load is transferred directly from the load bearing plate to the rollers, eliminating axle friction and requiring less power to start and move. A spring loaded locking mechanism on the swivel tops, except on model VHMS-2, can be engaged in detents at 45 degrees intervals. These units are virtually maintenance free. Steering bars split in two and connect with sleeve for easy storage.

Other Machine Rollers & Lifts

 Machinery Skates Steel Machine Rollers & Accessories Machinery Lifts Mechanical Machinery Jacks

Additional Models In This Family
view entire Image Gallery

VHMS-30

VHMS-30

VHMS-2-KIT

VHMS-2-KIT

VHMS-2

VHMS-2

VHMH-36-1

VHMH-36-1

VHMH-48-1

VHMH-48-1

VHMH-36-2

VHMH-36-2

VHMS-2-KIT

VHMS-2-KIT

VHMS-8

VHMS-8

VHMS-2-KIT

VHMS-2-KIT

VHMS-30

VHMS-30

VHMH-TB-2

VHMH-TB-2

VHMH-36-1

VHMH-36-1

VHMH-36-2

VHMH-36-2

VHMS-30

VHMS-30

VHMS-15

VHMS-15

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

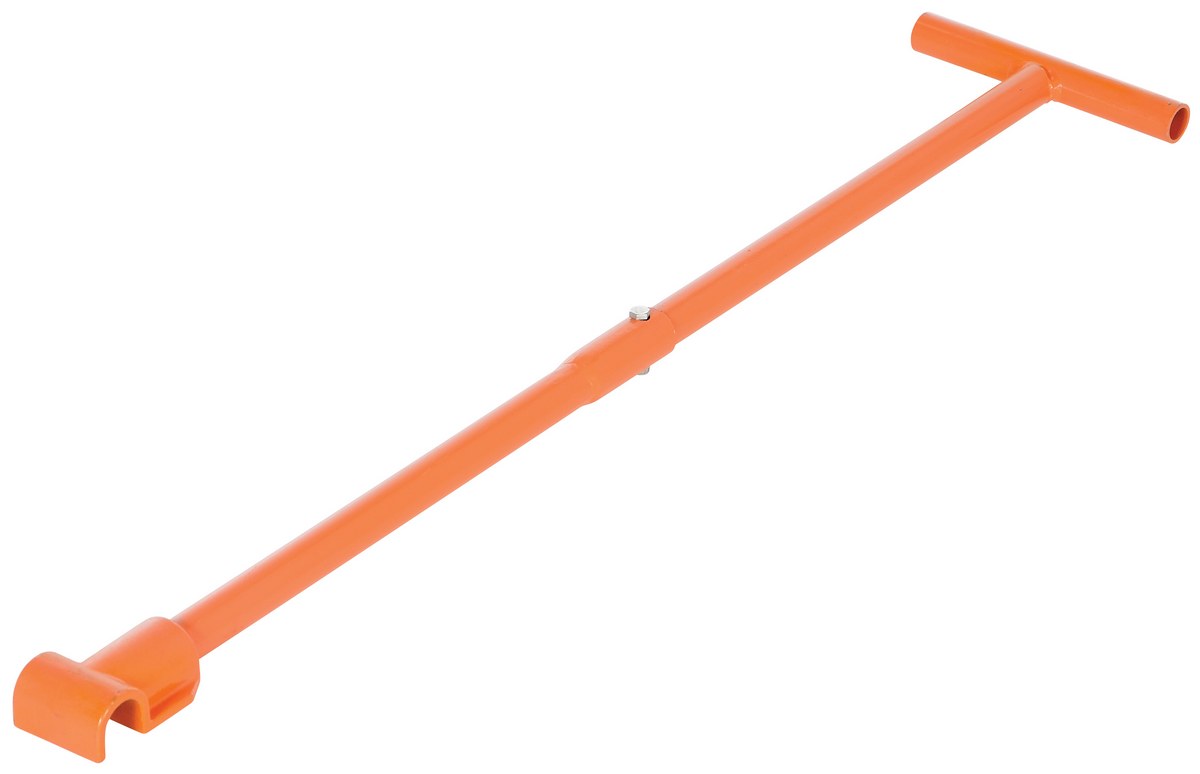

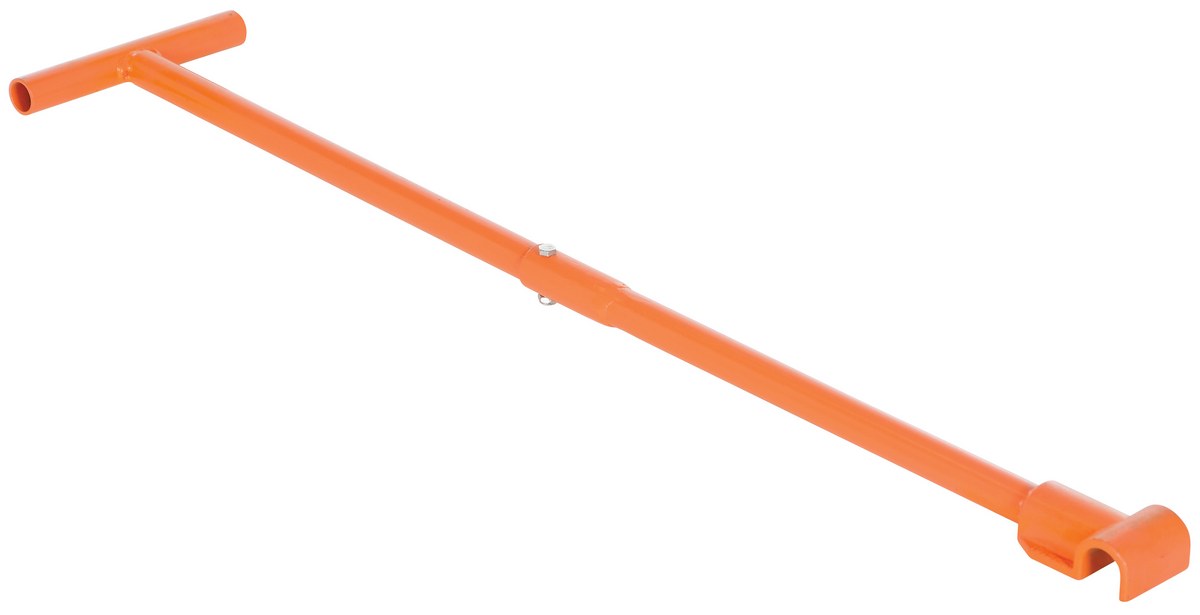

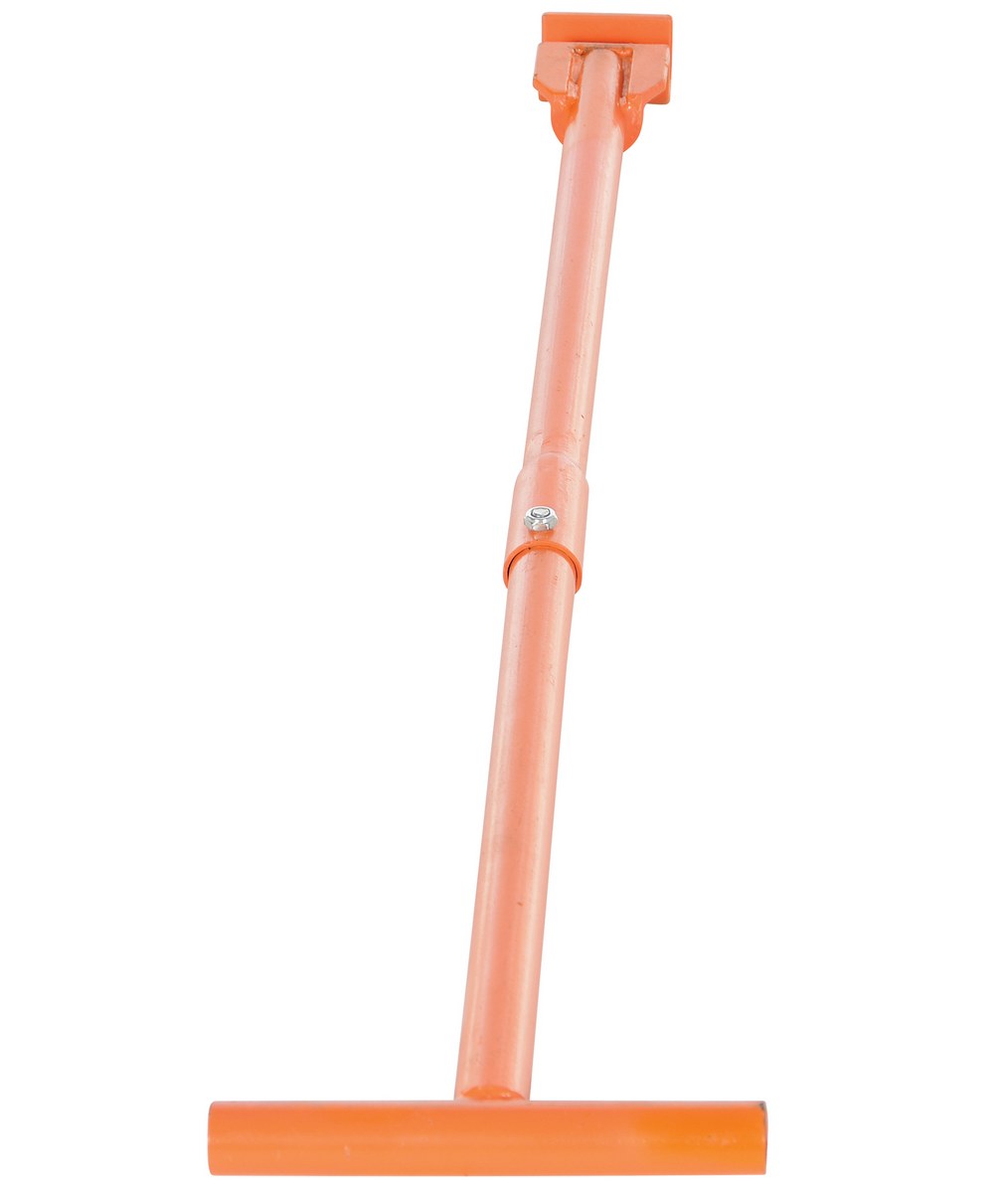

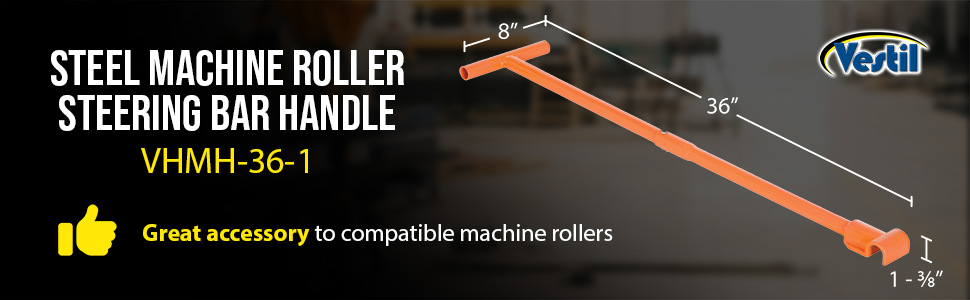

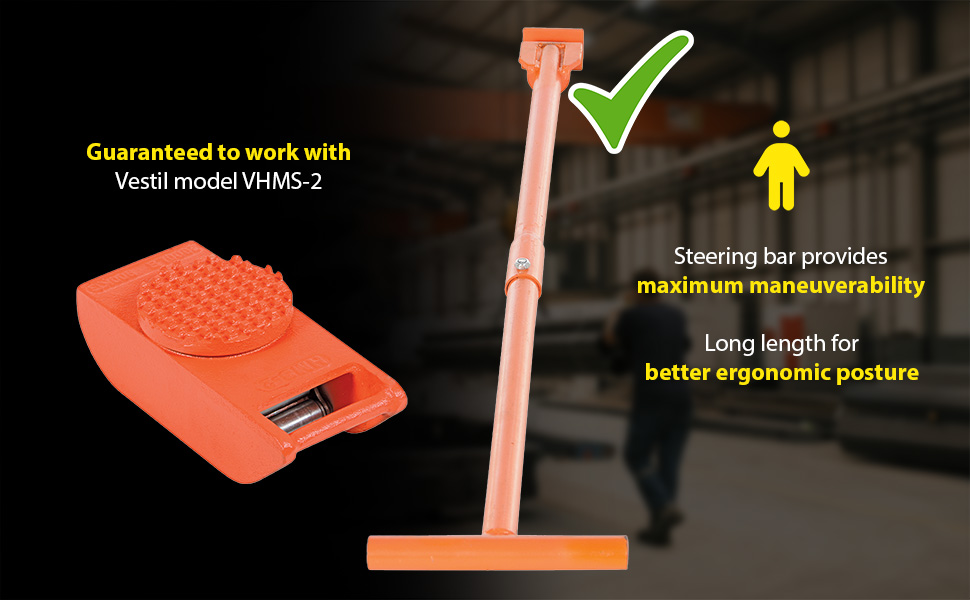

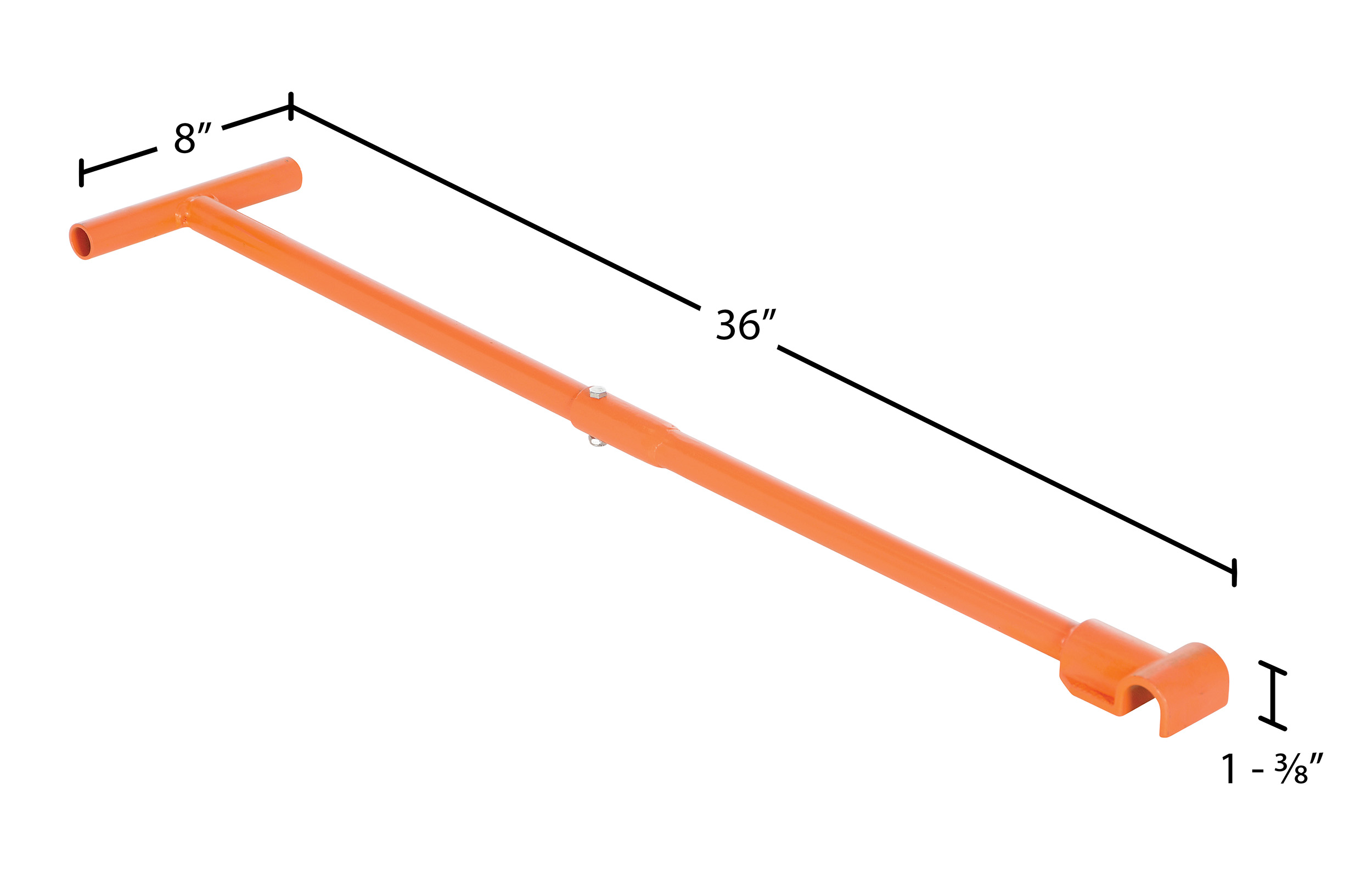

VHMH-36-1 VHMH-36-130 Days Limited WarrantySteel Machine Roller Steering Bar Handle 36 In. Length For Use with VHMS-2 OrangeComponent: Handle
Handle Length (in.): 36		10

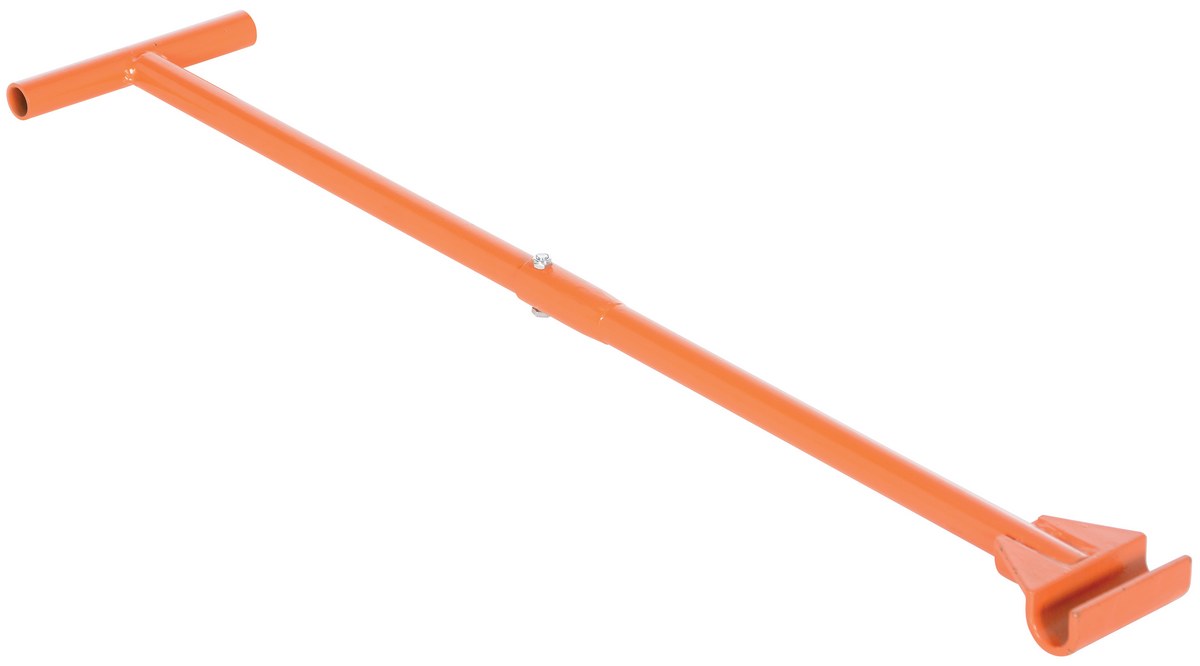

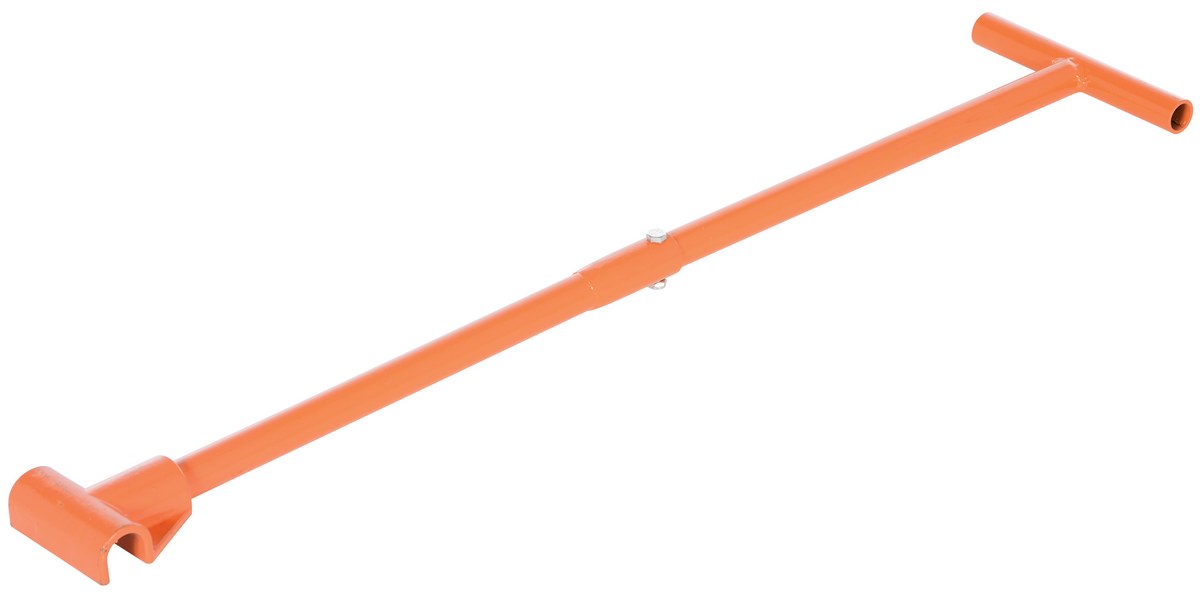

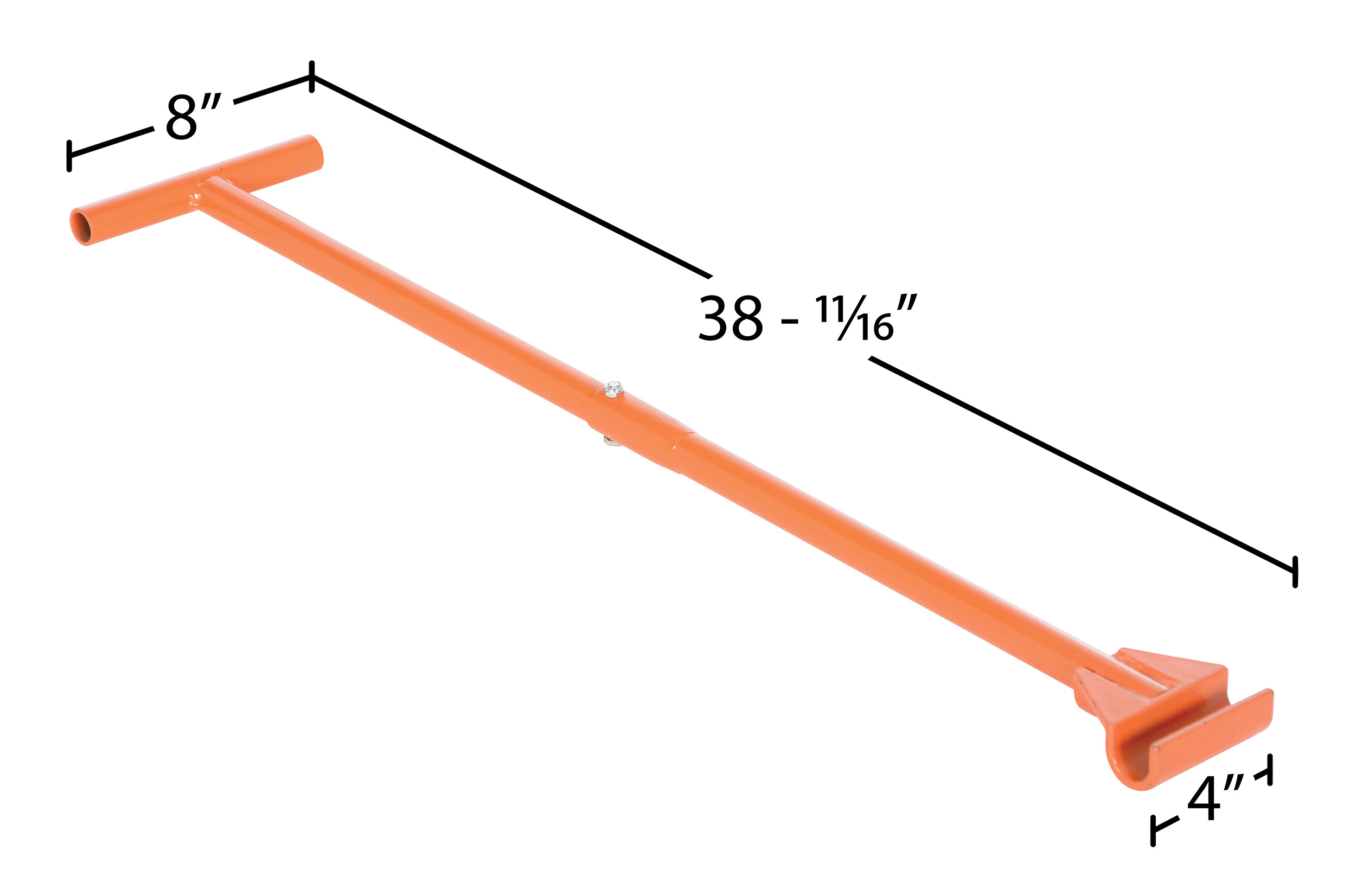

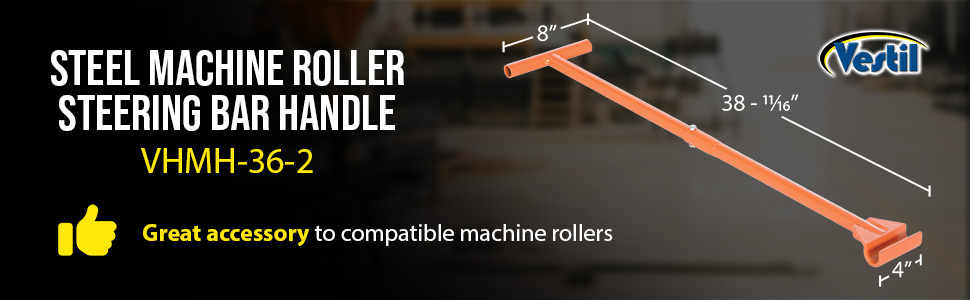

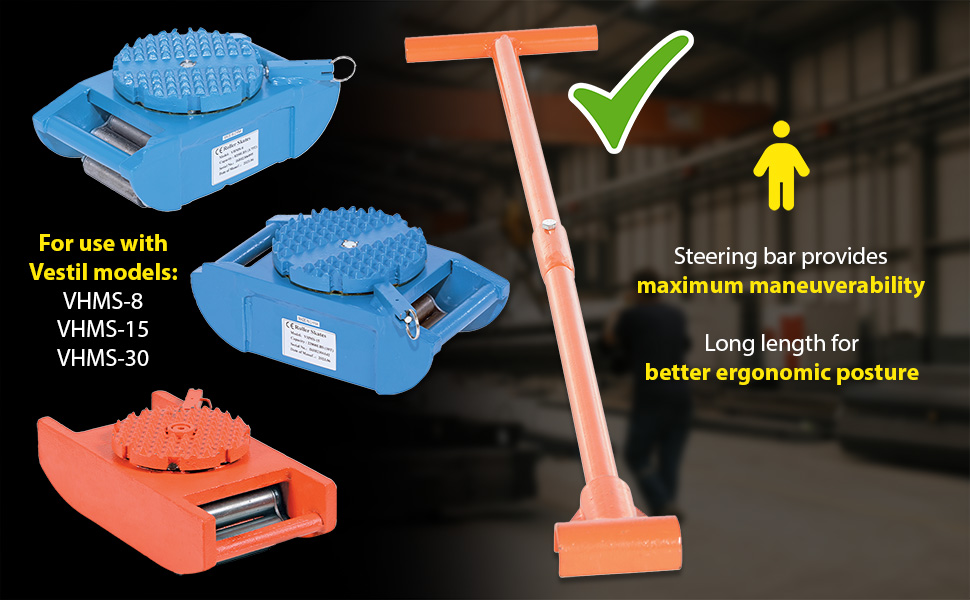

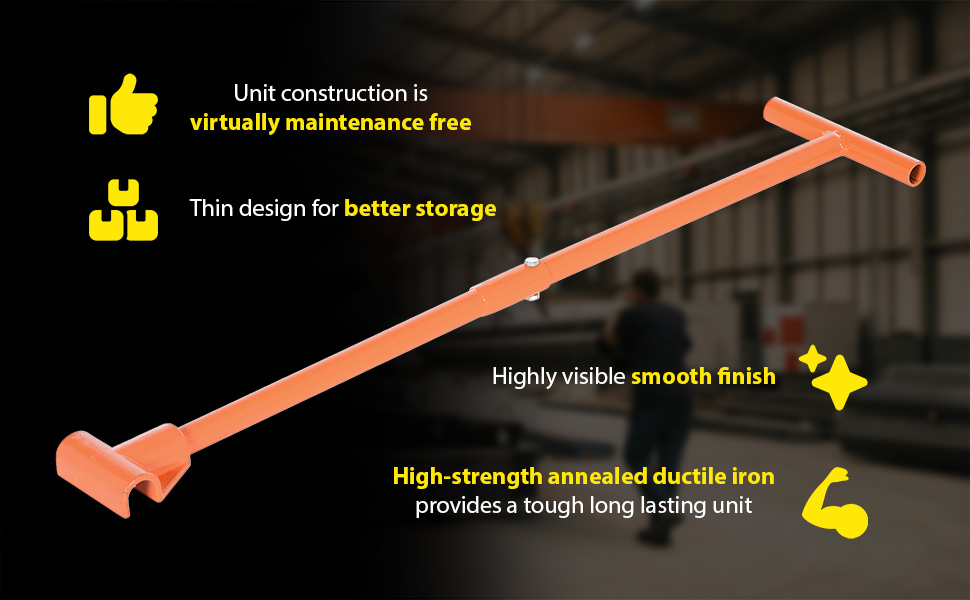

VHMH-36-2 VHMH-36-230 Days Limited WarrantySteel Machine Roller Steering Bar Handle 36 In. Length For Use with VHMS-8, 15, and 30 OrangeComponent: Handle
Handle Length (in.): 36		15

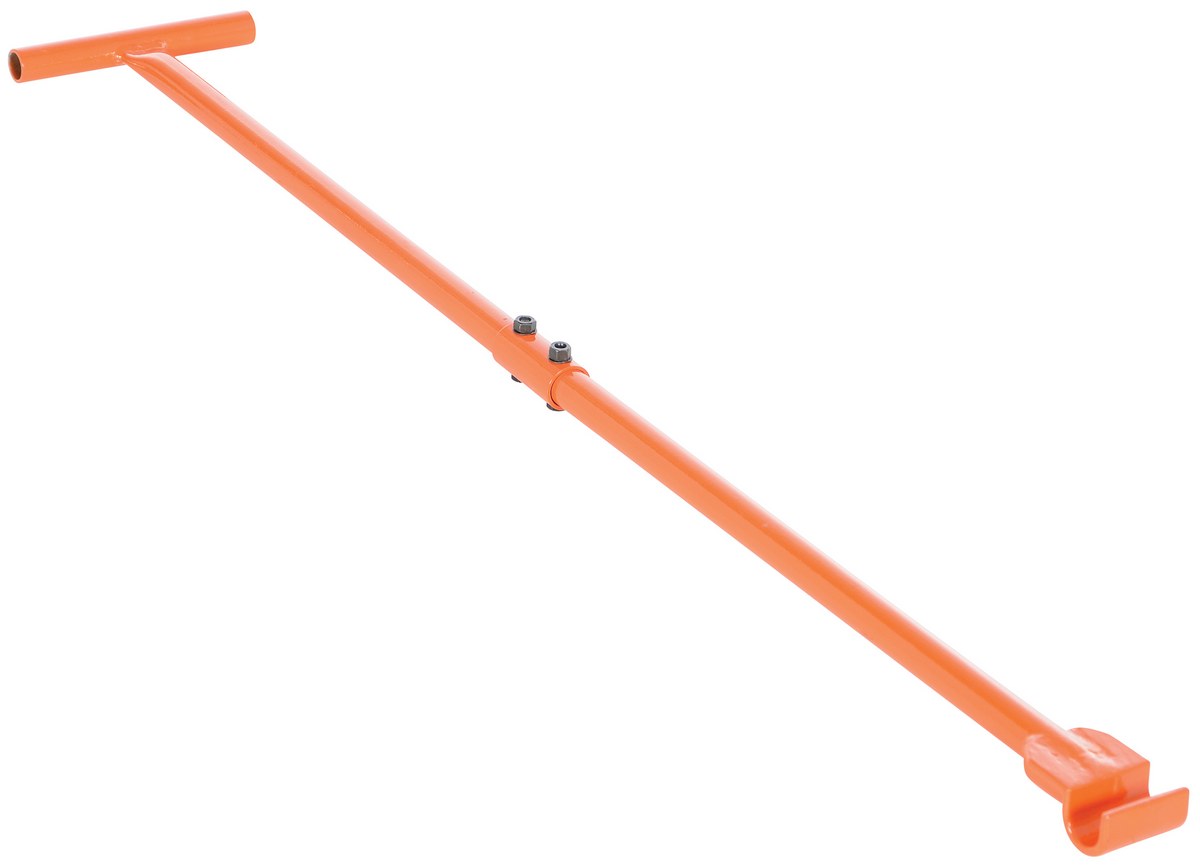

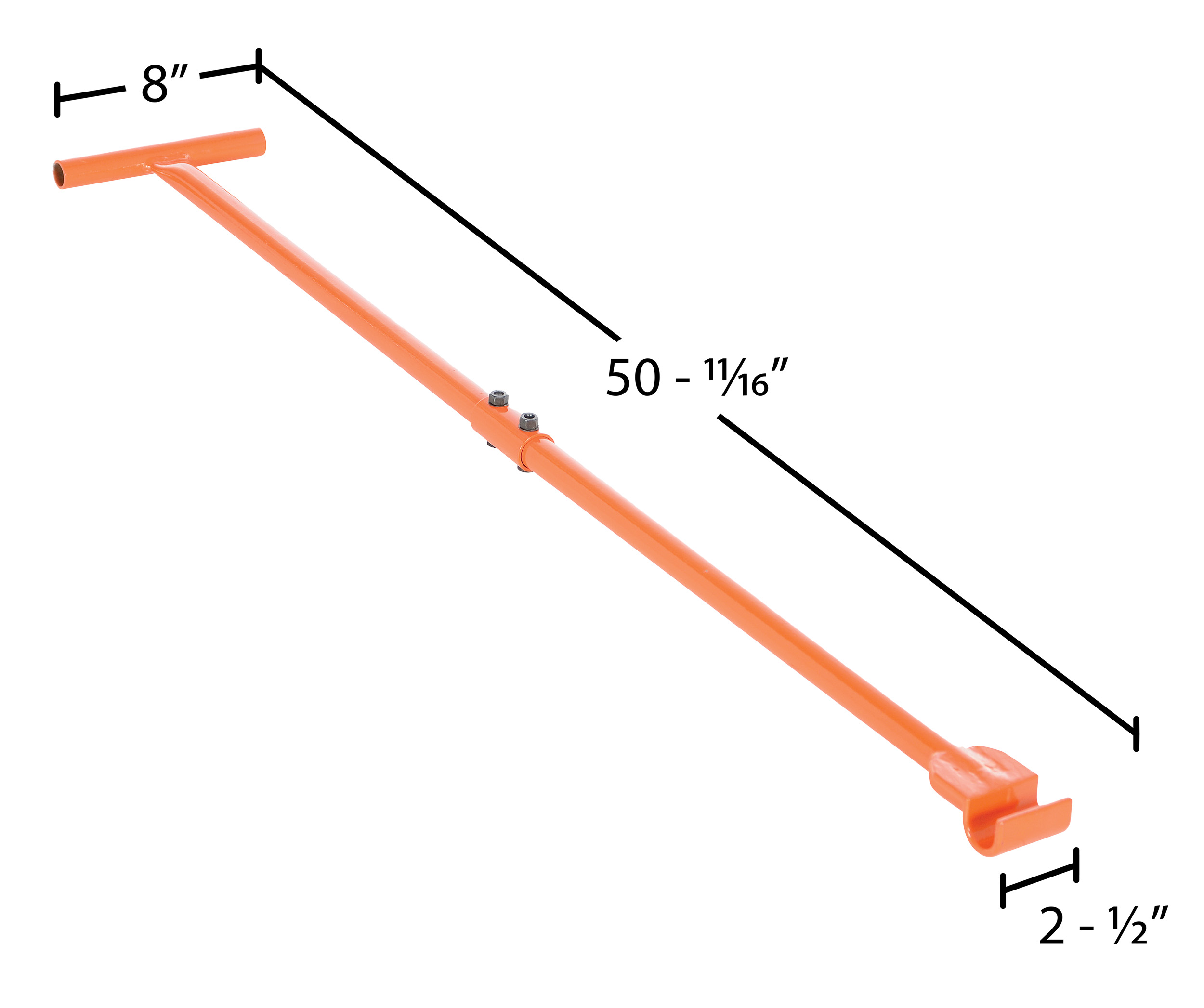

VHMH-48-1 VHMH-48-130 Days Limited WarrantySteel Machine Roller Steering Bar Handle 48 In. Length For Use with VHMS-2 OrangeComponent: Handle
Handle Length (in.): 48		12

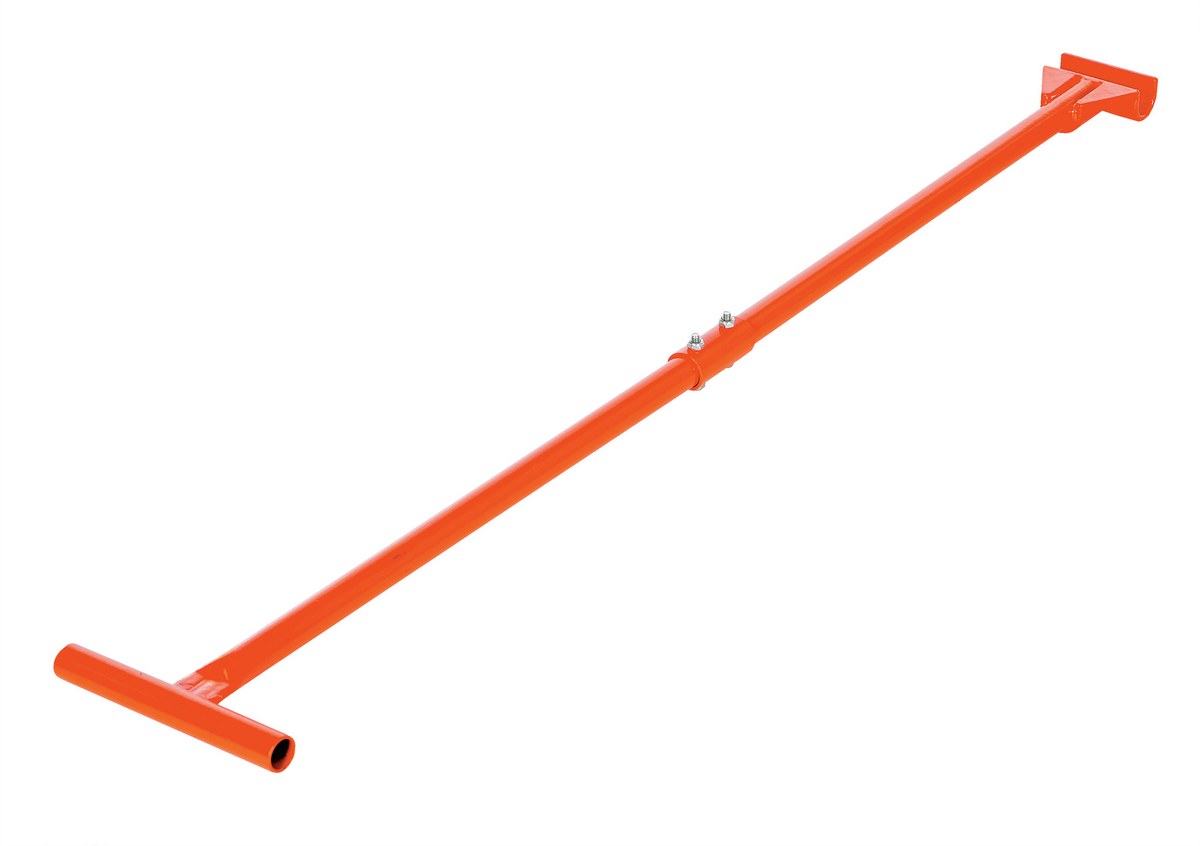

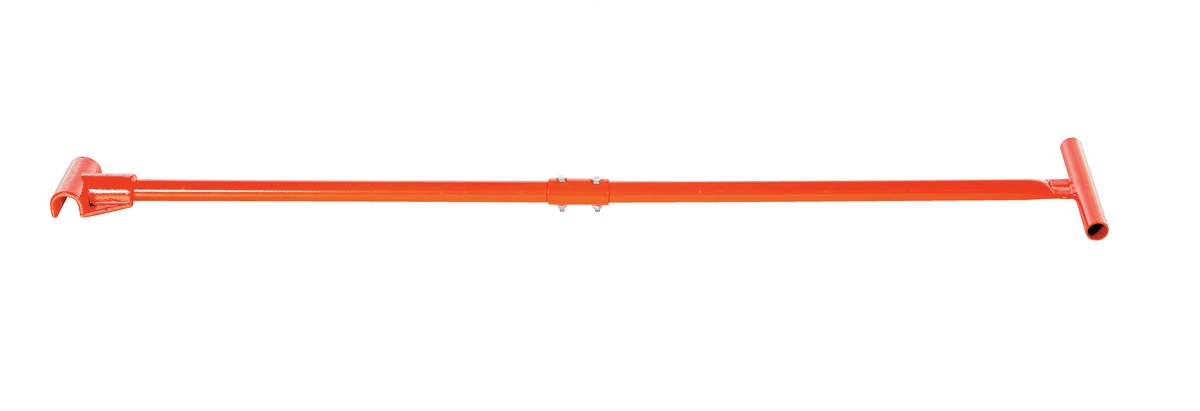

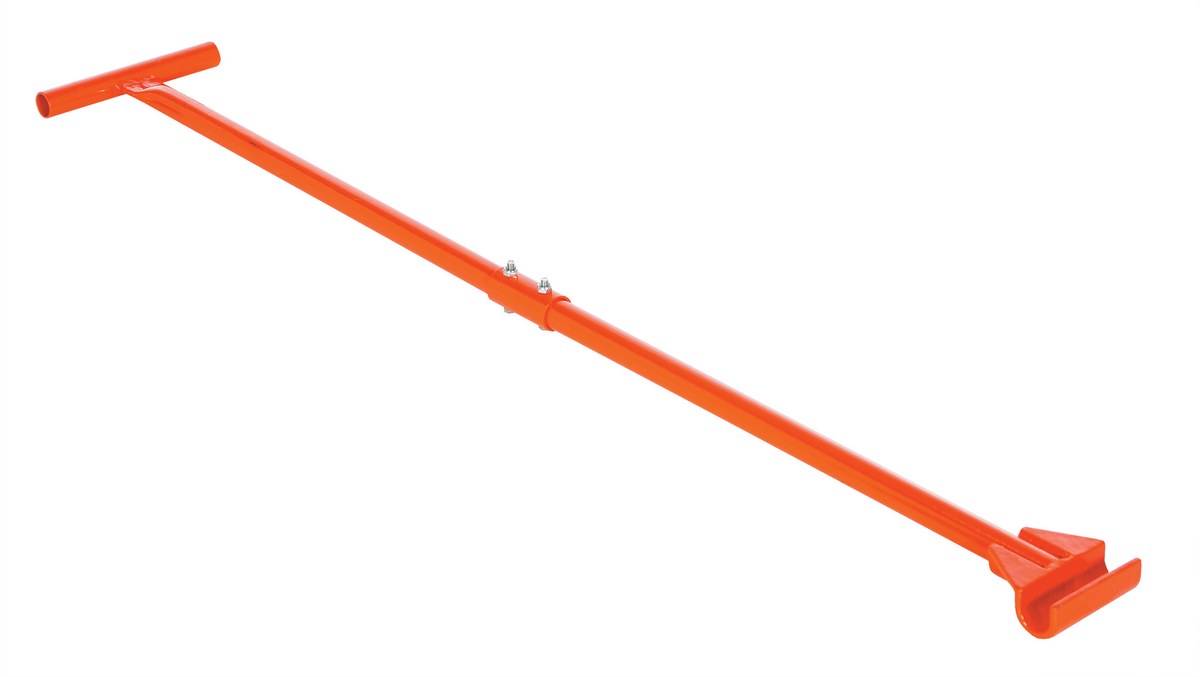

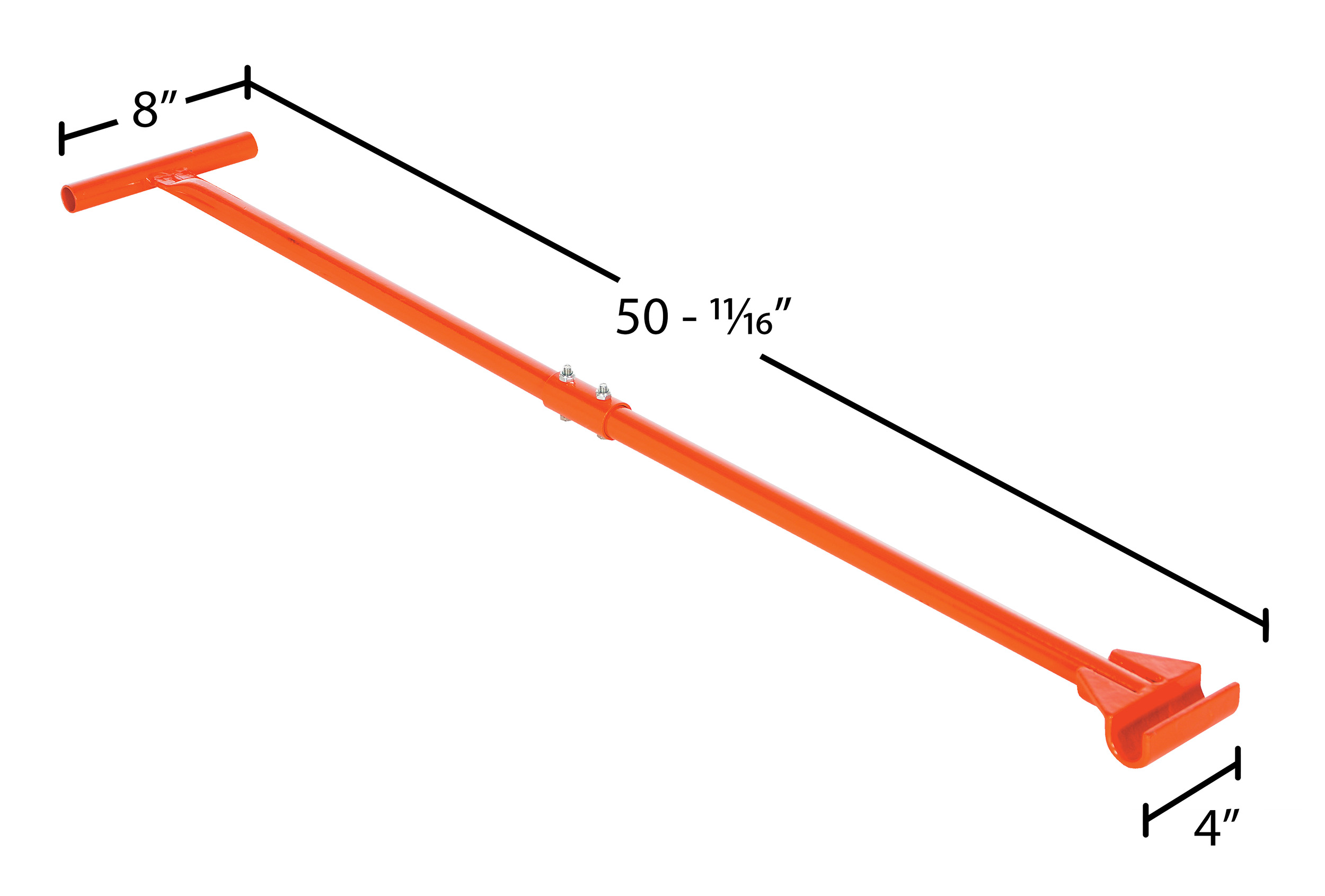

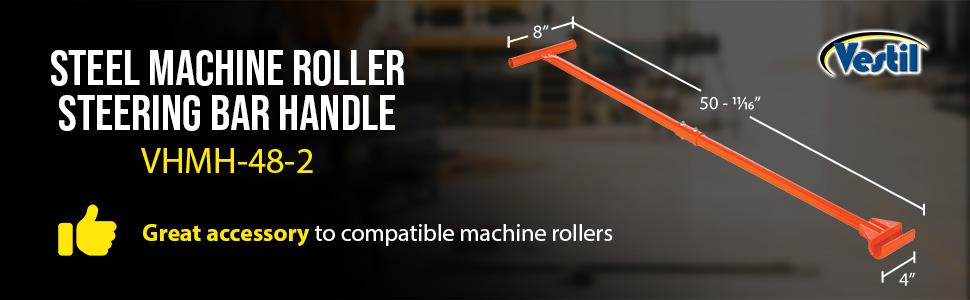

VHMH-48-2 VHMH-48-230 Days Limited WarrantySteel Machine Roller Steering Bar Handle 48 In. Length For Use with VHMS-8, 15, and 30 OrangeComponent: Handle
Handle Length (in.): 48		17

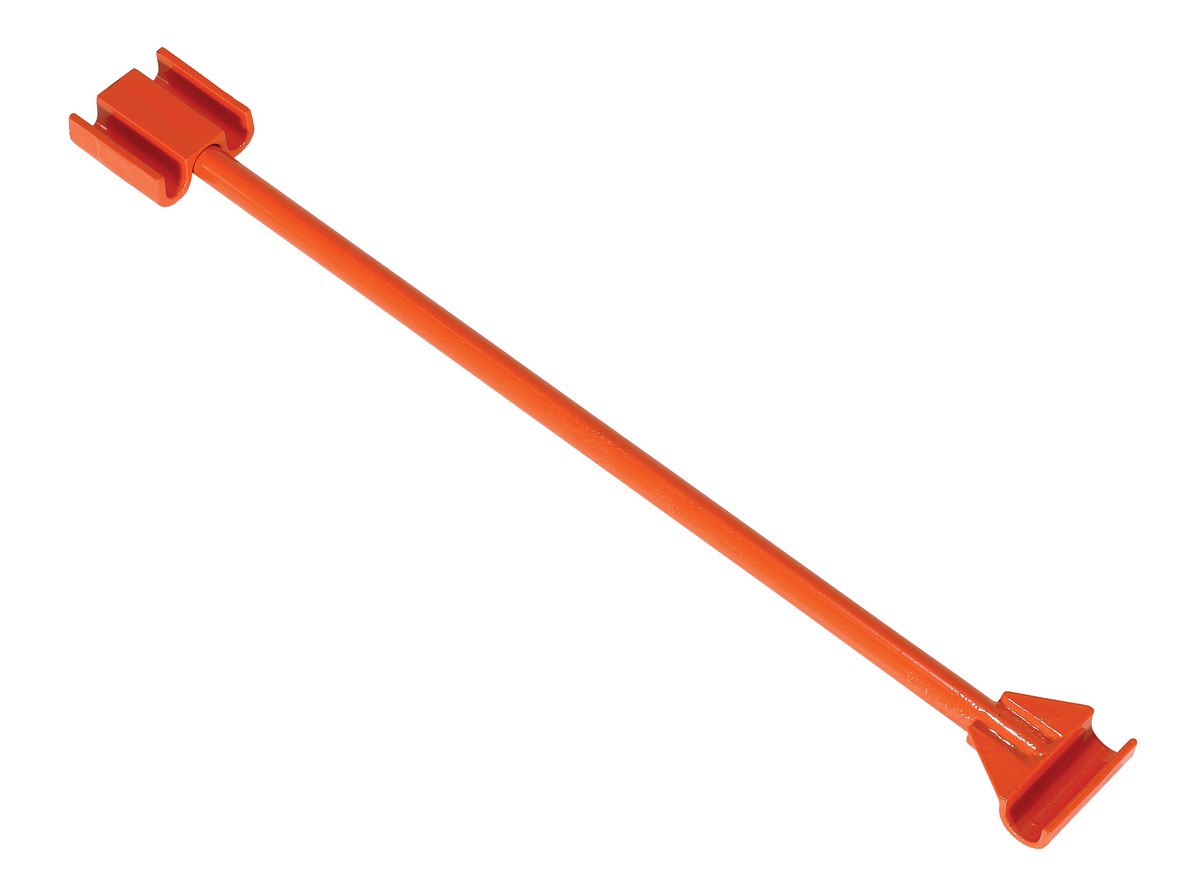

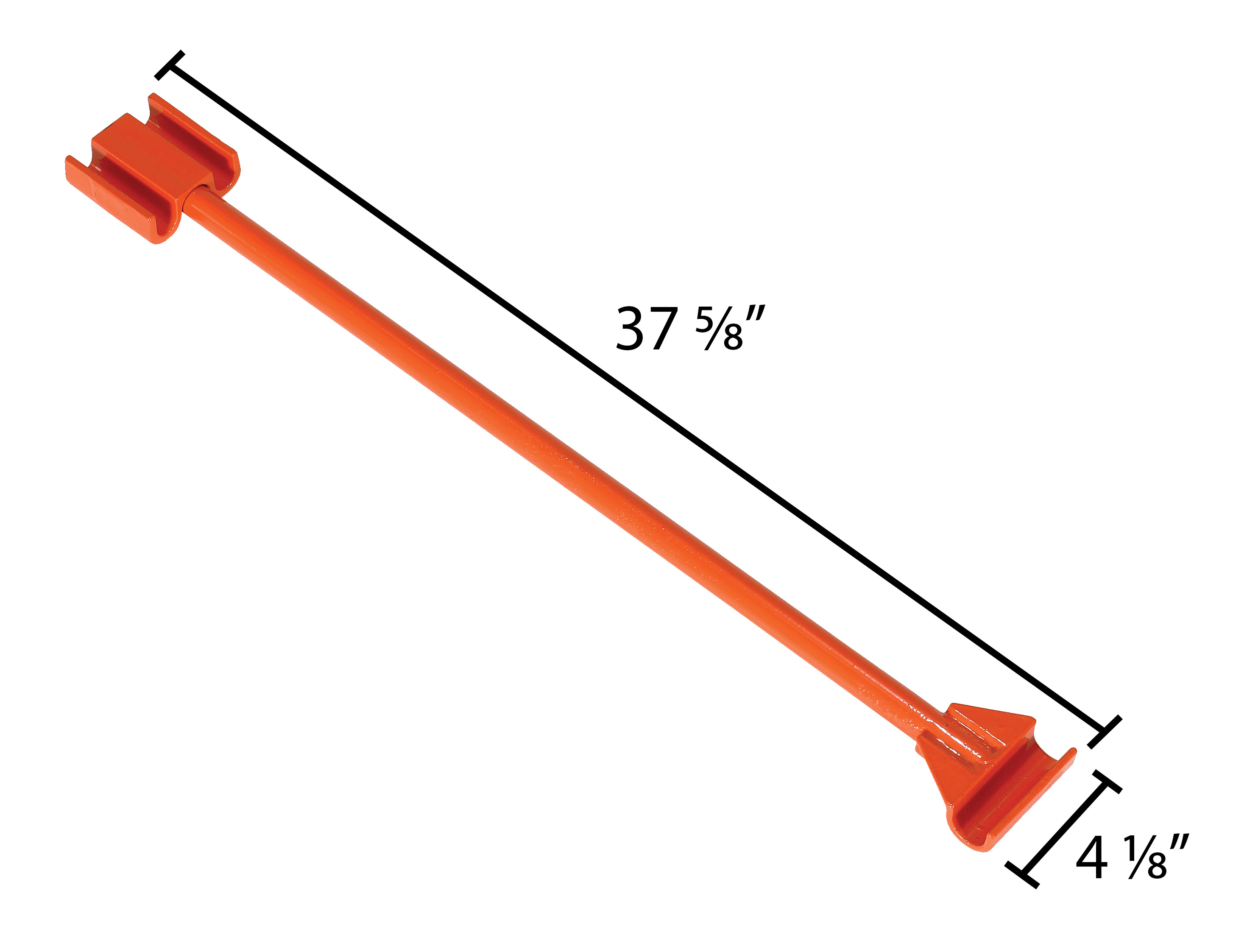

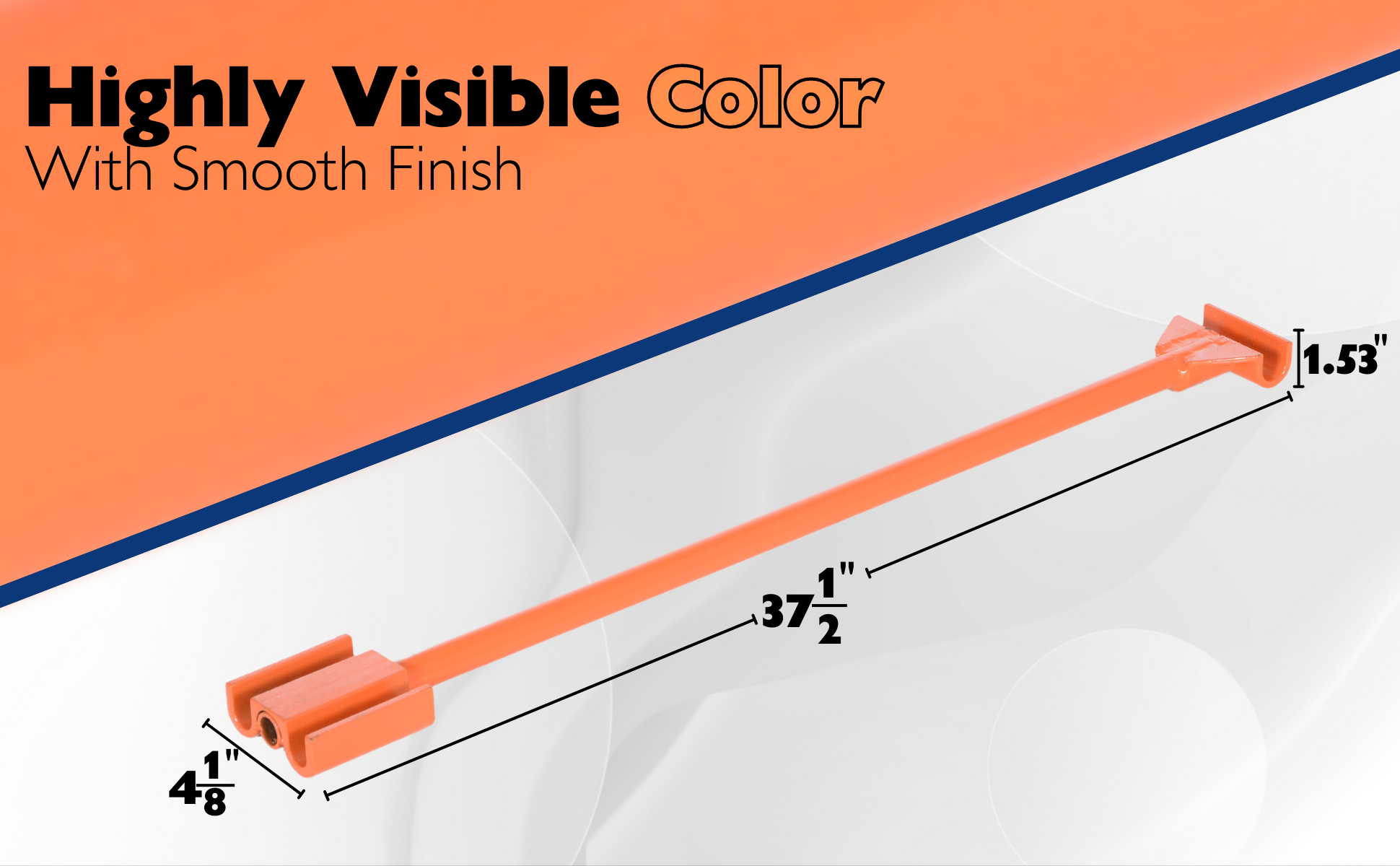

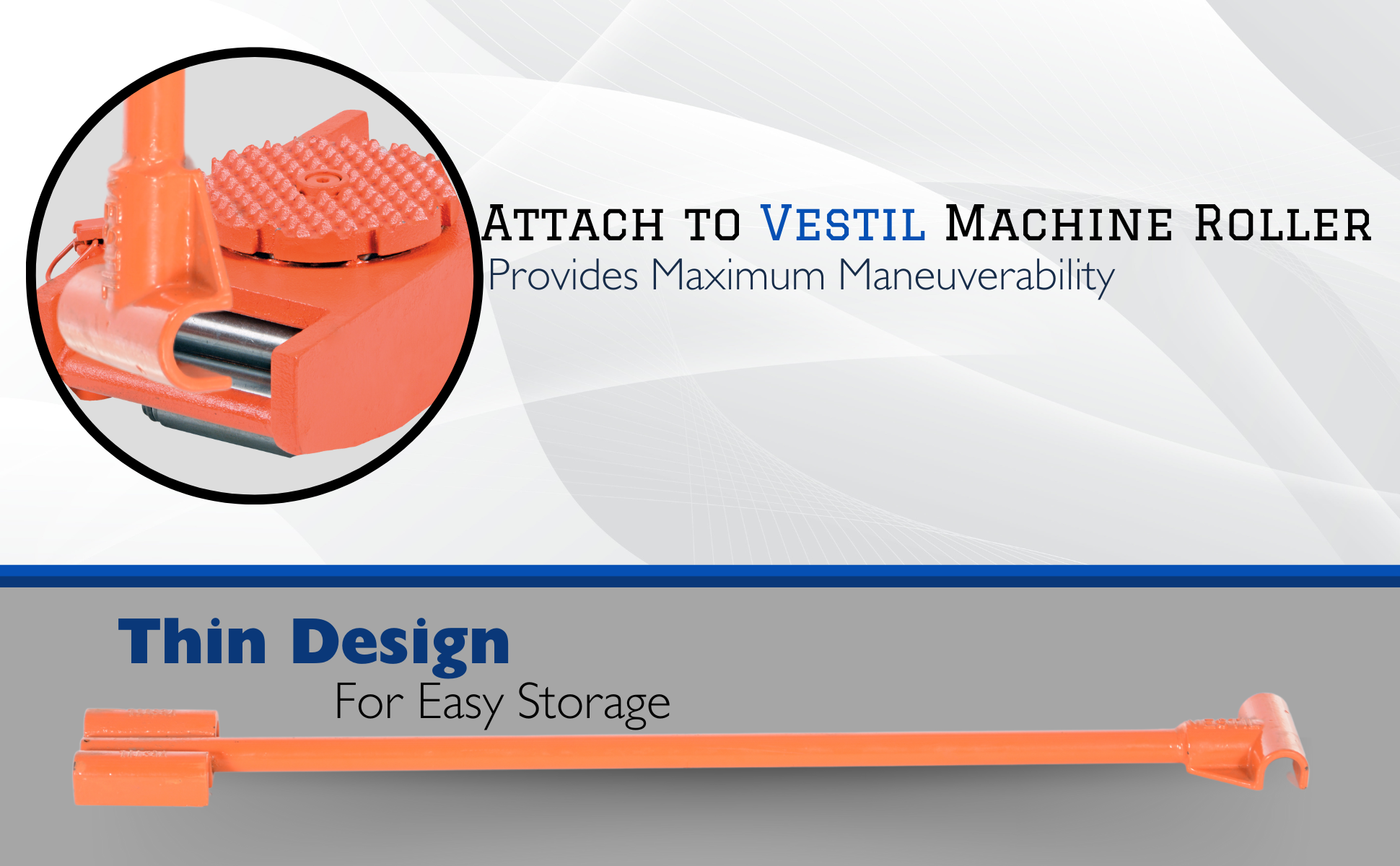

VHMH-TB-2 VHMH-TB-230 Days Limited WarrantySteel Turning Bar Handle For Use with VHMS-8, 15, and 30 OrangeComponent: Turning Bar Handle
Handle Length (in.): 36		18

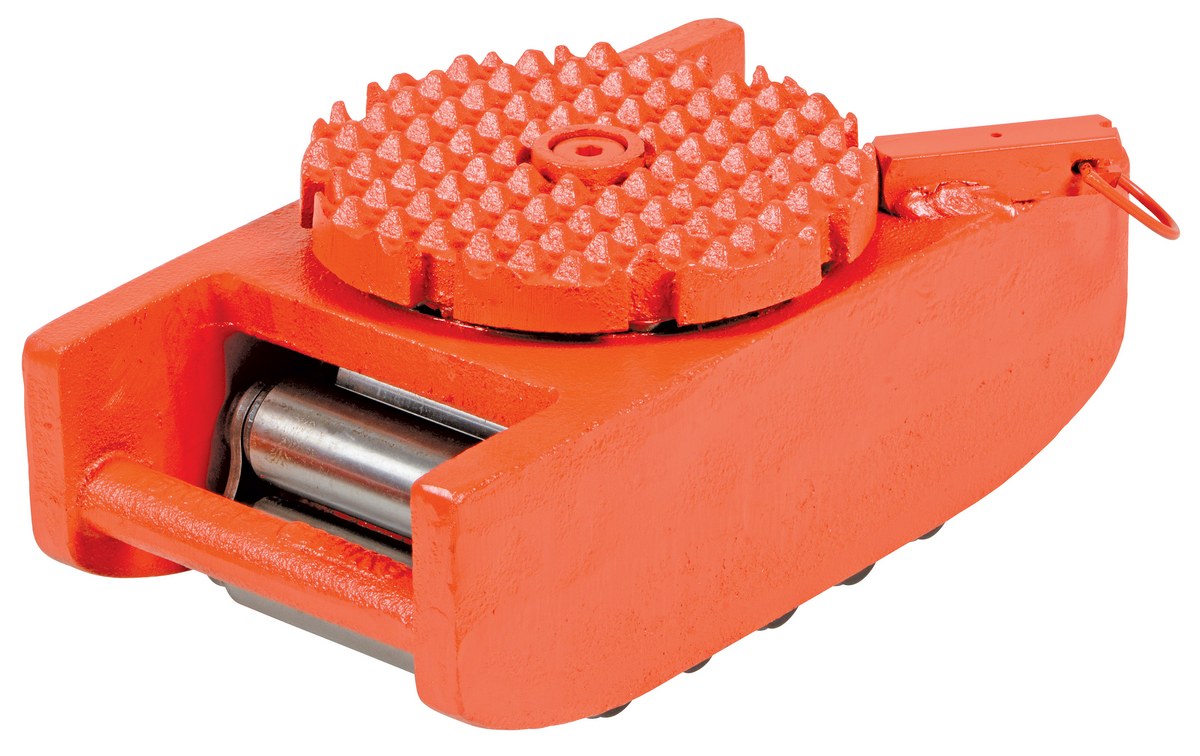

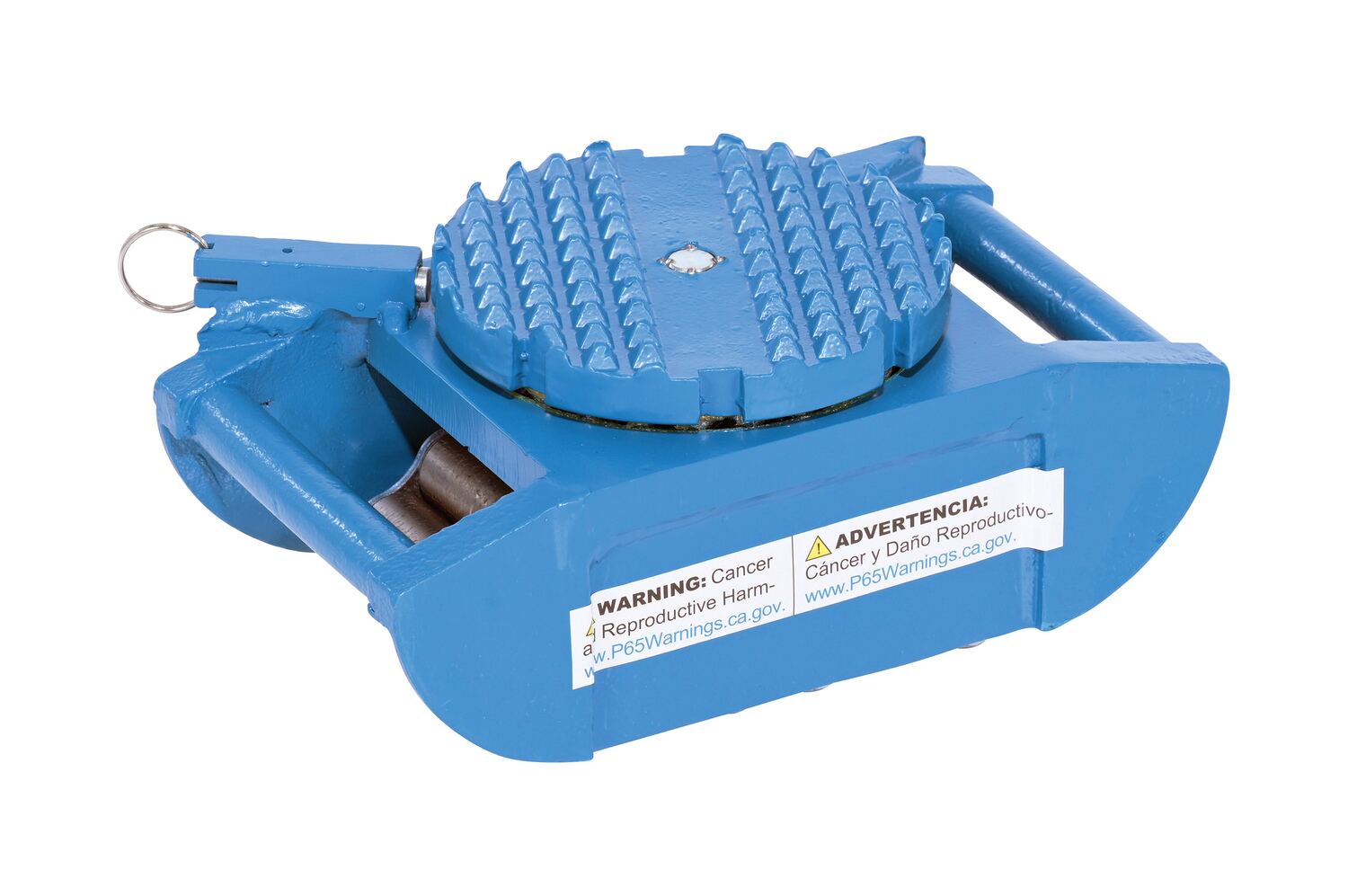

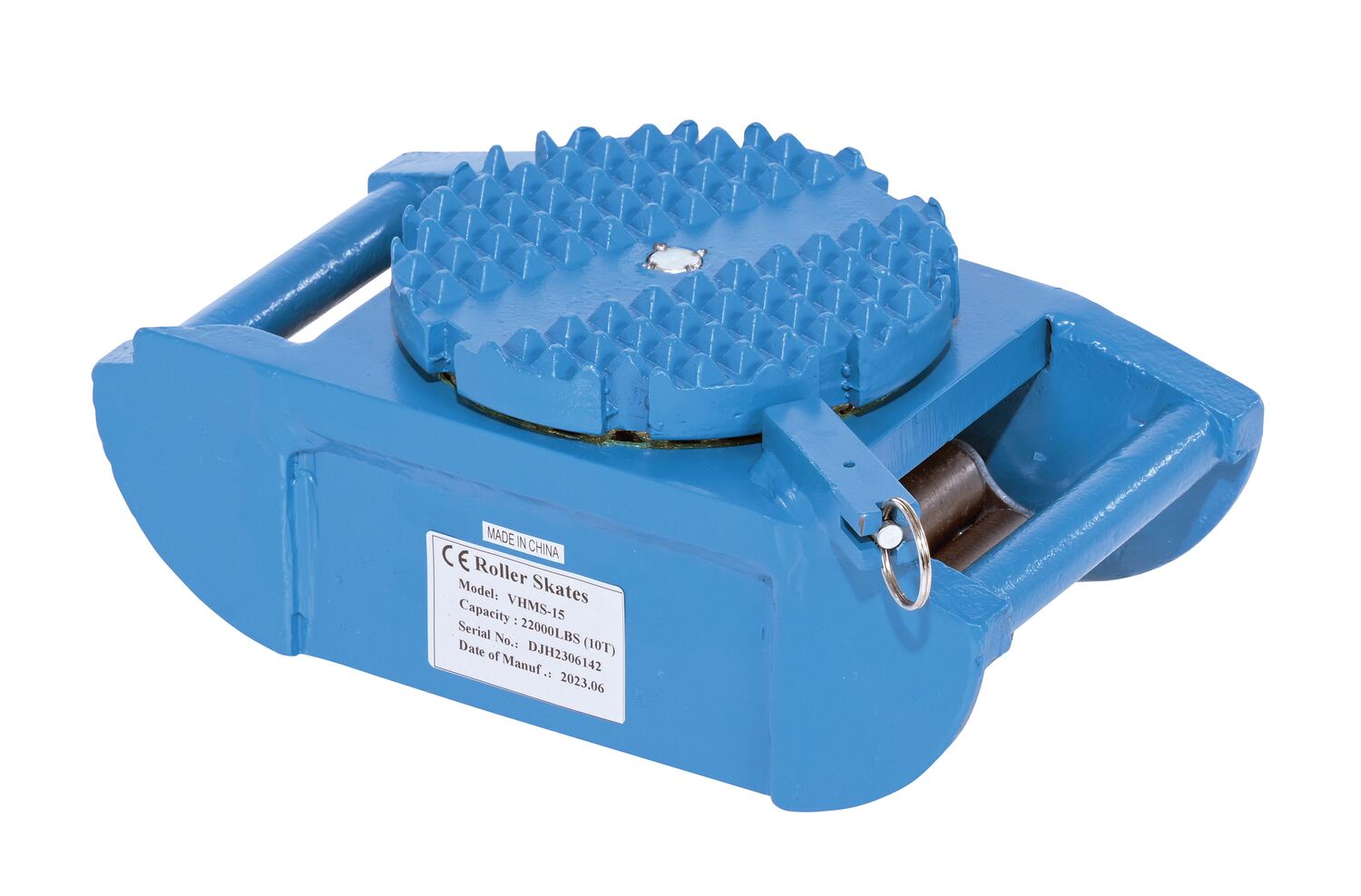

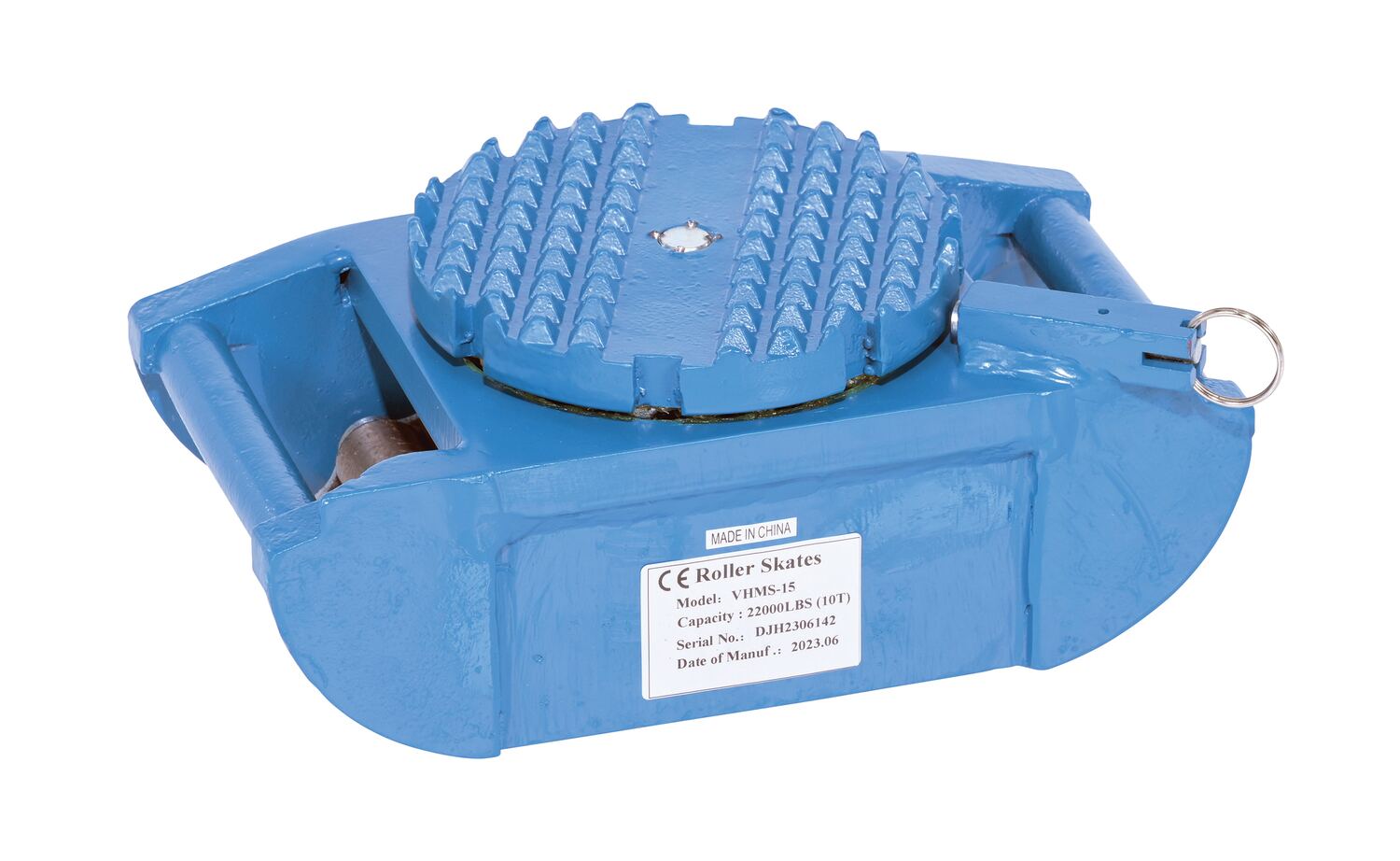

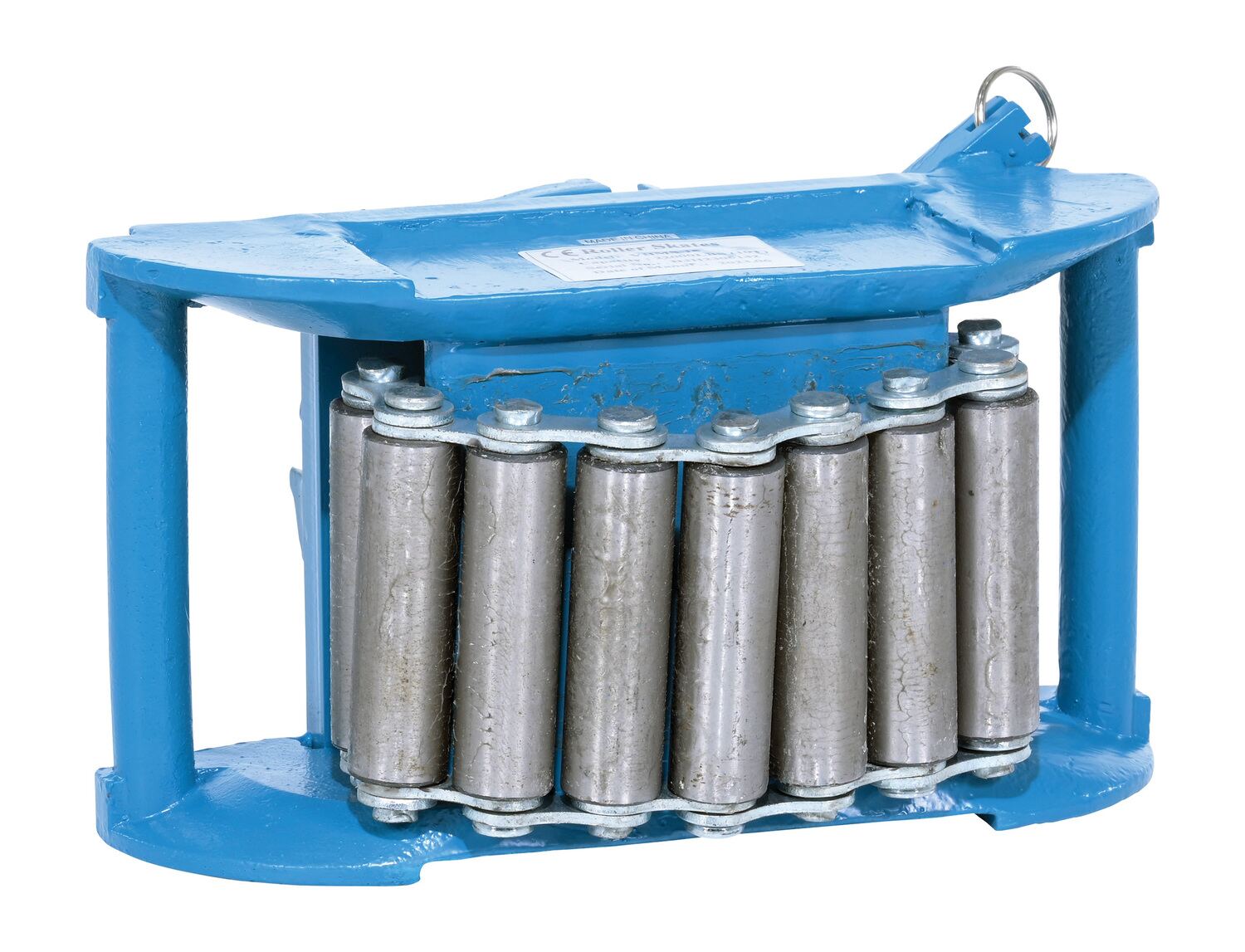

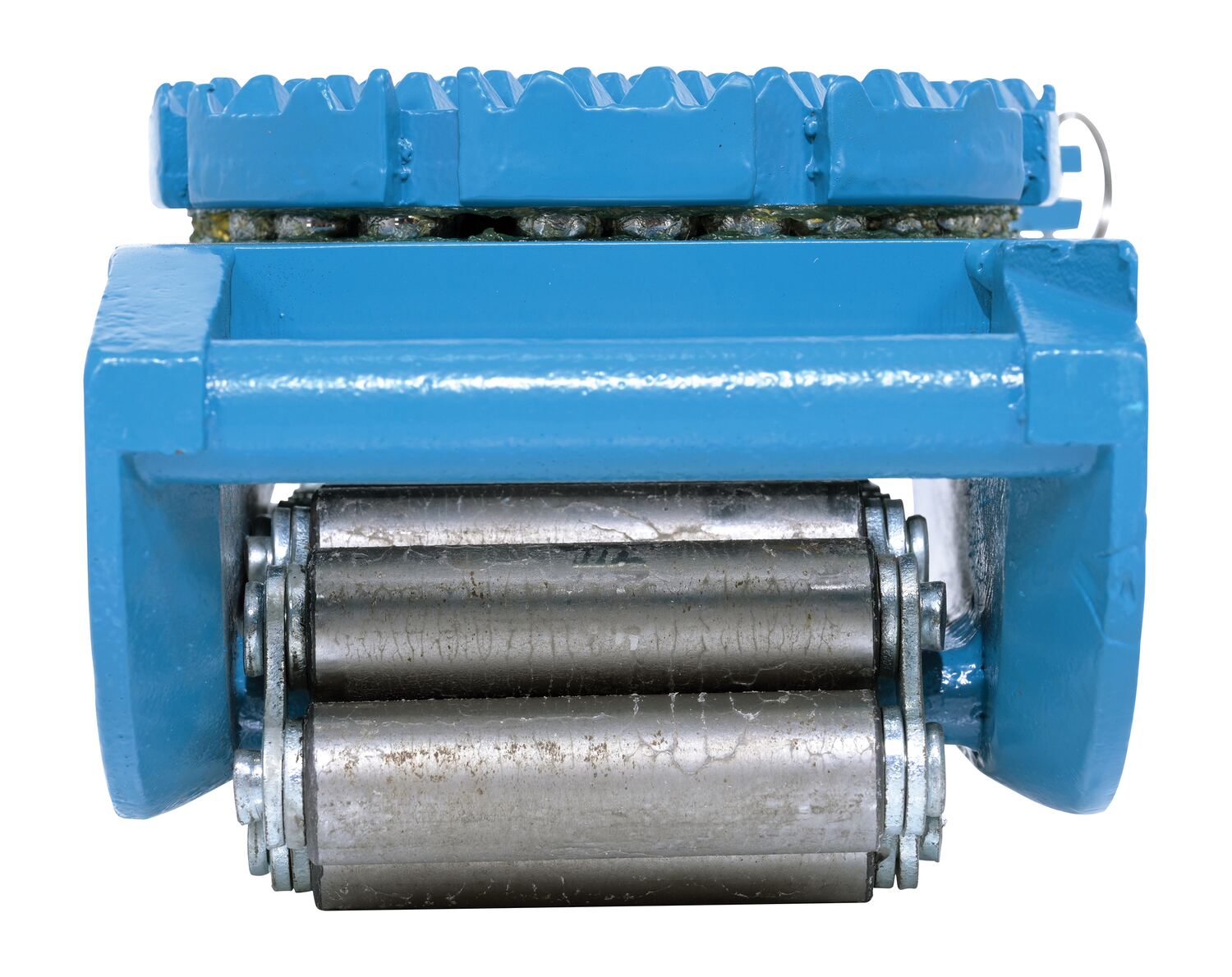

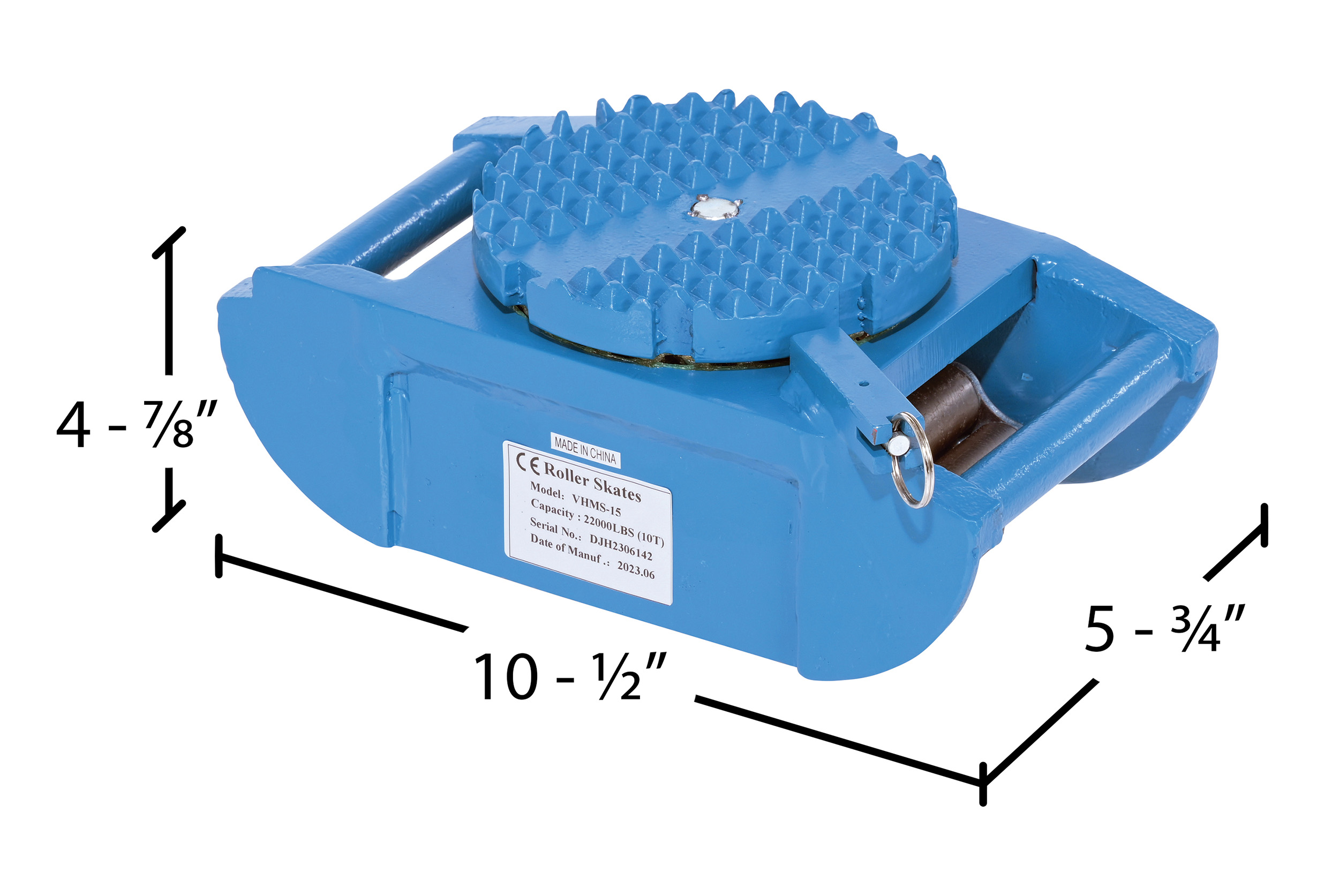

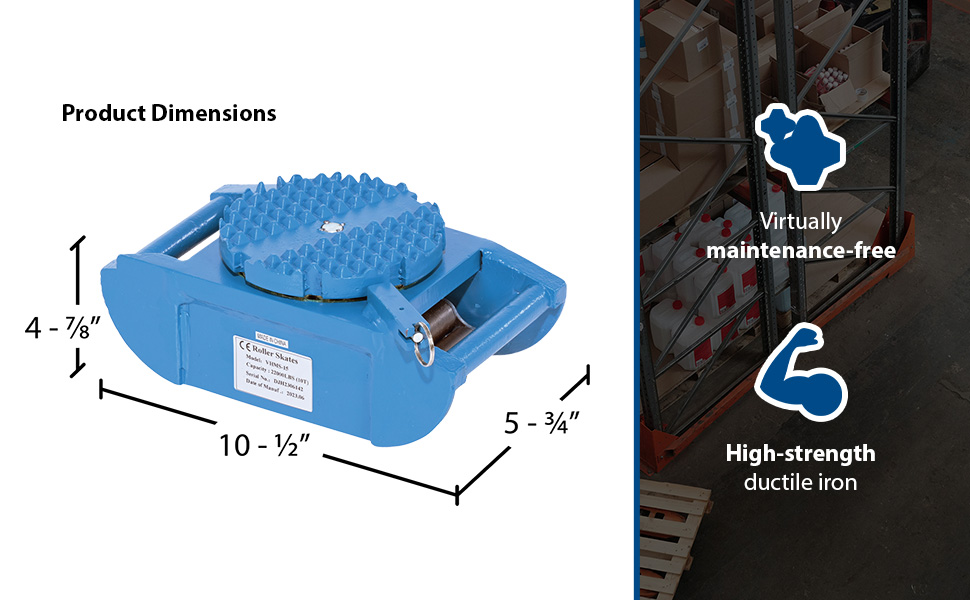

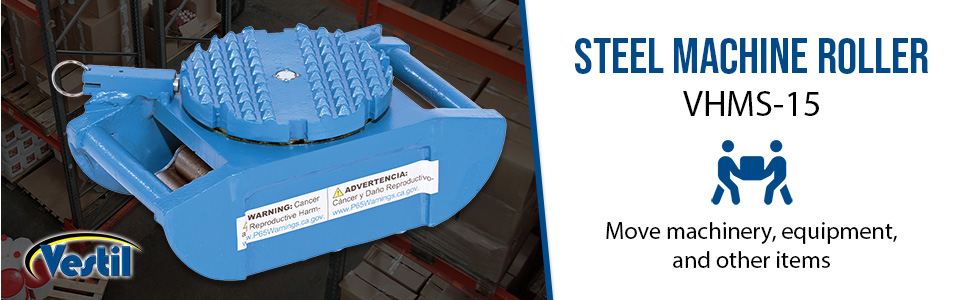

VHMS-15 VHMS-1530 Days Limited WarrantySteel Machine Roller 15,000 Lb. Capacity OrangeUniform Capacity (lb.): 15000
Component: Machine Roller		38

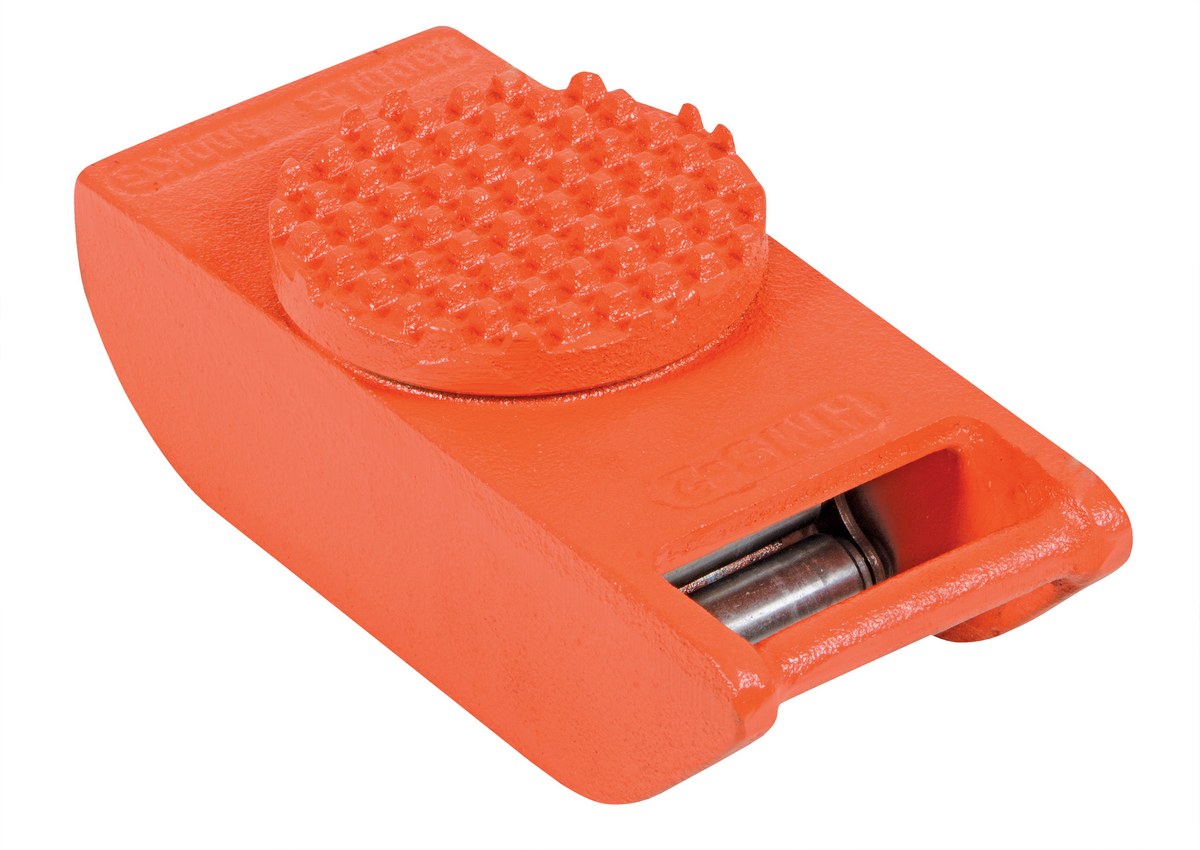

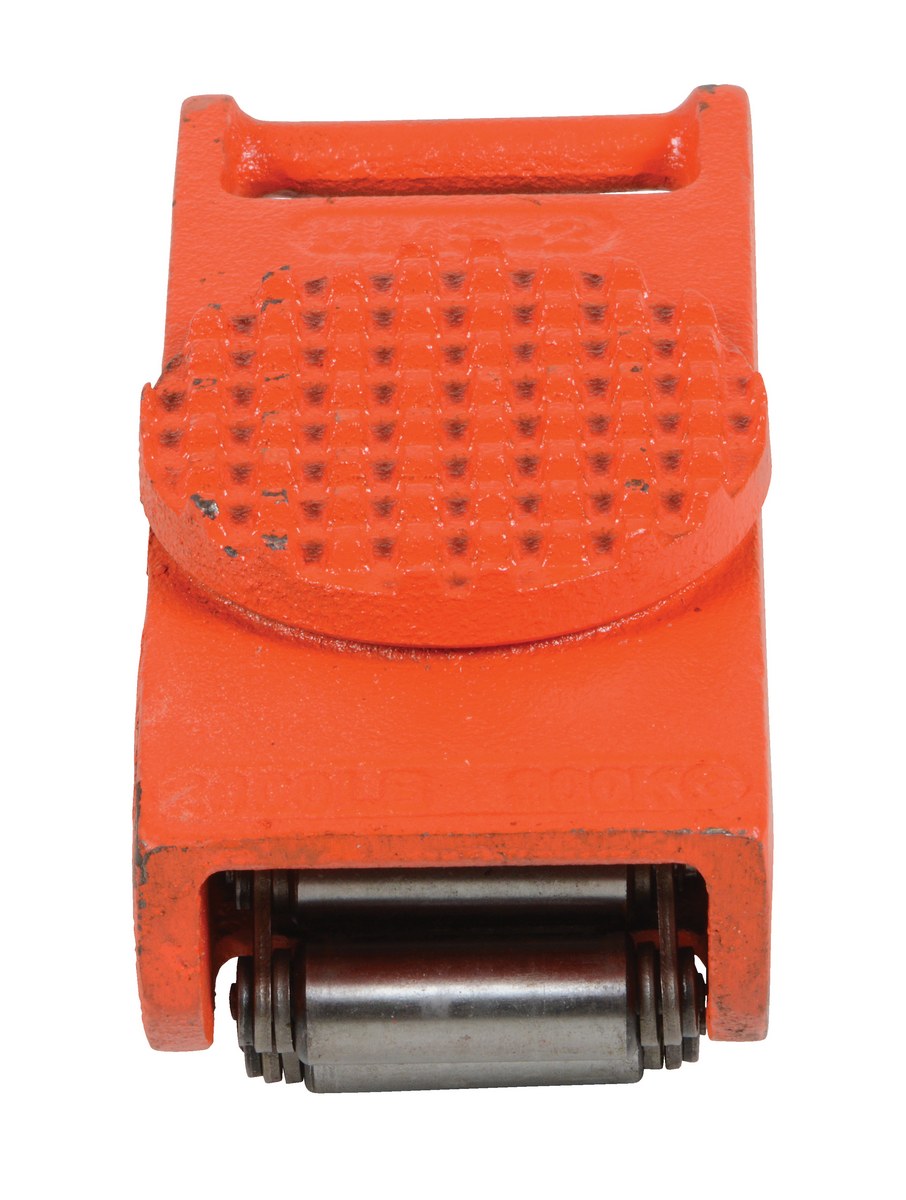

VHMS-2 VHMS-230 Days Limited WarrantySteel Machine Roller 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2000
Component: Machine Roller		11

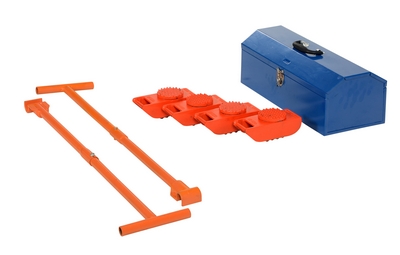

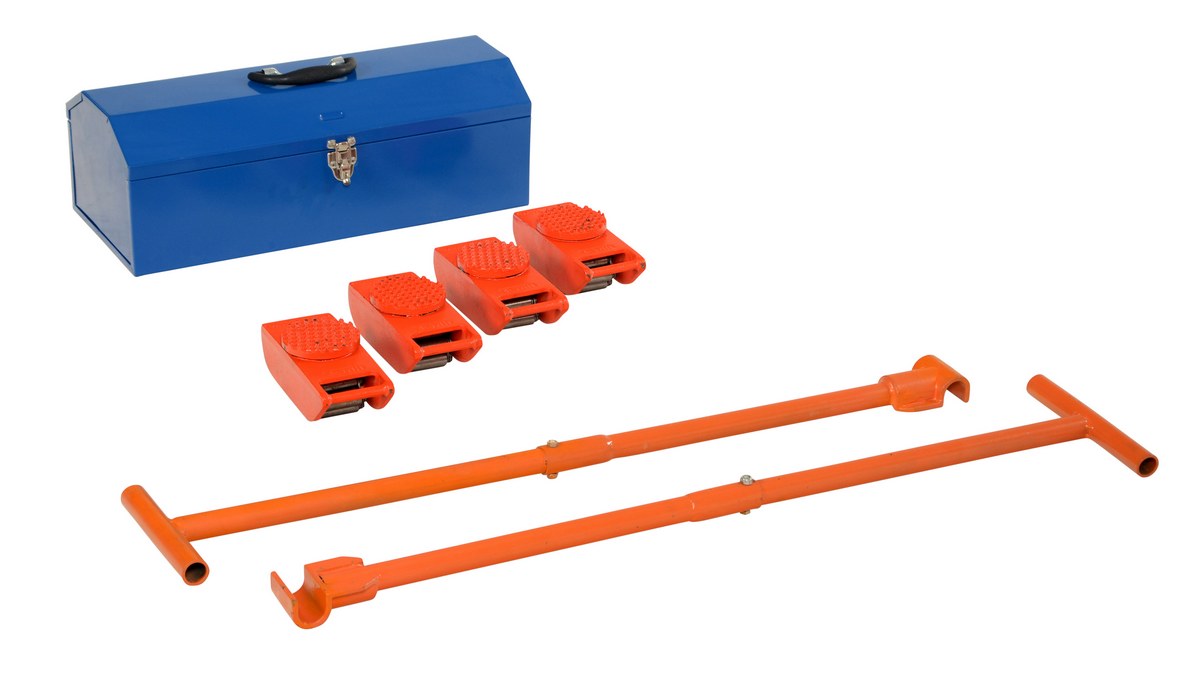

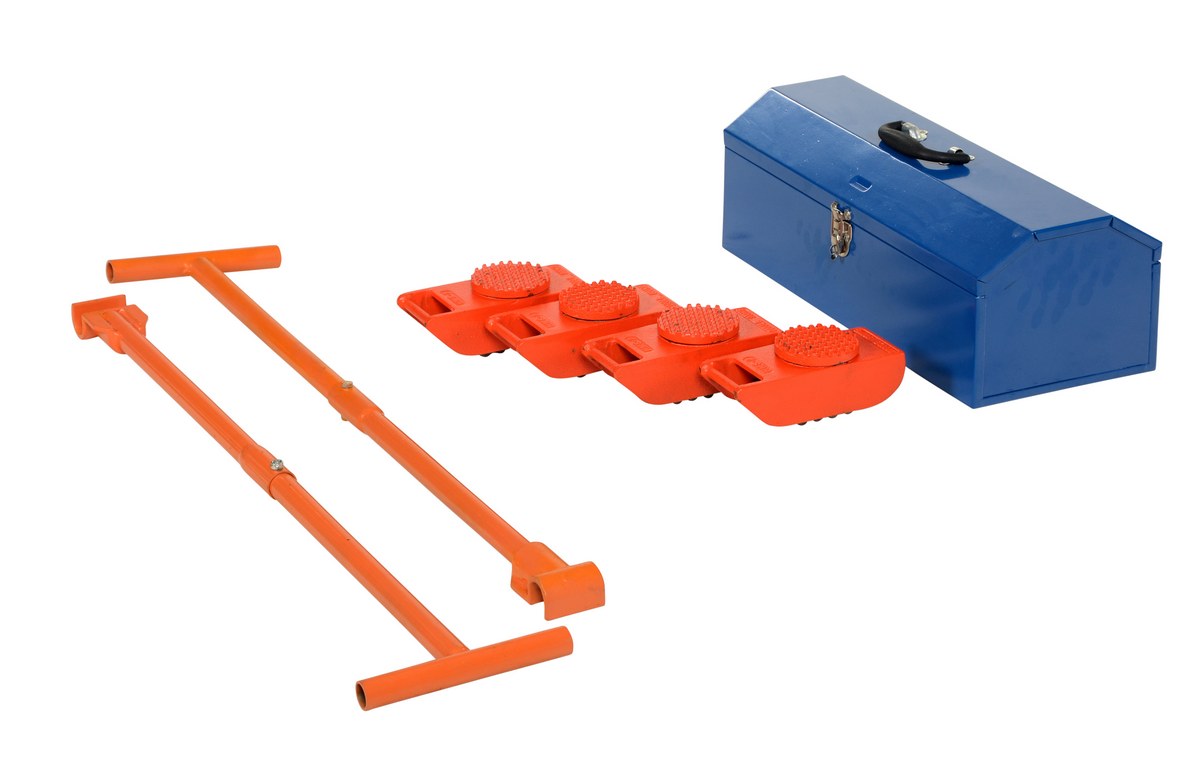

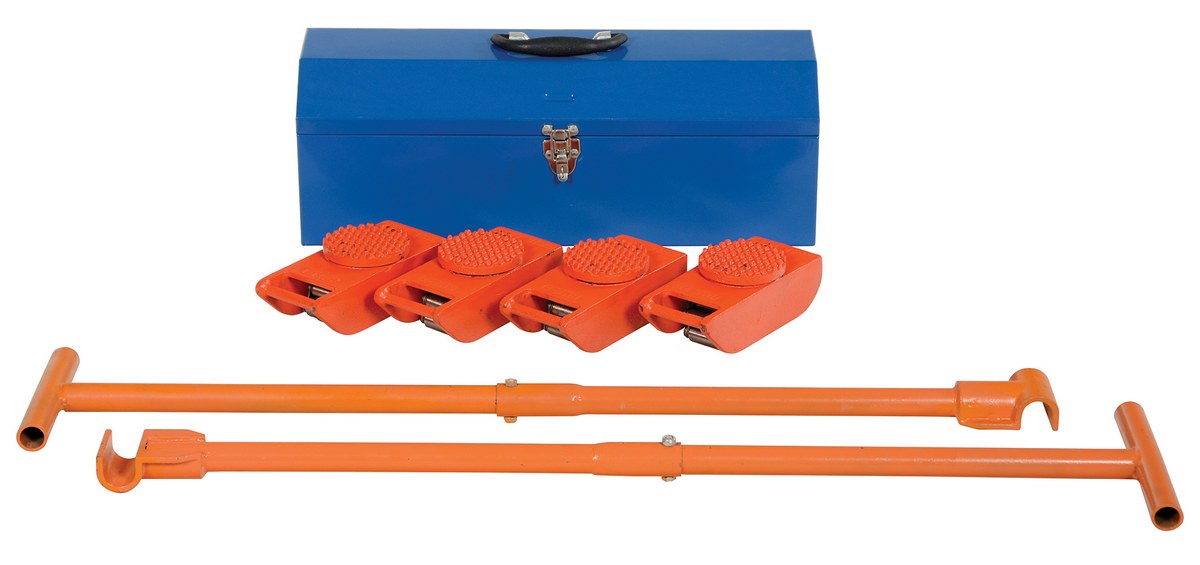

VHMS-2-KIT VHMS-2-KIT30 Days Limited WarrantySteel Machine Roller Kit 8,000 Lb. Capacity OrangeComes With: (4) - VHMS-2 & (2) - VHMH-36-1
Steel Roller Height (in.): 3/4		261

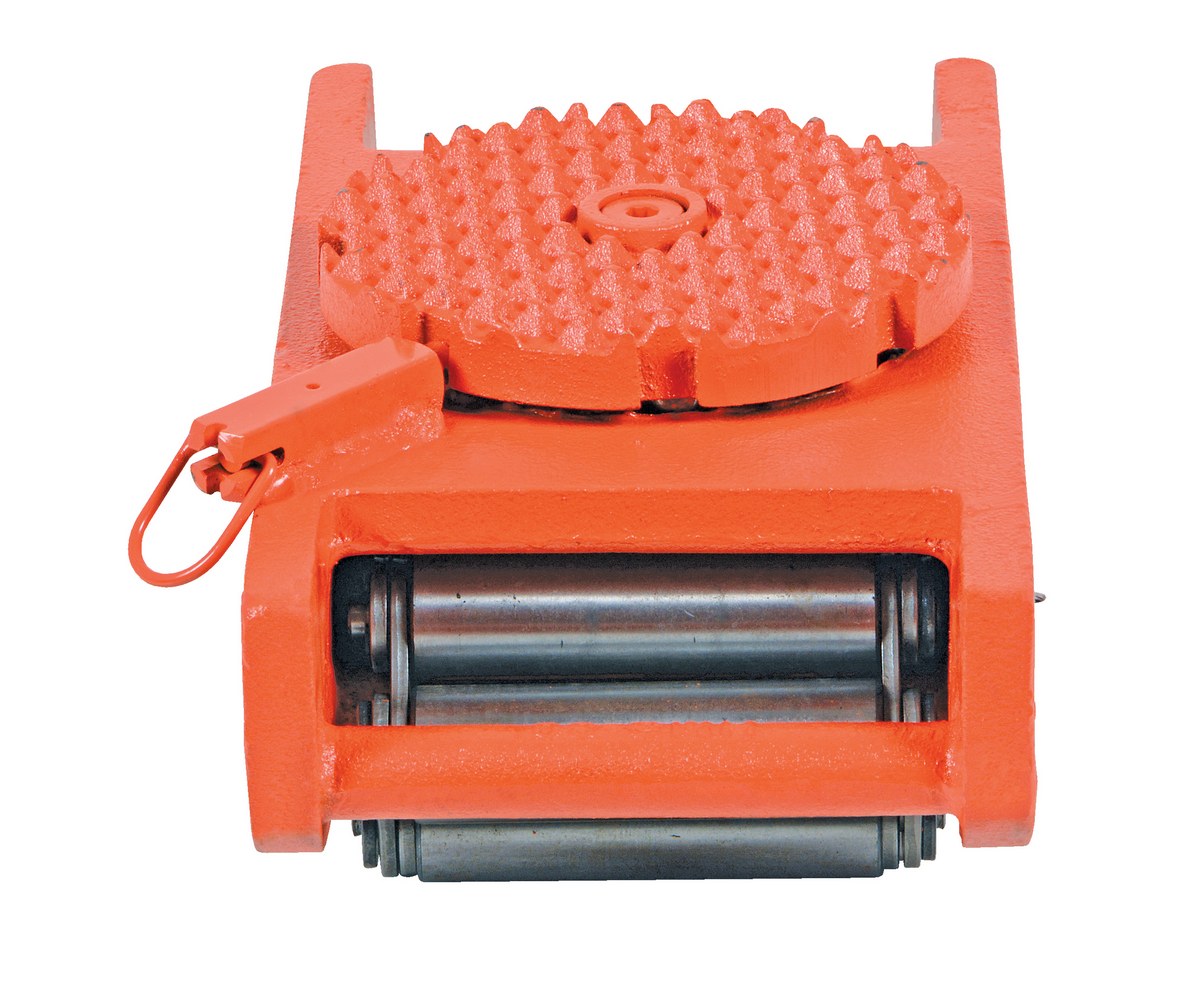

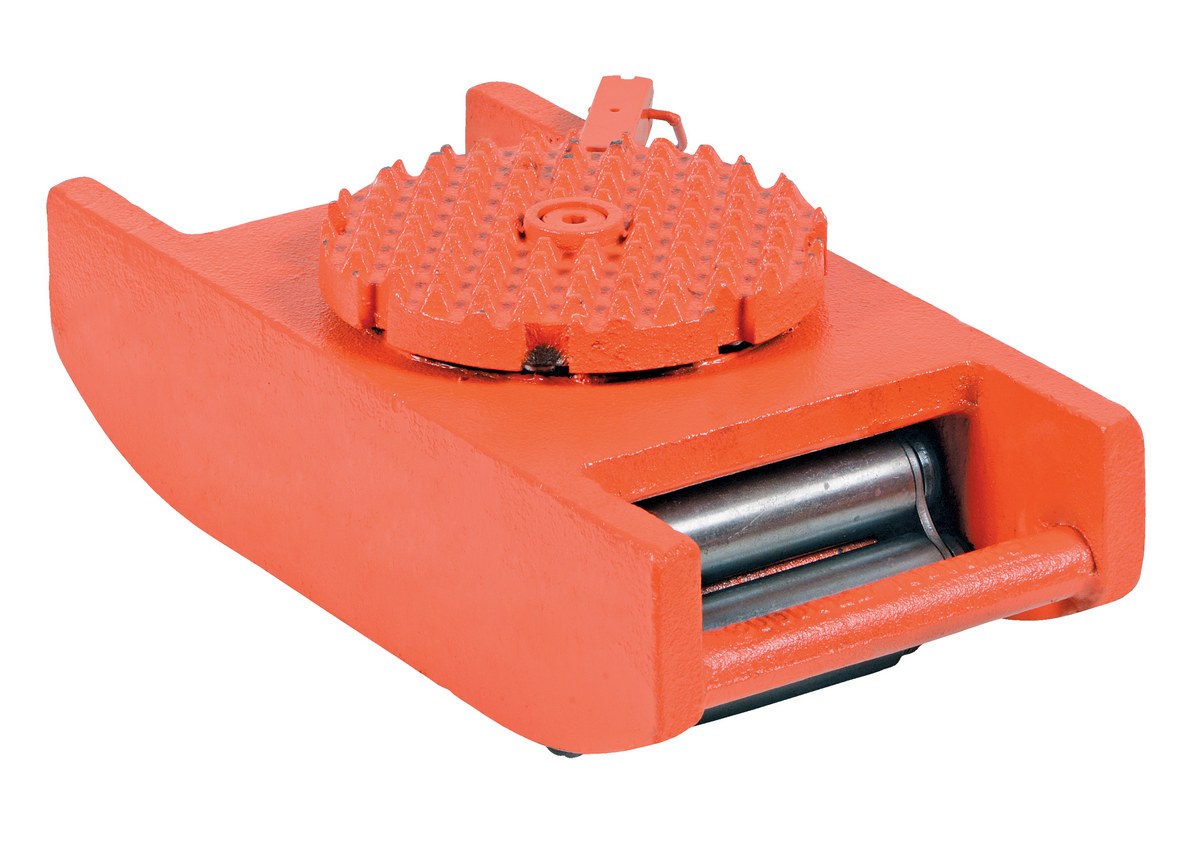

VHMS-30 VHMS-3030 Days Limited WarrantySteel Machine Roller 30,000 Lb. Capacity OrangeUniform Capacity (lb.): 30000
Component: Machine Roller		51

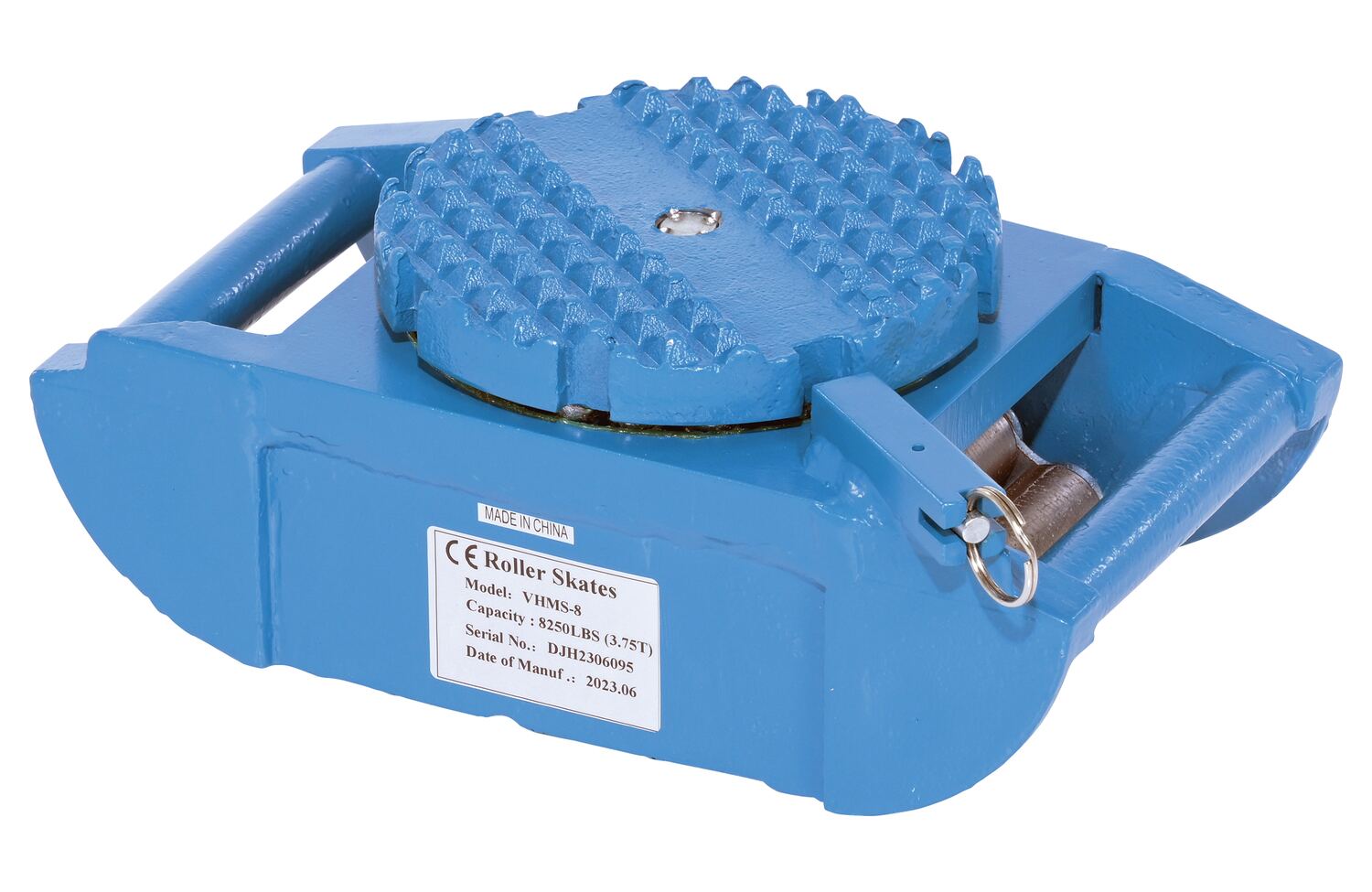

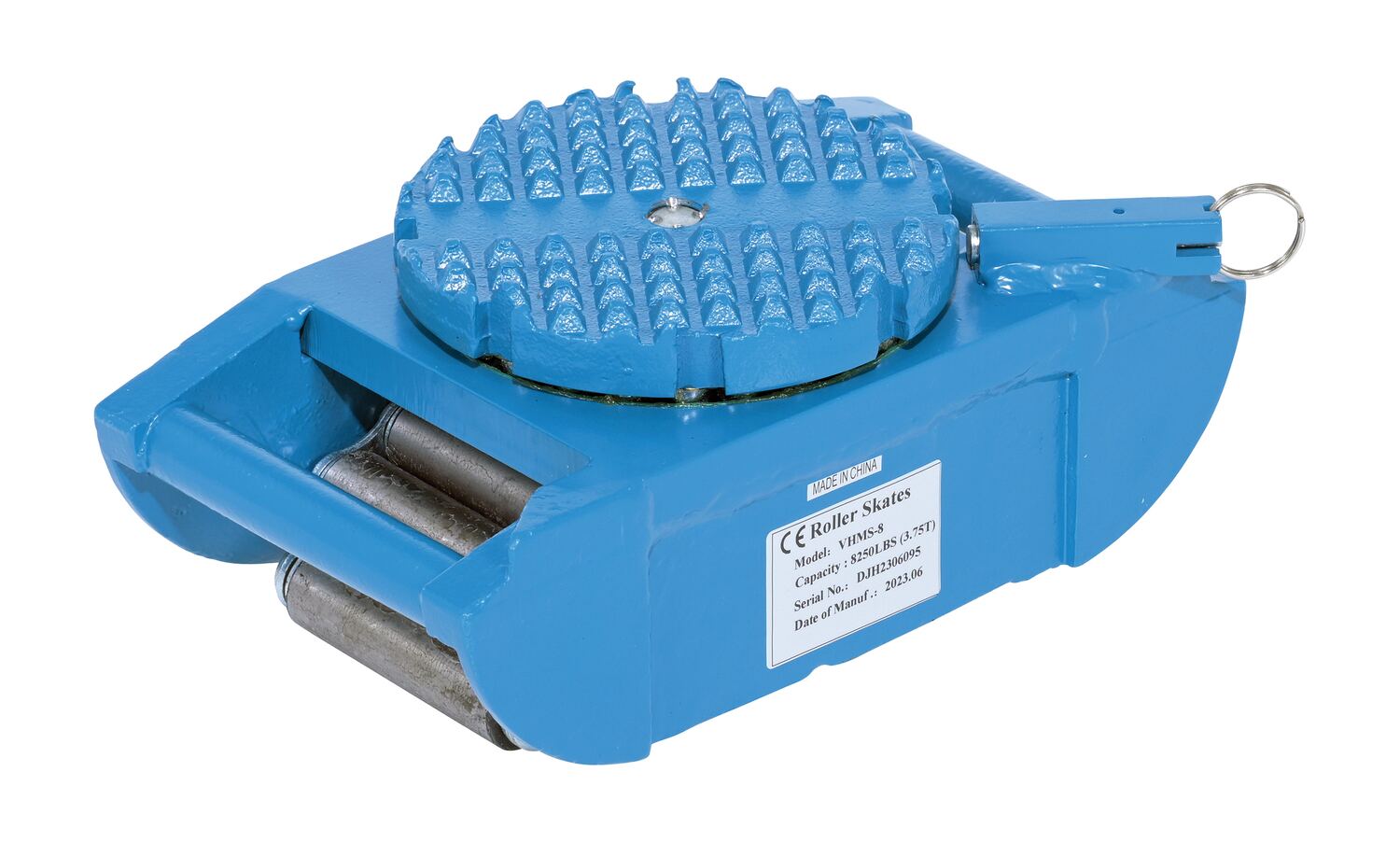

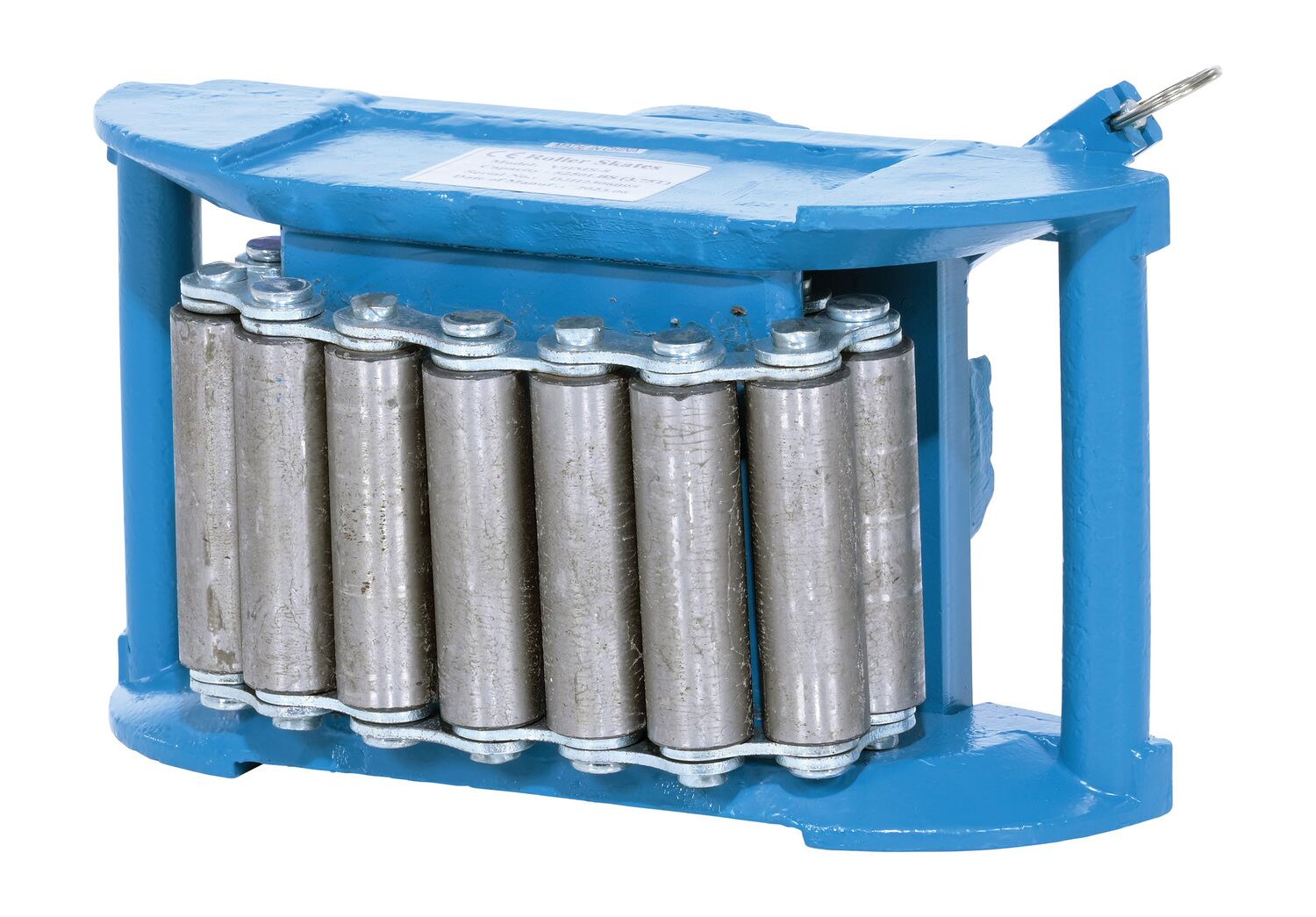

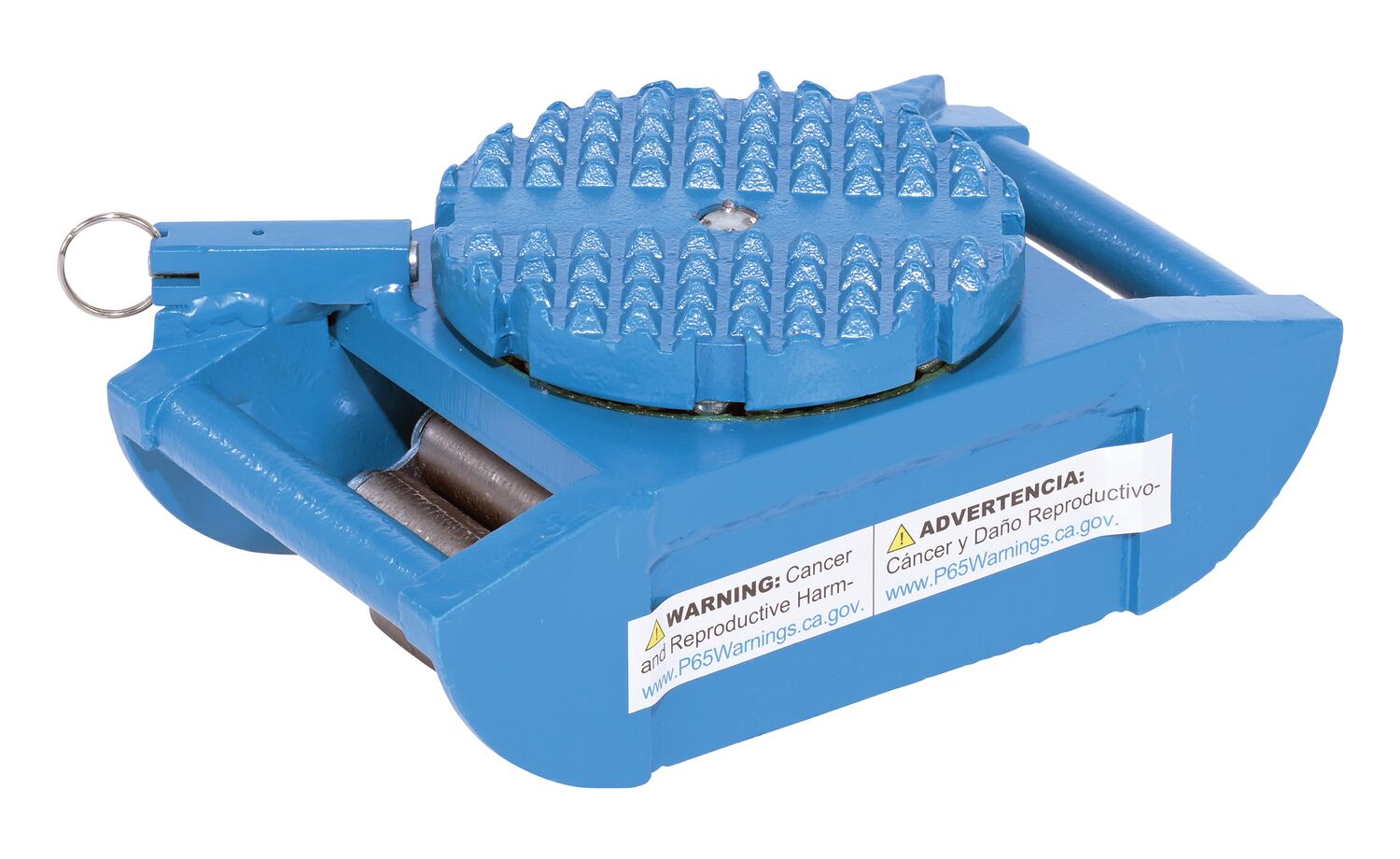

VHMS-8 VHMS-830 Days Limited WarrantySteel Machine Roller 8,000 Lb. Capacity OrangeUniform Capacity (lb.): 8000
Component: Machine Roller		31

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

VHMH-36-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Handle
Handle Length (in.): 36
Component: Handle
Handle Length (in.): 36

VHMH-36-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Handle
Handle Length (in.): 36
Component: Handle
Handle Length (in.): 36

VHMH-48-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Handle
Handle Length (in.): 48
Component: Handle
Handle Length (in.): 48

VHMH-48-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Handle
Handle Length (in.): 48
Component: Handle
Handle Length (in.): 48

VHMH-TB-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Turning Bar Handle
Handle Length (in.): 36
Component: Turning Bar Handle
Handle Length (in.): 36

VHMS-15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Component: Machine Roller
Uniform Capacity (lb.): 15000
Component: Machine Roller

VHMS-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Component: Machine Roller
Uniform Capacity (lb.): 2000
Component: Machine Roller

VHMS-2-KIT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Comes With: (4) - VHMS-2 & (2) - VHMH-36-1
Steel Roller Height (in.): 3/4
Comes With: (4) - VHMS-2 & (2) - VHMH-36-1
Steel Roller Height (in.): 3/4

VHMS-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30000
Component: Machine Roller
Uniform Capacity (lb.): 30000
Component: Machine Roller

VHMS-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Component: Machine Roller
Uniform Capacity (lb.): 8000
Component: Machine Roller
Steel Machine Rollers & Accessories PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


VHMH-36-2

VHMH-48-1

VHMH-48-2

VHMH-TB-2

VHMS-15

VHMS-2

VHMS-30

VHMS-8

Testing Certificates


VHMH-36-1

VHMH-36-2

VHMH-48-1

VHMH-48-2

VHMH-TB-2

VHMS-15

VHMS-2

VHMS-2-KIT

VHMS-30

VHMS-8

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the width of the opening where you attach the handle to the machine roller?

A: The width is 1".
