Pallet Support Bars| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| PSB-42 |  | 90 Days Limited Warranty | Galvanized Steel Pallet Support Bar 38-1/2 In. x 3 In. x 1 In. 1000 Lb. Capacity Gray | Uniform Capacity (lb.): 1,000 Steel (gauge): 14 | 6 | ||
| SSB-42 |  | 90 Days Limited Warranty | Galvanized Steel Pallet Support Bar 1-1/2 In. Height 1,000 Lb. Capacity Gray | Steel (gauge): 14 Uniform Capacity (lb.): 1000 | 9 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
|
|||||||||||||||||
Pallet Support Bars |
|||||||||||||||||
 |
|||||||||||||||||

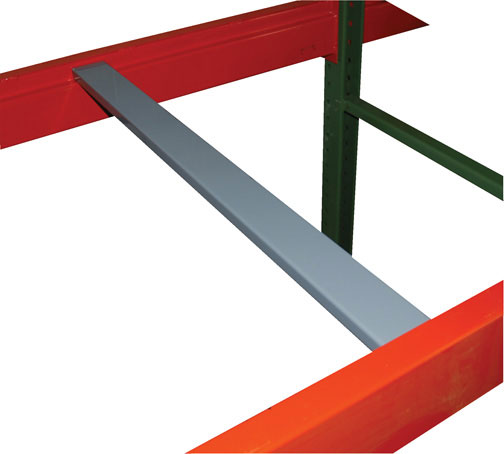

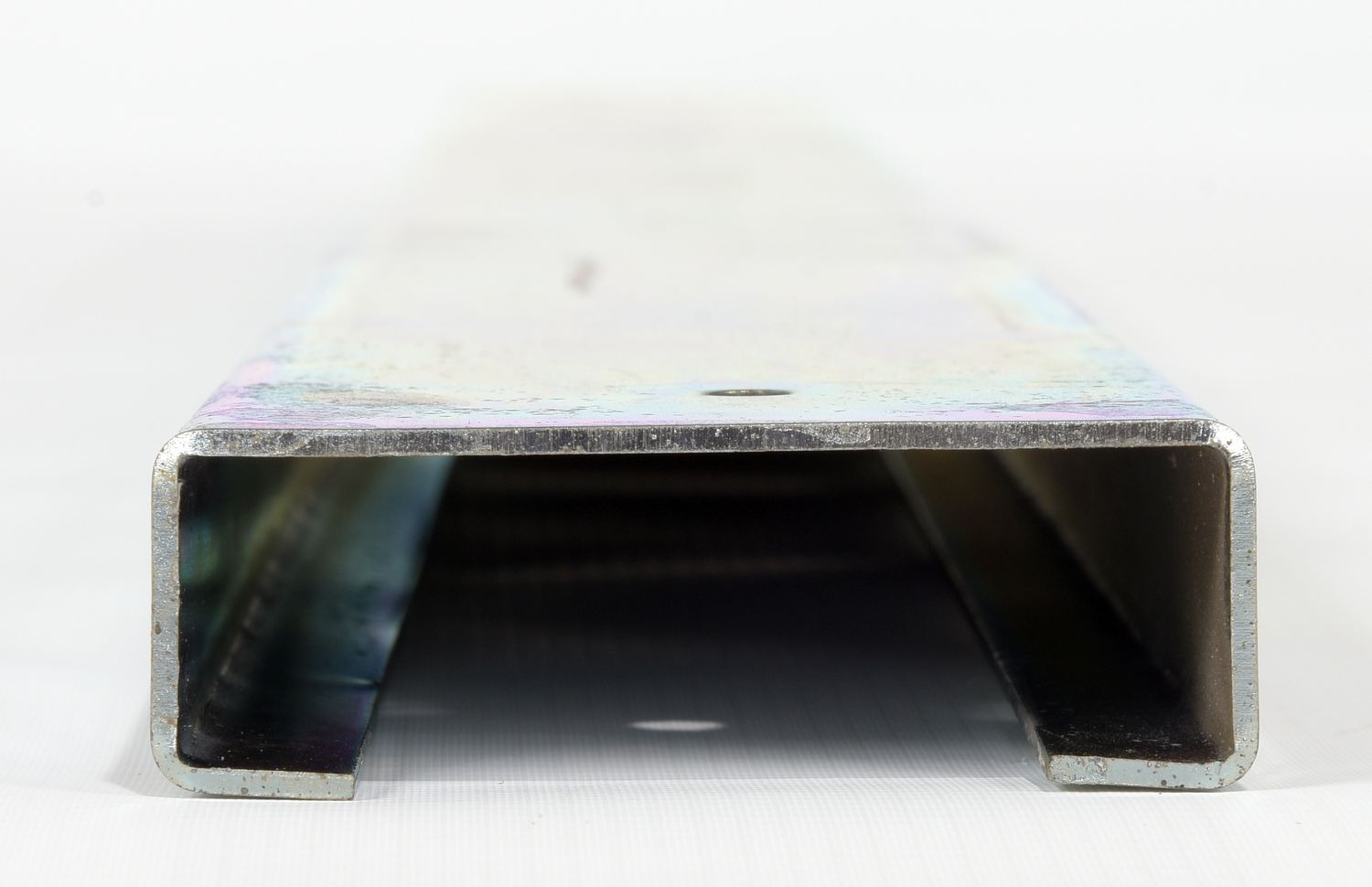

Cross bars provide economical support for pallets between rack cross beams. The model SSB-42, is 1-1/2" high. It is designed to sit flush with the top of the rack step beam. The model PSB-42 is 1" high and is designed to be used with 1/2" plywood or particle board so the board will be flush with the top of the beam. The boxed steel bars fit our standard 42" rack. 14 gauge material.
|
|||||||||||||||||
 |
|||||||||||||||||
|
|||||||||||||||||
