Heavy Duty Roll-Out Shelving

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

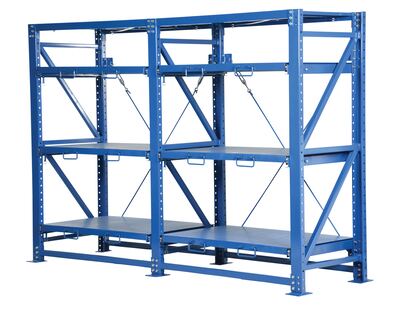

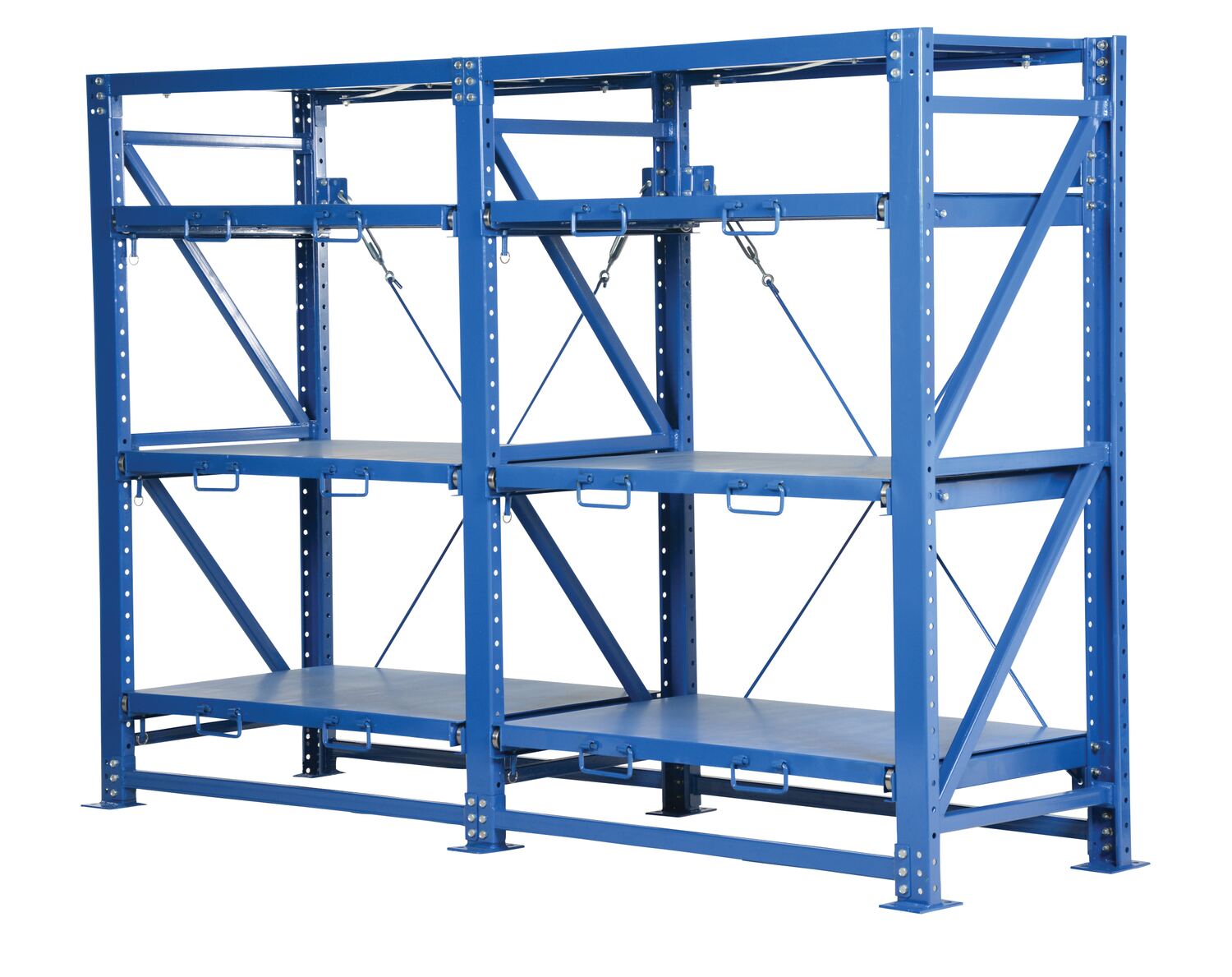

VRSOR-120_A.jpg VRSOR-120_B.jpg
Heavy Duty Roll-Out Shelving

model: VRSOR-120



Featured Storage Solutions


Powder Coated Boltless Shelving
High Impact Plastic Upright Rack Guard
Folding Container
Wire Cages
Storage Cases
Cantilever Carts
Rack Guards with Rubber Bumper Insert
Internestable Portable Stackable Rack Systems
Portable / Stackable Vertical Sheet Rack
model chart

Product Family Overview

Print Friendly
Heavy Duty Roll-Out Shelving
SERIES: VRSOR

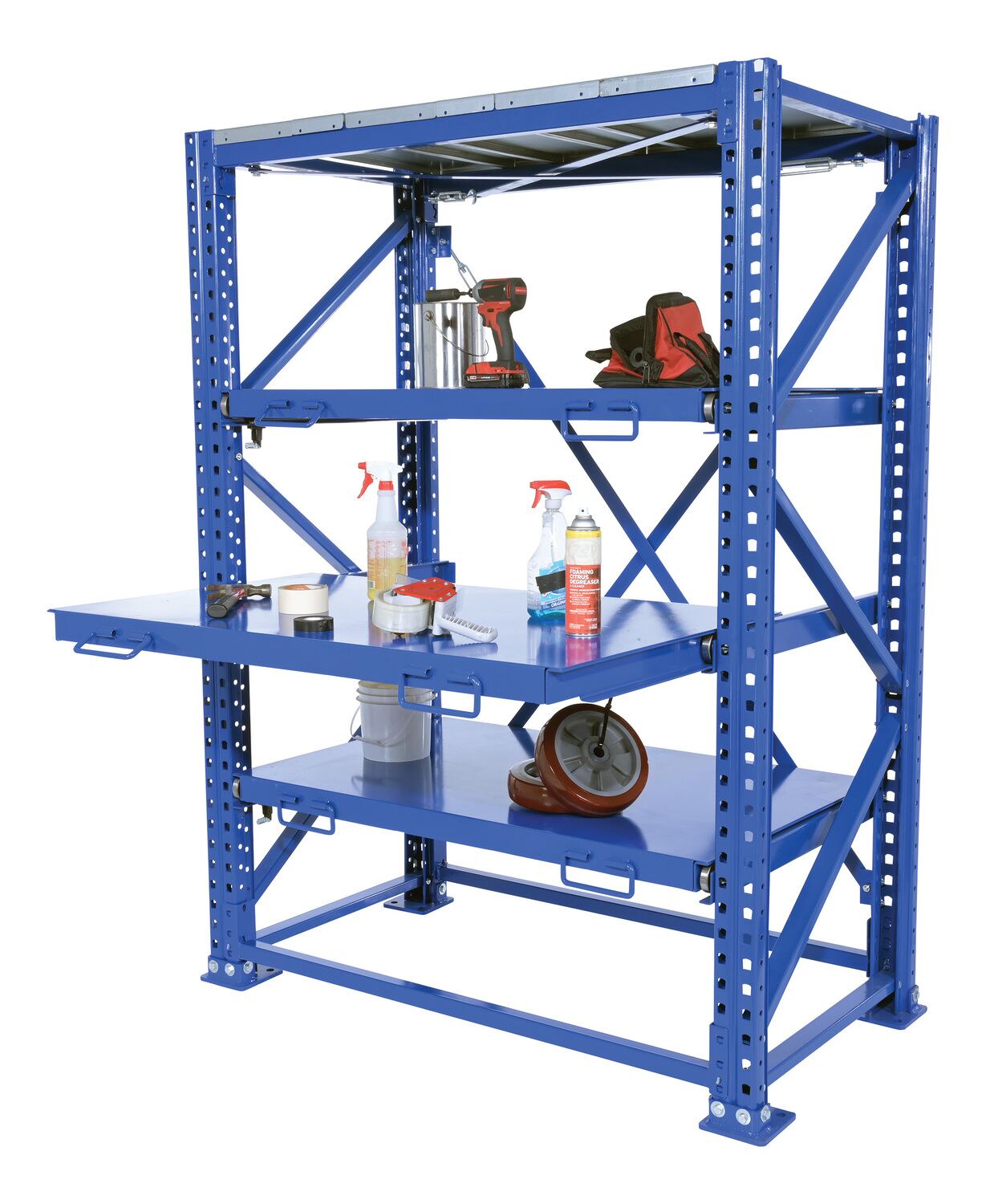

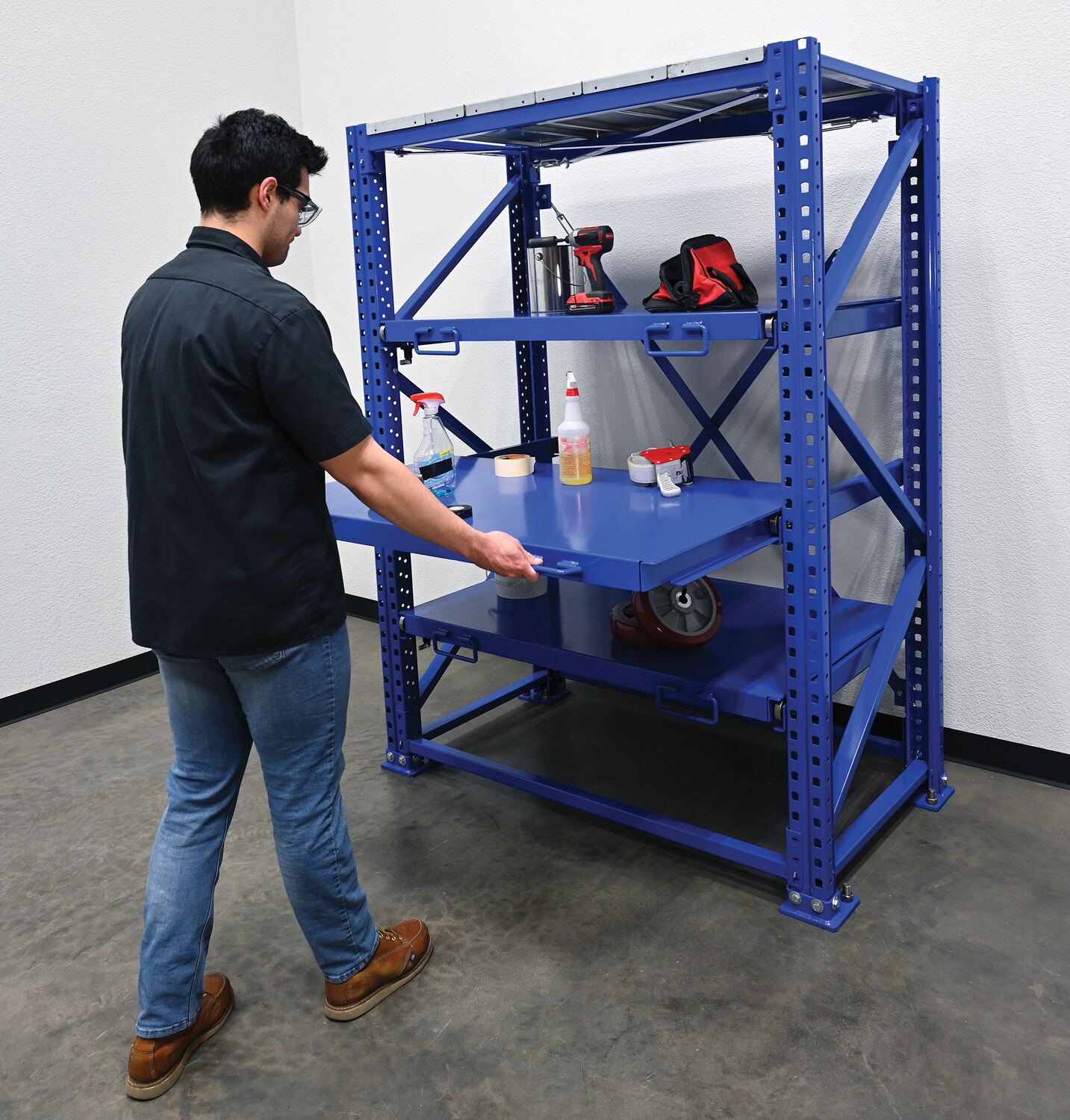

Heavy Duty roll-out shelving supports and stores heavy dies, fixtures and machinery. Shelves should be rolled out one at a time for simple product placement, as well as, personnel safety. All steel construction with powder coat finish. Mounting holes are predrilled. Assembly hardware is included. Mounting hardware is available separately.

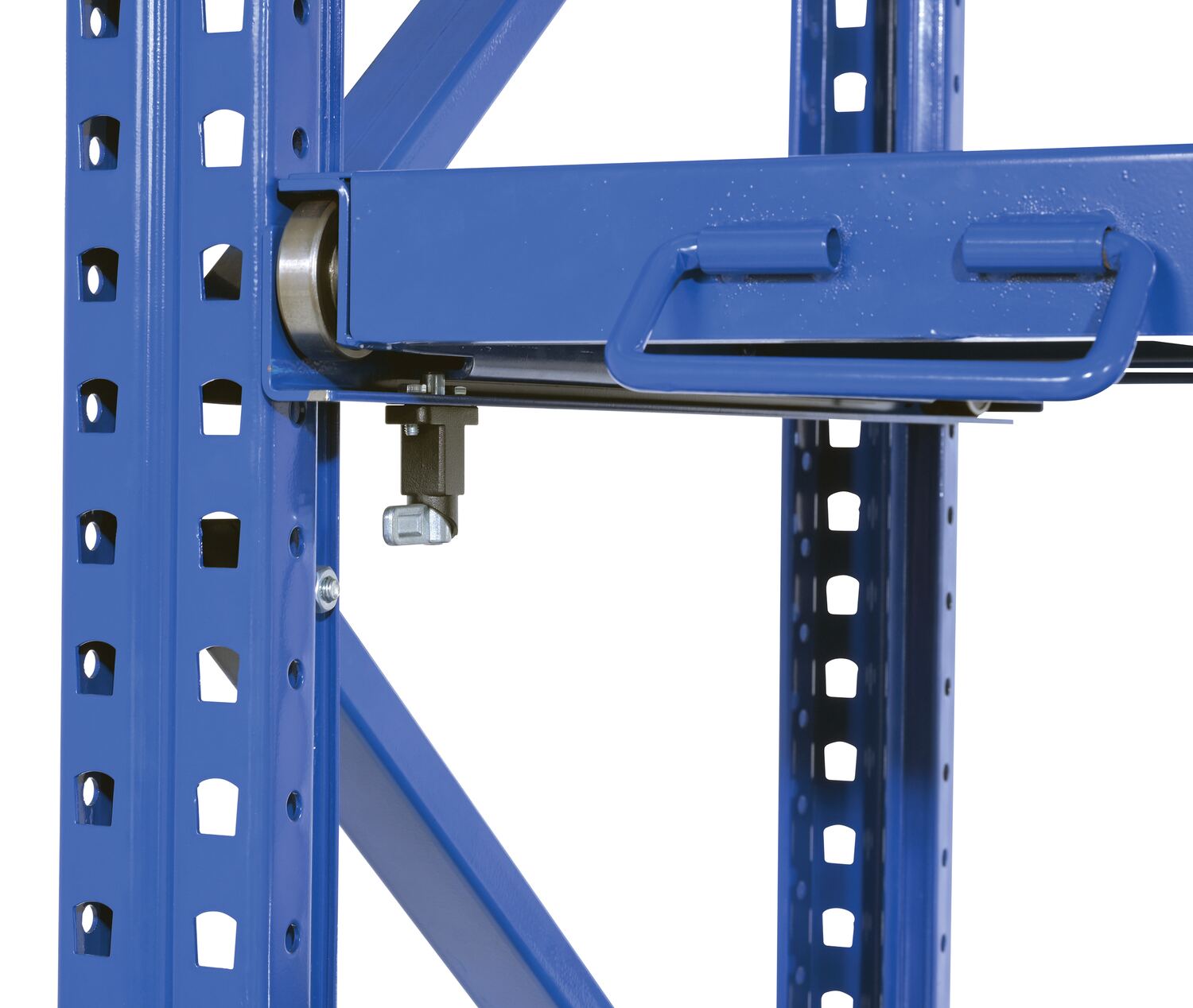

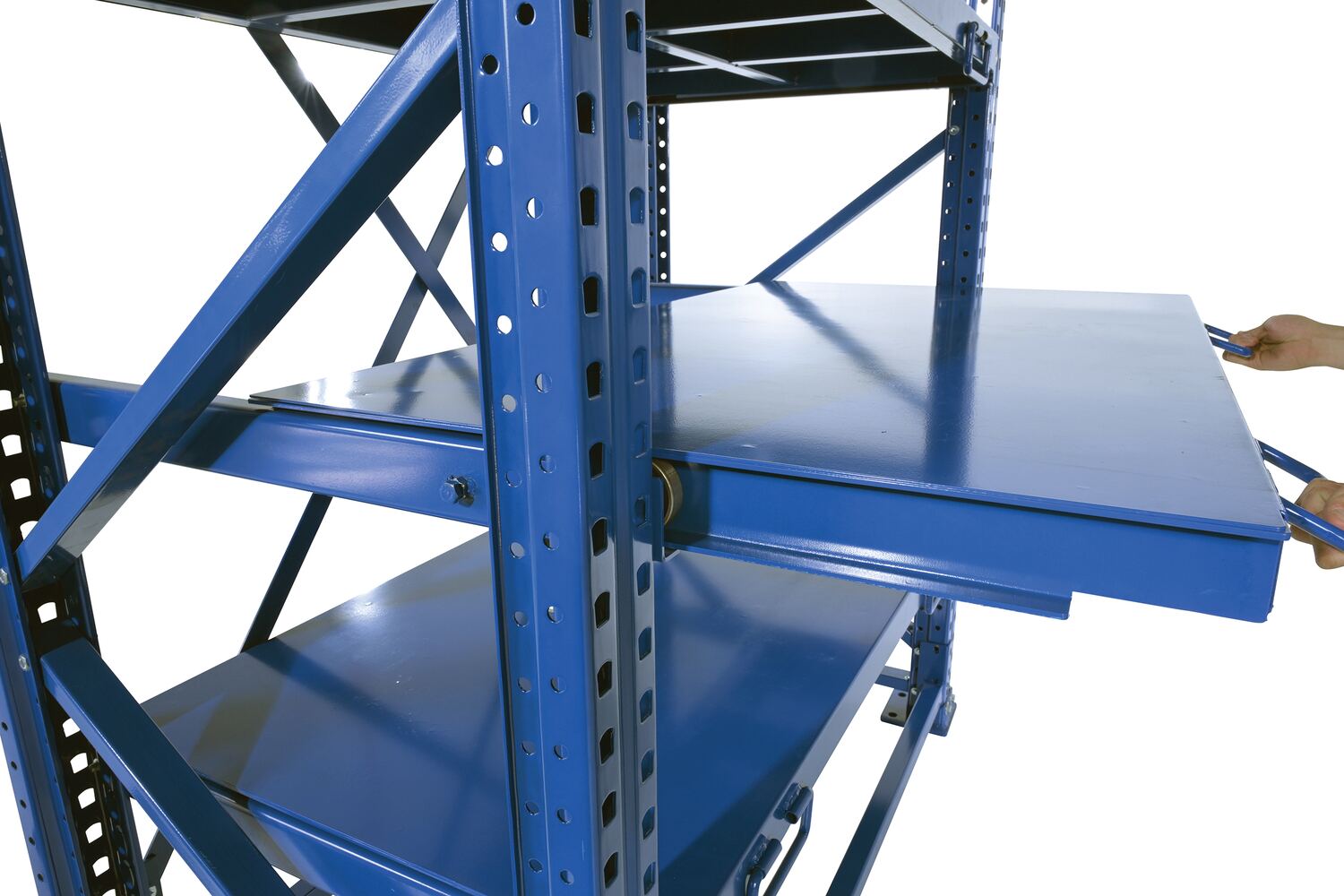

  • Shelves can be extended outward 20"
  • Shelves are lockable in extended position
  • Individual shelf heights are adjustable

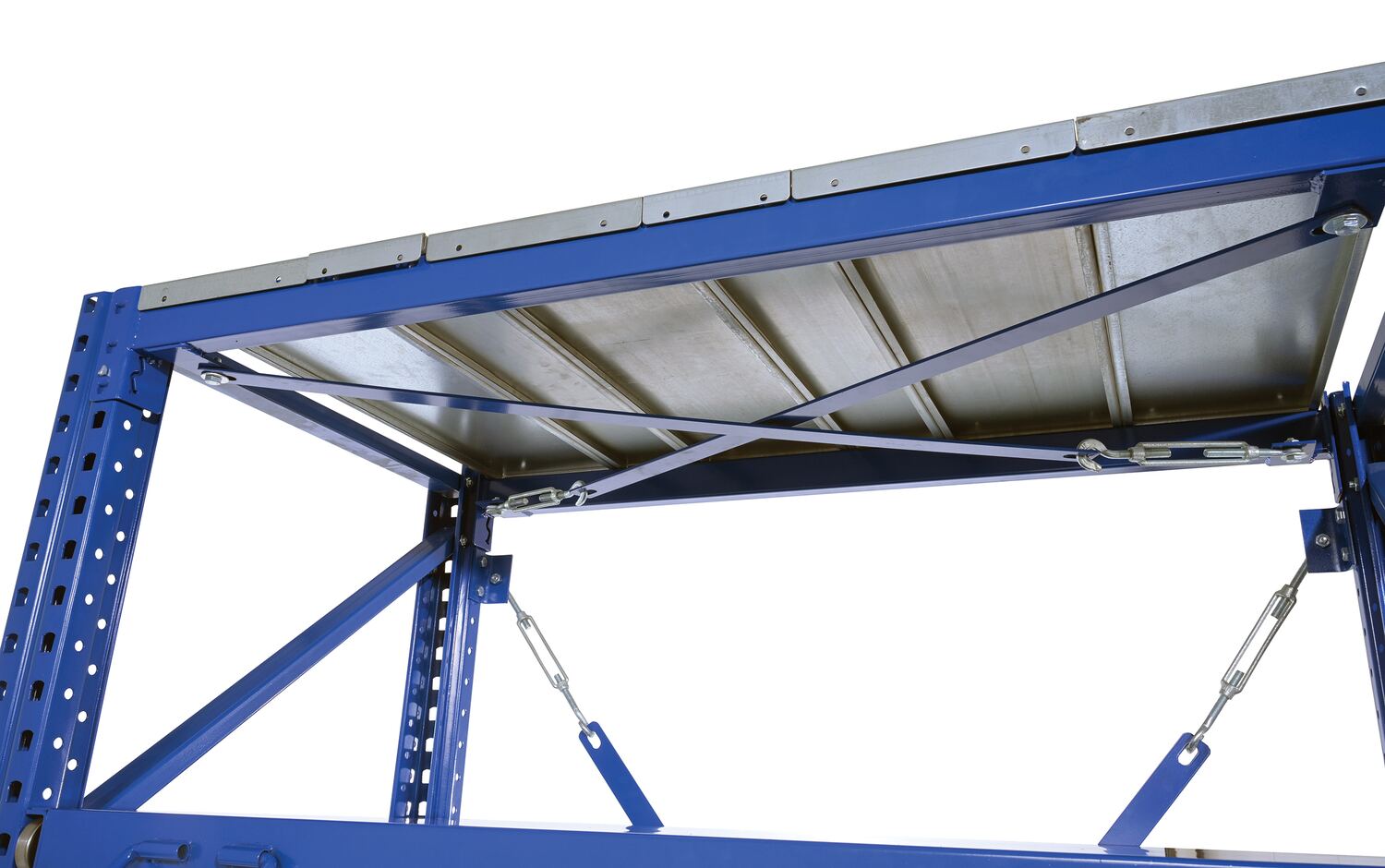

  • Top shelf is fixed and non-adjustable

Heavy Duty roll-out shelving supports and stores heavy dies, fixtures and machinery. Shelves should be rolled out one at a time for simple product placement, as well as, personnel safety. All steel construction with powder coat finish. Mounting holes are predrilled. Assembly hardware is included. Mounting hardware is available separately.

  • Shelves can be extended outward 20"
  • Shelves are lockable in extended position
  • Individual shelf heights are adjustable
  • Top shelf is fixed and non-adjustable

Other Various Racking

 Cantilever Carts Single/Dual Sided Bar Stock Trees Stackable Bar Cradles Variable Height Sheet Racks

Additional Models In This Family
view entire Image Gallery

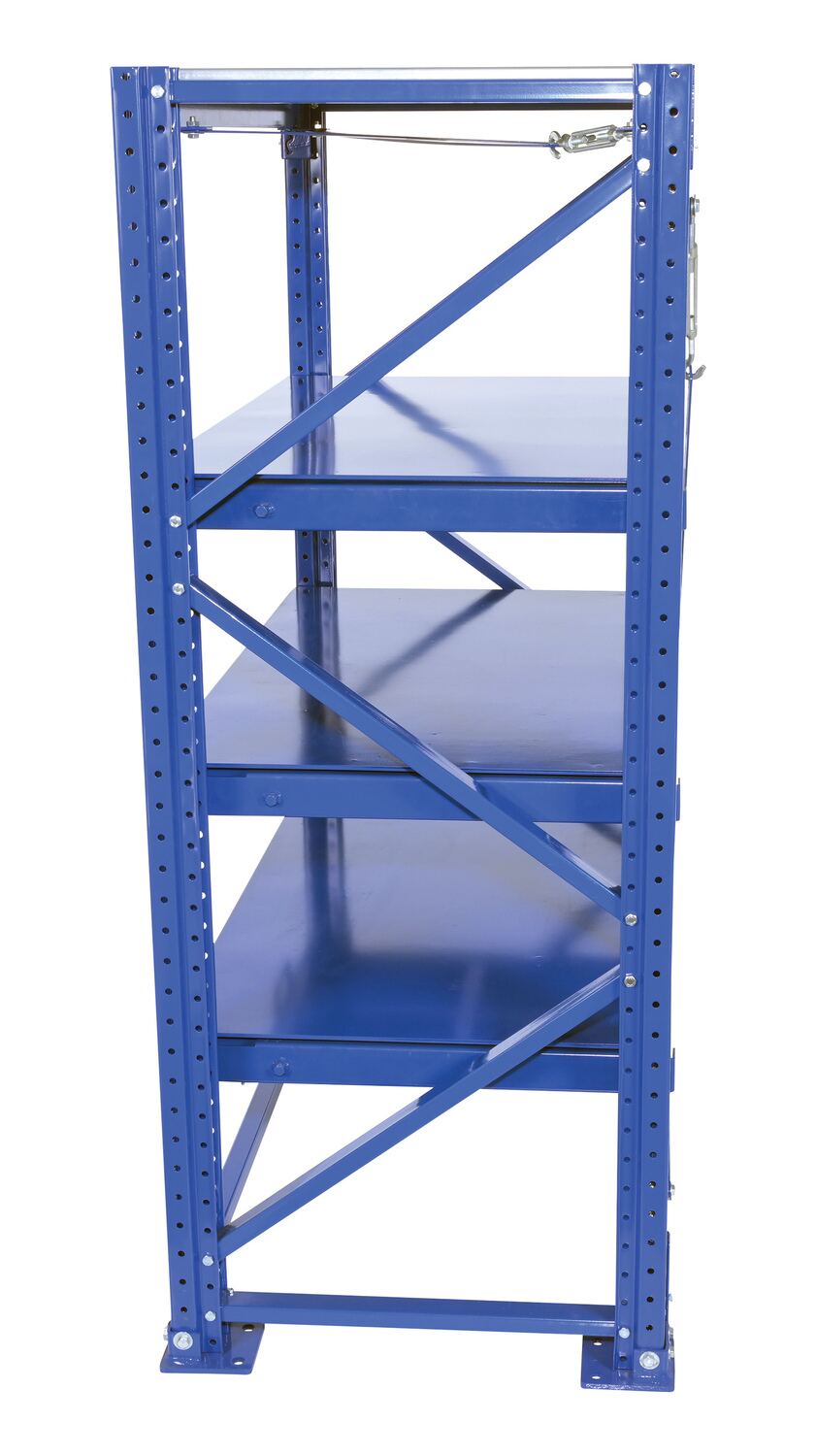

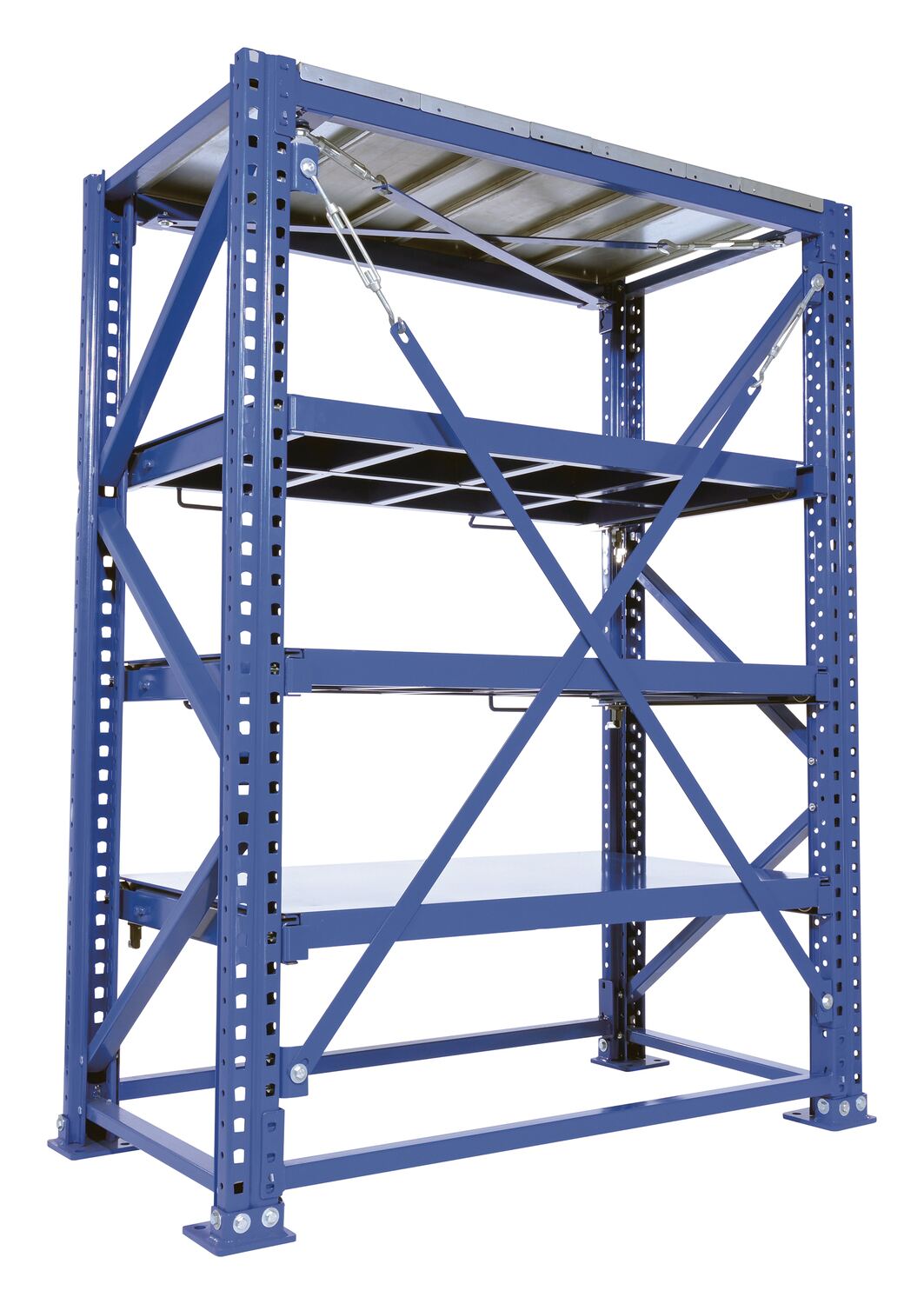

VRSOR-60

model VRSOR-60

VRSOR-SLF

model VRSOR-SLF

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

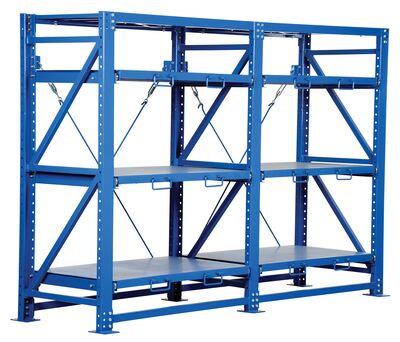

VRSOR-120 VRSOR-12090 Days Limited WarrantySteel Heavy Duty Roll-Out Shelving 32L X 120W X 80H 6,000 Lb. Capacity BlueTiers: 3
Edge Finish: Square		868

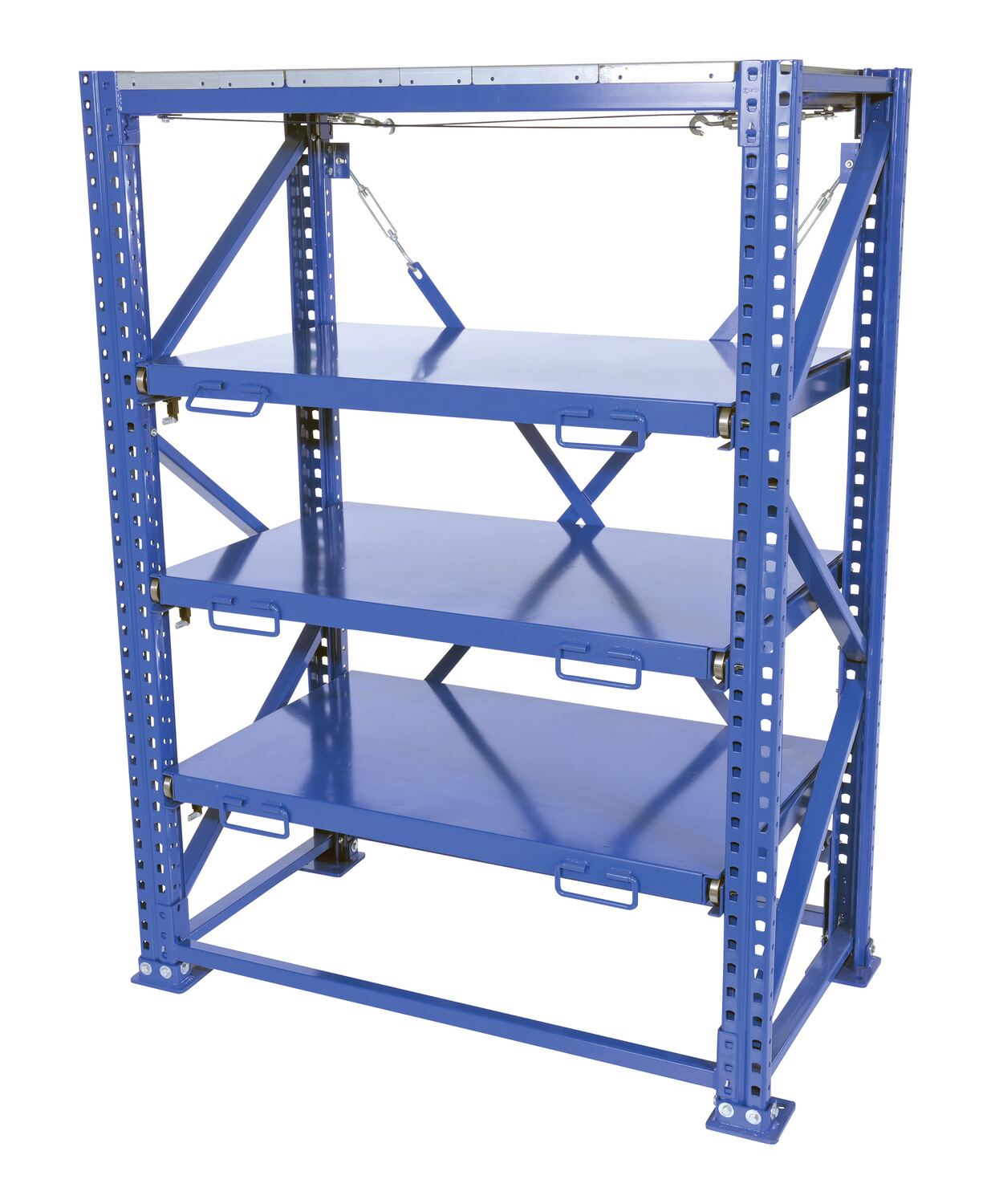

VRSOR-60 VRSOR-6090 Days Limited WarrantySteel Heavy Duty Roll-Out Shelving 32L X 60W X 80H 6,000 Lb. Capacity BlueTiers: 3
Edge Finish: Square		498

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

VRSOR-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Tiers: 3
Edge Finish: Square
Tiers: 3
Edge Finish: Square

VRSOR-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Tiers: 3
Edge Finish: Square
Tiers: 3
Edge Finish: Square
For More Details of the Option Click the Red Model Button

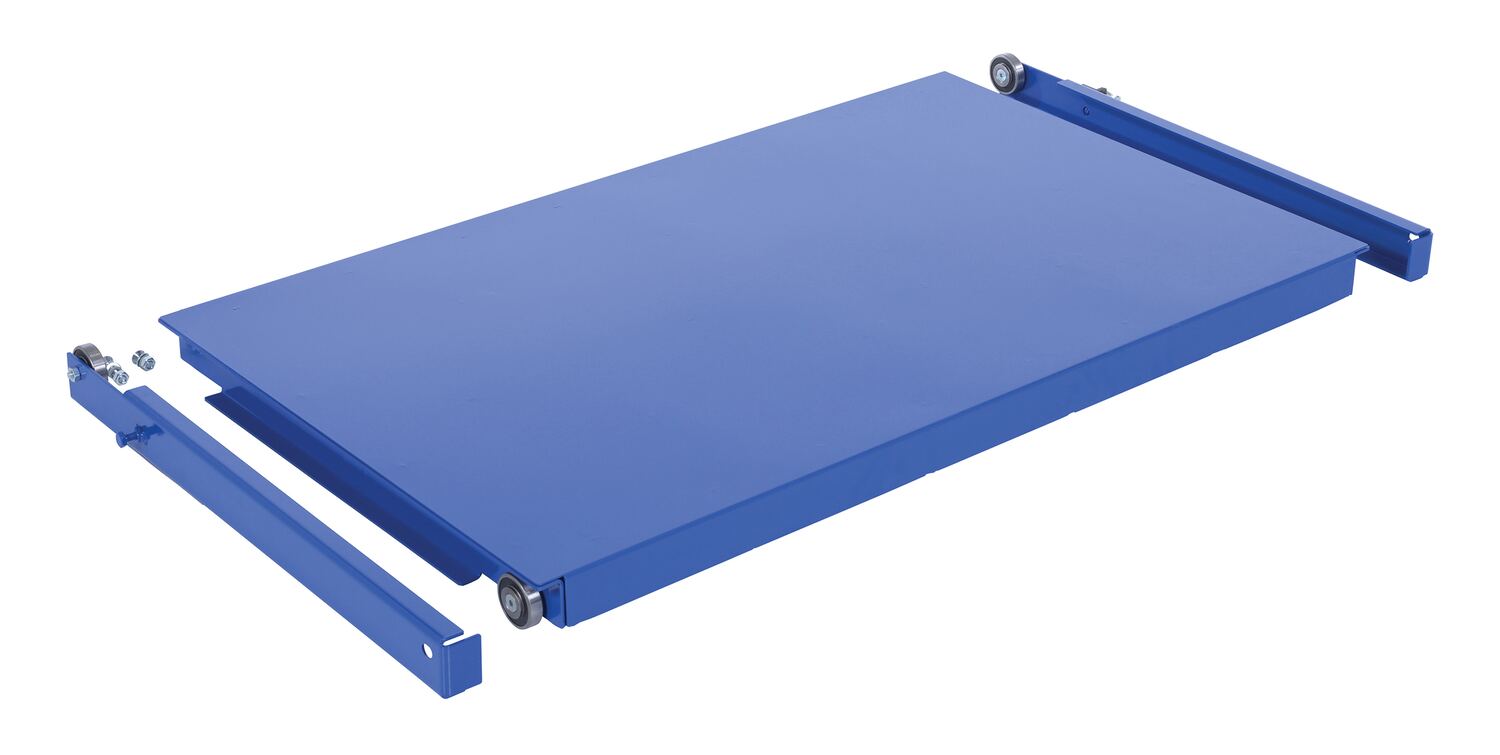

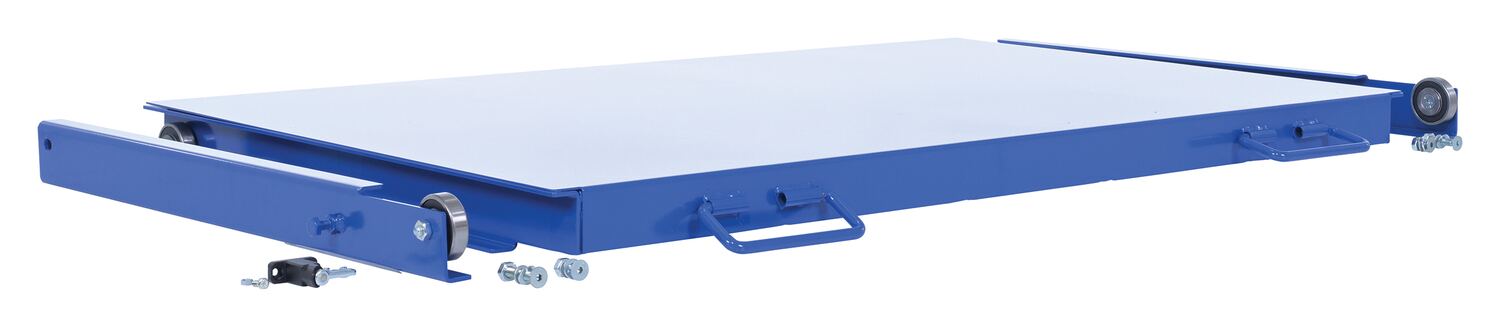

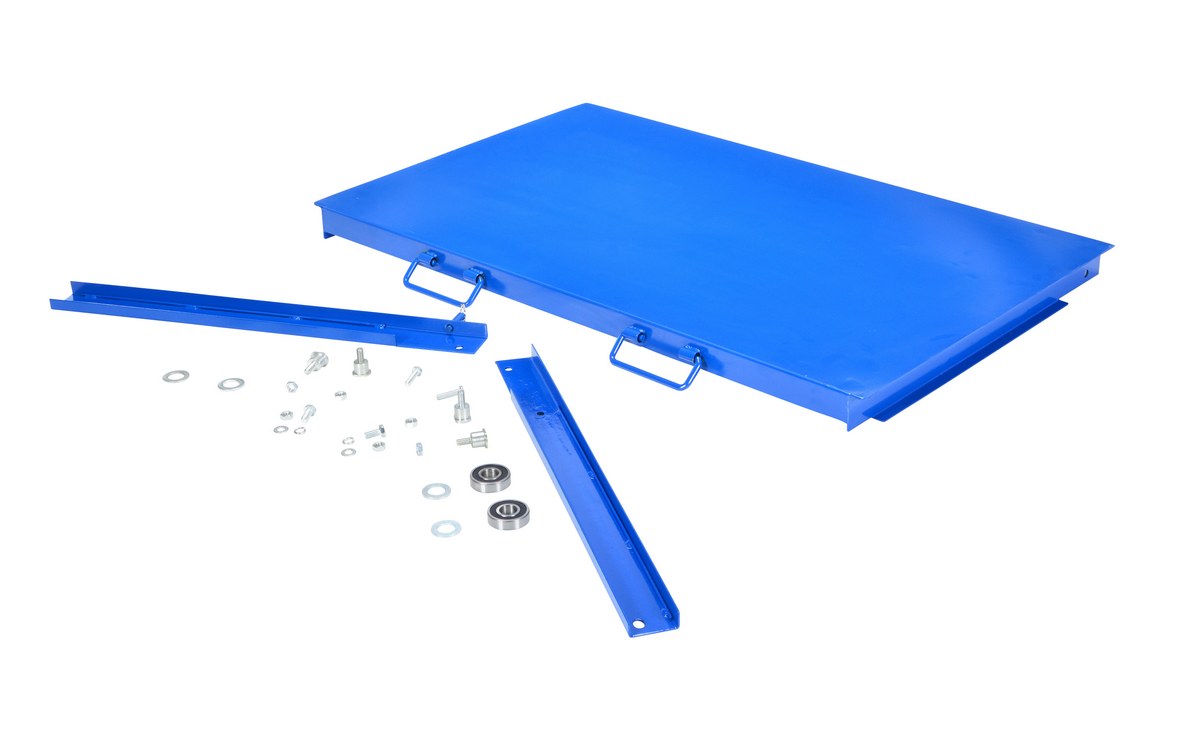

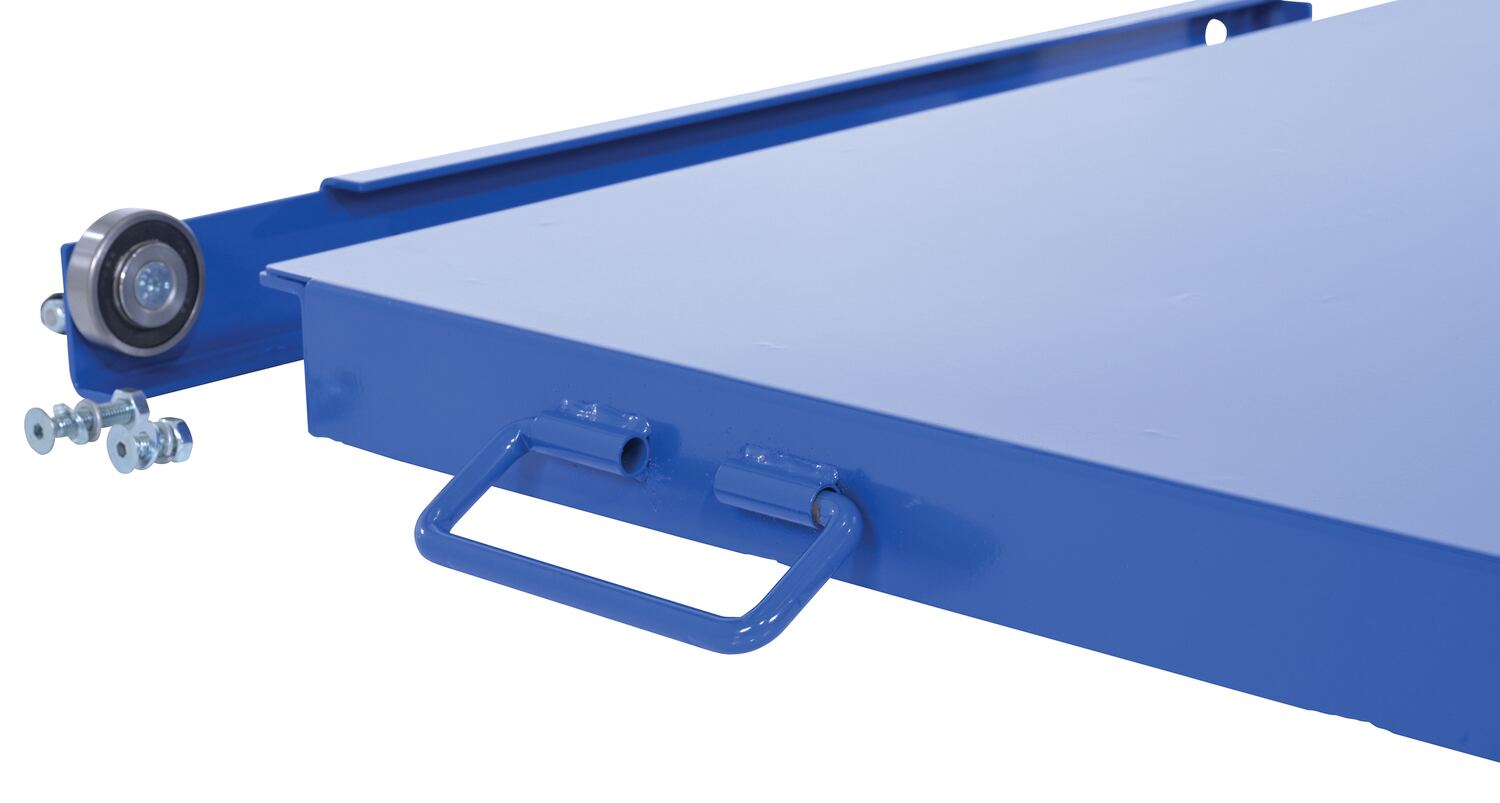

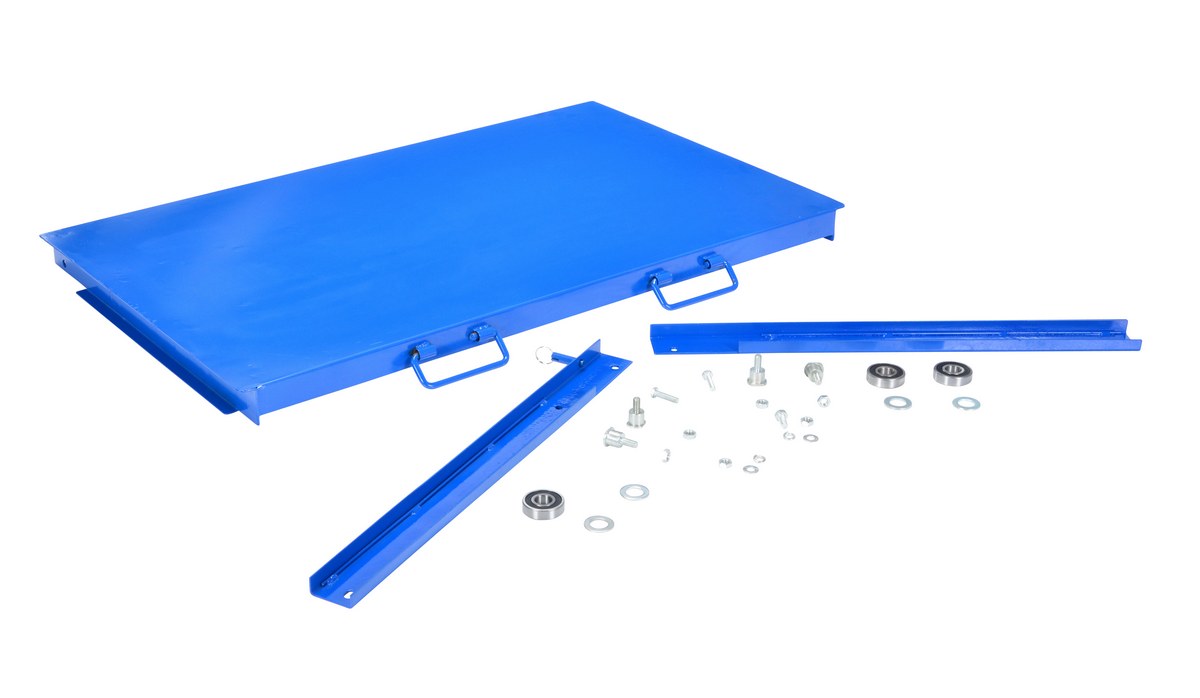

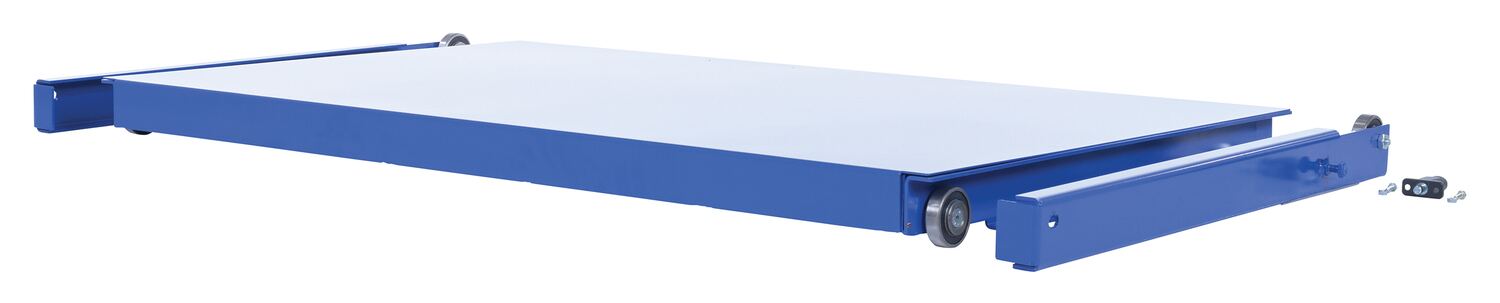

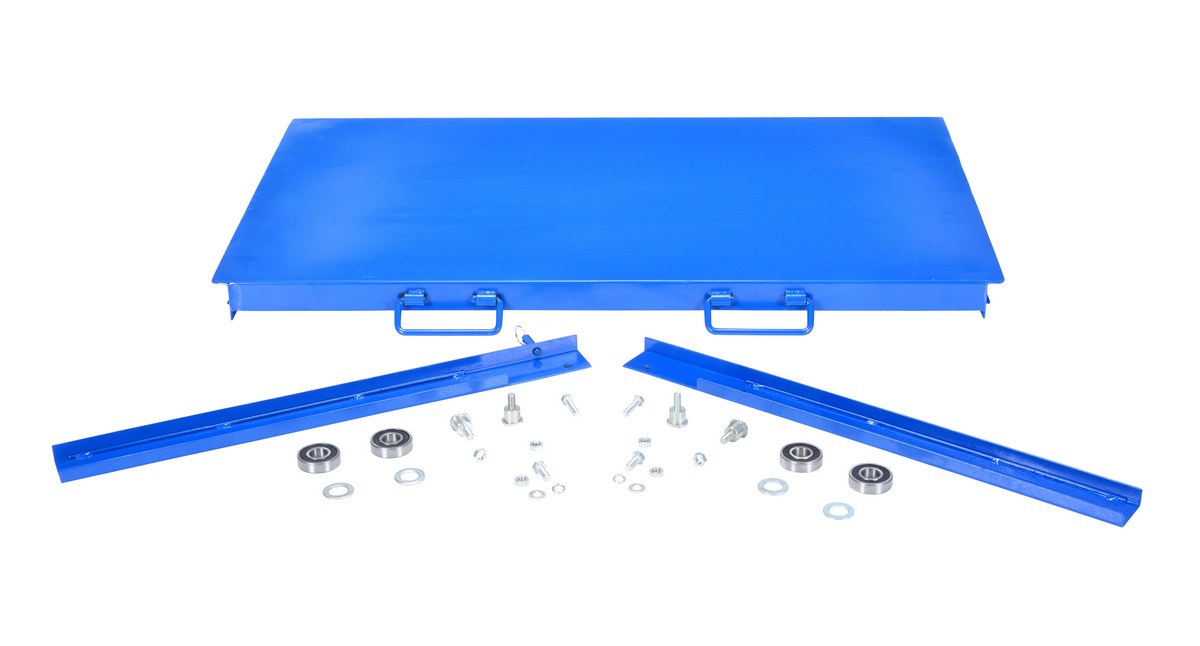

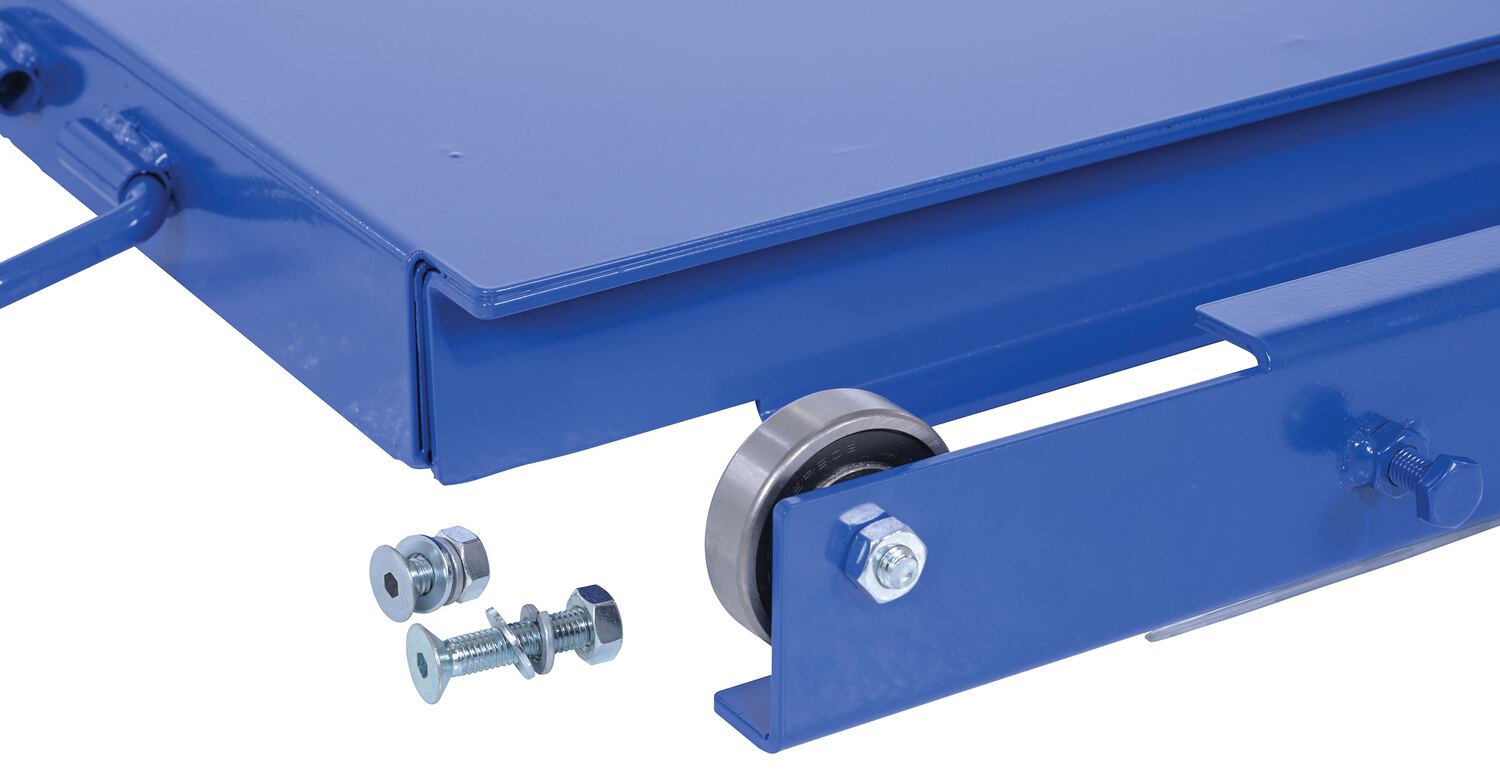

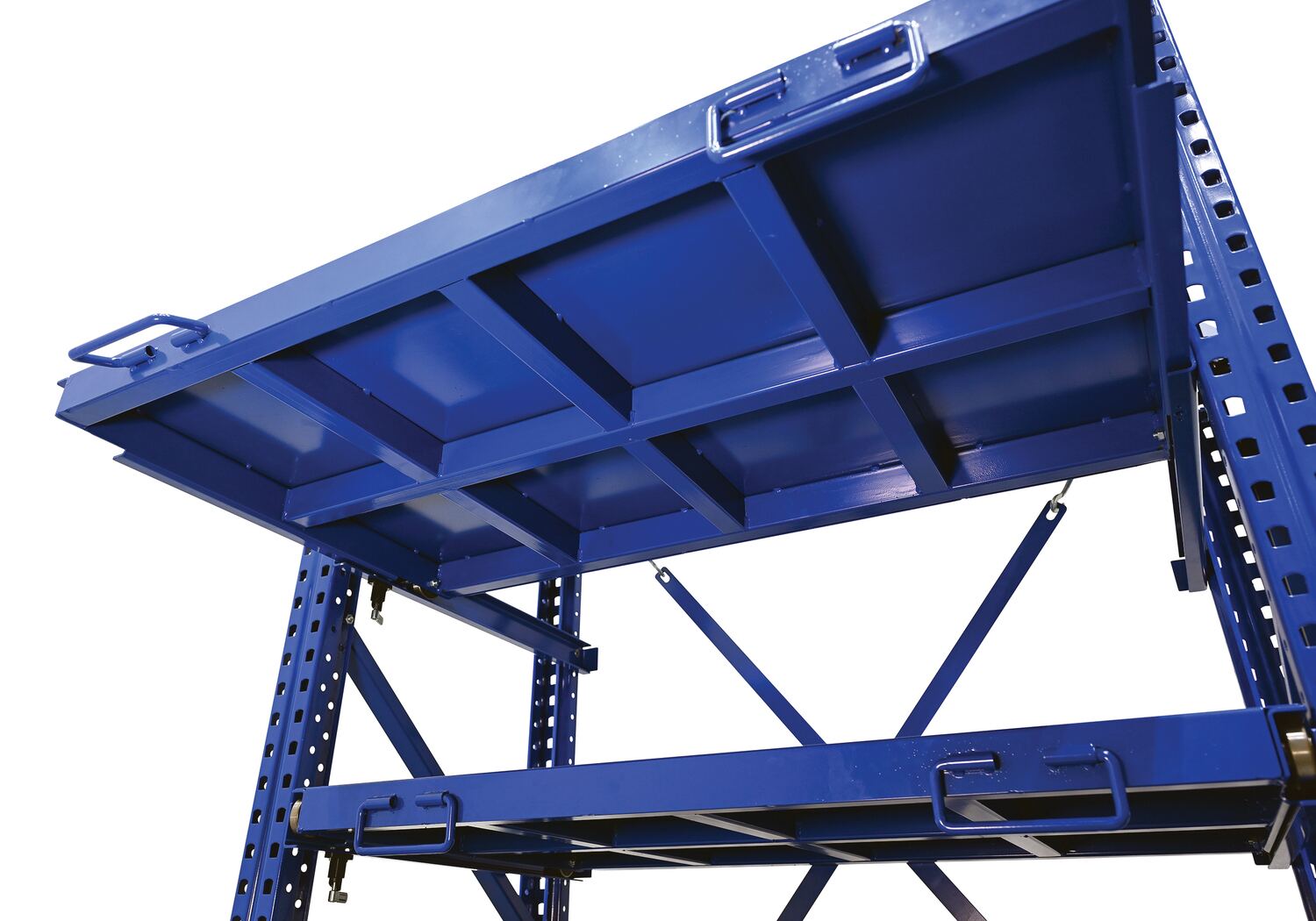

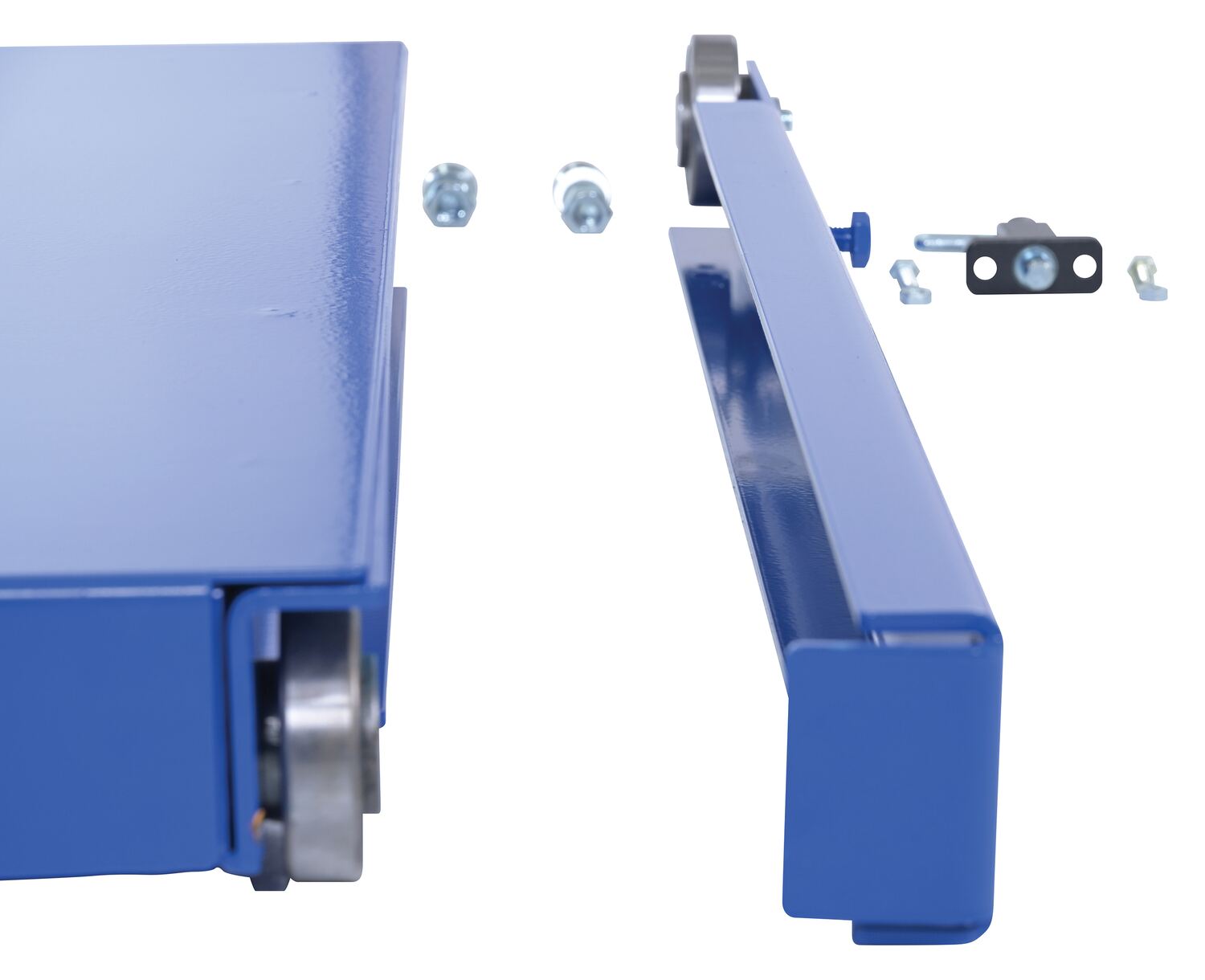

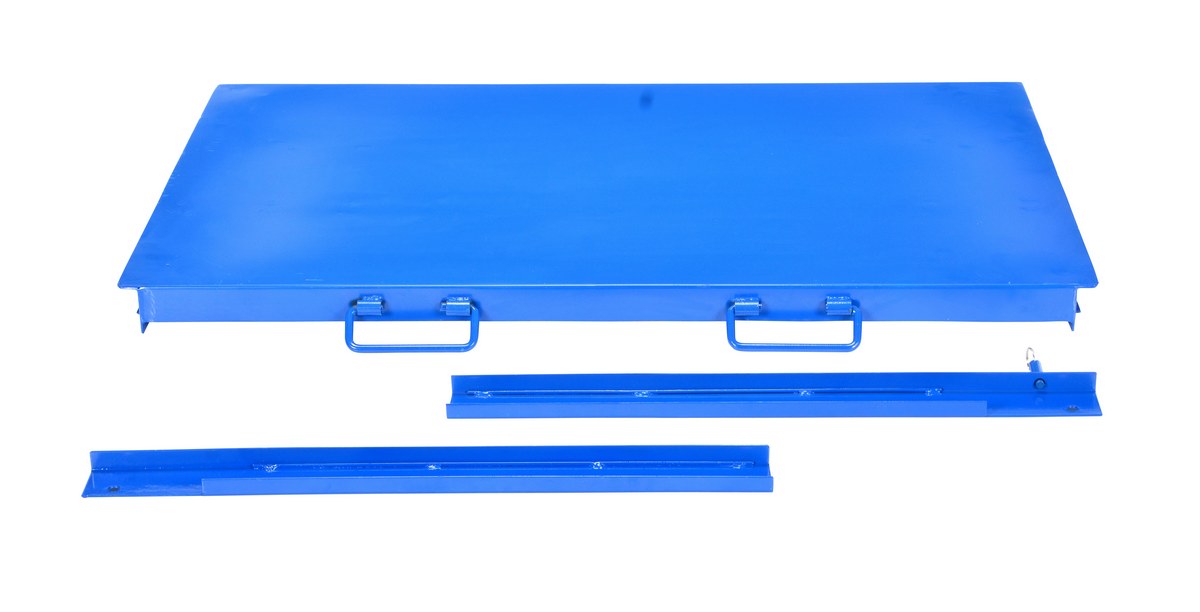

VRSOR-SLF VRSOR-SLF90 Days Limited WarrantySteel Additional Shelf 32 In. Length 1,500 Lb. Capacity For VRSOR Models BlueUniform Capacity per Shelf (lb.): 1500
Shelf Steel (gauge): 10		110

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Heavy Duty Roll-Out Shelving PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


VRSOR-120

VRSOR-60

VRSOR-SLF

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: Can I add a shelf to this racking?

A: Yes, the (VRSOR-SLF) shelf can be added to the VRSOR-120 or the VRSOR-60.

Q: What is the maximum number of shelves can be added for VRSOR-60?

A: The unit has 67 in useable space with mounting holes 2-1/4 in apart. Each shelf needs approximately 6 in to function properly. Capacity is 6,000 per set and 1,500 per shelf.
