Product Family Overview


Heavy Duty Polyurethane Casters
SERIES: CST-FC47-SI

Made of exclusive premium grade proprietary polyurethane with donut tread (SI Heavy Duty). Ideal for applications where superior strength and high ergonomic performance is required. Tread has been matched with a double precision rigging that offers one of the smoothest rotations in the industry. Swivel sports a high-class three layered finish: brass, nickel, and chrome. Rigid comes standard in zinc. Orange tread color. 85 Shore A. Wheel core is constructed of aluminum.

img7.gifMaintenance Freeimg9.gif

  • 100% Maintenance Free
  • Double Precision Raceway - for exceptional ergonomic performance
  • Chrome Plated Finish
  • Industry Leading Capacity
  • Non-Marking
  • Sealed Precision Ball Bearings

Made of exclusive premium grade proprietary polyurethane with donut tread (SI Heavy Duty). Ideal for applications where superior strength and high ergonomic performance is required. Tread has been matched with a double precision rigging that offers one of the smoothest rotations in the industry. Swivel sports a high-class three layered finish: brass, nickel, and chrome. Rigid comes standard in zinc. Orange tread color. 85 Shore A. Wheel core is constructed of aluminum.

img7.gifMaintenance Freeimg9.gif

  • 100% Maintenance Free
  • Double Precision Raceway - for exceptional ergonomic performance
  • Chrome Plated Finish
  • Industry Leading Capacity
  • Non-Marking
  • Sealed Precision Ball Bearings

Additional Models In This Family

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height
Top Plate
Size
Net Wt.
(lbs)

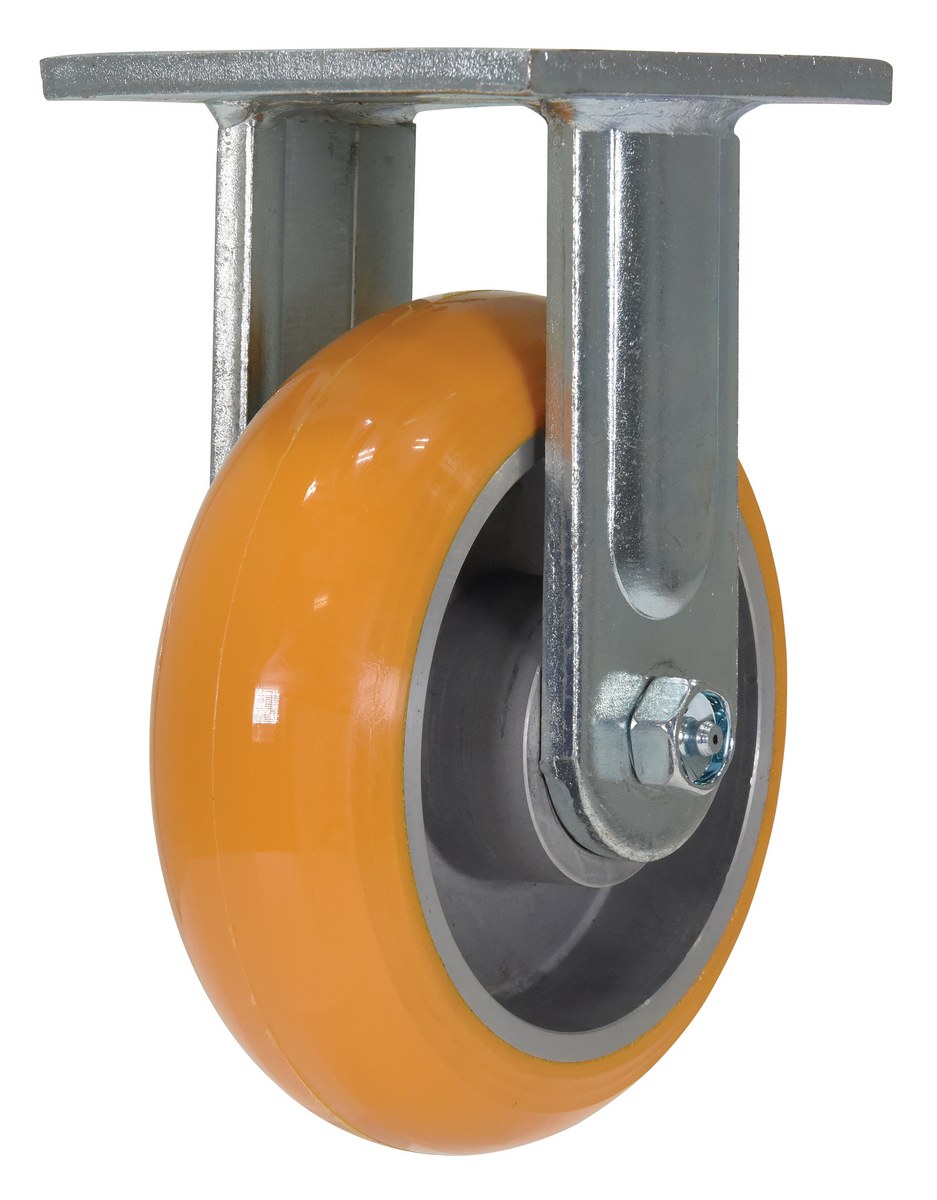

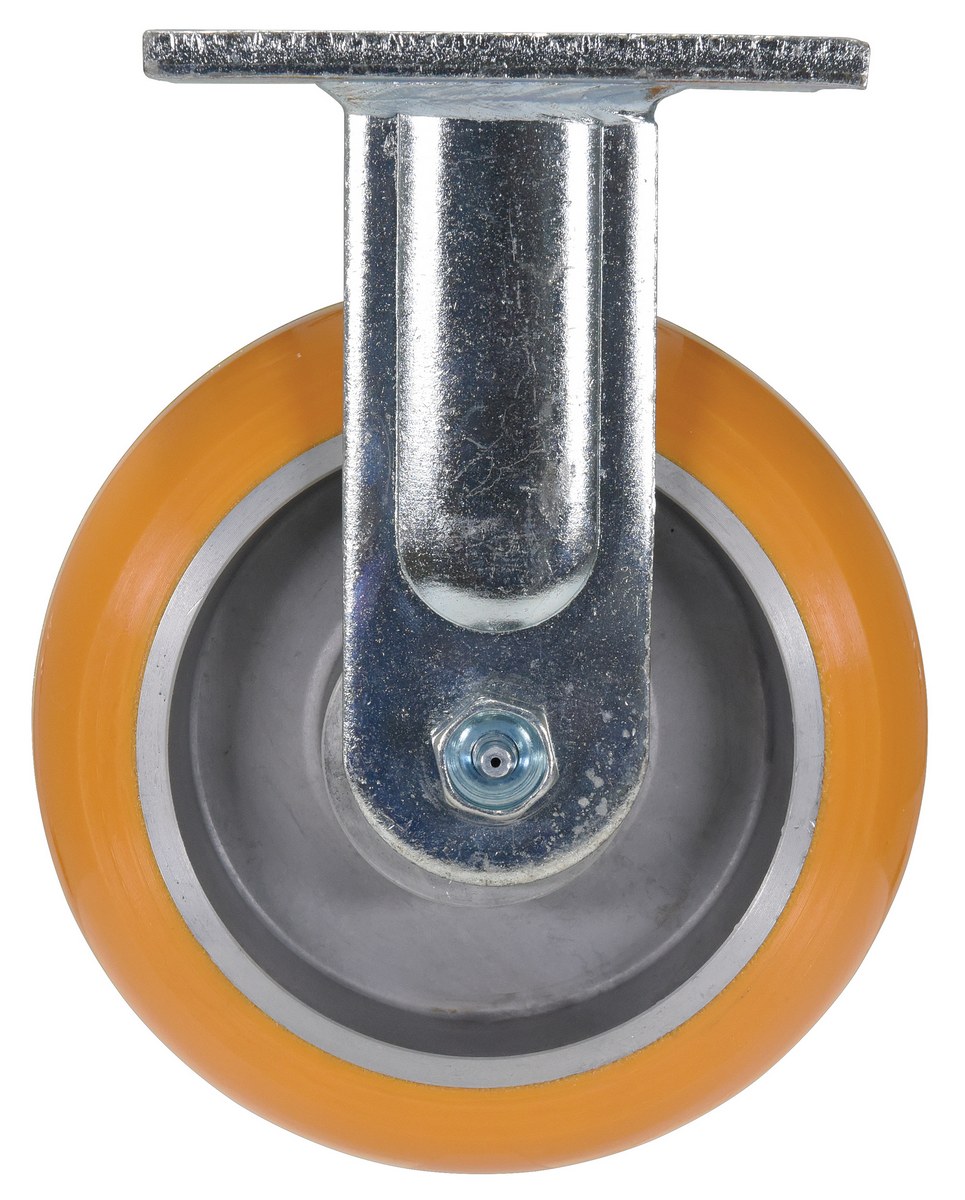

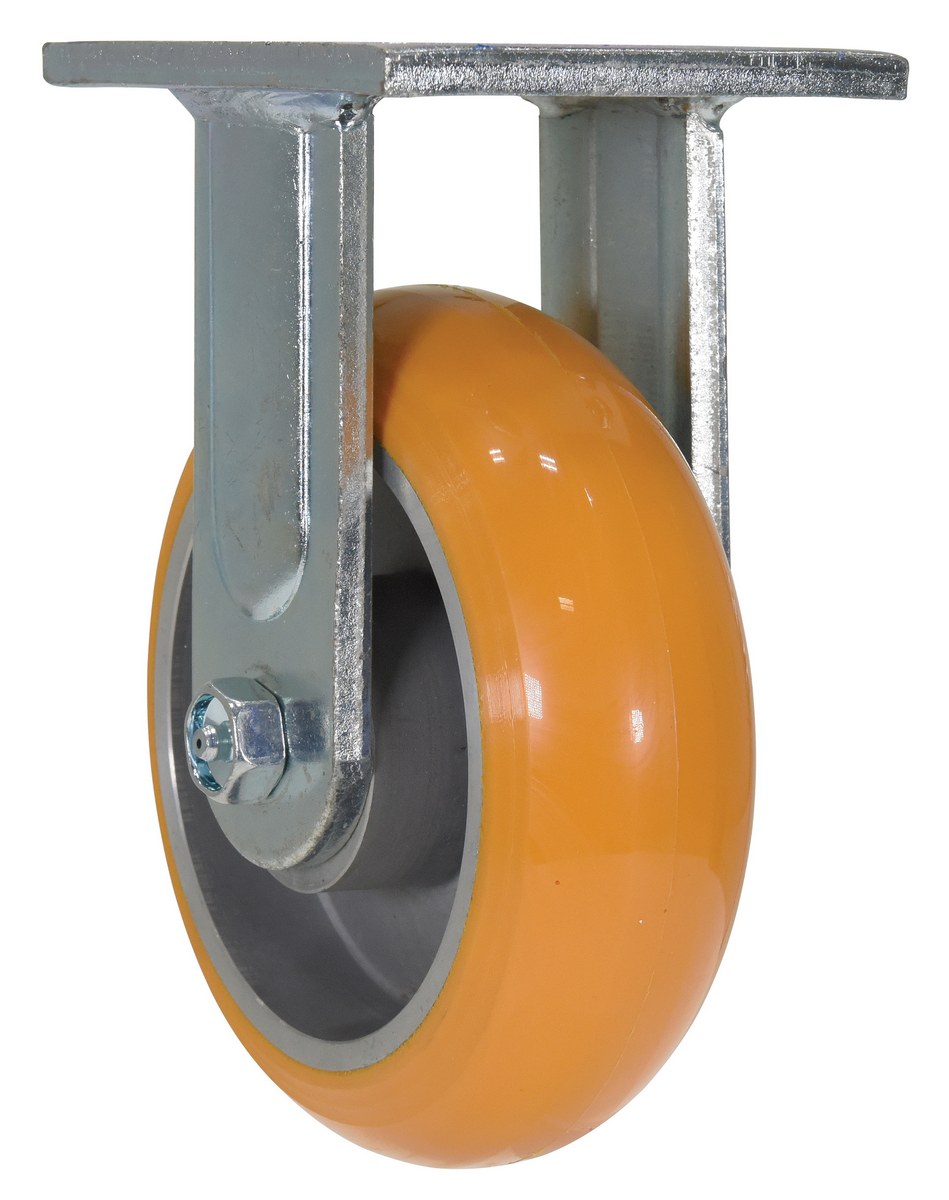

CST-FC47-6X2SI-R CST-FC47-6X2SI-R3 YEARS Limited Warranty6 x 2RIGID15007-1/2 4 x 4-1/25.63

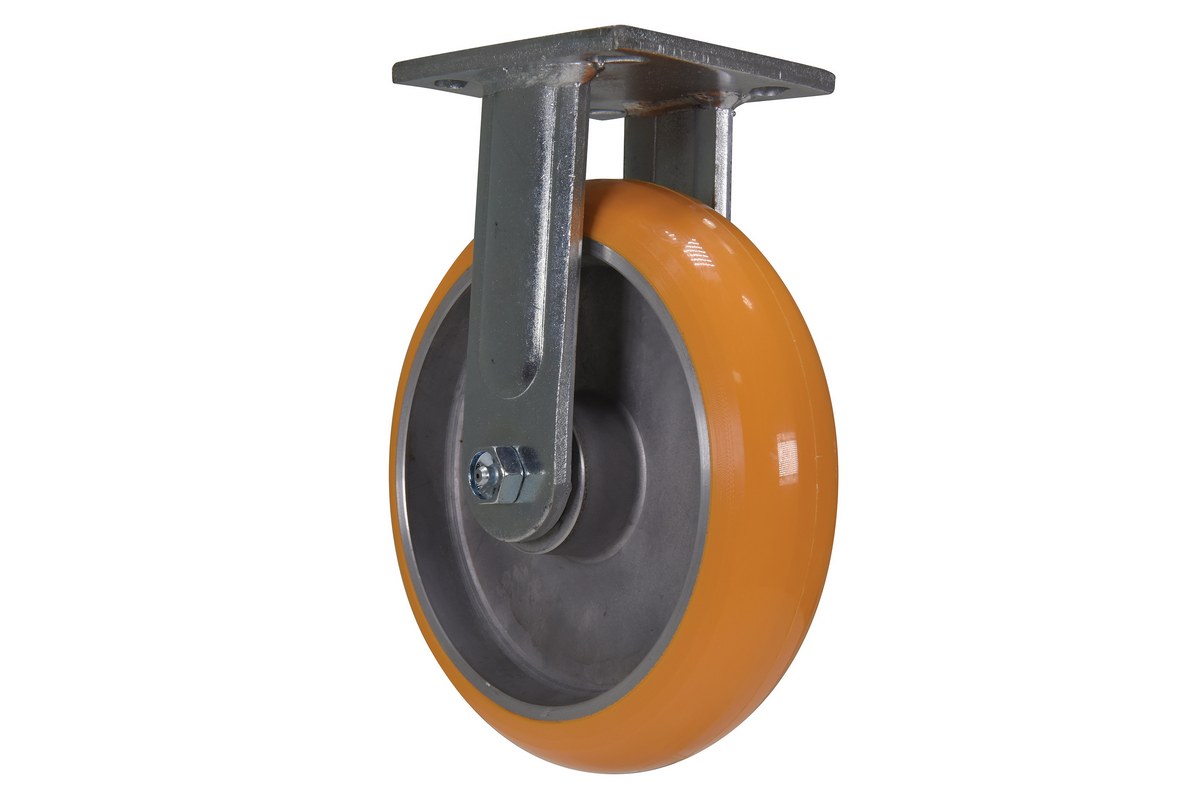

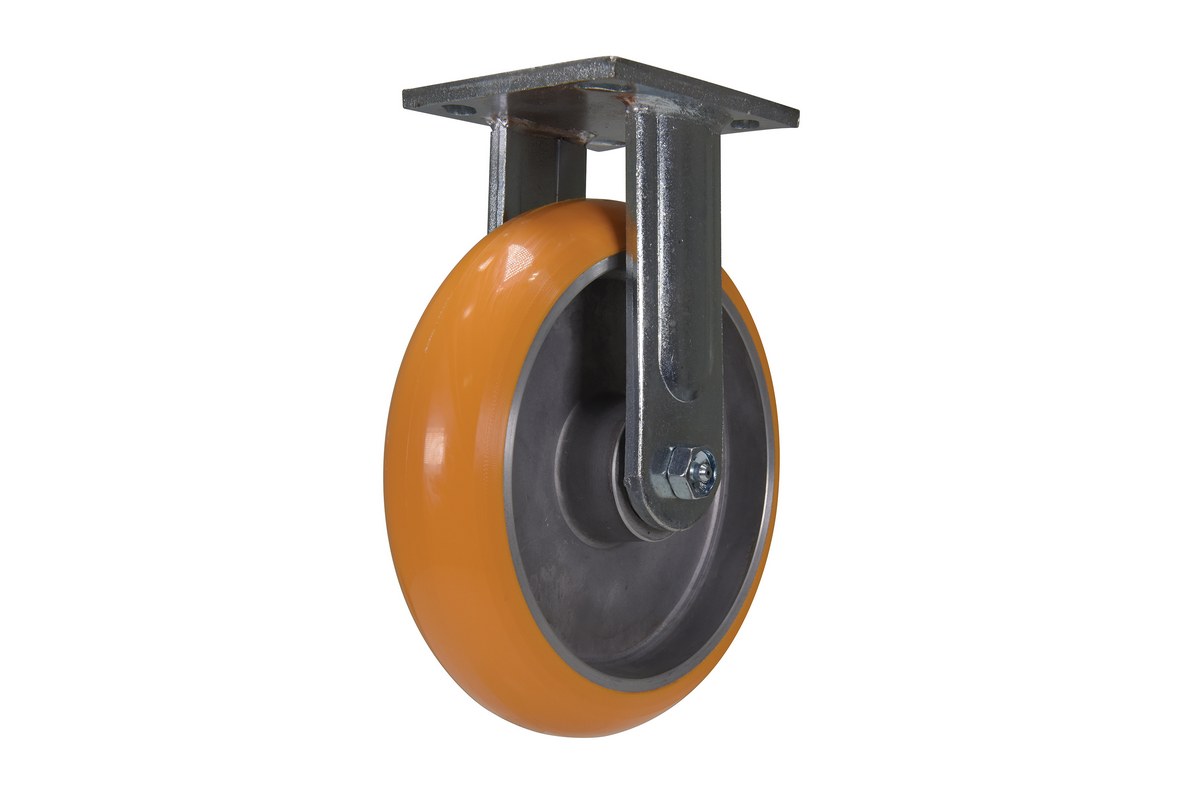

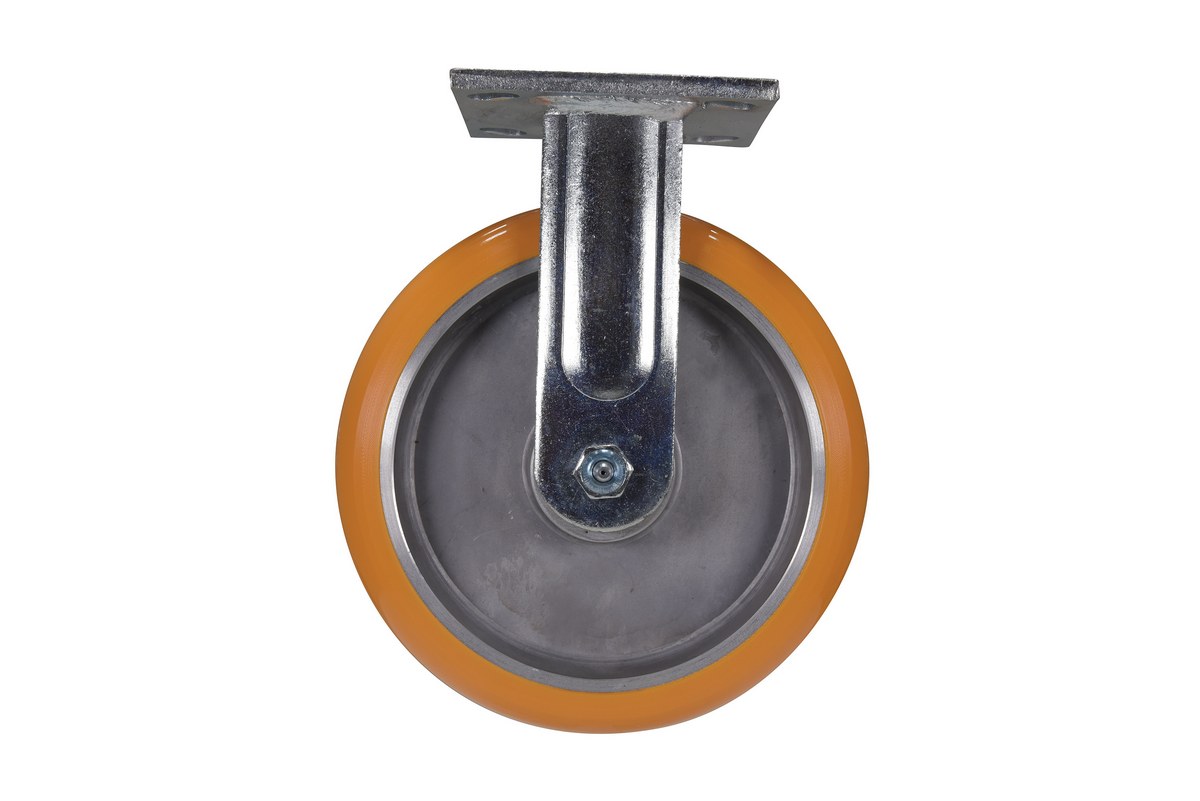

CST-FC47-8X2SI-R CST-FC47-8X2SI-R3 YEARS Limited Warranty8 x 2RIGID20009-1/2 4 x 4-1/27.1

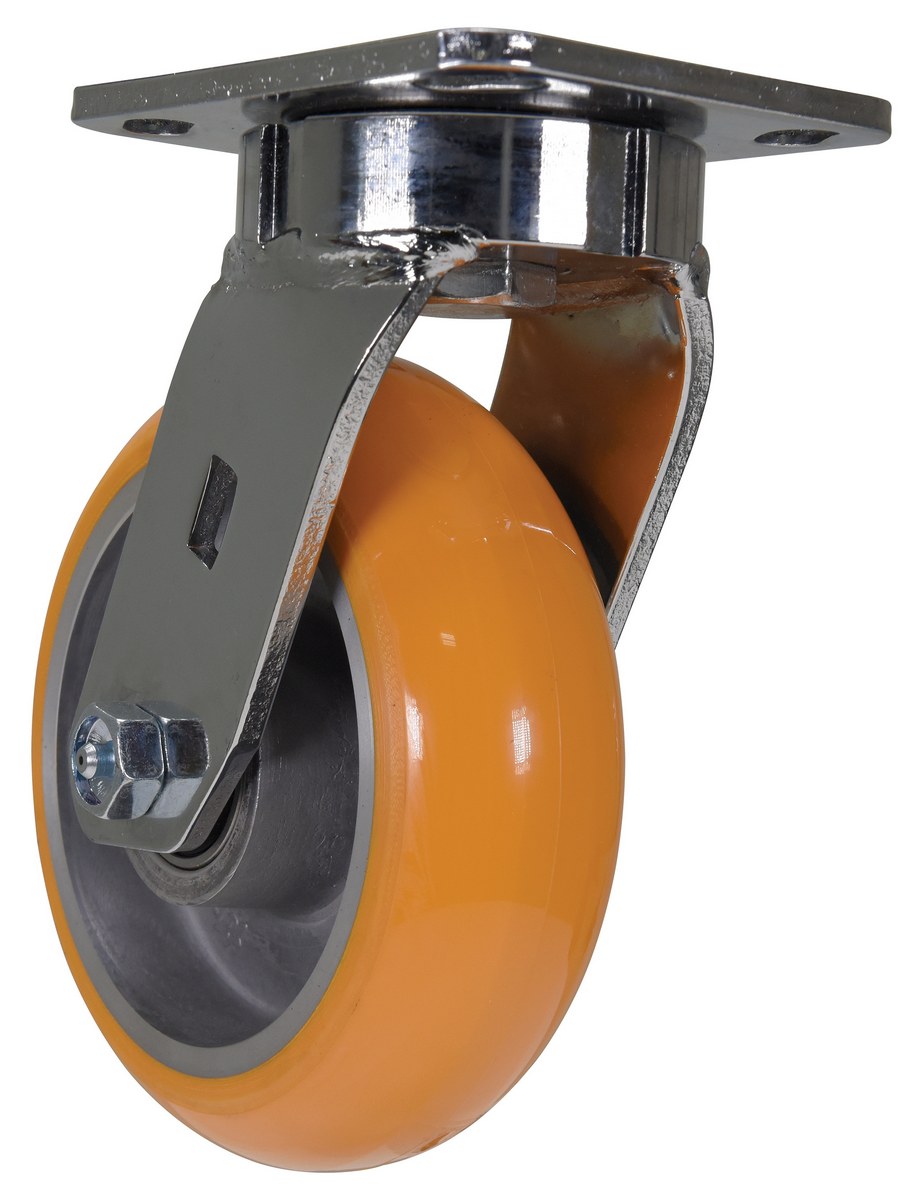

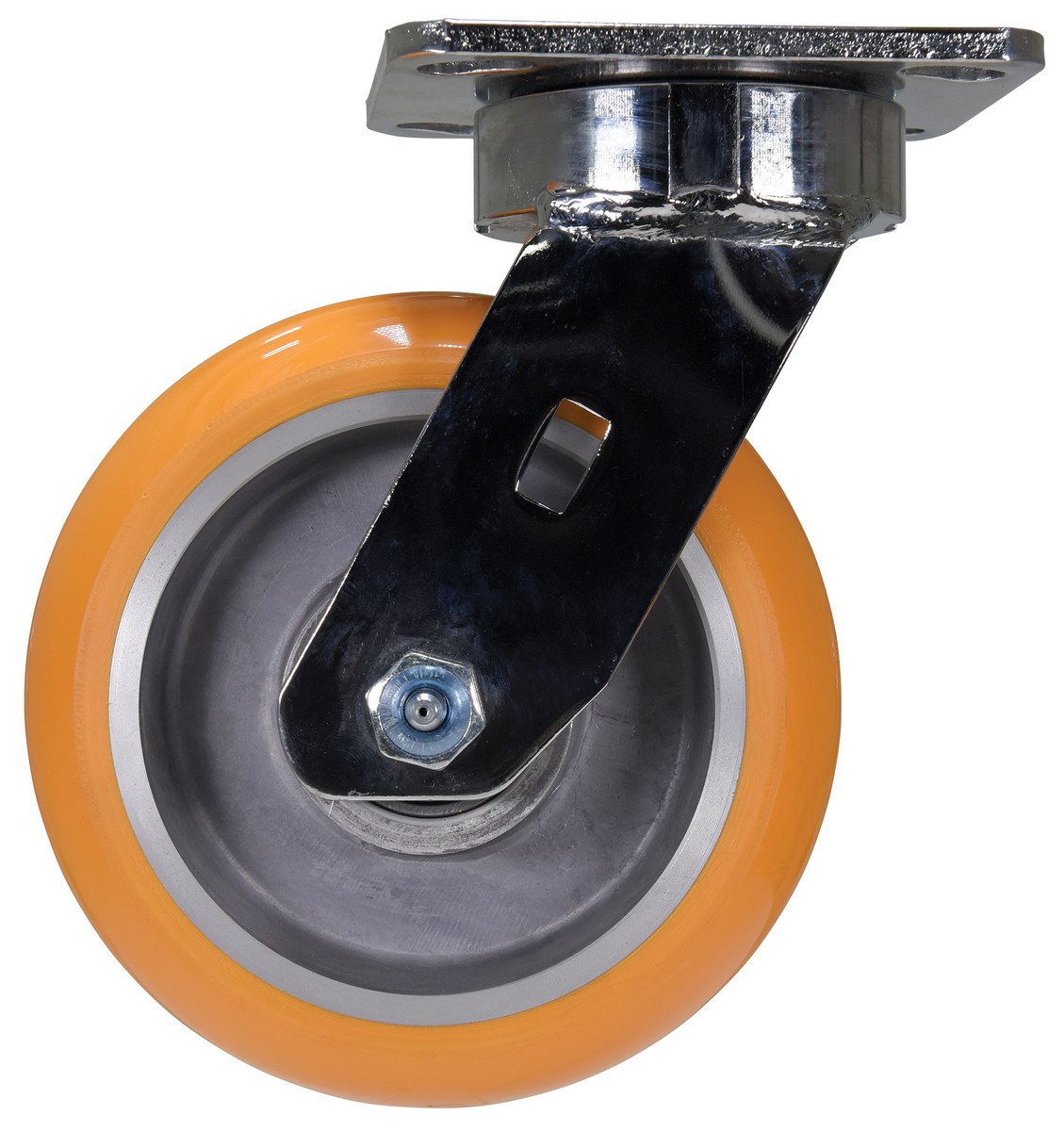

CST-FC47-6X2SI-S CST-FC47-6X2SI-S3 YEARS Limited Warranty6 x 2SWIVEL15007-1/2 4 x 4-1/26.25

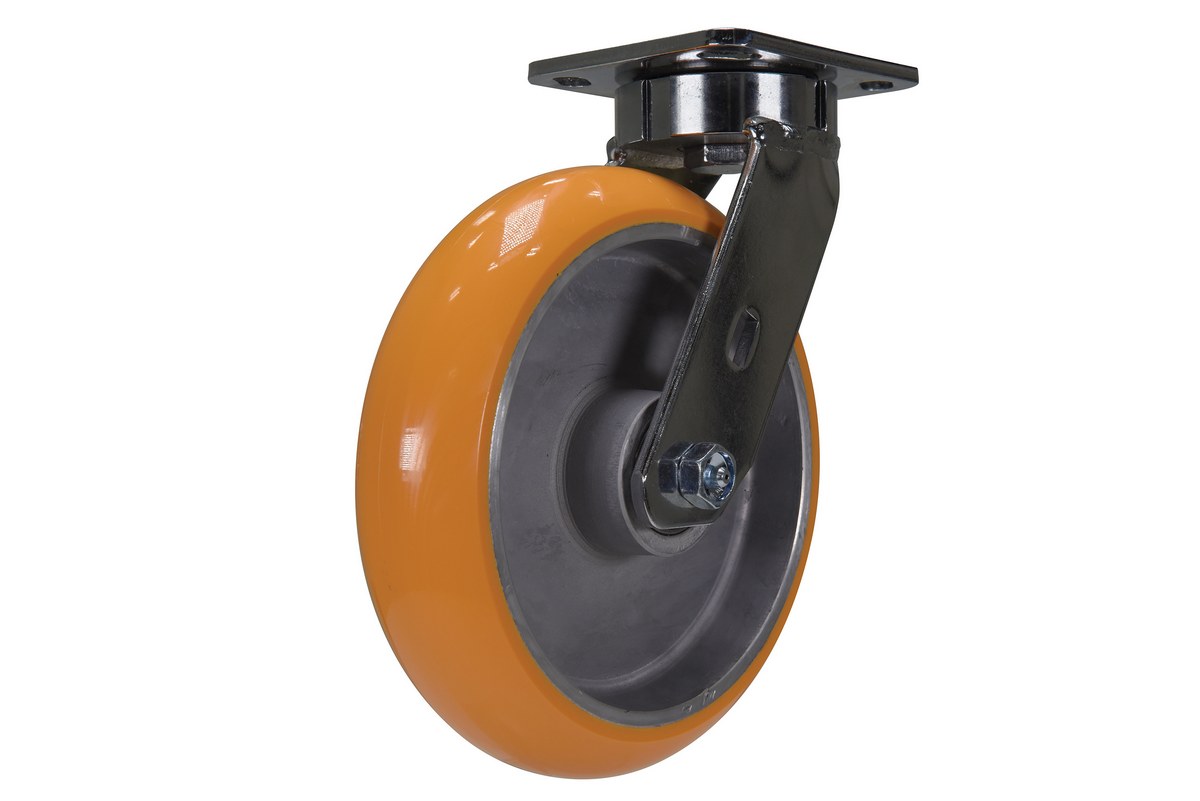

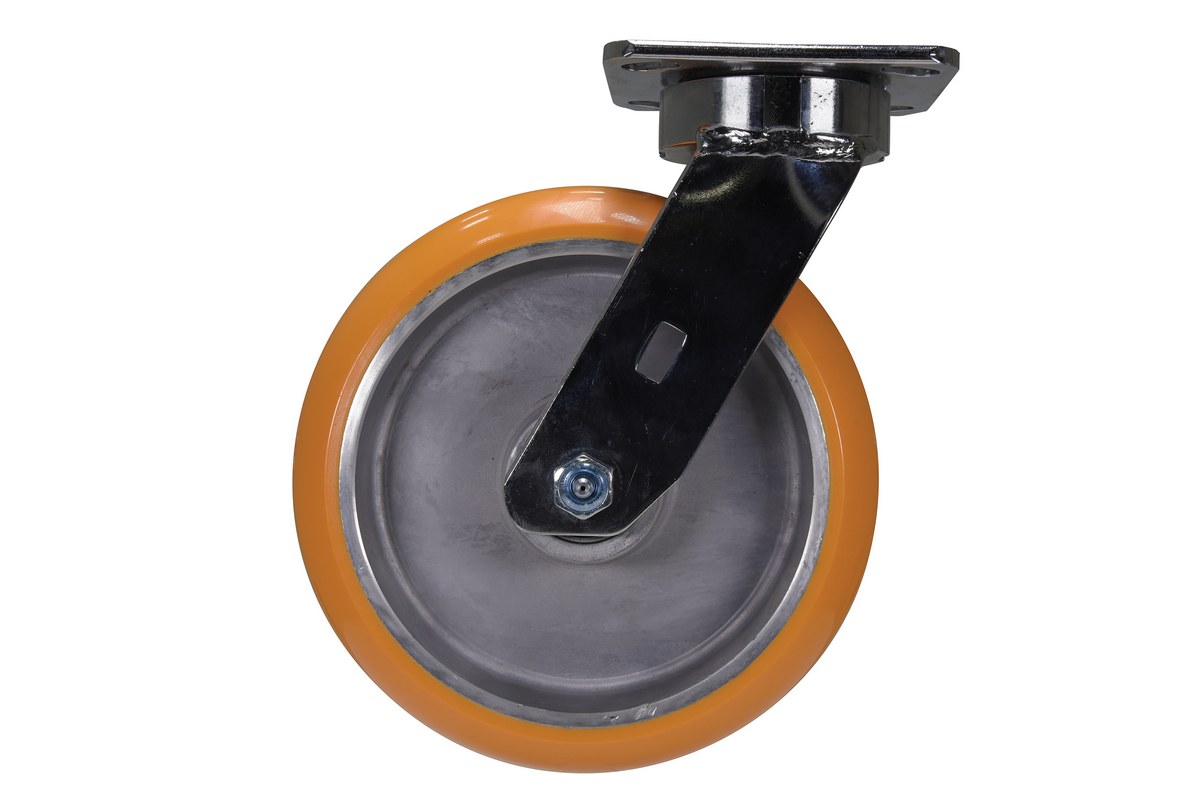

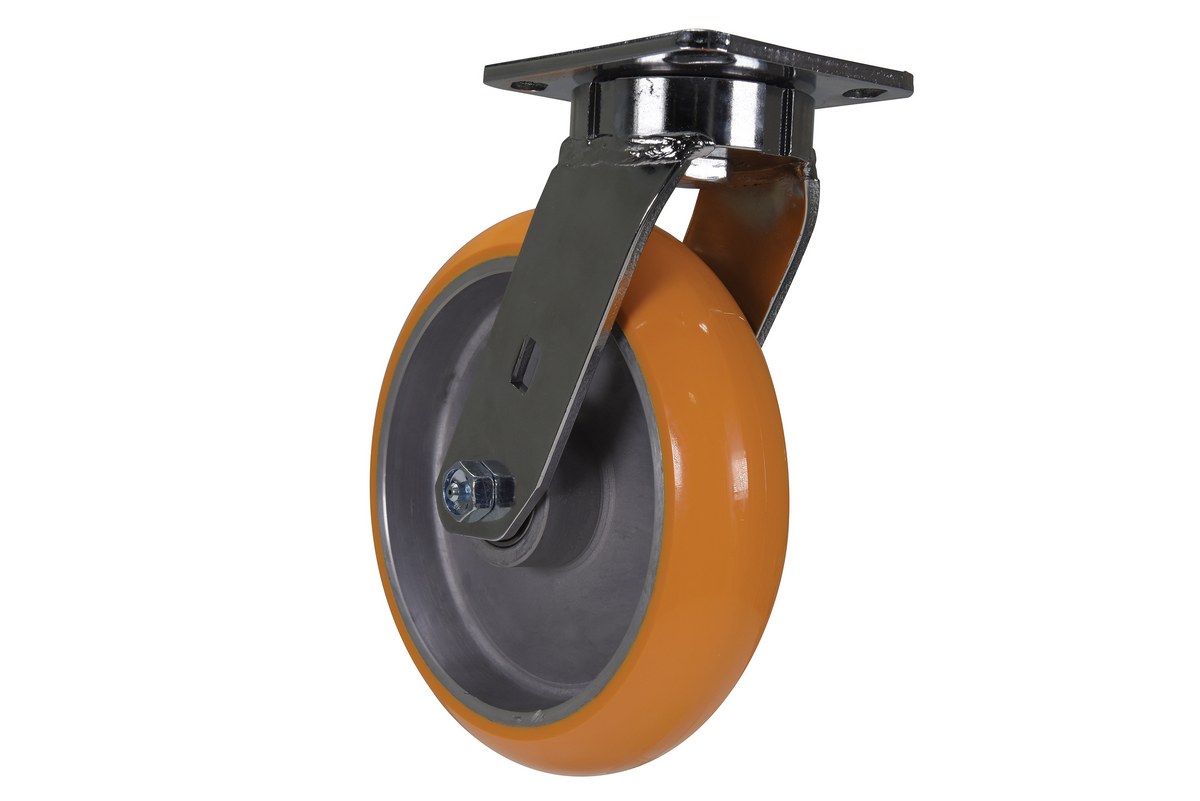

CST-FC47-8X2SI-S CST-FC47-8X2SI-S3 YEARS Limited Warranty8 x 2SWIVEL20009-1/2 4 x 4-1/27.5

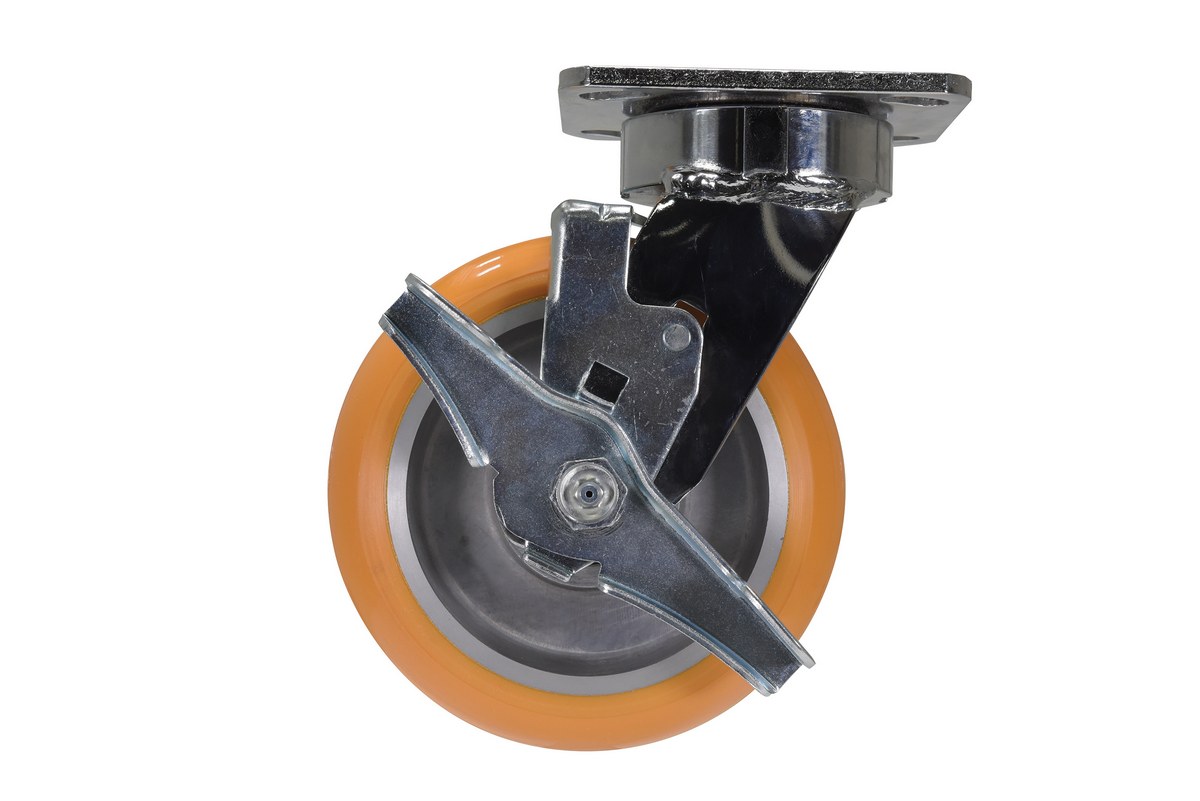

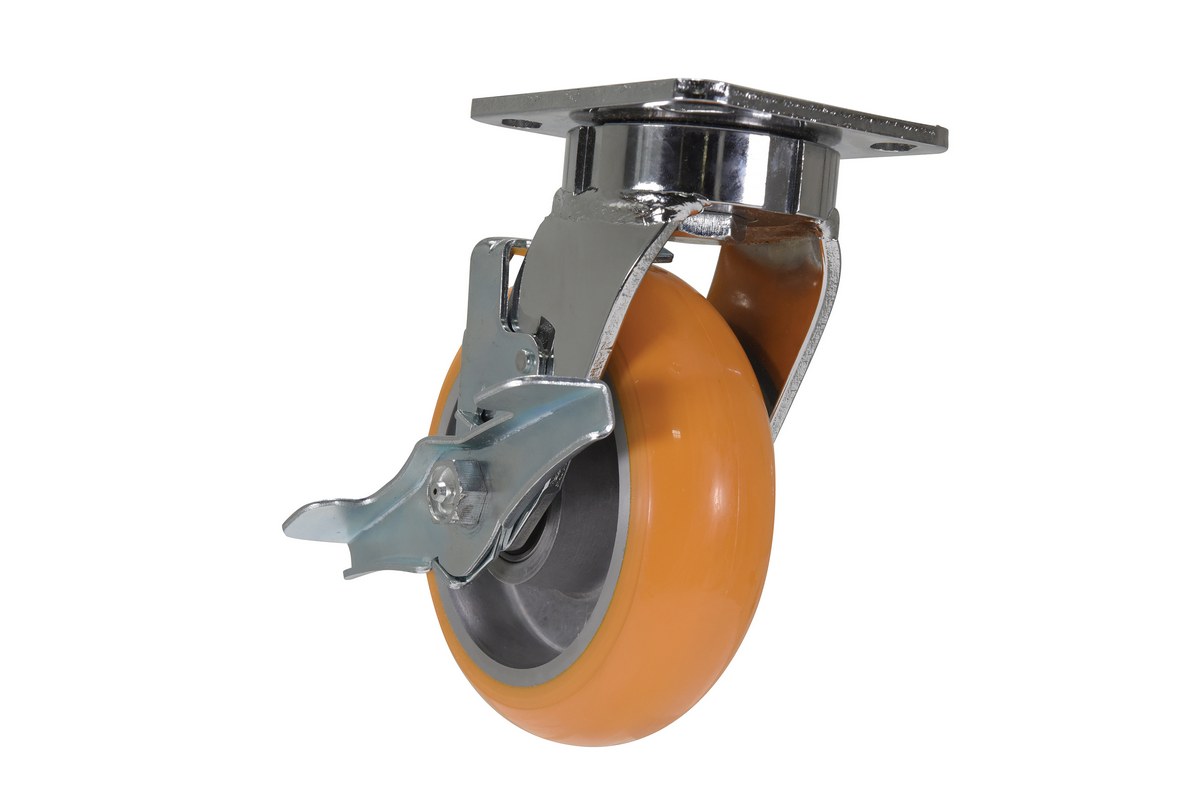

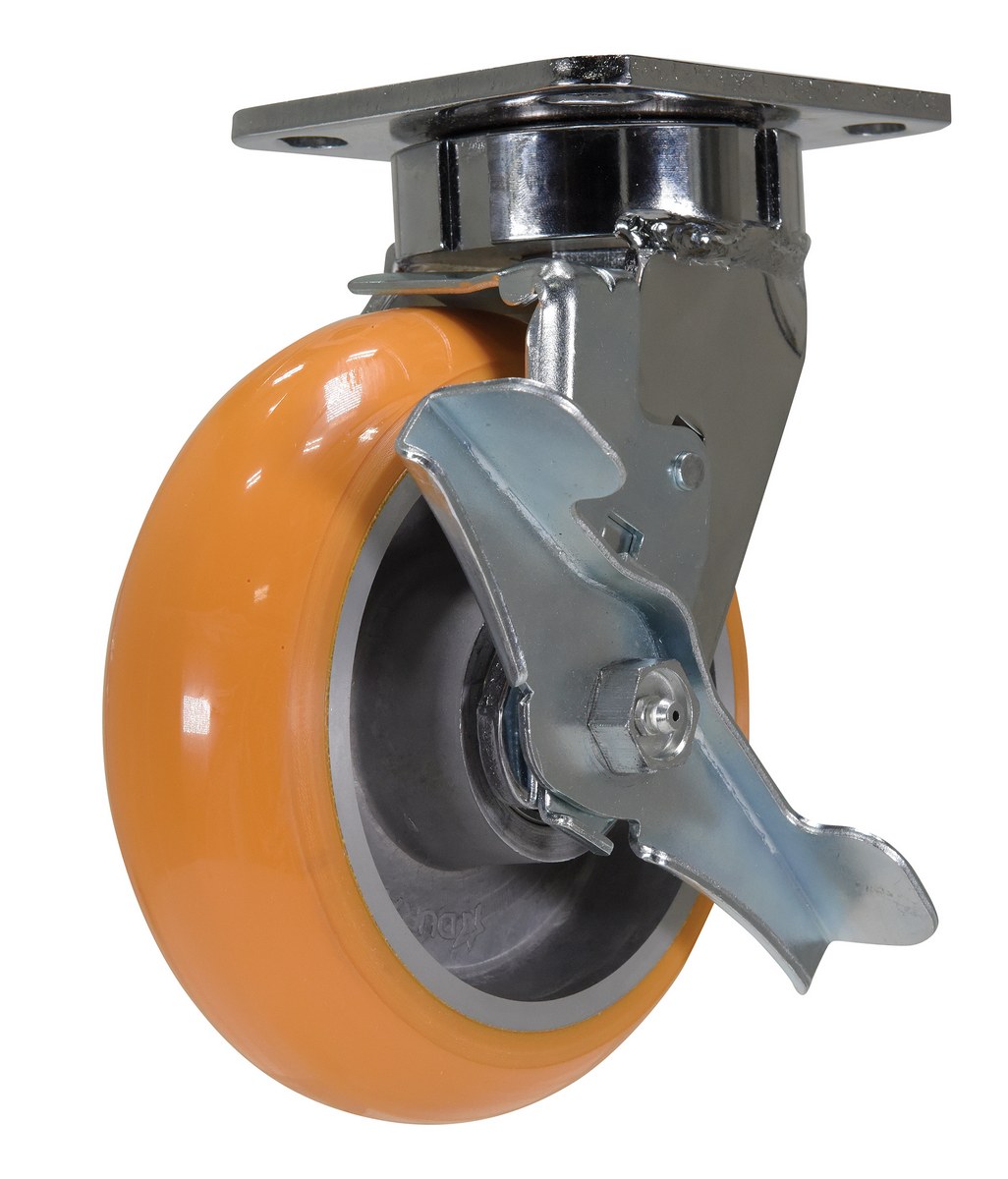

CST-FC47-6X2SI-SWB CST-FC47-6X2SI-SWB3 YEARS Limited Warranty6 x 2SWIVEL W/BRAKE15007-1/2 4 x 4-1/26.81

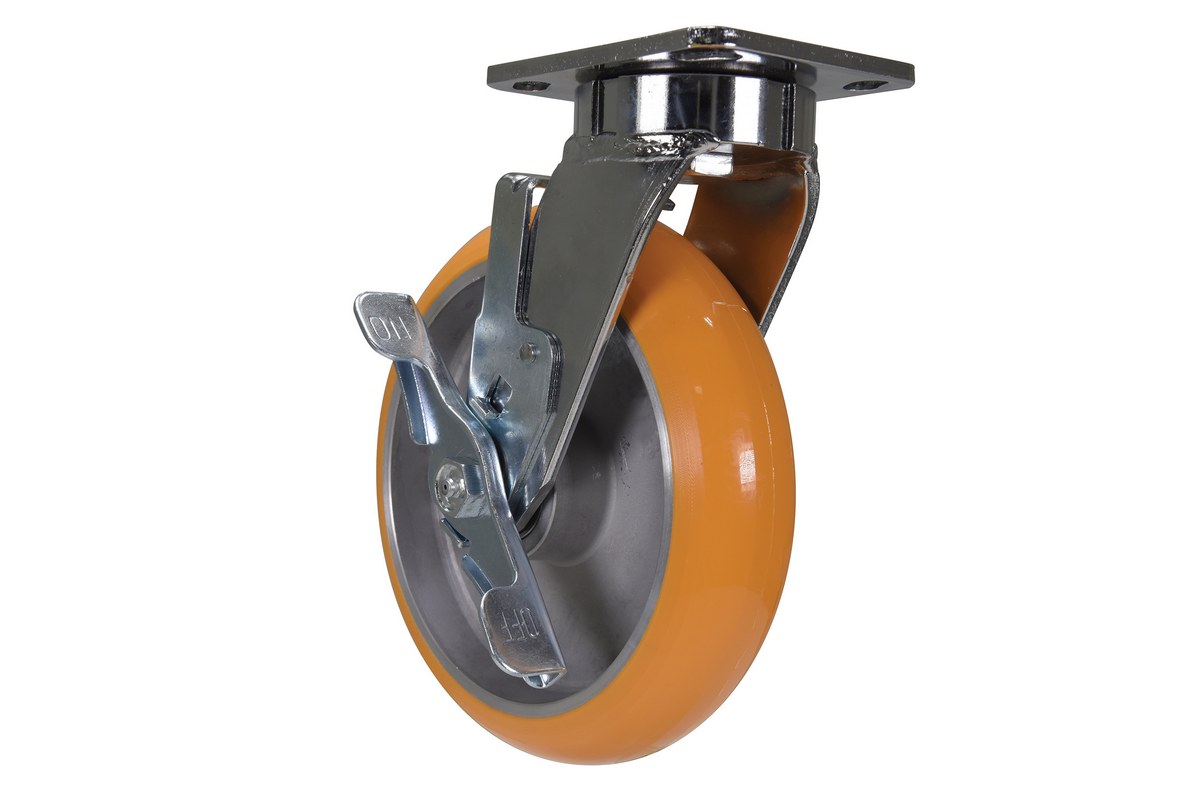

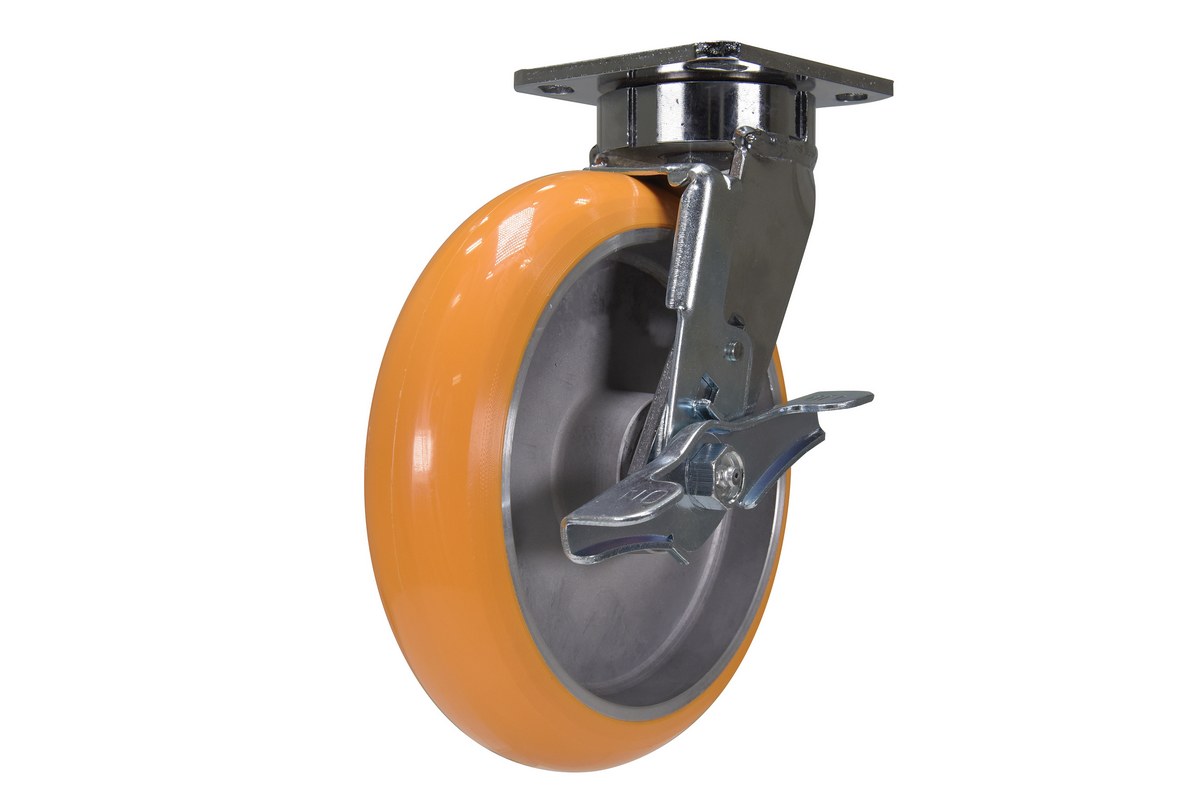

CST-FC47-8X2SI-SWB CST-FC47-8X2SI-SWB3 YEARS Limited Warranty8 x 2SWIVEL W/BRAKE20009-1/2 4 x 4-1/28.1

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


Heavy Duty Polyurethane Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-FC47-6X2SI-R

CST-FC47-6X2SI-S

CST-FC47-6X2SI-SWB

CST-FC47-8X2SI-R

CST-FC47-8X2SI-S

CST-FC47-8X2SI-SWB

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Heavy Duty Polyurethane Casters




Made of exclusive premium grade proprietary polyurethane with donut tread (SI Heavy Duty). Ideal for applications where superior strength and high ergonomic performance is required. Tread has been matched with a double precision rigging that offers one of the smoothest rotations in the industry. Swivel sports a high-class three layered finish: brass, nickel, and chrome. Rigid comes standard in zinc. Orange tread color. 85 Shore A. Wheel core is constructed of aluminum.

img7.gifMaintenance Freeimg9.gif

  • 100% Maintenance Free
  • Double Precision Raceway - for exceptional ergonomic performance
  • Chrome Plated Finish
  • Industry Leading Capacity
  • Non-Marking
  • Sealed Precision Ball Bearings


No Model Numbers Associated To This Product Page
