Product Family Overview


Glass Filled Nylon Casters
SERIES: CST-VE-GFN

These glass filled nylon casters are constructed of a thermoplastic compound that is perfect for industrial and institutional applications. Resistant to most chemicals, salts, solvents, and steam. This tread does not absorb water and is non-marking. Black tread color. Wheel core is glass-filled nylon. 65 +/-5 Shore D.

  • RESISTANT TO MOST CHEMICALS
  • EASY ROLL PERFORMANCE
  • ANTI-CORROSIVE & RUST RESISTANT ZINC PLATED FINISH
  • HARDENED DOUBLE BALL RACEWAY
  • GREASE ZERK FITTINGS
  • ROLLER BEARINGS

These glass filled nylon casters are constructed of a thermoplastic compound that is perfect for industrial and institutional applications. Resistant to most chemicals, salts, solvents, and steam. This tread does not absorb water and is non-marking. Black tread color. Wheel core is glass-filled nylon. 65 +/-5 Shore D.

  • RESISTANT TO MOST CHEMICALS
  • EASY ROLL PERFORMANCE
  • ANTI-CORROSIVE & RUST RESISTANT ZINC PLATED FINISH
  • HARDENED DOUBLE BALL RACEWAY
  • GREASE ZERK FITTINGS
  • ROLLER BEARINGS

Additional Models In This Family

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height
Top Plate
Size
Net Wt.
(lbs)

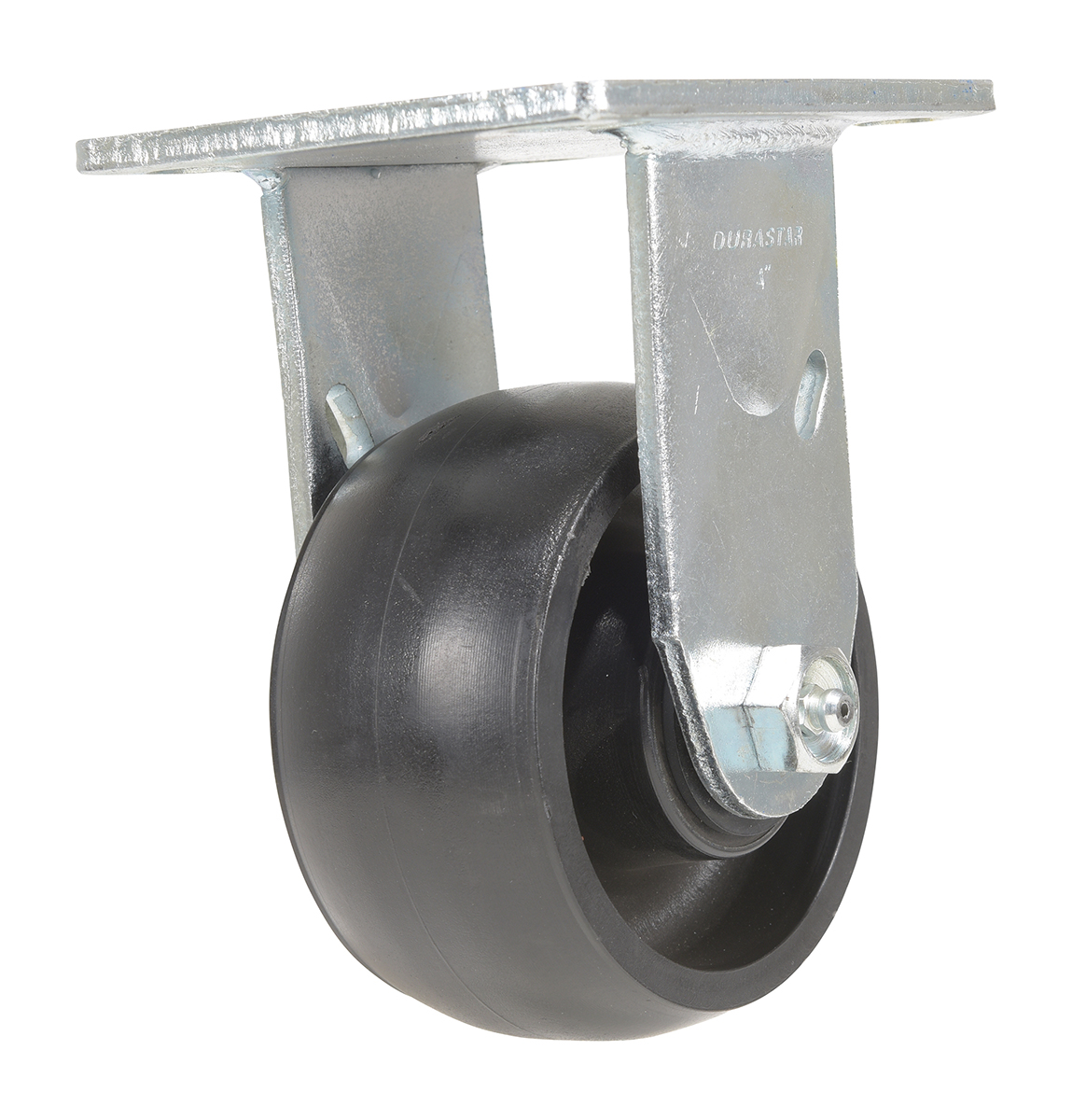

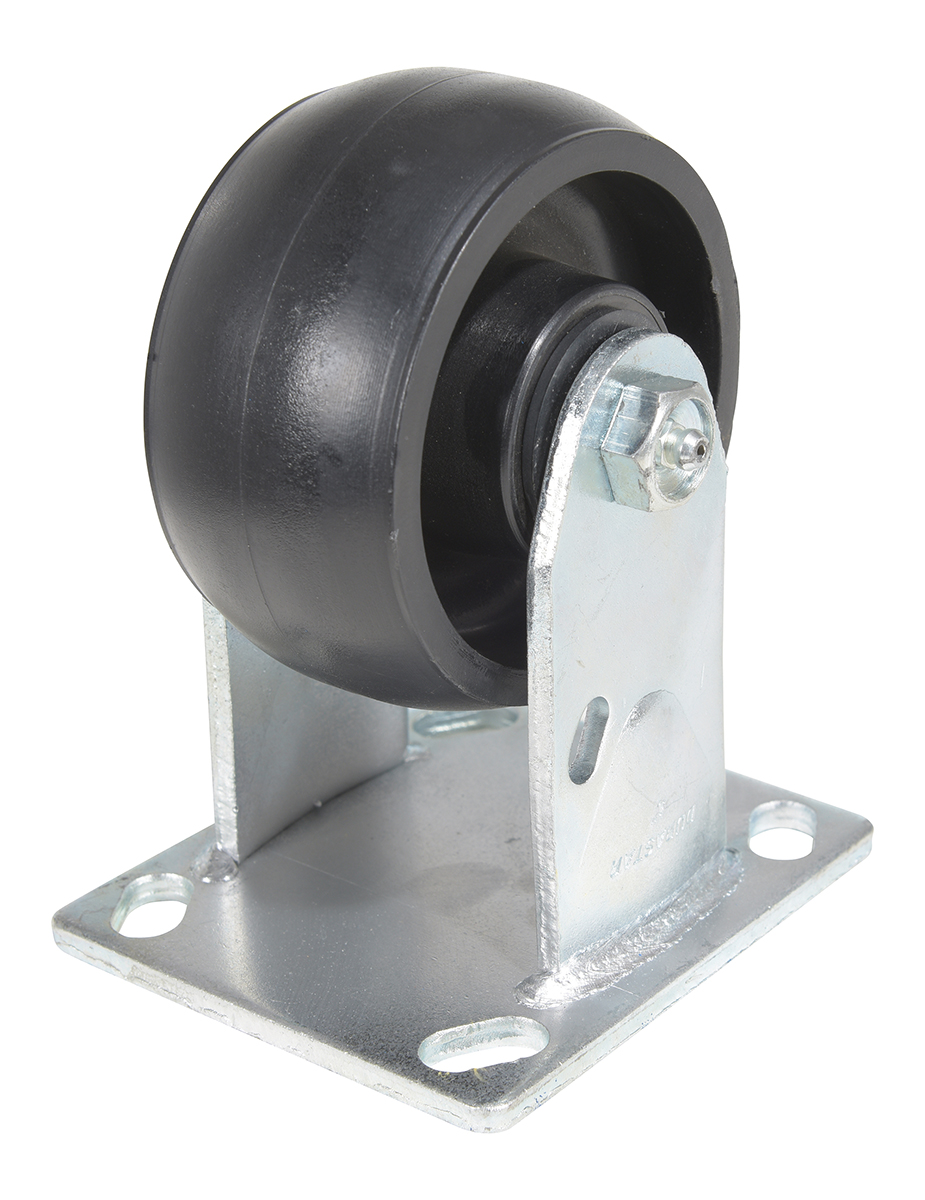

CST-VE-4X2GFN-R CST-VE-4X2GFN-R1 YEAR Limited Warranty4 x 2RIGID8005-1/2 4 x 4-1/23.01

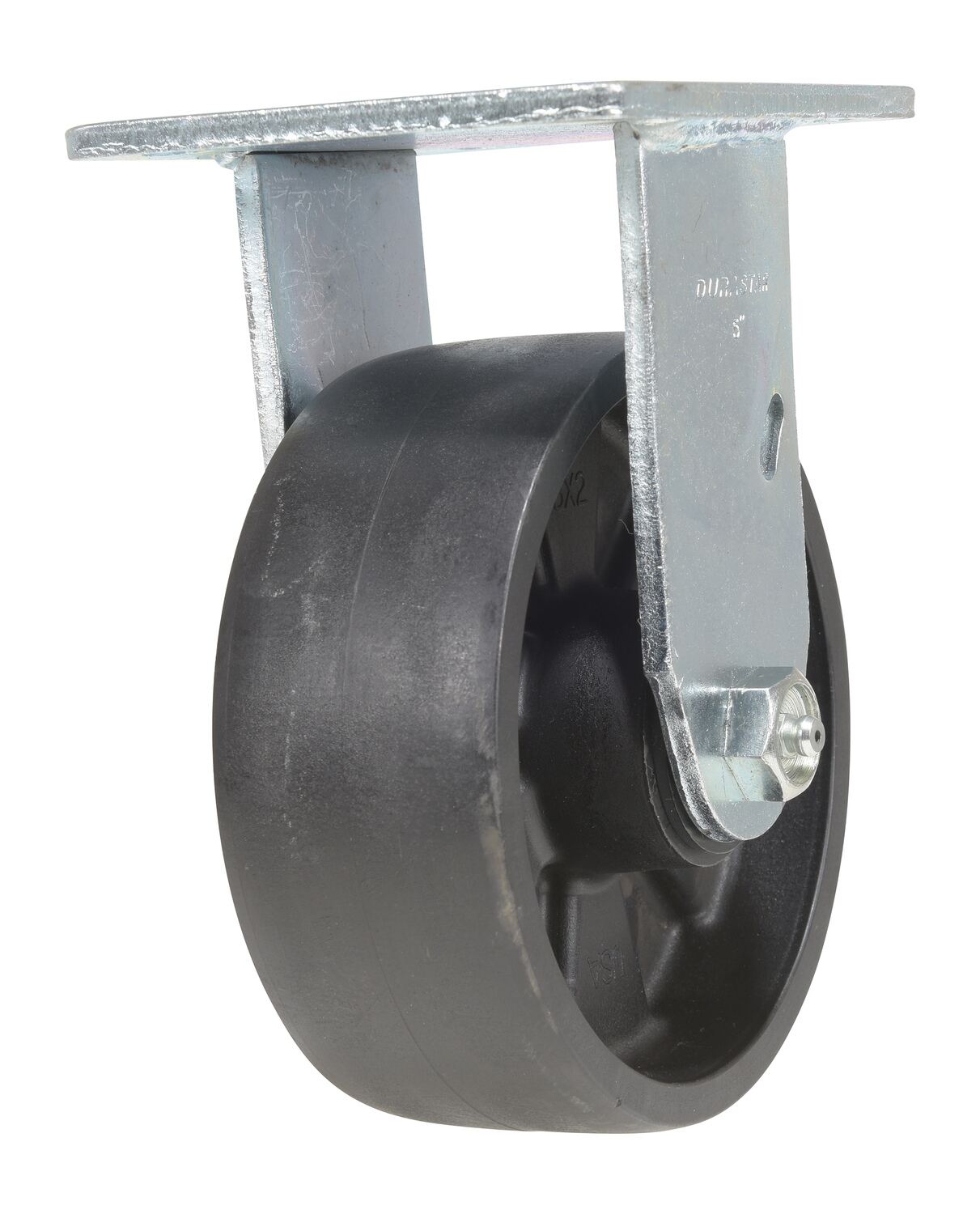

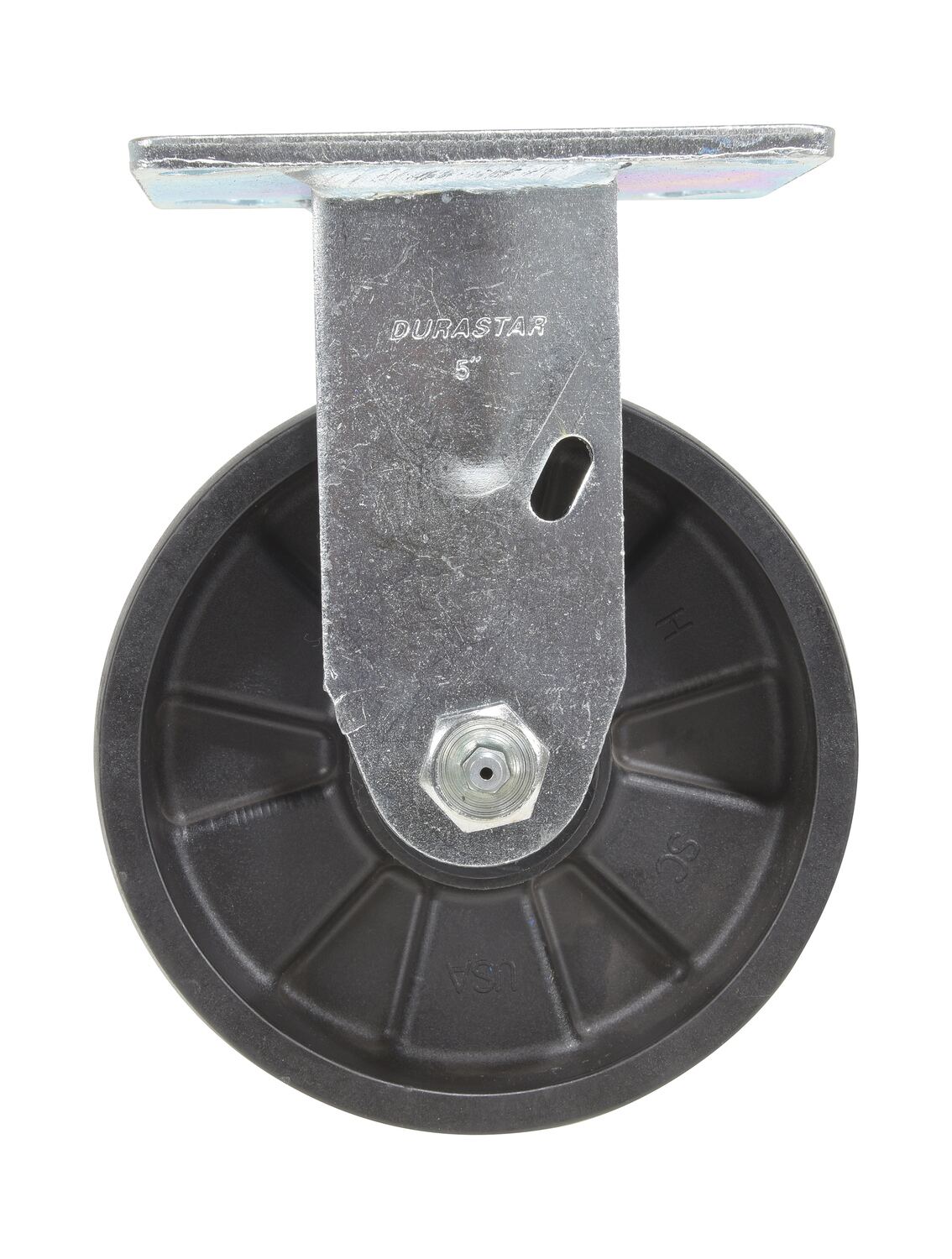

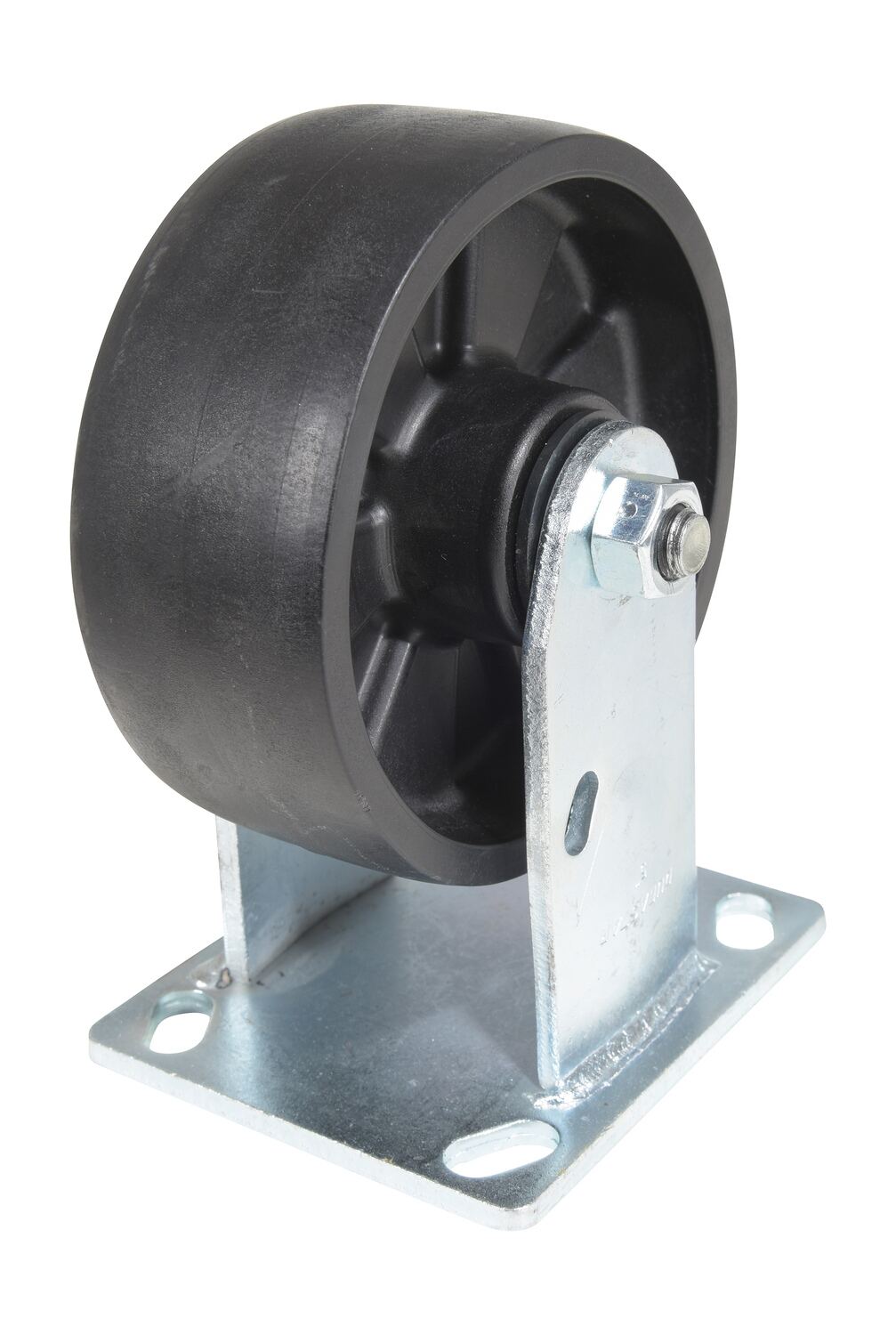

CST-VE-5X2GFN-R CST-VE-5X2GFN-R1 YEAR Limited Warranty5 x 2RIGID10006-1/2 4 x 4-1/23.32

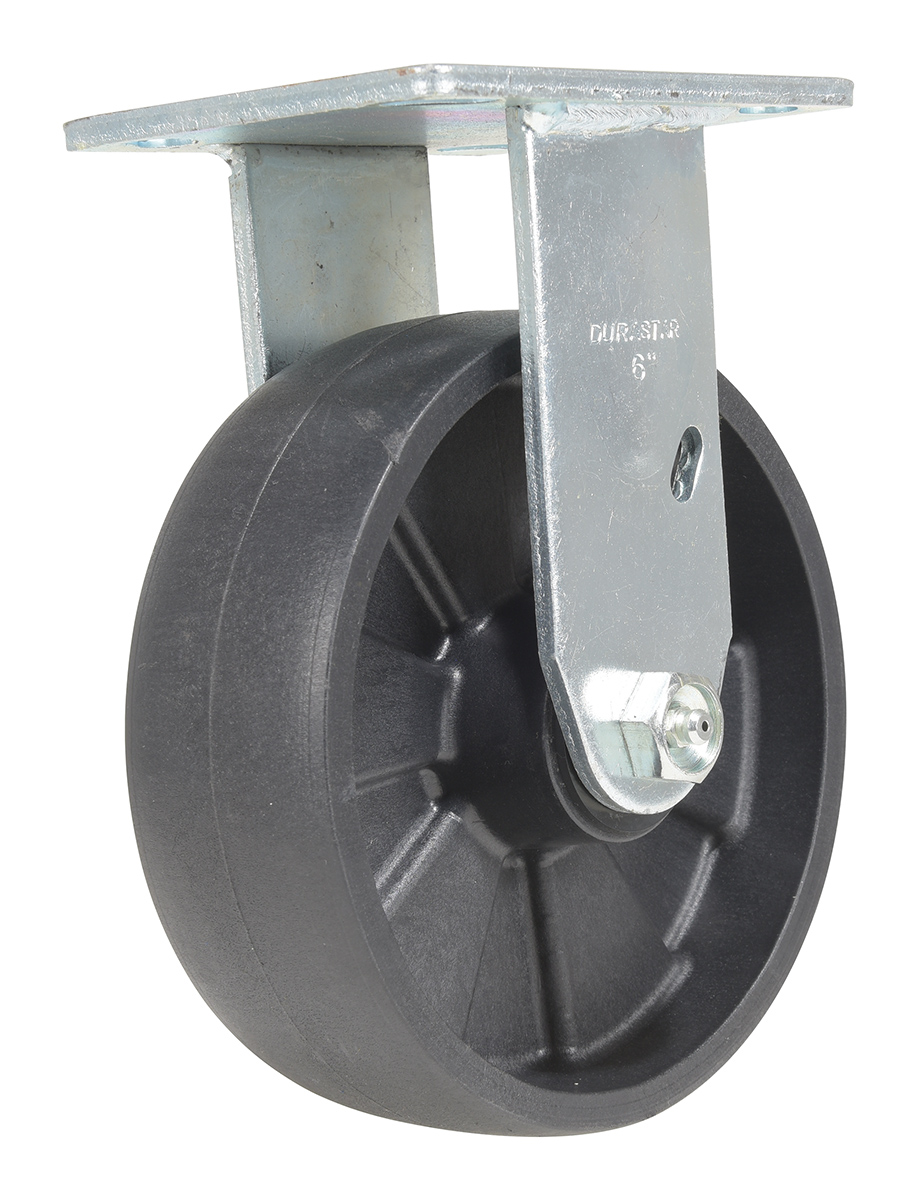

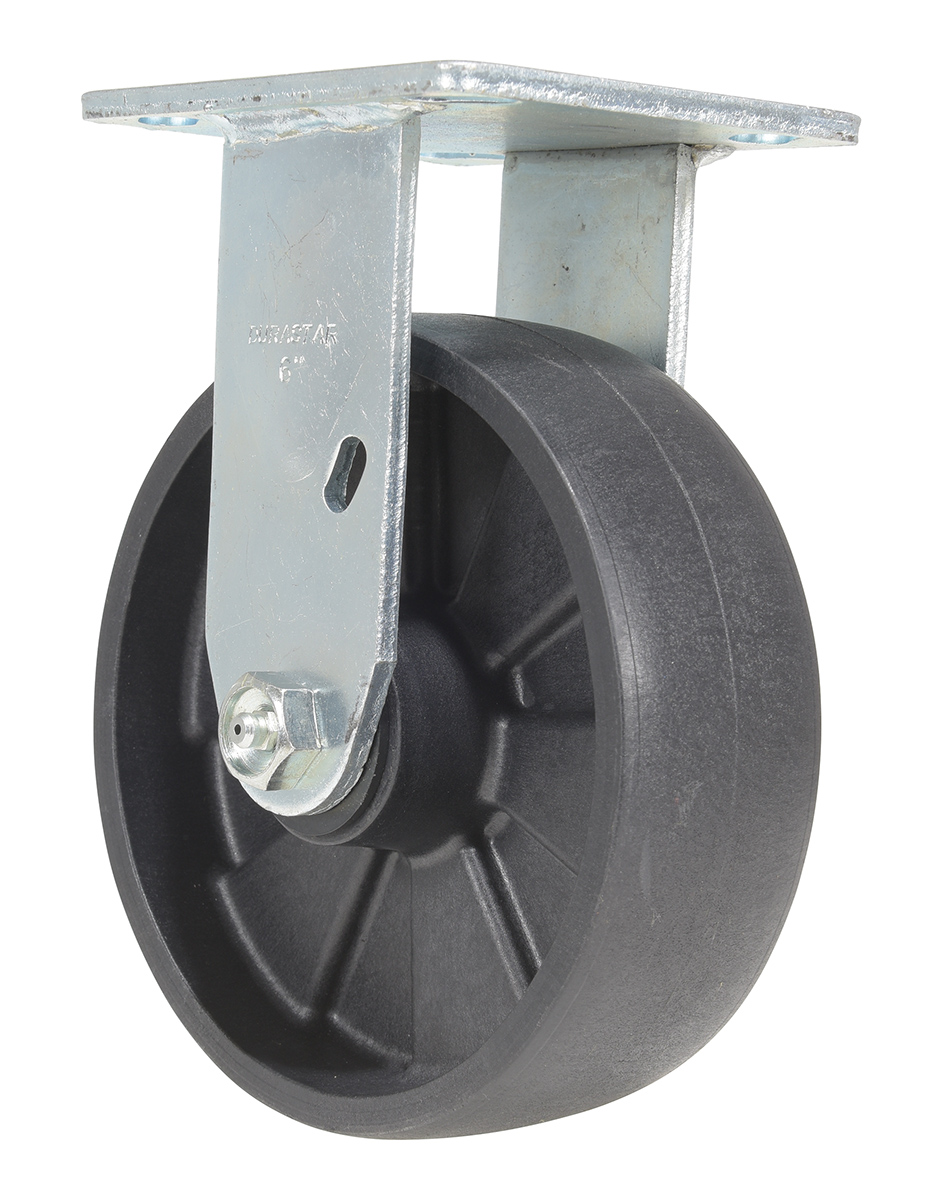

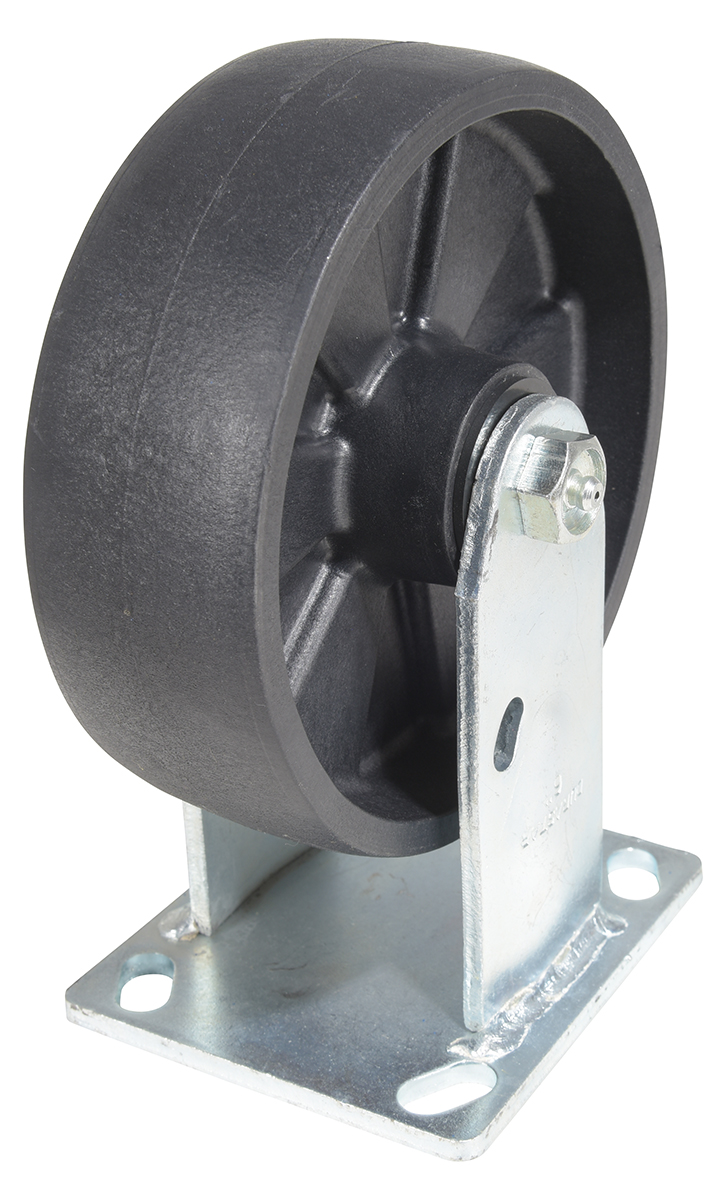

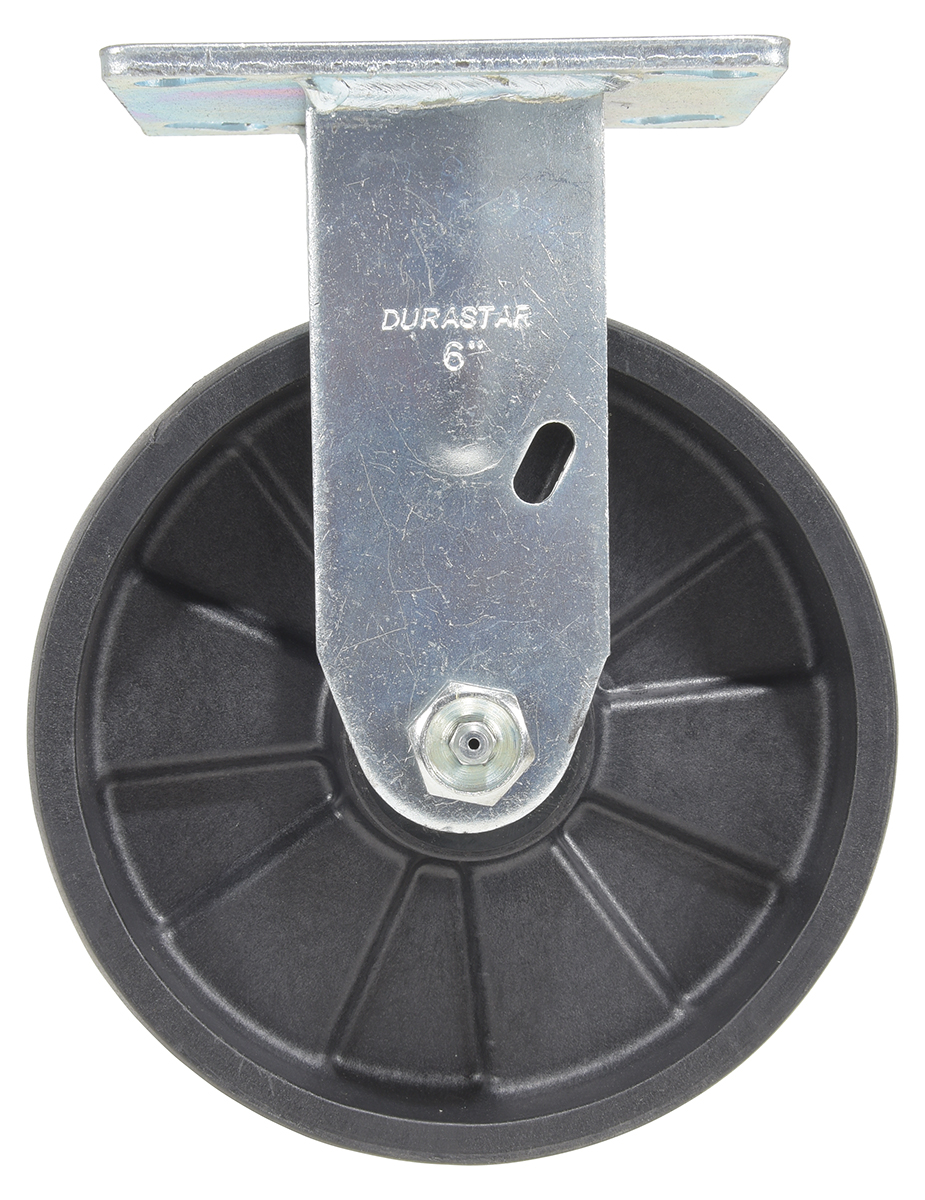

CST-VE-6X2GFN-R CST-VE-6X2GFN-R1 YEAR Limited Warranty6 x 2RIGID12007-1/2 4 x 4-1/23.53

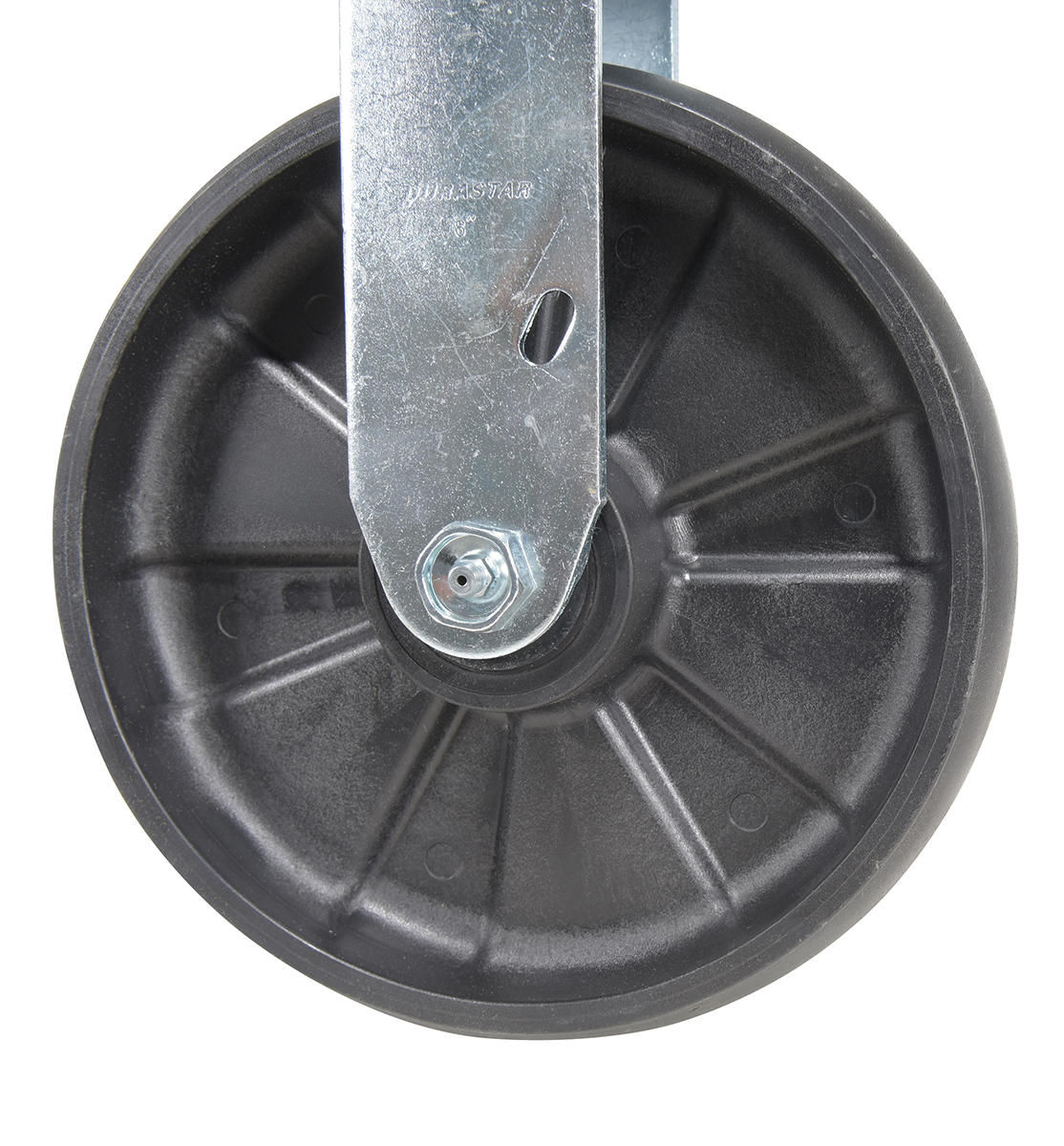

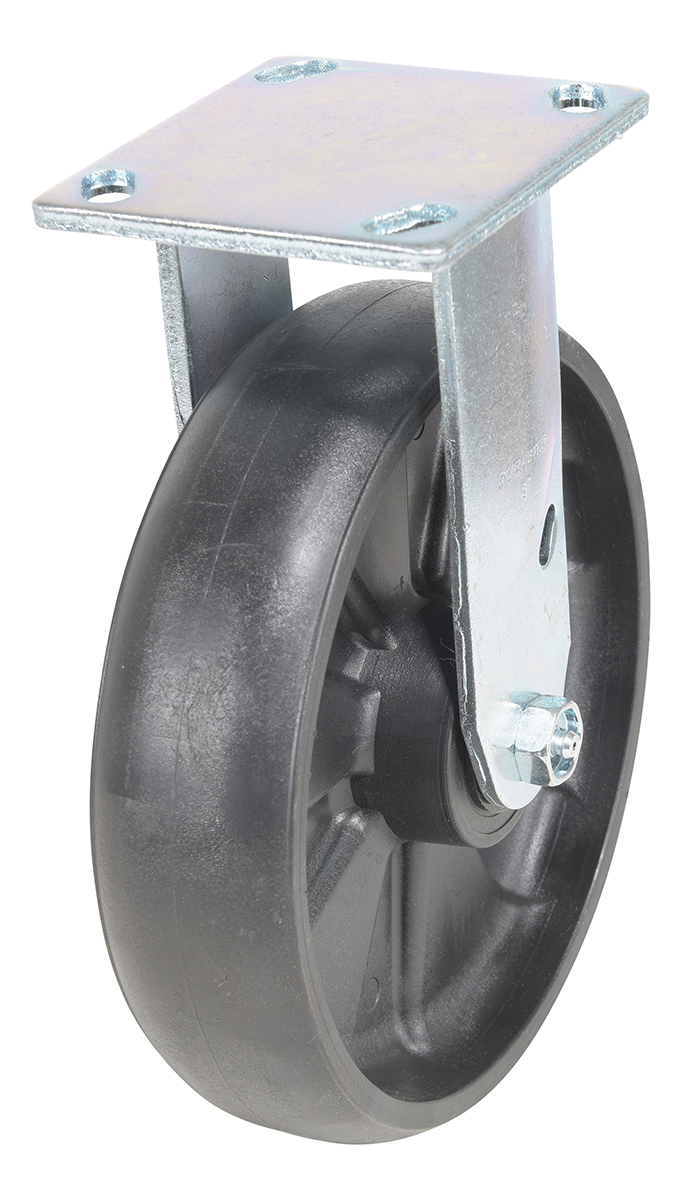

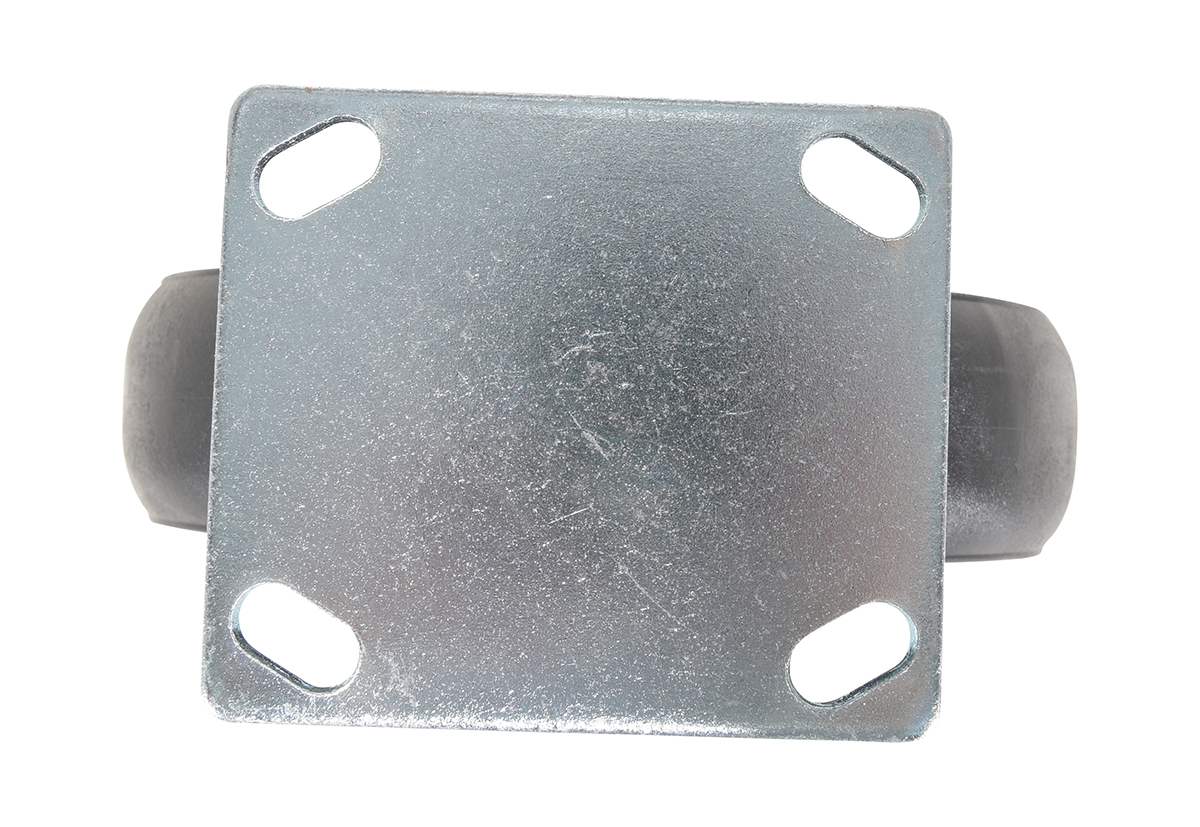

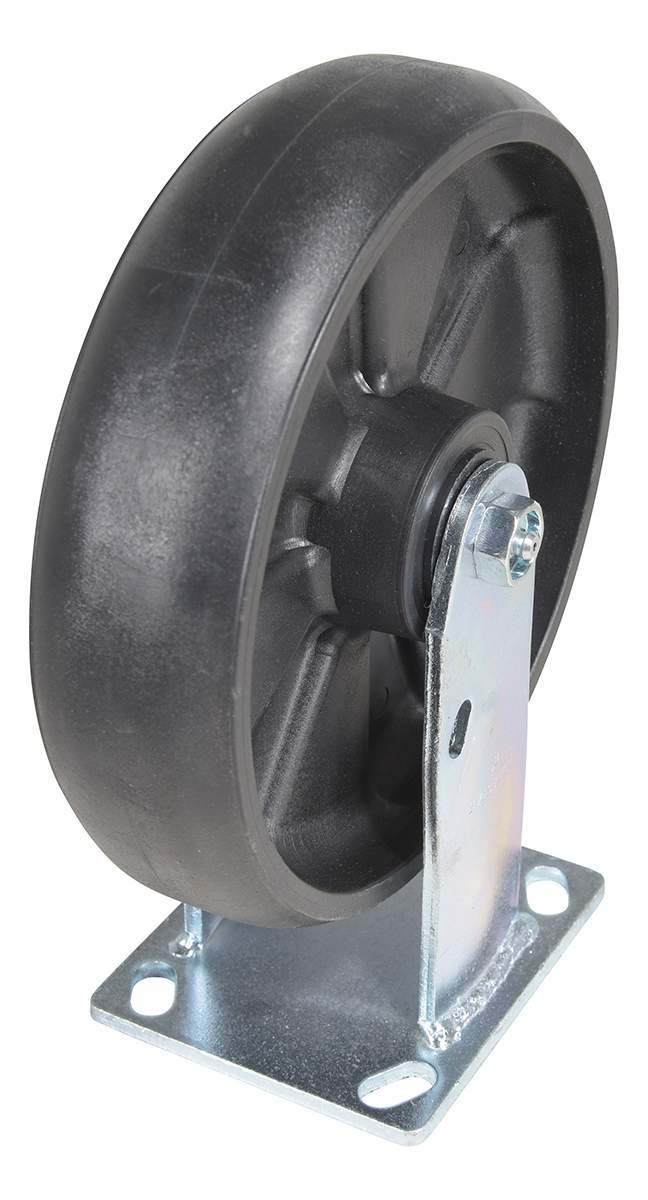

CST-VE-8X2GFN-R CST-VE-8X2GFN-R1 YEAR Limited Warranty8 x 2RIGID1250 4 x 4-1/2

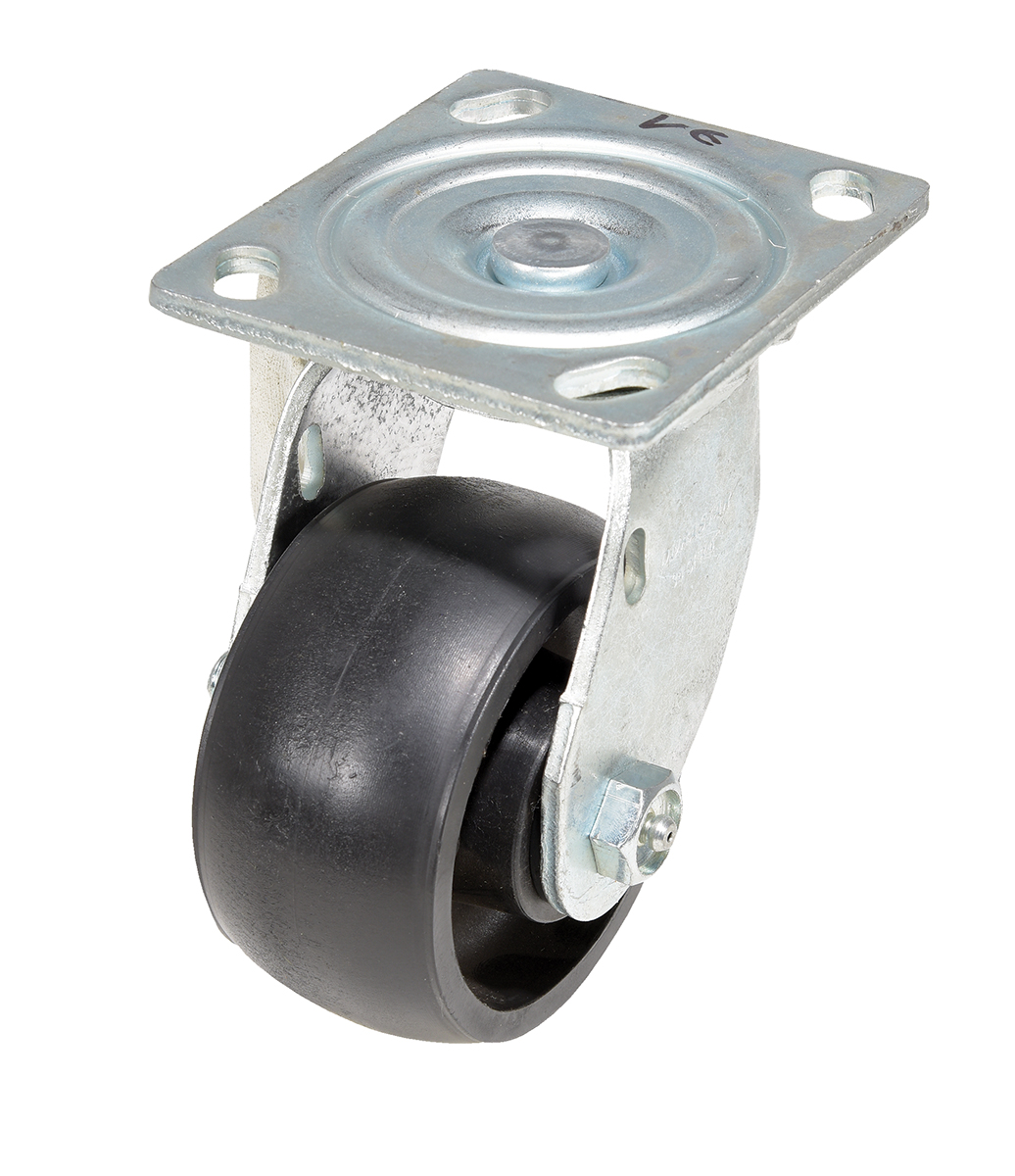

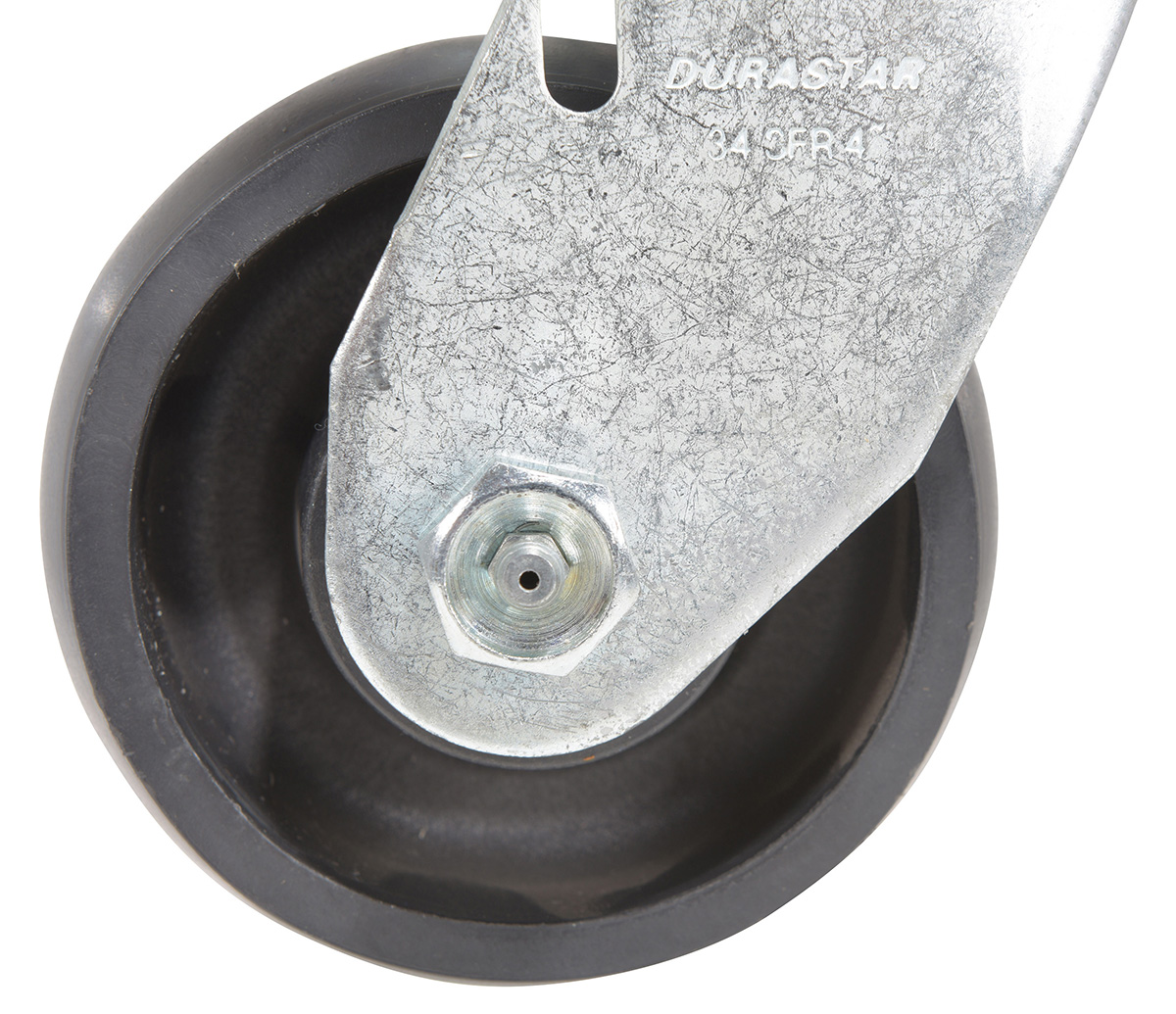

CST-VE-4X2GFN-S CST-VE-4X2GFN-S1 YEAR Limited Warranty4 x 2SWIVEL8005-1/2 4 x 4-1/23.75

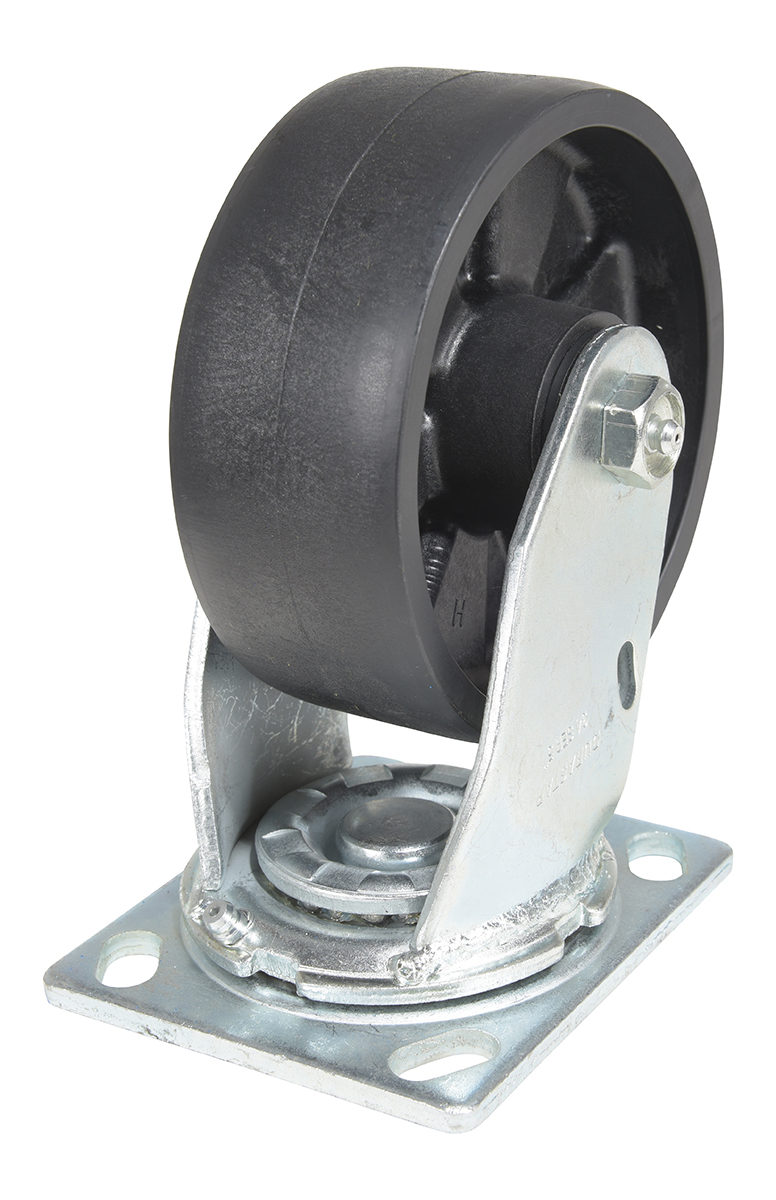

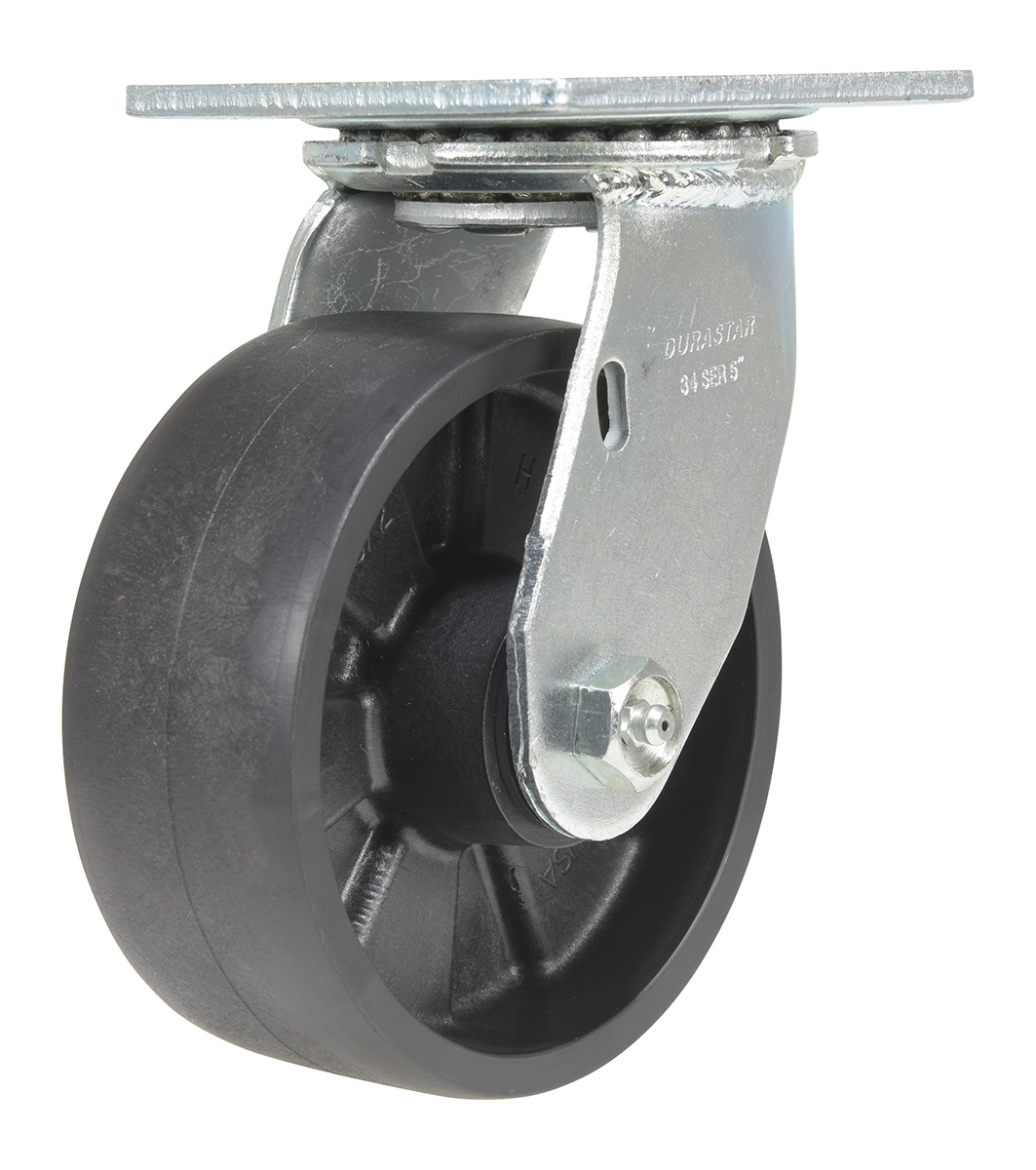

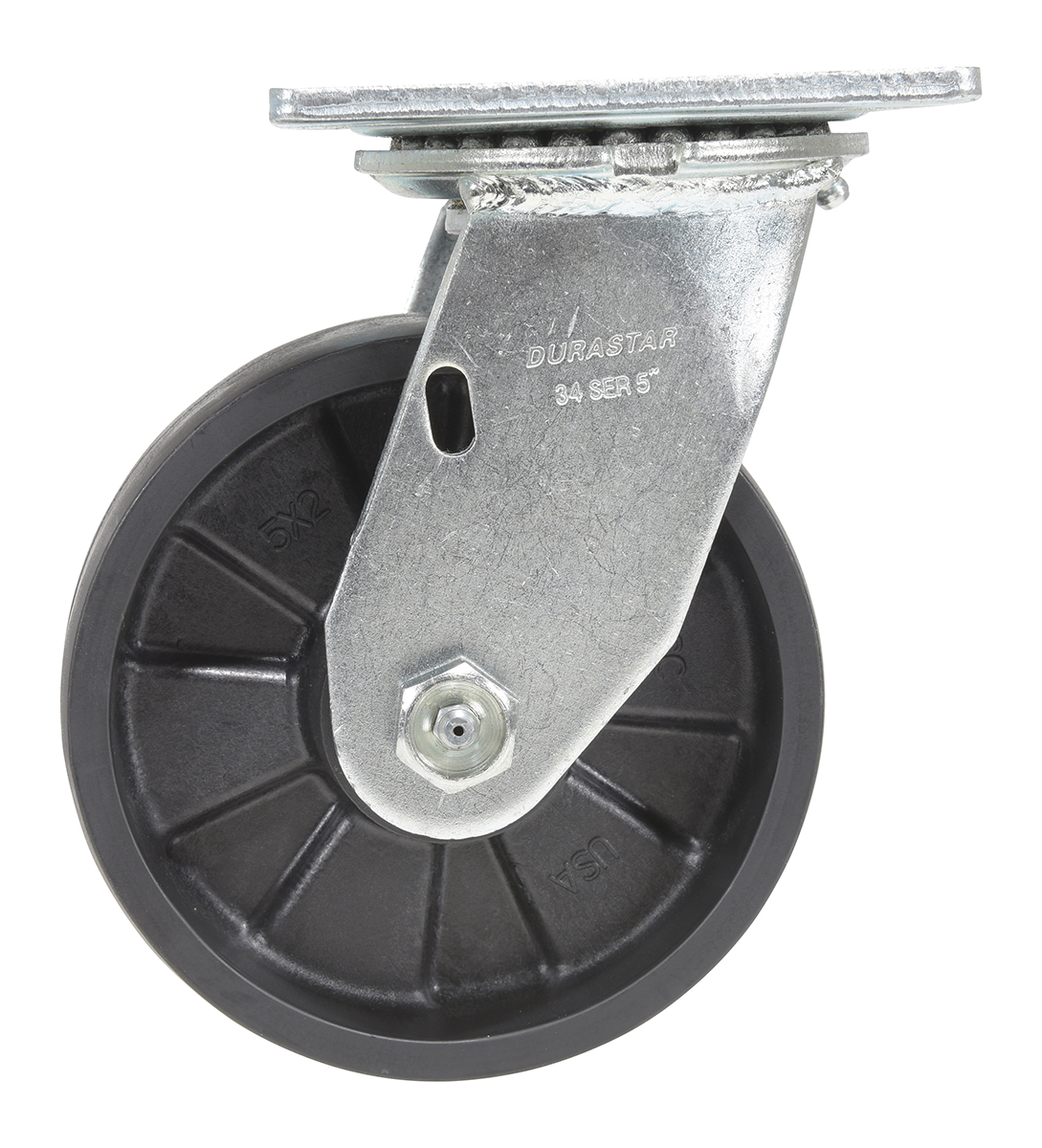

CST-VE-5X2GFN-S CST-VE-5X2GFN-S1 YEAR Limited Warranty5 x 2SWIVEL10006.5 4 x 4-1/24

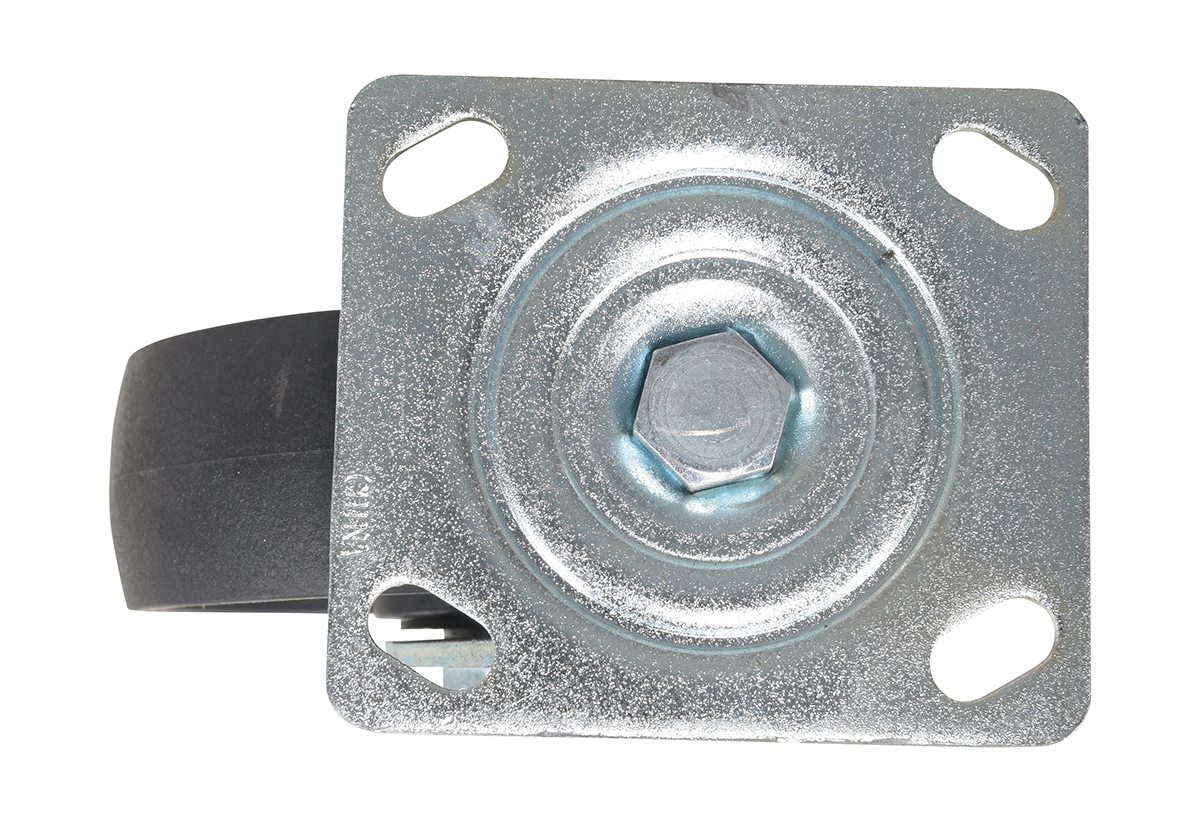

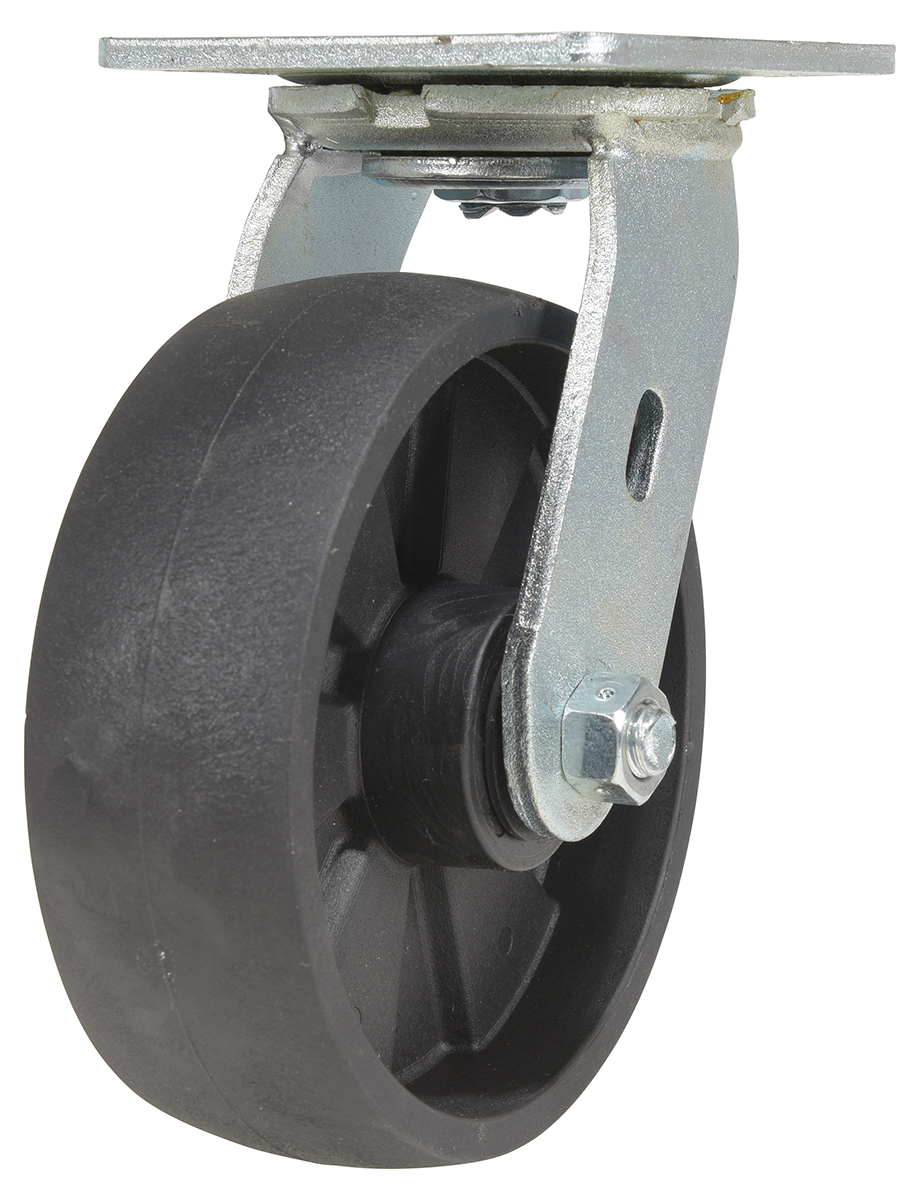

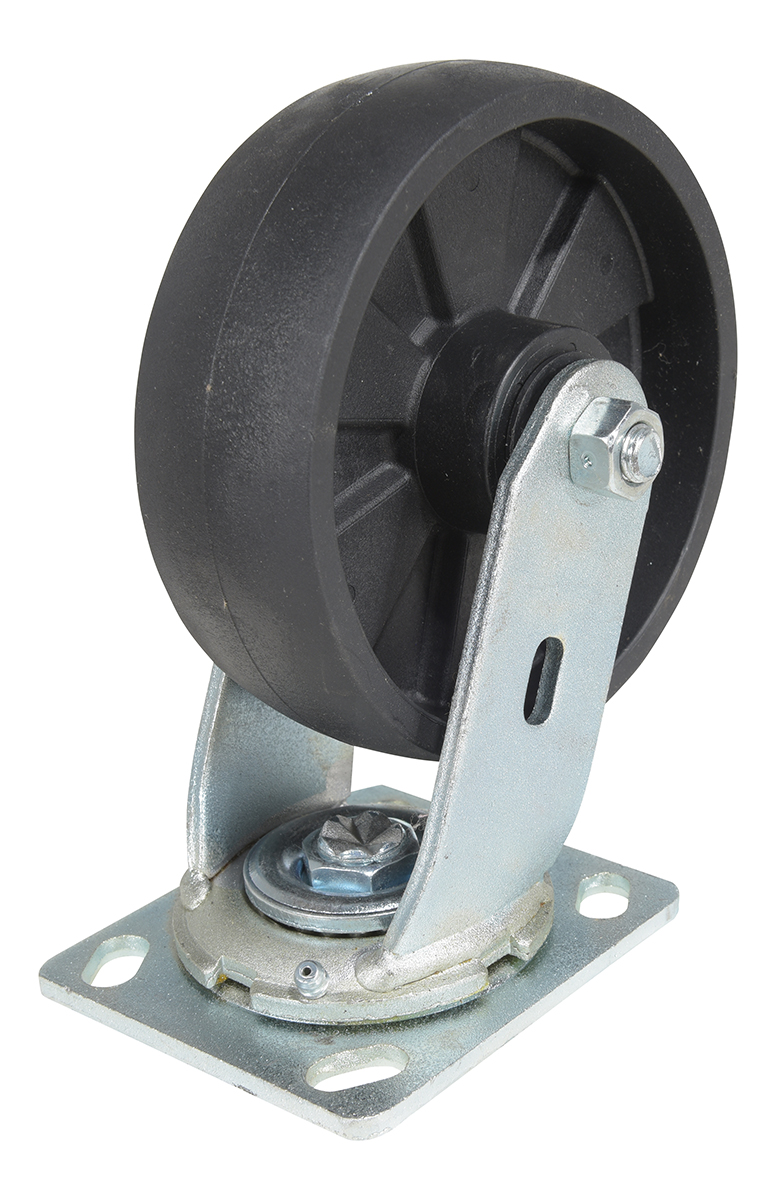

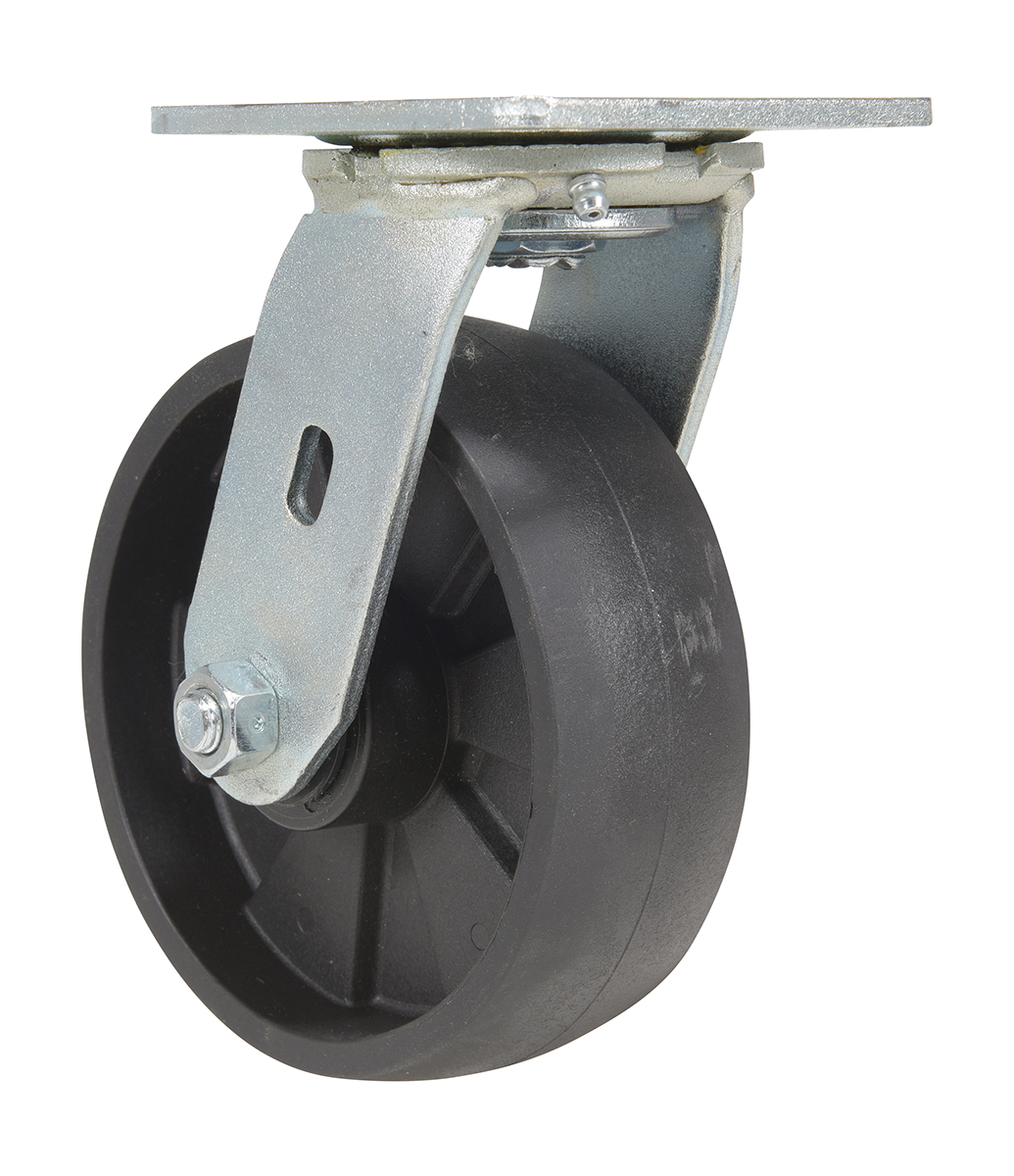

CST-VE-6X2GFN-S CST-VE-6X2GFN-S1 YEAR Limited Warranty6 x 2SWIVEL12009-1/2 4 x 4-1/24.5

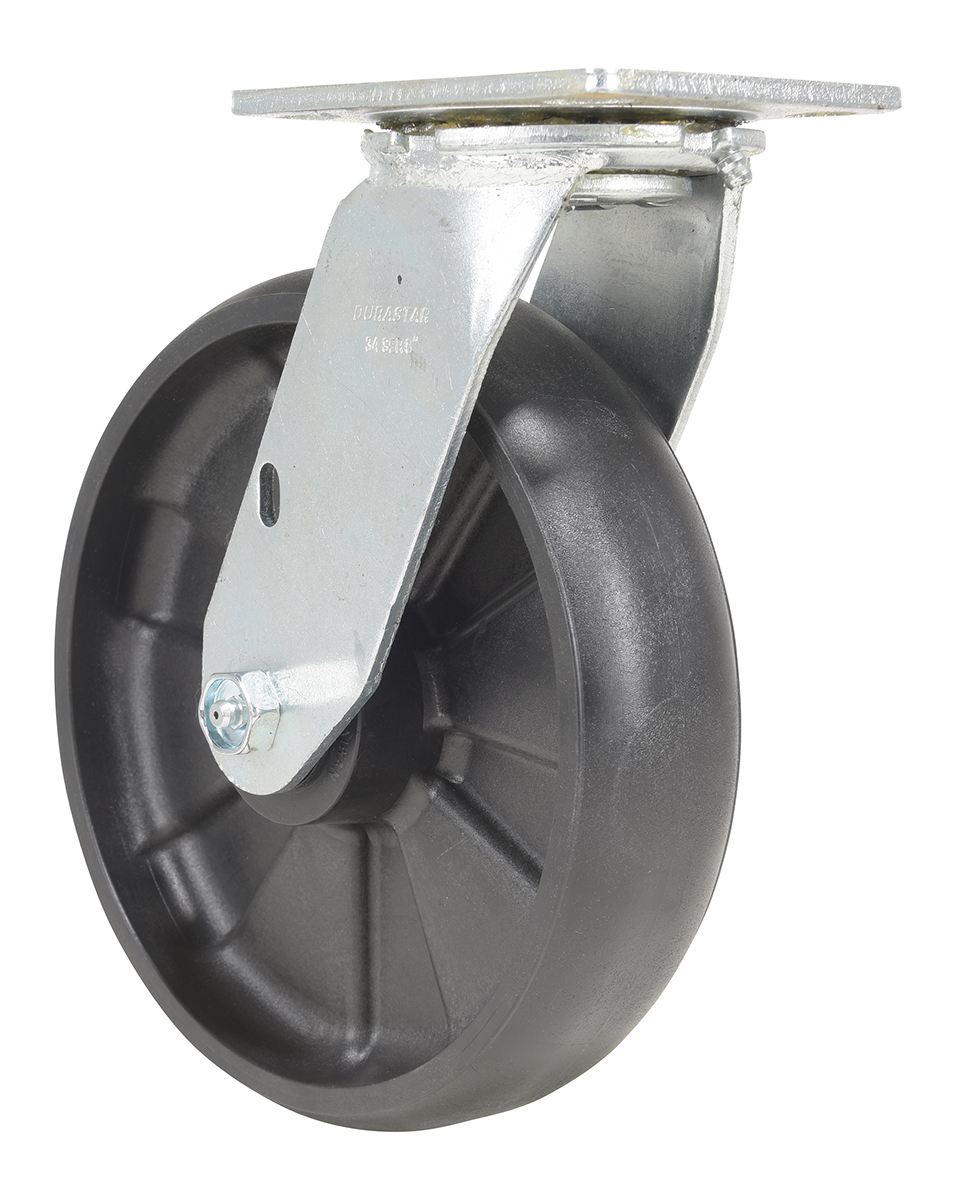

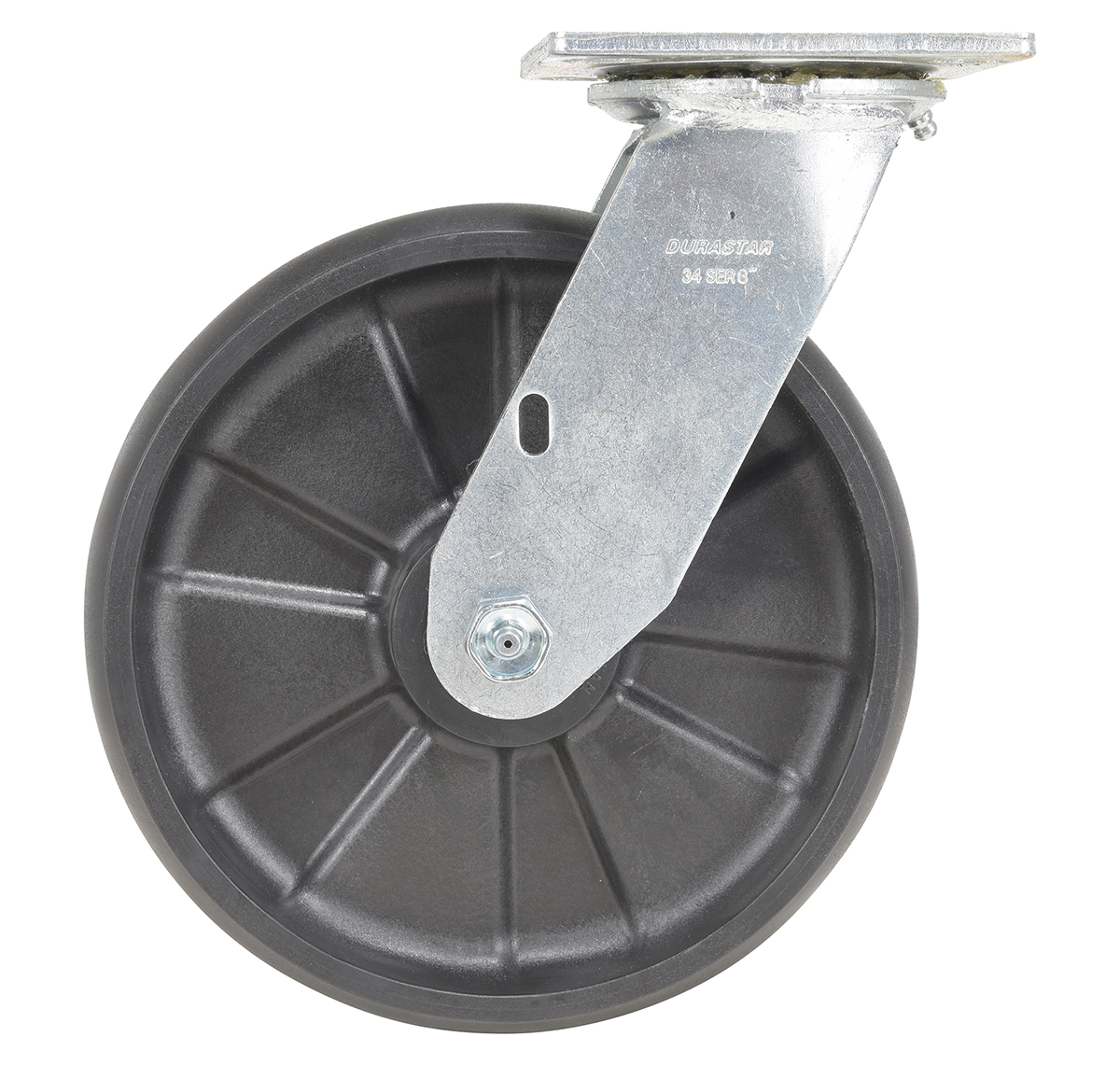

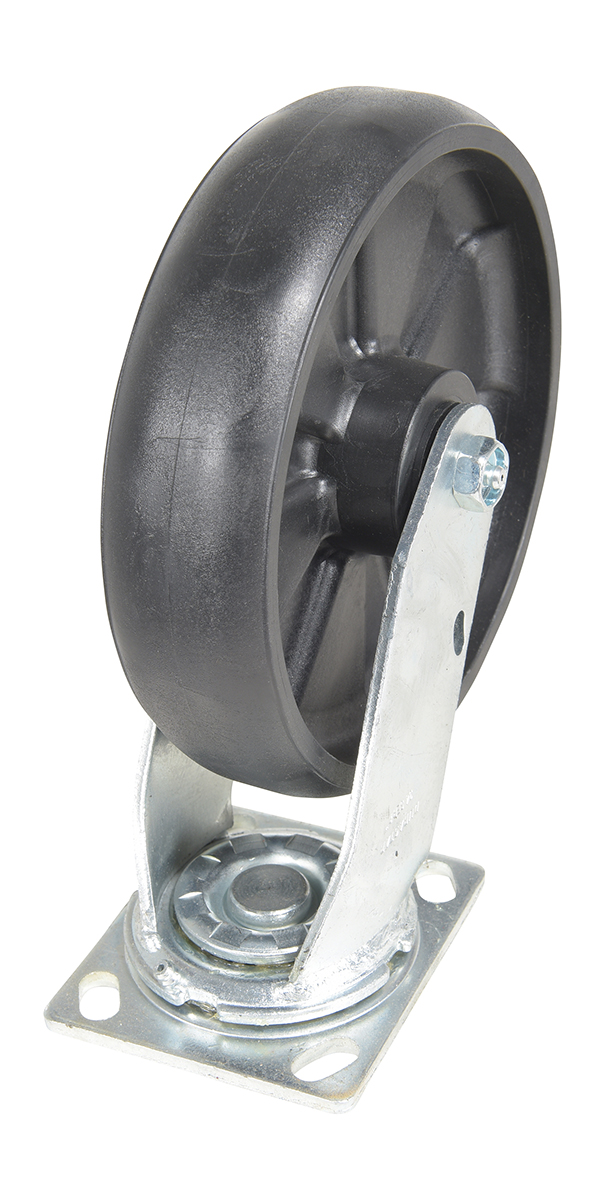

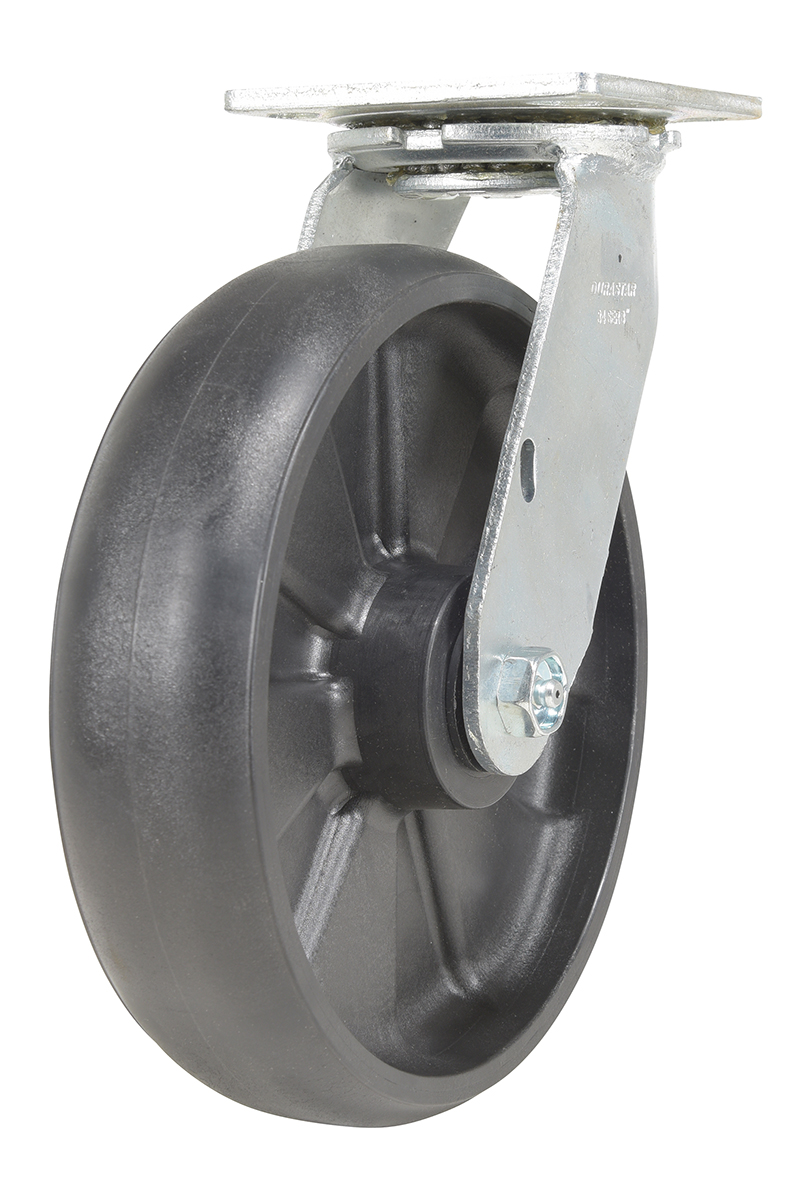

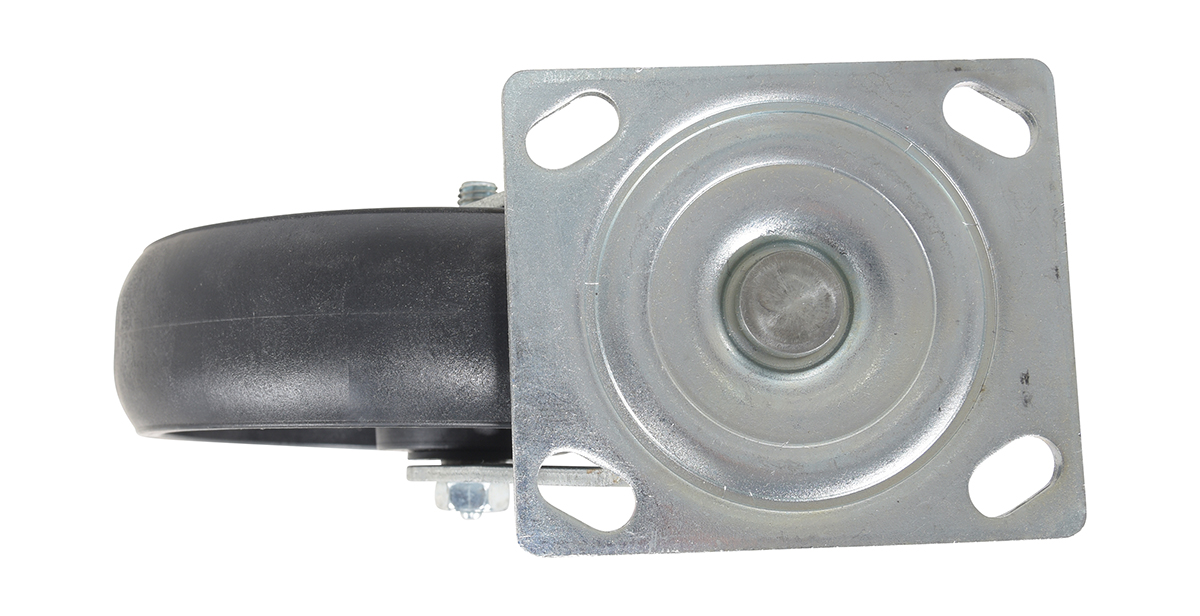

CST-VE-8X2GFN-S CST-VE-8X2GFN-S1 YEAR Limited Warranty8 x 2SWIVEL1250 4 x 4-1/2

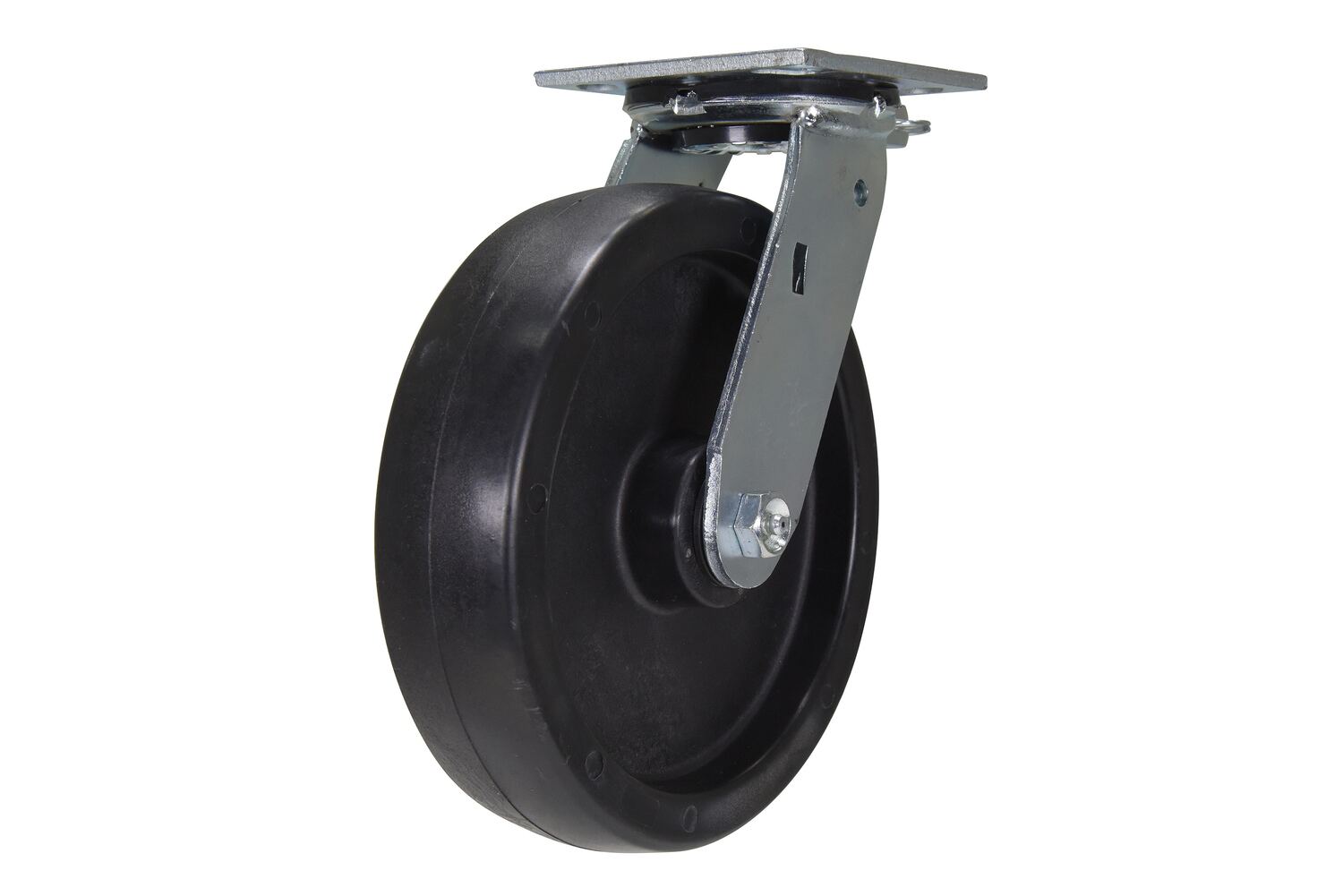

CST-VE-8X2GFN-4PSL CST-VE-8X2GFN-4PSL Limited Warranty8 x 2SWIVEL 4 LOCK1250

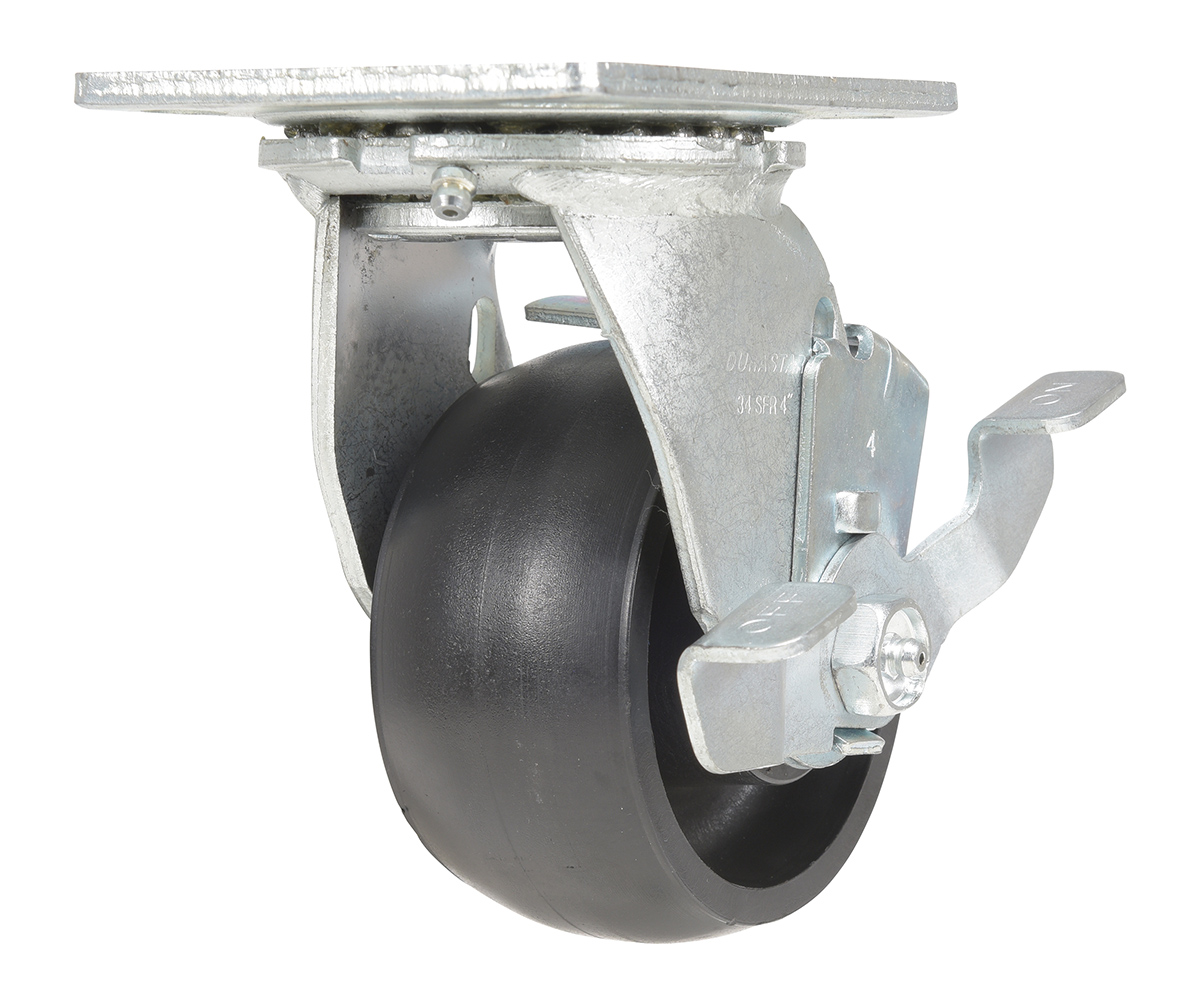

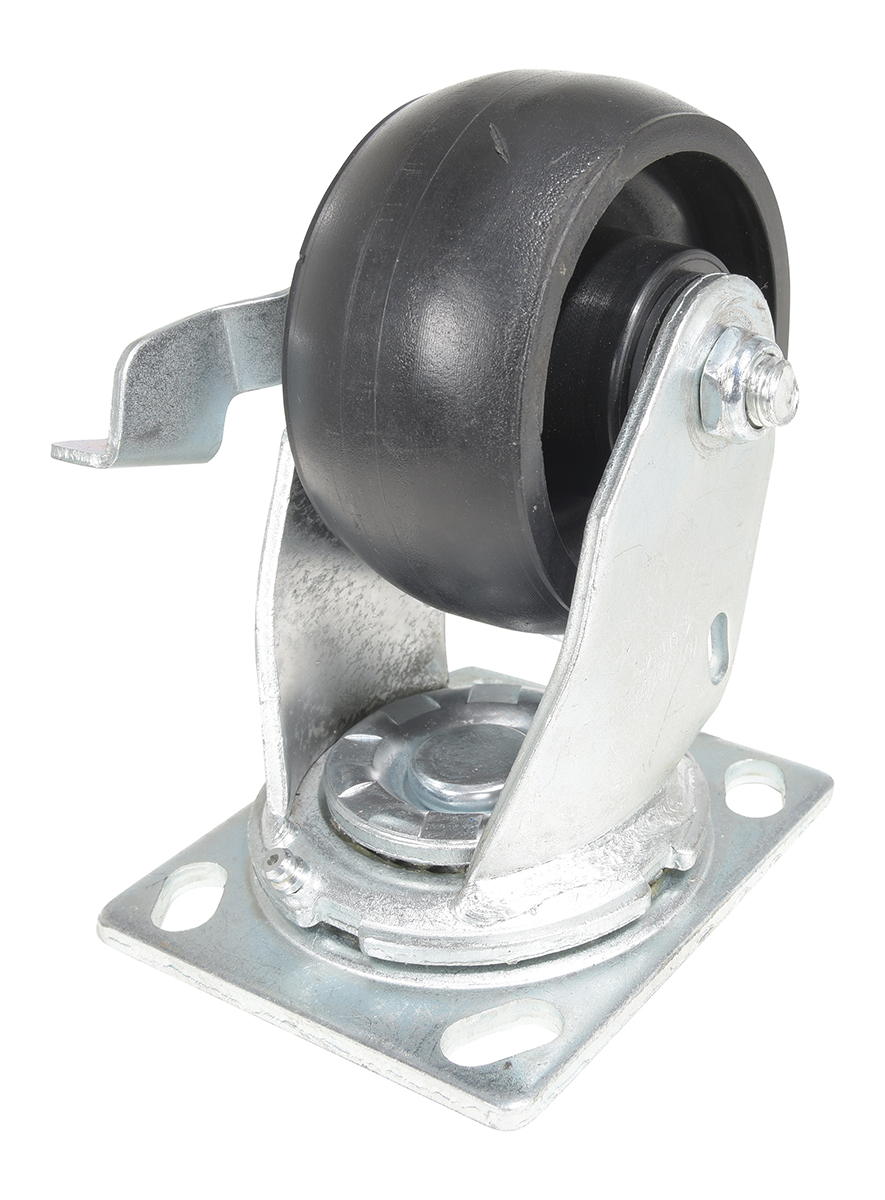

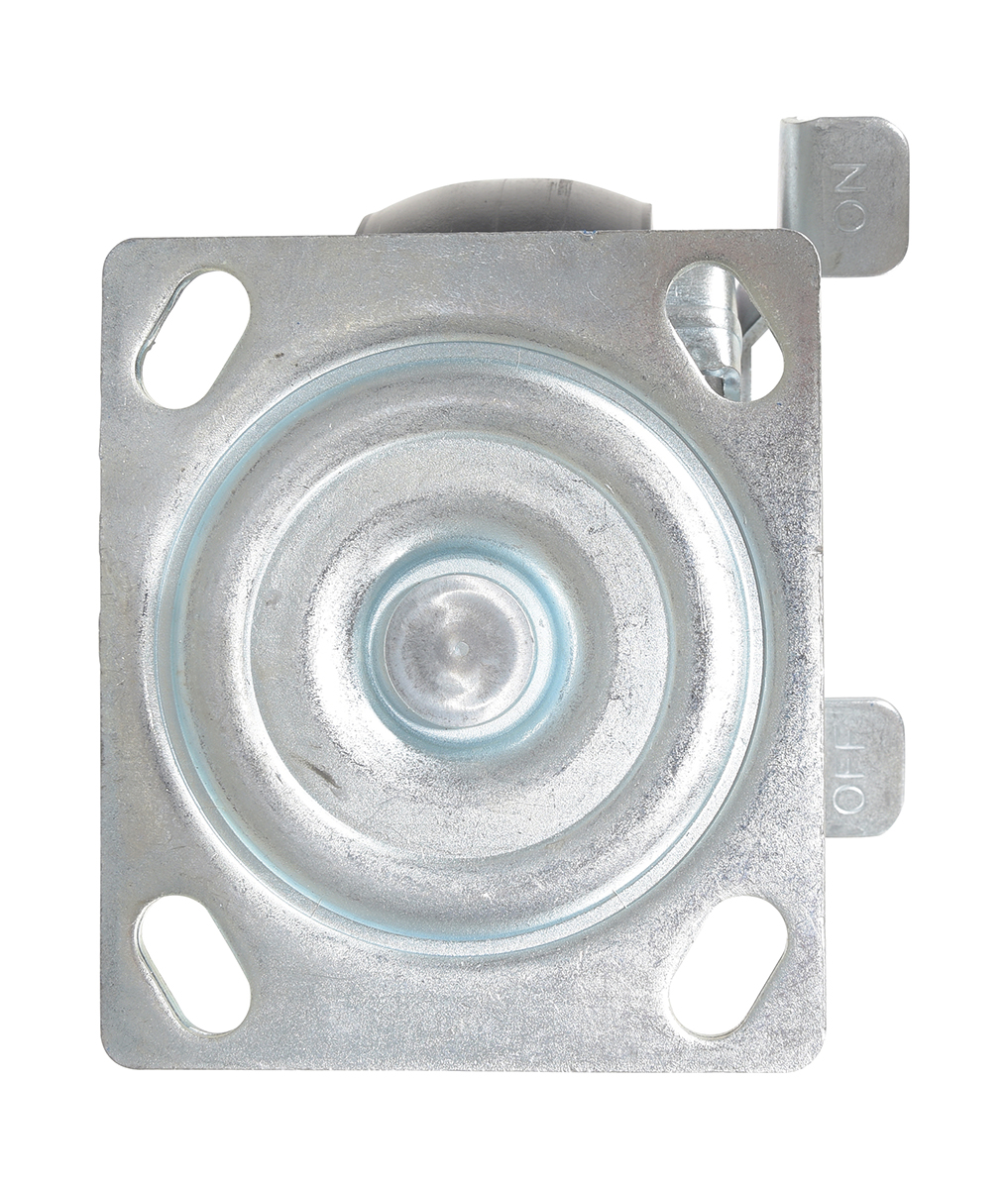

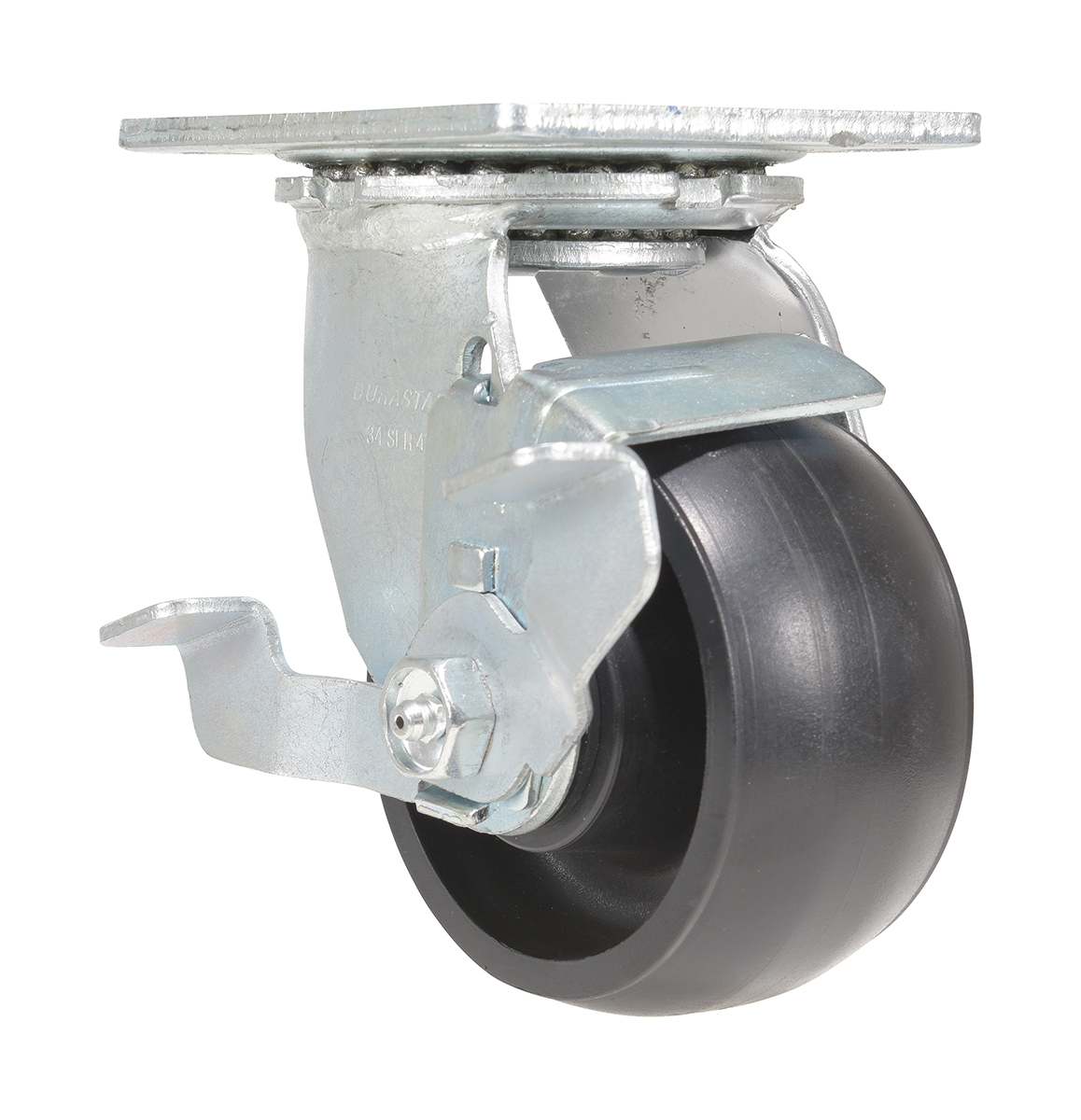

CST-VE-4X2GFN-SWB CST-VE-4X2GFN-SWB1 YEAR Limited Warranty4 x 2SWIVEL W/BRAKE8005-1/2 4 x 4-1/24.13

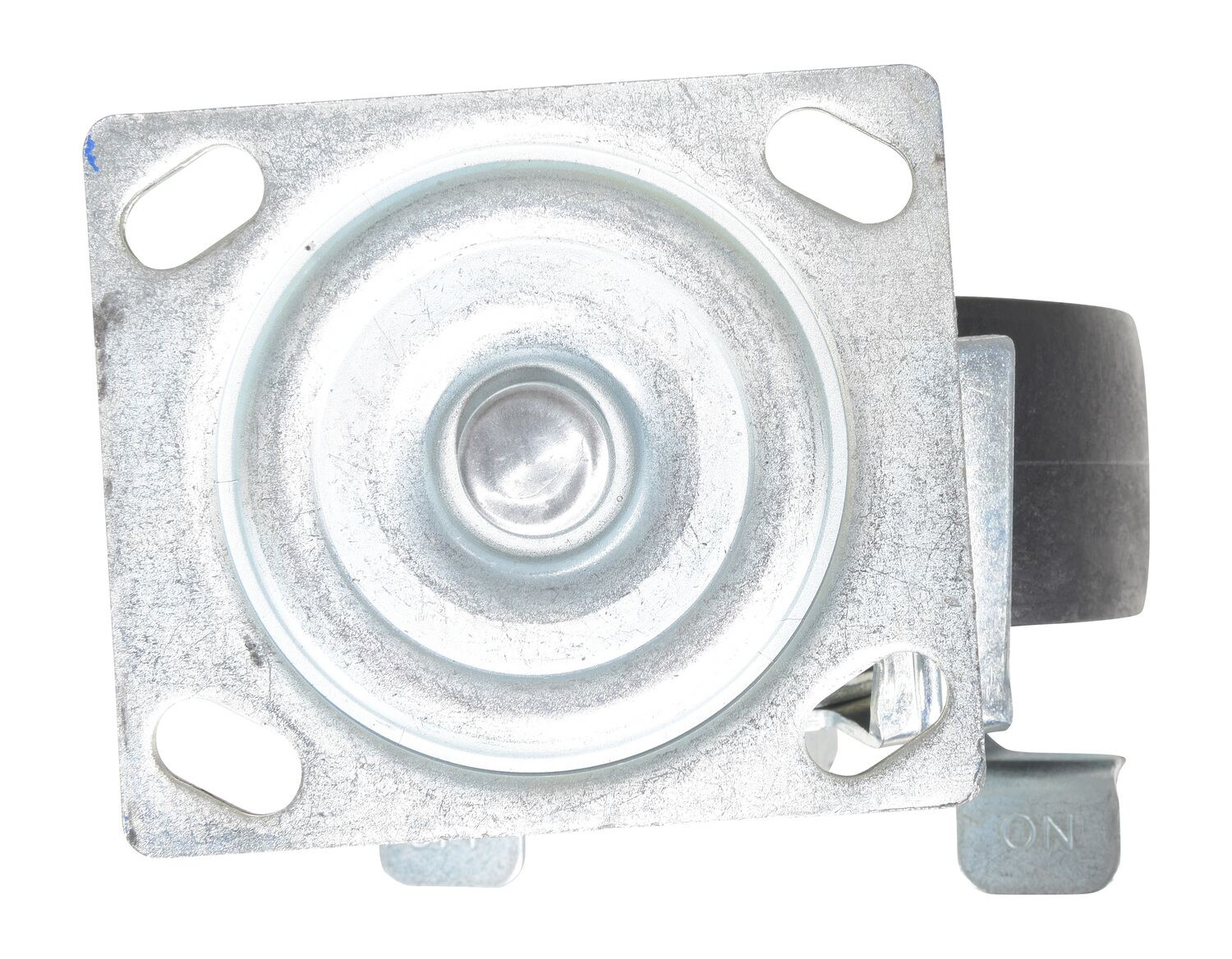

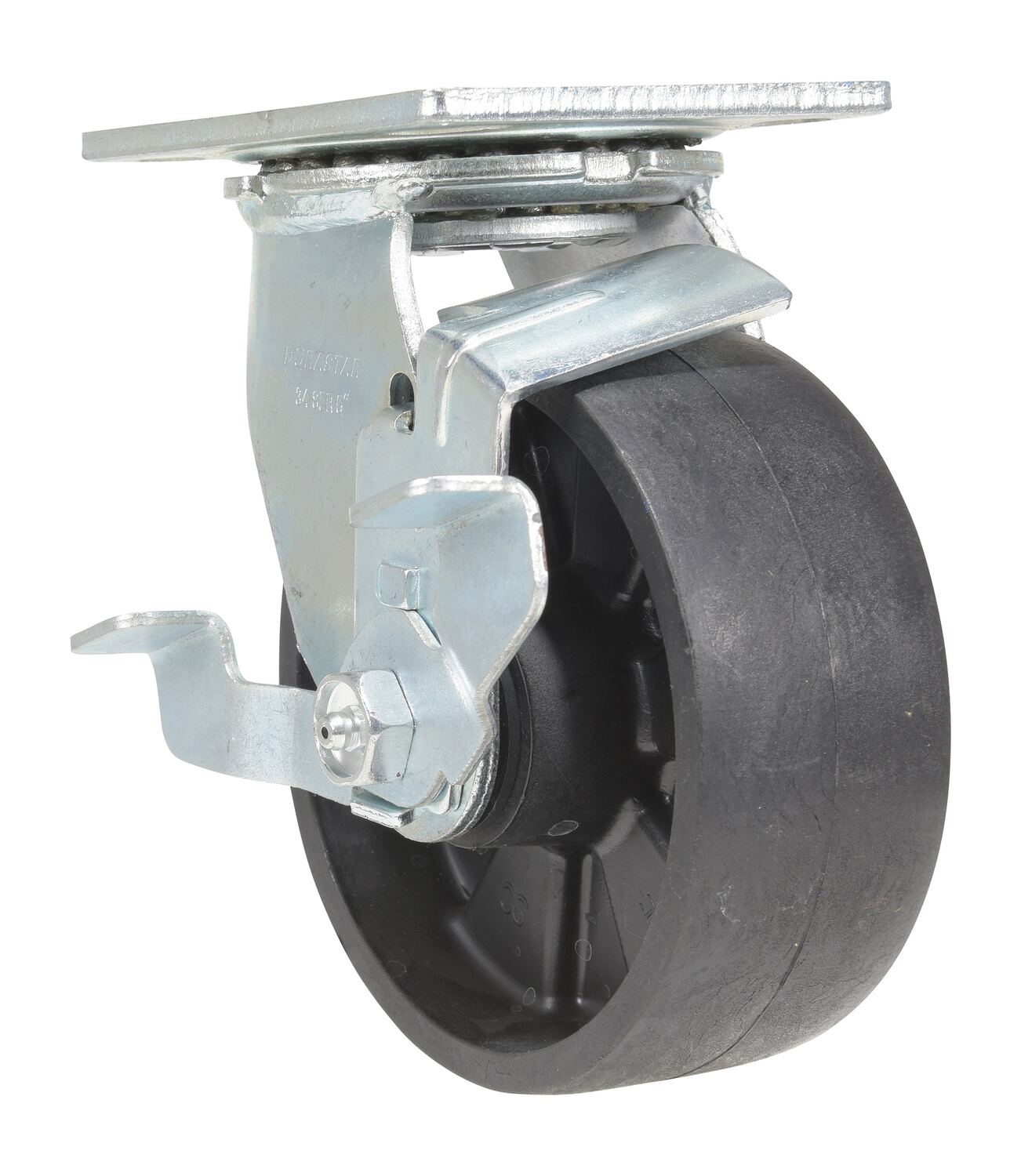

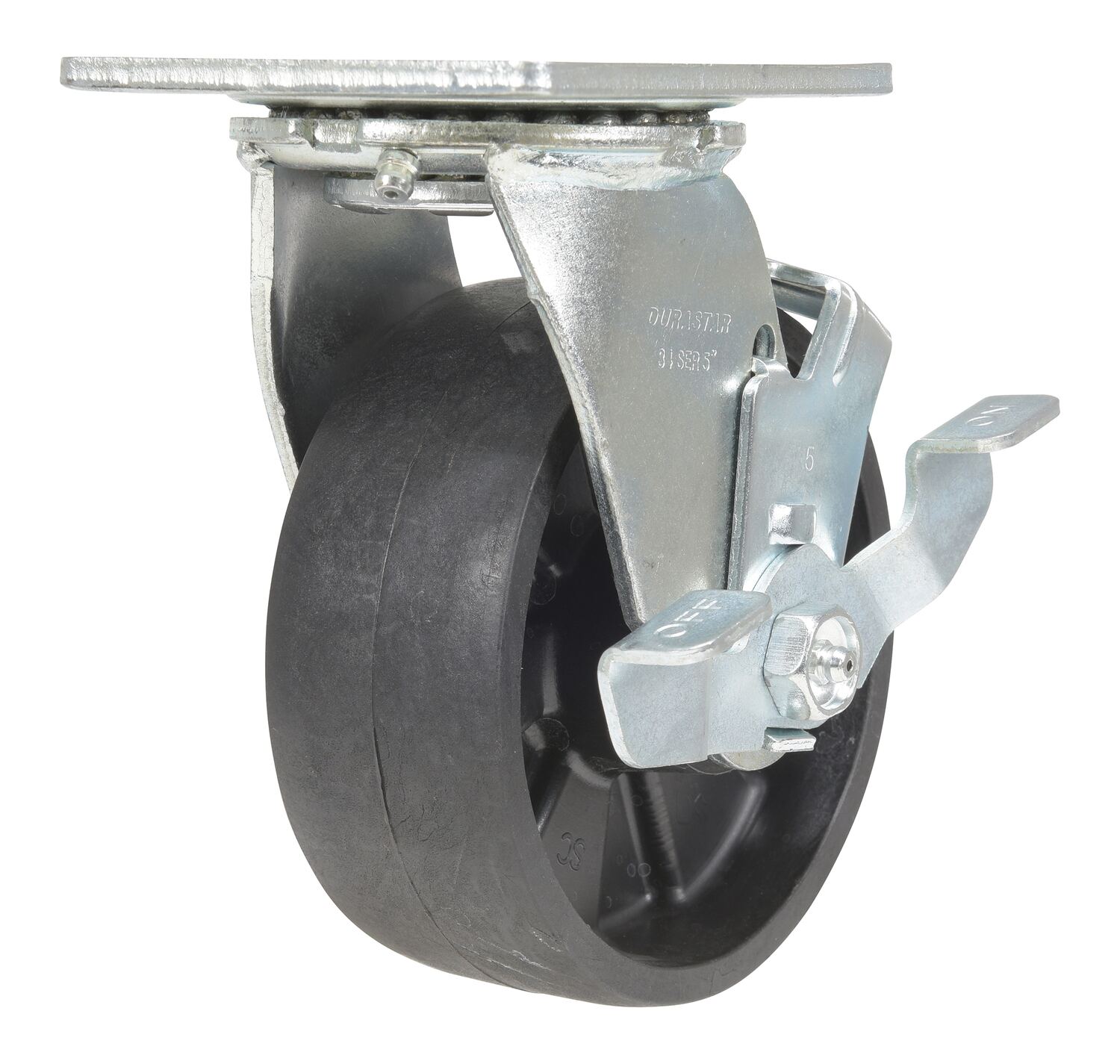

CST-VE-5X2GFN-SWB CST-VE-5X2GFN-SWB1 YEAR Limited Warranty5 x 2SWIVEL W/BRAKE10006.5 4 x 4-1/24.37

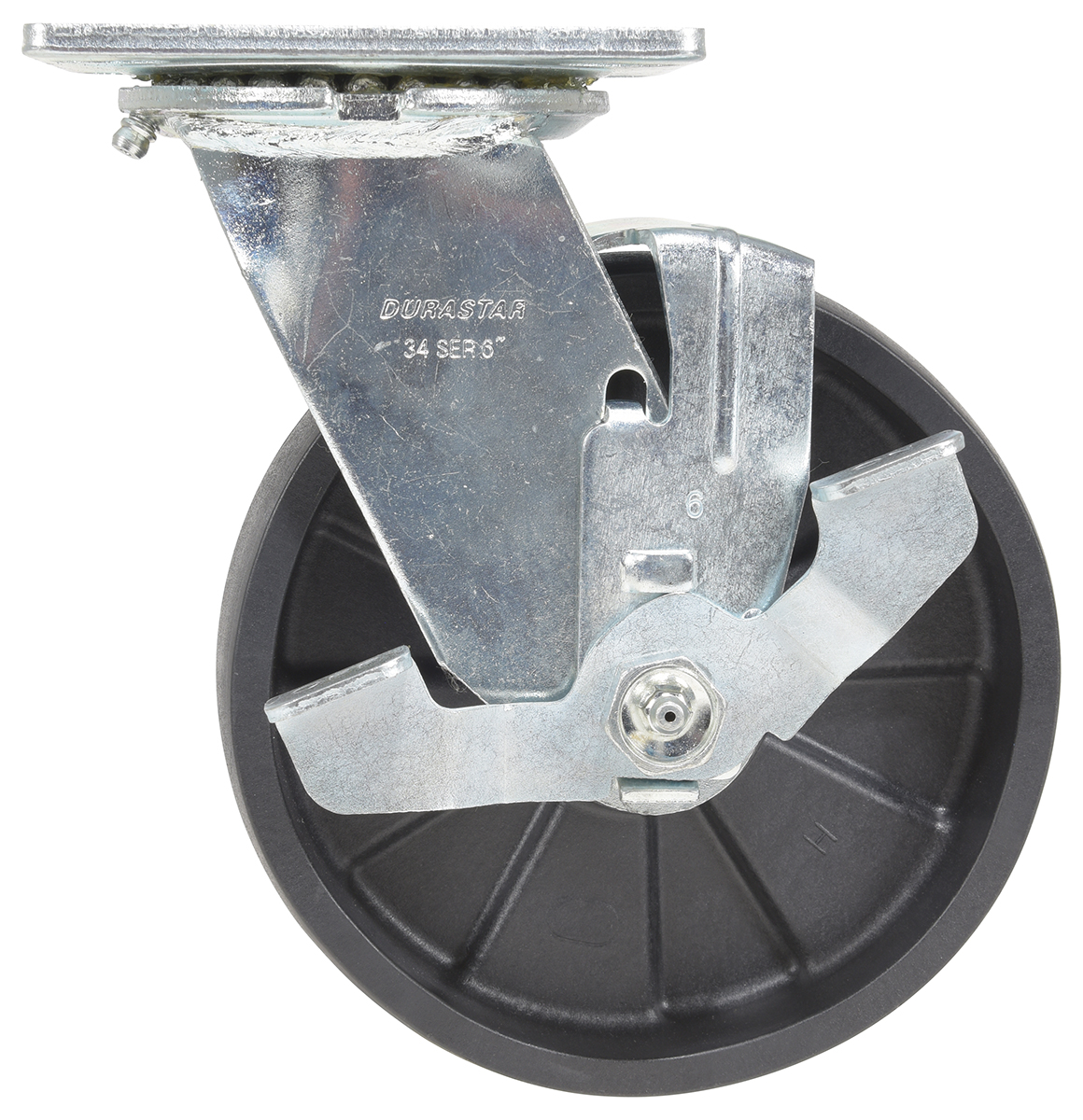

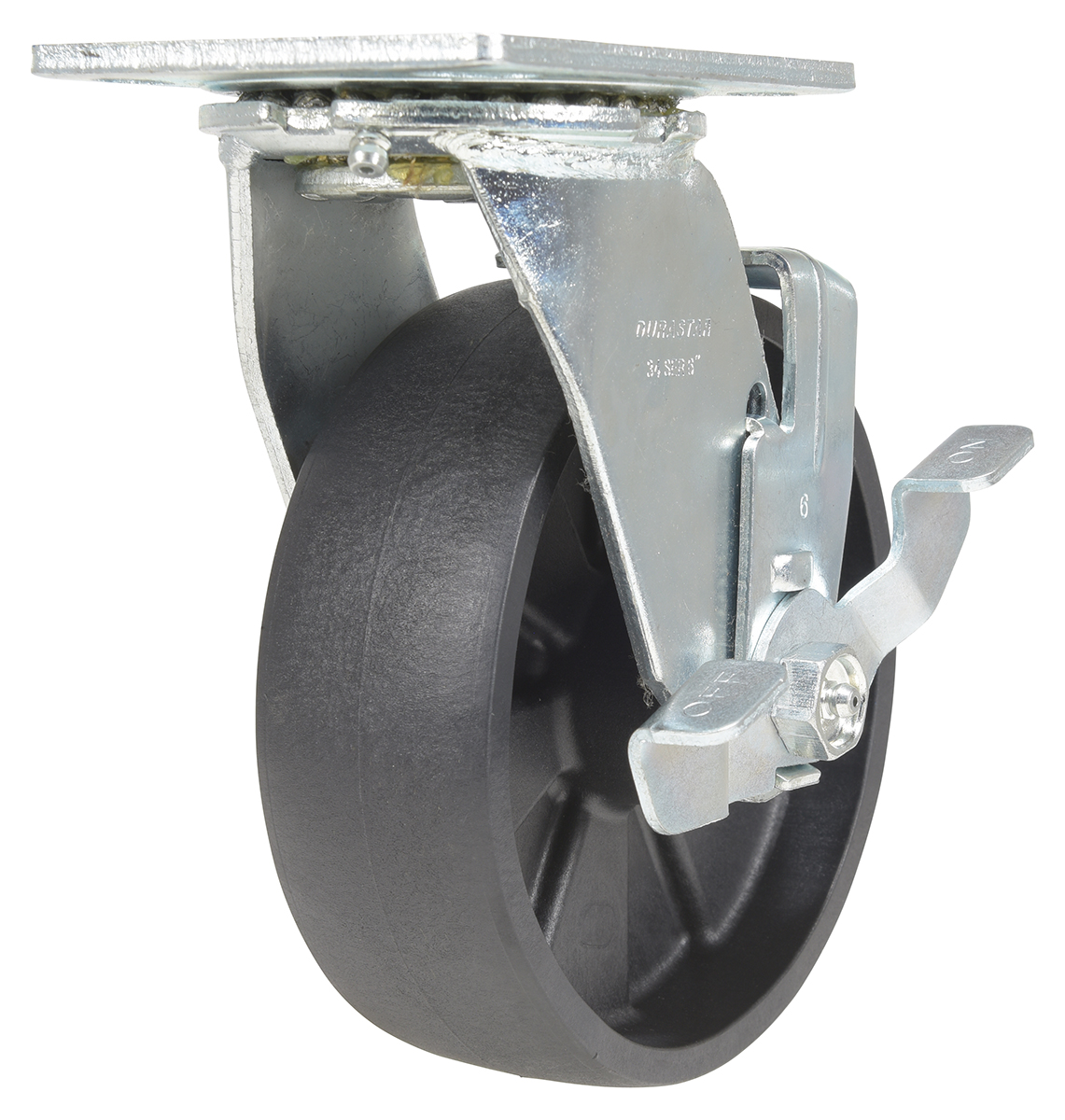

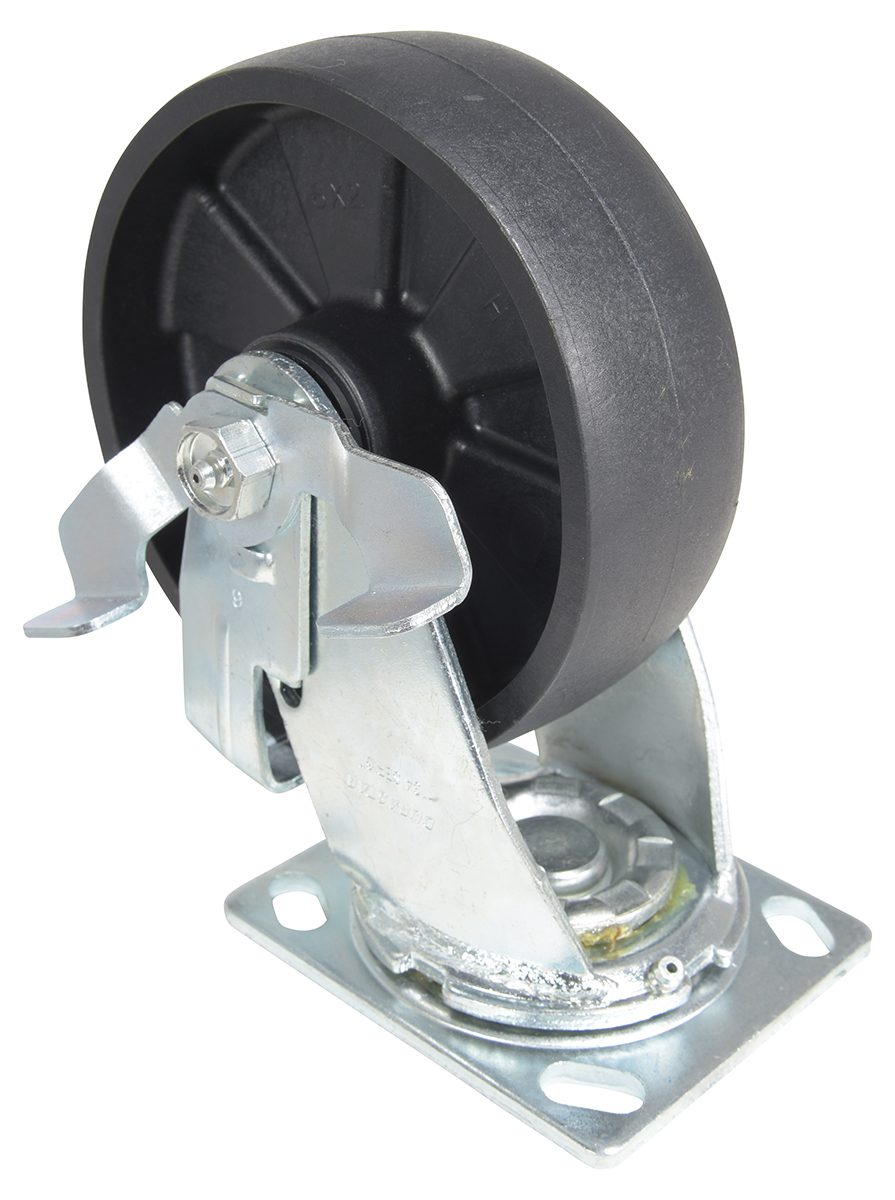

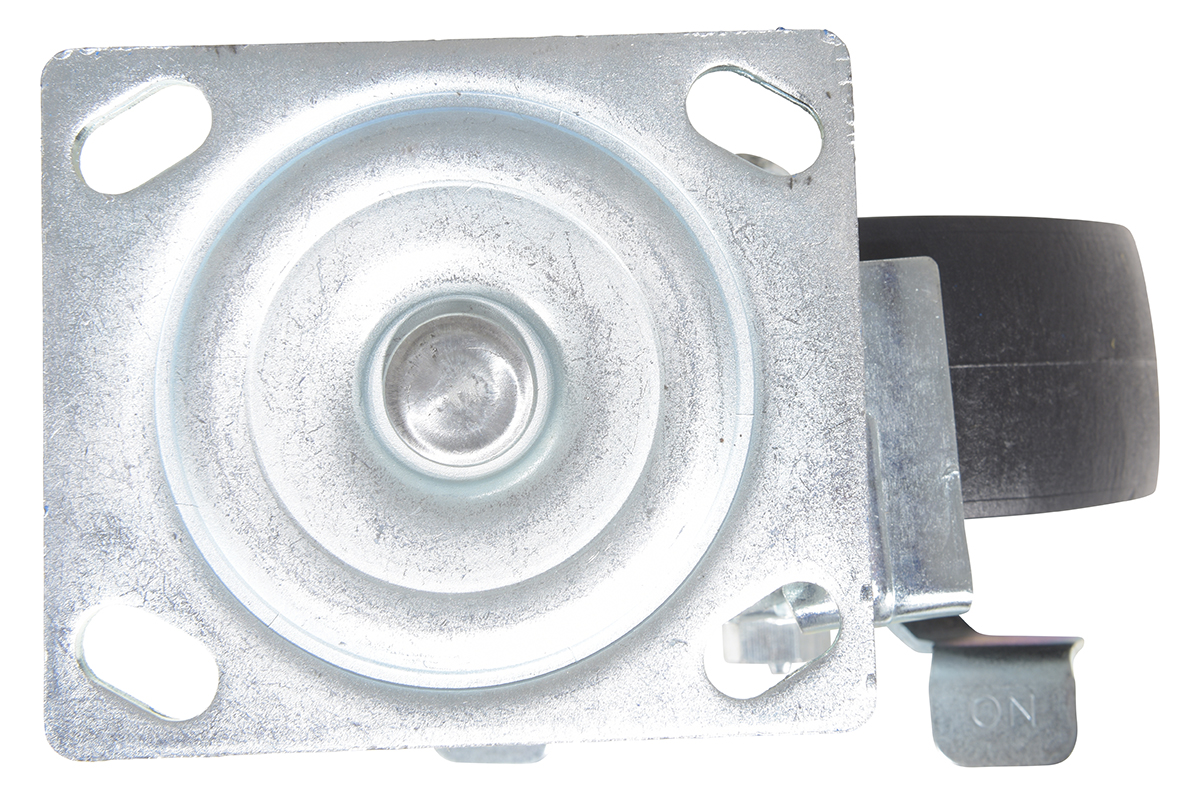

CST-VE-6X2GFN-SWB CST-VE-6X2GFN-SWB1 YEAR Limited Warranty6 x 2SWIVEL W/BRAKE12007-1/2 4 x 4-1/24.67

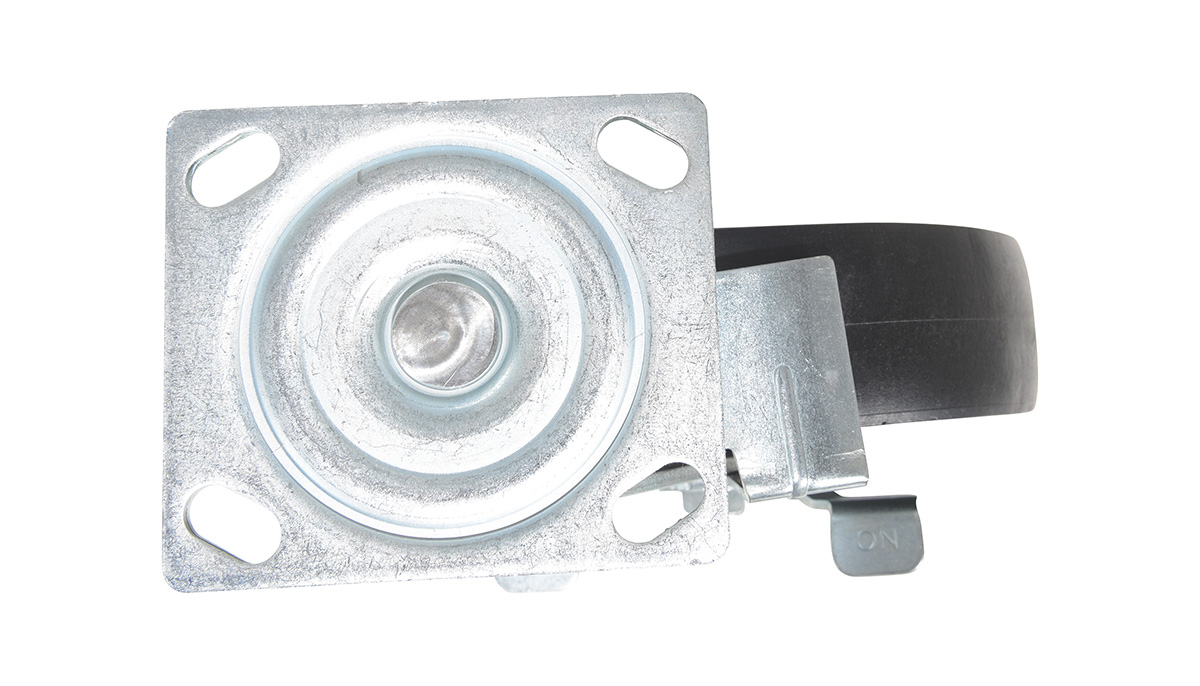

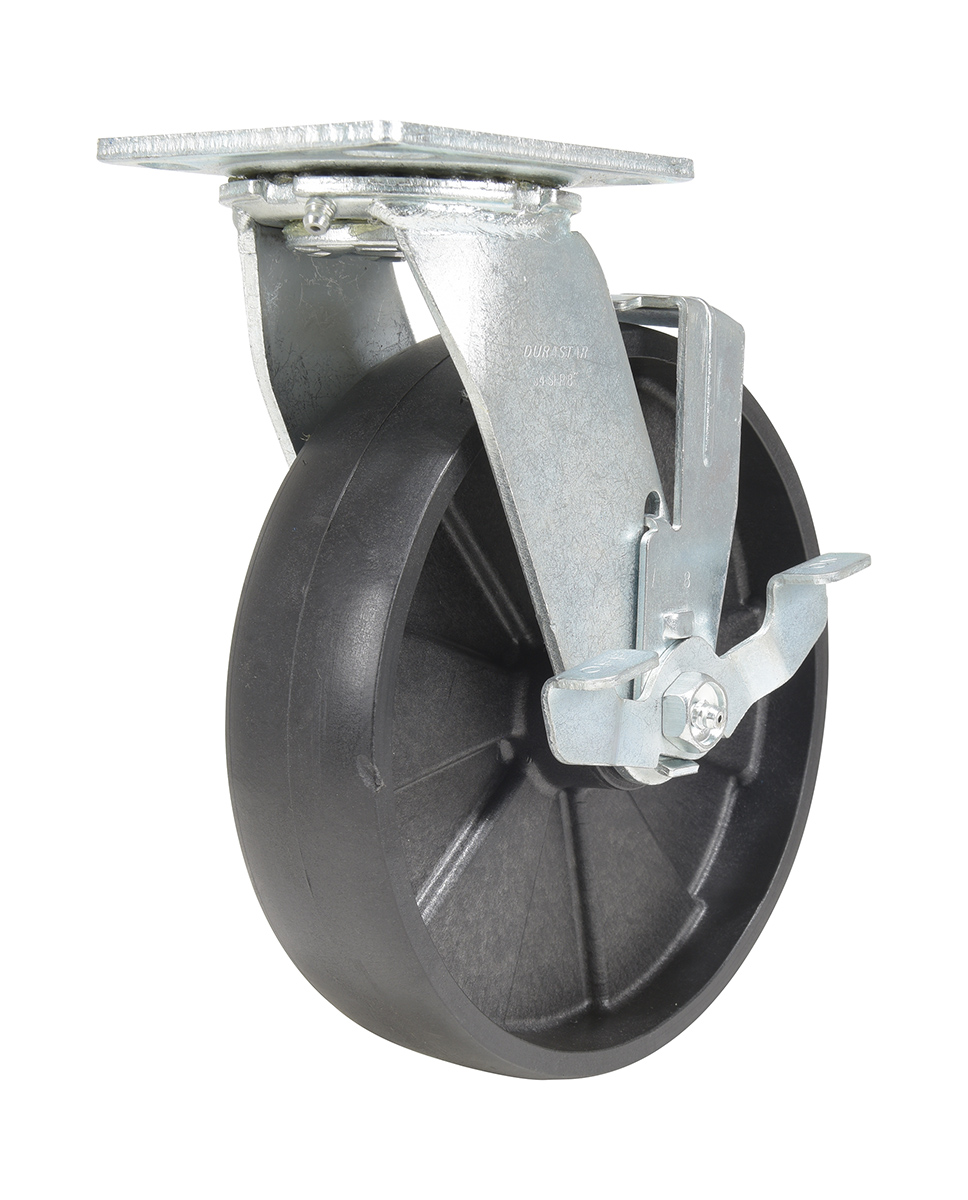

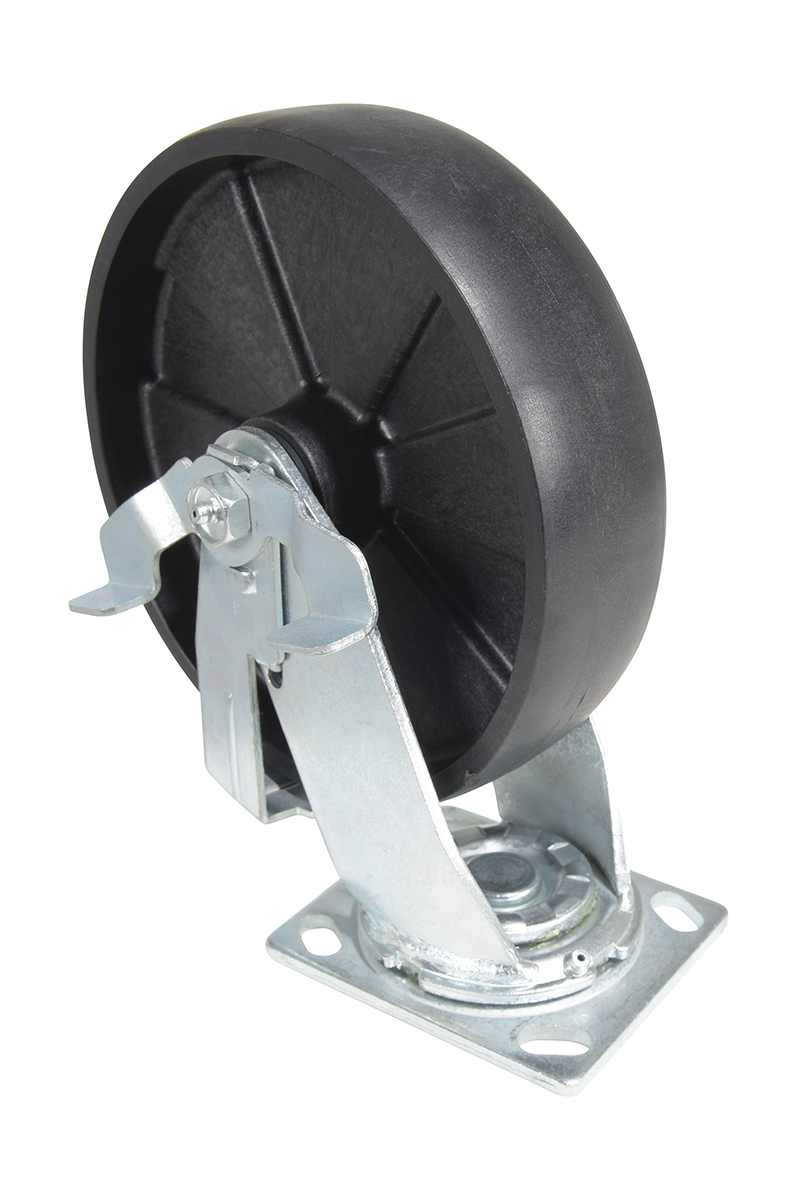

CST-VE-8X2GFN-SWB CST-VE-8X2GFN-SWB1 YEAR Limited Warranty8 x 2SWIVEL W/BRAKE12509-1/2 4 x 4-1/25.51

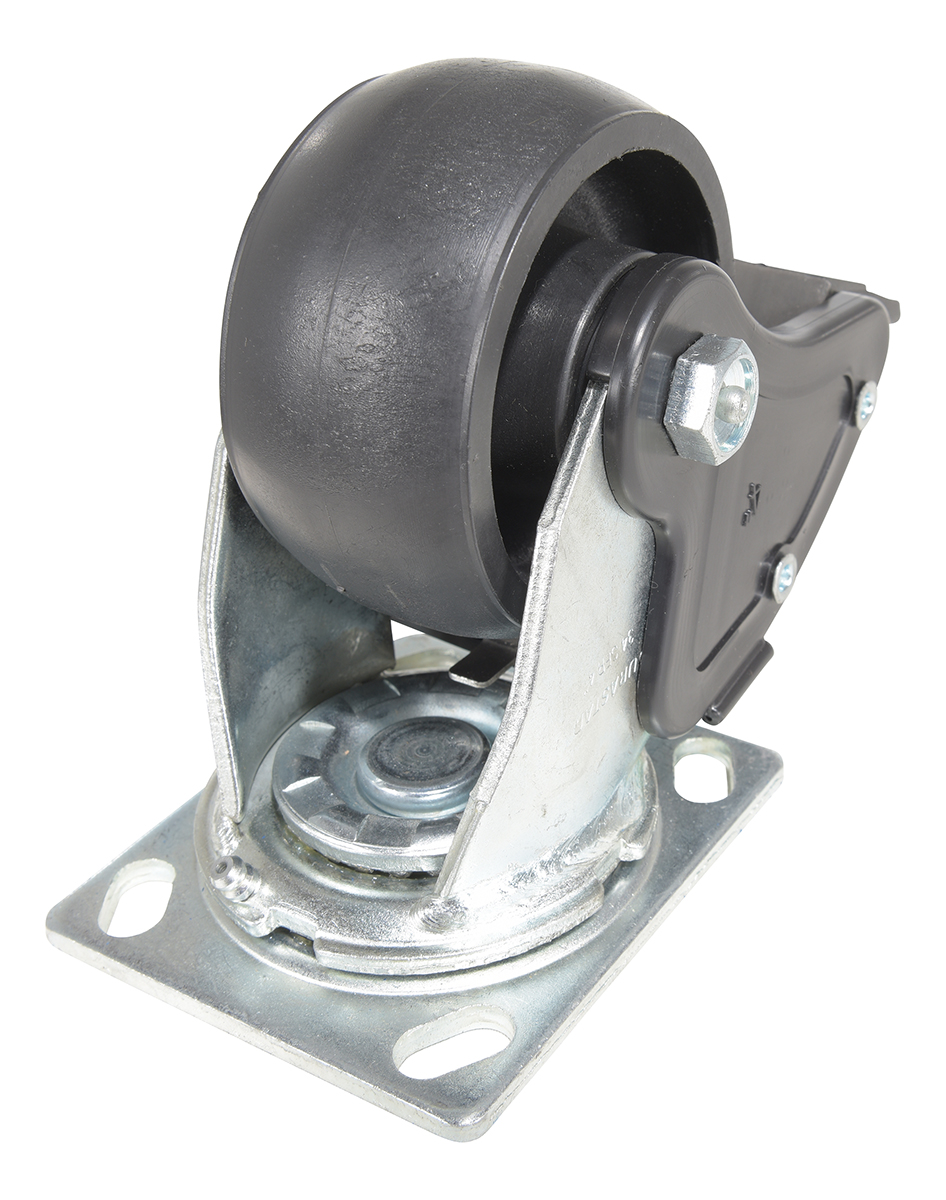

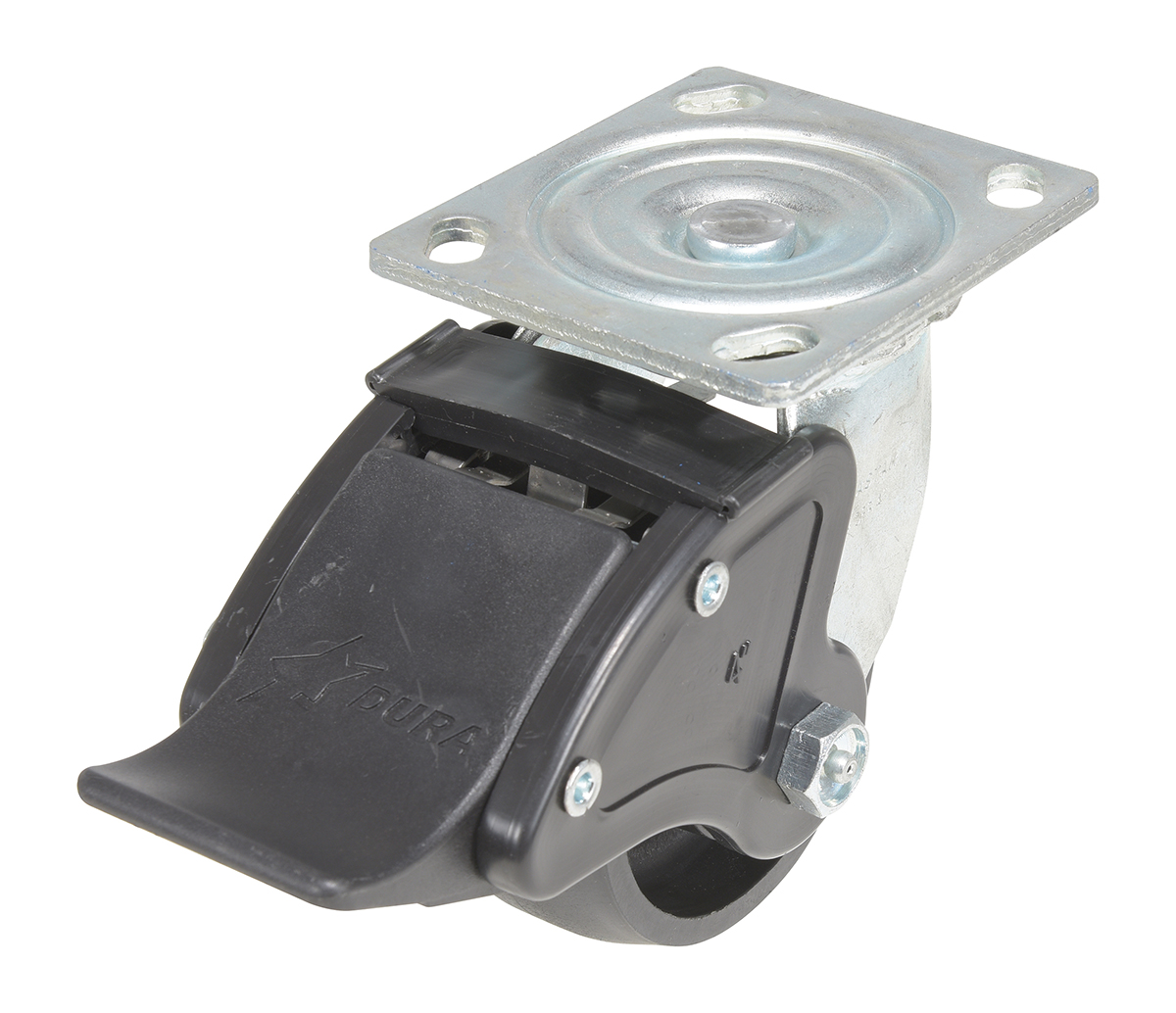

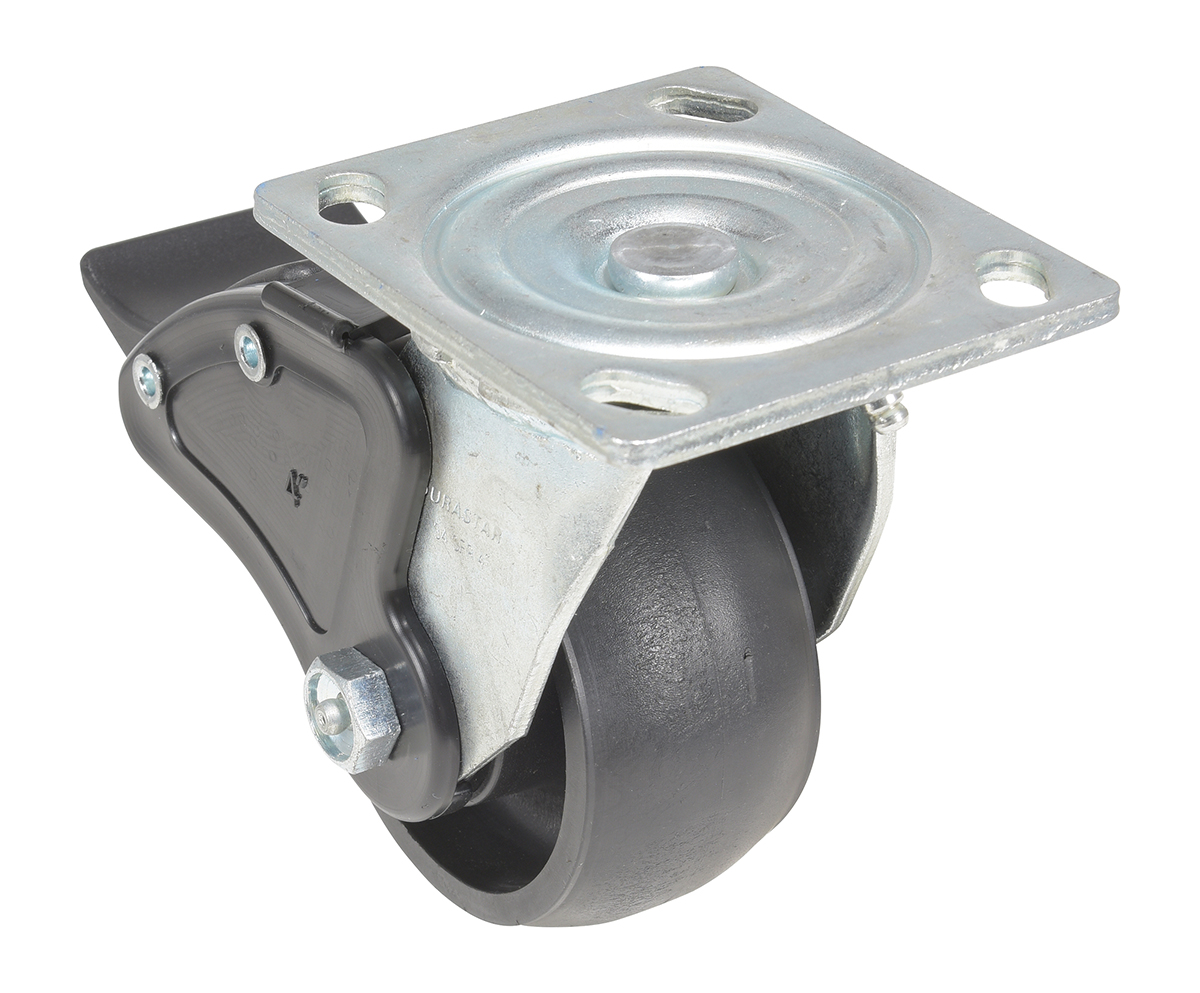

CST-VE-4X2GFN-SWTB CST-VE-4X2GFN-SWTB1 YEAR Limited Warranty4 x 2SWIVEL W/TOTAL BRAKE8005-1/2 4 x 4-1/24.3

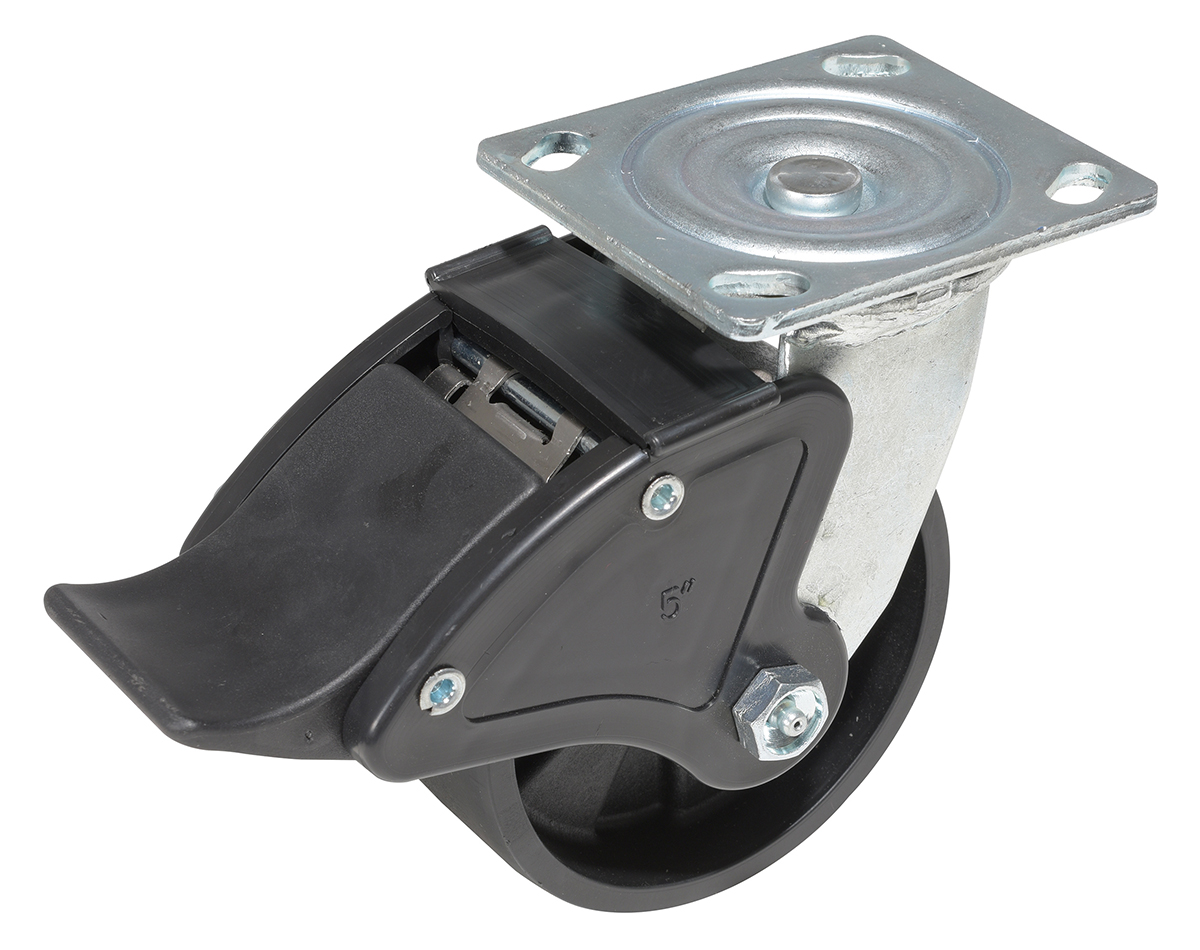

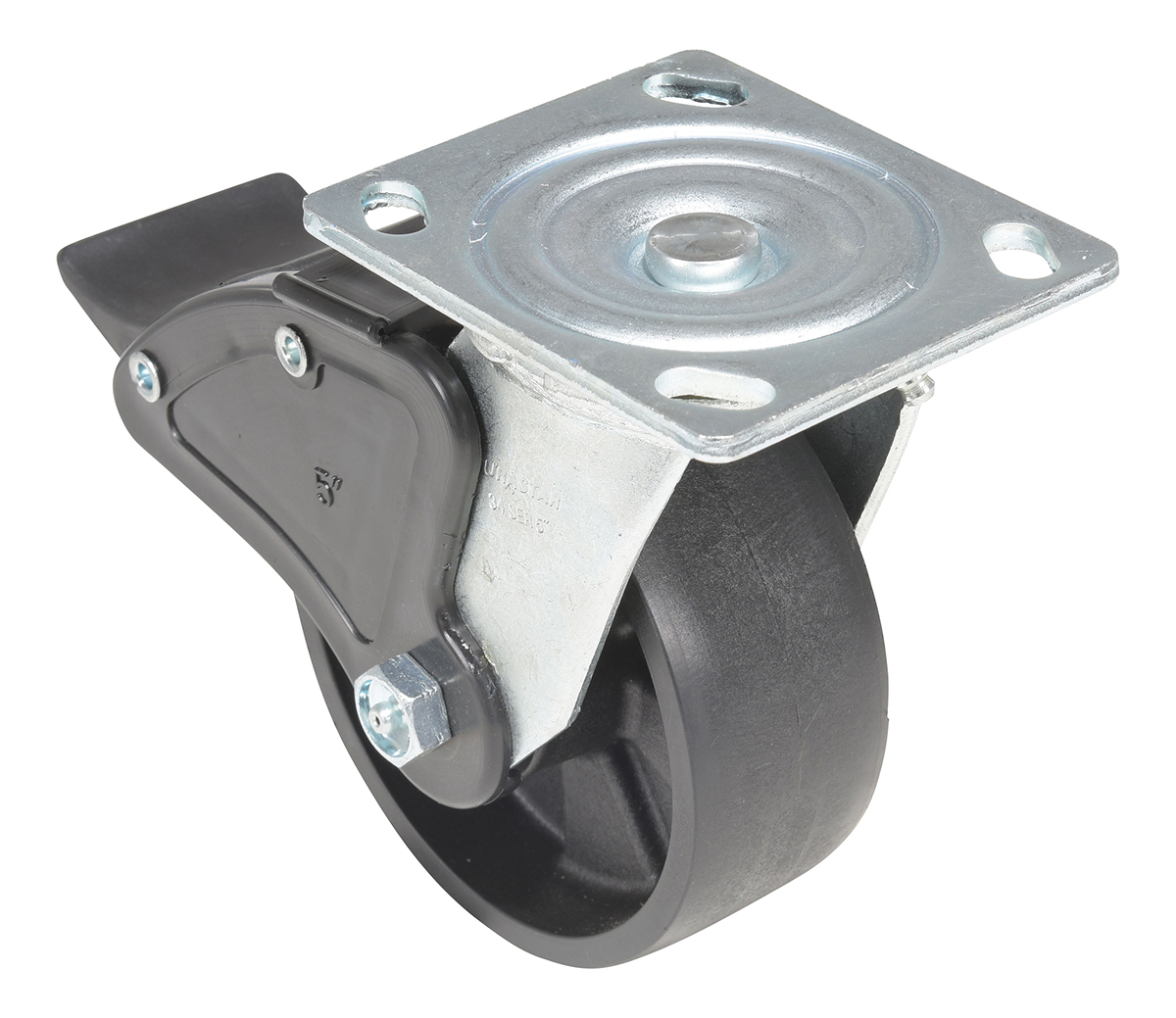

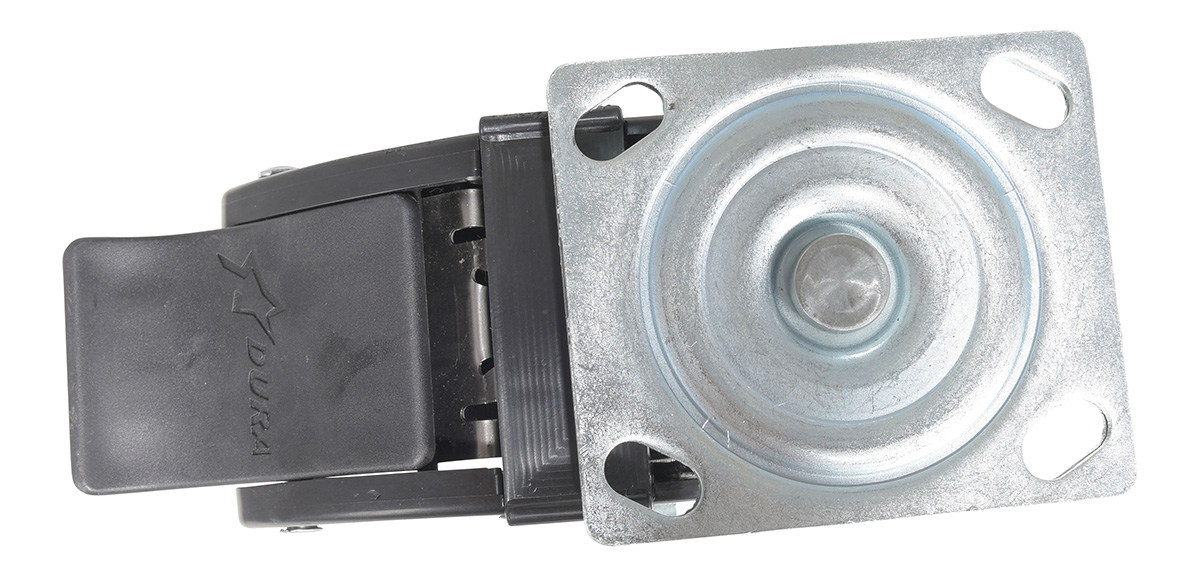

CST-VE-5X2GFN-SWTB CST-VE-5X2GFN-SWTB1 YEAR Limited Warranty5 x 2SWIVEL W/TOTAL BRAKE1000 4 x 4-1/2

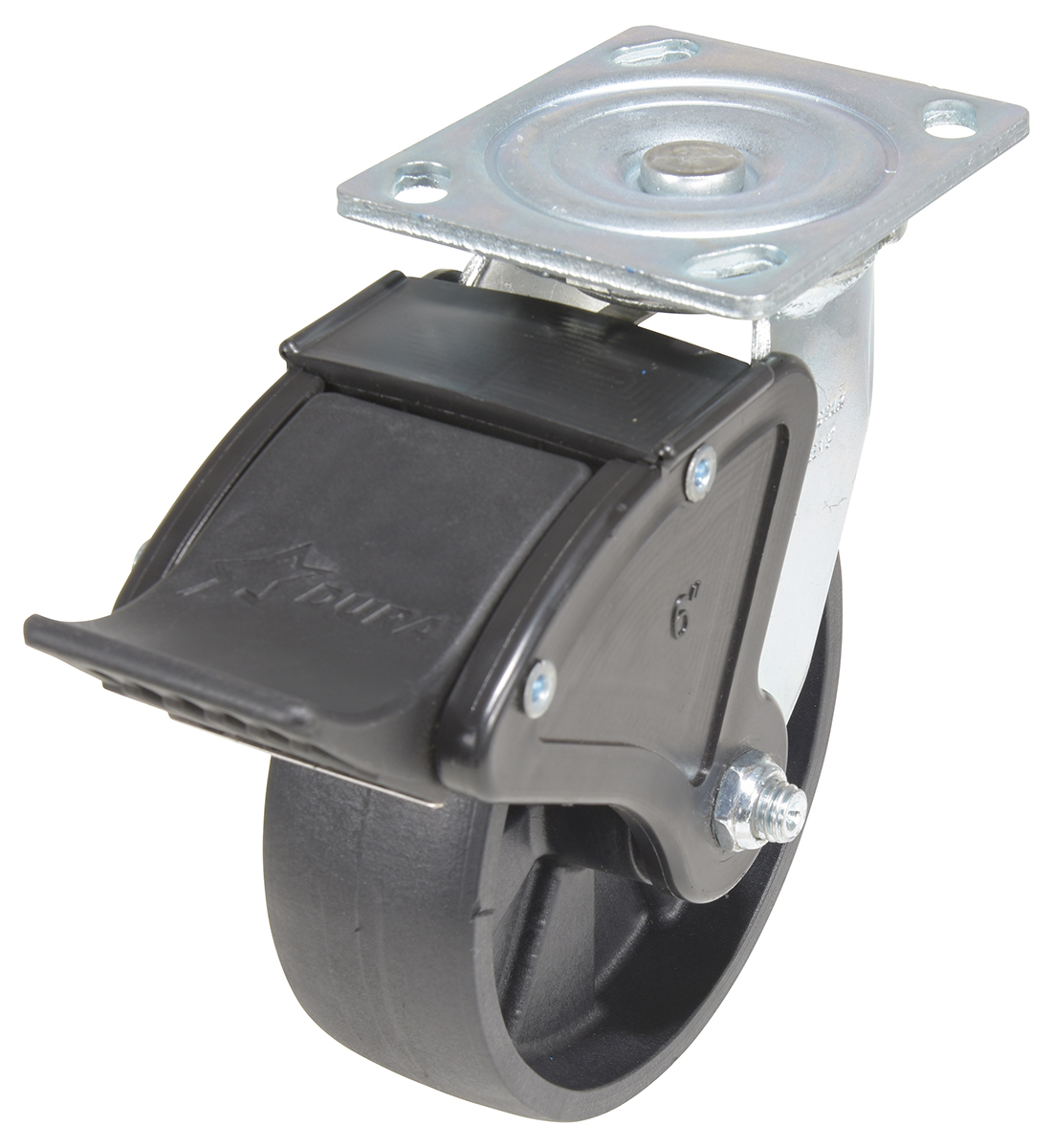

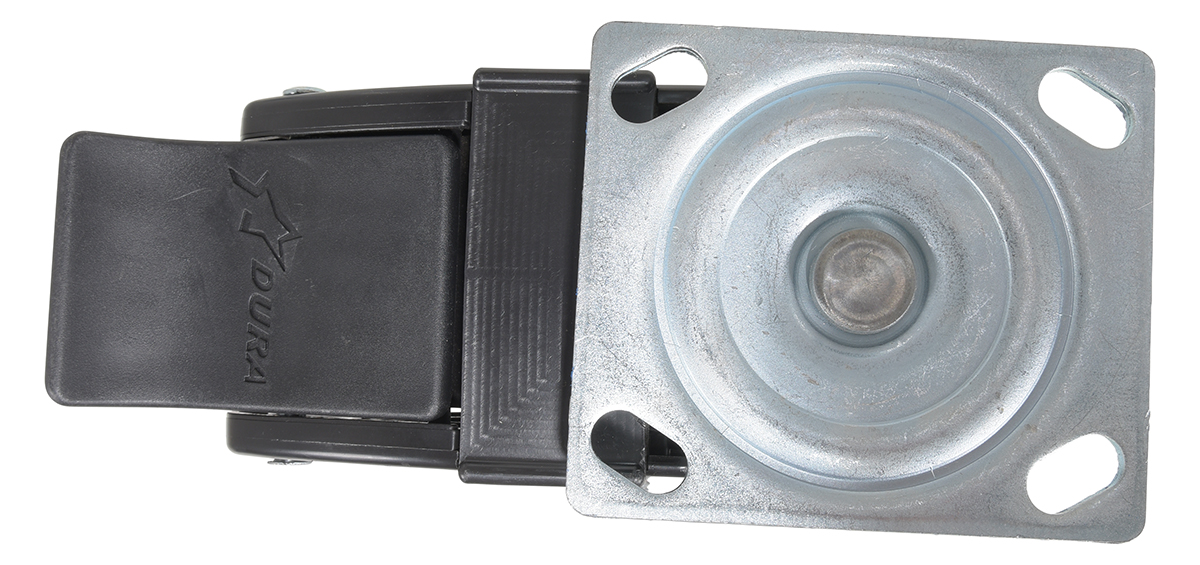

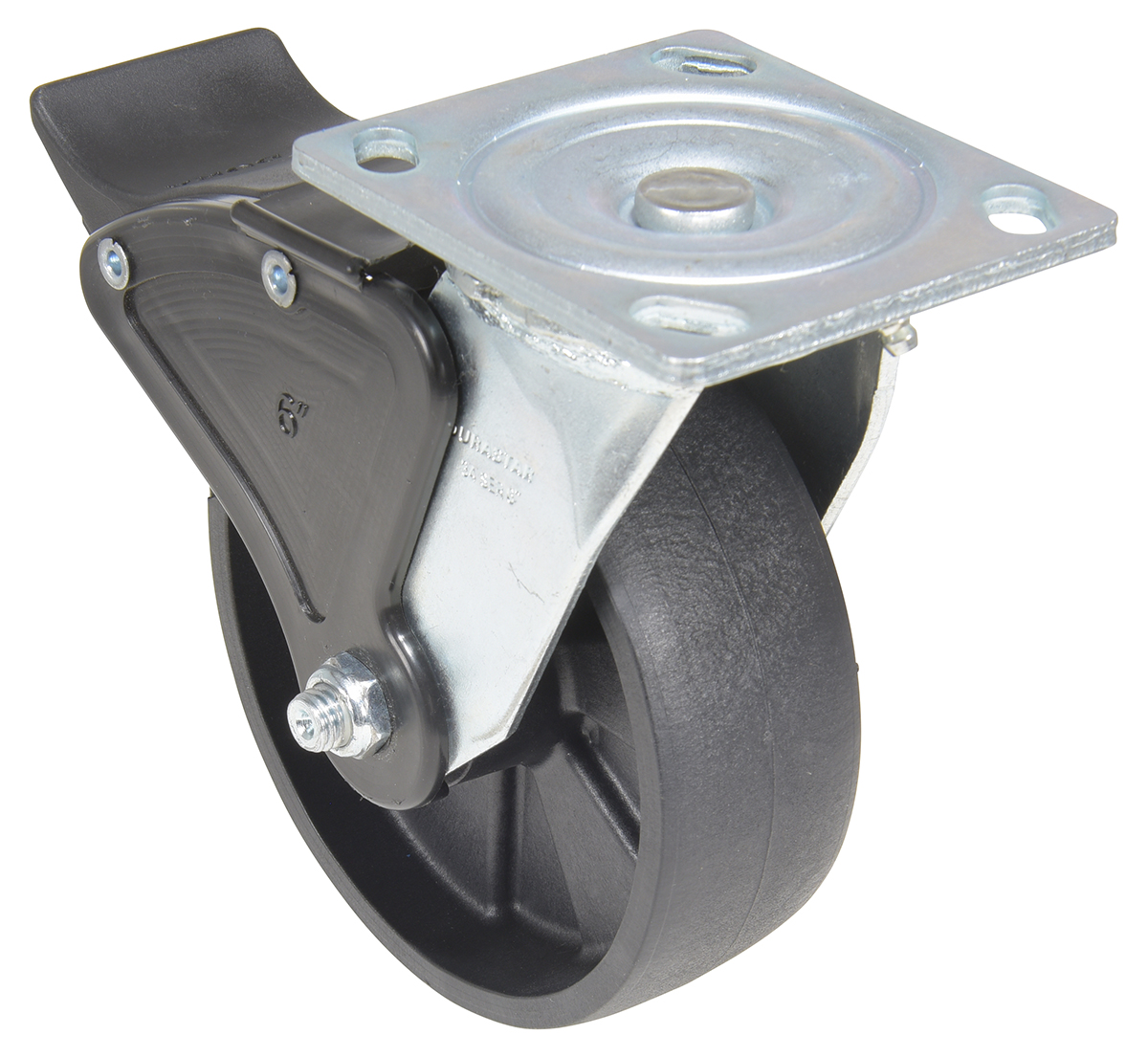

CST-VE-6X2GFN-SWTB CST-VE-6X2GFN-SWTB1 YEAR Limited Warranty6 x 2SWIVEL W/TOTAL BRAKE12007-1/2 4 x 4-1/24.86

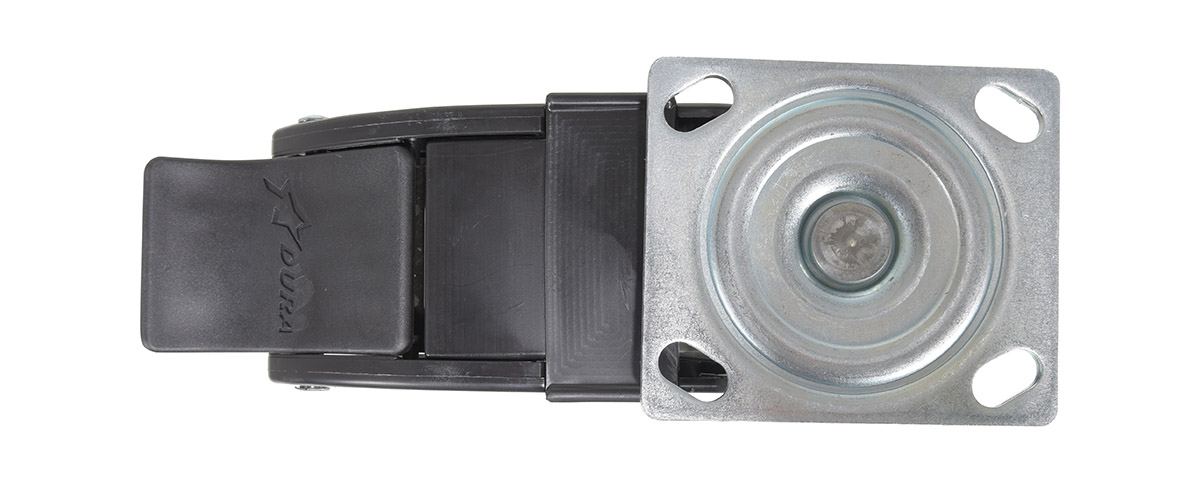

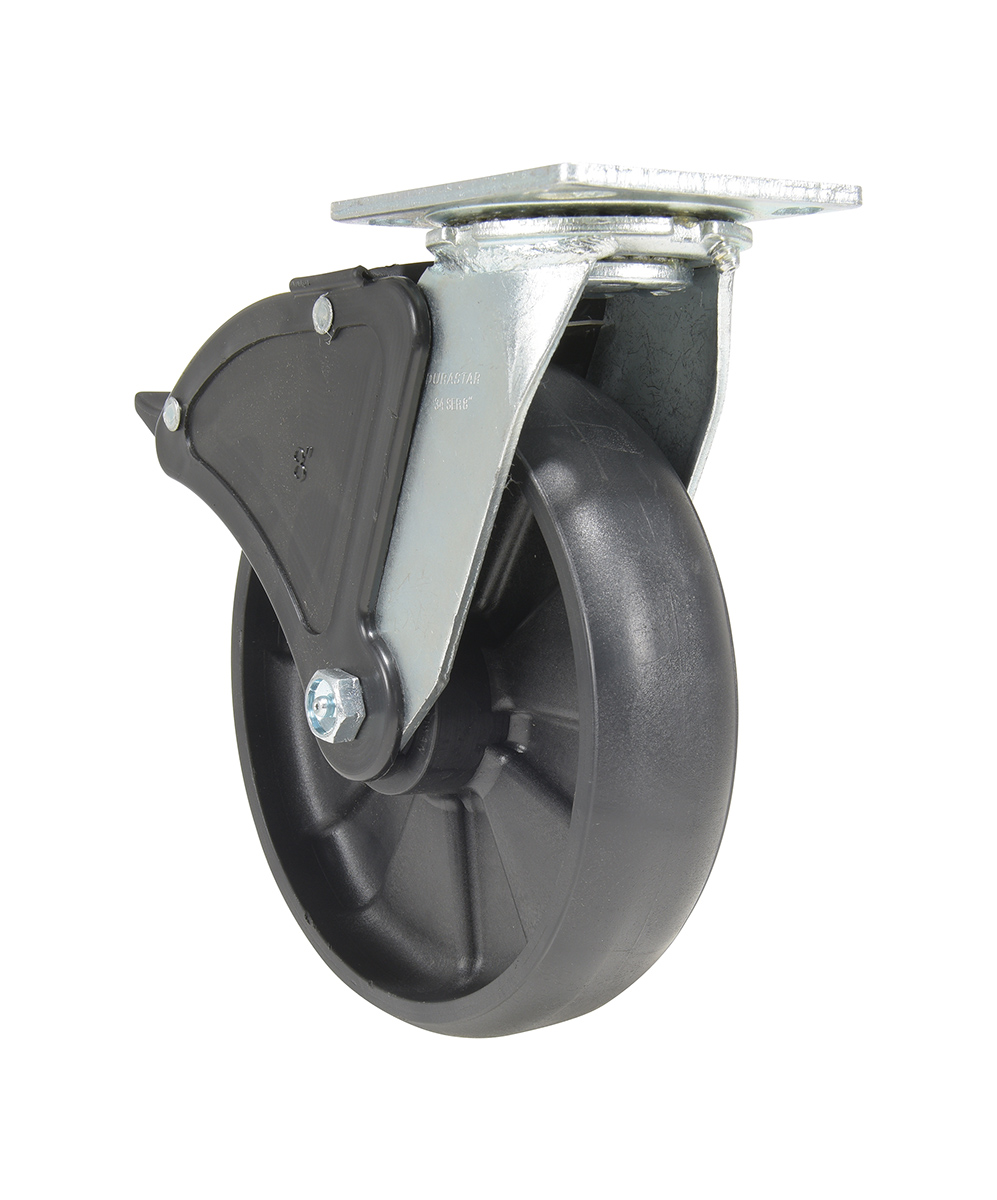

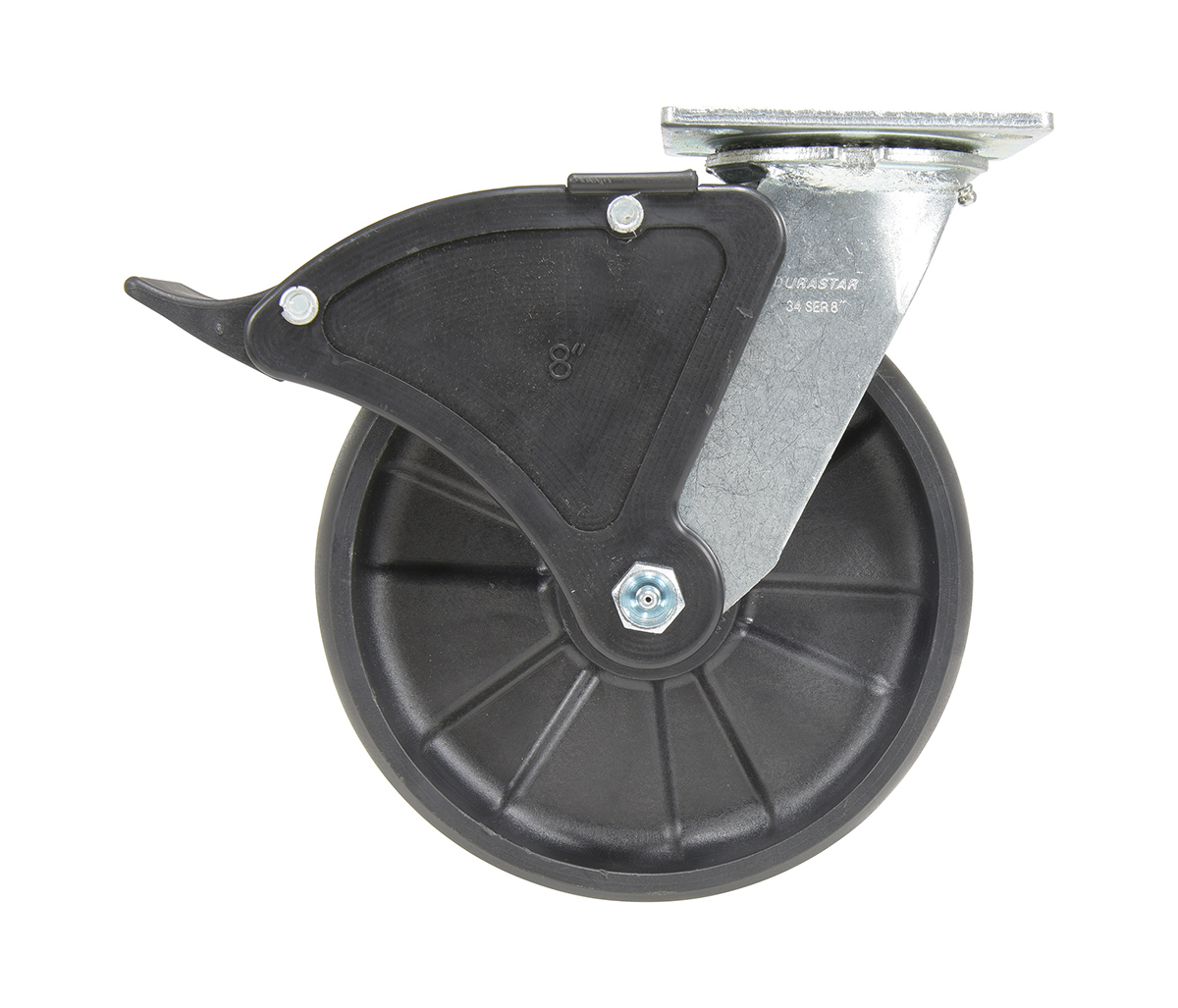

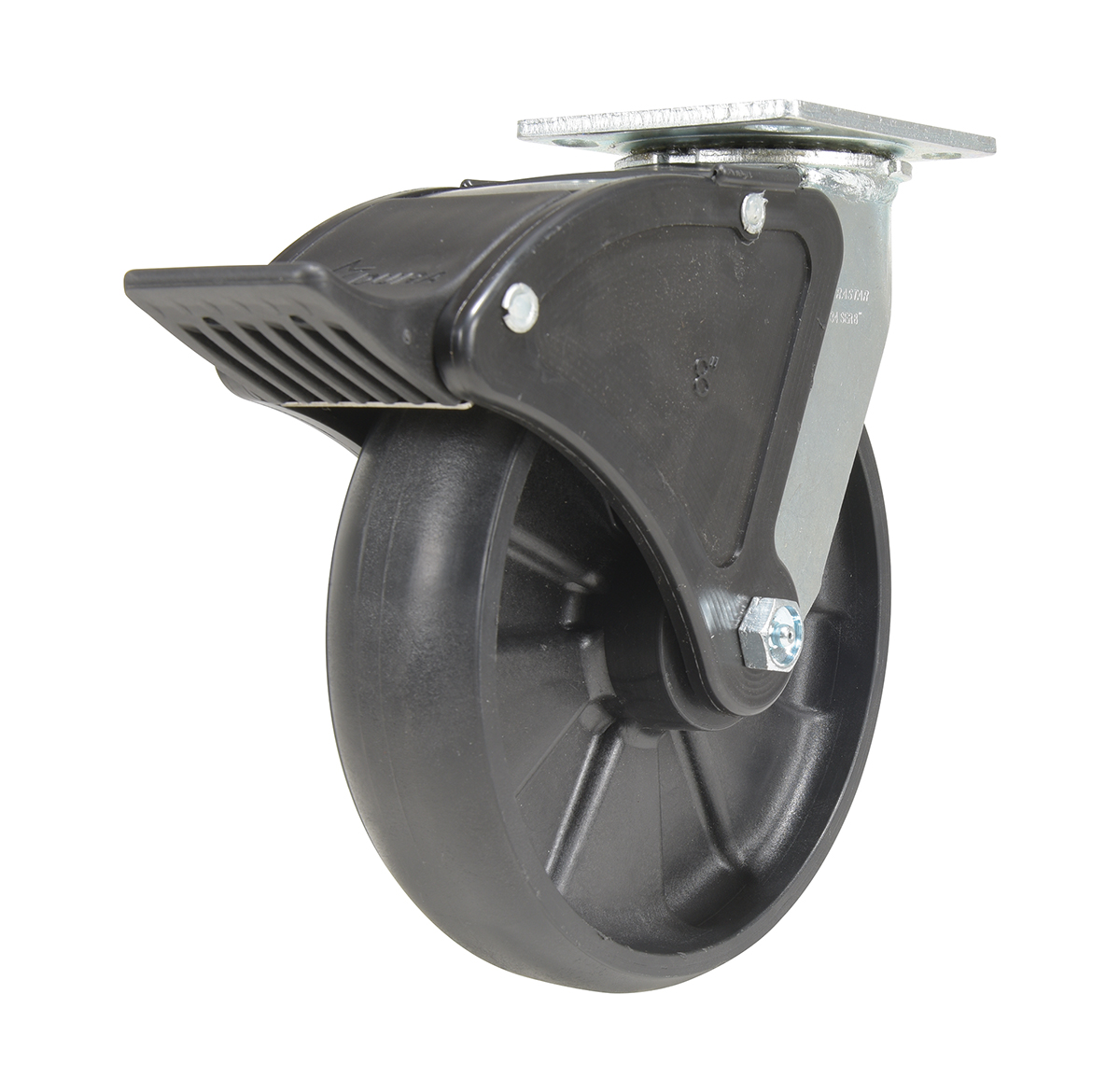

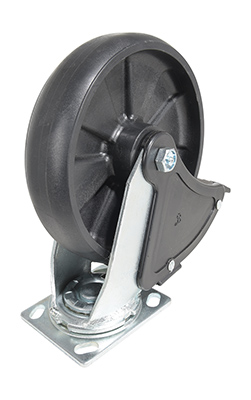

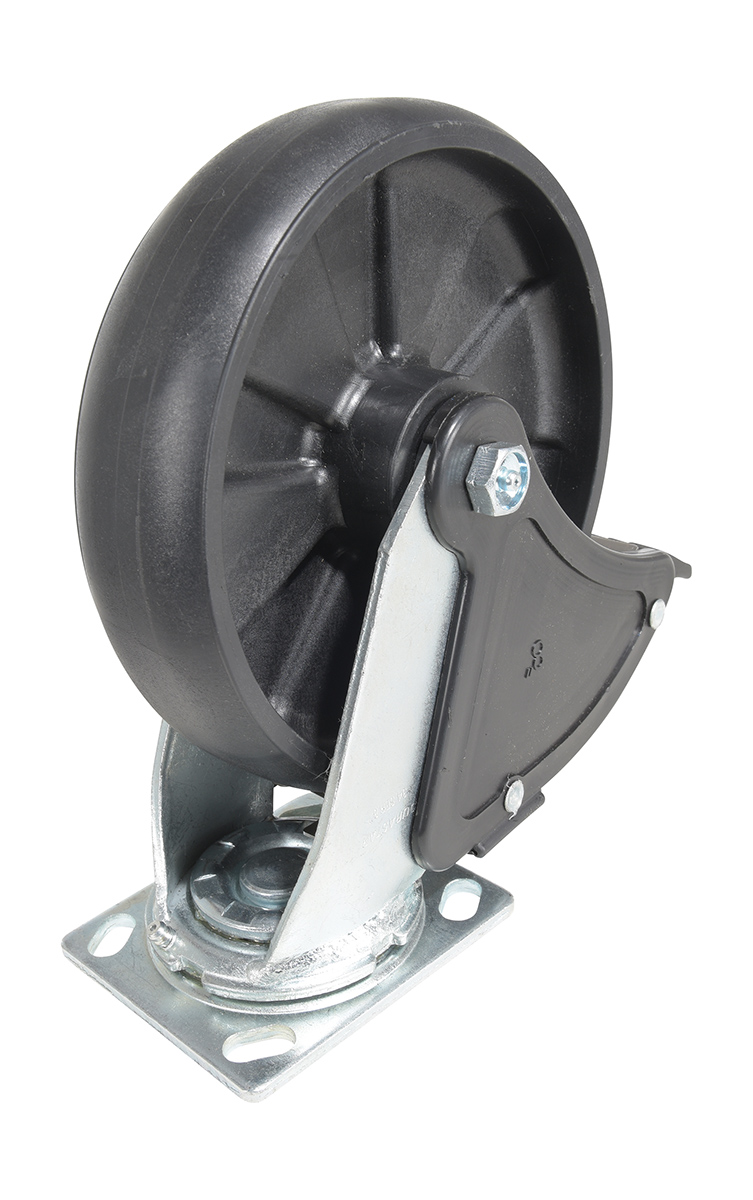

CST-VE-8X2GFN-SWTB CST-VE-8X2GFN-SWTB1 YEAR Limited Warranty8 x 2SWIVEL W/TOTAL BRAKE12509-1/2 4 x 4-1/26.01

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


Glass Filled Nylon Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-VE-4X2GFN-R

CST-VE-4X2GFN-S

CST-VE-4X2GFN-SWB

CST-VE-4X2GFN-SWTB

CST-VE-5X2GFN-R

CST-VE-5X2GFN-S

CST-VE-5X2GFN-SWB

CST-VE-5X2GFN-SWTB

CST-VE-6X2GFN-R

CST-VE-6X2GFN-S

CST-VE-6X2GFN-SWB

CST-VE-6X2GFN-SWTB

CST-VE-8X2GFN-4PSL

CST-VE-8X2GFN-R

CST-VE-8X2GFN-S

CST-VE-8X2GFN-SWB

CST-VE-8X2GFN-SWTB

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Glass Filled Nylon Casters




These glass filled nylon casters are constructed of a thermoplastic compound that is perfect for industrial and institutional applications. Resistant to most chemicals, salts, solvents, and steam. This tread does not absorb water and is non-marking. Black tread color. Wheel core is glass-filled nylon. 65 +/-5 Shore D.

  • RESISTANT TO MOST CHEMICALS
  • EASY ROLL PERFORMANCE
  • ANTI-CORROSIVE & RUST RESISTANT ZINC PLATED FINISH
  • HARDENED DOUBLE BALL RACEWAY
  • GREASE ZERK FITTINGS
  • ROLLER BEARINGS



No Model Numbers Associated To This Product Page
