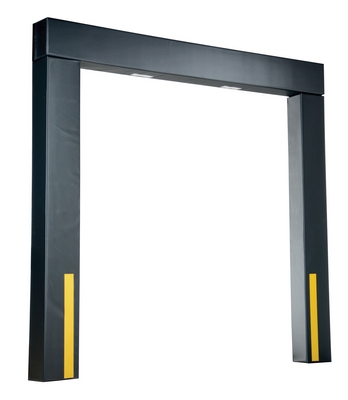

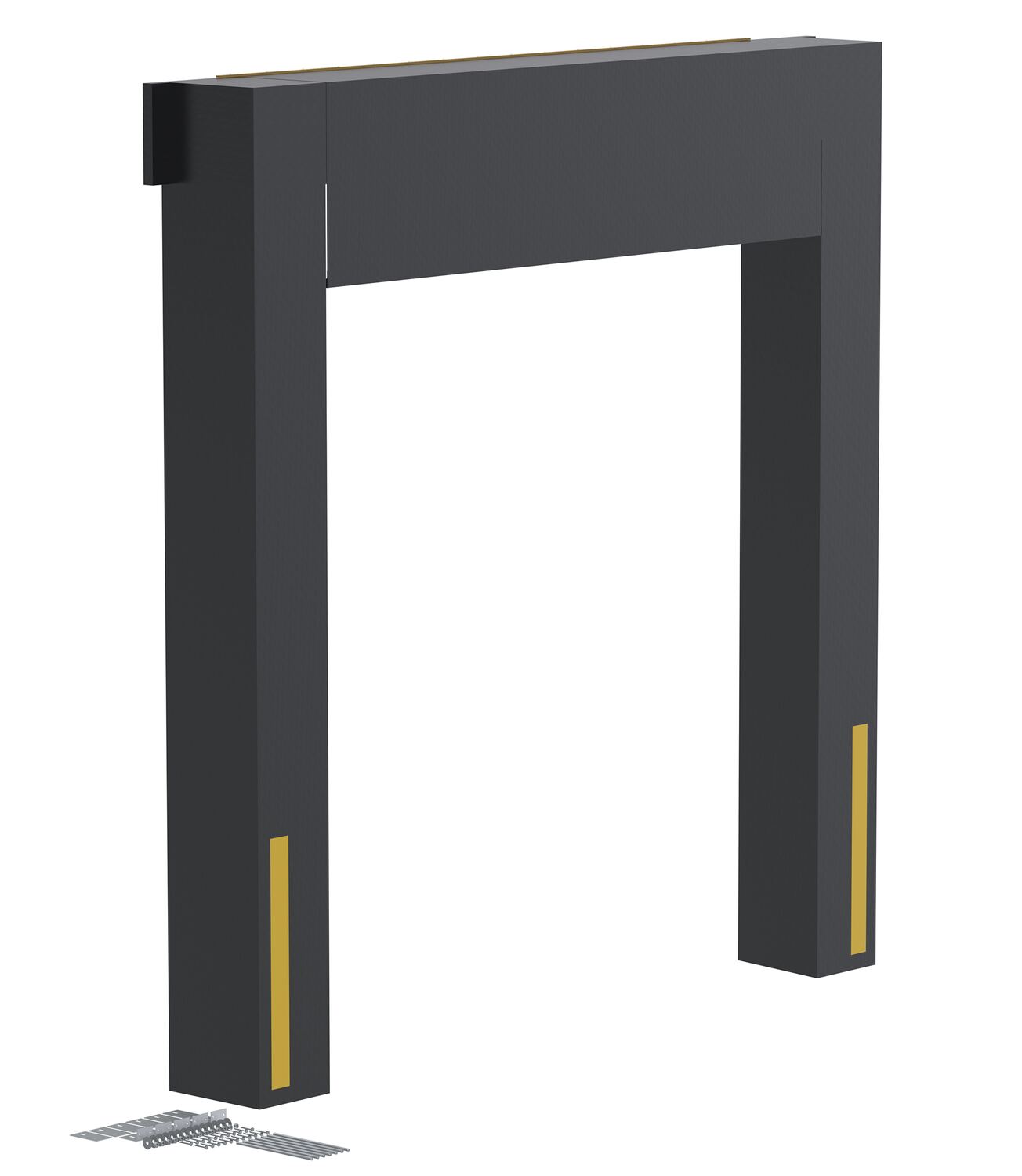

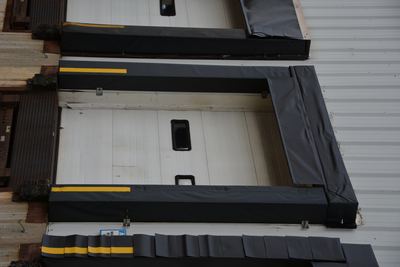

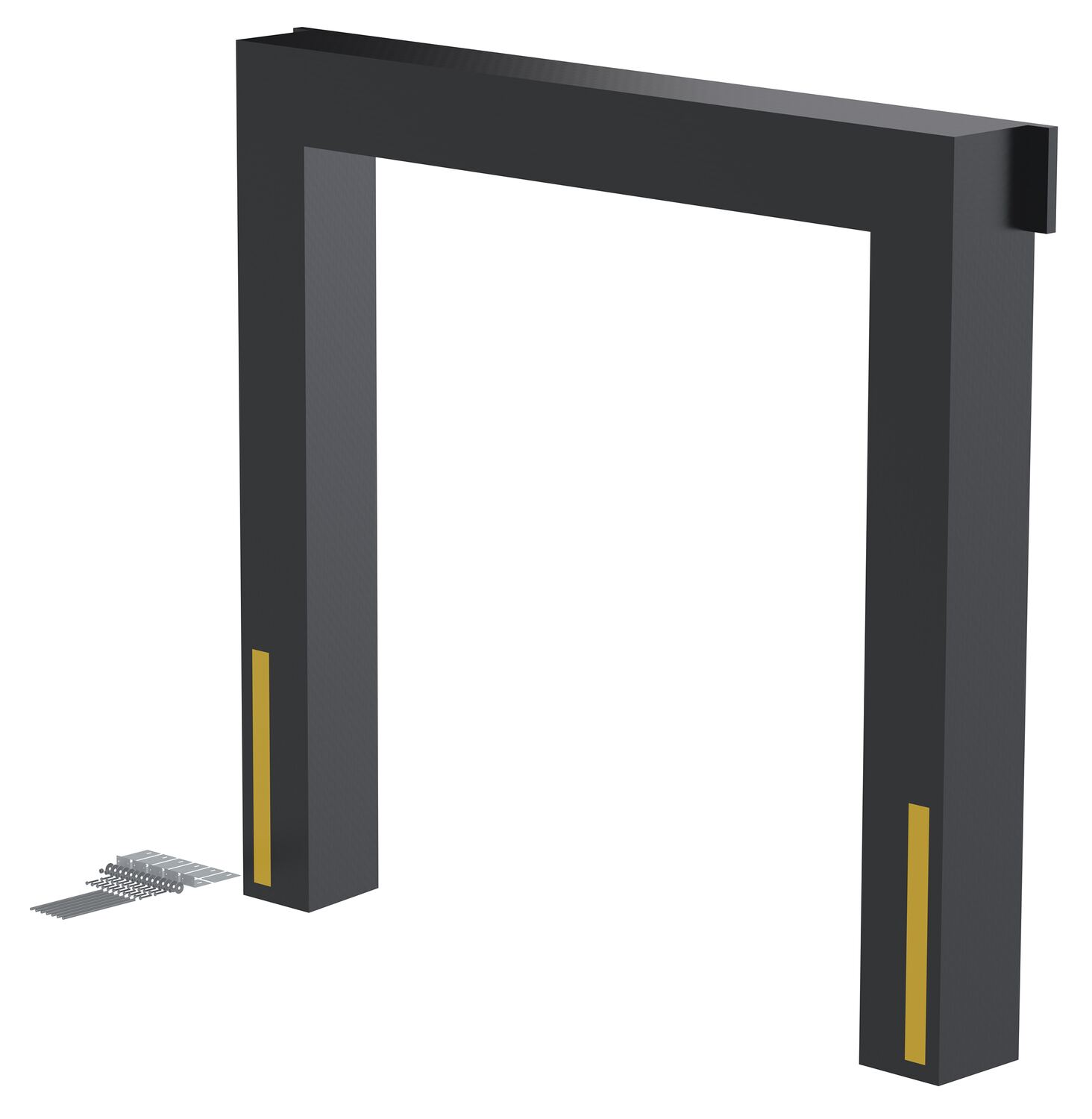

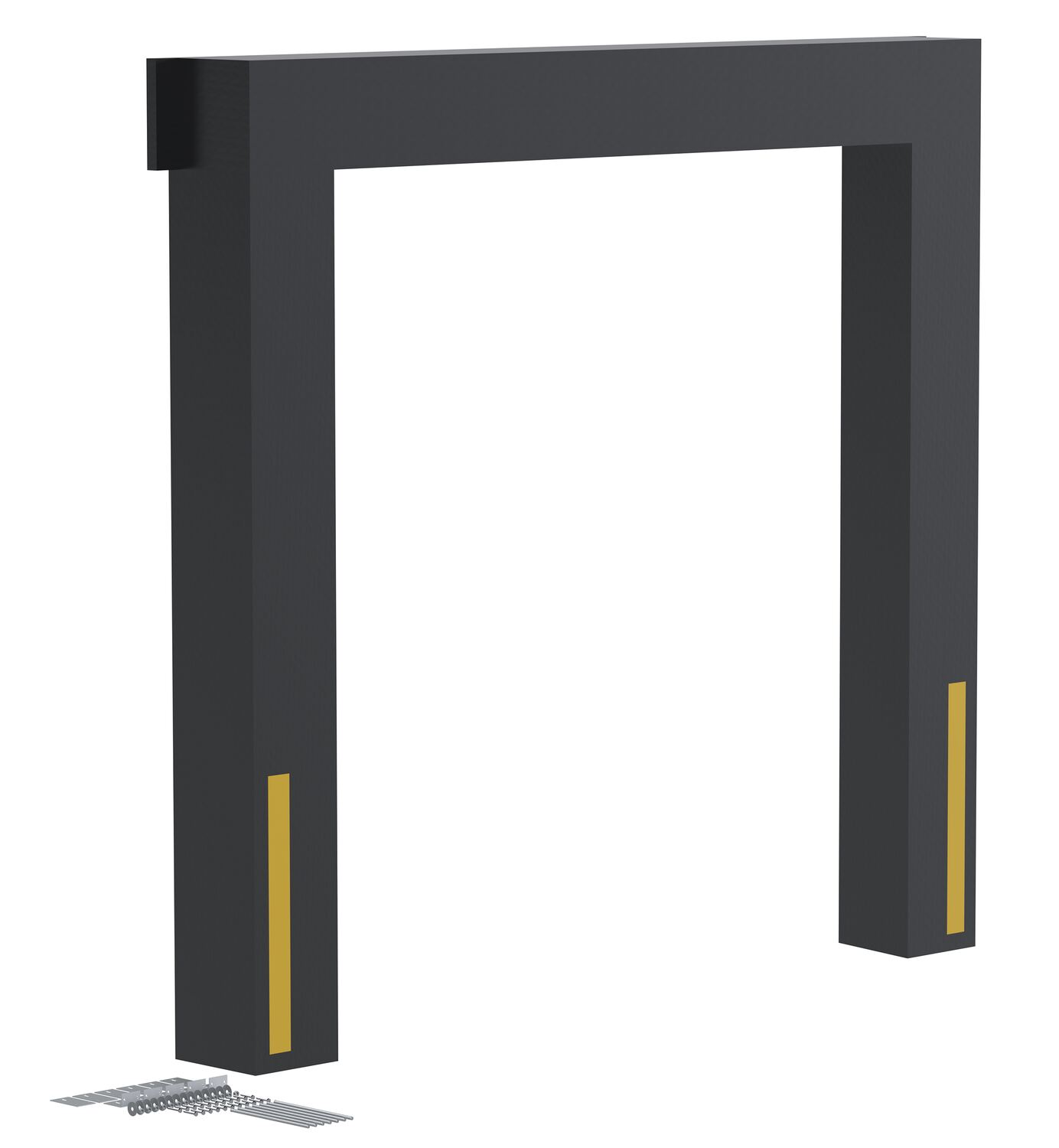

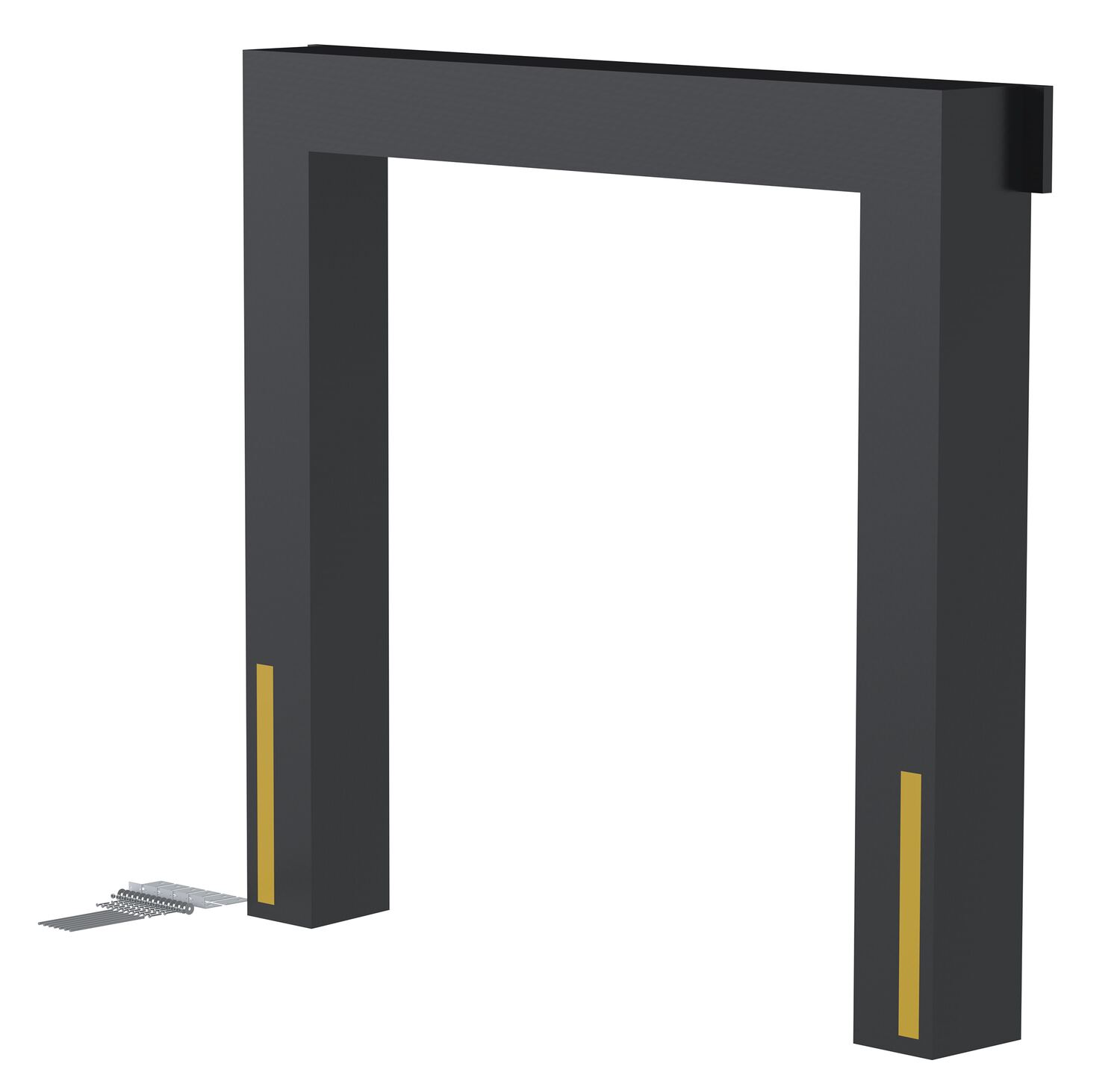

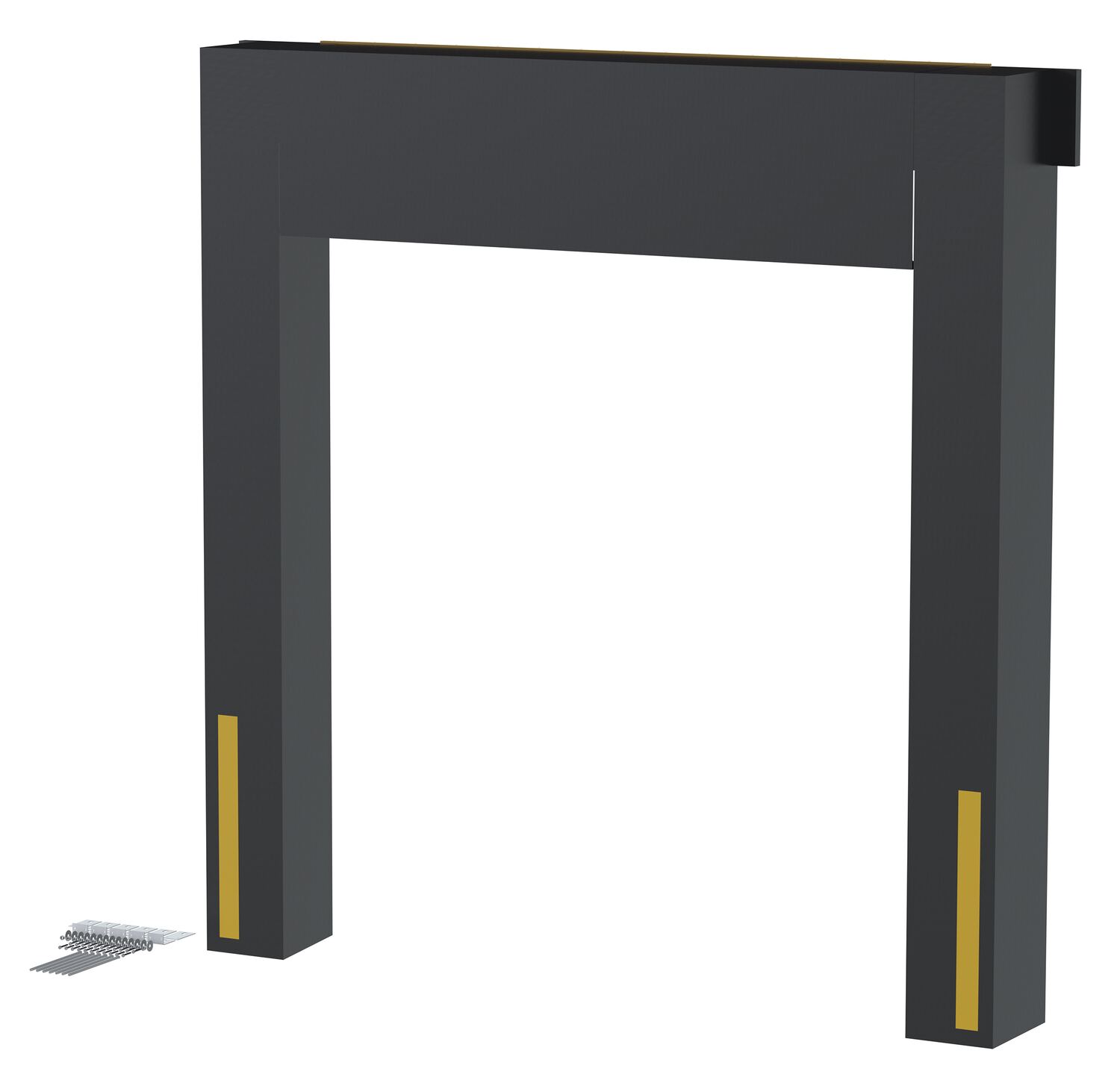

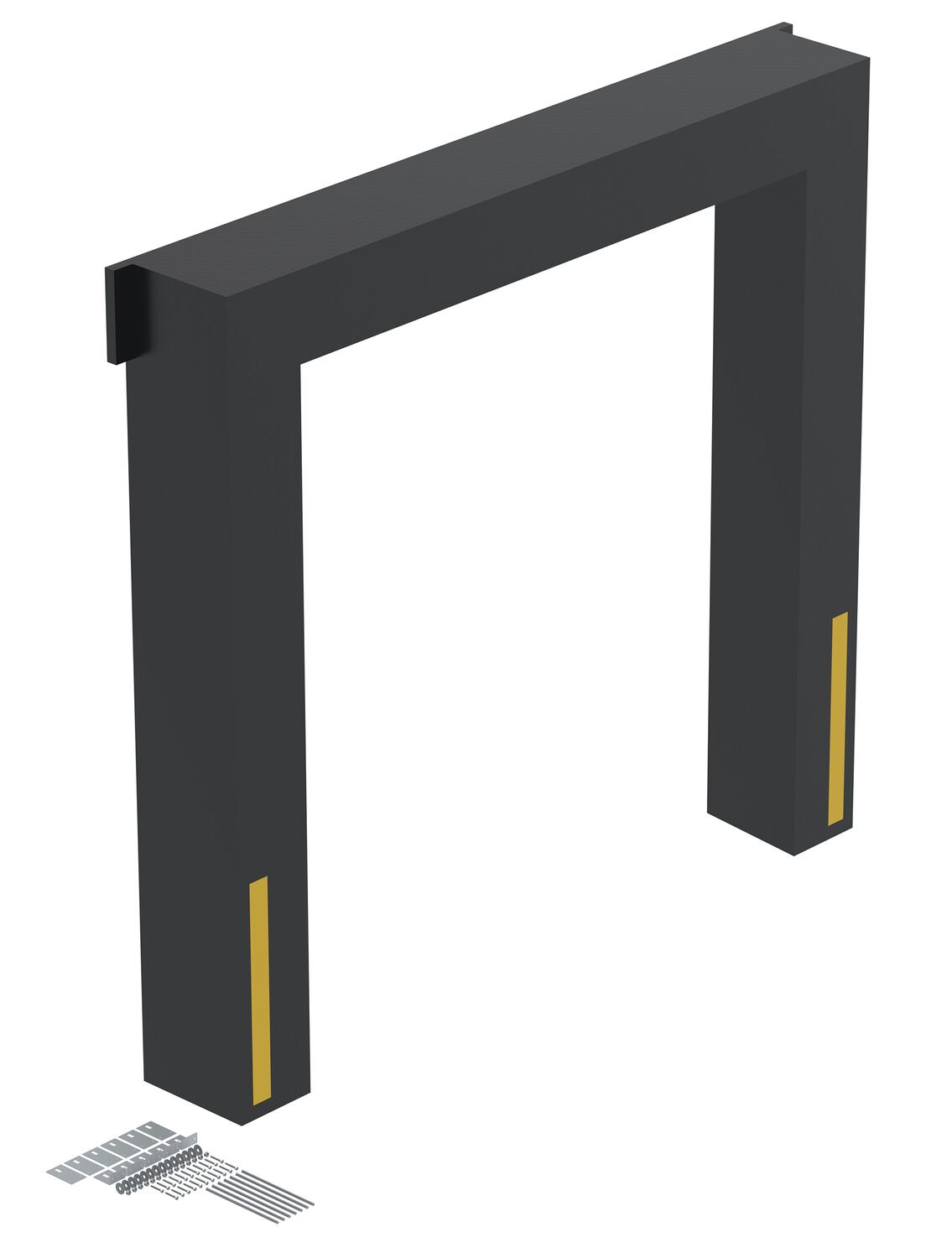

Dock Seals

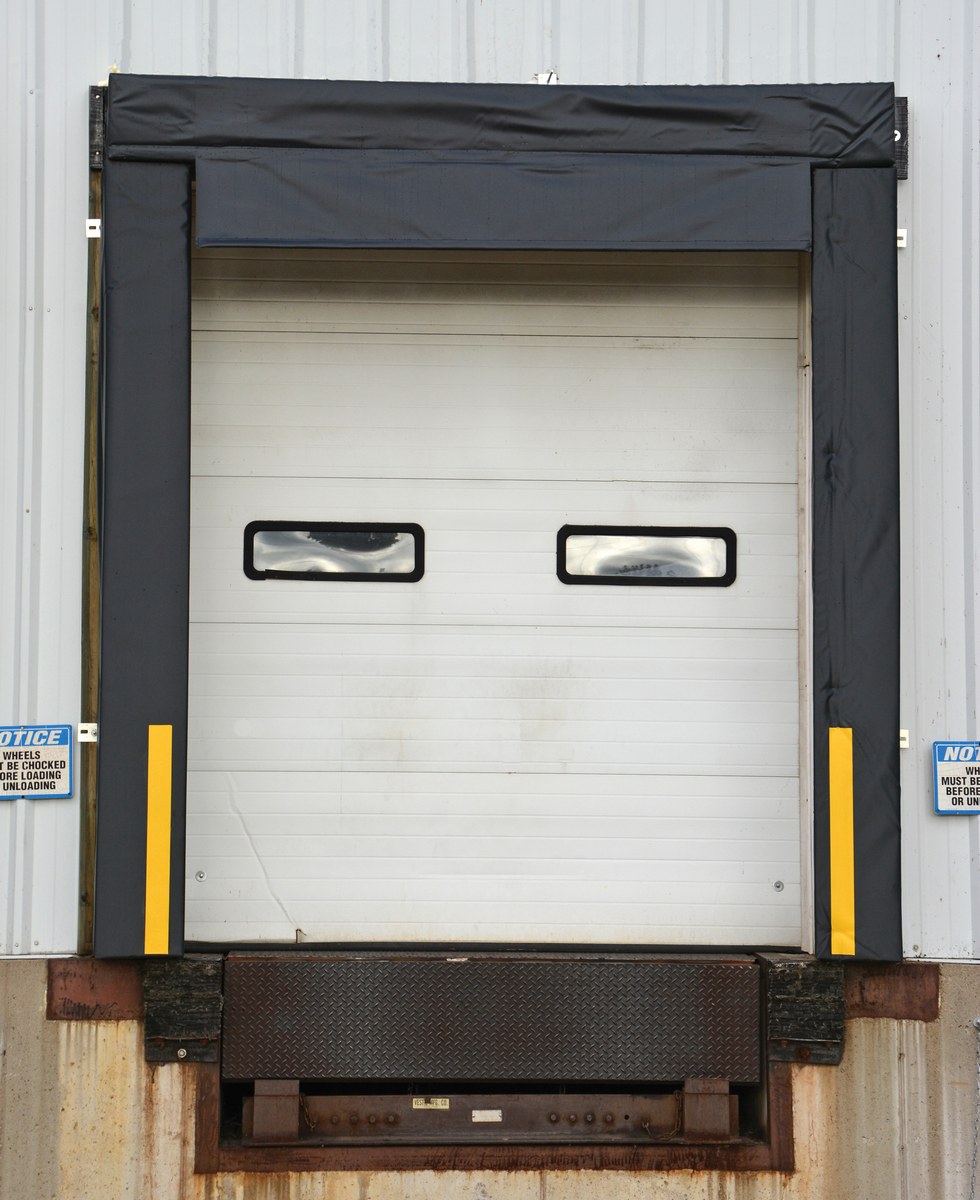

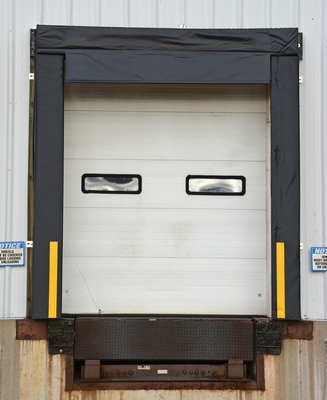

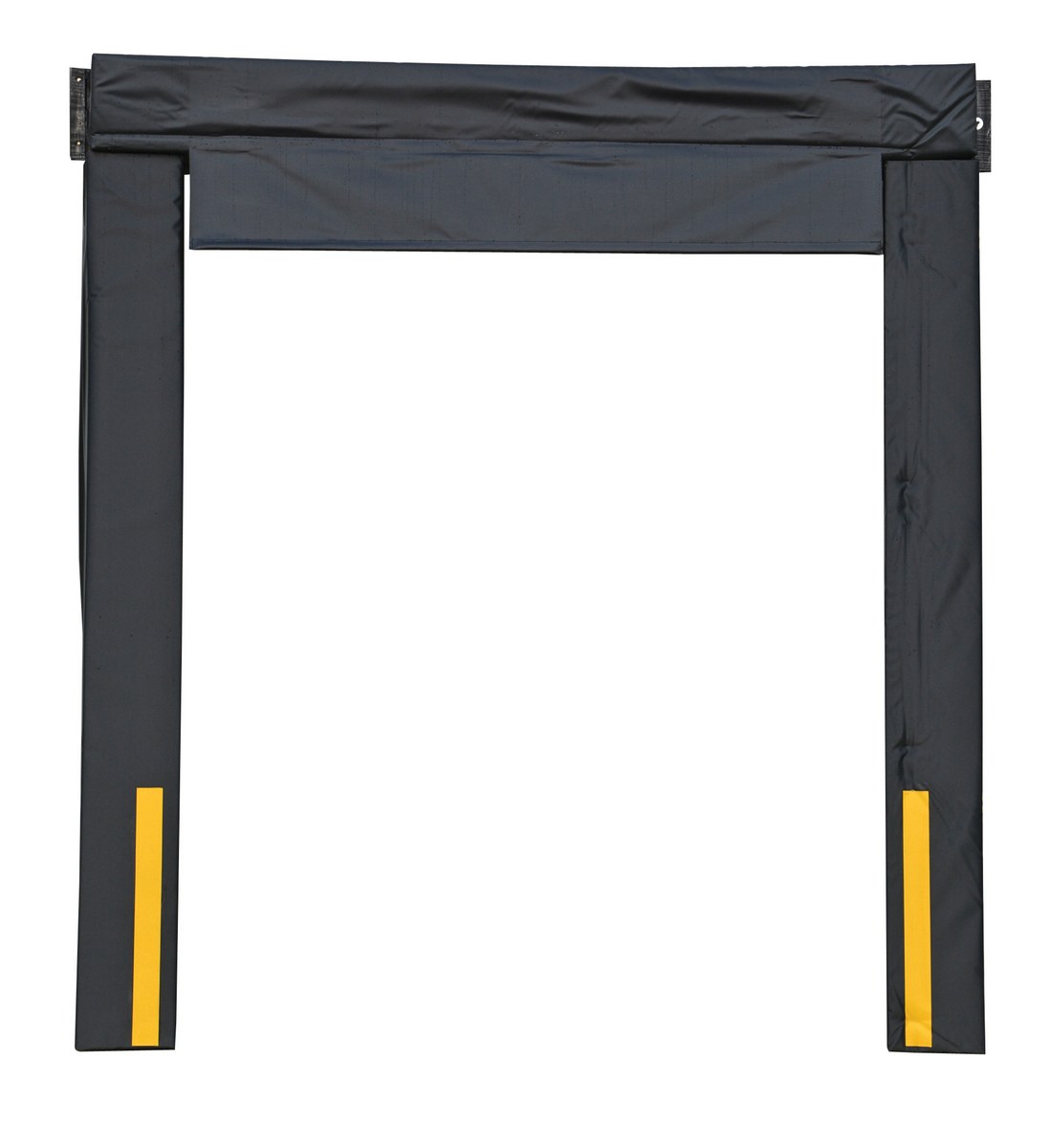

model: D-350-10

D-350-10_B.jpg D-350-10_A.jpg D-350-10_1.jpg D-350-10_2.jpg D-350-10_3.jpg More Images +
Dock Seals
SERIES: D

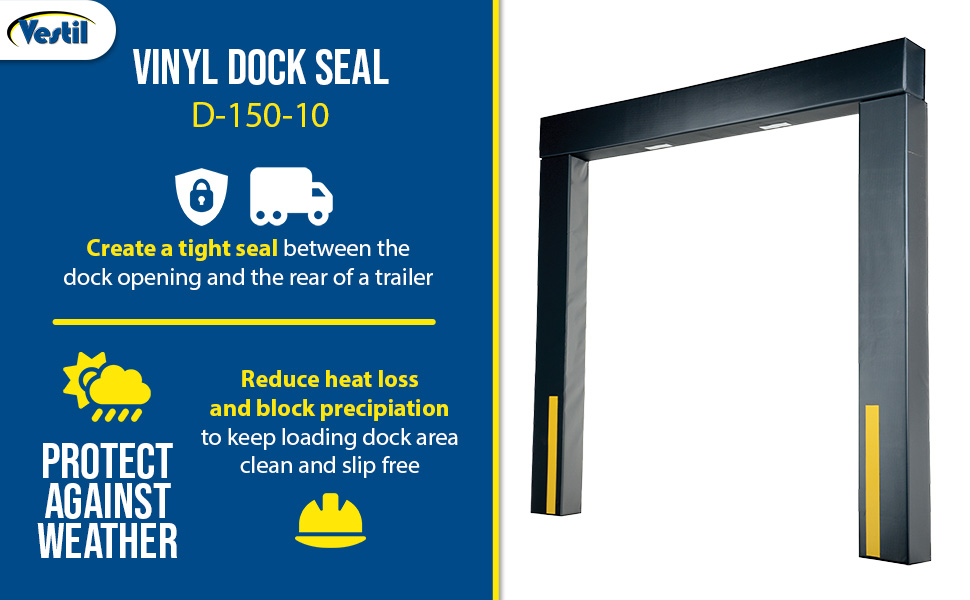

Dock Seals are designed to create an airtight seal between the loading dock and the back of a trailer, helping to conserve energy and protect freight from weather elements. The Dock Seals superior 36 oz. nylon reinforced vinyl facings have a higher tear strength than equivalent weight hypalon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded to a durable wolmanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction (12" high; sides - beveled sides with 9-1/2" width at the wall and 12" width at the face) and a through the wall installation kit that is included. 5" maximum compression is recommended. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete and fax the survey sheet below. Units are non-returnable.

Dock Seals & Shelters Survey Sheet

Optional Wear Pleats For Dock Seals

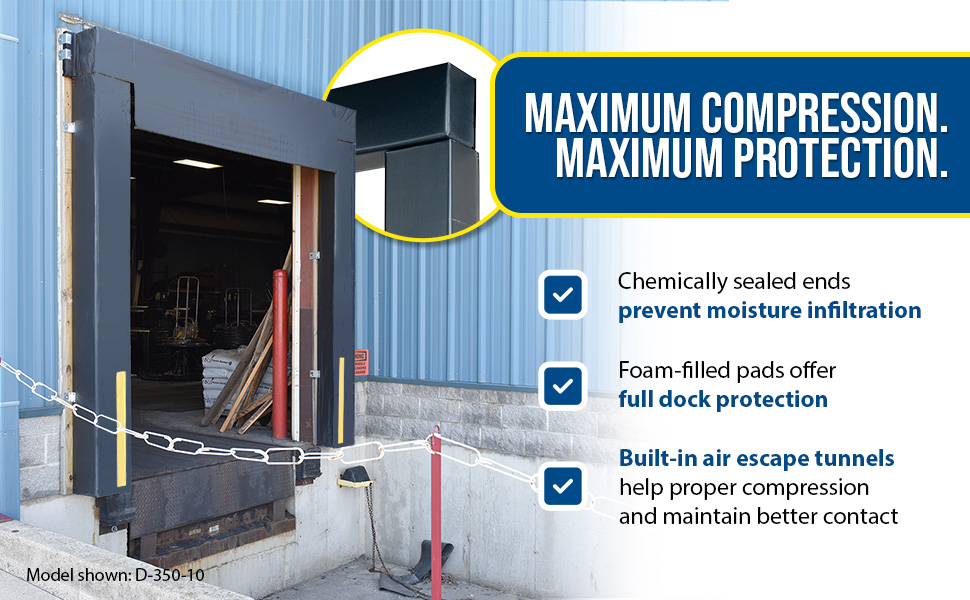

  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer

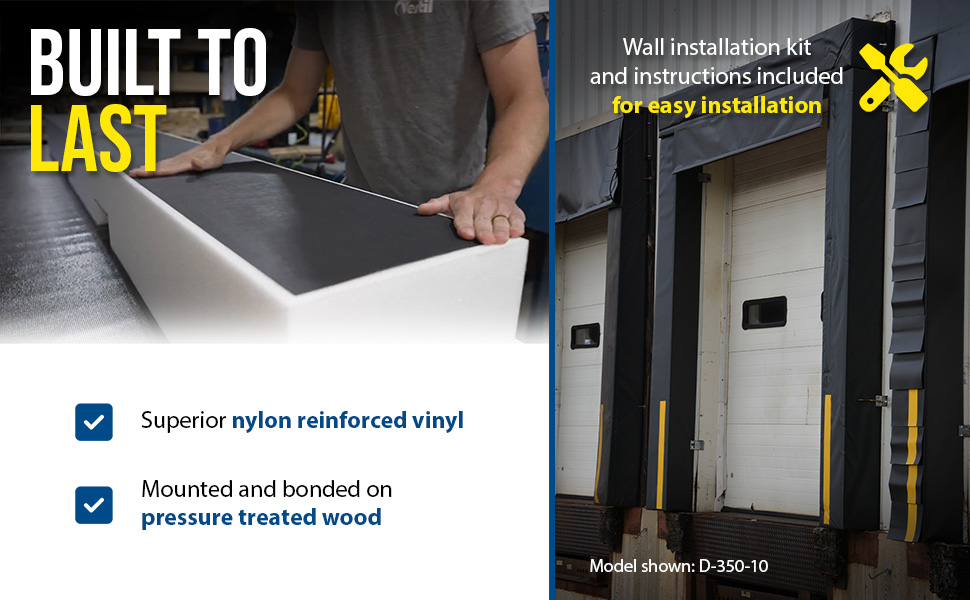

  • Mounting hardware and installation instructions make installation quick and easy

Heat Lost

Dock Seals

model: D-350-10

Model # Description Attributes Net Wt.
(lbs)

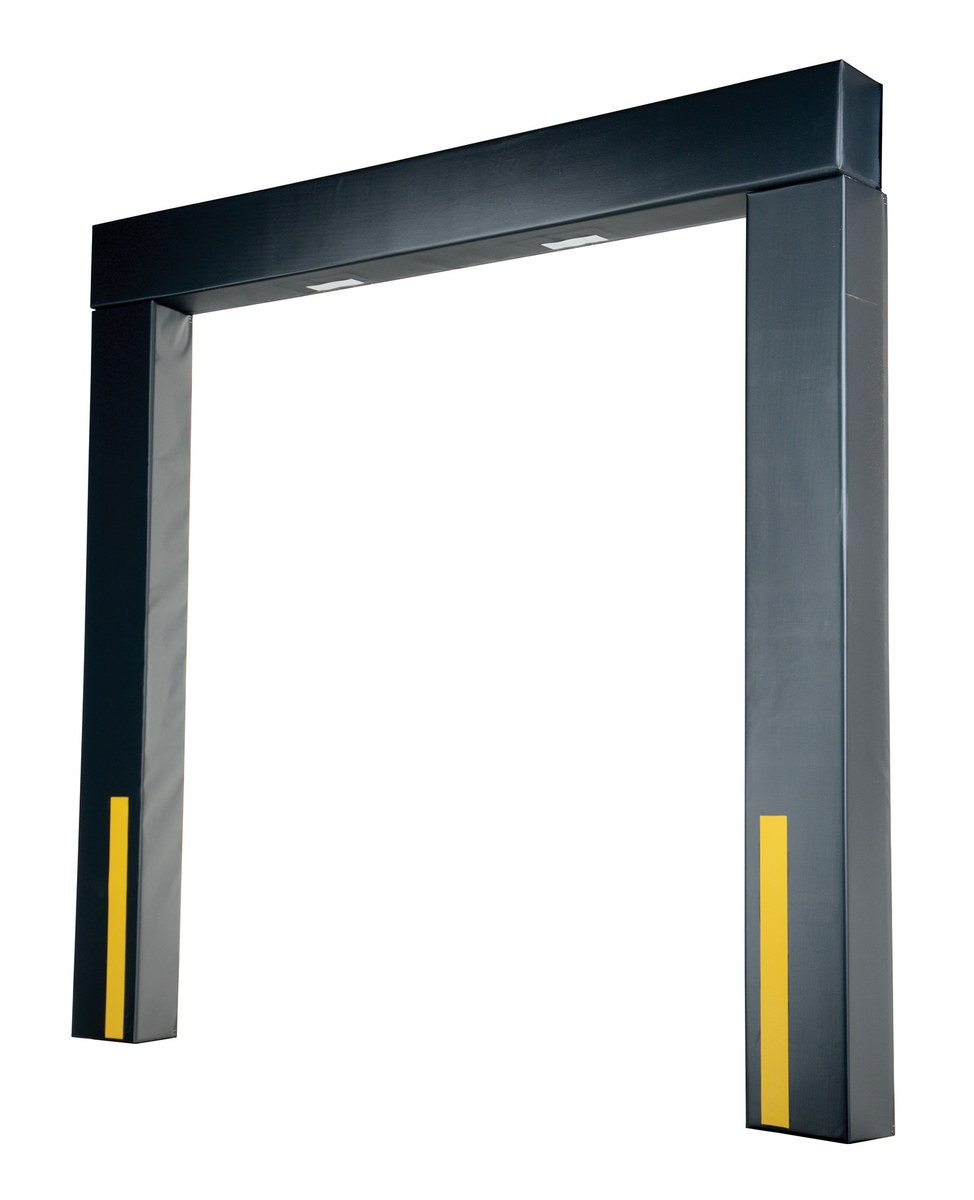

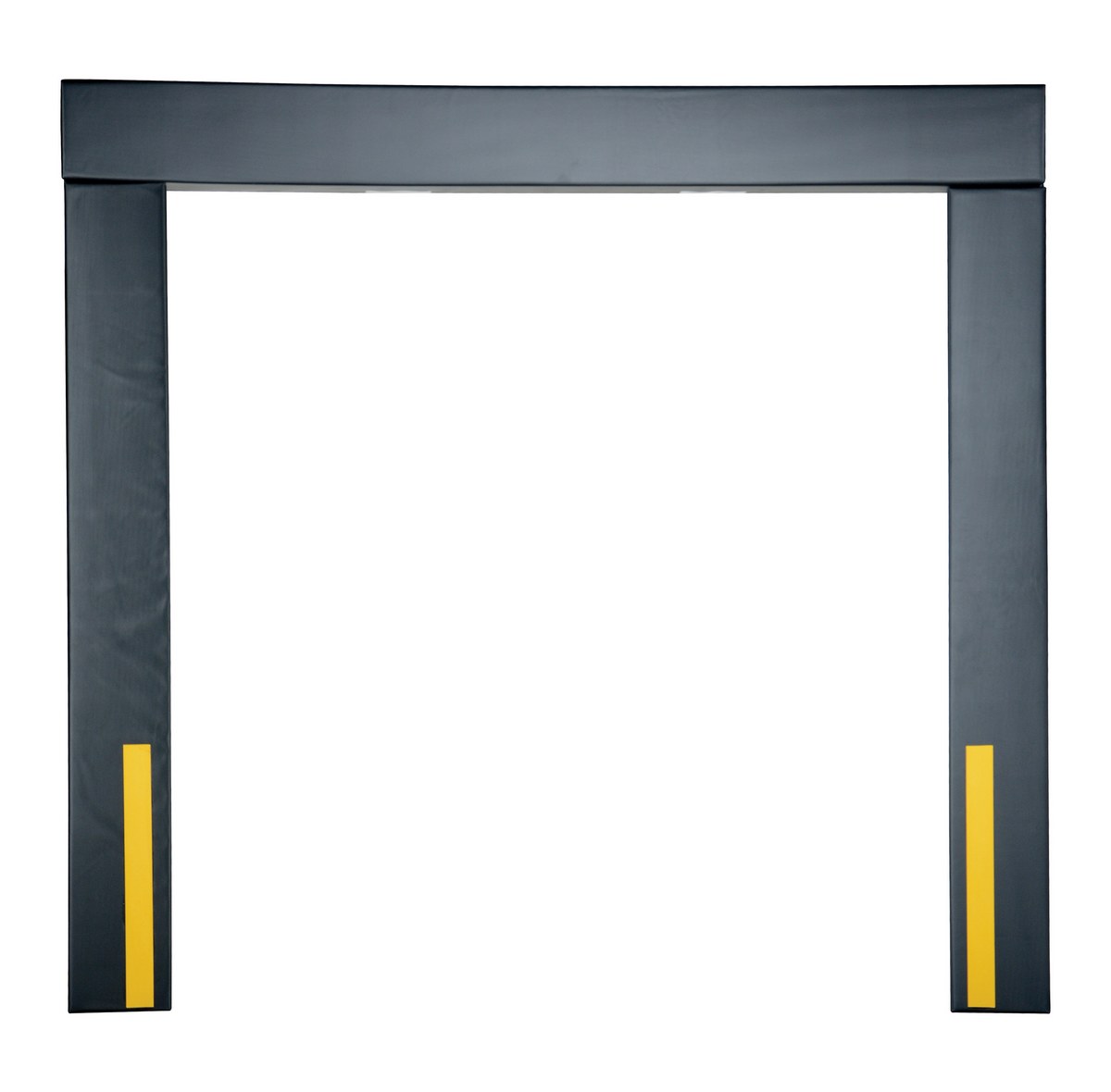

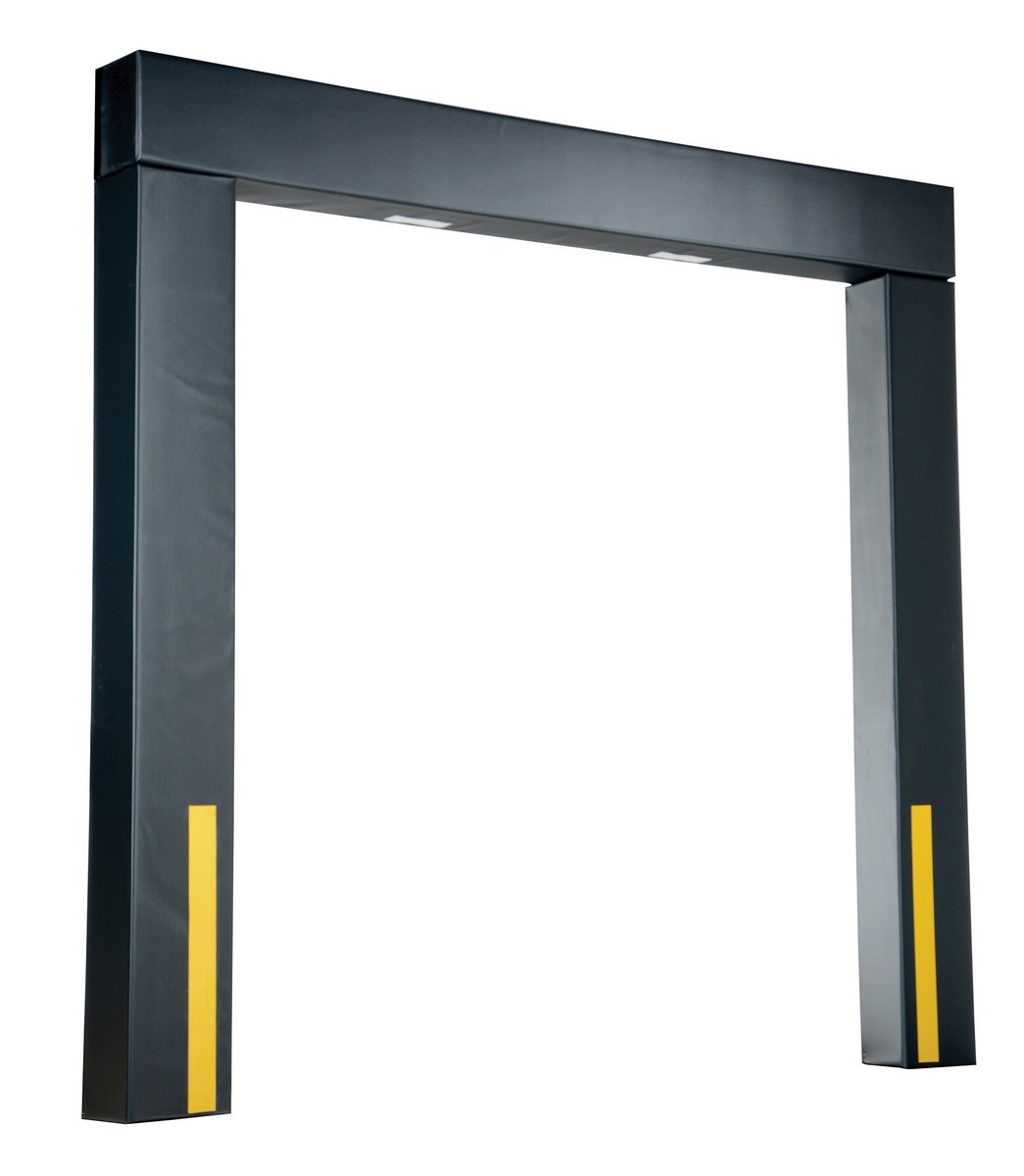

D-150-10 D-150-1090 Days Limited WarrantyVinyl Dock Seal 10 In. 8 Ft. x 8 Ft. BlackProjection (in.): 10
Nylon Reinforced Vinyl (oz.): 36		212

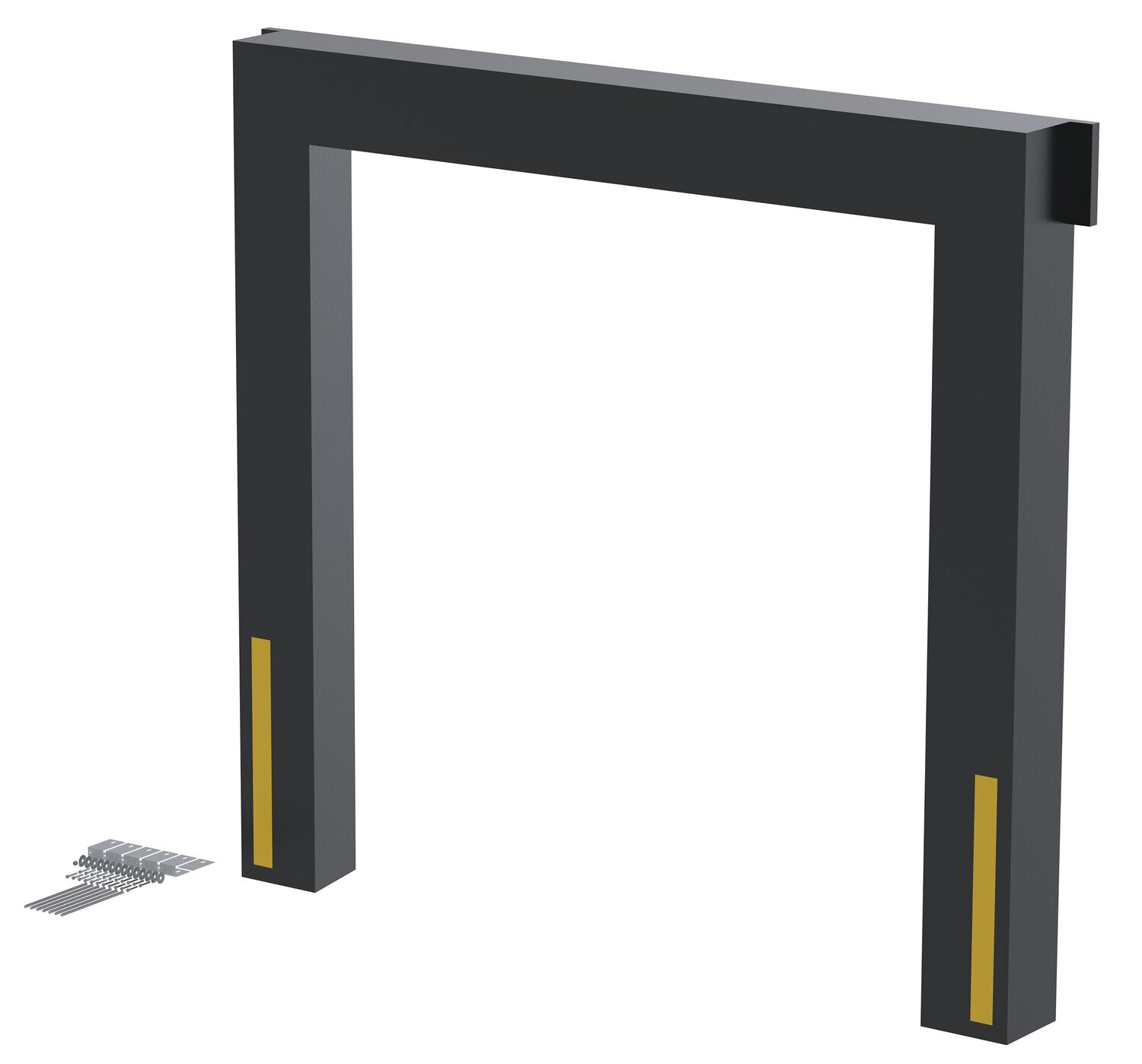

D-150-11 D-150-1190 Days Limited WarrantyVinyl Dock Seal 11 In. 8 Ft. x 8 Ft. BlackProjection (in.): 11
Nylon Reinforced Vinyl (oz.): 36		214

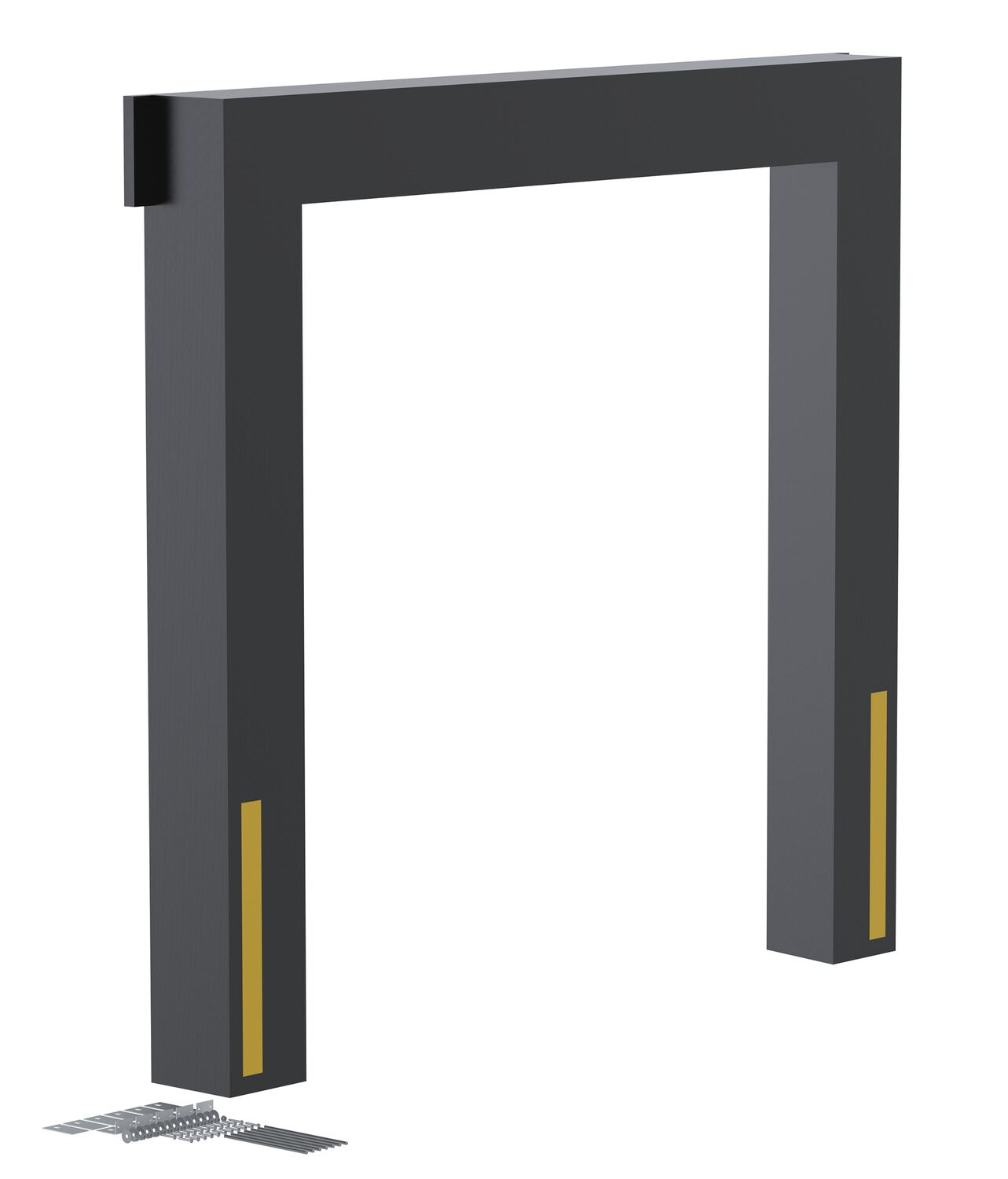

D-150-12 D-150-1290 Days Limited WarrantyVinyl Dock Seal 12 In. 8 Ft. x 8 Ft. BlackProjection (in.): 12
Nylon Reinforced Vinyl (oz.): 36		216
D-150-13 D-150-1390 Days Limited WarrantyVinyl Dock Seal 13 In. 8 Ft. x 8 Ft. BlackProjection (in.): 13
Nylon Reinforced Vinyl (oz.): 36		218
D-150-14 D-150-1490 Days Limited WarrantyVinyl Dock Seal 14 In. 8 Ft. x 8 Ft. BlackProjection (in.): 14
Nylon Reinforced Vinyl (oz.): 36		219
D-150-15 D-150-1590 Days Limited WarrantyVinyl Dock Seal 15 In. 8 Ft. x 8 Ft. BlackProjection (in.): 15
Nylon Reinforced Vinyl (oz.): 36		220

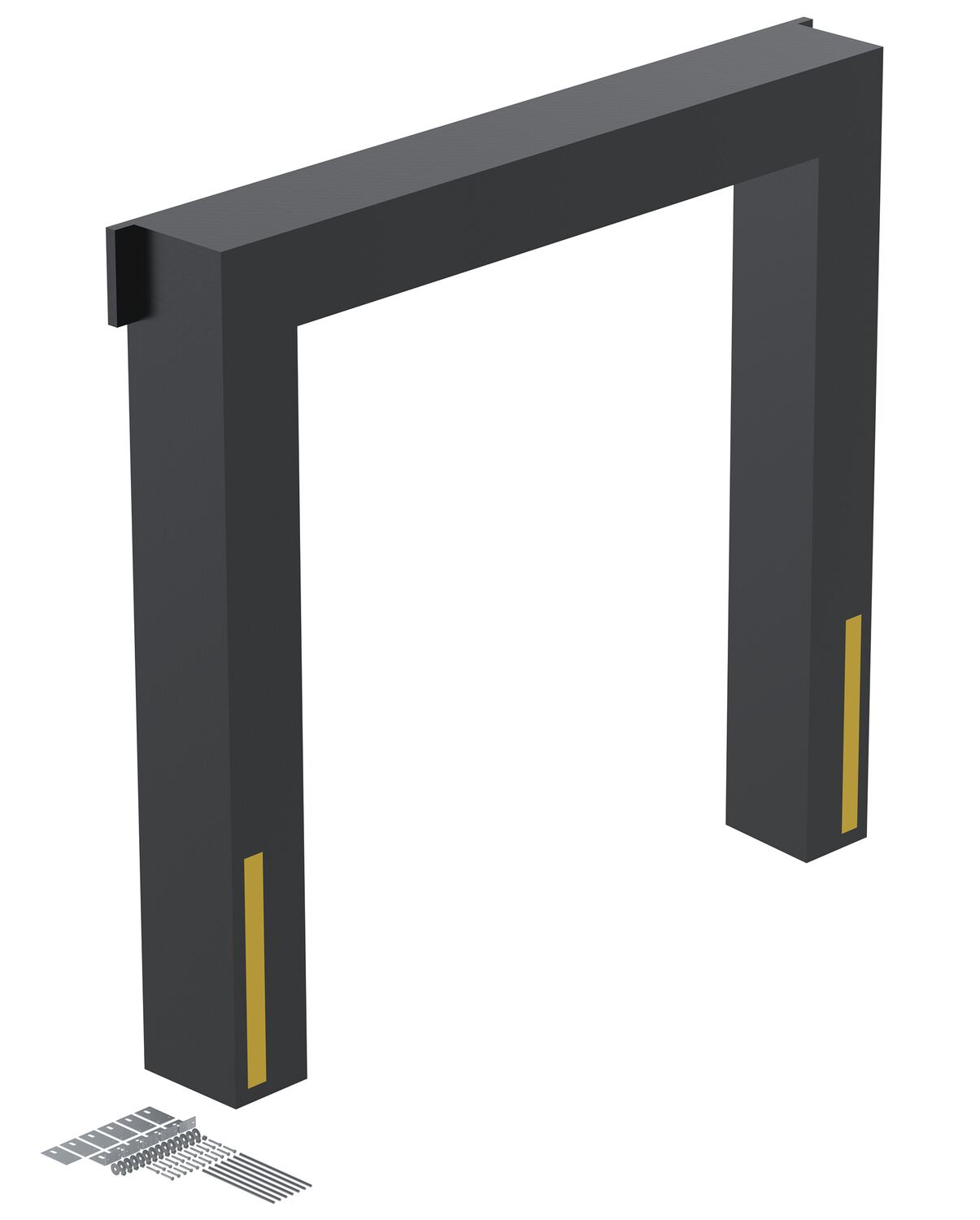

D-150-16 D-150-1690 Days Limited WarrantyVinyl Dock Seal 16 In. 8 Ft. x 8 Ft. BlackProjection (in.): 16
Nylon Reinforced Vinyl (oz.): 36		221
D-150-17 D-150-1790 Days Limited WarrantyVinyl Dock Seal 17 In. 8 Ft. x 8 Ft. BlackProjection (in.): 17
Nylon Reinforced Vinyl (oz.): 36		222

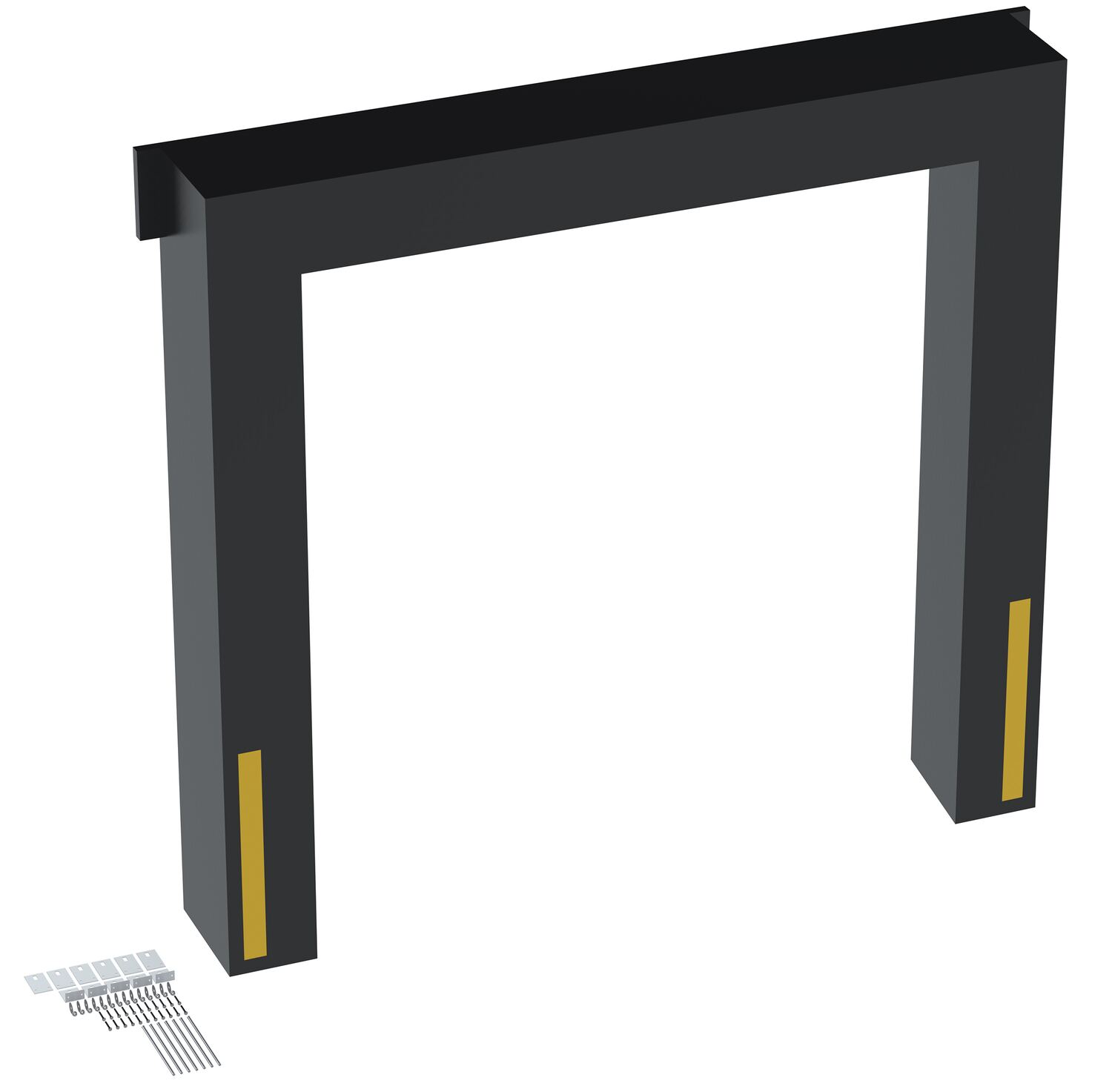

D-150-18 D-150-1890 Days Limited WarrantyVinyl Dock Seal 18 In. 8 Ft. x 8 Ft. BlackProjection (in.): 18
Nylon Reinforced Vinyl (oz.): 36		249

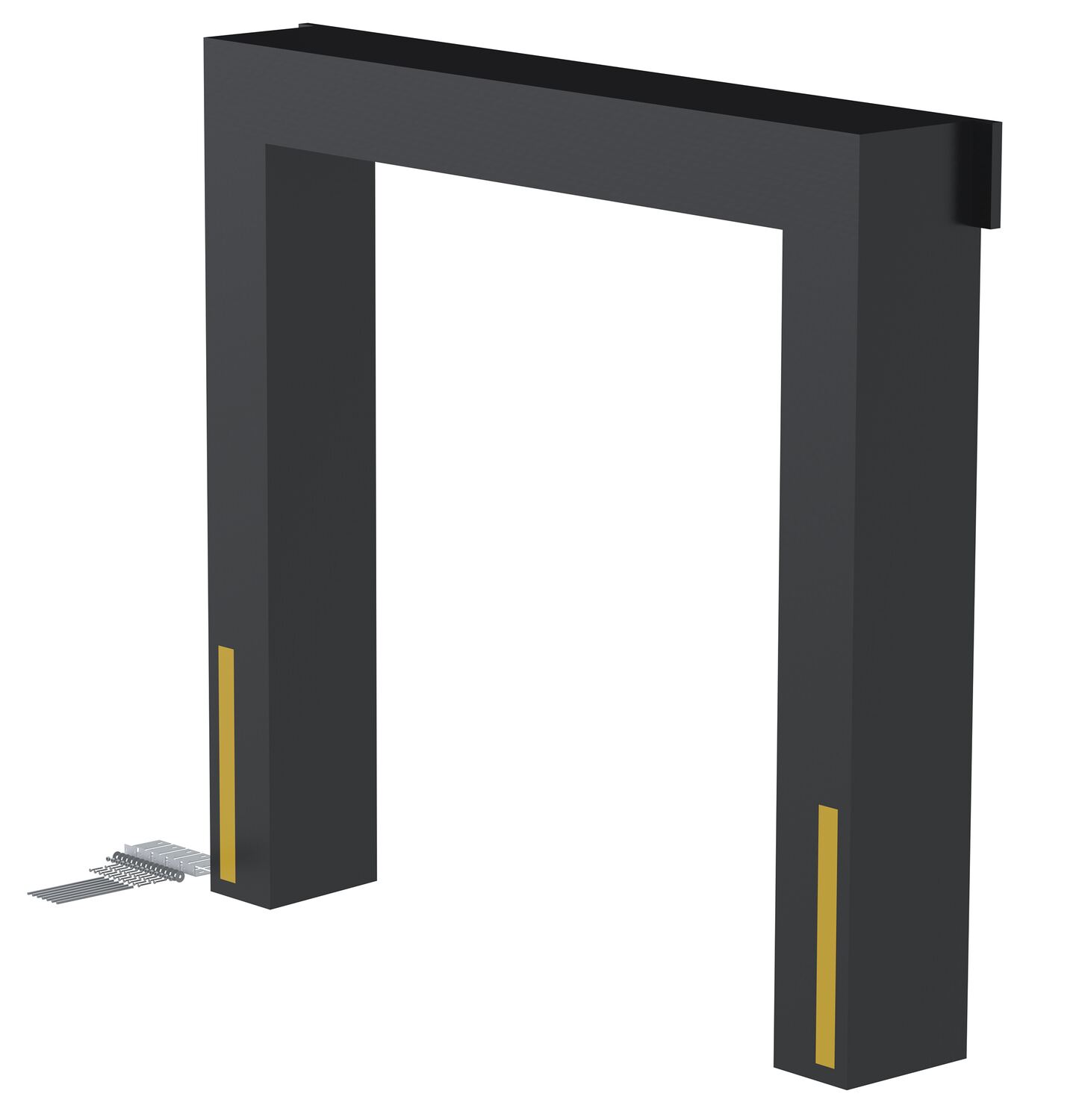

D-150-19 D-150-1990 Days Limited WarrantyVinyl Dock Seal 19 In. 8 Ft. x 8 Ft. BlackProjection (in.): 19
Nylon Reinforced Vinyl (oz.): 36		251

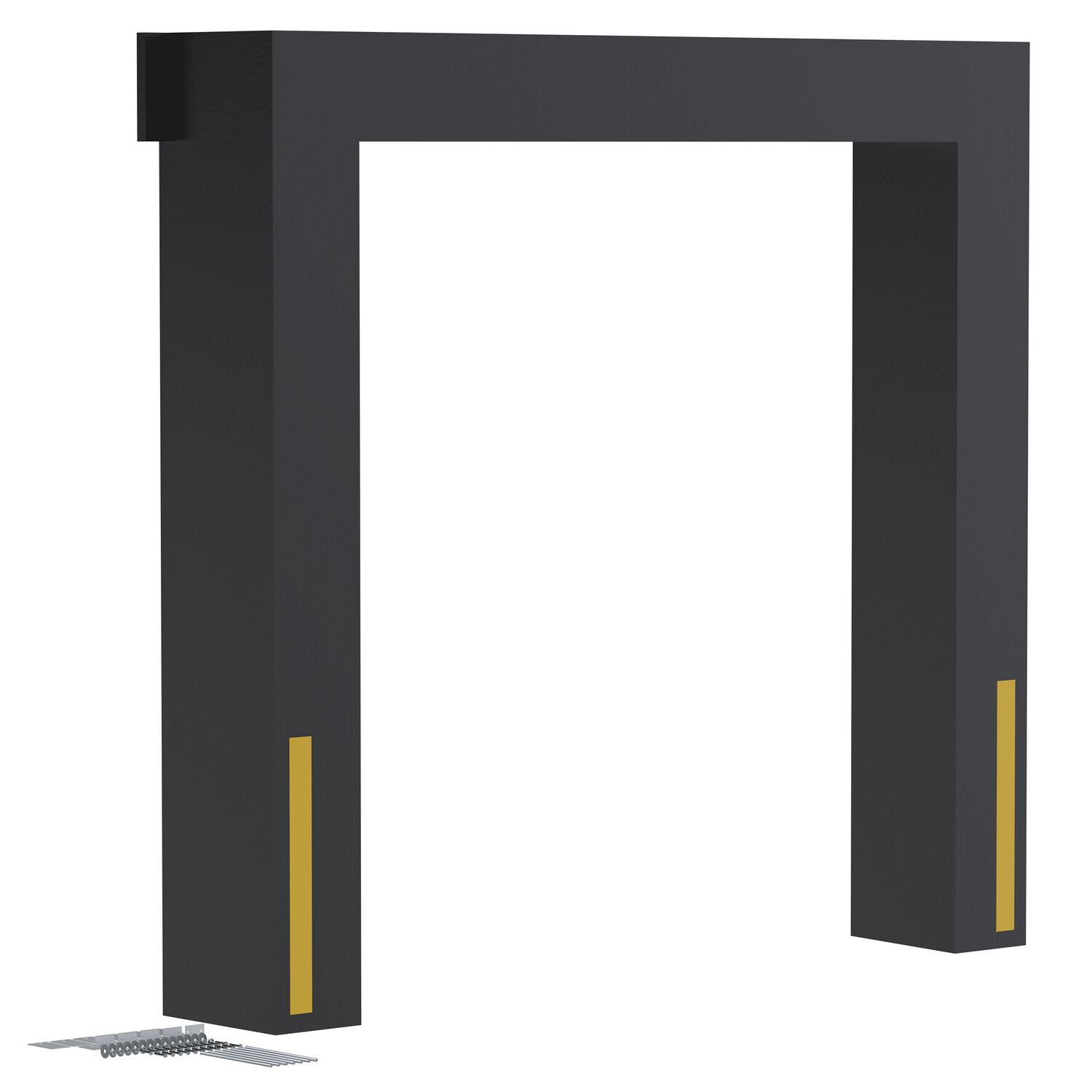

D-150-20 D-150-2090 Days Limited WarrantyVinyl Dock Seal 20 In. 8 Ft. x 8 Ft. BlackProjection (in.): 20
Nylon Reinforced Vinyl (oz.): 36		252

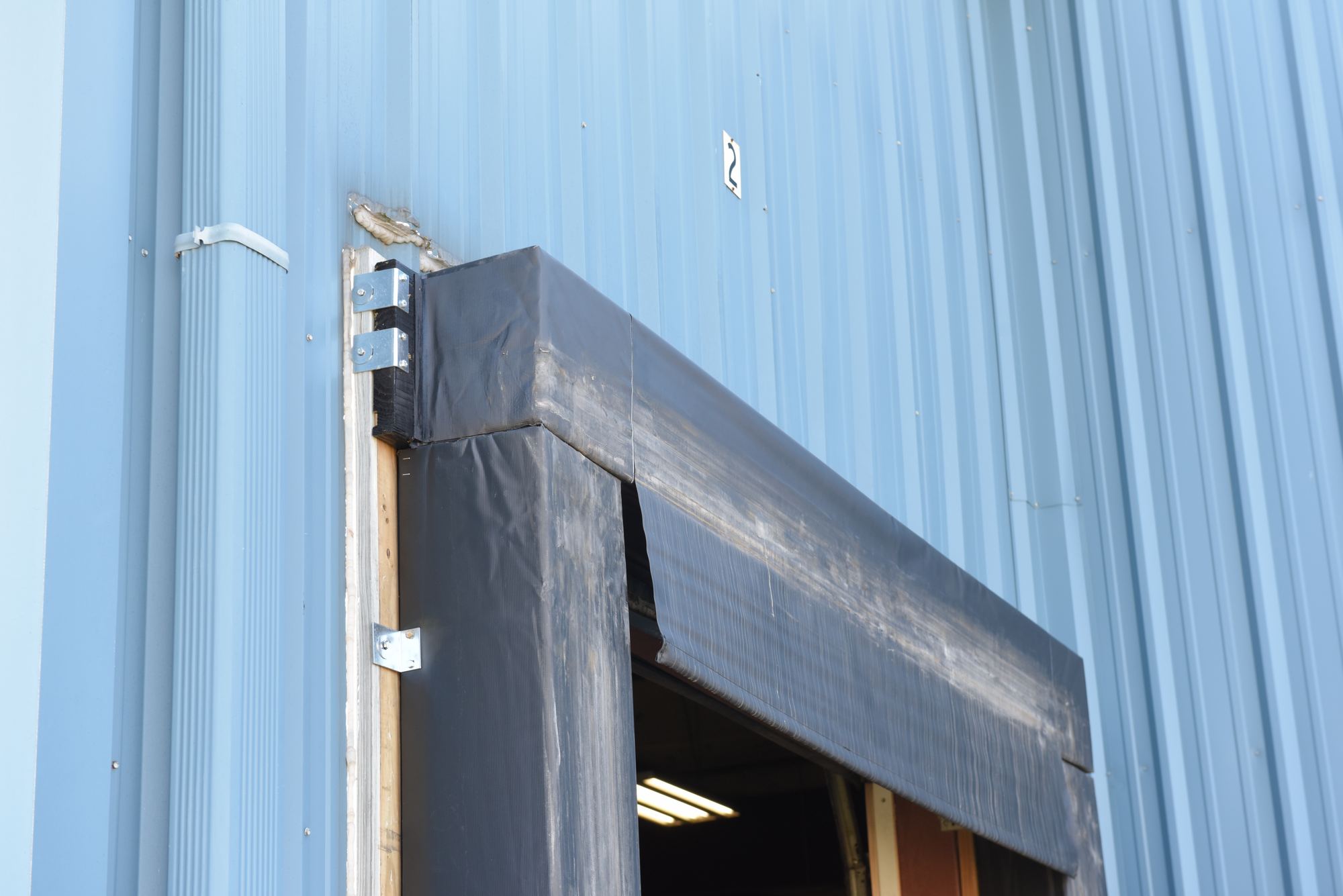

D-350-10 D-350-1090 Days Limited WarrantyNylon (Vinyl) Dock Seal 10 In. 8 Ft. x 9 Ft. BlackProjection (in.): 10
Nylon Reinforced Vinyl (oz.): 36		216

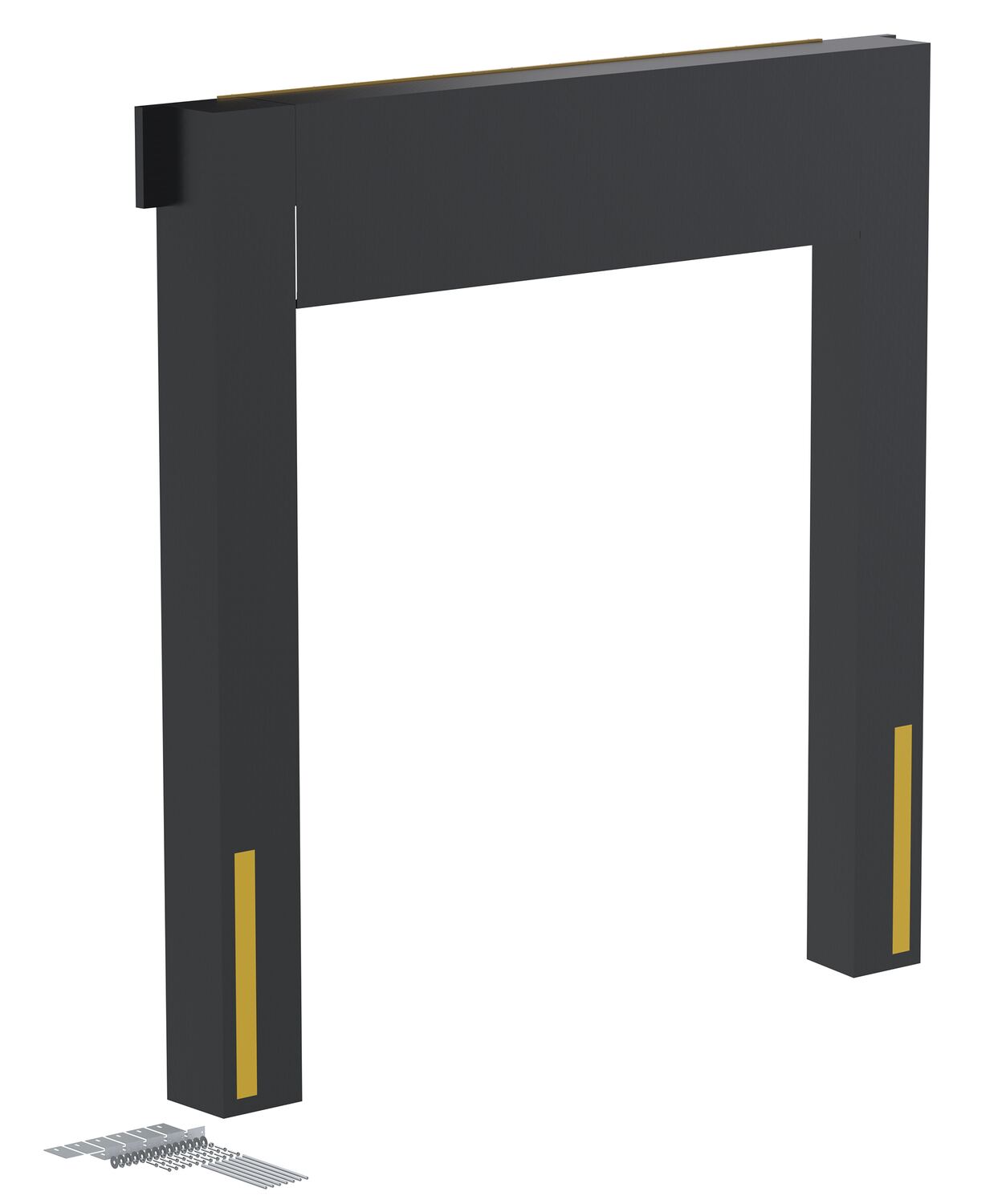

D-350-11 D-350-1190 Days Limited WarrantyNylon (Vinyl) Dock Seal 11 In. 8 Ft. x 9 Ft. BlackProjection (in.): 11
Nylon Reinforced Vinyl (oz.): 36		218

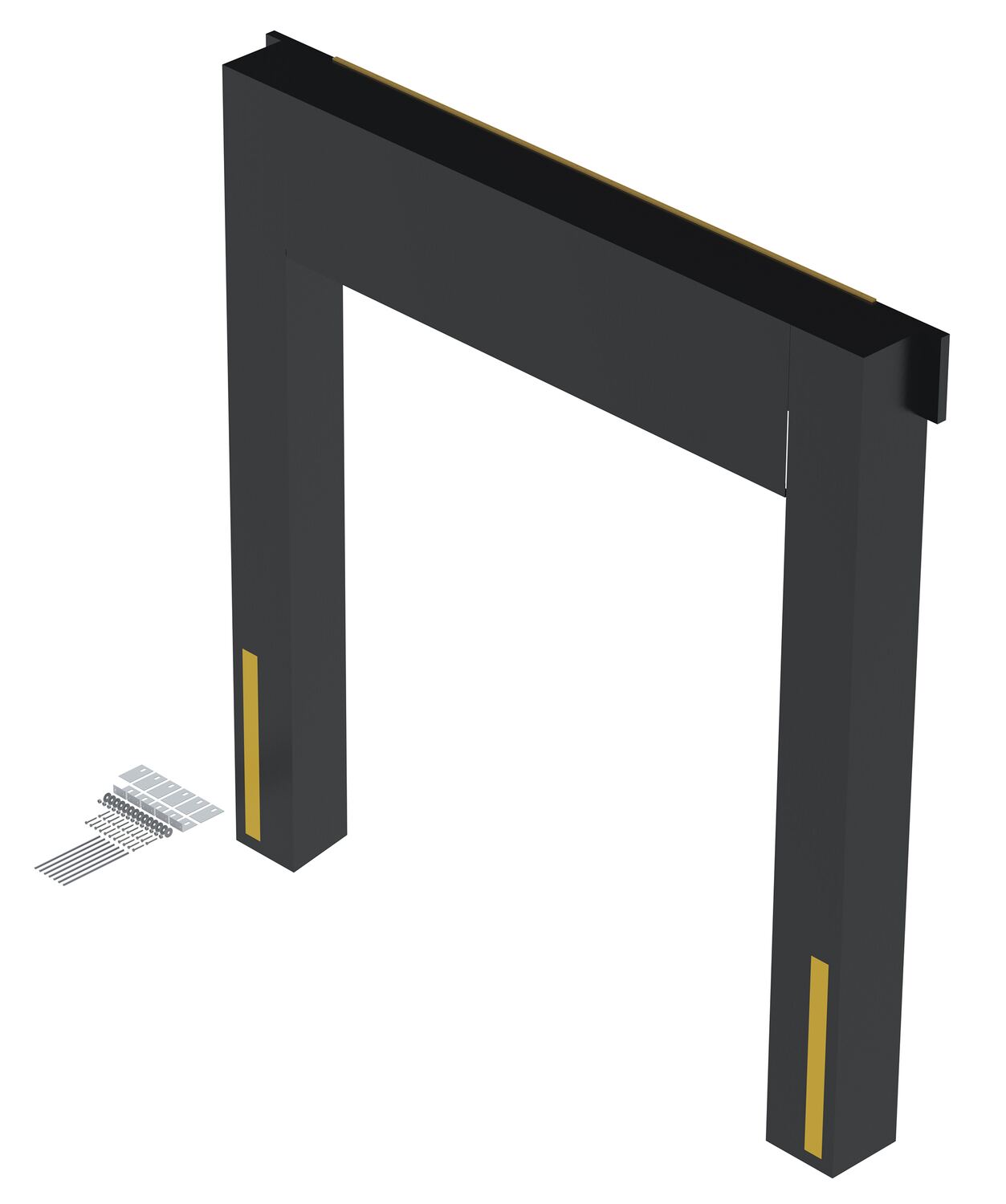

D-350-12 D-350-1290 Days Limited WarrantyNylon (Vinyl) Dock Seal 12 In. 8 Ft. x 9 Ft. BlackProjection (in.): 12
Nylon Reinforced Vinyl (oz.): 36		221

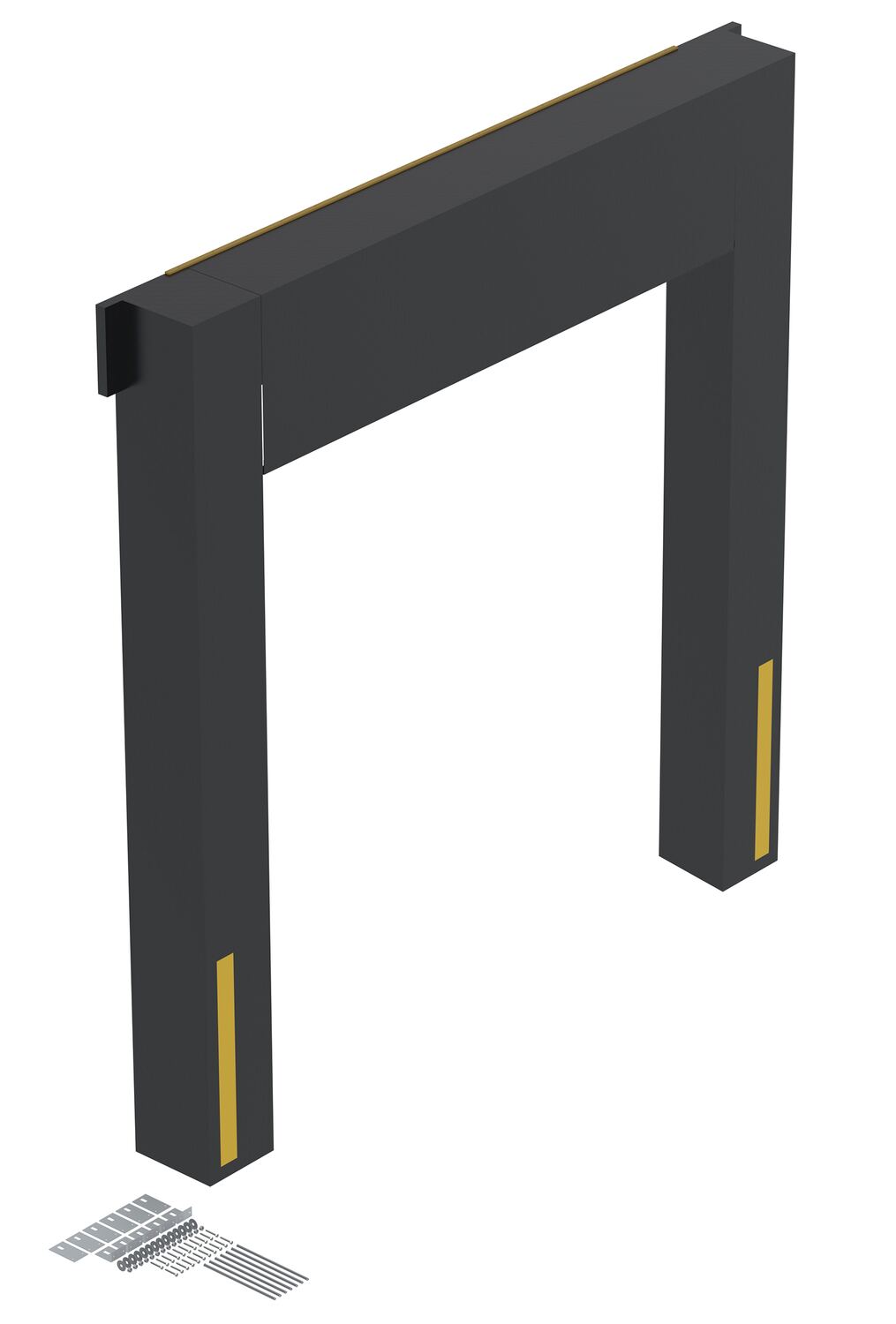

D-350-13 D-350-1390 Days Limited WarrantyNylon (Vinyl) Dock Seal 13 In. 8 Ft. x 9 Ft. BlackProjection (in.): 13
Nylon Reinforced Vinyl (oz.): 36		225
D-350-14 D-350-1490 Days Limited WarrantyNylon (Vinyl) Dock Seal 14 In. 8 Ft. x 9 Ft. BlackProjection (in.): 14
Nylon Reinforced Vinyl (oz.): 36		237
D-350-15 D-350-1590 Days Limited WarrantyNylon (Vinyl) Dock Seal 15 In. 8 Ft. x 9 Ft. BlackProjection (in.): 15
Nylon Reinforced Vinyl (oz.): 36		243
D-350-16 D-350-1690 Days Limited WarrantyNylon (Vinyl) Dock Seal 16 In. 8 Ft. x 9 Ft. BlackProjection (in.): 16
Nylon Reinforced Vinyl (oz.): 36		248

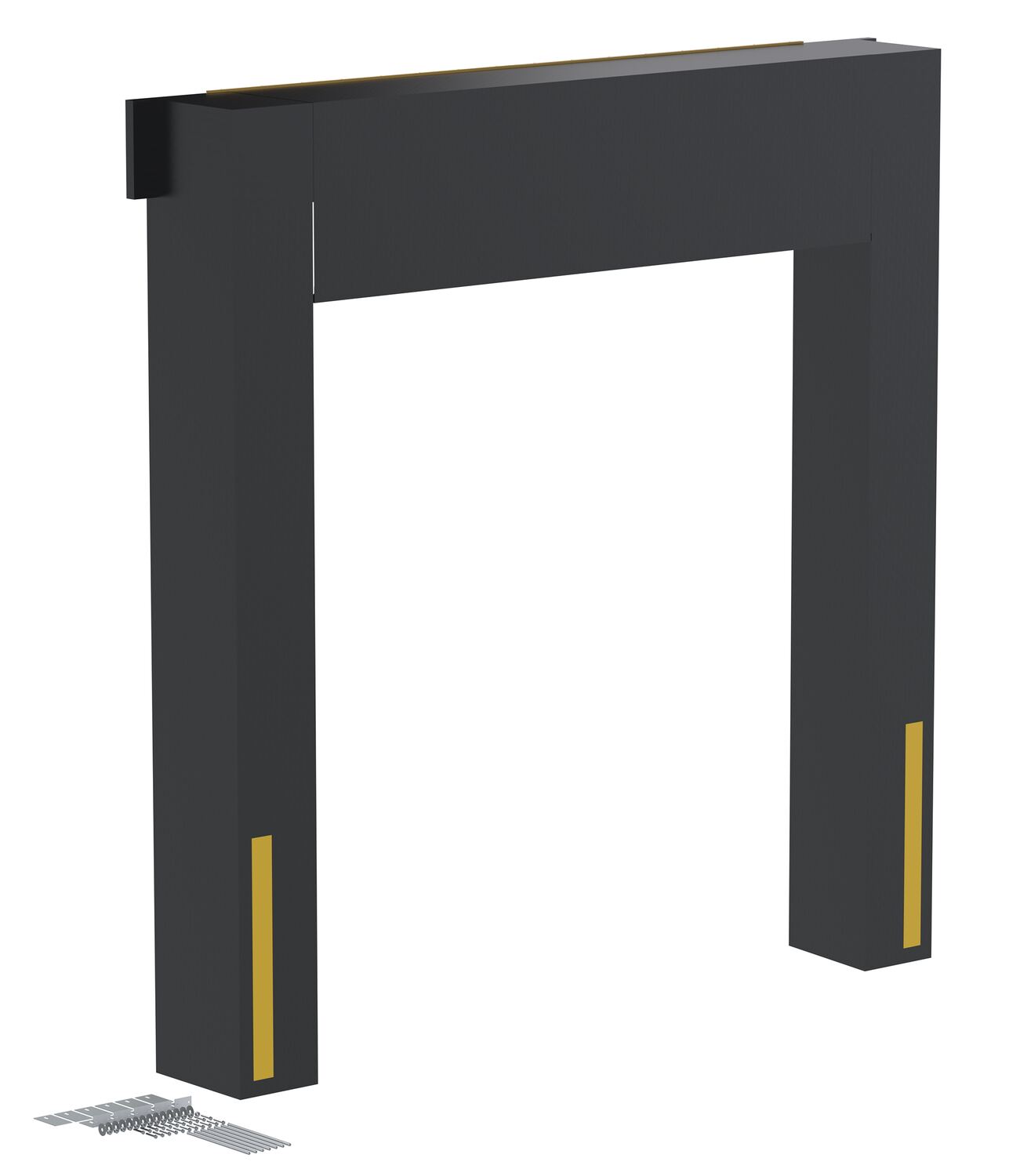

D-350-17 D-350-1790 Days Limited WarrantyNylon (Vinyl) Dock Seal 17 In. 8 Ft. x 9 Ft. BlackProjection (in.): 17
Nylon Reinforced Vinyl (oz.): 36		250

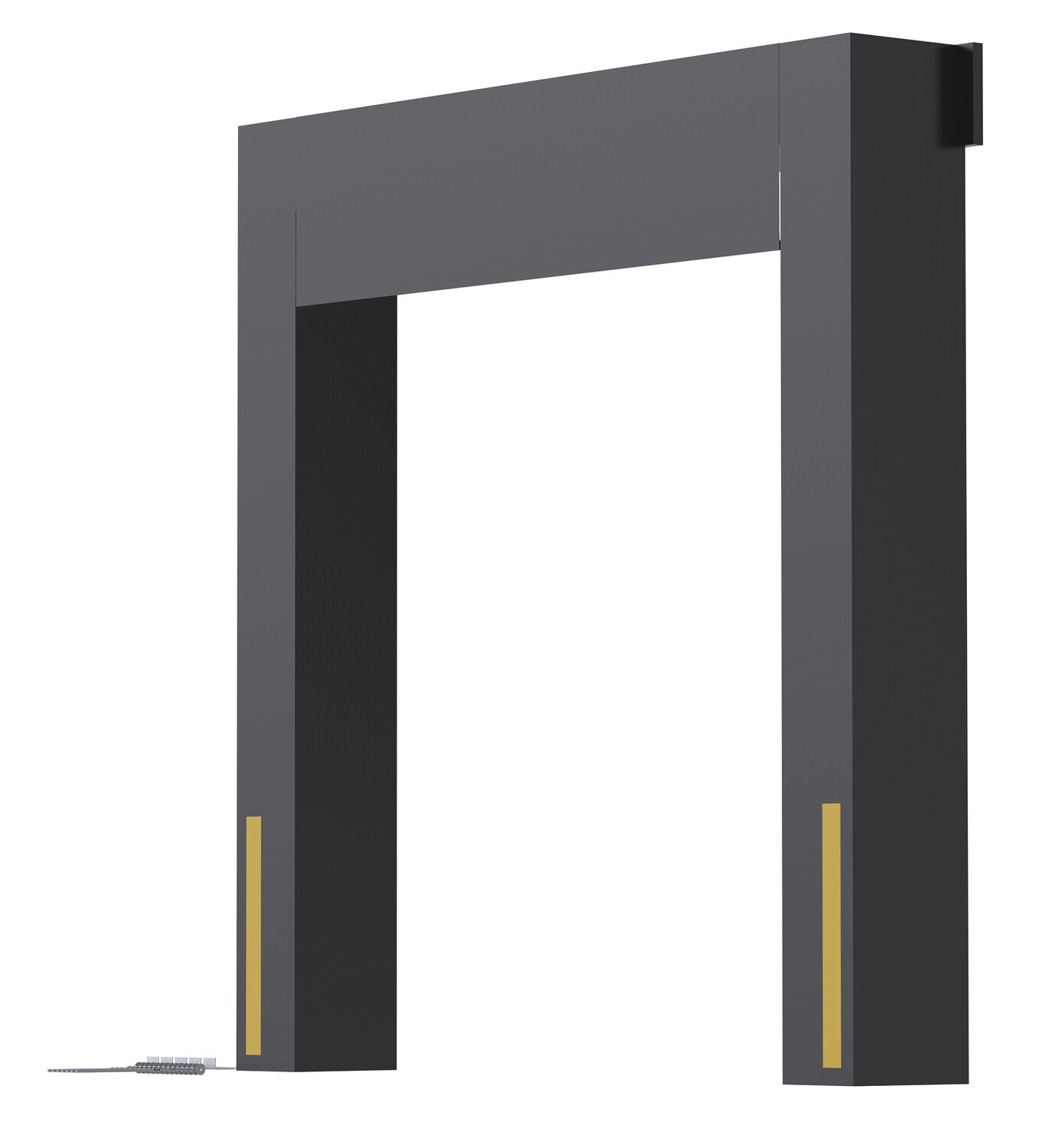

D-350-18 D-350-1890 Days Limited WarrantyNylon (Vinyl) Dock Seal 18 In. 8 Ft. x 9 Ft. BlackProjection (in.): 18
Nylon Reinforced Vinyl (oz.): 36		264

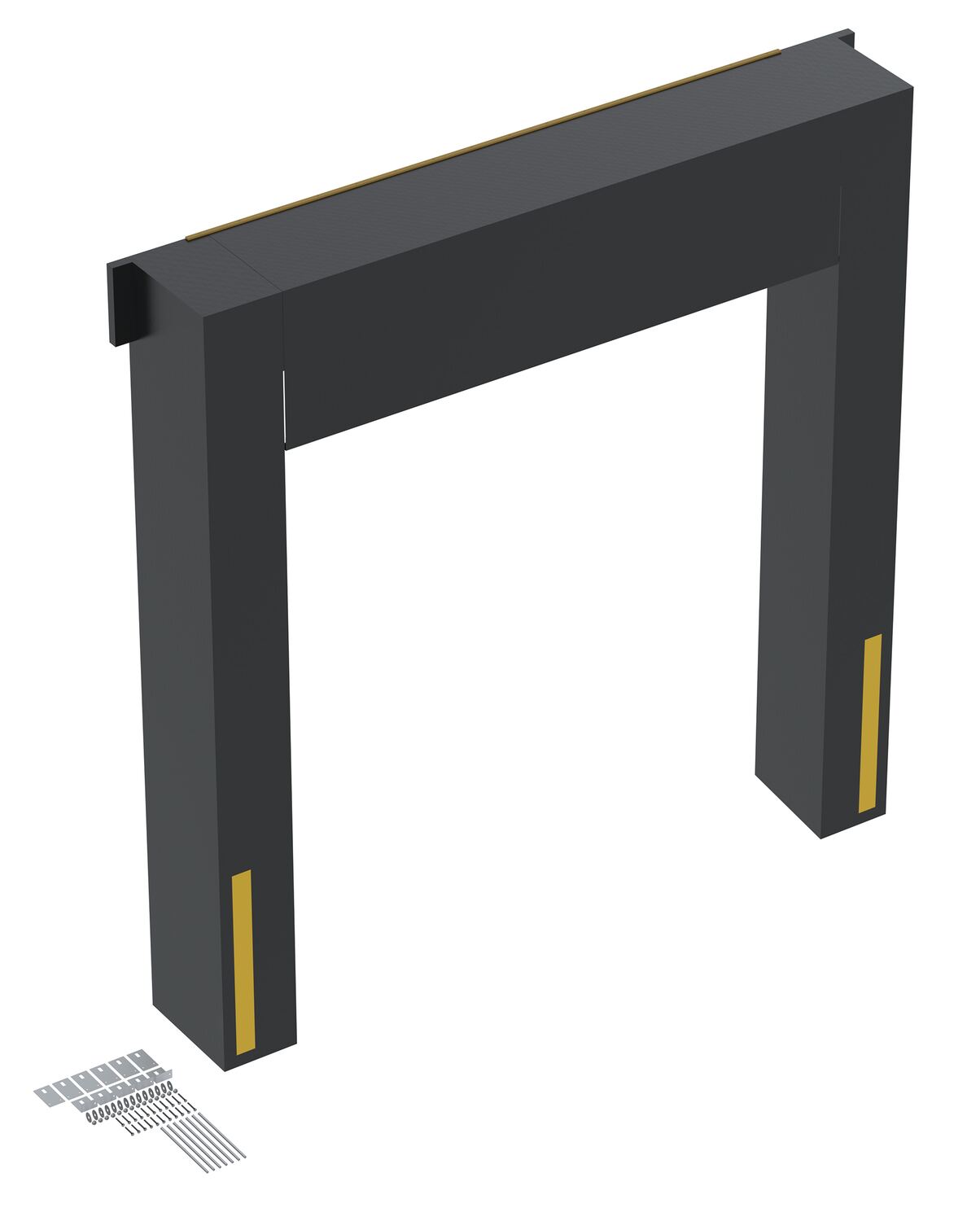

D-350-19 D-350-1990 Days Limited WarrantyNylon (Vinyl) Dock Seal 19 In. 8 Ft. x 9 Ft. BlackProjection (in.): 19
Nylon Reinforced Vinyl (oz.): 36		270

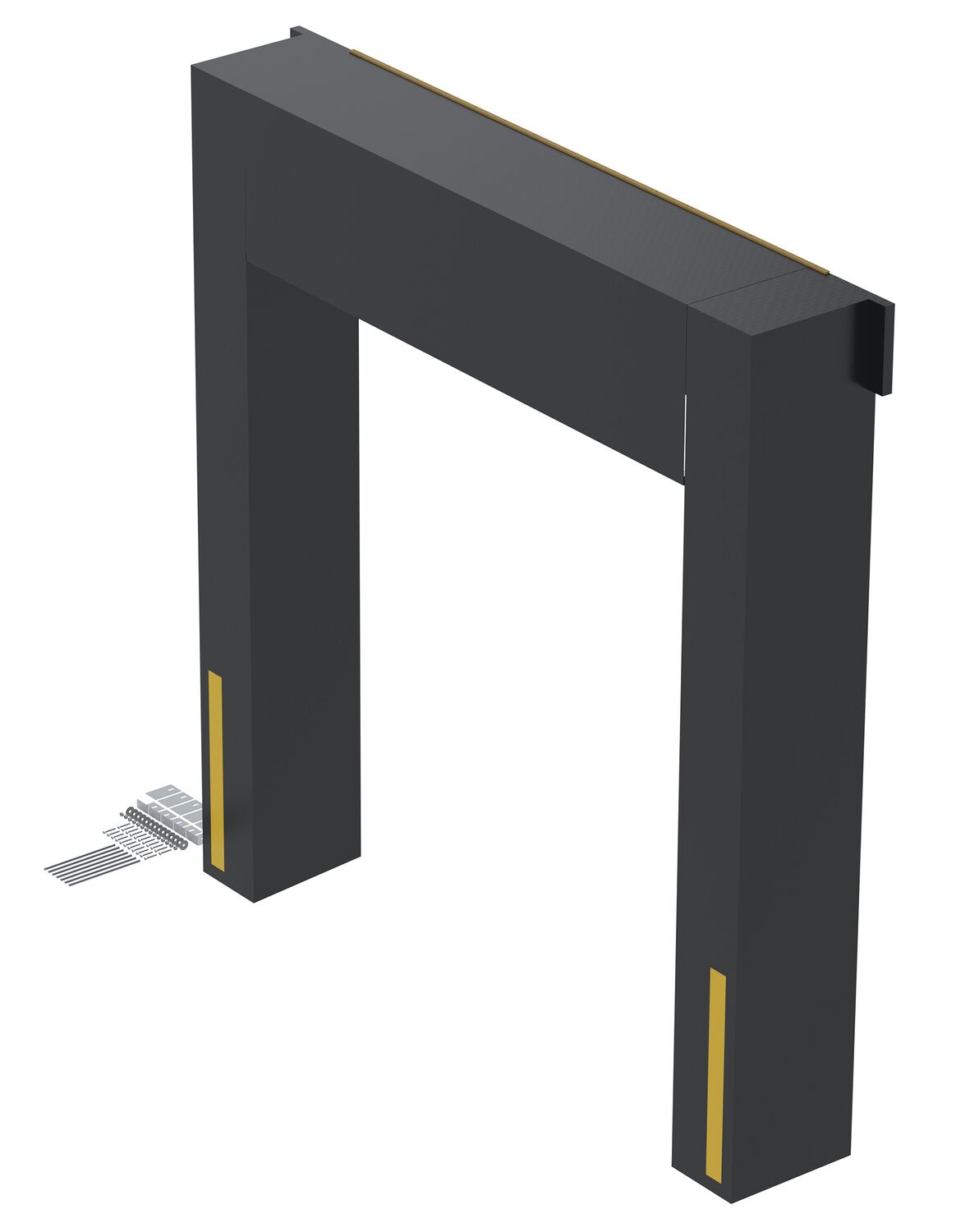

D-350-20 POPULAR D-350-2090 Days Limited WarrantyNylon (Vinyl) Dock Seal 20 In. 8 Ft. x 9 Ft. BlackProjection (in.): 20
Nylon Reinforced Vinyl (oz.): 36		275

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
D-150-10
D-150-11
D-150-12
D-150-13
D-150-14
D-150-15
D-150-16
D-150-17
D-150-18
D-150-19
D-150-20
D-350-10
D-350-11
D-350-12
D-350-13
D-350-14
D-350-15
D-350-16
D-350-17
D-350-18
D-350-19
D-350-20
D-KIT
SP-STL
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

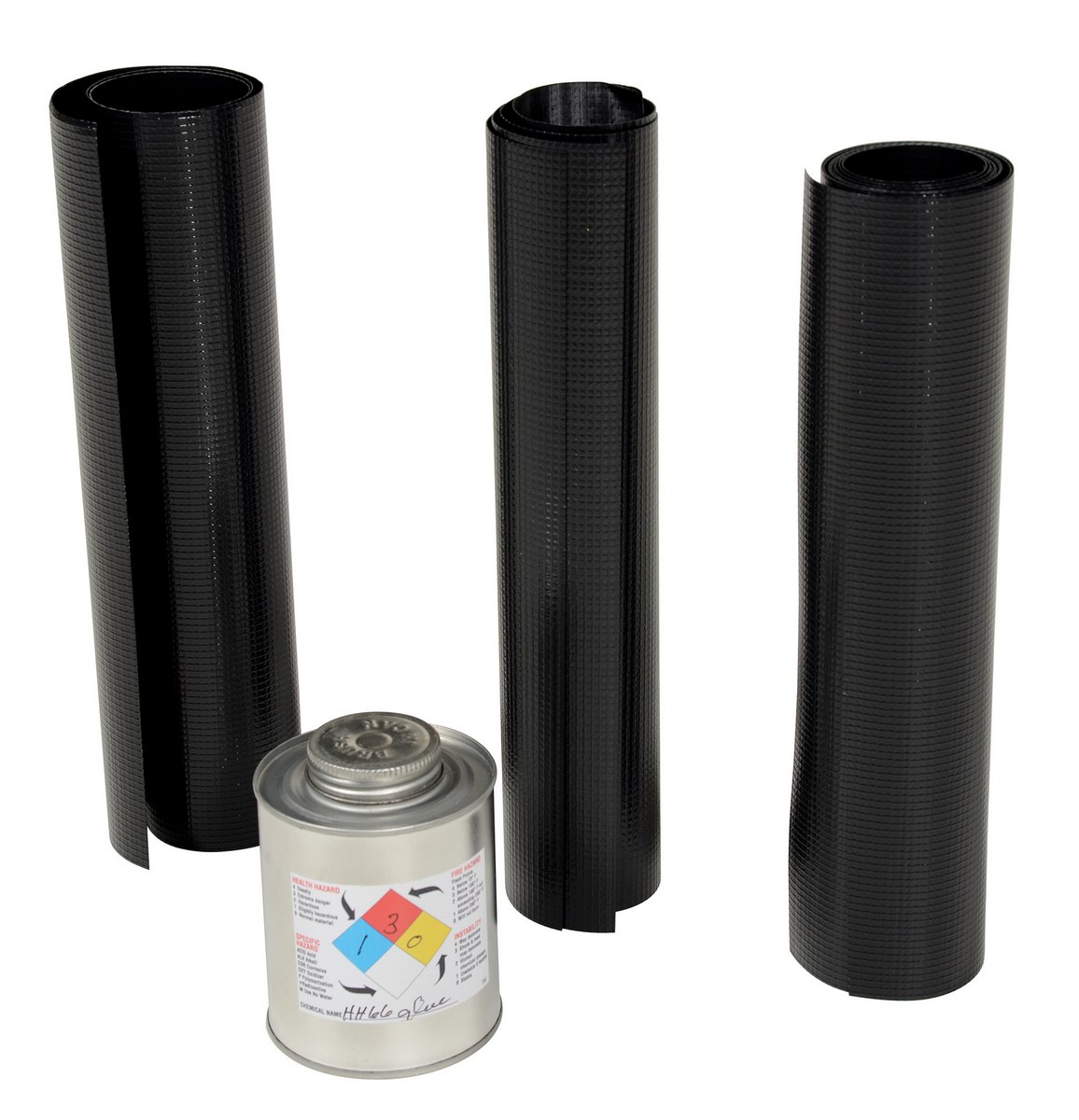

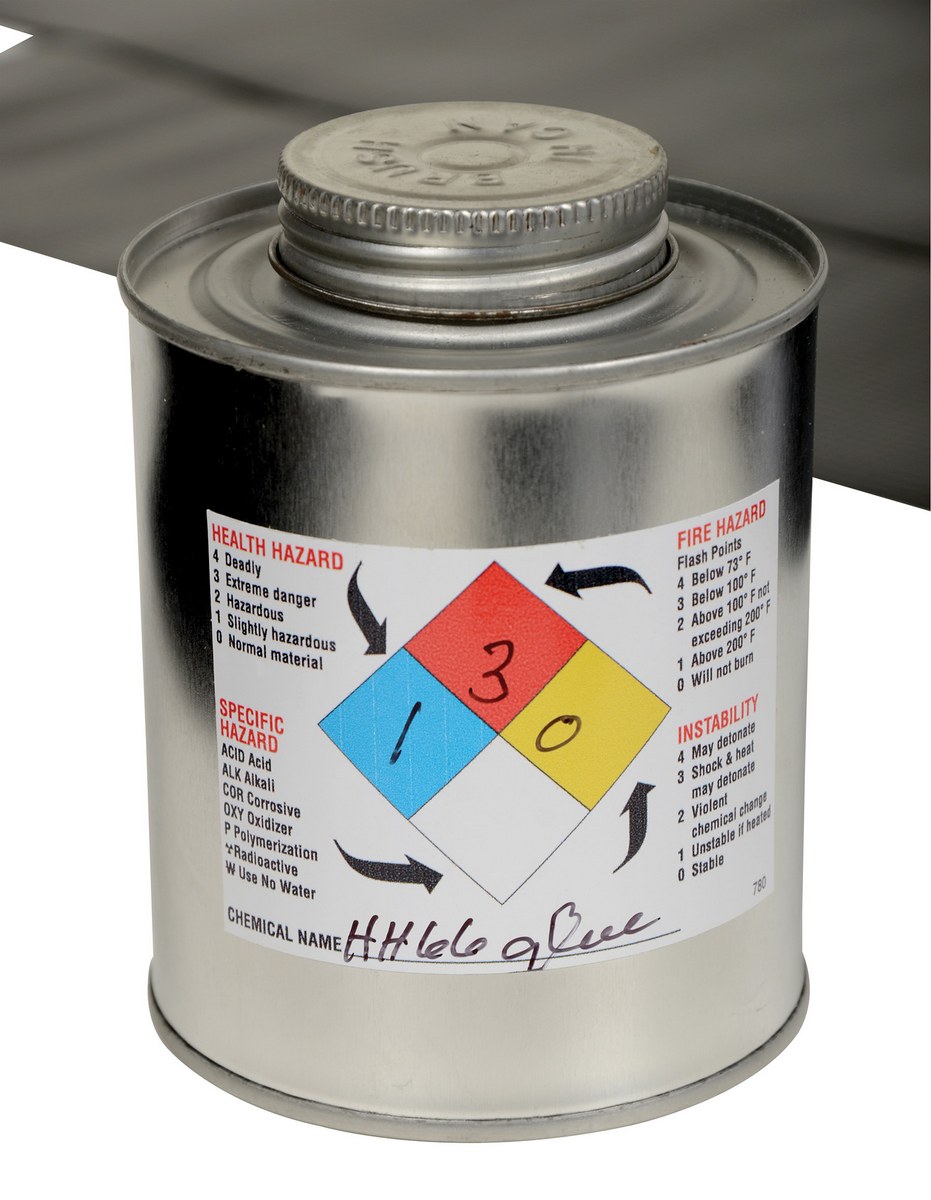

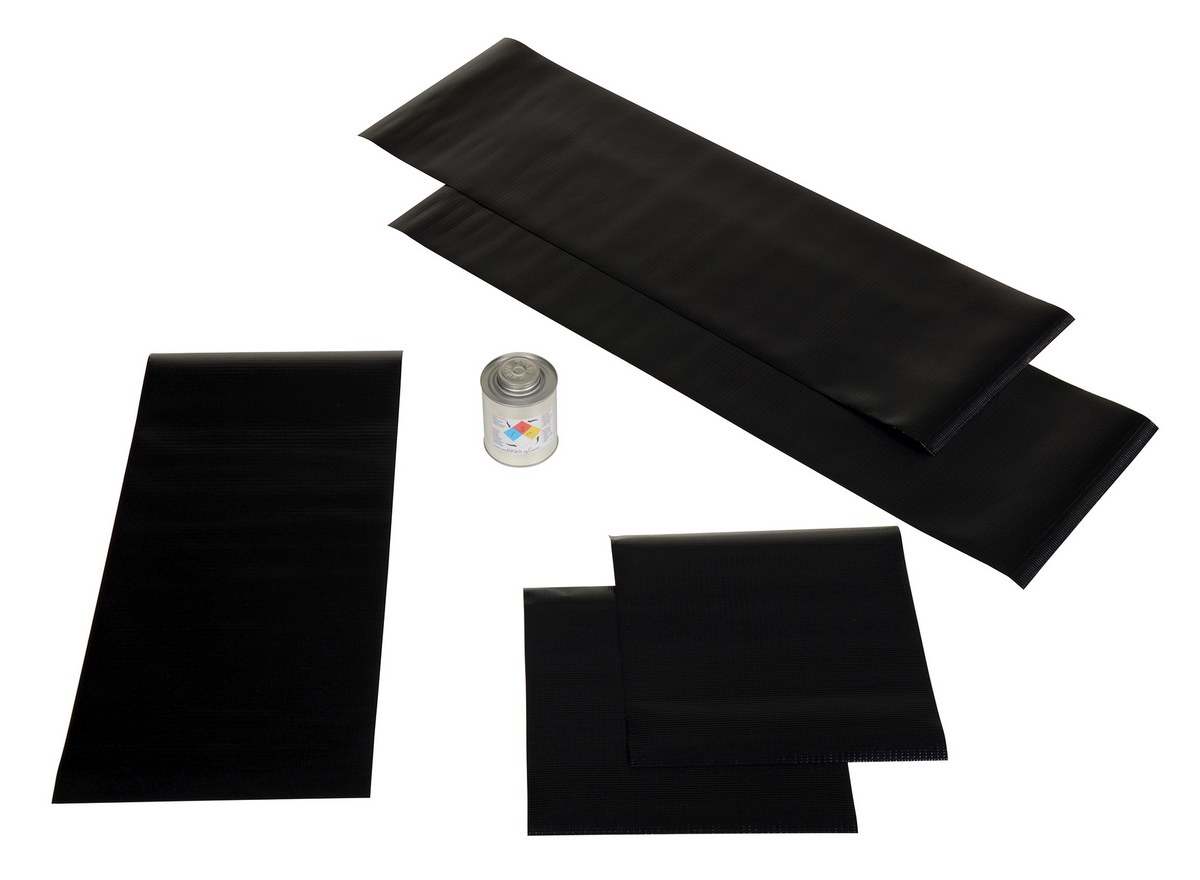

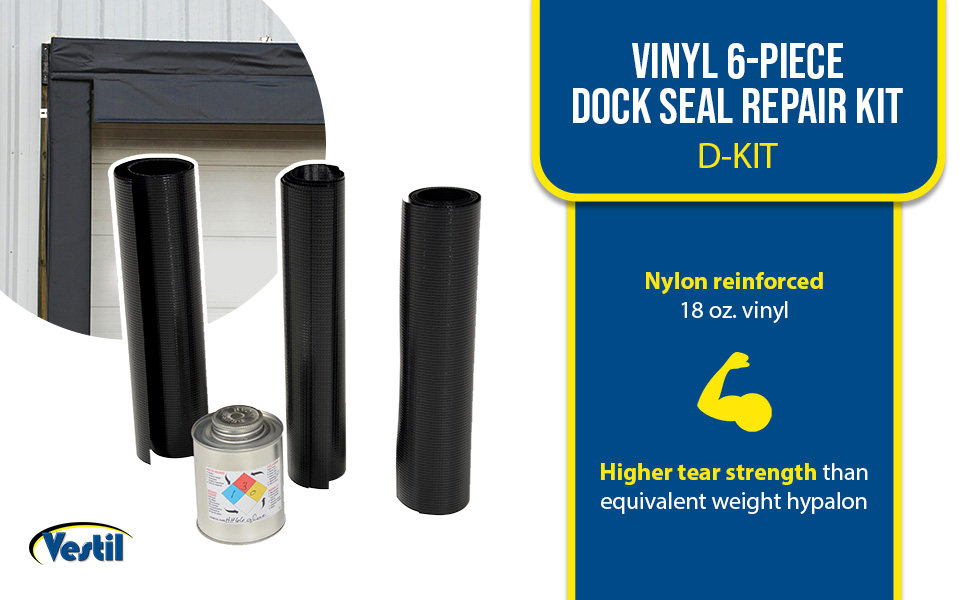

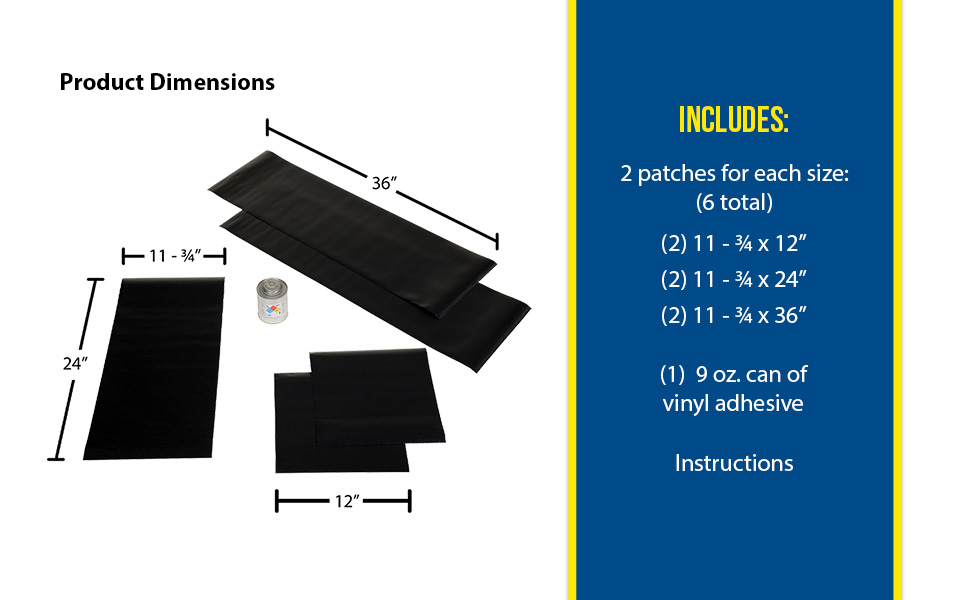

D-KIT D-KITVinyl 6-Piece Dock Seal Repair Kit For Dock Seal/Shelter Com…90 Days Limited Warranty 3
SP-STL Factory Installed Span Pins/Holes For Steel Dock Board Units90 Days Limited Warranty
Model Number Image PDFs Description
D-FHPFS Compliance Certificate Full height pleats, full height guide stripes
D-FHPS Compliance Certificate Full height pleats, standard guide (24" high)
D-AP Compliance Certificate Armor pleats, top 24" only
D-54OZ Compliance Certificate 54 ounce material - face only
D-18H Compliance Certificate 1818" header
D-SV Compliance Certificate Sloped verticals
D-BBF Compliance Certificate Bottom Bun
D-GS Compliance Certificate Full height guide stripes
D-12F Compliance Certificate 12" flap
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

D-150 D-350

D-150650

D-KIT

Survey Sheets

DOCK SEAL & DOCK SHELTER

Engineering Drawings

D-150-10

D-150-11

D-150-12

D-150-13

D-150-14

D-150-15

D-150-16

D-150-17

D-150-18

D-150-19

D-150-20

D-350-10

D-350-11

D-350-12

D-350-13

D-350-14

D-350-15

D-350-16

D-350-17

D-350-18

D-350-19

D-350-20

D-KIT

Testing Certificates

D-150-10

D-150-11

D-150-12

D-150-13

D-150-14

D-150-15

D-150-16

D-150-17

D-150-18

D-150-19

D-150-20

D-350-10

D-350-11

D-350-12

D-350-13

D-350-14

D-350-15

D-350-16

D-350-17

D-350-18

D-350-19

D-350-20

D-KIT

SDS Sheets

No SDS Sheets For This Product

Other PDFs


Cold Weather Products Mailing Brochure

Winter Spotlight - Interactive -  Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

D-KIT
D-KIT D-KIT A+ Content - 1
D-KIT D-KIT A+ Content - 2

Applications



Cold Environments

Trucking Companies

Warehouses
How thick should my dock seal be?
Your dock seal depth is determined by the slope of your approach and the dock bumper thickness. Level approaches typically have 4.5" thick dock bumpers and a 9"-10" thick seal. When installed, your dock seal should extend 4"-5" past the face of your dock bumpers so that there is 4"-5" of pad compression when a truck is docked. An inclined or declined approach will require sloped side pads to compensate for the approach angle. A survey sheet is required to determine the proper pad slope.
What dock seal do I need?
Loading docks are not all the same bumper projection, dock height, approach, door opening size, wall construction, access required to the rear of the trailer, trailer sizes being service as well as several other questions are key factors when designing a dock. For this reason there is no simple answer to this question. On our site there are several tools to help. You can call us during business hours, fill out an RFQ, or submit the dock seal survey on the dock seal page and we will help you with a dock seal fit to match your needs.
Why is the dock seal top head pad getting damaged?
If your top pad is receiving more damage than other parts of your seal there are several reasons it could be happening. The most common reason for this is a sloped approach. When the dock slopes down and the dock bumpers are not thick enough the truck will hit the wall or over compress the top of the seal causing it to wear out early. The way to avoid this situation is a wedged seal with adequate dock bumper projection.
How do we install a dock seal?
Installing a dock seal is simple and can be performed with basic tools. Comprising of flat and angle brackets installation is simple and can be performed in an hour or two depending on experience. For installation instructions email us at info@vestil.com
Where can we buy a loading dock door wrap around seal?
There are many terms used in the door industry to describe what we call dock seals; we often hear them called dock wrap around, dock bumper cushions, door pads, docking pads, etc. Vestil Manufacturing, experts in this field, offer a full range of dock seals, truck shelters, and other dock equipment with same day quotes most handled on the phone.
What is the difference between a Dock Seal Vs. a Truck Shelter?
A dock seal is traditionally designed to enclose a loading dock reducing its width to an optimal 7'6", while a truck shelter is designed to allow full access to the trailer without restricting the available space around the door. Truck shelters typically afford service to a wider range of trucks than a dock seal as well, due to the nature of the seal. When a vehicle docks with a shelter the curtains with spring steel stays slide along the side of the vehicle rather than compress like a dock seal.
We are looking at the options for the full height pleats and /or guide strips. D-FHFS , D-FHPS. Are these sold individually or as a pair?
The D-FHFS and the D-FHPS options are priced / sold as a pair- one for each side of the dock door.
