Vestil Manufacturing Corporation is an industry leader in the manufacturing and distributing of industrial material handling equipment. We feature over 1,000 different product lines, many of which are in stock and ready for immediate shipment.
Low Profile Electric Lift Tables| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

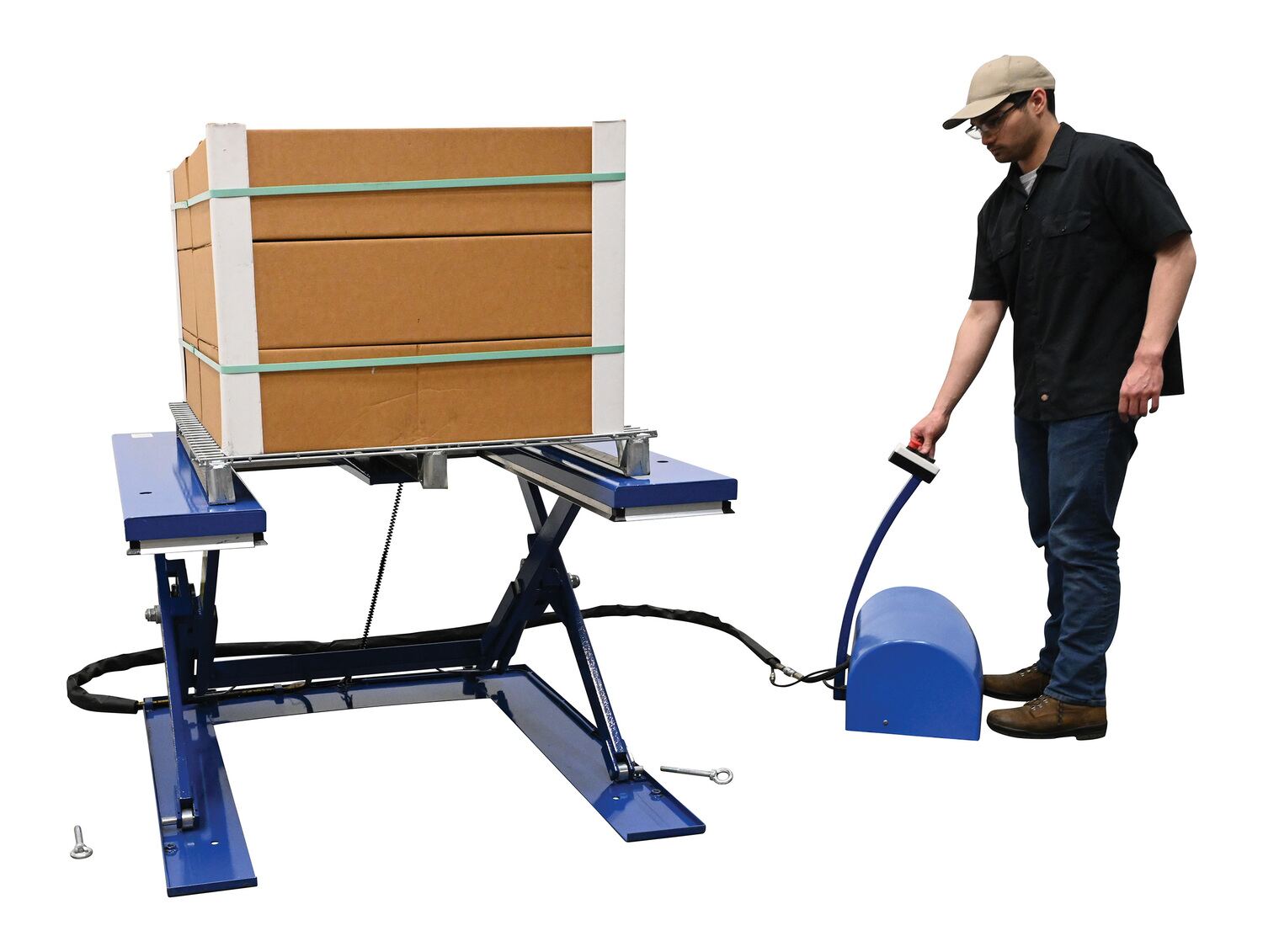

| EHE-2 |  | 1 Year Limited Warranty | Steel Low Profile Electric Lift Table E Type 56 In. x 52-3/4 In. x 3-1/2 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Raised Height (in.): 33-1/2 | 718 | ||

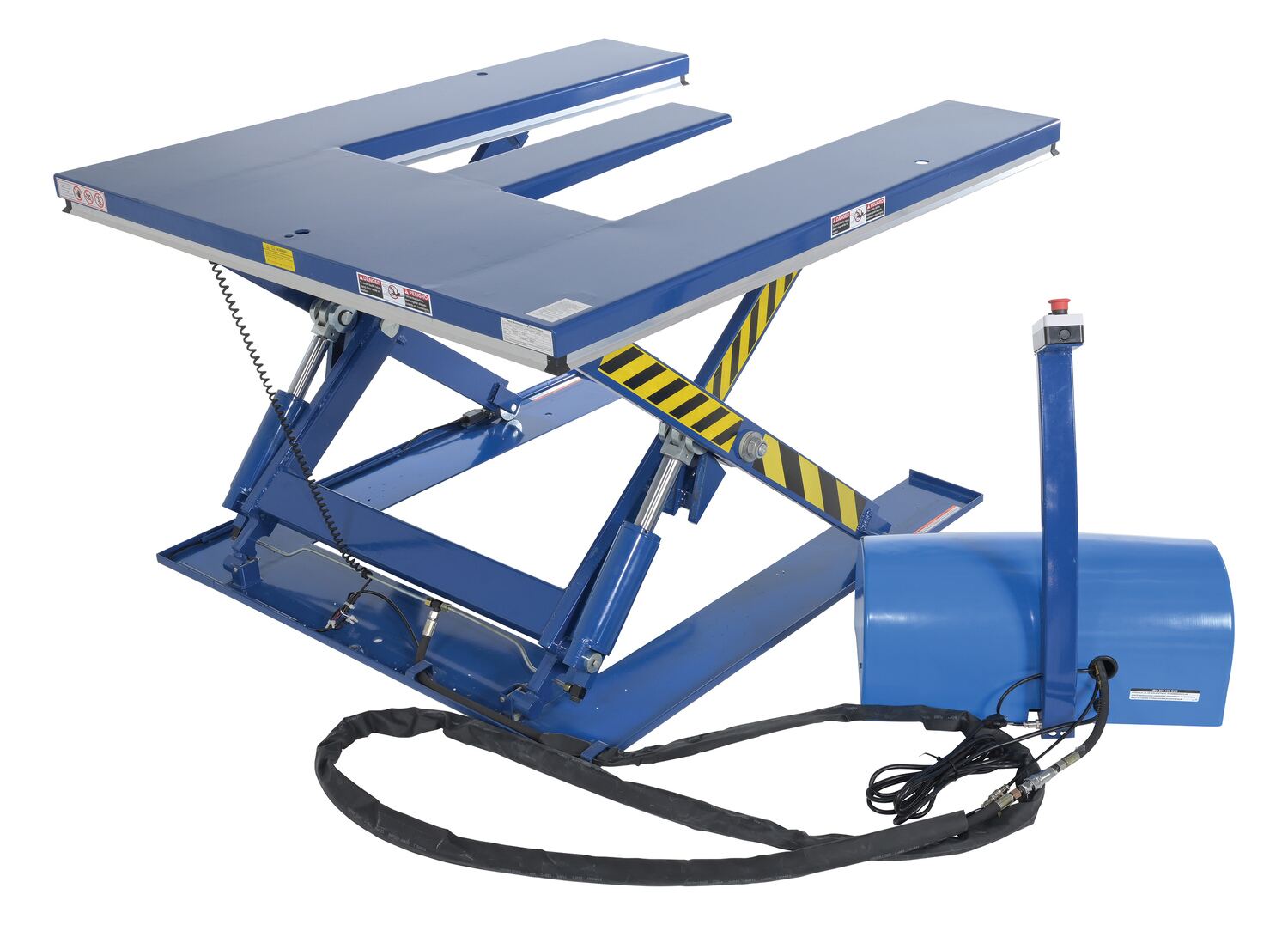

| EHE-3 |  | 1 Year Limited Warranty | Steel Low Profile Electric Lift Table E Type 63 In. x 53-1/2 In. x 4-1/4 In. 3000 Lb. Capacity Blue | Uniform Capacity (lb.): 3000 Raised Height (in.): 33-1/2 | 805 | ||

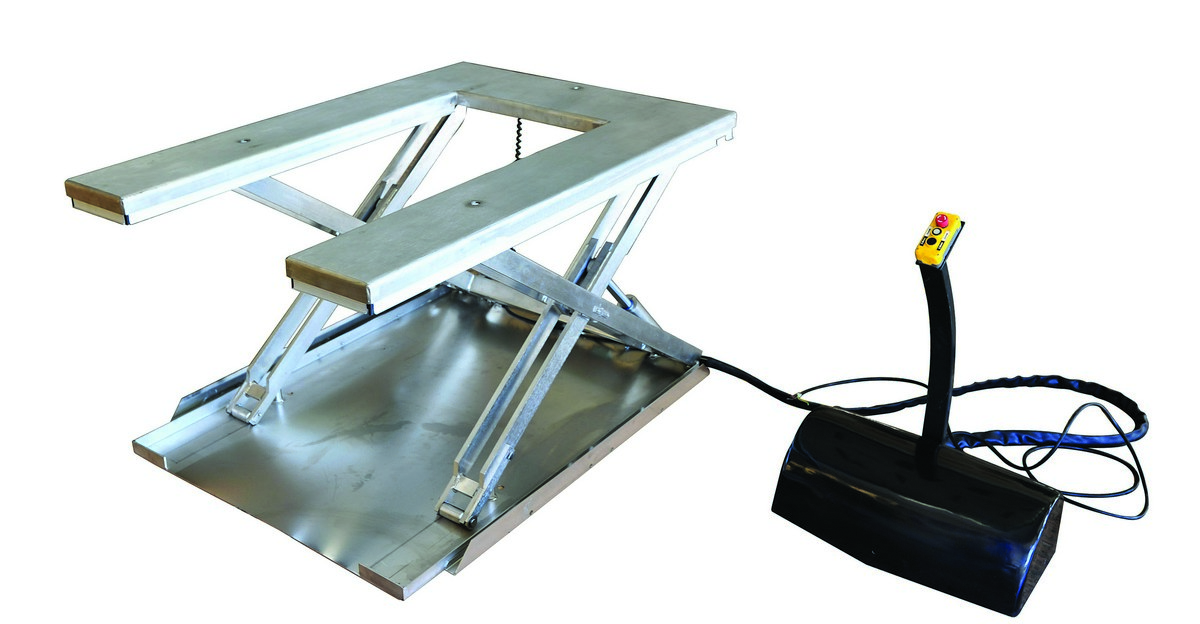

| EHU-12-SS | |  | 1 Year Limited Warranty | Stainless Steel Low Profile Electric U 1200 lb. Capacity Table Silver | Uniform Capacity (lbs): 1,200 Maximum Height (in): 33.375 | 592 | |
| EHU-2 |  | 1 Year Limited Warranty | Steel U Type Electric Lift Table 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Raised Height (in.): 33-1/2 | 690 | ||
| EHU-3 | POPULAR |  | 1 Year Limited Warranty | Steel U Type Electric Lift Table 3000 Lb. Capacity Blue | Uniform Capacity (lb.): 3000 Raised Height (in.): 33-1/2 | 832 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required
Hydraulic Oil
EHE-2 SDS
Hydraulic Oil
EHU-2 SDS
Hydraulic Oil
EHU-3 SDS
|
||||||||||||||||||||||||||||||||
Low Profile Electric Lift Tables |
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||

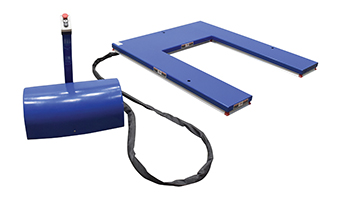

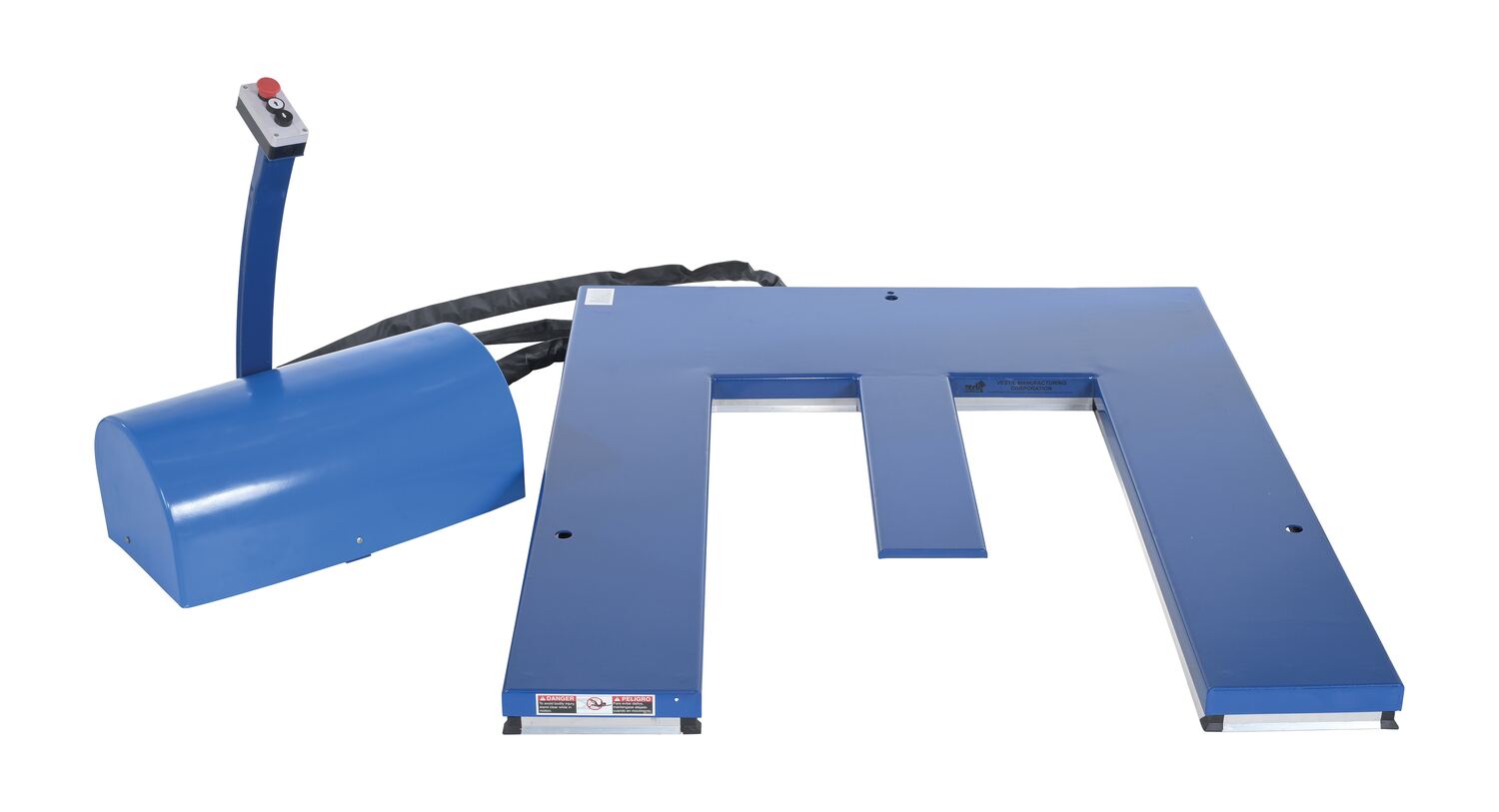

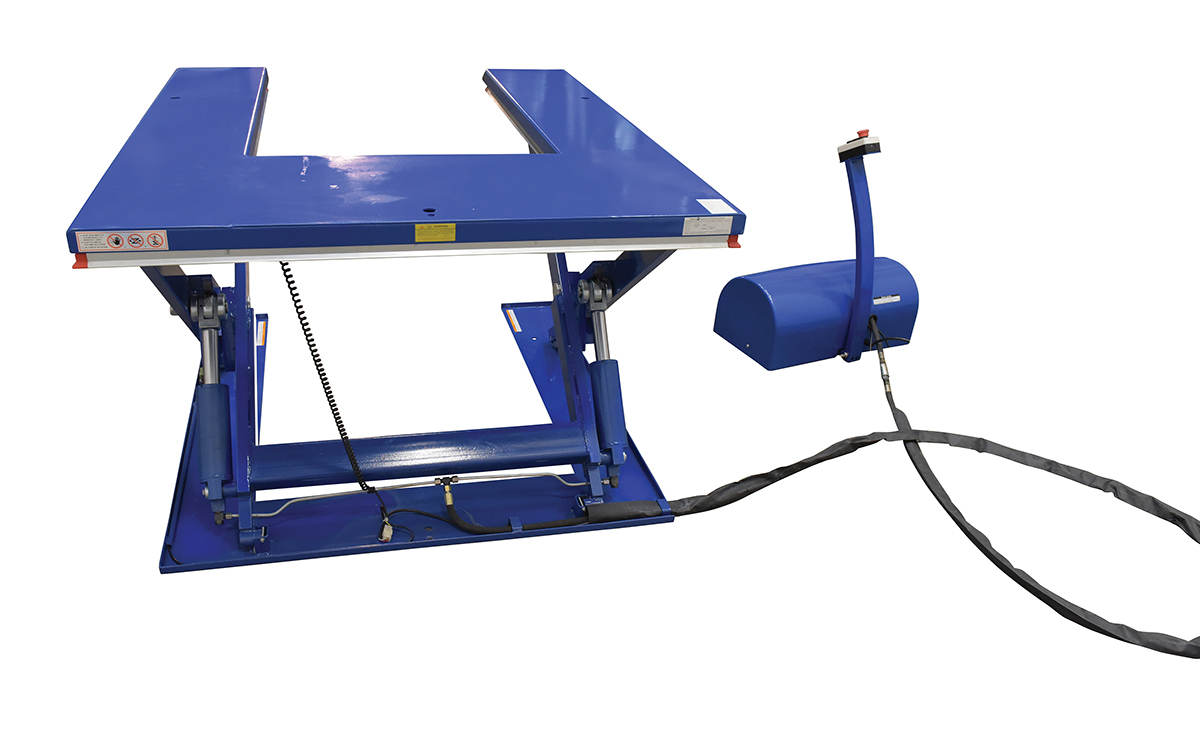

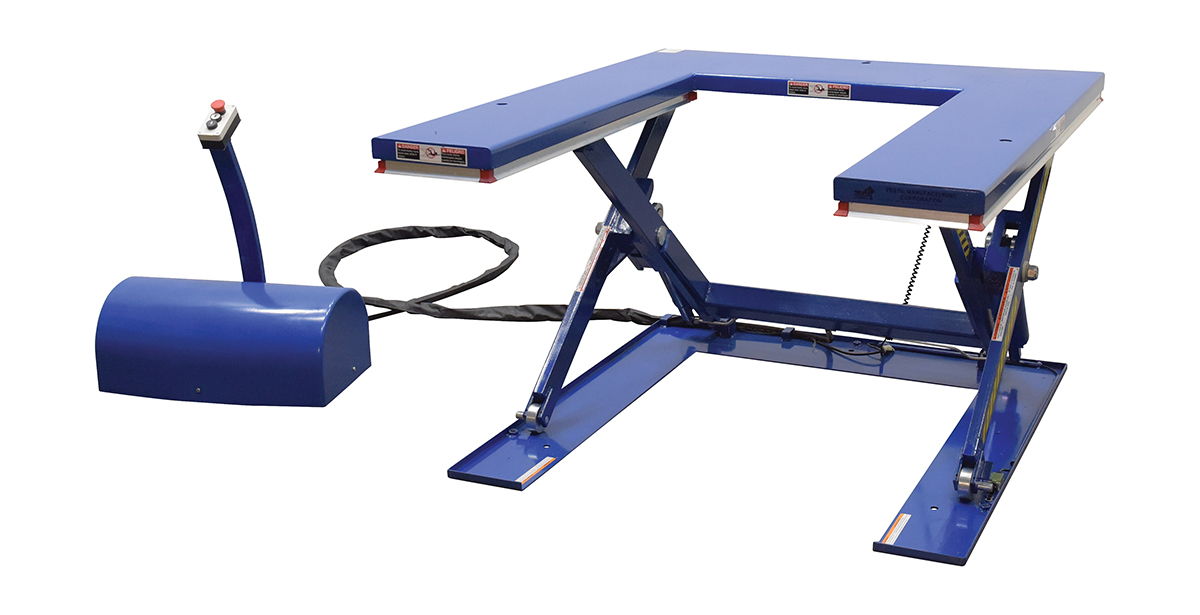

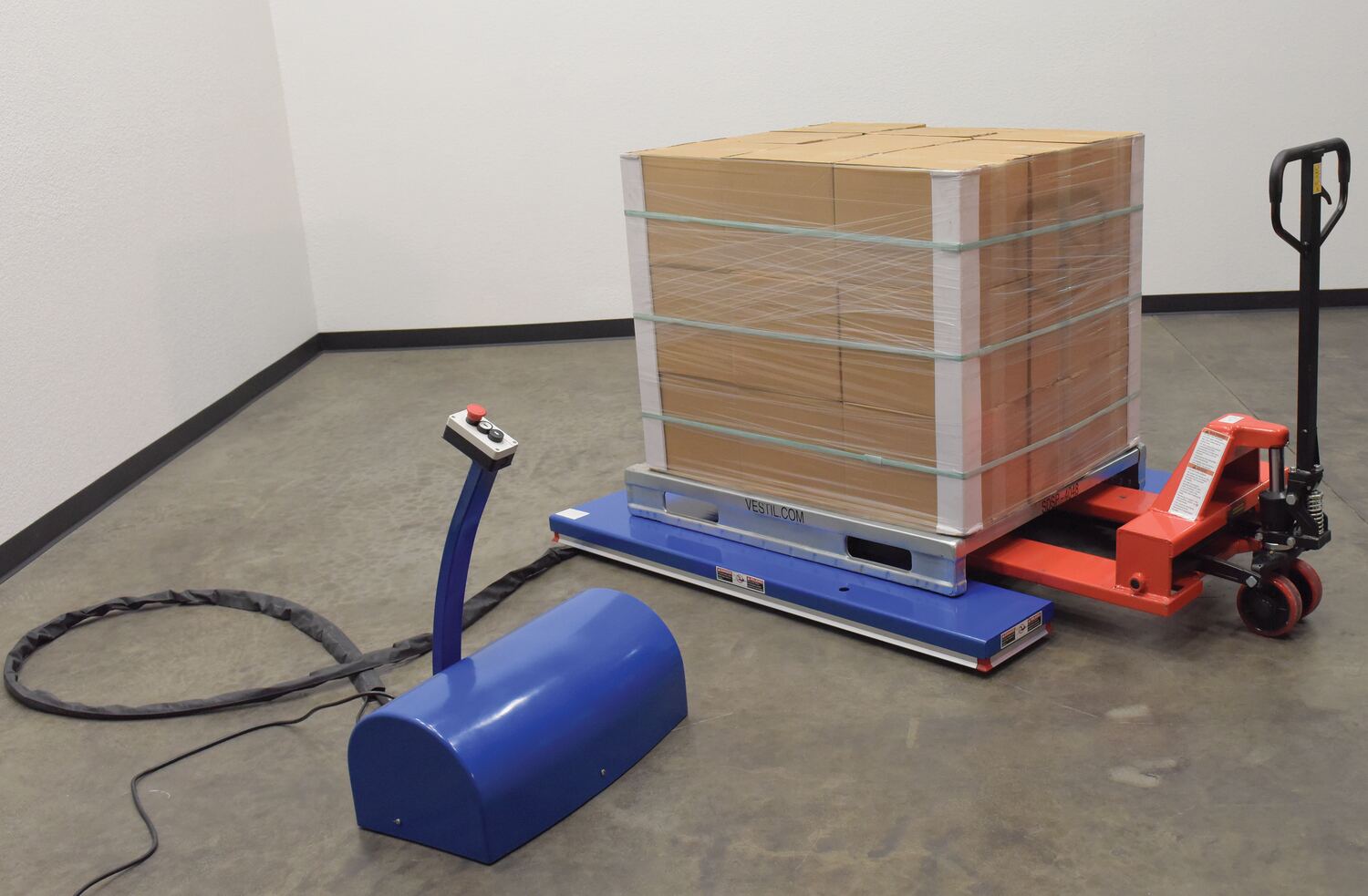

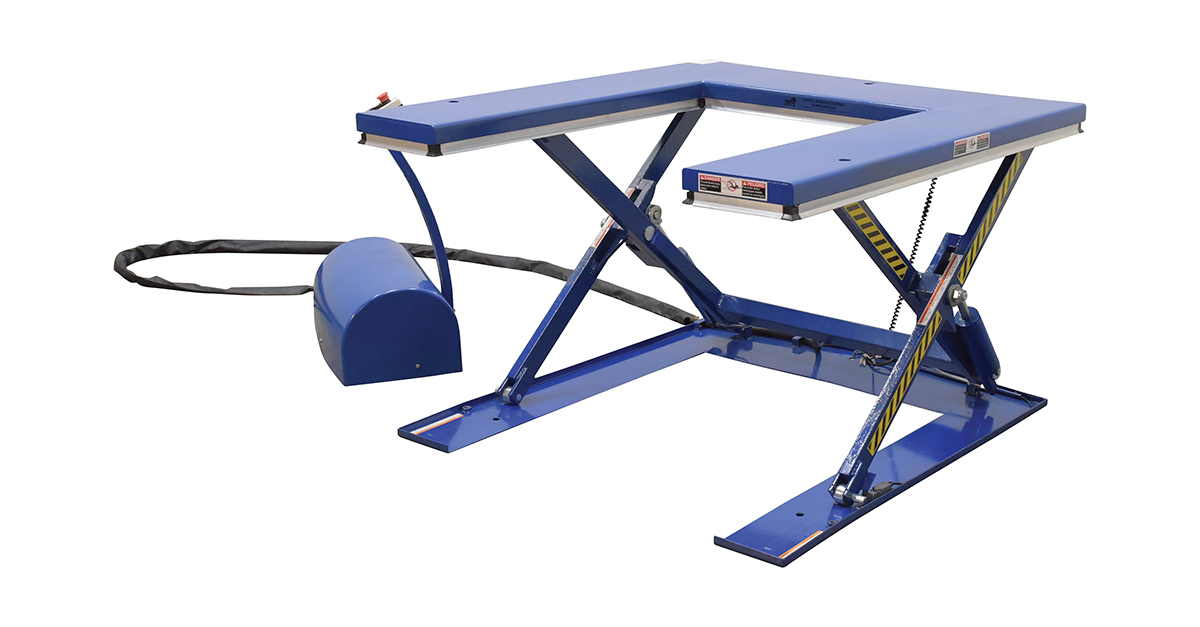

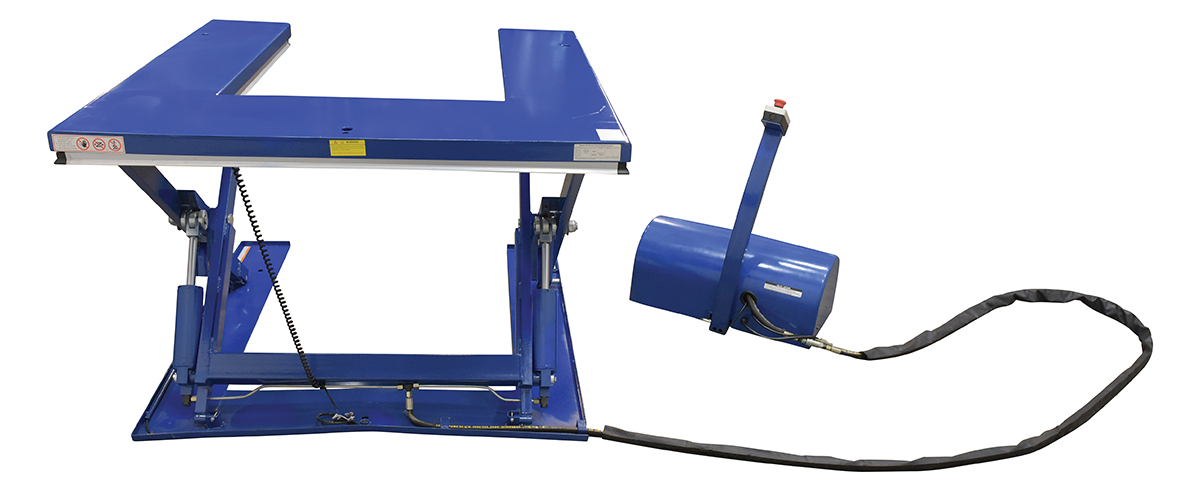

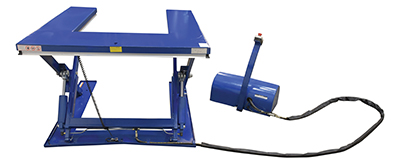

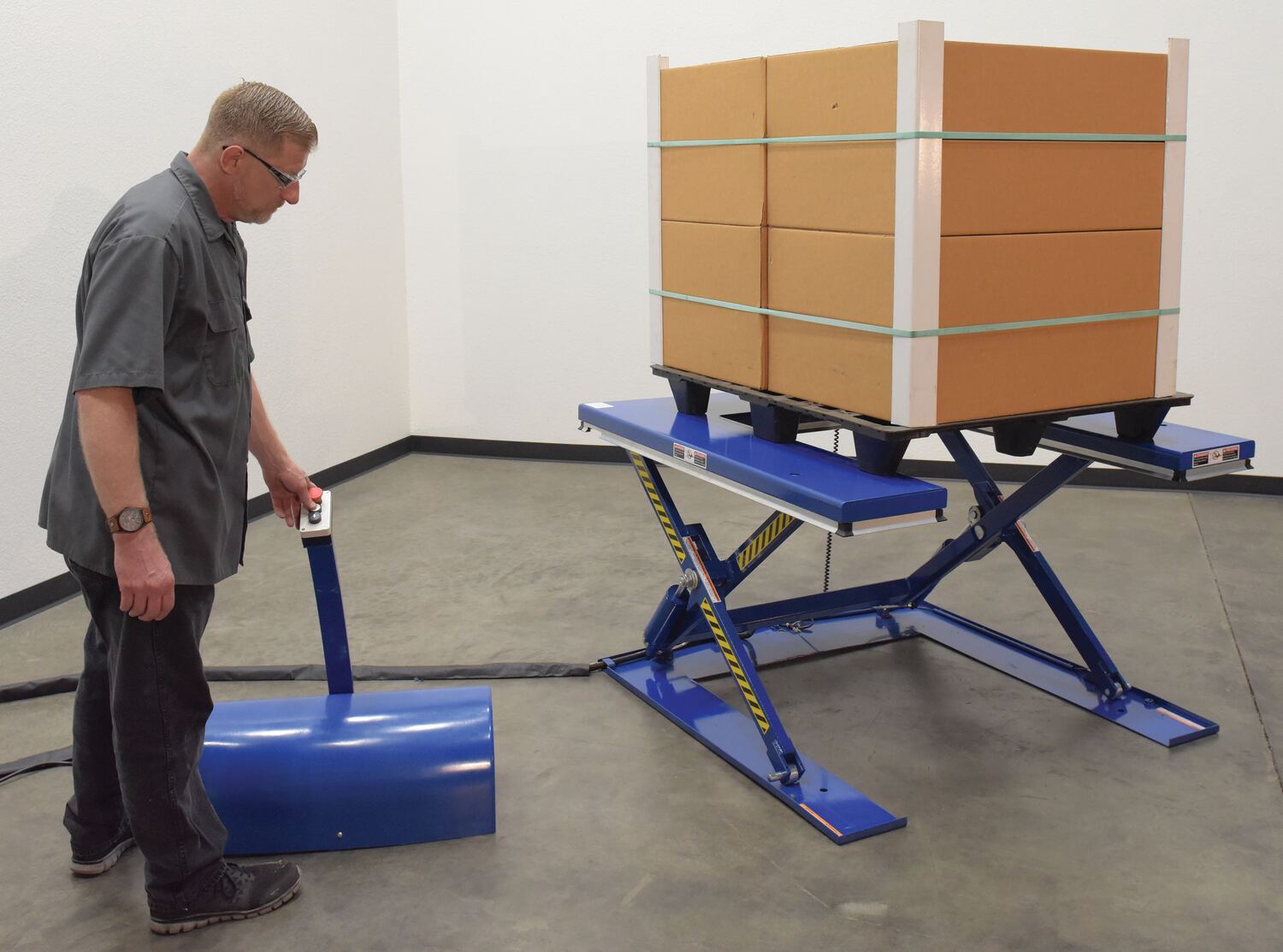

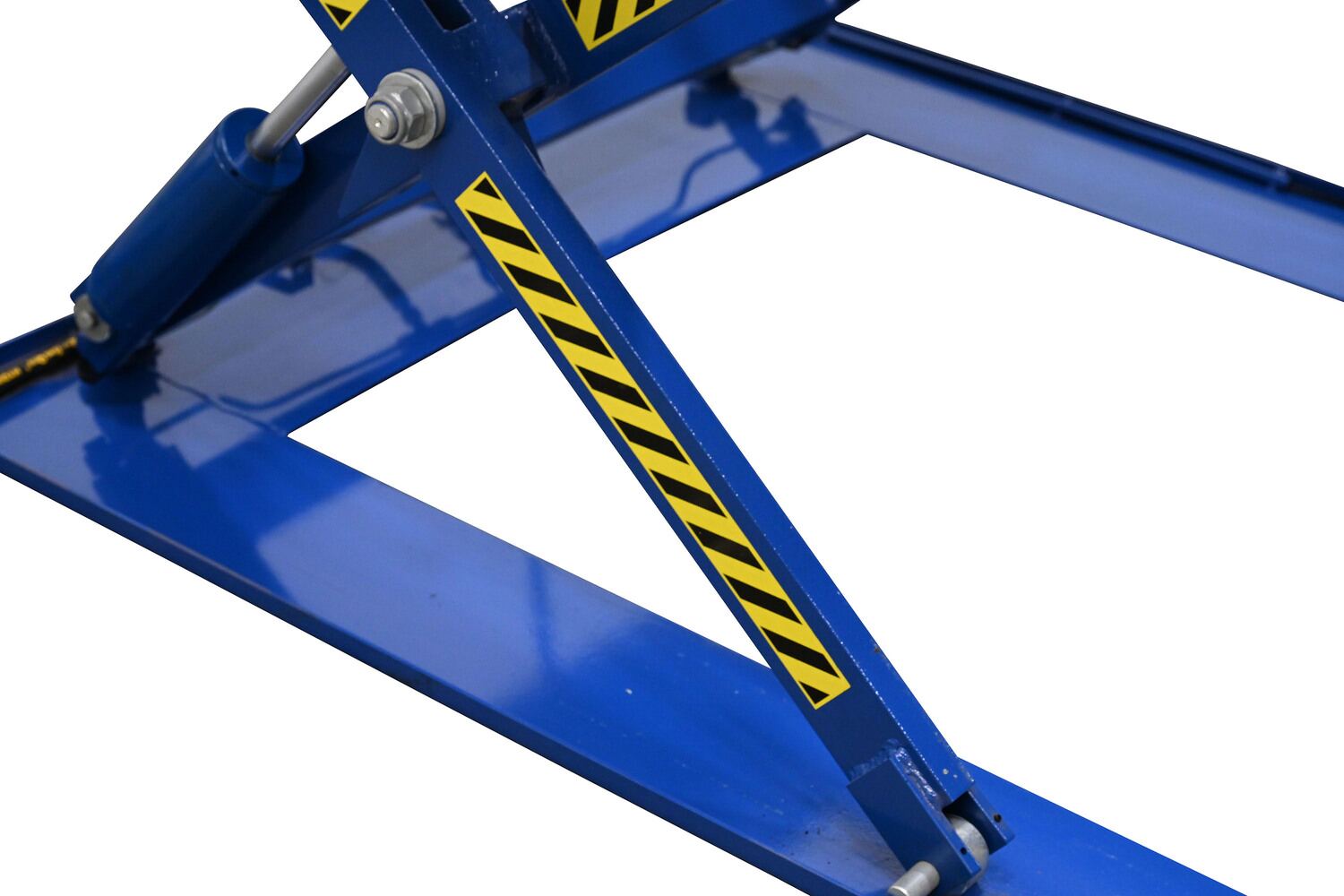

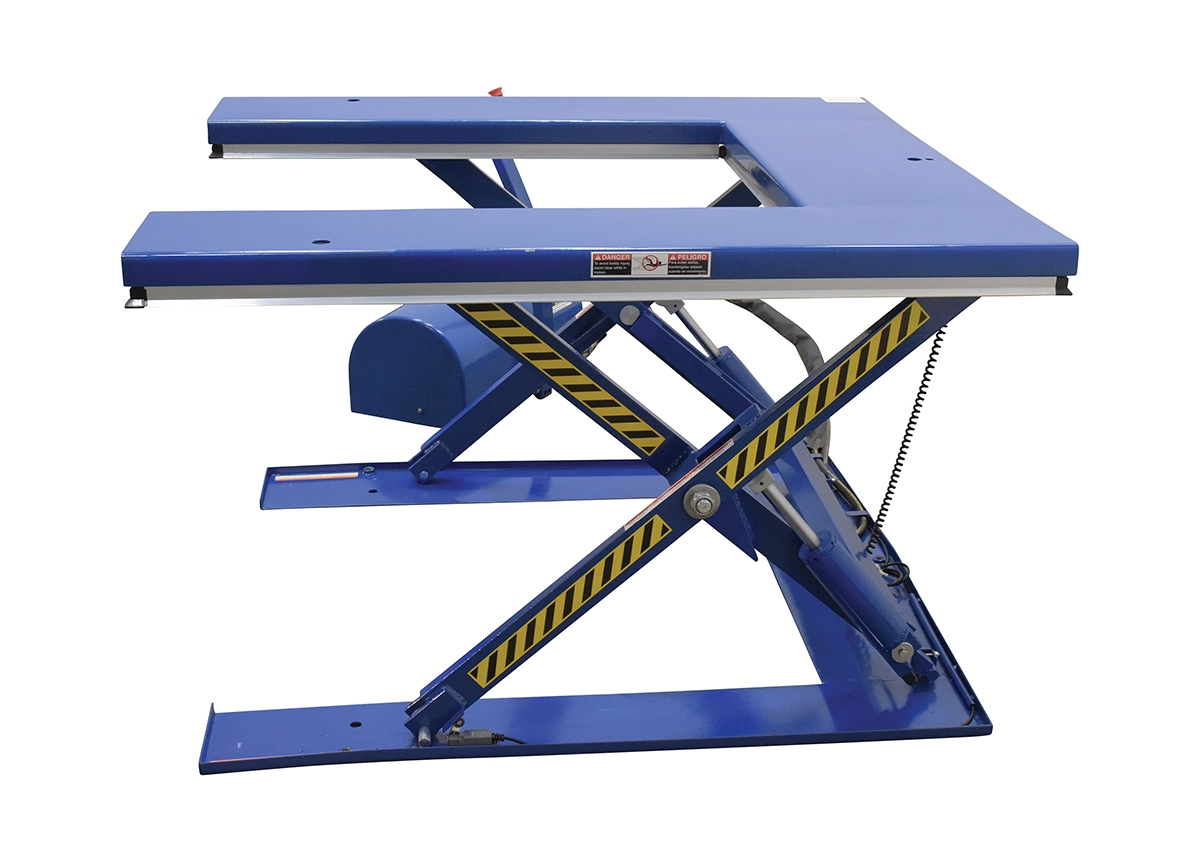

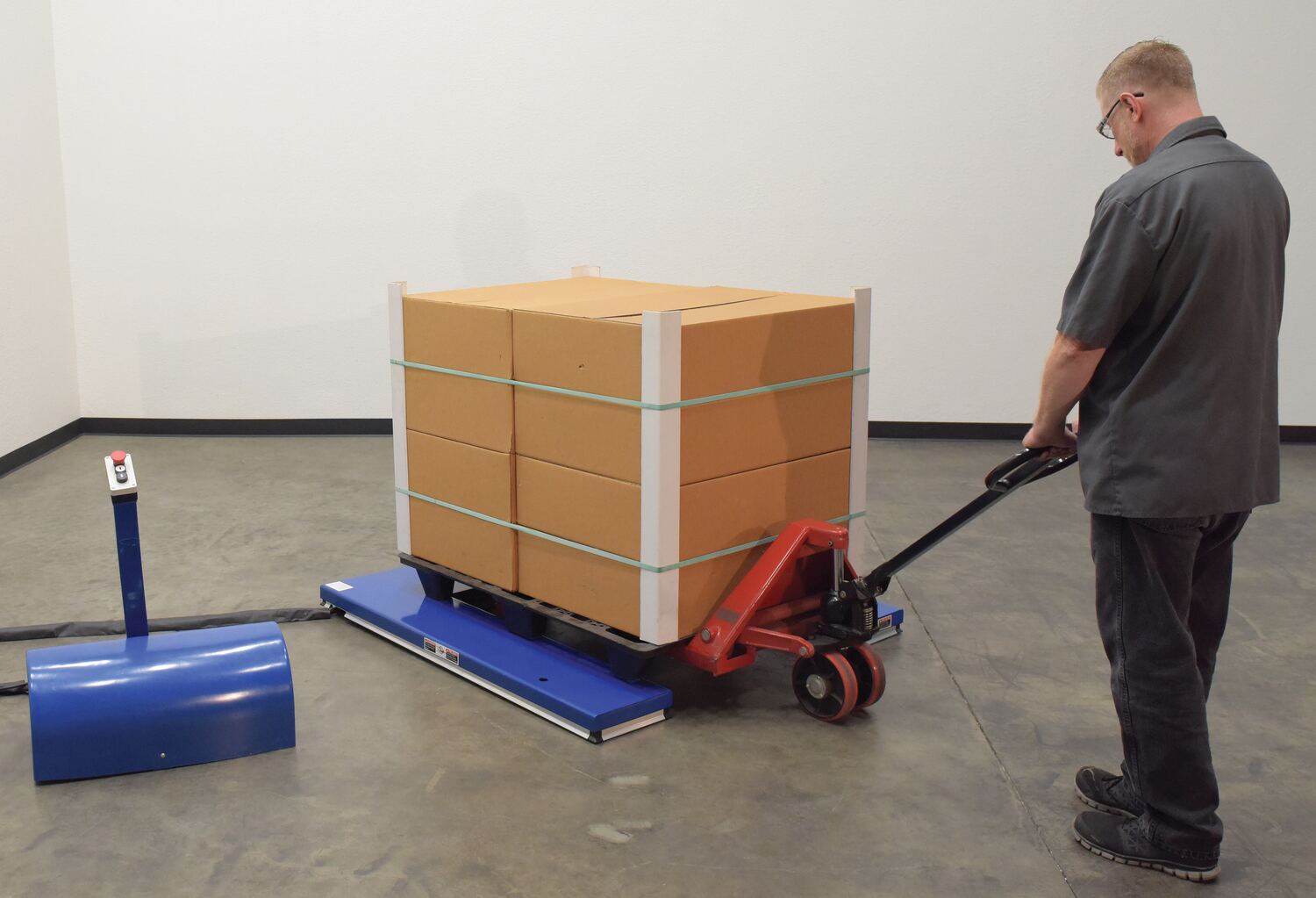

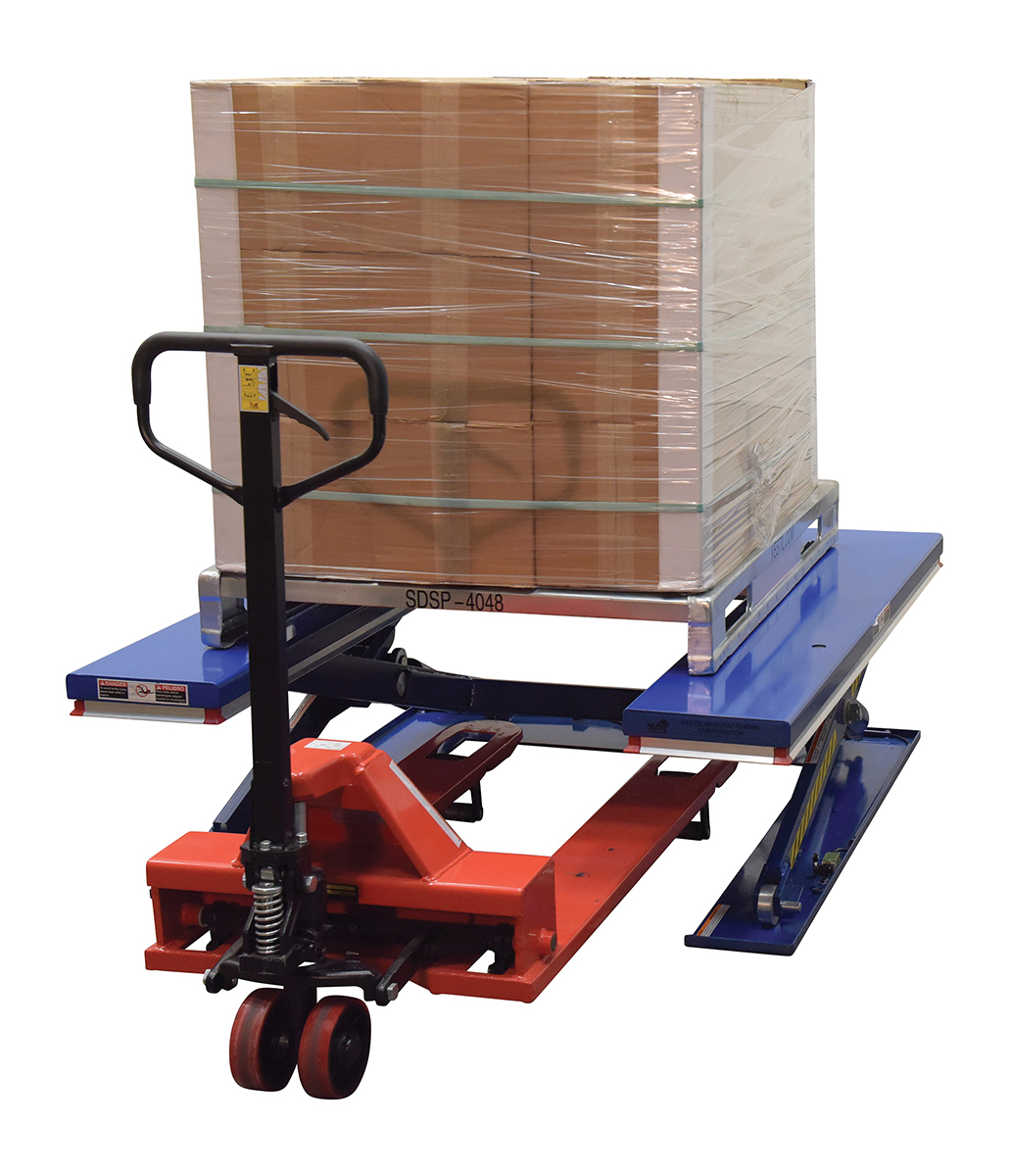

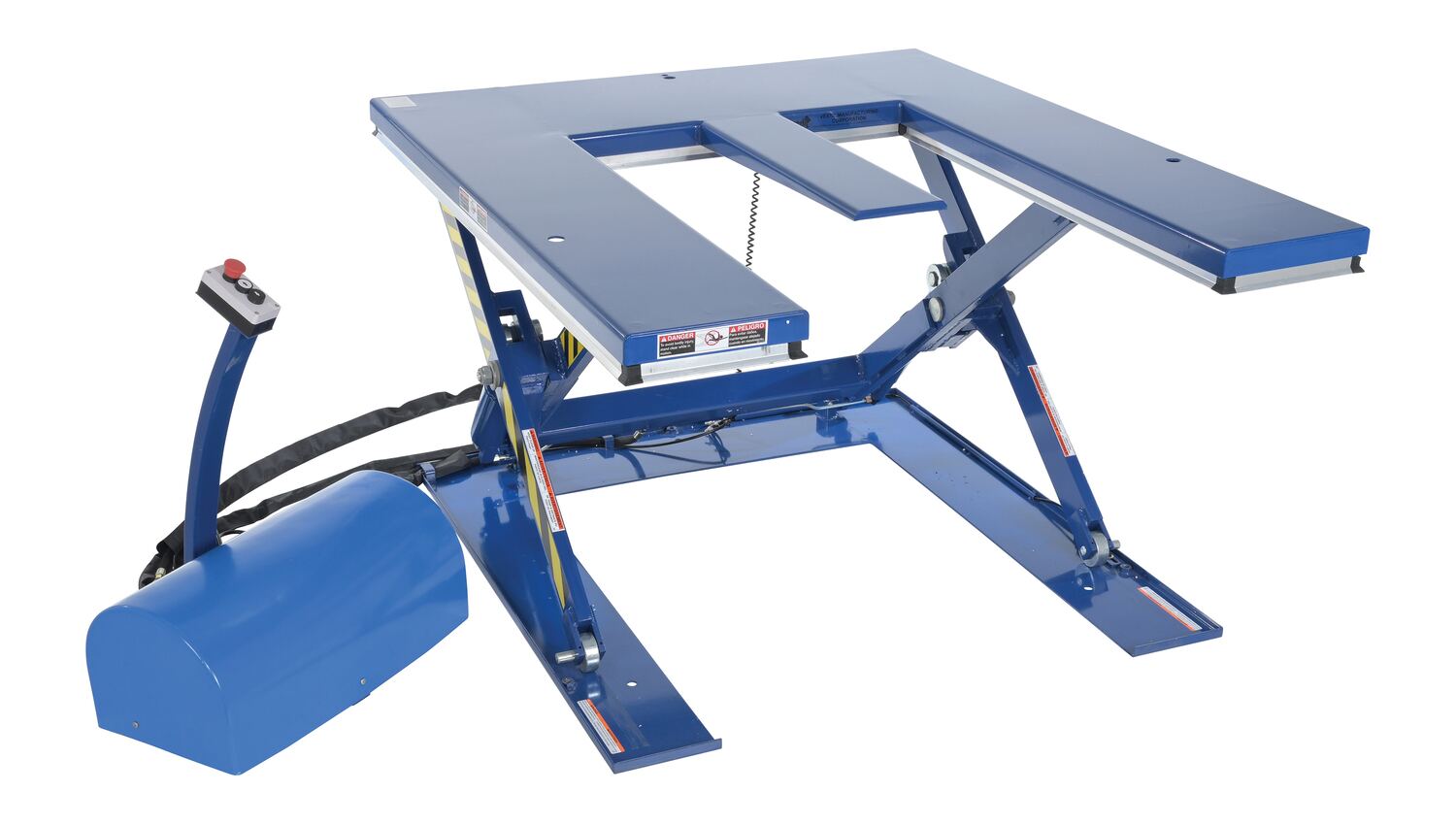

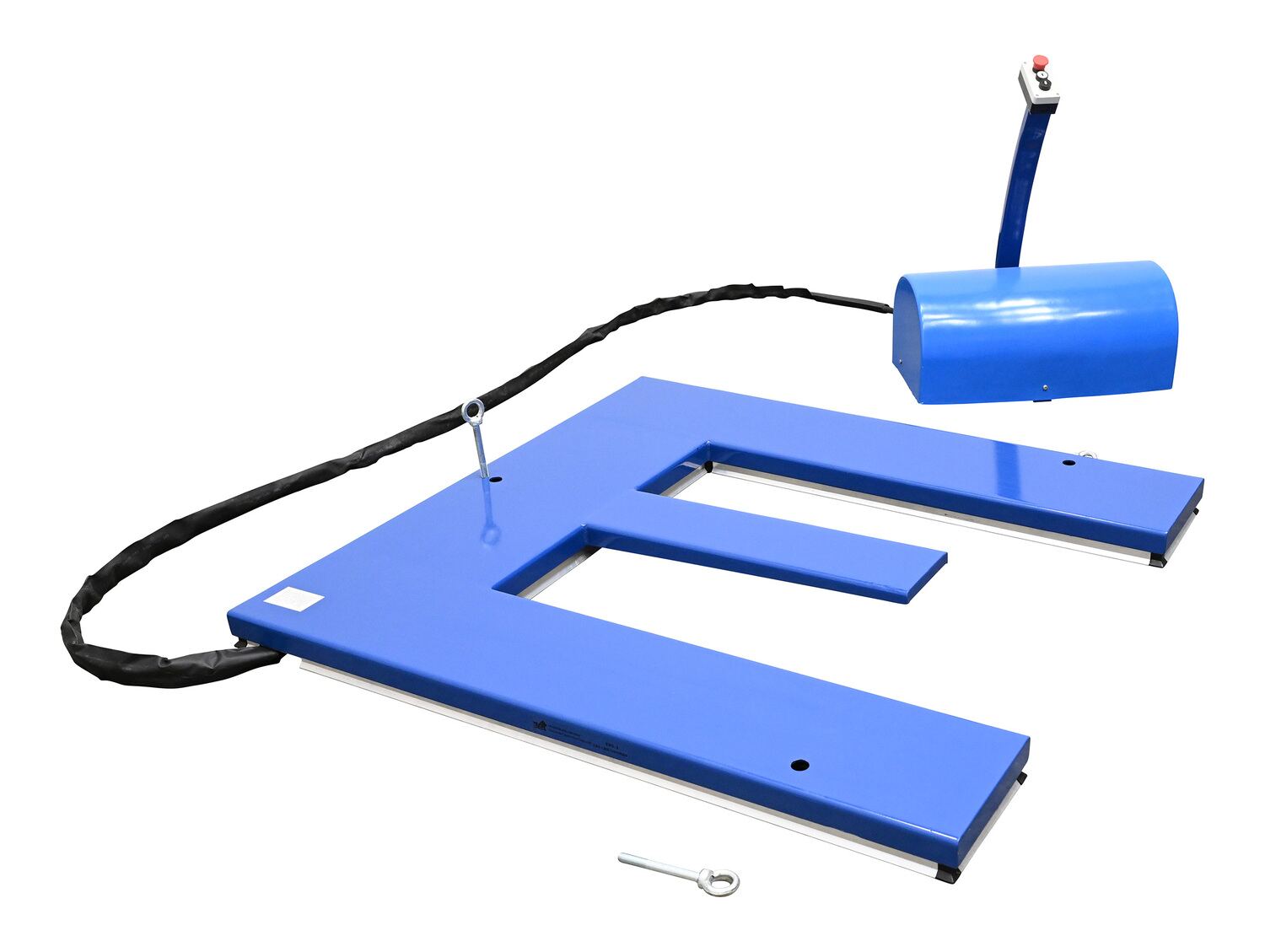

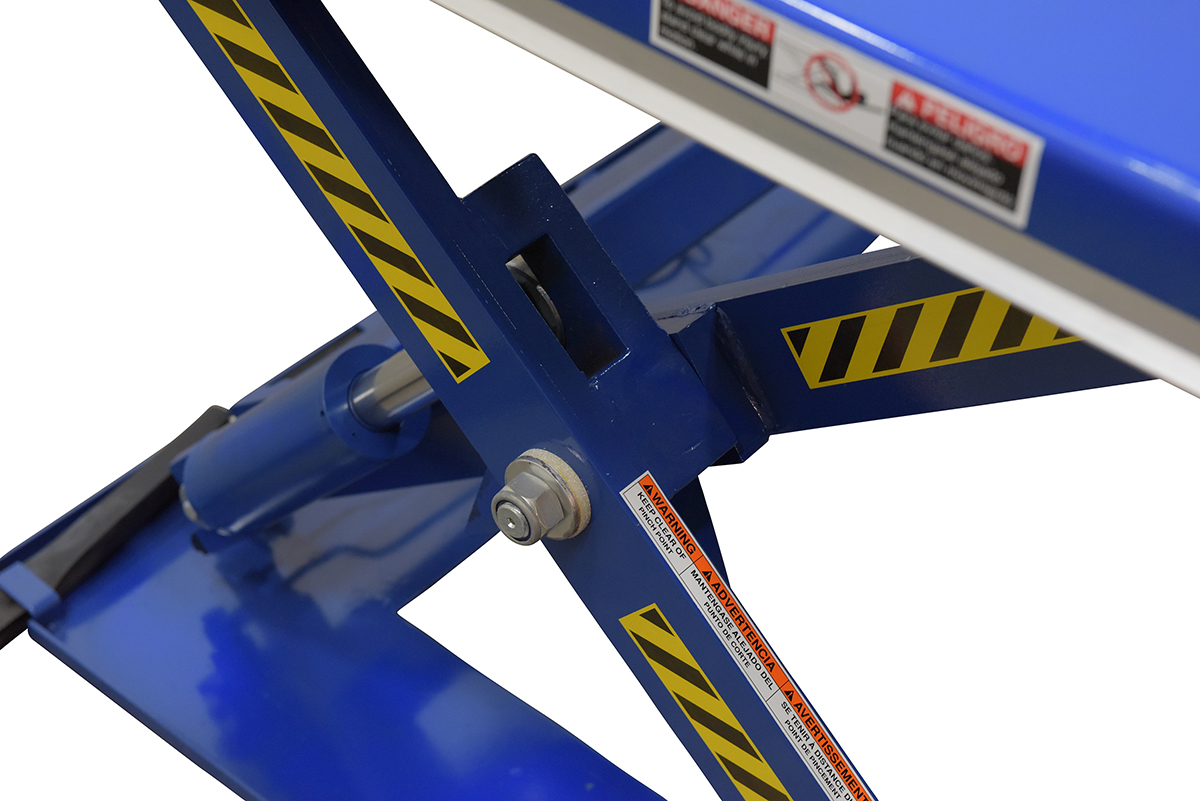

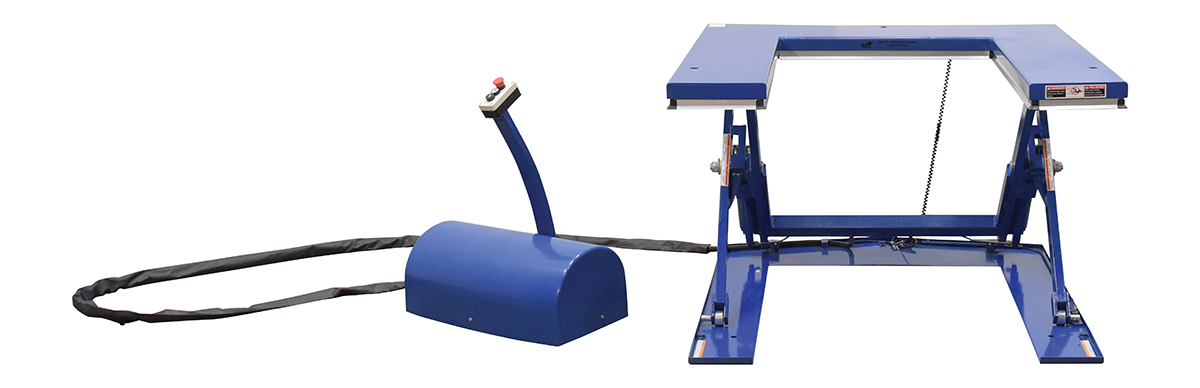

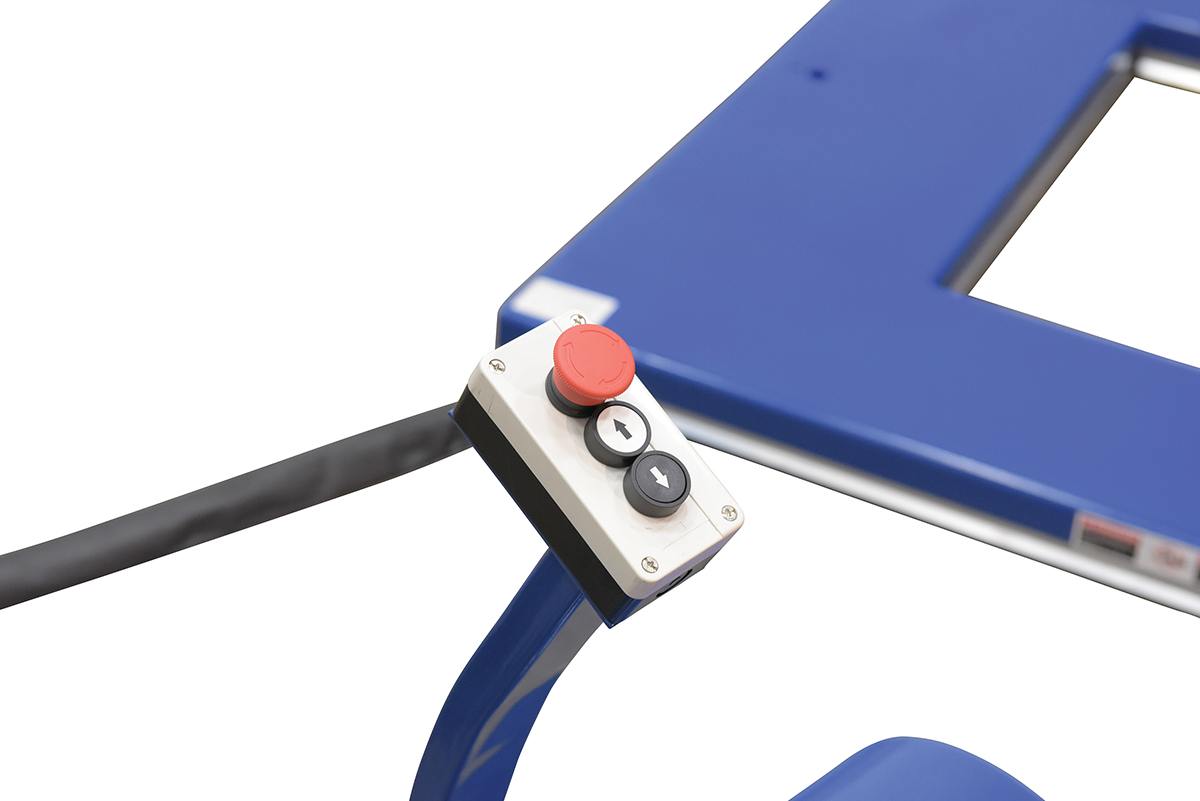

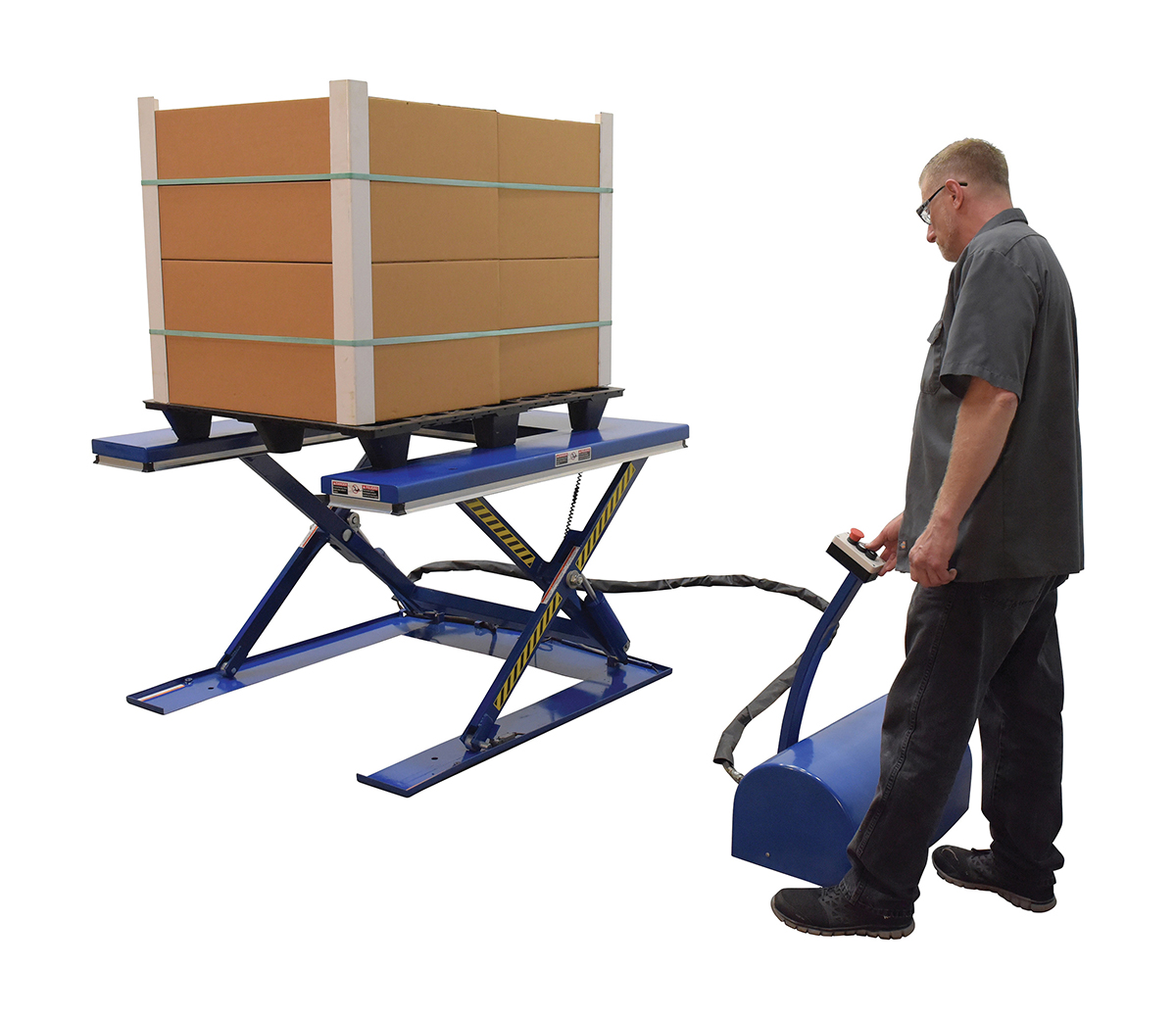

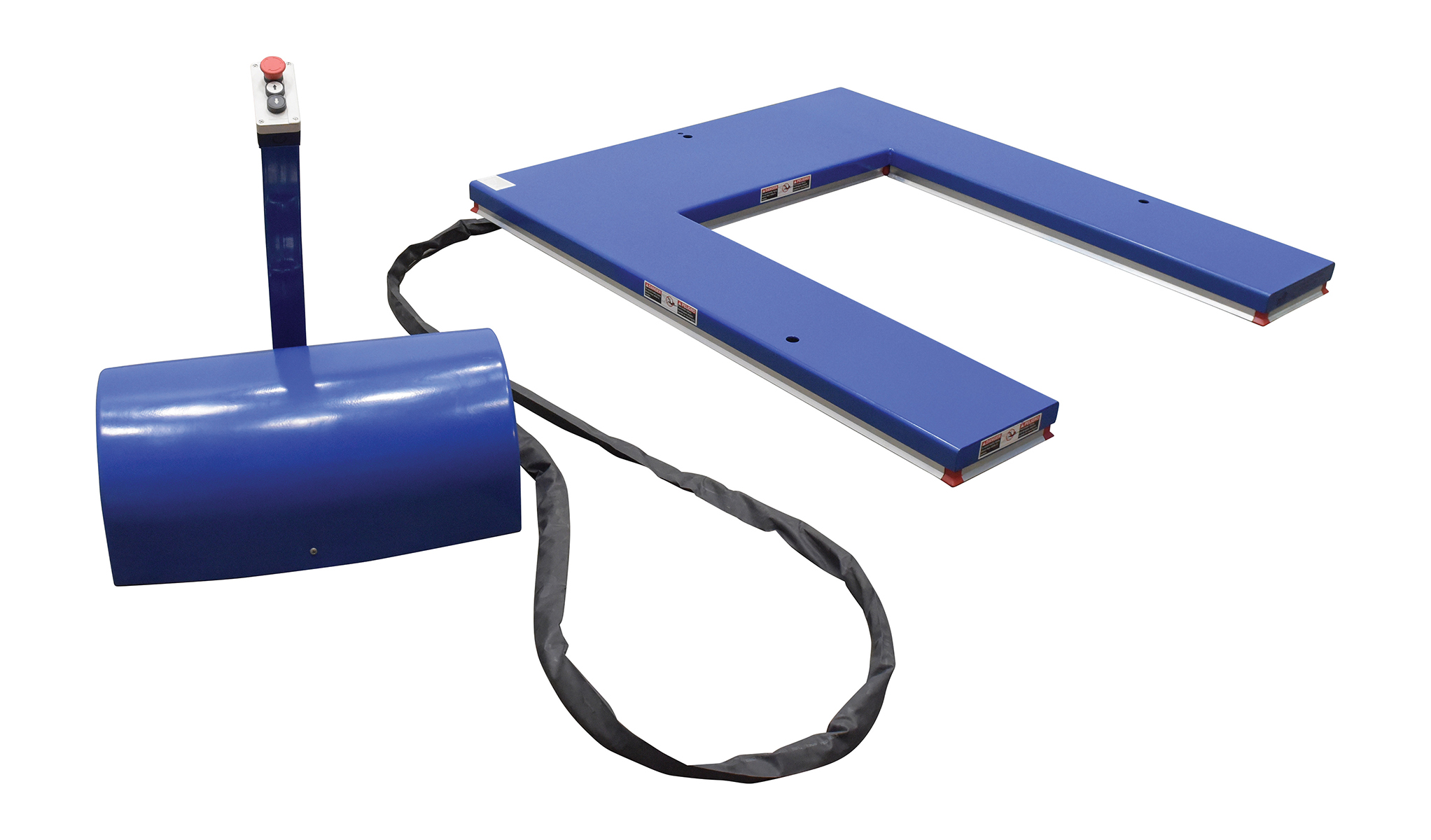

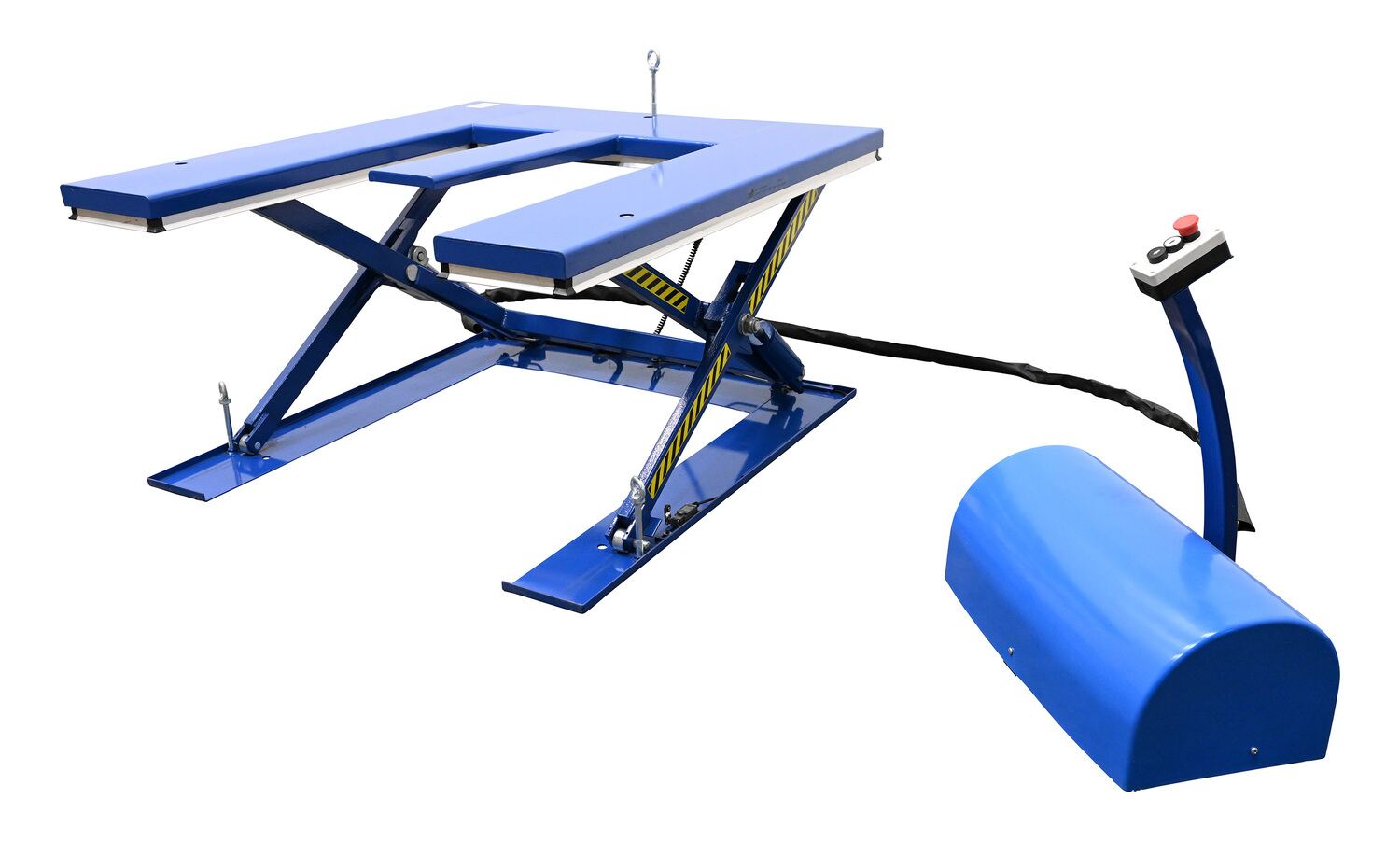

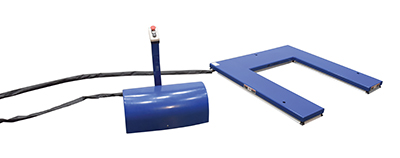

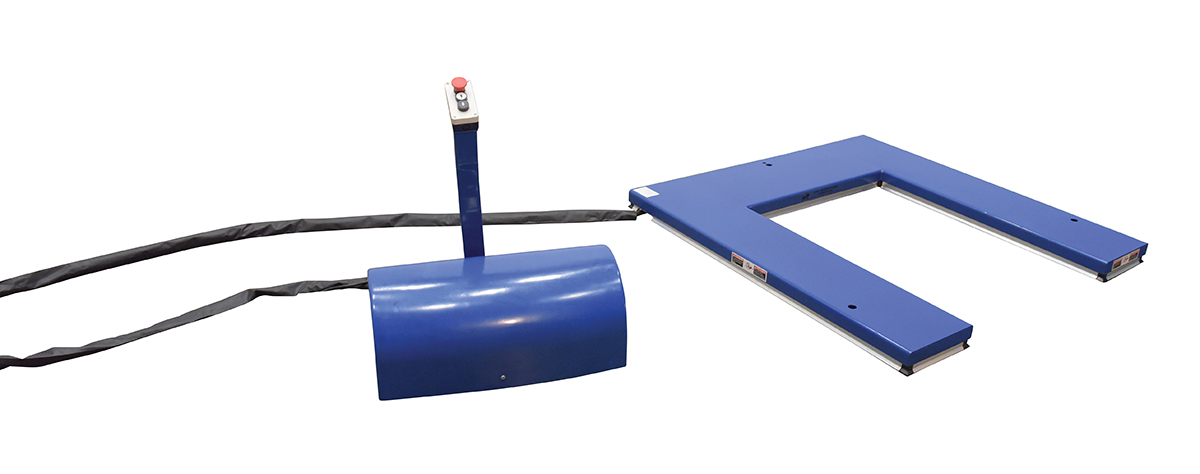

The open center on the "U" Type Electric Lift Tables, series EHU, enable a pallet truck to place a load on the platform. Series "EHE" center support beam helps to prevent the pallet from deflecting downward in the center. Units feature an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. Remote power pack comes complete with a cover to protect the motor from dust and debris. Raise and lower the unit using the UP and DOWN push buttons on the 24V control box. Safety features include electric toe guards, safety velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. Power supply is 115V single phase with pedestal mounted push buttons. When used in conjunction with a standard pallet jack, only open bottom pallets are to be used.
|
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
