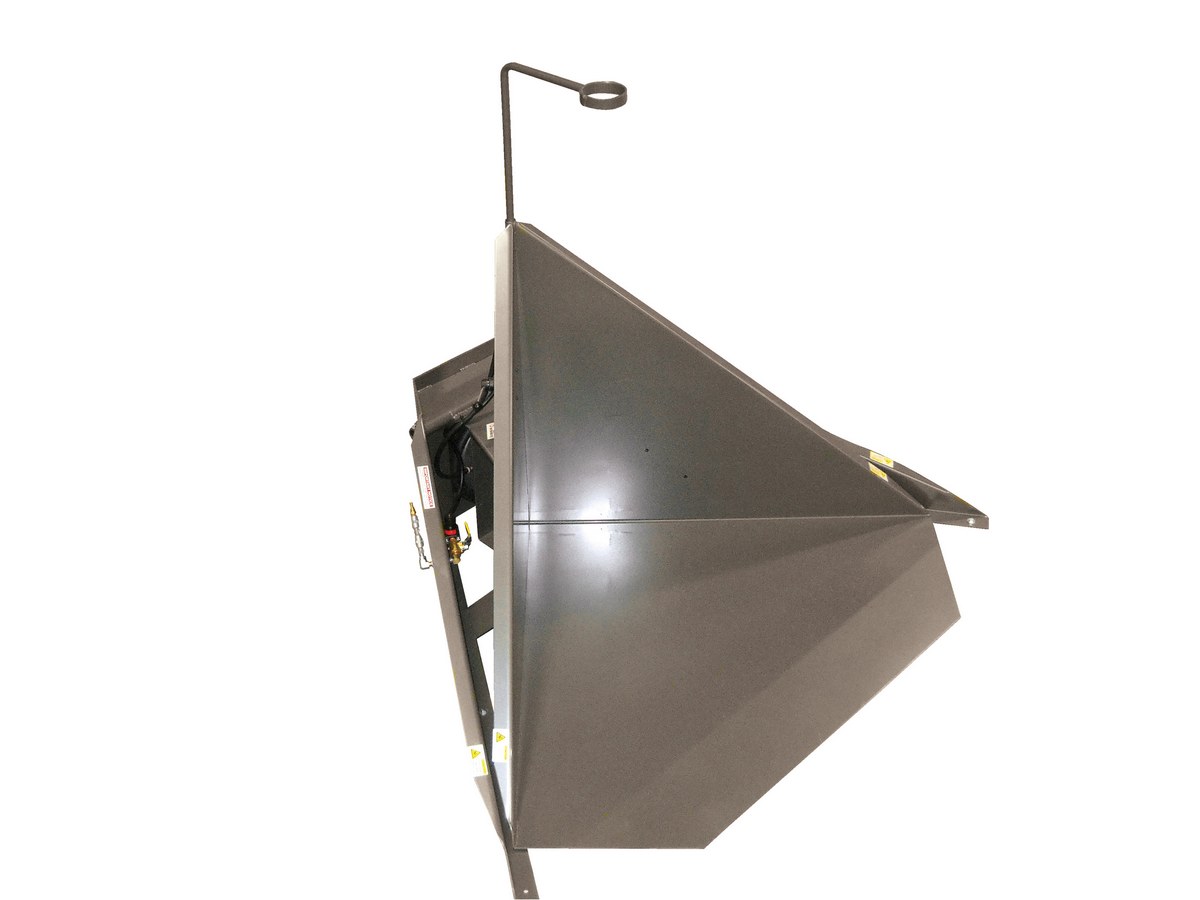

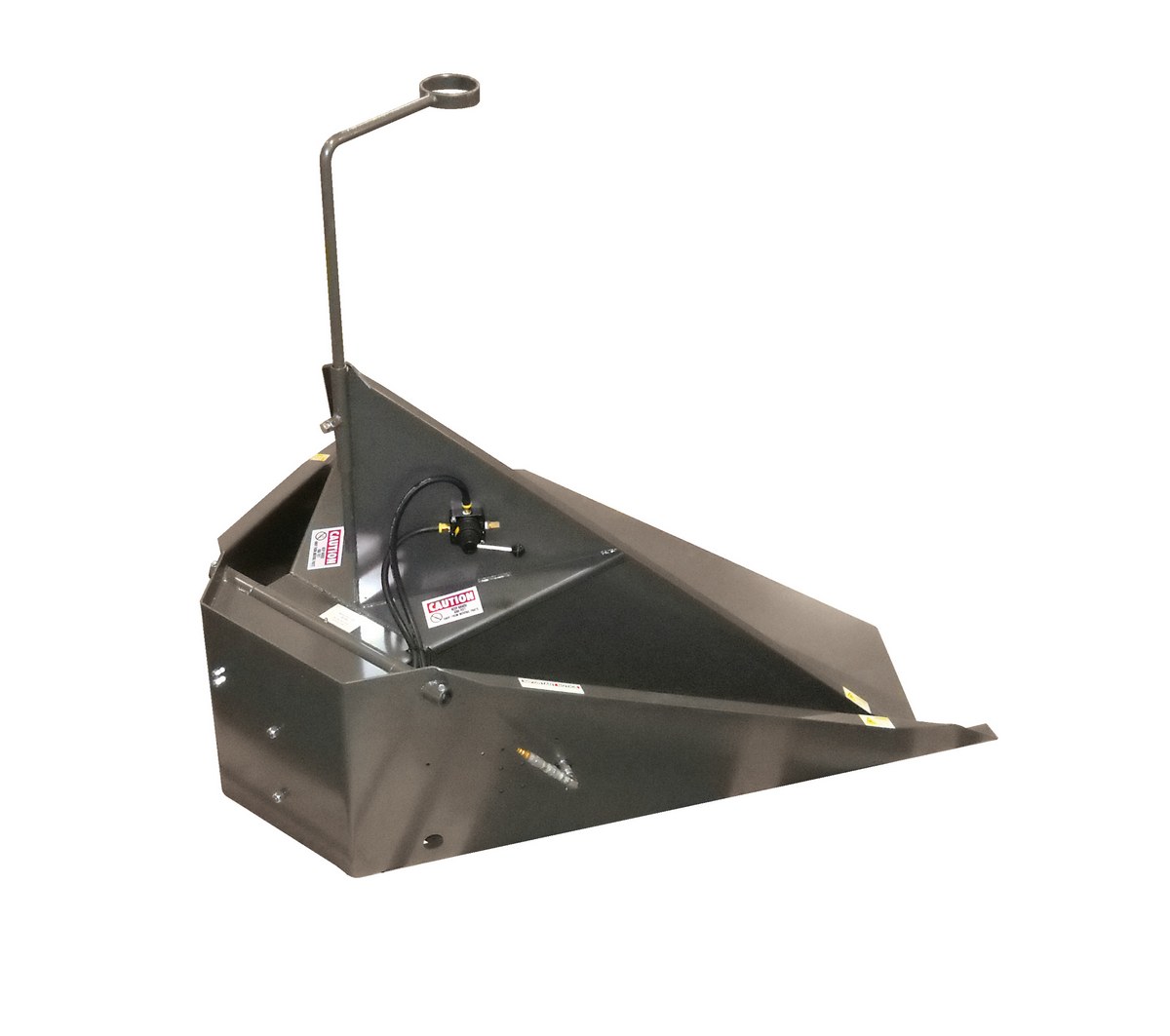

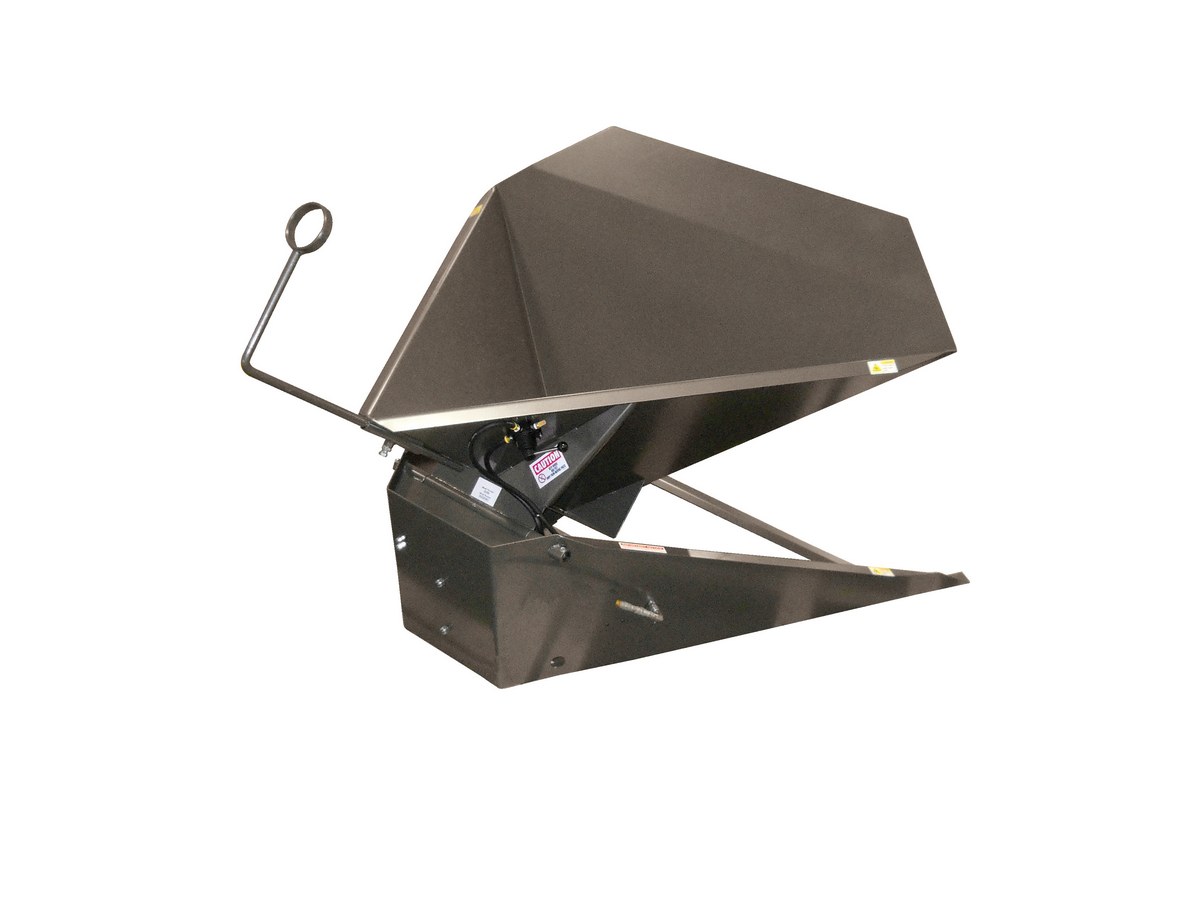

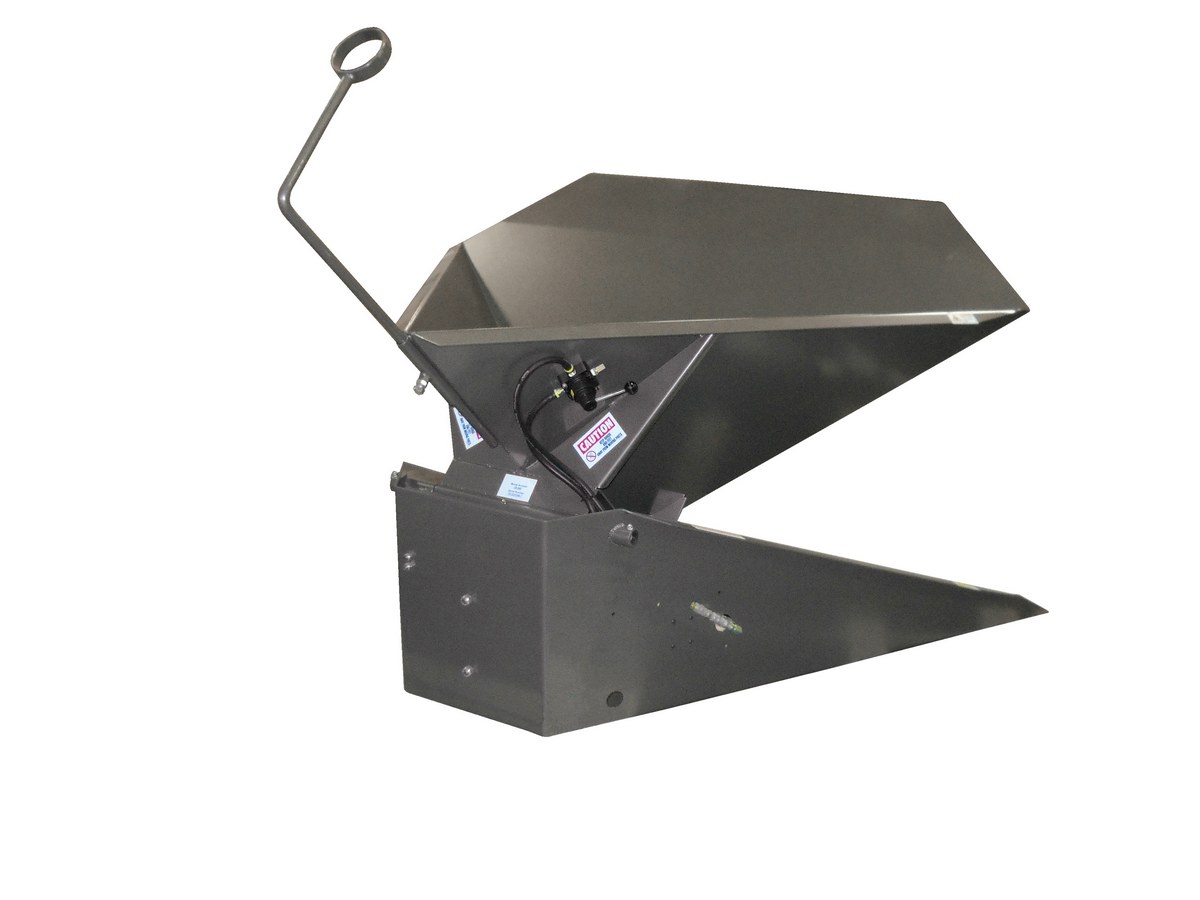

AIR-THL_A.jpg AIR-THL_D.jpg AIR-THL_B.jpg AIR-THL_C.jpg
Air Corner Tilters

model: AIR-THL



Featured Ergonomic Solutions


Programmable Height For Lift Tables
Stainless Steel Scissor Carts
Linear Actuated Mobile Tilting Work Table
Mechanical Scissor Cart (partially stainless steel)
Portable Hand Winch Lifter
Pallet Trucks (Pallet Jacks)
Cold Room Hand Pallet Truck
Electric Pallet Truck (Pramac)
Pallet Trucks
model chart

Product Family Overview

Print Friendly
Air Corner Tilters
SERIES: AIR

FACTORY AIR POWERED

The Air Corner Tilter provides ergonomic loading and unloading of bulk containers, gaylords or crates. Allows two-wall accessibility with both pallet jacks and fork trucks. Constructed of 7 gauge steel, this heavy duty unit has a maximum rated capacity of 1,500 lbs. and can tilt up to 45 degrees. The tilter is activated by a hand operated control lever or foot pedal. The air bag inflates tilting the container automatically as it is unloaded. As the container becomes lighter, it automatically tilts and the material shifts to the corner of the container where it can be easily removed by manual or mechanical means. The regulator is factory preset to begin rotating the container when the weight reaches approximately 900 lbs.

Features

  • 45 Degree Tilt
  • Base Size 71"W x 52"D
  • Multi-ply air bag
  • Three position manually operated air valve to activate air bag \
  • Adjustable air line filter/regulator assembly
  • Adjustable vacuum wand holder (3-1/2" ID) (not shown)

FACTORY AIR POWERED

The Air Corner Tilter provides ergonomic loading and unloading of bulk containers, gaylords or crates. Allows two-wall accessibility with both pallet jacks and fork trucks. Constructed of 7 gauge steel, this heavy duty unit has a maximum rated capacity of 1,500 lbs. and can tilt up to 45 degrees. The tilter is activated by a hand operated control lever or foot pedal. The air bag inflates tilting the container automatically as it is unloaded. As the container becomes lighter, it automatically tilts and the material shifts to the corner of the container where it can be easily removed by manual or mechanical means. The regulator is factory preset to begin rotating the container when the weight reaches approximately 900 lbs.

Features

  • 45 Degree Tilt
  • Base Size 71"W x 52"D
  • Multi-ply air bag
  • Three position manually operated air valve to activate air bag \
  • Adjustable air line filter/regulator assembly
  • Adjustable vacuum wand holder (3-1/2" ID) (not shown)

Other Tilters

 Economy Transporter / Tilter Tilt Master & Tilt Master Straddle DC Powered Tilt Master Bench Top Tilters

Additional Models In This Family
view entire Image Gallery

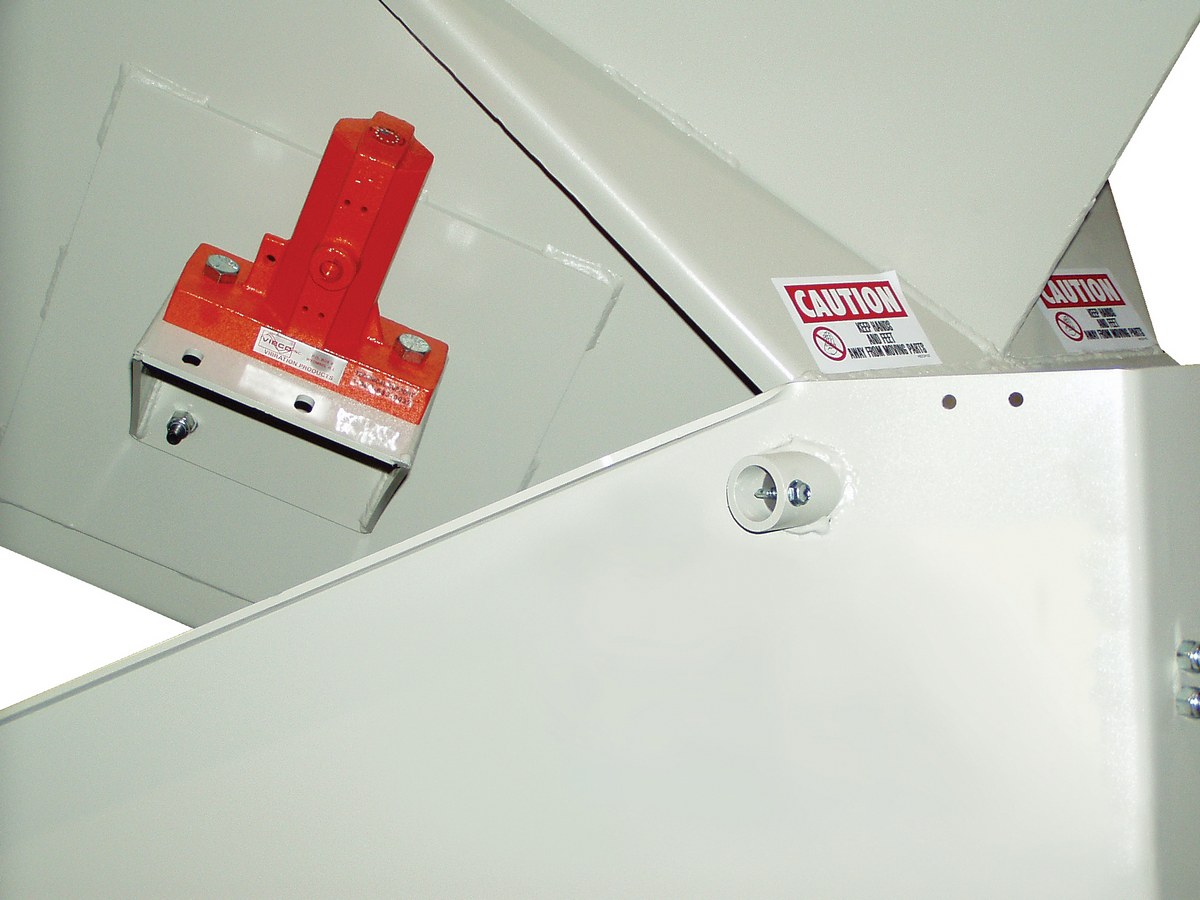

AIR-PVO

model AIR-PVO

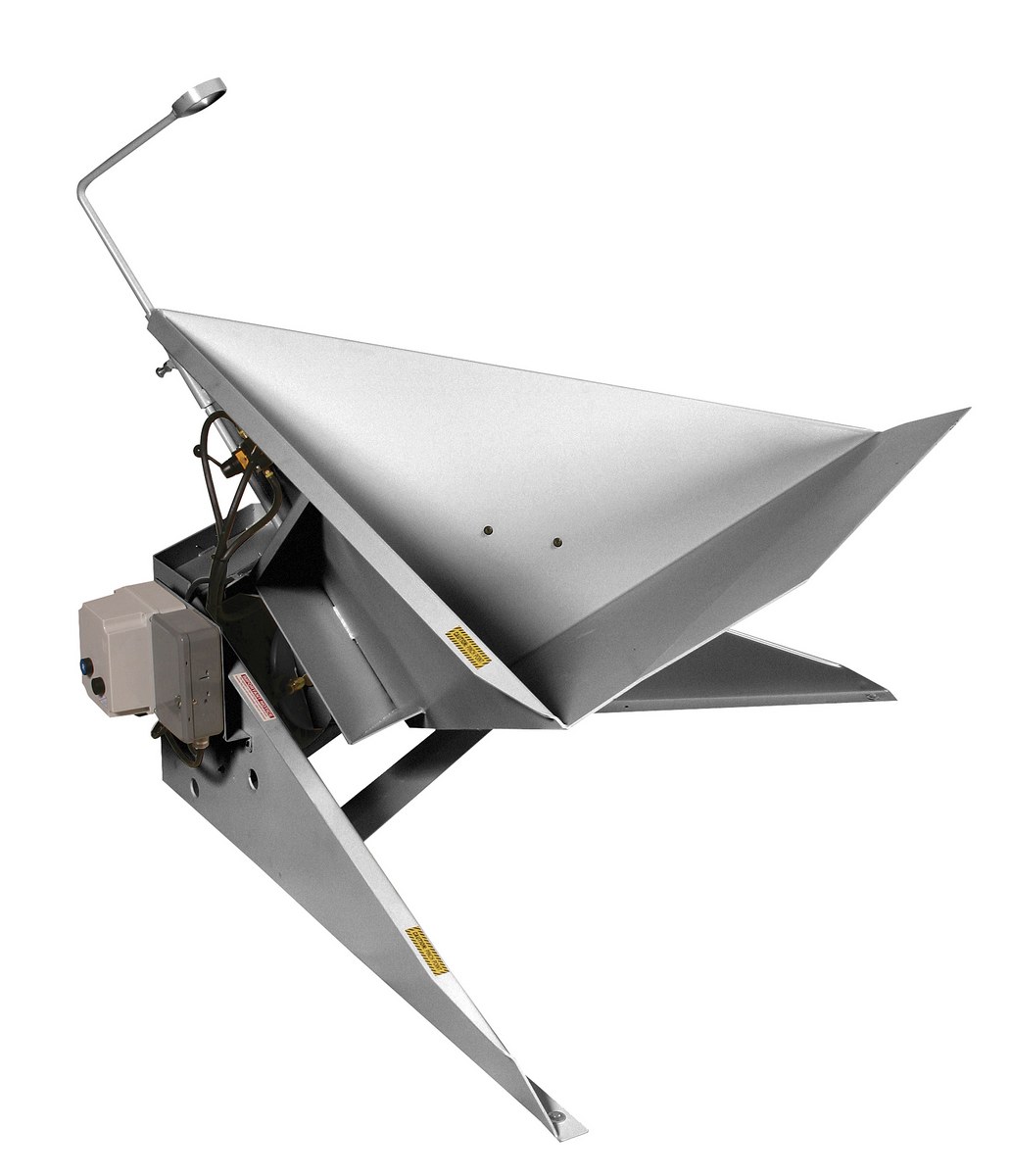

AIR-THL-SS

model AIR-THL-SS

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
AIR-TFP 90 Days Limited WarrantySteel Foot Treadle Operated Air Corner Tilter 45 In. x 70-1/2 In. x 52-9/32 In. 1500 Lb. Capacity GrayUniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45		550
AIR-THL AIR-THL90 Days Limited WarrantySteel Hand Lever Operated Air Corner Tilter 50-7/8 In. x 78-1/2 In. x 35-1/4 In. 1500 Lb. Capacity GrayUniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45		500
AIR-THL-SS AIR-THL-SS90 Days Limited WarrantyStainless Steel Hand Lever Operated Air Corner Tilter 50-7/8 In. x 78-1/2 In. x 35-1/4 In. 1500 Lb. Capacity SilverUniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45		550

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45
Uniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45

AIR-THL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45
Uniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45

AIR-THL-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45
Uniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45
For More Details of the Option Click the Red Model Button
AIR-PVO AIR-PVO90 Days Limited WarrantyFactory Installed Steel Power Vibration Option With Manual Valve Handle For Corner Tilt Tables-
35

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Air Corner Tilters PDF's will open in a new window when clicked.

Manuals


AIR-THL
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


AIR-TFP

AIR-THL

Testing Certificates


AIR-THL-SS

SDS Sheets

Hydraulic Oil SDS Sheet for: AIR-TFP

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: How does the optional 29-189 work?

A: The 29-189 Air Vibrator comes with a Simple Manual On/Off Valve. Operator should not turn the Vibrator on and walk away with the Vibrator unattended. The vibrator is only intended to be on for a short duration, just long enough to knock down the material angle of repose near the vacuum lance. Operator should turn on vibrator, watch material fill in around vacuum lance, and then turn off vibrator. Air Vibrator is not available with Automatic On/Off. Must use hand controls.
