Product Family Overview


Manual & DC Work Positioners
SERIES: MWP

These lightweight lifts are designed to take the strain out of any lifting job. Ideal for use in narrow aisles and confined spaces. Platform height is adjustable with a manual hand winch. An auto brake system allows for controlled lowering. Two (2) 3" swivel load casters and two (2) 5" total locking swivel steering polyurethane casters standard. Quick change attachments available. Model MWP-330-DC-SS is constructed of 304 stainless steel. Includes two (2) 12V AGM batteries with an integral battery charger.

  • Large platform for handling an array of items
  • Compact design for tight areas
  • Battery powered for simple lifting
  • Smooth surface to limit product abrasion

These lightweight lifts are designed to take the strain out of any lifting job. Ideal for use in narrow aisles and confined spaces. Platform height is adjustable with a manual hand winch. An auto brake system allows for controlled lowering. Two (2) 3" swivel load casters and two (2) 5" total locking swivel steering polyurethane casters standard. Quick change attachments available. Model MWP-330-DC-SS is constructed of 304 stainless steel. Includes two (2) 12V AGM batteries with an integral battery charger.

  • Large platform for handling an array of items
  • Compact design for tight areas
  • Battery powered for simple lifting
  • Smooth surface to limit product abrasion

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

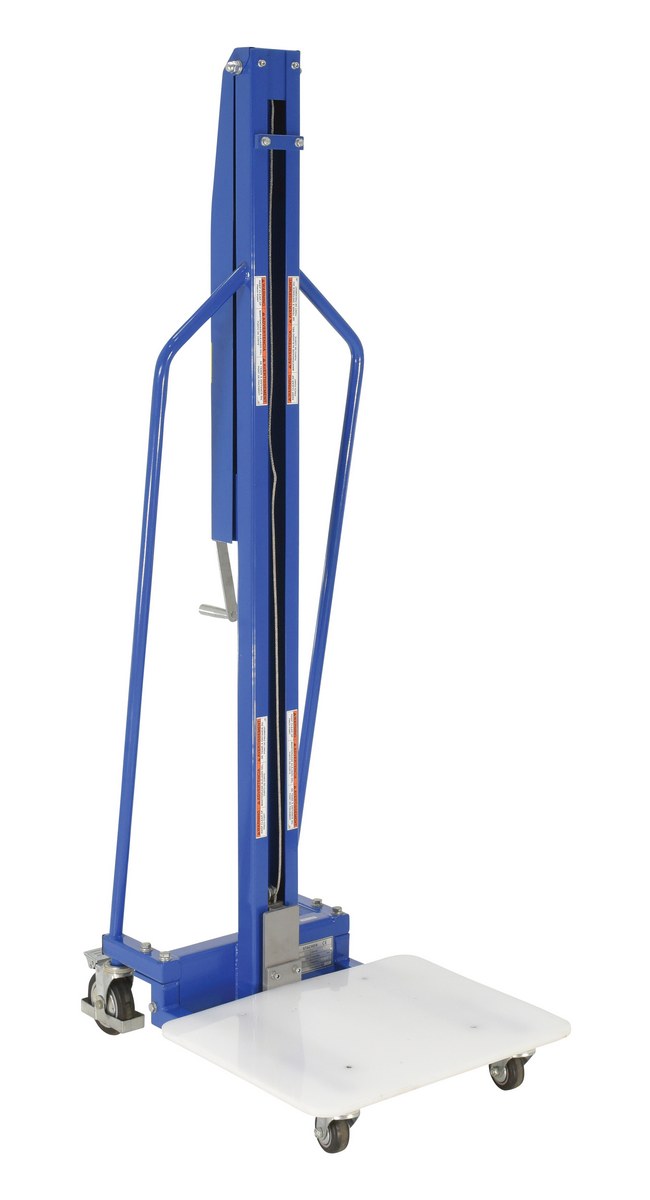

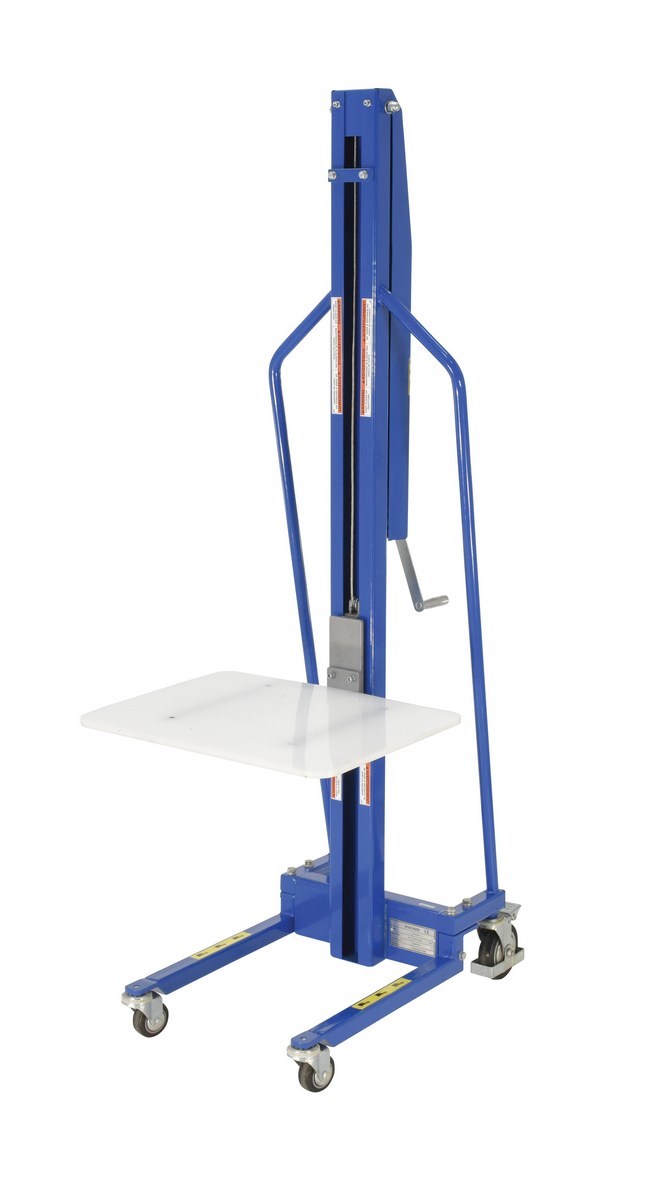

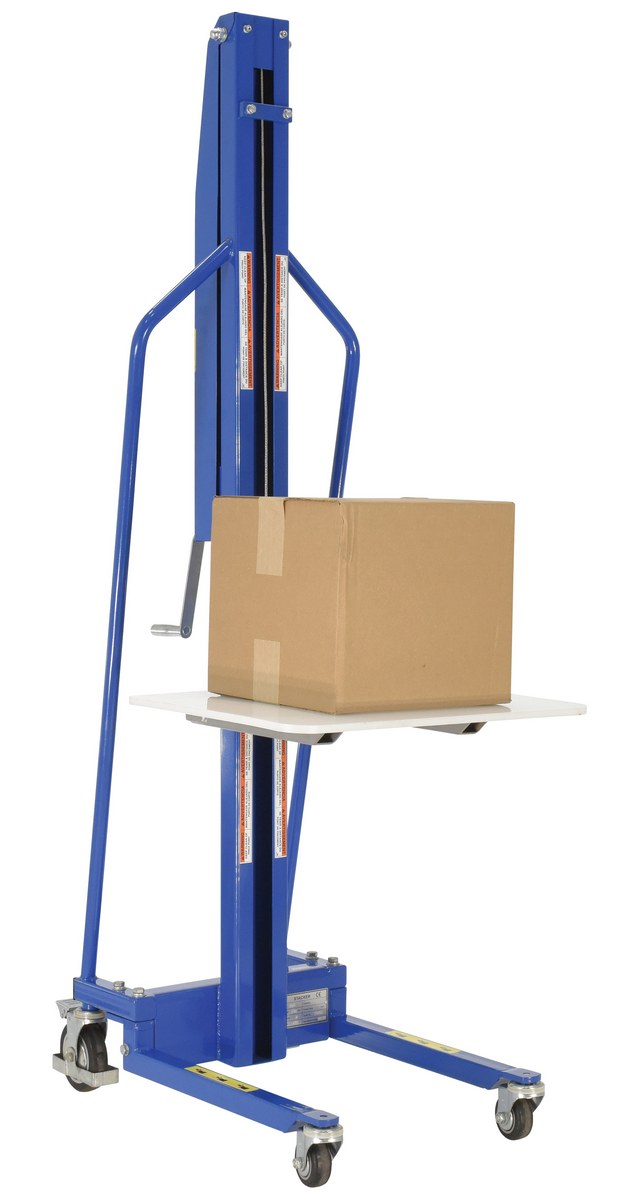

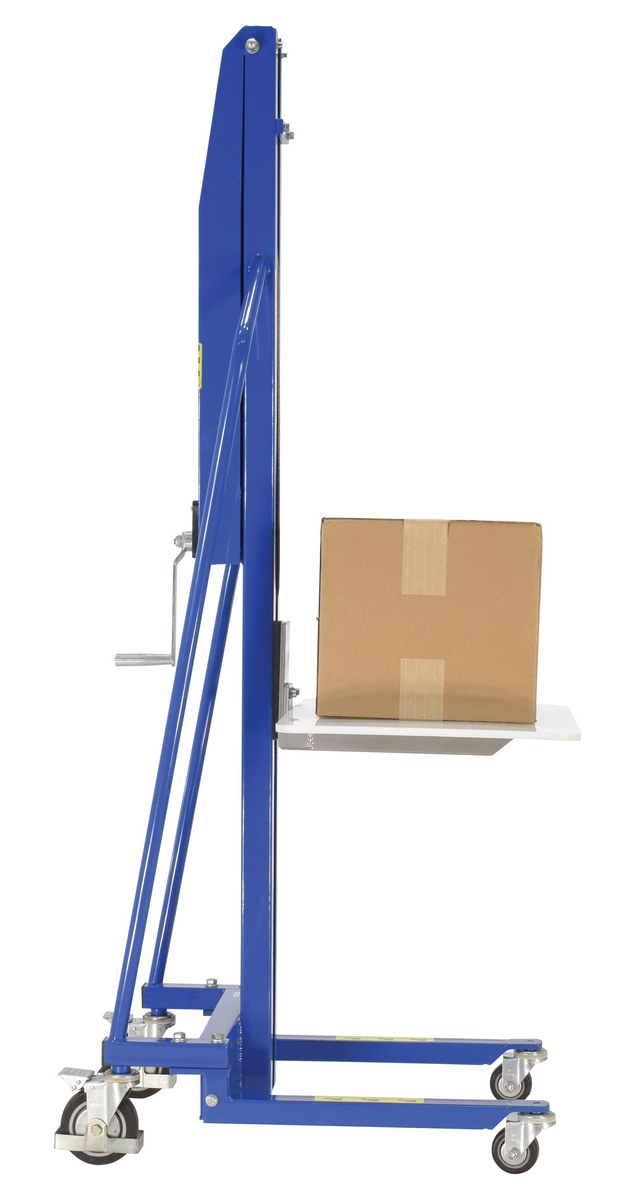

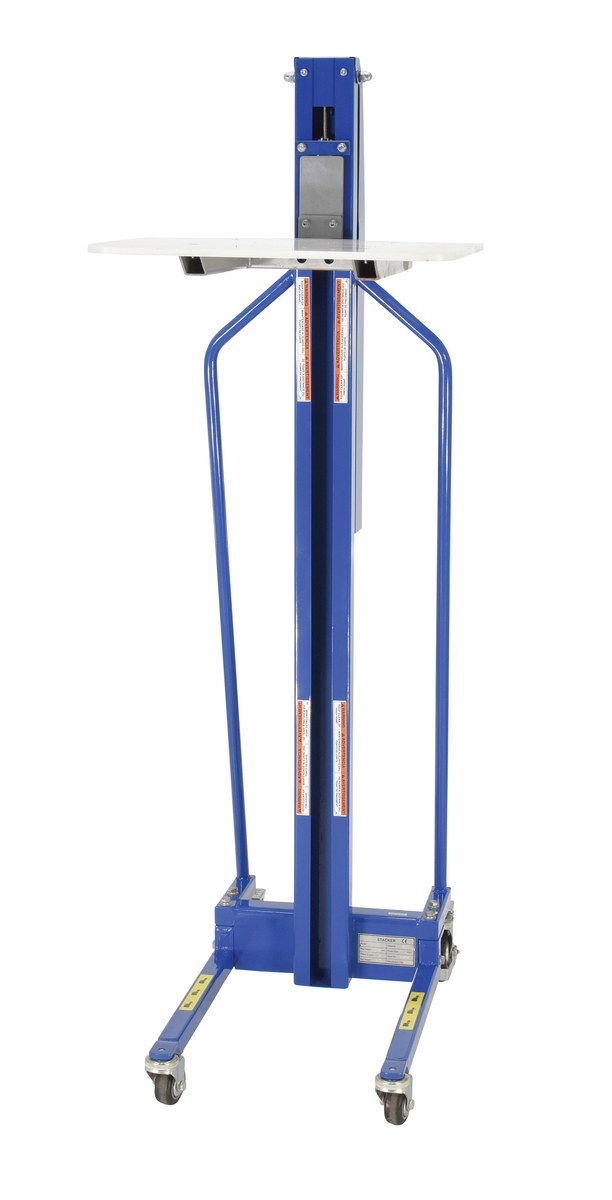

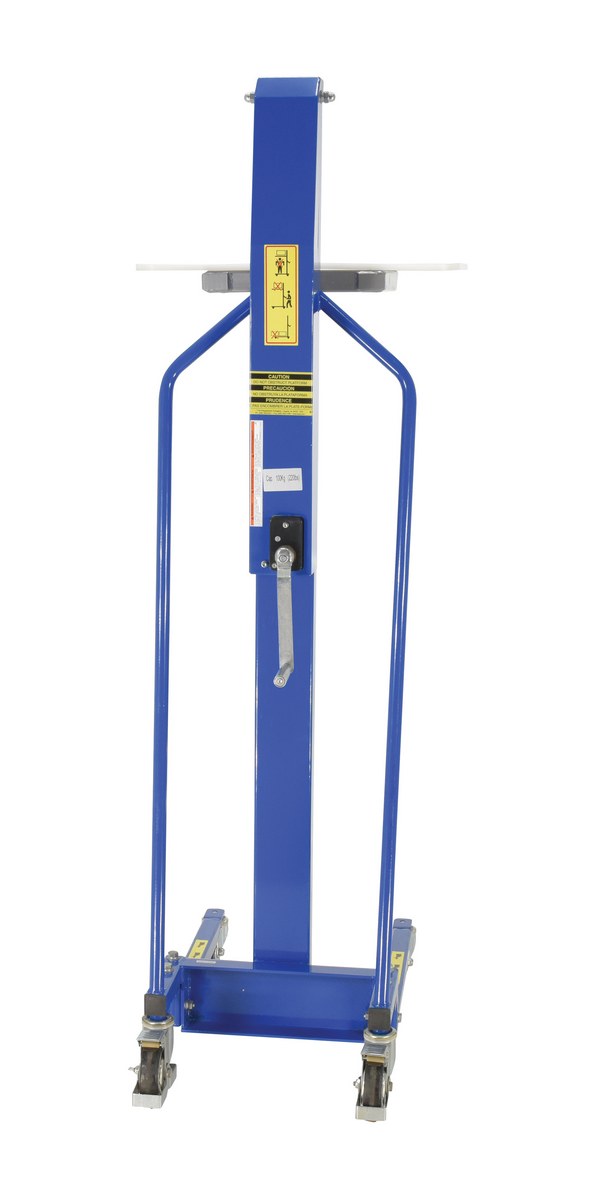

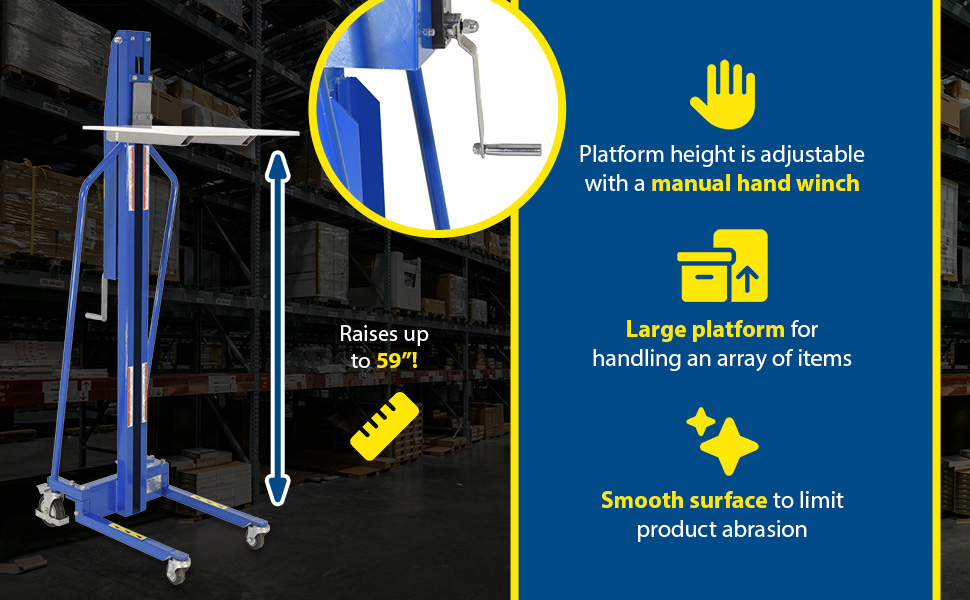

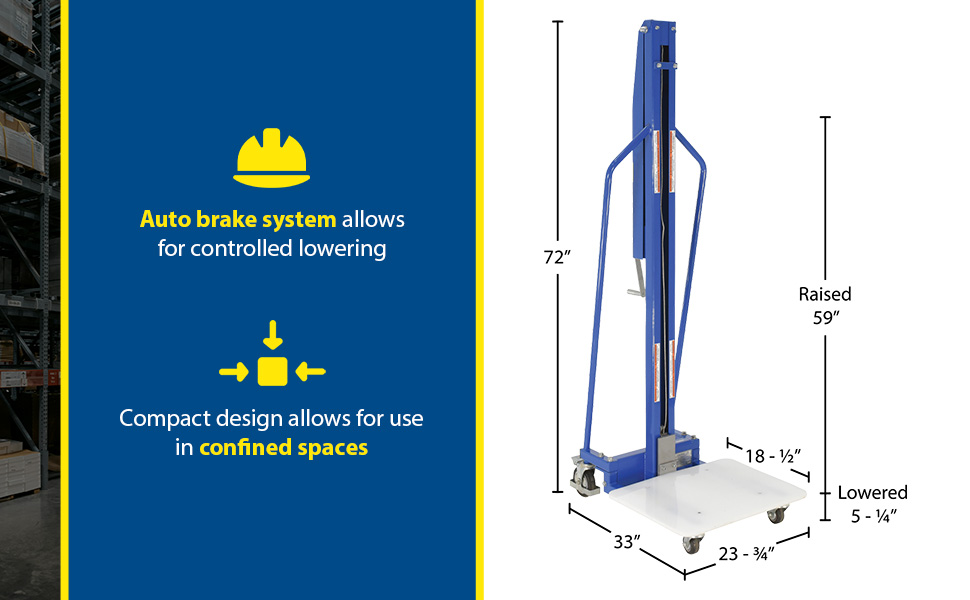

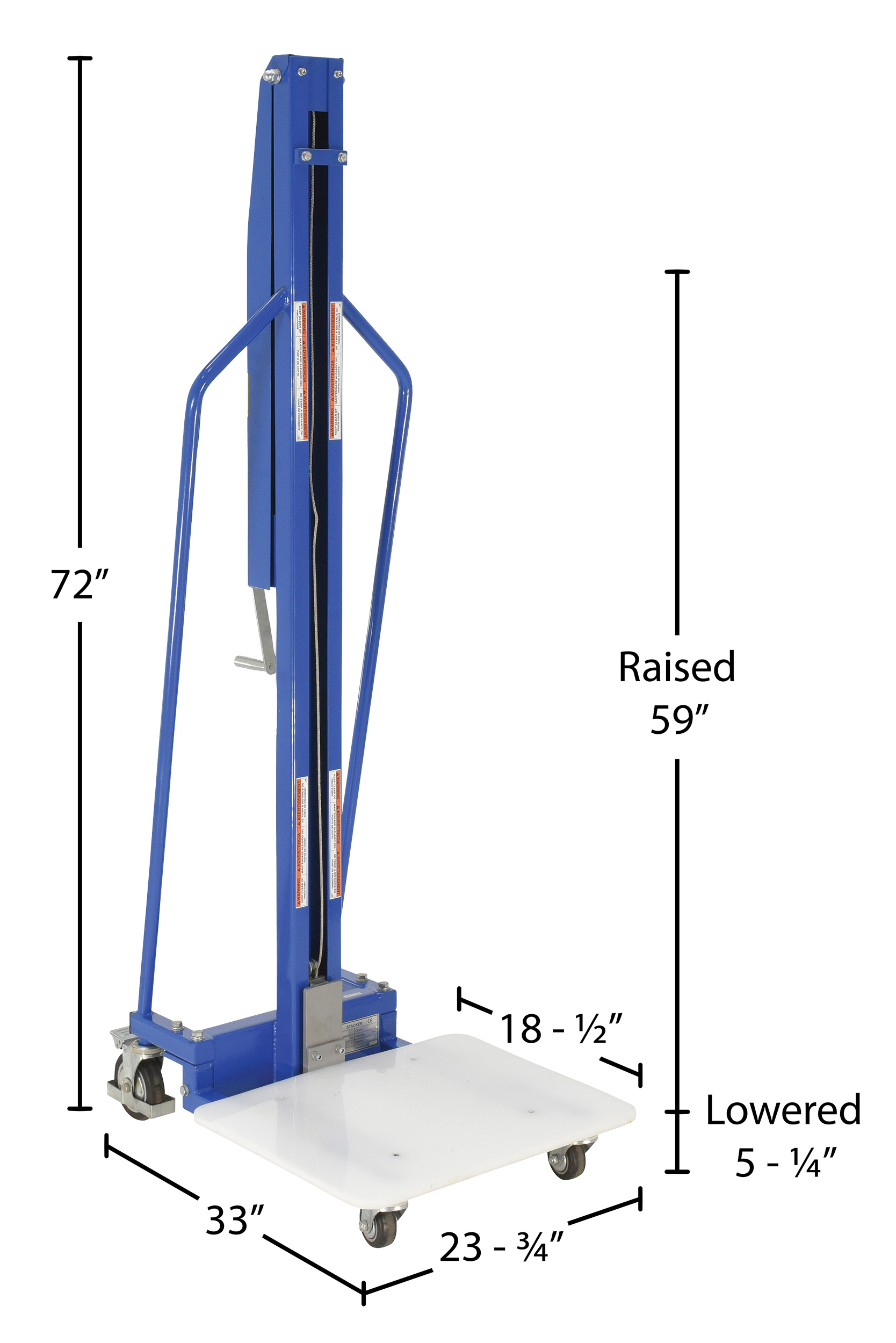

MWP-220-M MWP-220-M90 Days Limited WarrantySteel Manual Work Position 33 In. x 23-3/4 In. x 72 In. 220 Lb. Capacity BlueUniform Capacity (lb.): 220
Platform Width (in.): 23-3/4
129

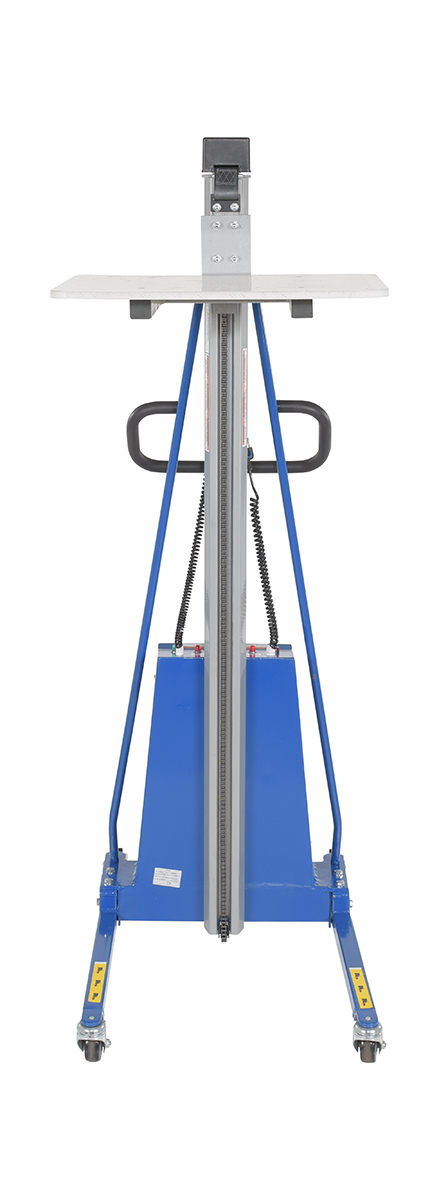

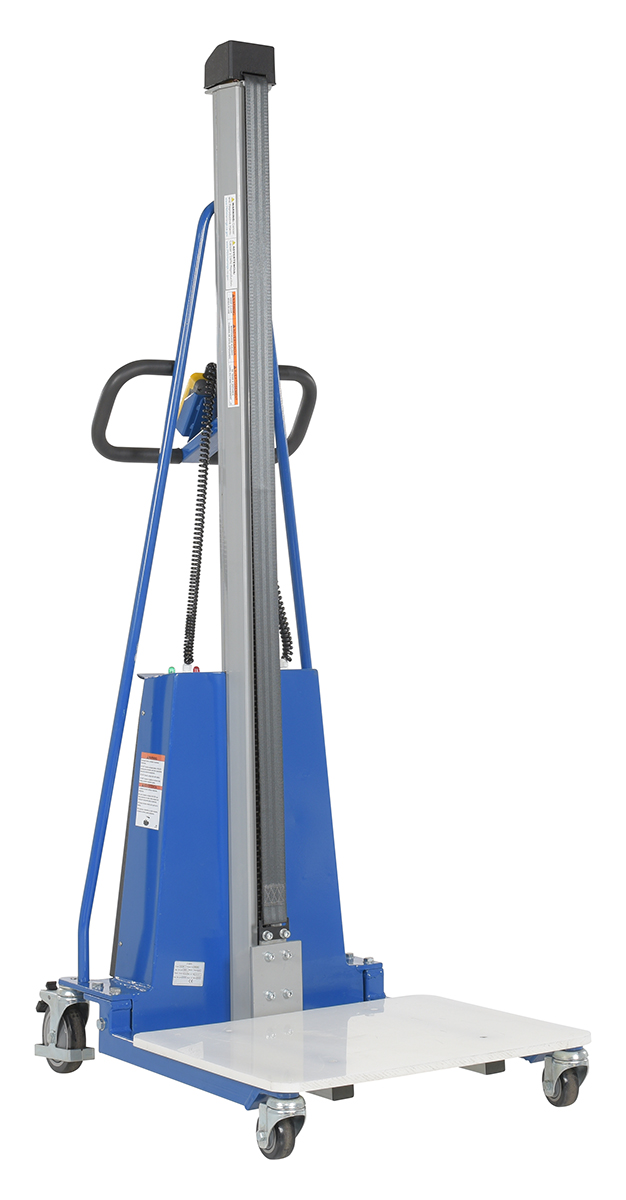

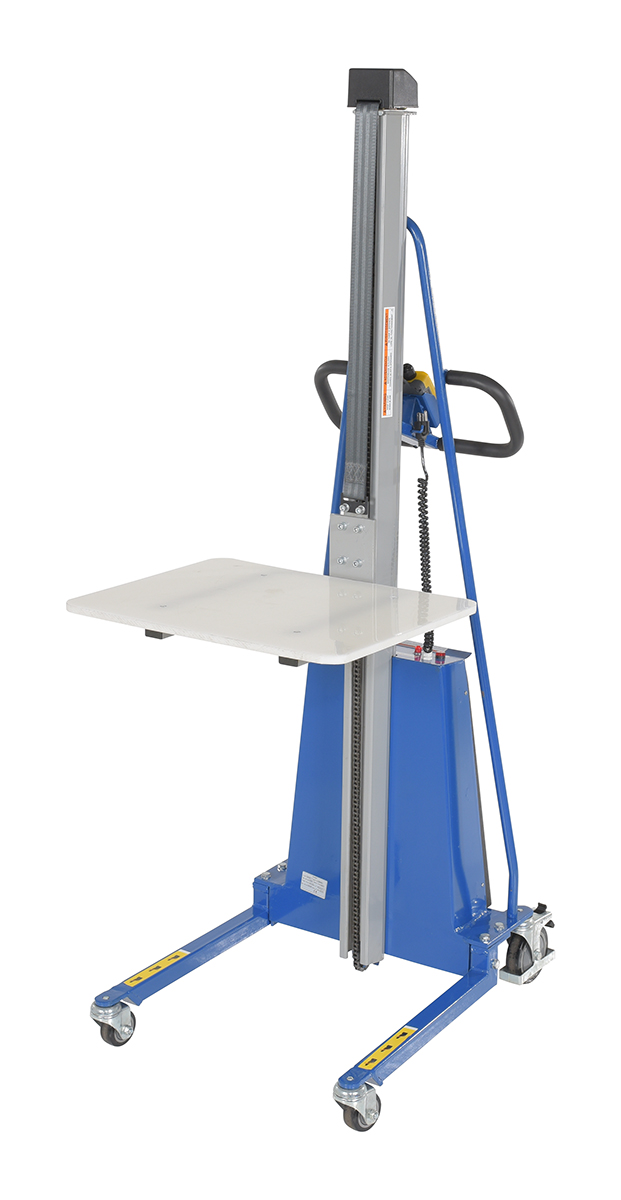

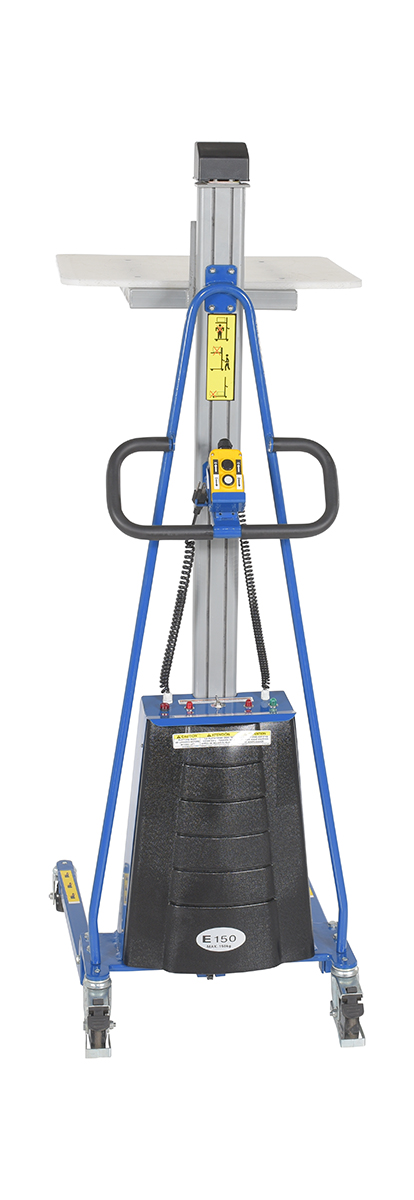

MWP-330-DC MWP-330-DC90 Days Limited WarrantySteel DC Powered Work Position 34-1/4 In. x 23-5/8 In. x 70-1/2 In. 330 Lb. Capacity BlueUniform Capacity (lb.): 330
Platform Width (in.): 23-5/8
186

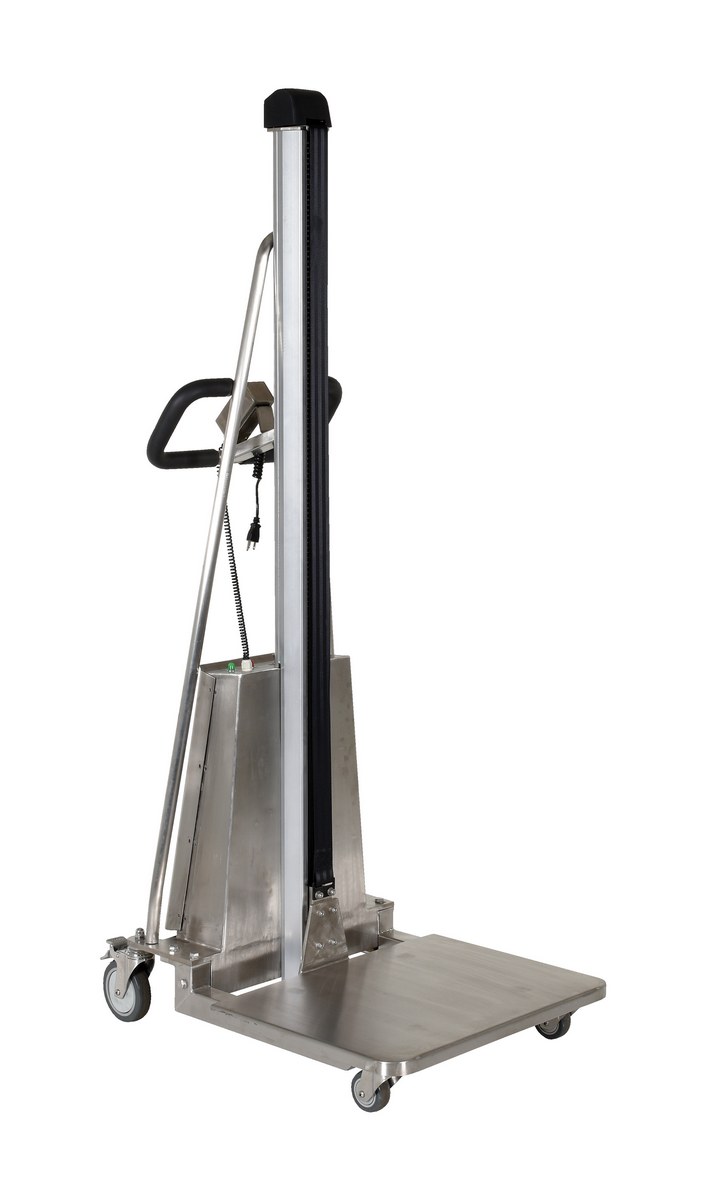

MWP-330-DC-SS

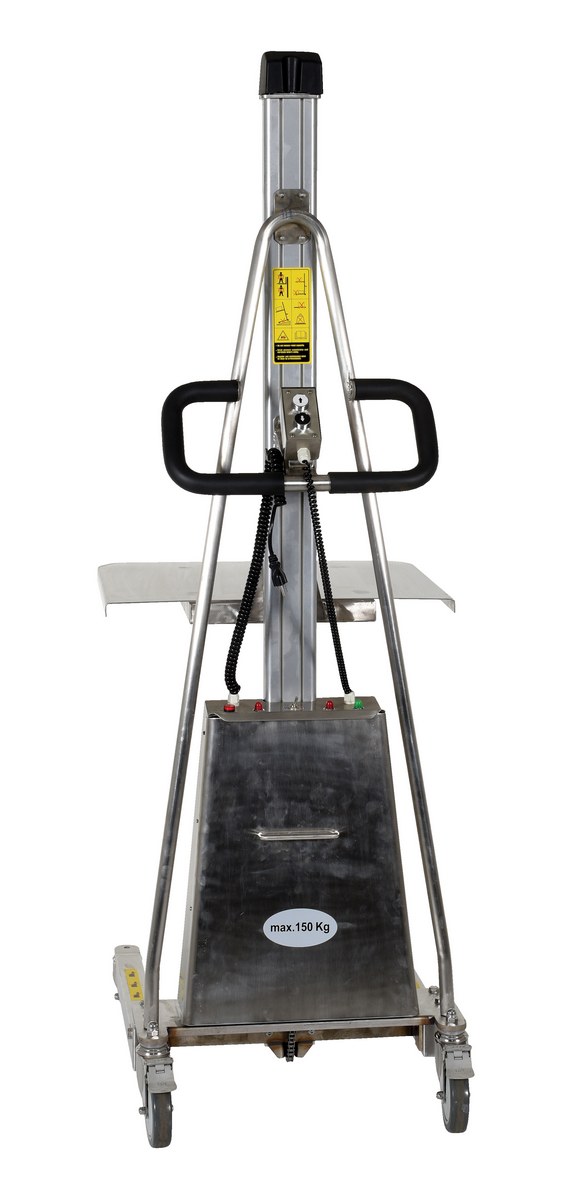

MWP-330-DC-SS90 Days Limited WarrantyStainless Steel DC Powered Work Position 34 In. x 24-1/2 In. x 71 In. 330 Lb. Capacity SilverUniform Capacity (lb.): 330
Platform Width (in.): 24-1/2
180

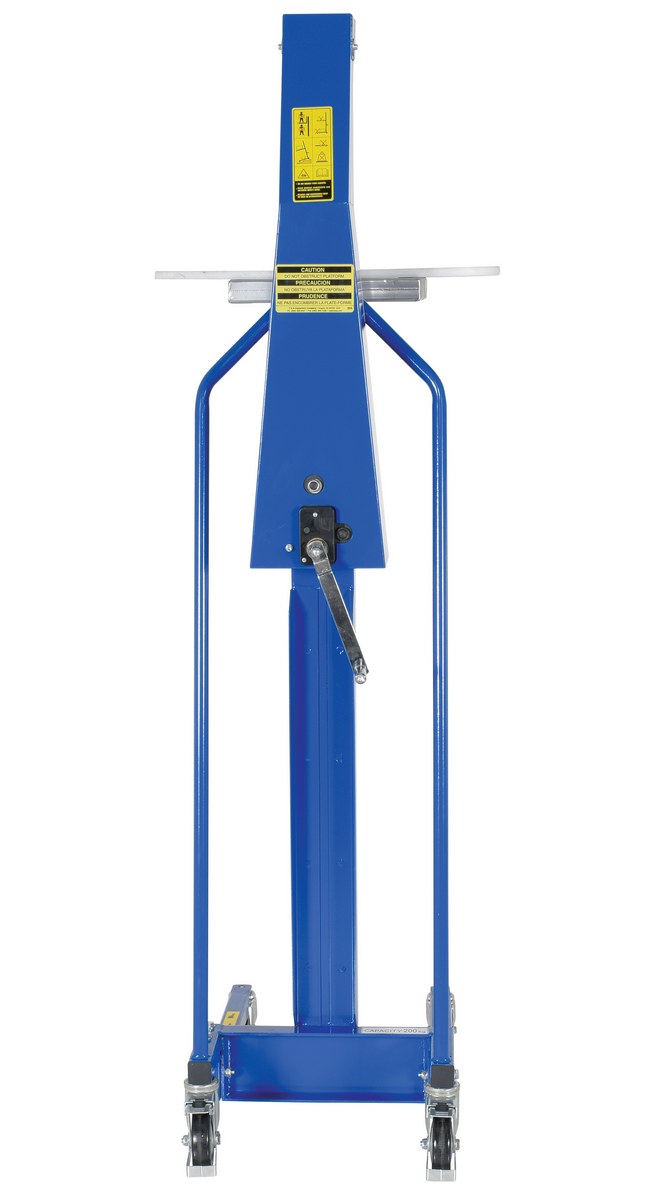

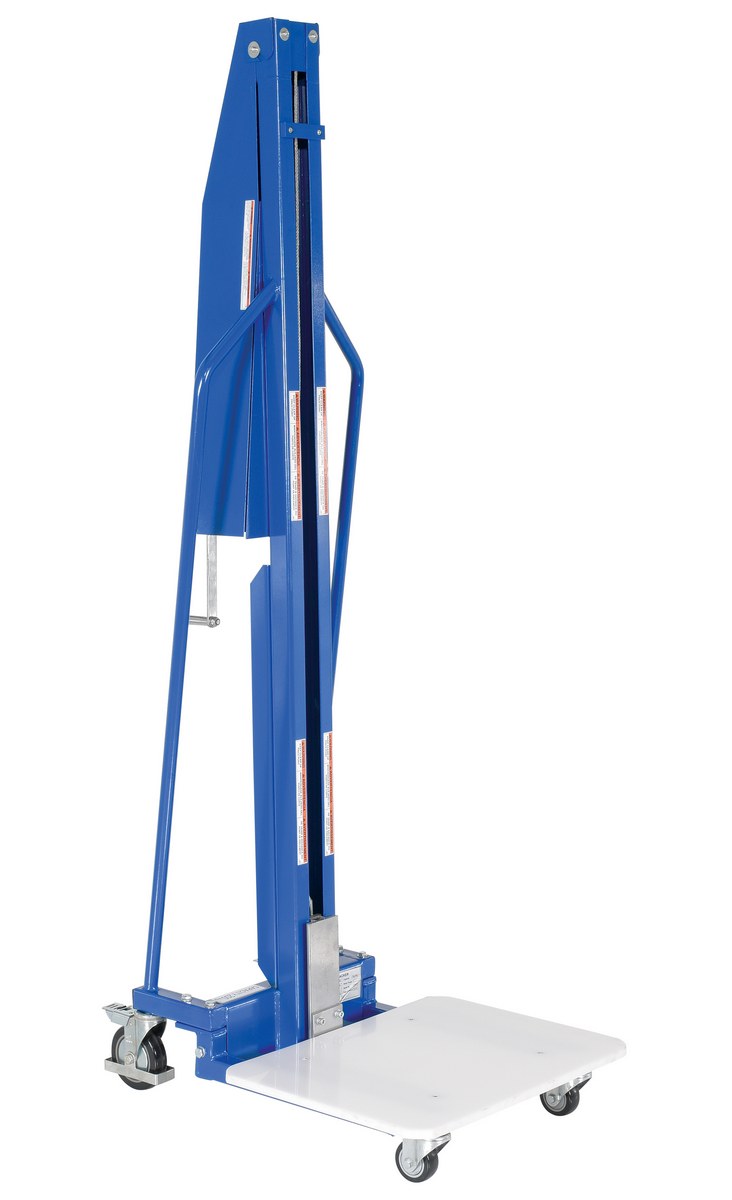

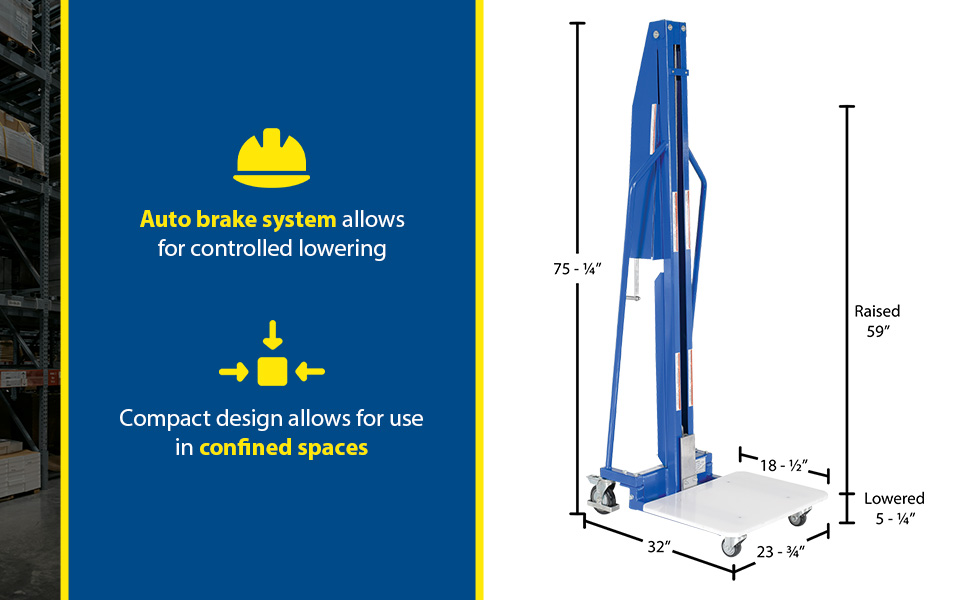

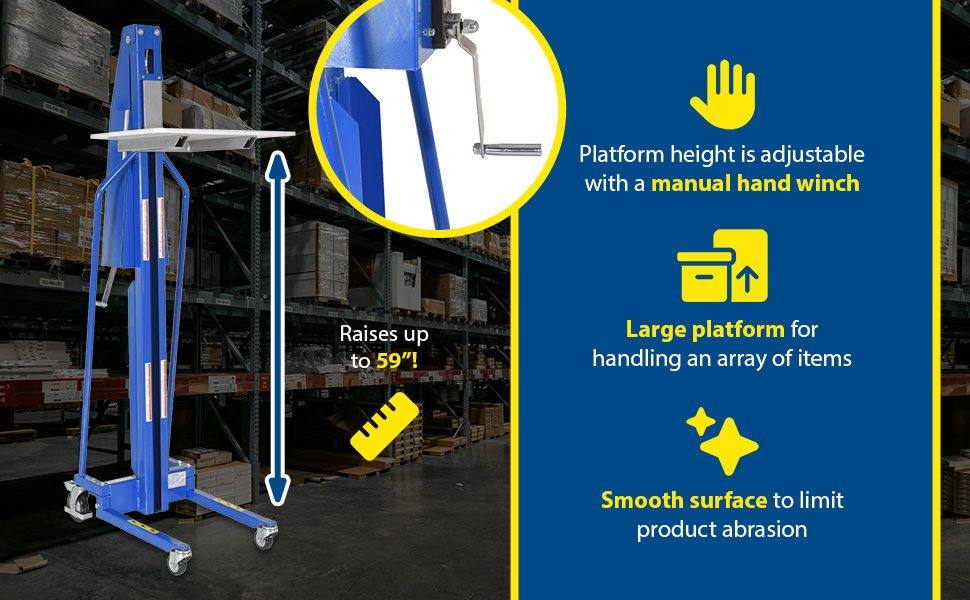

MWP-440-M MWP-440-M90 Days Limited WarrantySteel Manual Work Position 32 In. x 23-3/4 In. x 75-1/4 In. 440 Lb. Capacity BlueUniform Capacity (lb.): 440
Platform Width (in.): 23-3/4
186

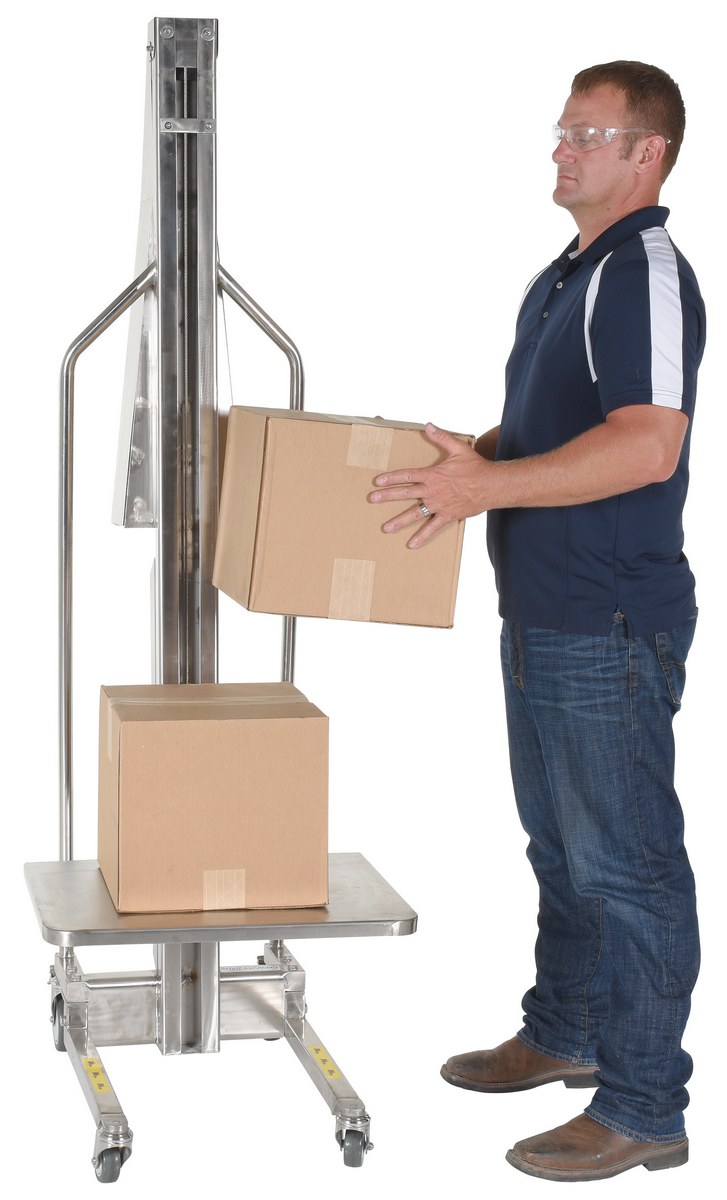

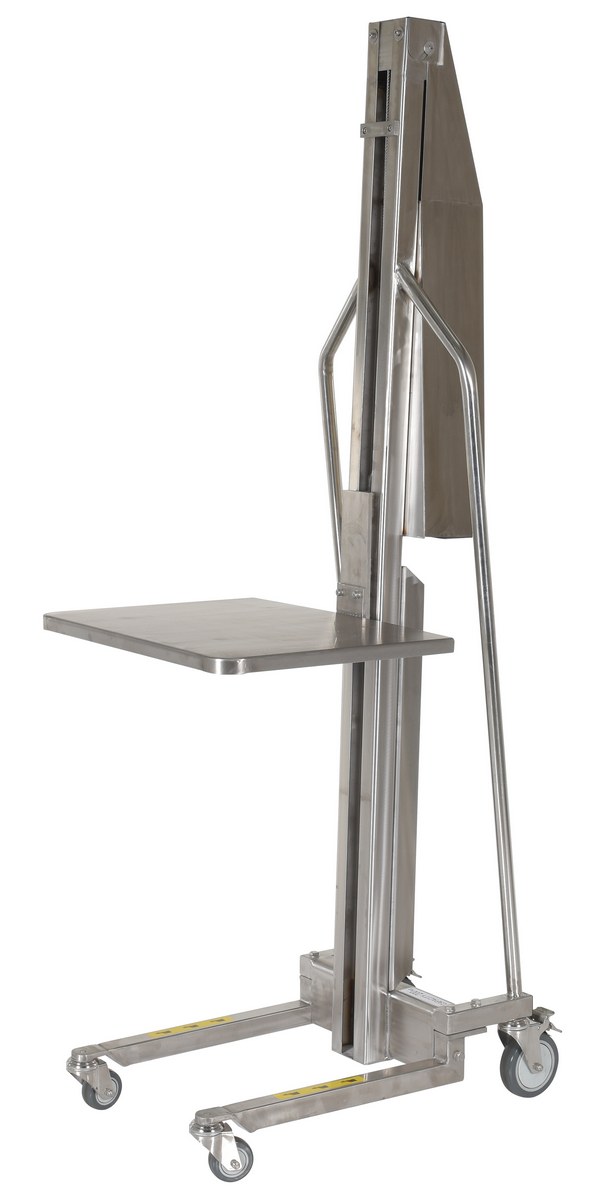

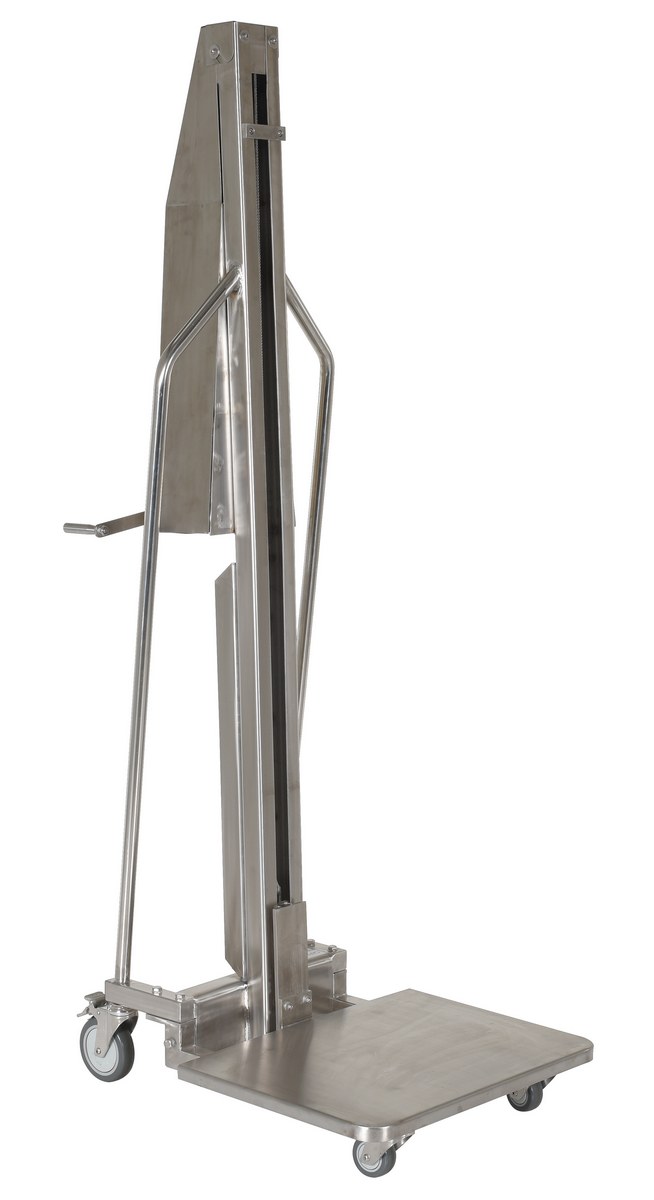

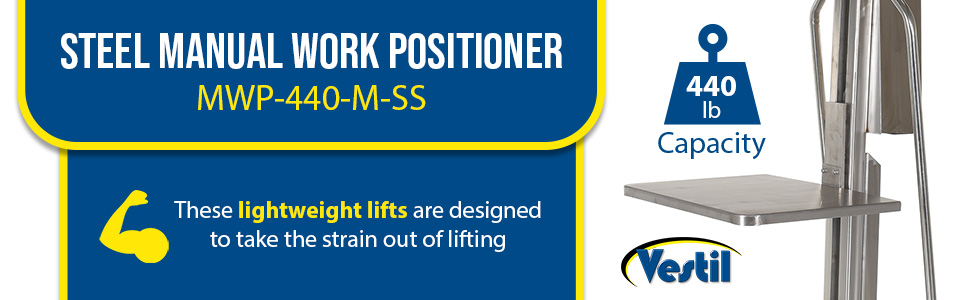

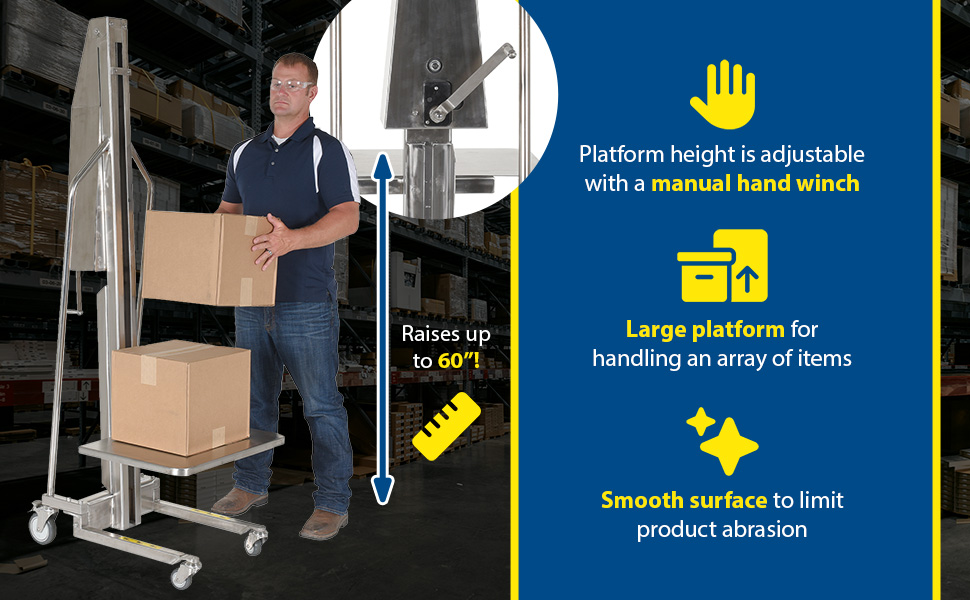

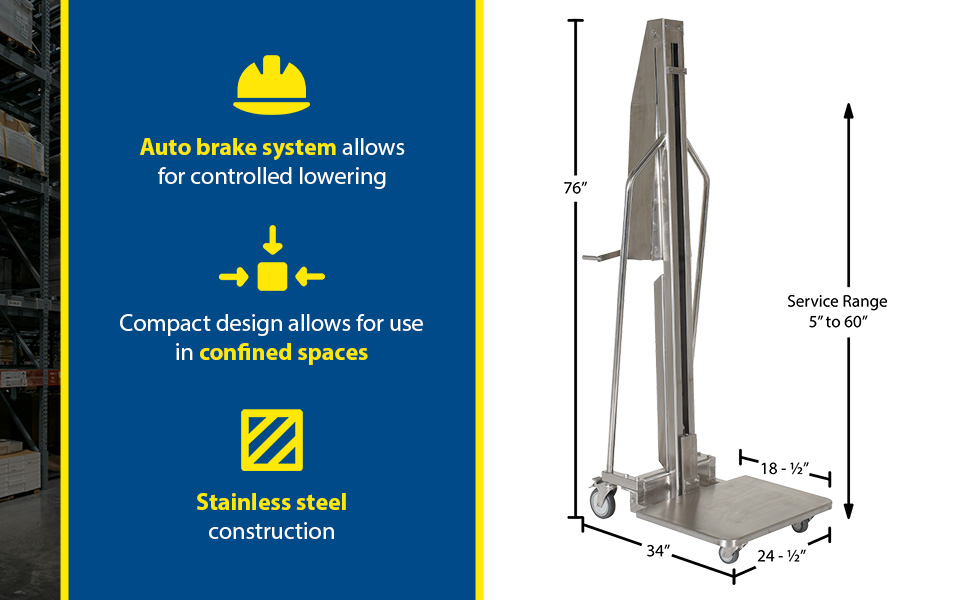

MWP-440-M-SS
MWP-440-M-SS90 Days Limited WarrantyStainless Steel Manual Work Position 34 In. x 24-1/2 In. x 76 In. 440 Lb. Capacity SilverUniform Capacity (lb.): 440
Platform Width (in.): 24-1/2
165

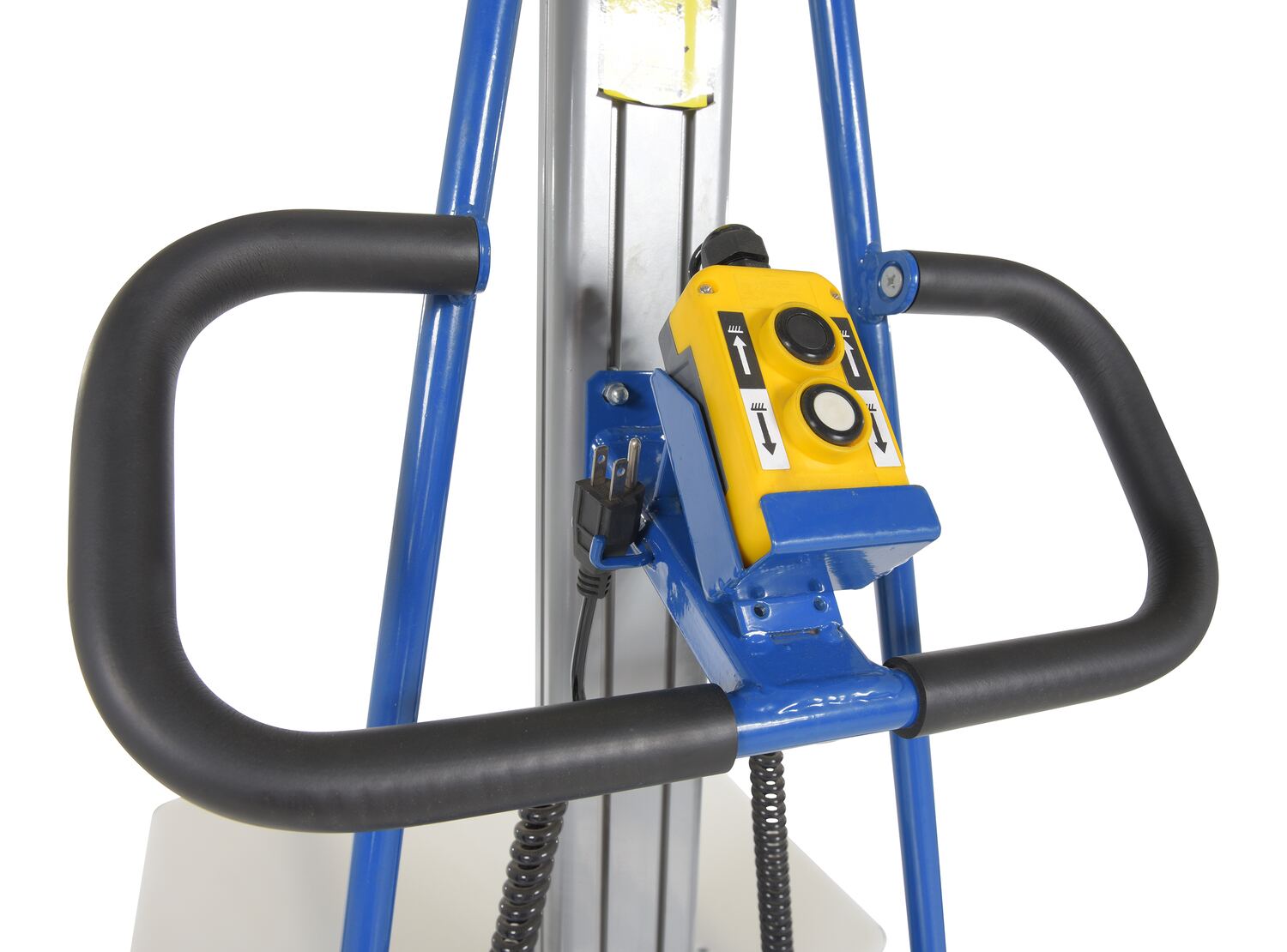

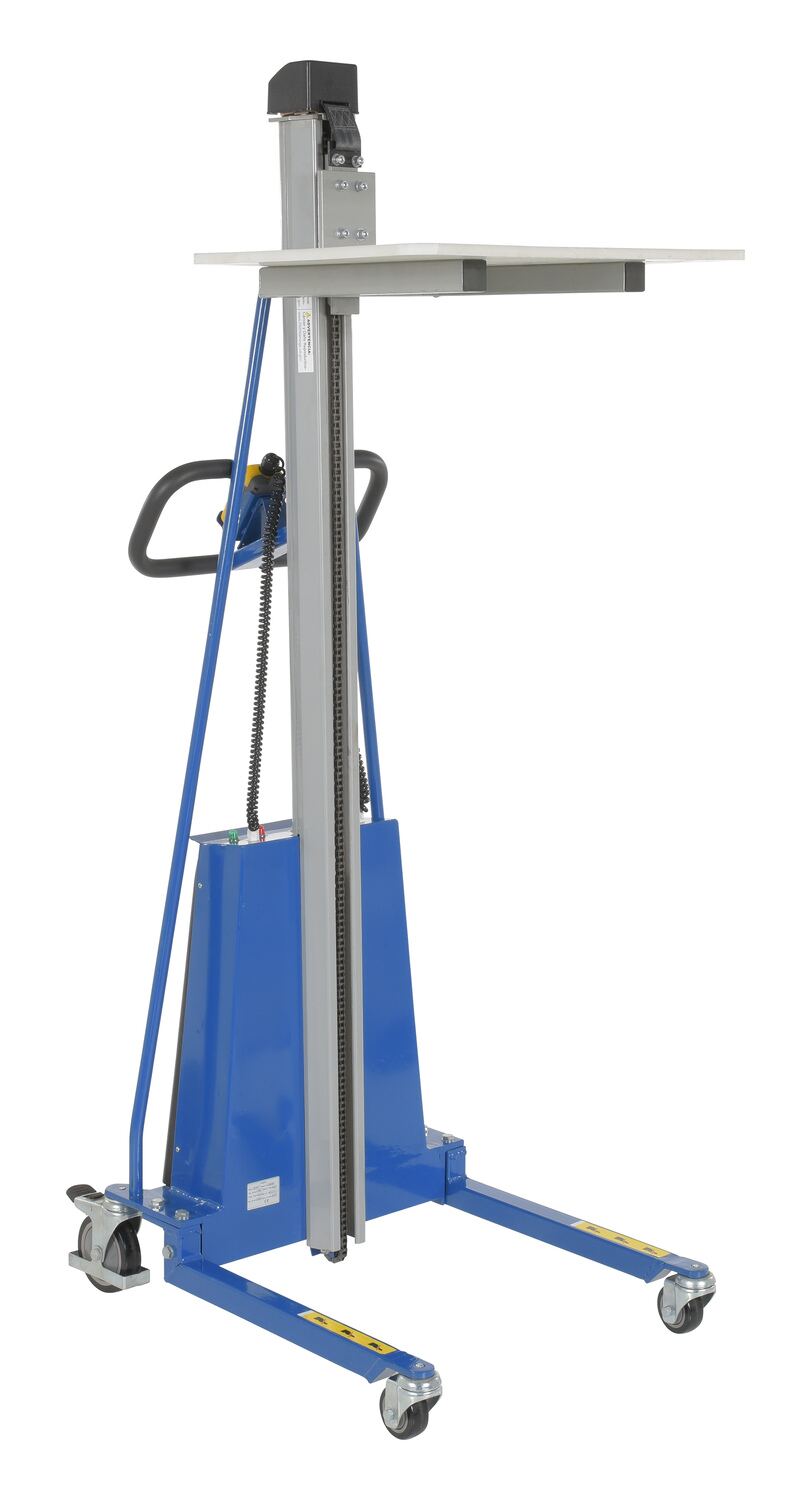

MWP-550-DC MWP-550-DC90 Days Limited WarrantySteel DC Powered Work Position 35-1/2 In. x 23-5/8 In. x 79-1/2 In. 550 Lb. Capacity BlueUniform Capacity (lb.): 550
Platform Width (in.): 23-5/8
280

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

MWP-220-M
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 220
Platform Width (in.): 23-3/4
Uniform Capacity (lb.): 220
Platform Width (in.): 23-3/4

MWP-330-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 330
Platform Width (in.): 23-5/8
Uniform Capacity (lb.): 330
Platform Width (in.): 23-5/8

MWP-330-DC-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 330
Platform Width (in.): 24-1/2
Uniform Capacity (lb.): 330
Platform Width (in.): 24-1/2

MWP-440-M
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 440
Platform Width (in.): 23-3/4
Uniform Capacity (lb.): 440
Platform Width (in.): 23-3/4

MWP-440-M-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 440
Platform Width (in.): 24-1/2
Uniform Capacity (lb.): 440
Platform Width (in.): 24-1/2

MWP-550-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 550
Platform Width (in.): 23-5/8
Uniform Capacity (lb.): 550
Platform Width (in.): 23-5/8
For More Details of the Option Click the Red Model Button

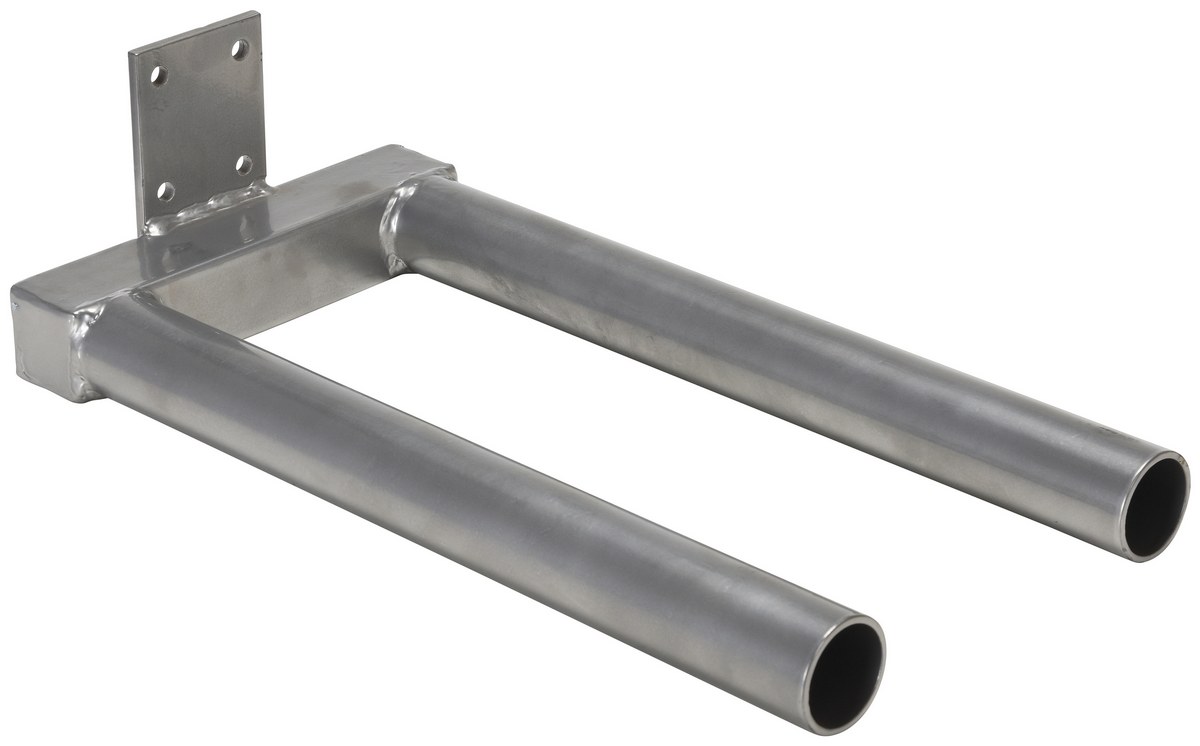

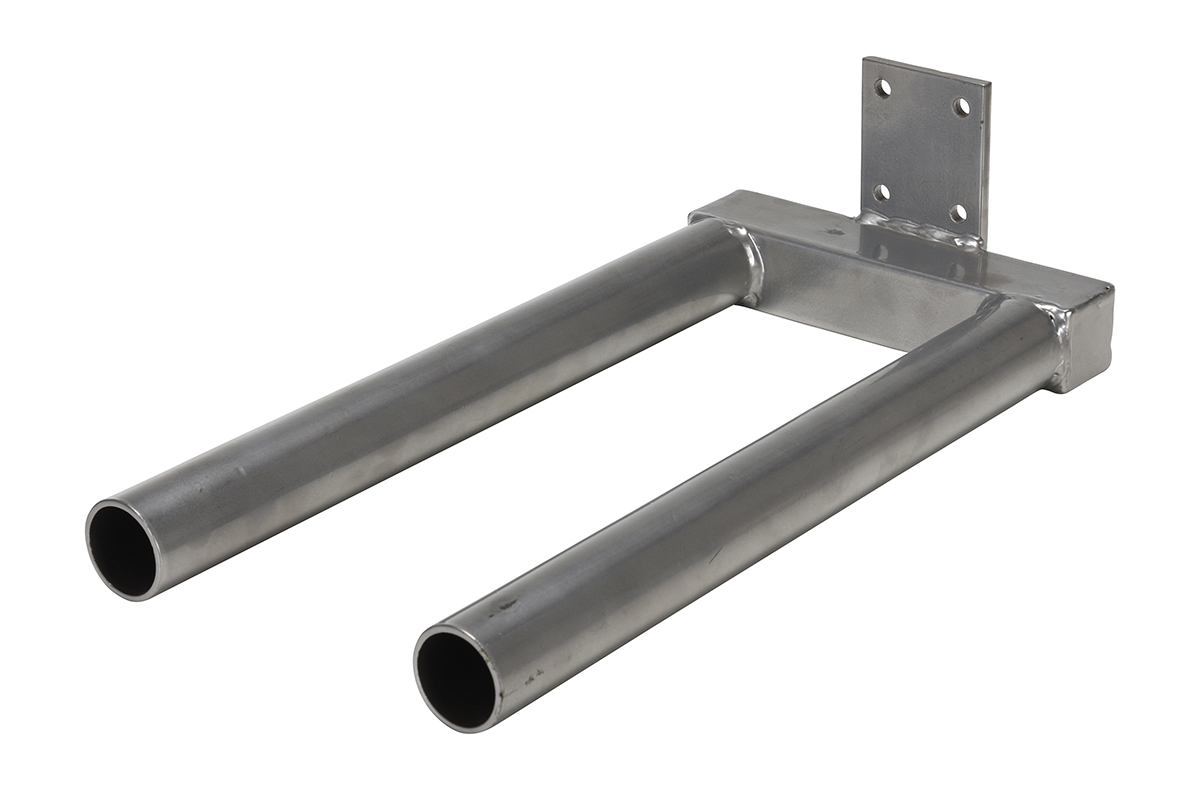

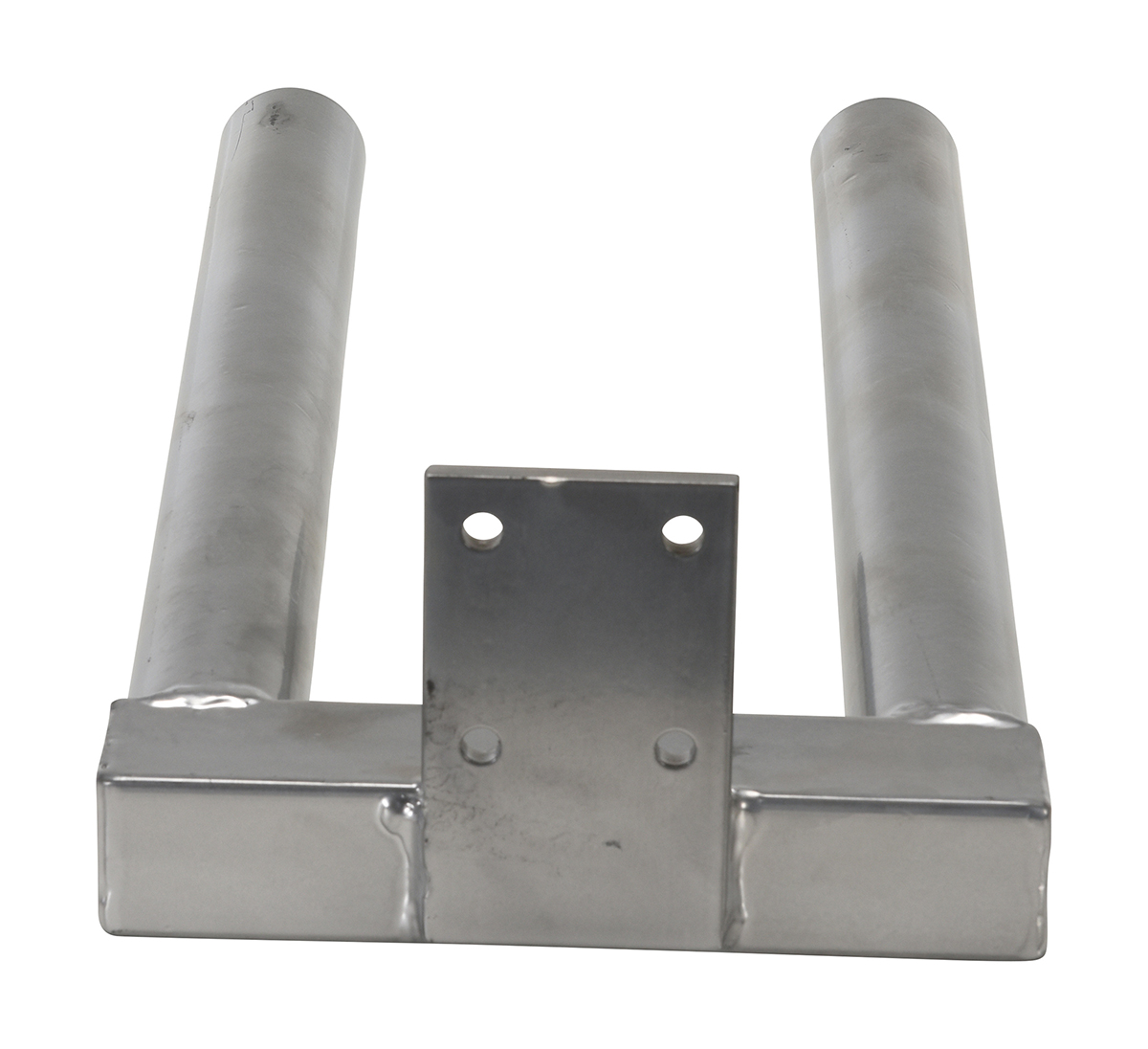

MWP-DSPIN MWP-DSPIN90 Days Limited WarrantySteel Double Spindle Attachment 5-1/2 In. x 9-3/4 In. x 20 In. For Manual Work Positioner SilverSpindle Diameter (in.): 2
Spindle Length (in.): 17-1/2
15

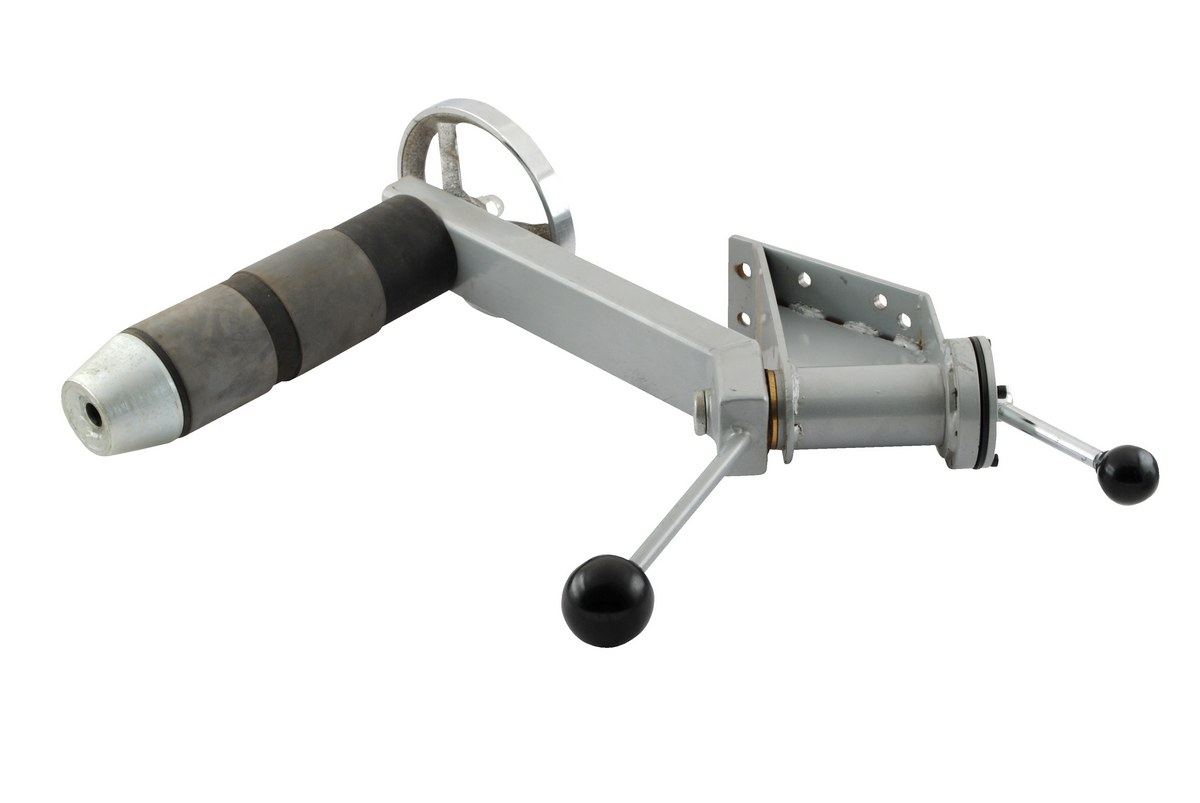

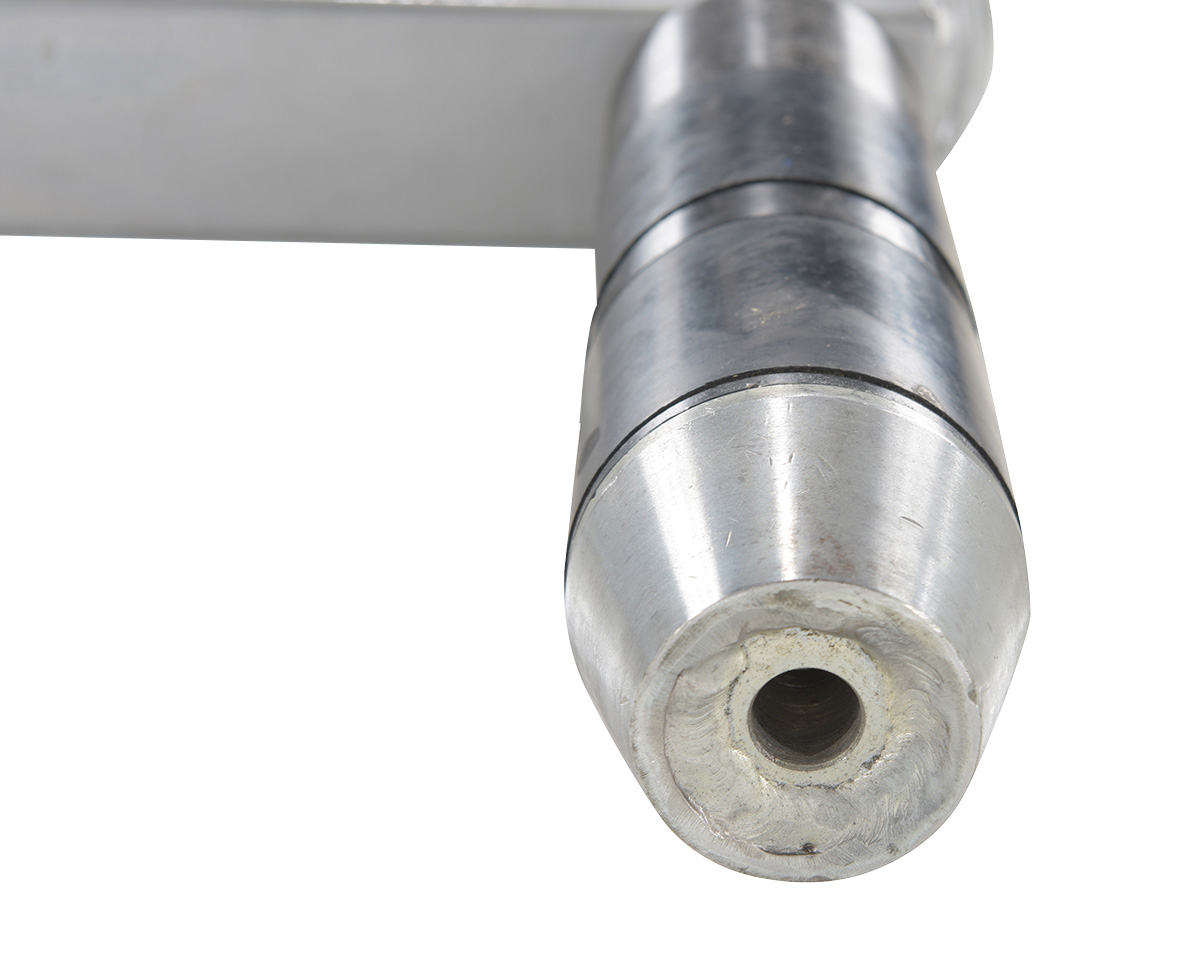

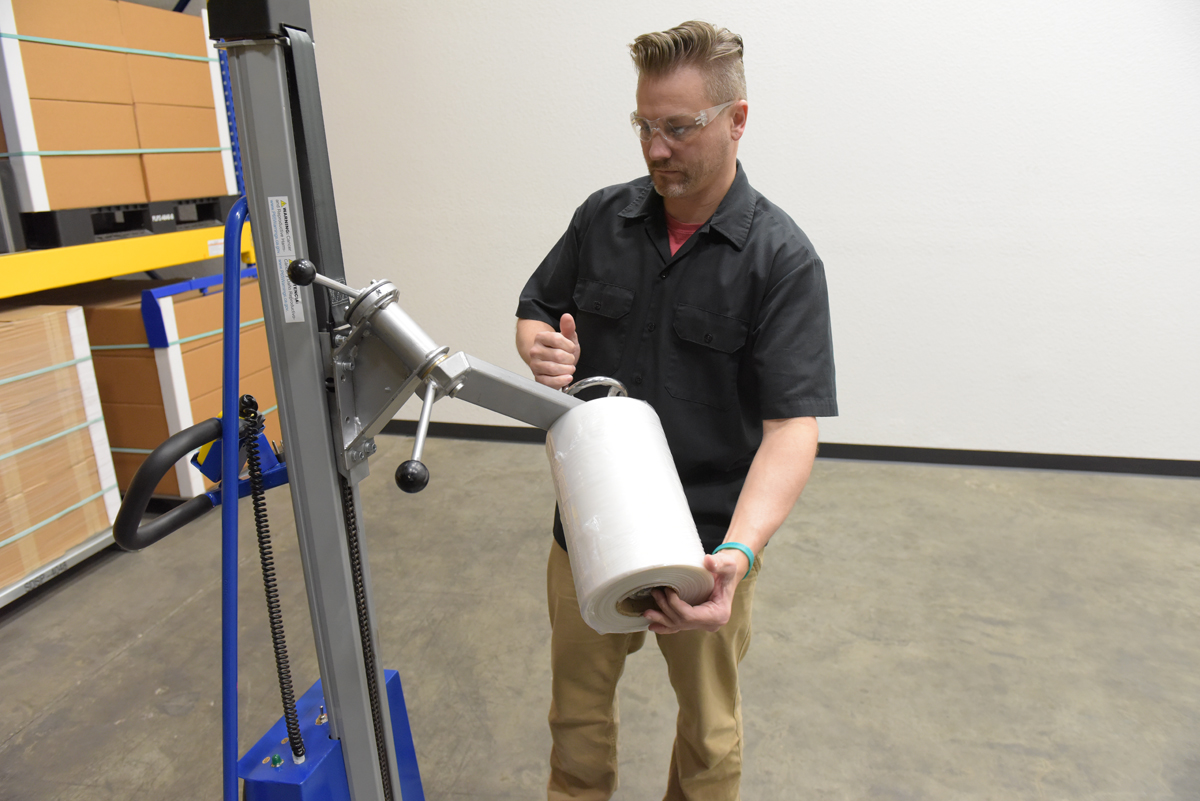

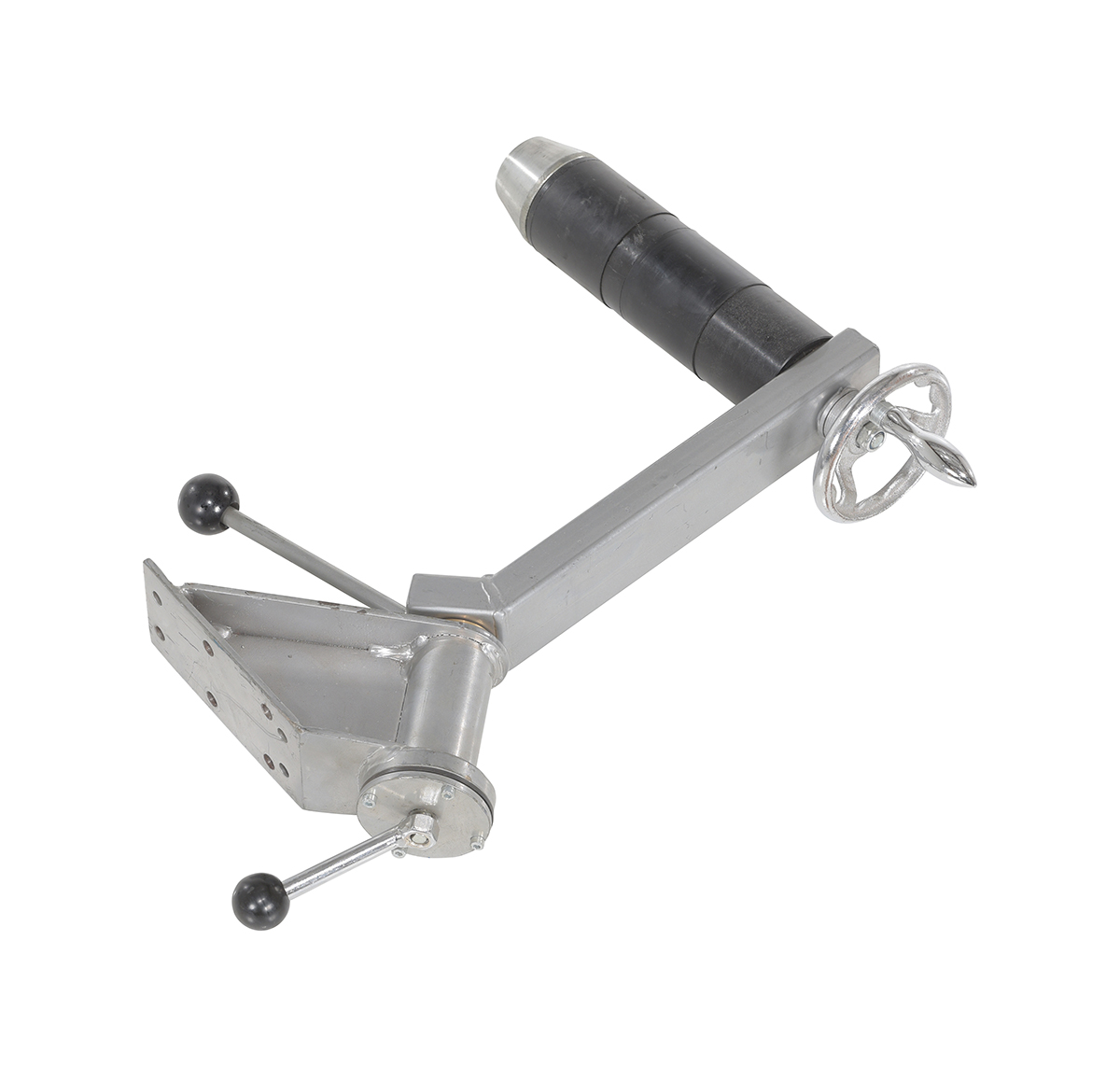

MWP-RR MWP-RR90 Days Limited WarrantySteel Reel Rotator Attachment 16-7/16 In. x 7-1/2 In. x 20-5/8 In. For Manual Work Positioner GrayArbor Diameter (in.): 2-15/16
Usable Arbor Length (in.): 9
33

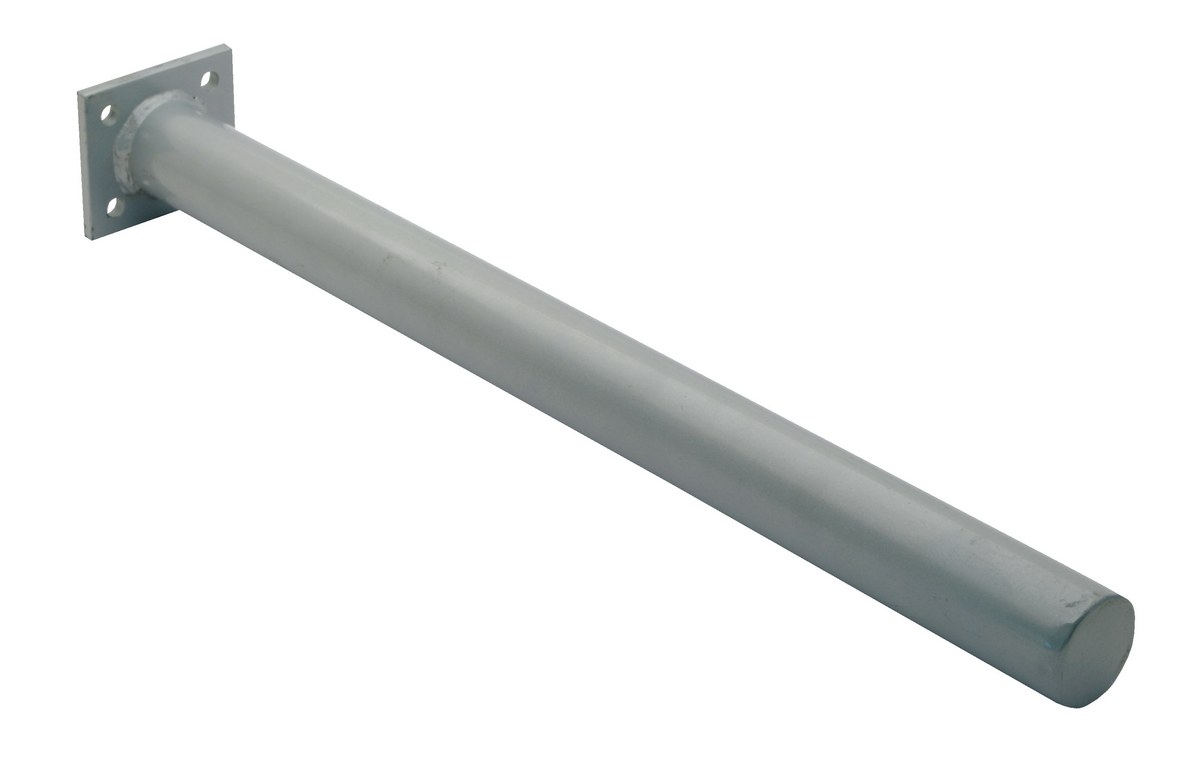

MWP-SPIN MWP-SPIN90 Days Limited WarrantySteel Single Spindle Attachment 23-3/4 In. x 3 In. x 3-1/2 In. For Manual Work Positioner SilverSpindle Diameter (in.): 2
Spindle Length (in.): 23-1/2
6

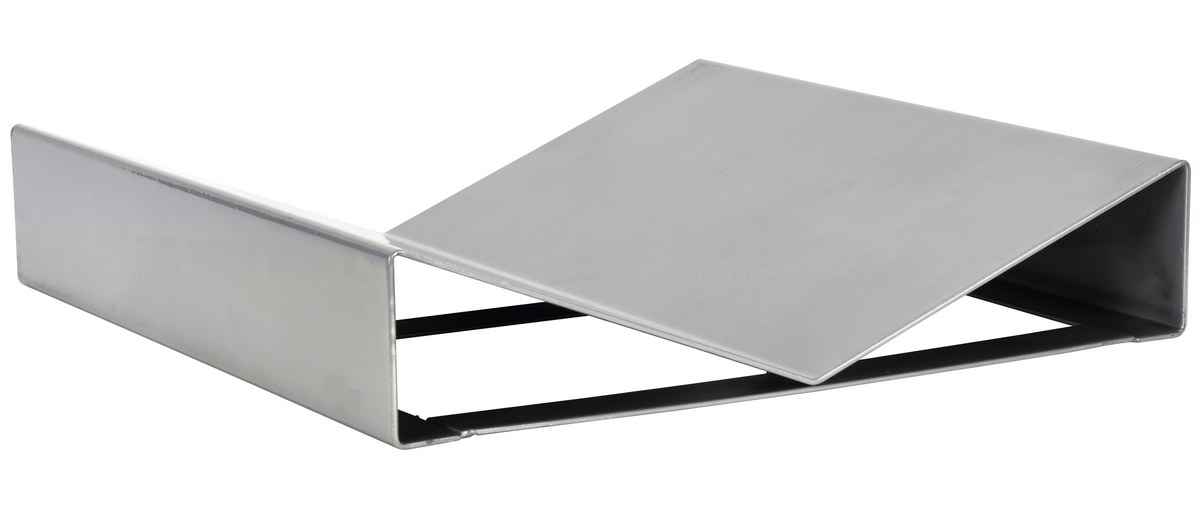

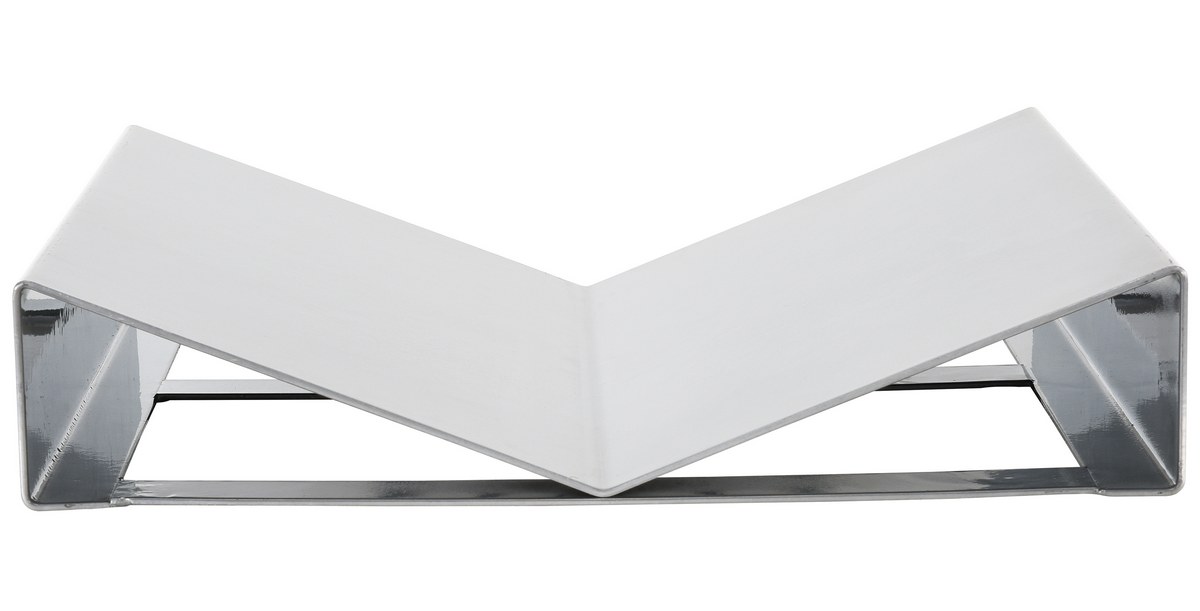

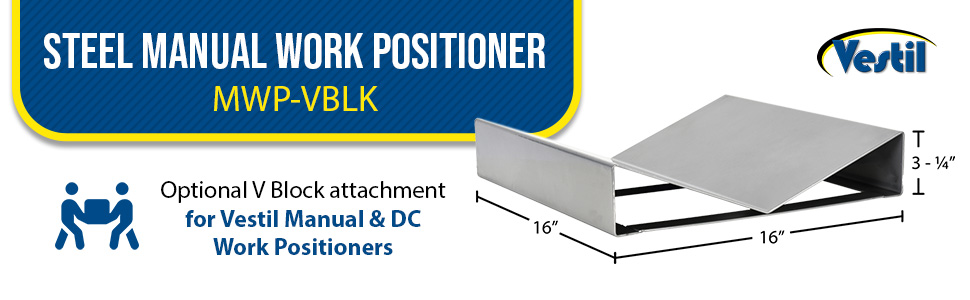

MWP-VBLK MWP-VBLK90 Days Limited WarrantySteel V Block Attachment 16 In. x 16 In. x 3-1/4 In. For Manual Work Positioner SilverMaximum Roll Diameter (in.): 24
15

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Manual & DC Work Positioners PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


MWP-220-M

MWP-330-DC

MWP-330-DC-SS

MWP-440

MWP-440-M

MWP-440-M-SS

MWP-550-DC

MWP-DSPIN

MWP-RR

MWP-SPIN

MWP-VBLK

SDS Sheets


Valve Regulated Lead Acid Battery SDS Sheet for: MWP-330-DC
Hydraulic Oil SDS Sheet for: MWP-330-DC
Hydraulic Oil SDS Sheet for: MWP-330-DC-SS

Valve Regulated Lead Acid Battery SDS Sheet for: MWP-550-DC
Hydraulic Oil SDS Sheet for: MWP-550-DC

Other PDF's


Directory Links Of Available PDF's For All Products


Q: How large a reel (outside diameter) will work with the MWP-RR?

A: The MWP-RR can accommodate a reel with a maximum exterior measurement of 9 13/16".


Q: What is the capacity of the reel rotator?

A: The MWP-RR reel rotator has a capacity of 200 lbs.


Q: How fast does the platform raise and lower?

A: The MWP-30-DC has a lift speed of 30 seconds and 29 seconds to lower the platform.


Q: Will the MWP-SPIN work with the MWP-550?

A: Yes, the MWP-550-DC & MWP-SPIN will work together.


Q: What is the raise time on the MWP-500-DC?

A: The raised time is 38 seconds.


Q: Do you have a reel rotator with a 6" arbor?

A: The MWP-RR can accommodate a reel with a 3" core.


Q: What is the distance between the two feet?

A: The distance between the two feet is 14.5"


Q: IS the MWP-330-DC-SS CSA compliant?

A: No, it is not but we do have the option to add a CSA compliant battery charger. Please contact a sales associate for details.


Q: What is the battery life of the MWP-500-DC?

A: Continuous use would be approximately 10-12 hours. Battery lift could be impacted by weight lifted in addition to other factors.
