Pallet Trucks with Digital Scale

- - - -

Description
Model Chart
PDF's
Image Gallery
PM-2748-SCL-LP_A.jpg PM-2748-SCL-LP_B.jpg PM-2748-SCL-LP_C.jpg PM-2748-SCL-LP_D.jpg
PM-SCL_Z.gif PM-2748-SCL-LP_G.jpg PM-2748-SCL-LP_H.jpg PM-2748-SCL-LP_I.jpg
Pallet Trucks with Digital Scale

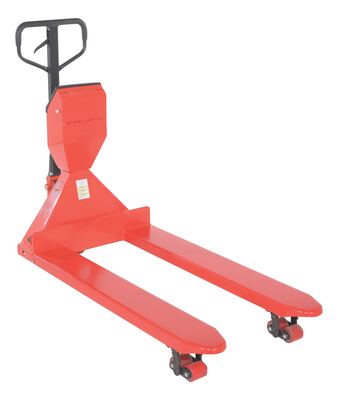

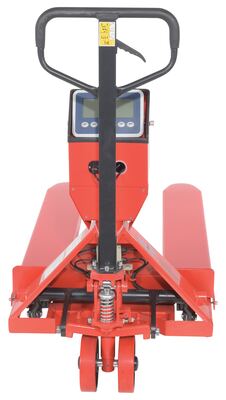

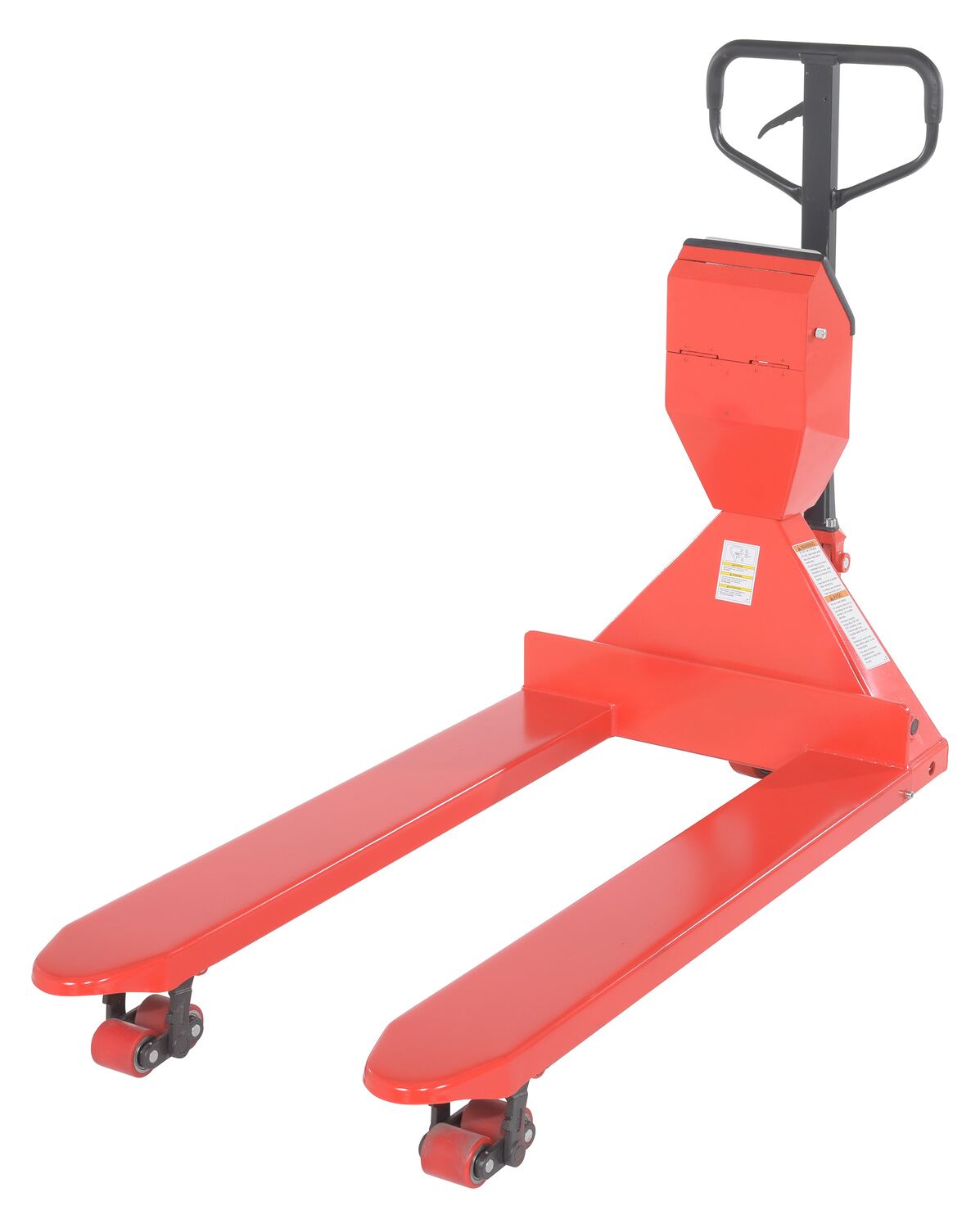

model: PM-2748-SCL-LP



Featured Ergonomic Solutions


Rough Terrain Tilting Electric Pallet Truck
Linear Actuated Mobile Tilting Work Table
Portable Mini Stacker
Ball Transfer Strips & Single Ball Transfers
Manual Pallet Truck (Pegasolift)
Hydra Carts
Opti-Benches
Expandable Roller Conveyors
Auto-Shift Hydraulic Elevating Carts
model chart

Product Family Overview

Print Friendly
Pallet Trucks with Digital Scale
SERIES: PM

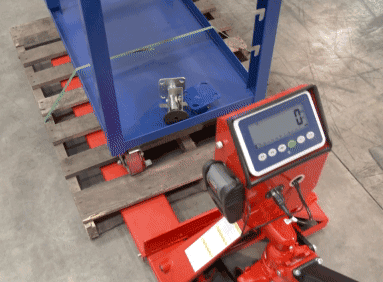

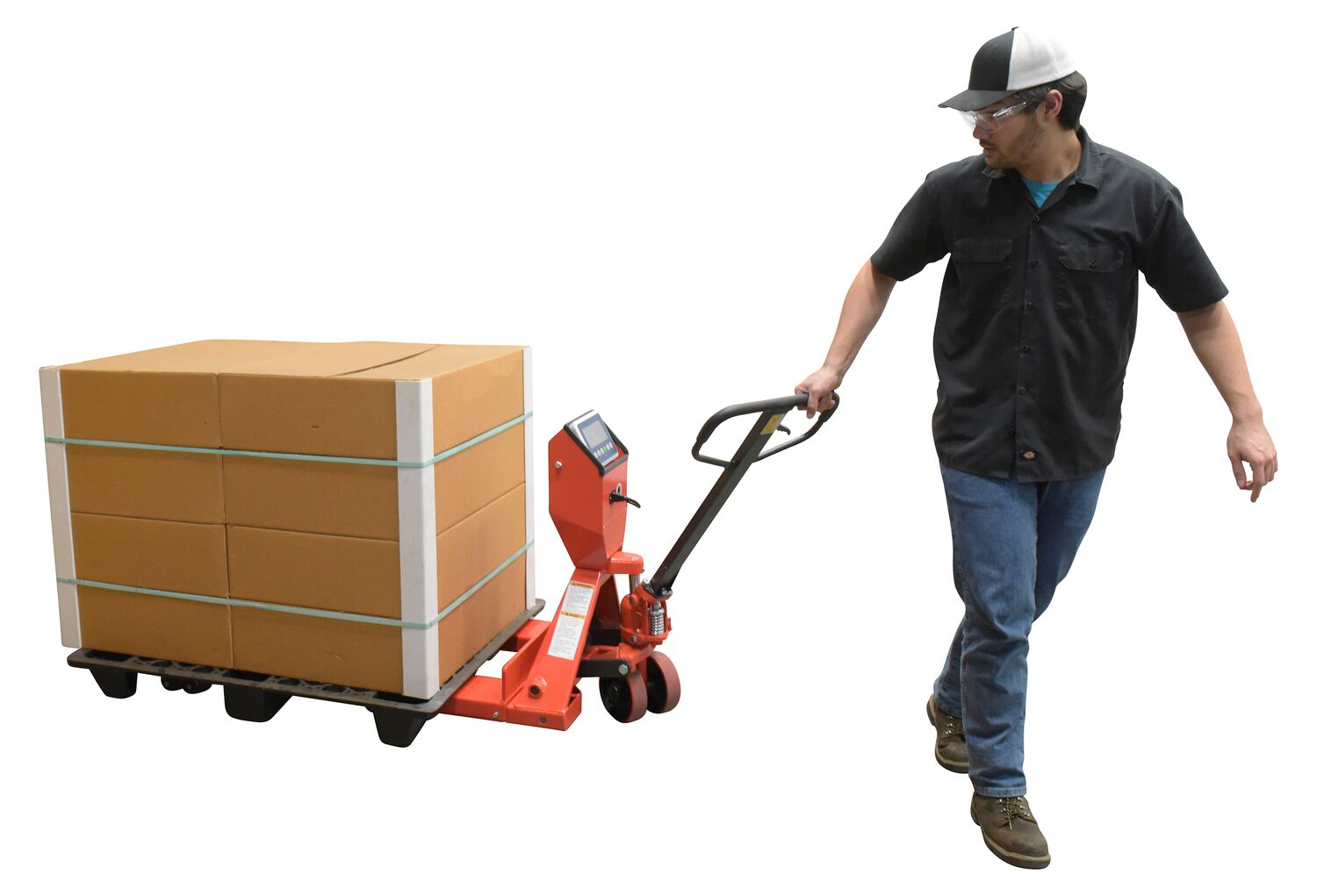

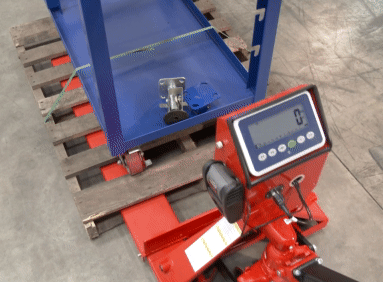

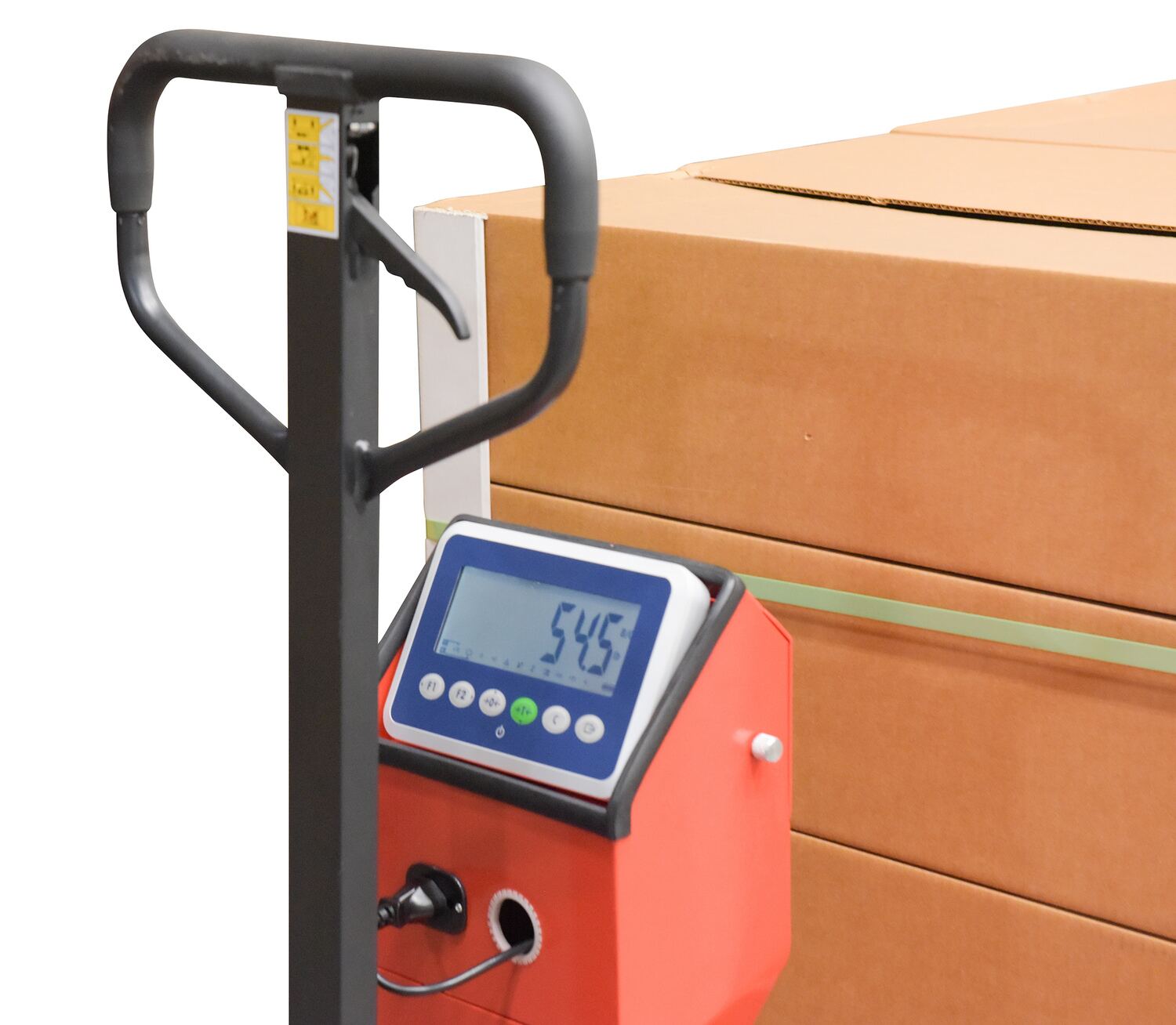

PM-2748-SCL-LP_F.jpgThe Pallet Truck with Digital Scale allows you to weigh your load on the spot for maximum efficiency. The frame uses heavy-duty steel construction for maximum strength and durability. This model is very user friendly and is suitable for low height lifting. The built-in scale allows you to weigh your load as you are handling it. The scale is selectable in a variety of increments to adjust to the size of your load. It has keyboard calibration and functional setup with automatic zero capabilities. Digital filtering is used to help compensate for vibration and motion to make the Pallet Truck with Digital Scale smooth and accurate. Scale accuracy is +/-0.1% of the applied load. Forks are 7" wide each. Factory calibrated for shipping destination. AC adaptor included. Powered by 6 AA batteries. (Four (4) AA batteries included in units PM-2048-SCL-LP-SS and PM-2748-SCL-LP-SS).

NTEP Pallet Trucks are approved legal for trade, certified for commercial transactions, and are supplied with certificate of compliance.

PM-2748-SCL-LP_F.jpgThe Pallet Truck with Digital Scale allows you to weigh your load on the spot for maximum efficiency. The frame uses heavy-duty steel construction for maximum strength and durability. This model is very user friendly and is suitable for low height lifting. The built-in scale allows you to weigh your load as you are handling it. The scale is selectable in a variety of increments to adjust to the size of your load. It has keyboard calibration and functional setup with automatic zero capabilities. Digital filtering is used to help compensate for vibration and motion to make the Pallet Truck with Digital Scale smooth and accurate. Scale accuracy is +/-0.1% of the applied load. Forks are 7" wide each. Factory calibrated for shipping destination. AC adaptor included. Powered by 6 AA batteries. (Four (4) AA batteries included in units PM-2048-SCL-LP-SS and PM-2748-SCL-LP-SS).

NTEP Pallet Trucks are approved legal for trade, certified for commercial transactions, and are supplied with certificate of compliance.

Other Manual Pallet Trucks

 Ergonomic Power Assist Pallet Trucks Quick Lift Pallet Trucks Full Featured Pallet Trucks Wheel Nose Pallet Trucks

Additional Models In This Family
view entire Image Gallery

PM-2748-SCL-LP-E

PM-2748-SCL-LP-E

PM-2746-TL-SCL-LP-PT

PM-2746-TL-SCL-LP-PT

PM-2048-SCL-LP-SS

PM-2048-SCL-LP-SS

PM-2146-TL-SCL-LP

PM-2146-TL-SCL-LP

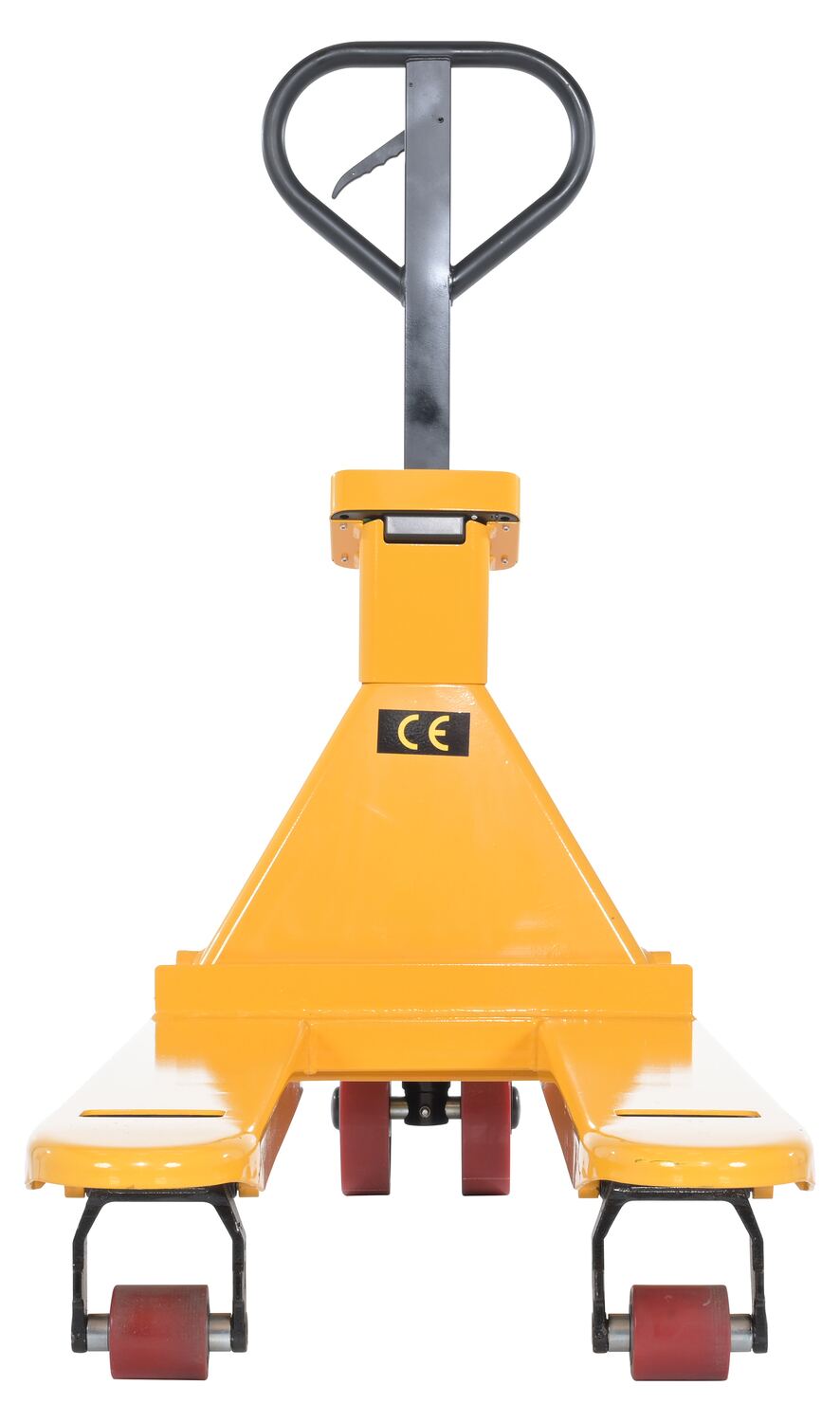

PM5-2048-SCL-LP-E

PM5-2048-SCL-LP-E

PM-2746-TL-SCL-LP

PM-2746-TL-SCL-LP

PM-2146-TL-SCL-LP

PM-2146-TL-SCL-LP

PM-2748-SCL-LP

PM-2748-SCL-LP

PM-2048-SCL-LP-SS

PM-2048-SCL-LP-SS

PM-2746-TL-SCL-LP

PM-2746-TL-SCL-LP

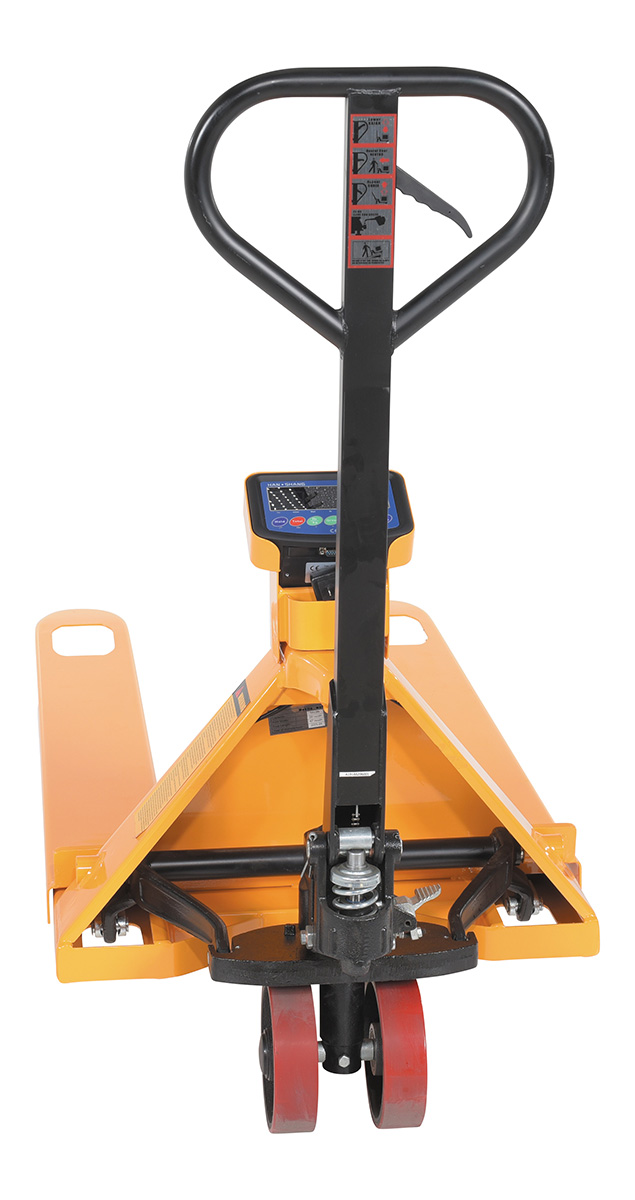

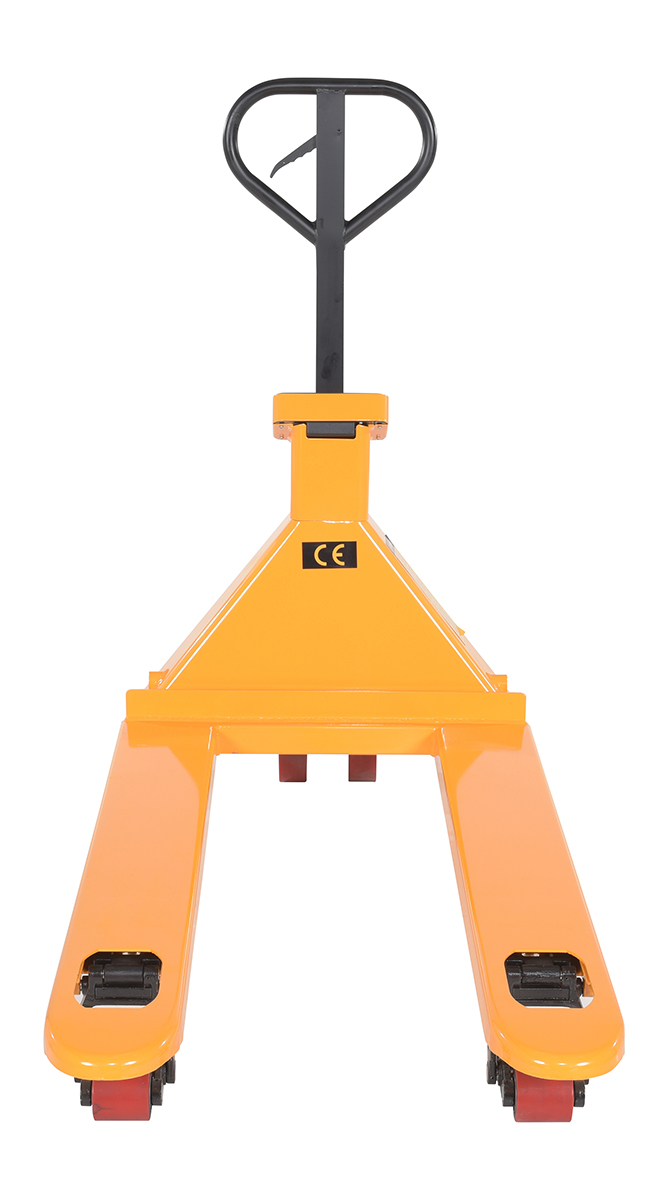

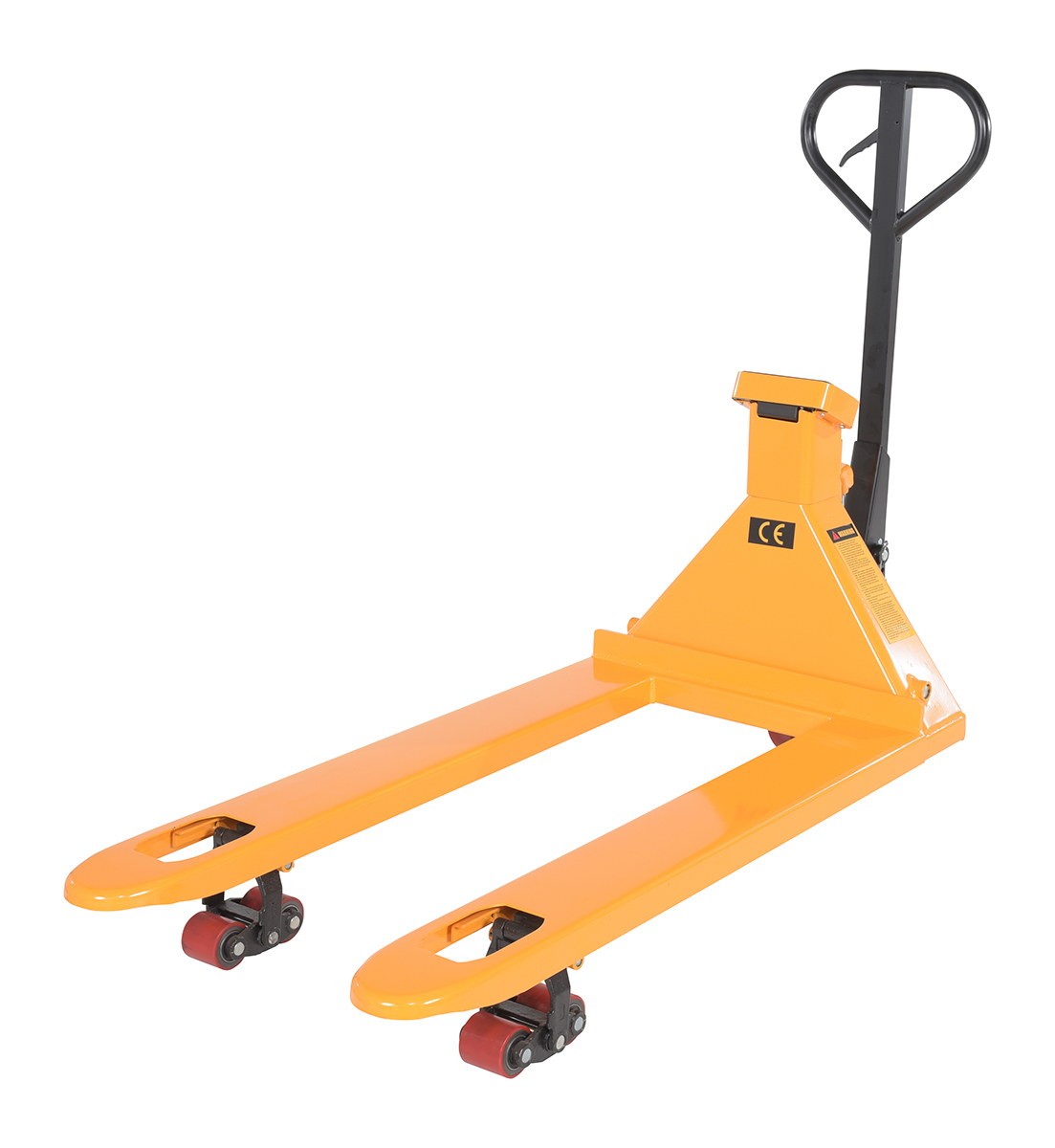

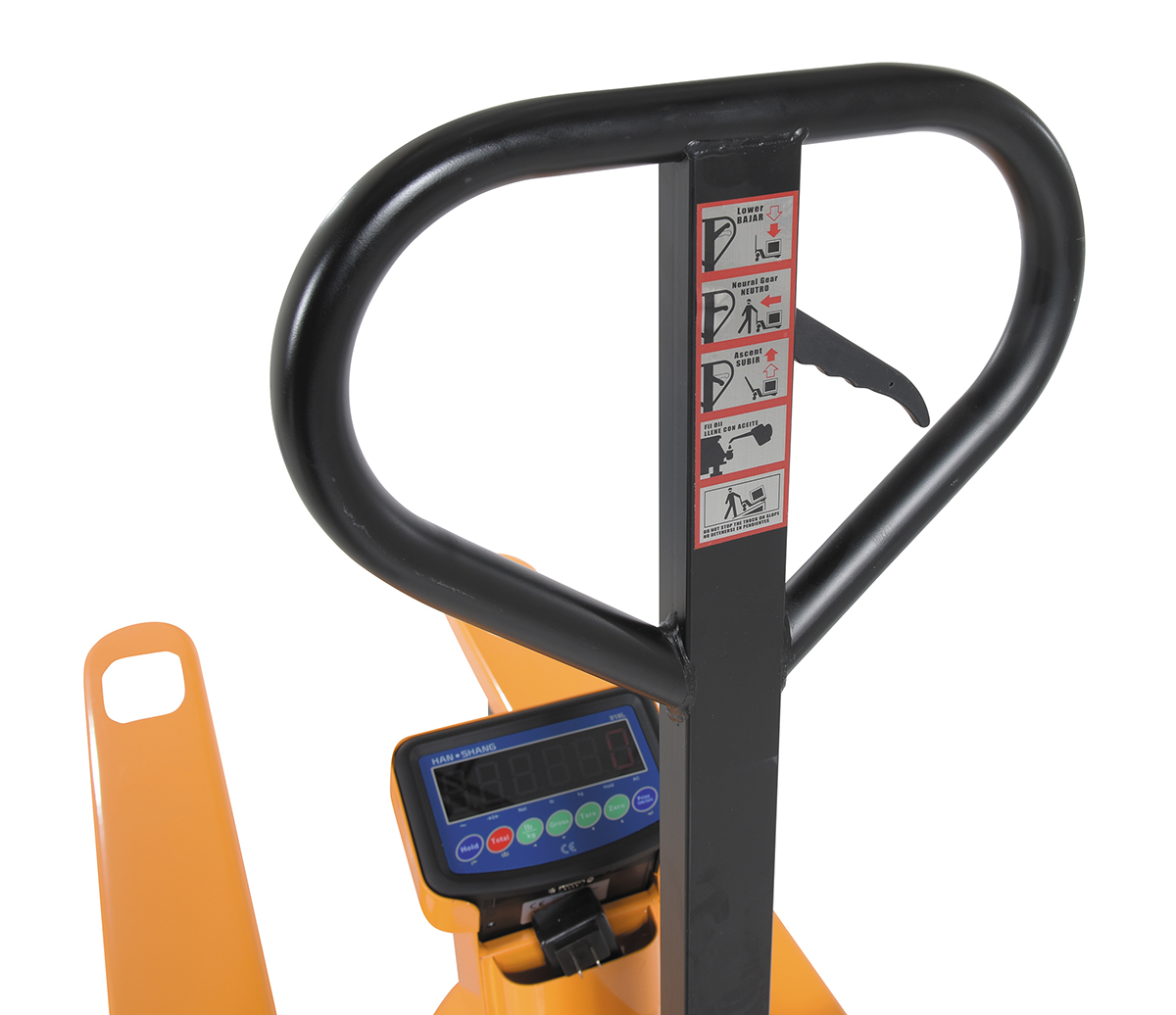

PM-2748-SCL-LP-E

PM-2748-SCL-LP-E

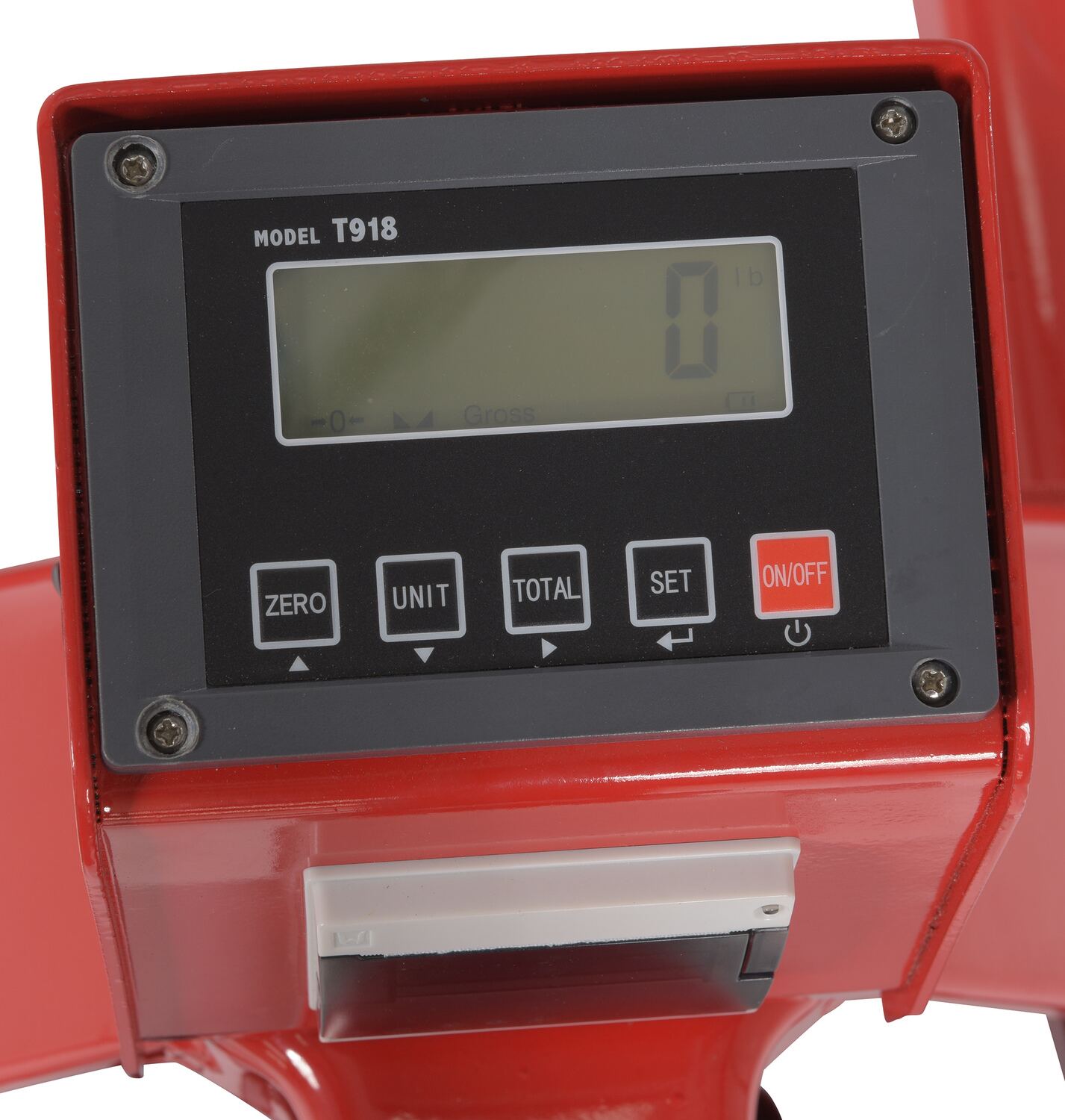

PM-2746-TL-SCL-LP-PT

PM-2746-TL-SCL-LP-PT

PM-2048-SCL-LP-PT

PM-2048-SCL-LP-PT

PM-2048-SCL-LP-PT

PM-2048-SCL-LP-PT

PM-2748-SCL-LP

PM-2748-SCL-LP

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

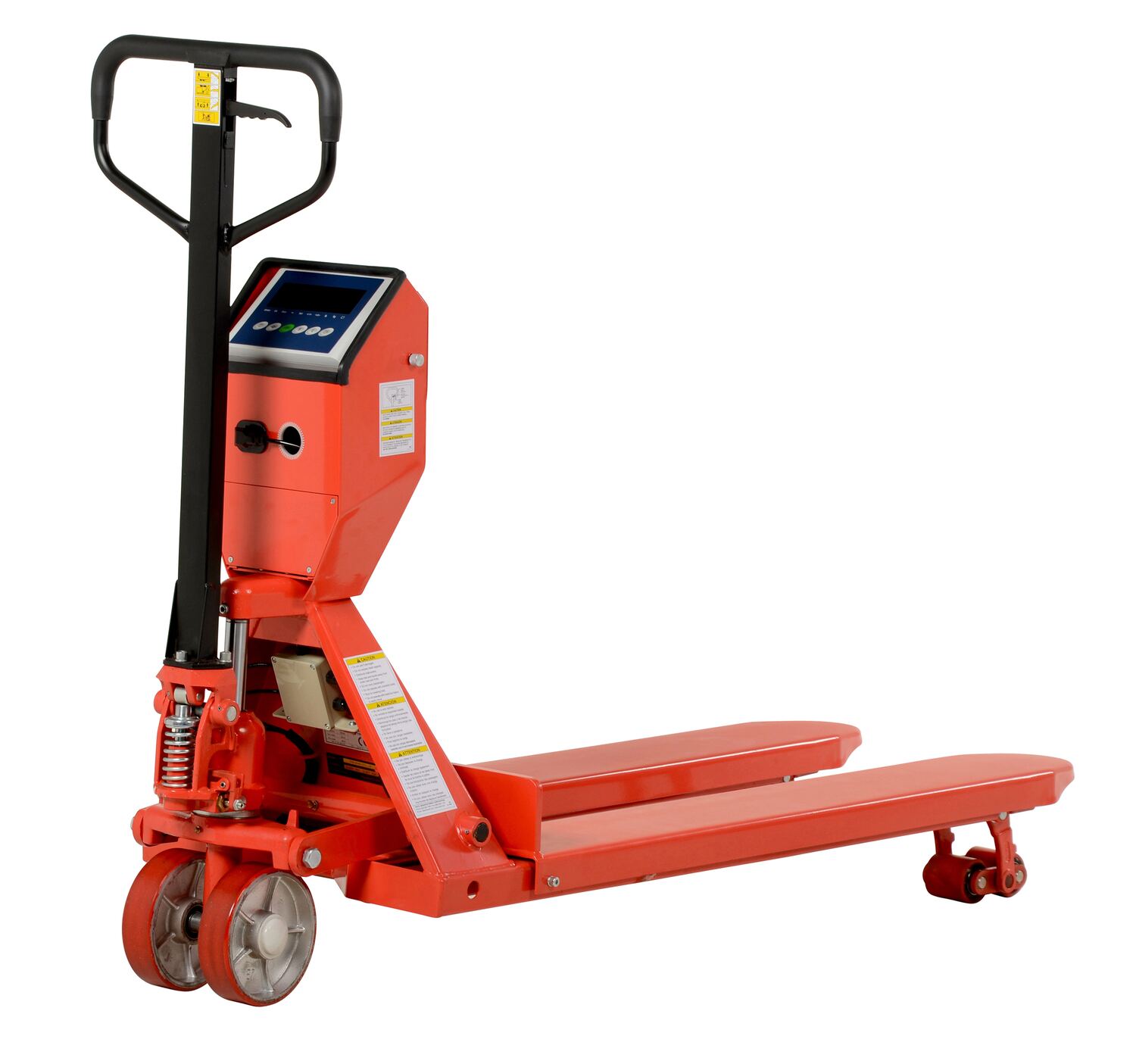

PM-2048-SCL-LP PM-2048-SCL-LP1 Year Limited WarrantySteel Low Profile Pallet Truck with Scale 64-1/2 In. x 22-3/8 In. x 48 In. 5000 Lb. Capacity RedUniform Capacity (lb.): 5000
Overall Fork Width (in.): 22-3/8		335

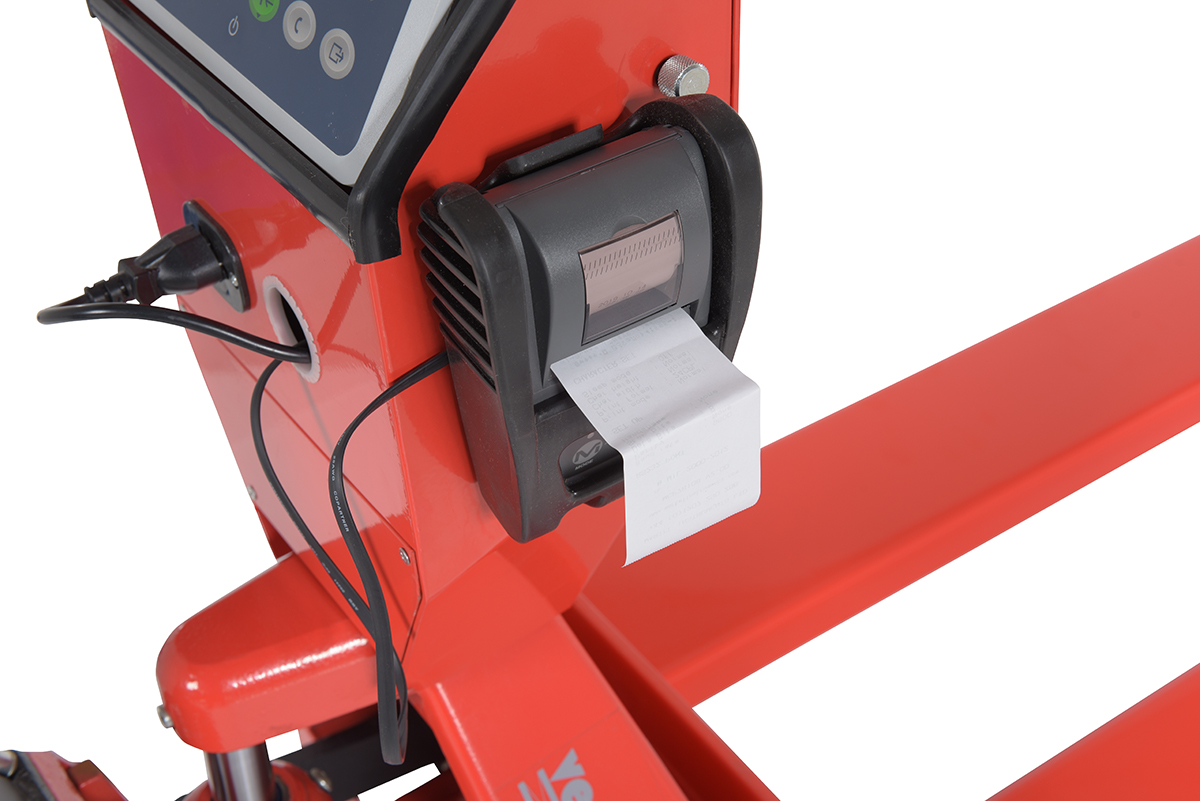

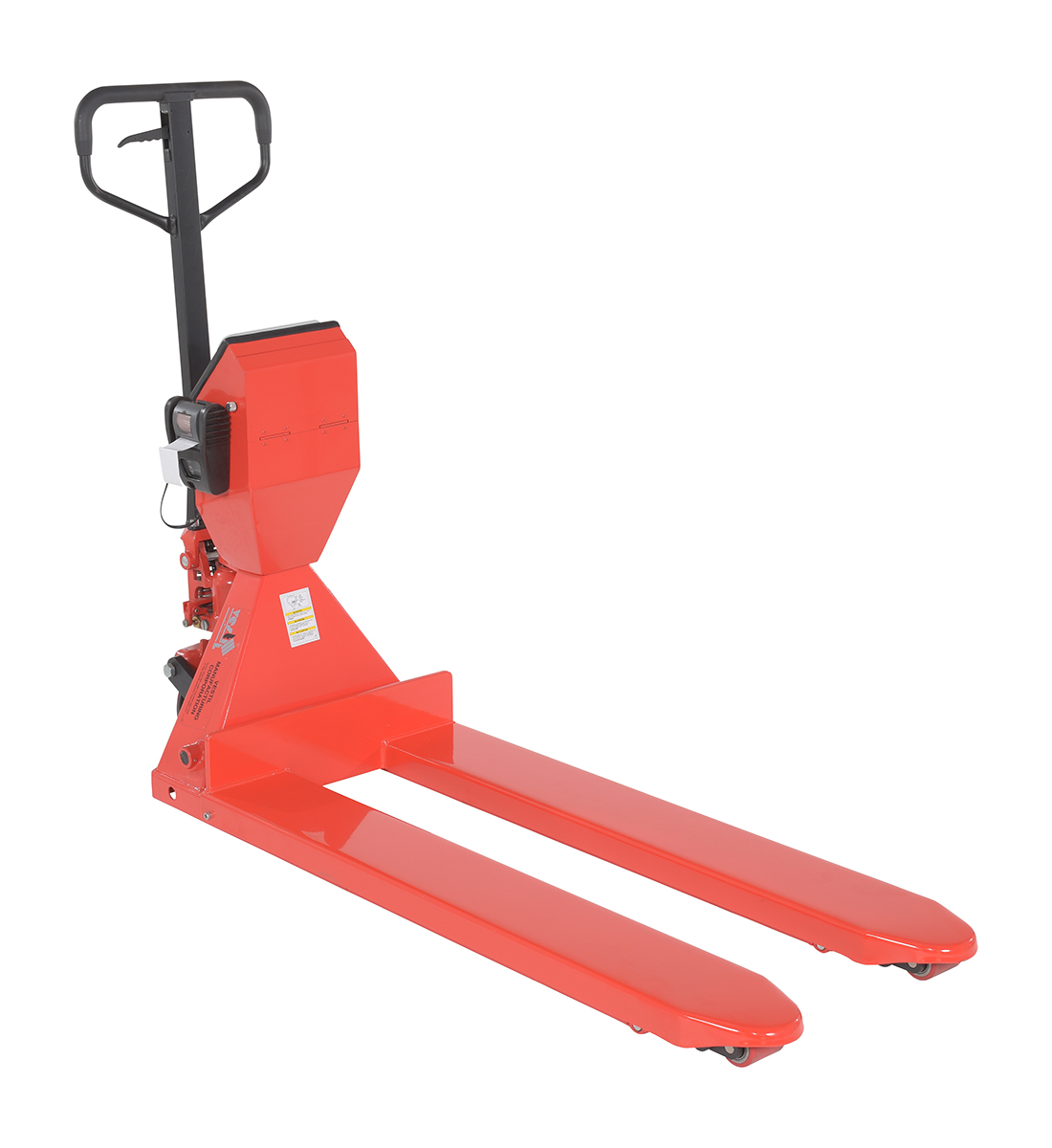

PM-2048-SCL-LP-PT PM-2048-SCL-LP-PT1 Year Limited WarrantySteel Low Profile Pallet Truck with Scale and Printer 64-1/2 In. x 22-1/2 In. x 48 In. 5000 Lb. Capacity RedUniform Capacity (lb.): 5000
Overall Fork Width (in.): 22-3/8		335

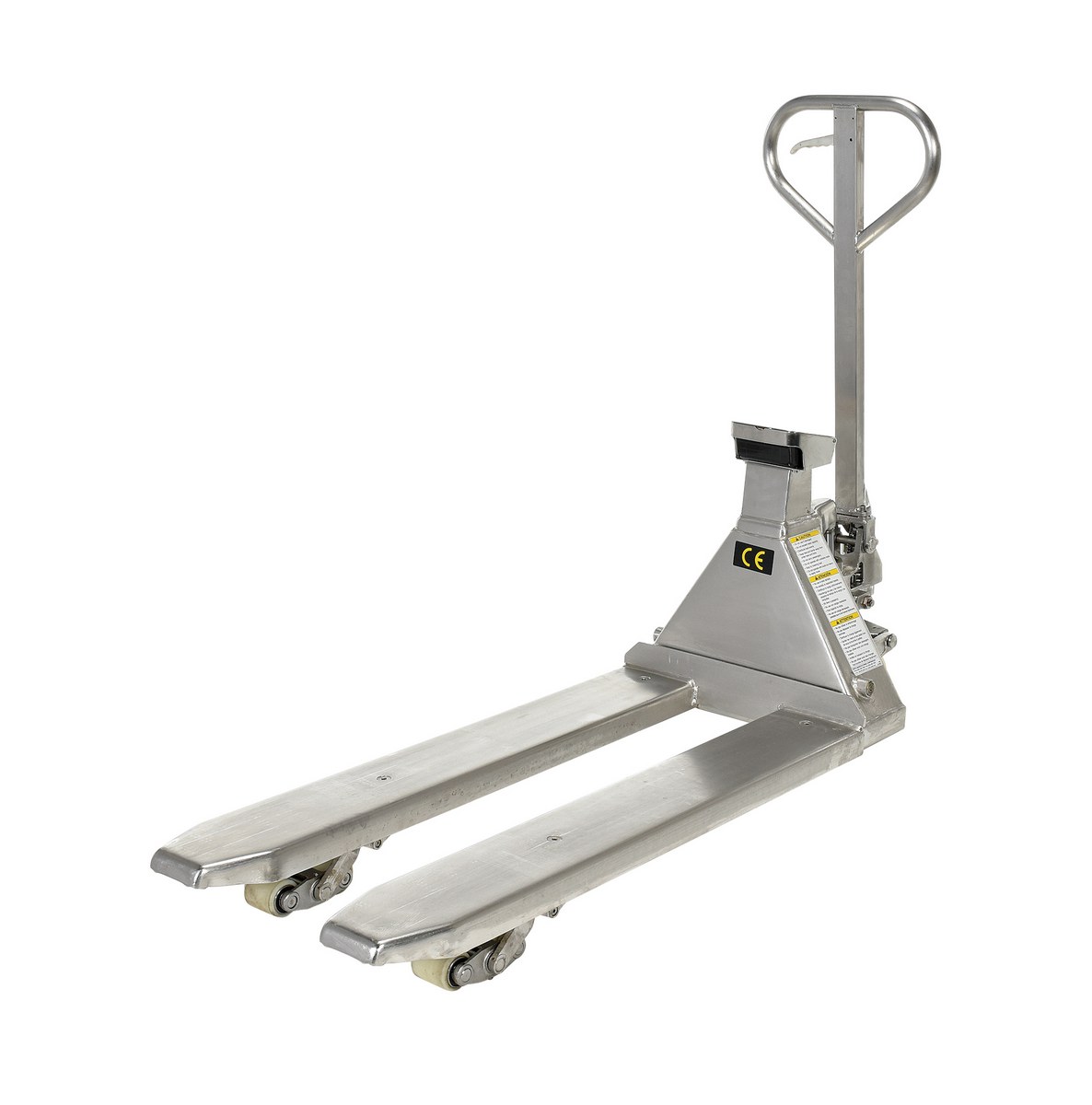

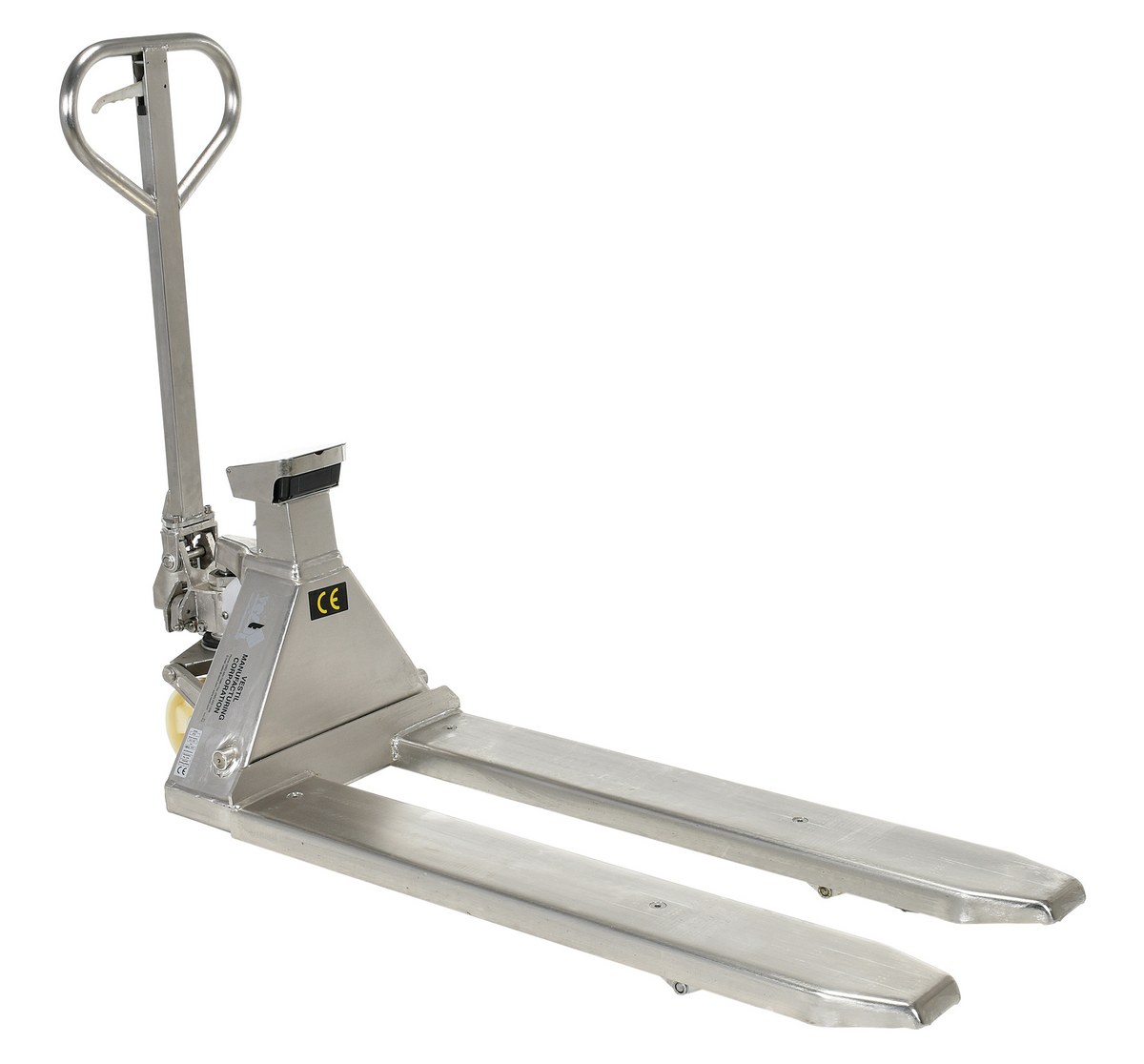

PM-2048-SCL-LP-SS PM-2048-SCL-LP-SS1 Year Limited WarrantyStainless Steel Low Profile Pallet Truck with Scale 61-11/16 In. x 20 In. x 48-5/8 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Overall Fork Width (in.): 21-7/8		328

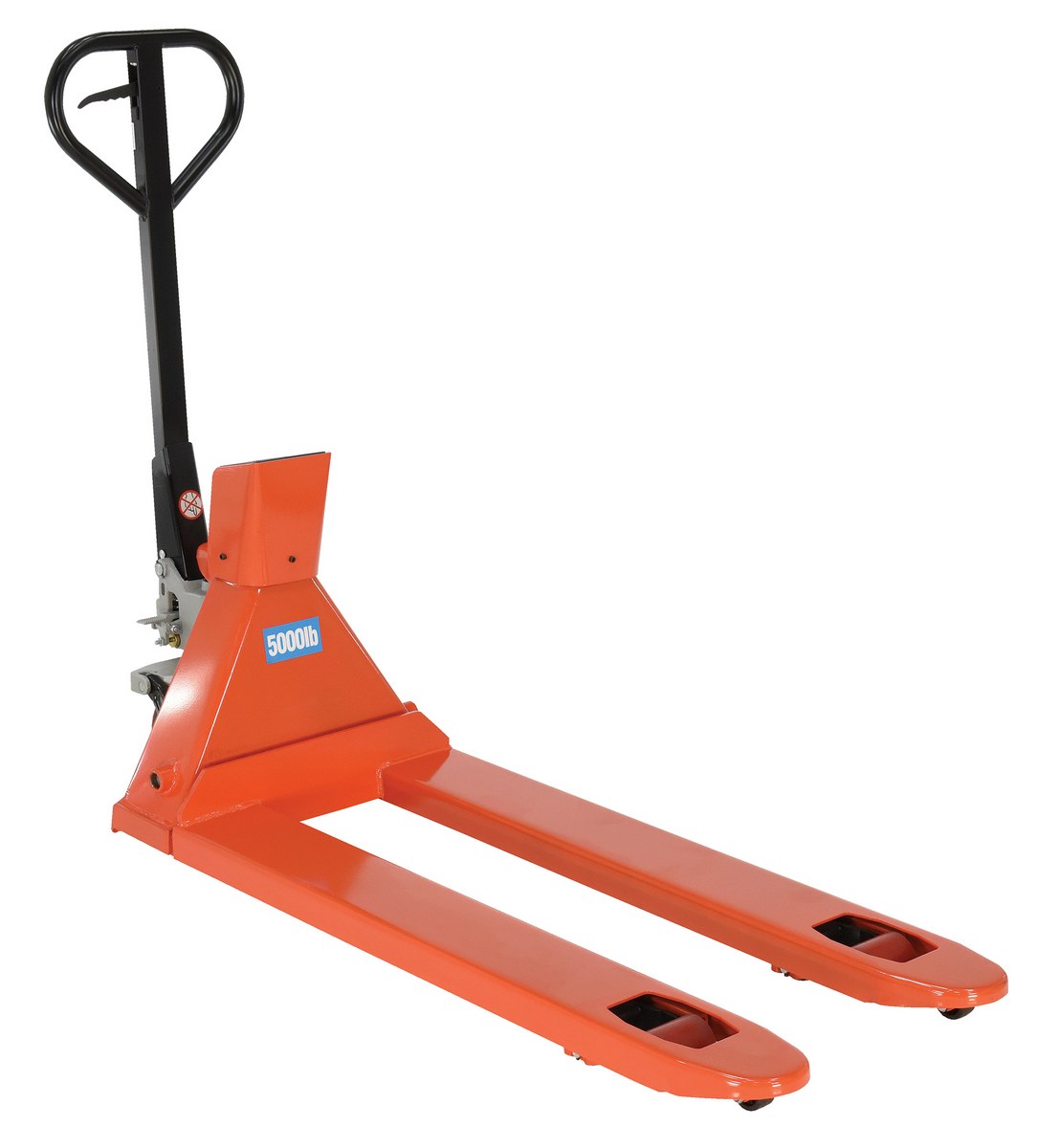

PM-2146-TL-SCL-LP PM-2146-TL-SCL-LP1 Year Limited WarrantySteel Trade Legal Low Profile Pallet Truck with Scale 61 In. x 21-1/2 In. x 45 In. 5000 Lb. Capacity RedUniform Capacity (lb.): 5000
Overall Fork Width (in.): 21		318

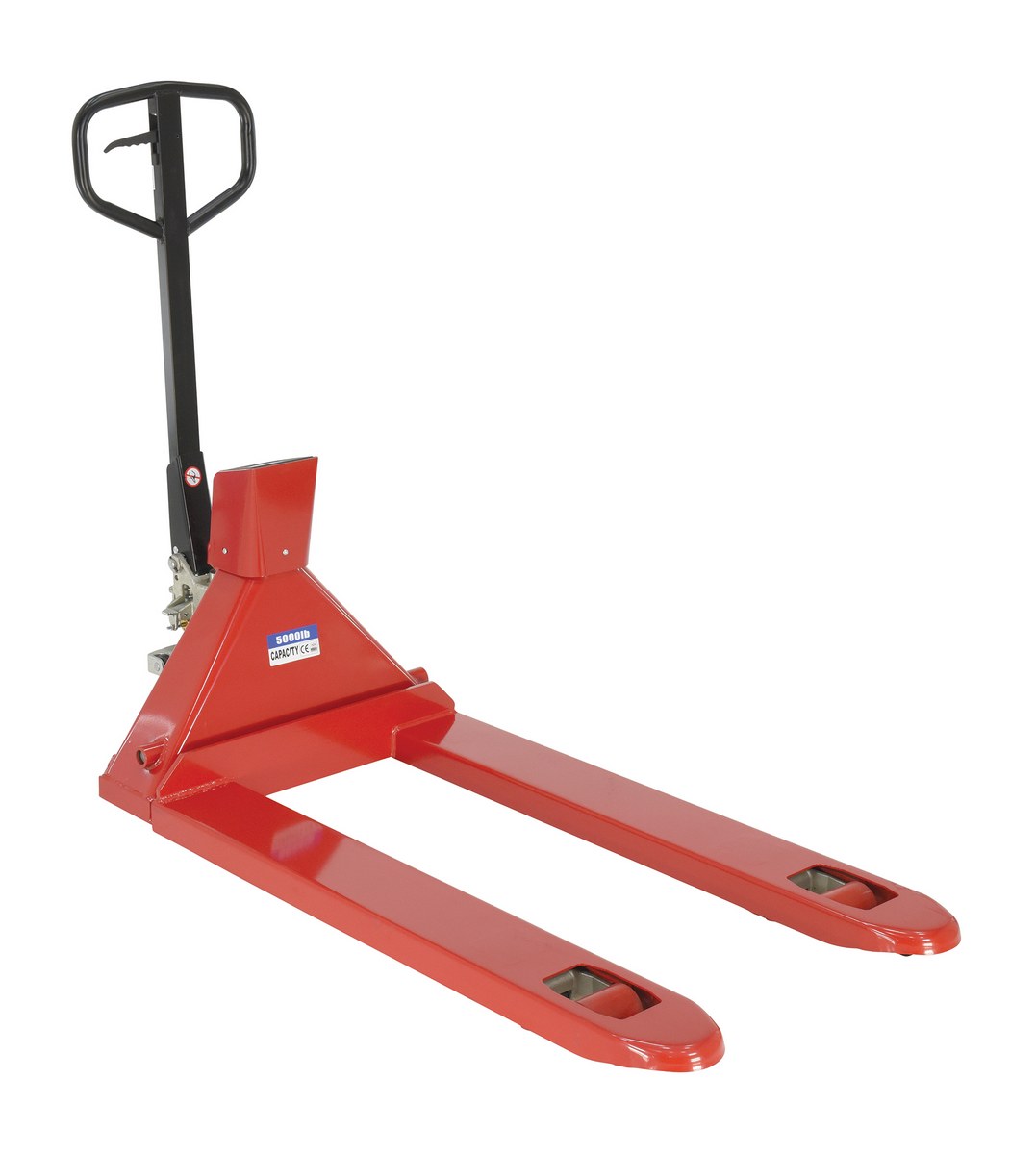

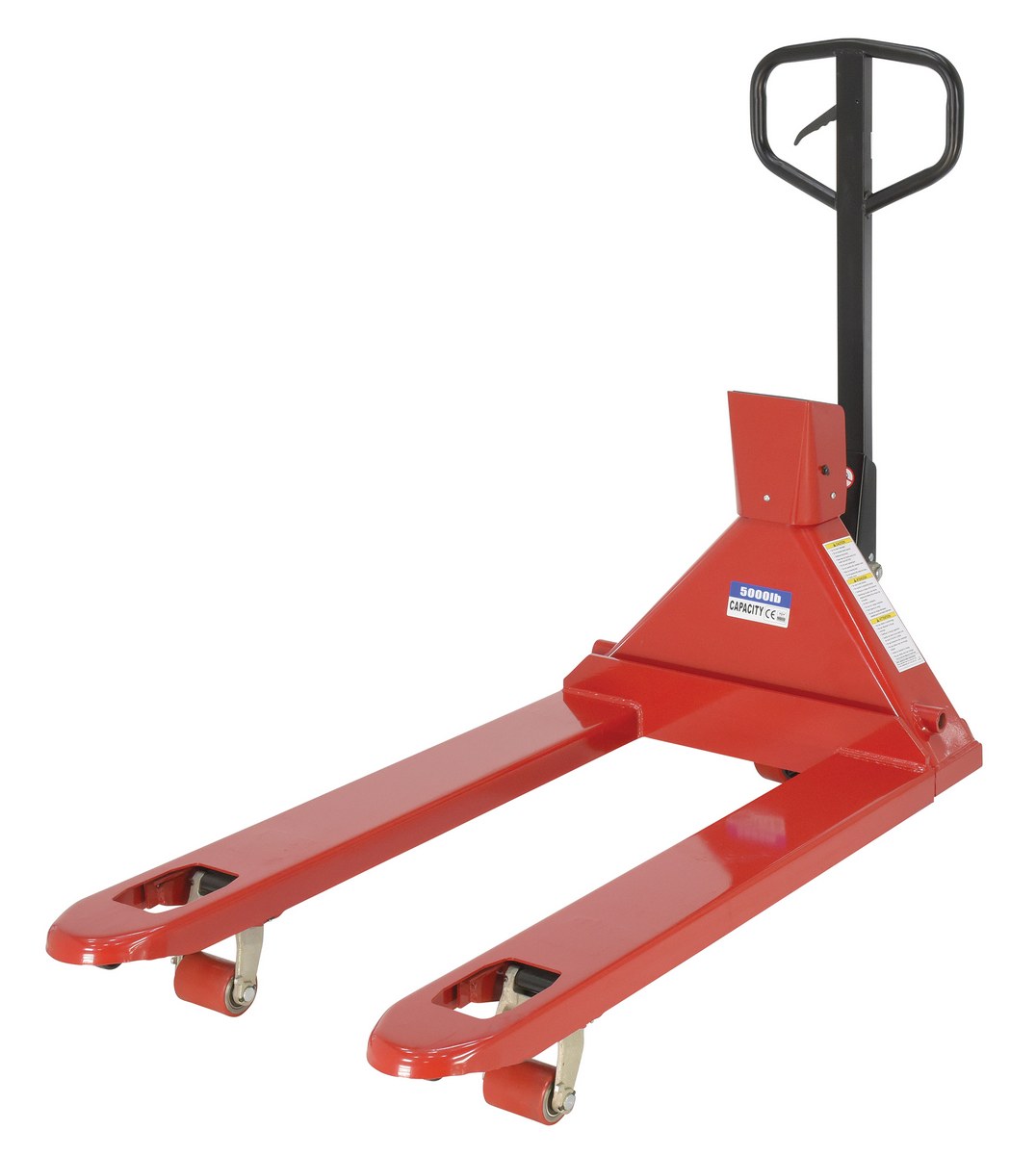

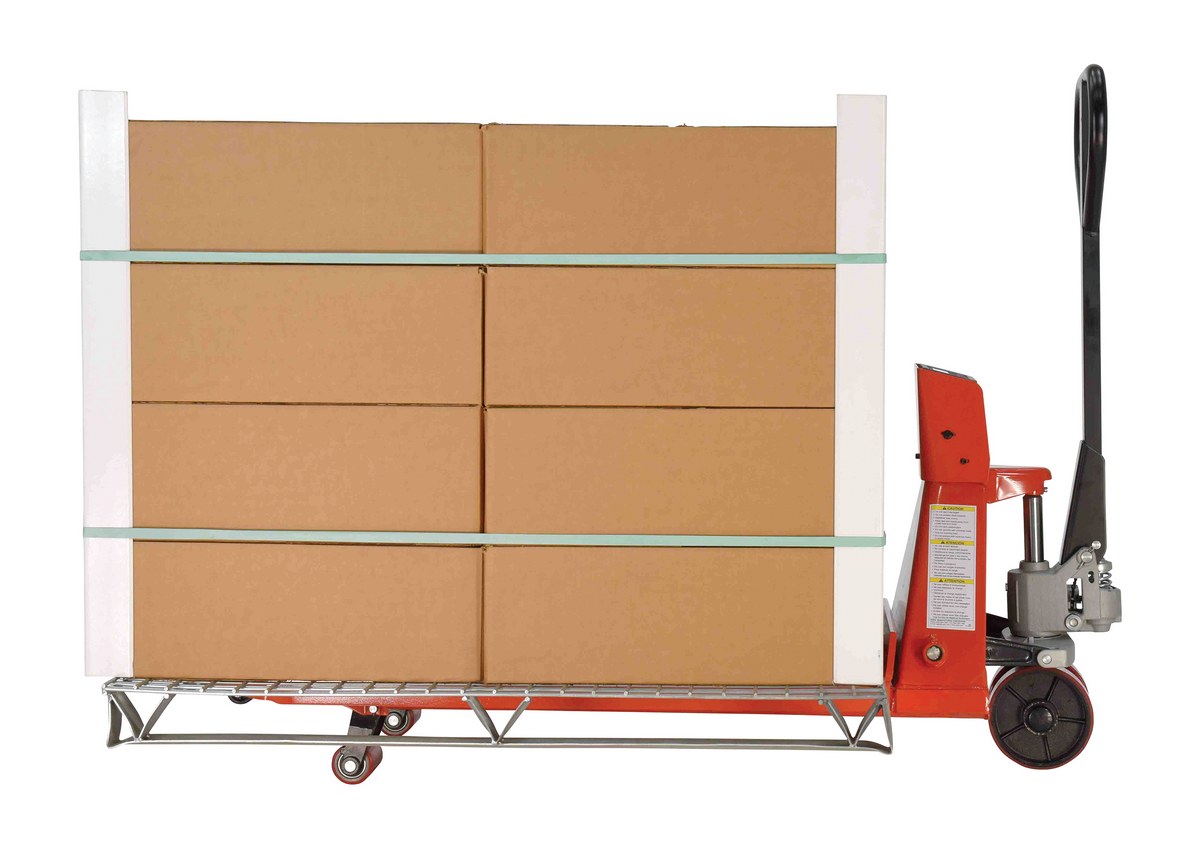

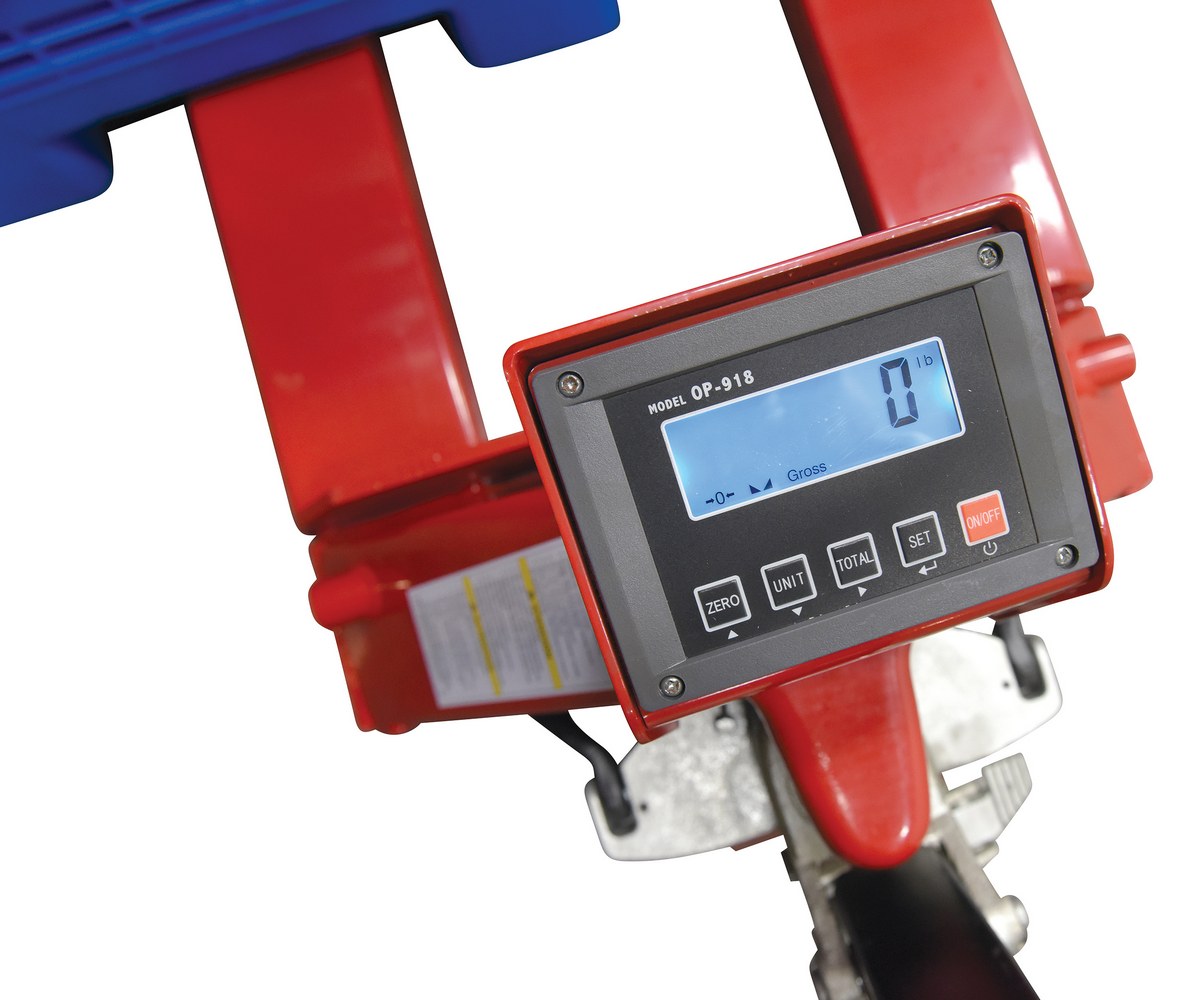

PM-2746-TL-SCL-LP PM-2746-TL-SCL-LP1 Year Limited WarrantySteel Trade Legal Low Profile Pallet Truck with Scale 66 In. x 28 In. x 48 In. 5000 Lb. Capacity RedUniform Capacity (lb.): 5000
Overall Fork Width (in.): 27		345

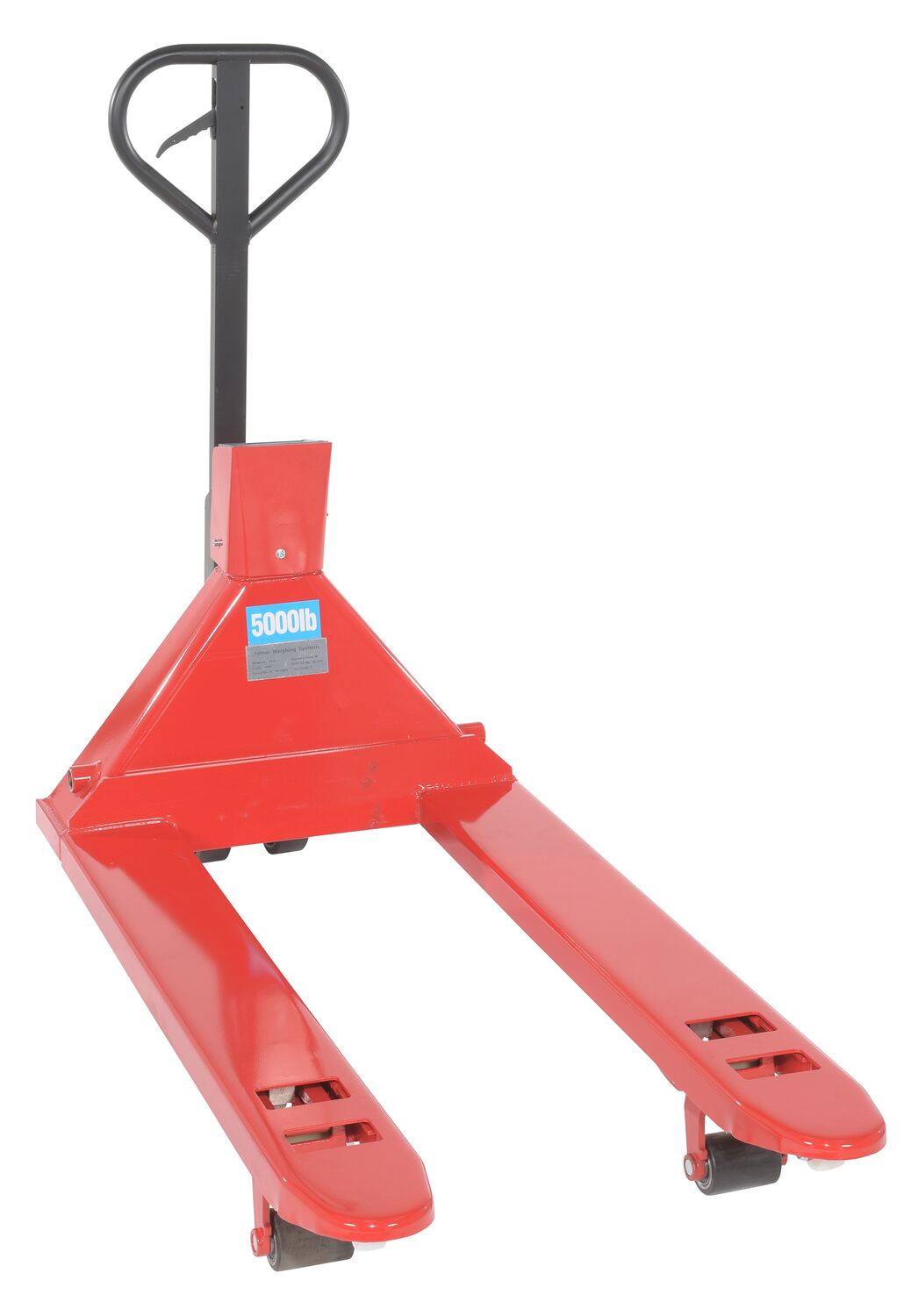

PM-2746-TL-SCL-LP-PT PM-2746-TL-SCL-LP-PT1 Year Limited WarrantySteel Trade Legal Low Profile Pallet Truck with Scale and Printer 66 In. x 28 In. x 48 In. 5000 Lb. Capacity RedUniform Capacity (lb.): 5000
Overall Fork Width (in.): 27		345

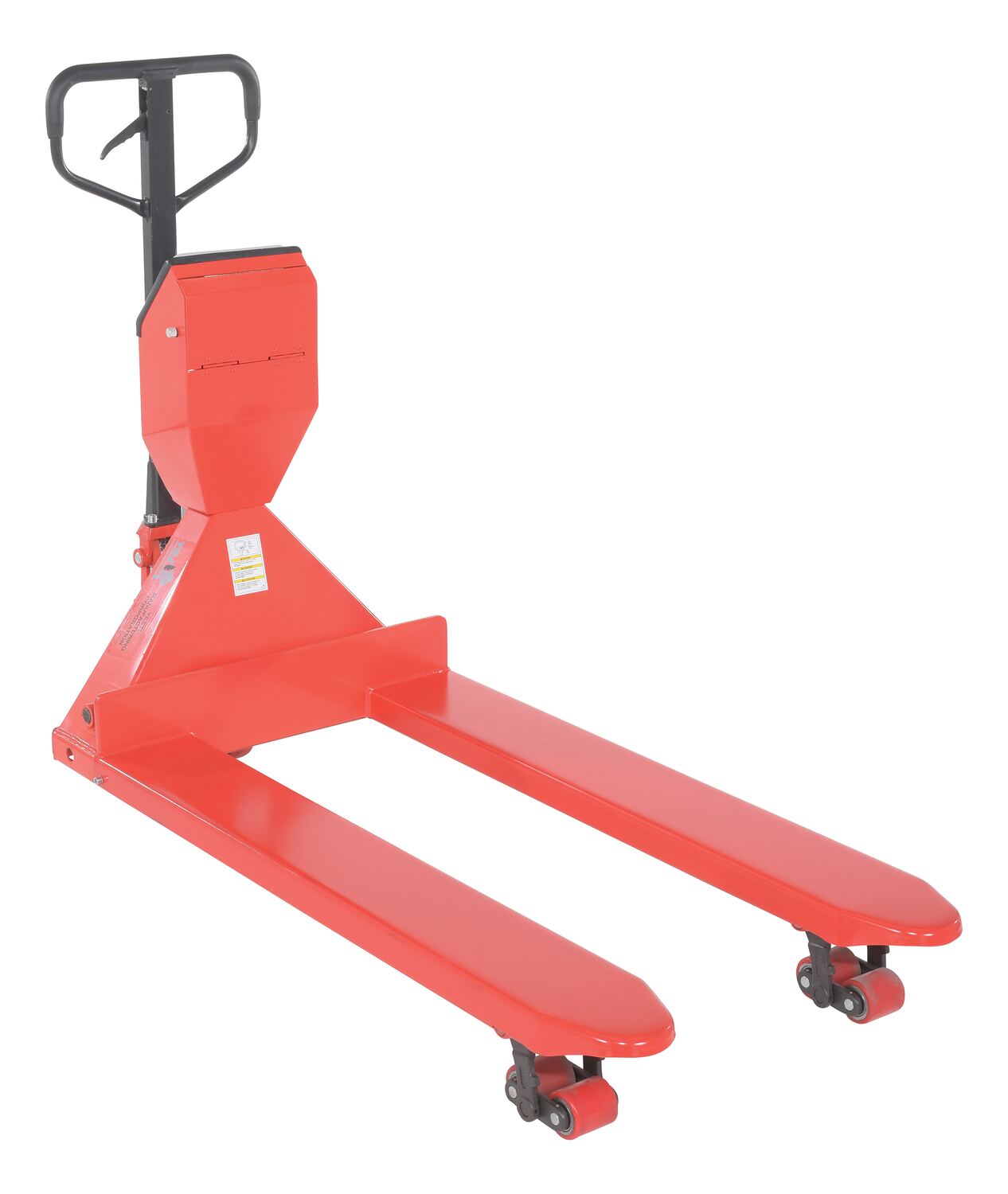

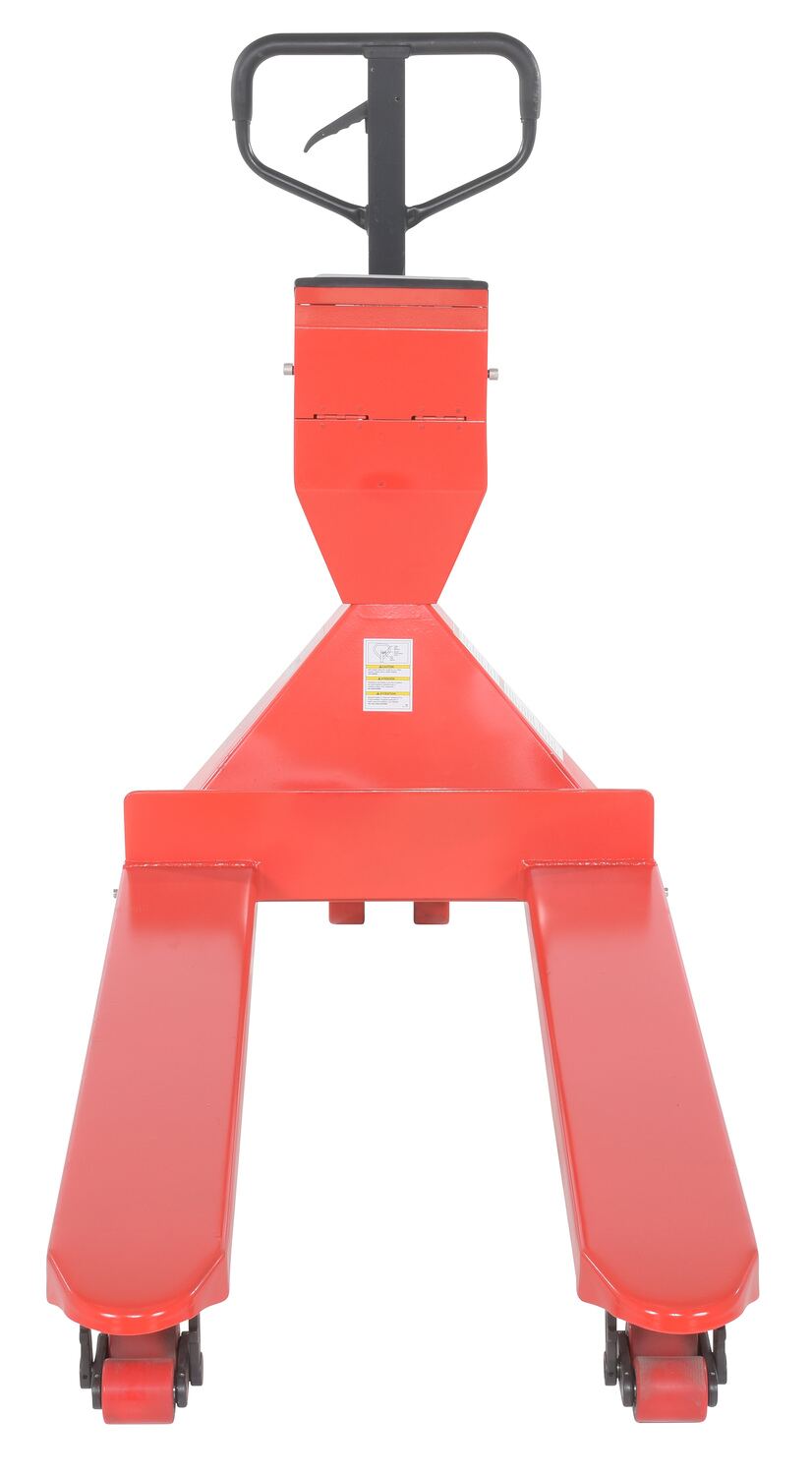

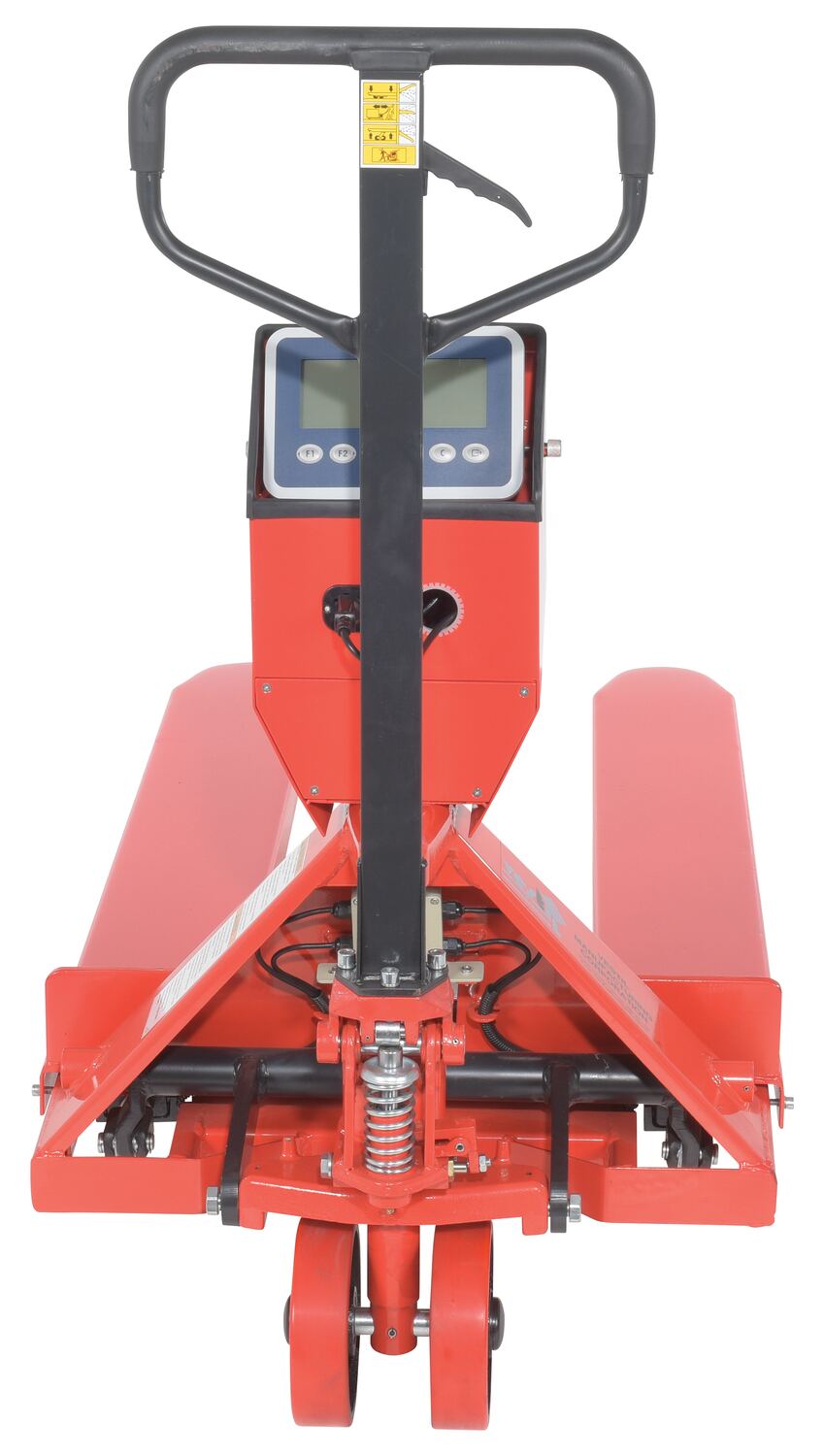

PM-2748-SCL-LP POPULAR PM-2748-SCL-LP1 Year Limited WarrantySteel Low Profile Pallet Truck with Scale 66 In. x 28 In. x 48 In. 5000 Lb. Capacity RedUniform Capacity (lb.): 5000
Overall Fork Width (in.): 27-1/2		380

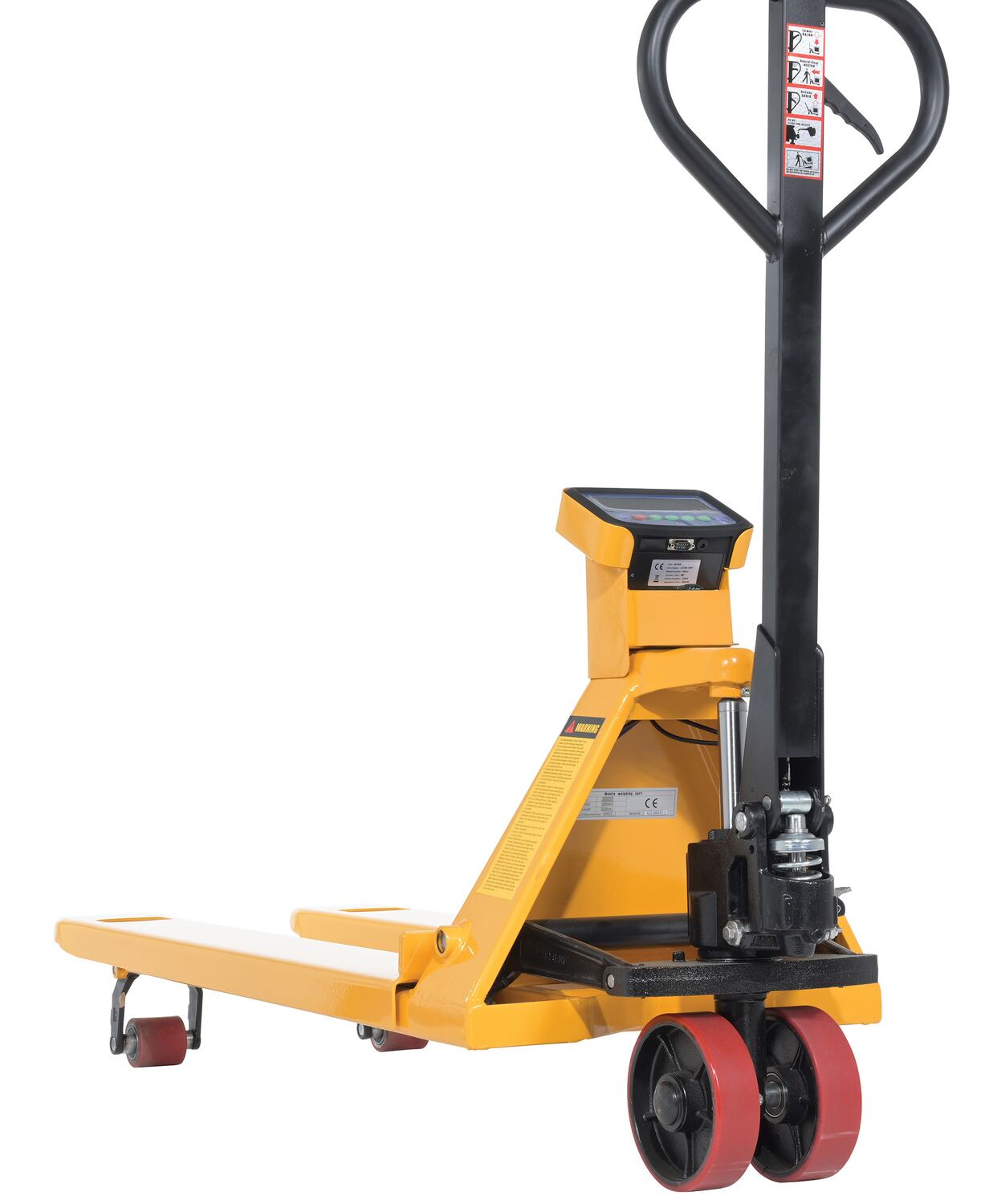

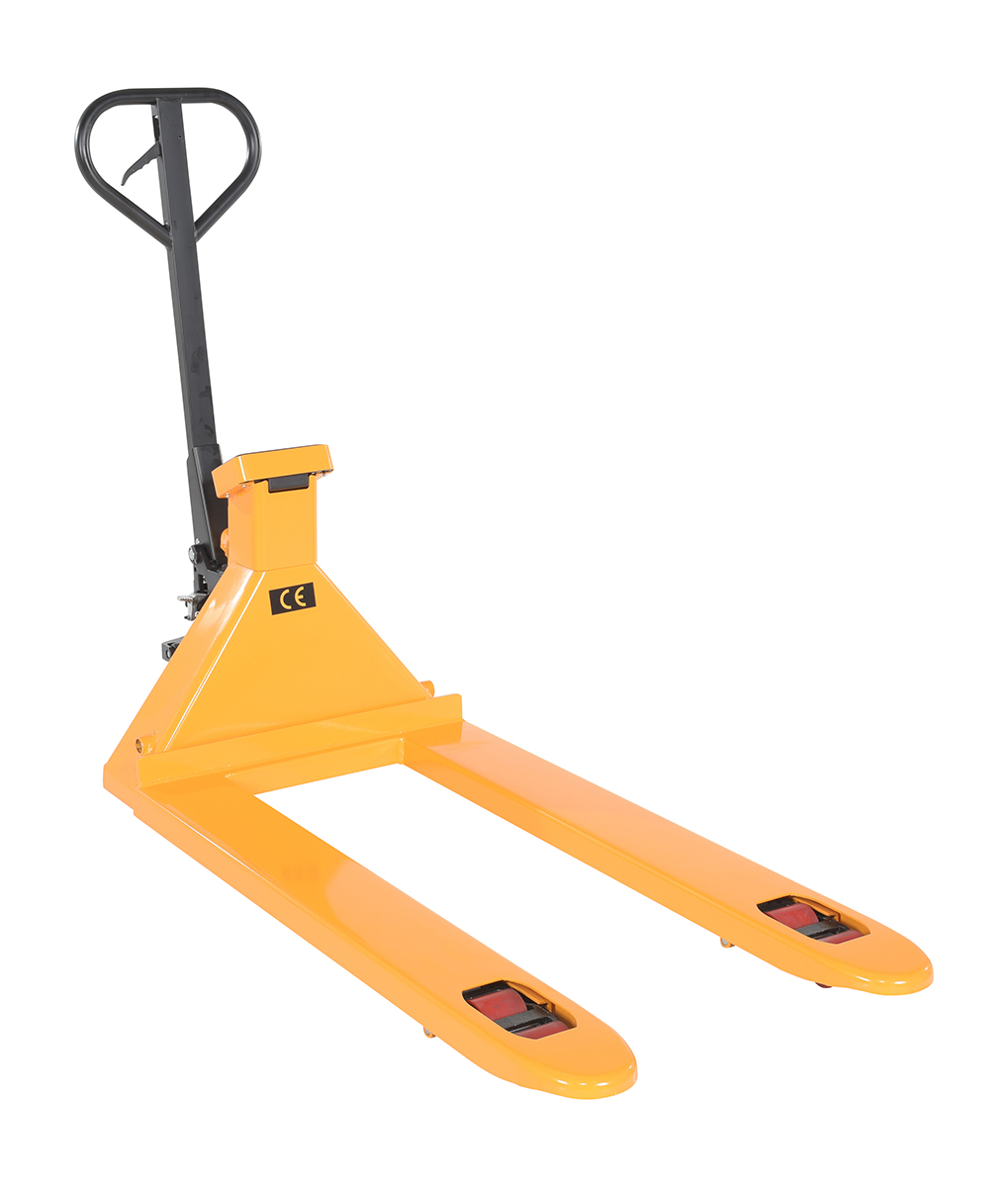

PM-2748-SCL-LP-E PM-2748-SCL-LP-E1 Year Limited WarrantySteel Low Profile Economy Pallet Truck with Scale 67-1/2 In. x 27 In. x 47 In. 5000 Lb. Capacity YellowCasters: 7-1/4"x2" Rigid Poly
Maximum Capacity: 5000		280

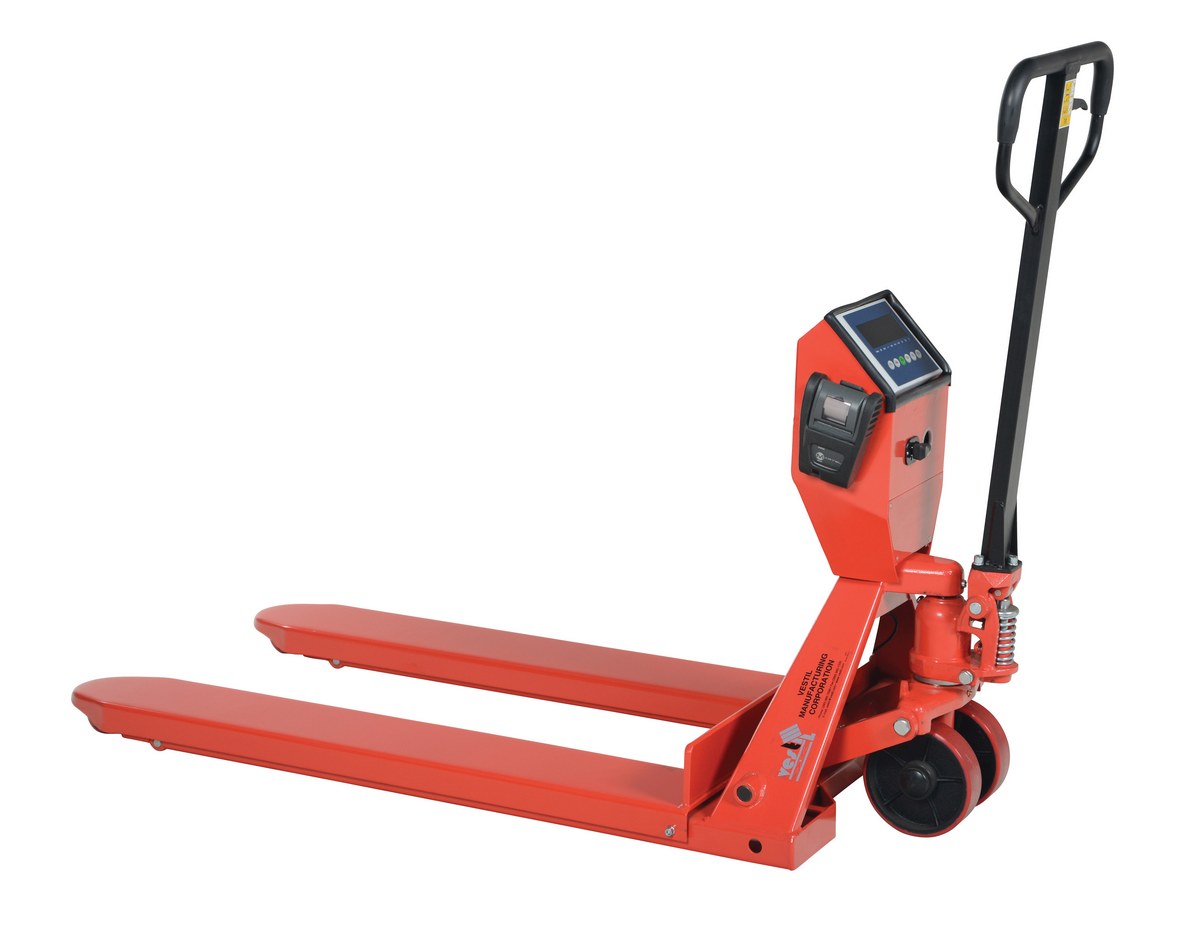

PM-2748-SCL-LP-PT PM-2748-SCL-LP-PT1 Year Limited WarrantySteel Low Profile Pallet Truck with Scale and Printer 66 In. x 28 In. x 48 In. 5000 Lb. Capacity RedUniform Capacity (lb.): 5000
Overall Fork Width (in.): 27-1/2		340

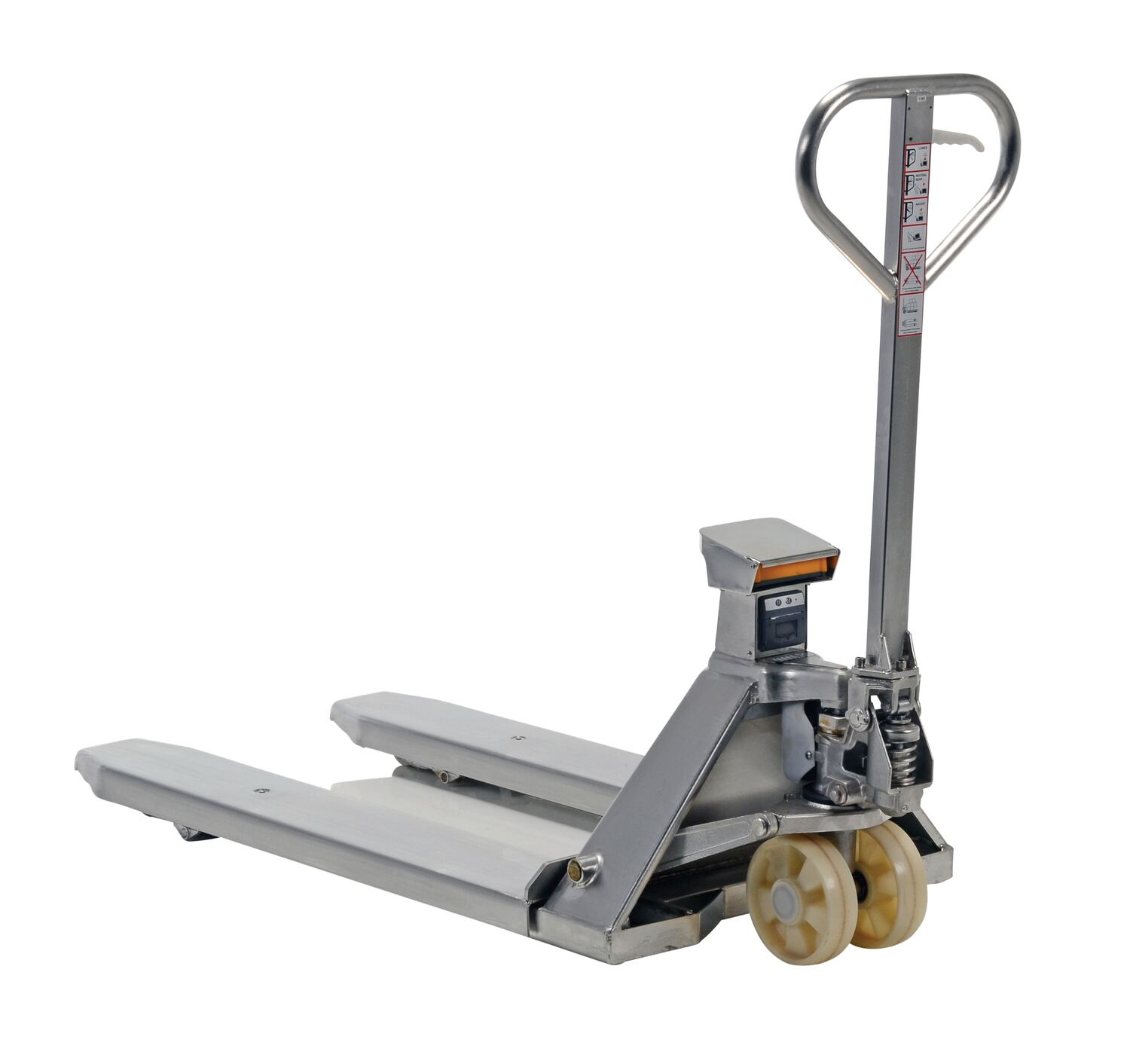

PM-2748-SCL-LP-SS PM-2748-SCL-LP-SS1 Year Limited WarrantyStainless Steel Low Profile Pallet Truck with Scale 61-43/64 In. x 27 In. x 48-5/8 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Overall Fork Width (in.): 27-1/2		375
PM5-2048-SCL-LP-E NEW PM5-2048-SCL-LP-E1 Year Limited WarrantySteel Low Profile Pallet Truck with Scale 67-1/2 In. x 20 In. x 47 In. 5000 Lb. Capacity YellowAssembly Required: Partial
Fully Welded Frame: Yes		280

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PM-2048-SCL-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 22-3/8
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 22-3/8

PM-2048-SCL-LP-PT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 22-3/8
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 22-3/8

PM-2048-SCL-LP-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 21-7/8
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 21-7/8

PM-2146-TL-SCL-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 21
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 21

PM-2746-TL-SCL-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 27
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 27

PM-2746-TL-SCL-LP-PT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 27
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 27

PM-2748-SCL-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 27-1/2
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 27-1/2

PM-2748-SCL-LP-E
Unit:
Size: W x L x H
Weight:
Limited Warranty
Casters: 7-1/4"x2" Rigid Poly
Maximum Capacity: 5000
Casters: 7-1/4"x2" Rigid Poly
Maximum Capacity: 5000

PM-2748-SCL-LP-PT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 27-1/2
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 27-1/2

PM-2748-SCL-LP-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 27-1/2
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 27-1/2

PM5-2048-SCL-LP-E
Unit:
Size: W x L x H
Weight:
Limited Warranty
Assembly Required: Partial
Fully Welded Frame: Yes
Assembly Required: Partial
Fully Welded Frame: Yes
Pallet Trucks with Digital Scale PDF's will open in a new window when clicked.

Manuals


PM-SCALE
Owners Manual

PM-2748-SCL-LP-PT
Owners Manual

PM-2746-TL-SCL-LP
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


PM-2048-SCL-LP

PM-2746-TL-SCL-LP

PM-2748-SCL-LP

PM-2748-SCL-LP-PT

Testing Certificates


PM-2048-SCL-LP

PM-2048-SCL-LP-PT

PM-2048-SCL-LP-SS

PM-2146-TL-SCL-LP

PM-2746-TL-SCL-LP

PM-2746-TL-SCL-LP-PT

PM-2748-SCL-LP

PM-2748-SCL-LP-E

PM-2748-SCL-LP-PT

PM-2748-SCL-LP-SS

SDS Sheets

Hydraulic Oil SDS Sheet for: PM-2048-SCL-LP
Hydraulic Oil SDS Sheet for: PM-2048-SCL-LP-PT
Hydraulic Oil SDS Sheet for: PM-2048-SCL-LP-SS
Hydraulic Oil SDS Sheet for: PM-2146-TL-SCL-LP
Hydraulic Oil SDS Sheet for: PM-2746-TL-SCL-LP
Hydraulic Oil SDS Sheet for: PM-2748-SCL-LP
Hydraulic Oil SDS Sheet for: PM-2748-SCL-LP-PT
Hydraulic Oil SDS Sheet for: PM-2748-SCL-LP-SS
Hydraulic Oil SDS Sheet for: ALL-T-35-GPT-ST-L

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Does the scale measure in lbs. or kgs?

A: The scale defaults to measurement in pounds. There is a function to convert measurement to Kilograms.

Q: I'm comparing two pallet trucks with scales. They have the same fork size and same capacity. What is the difference between the PM-2748-SCL-LP and the PM-2748-SCL-LP-E?

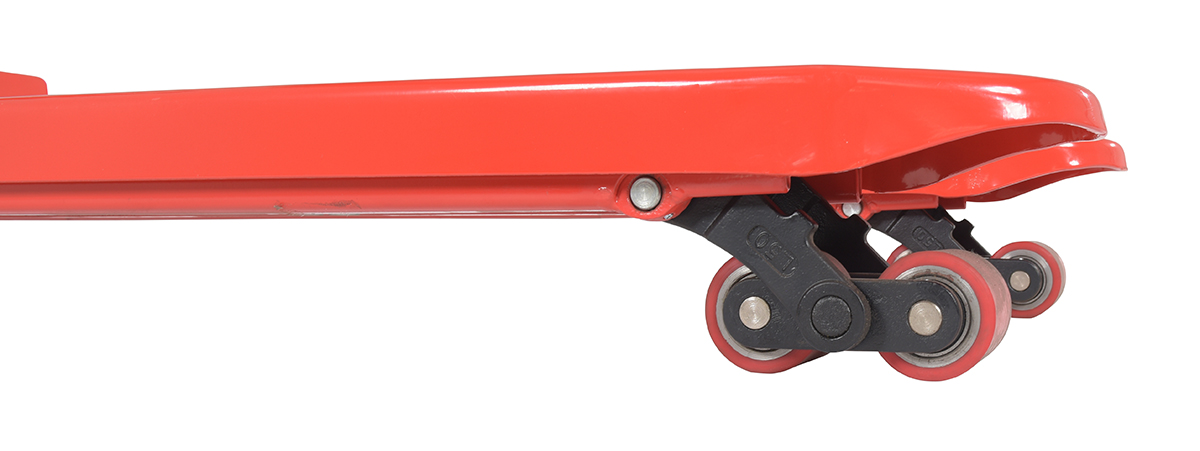

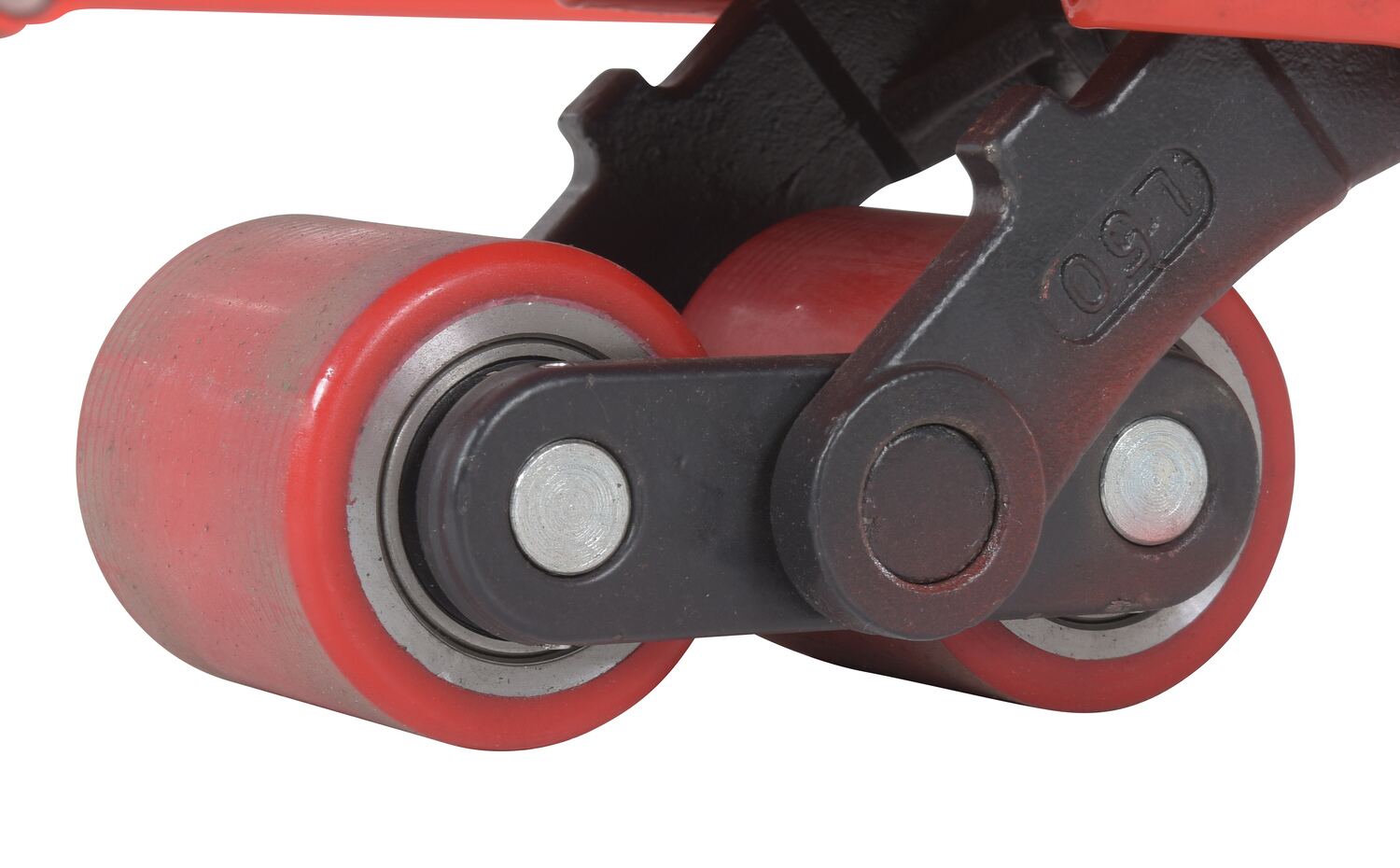

A: The PM-2748-SCL-LP has articulating wheels and a Metler Toledo scale that has multiple programming functions. The PM-2748-SCL-LP-E has a basic scale.

Q: What is the steer arch?

A: The steer arch of the PM-2146-TL-SCL-LP is 180 degrees.

Q: What is the max weight the scale will register?

A: The scale should be programmed to register to the max capacity.

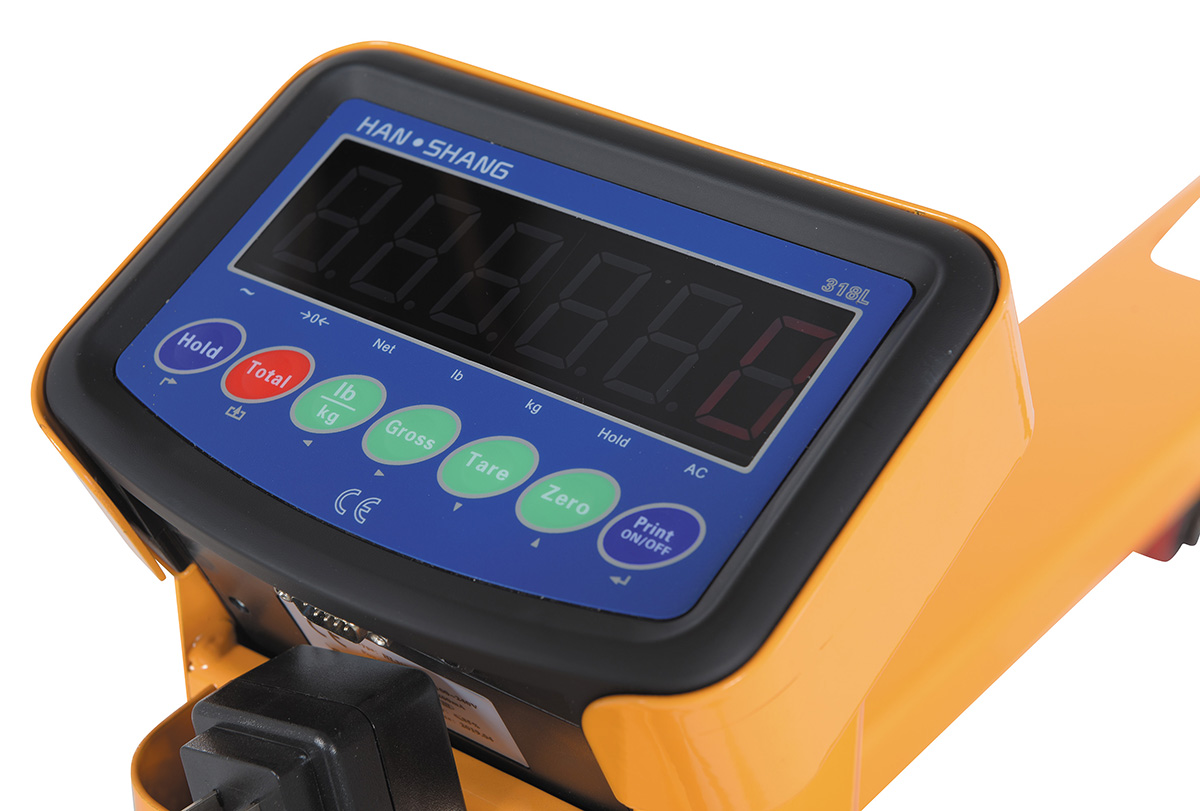

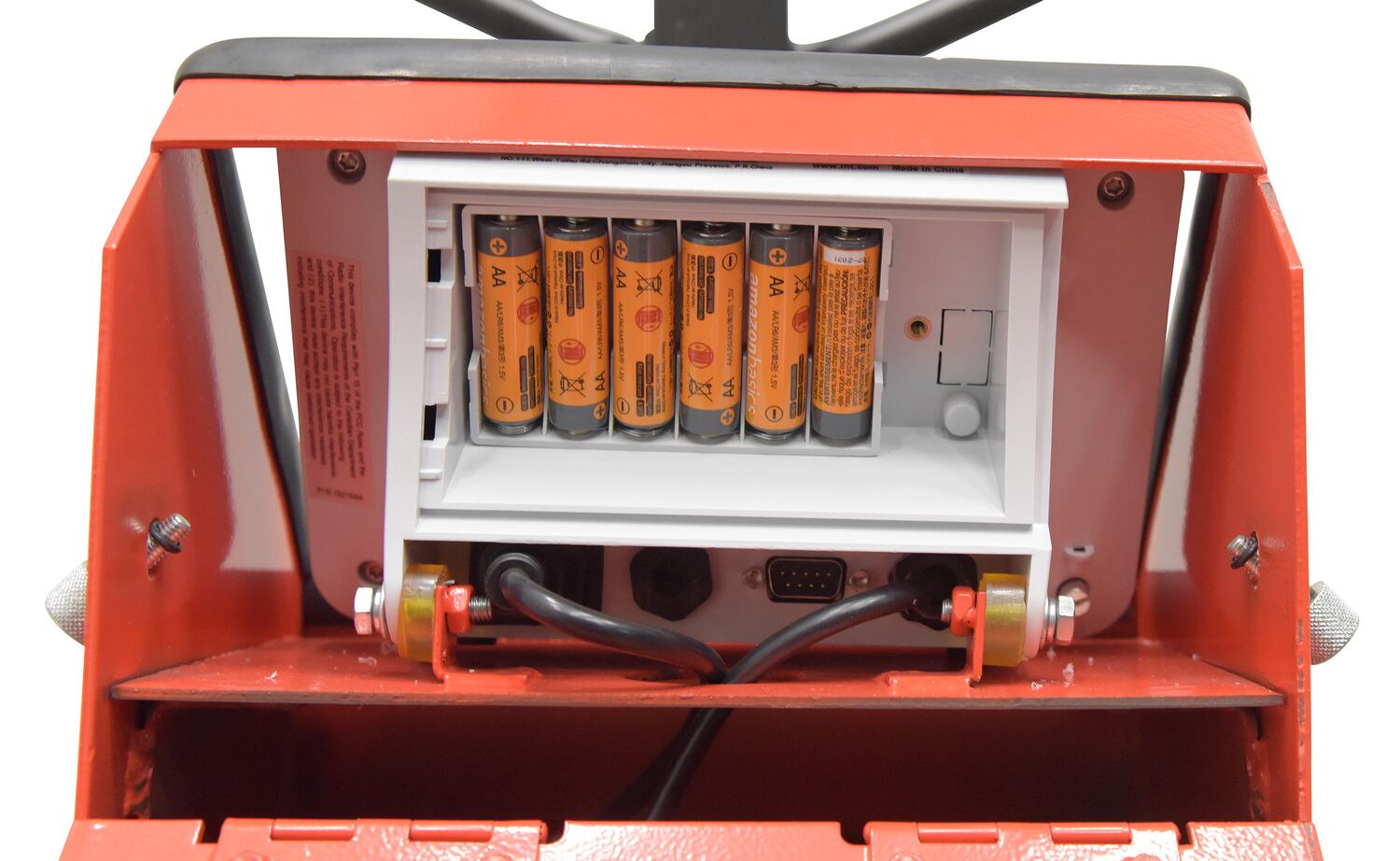

Q: What kind of batteries does the PM-2748-SCL-LP-E take?

A: The scale includes (1) 6V 4amp battery standard
