Fork Truck Jacks

model: FORK-J-HD

FORK-J-HD_A.jpg FORK-J-HD_B.jpg FORK-J-HD_C.jpg FORK-J-HD_E.jpg FORK-J-HD_G.jpg FORK-J-HD_H.jpg FORK-J-HD_I.jpg FORK-J-HD_J.jpg More Images +
Fork Truck Jacks
SERIES: AIR-J,FORK-J

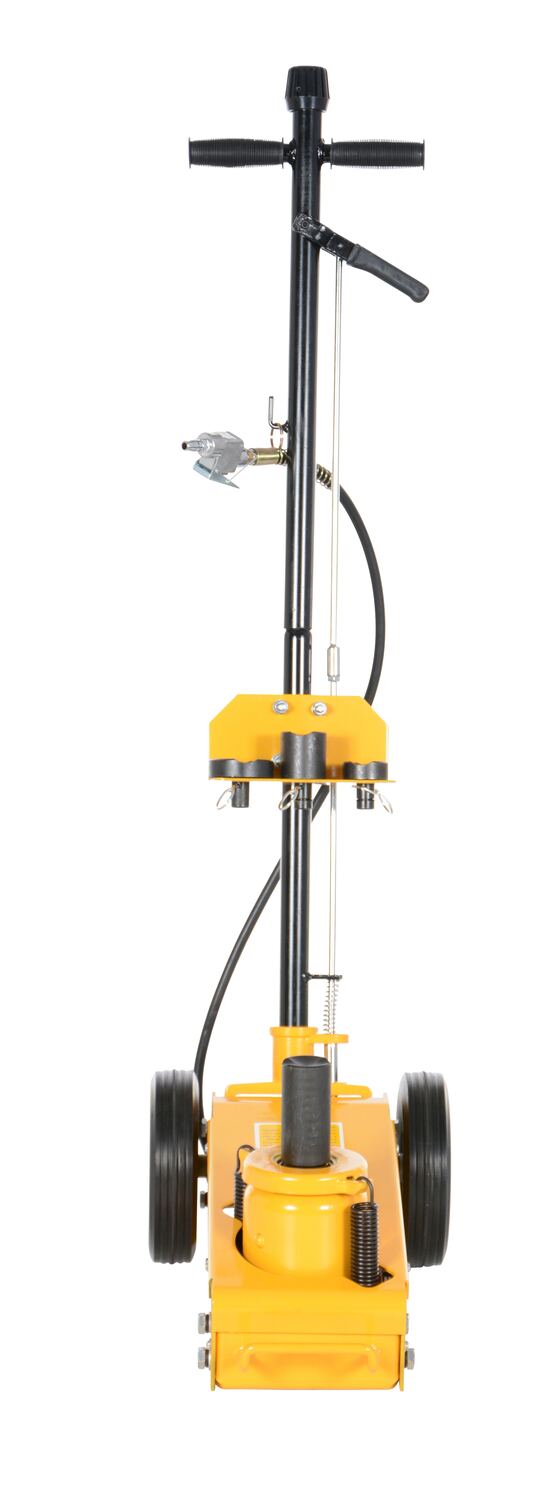

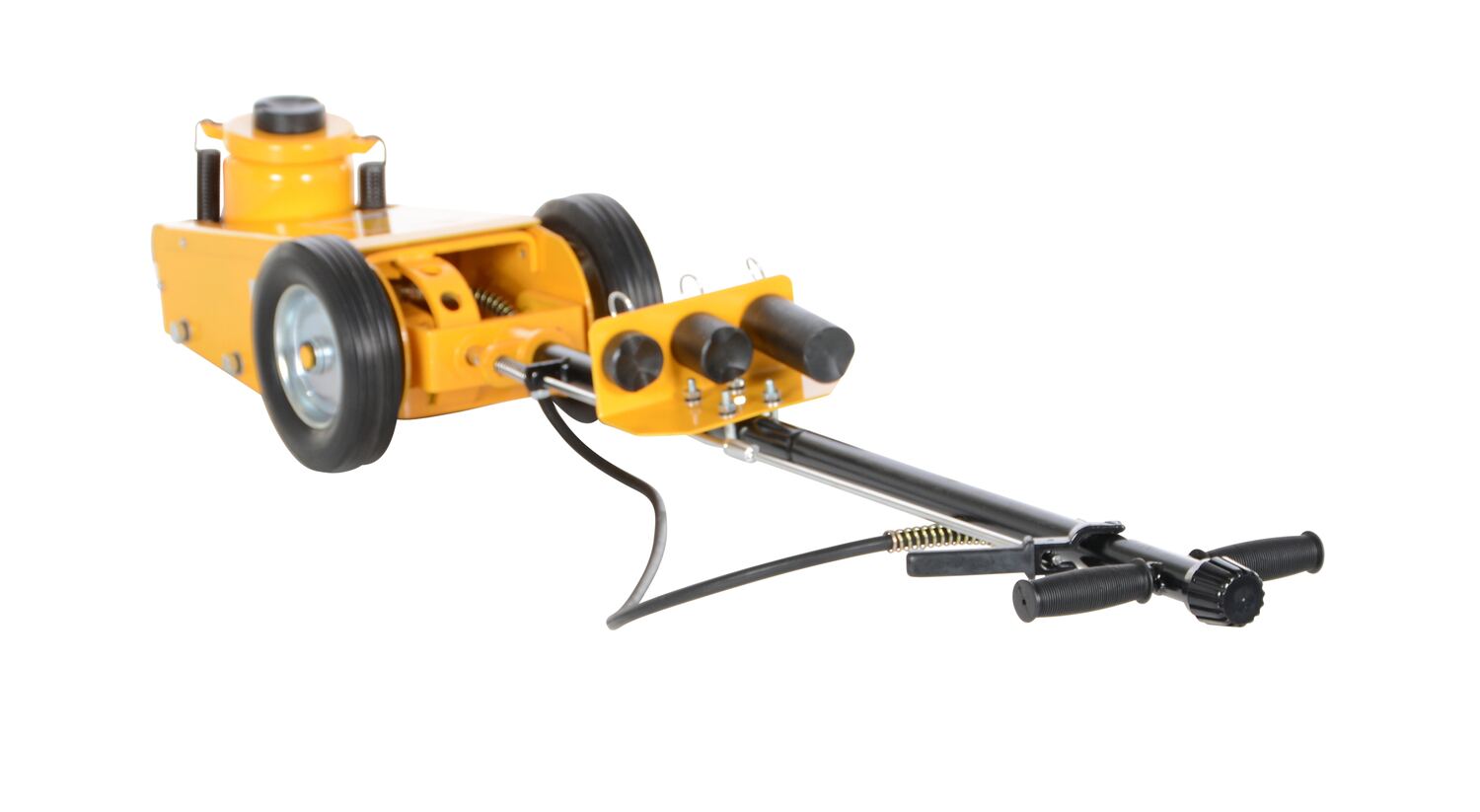

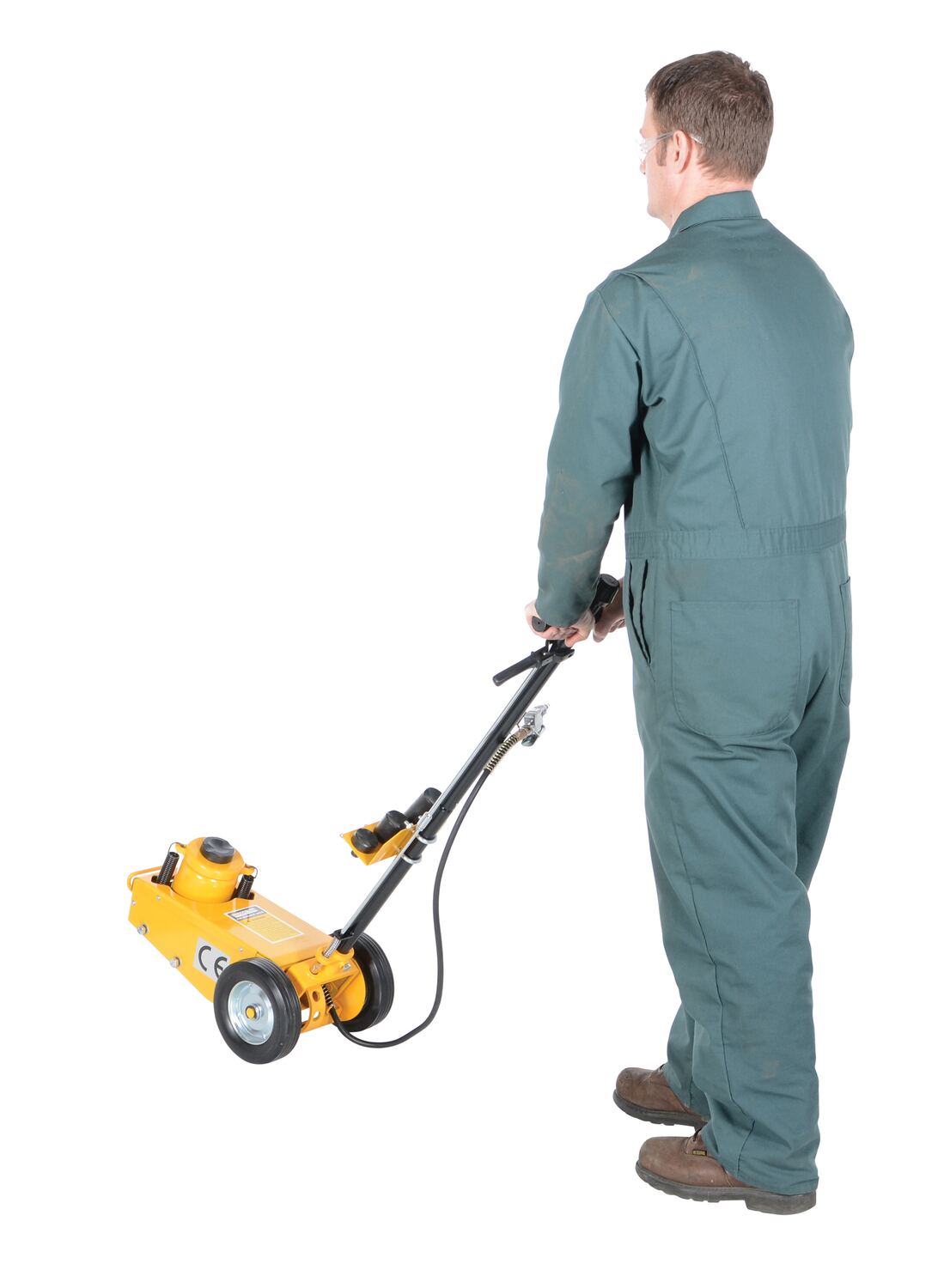

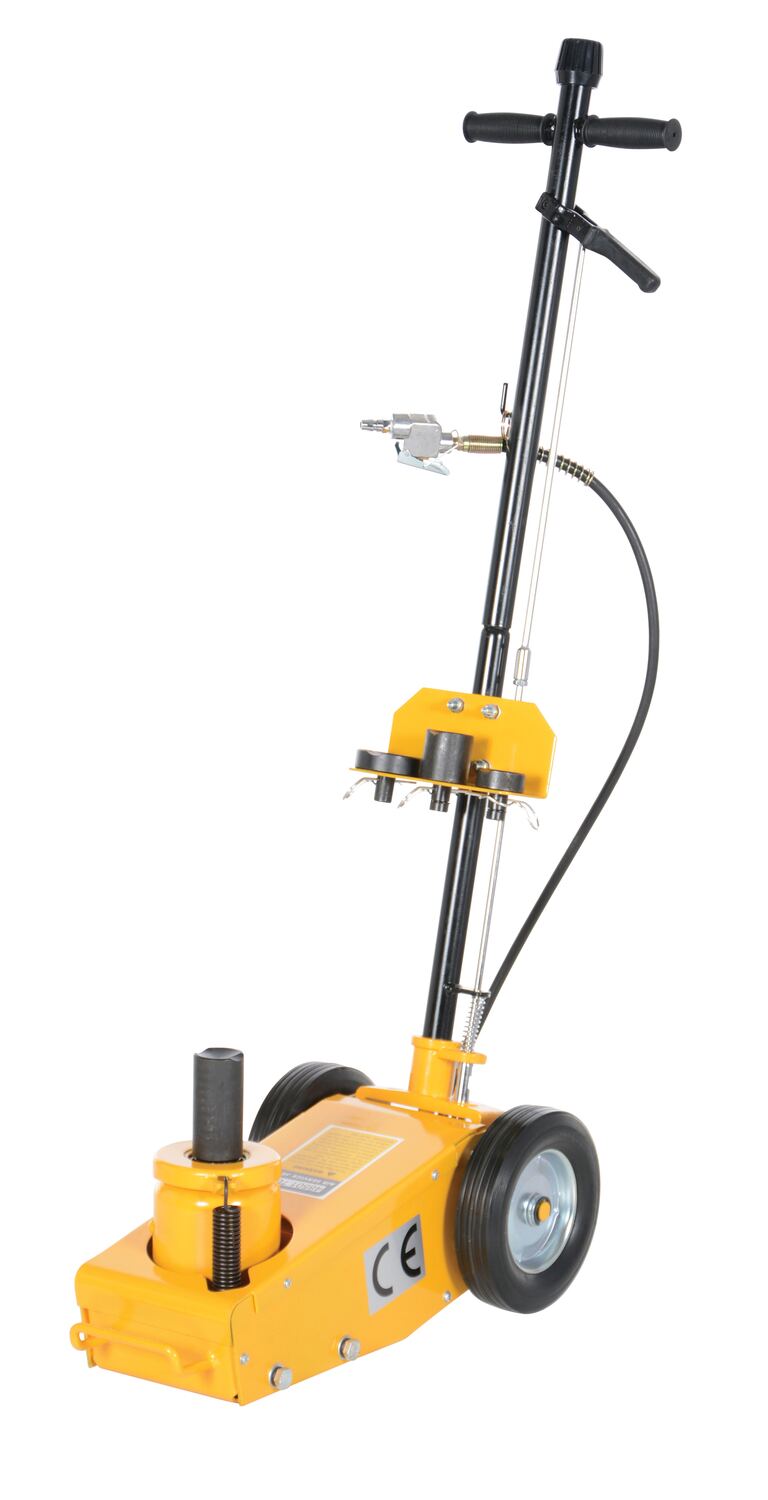

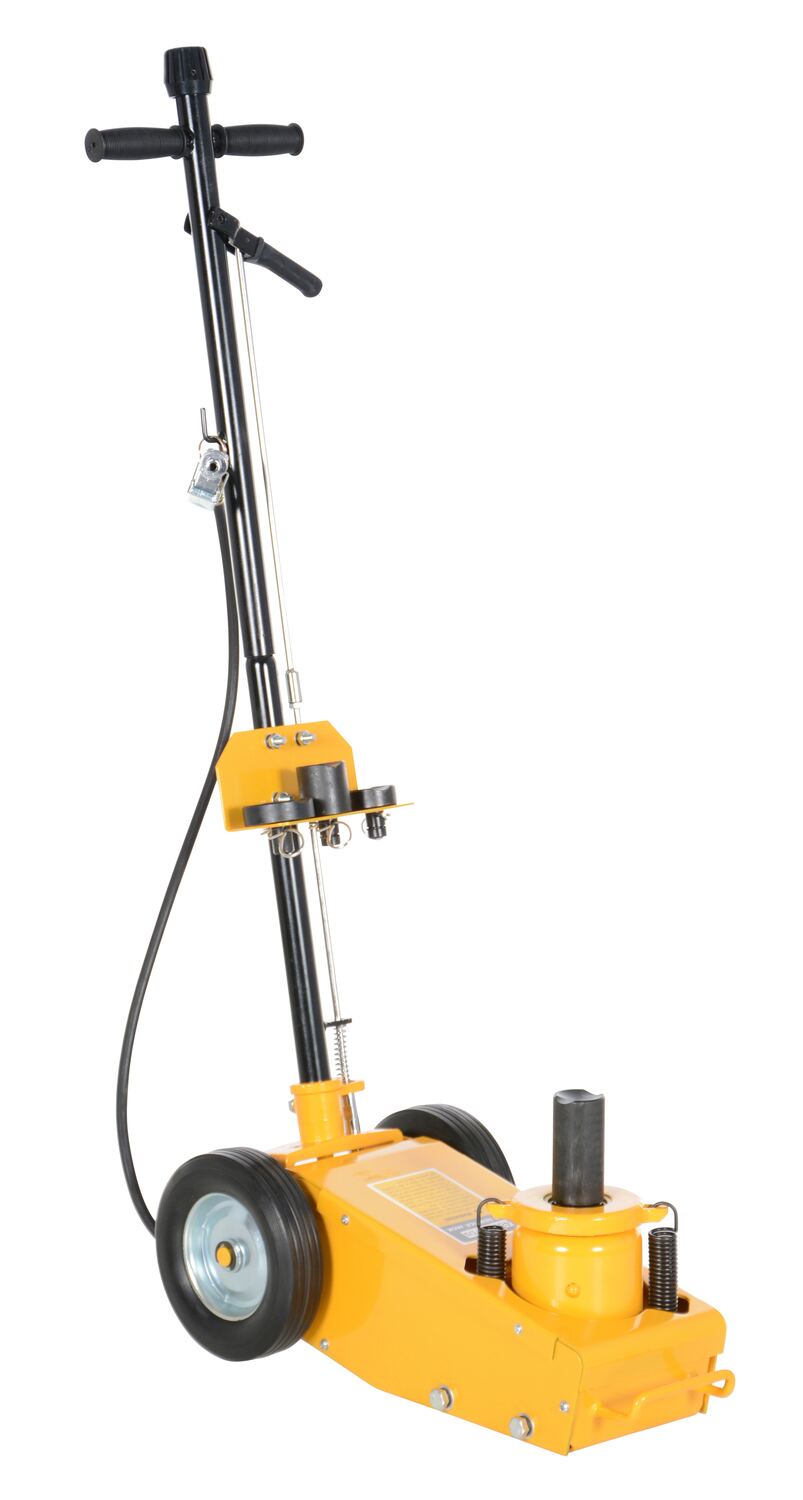

Air Powered Fork Truck Jack Air-assist motor quickly raises saddle to lift point and then lifts load to desired height. Air powered for quick and easy operation. Uses standard coupler hook-up to a shop air compressor with air regulator control lever handle. Pressure relief valve is located on top of handle for metered control and load height adjustment.

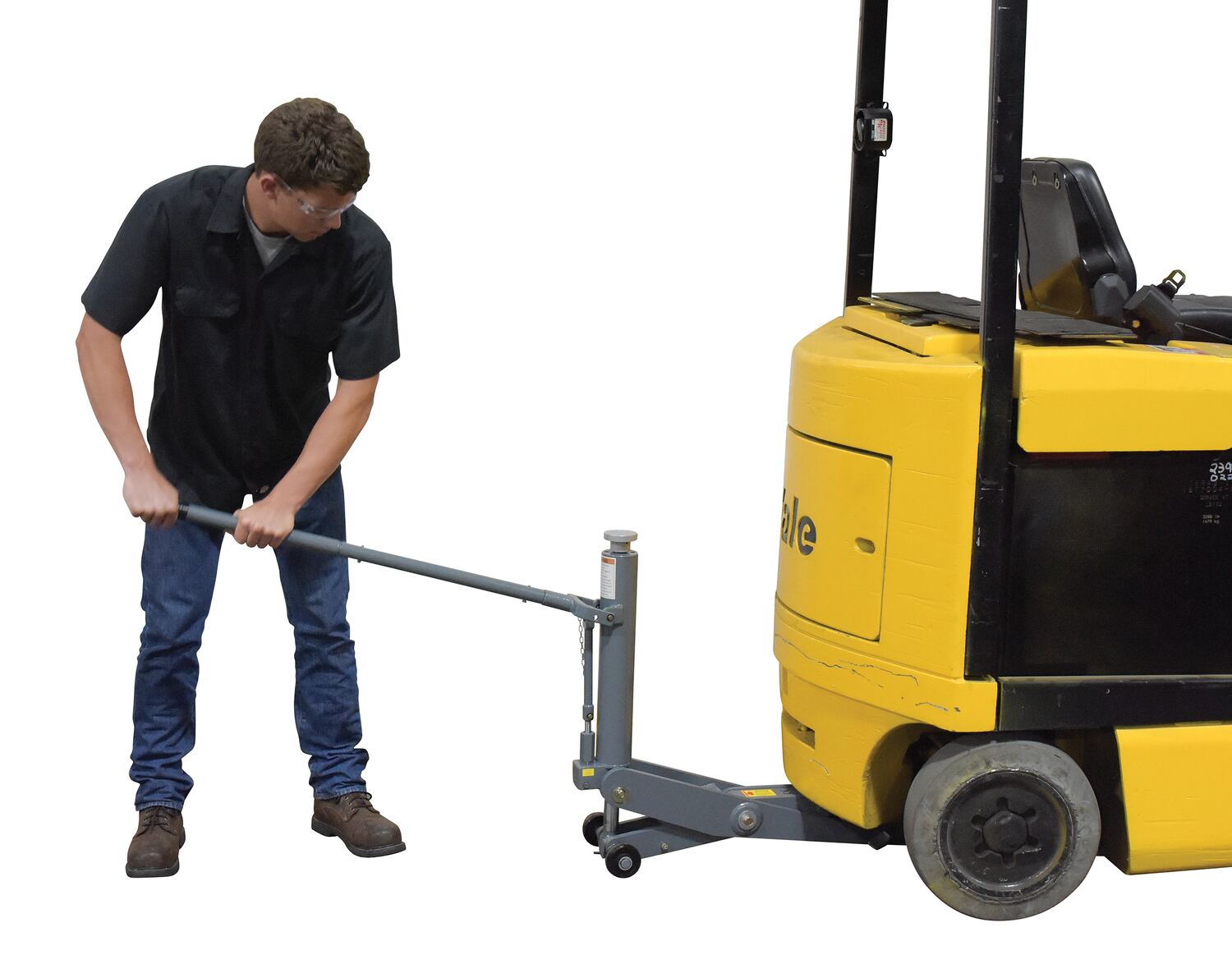

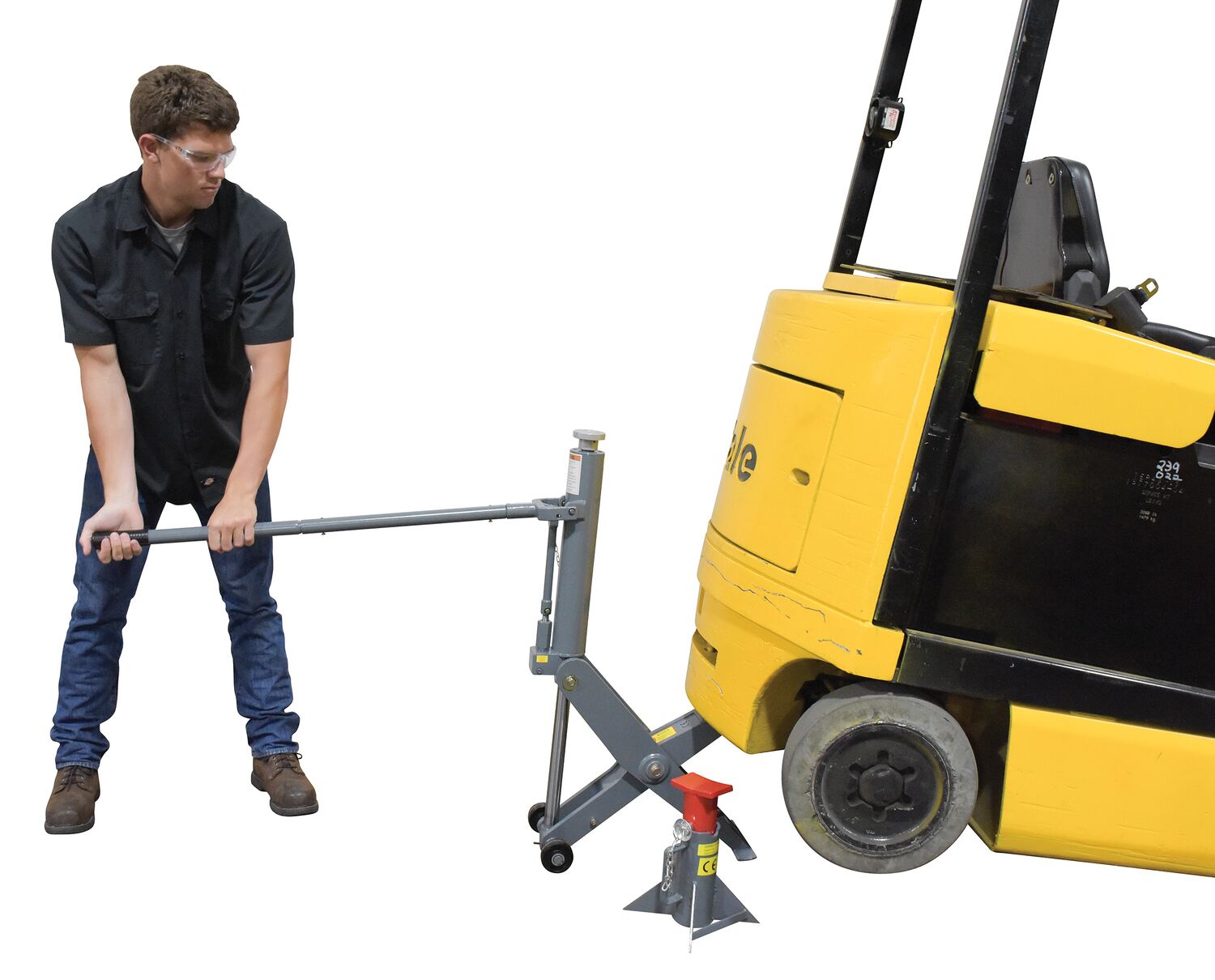

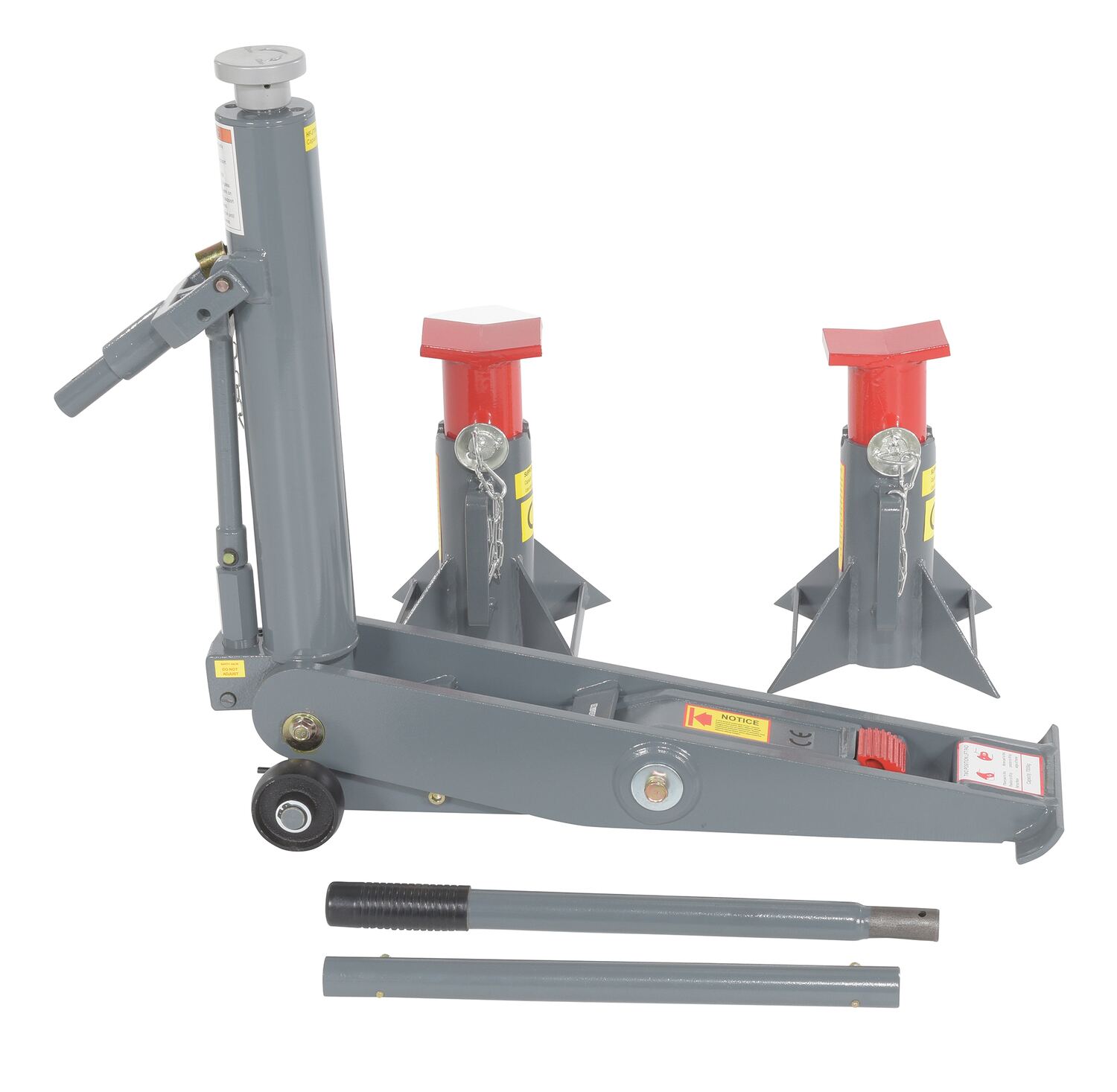

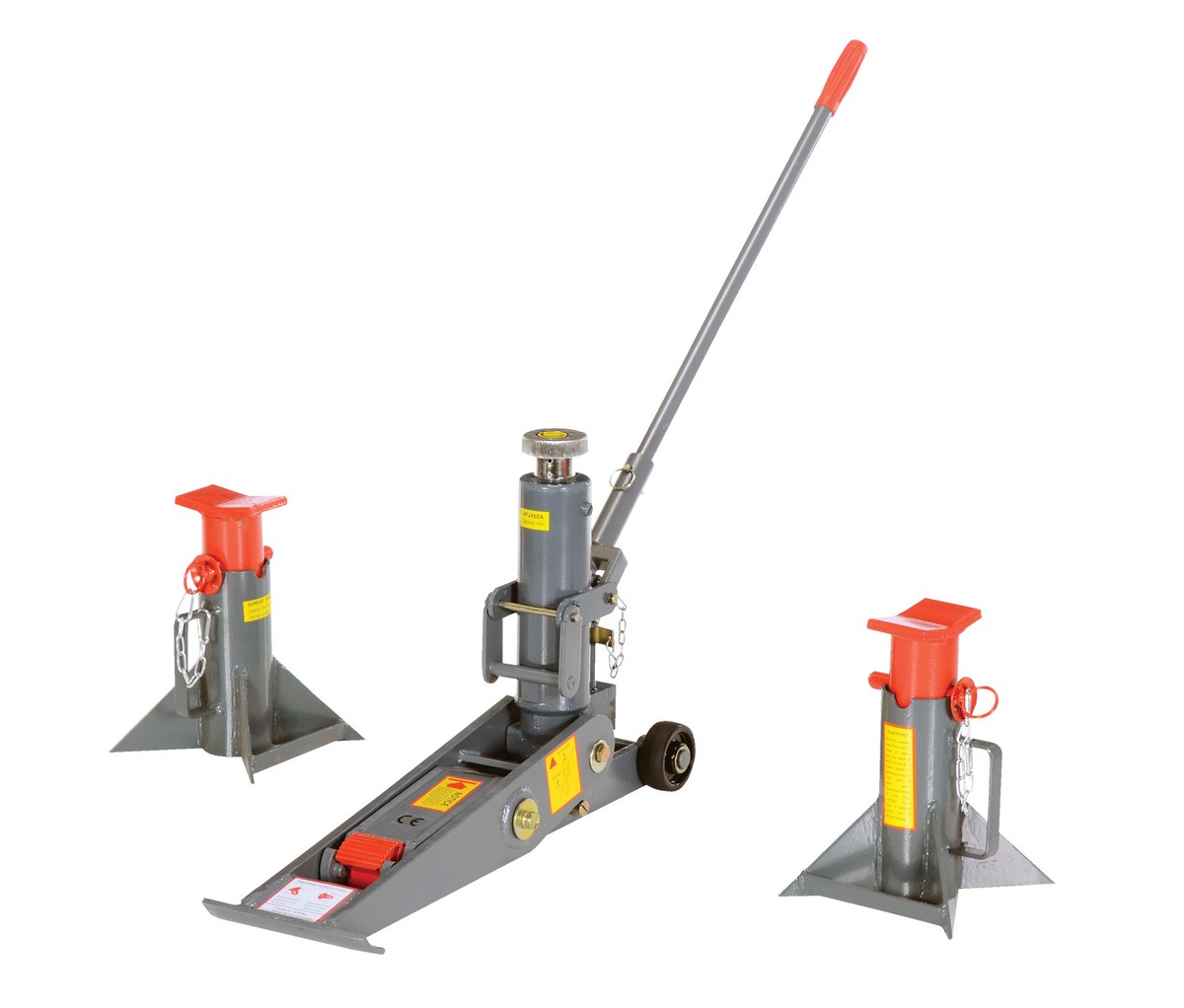

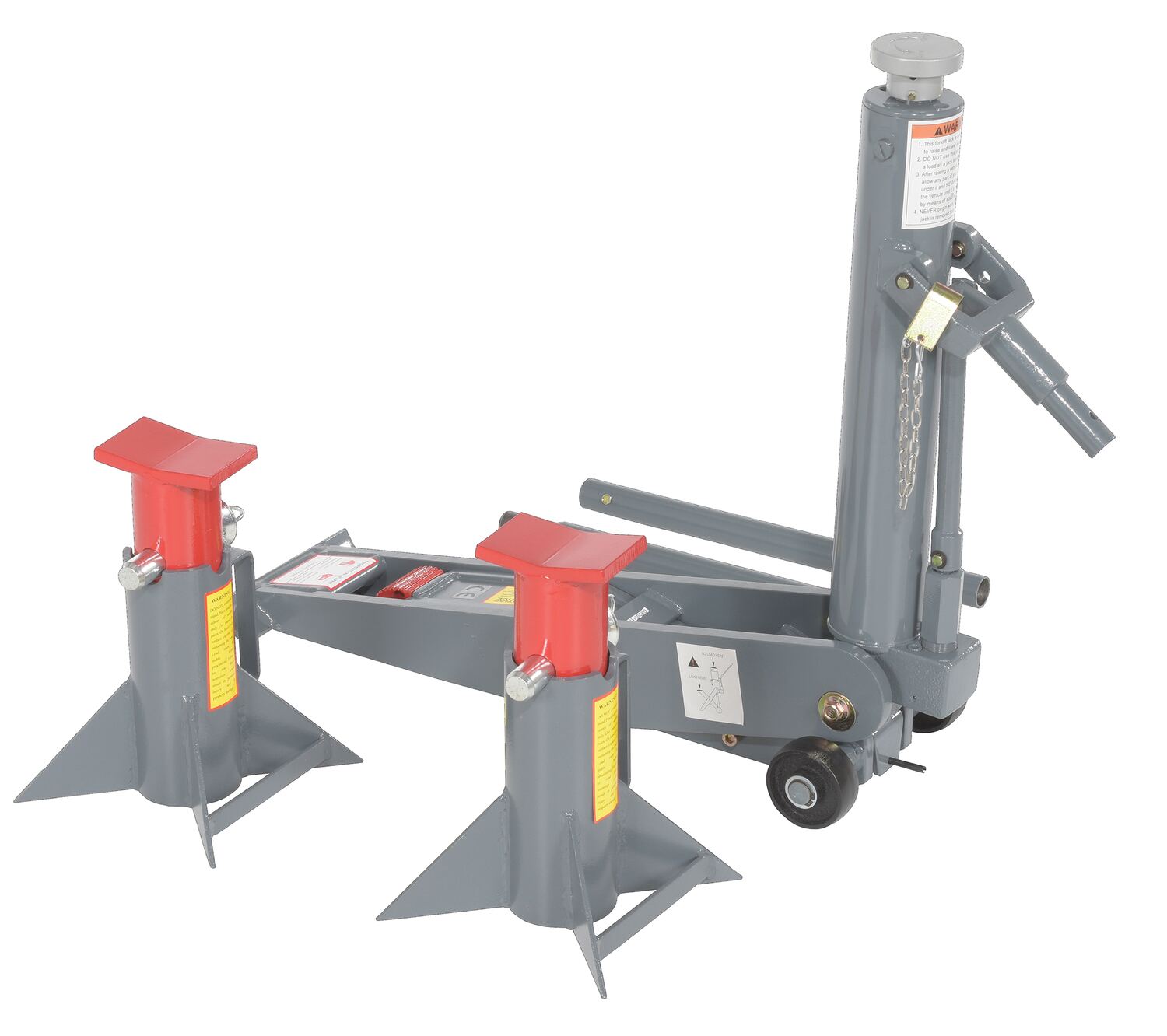

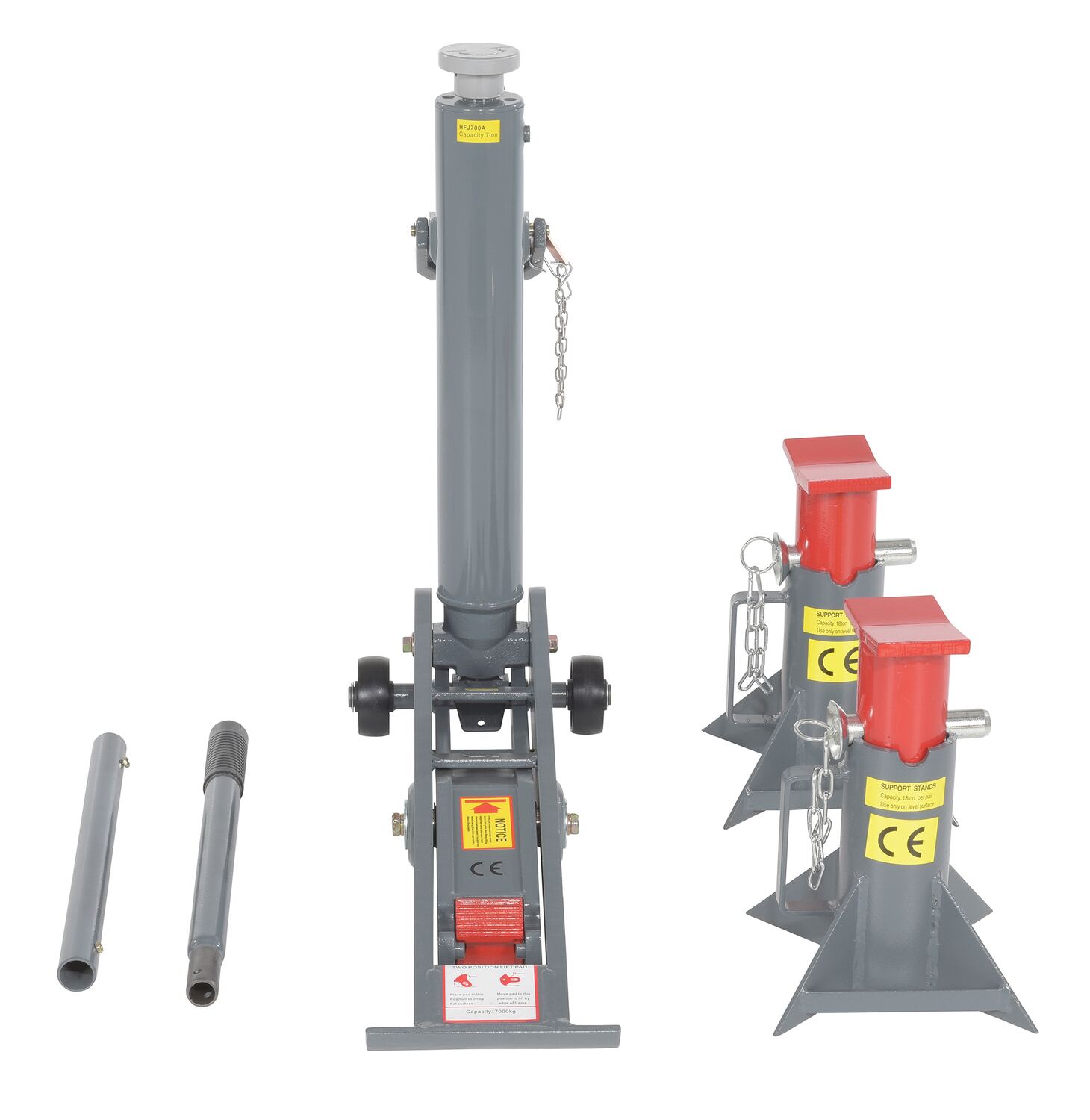

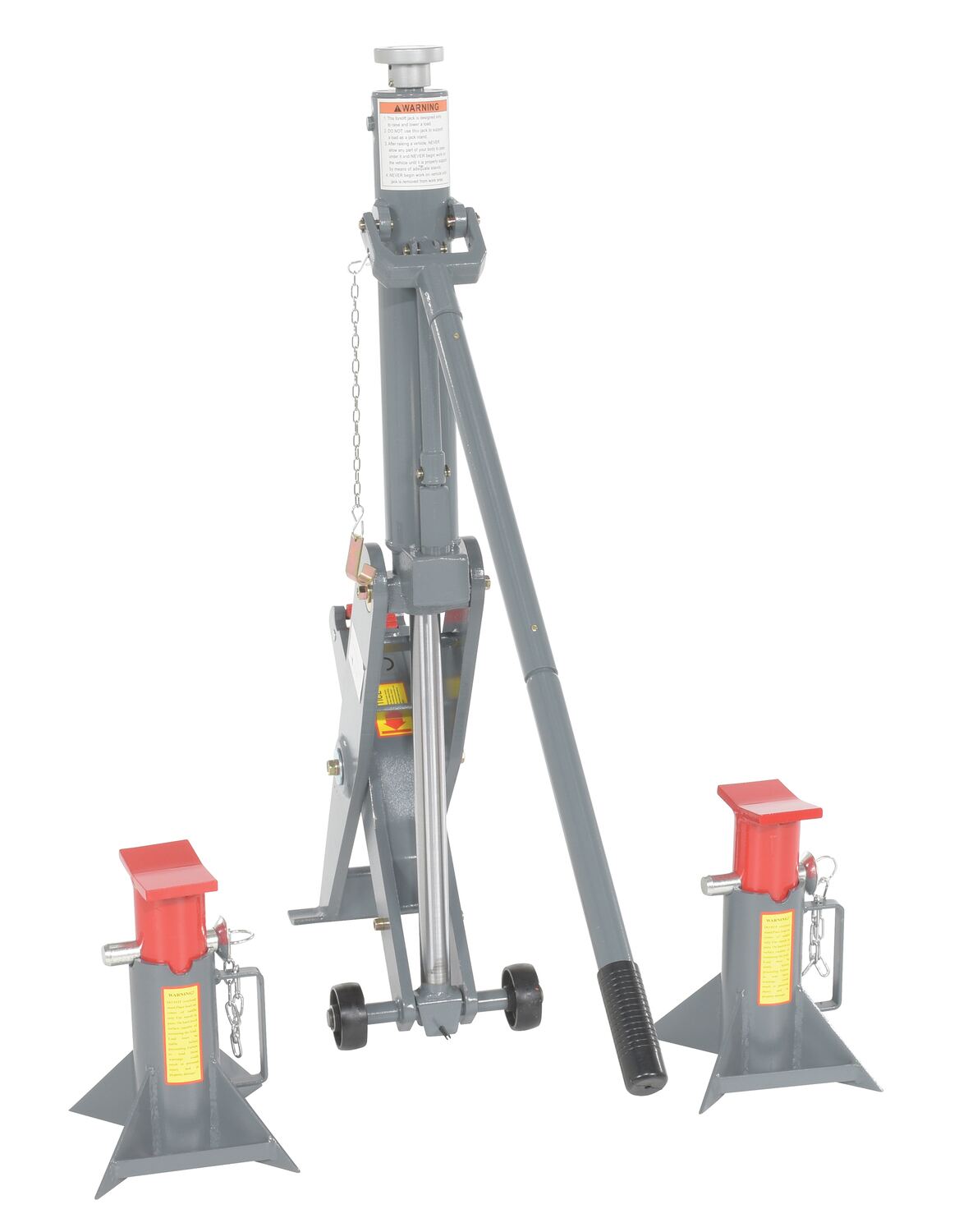

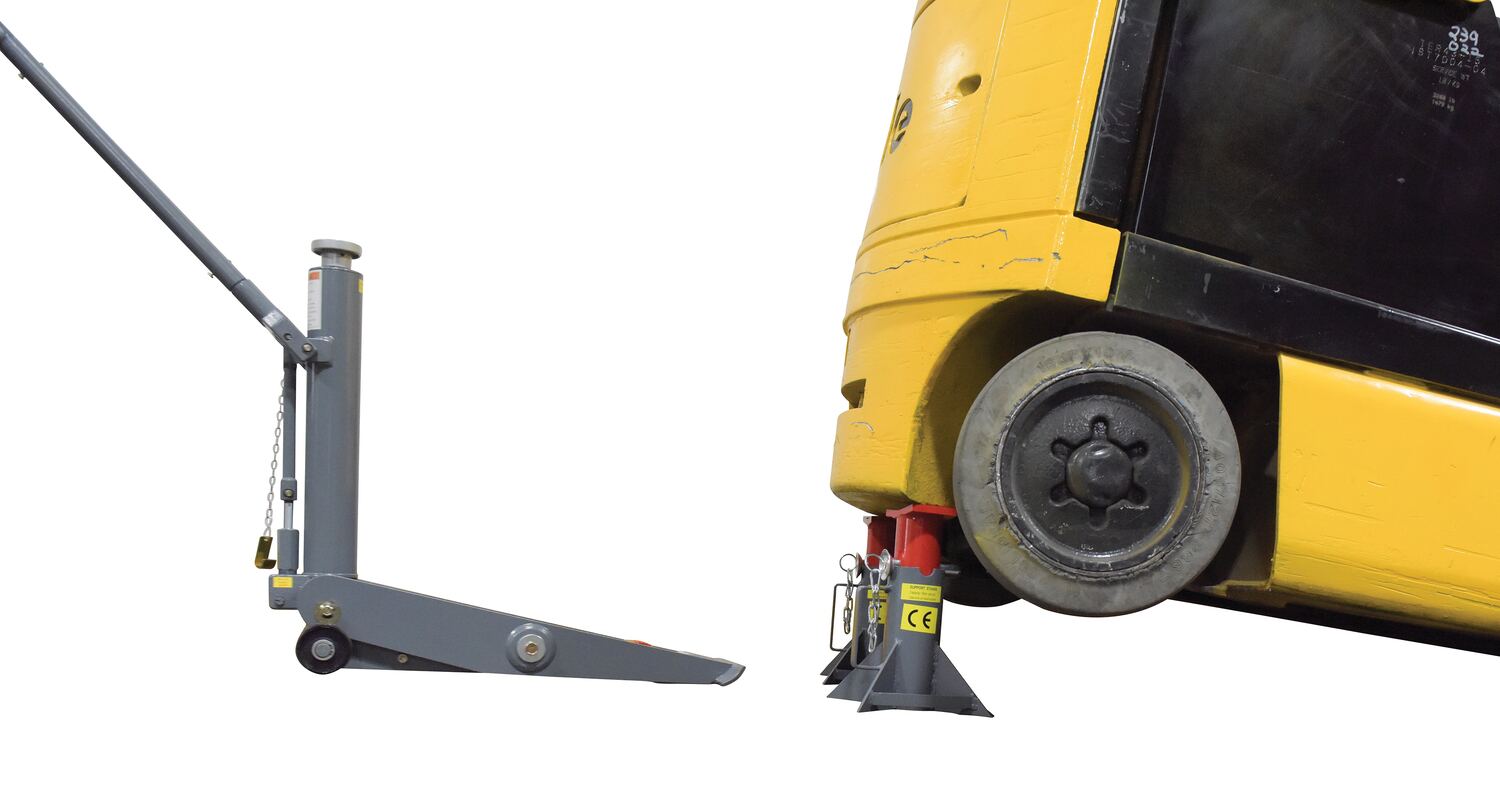

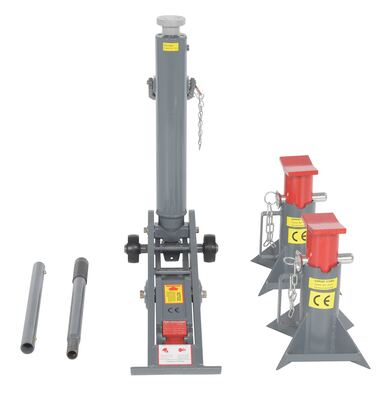

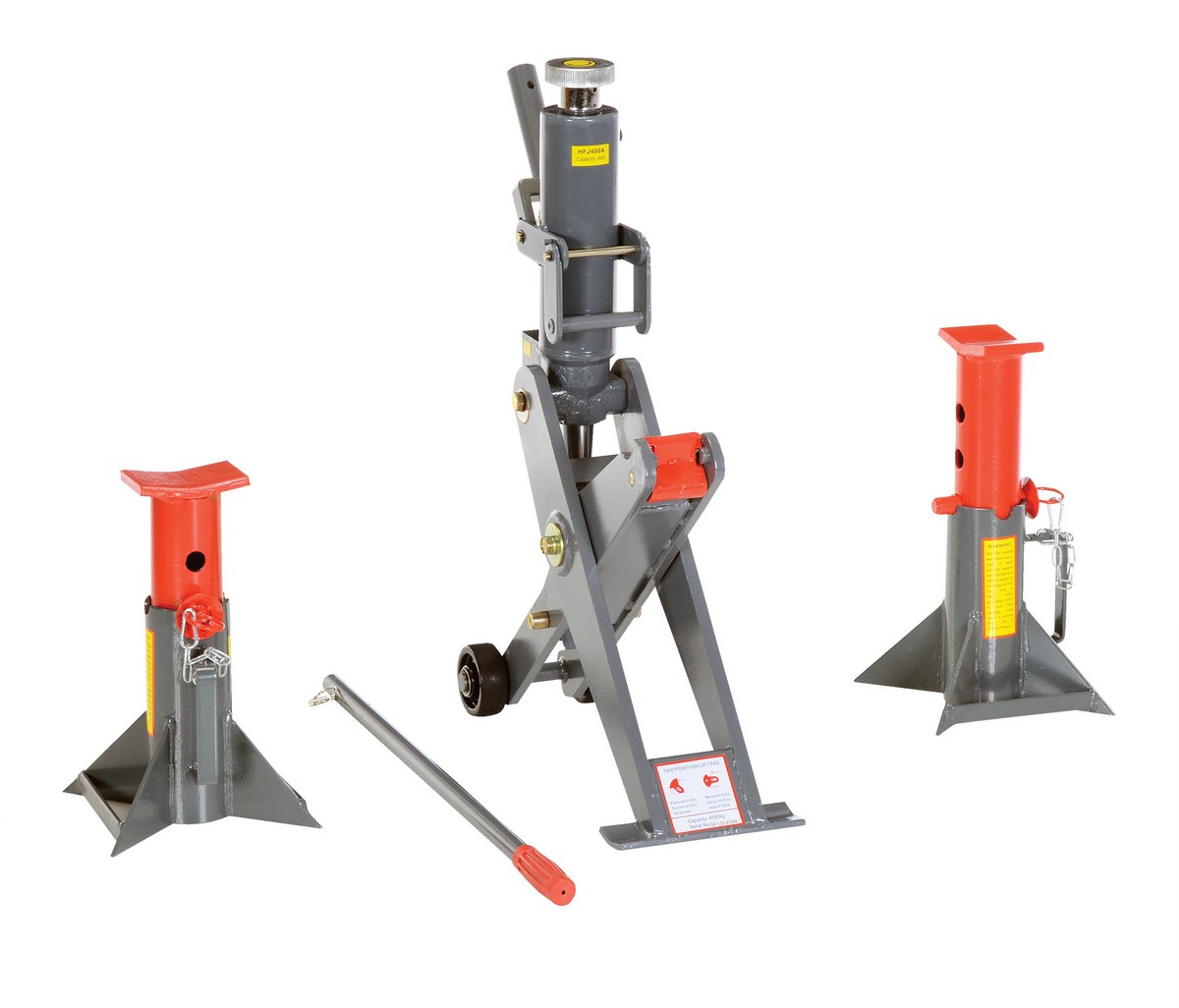

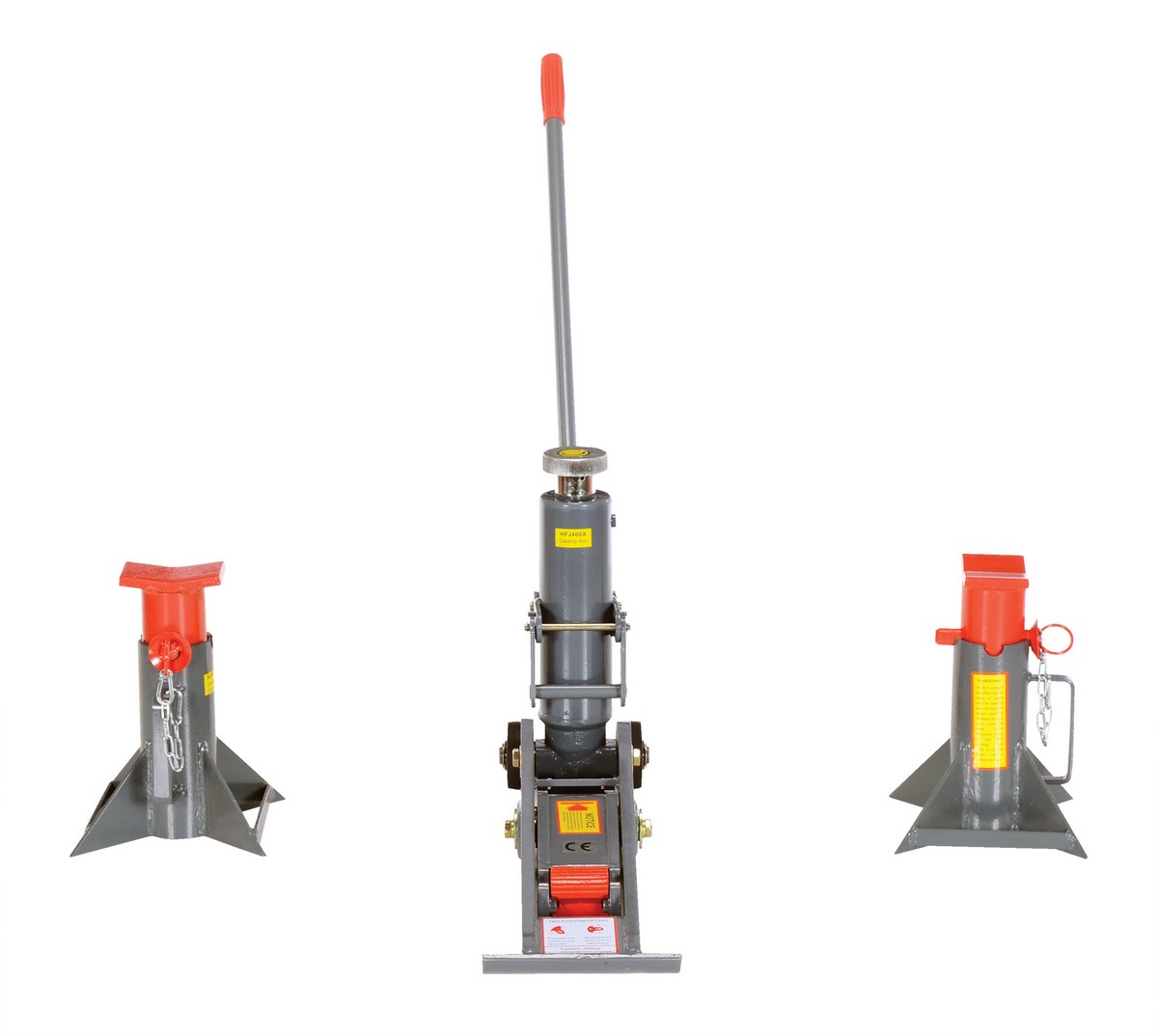

Manual Hydraulic Fork Truck Jack Designed to raise your fork truck for maintenance. Features high-quality seals, chrome plated internal components and rugged steel construction. Maximum lift of 16" provides room needed to perform a variety of repairs. Manually raised by hand pump lever. Removable handle and compact size makes it easy to maneuver and transport. Includes two jack stands (13 ton capacity per pair), with holding pins for adjustable heights.

Fork Truck Jacks

model: FORK-J-HD

Model # Description Attributes Net Wt.
(lbs)
AIR-J AIR-J90 Days Limited WarrantySteel Air Powered Fork Truck Jack 8-1/2 In. - 18-1/4 In. Lift Height 44,000 Lb. Capacity YellowUniform Capacity (lb.): 44,000
Lowered Height (in.): 8-1/4		146

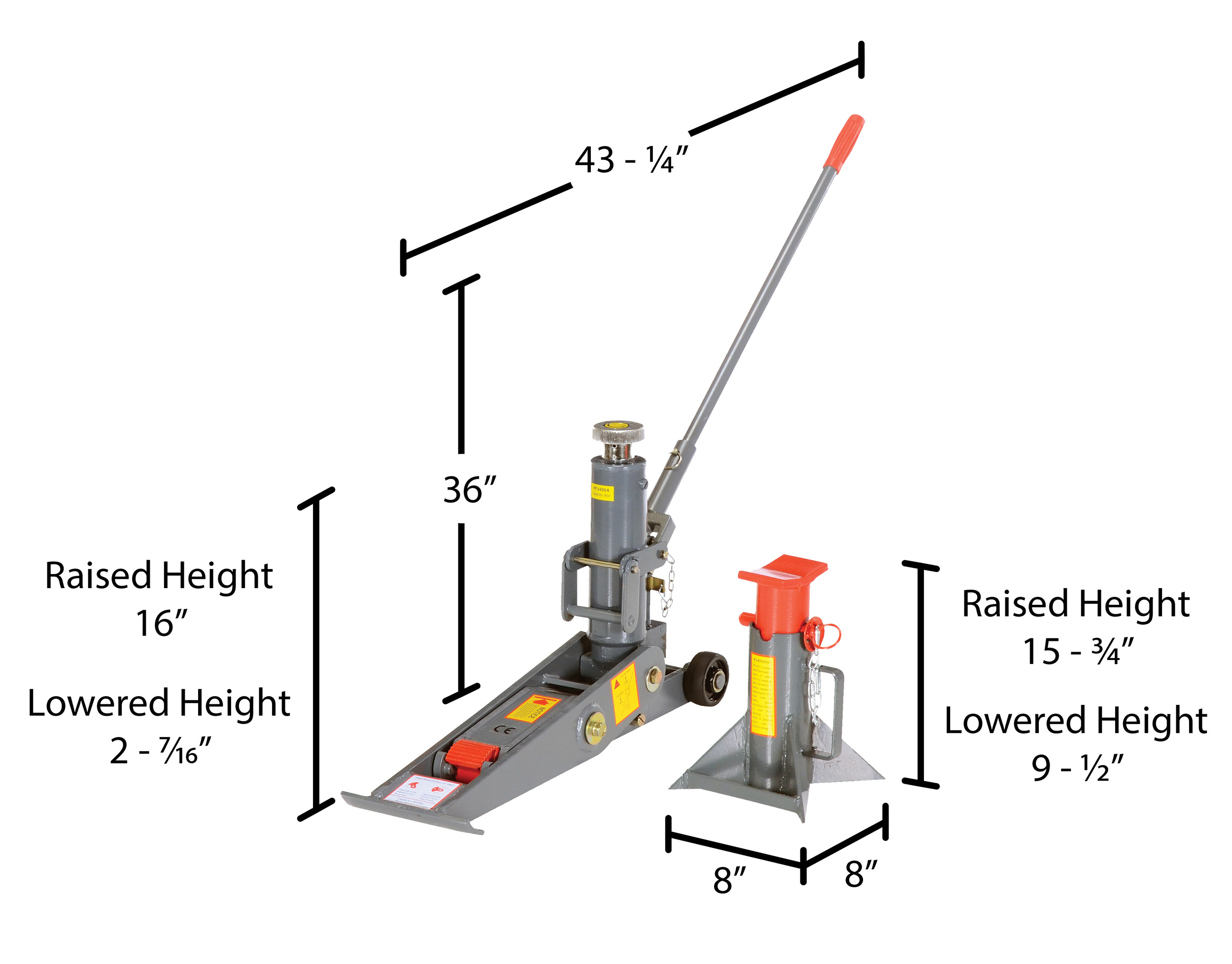

FORK-J POPULAR FORK-J90 Days Limited WarrantySteel Manual Hydraulic Fork Truck Jack 43-1/4 In. x 7-7/8 In. x 36 In. 8,000 Lb. Capacity GrayUniform Capacity (lb.): 8,000
Lowered Height partial pad (in.): 2-1/4		124

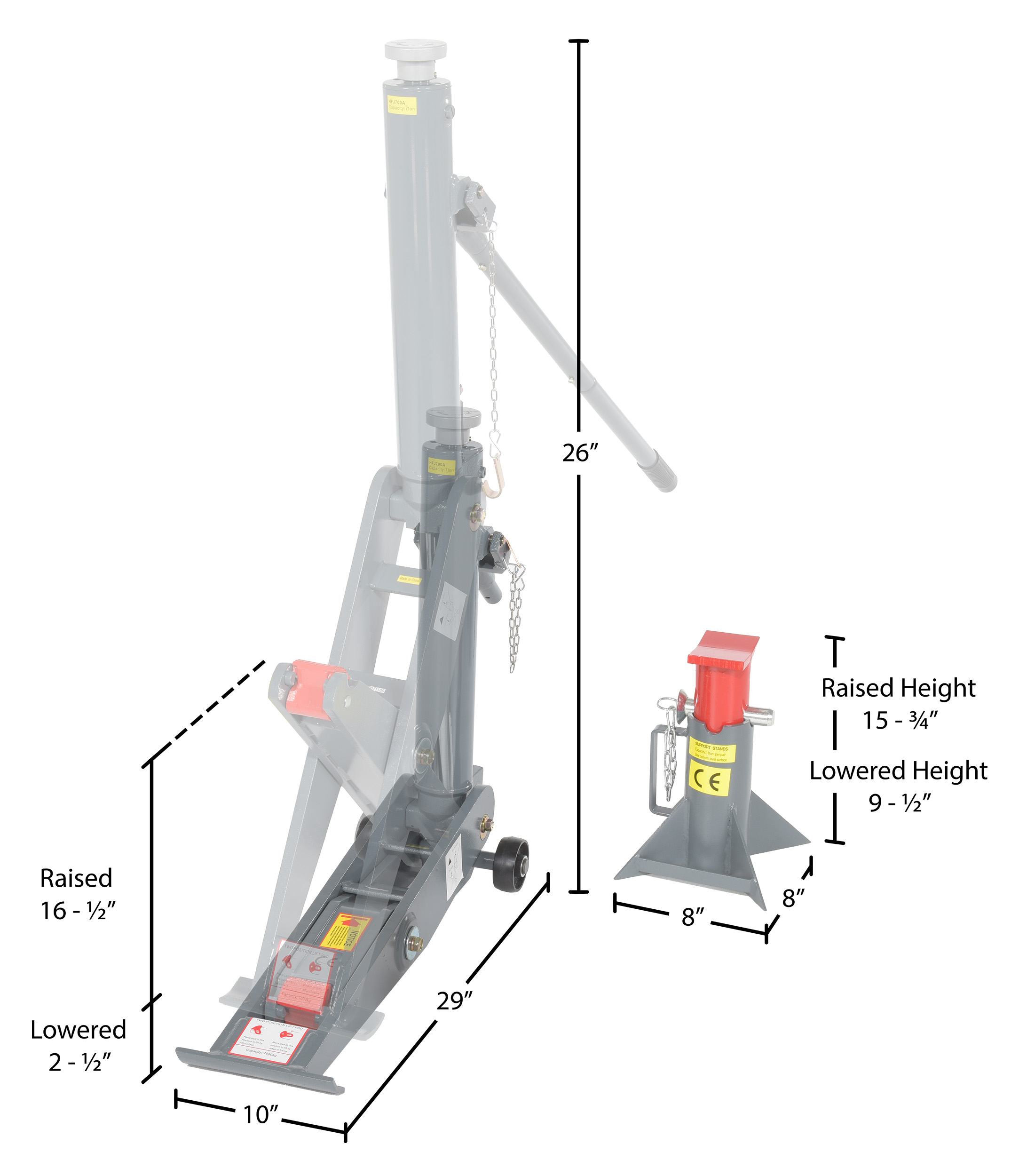

FORK-J-HD FORK-J-HD90 Days Limited WarrantySteel Manual Hydraulic Fork Truck Jack 29 In. x 10 In. x 26 In. 15,000 Lb. Capacity GrayUniform Capacity (lb.): 15,000
Lowered Height partial pad (in.): 2-1/4		192

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

AIR-J
FORK-J
FORK-J-HD
PDFs will open in a new window when clicked.

Manuals

FORK-J

AIR-J

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

No Approval Drawings For This Product

Testing Certificates

AIR-J

FORK-J

FORK-J-HD

SDS Sheets


Hydraulic Oil
AIR-J SDS


Hydraulic Oil
FORK-J SDS


Hydraulic Oil
FORK-J-HD SDS

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

FORK-J
FORK-J FORK-J A+ Content - 3
FORK-J FORK-J A+ Content - 2
FORK-J FORK-J A+ Content - 1
We are interested in the AIR-J fork truck jack. If an air compressor is not available can we use a manual pump.
The AIR-J will not operate with the use of a manual pump.
What is the PSI required to operate the AIR-J?
102-145 PSI is required.
