Forklift Hitch

- - - -

Description
Model Chart
PDF's
Image Gallery
FTTM-2_F.jpg FTTM-2_A.jpg FTTM-2_B.jpg FTTM-2_C.jpg
FTTM-2_D.jpg FTTM-2_E.jpg FTTM-2_1.jpg FTTM-2_2.jpg
Forklift Hitch

model: FTTM-2



Featured Fork Truck Attachments


Heavy-Duty Poly Lids for D & H series Hoppers
Bulk Bag Lifters
High Rise Fork Truck Booms
Open Side Hopper
Fork Leveler
Bulk Containers
Round or Triangular Fork Extensions
Fork Truck Mounted Trash Can Dumper
Triple-Bin Recycling Hopper
model chart

Product Family Overview

Print Friendly

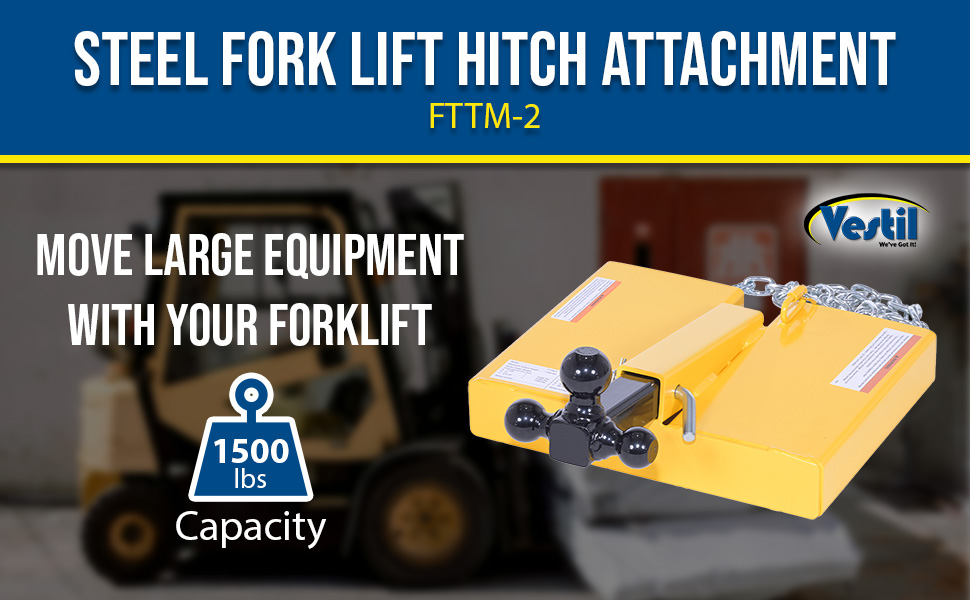

Forklift Hitch
SERIES: FTTM

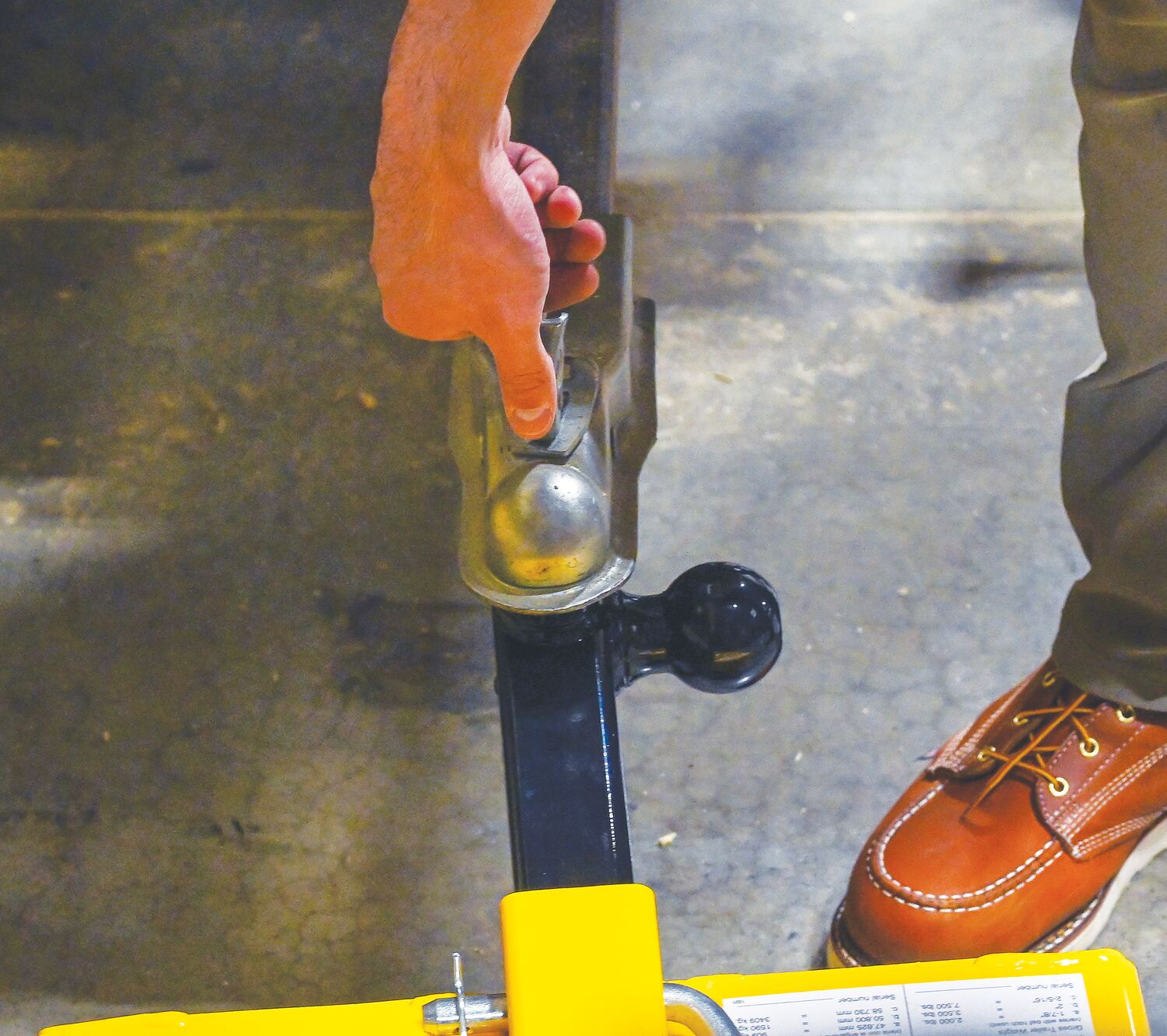

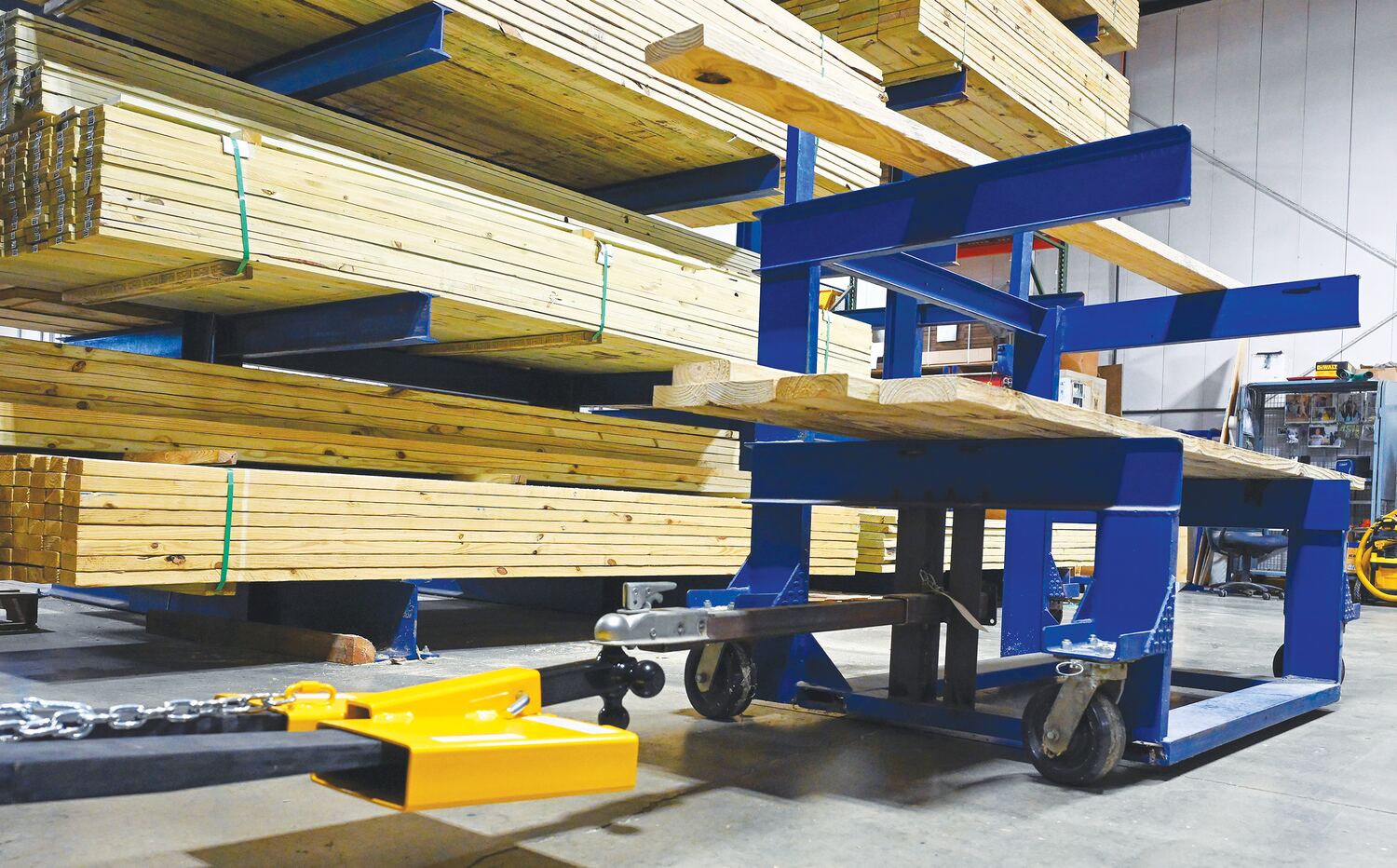

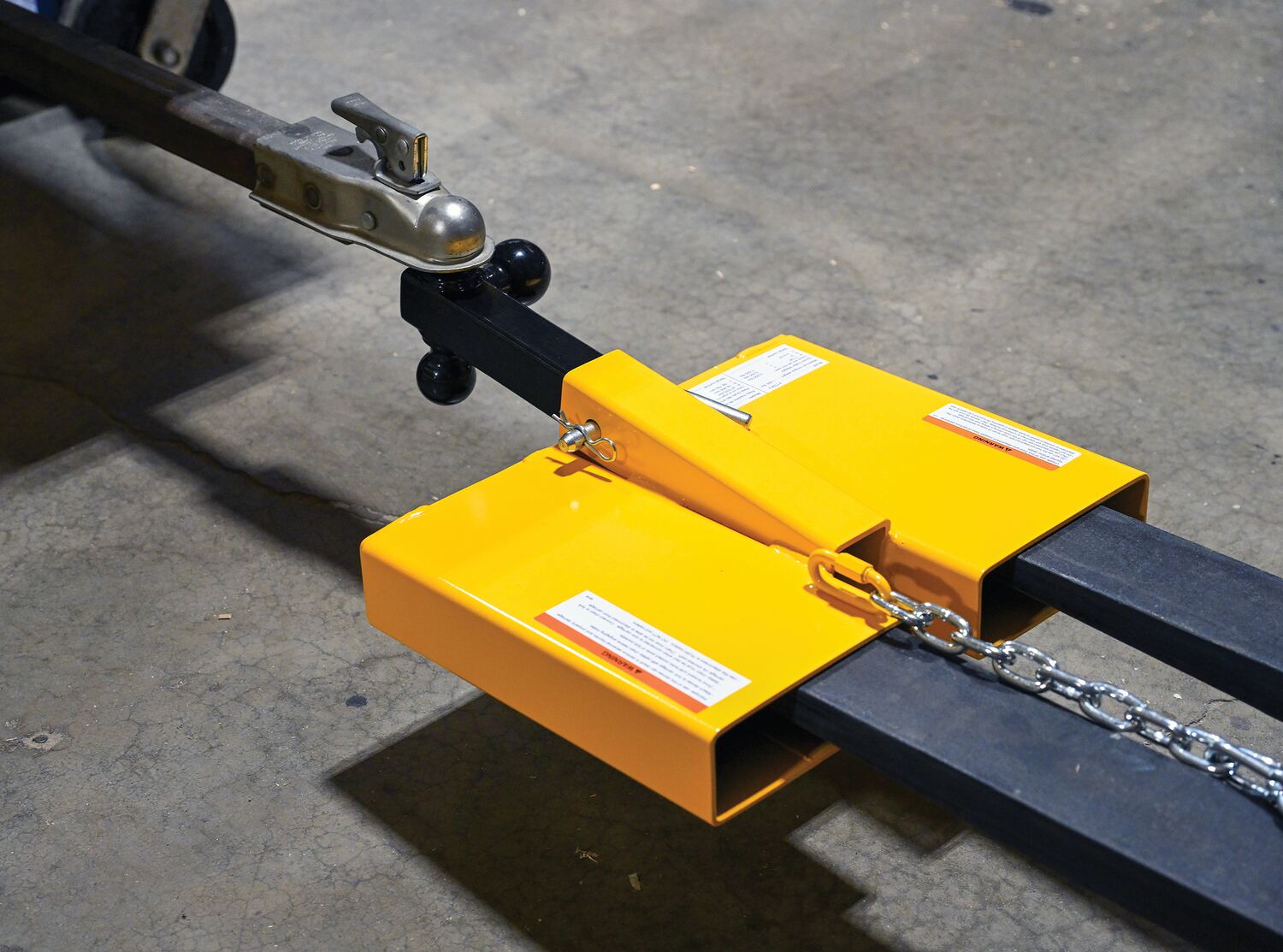

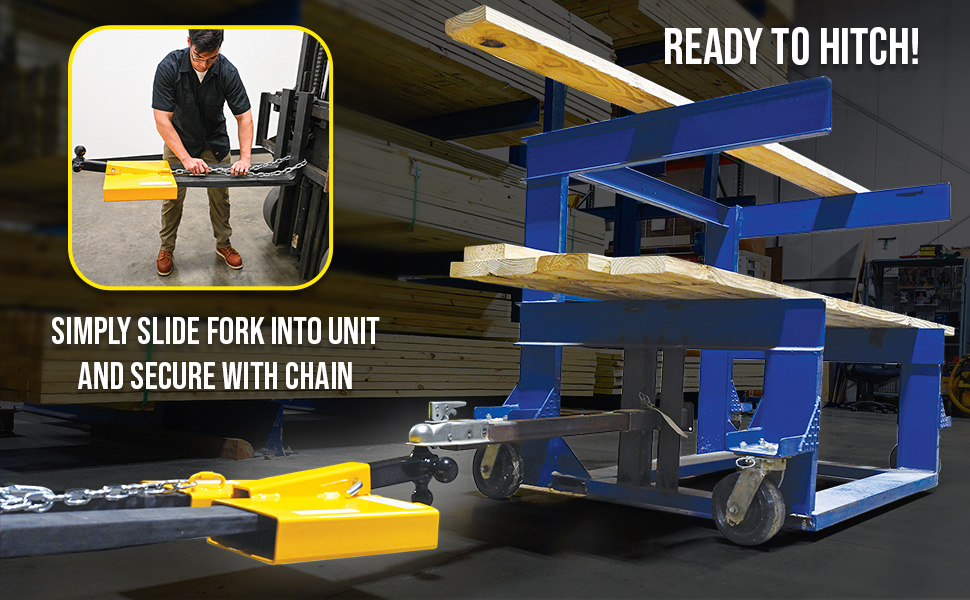

The Fork Lift Hitch is a superb addition to most manufacturing and maintenance facilities. Strong steel construction allows for long term use, even in the harshest of conditions. The hitch includes a yellow finish for clear visibility. To use slide the fork lift forks in to the unit and secure safety chain to fork lift. Once in place, the unit is ready to be hitched to the desired equipment. Includes 56" long chain to secure to fork lift.

Standard Features:

  • Strong steel construction
  • Yellow finish for clear visibility
  • Maximum tongue load: 1,500 lbs.
  • Maximum push capacity for 1-7/8" ball: 2,000 lbs.
  • Maximum push capacity for 2" ball: 3,500 lbs.
  • Maximum push capacity for 2-5/16" ball: 7,500 lbs.

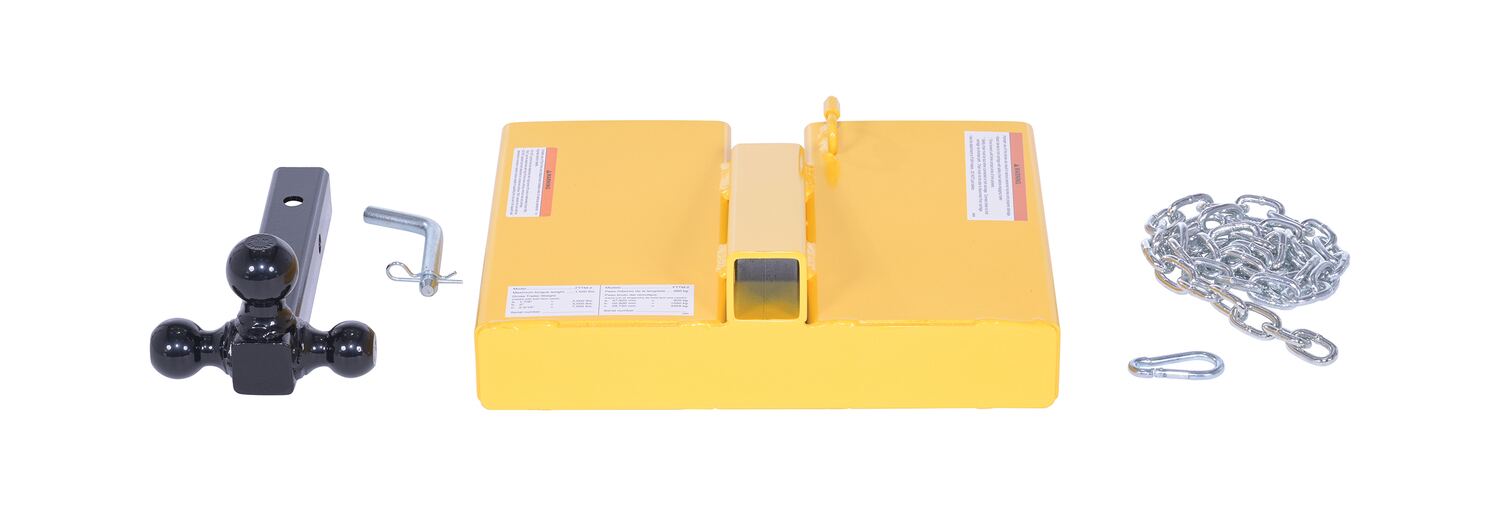

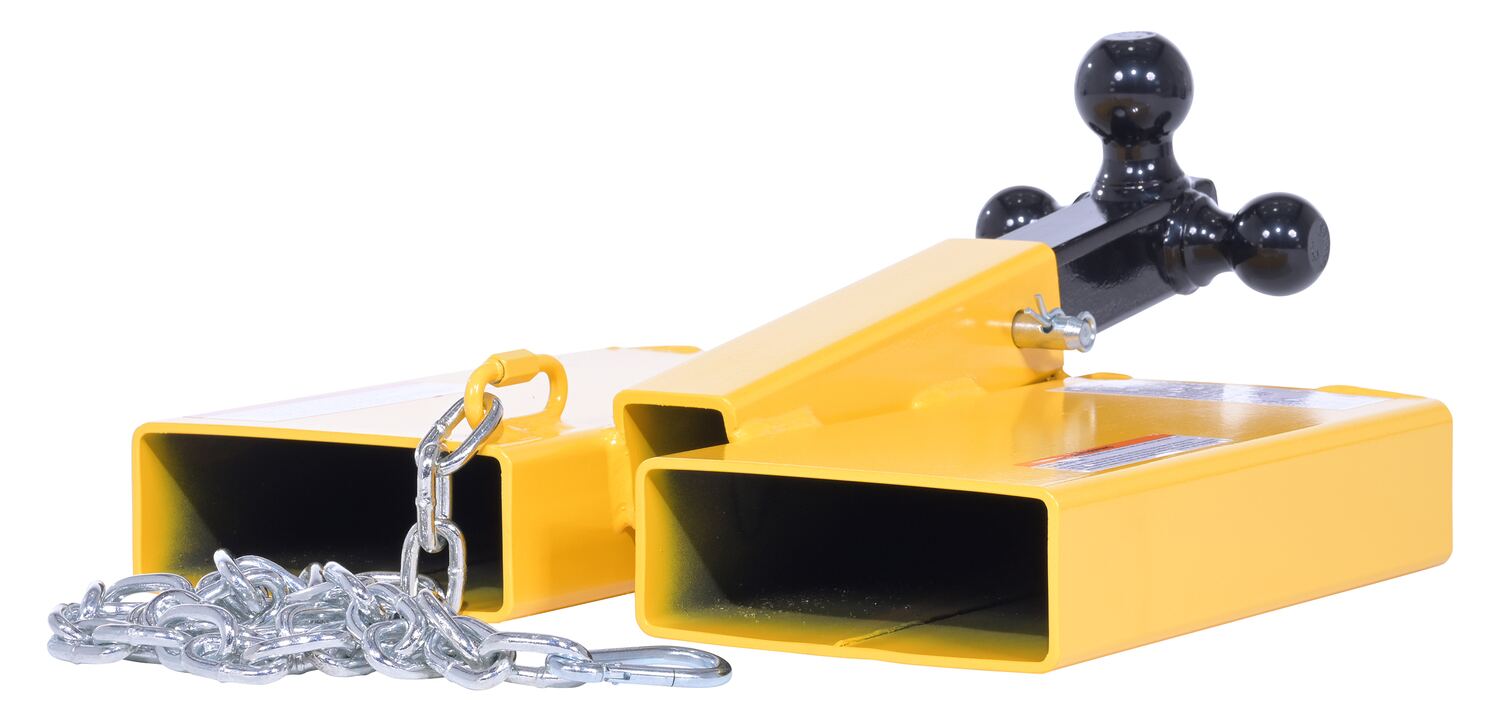

  • 3-ball hitch attachment can be removed & rotated to desired ball.
  • Includes a 56" long chain to secure to forklift.

Unit Not Intended For Pulling!

The Fork Lift Hitch is a superb addition to most manufacturing and maintenance facilities. Strong steel construction allows for long term use, even in the harshest of conditions. The hitch includes a yellow finish for clear visibility. To use slide the fork lift forks in to the unit and secure safety chain to fork lift. Once in place, the unit is ready to be hitched to the desired equipment. Includes 56" long chain to secure to fork lift.

Standard Features:

  • Strong steel construction
  • Yellow finish for clear visibility
  • Maximum tongue load: 1,500 lbs.
  • Maximum push capacity for 1-7/8" ball: 2,000 lbs.
  • Maximum push capacity for 2" ball: 3,500 lbs.
  • Maximum push capacity for 2-5/16" ball: 7,500 lbs.
  • 3-ball hitch attachment can be removed & rotated to desired ball.
  • Includes a 56" long chain to secure to forklift.

Unit Not Intended For Pulling!

Other Hoisting Hooks & Hitch

 Hoisting Hooks Bulk Bag Filling Station Bag Lifter Fork Truck Bases with Optional Tow Balls & Pintle Hook

How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

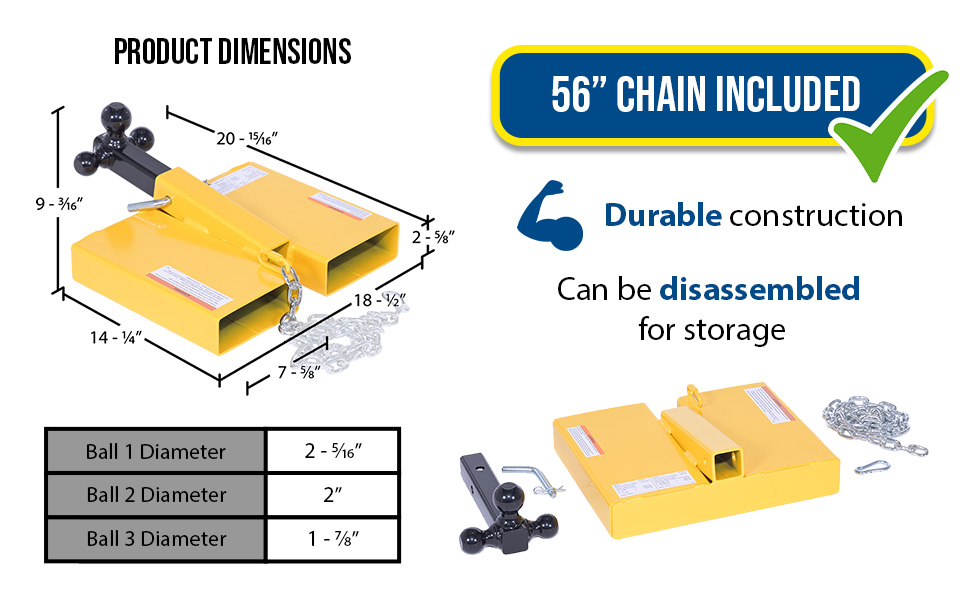

FTTM-2 FTTM-230 Days Limited WarrantySteel Fork Lift Hitch Attachment 20-9/16 In x 14-1/2 In x 8-1/16 In 1500 Lb. Capacity YellowMaximum Tongue Load (lb.): 1,500
Usable Fork Pockets Width/Height (in.): 7-5/8 x 2-5/8		52

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

FTTM-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Maximum Tongue Load (lb.): 1,500
Usable Fork Pockets Width/Height (in.): 7-5/8 x 2-5/8
Maximum Tongue Load (lb.): 1,500
Usable Fork Pockets Width/Height (in.): 7-5/8 x 2-5/8
Forklift Hitch PDF's will open in a new window when clicked.

Manuals


FTTM-2
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


FTTM-2

Testing Certificates


FTTM-2

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Forklift Hitch Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: What is the thickness of the metal where the fork pockets slide in?

A: The fork pockets are 3/16" thick.
