Vestil Manufacturing Corporation is an industry leader in the manufacturing and distributing of industrial material handling equipment. We feature over 1,000 different product lines, many of which are in stock and ready for immediate shipment.
Carriage Mounted Fork Truck Booms
Carriage Mounted Fork Truck BoomsUnique performance, convenience and safety features are built into every lift master boom. Fabricated from structural steel this boom is resilient and durable during constant daily use. The boom is connected and secured to a new or existing fork truck by utilizes the carriage mount feature of the boom. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.

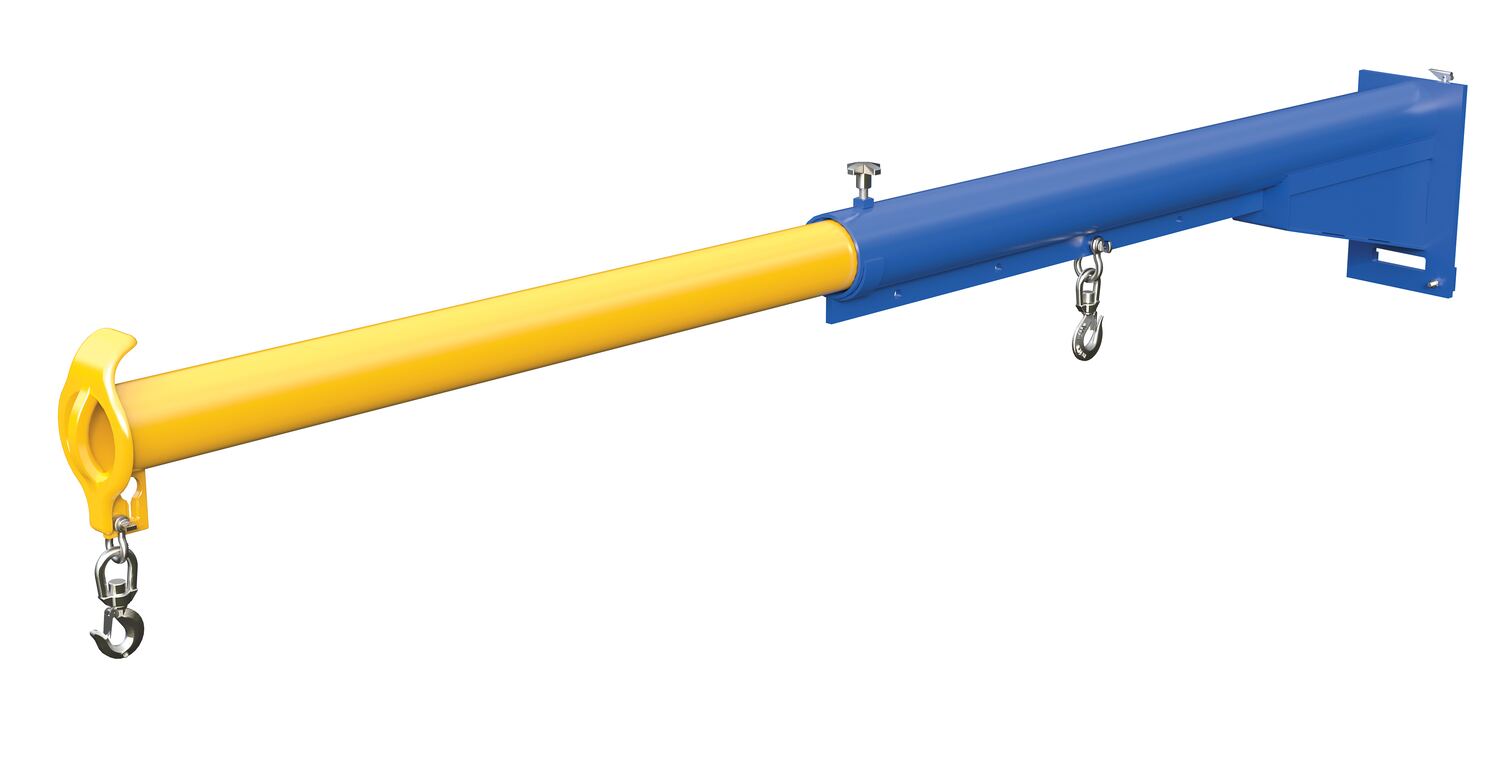

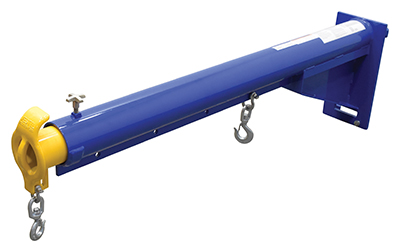

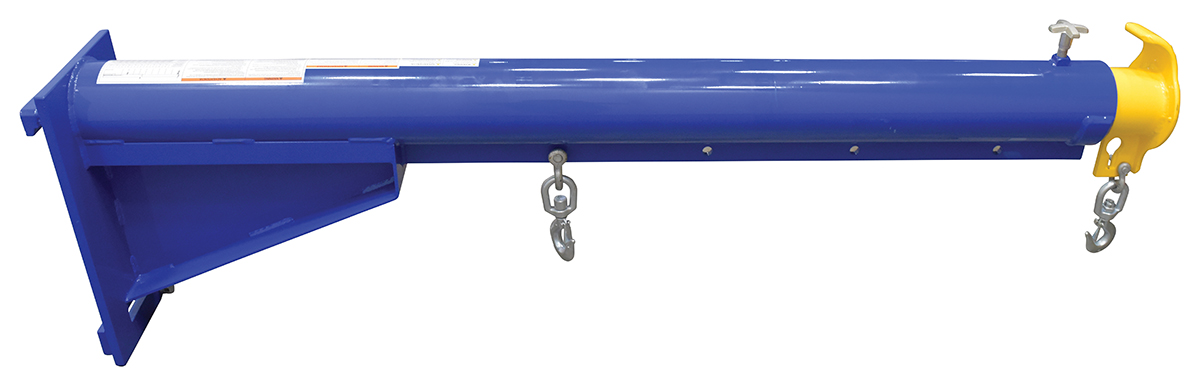

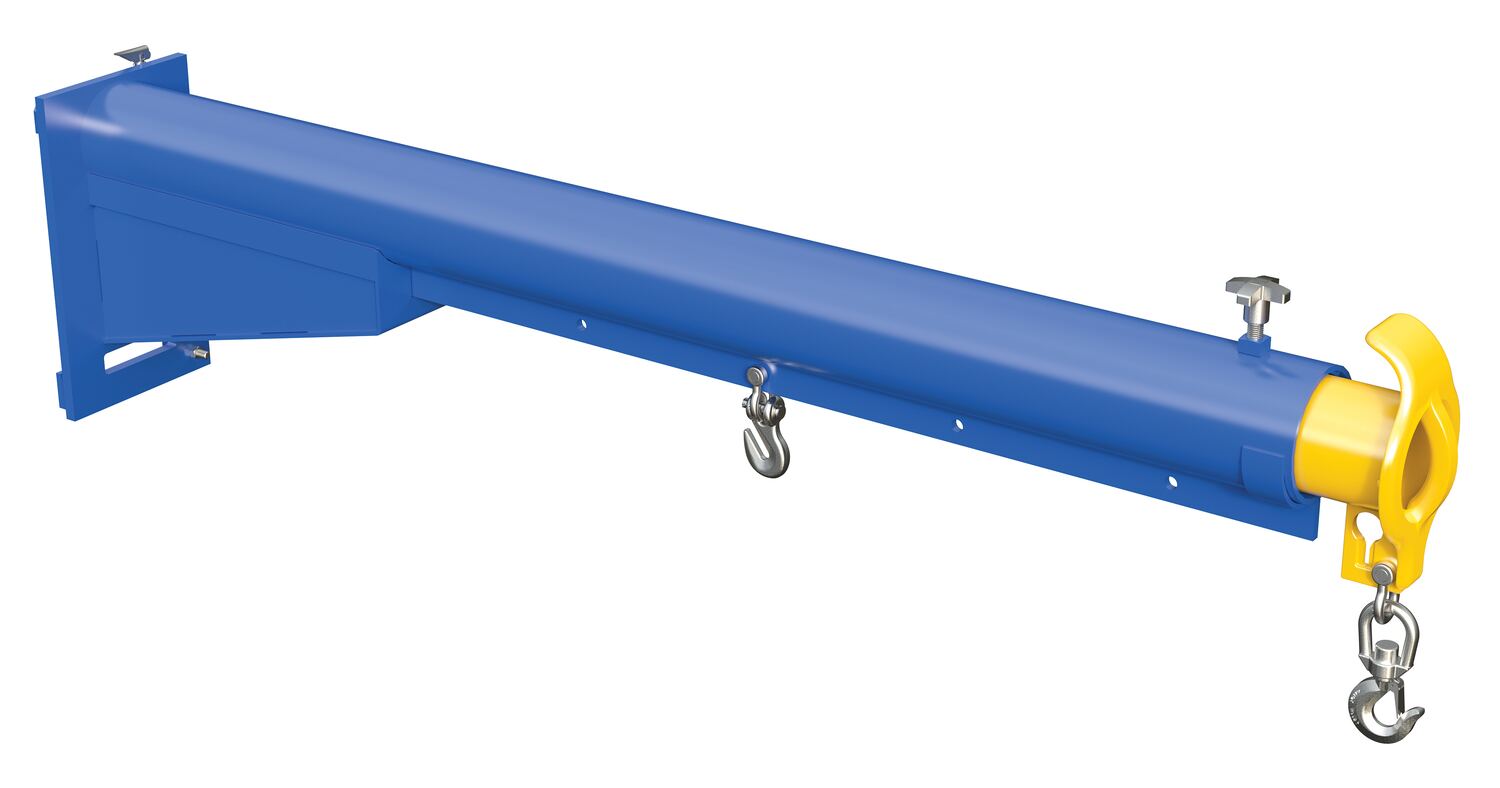

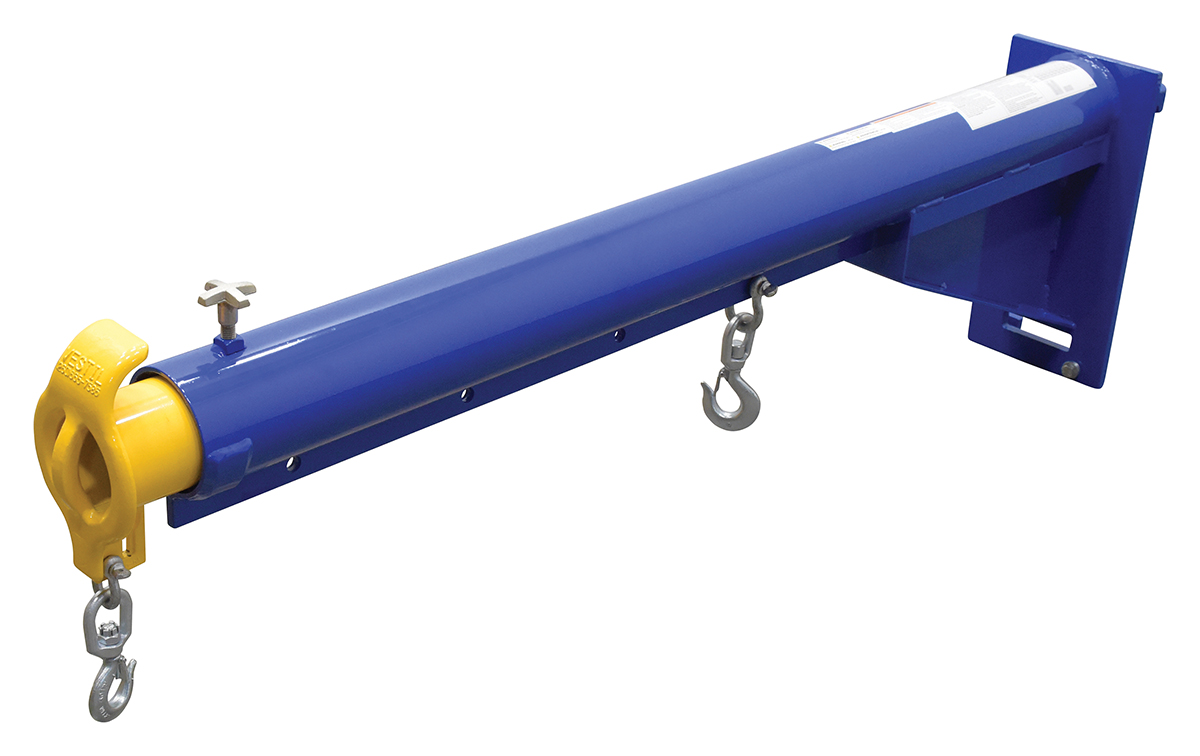

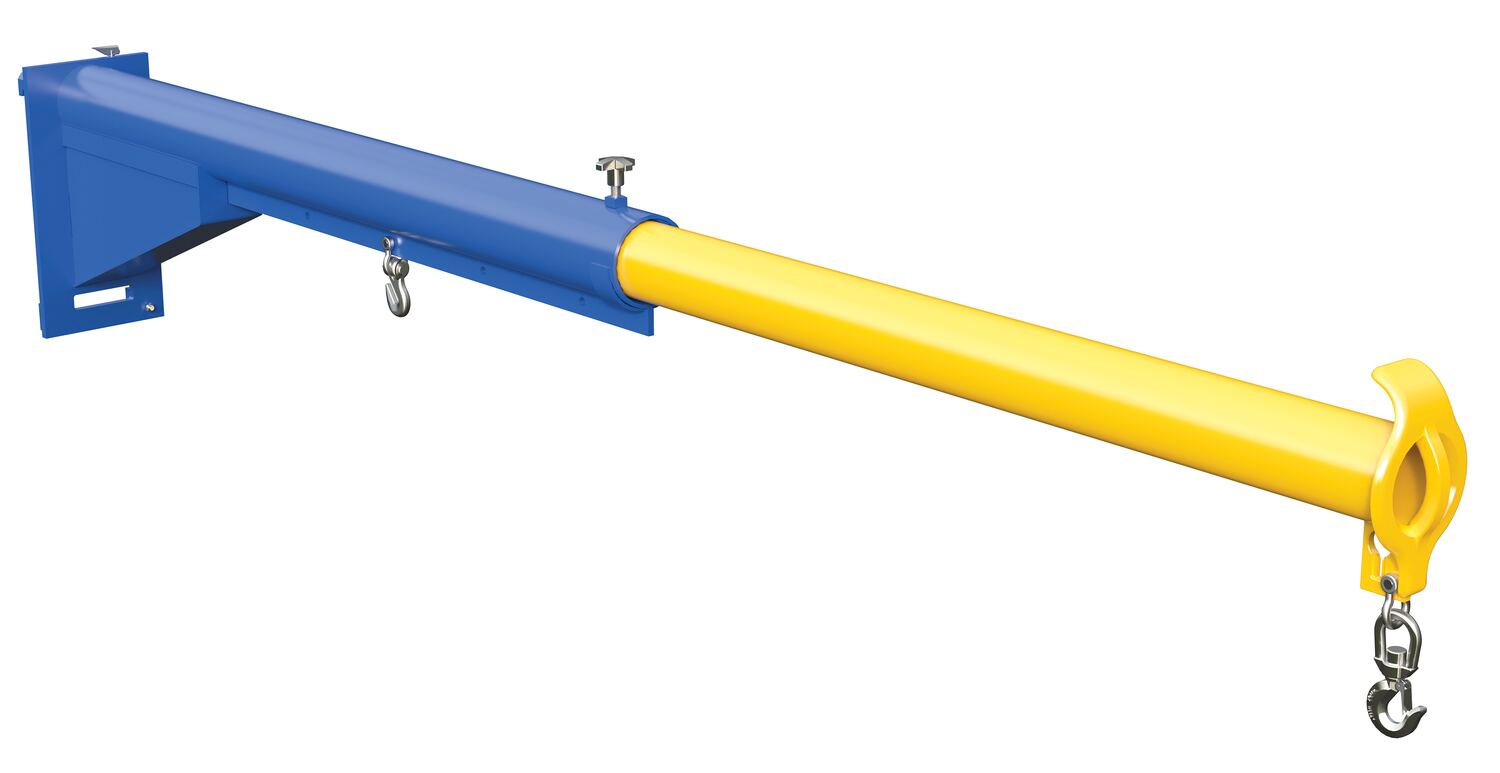

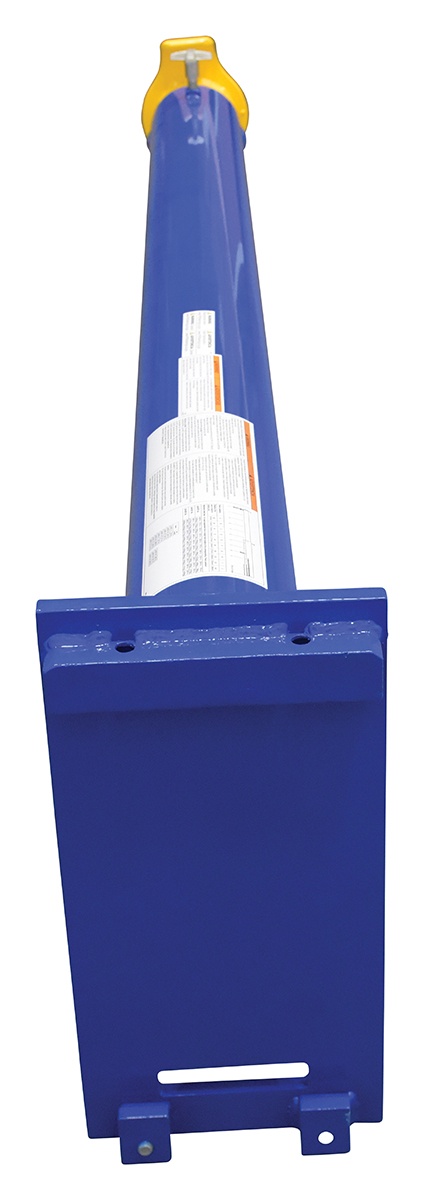

Carriage Mount Lift Master

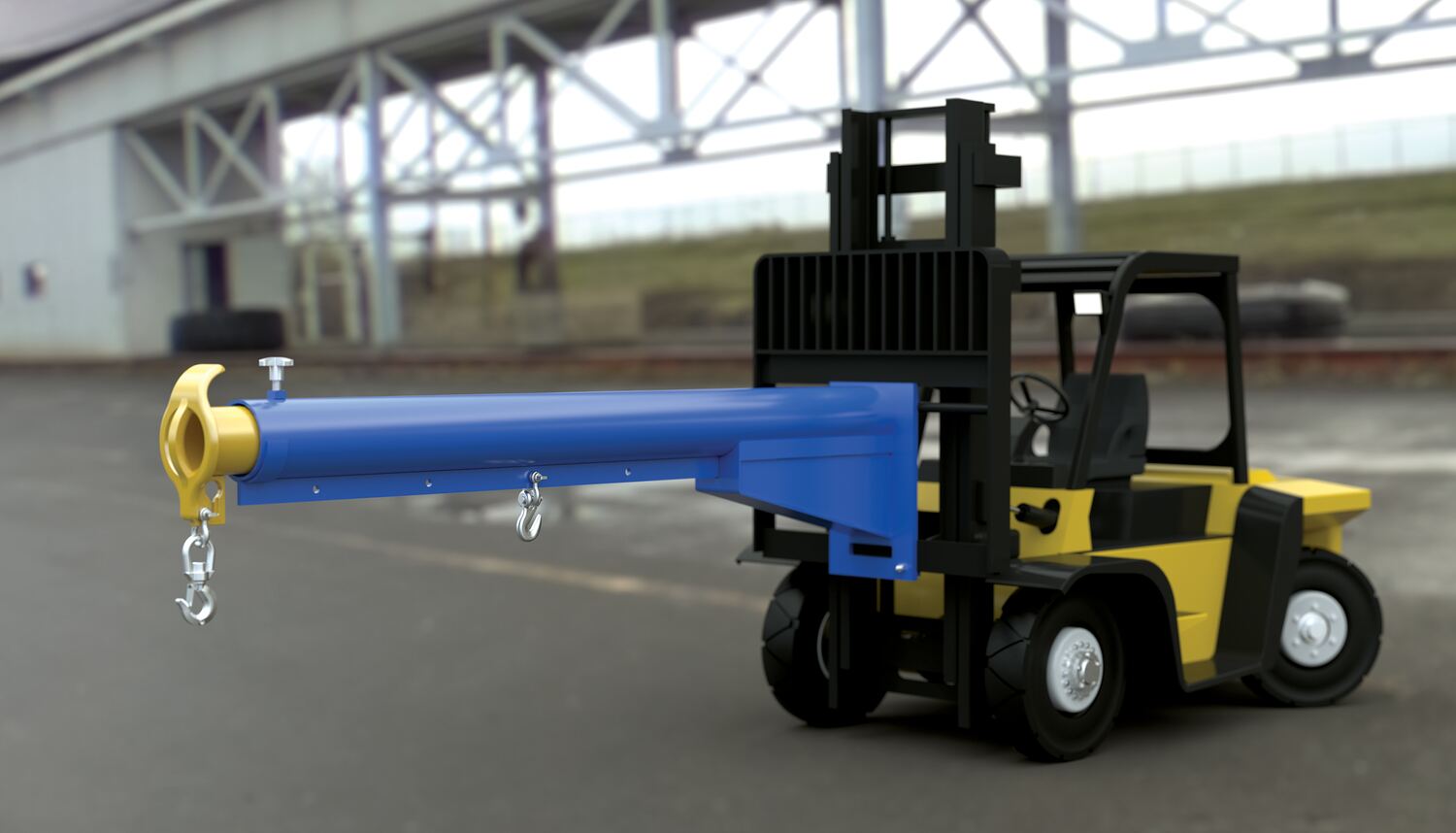

These booms are connected and secured to a new or existing fork truck by class 2 or class 3 carriage mount. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.
| Maximum Single Hook Capacities (lbs.) | ||||||||||
 |
||||||||||
| Model | A 36" |
B 48" |
C 60" |
D 72" |
E 84" |
F 96" |
G 108" |
H 120" |
I 132" |
J 144" |
| LM-CM2-EBT-4 | 4000 | 3750 | 3500 | 3250 | 3000 | 2750 | 2500 | 2250 | 2000 | 1750 |
| LM-CM2-EBT-6 | 6000 | 5000 | 4500 | 4000 | 3500 | 3000 | 2600 | 2300 | 2000 | 1800 |
| LM-CM3-EBT-4 | 4000 | 3750 | 3500 | 3250 | 3000 | 2750 | 2500 | 2250 | 2000 | 1750 |
| LM-CM3-EBT-6 | 6000 | 5000 | 4500 | 4000 | 3500 | 3000 | 2600 | 2300 | 2000 | 1800 |
Check Out Vestil's Other Fork Truck Boom Styles:
 Lift Master Fork Truck Booms |
 Hydraulic Powered Fork Truck Booms |
 High Rise Fork Truck Booms |
 Orbiting Fork Truck Booms |
. |  Shorty Fork Truck Booms |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Carriage Mounted Fork Truck Booms |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Unique performance, convenience and safety features are built into every lift master boom. Fabricated from structural steel this boom is resilient and durable during constant daily use. The boom is connected and secured to a new or existing fork truck by utilizes the carriage mount feature of the boom. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.
