Product Family Overview


Coil Rams/Lifters
SERIES: CCF,CCM

The Coil Lifter is used to easily maneuver many types of coiled material. The Coil Lifter is available in both carriage mount and fork mount. To accommodate multiple core sizes and capacities, units can be ordered with either a 4-1/2" or 5-5/8" diameter rams. Sturdy steel construction and painted blue. Fork mounted units feature 7-1/2" wide x 2-1/2" tall (usable) fork pockets on 24" centers while the carriage mounted units are secured to the fork truck carriage with a spring loaded lock pin.

  • Unique design easily maneuvers many types of coiled material
  • Painted blue coat provides a long lasting tough finish
  • Safety device secures unit to fork truck
  • Sturdy steel construction provides long lasting rugged use

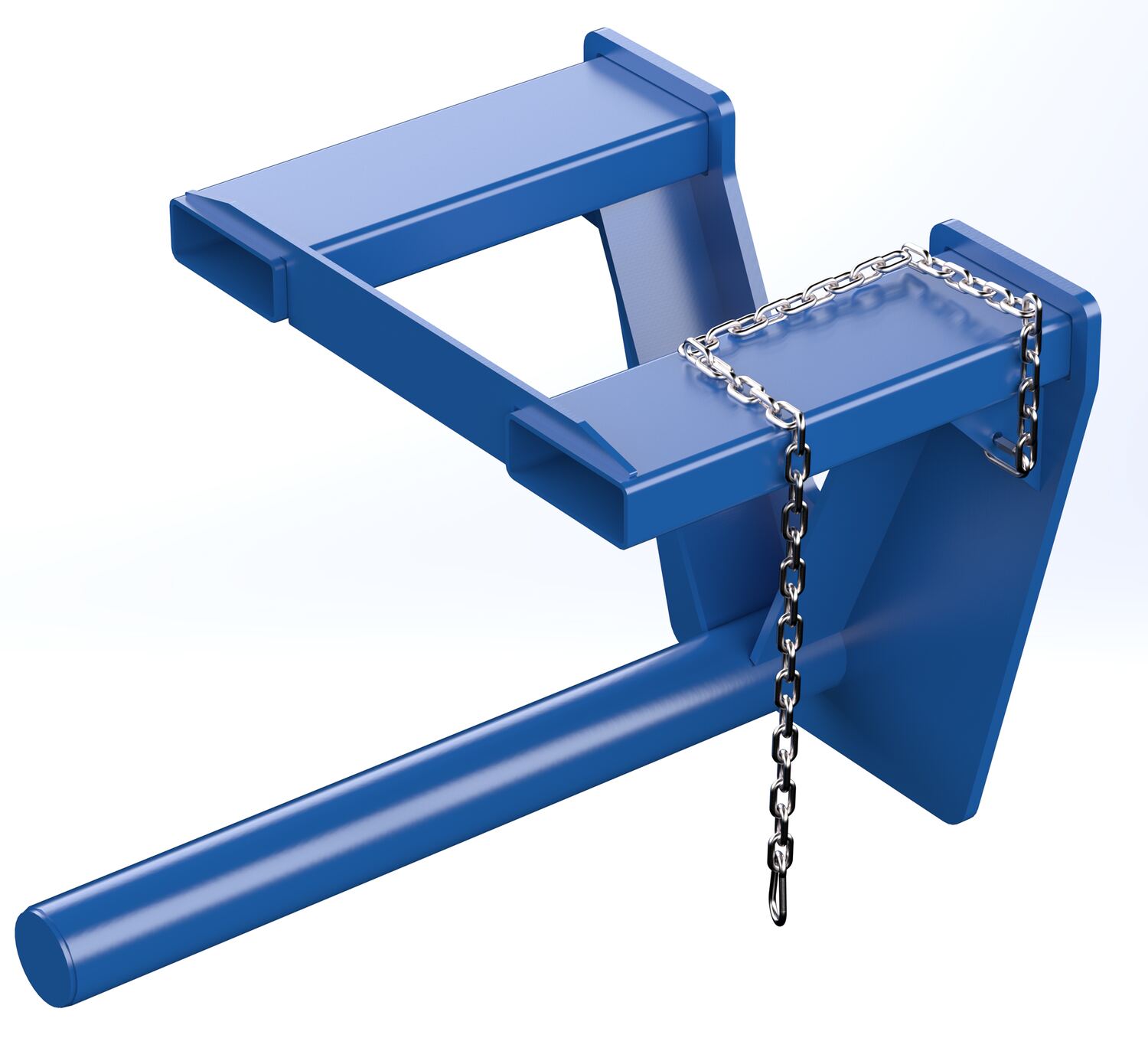

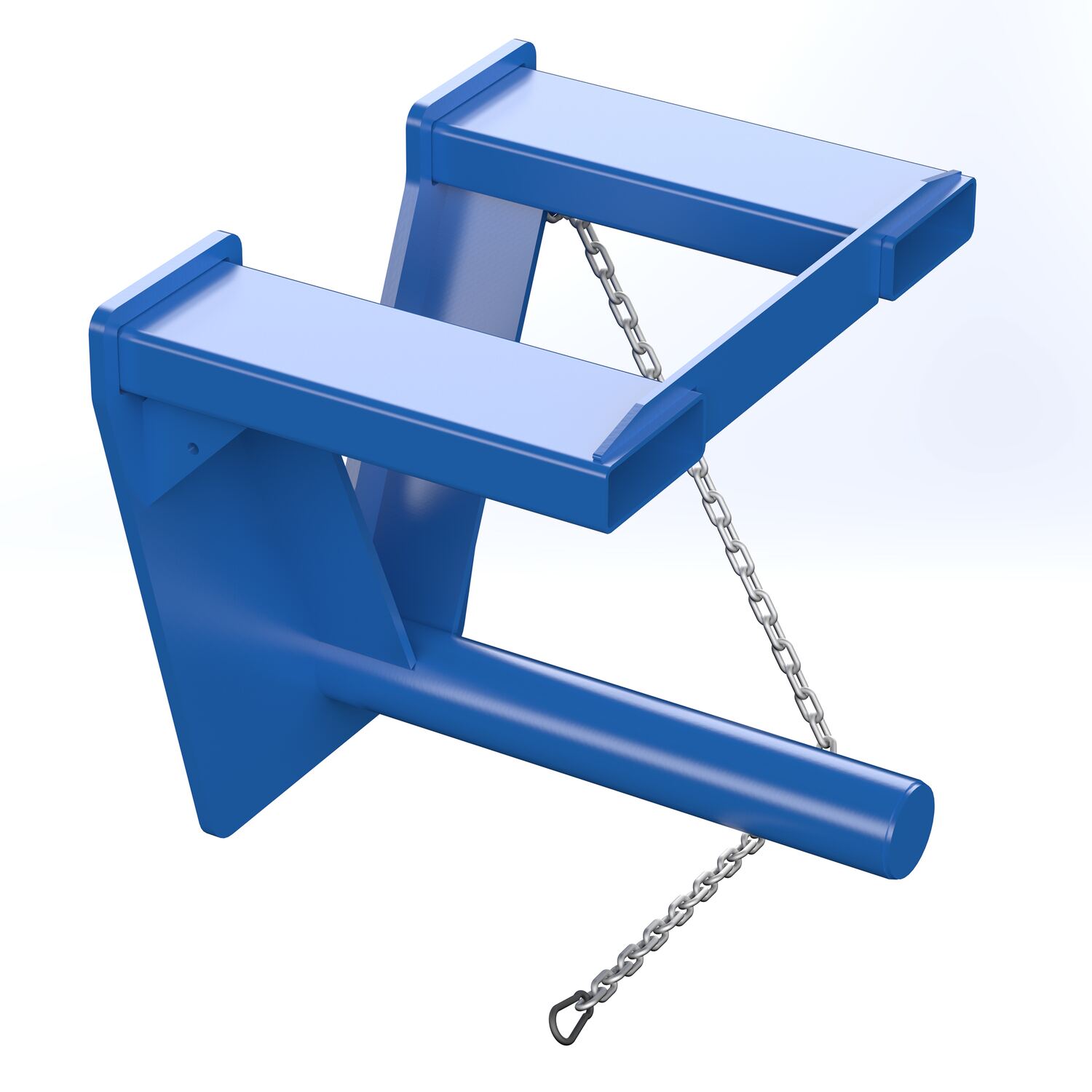

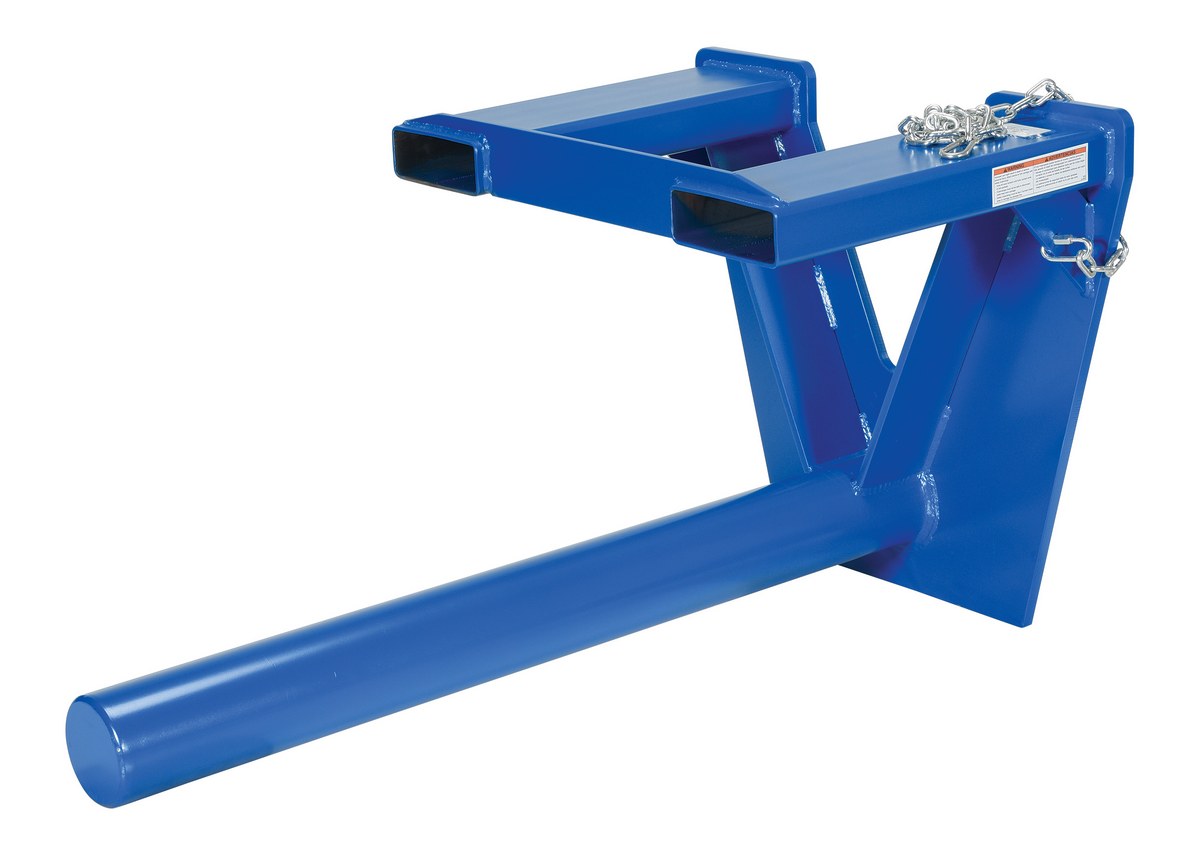

Fork Mounted (CCF)
**NOTE**
Never exceed load center rating per fork truck manuafacturer's guidlines. Do not use this fork truck attachment if load will exceed fork truck manuafacturer's Load Center Rating. See Engineering Drawing below to see each Model's Load Center Rating.


Carriage Mounted (CCM)
**NOTE**
Due to variations in Fork Truck carriages, the customer should verify that their carriage will conform to the dimensions shown in the Engineering Drawing for each model and Diagram to the right. Customer should verify dimensions B, T2, T3 & H4 to be able to quote a special backplate to fit.

The Coil Lifter is used to easily maneuver many types of coiled material. The Coil Lifter is available in both carriage mount and fork mount. To accommodate multiple core sizes and capacities, units can be ordered with either a 4-1/2" or 5-5/8" diameter rams. Sturdy steel construction and painted blue. Fork mounted units feature 7-1/2" wide x 2-1/2" tall (usable) fork pockets on 24" centers while the carriage mounted units are secured to the fork truck carriage with a spring loaded lock pin.

  • Unique design easily maneuvers many types of coiled material
  • Painted blue coat provides a long lasting tough finish
  • Safety device secures unit to fork truck
  • Sturdy steel construction provides long lasting rugged use

Fork Mounted (CCF)
**NOTE**
Never exceed load center rating per fork truck manuafacturer's guidlines. Do not use this fork truck attachment if load will exceed fork truck manuafacturer's Load Center Rating. See Engineering Drawing below to see each Model's Load Center Rating.


Carriage Mounted (CCM)
**NOTE**
Due to variations in Fork Truck carriages, the customer should verify that their carriage will conform to the dimensions shown in the Engineering Drawing for each model and Diagram to the right. Customer should verify dimensions B, T2, T3 & H4 to be able to quote a special backplate to fit.

Additional Models In This Family

CCM-48-4

model CCM-48-4

CCF-48-5

model CCF-48-5

CCF-60-4

model CCF-60-4

CCF-60-5

model CCF-60-5

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
CCF-24-4 CCF-24-490 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 24 In 3000 Lb Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 24
285
CCF-24-5 CCF-24-590 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 24 In 5500 Lb Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 24
295
CCF-36-4 CCF-36-490 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 36 In 3000 Lb Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 36
295
CCF-36-5 CCF-36-590 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 36 In 5500 Lb Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 36
305
CCF-48-4 CCF-48-490 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 48 In 3000 Lb Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 48
305
CCF-48-5 CCF-48-590 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 48 In 5500 Lb Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 48
340
CCF-60-4 CCF-60-490 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 60 In 3000 Lb Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 60
325
CCF-60-5 CCF-60-590 Days Limited WarrantySteel Coil Lifter Fork Mounted Inverted 60 In 5500 Lb Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 60
351
CCM-24-4 CCM-24-490 Days Limited WarrantySteel Coil Lifter Class II Carriage Mounted 24 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 24
144
CCM-24-4-CL3 CCM-24-4-CL390 Days Limited WarrantySteel Coil Lifter Class III Carriage Mounted 24 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 24
160
CCM-24-5 CCM-24-590 Days Limited WarrantySteel Coil Lifter Class II Carriage Mounted 24 In. 5500 Lb. Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 24
158
CCM-24-5-CL3 CCM-24-5-CL390 Days Limited WarrantySteel Coil Lifter Class III Carriage Mounted 24 In. 5500 Lb. Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 24
175
CCM-36-4 CCM-36-490 Days Limited WarrantySteel Coil Lifter Class II Carriage Mounted 36 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 36
159
CCM-36-4-CL3 CCM-36-4-CL390 Days Limited WarrantySteel Coil Lifter Class III Carriage Mounted 36 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 36
175
CCM-36-5 CCM-36-590 Days Limited WarrantySteel Coil Lifter Class II Carriage Mounted 36 In. 5500 Lb. Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 36
179
CCM-36-5-CL3 CCM-36-5-CL390 Days Limited WarrantySteel Coil Lifter Class III Carriage Mounted 36 In. 5500 Lb. Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 36
195
CCM-48-4 CCM-48-490 Days Limited WarrantySteel Coil Lifter Class II Carriage Mounted 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 48
174
CCM-48-4-CL3 CCM-48-4-CL390 Days Limited WarrantySteel Coil Lifter Class III Carriage Mounted 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 48
190
CCM-48-5 CCM-48-590 Days Limited WarrantySteel Coil Lifter Class II Carriage Mounted 48 In. 5500 Lb. Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 48
200
CCM-48-5-CL3 CCM-48-5-CL390 Days Limited WarrantySteel Coil Lifter Class III Carriage Mounted 48 In. 5500 Lb. Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 48
216
CCM-60-4 CCM-60-490 Days Limited WarrantySteel Coil Lifter Class II Carriage Mounted 60 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 60
189
CCM-60-4-CL3 CCM-60-4-CL390 Days Limited WarrantySteel Coil Lifter Class III Carriage Mounted 60 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Usable Ram Length (in.): 60
205
CCM-60-5 CCM-60-590 Days Limited WarrantySteel Coil Lifter Class II Carriage Mounted 60 In. 5500 Lb. Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 60
220
CCM-60-5-CL3 CCM-60-5-CL390 Days Limited WarrantySteel Coil Lifter Class III Carriage Mounted 60 In. 5500 Lb. Capacity BlueUniform Capacity (lb.): 5,500
Usable Ram Length (in.): 60
237
