Low Headroom Combination Chain Hoist/Trolley

Print Friendly

Related Items
Model Chart
PDF's
Image Gallery

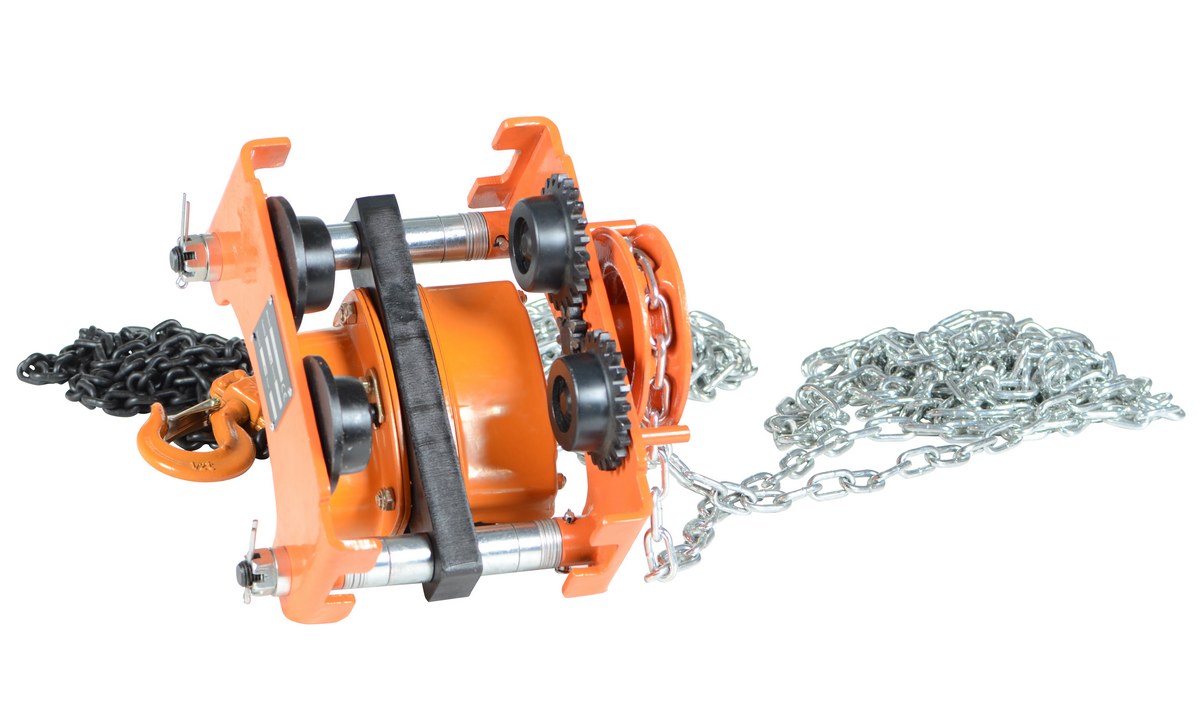

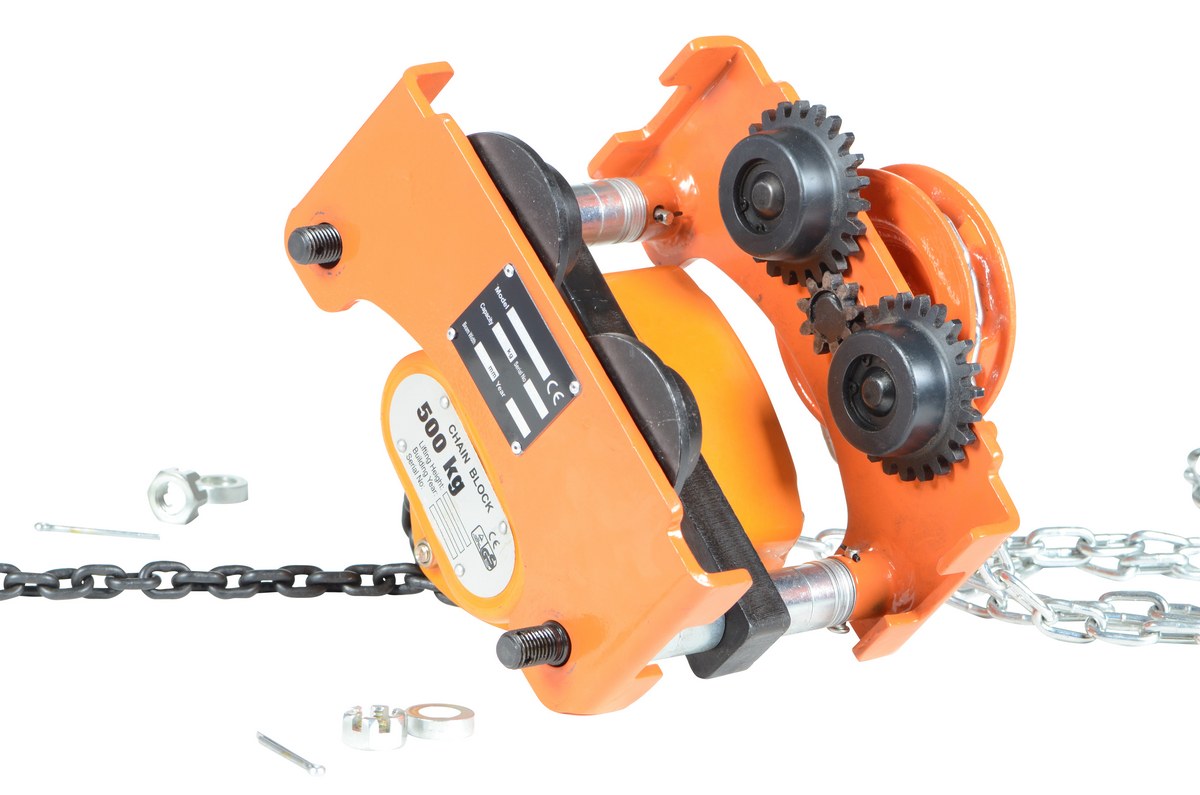

Low Headroom Combination Chain Hoist/Trolley

model: LOW-1G

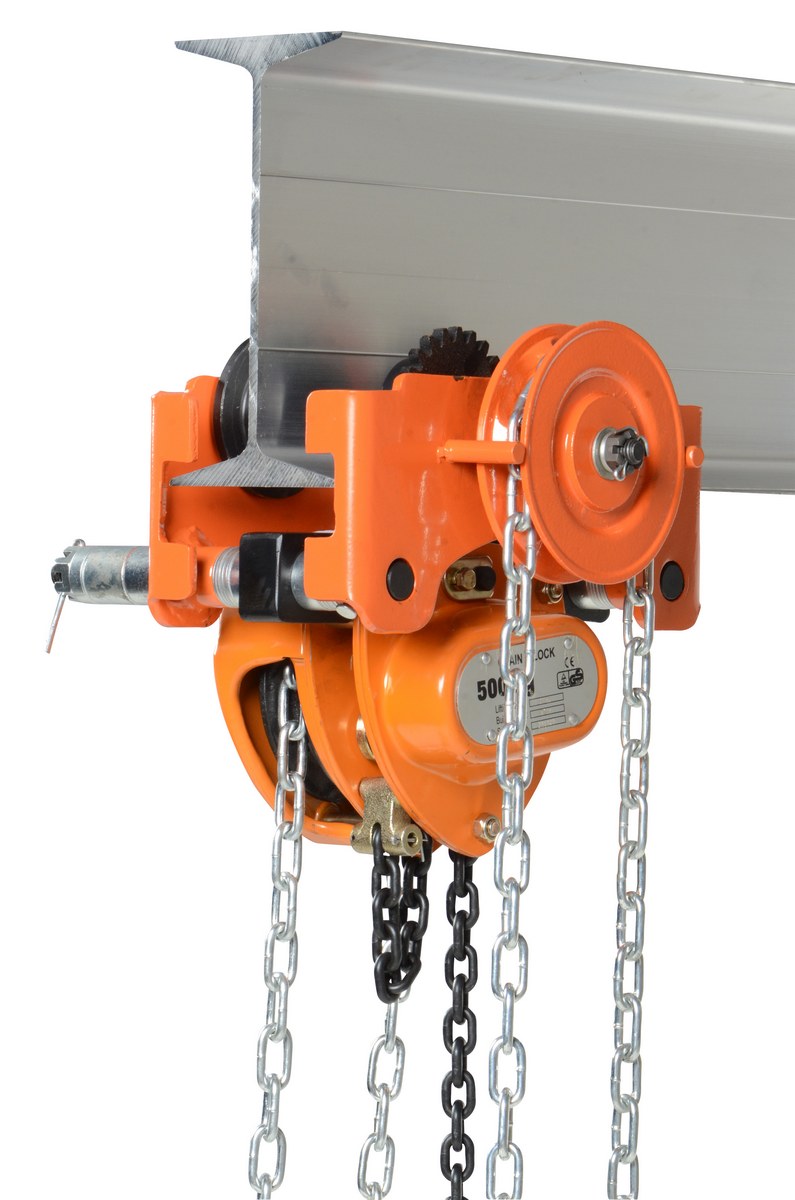

LOW-1G_D.jpg LOW-1G_A.jpg LOW-1G_B.jpg LOW-1G_C.jpg More Images +
Low Headroom Combination Chain Hoist/Trolley
SERIES: LOW

Use this Low Headroom Chain Hoist Geared Trolley to gain additional raised hook height. Chain hoist hook travel is ten (10) feet. Fits on wide flange or S-type I-beam. Load chain is alloy steel. Hand chain is carbon steel galvanized. Assembly required.

  • Compact design works well in locations where more headroom is required
  • Heavy-duty industrial steel construction provides long lasting use
  • Chain hoist features ten foot of vertical lift
  • Bright orange color for strong visibility
Low Headroom Combination Chain Hoist/Trolley

model: LOW-1G

Model # Description Attributes Net Wt.
(lbs)
LOW-1G LOW-1G90 Days Limited WarrantySteel Low Headroom Chain Hoist Gear Trolley 9 In. x 10 In. x 10 In. 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 6		49

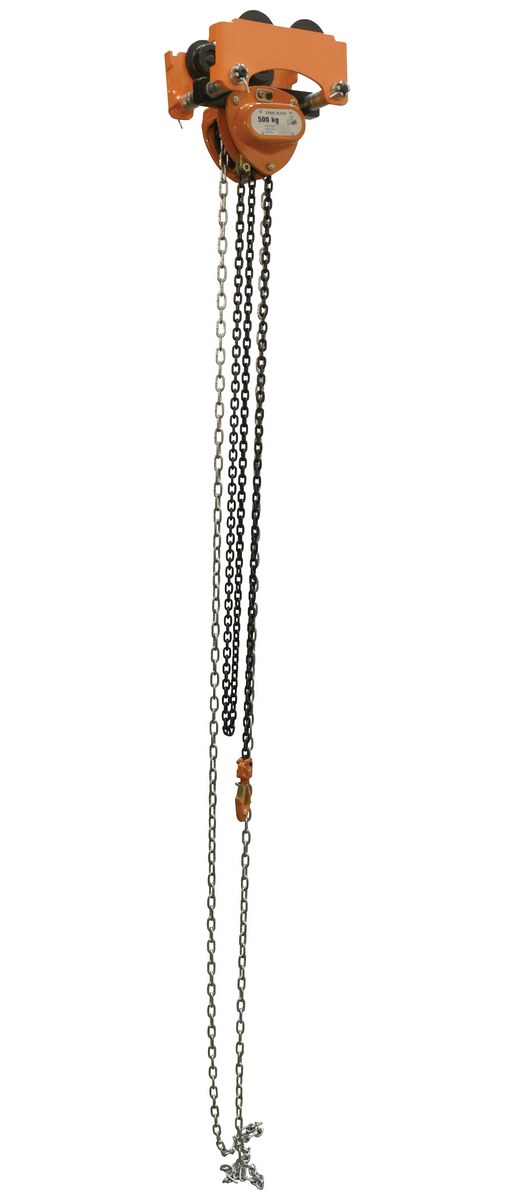

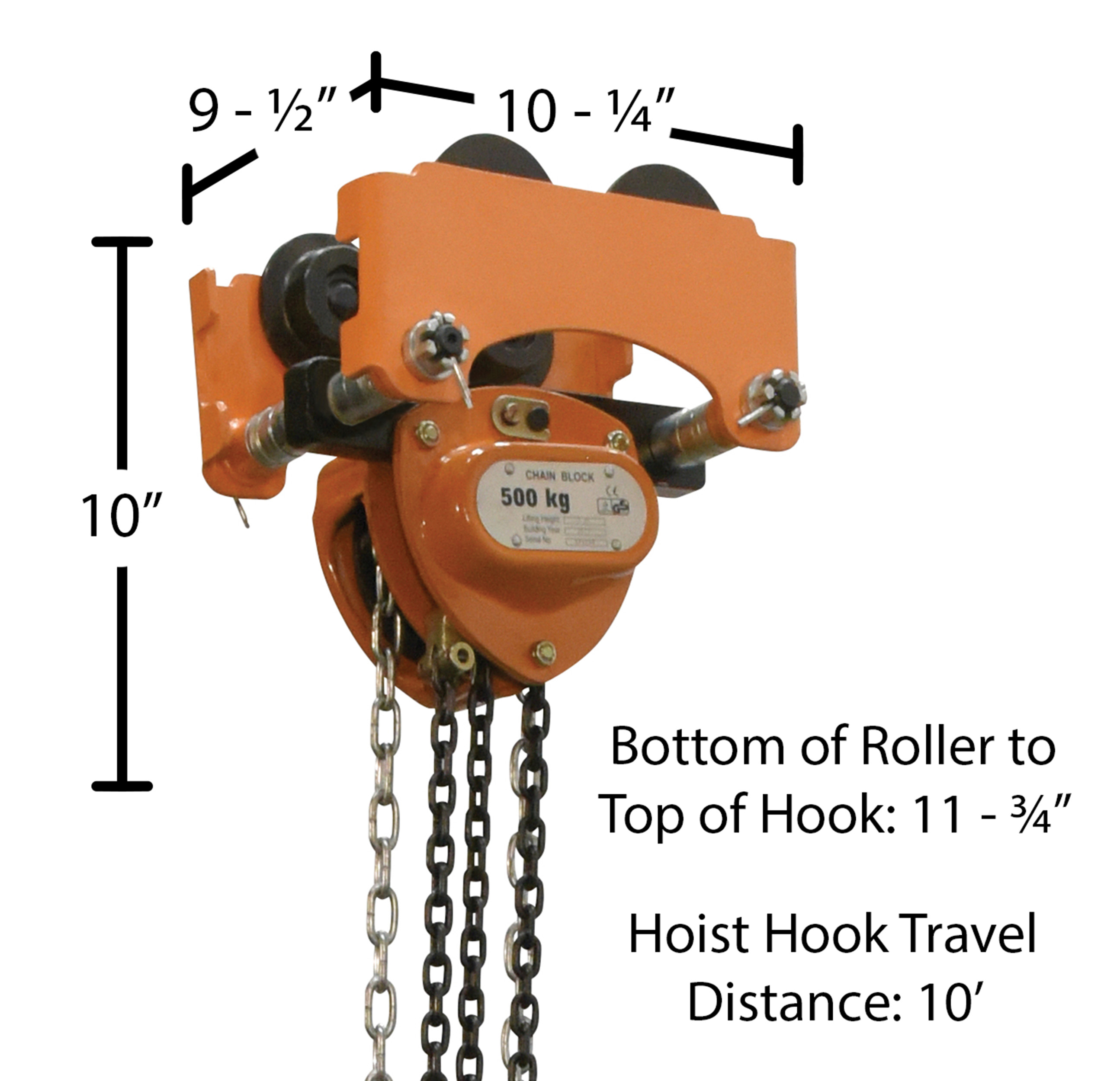

LOW-1P LOW-1P90 Days Limited WarrantySteel Low Headroom Chain Hoist Push Trolley 10-1/4 In. x 9-1/2 In. x 10 In. 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 6		45

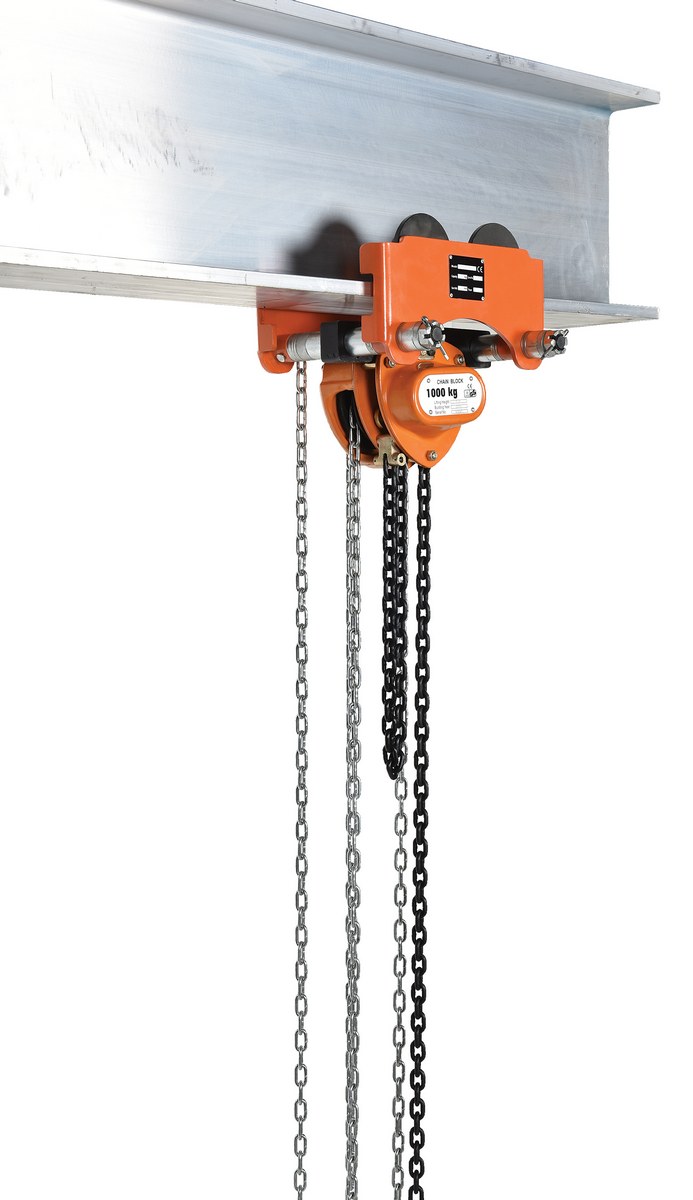

LOW-2G LOW-2G90 Days Limited WarrantySteel Low Headroom Chain Hoist Gear Trolley 11-1/2 In. x 11-1/2 In. x 10 In. 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 8		73

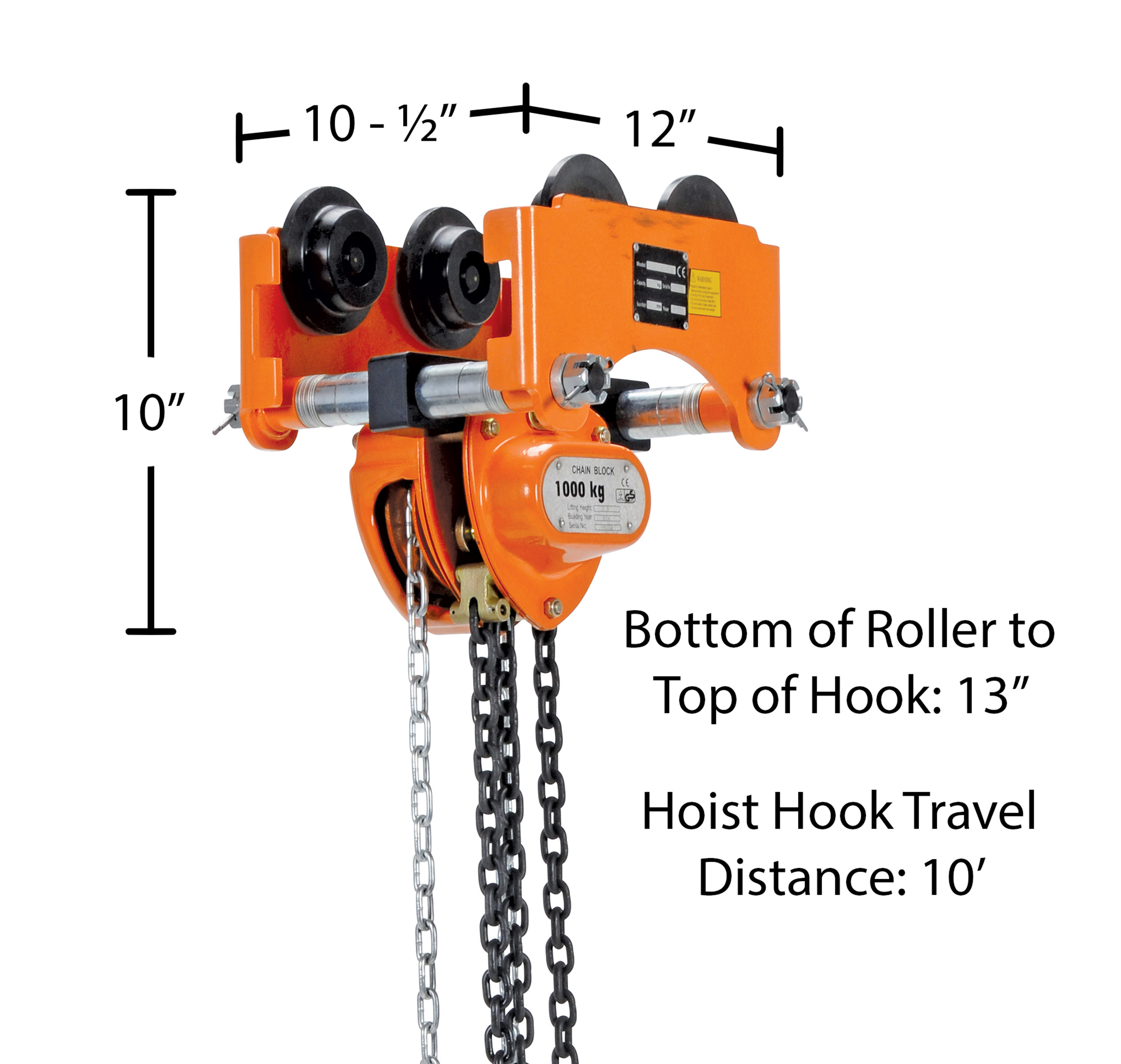

LOW-2P LOW-2P90 Days Limited WarrantySteel Low Headroom Chain Hoist Push Trolley 12 In. x 10-1/2 In. x 10 In. 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 8		63
LOW-4G LOW-4G90 Days Limited WarrantySteel Low Headroom Chain Hoist Gear Trolley 14 In. x 12-1/2 In. x 14 In. 4,000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/2 to 8		110

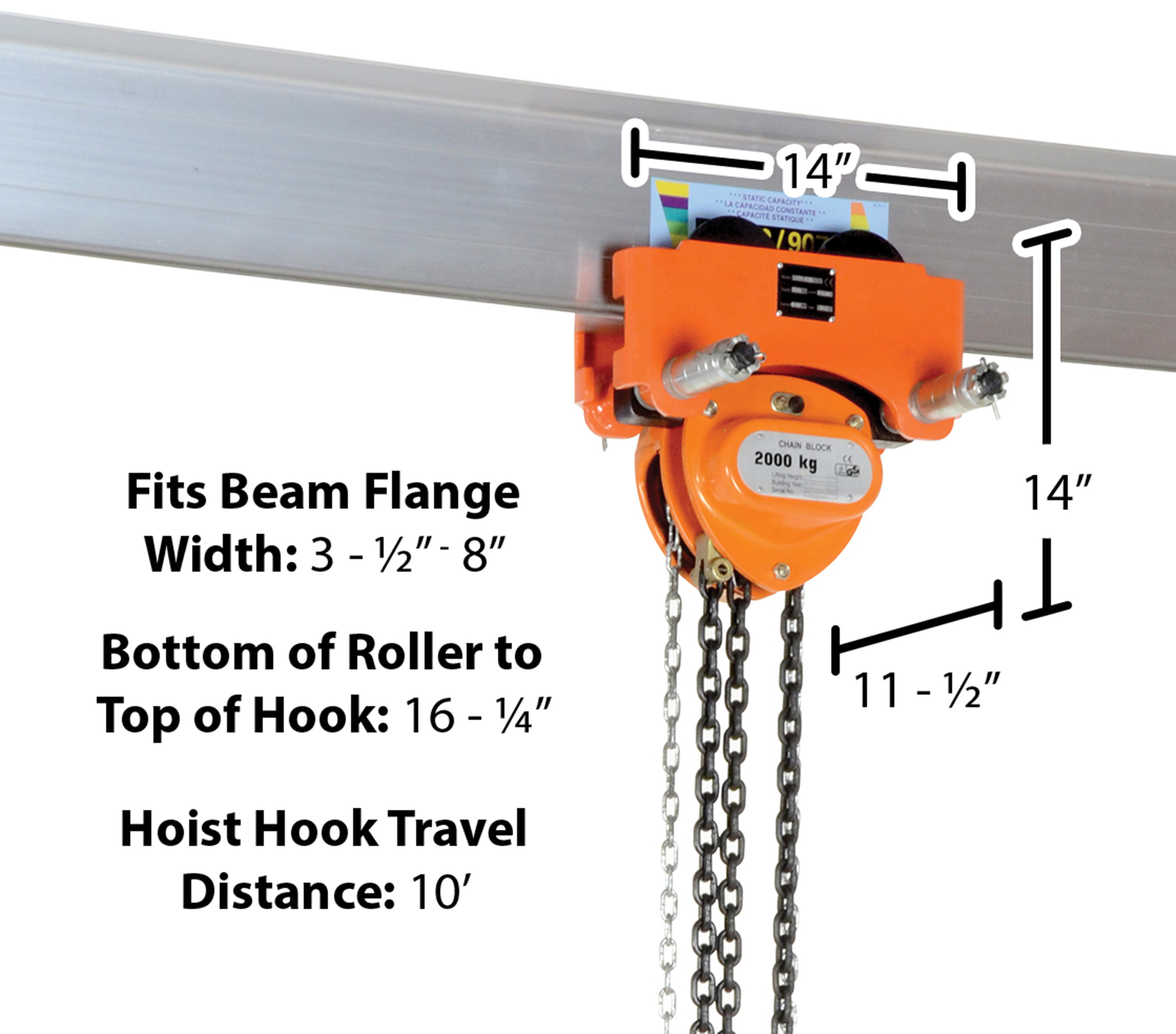

LOW-4P LOW-4P90 Days Limited WarrantySteel Low Headroom Chain Hoist Push Trolley 14 In. x 11-1/2 In. x 14 In. 4,000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/2 to 8		101
LOW-6G LOW-6G90 Days Limited WarrantySteel Low Headroom Chain Hoist Gear Trolley 17 In. x 13-1/2 In. x 15 In. 6,000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 4 to 8		158

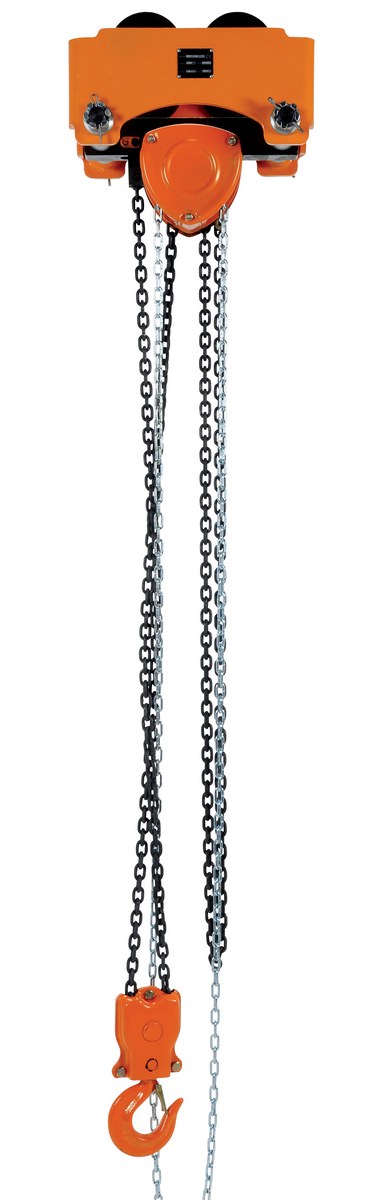

LOW-6P LOW-6P90 Days Limited WarrantySteel Low Headroom Chain Hoist Push Trolley 17 In. x 12-1/2 In. x 15 In. 6,000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 4 to 8		144

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

LOW-1G
LOW-1P
LOW-2G
LOW-2P
LOW-4G
LOW-4P
LOW-6G
LOW-6P
PDFs will open in a new window when clicked.

Manuals

LOW

LOW-

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

No Approval Drawings For This Product

Testing Certificates

LOW-1G

LOW-1P

LOW-2G

LOW-2P

LOW-4G

LOW-4P

LOW-6G

LOW-6P

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Enhanced Product Content

LOW-4P

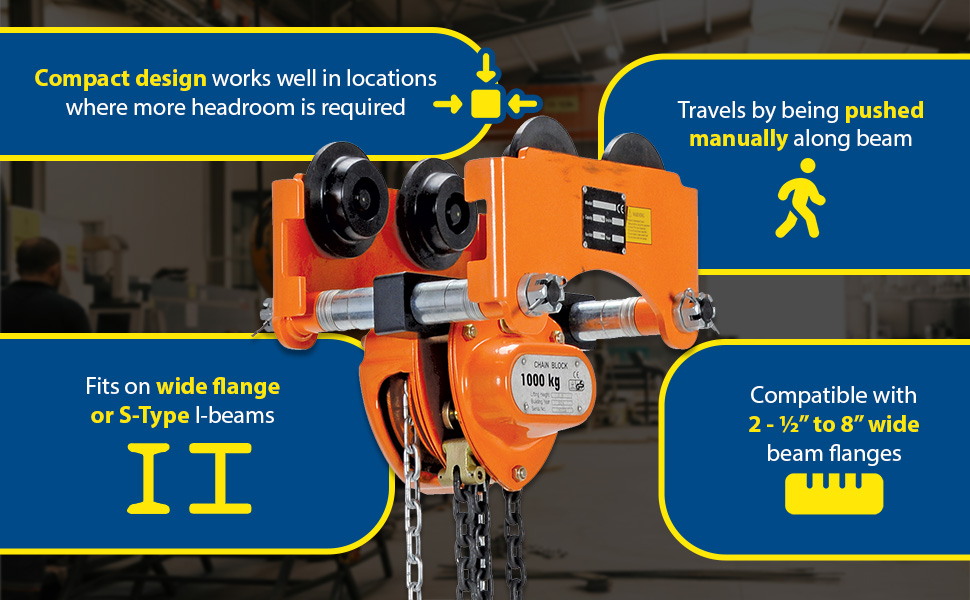

LOW-4P LOW-4P A+ Content - 2

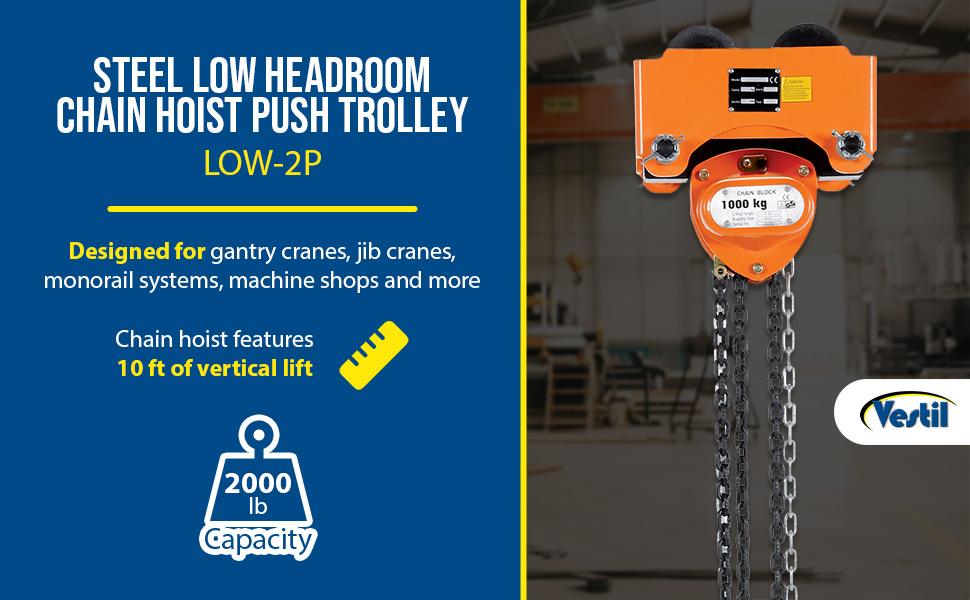

LOW-4P LOW-4P A+ Content - 1
LOW-4P LO-DC-PU A+ Content - 3
What is the difference between the LOW-1P and the LOW-1G trolley?

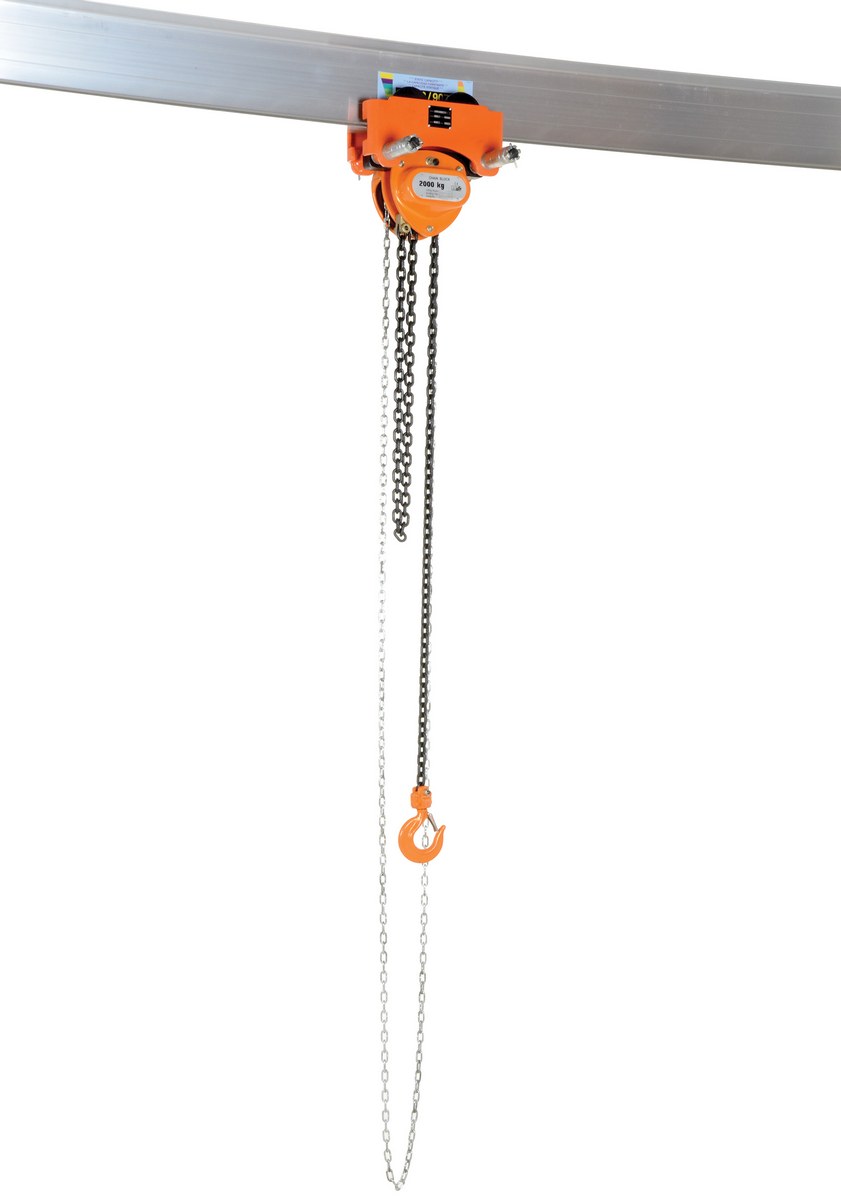

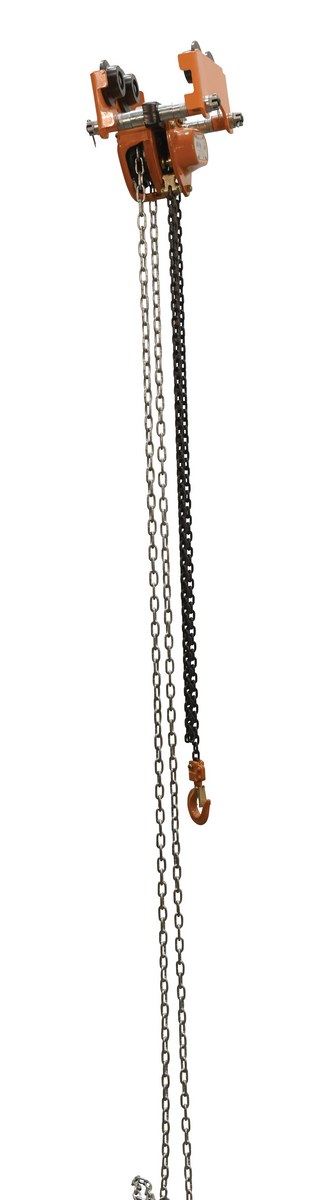

The LOW-x-P (push trolley) is moved by pushing it along the I-beam.

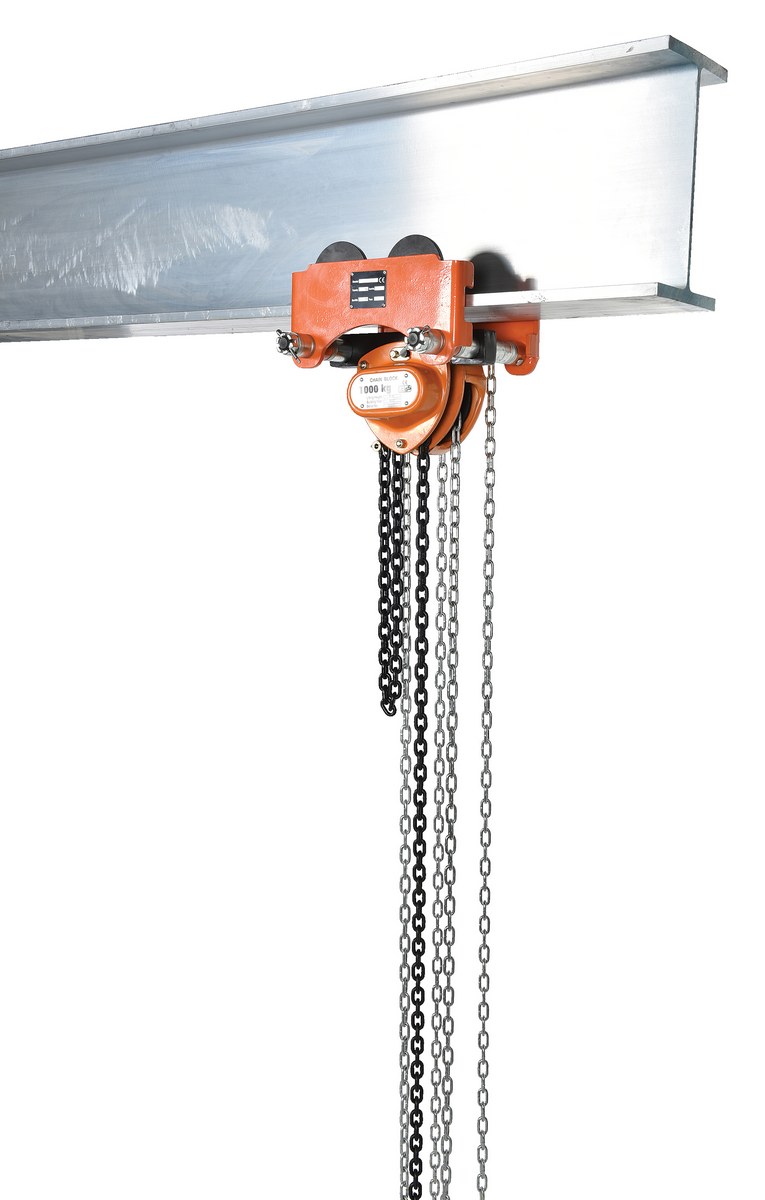

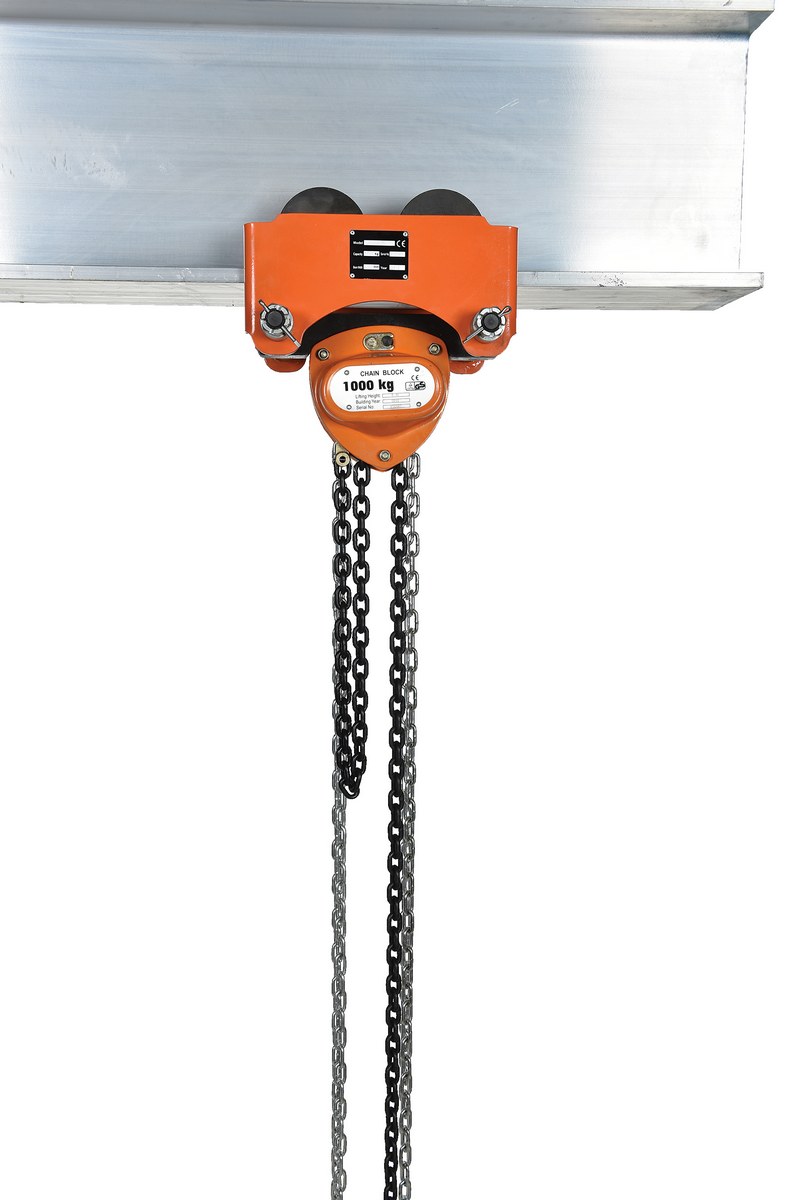

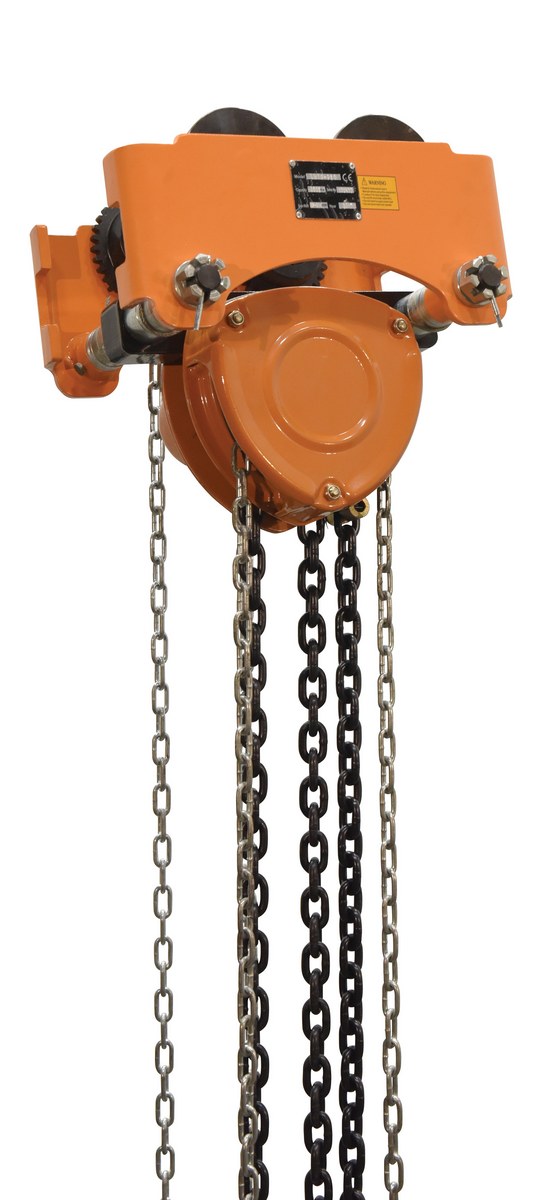

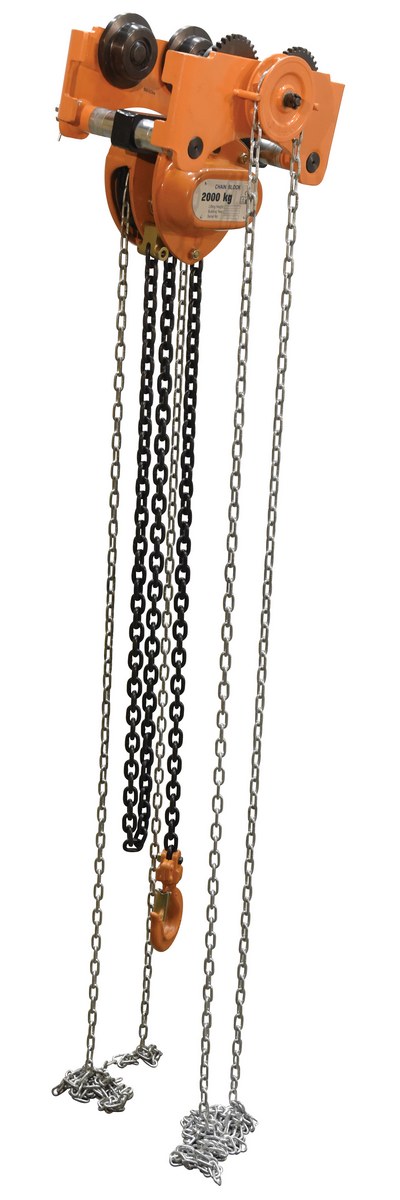

The LOW-x-G (geared trolley) is moved by pulling a chain which rotates gears and moves the trolley along the I-beam.
What is the width of just the hoist? I can only find the width of the entire unit.
The width of the hoist is 5-3/8".
What are the hand chain and load chain made of?
The load chain is alloy steel.
The hand chain is carbon steel galvanized.
What size I beam does this fit?
Fits on wide flange or S-type I-beam.
