Extruded Aluminum Hose & Cable Crossovers

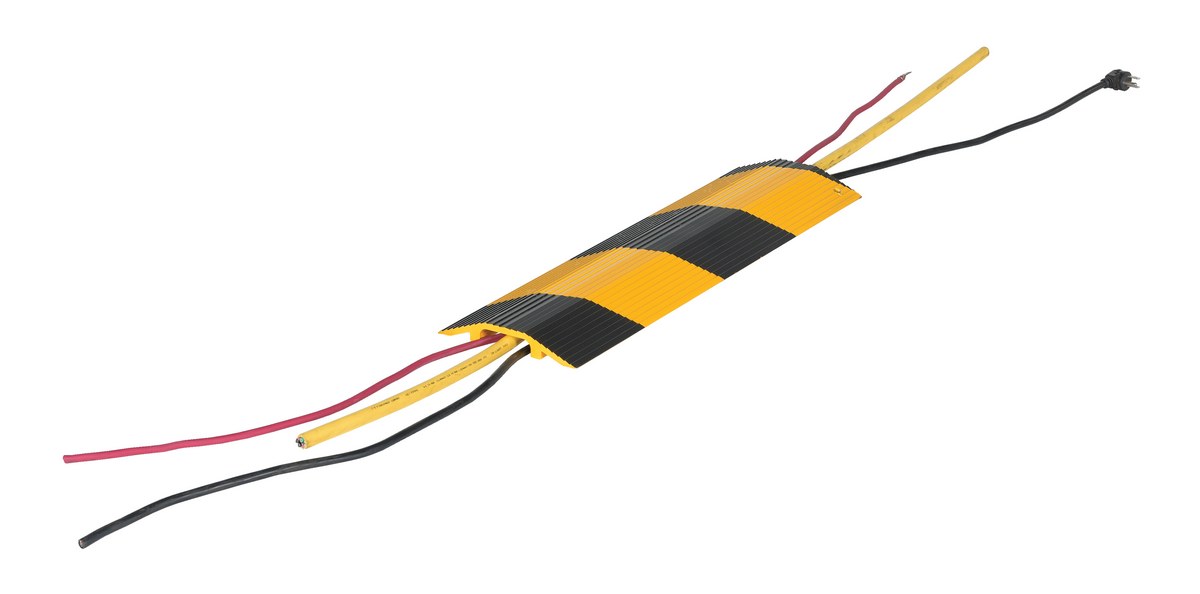

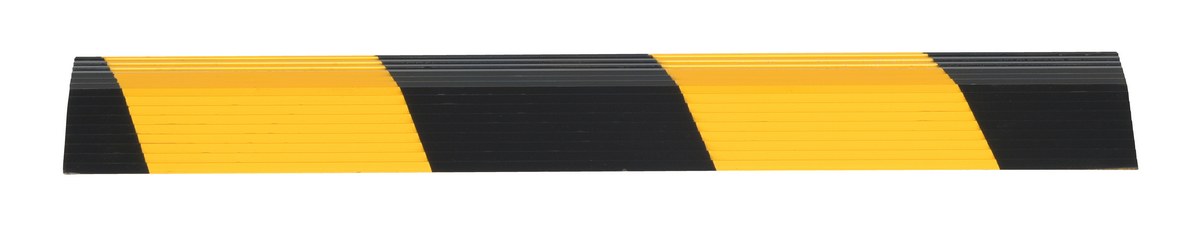

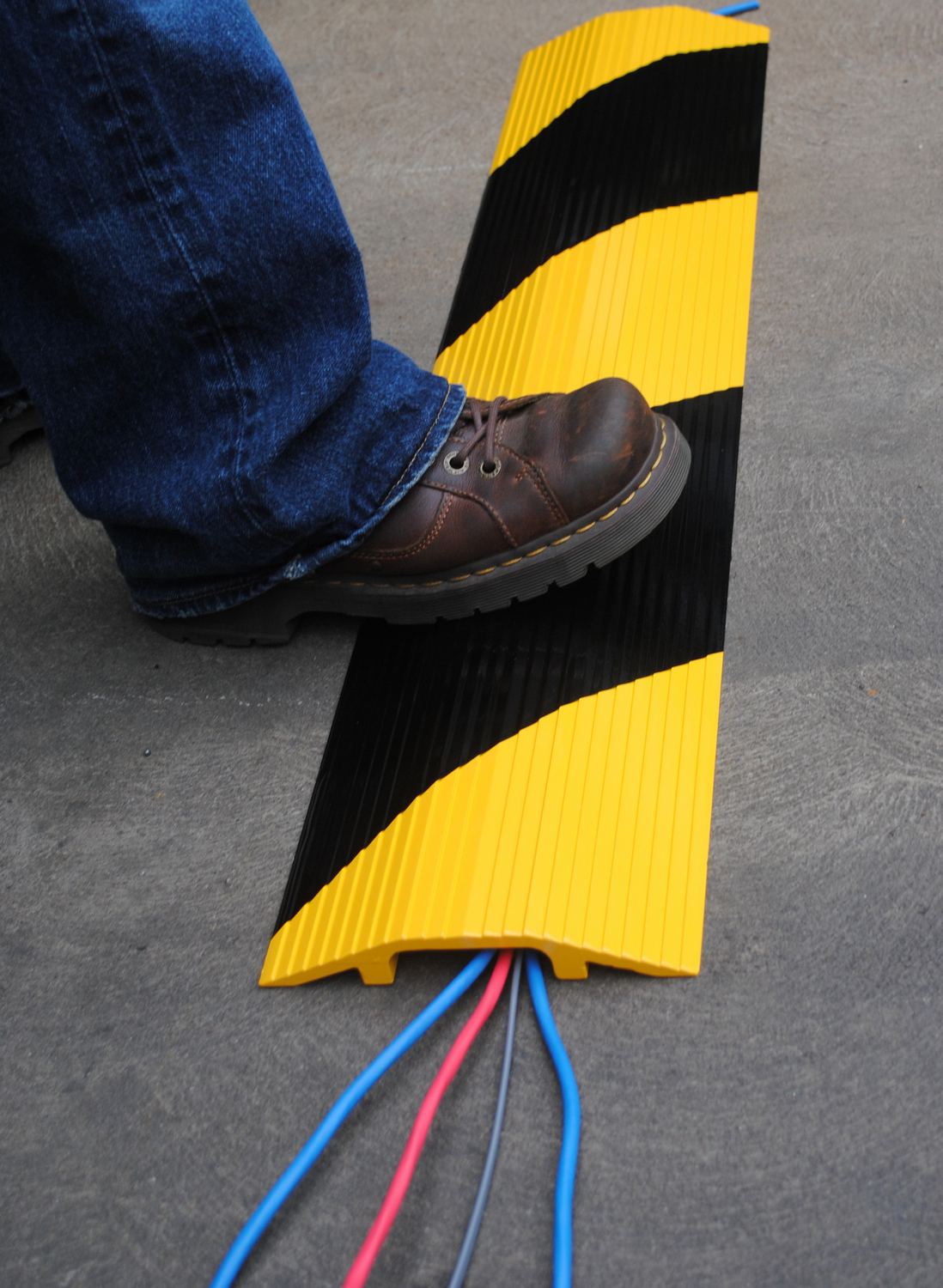

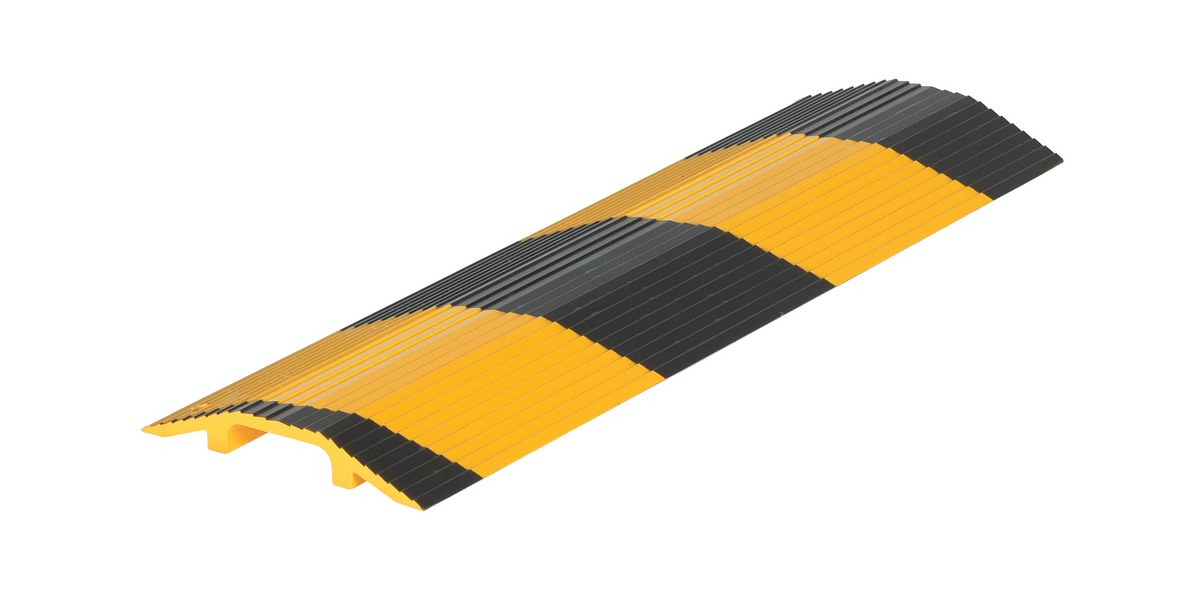

model: HCR-24-YB
Designed to protect cables and hoses from pedestrian and rolling traffic. Heavy duty aluminum construction is durable and attractive. Top surface of each bridge includes serrations for better traction. Models with color finishes include a baked-in powder-coat for added toughness. Contact factory for special lengths up to 25 feet.
Designed to protect cables and hoses from pedestrian and rolling traffic. Heavy duty aluminum construction is durable and attractive. Top surface of each bridge includes serrations for better traction. Models with color finishes include a baked-in powder-coat for added toughness. Contact factory for special lengths up to 25 feet.

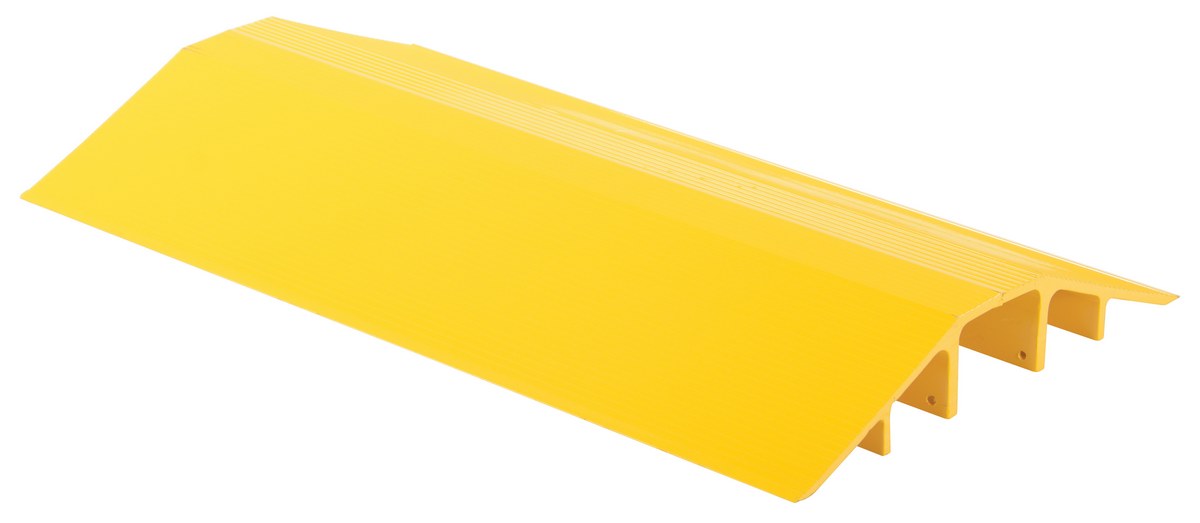

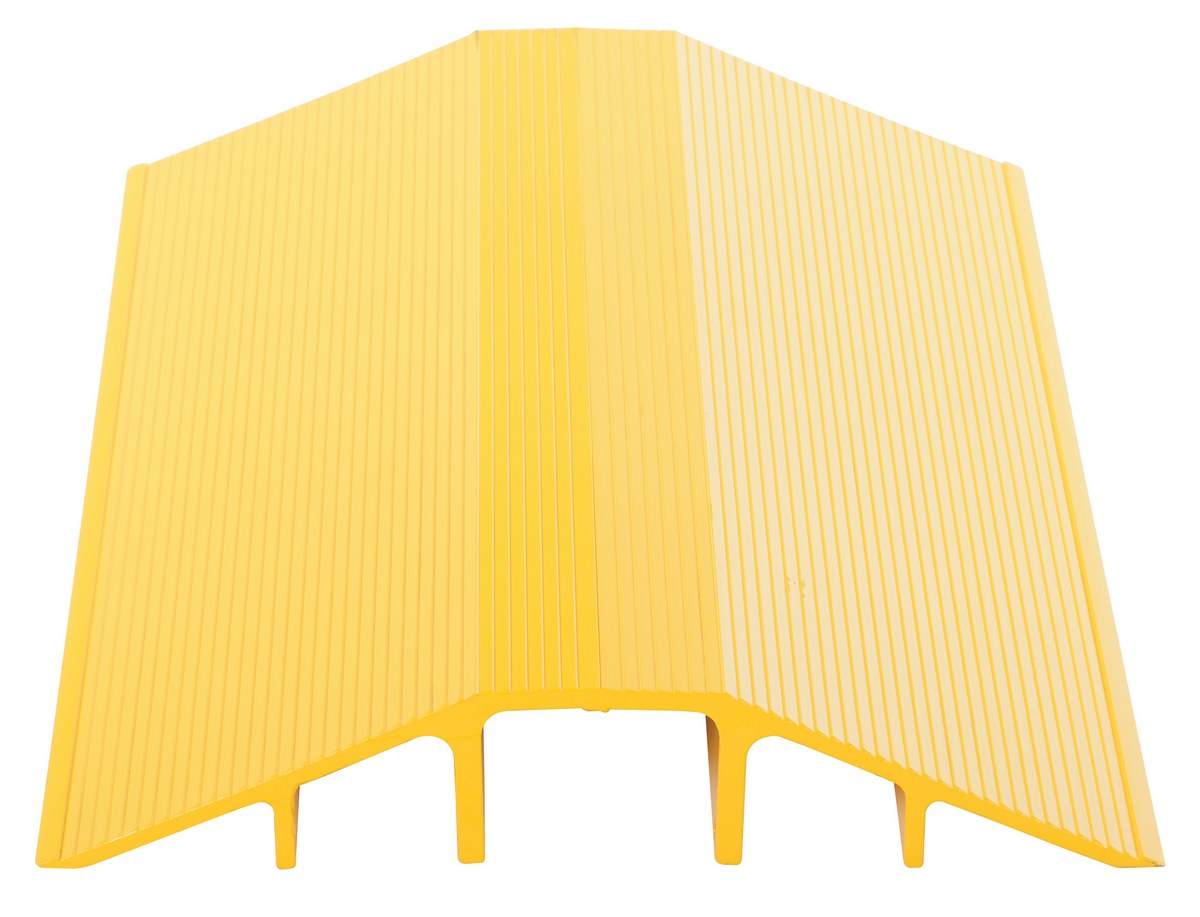

XHCR-36-Y
XHCR-48-Y

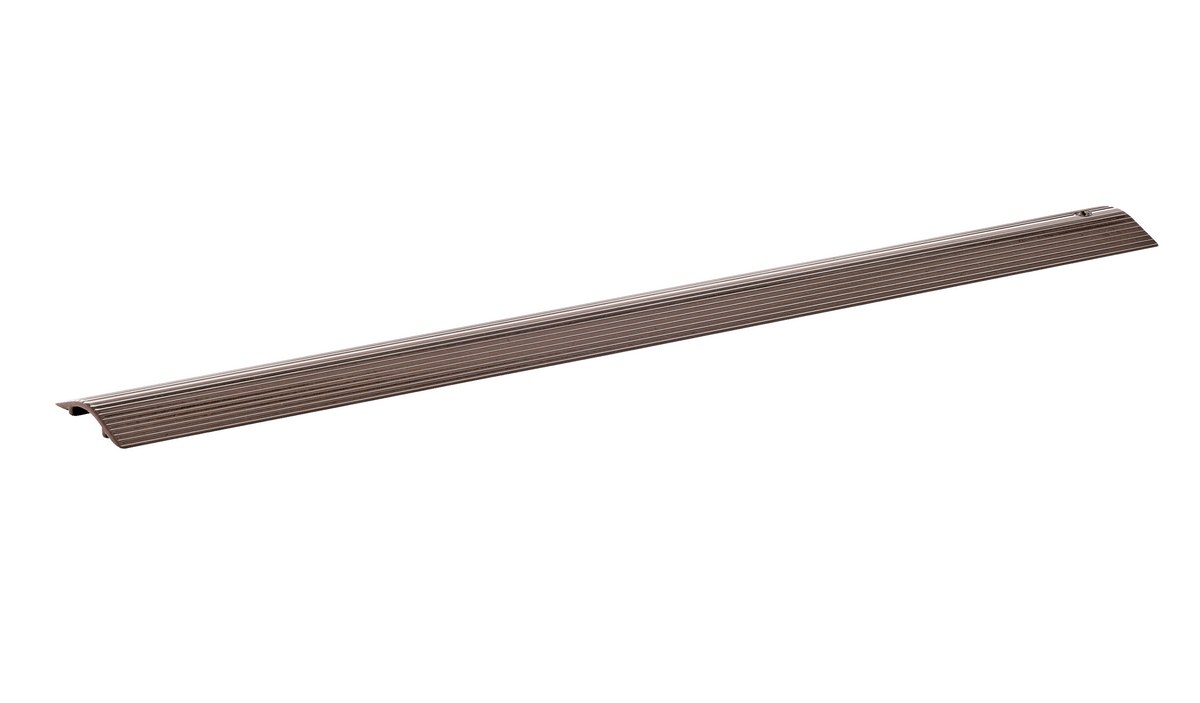

WR-24-Y

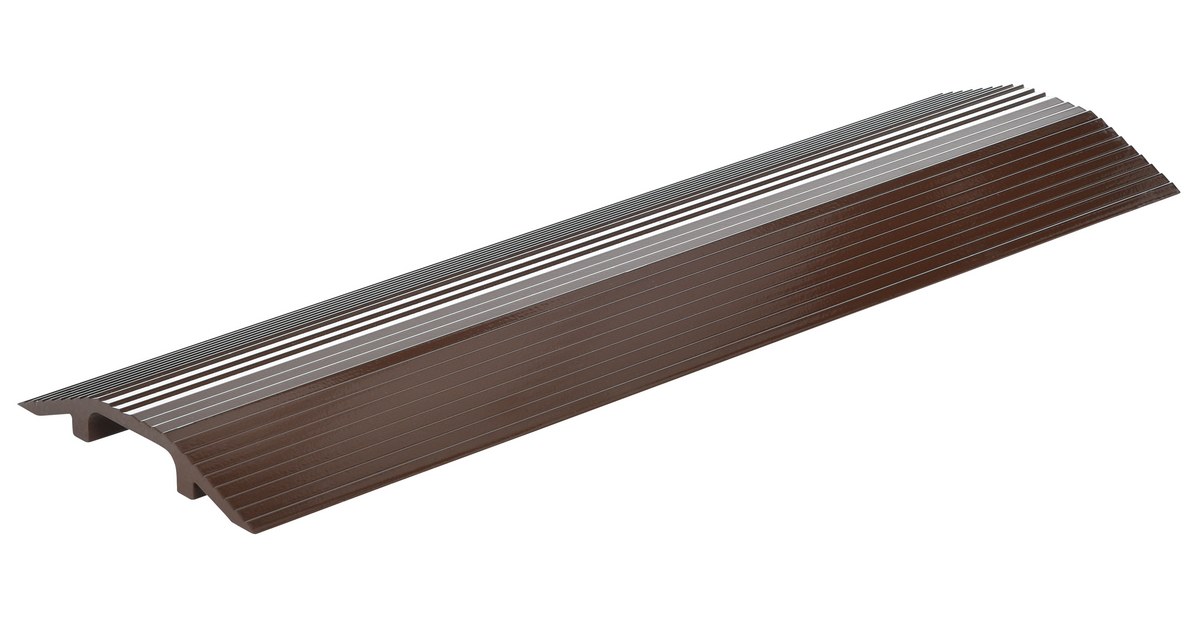

HCR-24-BRN
LHCR-72
LHCR-48-Y
LHCR-36-BRN
XHCR-36
LHCR-60-BK

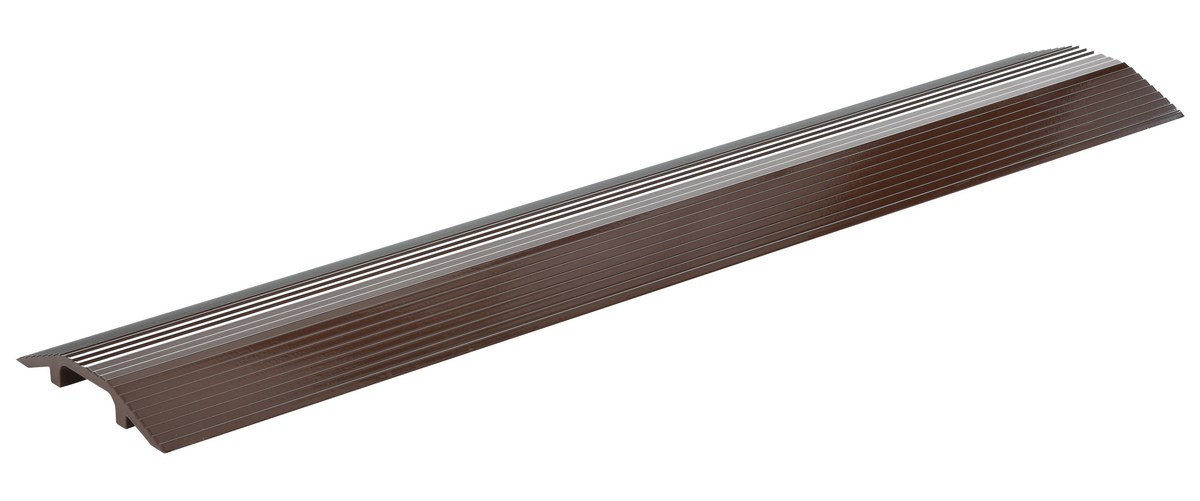

HCR-36-BRN
WR-36-YB
LHCR-48-BRN
HCR-48-YB
HCR-48-BK
XHCR-48-BRN
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

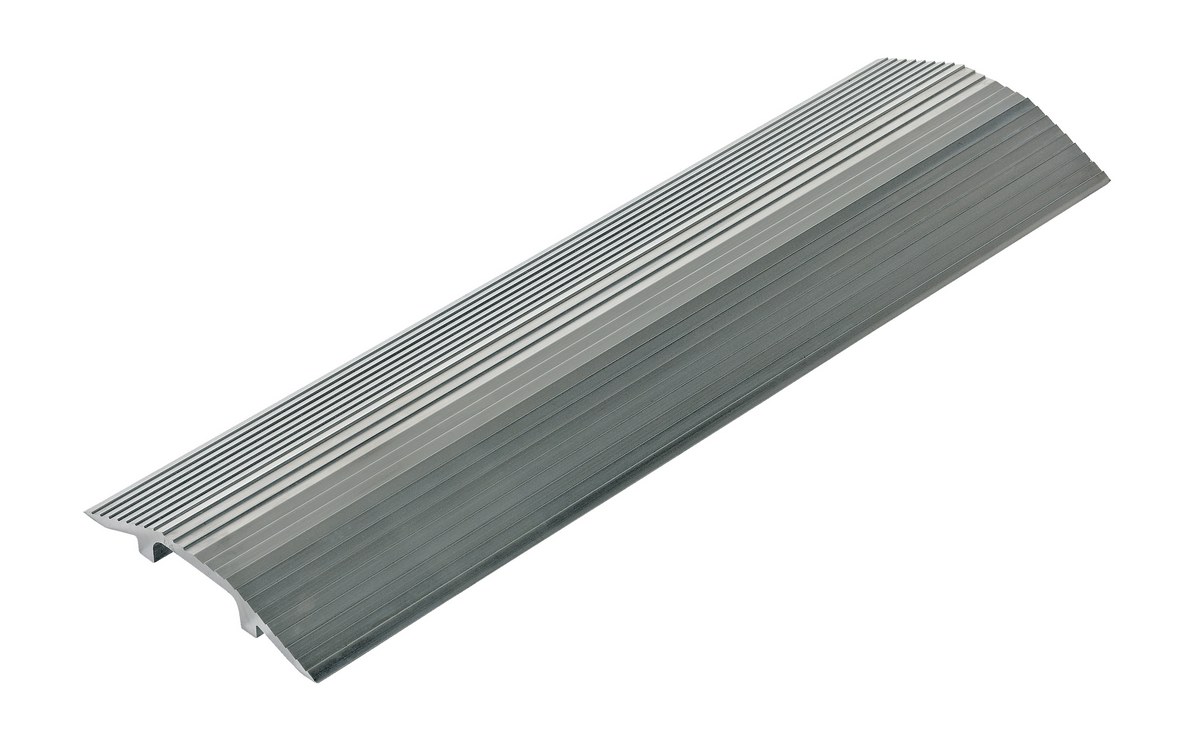

| HCR-24 |
 | 90 Days Limited Warranty | Aluminum Extruded Hose and Cable Crossover 24 In. Length Silver | Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8 | 7 | ||

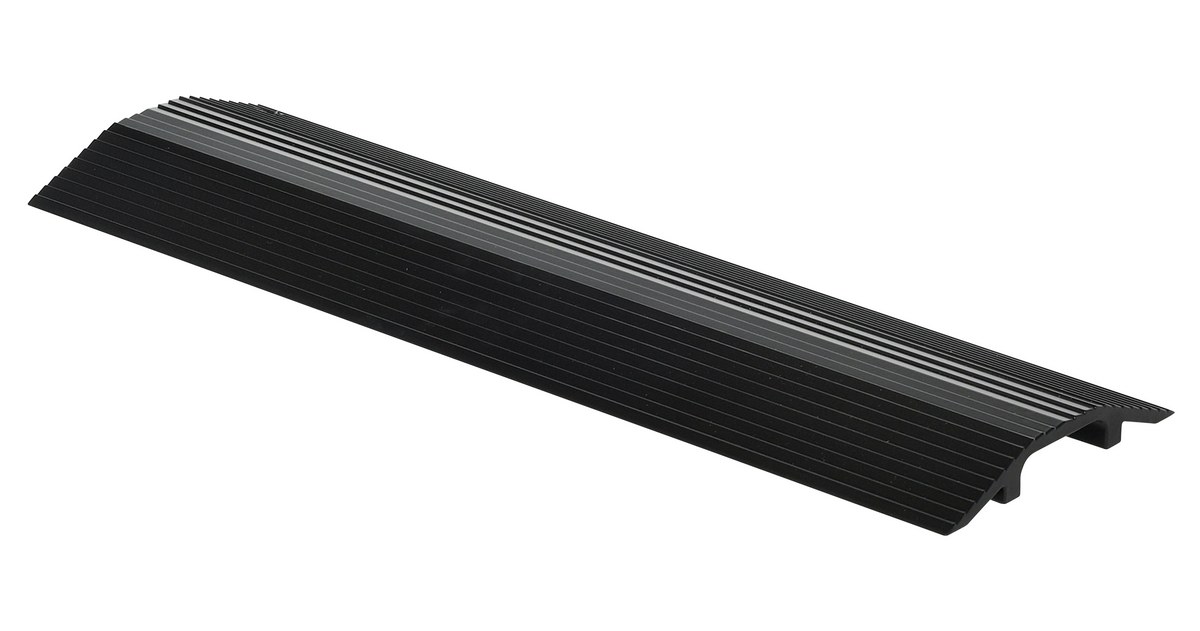

| HCR-24-BK |
 | 90 Days Limited Warranty | Aluminum Extruded Hose and Cable Crossover 24 In. Length Black | Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8 | 7 | ||
| HCR-24-BRN |
 | 90 Days Limited Warranty | Aluminum Extruded Hose and Cable Crossover 24 In. Length Brown | Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8 | 7 | ||

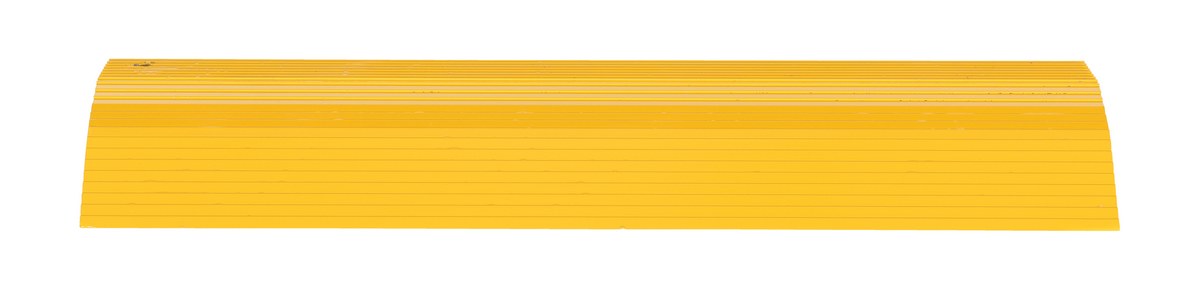

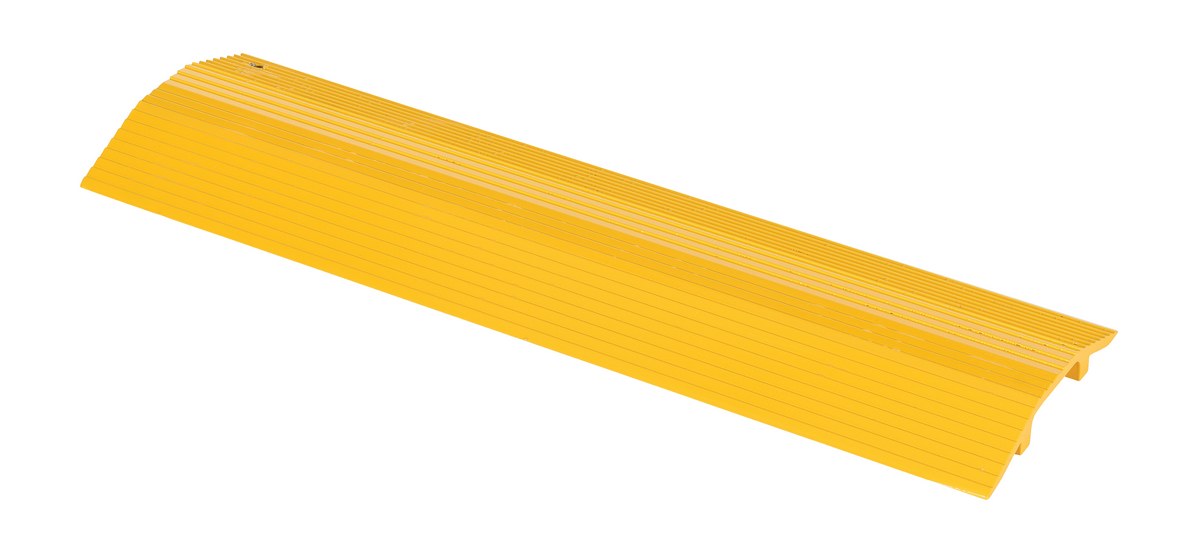

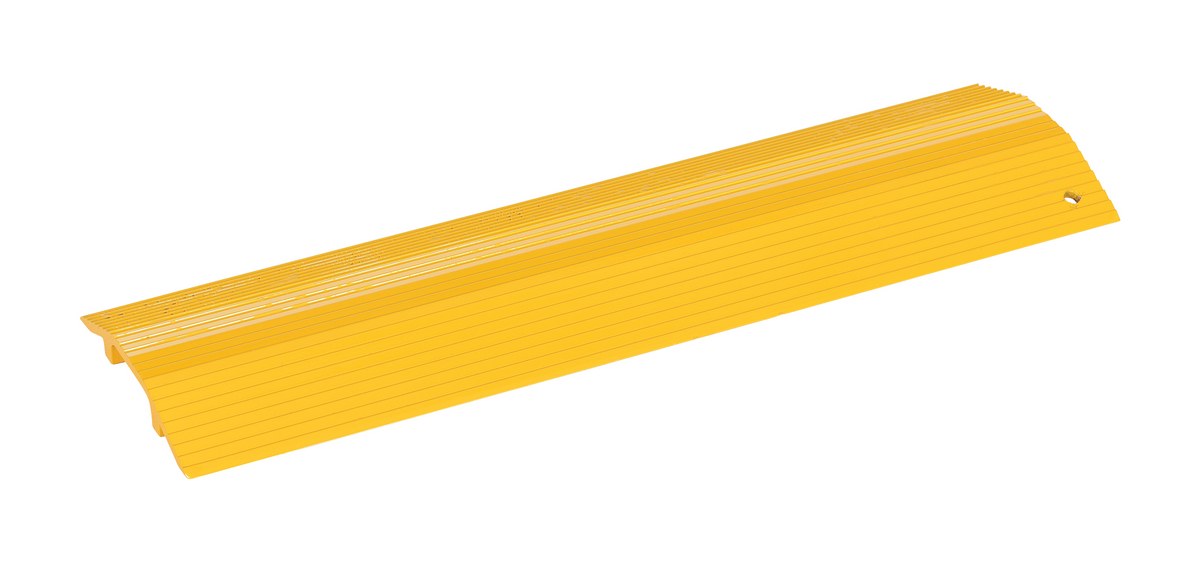

| HCR-24-Y |
 | 90 Days Limited Warranty | Aluminum Extruded Hose and Cable Crossover 24 In. Length Yellow | Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8 | 7 | ||

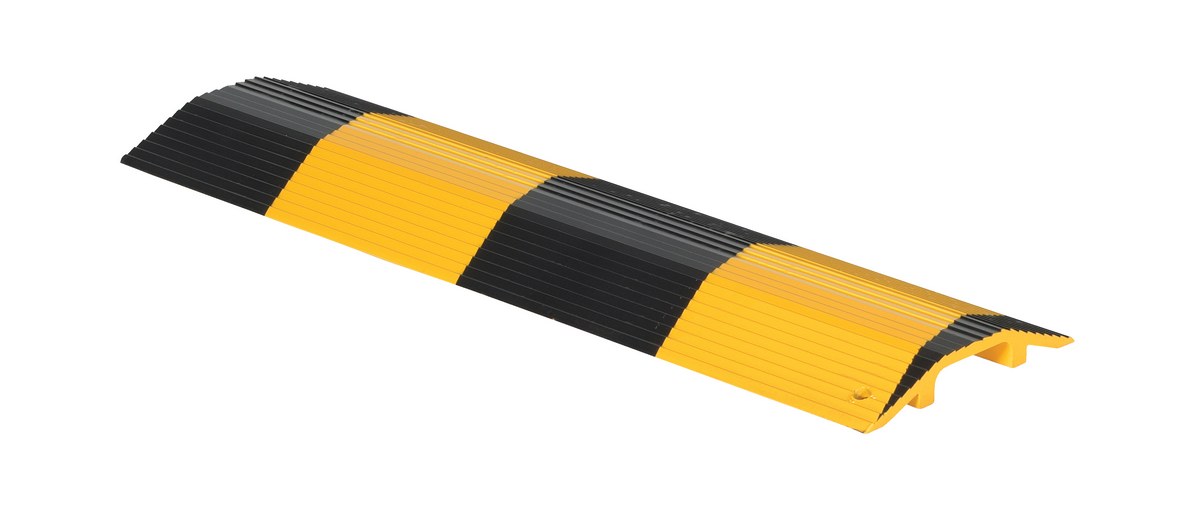

| HCR-24-YB |
| 90 Days Limited Warranty | Aluminum Extruded Hose and Cable Crossover 24 In. Length Yellow/Black | Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8 | 7 | ||

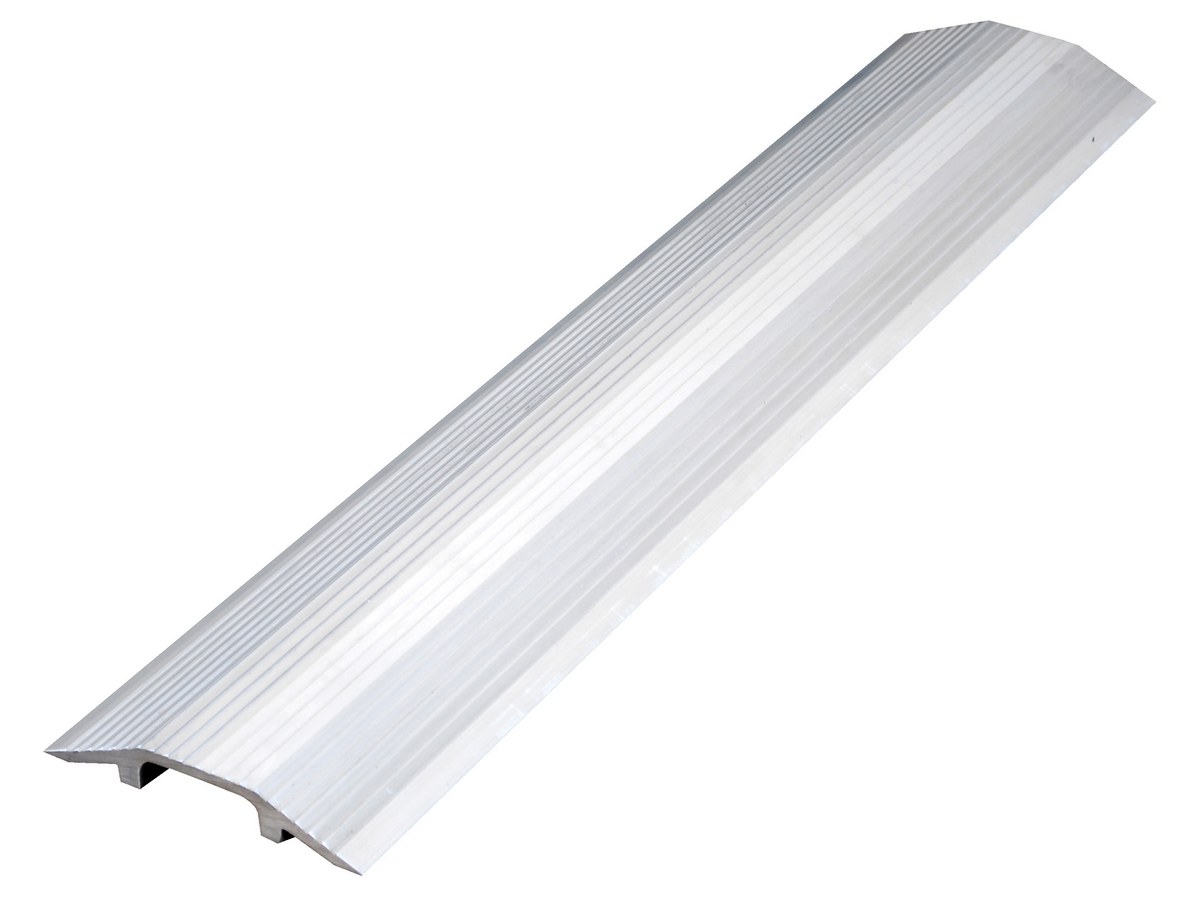

| HCR-36 |
 | 90 Days Limited Warranty | Aluminum Extruded Hose and Cable Crossover 36 In. Length Silver | Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8 | 8 | ||

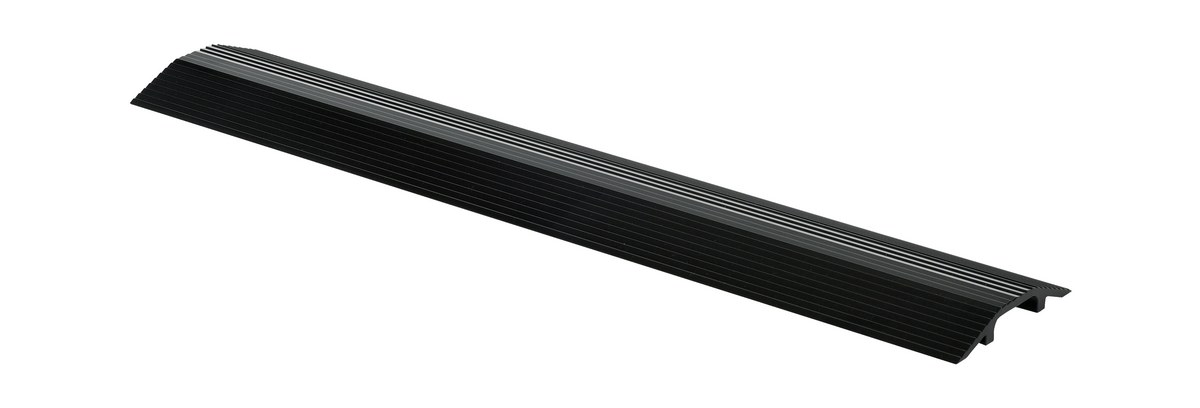

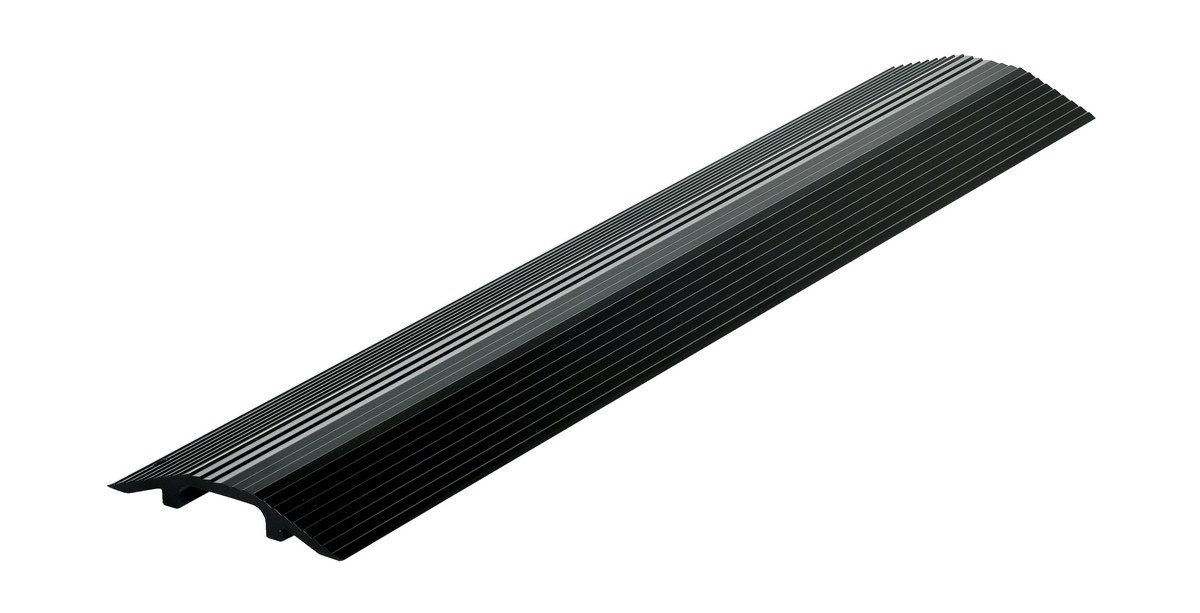

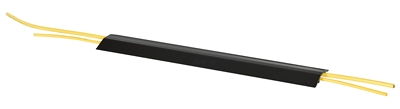

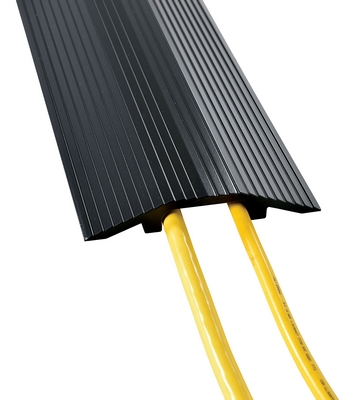

| HCR-36-BK |
 | 90 Days Limited Warranty | Aluminum Extruded Hose and Cable Crossover 36 In. Length Black | Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8 | 10 | ||

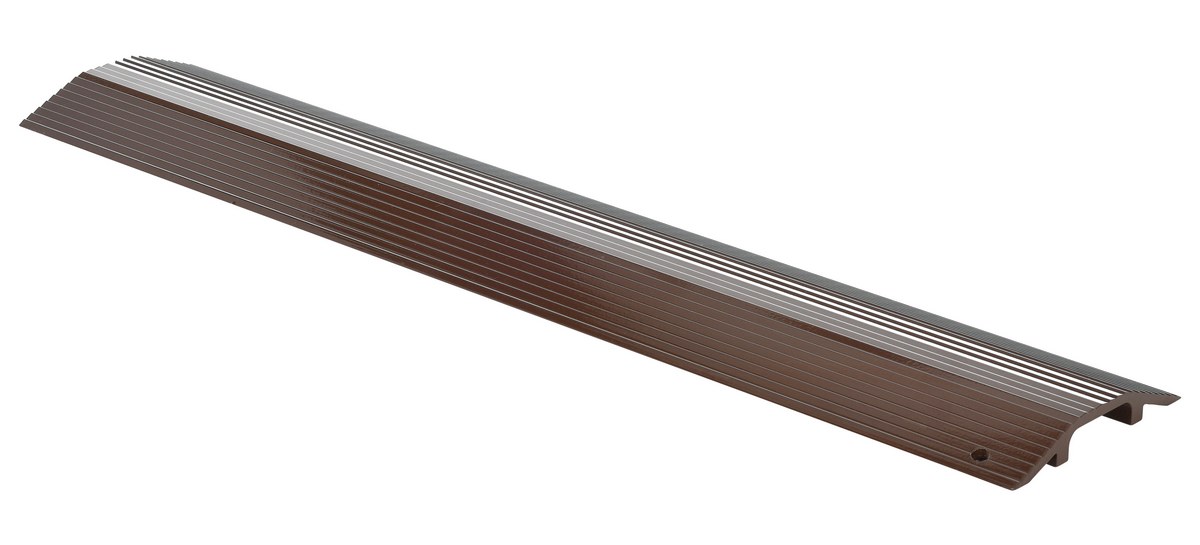

| HCR-36-BRN |
 | 90 Days Limited Warranty | Aluminum Extruded Hose and Cable Crossover 36 In. Length Brown | Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8 | 10 | ||

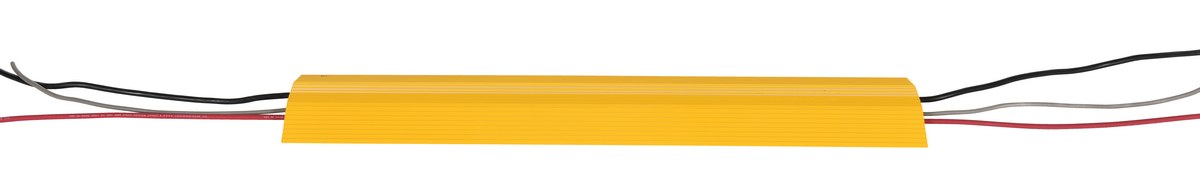

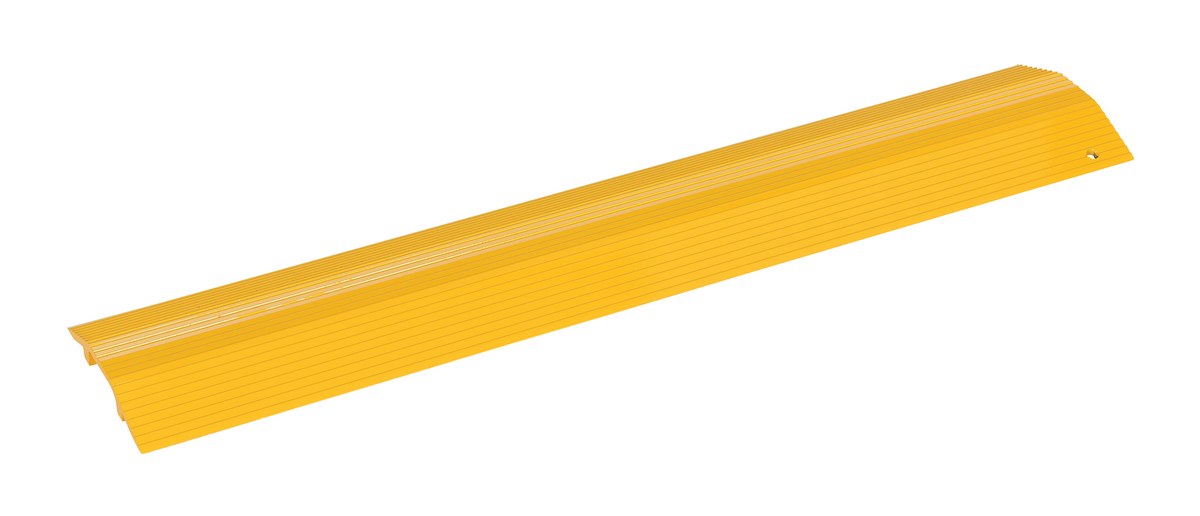

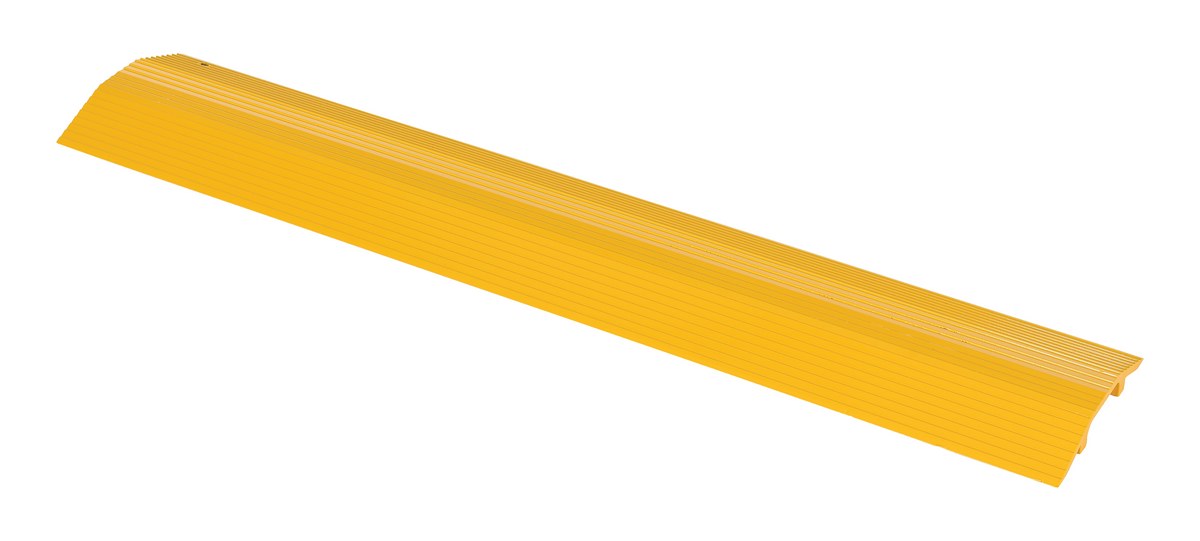

| HCR-36-Y |
 | 90 Days Limited Warranty | Aluminum Extruded Hose and Cable Crossover 36 In. Length Yellow | Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8 | 10 | ||

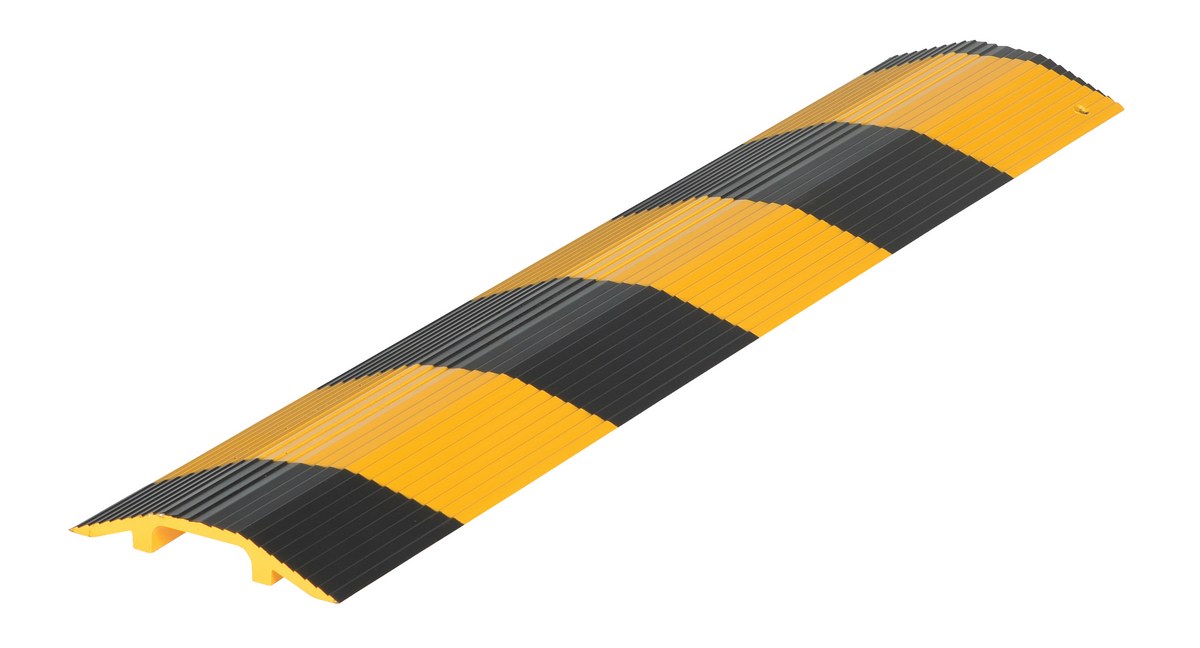

| HCR-36-YB |
 | 90 Days Limited Warranty | Aluminum Extruded Hose and Cable Crossover 36 In. Length Yellow/Black | Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8 | 10 | ||

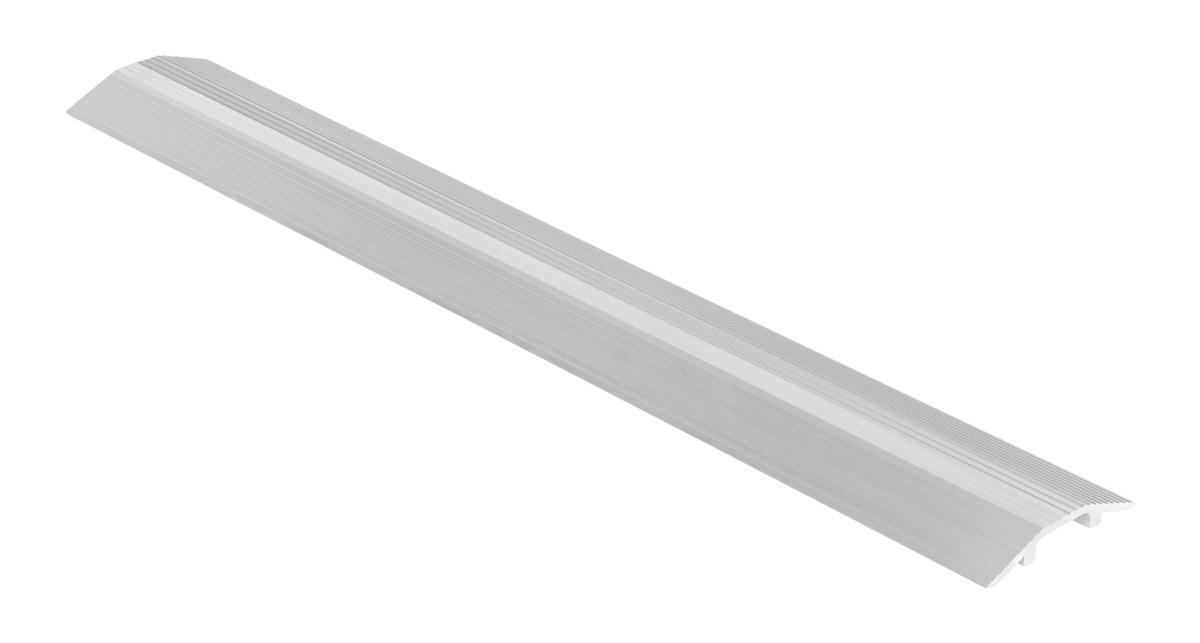

| HCR-48 |
 | 90 Days Limited Warranty | Aluminum Extruded Hose and Cable Crossover 48 In. Length Silver | Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8 | 13 | ||

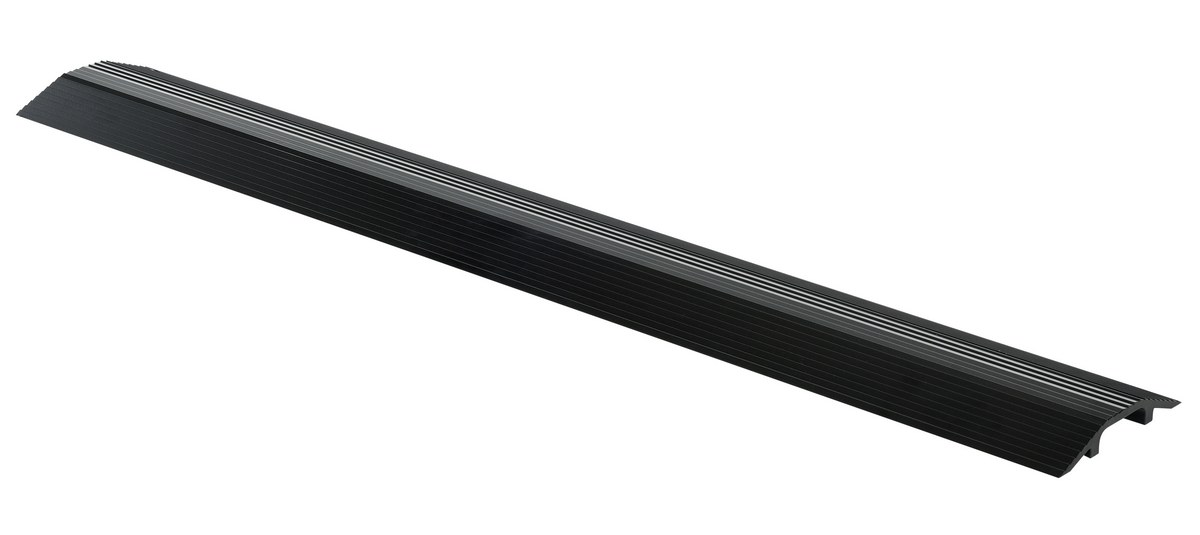

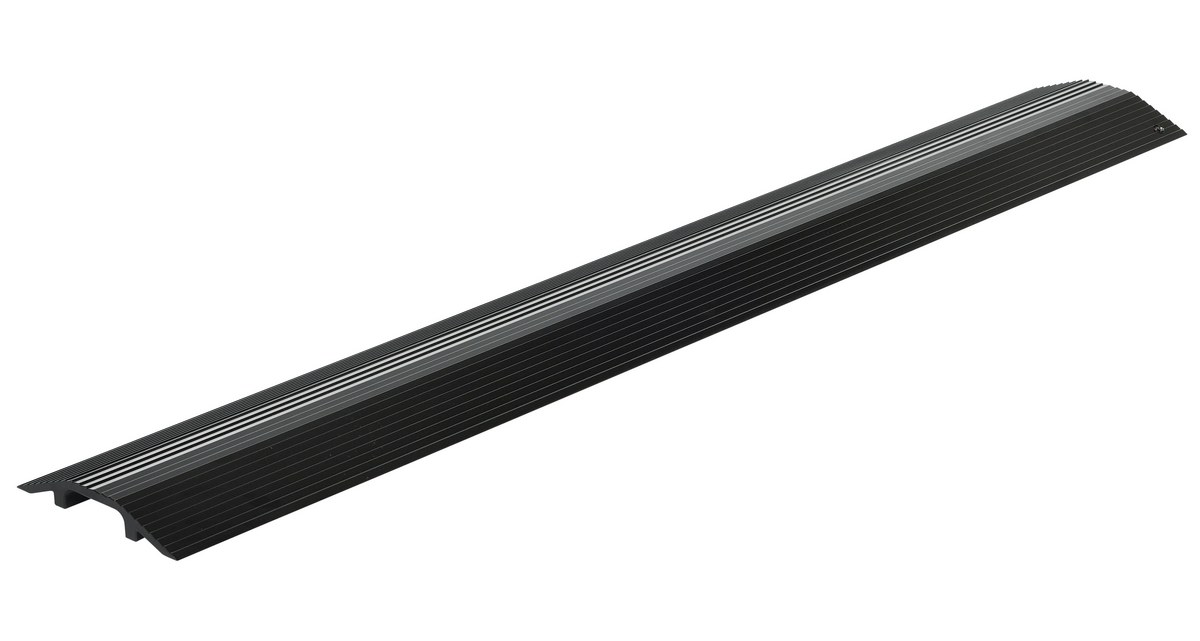

| HCR-48-BK |
 | 90 Days Limited Warranty | Aluminum Extruded Hose and Cable Crossover 48 In. Length Black | Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8 | 13 | ||

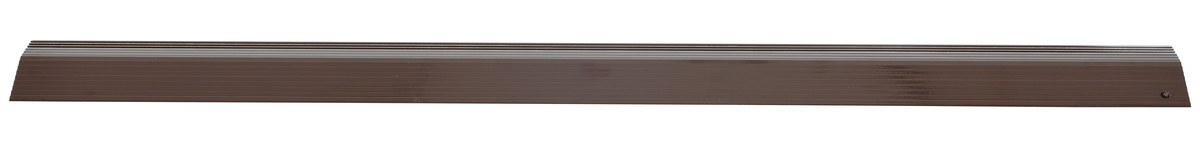

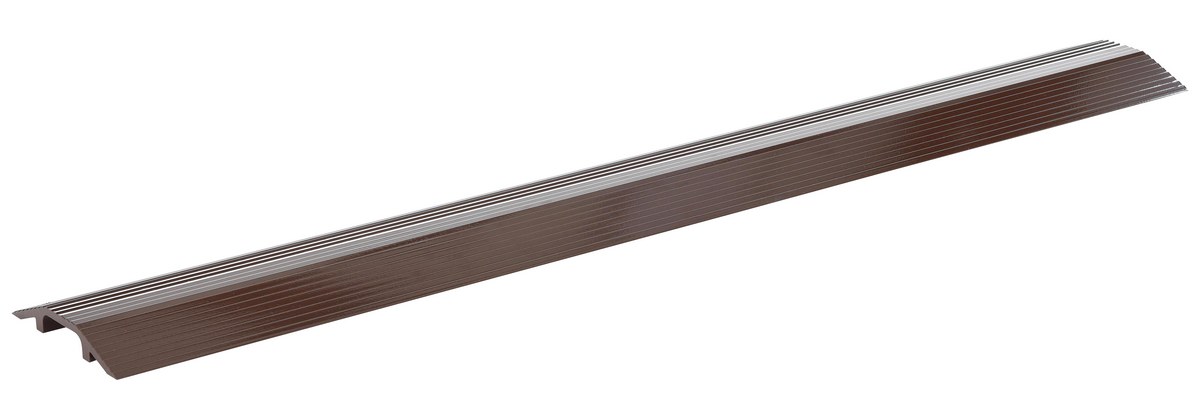

| HCR-48-BRN |
 | 90 Days Limited Warranty | Aluminum Extruded Hose and Cable Crossover 48 In. Length Brown | Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8 | 13 | ||

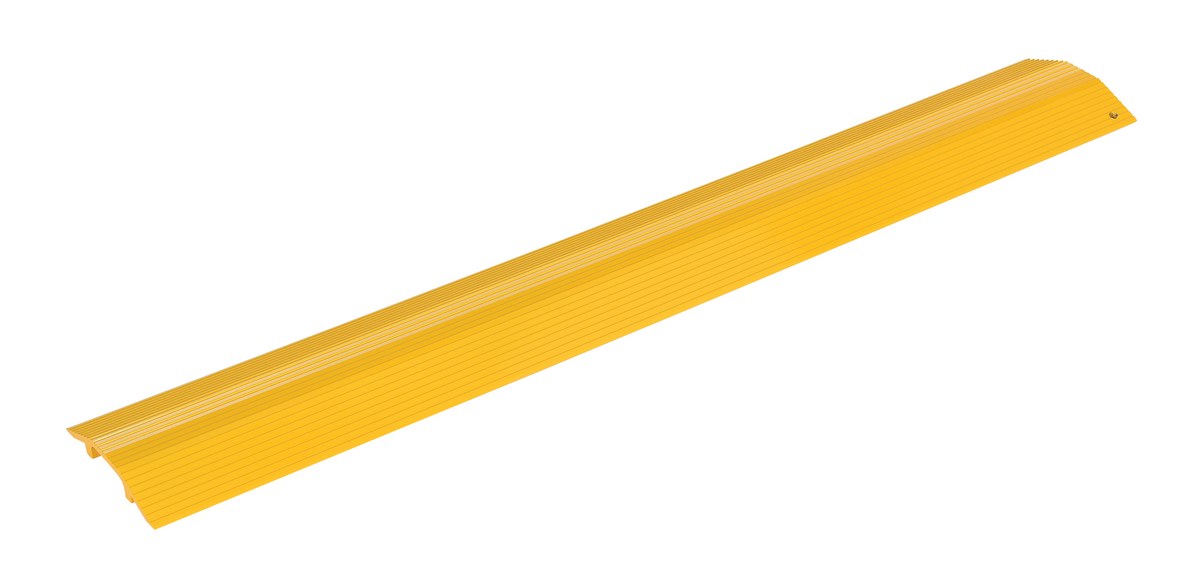

| HCR-48-Y |
 | 90 Days Limited Warranty | Aluminum Extruded Hose and Cable Crossover 48 In. Length Yellow | Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8 | 13 | ||

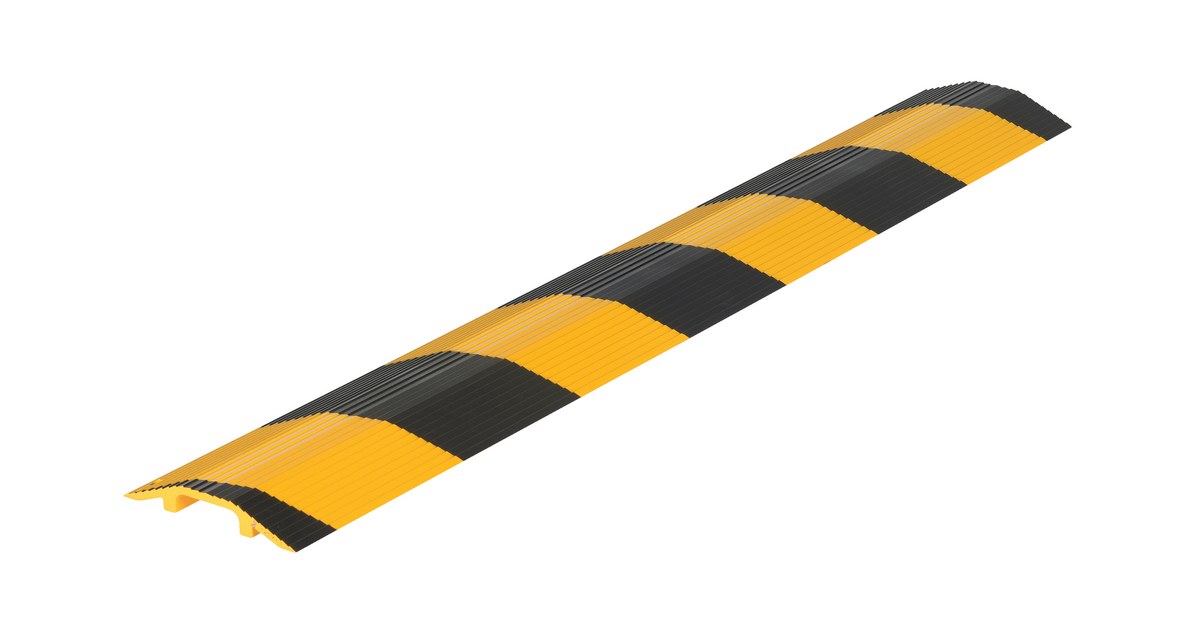

| HCR-48-YB |
 | 90 Days Limited Warranty | Aluminum Extruded Hose and Cable Crossover 48 In. Length Yellow/Black | Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8 | 13 | ||

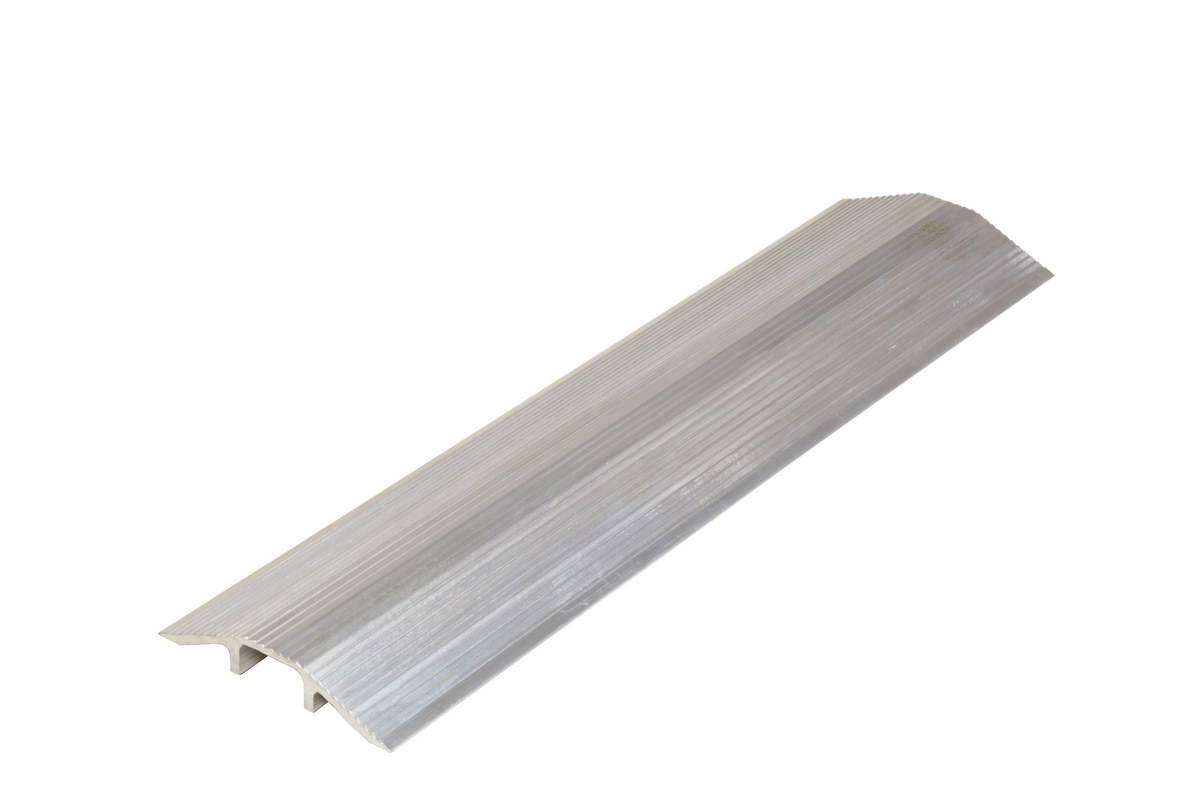

| LHCR-36 |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 36 In. Length 10,000 Lb. Capacity Silver | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 13 | ||

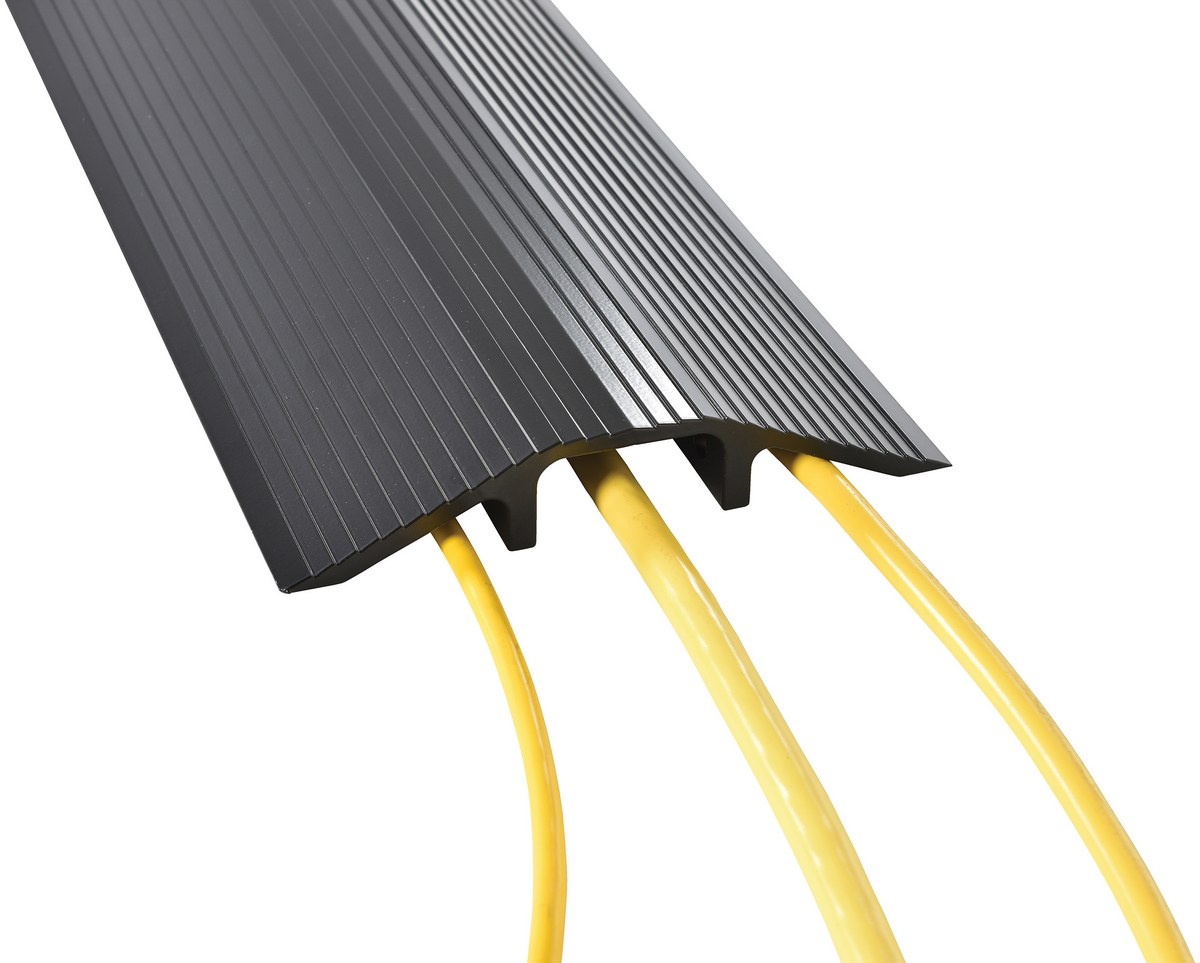

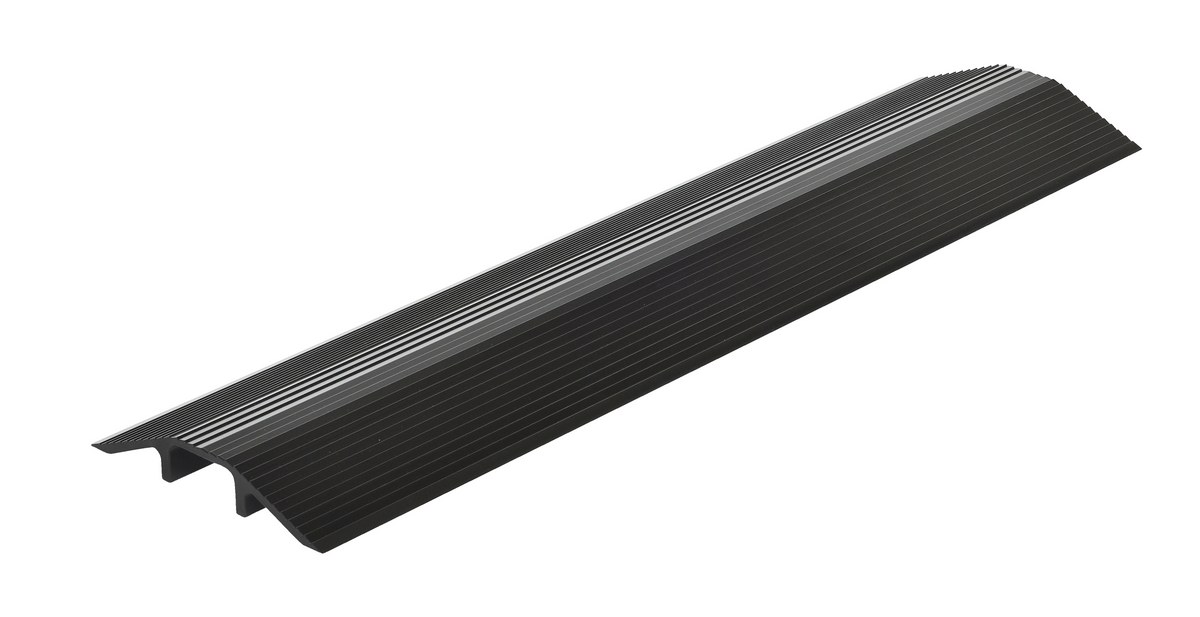

| LHCR-36-BK |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 36 In. Length 10,000 Lb. Capacity Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 13 | ||

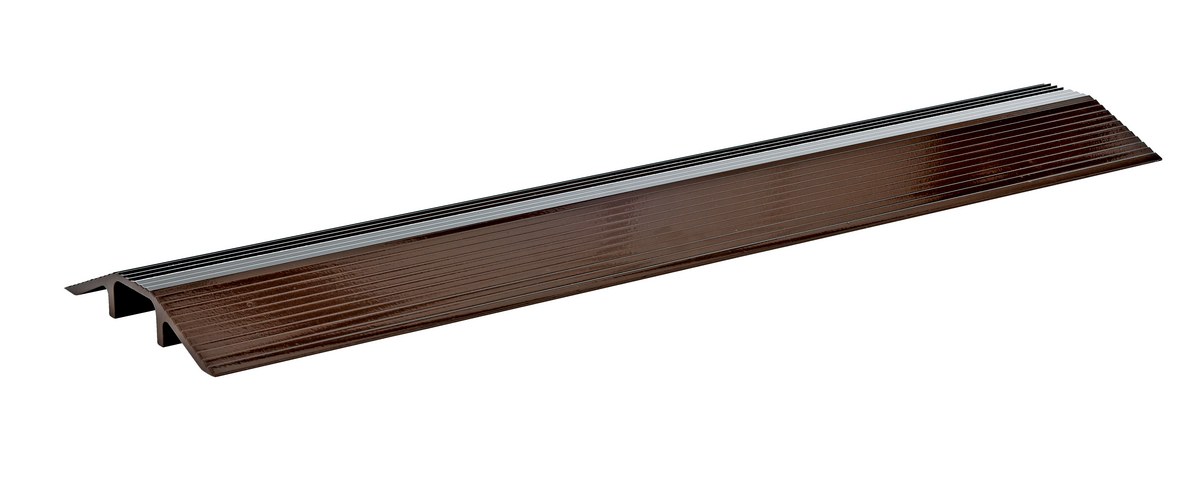

| LHCR-36-BRN |
| 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 36 In. Length 10,000 Lb. Capacity Brown | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 13 | ||

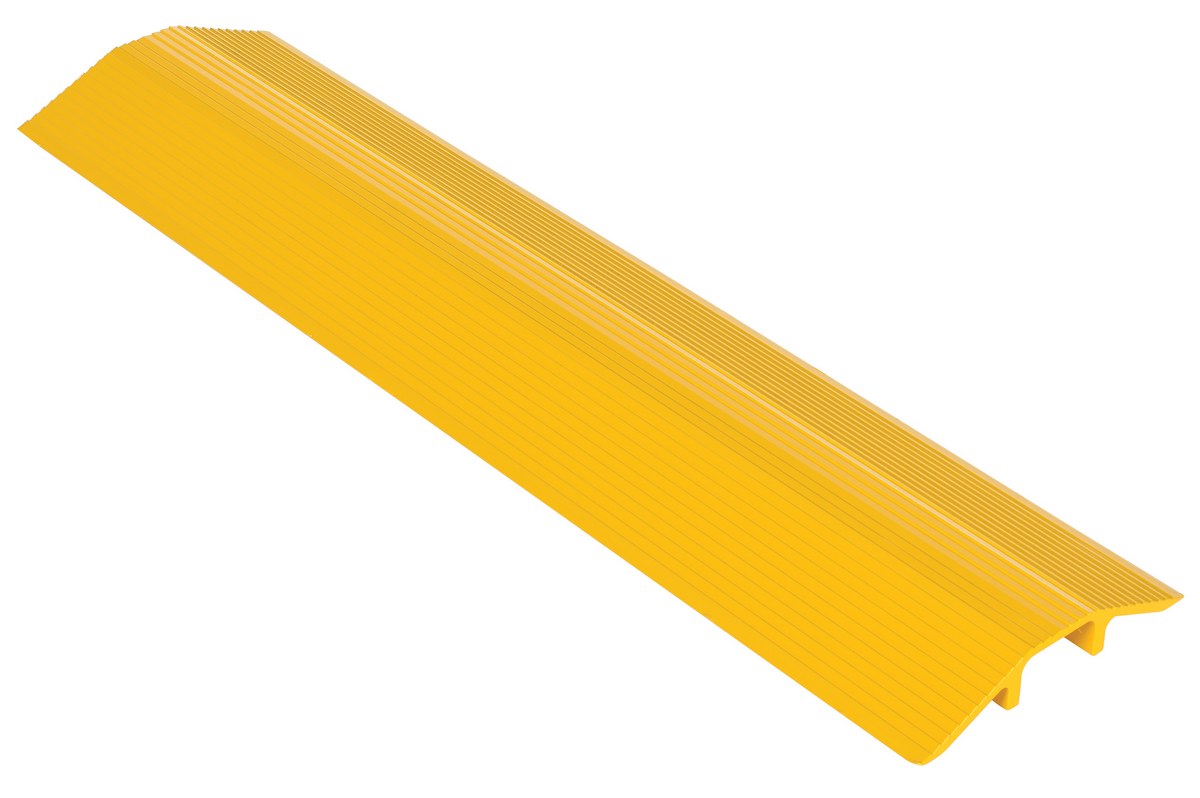

| LHCR-36-Y |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 36 In. Length 10,000 Lb. Capacity Yellow | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 13 | ||

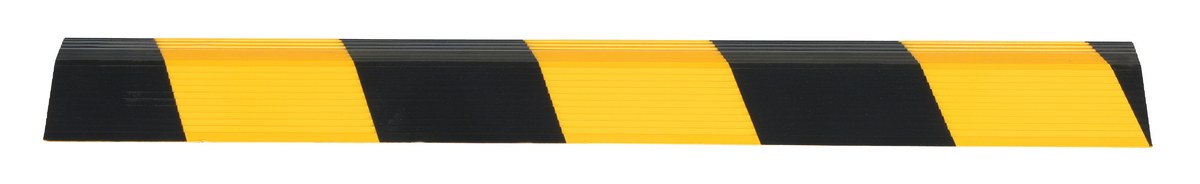

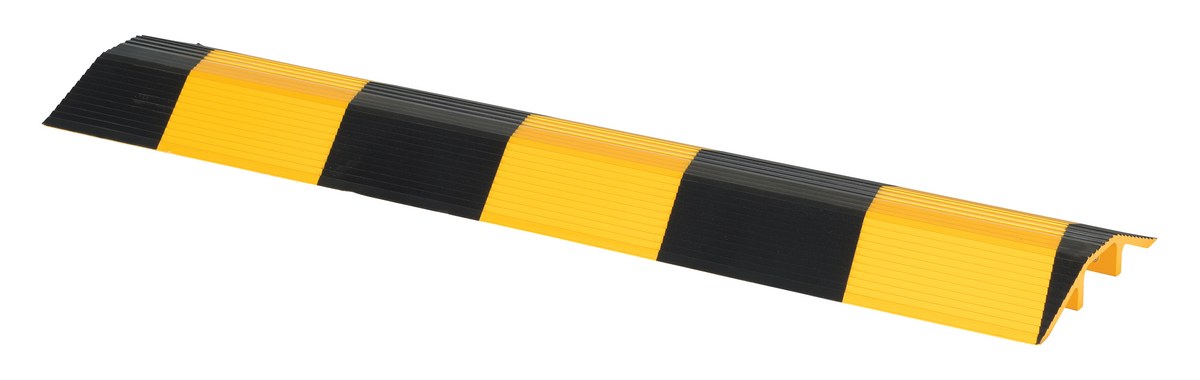

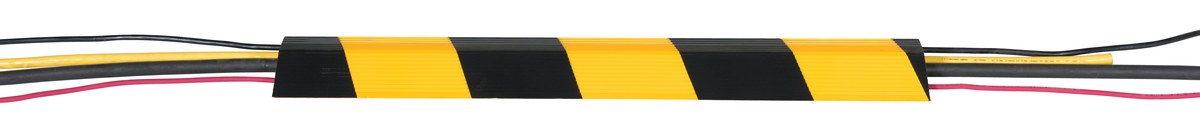

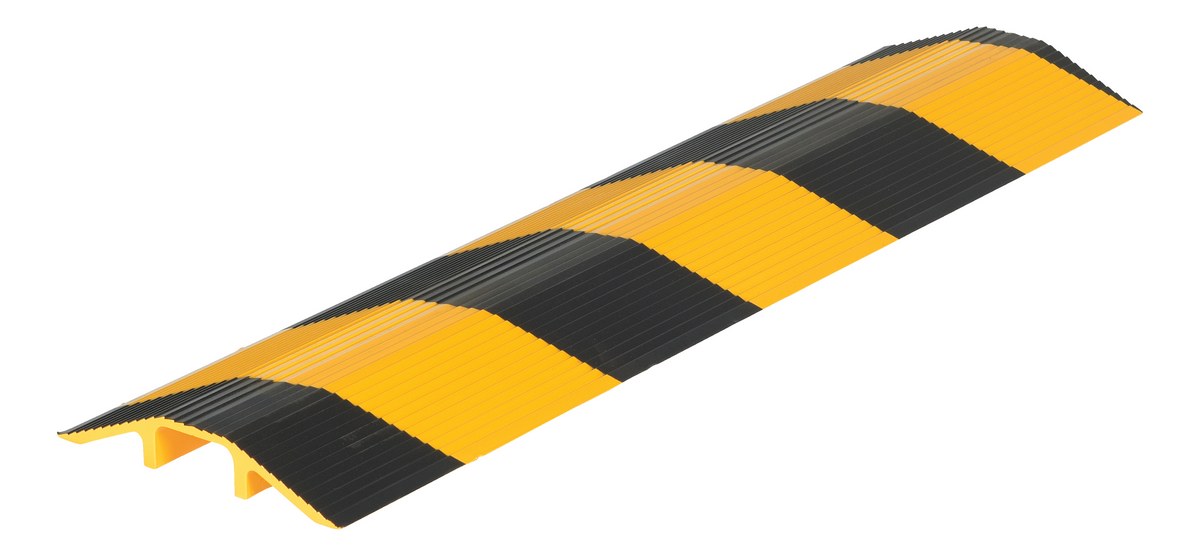

| LHCR-36-YB |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 36 In. Length 10,000 Lb. Capacity Yellow and Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 13 | ||

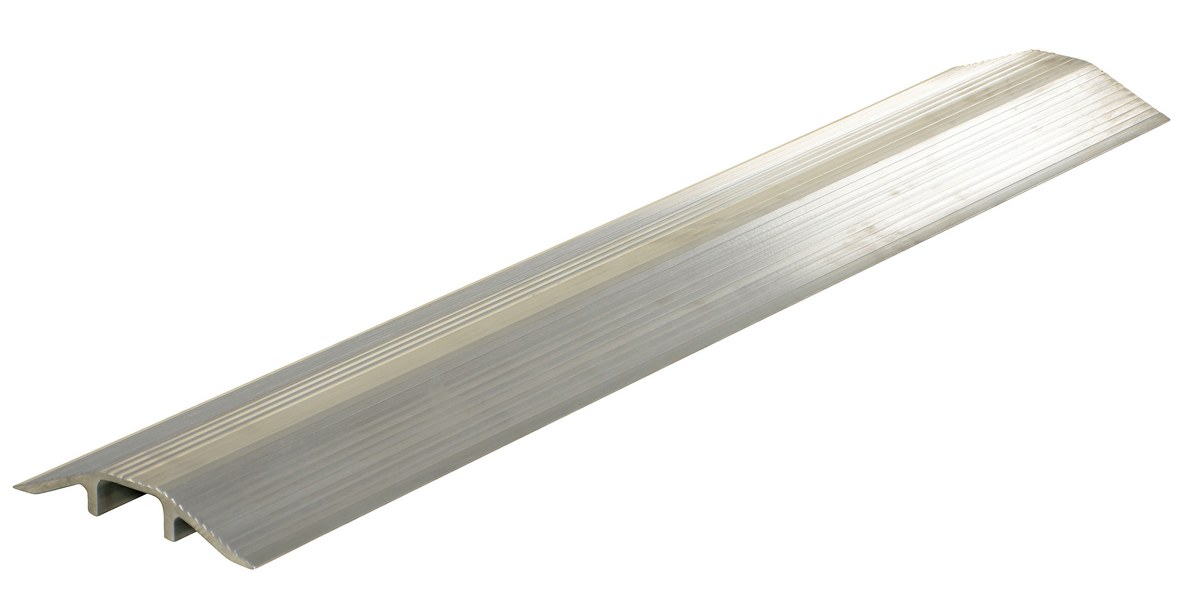

| LHCR-48 |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 48 In. Length 10,000 Lb. Capacity Silver | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 17 | ||

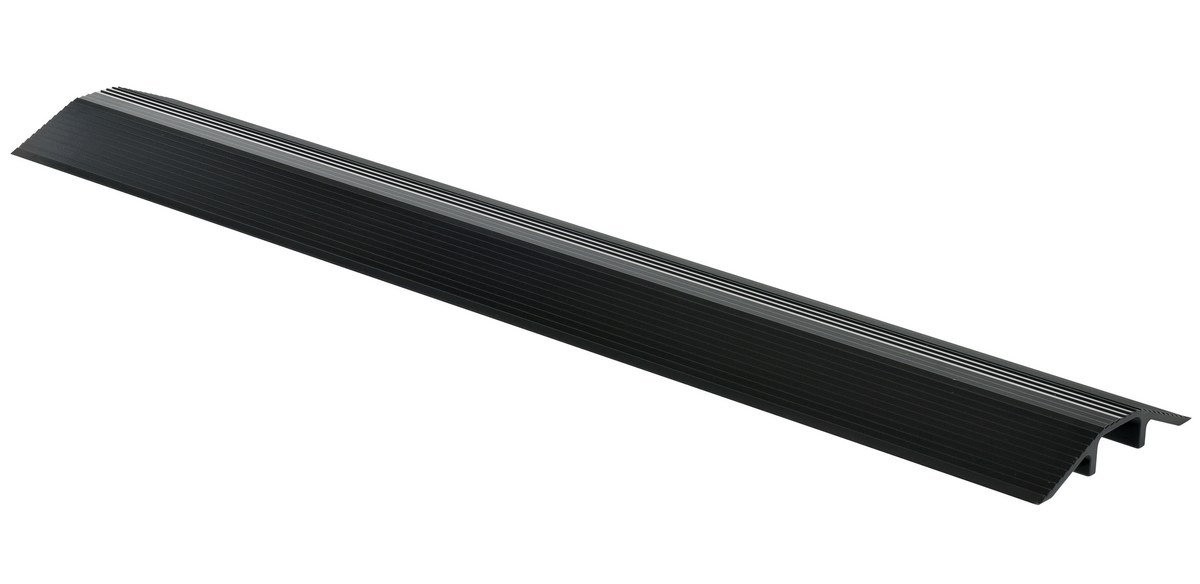

| LHCR-48-BK |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 48 In. Length 10,000 Lb. Capacity Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 17 | ||

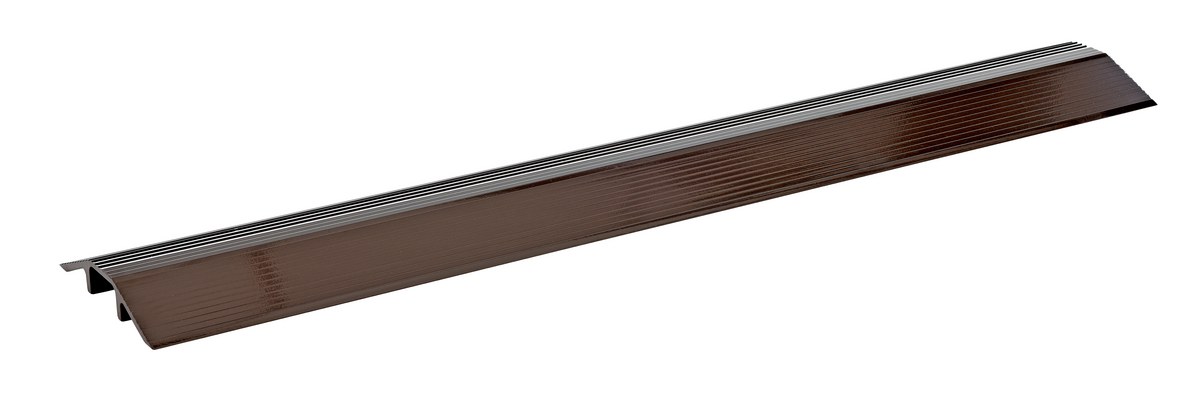

| LHCR-48-BRN |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 48 In. Length 10,000 Lb. Capacity Brown | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 17 | ||

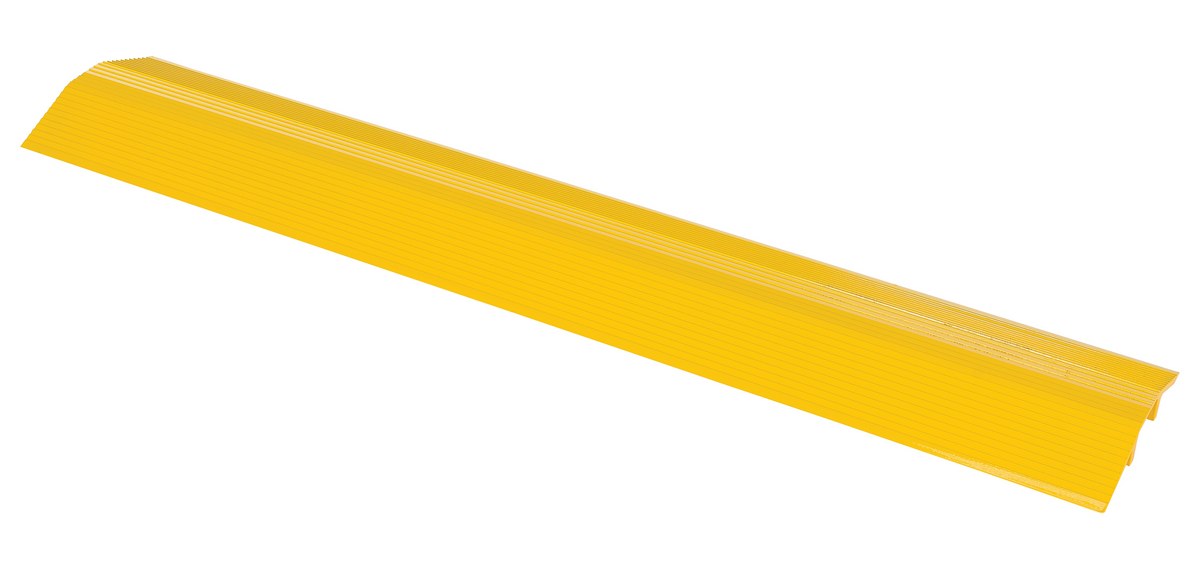

| LHCR-48-Y |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 48 In. Length 10,000 Lb. Capacity Yellow | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 17 | ||

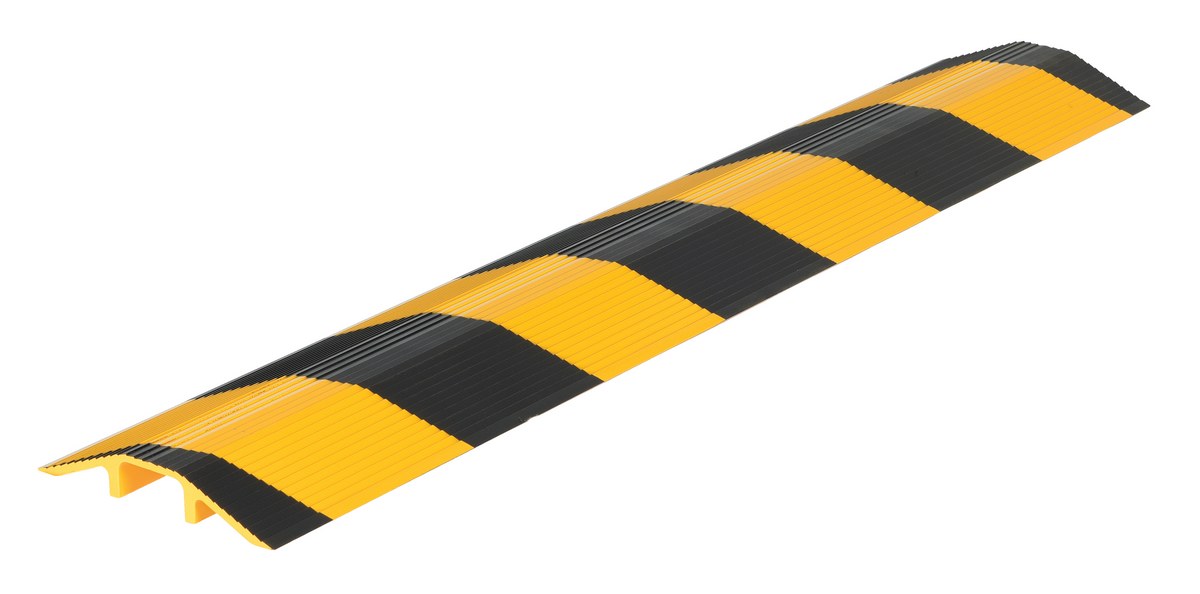

| LHCR-48-YB |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 48 In. Length 10,000 Lb. Capacity Yellow and Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 17 | ||

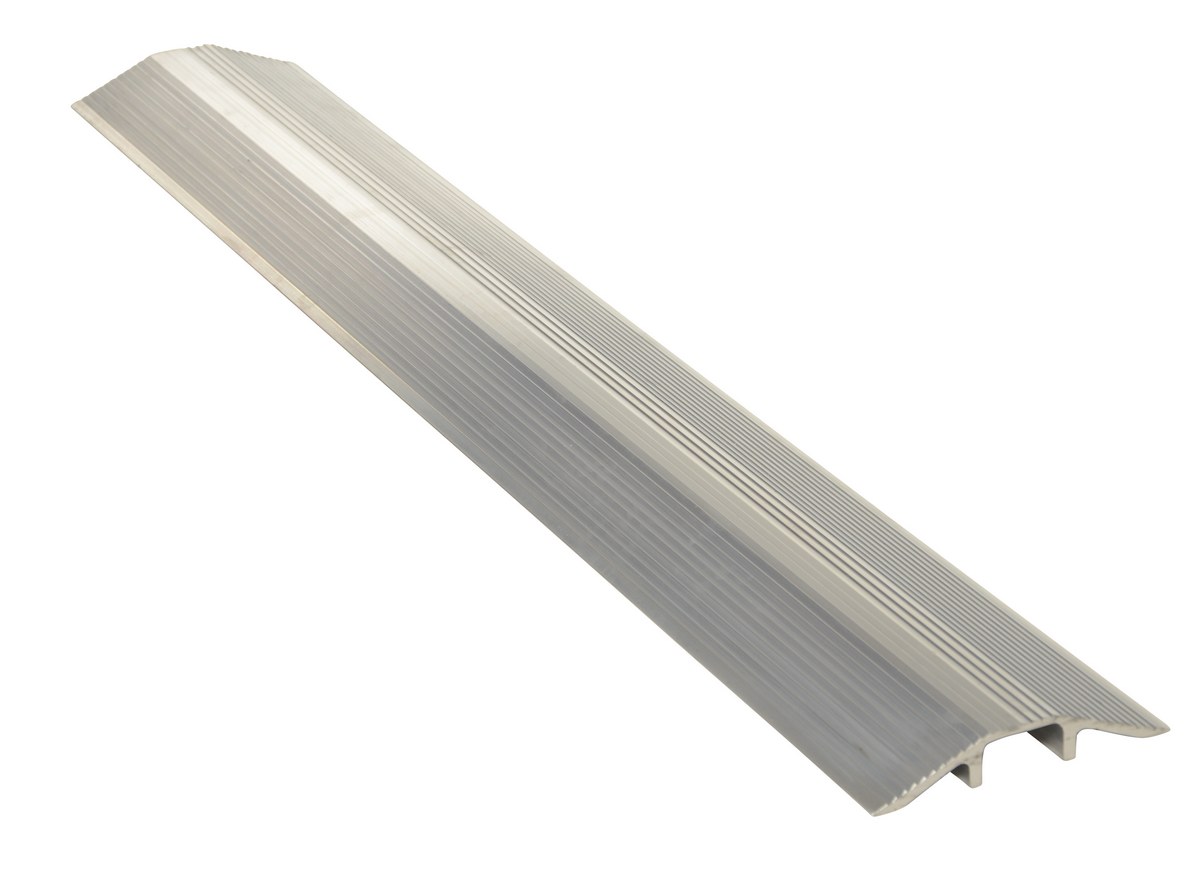

| LHCR-60 |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 60 In. Length 10,000 Lb. Capacity Silver | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 24 | ||

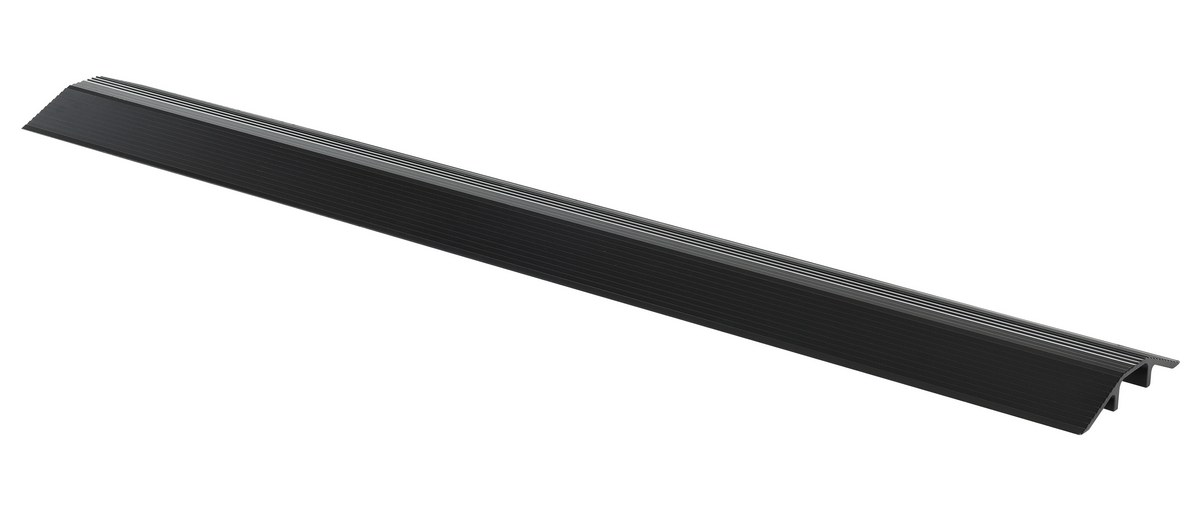

| LHCR-60-BK |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 60 In. Length 10,000 Lb. Capacity Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 24 | ||

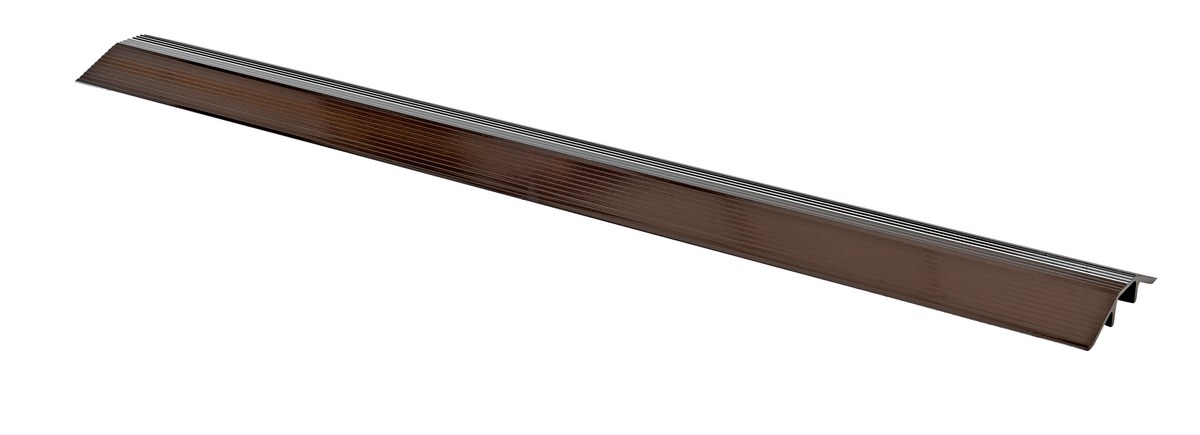

| LHCR-60-BRN |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 60 In. Length 10,000 Lb. Capacity Brown | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 24 | ||

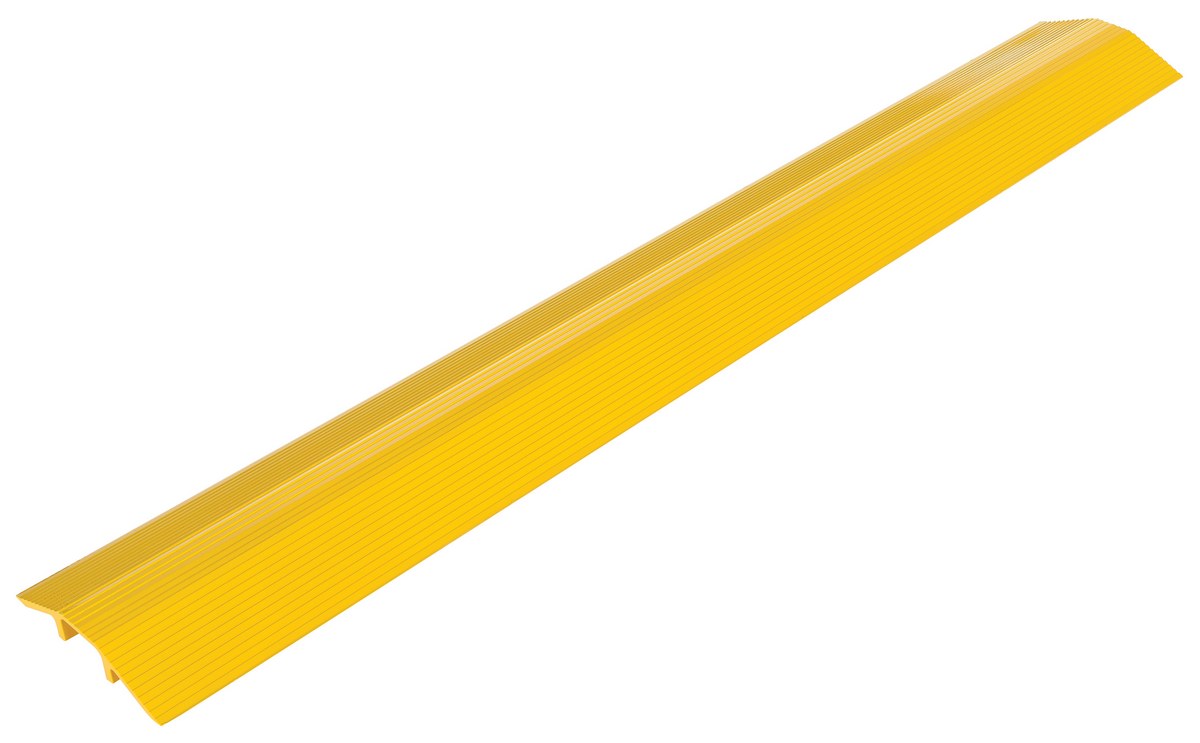

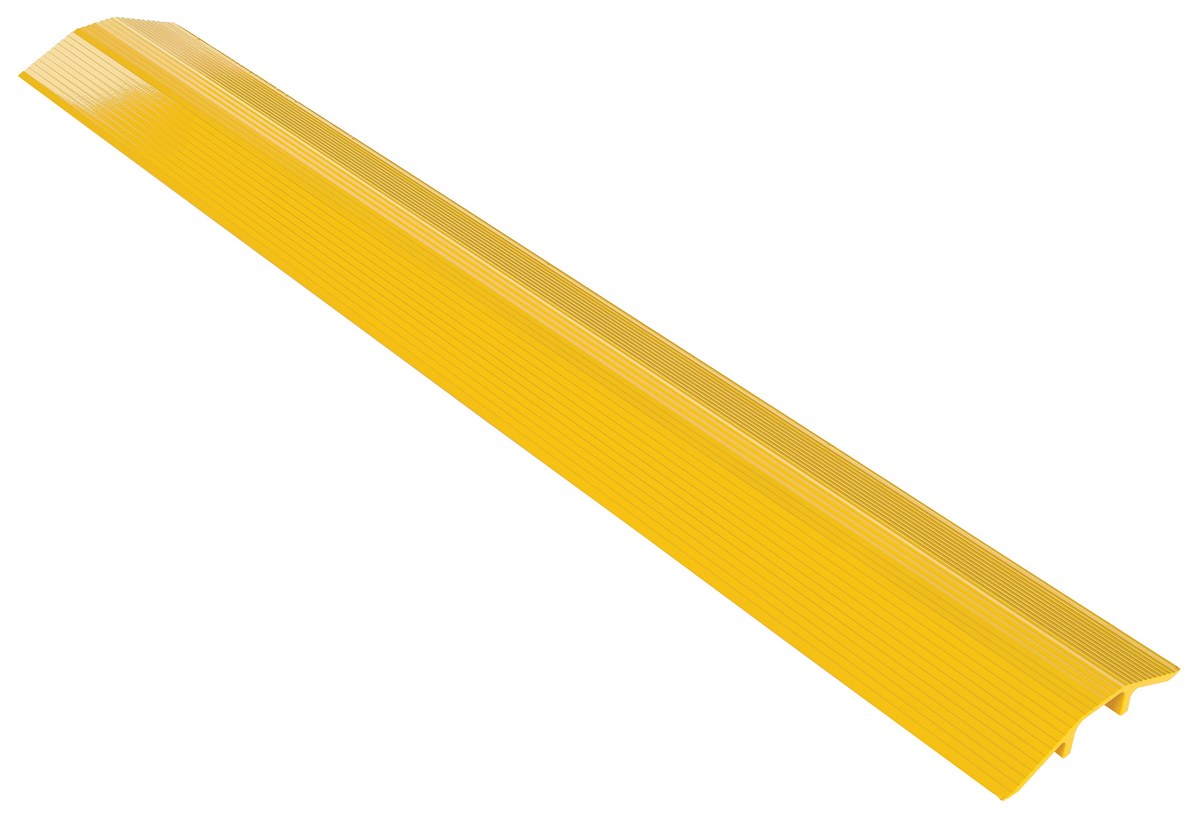

| LHCR-60-Y |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 60 In. Length 10,000 Lb. Capacity Yellow | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 24 | ||

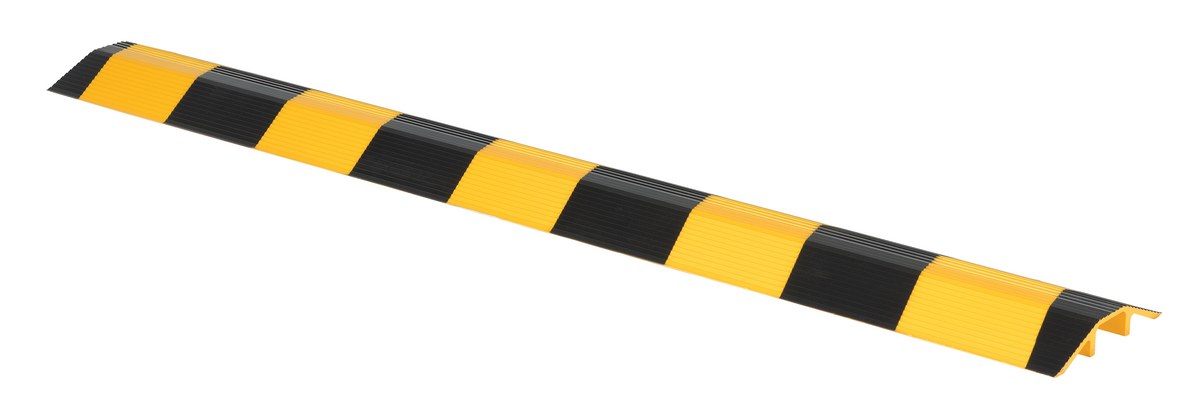

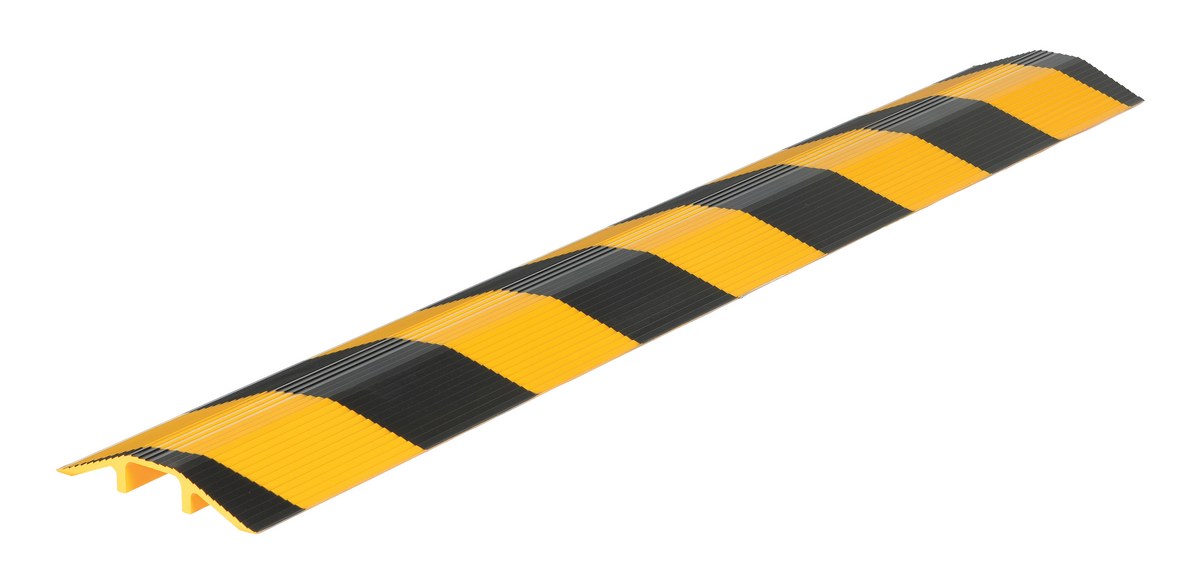

| LHCR-60-YB |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 60 In. Length 10,000 Lb. Capacity Yellow and Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 24 | ||

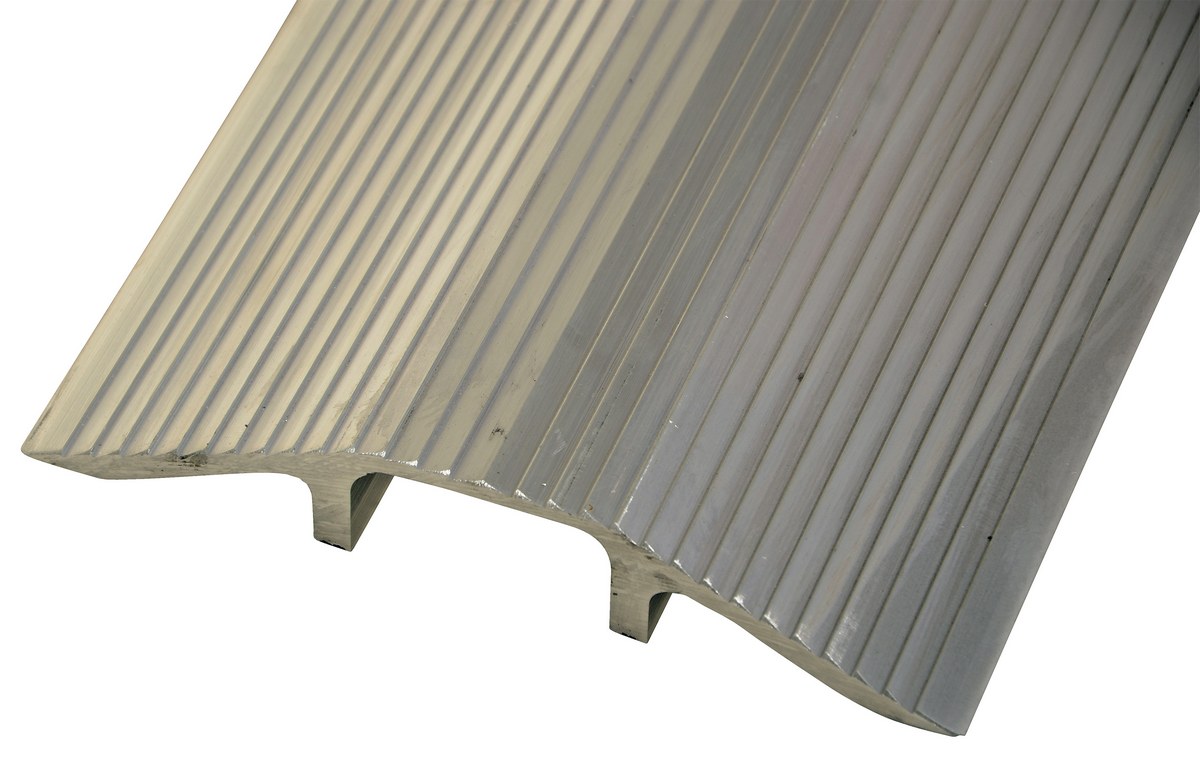

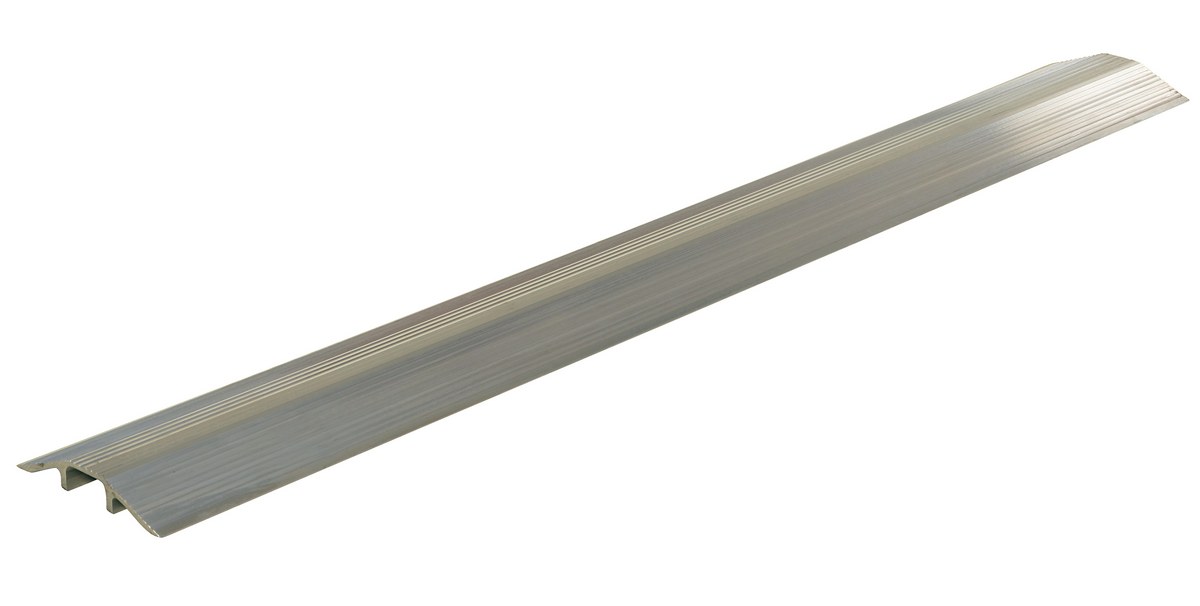

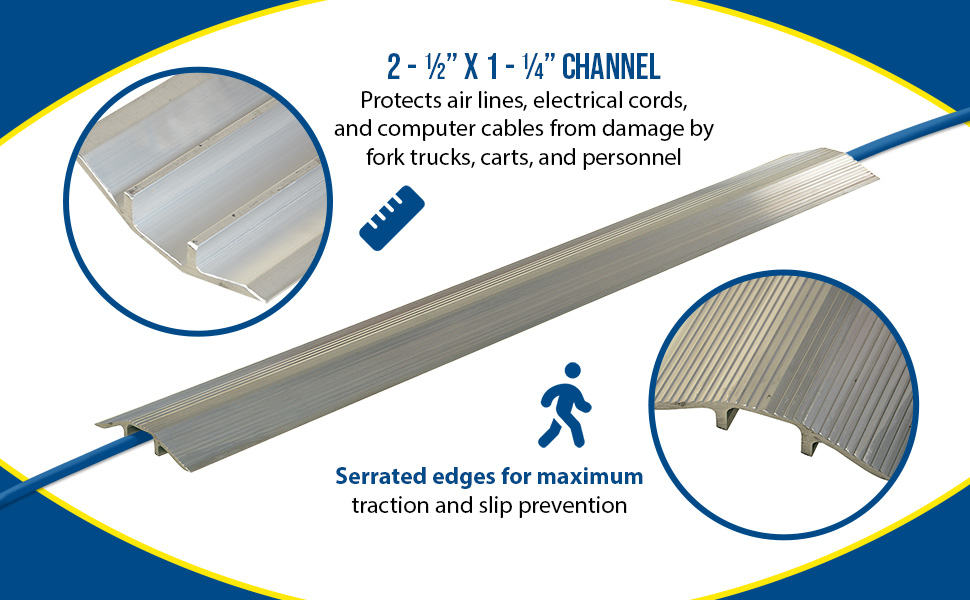

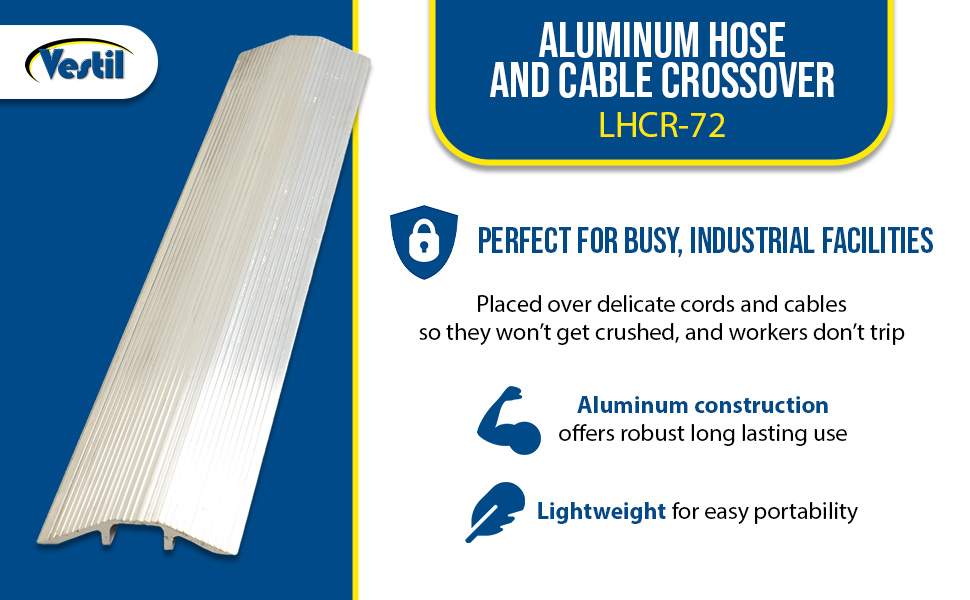

| LHCR-72 |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 72 In. Length 10,000 Lb. Capacity Silver | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 26 | ||

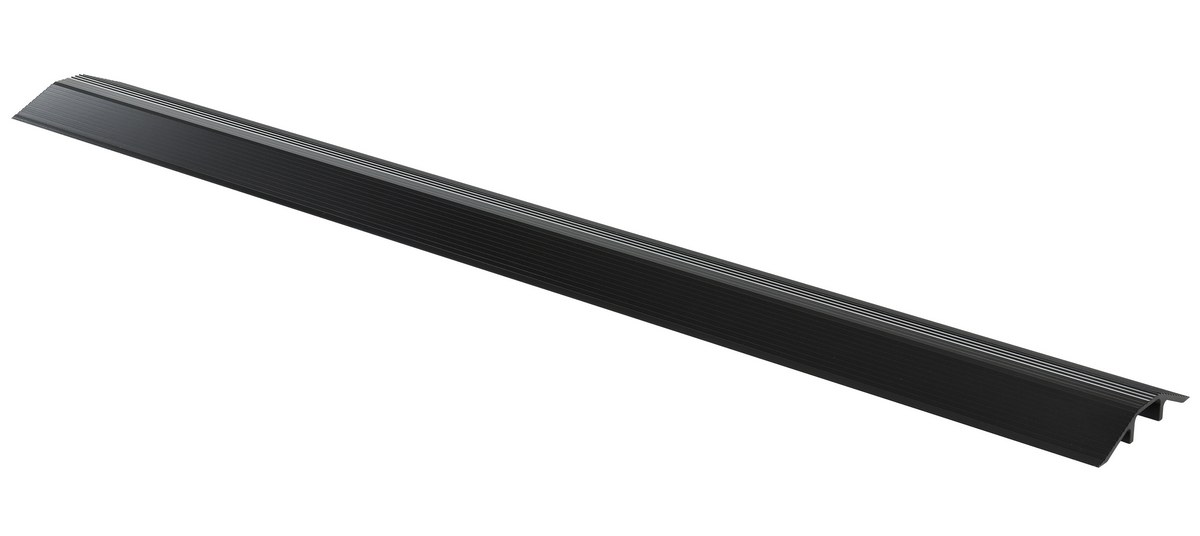

| LHCR-72-BK |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 72 In. Length 10,000 Lb. Capacity Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 26 | ||

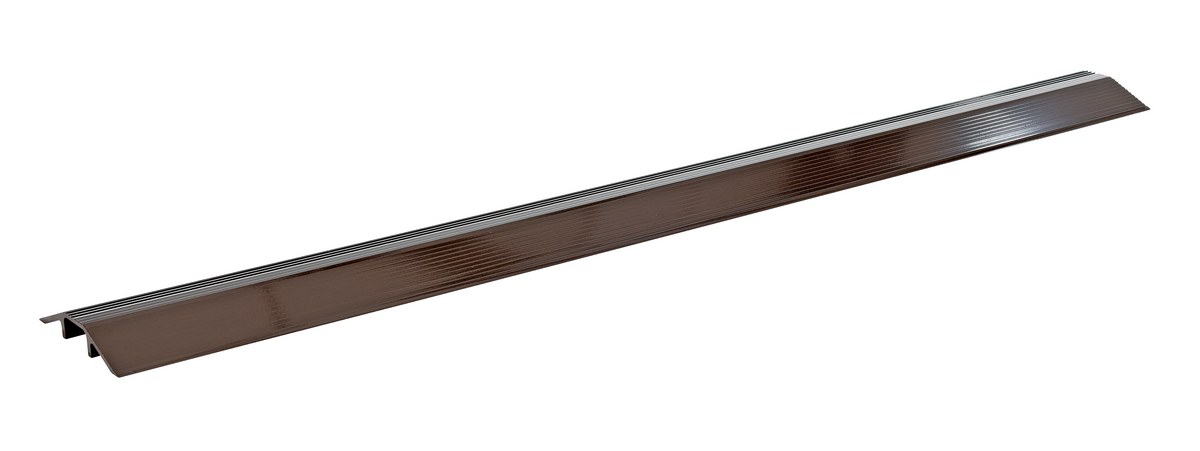

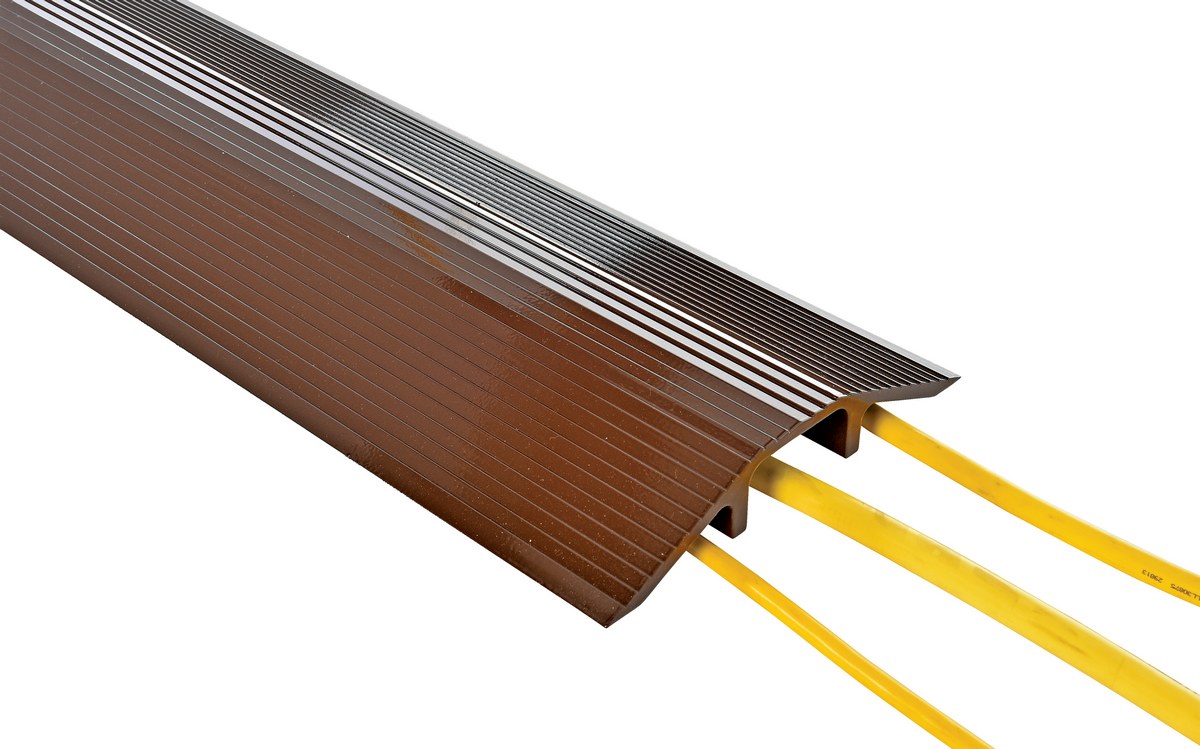

| LHCR-72-BRN |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 72 In. Length 10,000 Lb. Capacity Brown | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 26 | ||

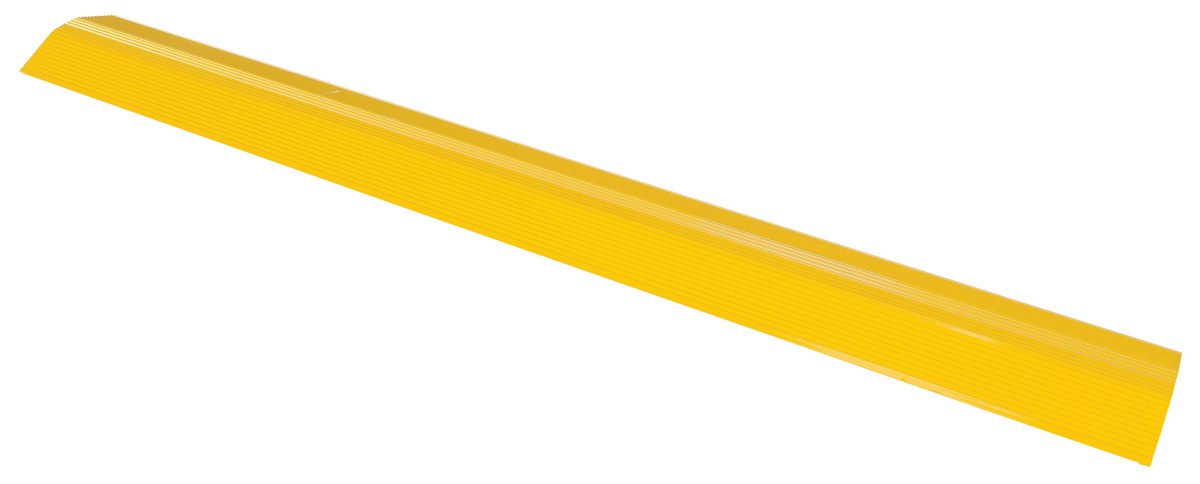

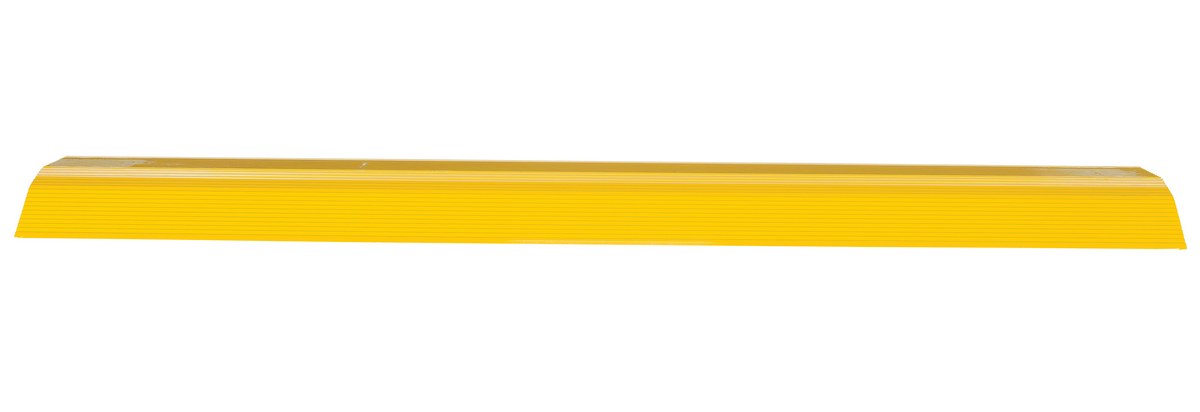

| LHCR-72-Y |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 72 In. Length 10,000 Lb. Capacity Yellow | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 26 | ||

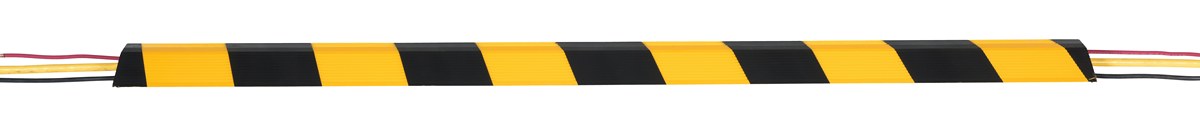

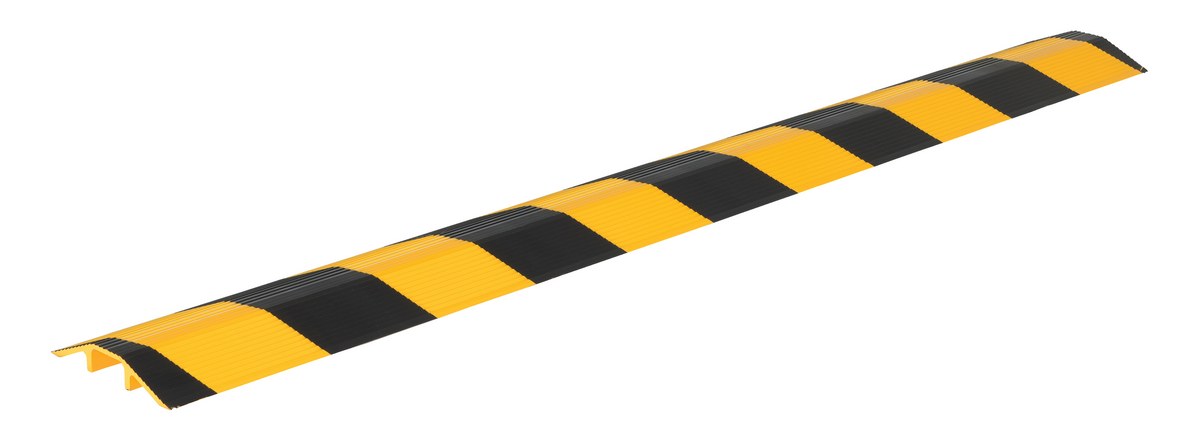

| LHCR-72-YB |
 | 90 Days Limited Warranty | Aluminum Hose and Cable Crossover 72 In. Length 10,000 Lb. Capacity Yellow and Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2 | 26 | ||

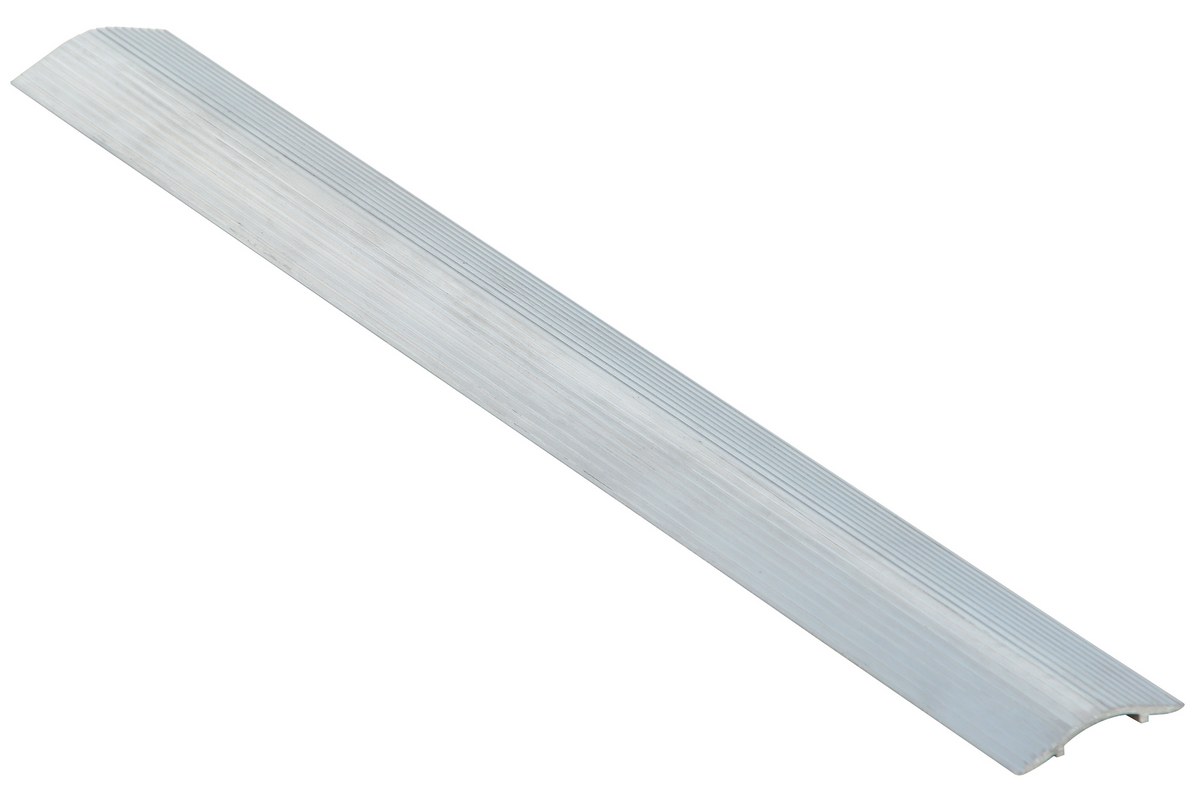

| WR-24 |
 | 30 Days Limited Warranty | Extruded Aluminum Hose/Cable Crossover 24 In. Length Silver | Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4 | 2 | ||

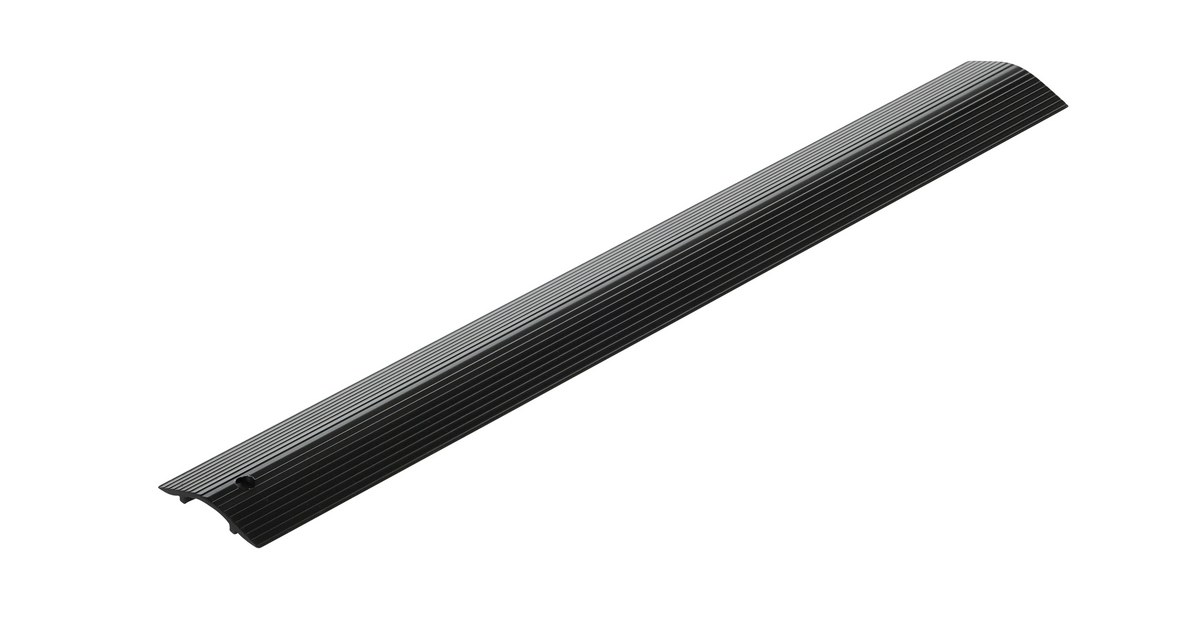

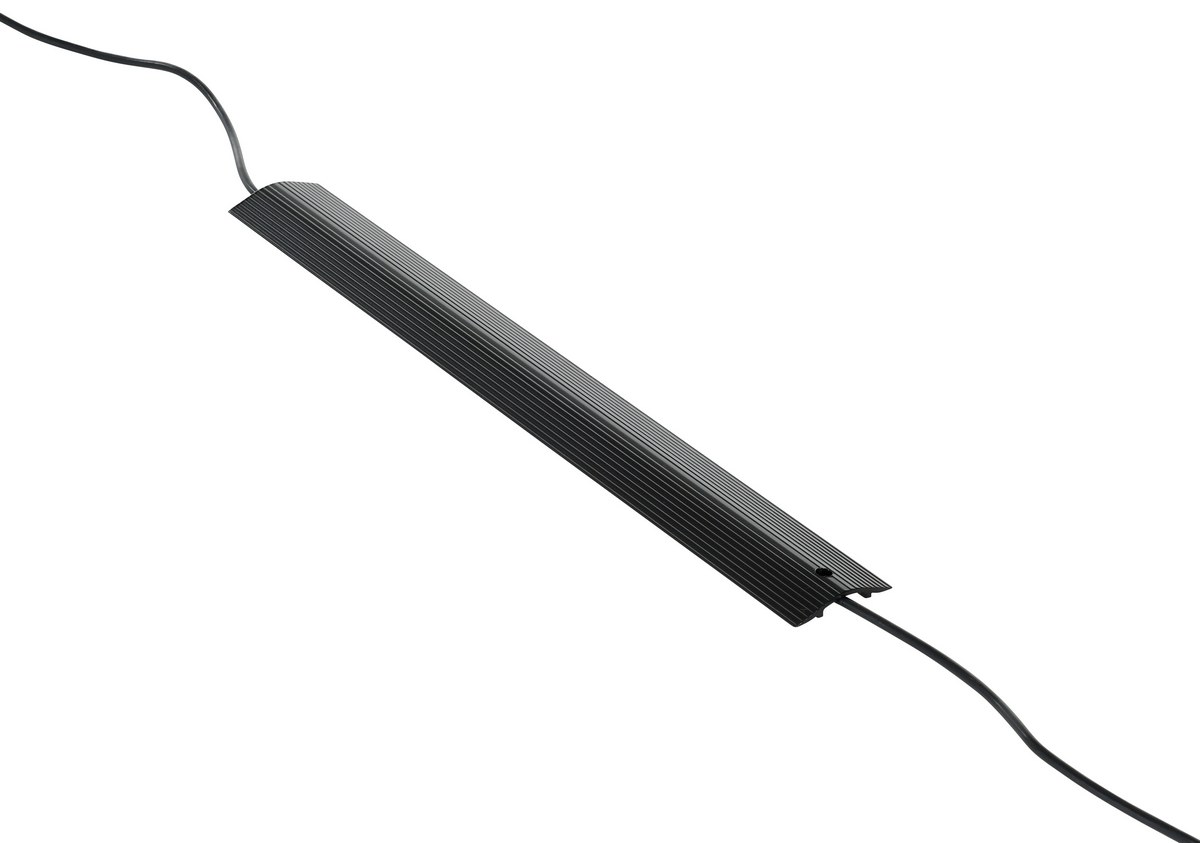

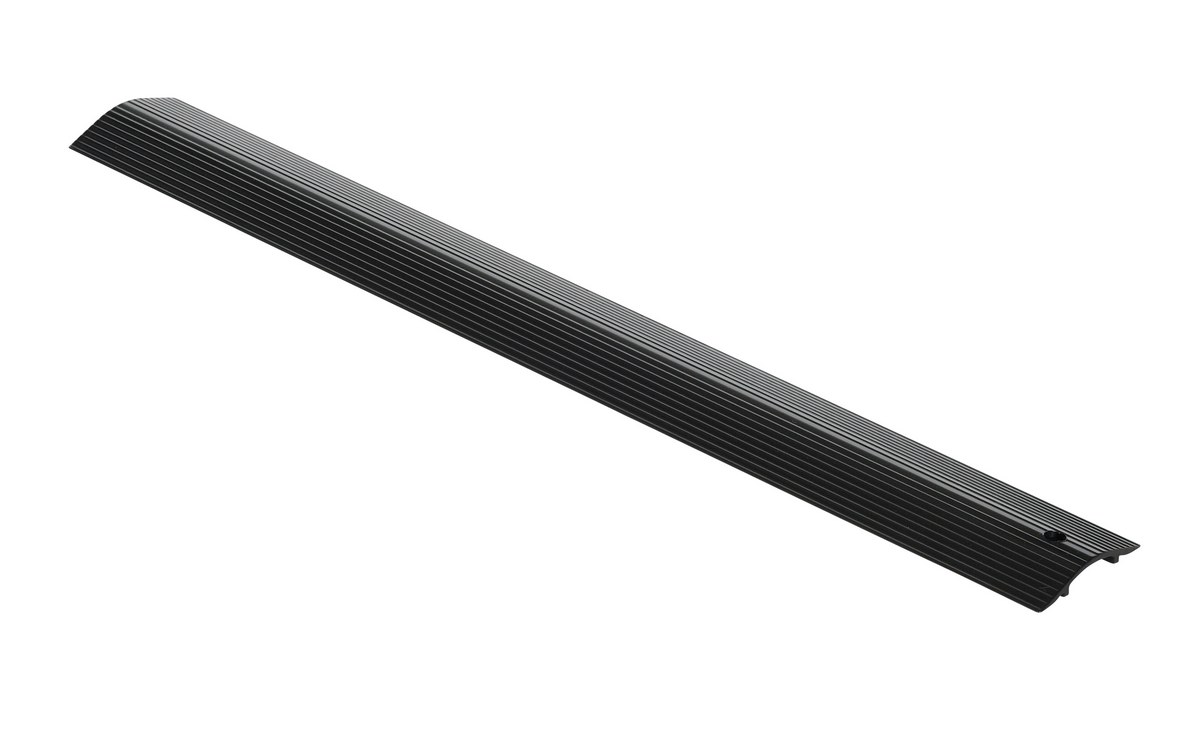

| WR-24-BK |
 | 30 Days Limited Warranty | Extruded Aluminum Hose/Cable Crossover 24 In. Length Black | Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4 | 2 | ||

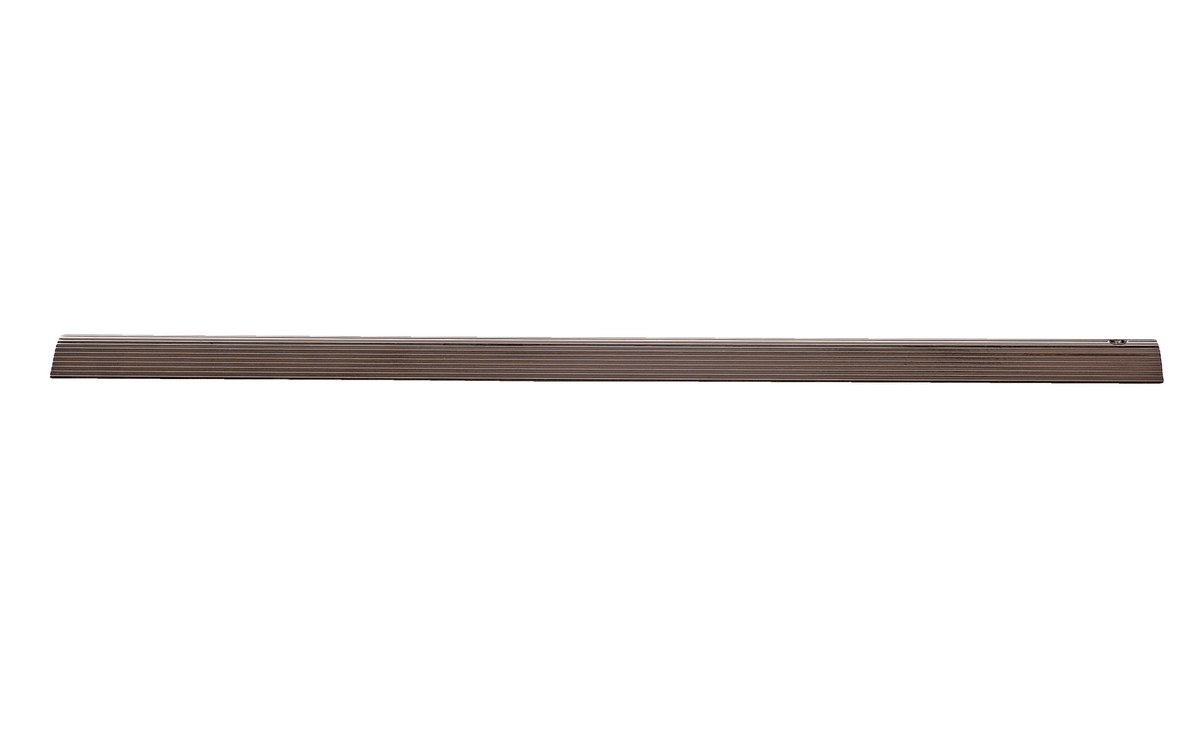

| WR-24-BRN |
 | 30 Days Limited Warranty | Extruded Aluminum Hose/Cable Crossover 24 In. Length Brown | Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4 | 2 | ||

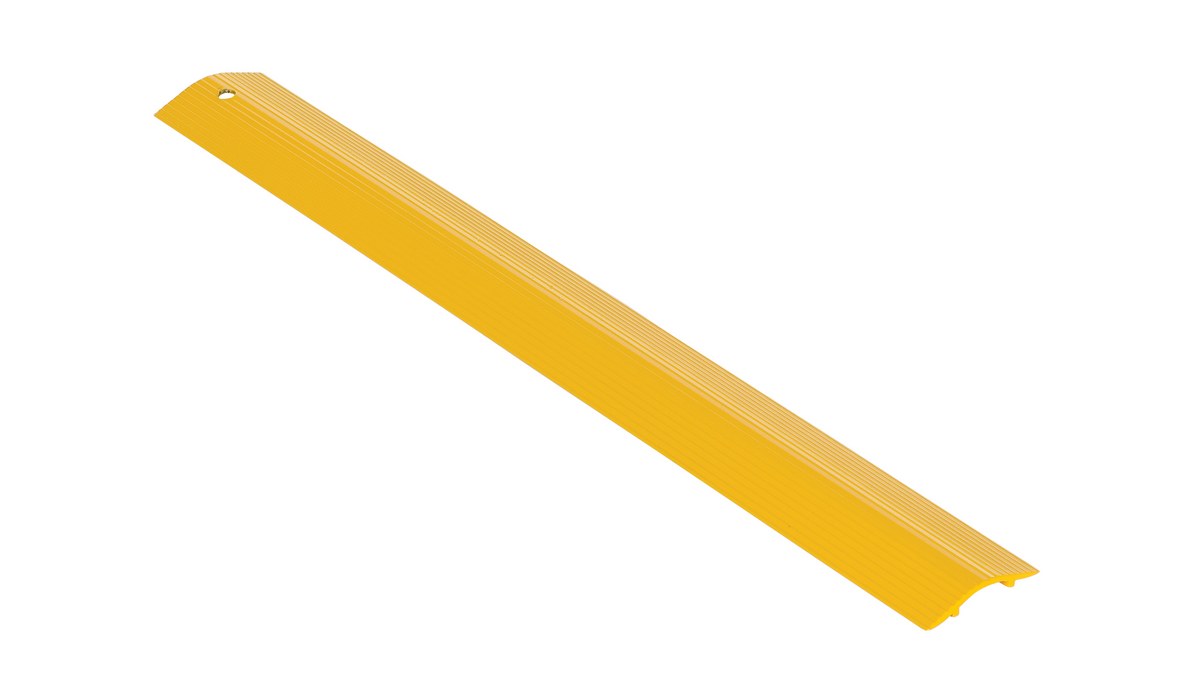

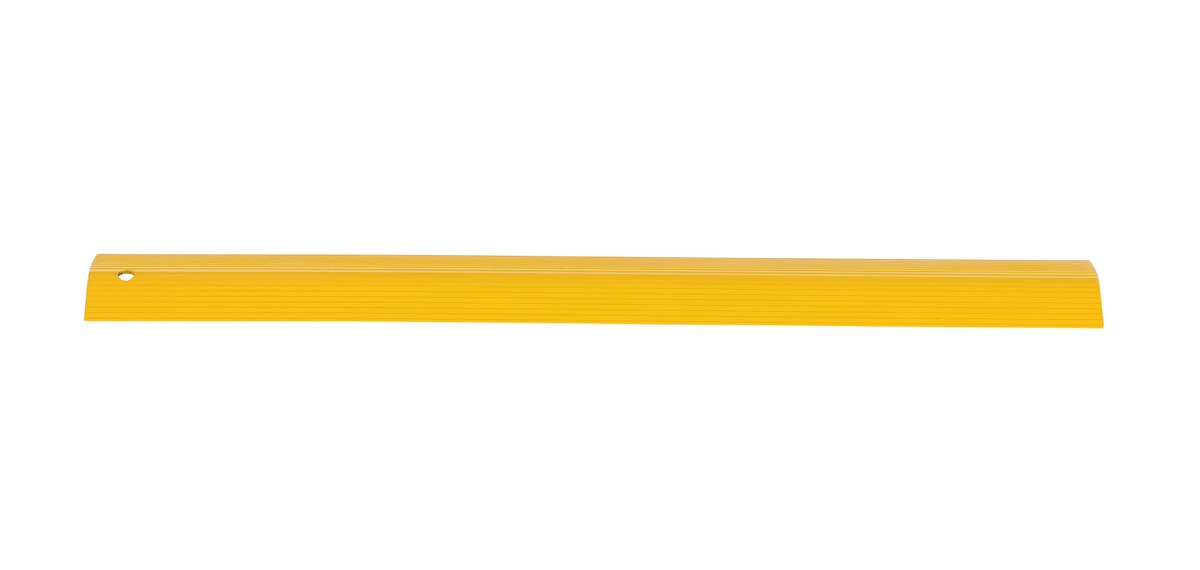

| WR-24-Y |
 | 30 Days Limited Warranty | Extruded Aluminum Hose/Cable Crossover 24 In. Length Yellow | Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4 | 2 | ||

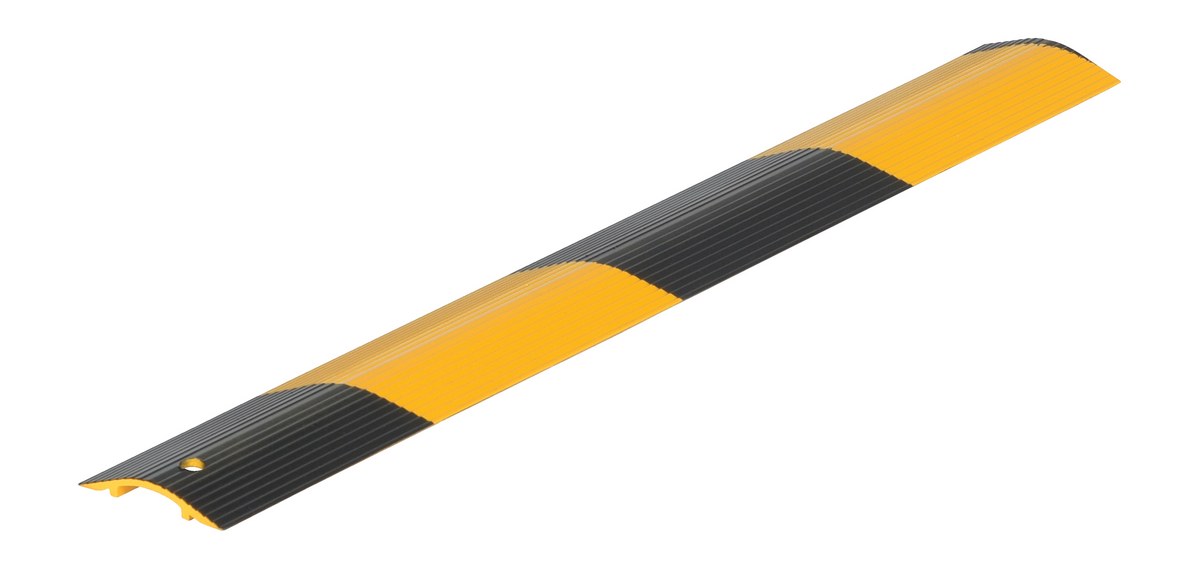

| WR-24-YB |
 | 30 Days Limited Warranty | Extruded Aluminum Hose/Cable Crossover 24 In. Length Black / Yellow | Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4 | 2 | ||

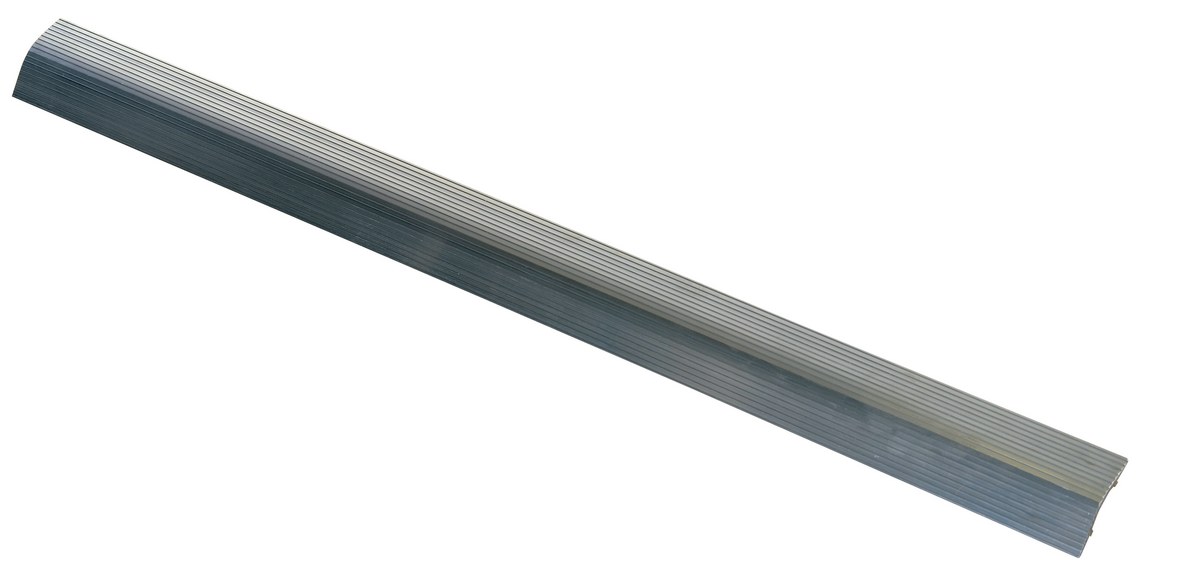

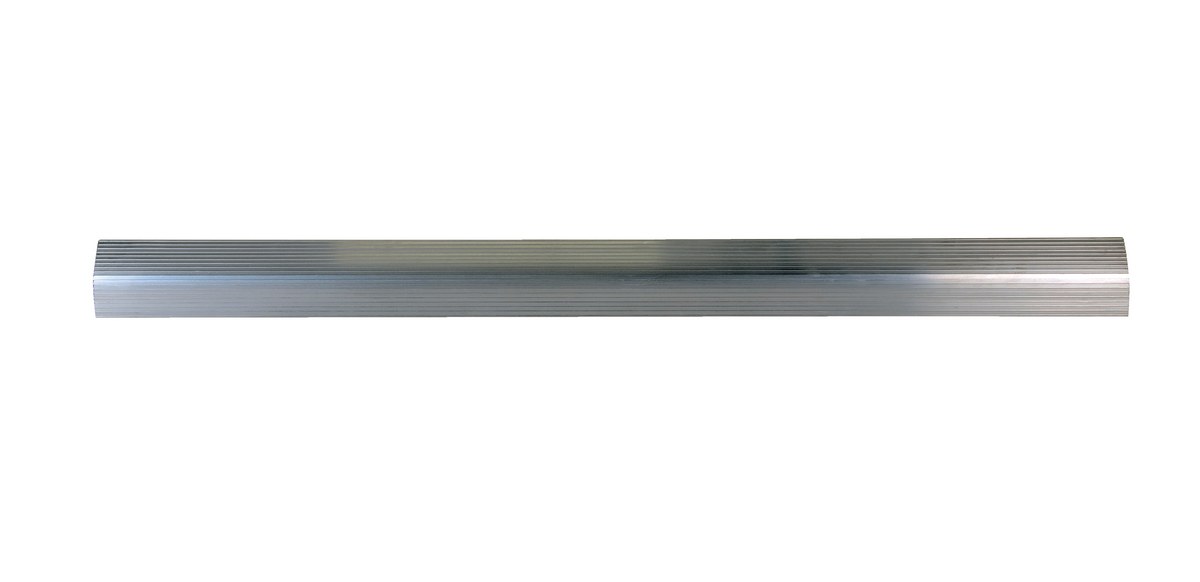

| WR-36 |
 | 30 Days Limited Warranty | Extruded Aluminum Hose/Cable Crossover 36 In. Length Silver | Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4 | 4 | ||

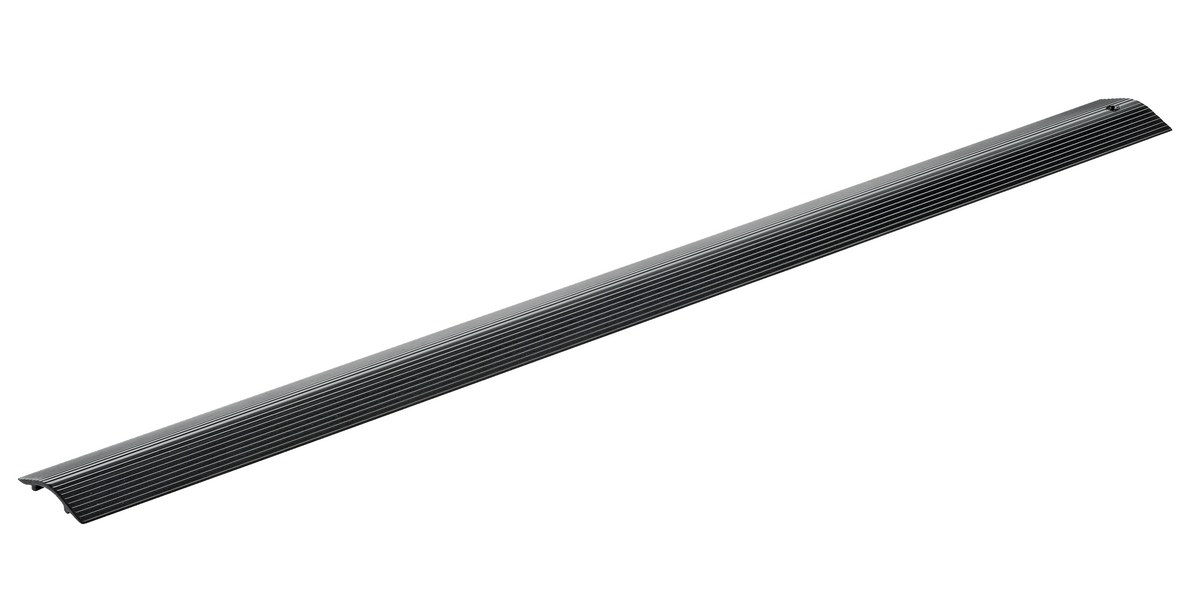

| WR-36-BK |
 | 30 Days Limited Warranty | Extruded Aluminum Hose/Cable Crossover 36 In. Length Black | Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4 | 4 | ||

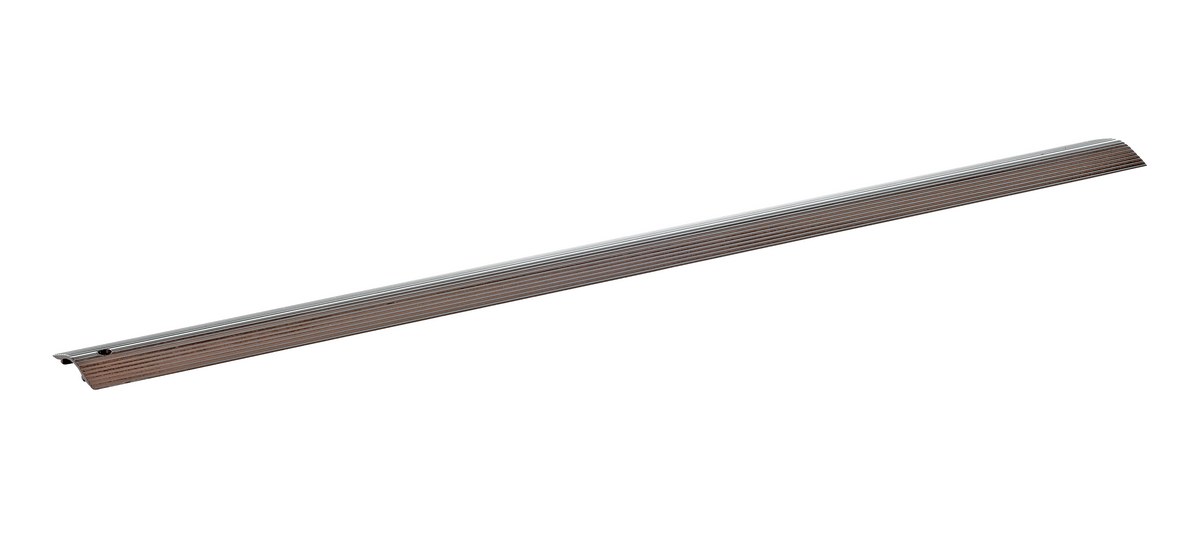

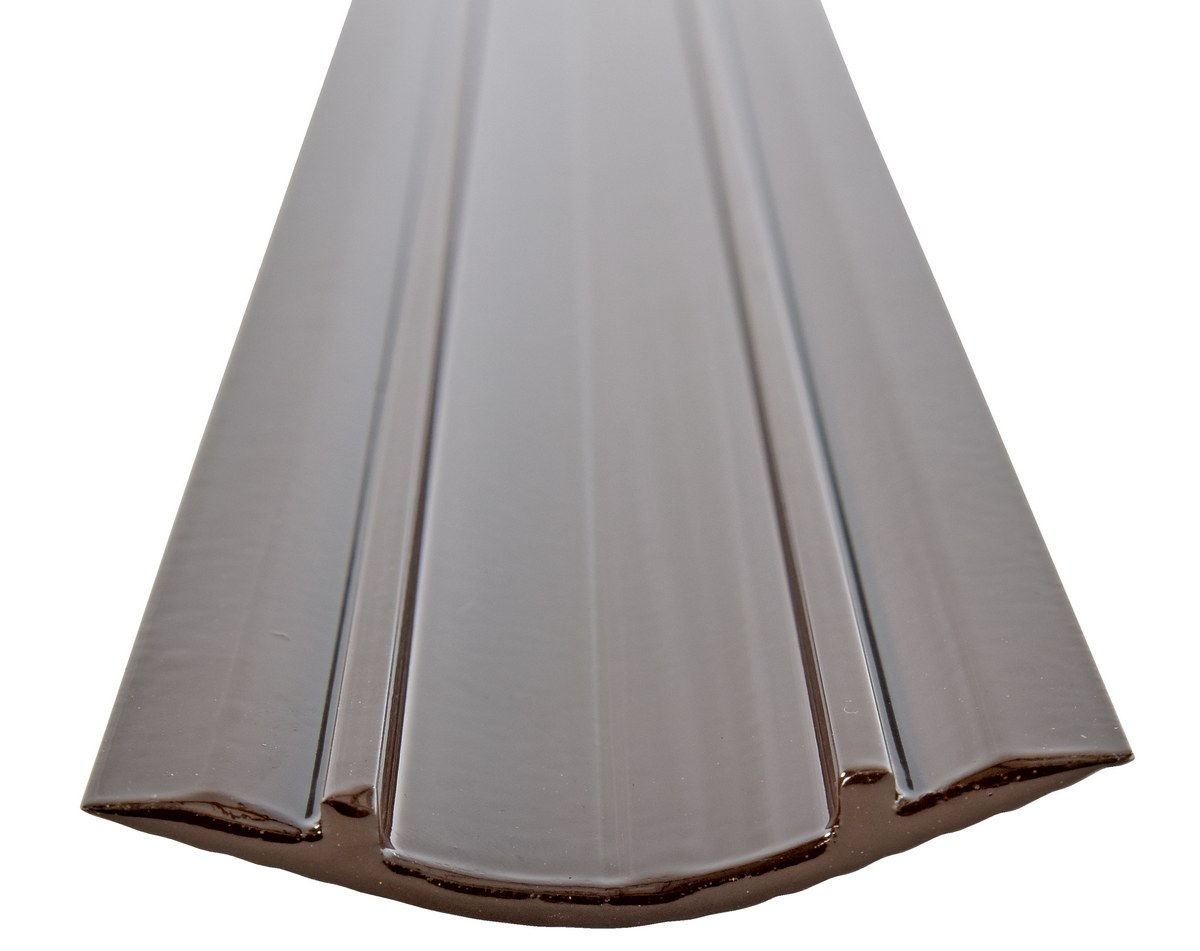

| WR-36-BRN |
 | 30 Days Limited Warranty | Extruded Aluminum Hose/Cable Crossover 36 In. Length Brown | Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4 | 4 | ||

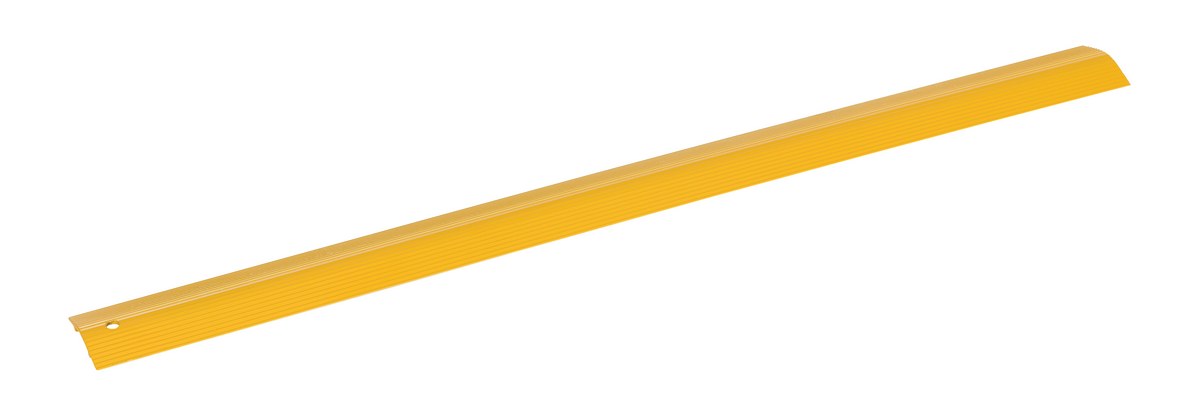

| WR-36-Y |
 | 30 Days Limited Warranty | Extruded Aluminum Hose/Cable Crossover 36 In. Length Yellow | Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4 | 4 | ||

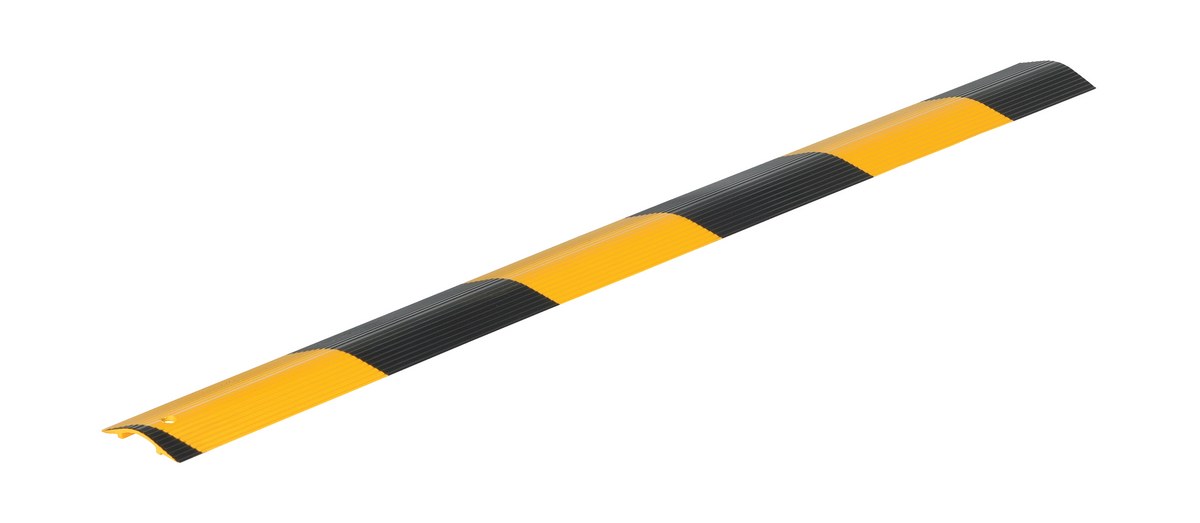

| WR-36-YB |
 | 30 Days Limited Warranty | Extruded Aluminum Hose/Cable Crossover 36 In. Length Black / Yellow | Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4 | 4 | ||

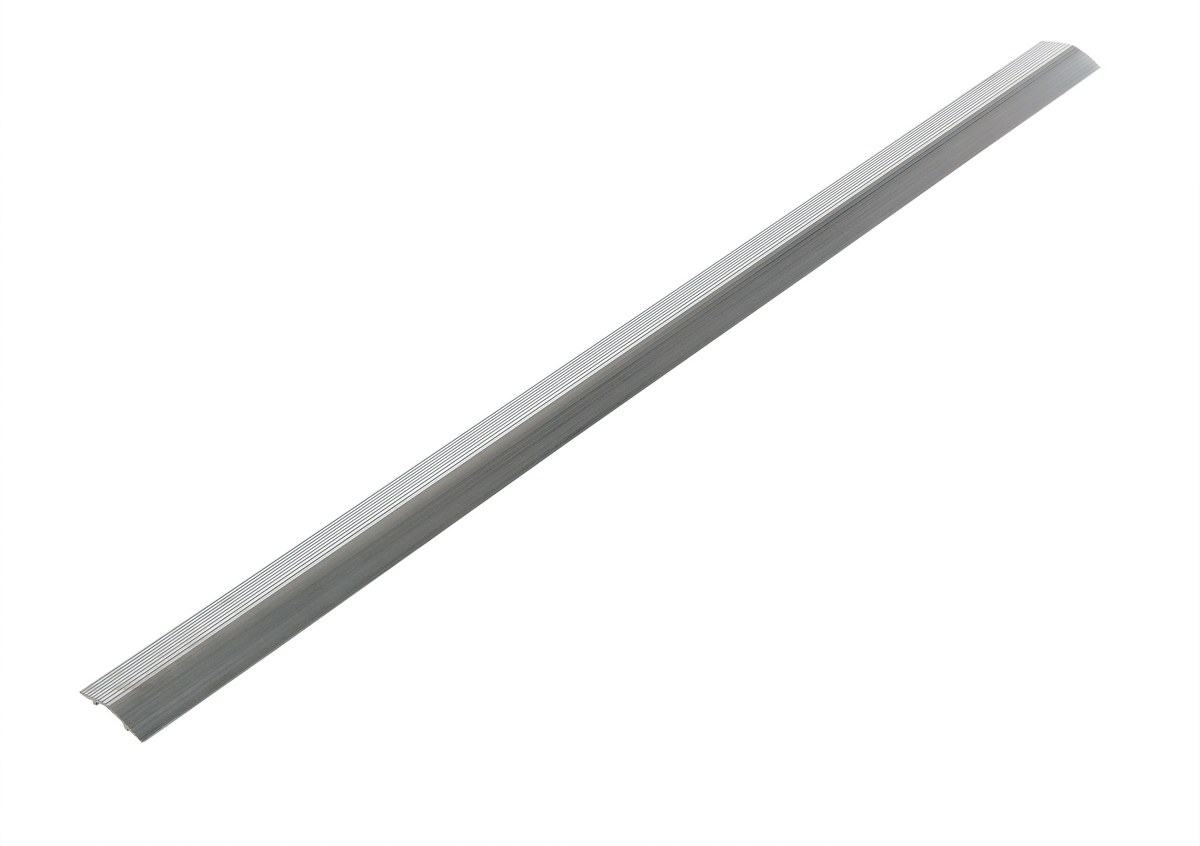

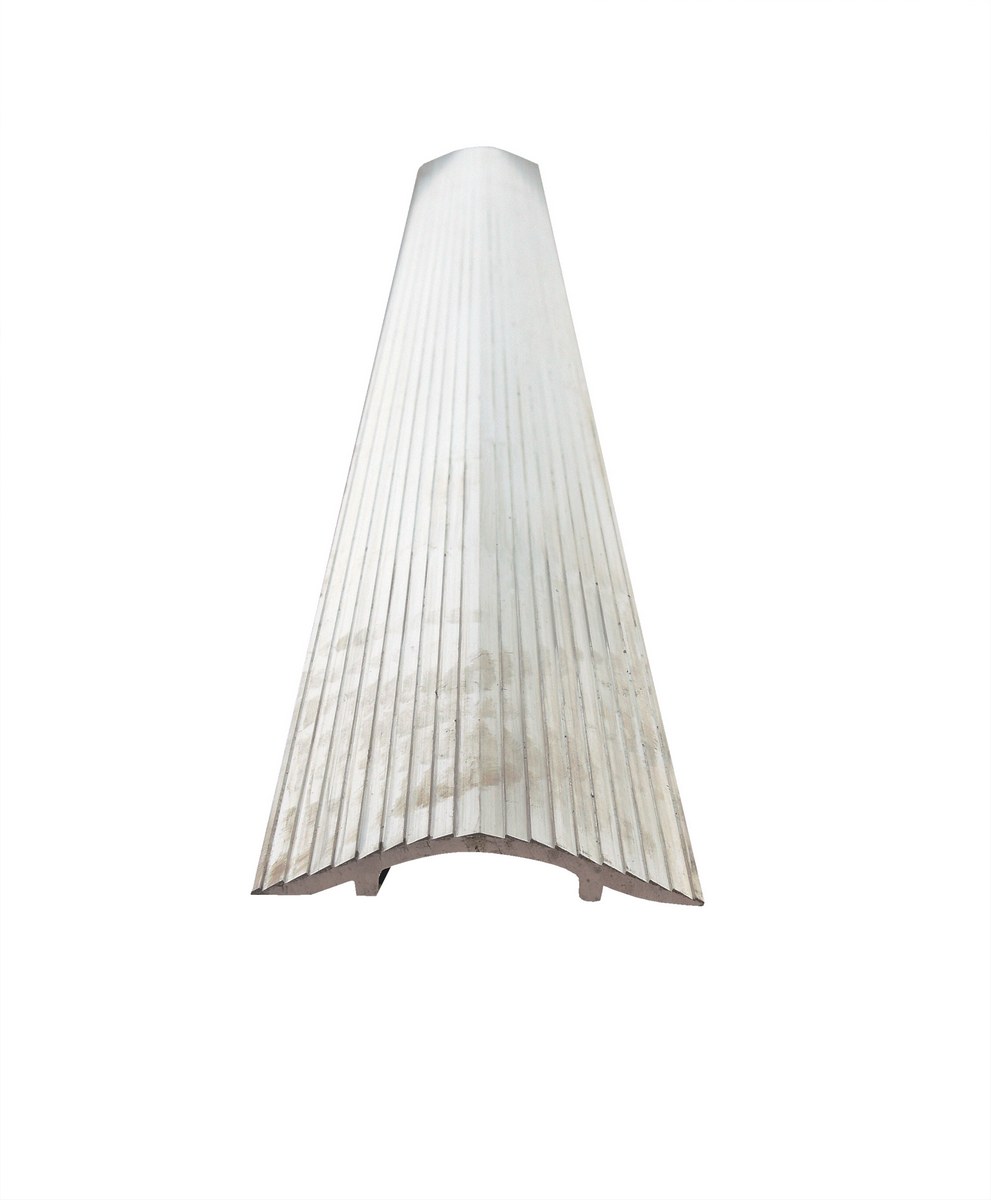

| WR-48 |
 | 30 Days Limited Warranty | Extruded Aluminum Hose/Cable Crossover 48 In. Length Silver | Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4 | 5 | ||

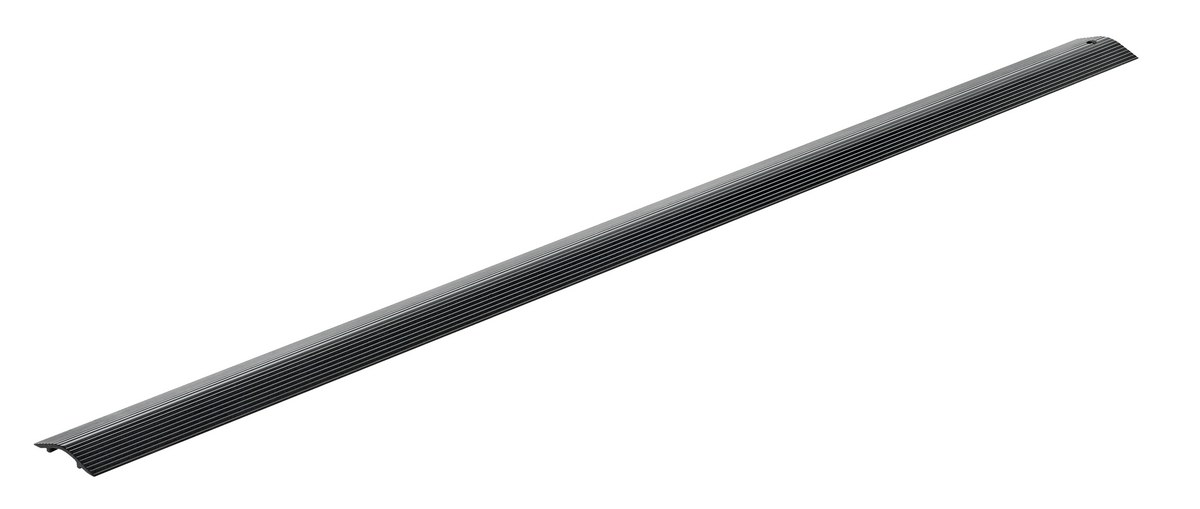

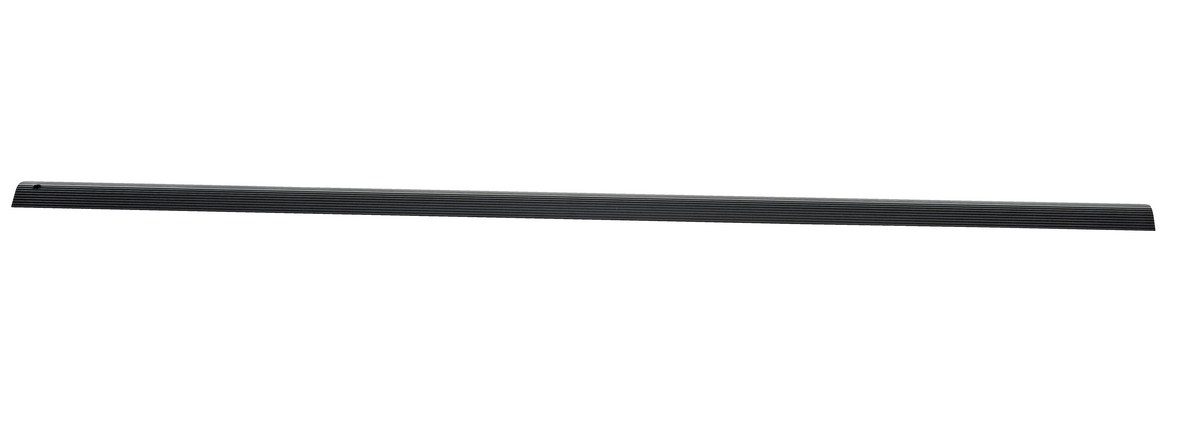

| WR-48-BK |
 | 30 Days Limited Warranty | Extruded Aluminum Hose/Cable Crossover 48 In. Length Black | Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4 | 5 | ||

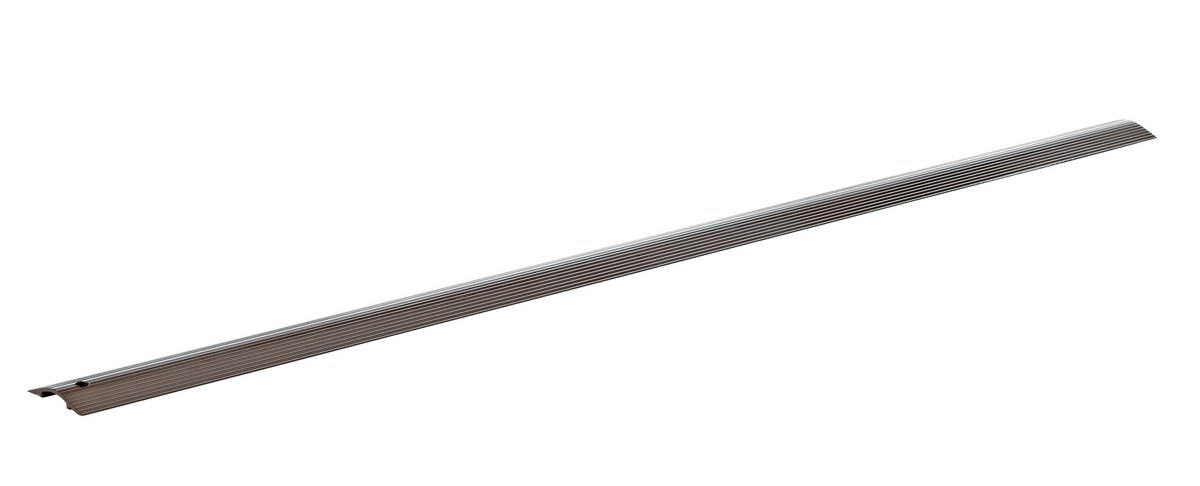

| WR-48-BRN |
 | 30 Days Limited Warranty | Extruded Aluminum Hose/Cable Crossover 48 In. Length Brown | Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4 | 5 | ||

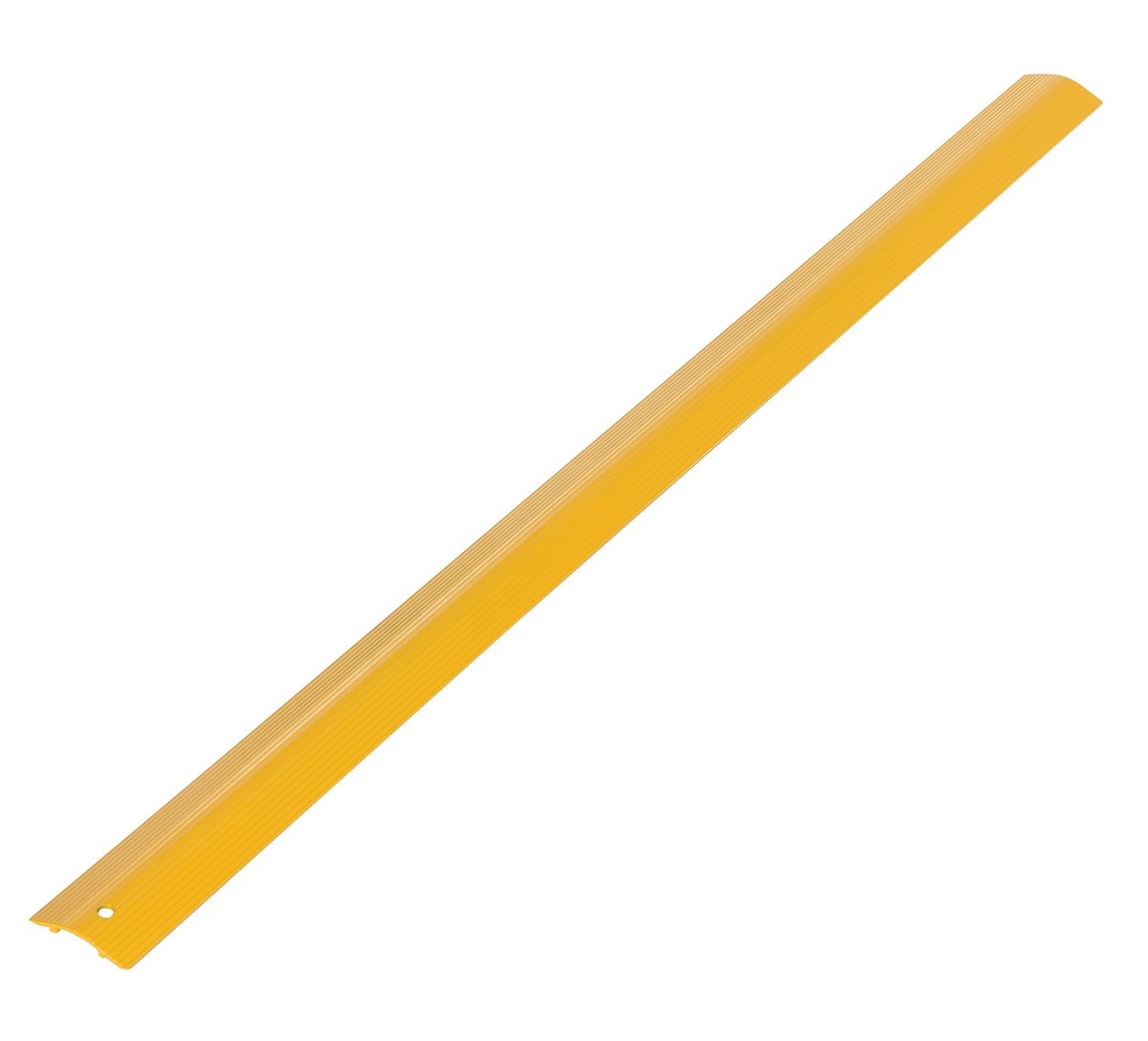

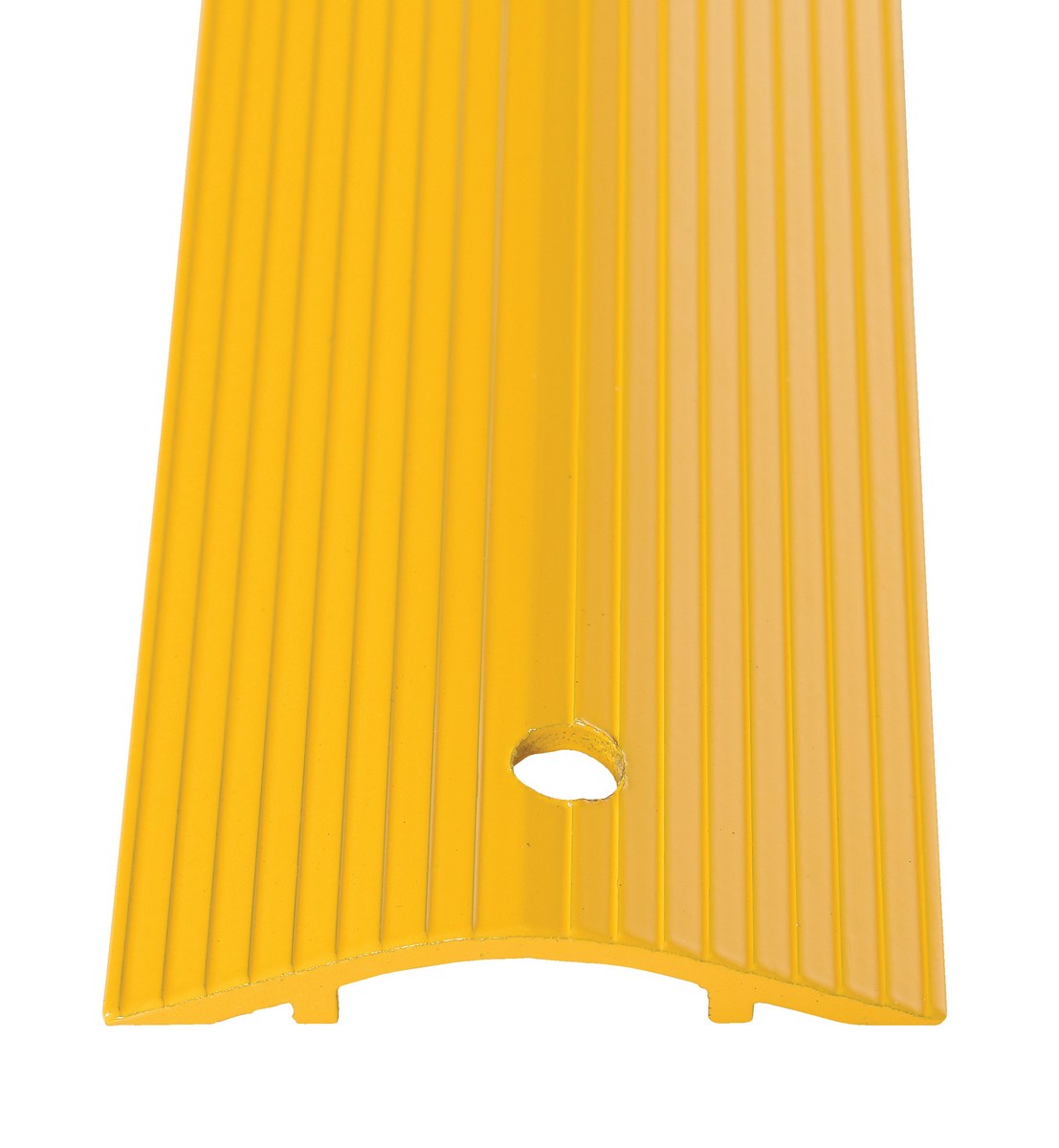

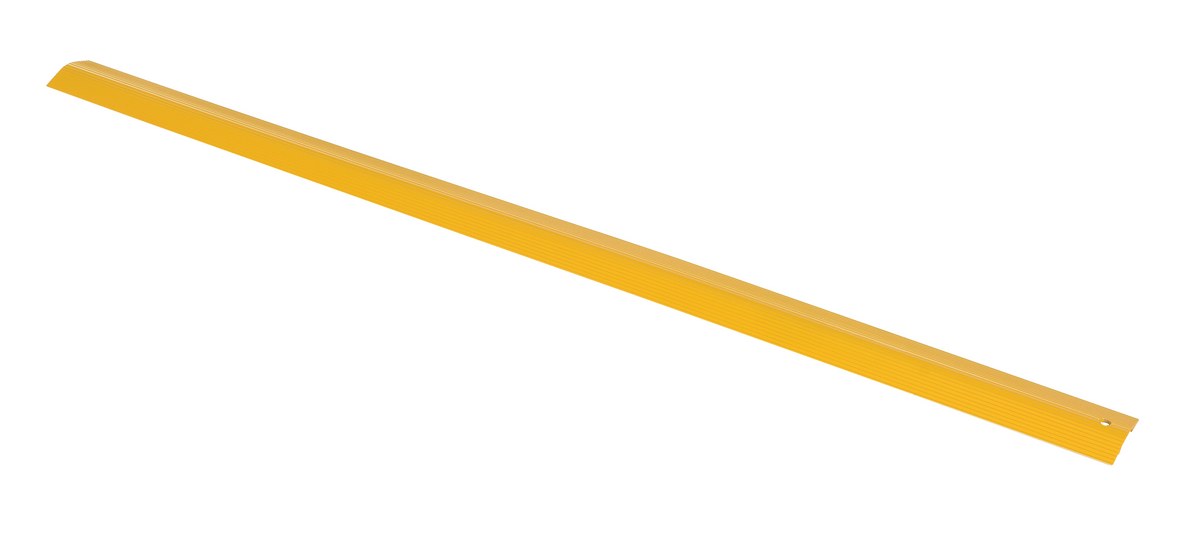

| WR-48-Y |
 | 30 Days Limited Warranty | Extruded Aluminum Hose/Cable Crossover 48 In. Length Yellow | Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4 | 5 | ||

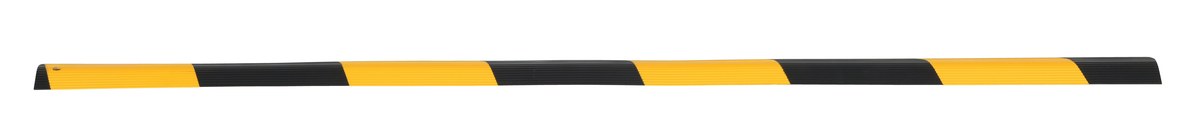

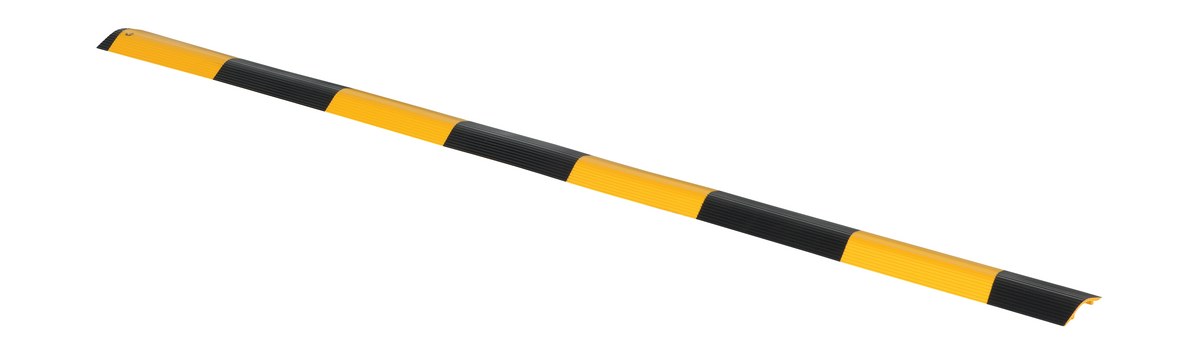

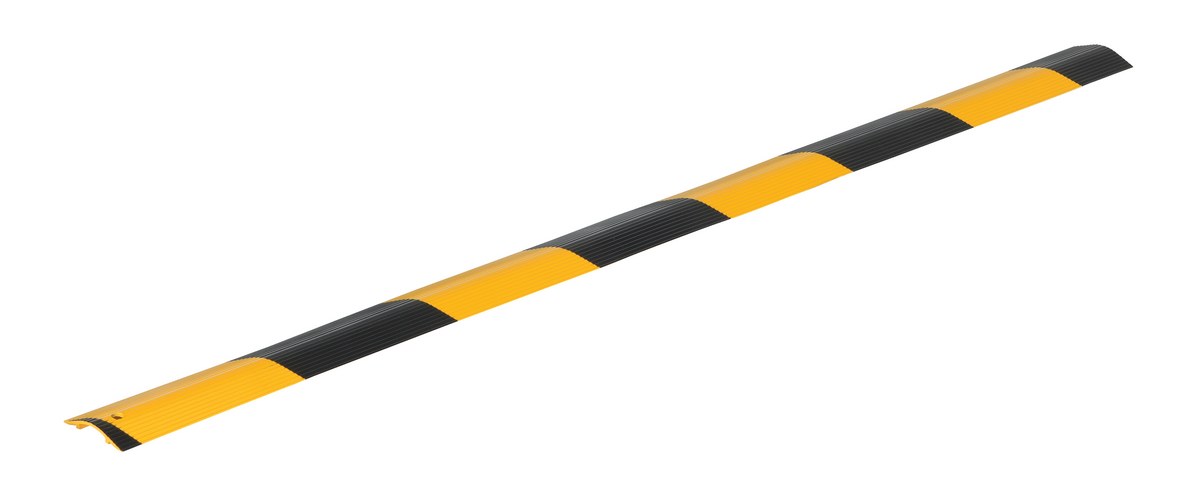

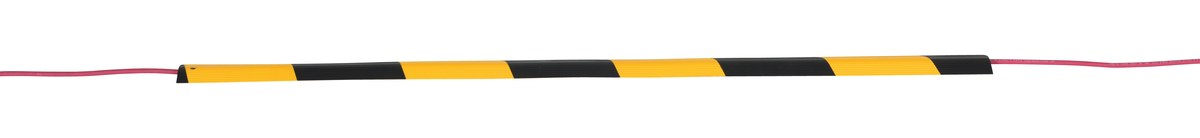

| WR-48-YB |
 | 30 Days Limited Warranty | Extruded Aluminum Hose/Cable Crossover 48 In. Length Black / Yellow | Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4 | 5 | ||

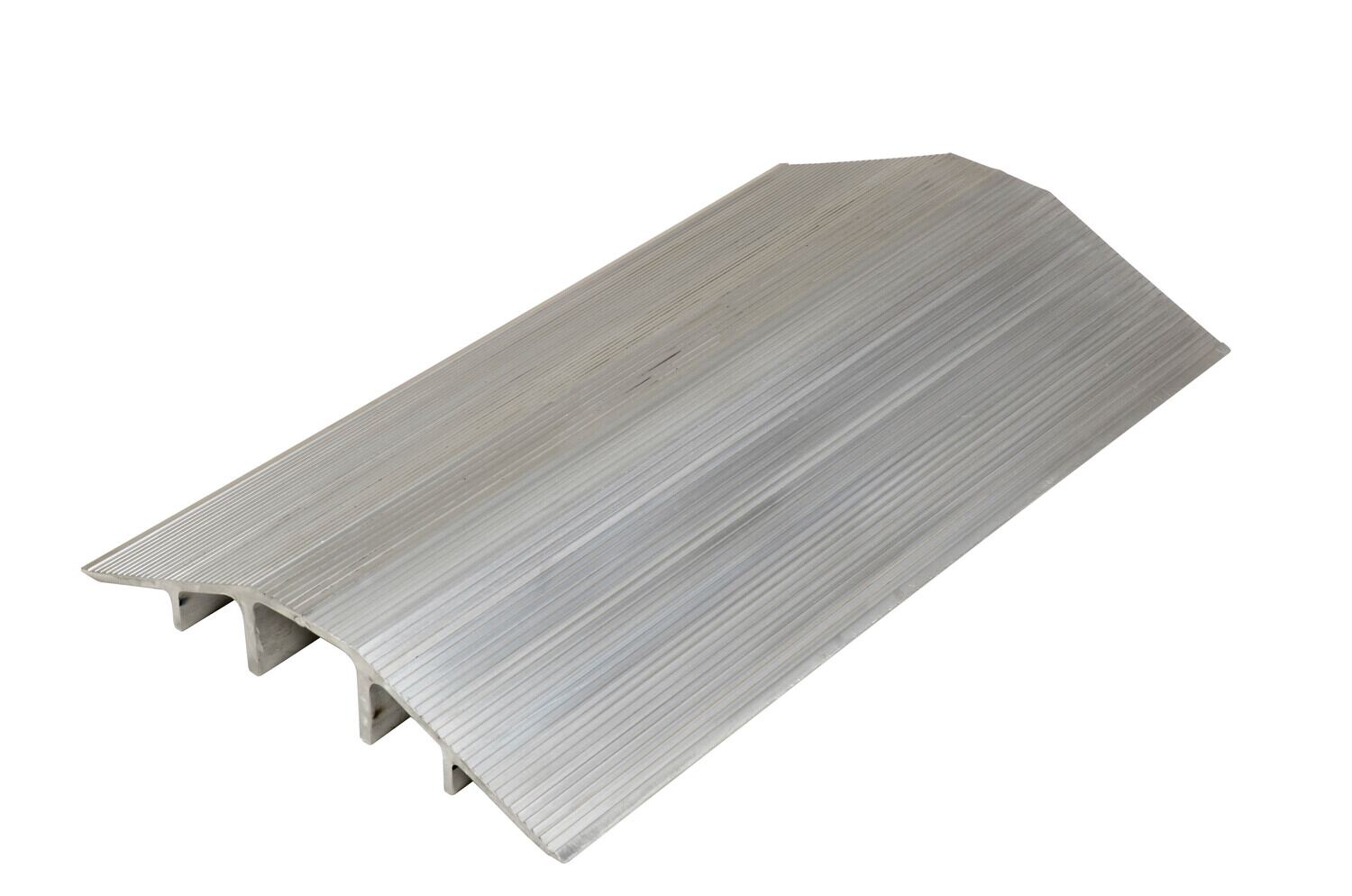

| XHCR-36 |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 36 In. Length Silver | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 51 | ||

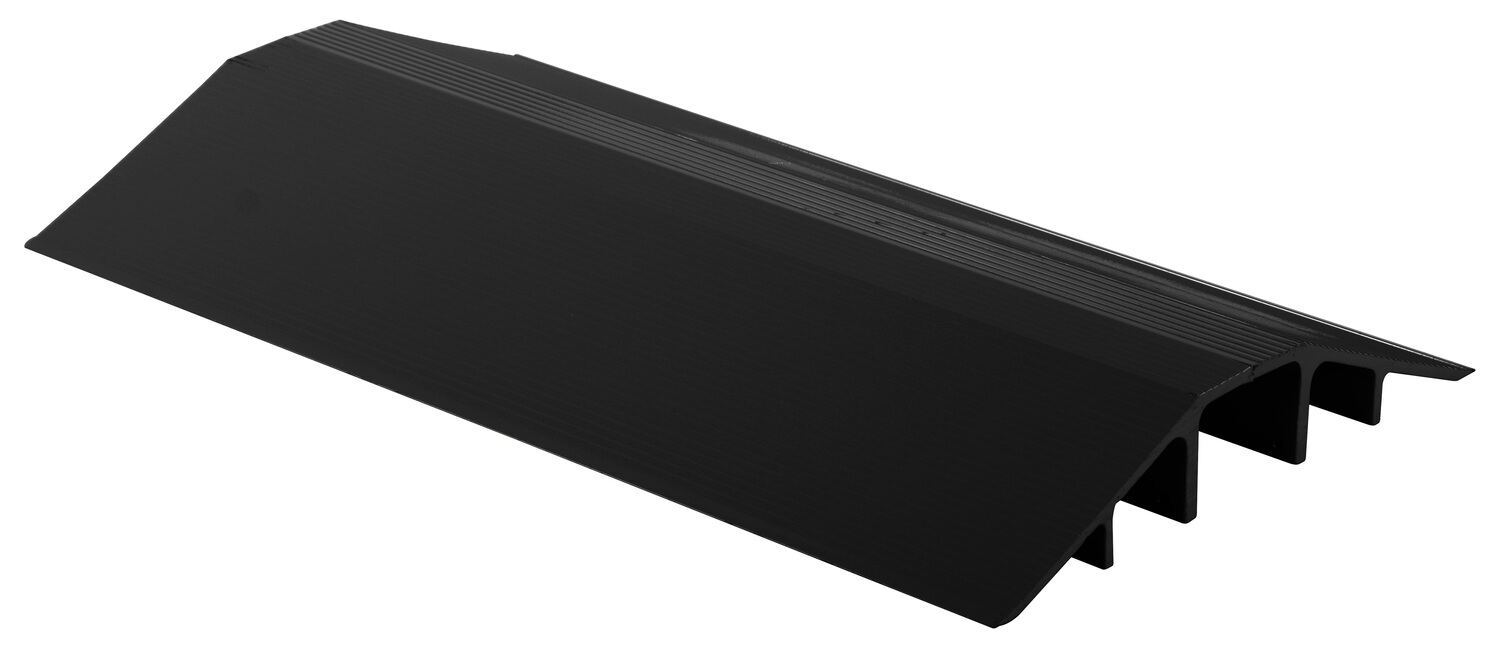

| XHCR-36-BK |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 36 In. Length Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 51 | ||

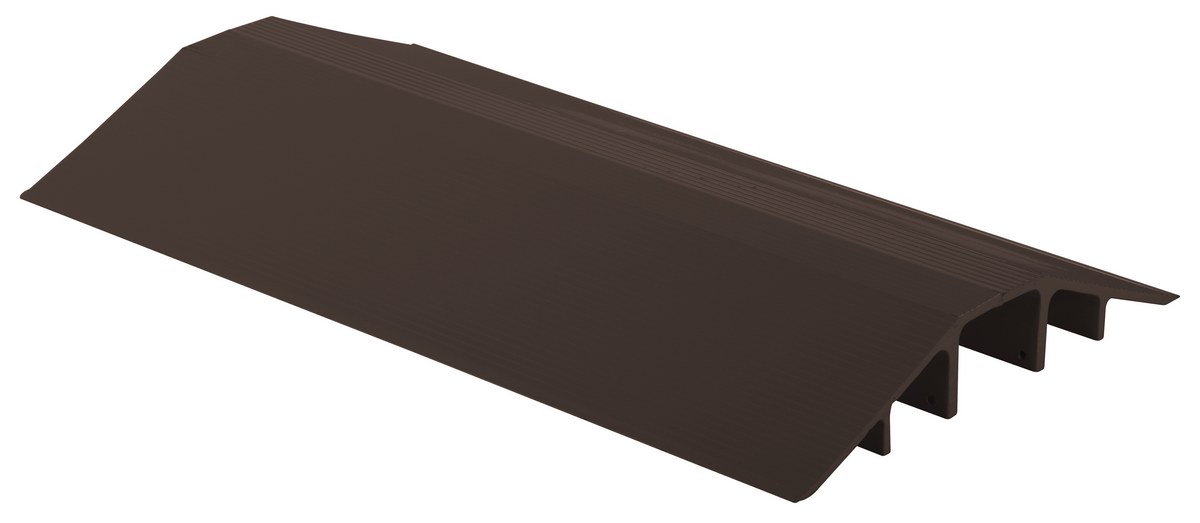

| XHCR-36-BRN |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 36 In. Length Brown | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 51 | ||
| XHCR-36-Y |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 36 In. Length Yellow | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 51 | ||

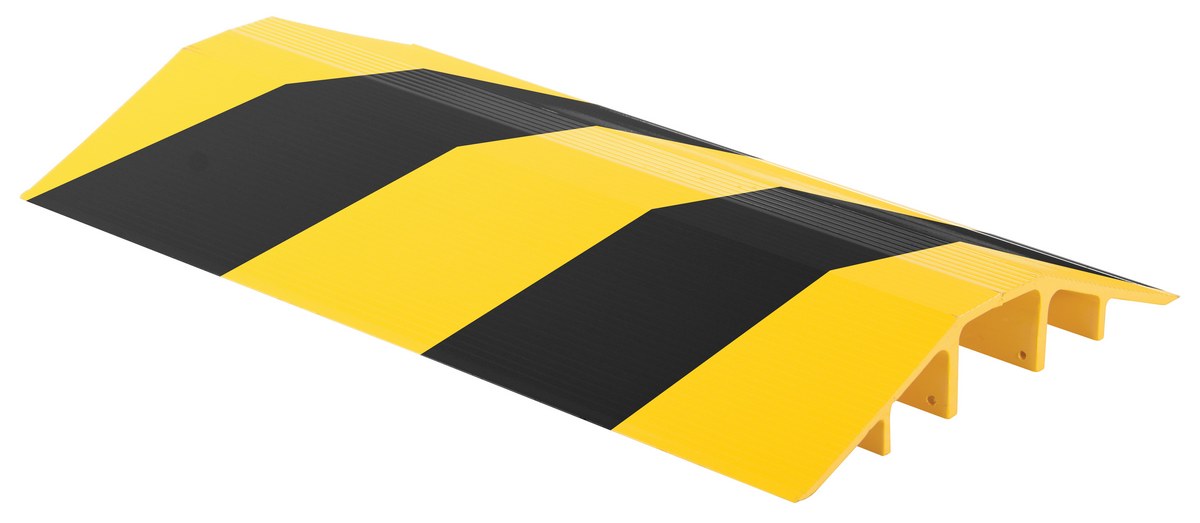

| XHCR-36-YB |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 36 In. Length Yellow/Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 51 | ||
| XHCR-48 |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 48 In. Length Silver | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 58 | ||
| XHCR-48-BK |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 48 In. Length Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 58 | ||

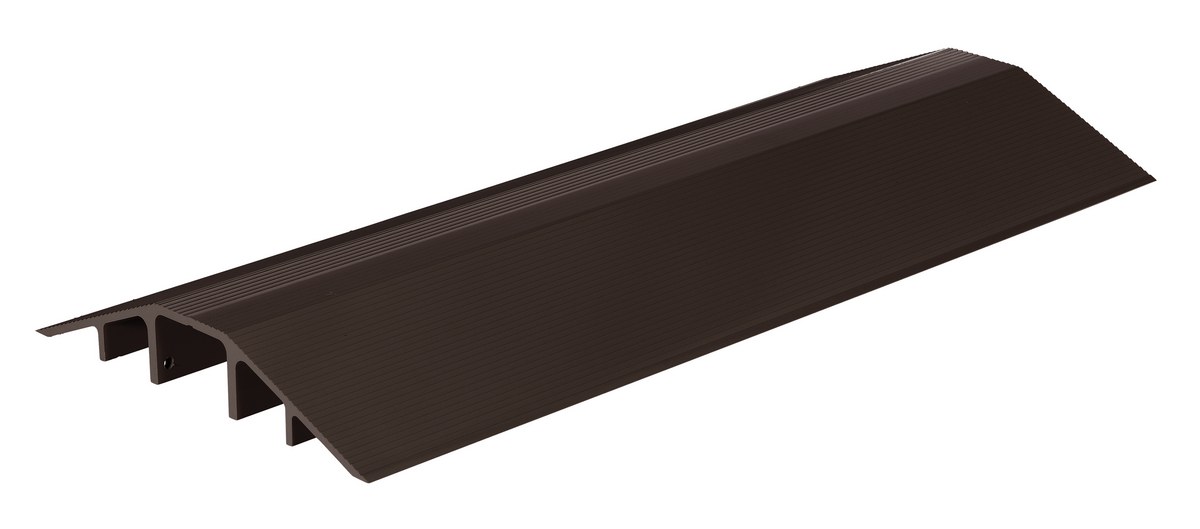

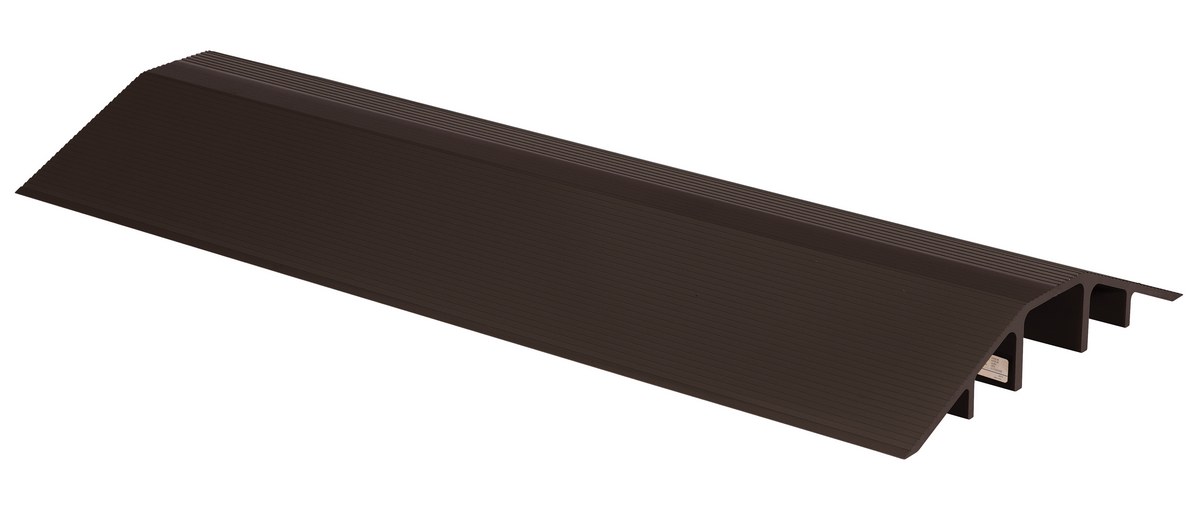

| XHCR-48-BRN |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 48 In. Length Brown | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 58 | ||

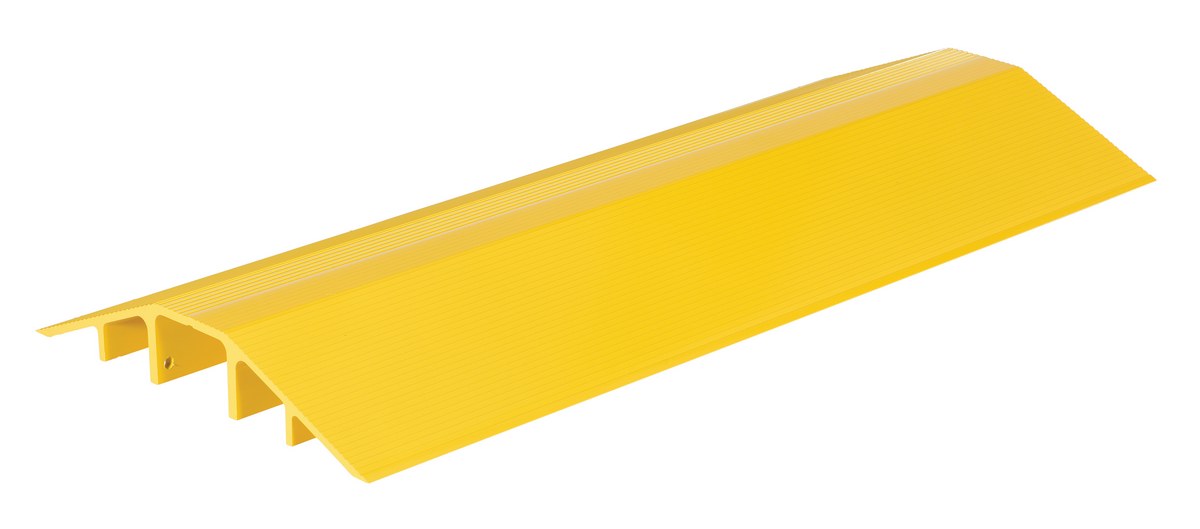

| XHCR-48-Y |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 48 In. Length Yellow | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 58 | ||

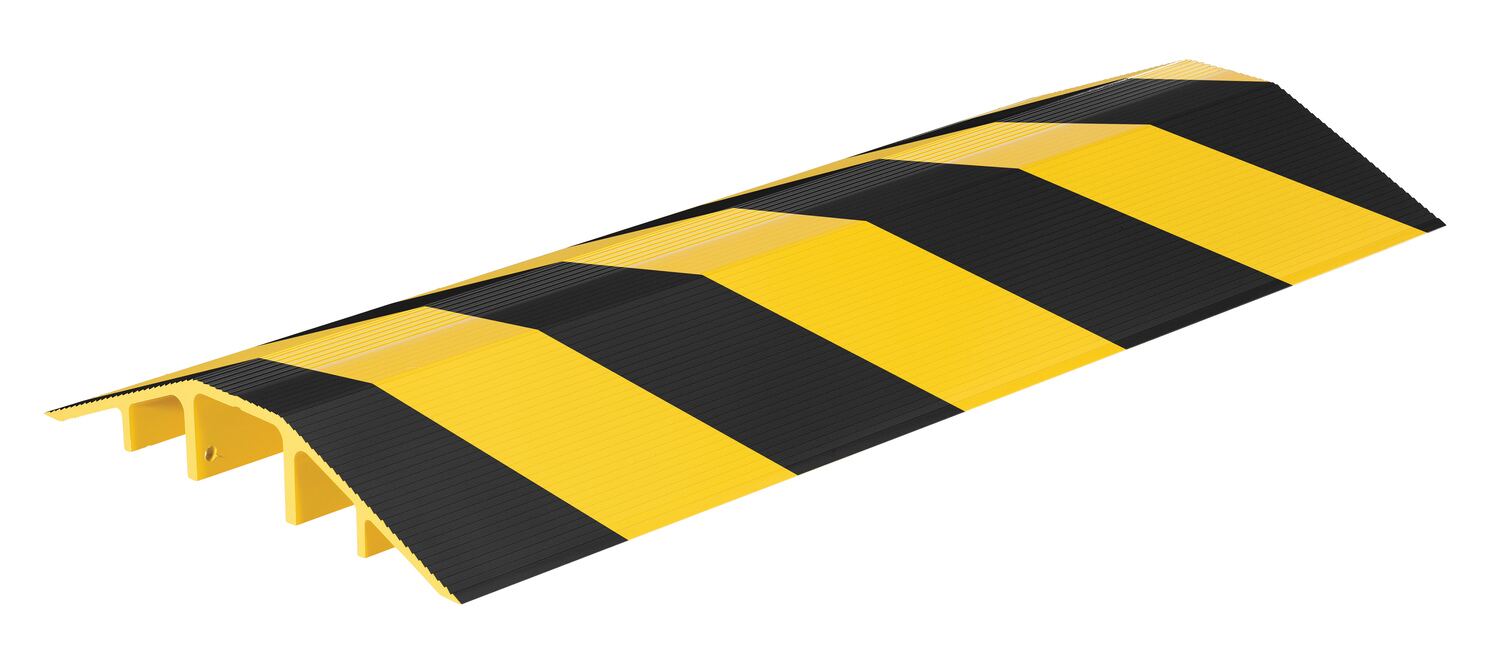

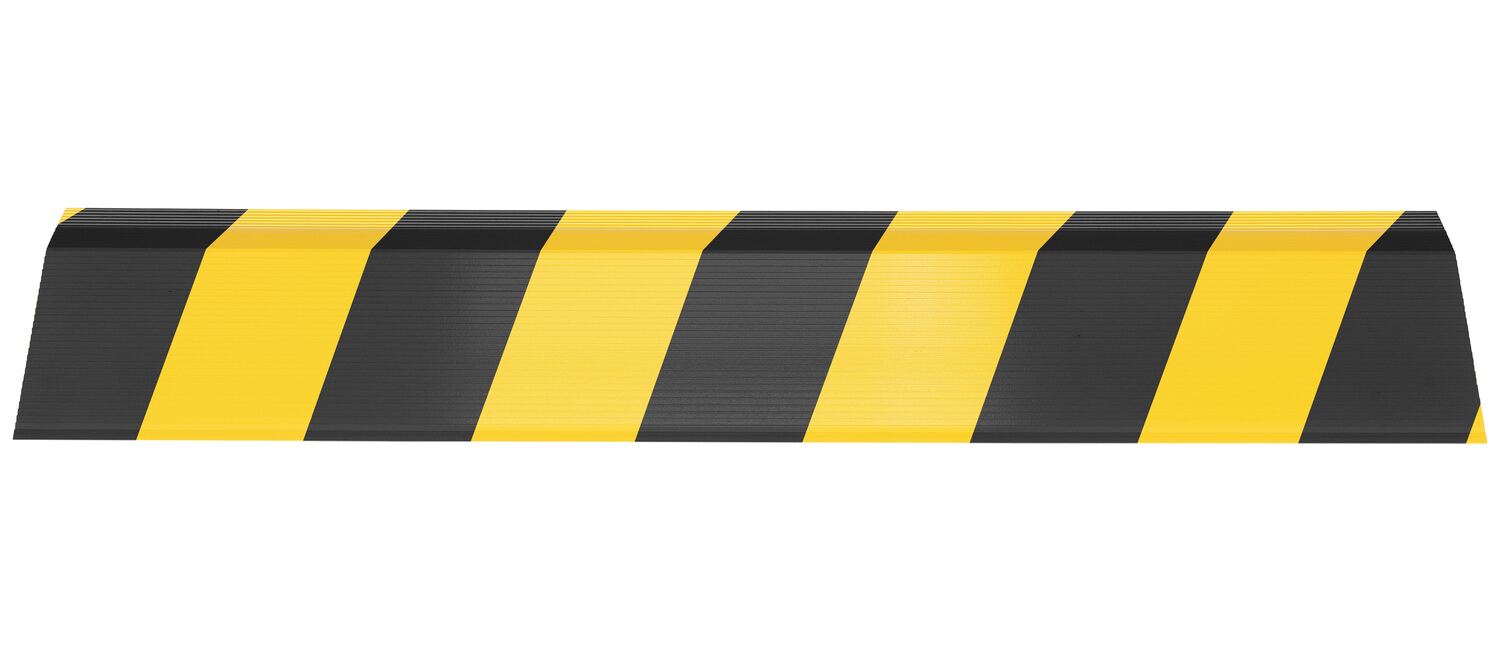

| XHCR-48-YB |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 48 In. Length Yellow/Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 58 | ||
| XHCR-60 |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 60 In. Length Silver | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 73 | ||

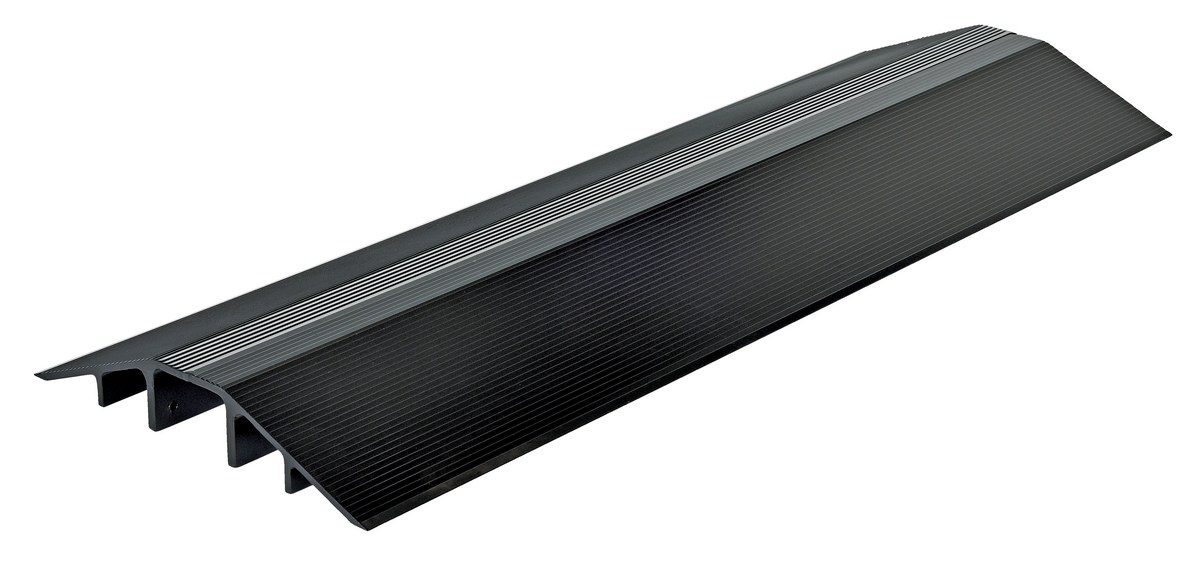

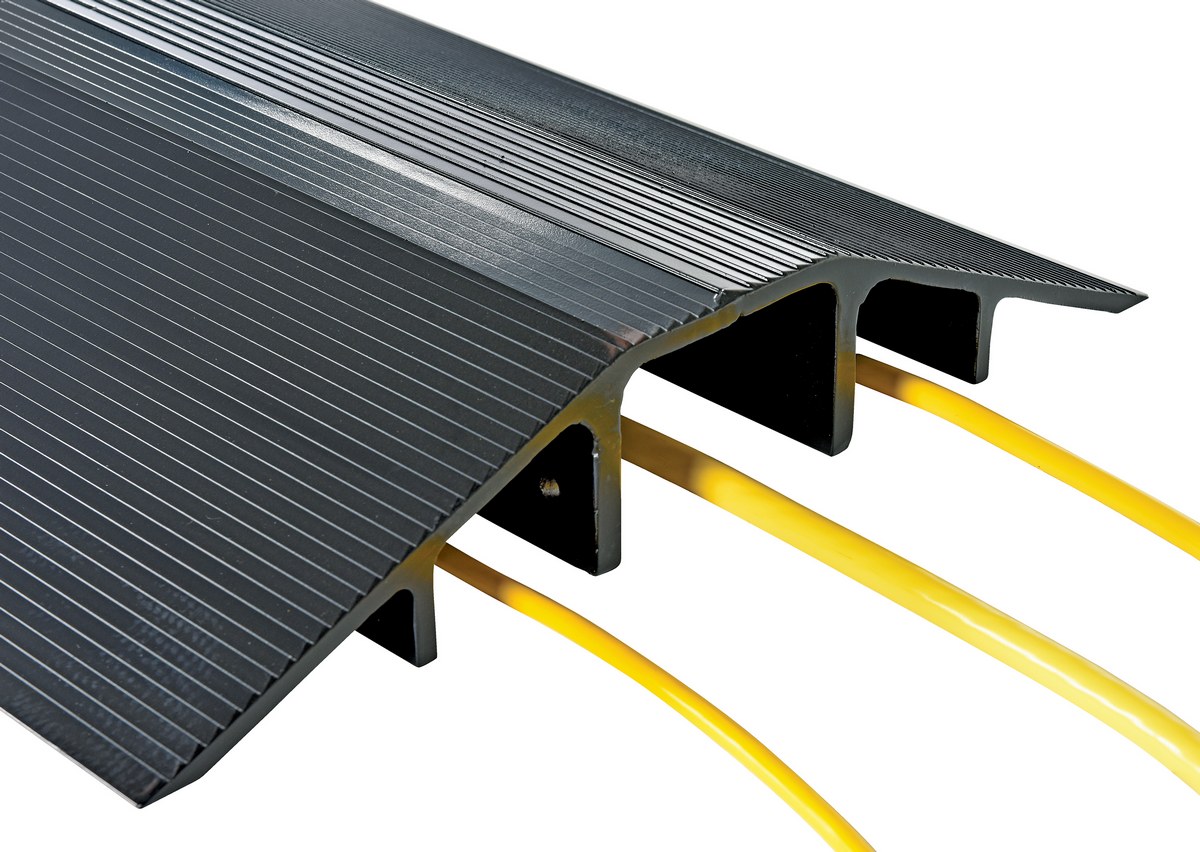

| XHCR-60-BK |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 60 In. Length Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 73 | ||

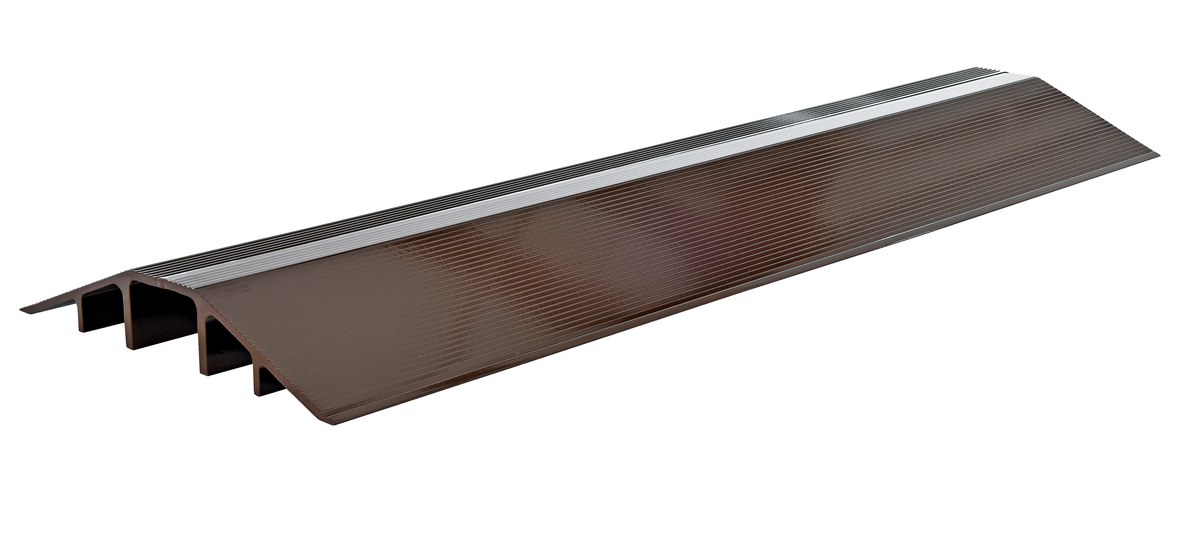

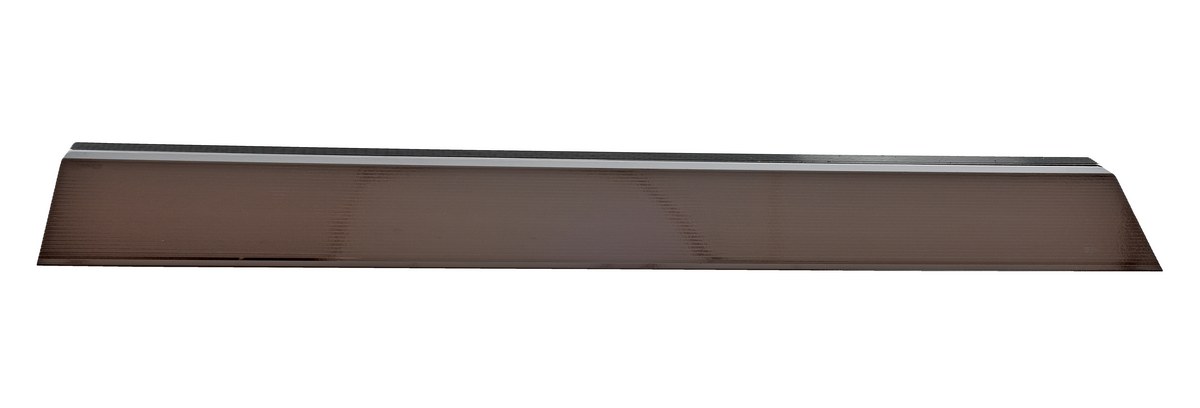

| XHCR-60-BRN |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 60 In. Length Brown | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 73 | ||

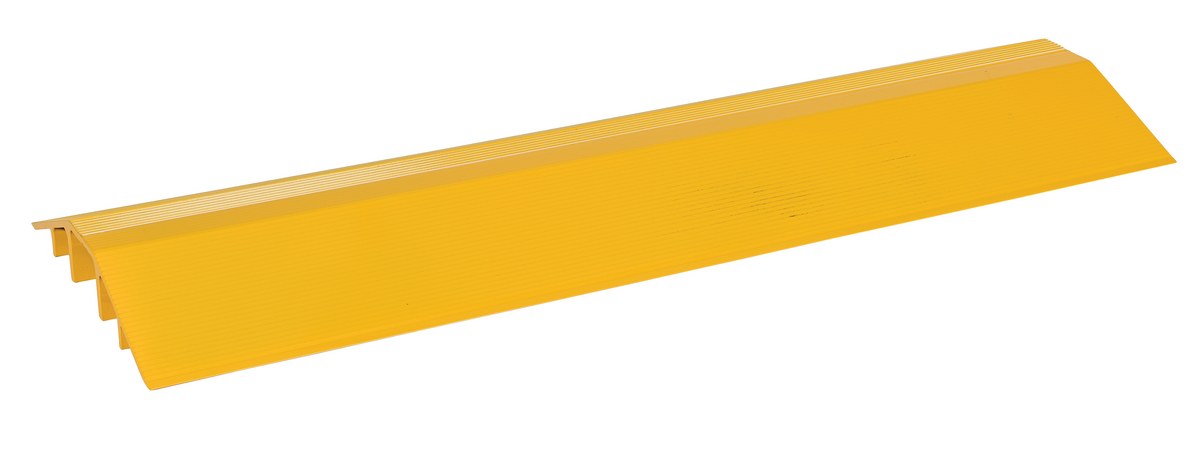

| XHCR-60-Y |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 60 In. Length Yellow | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 73 | ||

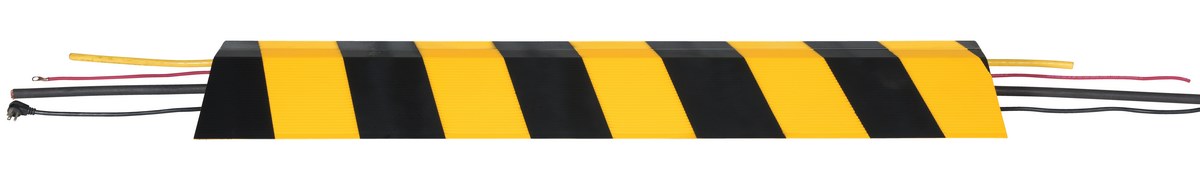

| XHCR-60-YB |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 60 In. Length Yellow/Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 73 | ||

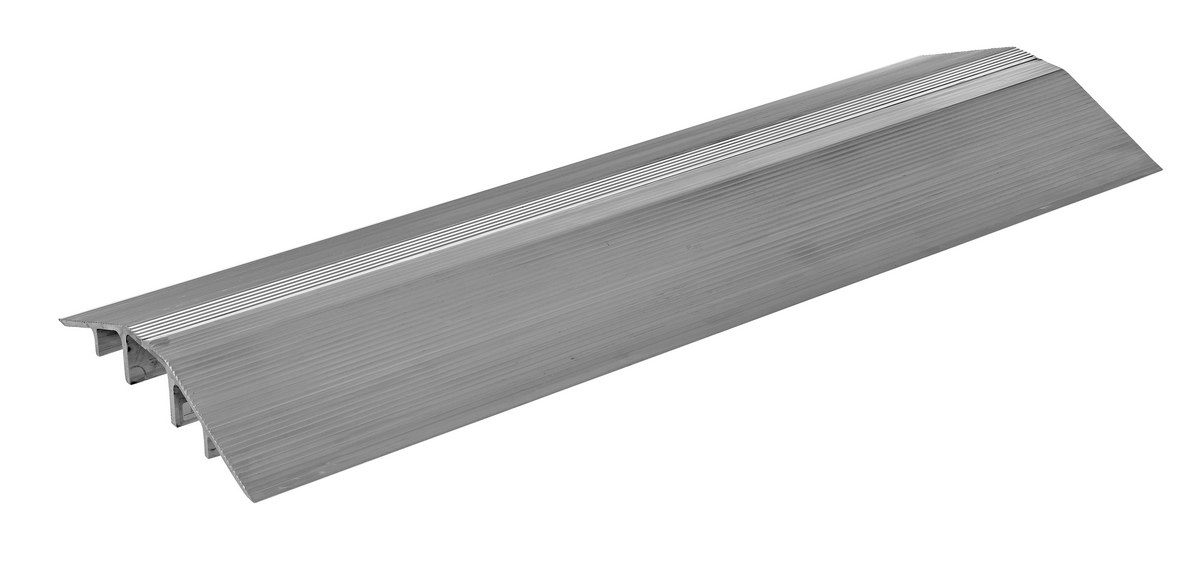

| XHCR-72 |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 72 In. Length Silver | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 88 | ||
| XHCR-72-BK |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 72 In. Length Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 88 | ||
| XHCR-72-BRN |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 72 In. Length Brown | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 88 | ||
| XHCR-72-Y |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 72 In. Length Yellow | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 88 | ||

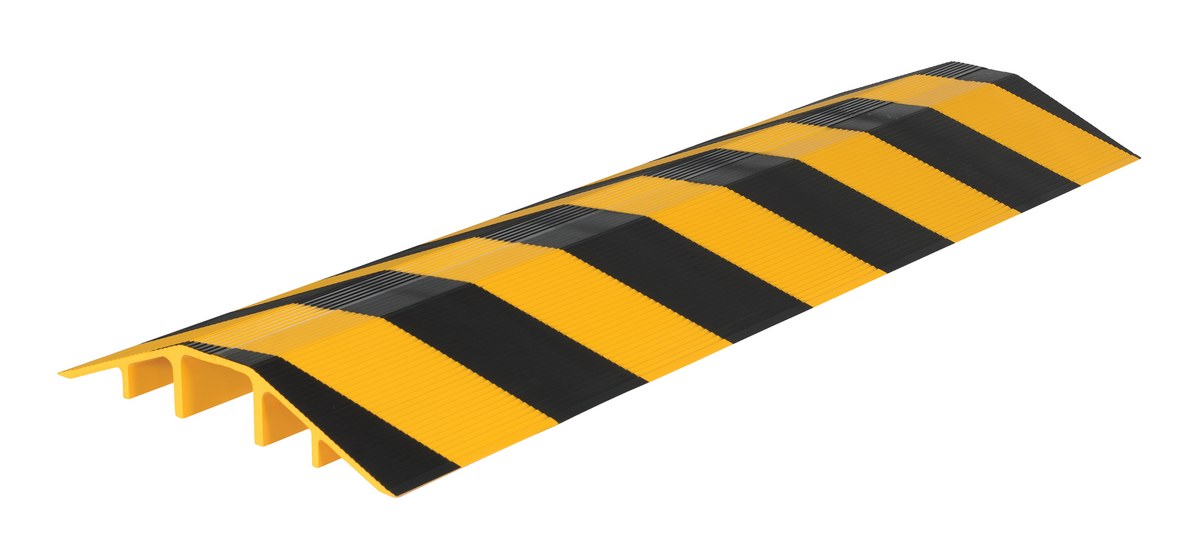

| XHCR-72-YB |
 | 90 Days Limited Warranty | Aluminum Extruded Hose/Cable Crossover 72 In. Length Yellow/Black | Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2 | 88 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: No they are not ADA compliant.
