Product Family Overview

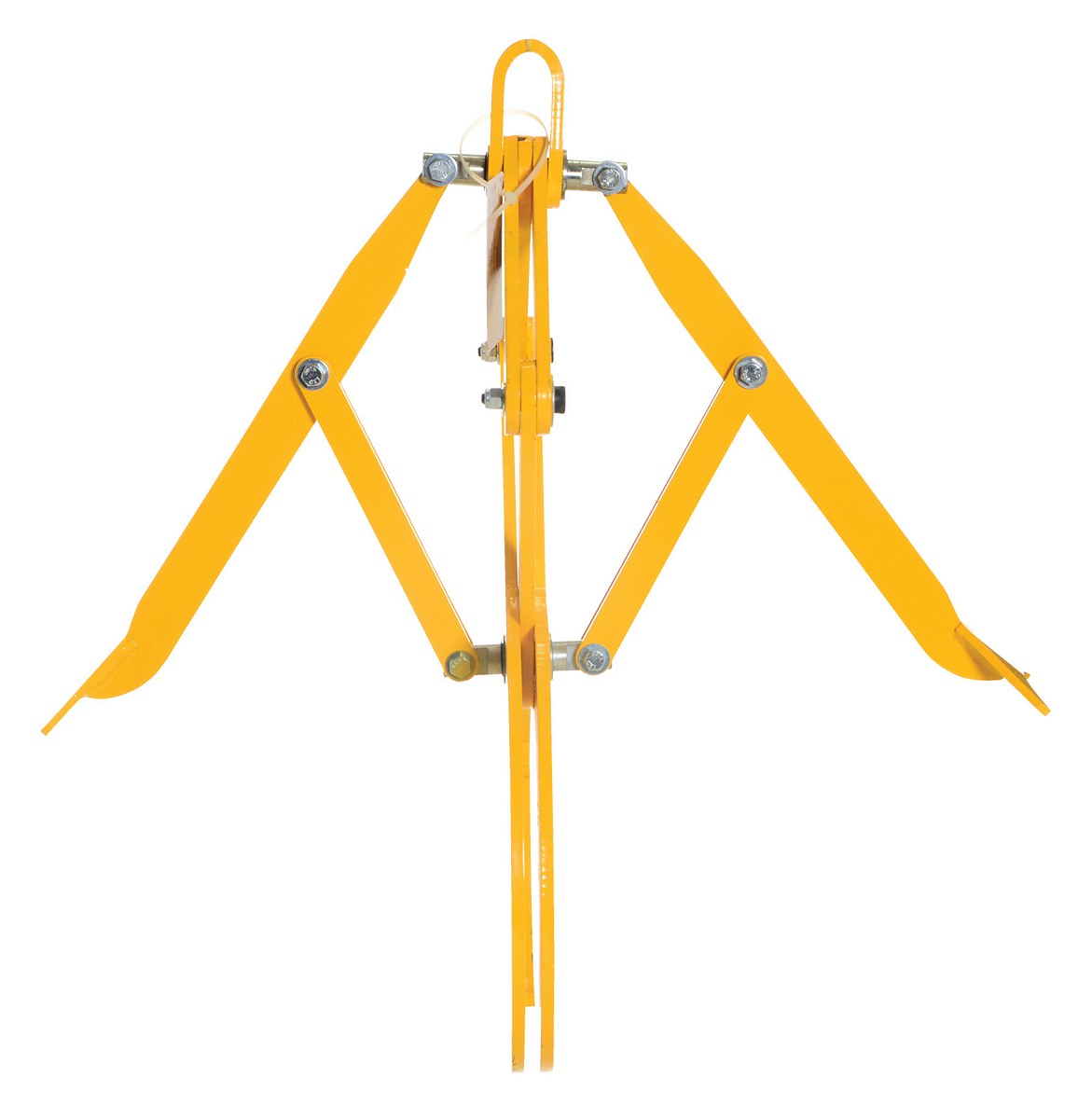

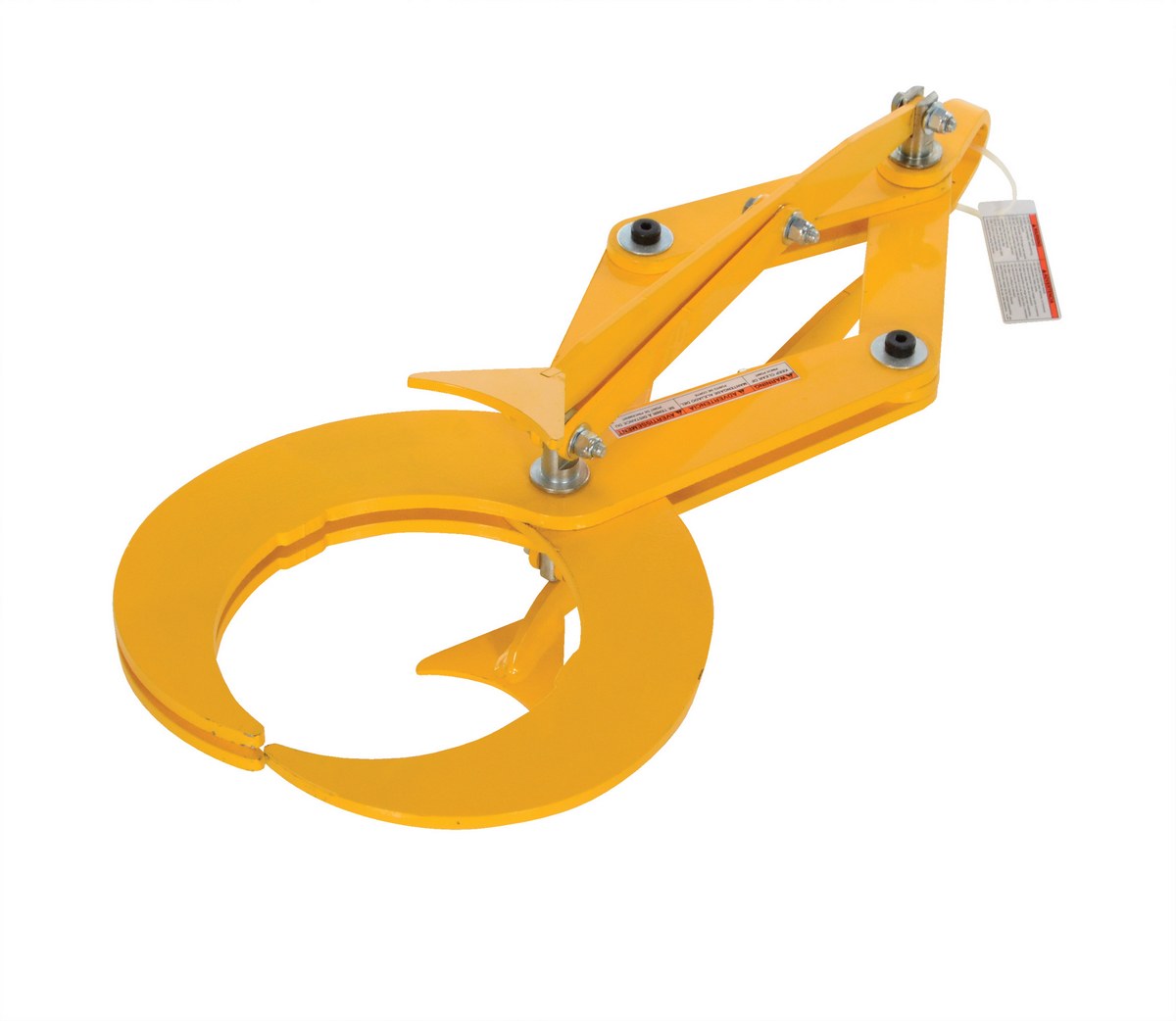

Heavy-Duty Pipe Grabs
SERIES: PG-C

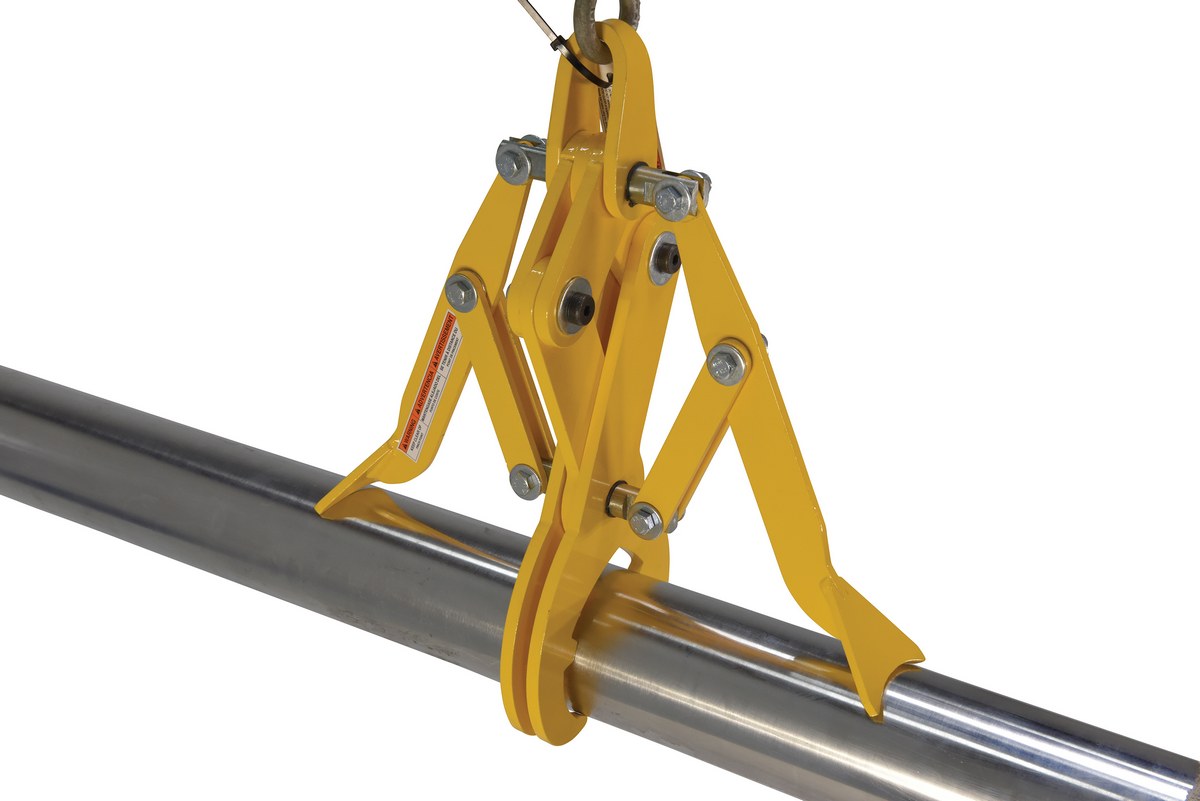

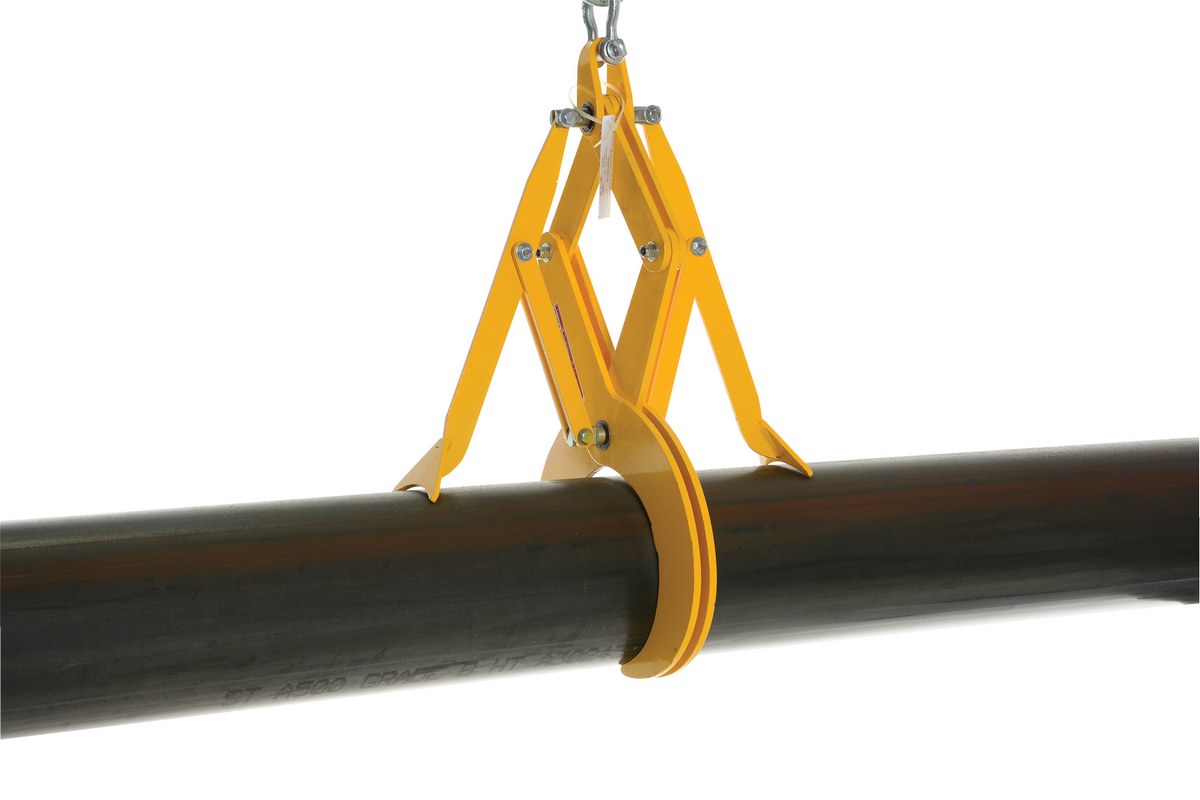

Designed for lifting pipe (cast iron or steel) with overhead lifting device. Automatic operation allows for easy use by anyone. Loads must be centered and guided during lifting operations. Heavy-duty steel construction with yellow powder coat finish.

  • Designed for lifting cast iron pipe with overhead lifting device
  • Automatic operation allows for easy use by anyone
  • Loads must be centered and guided during lifting operations
  • Heavy-duty steel construction for strength & durability

Designed for lifting pipe (cast iron or steel) with overhead lifting device. Automatic operation allows for easy use by anyone. Loads must be centered and guided during lifting operations. Heavy-duty steel construction with yellow powder coat finish.

  • Designed for lifting cast iron pipe with overhead lifting device
  • Automatic operation allows for easy use by anyone
  • Loads must be centered and guided during lifting operations
  • Heavy-duty steel construction for strength & durability

Additional Models In This Family

PG-C-045

model PG-C-045

PG-C-140

model PG-C-140

PG-S-060

model PG-S-060

PG-S-100

model PG-S-100

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

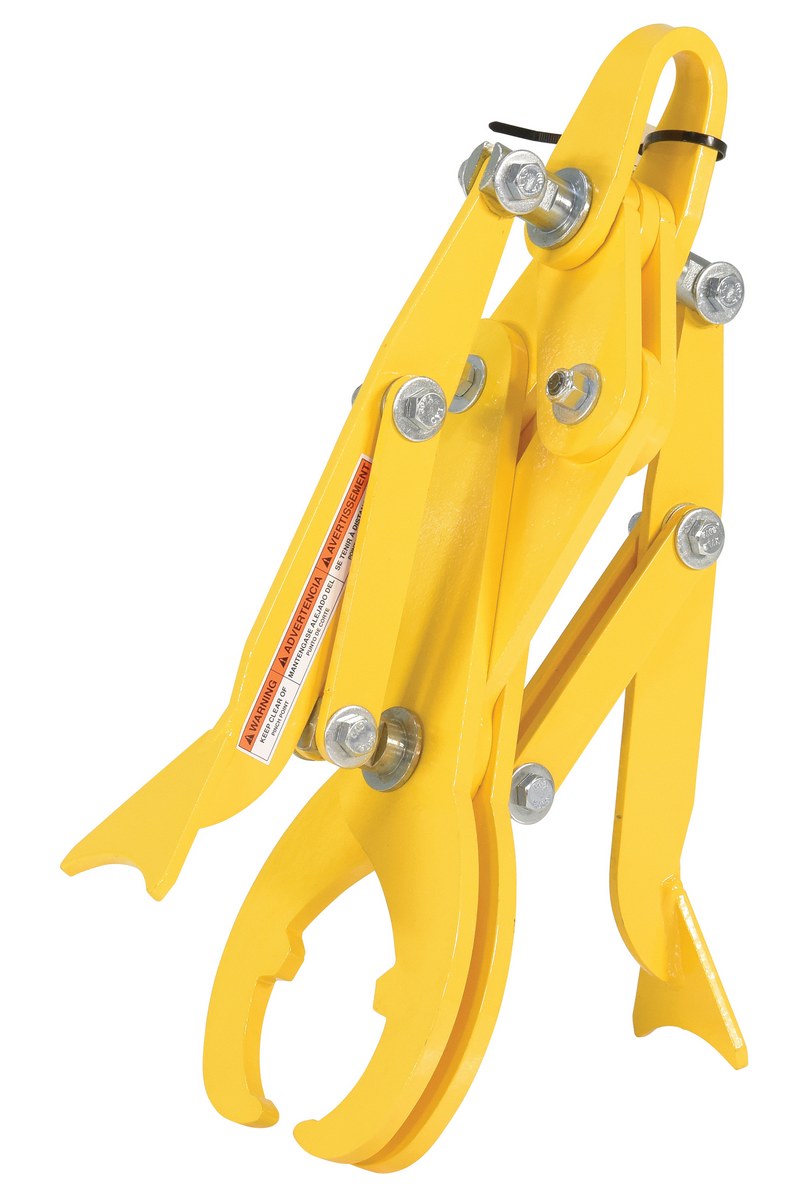

PG-C-045 PG-C-04590 Days Limited WarrantySteel Heavy Duty Pipe Grab 27 In. x 8-3/8 In. x 18-3/4 In. 450 Lb. Capacity YellowUniform Working Load Limit (lb.): 450
Works with Pipe (O.D.): 3-1/2 to 4
21
PG-C-060 PG-C-06090 Days Limited WarrantySteel Heavy Duty Pipe Grab 27 In. x 8-3/8 In. x 18-3/4 In. 600 Lb. Capacity YellowUniform Working Load Limit (lb.): 600
Works with Pipe (O.D.): 4-1/2 to 4-3/4
22
PG-C-100 PG-C-10090 Days Limited WarrantySteel Heavy Duty Pipe Grab 37 In. x 13-1/4 In. x 24-5/8 In. 1000 Lb. Capacity YellowUniform Working Load Limit (lb.): 1,000
Works with Pipe (O.D.): 5-1/2 to 7
26

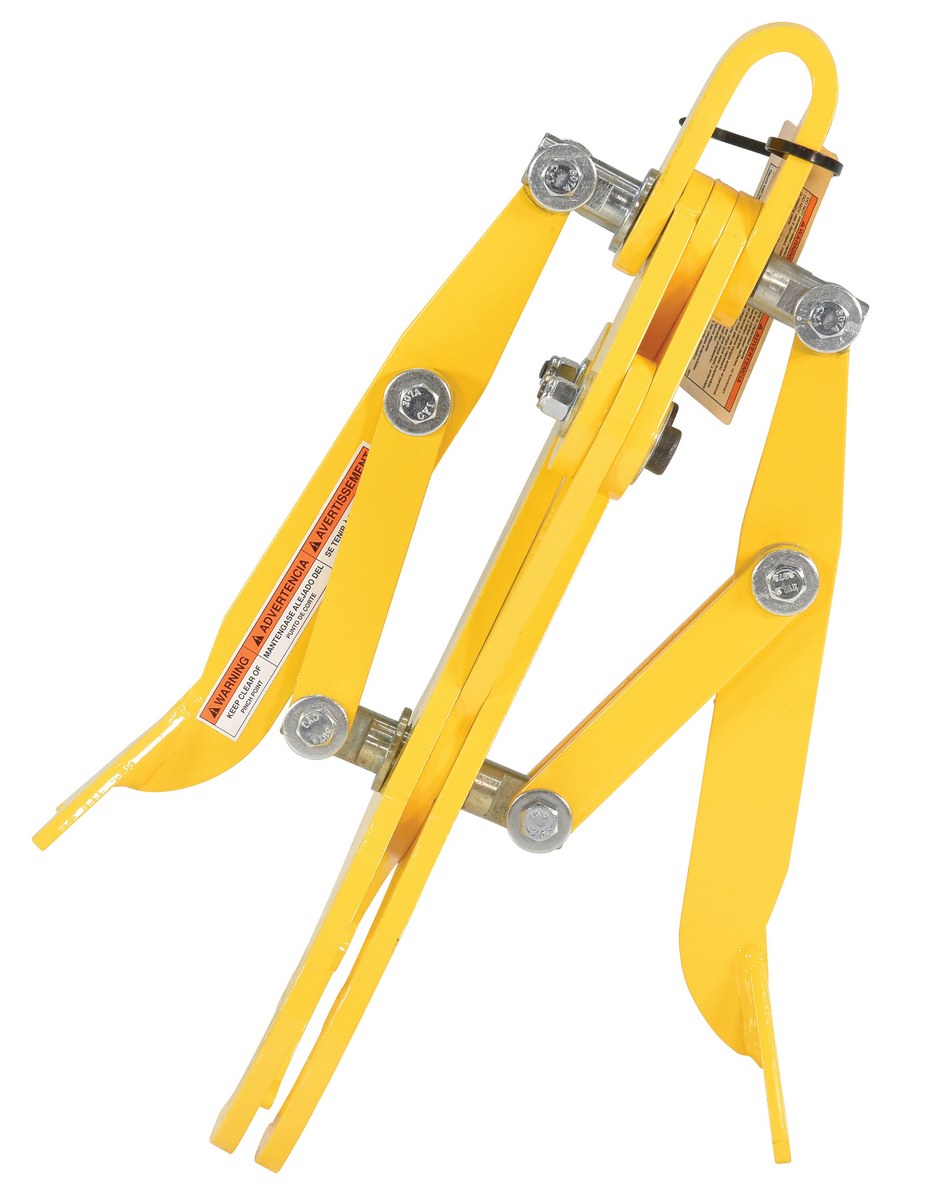

PG-C-140 PG-C-14090 Days Limited WarrantySteel Heavy Duty Pipe Grab 41-1/8 In. x 18-11/16 In. x 29-3/4 In. 1400 Lb. Capacity YellowUniform Working Load Limit (lb.): 1,400
Works with Pipe (O.D.): 8-5/8 to 9
40

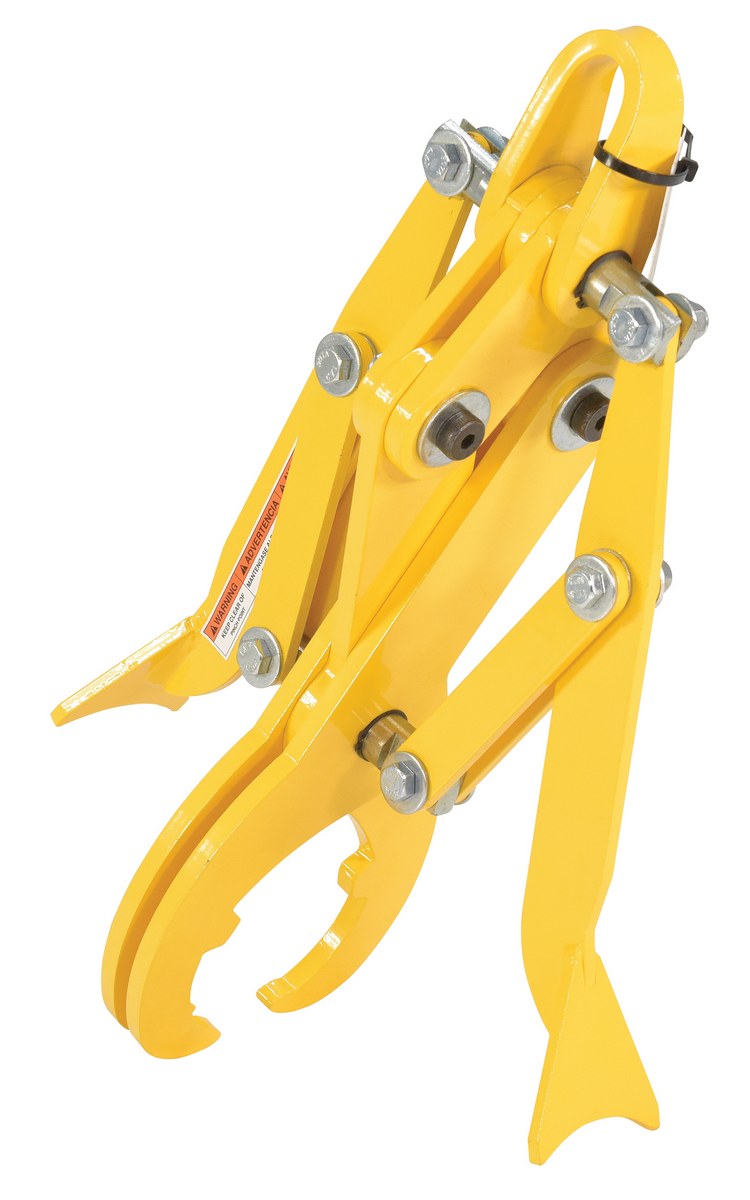

PG-C-200 PG-C-20090 Days Limited WarrantySteel Heavy Duty Pipe Grab 53 In. x 23-5/8 In. x 36-3/16 In. 2000 Lb. Capacity YellowUniform Working Load Limit (lb.): 2,000
Works with Pipe (O.D.): 10-3/4 to 11
113
PG-S-045 PG-S-04590 Days Limited WarrantySteel Heavy Duty Pipe Grab 27 In. x 8-3/8 In. x 18-3/4 In. 450 Lb. Capacity YellowUniform Working Load Limit (lb.): 450
Works with Pipe (O.D.): 3-1/2 to 4
22

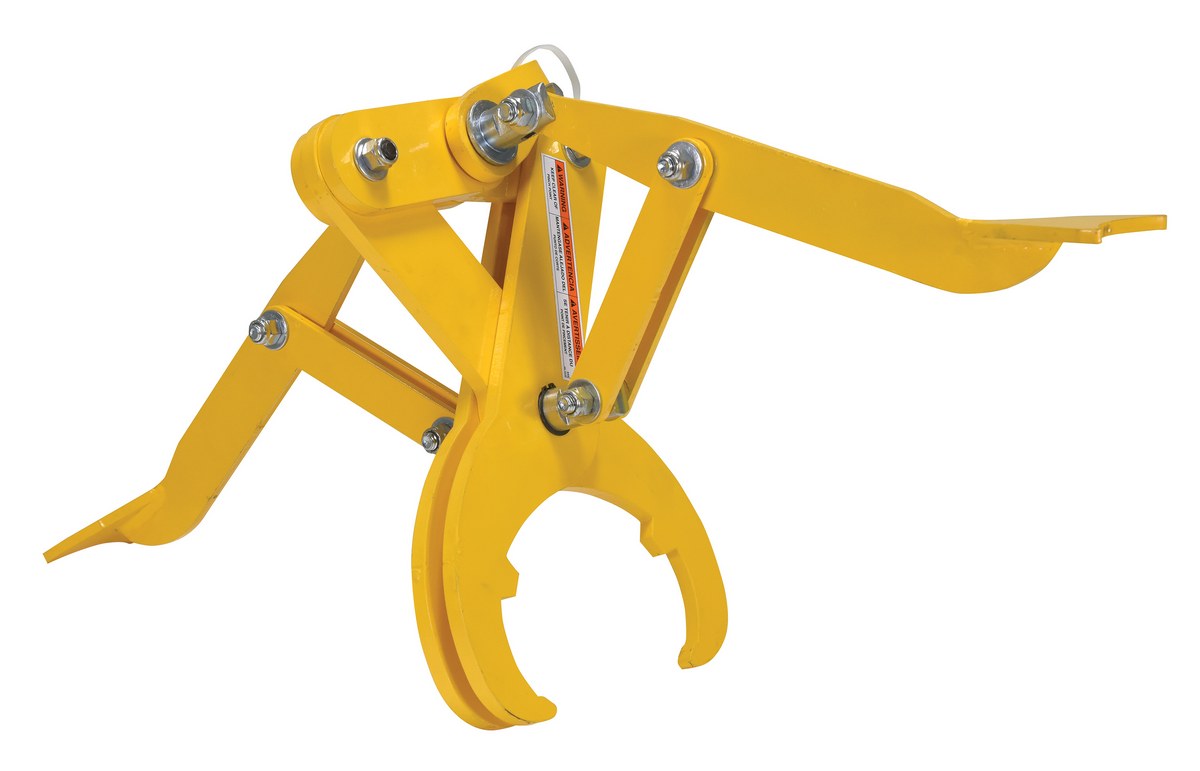

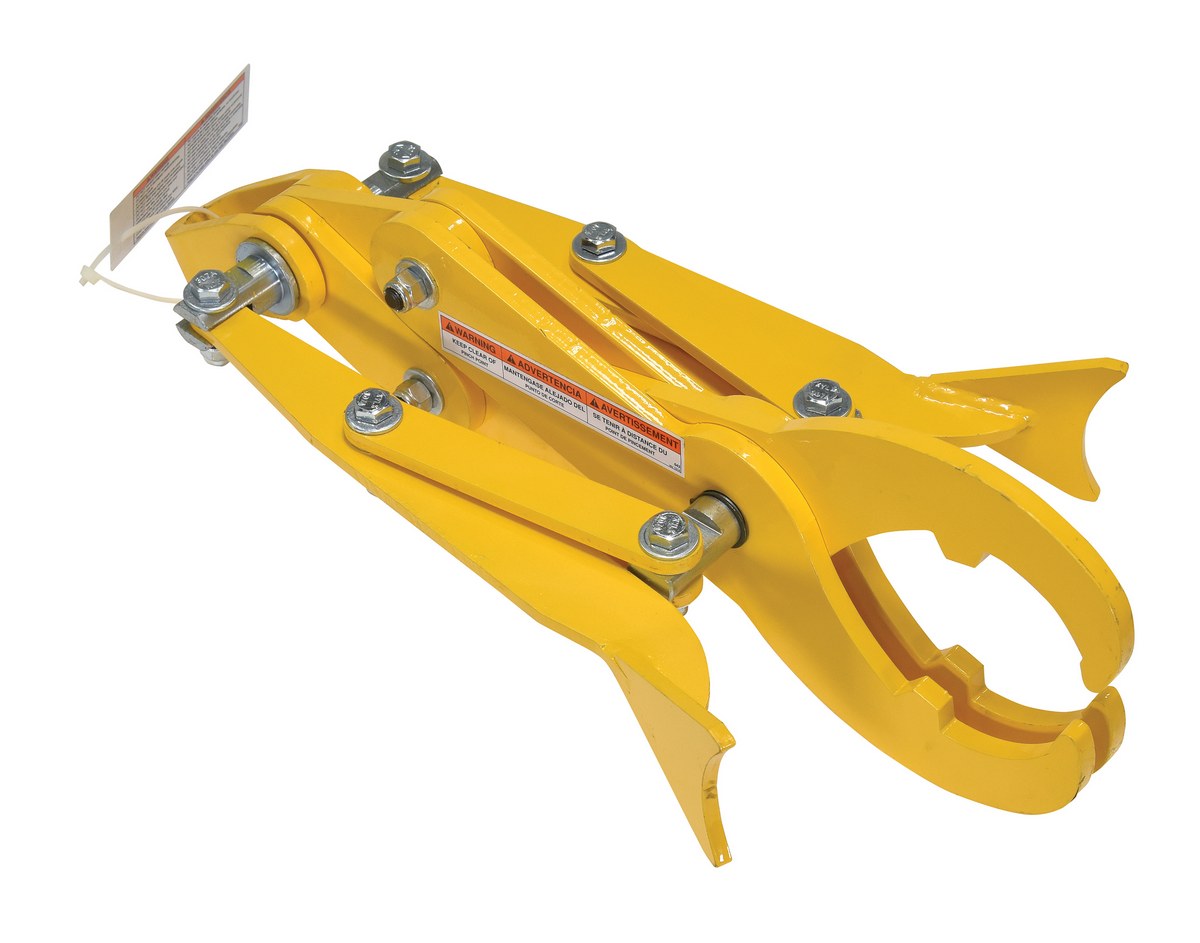

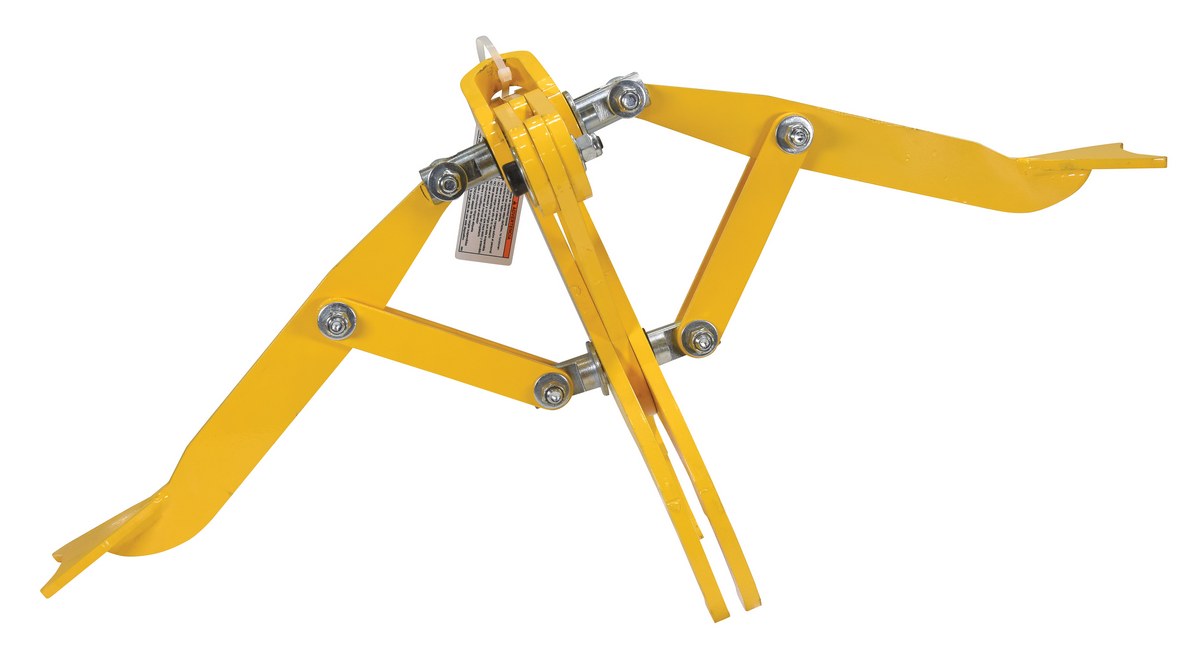

PG-S-060 PG-S-06090 Days Limited WarrantySteel Heavy Duty Pipe Grab 27 In. x 8-3/8 In. x 18-3/4 In. 600 Lb. Capacity YellowUniform Working Load Limit (lb.): 600
Works with Pipe (O.D.): 4-1/2 to 4-3/4
21
PG-S-100 PG-S-10090 Days Limited WarrantySteel Heavy Duty Pipe Grab 37 In. x 13-1/4 In. x 24-5/8 In. 1000 Lb. Capacity YellowUniform Working Load Limit (lb.): 1,000
Works with Pipe (O.D.): 5-1/2 to 7
26
PG-S-140 PG-S-14090 Days Limited WarrantySteel Heavy Duty Pipe Grab 41-1/8 In. x 18-11/16 In. x 29-3/4 In. 1400 Lb. Capacity YellowUniform Working Load Limit (lb.): 1,400
Works with Pipe (O.D.): 8-5/8 to 9
40

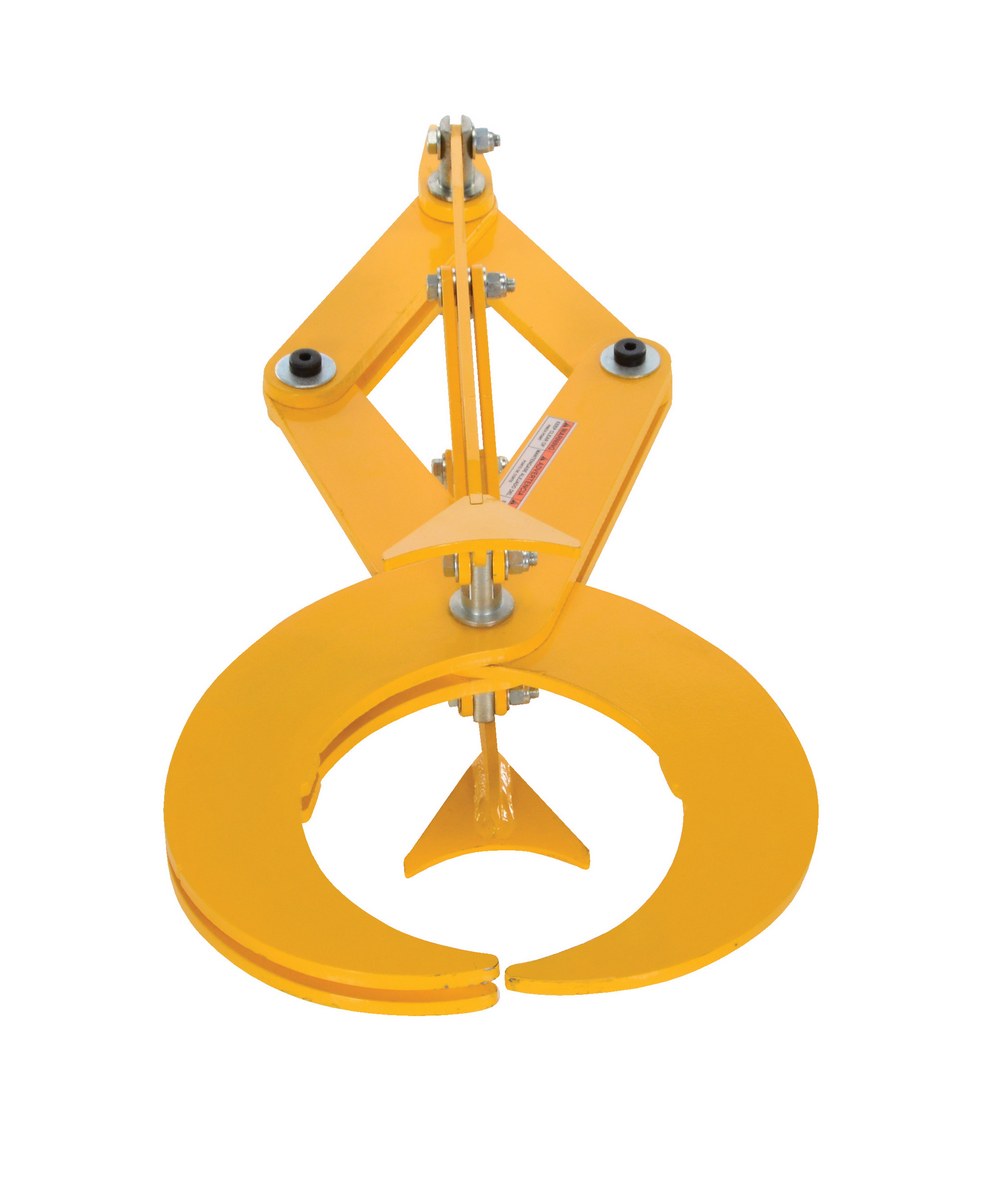

PG-S-200 PG-S-20090 Days Limited WarrantySteel Heavy Duty Pipe Grab 53 In. x 23-5/8 In. x 36-3/16 In. 2000 Lb. Capacity YellowUniform Working Load Limit (lb.): 2,000
Works with Pipe (O.D.): 10-3/4 to 11
117

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PG-C-045
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 450
Works with Pipe (O.D.): 3-1/2 to 4
Uniform Working Load Limit (lb.): 450
Works with Pipe (O.D.): 3-1/2 to 4

PG-C-060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 600
Works with Pipe (O.D.): 4-1/2 to 4-3/4
Uniform Working Load Limit (lb.): 600
Works with Pipe (O.D.): 4-1/2 to 4-3/4

PG-C-100
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 1,000
Works with Pipe (O.D.): 5-1/2 to 7
Uniform Working Load Limit (lb.): 1,000
Works with Pipe (O.D.): 5-1/2 to 7

PG-C-140
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 1,400
Works with Pipe (O.D.): 8-5/8 to 9
Uniform Working Load Limit (lb.): 1,400
Works with Pipe (O.D.): 8-5/8 to 9

PG-C-200
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 2,000
Works with Pipe (O.D.): 10-3/4 to 11
Uniform Working Load Limit (lb.): 2,000
Works with Pipe (O.D.): 10-3/4 to 11

PG-S-045
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 450
Works with Pipe (O.D.): 3-1/2 to 4
Uniform Working Load Limit (lb.): 450
Works with Pipe (O.D.): 3-1/2 to 4

PG-S-060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 600
Works with Pipe (O.D.): 4-1/2 to 4-3/4
Uniform Working Load Limit (lb.): 600
Works with Pipe (O.D.): 4-1/2 to 4-3/4

PG-S-100
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 1,000
Works with Pipe (O.D.): 5-1/2 to 7
Uniform Working Load Limit (lb.): 1,000
Works with Pipe (O.D.): 5-1/2 to 7

PG-S-140
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 1,400
Works with Pipe (O.D.): 8-5/8 to 9
Uniform Working Load Limit (lb.): 1,400
Works with Pipe (O.D.): 8-5/8 to 9

PG-S-200
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 2,000
Works with Pipe (O.D.): 10-3/4 to 11
Uniform Working Load Limit (lb.): 2,000
Works with Pipe (O.D.): 10-3/4 to 11

Heavy-Duty Pipe Grabs PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


PG-C-045

PG-C-060

PG-C-100

PG-C-140

PG-C-200

PG-S-045

PG-S-060

PG-S-100

PG-S-140

PG-S-200

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Heavy-Duty Pipe Grabs




Designed for lifting pipe (cast iron or steel) with overhead lifting device. Automatic operation allows for easy use by anyone. Loads must be centered and guided during lifting operations. Heavy-duty steel construction with yellow powder coat finish.

  • Designed for lifting cast iron pipe with overhead lifting device
  • Automatic operation allows for easy use by anyone
  • Loads must be centered and guided during lifting operations
  • Heavy-duty steel construction for strength & durability


Model # Description Attributes Net Wt.
(lbs)
PG-C-045 PG-C-045Steel Heavy Duty Pipe Grab 27 In. x 8-3/8 In. x 18-3/4 In. 450 Lb. Capacity YellowUniform Working Load Limit (lb.): 450
Works with Pipe (O.D.): 3-1/2 to 4
21
PG-C-060 PG-C-060Steel Heavy Duty Pipe Grab 27 In. x 8-3/8 In. x 18-3/4 In. 600 Lb. Capacity YellowUniform Working Load Limit (lb.): 600
Works with Pipe (O.D.): 4-1/2 to 4-3/4
22
PG-C-100 PG-C-100Steel Heavy Duty Pipe Grab 37 In. x 13-1/4 In. x 24-5/8 In. 1000 Lb. Capacity YellowUniform Working Load Limit (lb.): 1,000
Works with Pipe (O.D.): 5-1/2 to 7
26
PG-C-140 PG-C-140Steel Heavy Duty Pipe Grab 41-1/8 In. x 18-11/16 In. x 29-3/4 In. 1400 Lb. Capacity YellowUniform Working Load Limit (lb.): 1,400
Works with Pipe (O.D.): 8-5/8 to 9
40
PG-C-200 PG-C-200Steel Heavy Duty Pipe Grab 53 In. x 23-5/8 In. x 36-3/16 In. 2000 Lb. Capacity YellowUniform Working Load Limit (lb.): 2,000
Works with Pipe (O.D.): 10-3/4 to 11
113
PG-S-045 PG-S-045Steel Heavy Duty Pipe Grab 27 In. x 8-3/8 In. x 18-3/4 In. 450 Lb. Capacity YellowUniform Working Load Limit (lb.): 450
Works with Pipe (O.D.): 3-1/2 to 4
22
PG-S-060 PG-S-060Steel Heavy Duty Pipe Grab 27 In. x 8-3/8 In. x 18-3/4 In. 600 Lb. Capacity YellowUniform Working Load Limit (lb.): 600
Works with Pipe (O.D.): 4-1/2 to 4-3/4
21
PG-S-100 PG-S-100Steel Heavy Duty Pipe Grab 37 In. x 13-1/4 In. x 24-5/8 In. 1000 Lb. Capacity YellowUniform Working Load Limit (lb.): 1,000
Works with Pipe (O.D.): 5-1/2 to 7
26
PG-S-140 PG-S-140Steel Heavy Duty Pipe Grab 41-1/8 In. x 18-11/16 In. x 29-3/4 In. 1400 Lb. Capacity YellowUniform Working Load Limit (lb.): 1,400
Works with Pipe (O.D.): 8-5/8 to 9
40
PG-S-200 PG-S-200Steel Heavy Duty Pipe Grab 53 In. x 23-5/8 In. x 36-3/16 In. 2000 Lb. Capacity YellowUniform Working Load Limit (lb.): 2,000
Works with Pipe (O.D.): 10-3/4 to 11
117
