Product Family Overview


Highway Guard Rail Systems
SERIES: GR-H2R

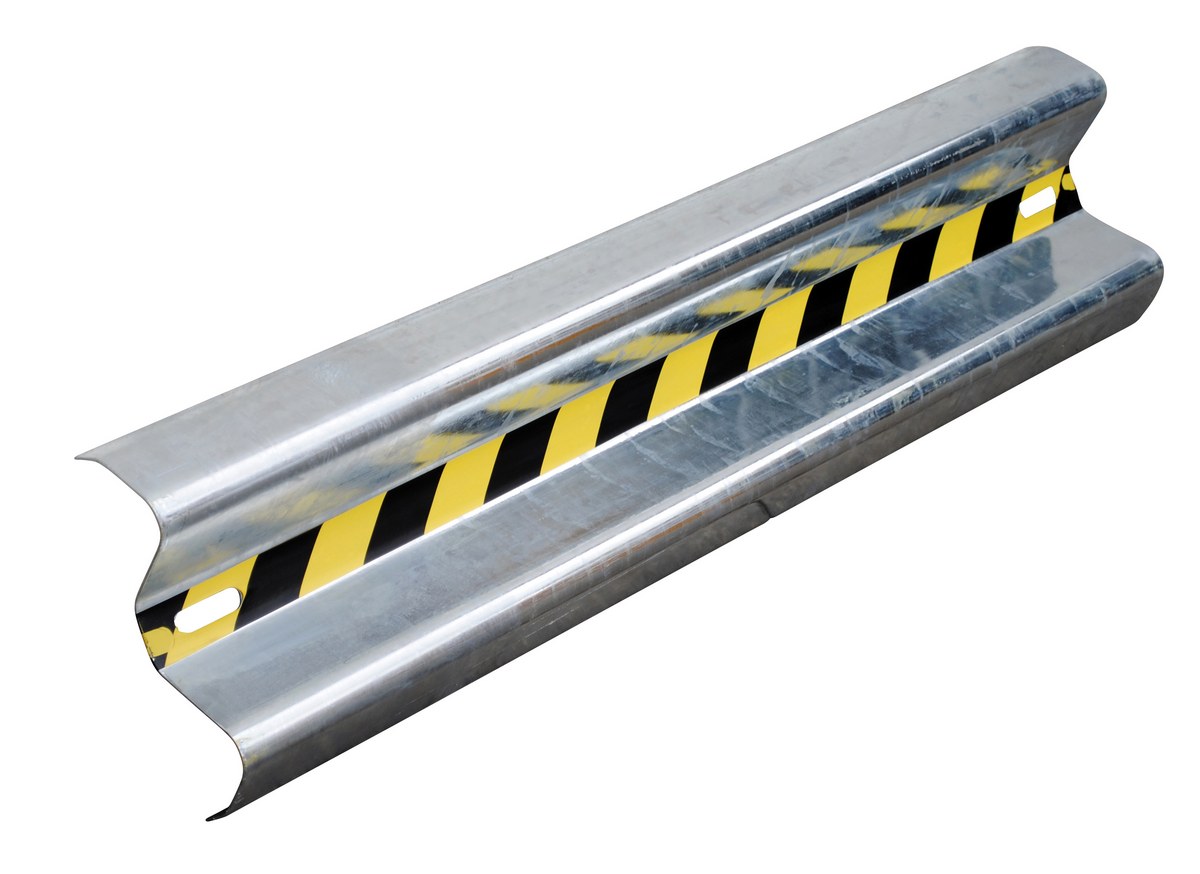

Protect personnel and equipment both visually and physically with our Guard Rail Systems. These economical systems can be utilized indoors or outdoors. Ideal for protecting corners of buildings and machinery from fork truck and vehicle damage. Choose between one, two, or three high rail systems. Tubular posts are machined for continuous or perpendicular rail mounting. GR series has rail slotted mounting holes 3/4" x 2-1/2" provided. Rail mounting hardware is included with posts. Floor mounting hardware is sold separately. Deduct 5" when overlapping on a shared post. Units are rated for 4,000 lbs. at 4 mph.

Model # Guide
Guard Rail old Model # to new Model # Conversion Guide

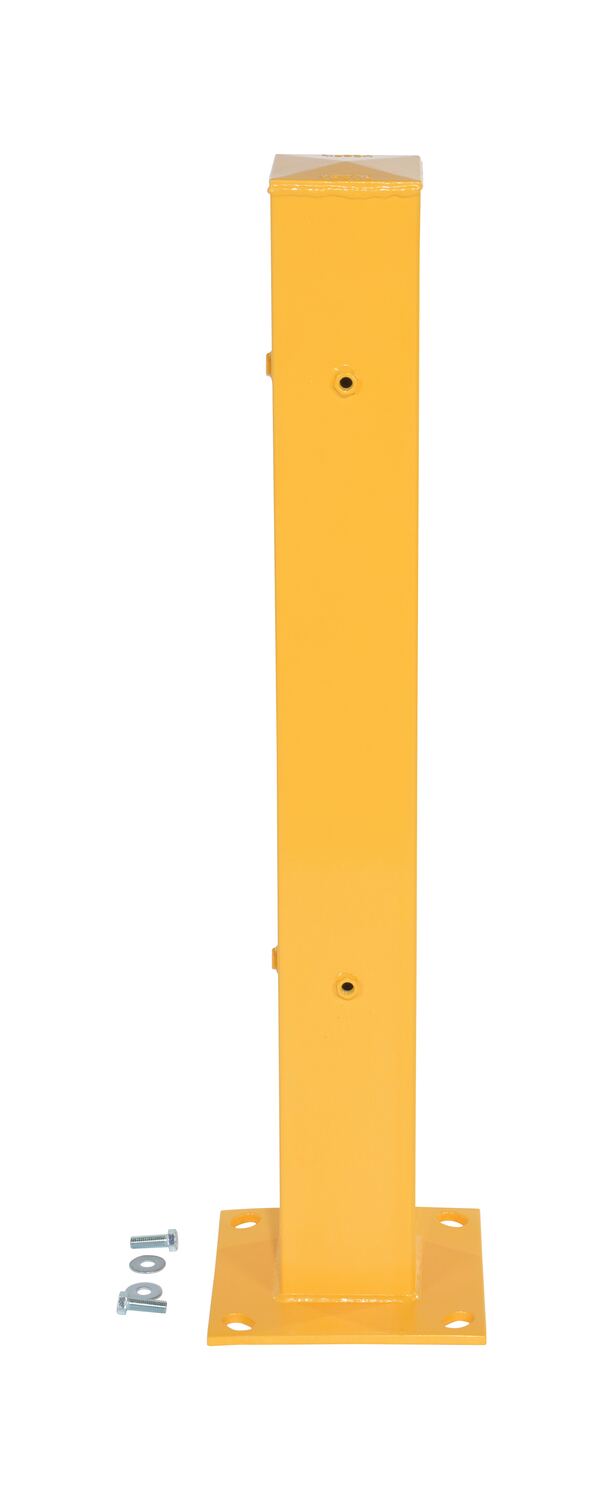

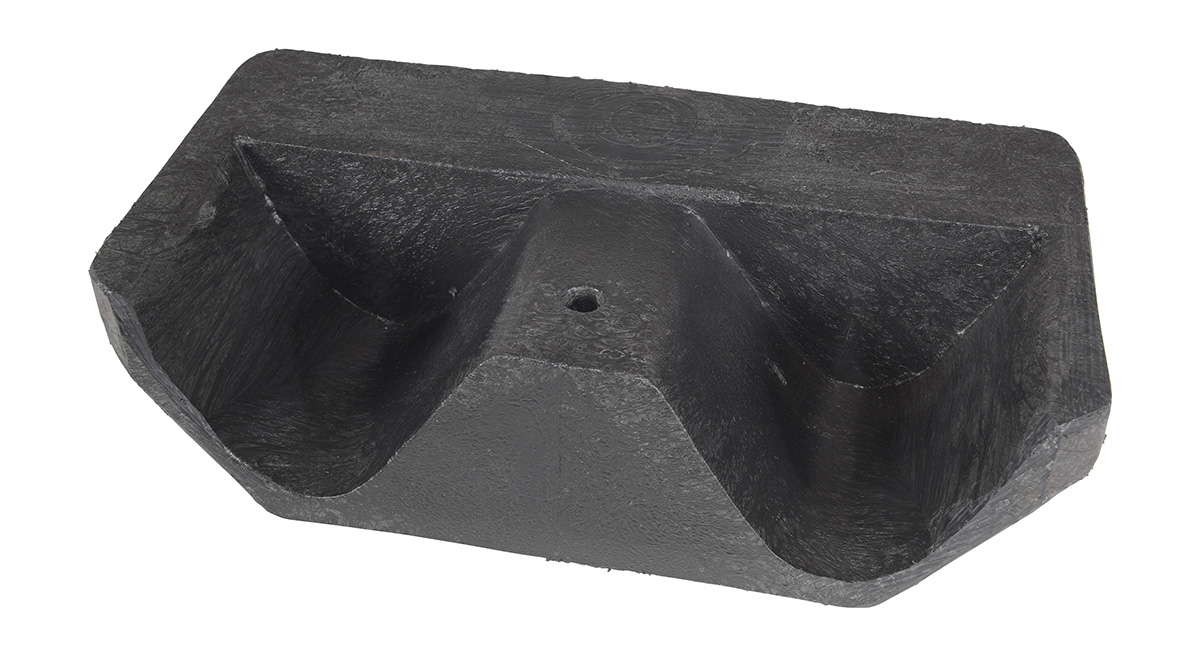

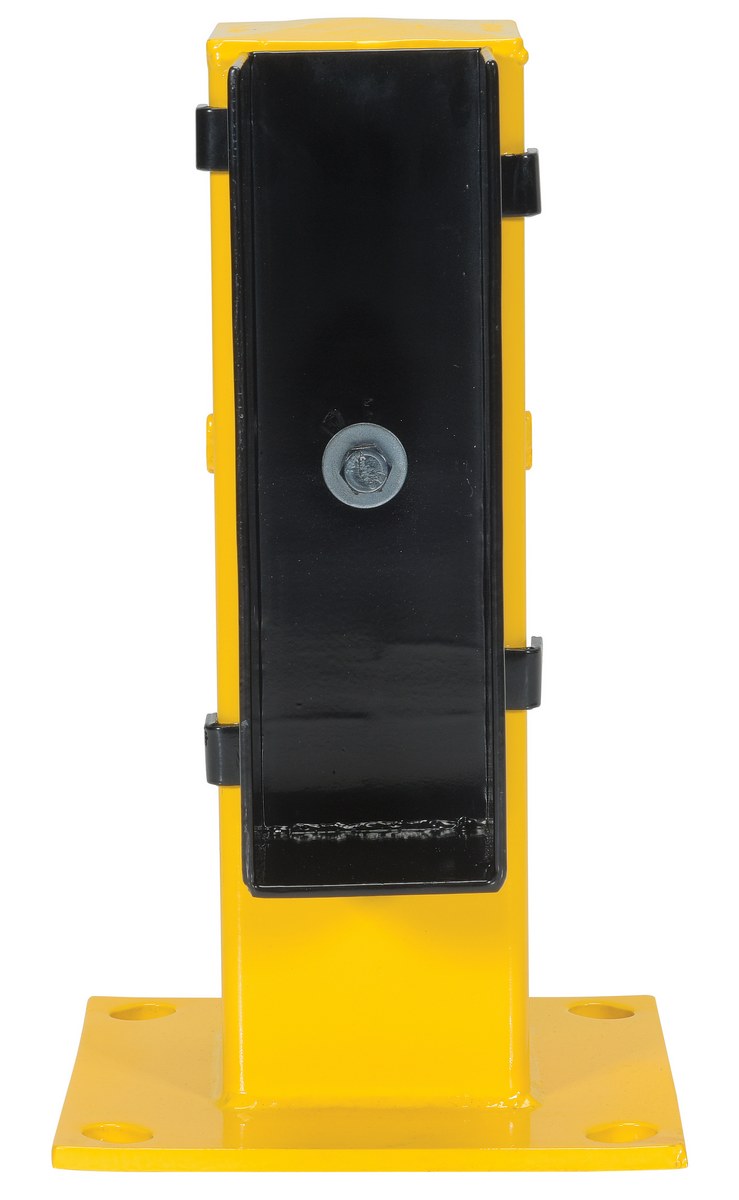

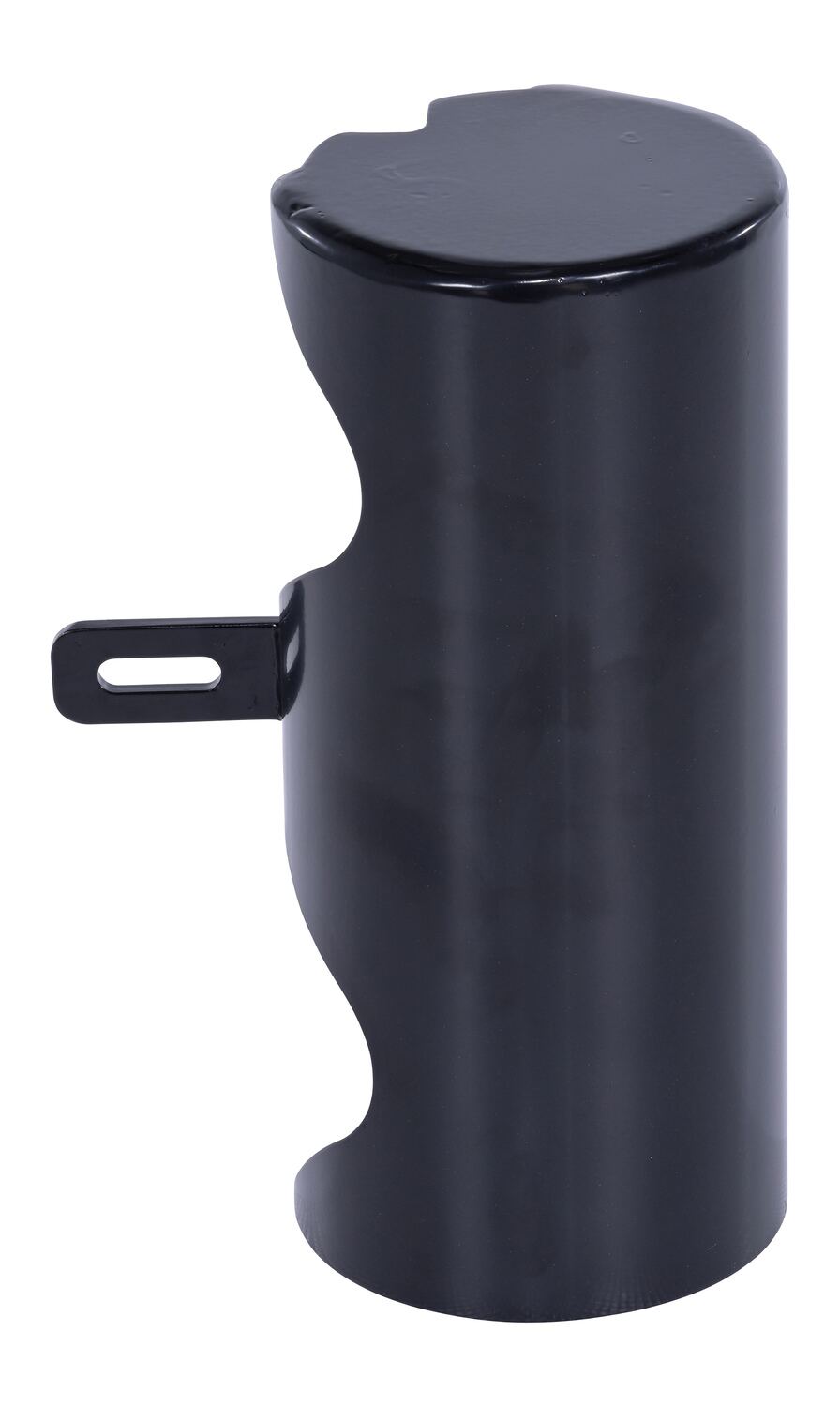

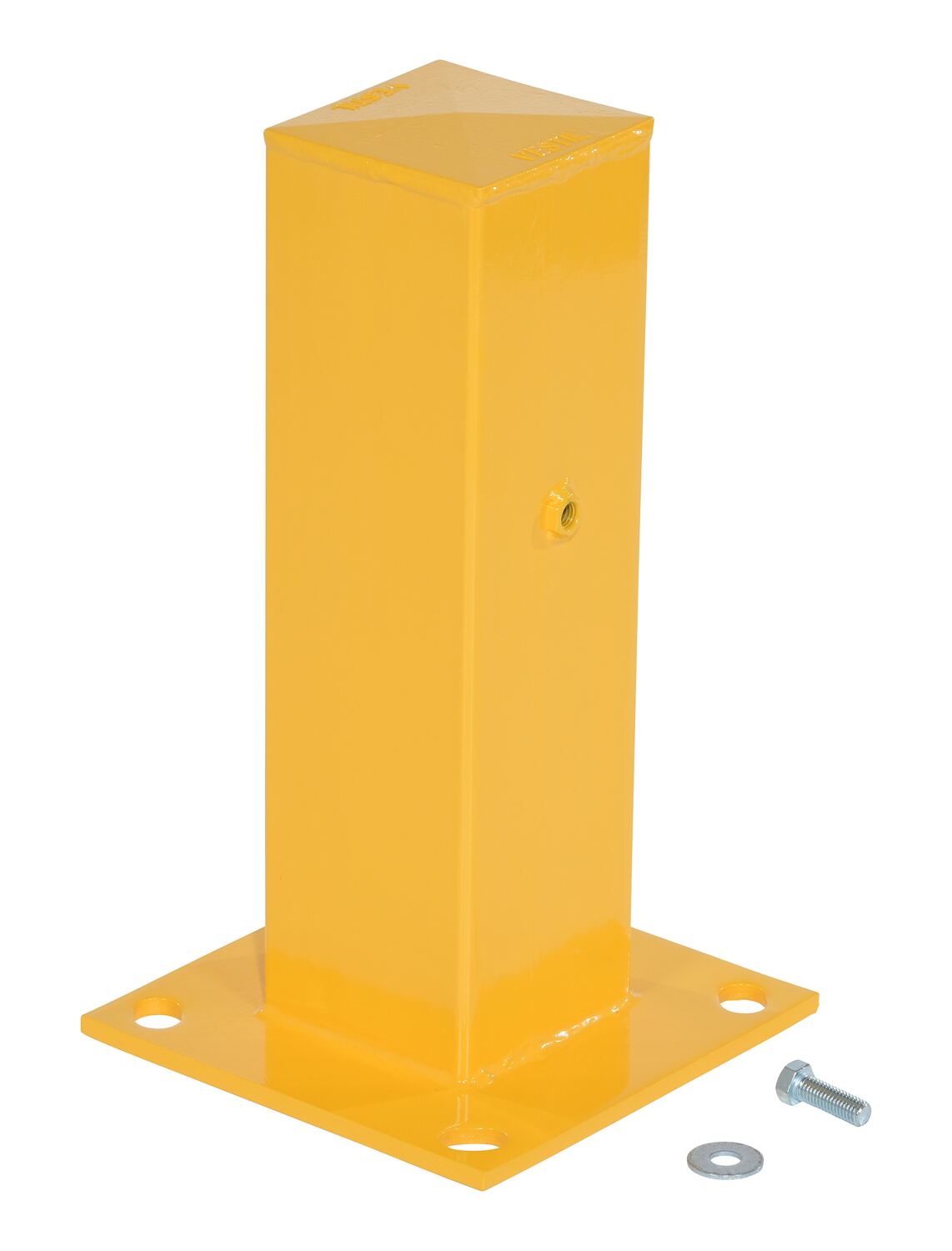

Posts, End Caps, Brackets & Floor Mounting Hardware Can Be Found Below Under Options

Protect personnel and equipment both visually and physically with our Guard Rail Systems. These economical systems can be utilized indoors or outdoors. Ideal for protecting corners of buildings and machinery from fork truck and vehicle damage. Choose between one, two, or three high rail systems. Tubular posts are machined for continuous or perpendicular rail mounting. GR series has rail slotted mounting holes 3/4" x 2-1/2" provided. Rail mounting hardware is included with posts. Floor mounting hardware is sold separately. Deduct 5" when overlapping on a shared post. Units are rated for 4,000 lbs. at 4 mph.

Model # Guide
Guard Rail old Model # to new Model # Conversion Guide

Posts, End Caps, Brackets & Floor Mounting Hardware Can Be Found Below Under Options

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

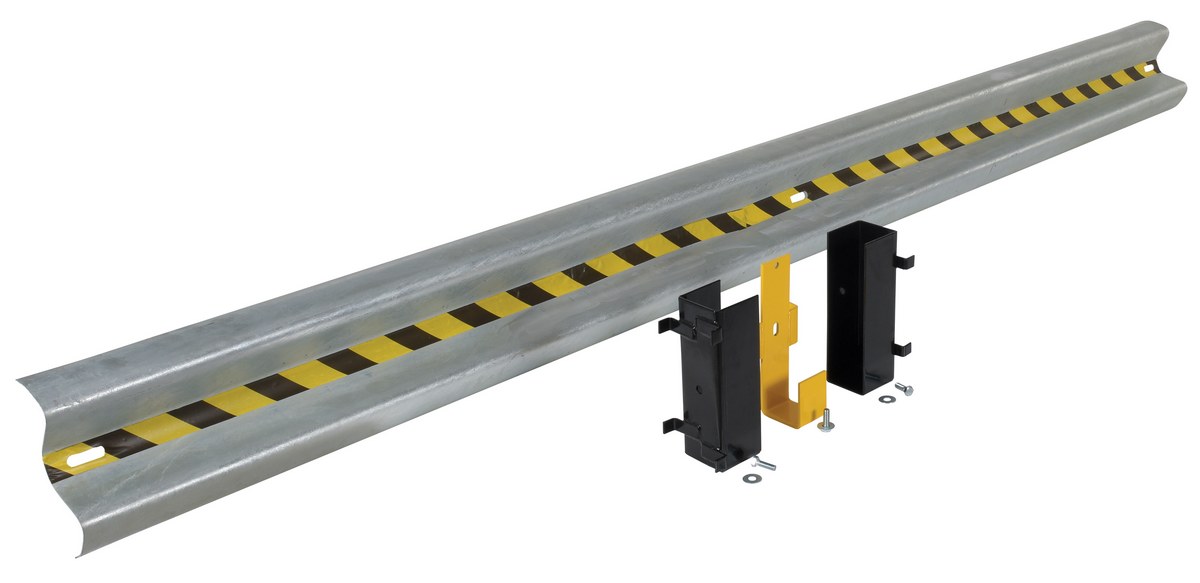

GR-H2R-BO-10-HDG GR-H2R-BO-10-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 120 In. Length GrayMounting Posts Required (qty.): 3
Rail Style: Straight
104
GR-H2R-BO-10-YL GR-H2R-BO-10-YL90 Days Limited WarrantySteel Straight Guard Rail 120 In. Length YellowMounting Posts Required (qty.): 3
Rail Style: Straight
104
GR-H2R-BO-11-HDG GR-H2R-BO-11-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 132 In. Length GrayMounting Posts Required (qty.): 3
Rail Style: Straight
112
GR-H2R-BO-11-YL GR-H2R-BO-11-YL90 Days Limited WarrantySteel Straight Guard Rail 132 In. Length YellowMounting Posts Required (qty.): 3
Rail Style Curved (degrees): 90
112
GR-H2R-BO-12-HDG GR-H2R-BO-12-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 144 In. Length GrayMounting Posts Required (qty.): 3
Rail Style: Straight
120
GR-H2R-BO-12-YL GR-H2R-BO-12-YL90 Days Limited WarrantySteel Straight Guard Rail 144 In. Length YellowMounting Posts Required (qty.): 3
Rail Style: Straight
120
GR-H2R-BO-3-HDG GR-H2R-BO-3-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 36 In Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight
20
GR-H2R-BO-3-YL GR-H2R-BO-3-YL90 Days Limited WarrantySteel Straight Guard Rail 36 In Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight
20
GR-H2R-BO-4-HDG GR-H2R-BO-4-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 48 In. Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight
30
GR-H2R-BO-4-YL GR-H2R-BO-4-YL90 Days Limited WarrantySteel Straight Guard Rail 48 In. Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight
30
GR-H2R-BO-5-HDG GR-H2R-BO-5-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 60 In. Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight
41
GR-H2R-BO-5-YL GR-H2R-BO-5-YL90 Days Limited WarrantySteel Straight Guard Rail 60 In. Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight
41
GR-H2R-BO-6-HDG GR-H2R-BO-6-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 72 In. Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight
48
GR-H2R-BO-6-YL GR-H2R-BO-6-YL90 Days Limited WarrantySteel Straight Guard Rail 72 In. Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight
48
GR-H2R-BO-7-HDG GR-H2R-BO-7-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 84 In. Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight
76
GR-H2R-BO-7-YL GR-H2R-BO-7-YL90 Days Limited WarrantySteel Straight Guard Rail 84 In. Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight
76
GR-H2R-BO-8-HDG GR-H2R-BO-8-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 96 In. Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight
78
GR-H2R-BO-8-YL GR-H2R-BO-8-YL90 Days Limited WarrantySteel Straight Guard Rail 96 In. Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight
78
GR-H2R-BO-9-HDG GR-H2R-BO-9-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 108 In. Length GrayMounting Posts Required (qty.): 3
Rail Style: Straight
86
GR-H2R-BO-9-YL GR-H2R-BO-9-YL90 Days Limited WarrantySteel Straight Guard Rail 108 In. Length YellowMounting Posts Required (qty.): 3
Rail Style: Straight
86
GR-H2R-CRV-BO-10-HDG GR-H2R-CRV-BO-10-HDG90 Days Limited WarrantyGalvanized Steel Curved Guard Rail 120 In. Length GrayMounting Posts Required (qty.): 3
Rail Style Curved (degrees): 90
85
GR-H2R-CRV-BO-12-HDG GR-H2R-CRV-BO-12-HDG90 Days Limited WarrantyGalvanized Steel Curved Guard Rail 144 In. Length GrayMounting Posts Required (qty.): 3
Rail Style Curved (degrees): 90
122
GR-H2R-CRV-BO-4-HDG GR-H2R-CRV-BO-4-HDG90 Days Limited WarrantyGalvanized Steel Curved Guard Rail 48 In. Length GrayMounting Posts Required (qty.): 2
Rail Style Curved (degrees): 90
32
GR-H2R-CRV-BO-6-HDG GR-H2R-CRV-BO-6-HDG90 Days Limited WarrantyGalvanized Steel Curved Guard Rail 72 In. Length GrayMounting Posts Required (qty.): 2
Rail Style Curved (degrees): 90
55
GR-H2R-CRV-BO-8-HDG GR-H2R-CRV-BO-8-HDG90 Days Limited WarrantyGalvanized Steel Curved Guard Rail 96 In. Length GrayMounting Posts Required (qty.): 2
Rail Style Curved (degrees): 90
69
GR-H2R-DI-10-HDG GR-H2R-DI-10-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 120 In. Length GrayMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
123
GR-H2R-DI-10-YL GR-H2R-DI-10-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 120 In. Length YellowMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
123
GR-H2R-DI-11-HDG GR-H2R-DI-11-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 132 In. Length GrayMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
137
GR-H2R-DI-11-YL GR-H2R-DI-11-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 132 In. Length YellowMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
137
GR-H2R-DI-12-HDG GR-H2R-DI-12-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 144 In. Length GrayMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
131
GR-H2R-DI-12-YL GR-H2R-DI-12-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 144 In. Length YellowMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
131
GR-H2R-DI-3-HDG GR-H2R-DI-3-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 36 In Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
49
GR-H2R-DI-3-YL GR-H2R-DI-3-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 36 In Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
49
GR-H2R-DI-4-HDG GR-H2R-DI-4-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 48 In. Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
54
GR-H2R-DI-4-YL GR-H2R-DI-4-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 48 In. Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
54
GR-H2R-DI-5-HDG GR-H2R-DI-5-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 60 In. Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
70
GR-H2R-DI-5-YL GR-H2R-DI-5-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 60 In. Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
70
GR-H2R-DI-6-HDG GR-H2R-DI-6-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 72 In. Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
72
GR-H2R-DI-6-YL GR-H2R-DI-6-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 72 In. Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
72
GR-H2R-DI-7-HDG GR-H2R-DI-7-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 84 In. Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
91
GR-H2R-DI-7-YL GR-H2R-DI-7-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 84 In. Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
91
GR-H2R-DI-8-HDG GR-H2R-DI-8-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 96 In. Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
90
GR-H2R-DI-8-YL GR-H2R-DI-8-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 96 In. Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
90
GR-H2R-DI-9-HDG GR-H2R-DI-9-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 108 In. Length GrayMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
116
GR-H2R-DI-9-YL GR-H2R-DI-9-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 108 In. Length YellowMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
116

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
