Fold Down Bollards

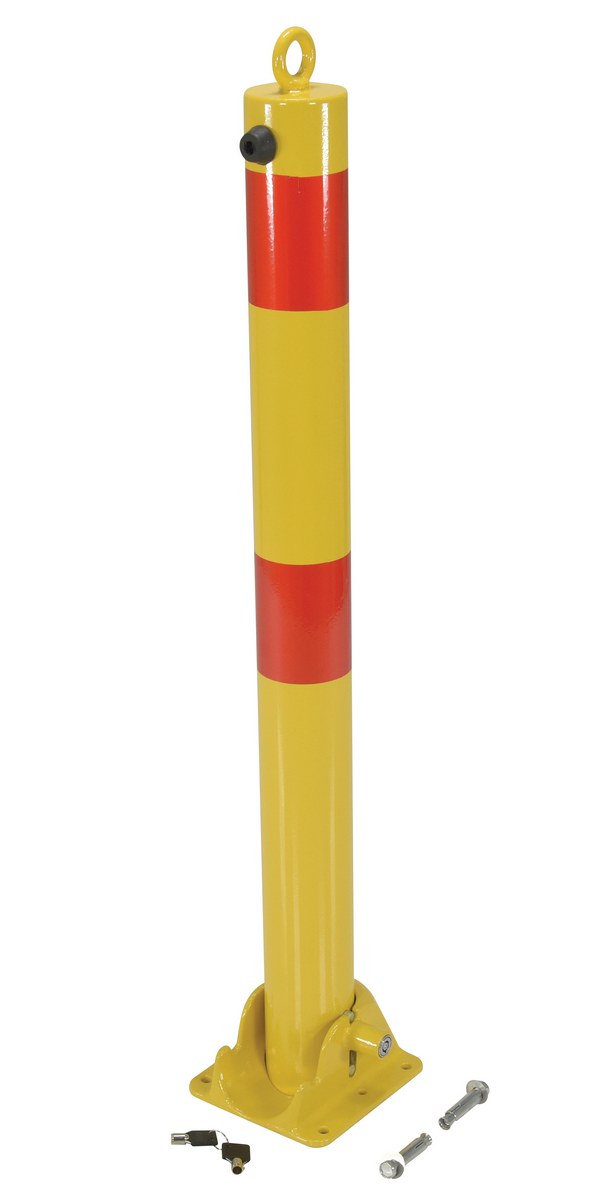

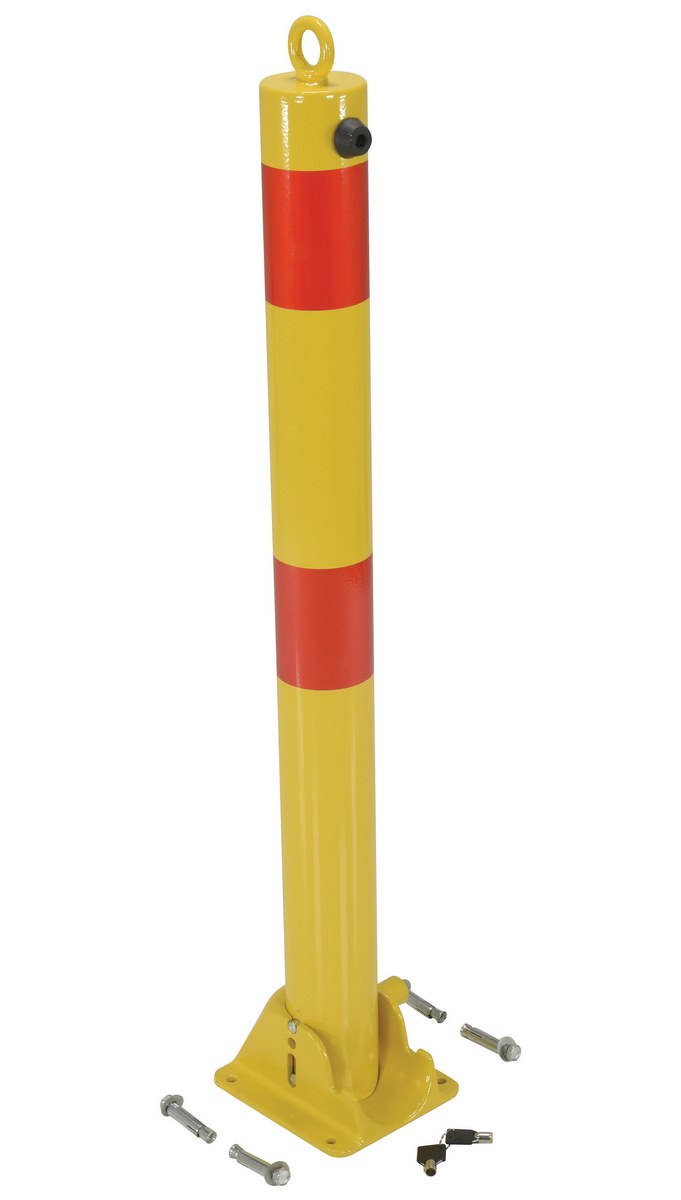

model: PARK-P-76-FD

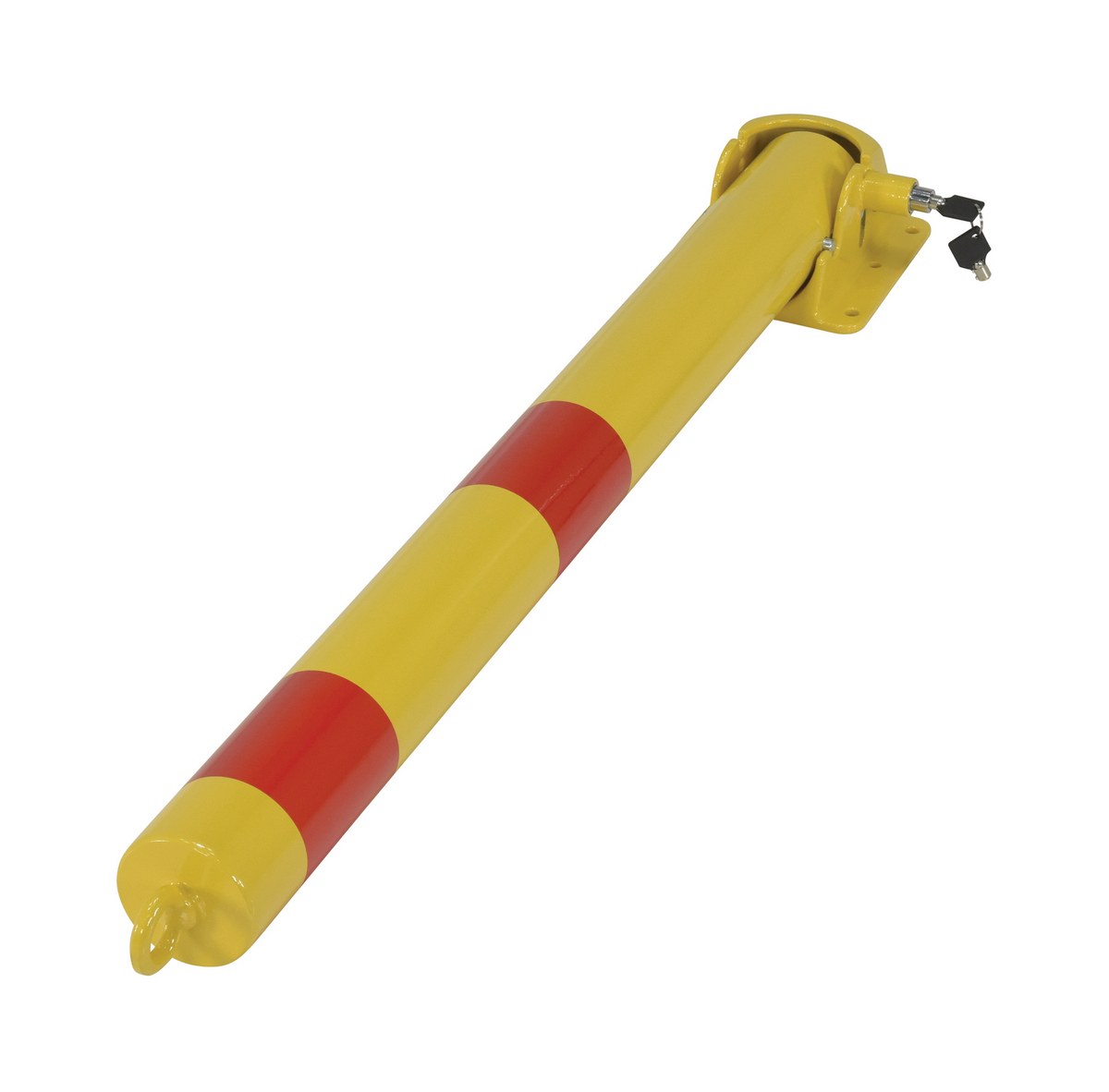

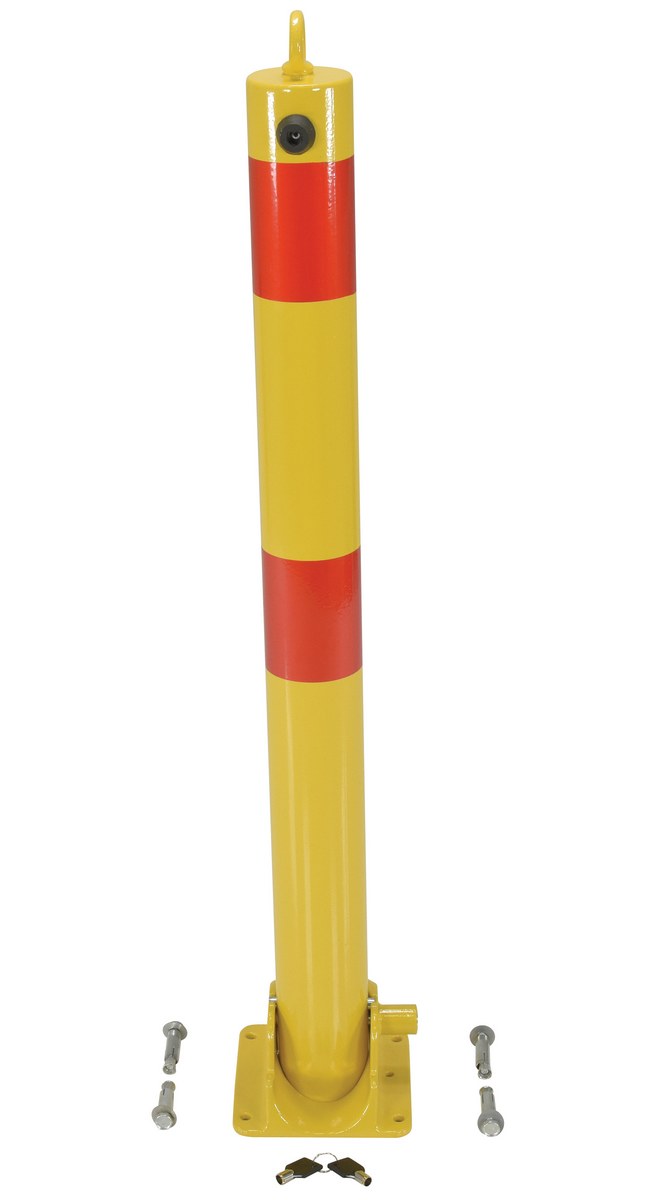

PARK-P-76-FD_A.jpg PARK-P-76-FD_B.jpg PARK-P-76-FD_E.jpg PARK-P-76-FD_D.jpg PARK-P-76-FD_C.jpg PARK-P-76-FD_F.jpg PARK-P-76-FD_G.jpg PARK-P-76-FD_H.jpg More Images +
Fold Down Bollards
SERIES: PARK-P-FD

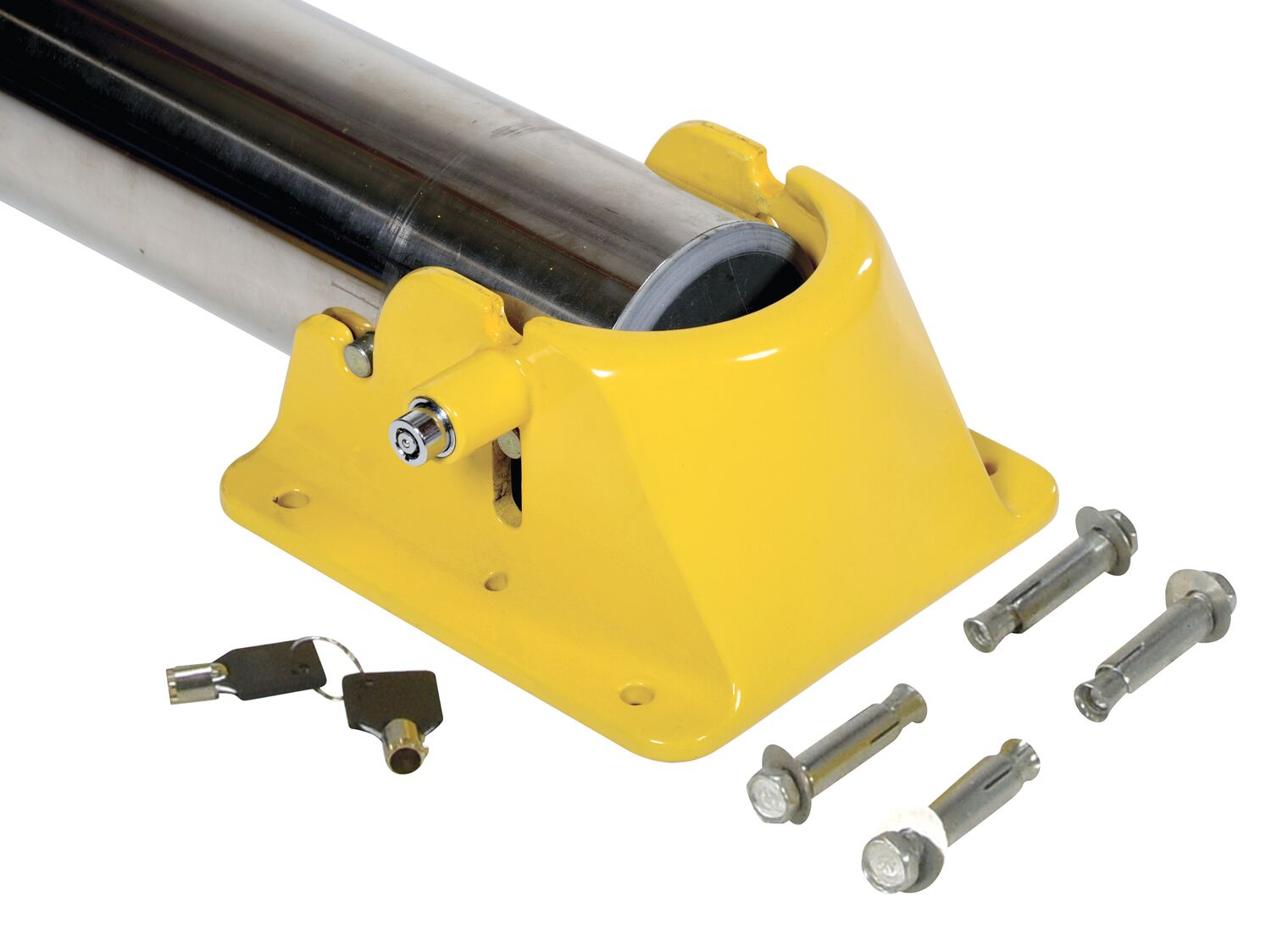

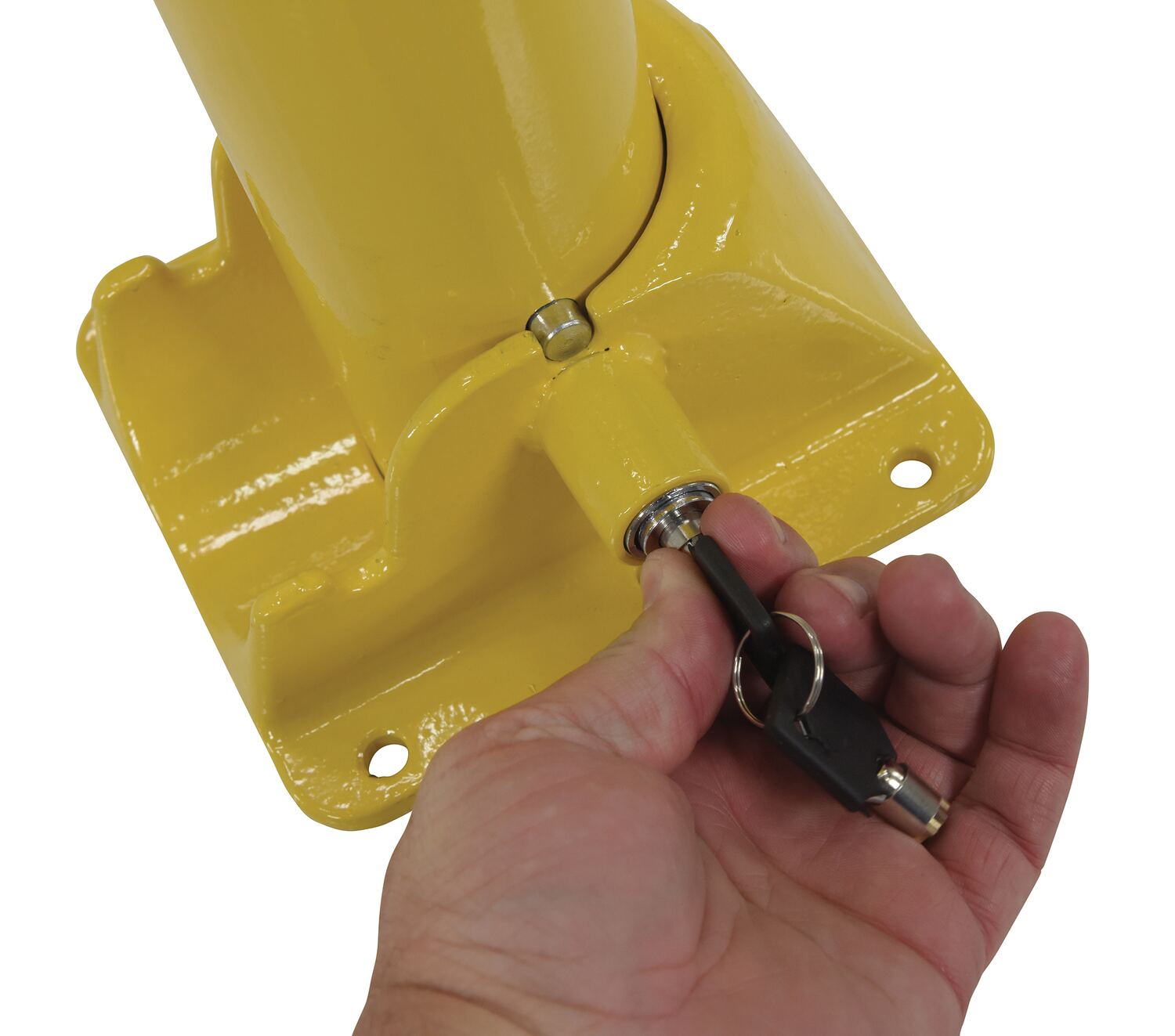

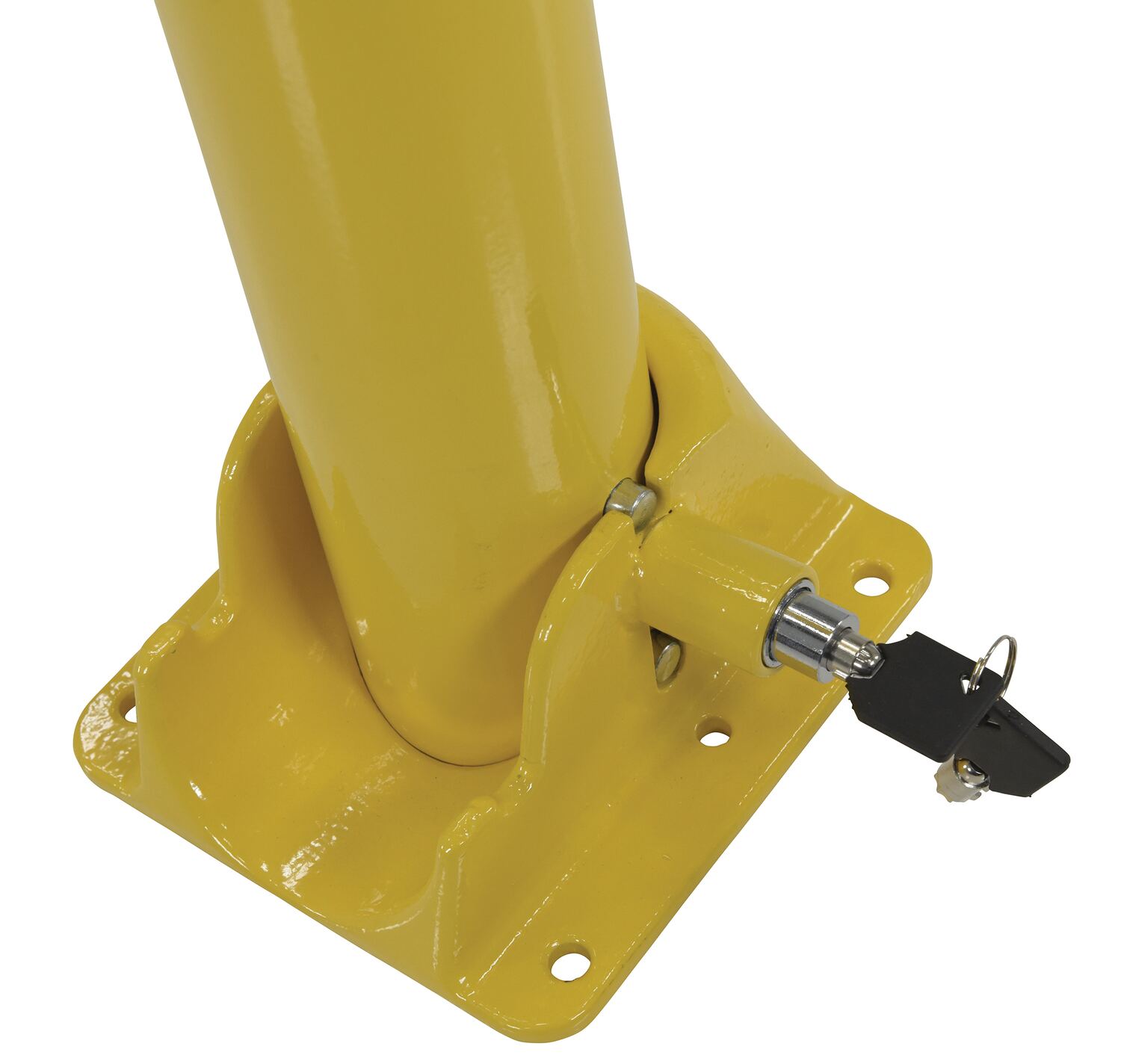

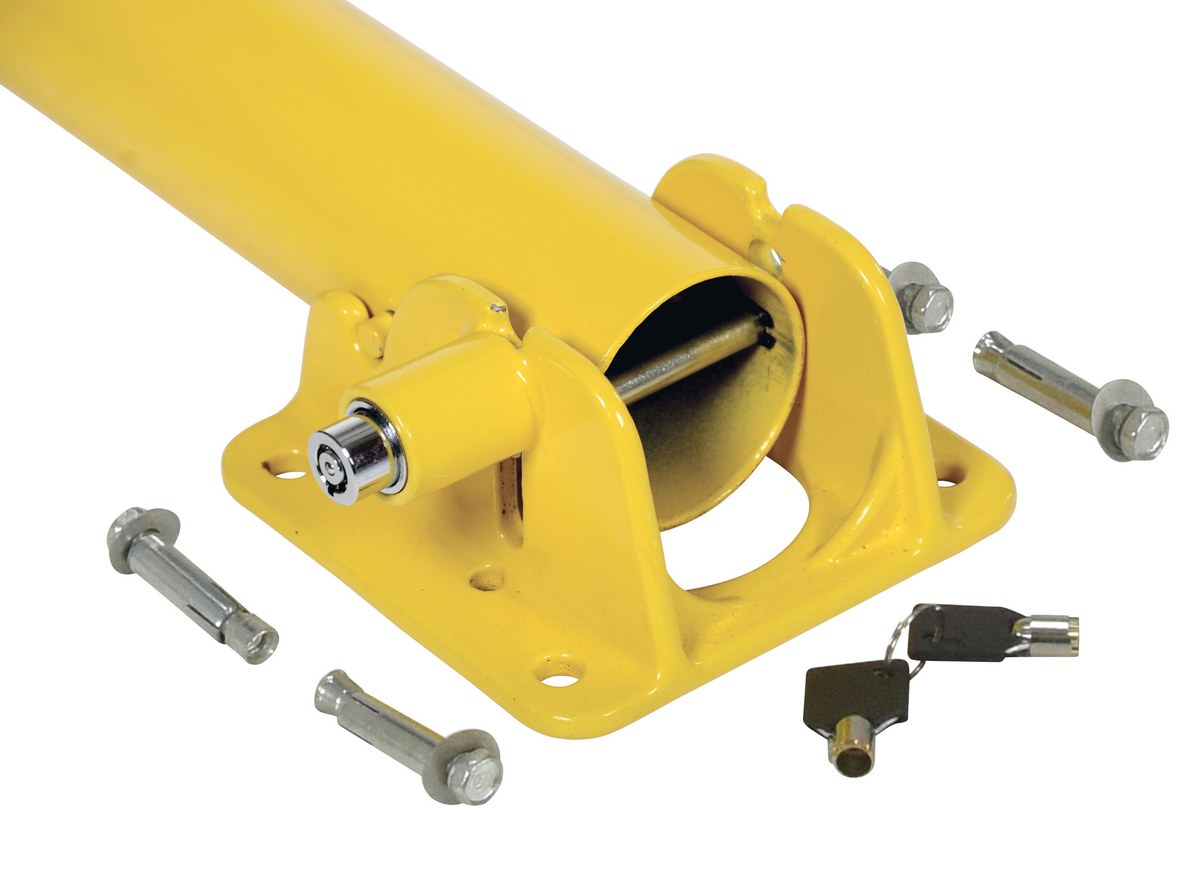

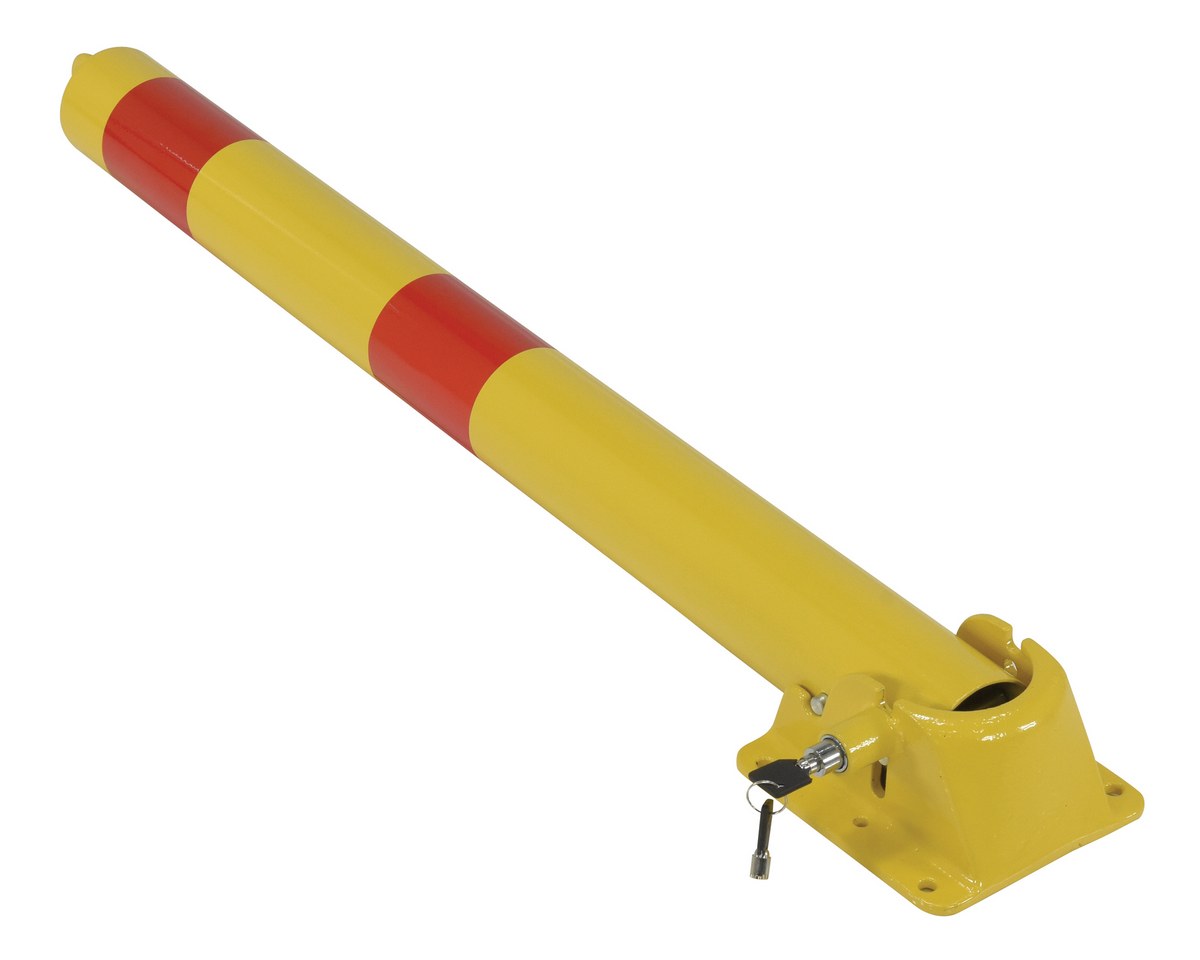

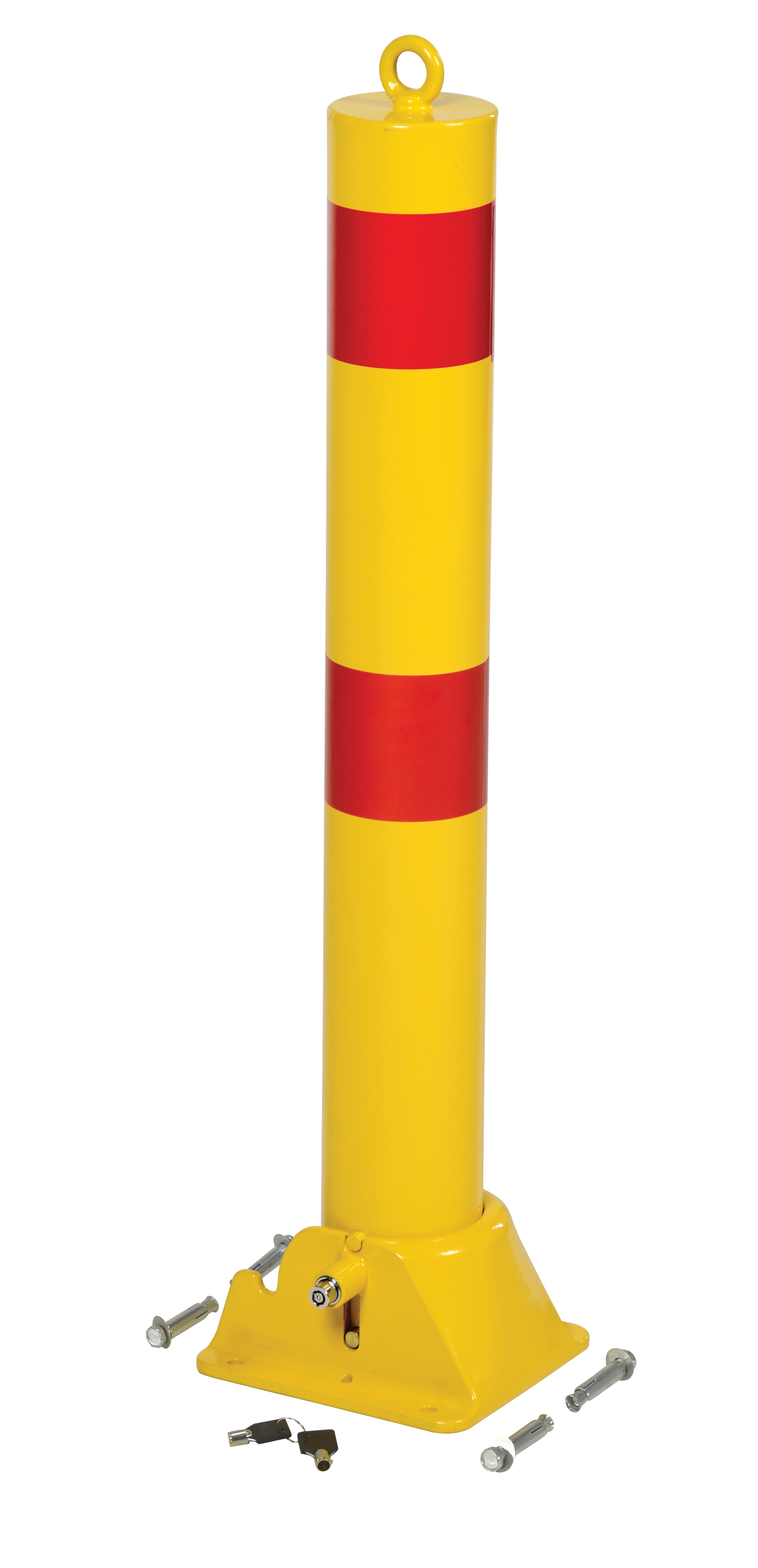

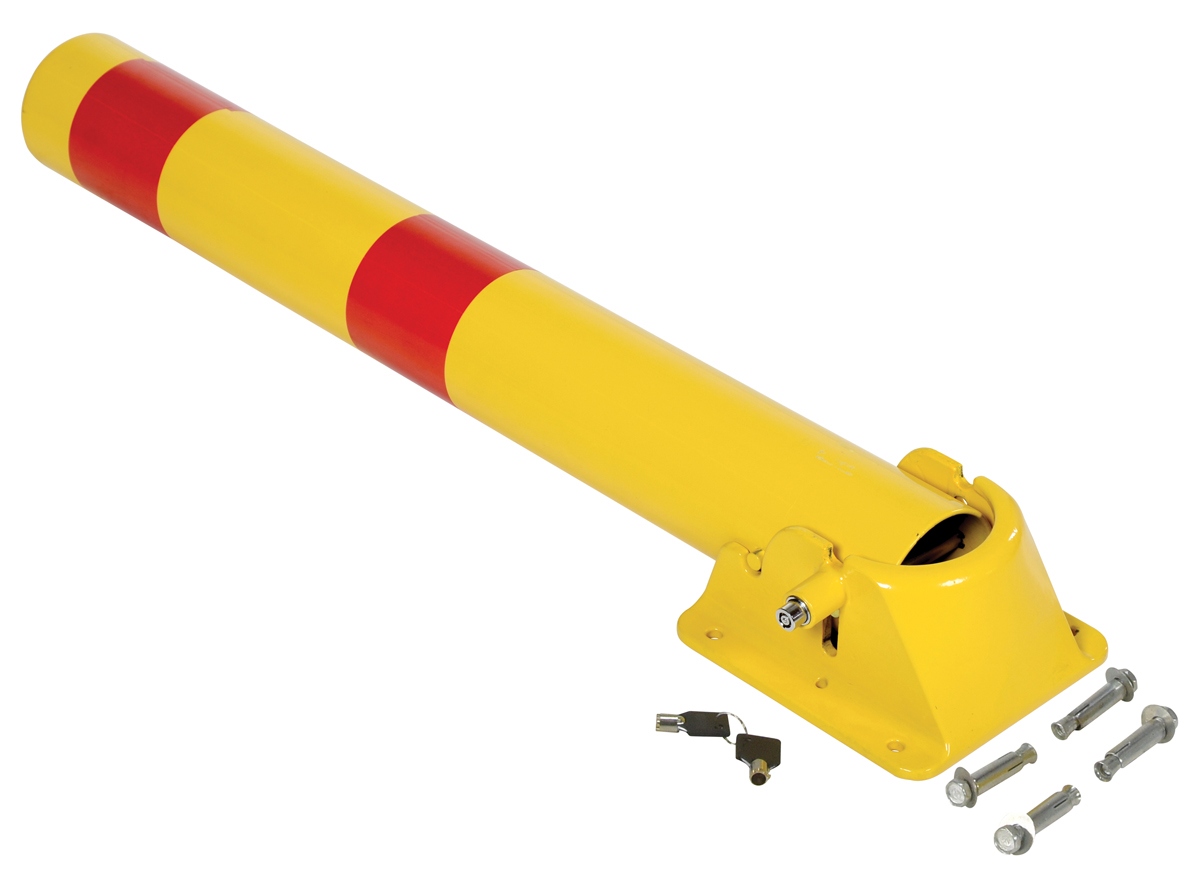

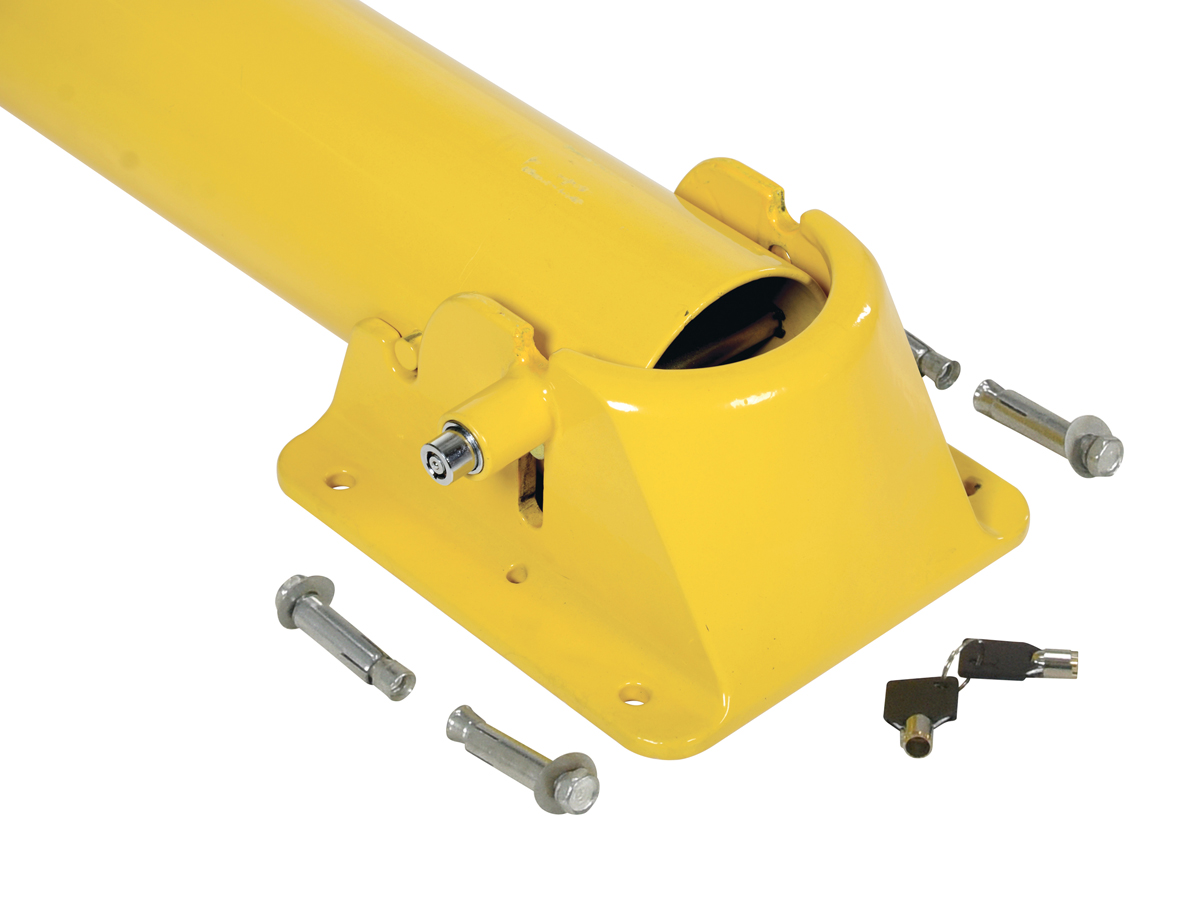

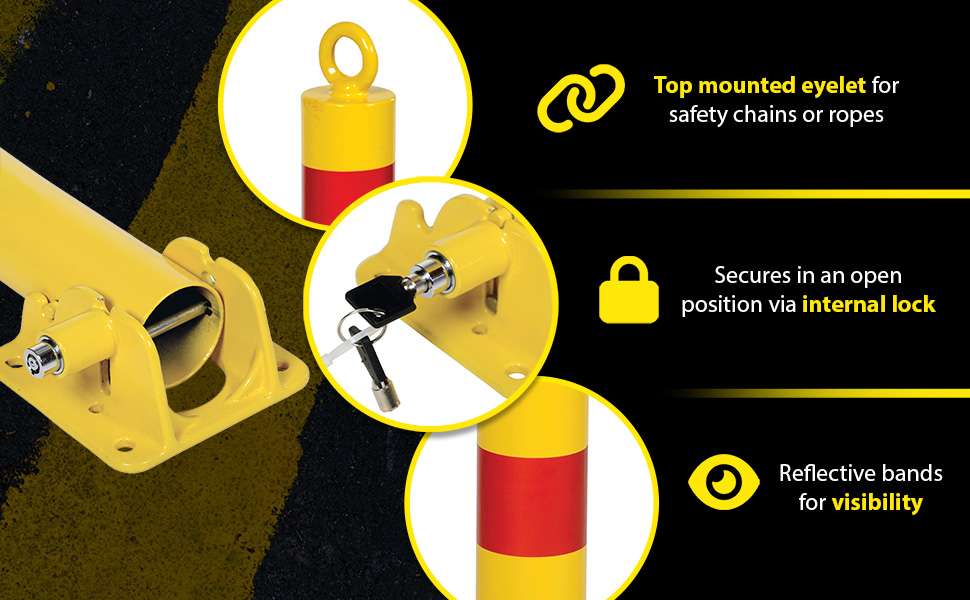

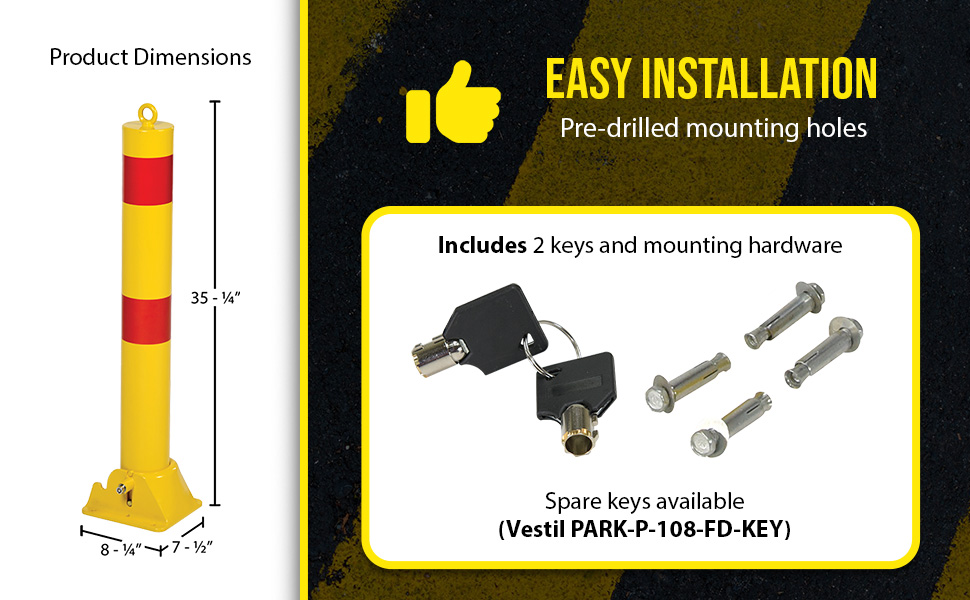

Ideal for vehicle access control. These heavy duty bollards feature integrated locking and an easy to operate cam-lock. Unit secures in open position via internal lock. Two (2) keys included. Four (4) 3/8" x 3" concrete anchors included for securing bollard to concrete.

Two (2) wrap around reflectors adhere to the baked-in powder-coated toughness or stainless steel finish. The anti-tamper design and cast steel covering foot is made in a mold, therefore there are no welds. Can be used in conjunction with our Fixed Height Bollards.

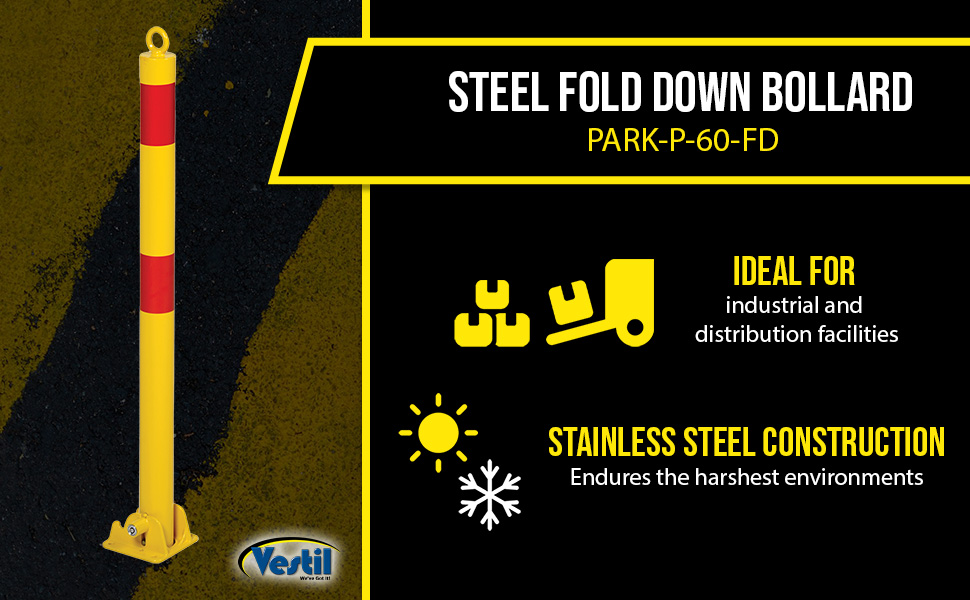

  • Fold-down bollards are ideal for industrial and distribution facilities
  • Features durable construction for lasting through the harshest environments

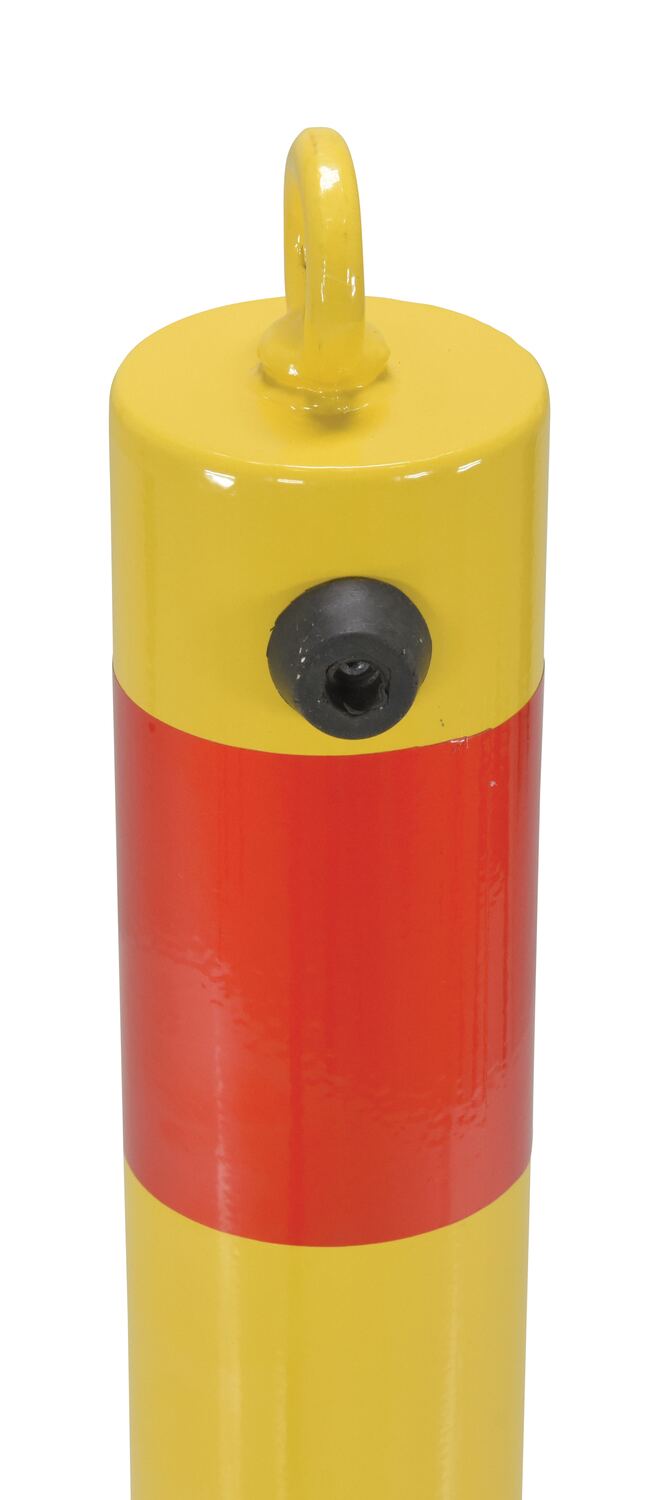

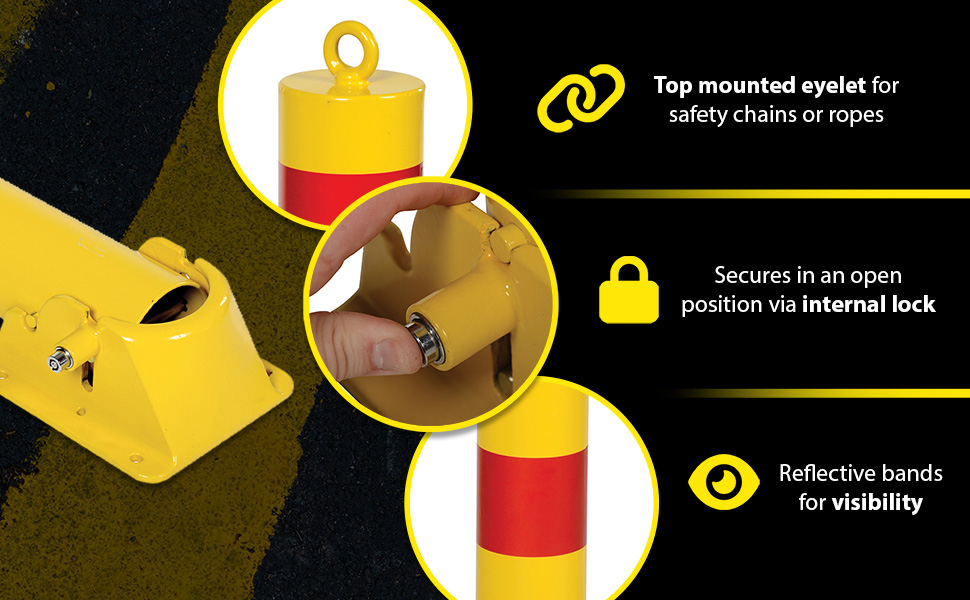

  • Includes a top mounted eyelet for safety chains or ropes for maximum efficiency
  • Unit is lockable for extra protection and maximum efficiency
Fold Down Bollards

model: PARK-P-76-FD

Model # Description Attributes Net Wt.
(lbs)

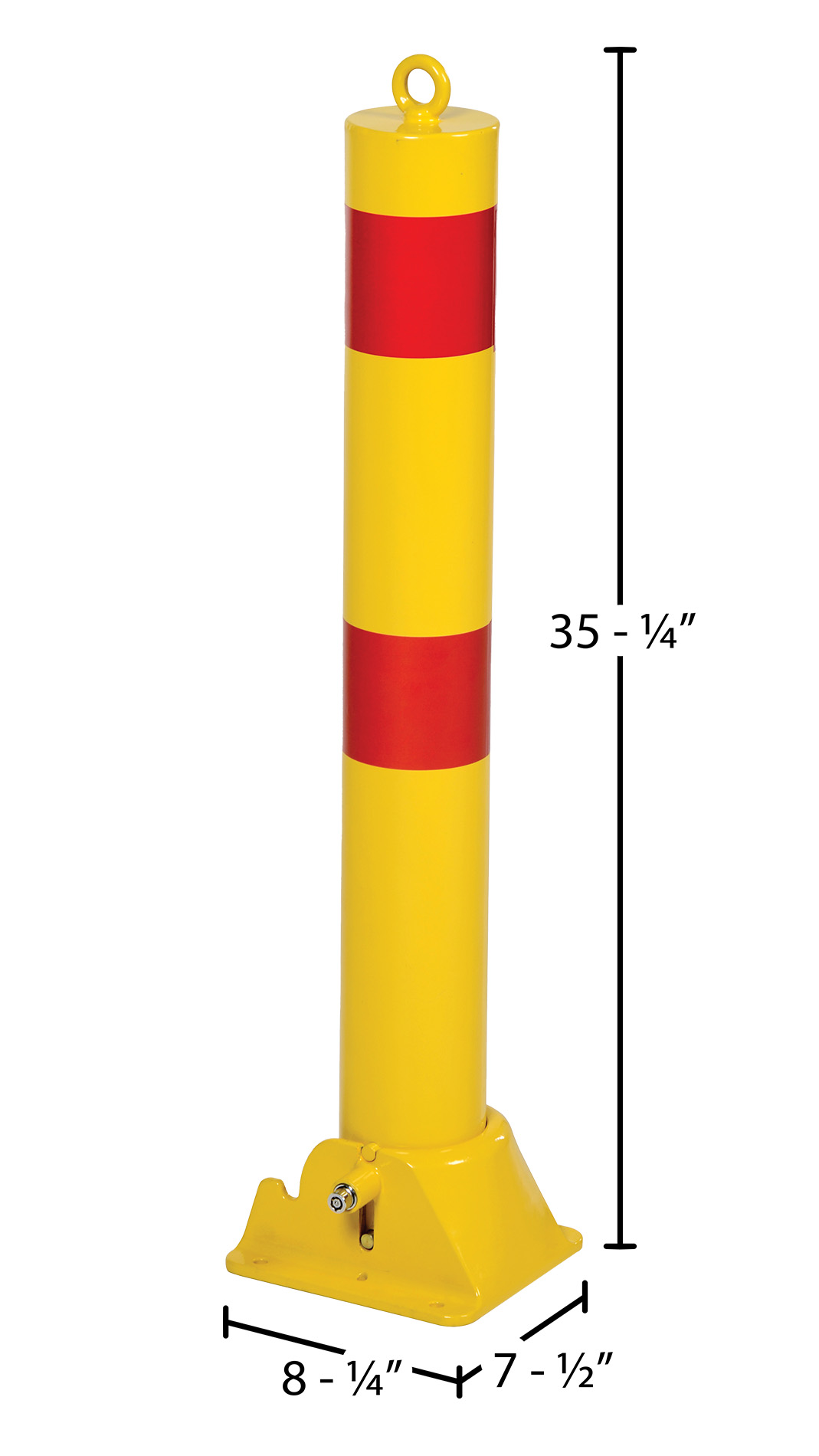

PARK-P-108-FD PARK-P-108-FD90 Days Limited WarrantySteel Fold Down Bollard 8-1/4 In. x 7-1/2 In. x 35-1/2 In. YellowFold Down Height (in.): 5
Bollard Diameter (in.): 4-1/4		25

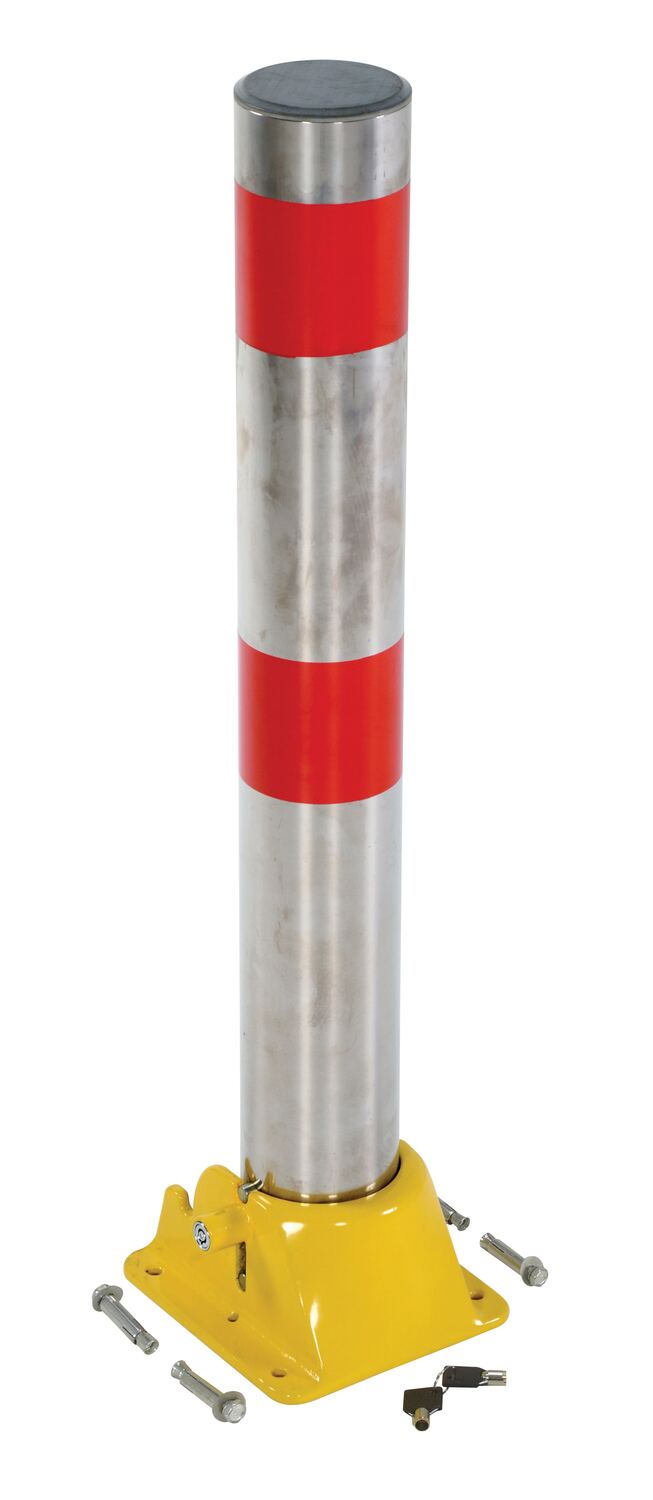

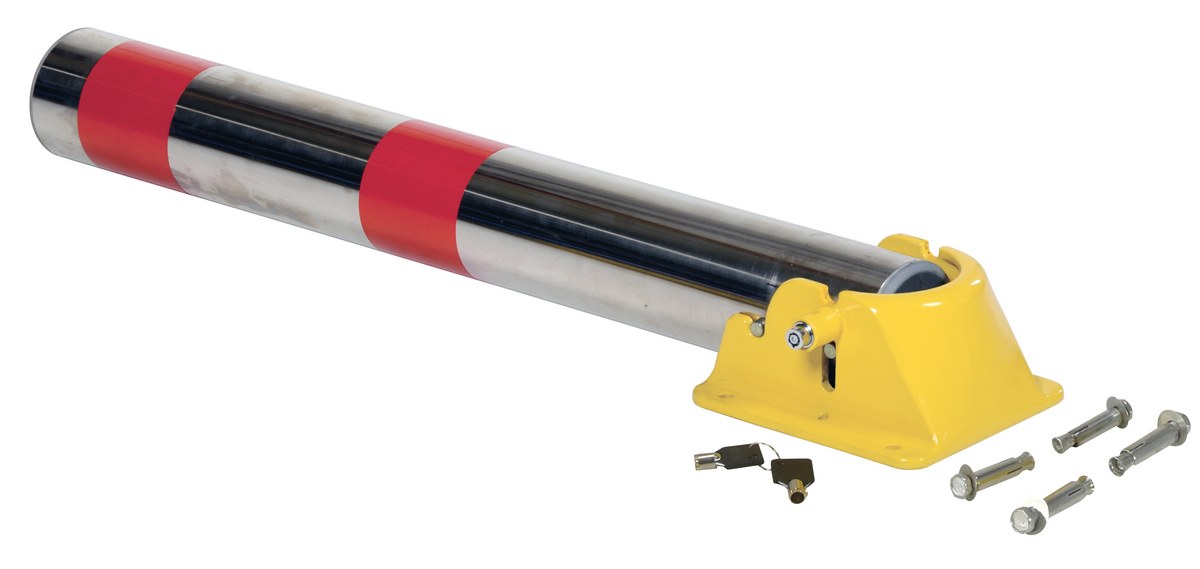

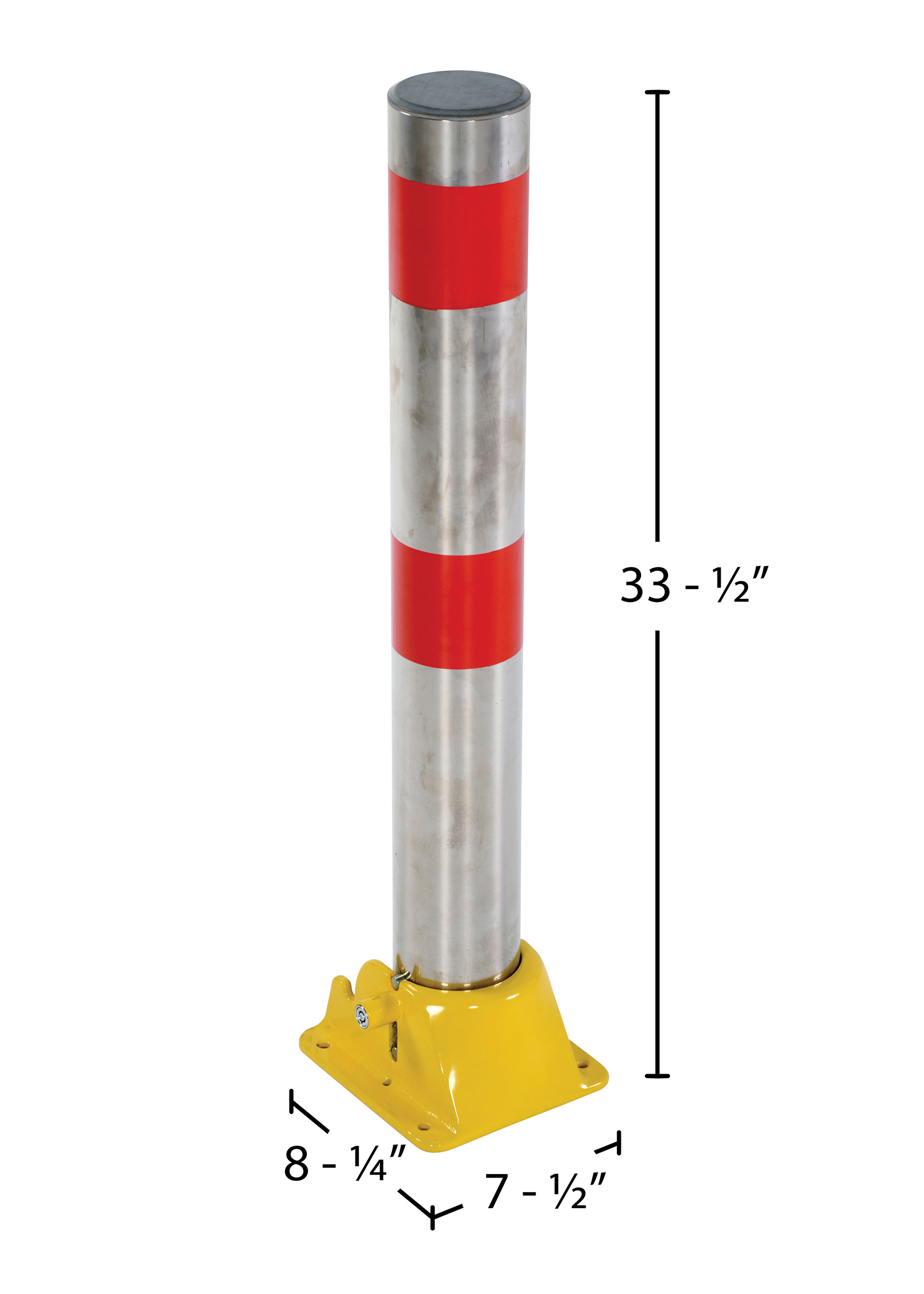

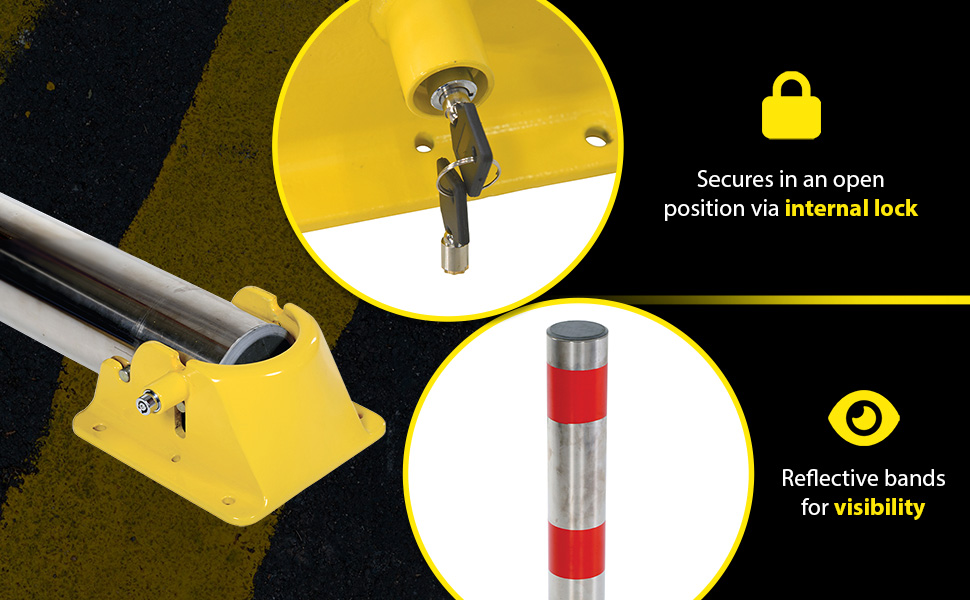

PARK-P-108-FD-SS PARK-P-108-FD-SS90 Days Limited WarrantyStainless Steel Fold Down Bollard 8-1/4 In. x 7-1/2 In. x 33-1/2 In. SilverFold Down Height (in.): 5
Bollard Diameter (in.): 4-1/4		20

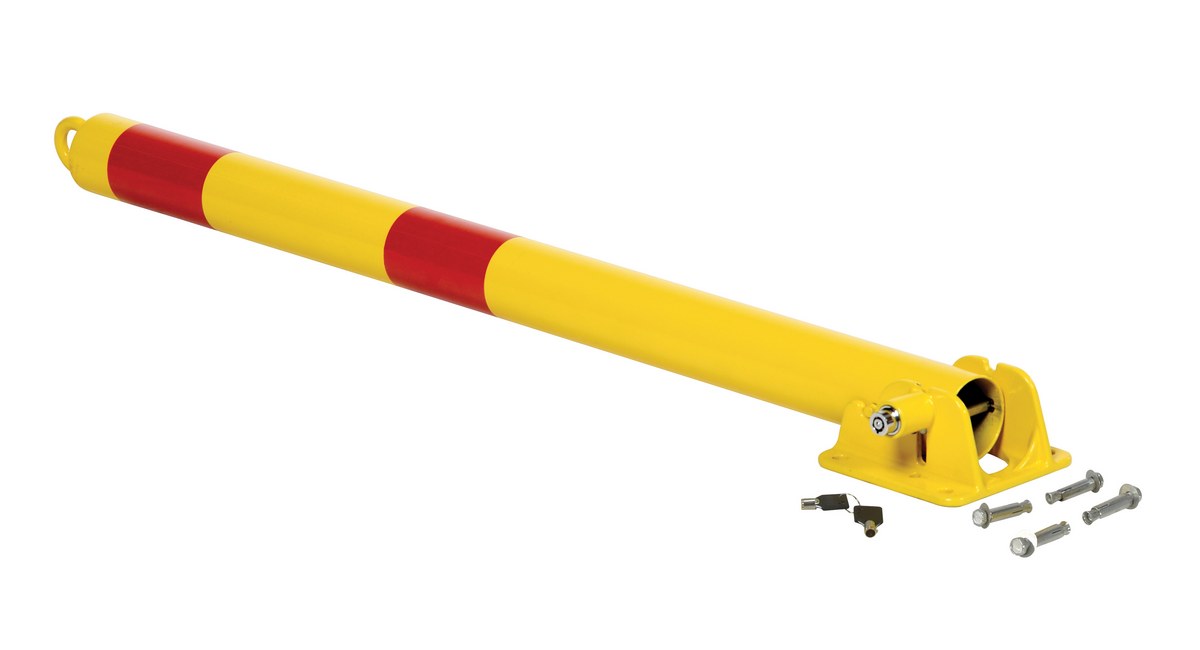

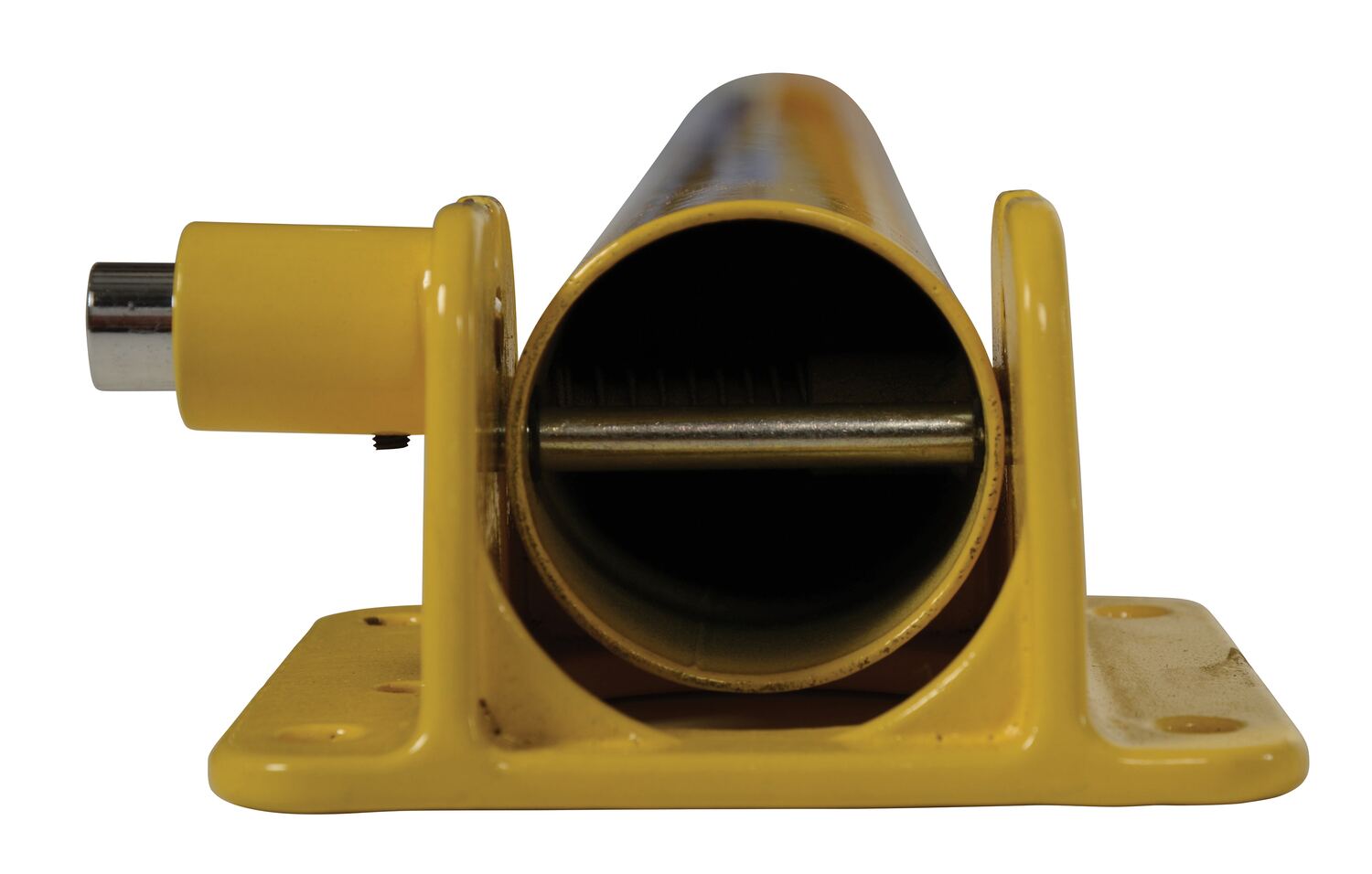

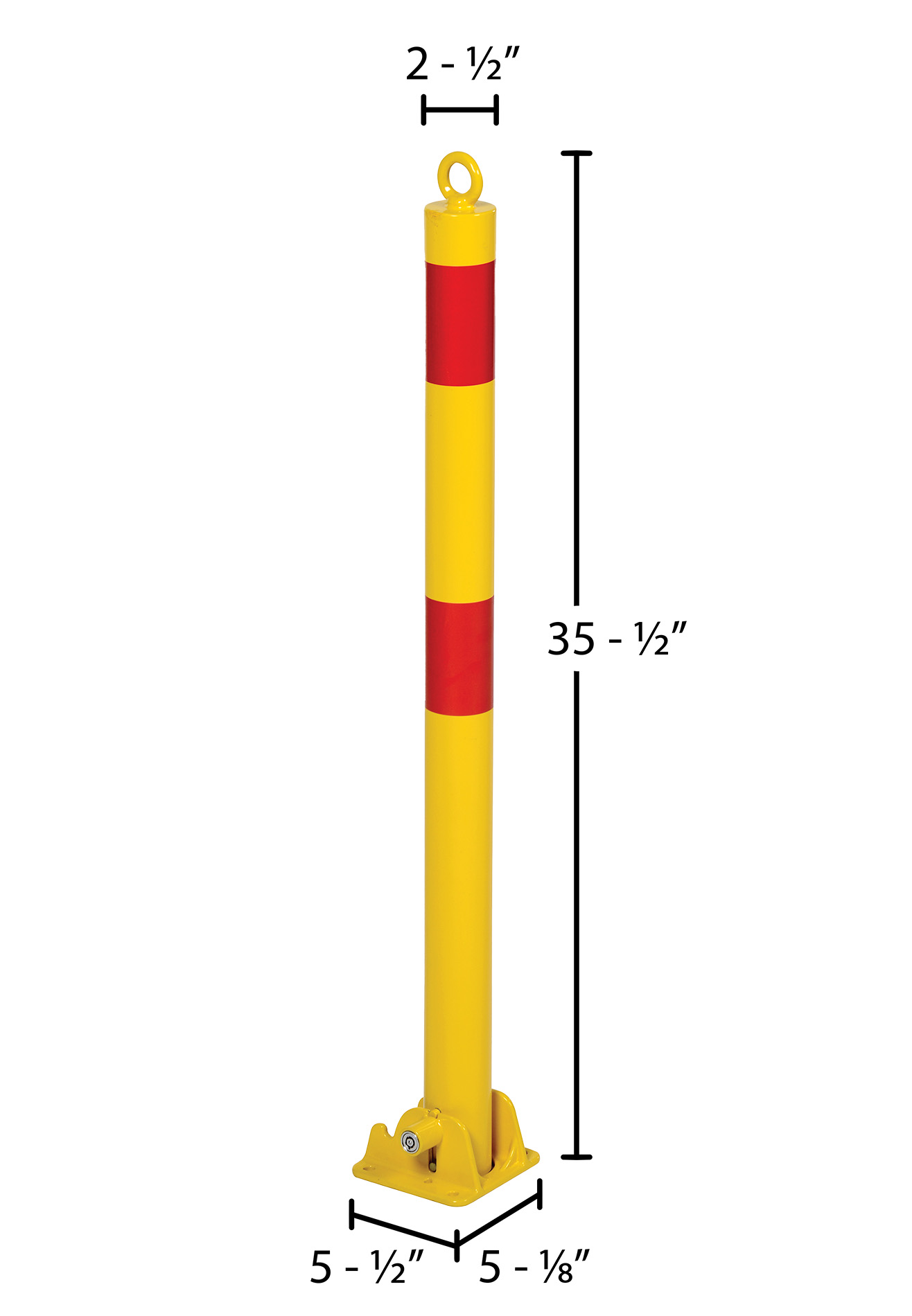

PARK-P-60-FD PARK-P-60-FD90 Days Limited WarrantySteel Fold Down Bollard 5-1/8 In. x 5-1/2 In. x 35-1/2 In. YellowFold Down Height (in.): 5
Bollard Diameter (in.): 2-1/2		7
PARK-P-76-FD PARK-P-76-FD90 Days Limited WarrantySteel Fold Down Bollard 5-1/8 In. x 5-1/2 In. x 35-1/2 In. YellowFold Down Height (in.): 5
Bollard Diameter (in.): 3		25

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
PARK-P-108-FD
PARK-P-108-FD-KEY
PARK-P-108-FD-SS
PARK-P-60-FD
PARK-P-76-FD
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

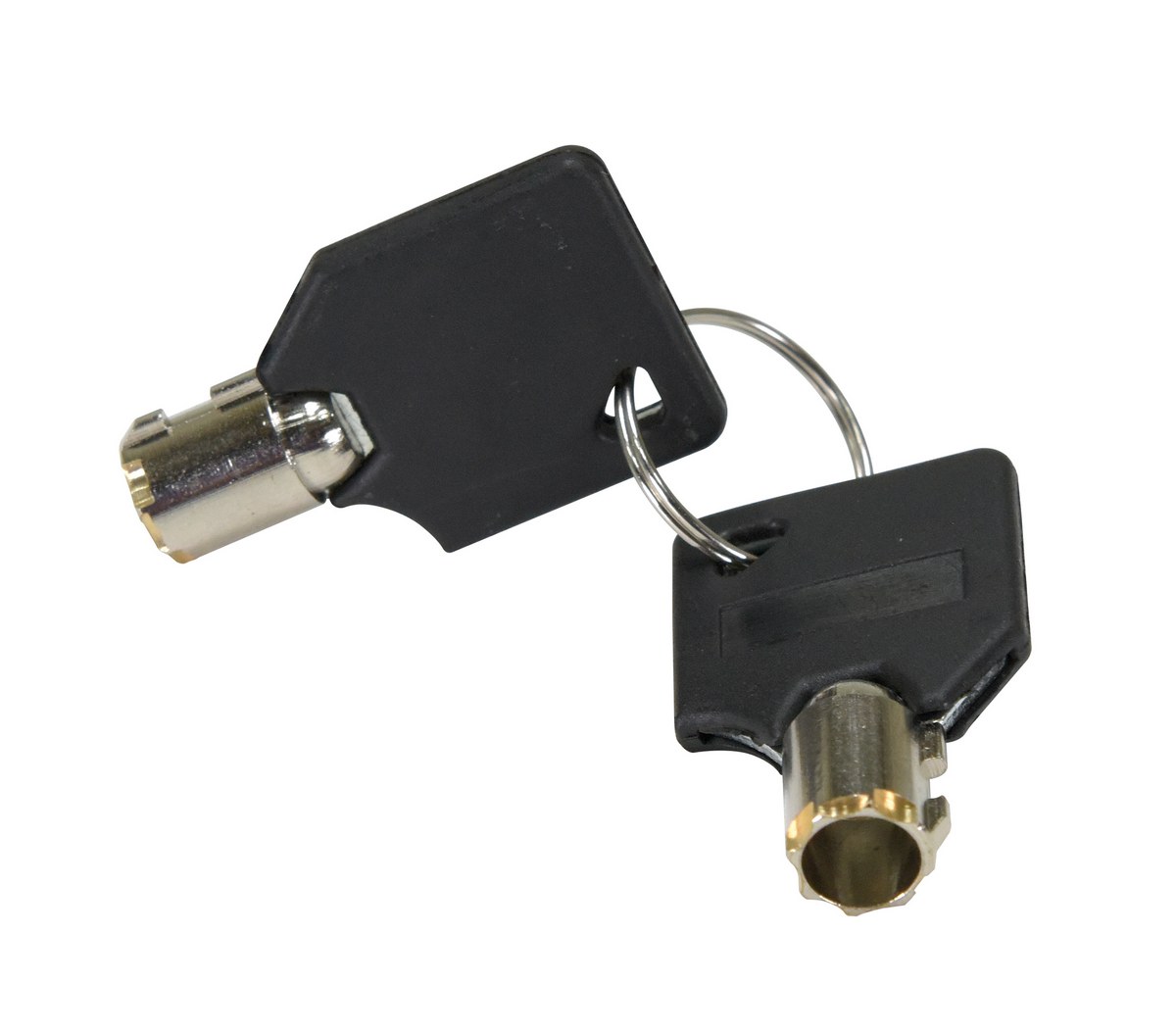

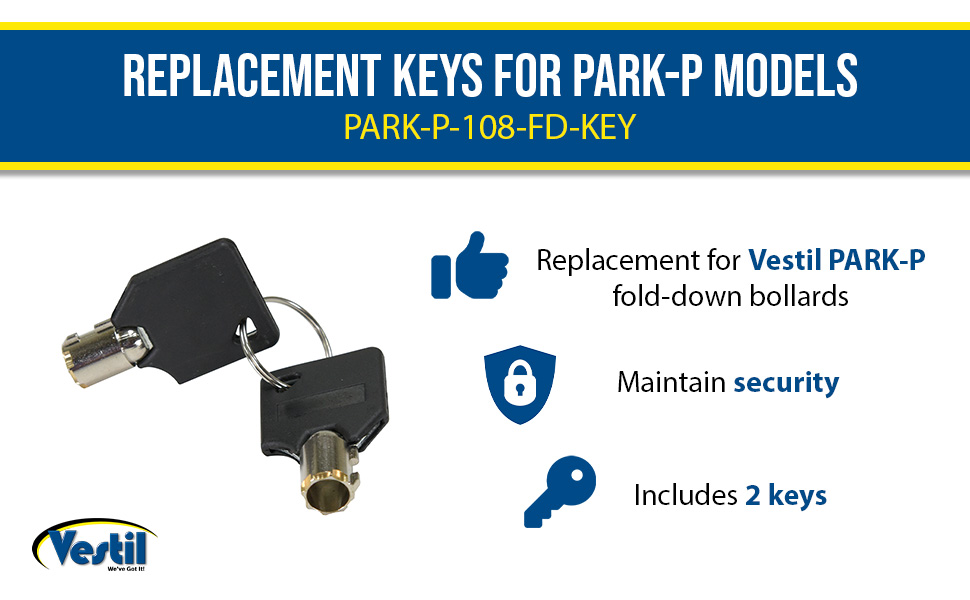

PARK-P-108-FD-KEY PARK-P-108-FD-KEYFactory Fabricated Pair Of Replacement Keys For PARK-P Model…90 Days Limited Warranty2

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

PARK-P-108-FD

Testing Certificates

PARK-P-108-FD

PARK-P-108-FD-SS

PARK-P-60-FD

PARK-P-76-FD

SDS Sheets

No SDS Sheets For This Product

Other PDFs


Parking Lot Safety Mailing Brochure

Fold Down Bollards Mailing Brochure

Enhanced Product Content

PARK-P-108-FD
PARK-P-108-FD PARK-P-108-FD A+ Content - 2
PARK-P-108-FD PARK-P-108-FD A+ Content - 1
PARK-P-108-FD PARK-P-60-FD A+ Content - 3
PARK-P-108-FD PARK-P-108-FD A+ Content - 3
PARK-P-108-FD-KEY
PARK-P-108-FD-KEY PARK-P-108-FD-KEY A+ Content - 2
PARK-P-108-FD-KEY PARK-P-108-FD-KEY A+ Content - 1
PARK-P-108-FD-KEY PARK-P-108-FD A+ Content - 3
PARK-P-108-FD-SS
PARK-P-108-FD-SS PARK-P-108-FD-KEY A+ Content - 2
PARK-P-108-FD-SS PARK-P-108-FD-SS A+ Content - 3
PARK-P-108-FD-SS PARK-P-108-FD-SS A+ Content - 2
PARK-P-108-FD-SS PARK-P-108-FD-SS A+ Content - 1
PARK-P-60-FD
PARK-P-60-FD PARK-P-60-FD A+ Content - 1
PARK-P-60-FD PARK-P-38-S A+ Content - 4
PARK-P-60-FD PARK-P-60-FD A+ Content - 3
PARK-P-60-FD PARK-P-60-FD A+ Content - 2

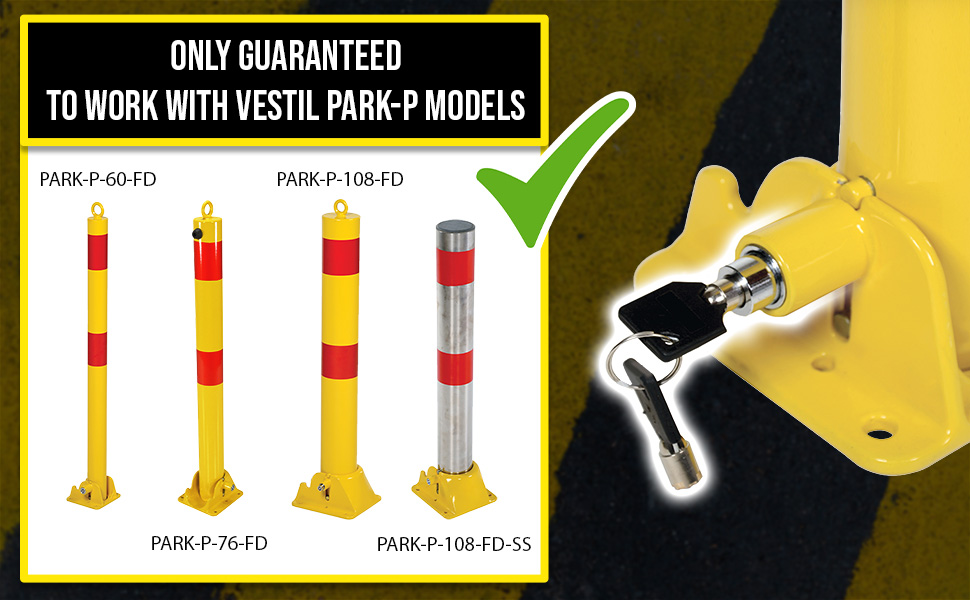

Are the keys interchangeable with the bollards?
Yes, the keys are interchangeable.
What is the finish on the base?
The base of the bollard has a powder coat finish.
Can we request the position of the stripes?
The red stripes are labels which are shipped unattached. It is up to the customer to apply them if they choose.
Can this bollard be locked in the folded-down position?
No, the bollard cannot be locked in the fold-down position.
Will the base accept the 3/4" anchors okay as an upgrade?
Bolt Hole Diameter (in) 0.375" Base 7.5"L x Base 8.25"W and .315" thickness. We have measured a unit, and no you cannot use a 3/4 in anchor with this unit. The mounting holes will only accept a max 3/8 in.
I see it mentions industrial uses and "harsh" environments - we're looking to install something like this outdoors, would you recommend that?
Indoor / Outdoor uses.
If I order two bollards, will they be keyed alike?
If they buy several units they will be the same key.
