Galvanized Construction Barrier Systems

model: HRAIL-9072

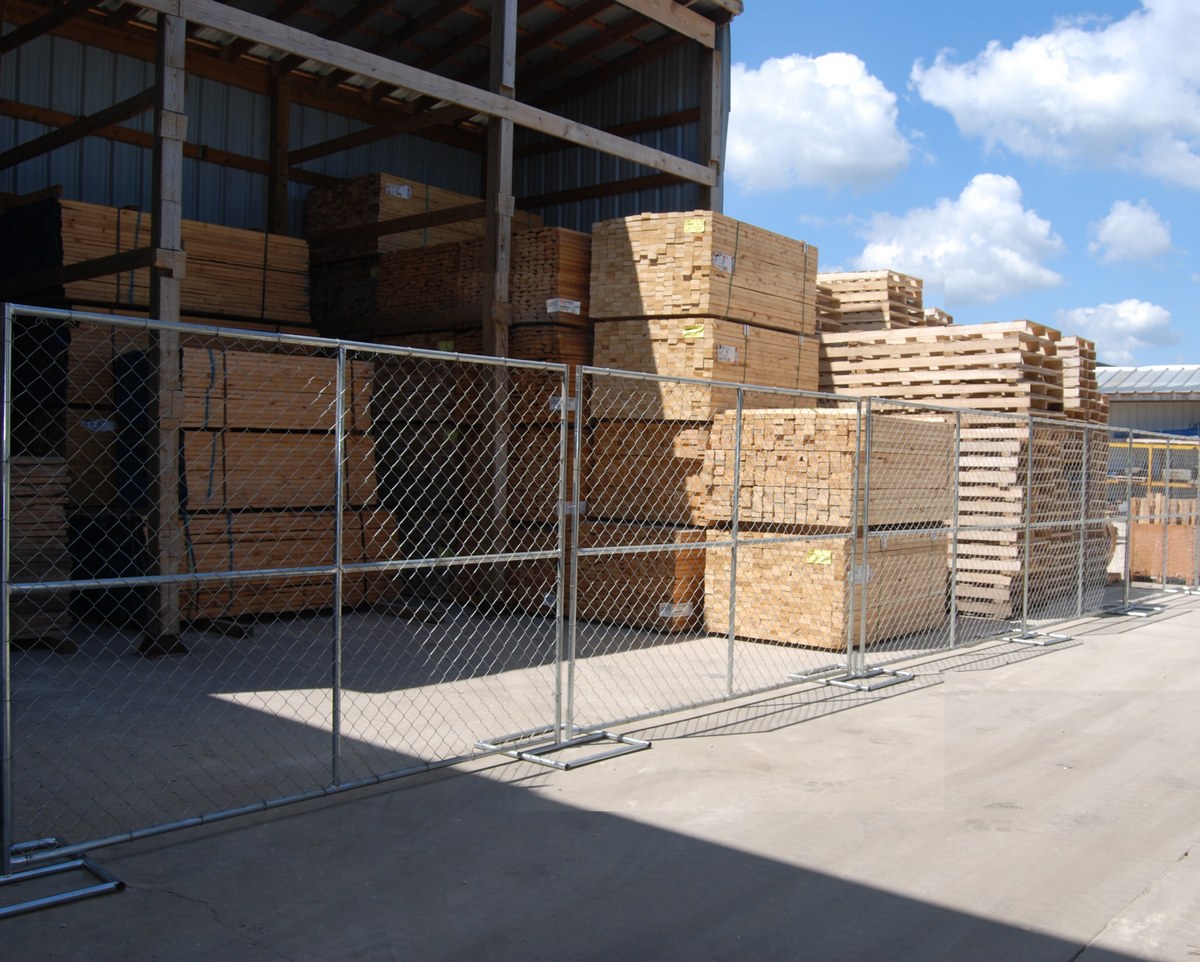

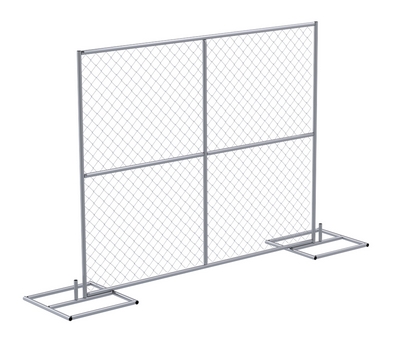

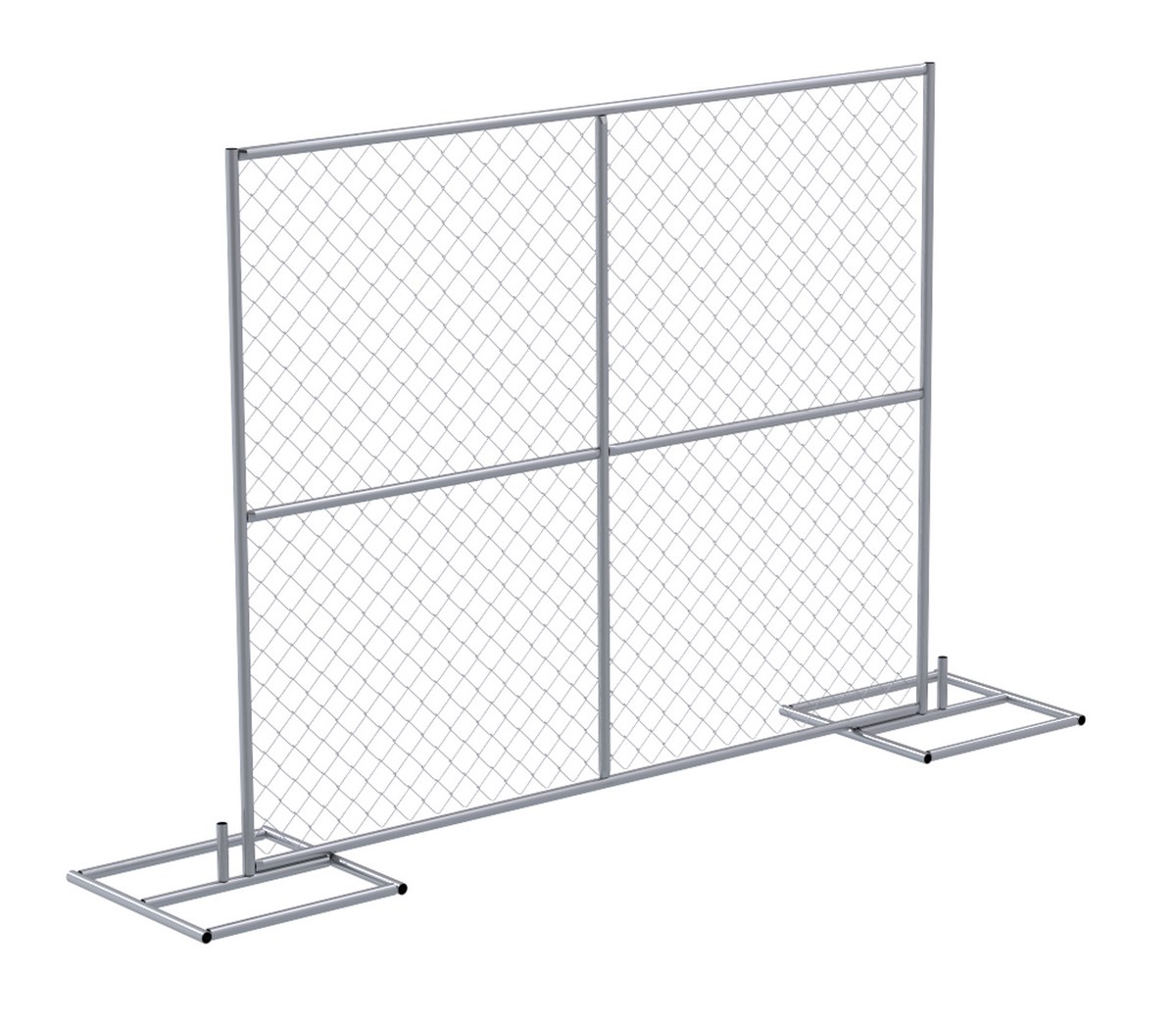

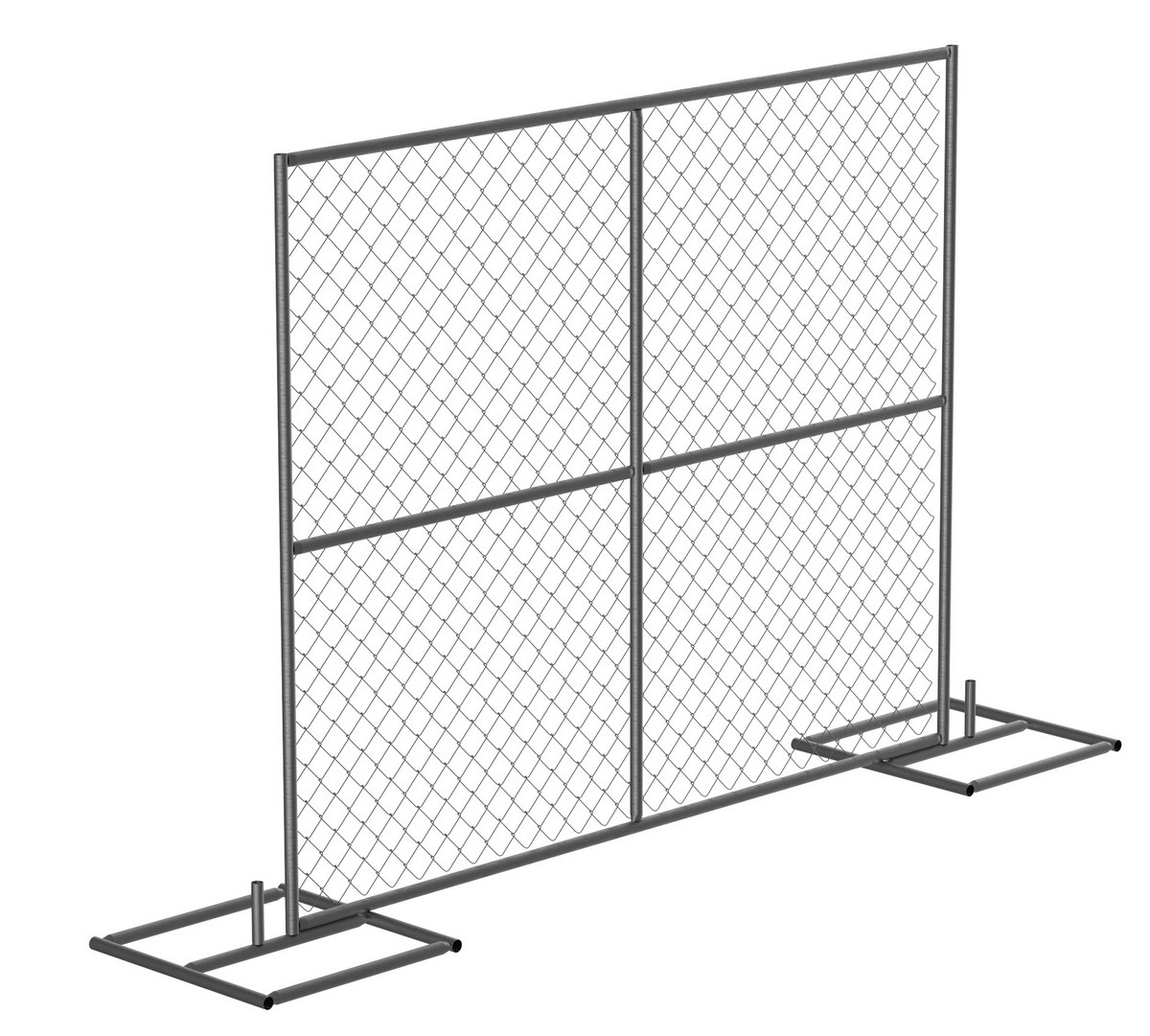

HRAIL-9072_C.jpg HRAIL-9072_B.jpg HRAIL-9072_A.jpg More Images +
Galvanized Construction Barrier Systems
SERIES: HRAIL

Designed for use as a temporary construction safety barrier. Welded steel construction with a galvanized finish. Barrier panel sections are made from 1-1/4" diameter steel tubing and includes one vertical and one horizontal brace. Ten (10) gauge chain link fence is secured to barrier with steel ties. Chain link fence openings are 2-3/8" x 2-3/8". Base unit includes two receiver posts allowing for the connection of two panels. Connectors are used for securing two (2) panel sections together.

  • Design temporarily secures job site from theft, hazard liability, and dumping
  • Barrier panel section for construction safety barriers
  • Includes one vertical and one horizontal brace
  • Chain link fence is secured to barrier with steel ties
Galvanized Construction Barrier Systems

model: HRAIL-9072

Model # Description Attributes Net Wt.
(lbs)

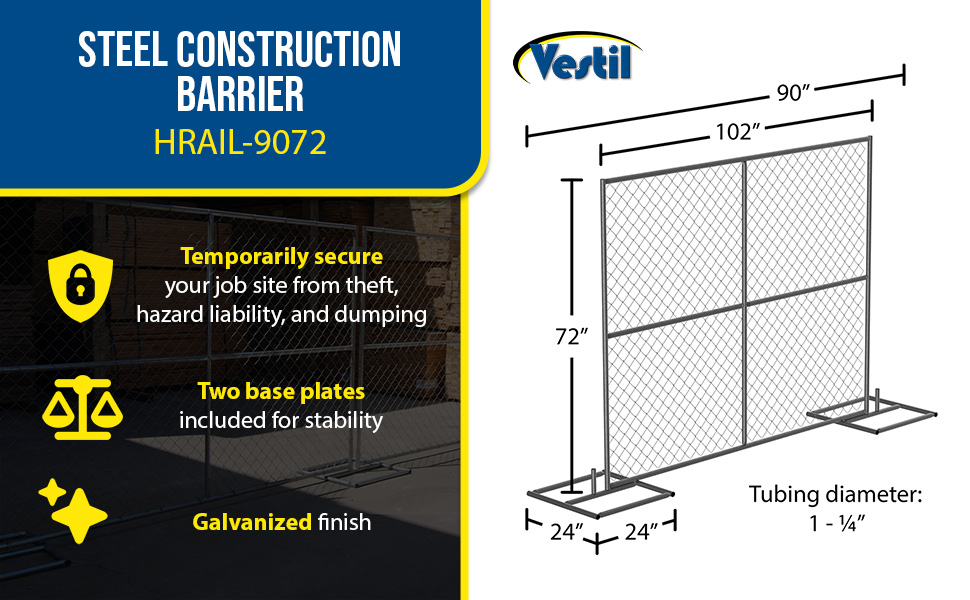

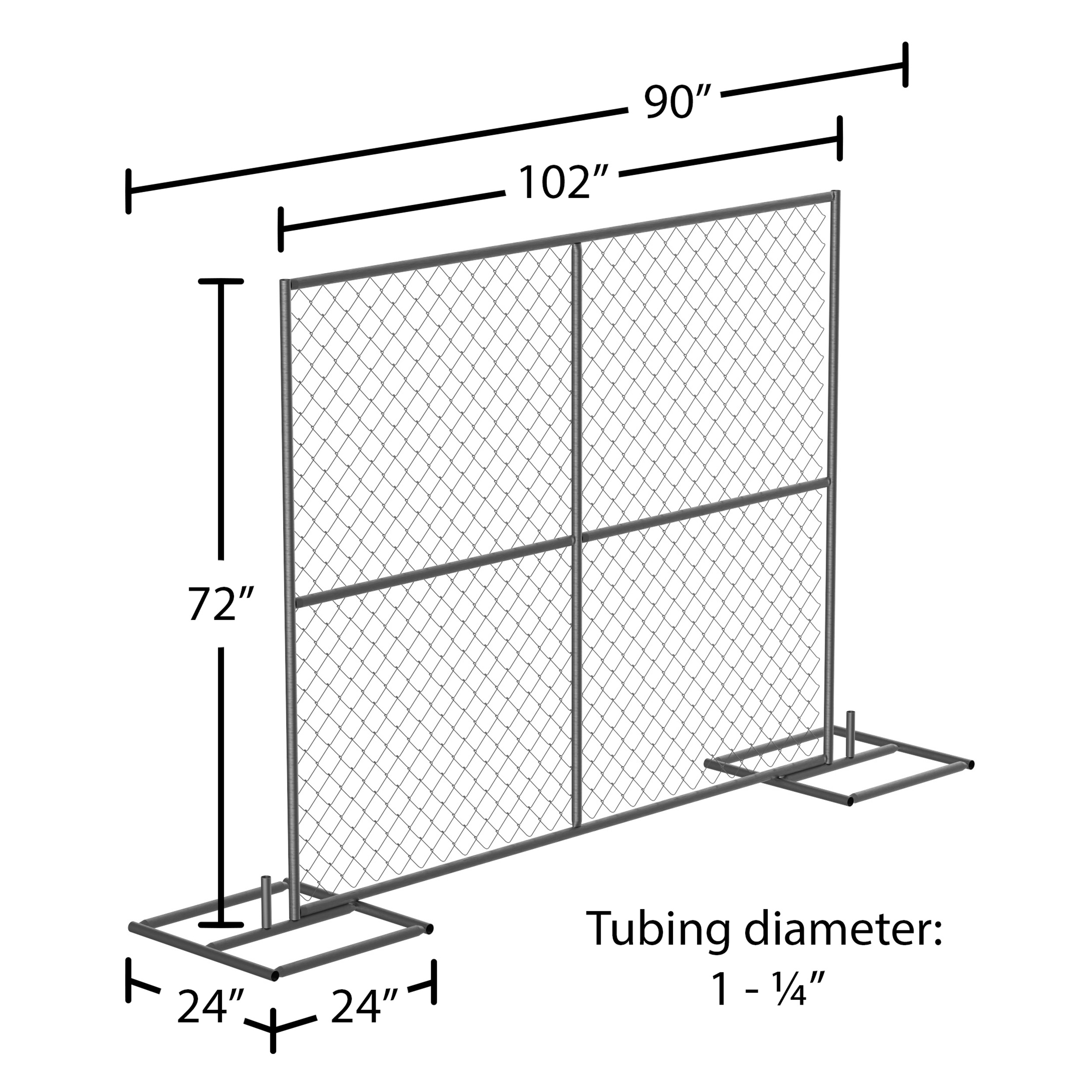

HRAIL-9072 HRAIL-907290 Days Limited WarrantySteel Construction Barrier System SilverPanel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10		104

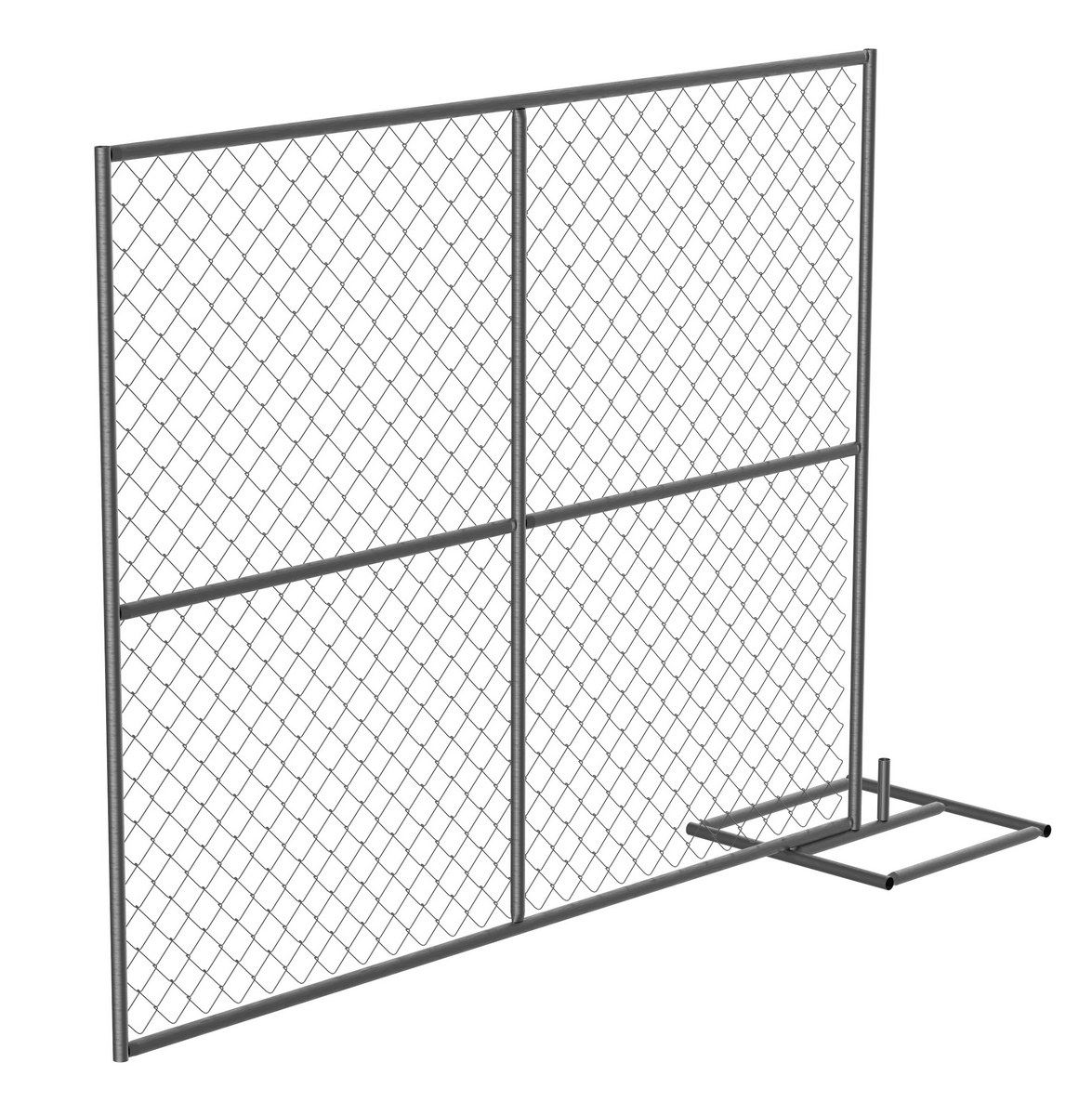

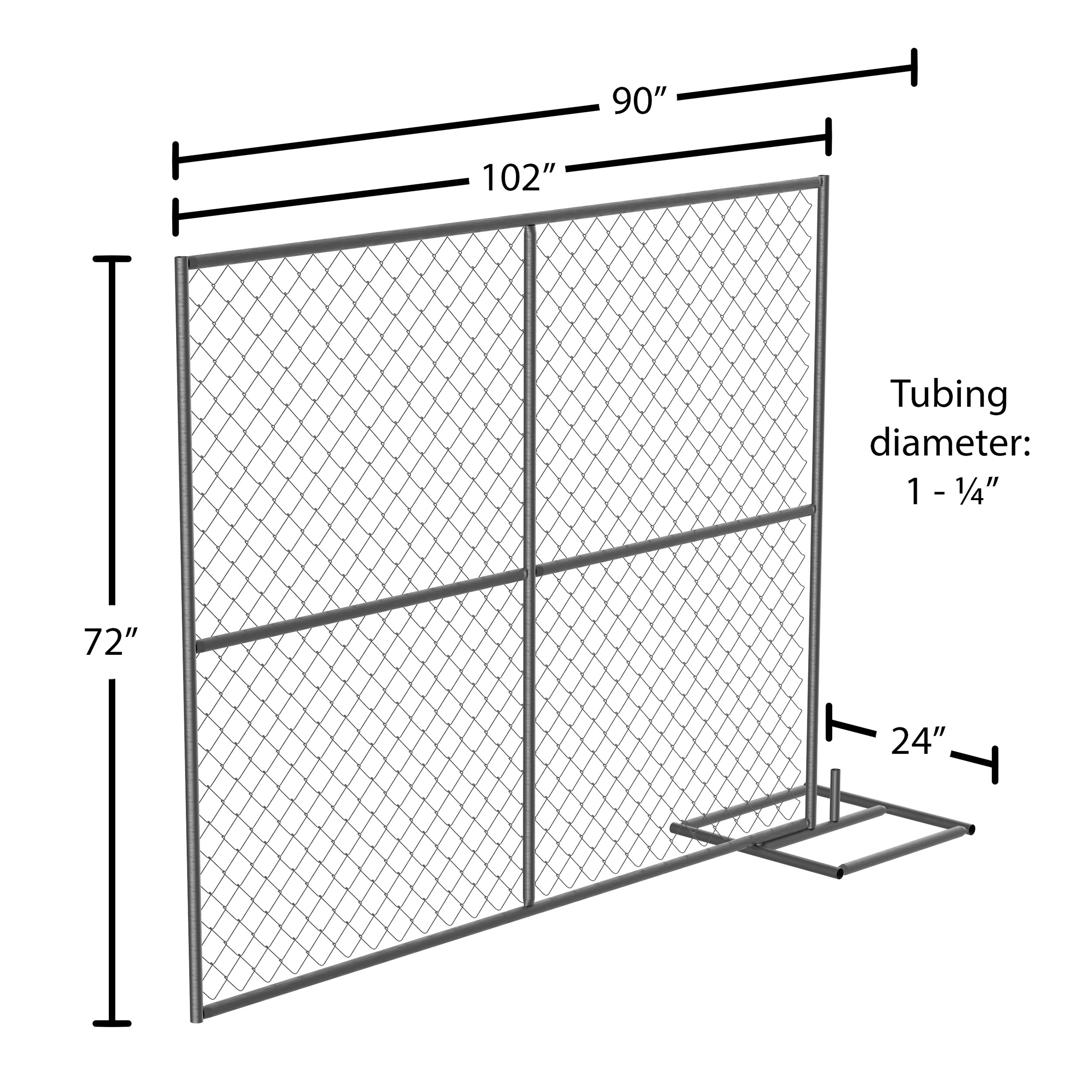

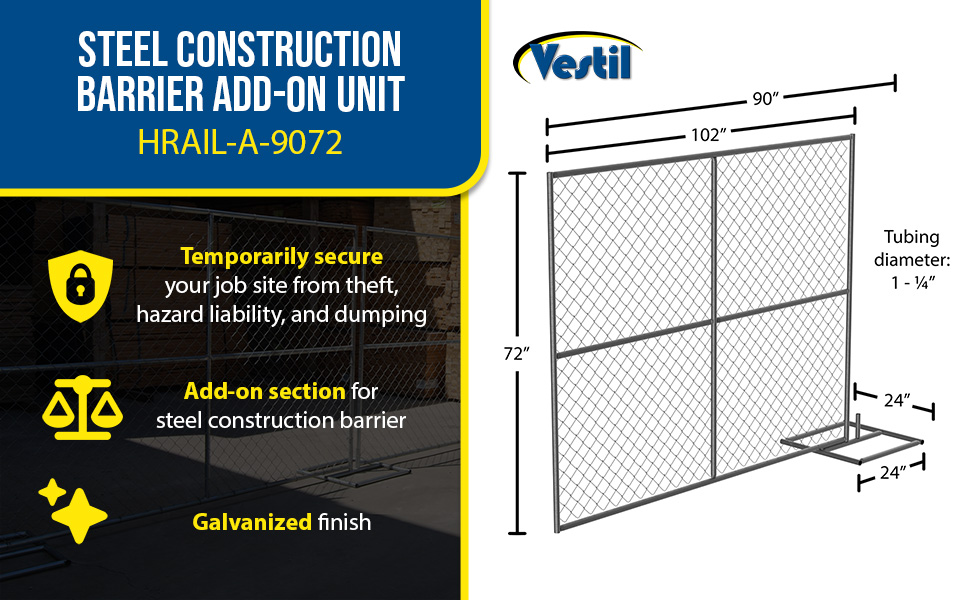

HRAIL-A-9072 POPULAR HRAIL-A-907290 Days Limited WarrantyGalvanized Steel Construction Safety Barrier Add On Unit For HRAIL-9072Panel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10		115

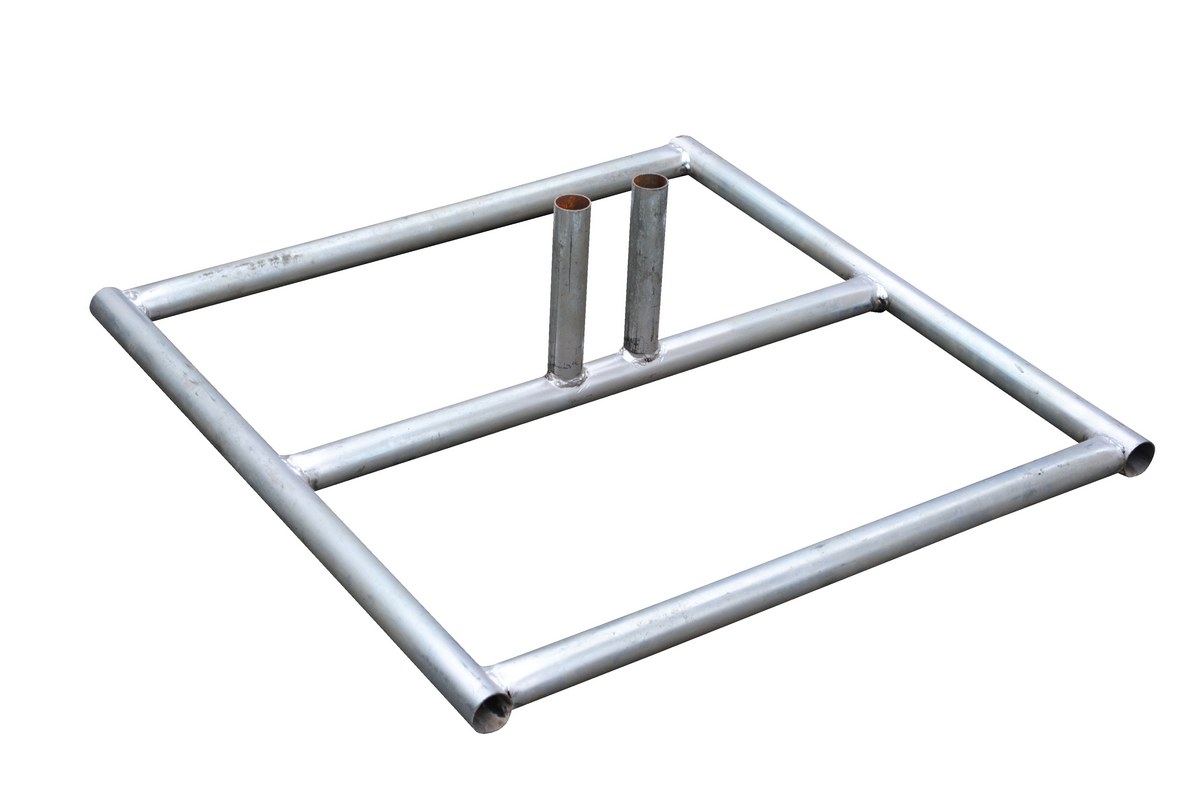

HRAIL-BASE HRAIL-BASE90 Days Limited WarrantyGalvanized Steel Construction Safety Barrier Base For HRAIL ModelsBase Tubing Diameter (in.): 1-1/4
Receiver Post (qty.): 2		7

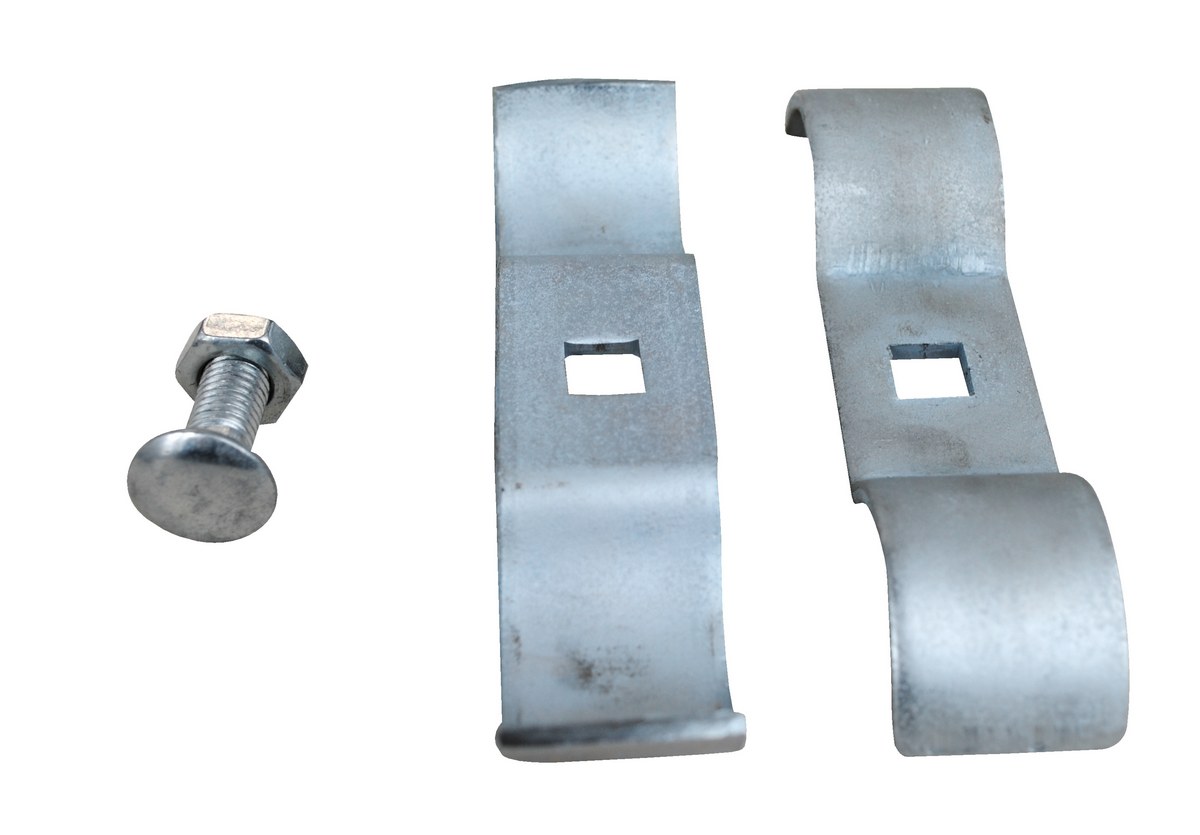

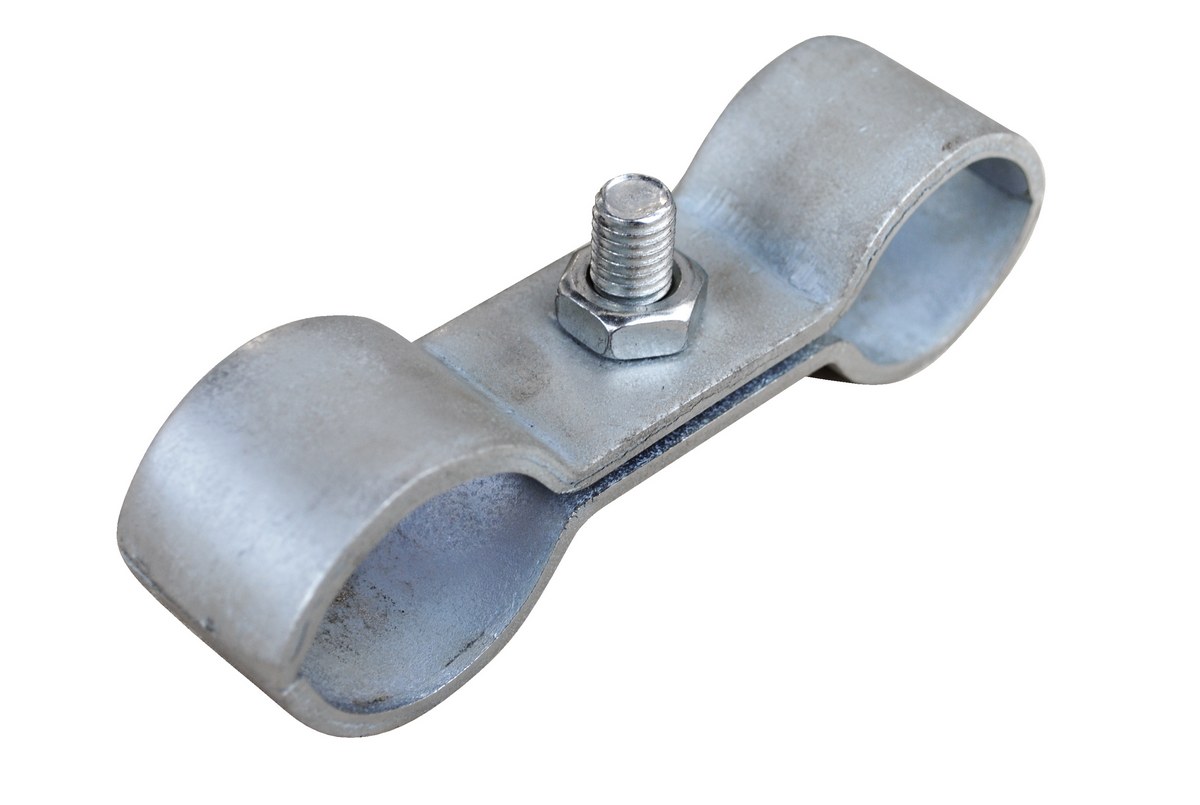

HRAIL-CON HRAIL-CON90 Days Limited WarrantyGalvanized Steel Construction Safety Barrier Connector For HRAIL ModelsRecommended Use: For use with HRAIL Models
Application: Connector Bracket		3

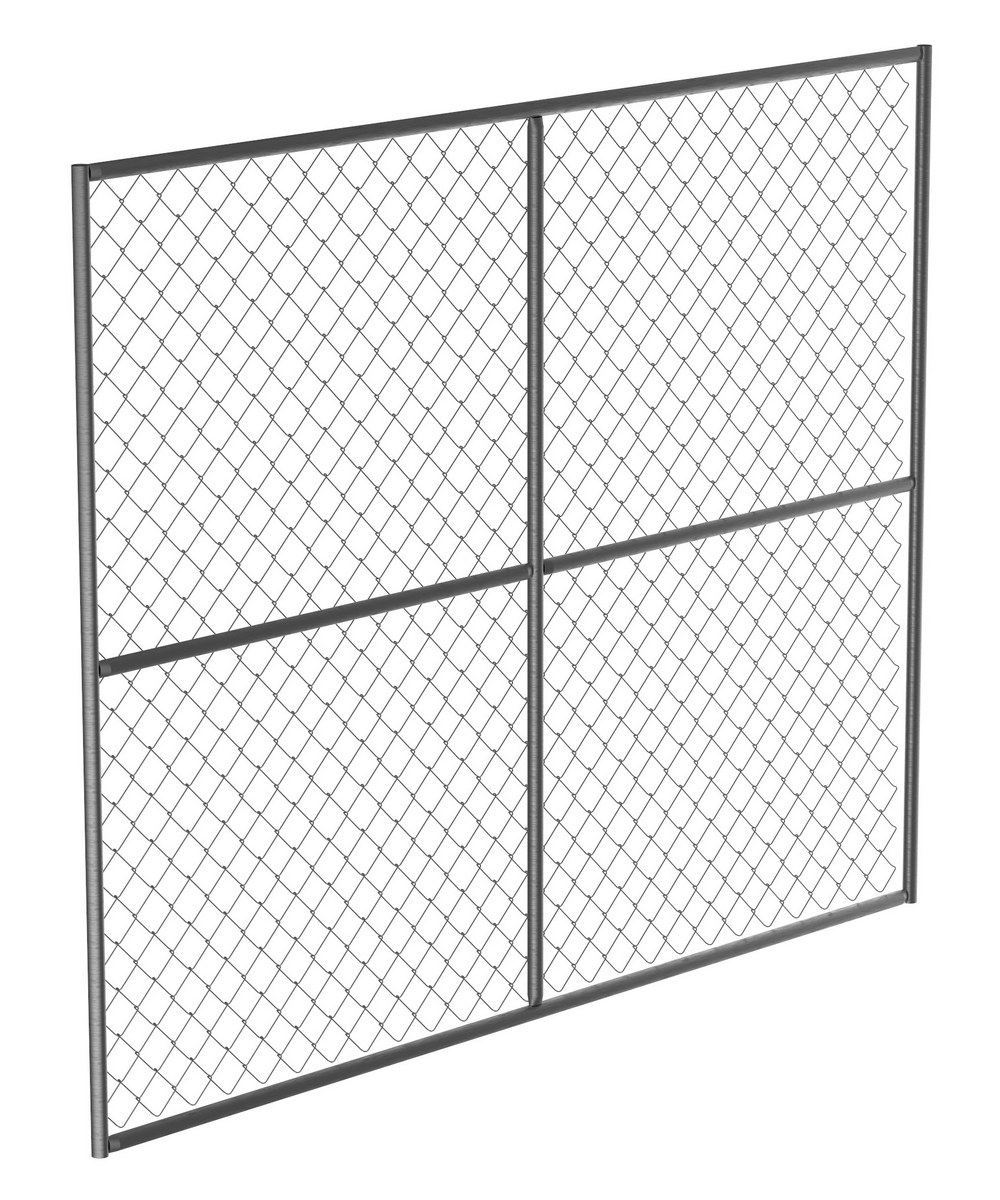

HRAIL-PNL HRAIL-PNL90 Days Limited WarrantyGalvanized Steel Construction Safety Barrier Panel Unit 91"L x 72"H For HRAIL ModelsPanel Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10		111

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

HRAIL-9072
HRAIL-A-9072
HRAIL-BASE
HRAIL-CON
HRAIL-PNL
PDFs will open in a new window when clicked.

Manuals

HRAIL-9072

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Enhanced Product Content

HRAIL-9072
HRAIL-9072 HRAIL-9072 A+ Content - 2
HRAIL-9072 HRAIL-9072 A+ Content - 1
HRAIL-A-9072
HRAIL-A-9072 HRAIL-A-9072 A+ Content - 2
HRAIL-A-9072 HRAIL-A-9072 A+ Content - 1

Applications



Military

Municipalities

Universities

Superstores

Construction Projects

Train Stations
Is there a temporary gate for this fence?
We do not have a gate for this barrier system.
What is the inside diameter of the base tube on the HRAIL-BASE?
The inside diameter of the HRAIL-BASE is 15/16".
The outside diameter is 1.10".
I saw the pipe size this fits is 1-1/4". That translates into 1-5/8 outside diameter correct?
1.25 L x 5.25 W x 1.125 H and weight is 2 lbs. The OD of the pipe this connector fits on is 1 1/4 in. The bold that holds the connector together can be adjusted, so I believe it will work with a 1 5/8 in OD, but it is designed for the 1 1/4 in OD round.
Does this item came already assembled or does it come in separate pieces?
That piece is already assembled. If you need the whole "construction barrier system" it's listed under HRAIL-9072 and will need easy assembly.
