Economy Portable Drum Lifter/Rotator/Transporters

Print Friendly

Related Items
Model Chart
Options
PDF's
Image Gallery
Economy Portable Drum Lifter/Rotator/Transporters

model: DRUM-LRT-EC

DRUM-LRT-EC_E.jpg DRUM-LRT-EC_H.jpg DRUM-LRT-EC_F.jpg DRUM-LRT-EC_G.jpg DRUM-LRT-EC_B.jpg DRUM-LRT-EC_A.jpg DRUM-LRT-EC_C.jpg DRUM-LRT-EC_D.jpg More Images +
Economy Portable Drum Lifter/Rotator/Transporters
SERIES: DRUM

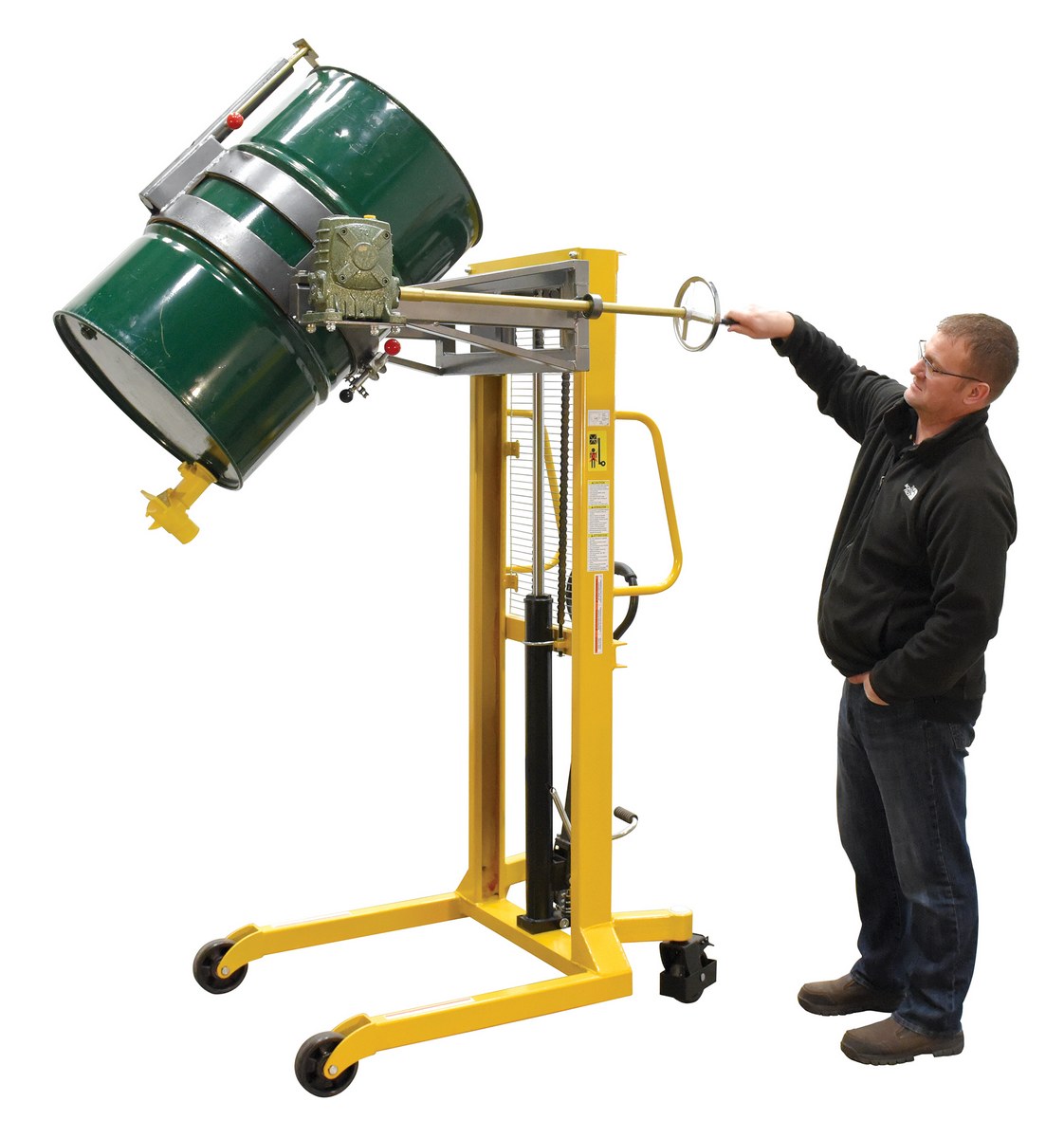

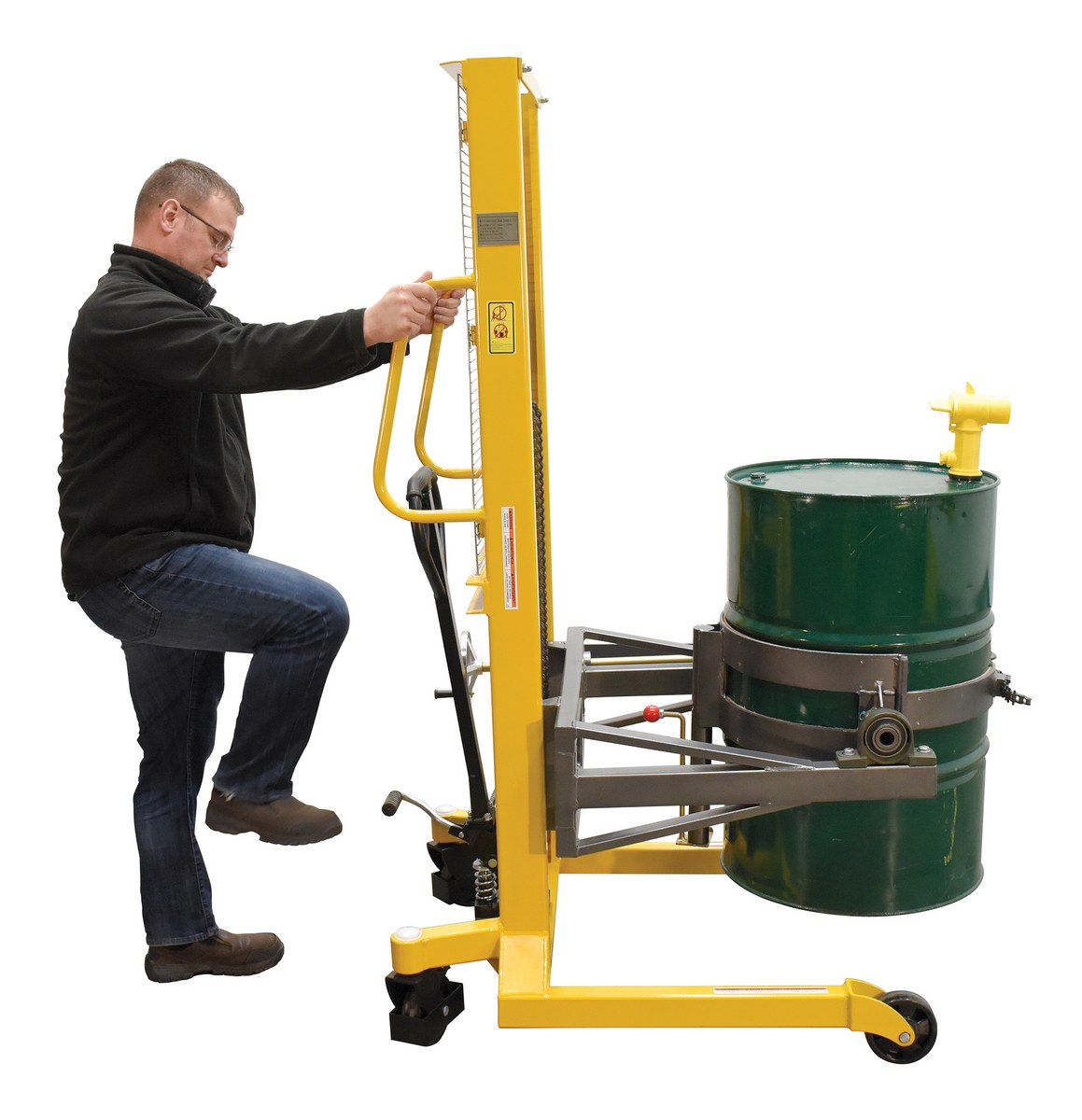

Easy to lift, transport and tilt 55 gallon steel drums. Ideal for use in warehouse environments when moving drums to and from racks. Drums can be locked in a vertical position to avoid spills or a horizontal position for draining through a faucet. A manual hand crank allows the drum to tilt up to 120 degrees. Vertically raise the drums up to 53" with a manual hand or foot pump operation. Horizontal dump height is 58" from floor to bottom of drum.

  • Unique design works with 55 gallon drums
  • Caster style rolls smoothly when loaded
  • Solid steel construction offers long lasting rugged use
  • Drum lifter design lifts, rotates & transports drums easily

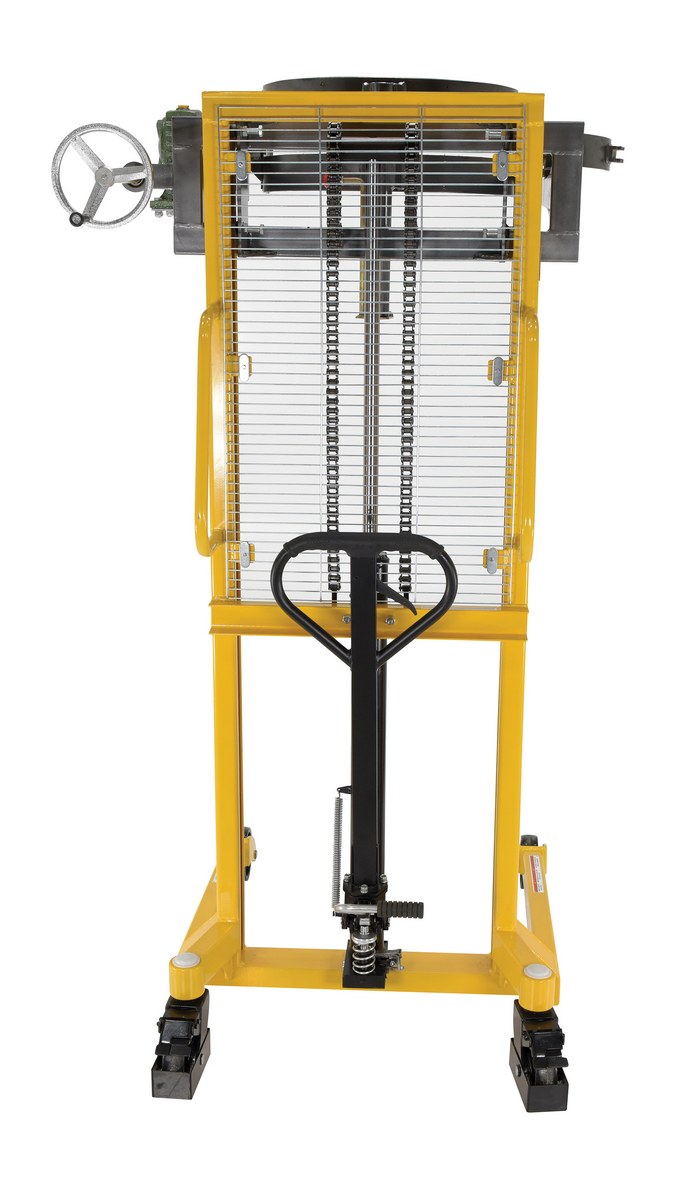

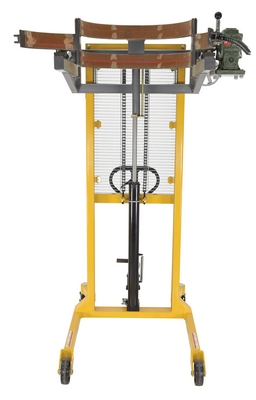

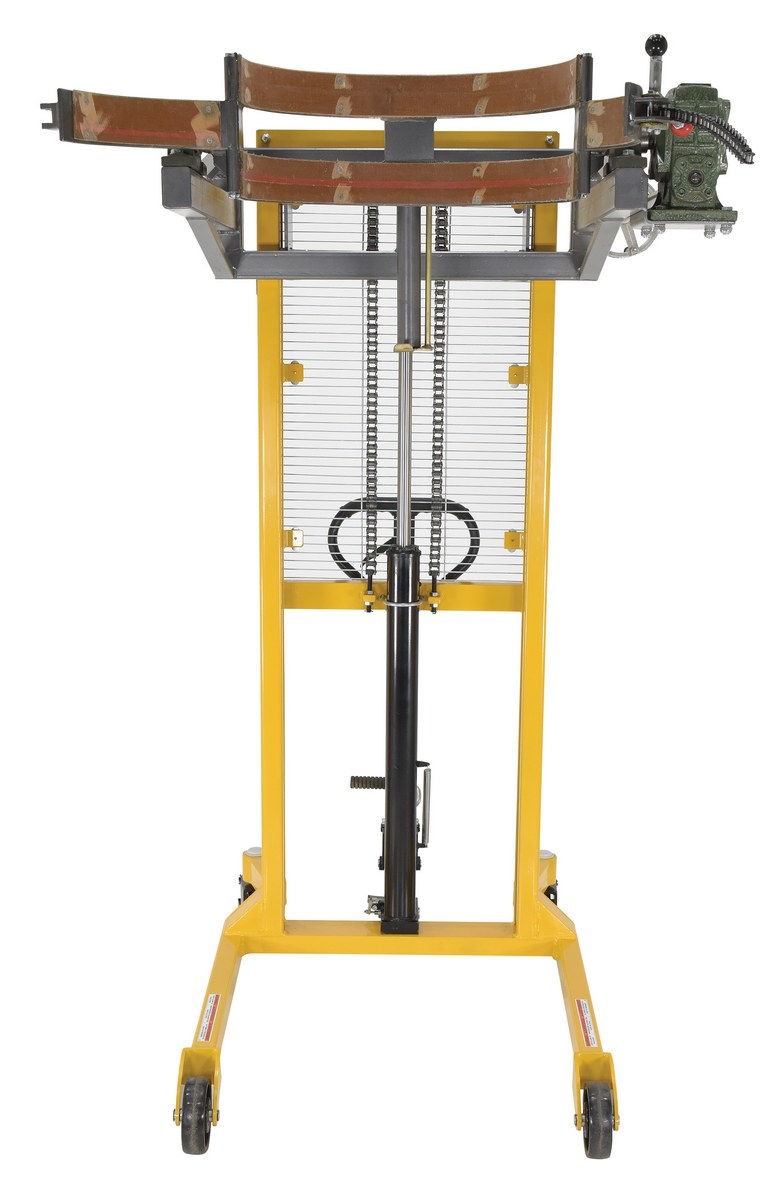

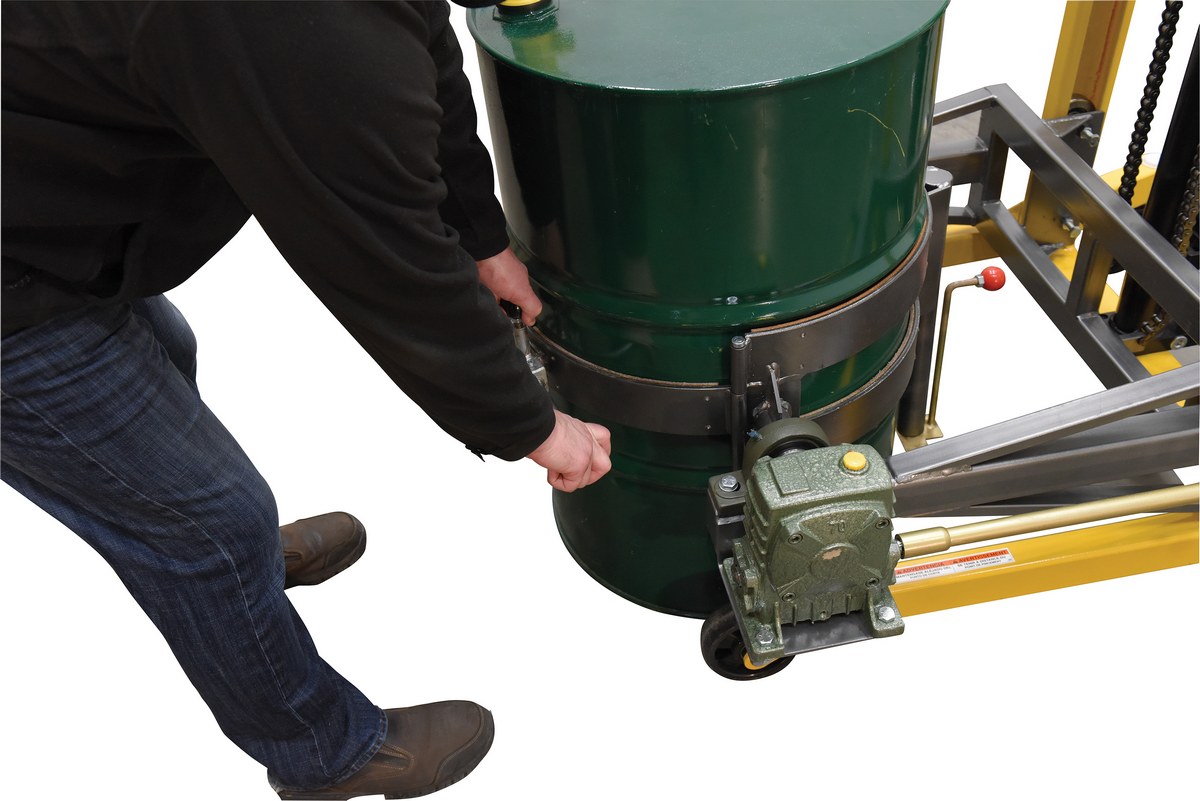

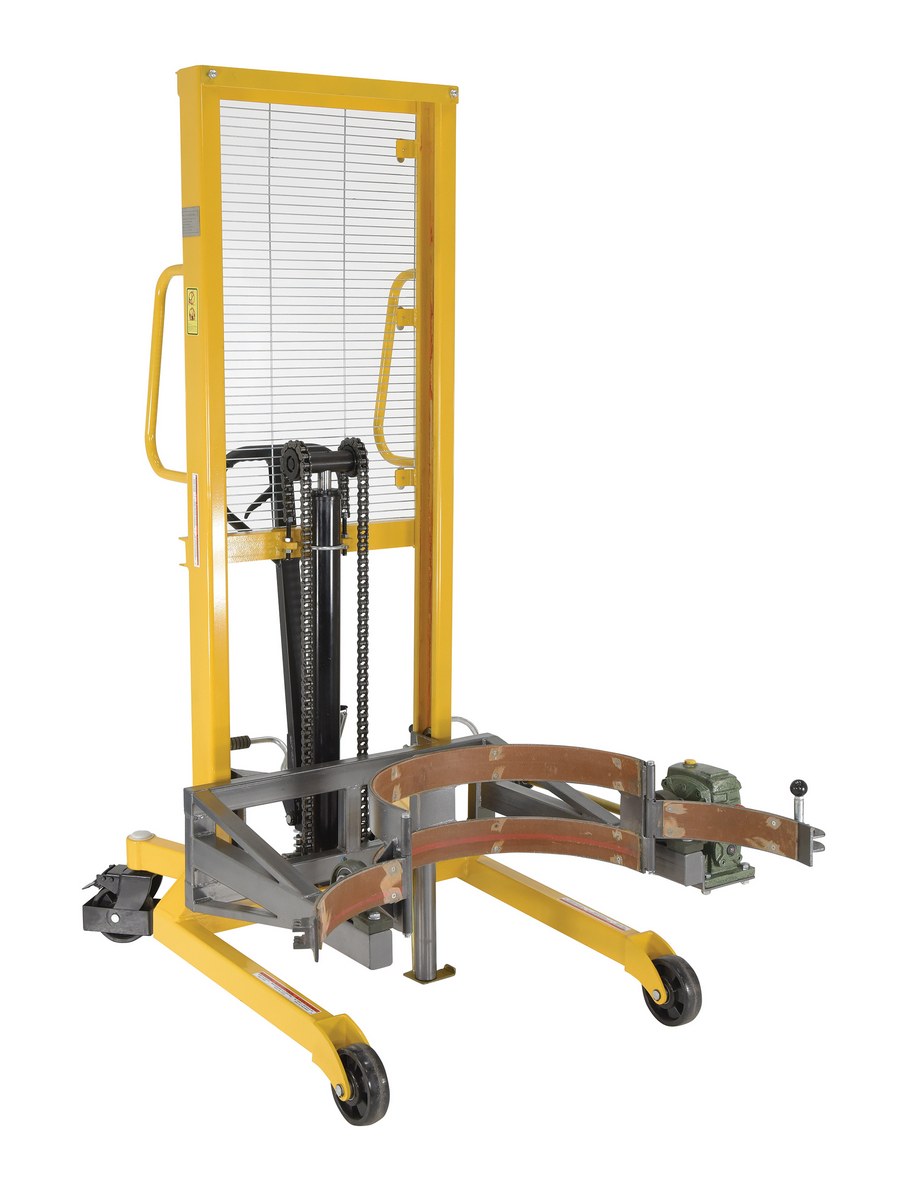

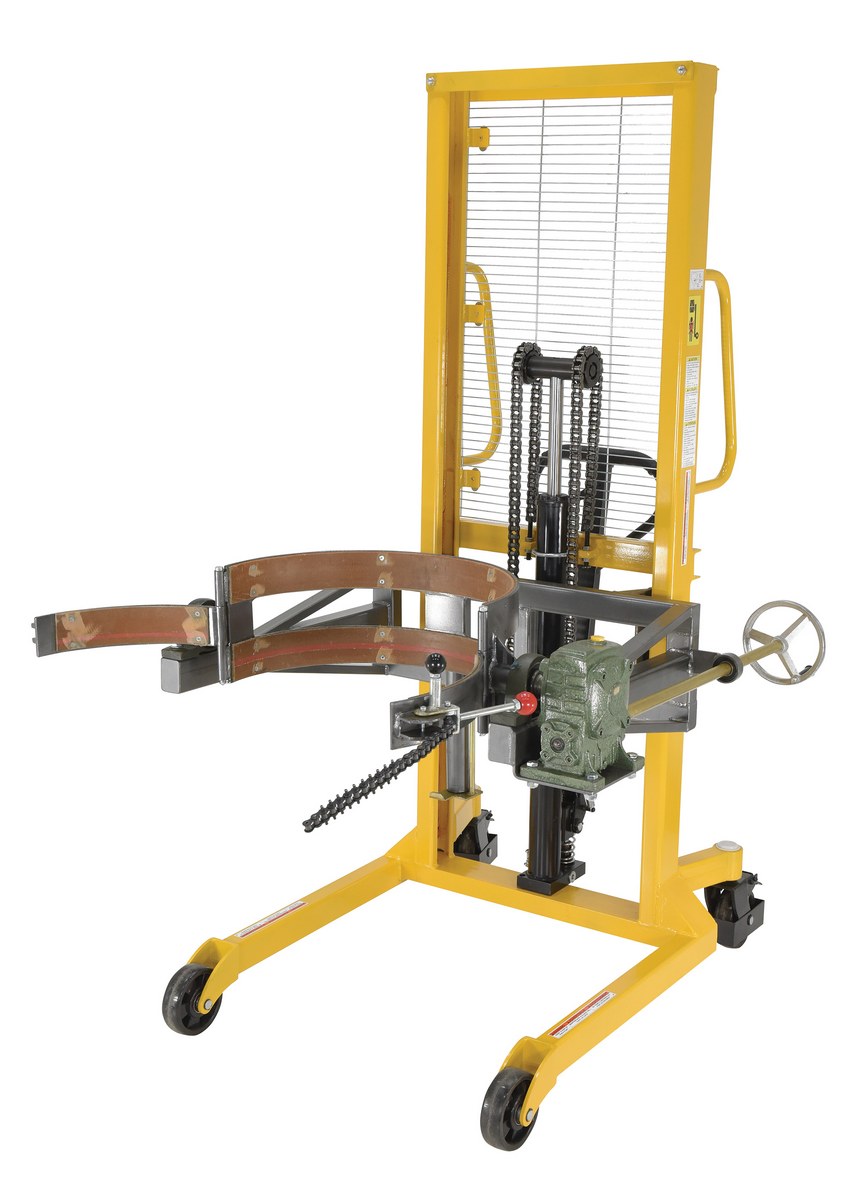

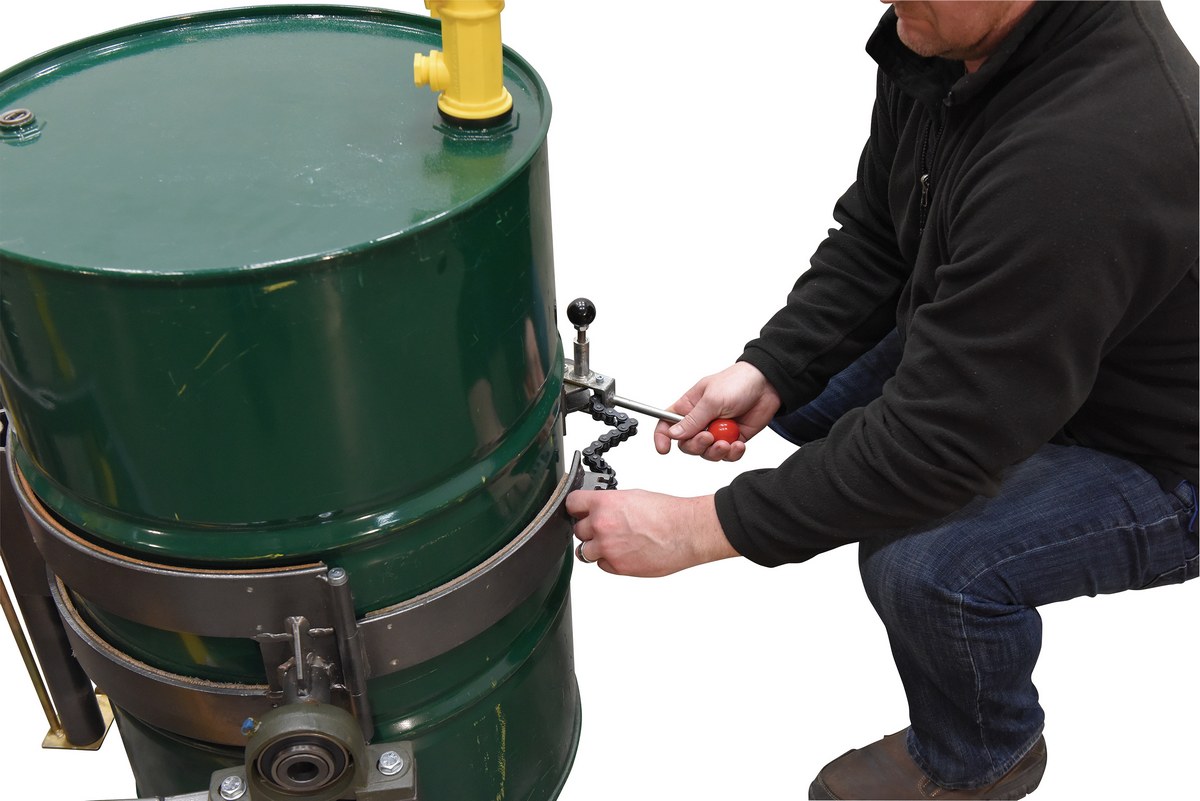

central rudder Model DRUM-LRT-EC has a clamp style cradle which securely grips around the drum.

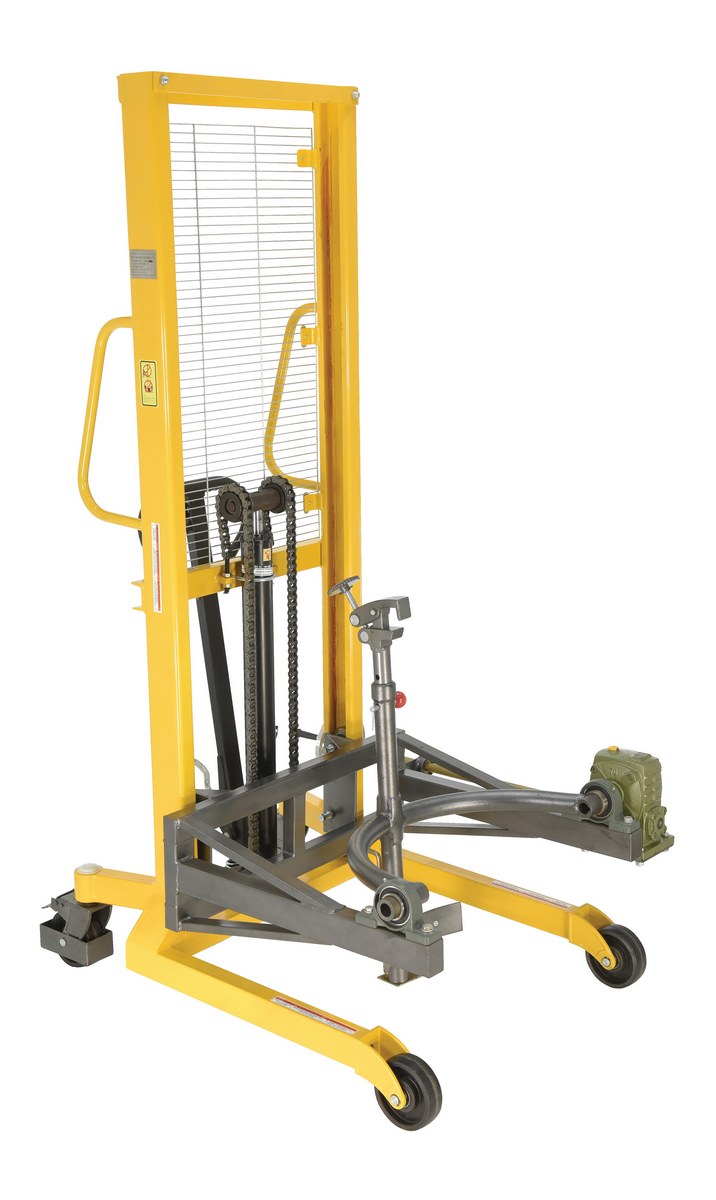

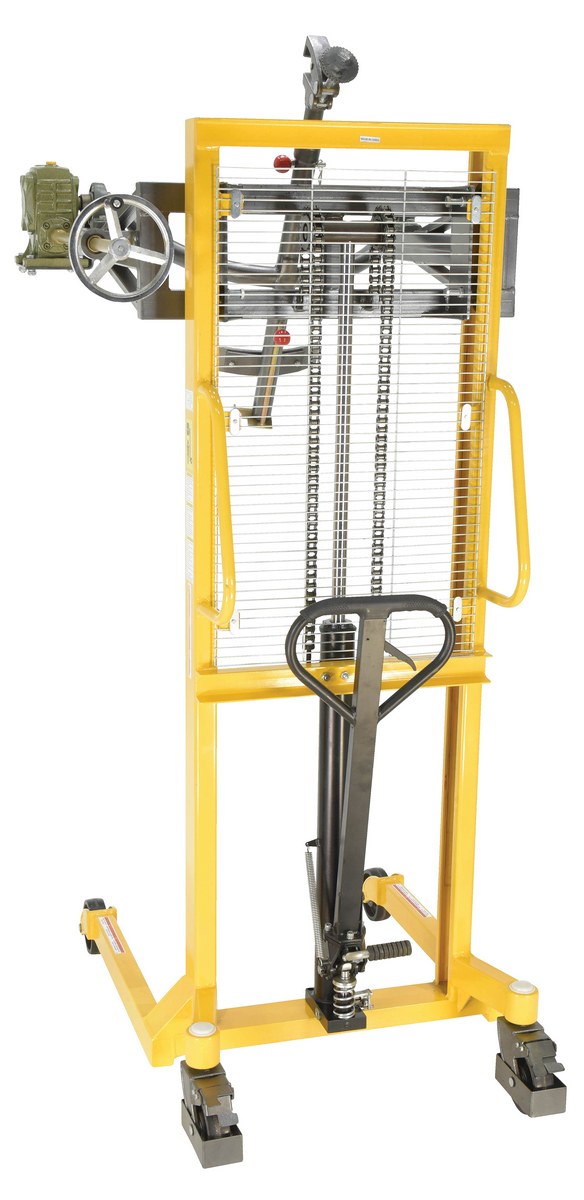

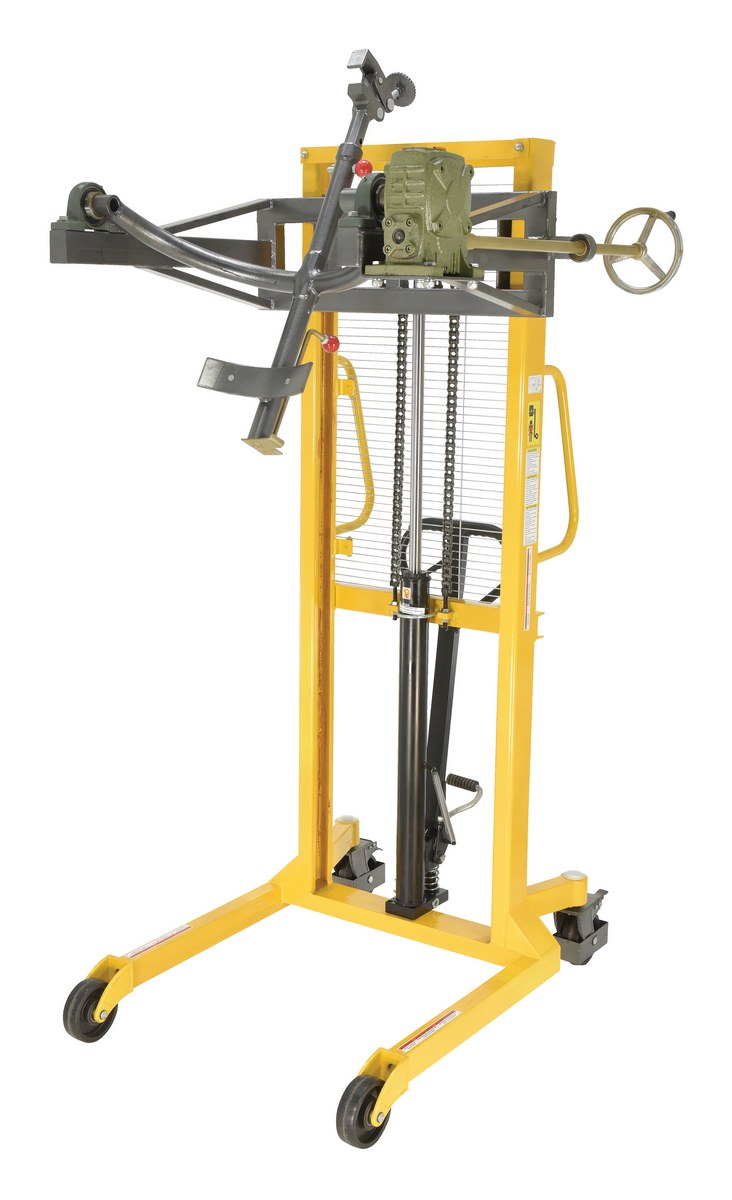

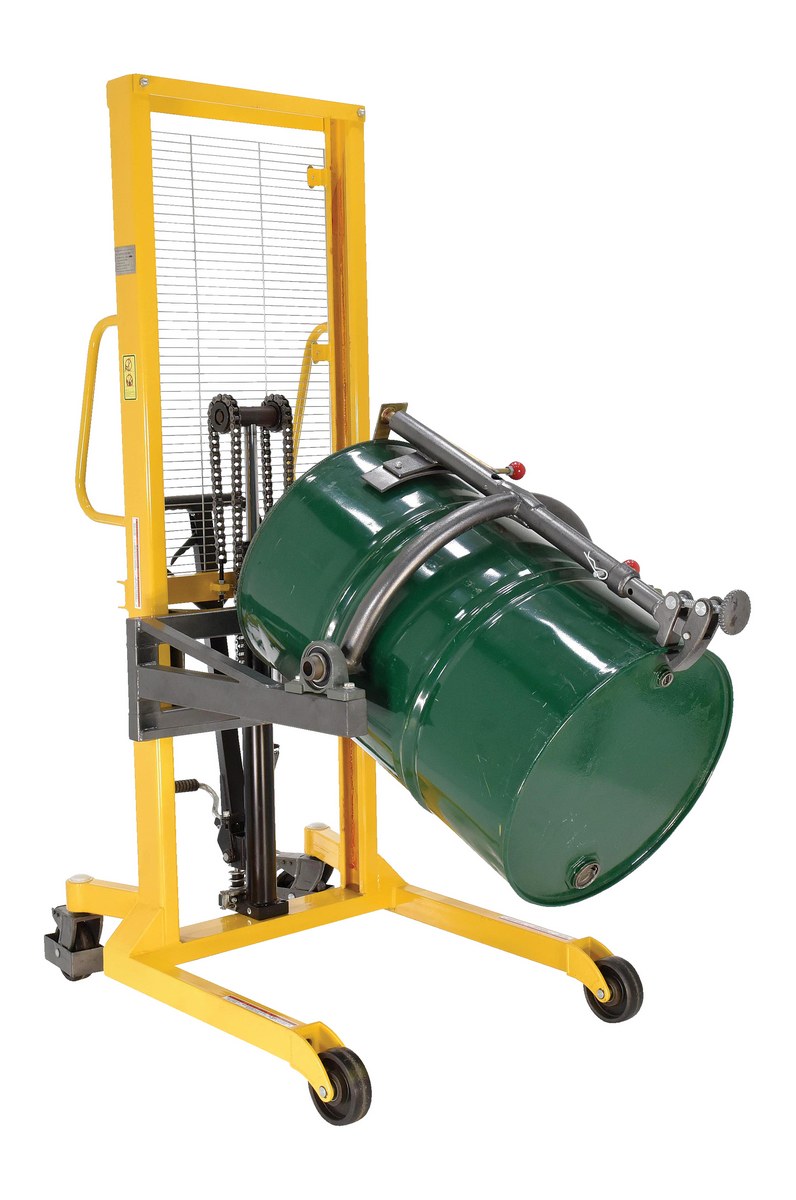

Model DRUM-LRT-ESJ features a steel jaw which securely grips the top lip of the drum. central rudder
Economy Portable Drum Lifter/Rotator/Transporters

model: DRUM-LRT-EC

Model # Description Attributes Net Wt.
(lbs)
DRUM-LRT-EC POPULAR DRUM-LRT-EC90 Days Limited WarrantySteel Economy Portable Drum Lifter/Rotator/Transporter 44 In. x 40 In. x 82 In. 550 Lb. Capacity YellowUniform Capacity (lb.): 550
Drum Size: 55-gallon		470
DRUM-LRT-ESJ DRUM-LRT-ESJ90 Days Limited WarrantySteel Economy Portable Drum Lifter/Rotator/Transporter with Steel Jaw 44 In. x 40 In. x 78 In. 550 Lb. Capacity YellowUniform Capacity (lb.): 550
Drum Size: 55-gallon		450

* Drum in vertical position (floor to bottom of drum)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
DRUM-LRT-EC
DRUM-LRT-ESJ
FDA-550-DR-LRT-ECPF
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

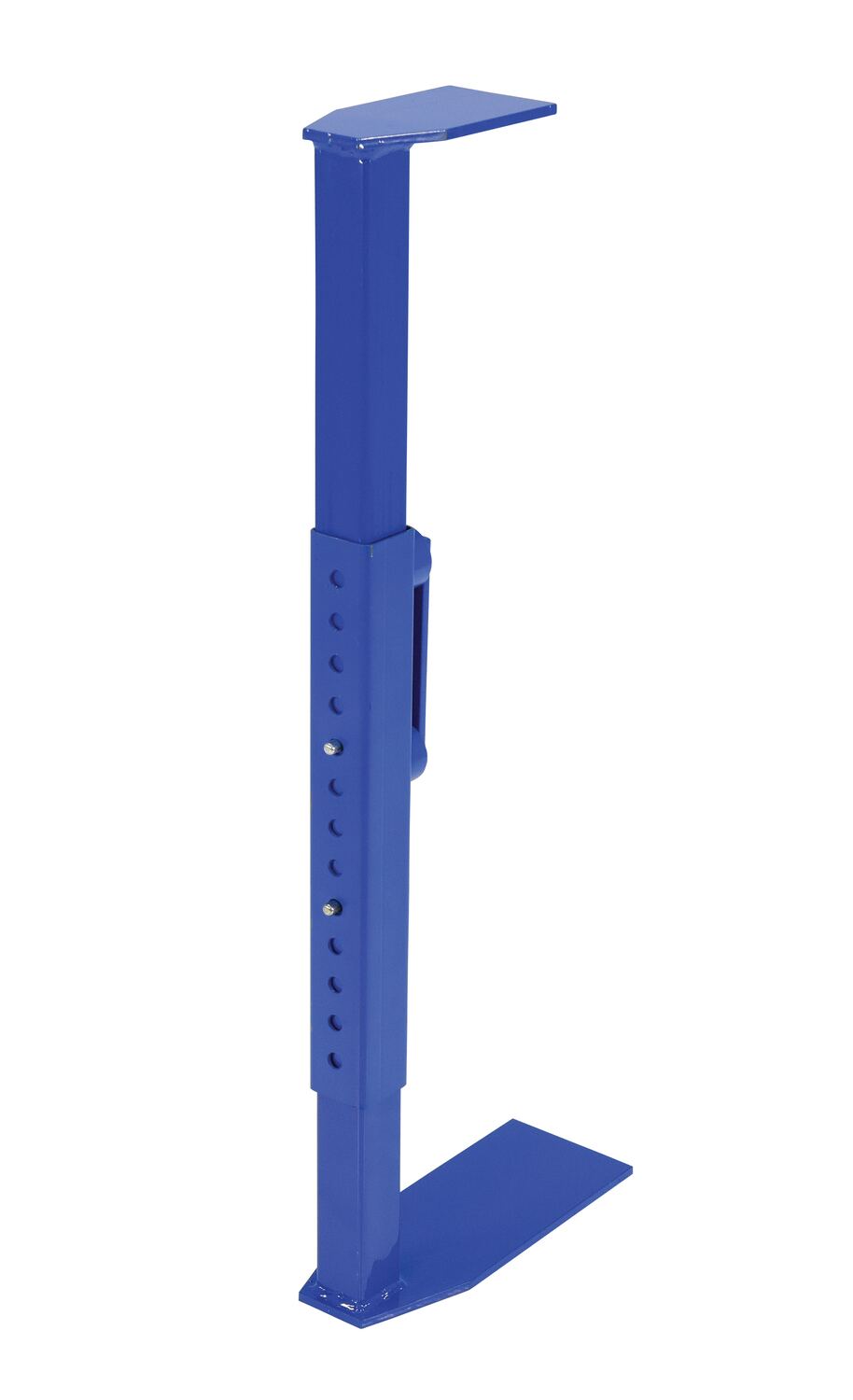

FDA-550-DR-LRT-ECPF FDA-550-DR-LRT-ECPFSteel Factory Installed Special Drum Adapter For DRUM-LRT-EC…90 Days Limited Warranty37

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

DRUM-LRT-EC,%20&

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

DRUM-LRT-EC

DRUM-LRT-ESJ

Testing Certificates

DRUM-LRT-EC

DRUM-LRT-ESJ

SDS Sheets


Hydraulic Oil
DRUM-LRT-EC SDS


Hydraulic Oil
DRUM-LRT-ESJ SDS

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products
When the drum is lifted vertically , how far above the floor is the drum?
From the floor to the bottom of the drum is 53".
Does the FDA-550 work with the DRUM-LRT-EC for a fiber drum?
Yes the FDA-550 with the DRUM-LRT-EC will work for a fiber drum.
How many pumps does it take to raise DRUM-LRT-ESJ to 53"?
It takes 56 pumps without load to raise DRUM-LRT-ESJ to 53".
How long does it take to turn the wheel for DRUM-LRT-ESJ to be able to dump?
It takes about 1 to 1-1/2 minutes to rotate the DRUM-LRT-ESJ to be able to dump.
