Product Family Overview


Rotary Drum Pumps
SERIES: RDP

For dispensing and transferring liquids out of 55-gallon drums.

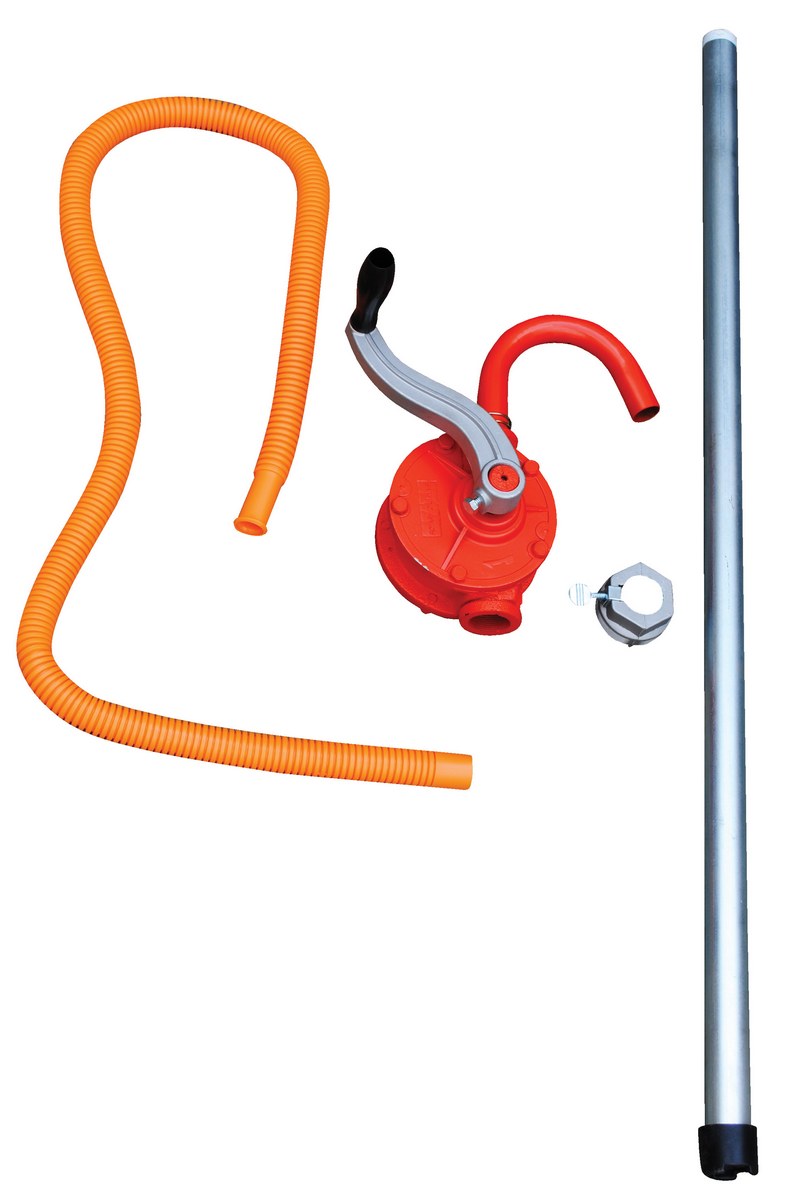

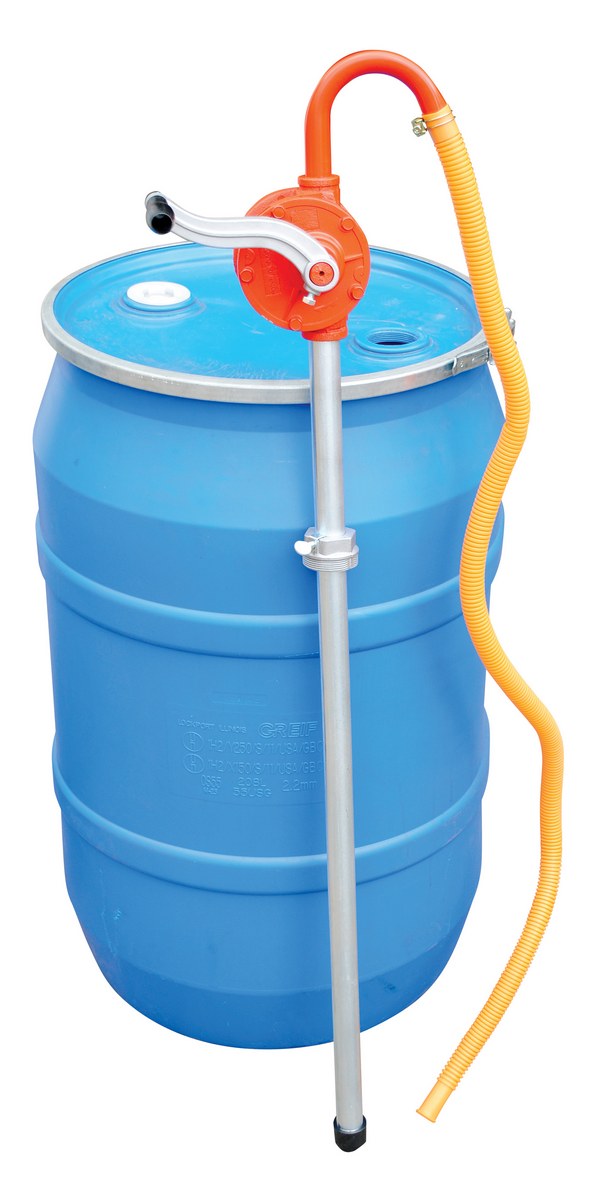

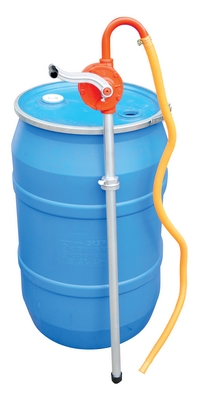

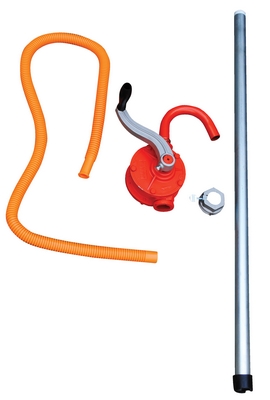

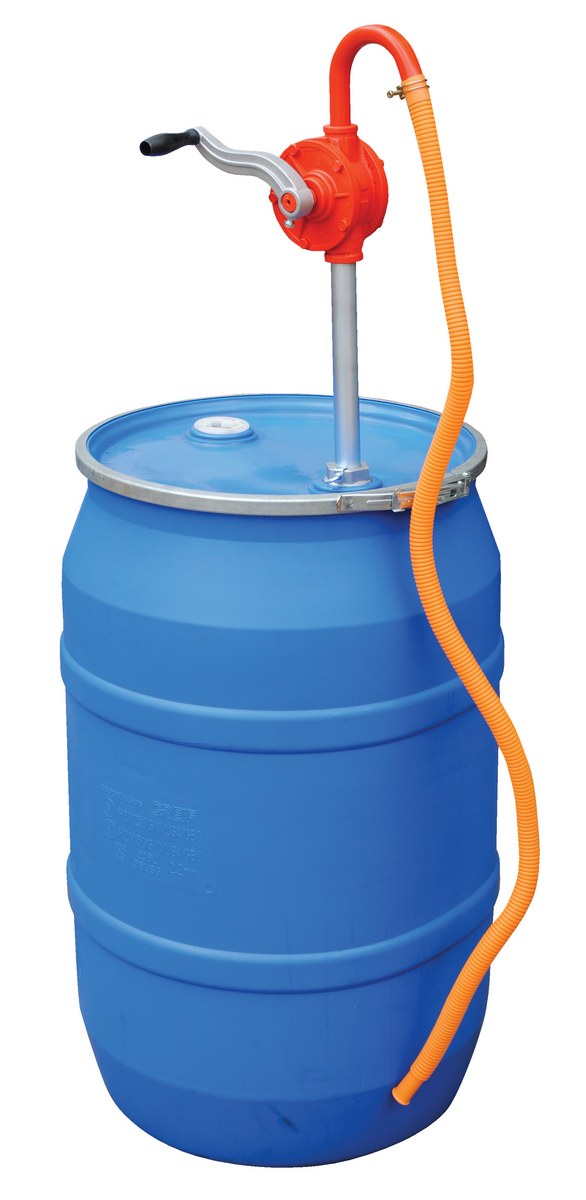

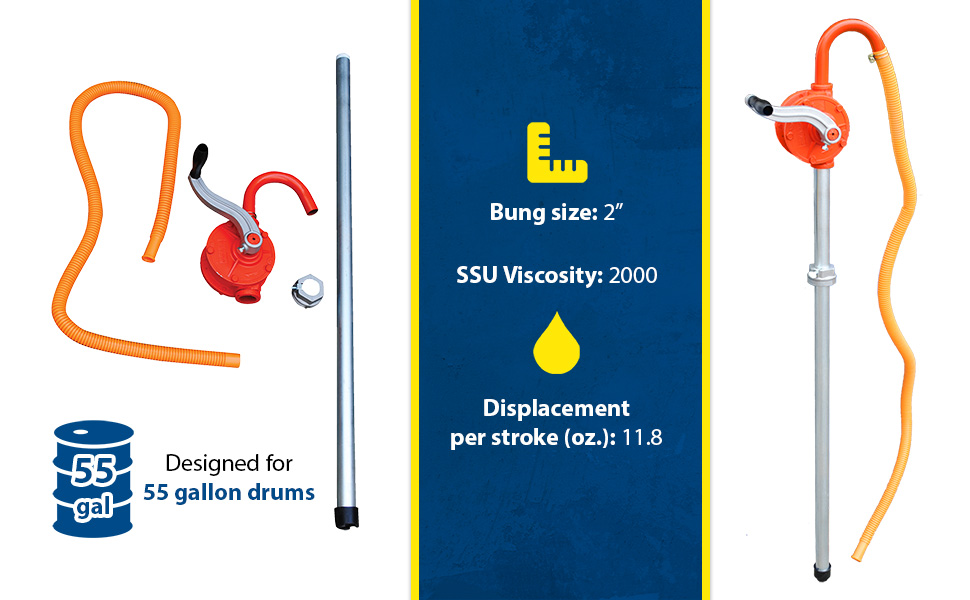

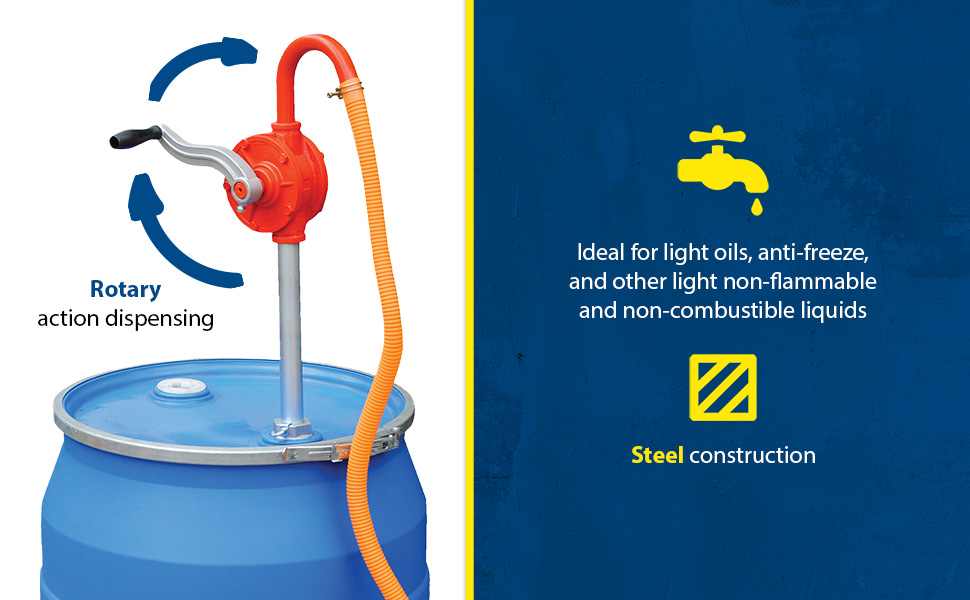

RDP-55 - Ideal for light oils, anti-freeze, and other light non-flammable and non-combustible liquids. (hose included)

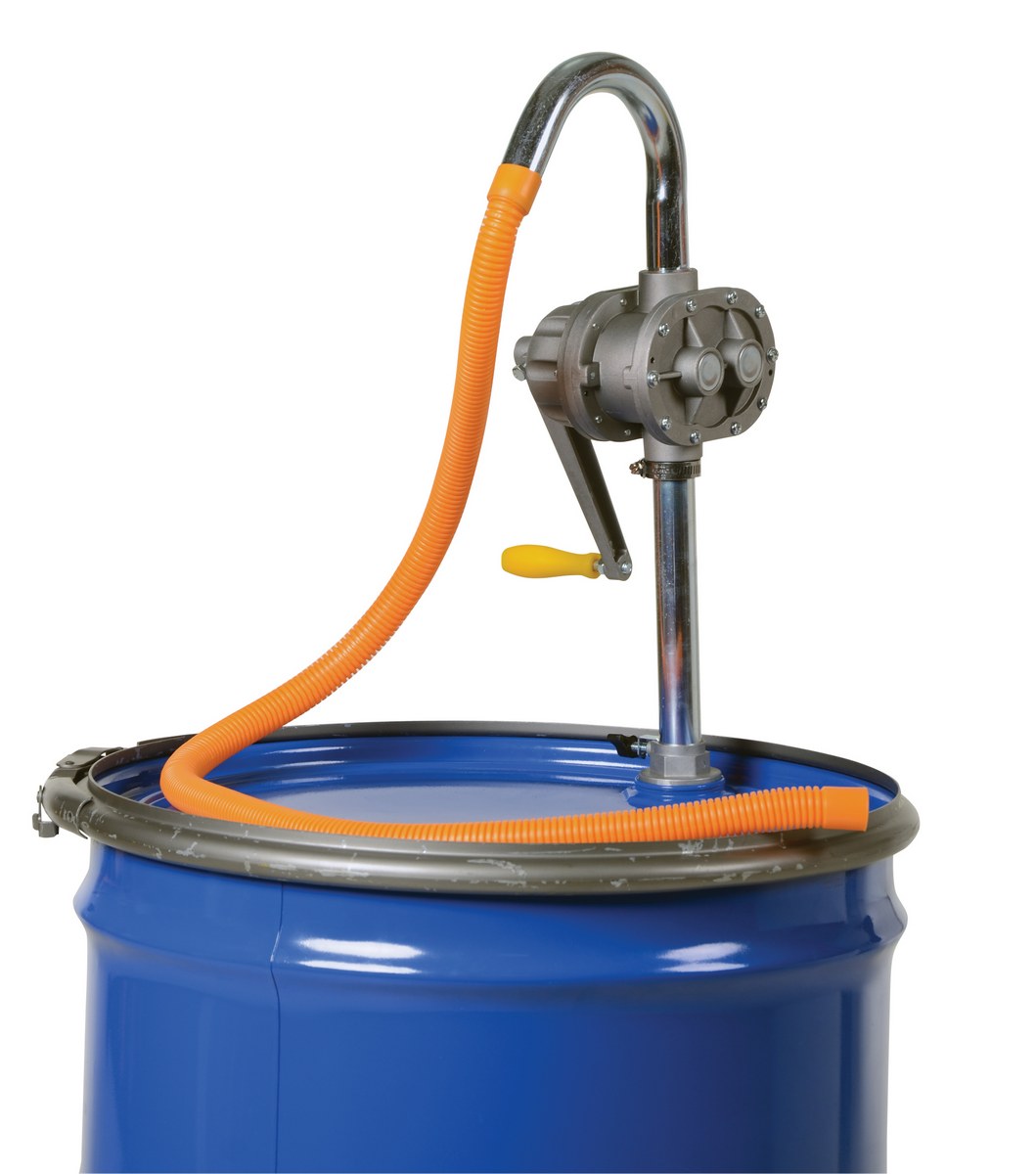

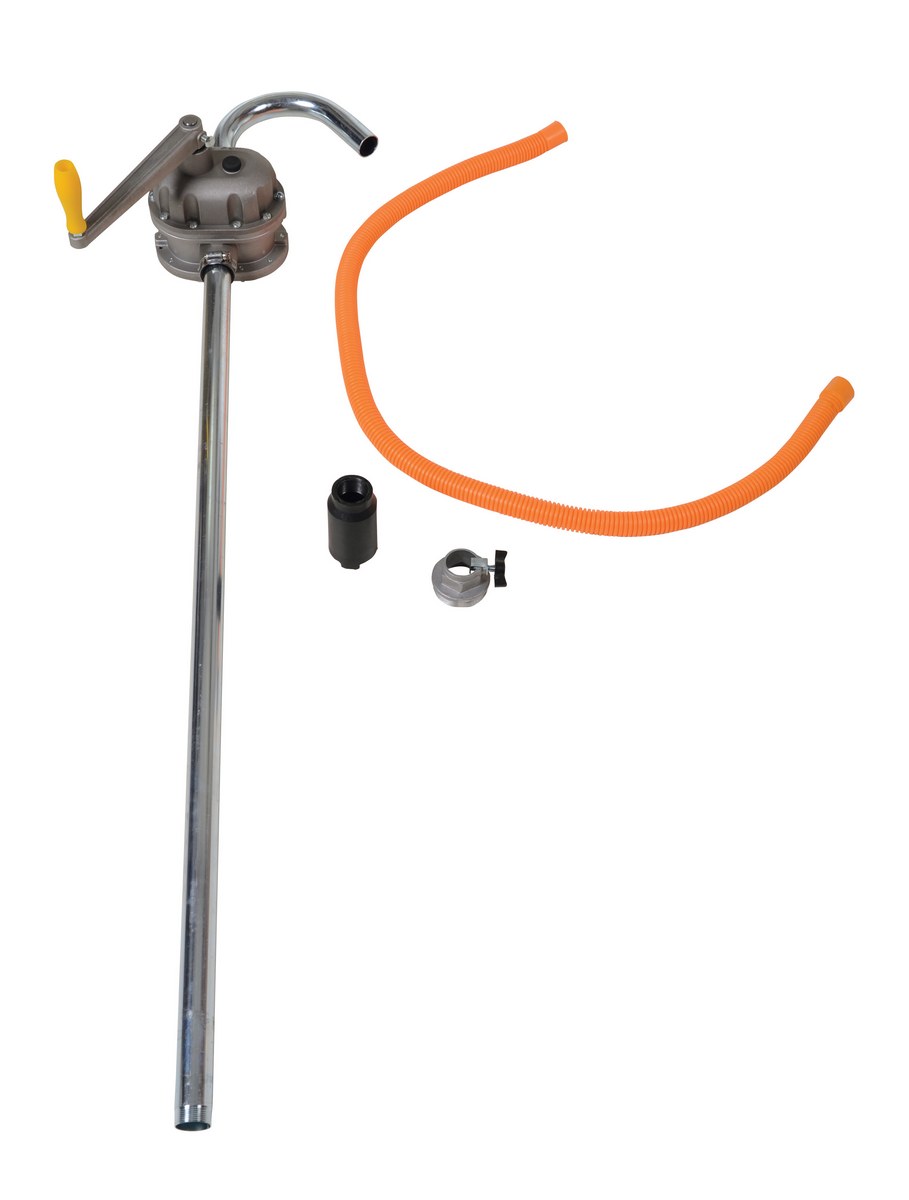

ADP-55 - High-speed drum pump for light oils up to 40 weight. (hose included)

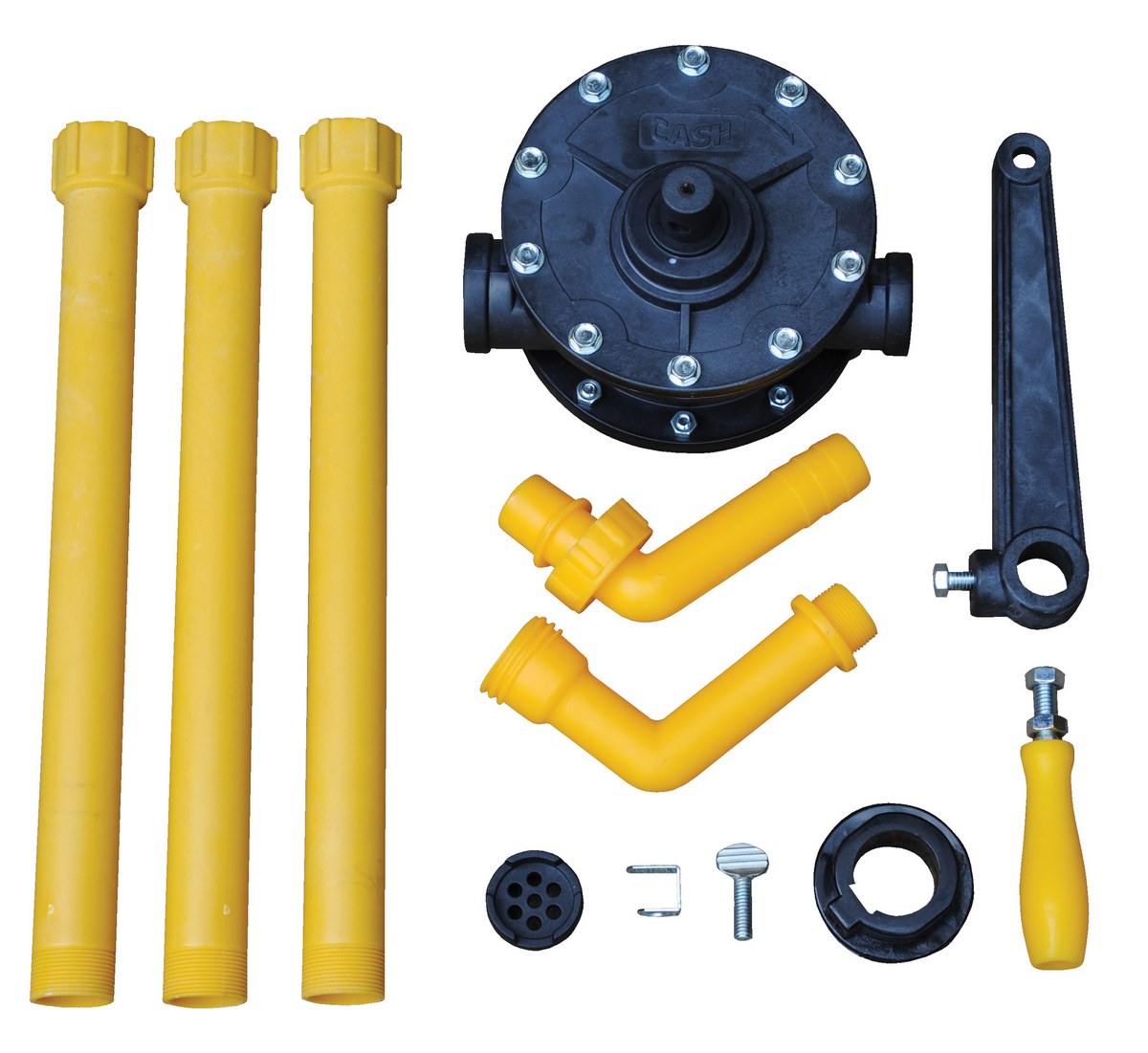

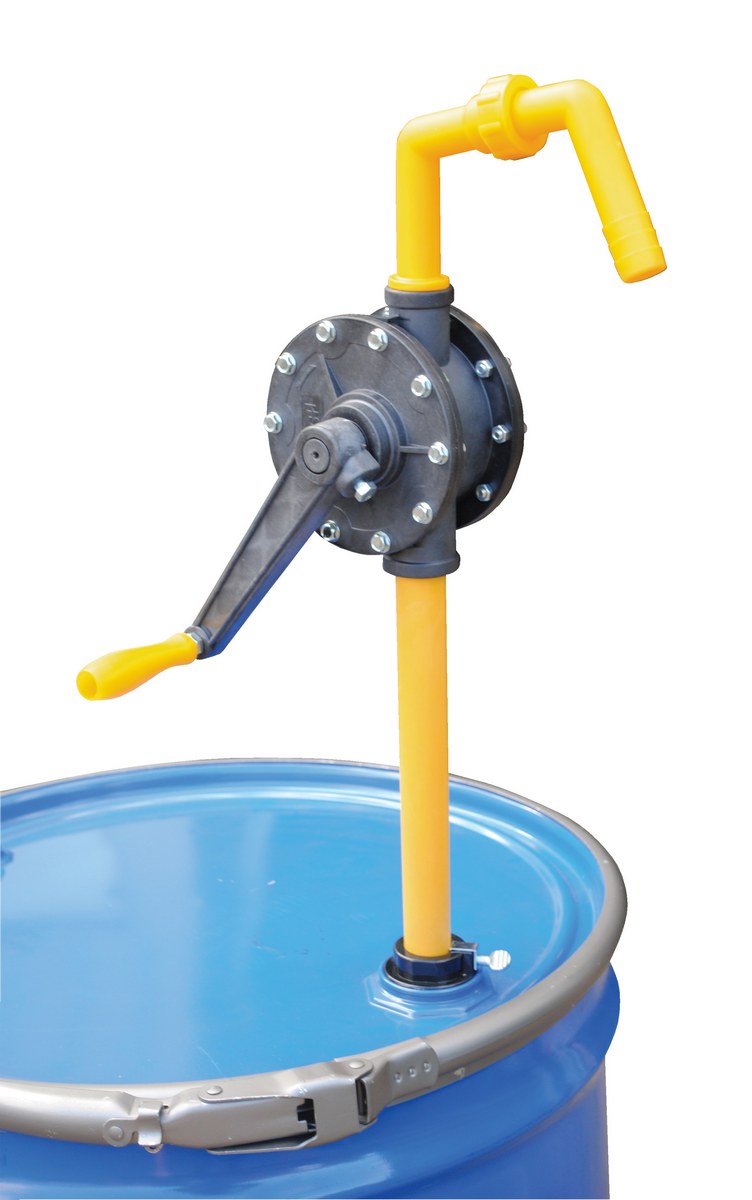

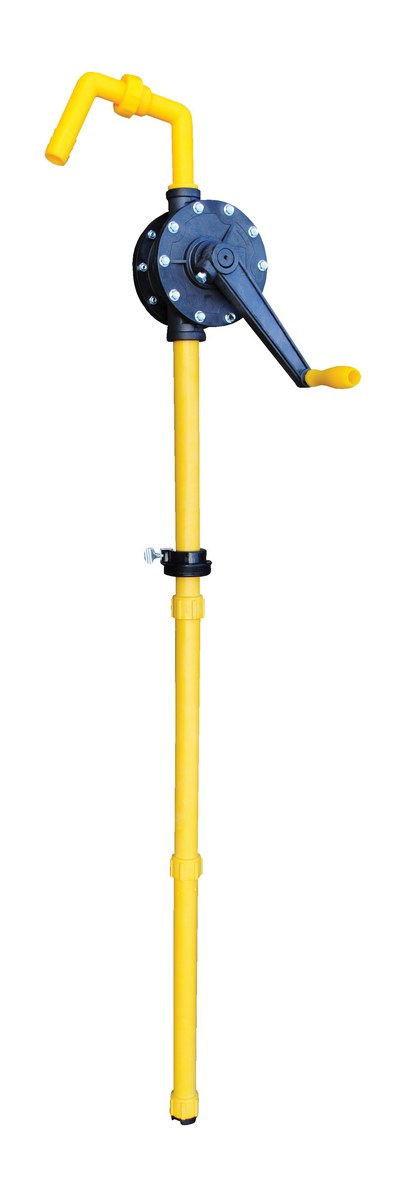

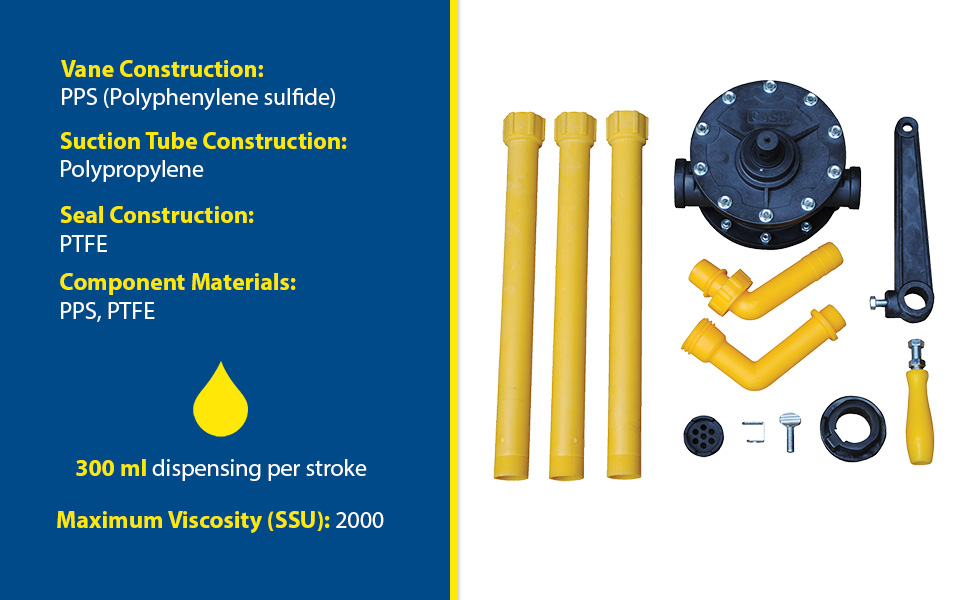

RP-90R - For transferring soluble, corrosive, volatile, and aggressive chemicals (esters, alcohols, alkali, acids, hydrocarbons, petroleum based fluid, transmission fluid and water based chemicals).

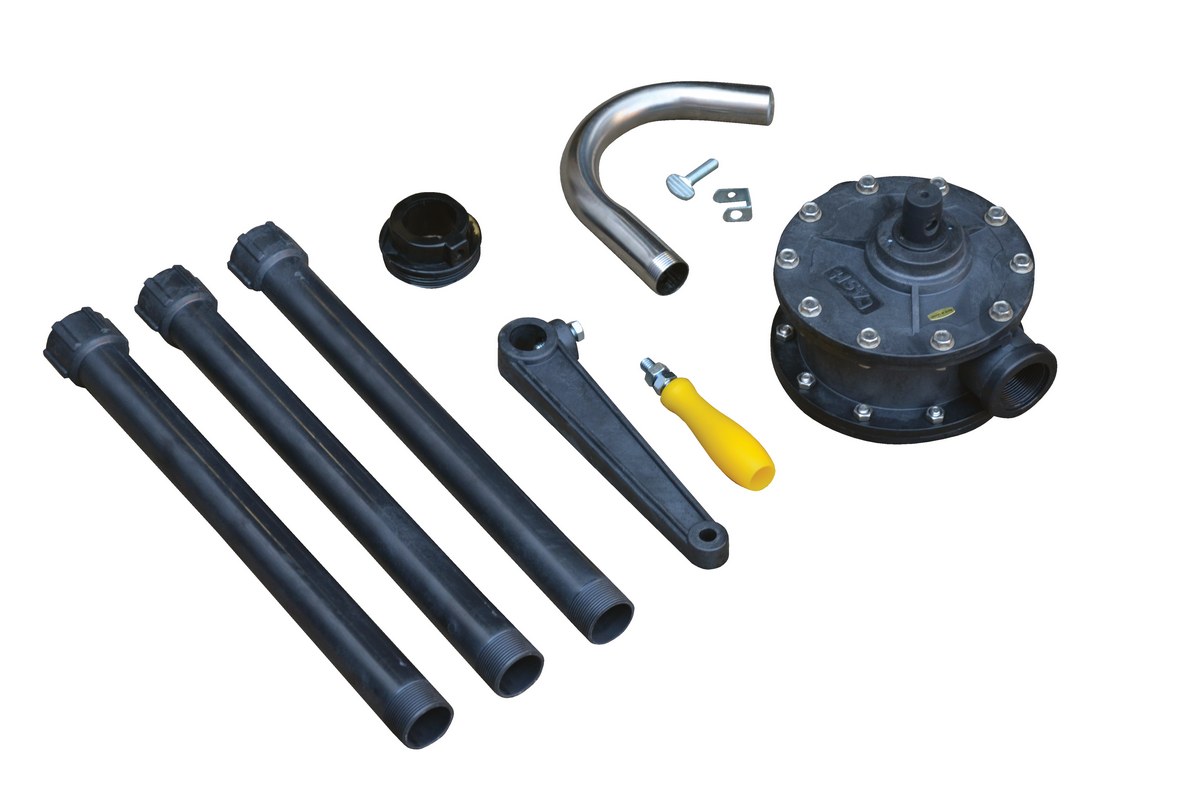

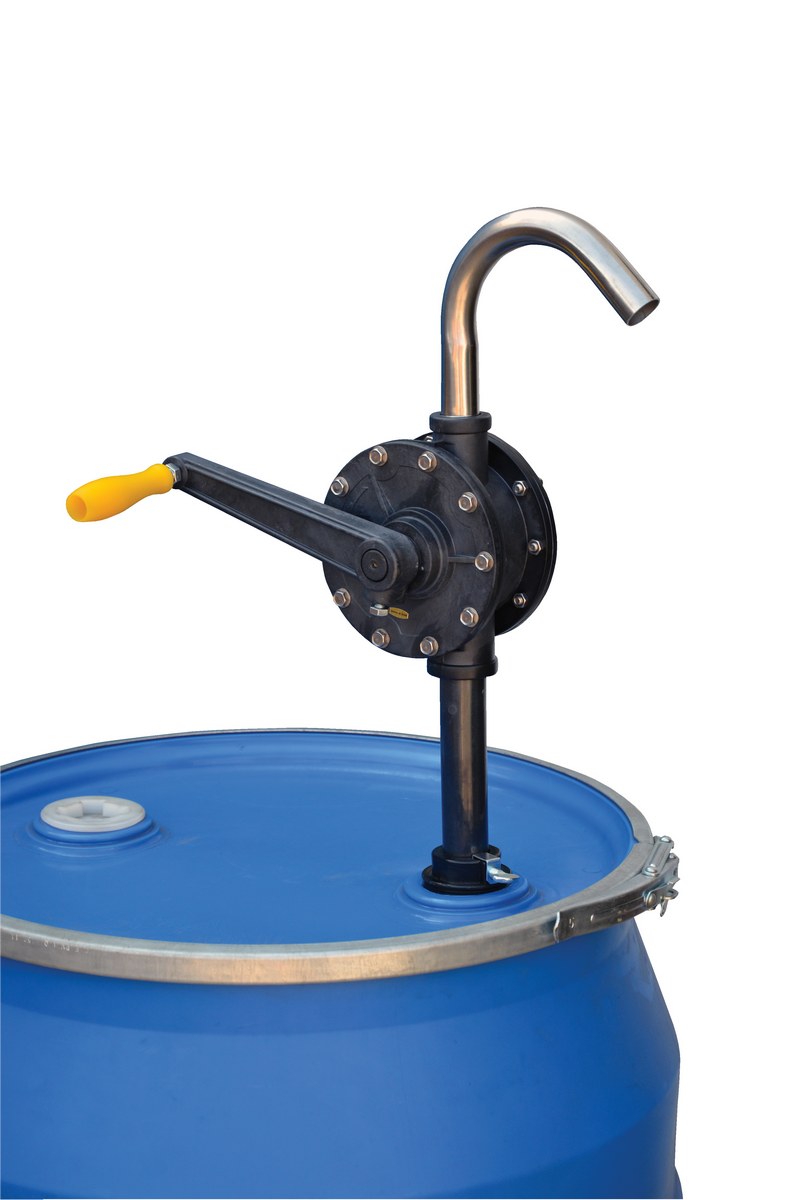

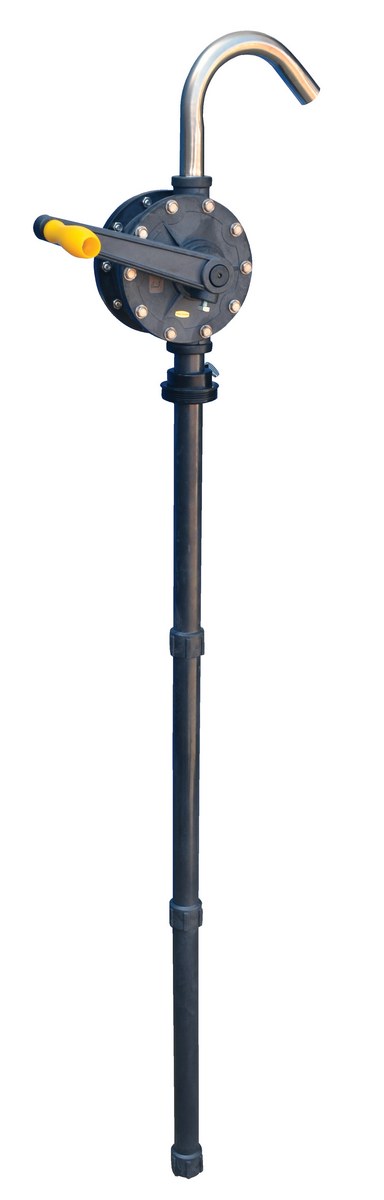

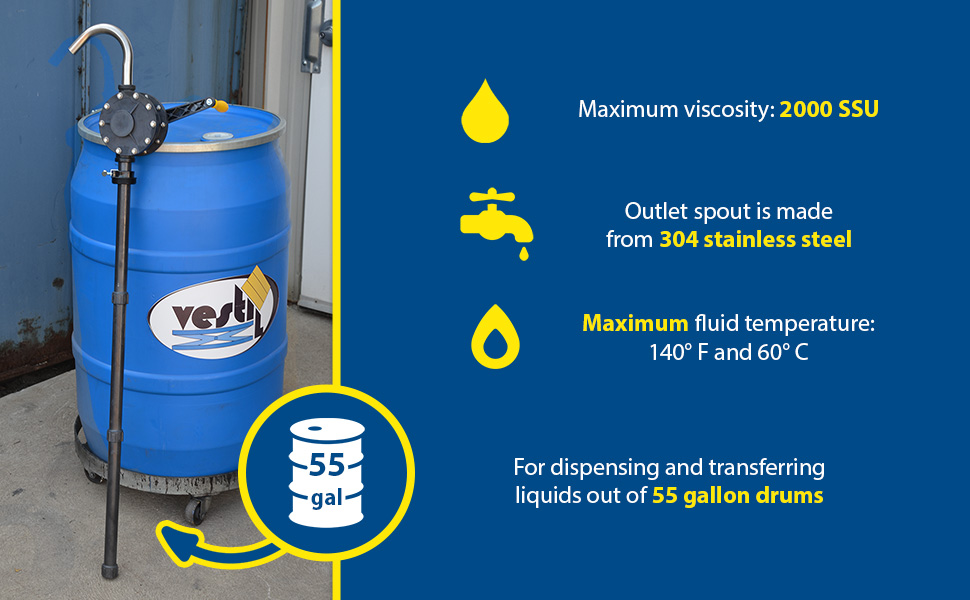

RP-90RT - Ideal for soluble, corrosive, volatile and aggressive chemicals. Suitable for use with Acetone, Ad-Blue, and MEK.

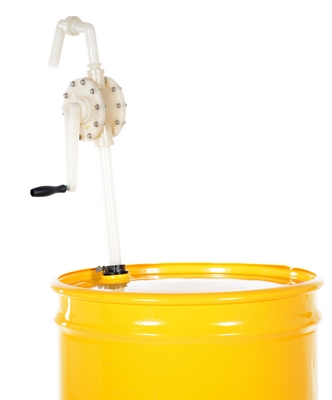

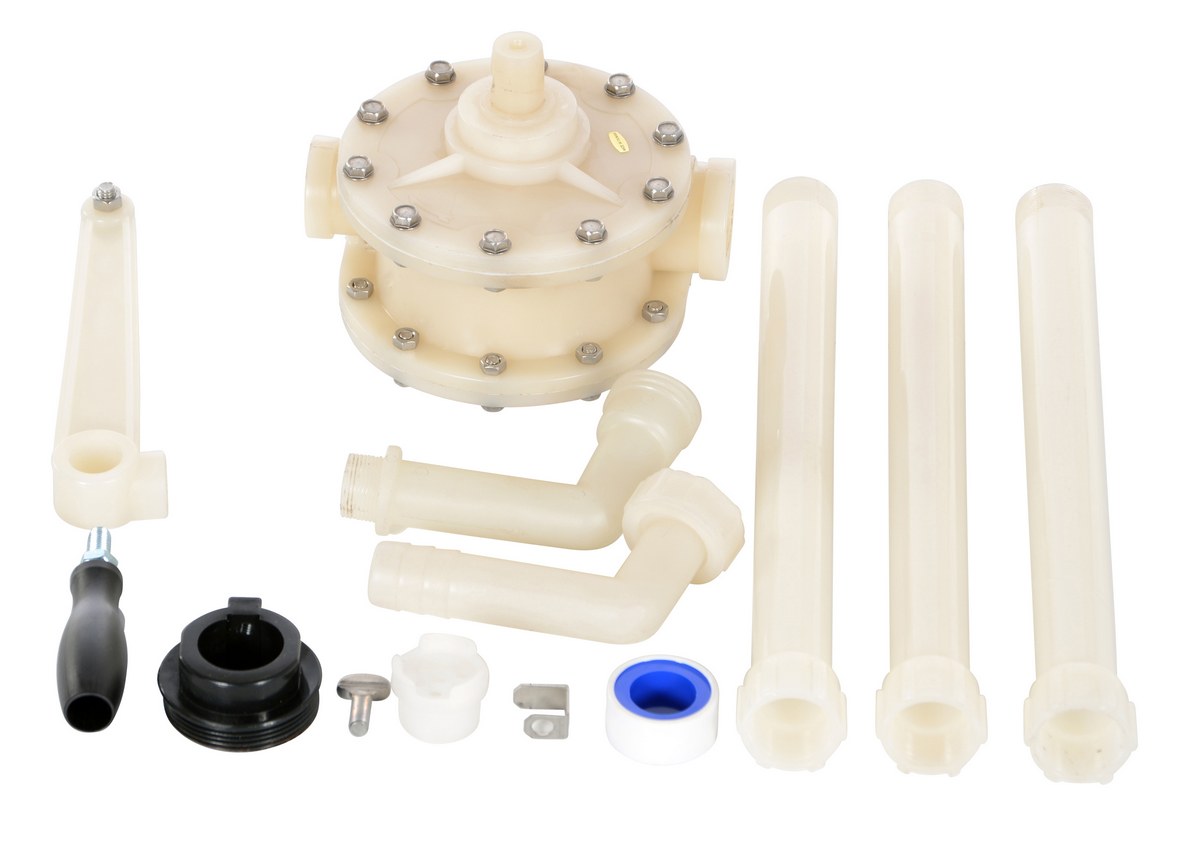

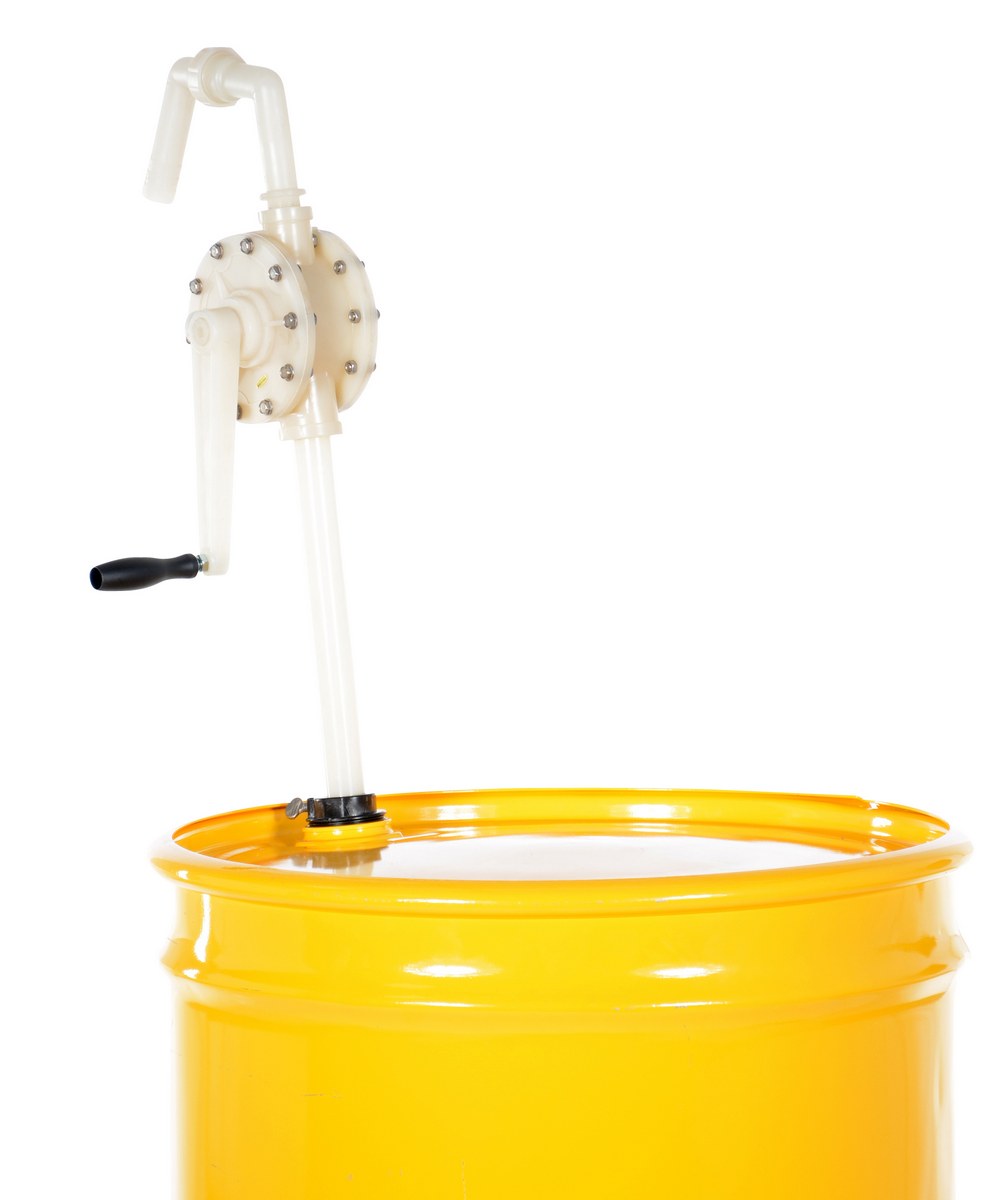

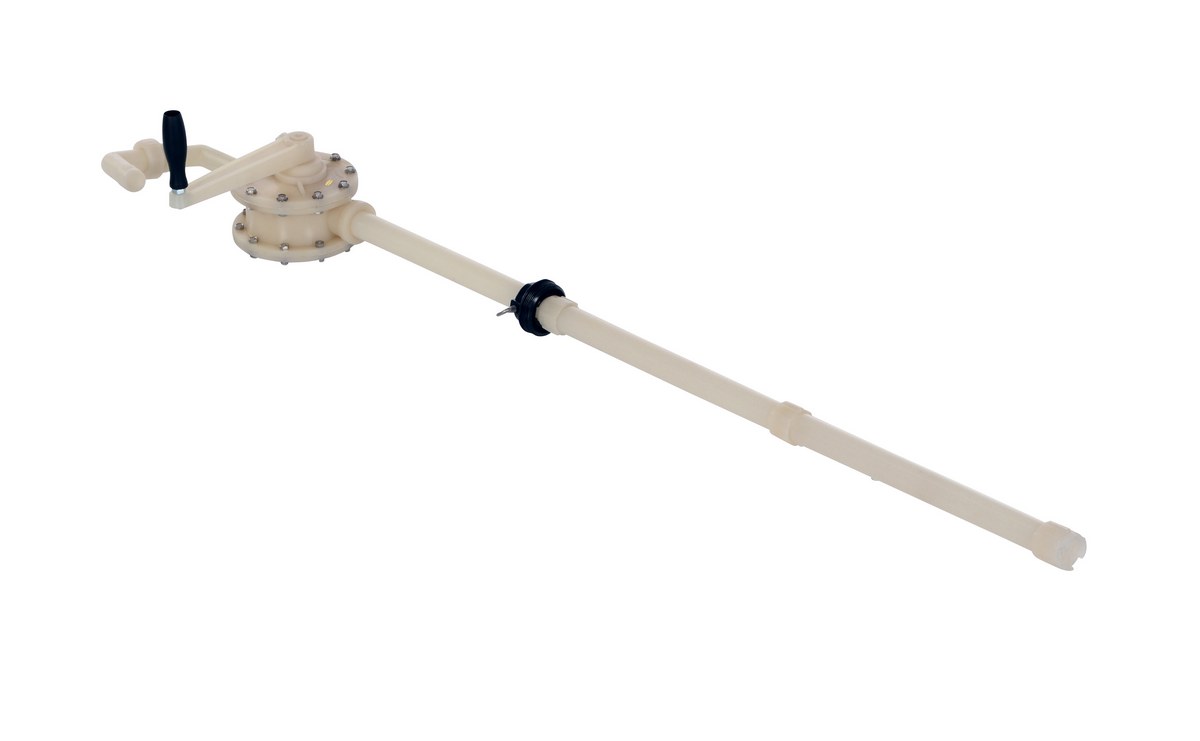

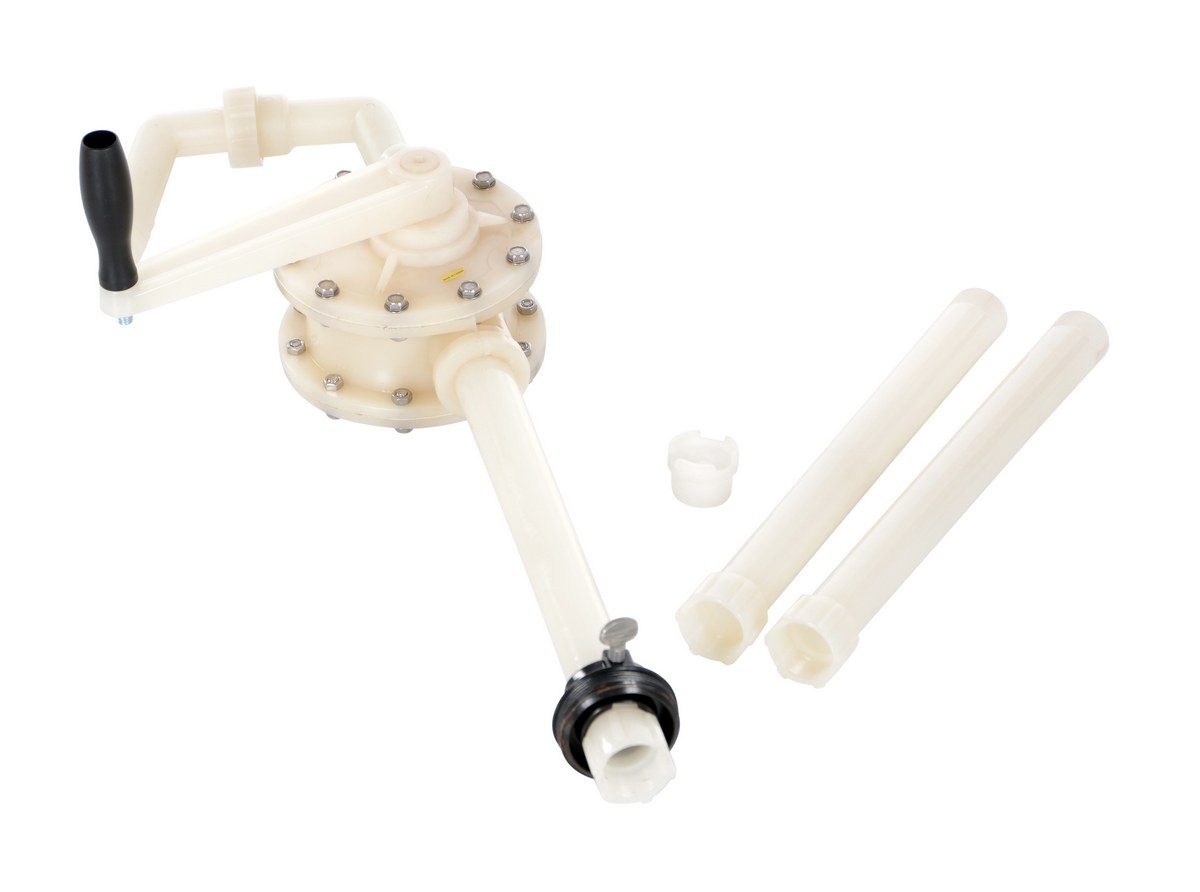

RP-90FG - Suitable for most soluble, corrosive, volatile and liquids which are compatible with PTFE and HFP/TFE.

For dispensing and transferring liquids out of 55-gallon drums.

RDP-55 - Ideal for light oils, anti-freeze, and other light non-flammable and non-combustible liquids. (hose included)

ADP-55 - High-speed drum pump for light oils up to 40 weight. (hose included)

RP-90R - For transferring soluble, corrosive, volatile, and aggressive chemicals (esters, alcohols, alkali, acids, hydrocarbons, petroleum based fluid, transmission fluid and water based chemicals).

RP-90RT - Ideal for soluble, corrosive, volatile and aggressive chemicals. Suitable for use with Acetone, Ad-Blue, and MEK.

RP-90FG - Suitable for most soluble, corrosive, volatile and liquids which are compatible with PTFE and HFP/TFE.

Additional Models In This Family

ADP-55

model ADP-55

RP-90R

model RP-90R

RP-90RT

model RP-90RT

RP-90FG

model RP-90FG

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ADP-55 ADP-5590 Days Limited WarrantyAluminum Manual Rotary Drum Pump 2 In. Bung SilverDisplacement per Stroke (oz.): 11.8
Bung Size (in.): 2
16

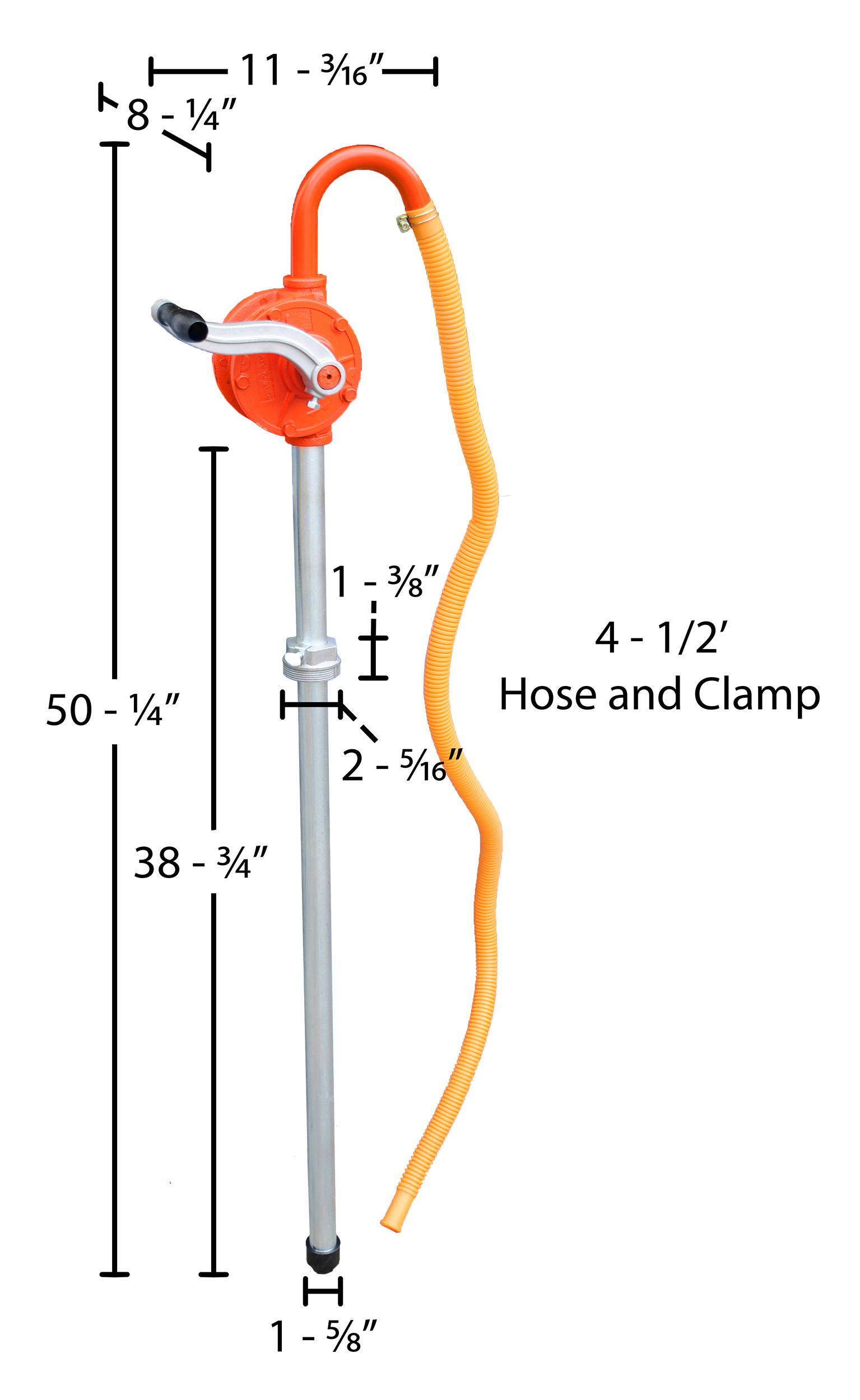

RDP-55 RDP-5530 Days Limited WarrantySteel Manual Drum Pump 2 In. Bung Size 5-1/2 In. x 8-1/2 In. x 51 In. OrangeDisplacement per Stroke (oz..): 11.8
Bung Size (in.): 2
12
RP-90FG RP-90FG30 Days Limited WarrantyPolytetrafluoroethylene Manual Rotary Drum Pump 10 In. x 8 In. x 12 In. WhiteDisplacement Per Stroke (oz.): 10.14
7

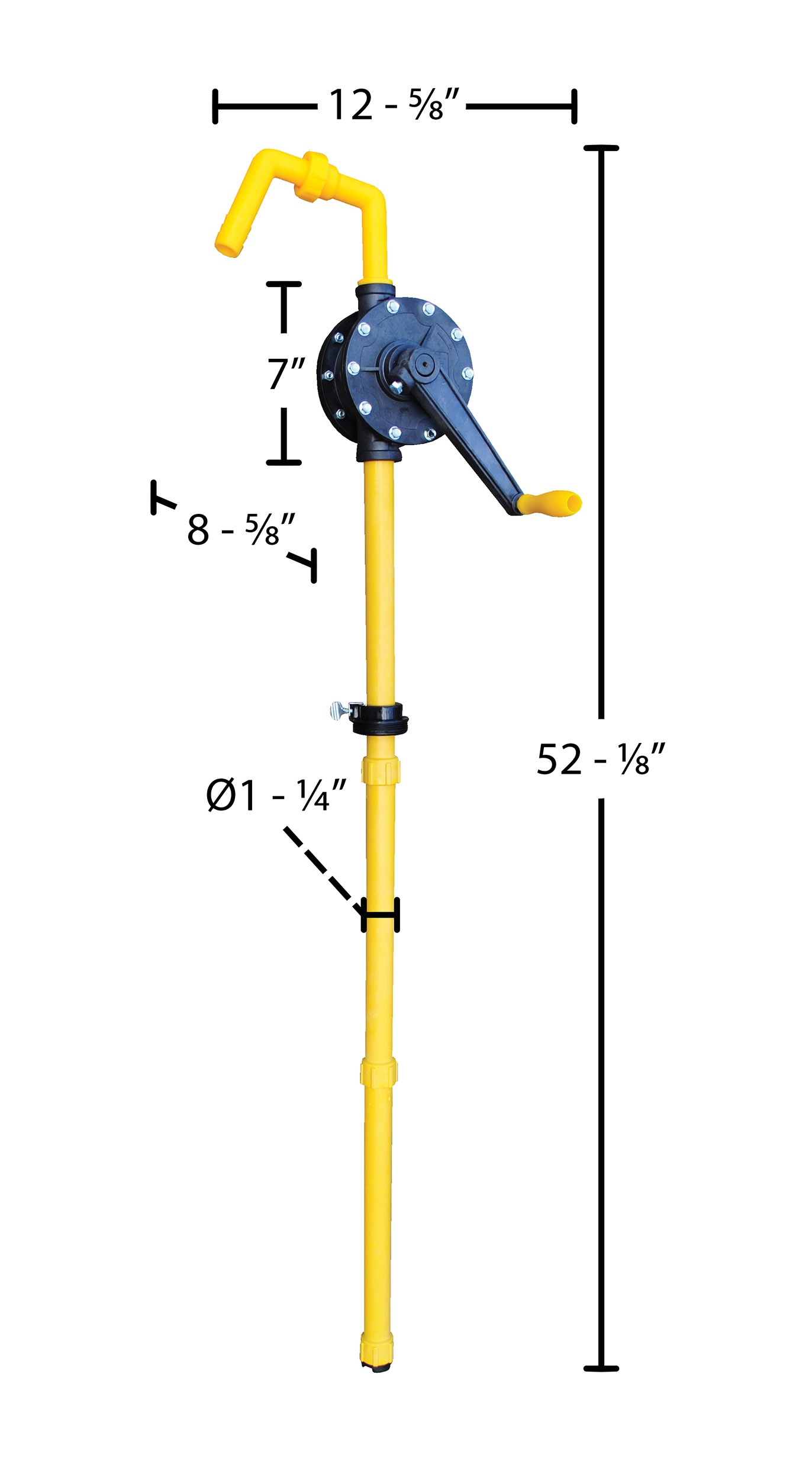

RP-90R RP-90R30 Days Limited WarrantyPolyphenylene Sulfide Manual Rotary Drum Pump 10 In. x 8 In. x 12 In. YellowPump Type: Rotary - Vane
Flow Dispense Per Stroke (ml): 300
6

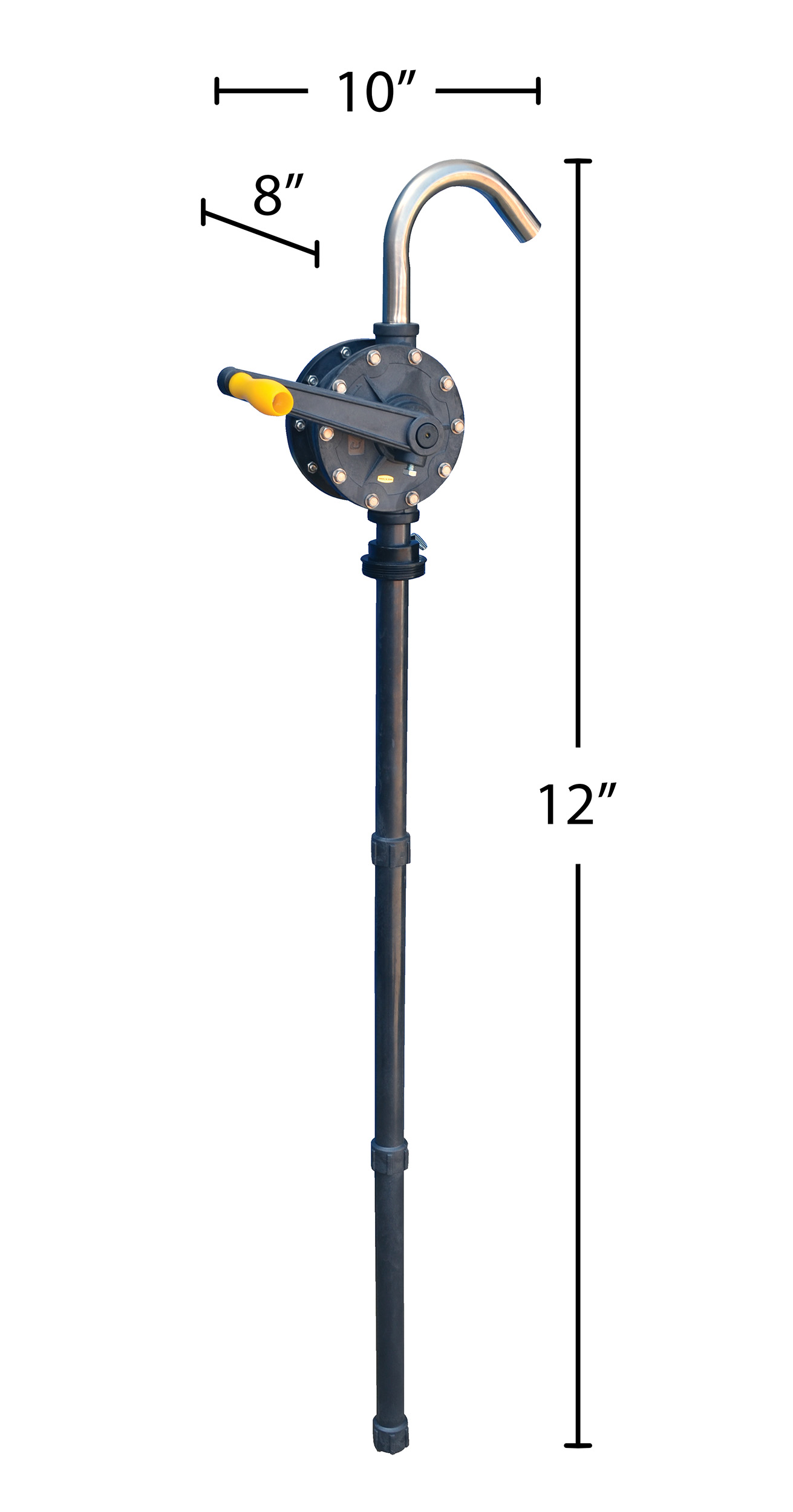

RP-90RT RP-90RT30 Days Limited WarrantyPolyphenylene Sulfide Manual Rotary Drum Pump 10 In. 8 In. x 12 In. BlackPump Type: Rotary - Vane
Flow Dispense Per Stroke (ml): 300
6

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

ADP-55
Unit:
Size: W x L x H
Weight:
Limited Warranty
Displacement per Stroke (oz.): 11.8
Bung Size (in.): 2
Displacement per Stroke (oz.): 11.8
Bung Size (in.): 2

RDP-55
Unit:
Size: W x L x H
Weight:
Limited Warranty
Displacement per Stroke (oz..): 11.8
Bung Size (in.): 2
Displacement per Stroke (oz..): 11.8
Bung Size (in.): 2

RP-90FG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Displacement Per Stroke (oz.): 10.14

Displacement Per Stroke (oz.): 10.14

RP-90R
Unit:
Size: W x L x H
Weight:
Limited Warranty
Pump Type: Rotary - Vane
Flow Dispense Per Stroke (ml): 300
Pump Type: Rotary - Vane
Flow Dispense Per Stroke (ml): 300

RP-90RT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Pump Type: Rotary - Vane
Flow Dispense Per Stroke (ml): 300
Pump Type: Rotary - Vane
Flow Dispense Per Stroke (ml): 300

Rotary Drum Pumps PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


ADP-55

RDP-55

RP-90FG

RP-90R

RP-90RT

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products
