A-LIFT-CB

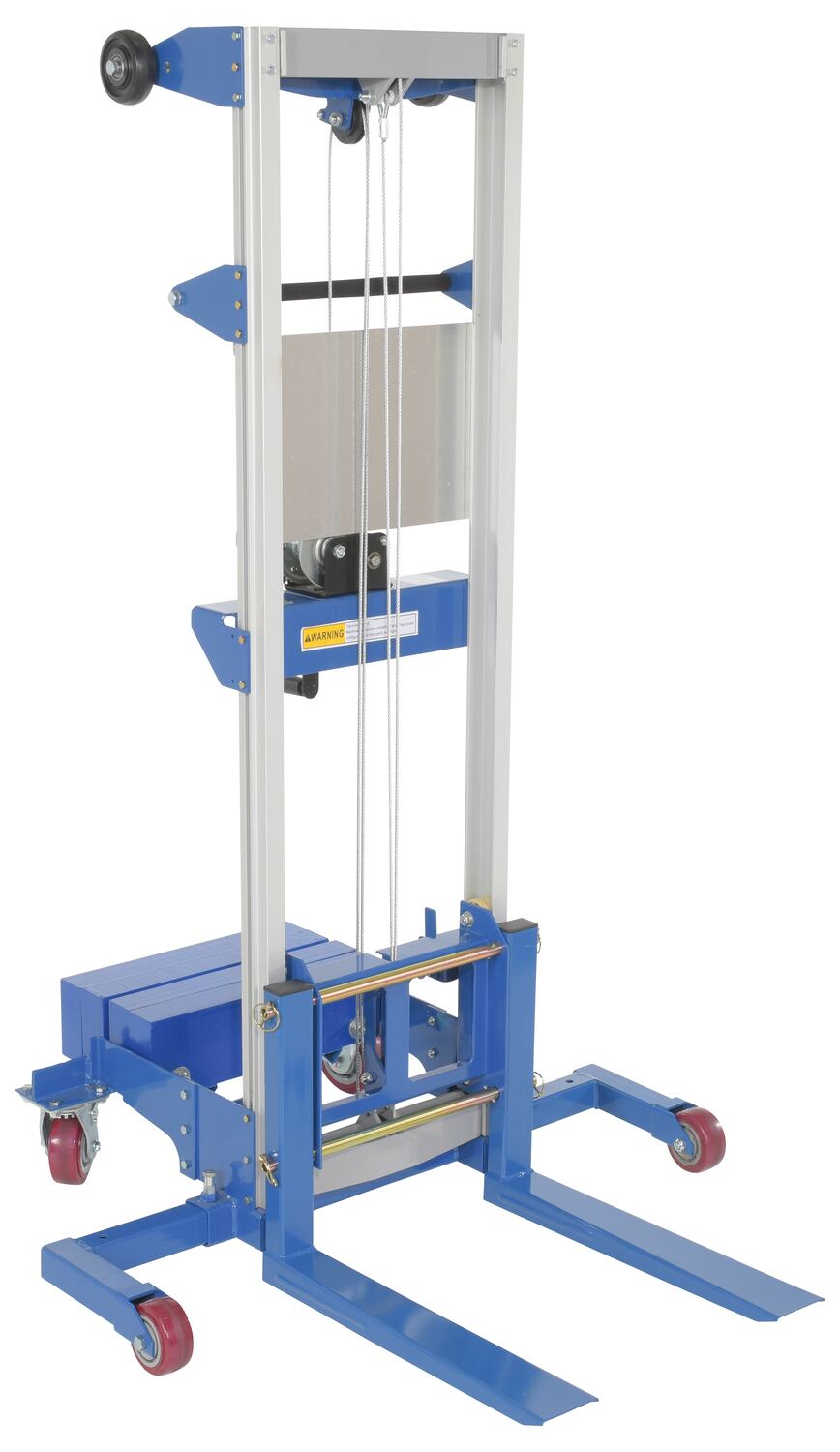

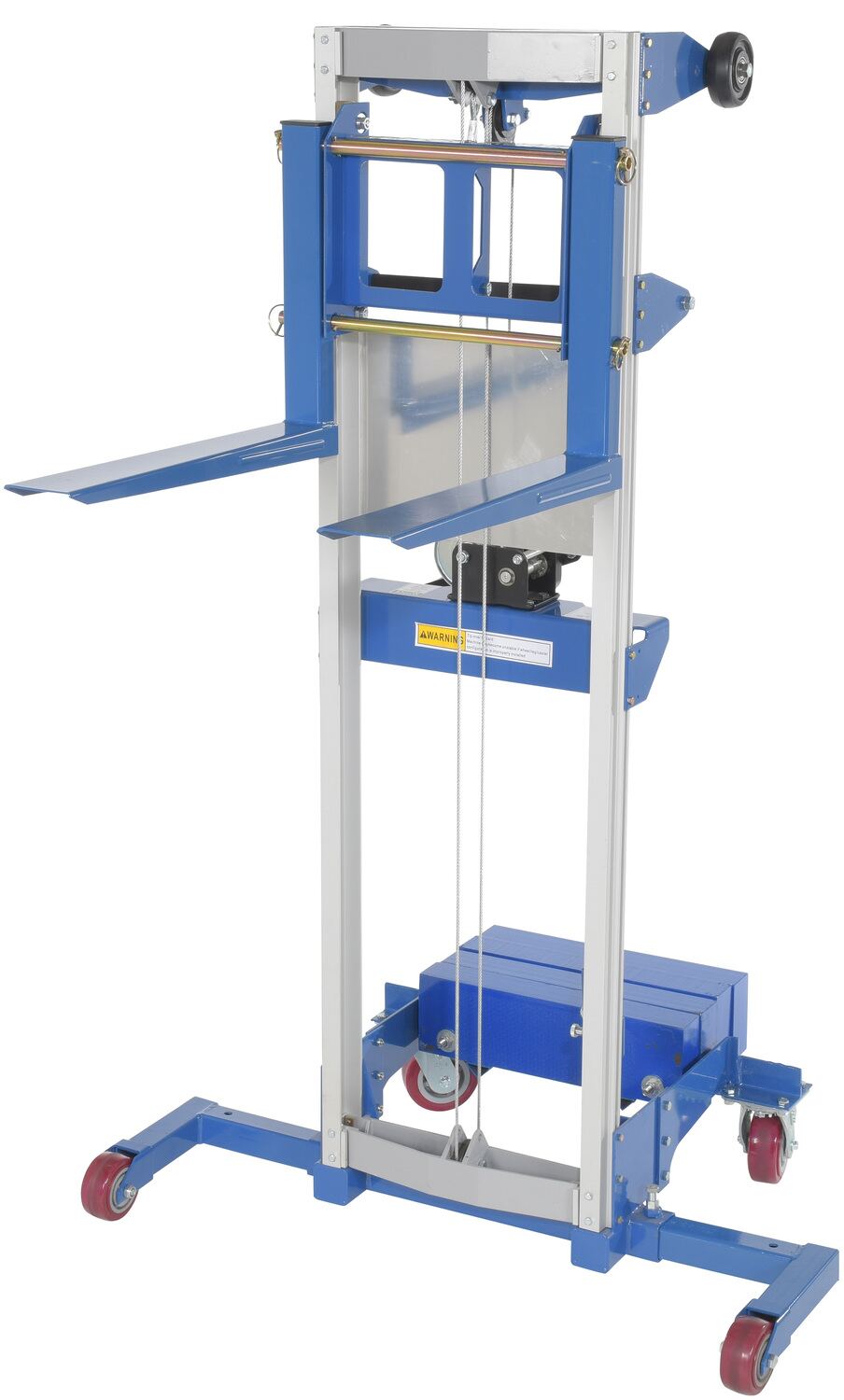

Aluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 500 Lb. Capacity Silver/Blue

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum and a counterbalance design (counterweight included). Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport. The non-adjustable forks can be inverted to provide different height ranges.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Counterbalance weight design keeps unit from tipping with heavy loads
  • Hold-down device secures carriage during transport
Total Ship Wt.(lbs.): 437 (only 1 package) Size: 43.25"W x 45.875"L x 67.3125"H Color: Silver QuickShip

Uniform Capacity (lb.): 500 Lowered Height with Forks Down (in.): 2 Raised Height with Forks Down (in.): 47-1/4
Raised Height with Forks Up (in.): 68-7/8 Fork Width (in.): 4 Fork Height (in.): 1-3/4
Fork Length (in.): 22-7/16 Fork Outside Diameter (in.): 20-7/8 Fork Raise per Hand Crank Rotation (in.): 1
Rear Wheel Diameter (in.): 5 Rear Wheel Width (in.): 2 Front Wheel Diameter (in.): 4
Front Wheel Width (in.): 2 Wheel Material: Poly-On-Poly Inside Straddle Width (in.): 21-1/2 - 36-1/2
Outside Straddle Width (in.): 28-1/4 - 43-1/4 Lowered Height with Forks Up (in.): 21-1/4 Handle Usable Width (in.): 18-5/8
Handle Material: Steel with Foam Grip

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: A-LIFT-CB
A-LIFT-CB

Aluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 500 Lb. Capacity Silver/Blue

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum and a counterbalance design (counterweight included). Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport. The non-adjustable forks can be inverted to provide different height ranges.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Counterbalance weight design keeps unit from tipping with heavy loads
  • Hold-down device secures carriage during transport
Dimensions: 43.25"W x 45.875"L x 67.3125"H Sell UOM: EA-Each Color: Silver
Material: Aluminum/Steel UPC: 691215055536 GTIN: 00691215055536
Warranty: -- Shipping Weight: 437 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Lowered Height with Forks Down (in.): 2 Raised Height with Forks Down (in.): 47-1/4
Raised Height with Forks Up (in.): 68-7/8 Fork Width (in.): 4 Fork Height (in.): 1-3/4
Fork Length (in.): 22-7/16 Fork Outside Diameter (in.): 20-7/8 Fork Raise per Hand Crank Rotation (in.): 1
Rear Wheel Diameter (in.): 5 Rear Wheel Width (in.): 2 Front Wheel Diameter (in.): 4
Front Wheel Width (in.): 2 Wheel Material: Poly-On-Poly Inside Straddle Width (in.): 21-1/2 - 36-1/2
Outside Straddle Width (in.): 28-1/4 - 43-1/4 Lowered Height with Forks Up (in.): 21-1/4 Handle Usable Width (in.): 18-5/8
Handle Material: Steel with Foam Grip
