Model Details

AHA-6-15-10-TLC

Printer Friendly
AHA-6-15-10-TLC

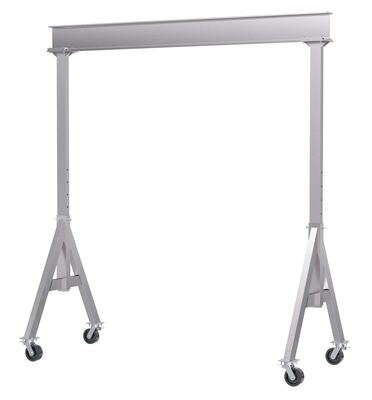

Aluminum Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft. Wide x 10 Ft. Max Usable Height 6,000 Lb. Capacity Silver

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard with total locking casters.

  • Heavy-duty welded aluminum construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Total Ship Wt.(lbs.): 630 (Multiple Packages: P1: 212 lbs + P2: 418 lbs) Size: 64.6875"W x 180"L x 132"H Color: Silver

Uniform Capacity (lbs): 6000 Casters Swivel (Qty): 4 Caster Diameter (in.): 8

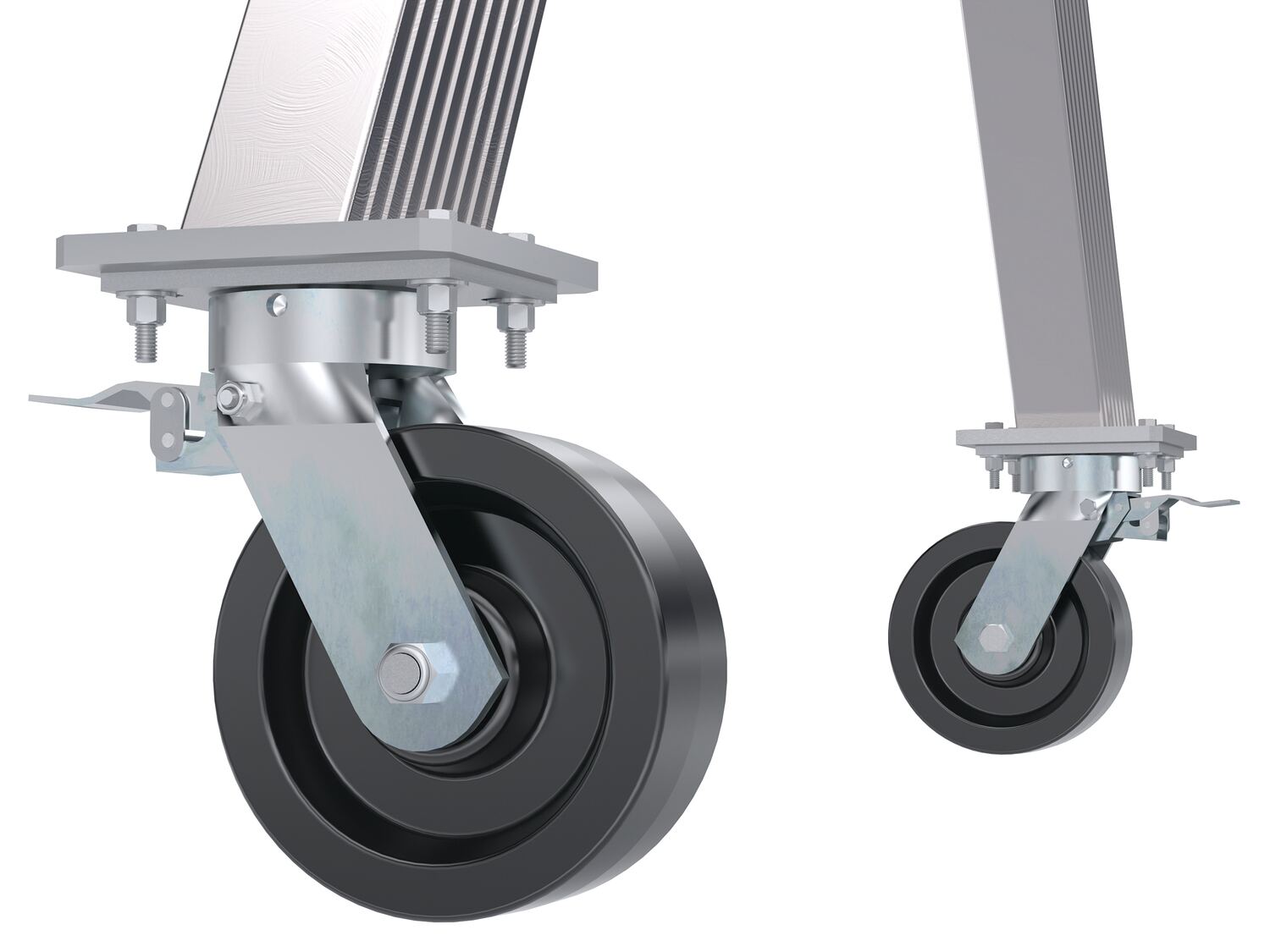

Caster Width (in.): 3 Caster Material: Phenolic

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHA-6-15-10-TLC
AHA-6-15-10-TLC

Aluminum Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft. Wide x 10 Ft. Max Usable Height 6,000 Lb. Capacity Silver

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard with total locking casters.

  • Heavy-duty welded aluminum construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 64.6875"W x 180"L x 132"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215365598 GTIN: 00691215365598
Warranty: -- Shipping Weight: 212 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs): 6000 Casters Swivel (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 3 Caster Material: Phenolic
