AHSN-6-10-12-VG

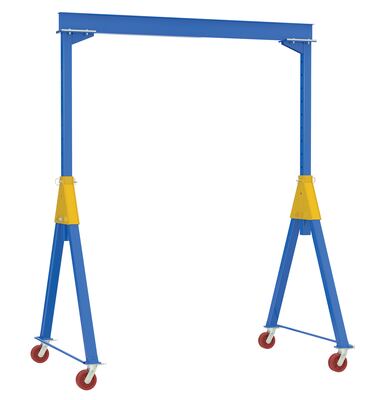

Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 12 Ft. Max Usable Height 6,000 Lb. Capacity Blue

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from . Designed for semi-permanent or permanent applications.

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Total Ship Wt.(lbs.): 981 (Multiple Packages: P1: 841 lbs + P2: 140 lbs) Size: 76.25"W x 120"L x 153.4375"H Color: Blue

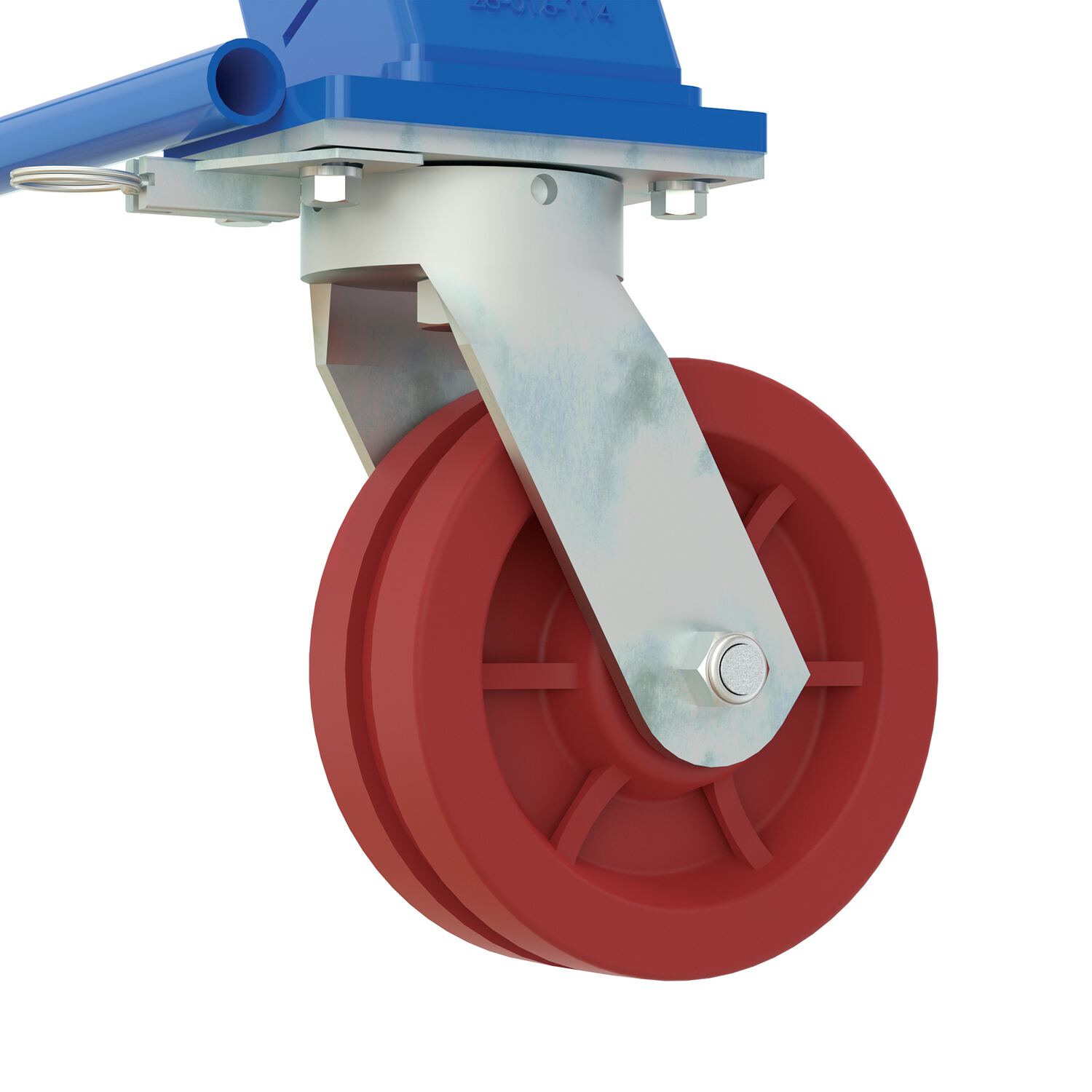

Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 3 Caster Material: Ductile Steel

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHSN-6-10-12-VG
AHSN-6-10-12-VG

Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 12 Ft. Max Usable Height 6,000 Lb. Capacity Blue

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from . Designed for semi-permanent or permanent applications.

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 76.25"W x 120"L x 153.4375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215366090 GTIN: 00691215366090
Warranty: -- Shipping Weight: 841 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 3 Caster Material: Ductile Steel
