Model Details

← All Products- ← Ergonomic Solutions- ← Lift & Tilt Tables -← Low Profile Electric/Hydraulic Scissor Lift Tables- ARX-RS-3642-3

ARX-RS-3642-3

Printer Friendly
Available
ARX-RS-3642-3
ARX-RS-3642-3

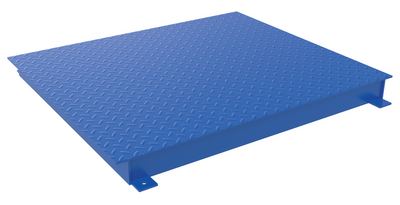

Steel Approach Ramp Spacer 42 In. x 39-1/2 In. x 3-1/4 In. 4000 Lb. Capacity Blue

An approach ramp to a new or existing scissor lift is a great asset. A ramp minimizes the amount of lifting that would be required to maneuver items onto the lift tables. A strong construction with a raised surface design allows heavy loads to be traversed safely.

  • Tread plate design for safety
  • Angled front for smooth transition
  • Large capacity for heavy loads
  • Painted finish to minimize abrasion
Assembled Wt.(lbs.): 172 Assembled Size: 39.5"W x 42"L x 3.25"H

Total Ship Wt.(lbs.): 208 (only 1 package) Package 1 Size: 40"W x 48"D x 10"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 4,000 Mounting Holes (qty.): 4 Mounting Hole Diameter (in.): 9/16
Usable Width (in.): 36 Usable Length (in.): 42

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

30 Days Limited Warranty

Details For Model: ARX-RS-3642-3
Available
ARX-RS-3642-3

Steel Approach Ramp Spacer 42 In. x 39-1/2 In. x 3-1/4 In. 4000 Lb. Capacity Blue

An approach ramp to a new or existing scissor lift is a great asset. A ramp minimizes the amount of lifting that would be required to maneuver items onto the lift tables. A strong construction with a raised surface design allows heavy loads to be traversed safely.

  • Tread plate design for safety
  • Angled front for smooth transition
  • Large capacity for heavy loads
  • Painted finish to minimize abrasion
Dimensions: 39.5"W x 42"L x 3.25"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 208 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 4,000 Mounting Holes (qty.): 4 Mounting Hole Diameter (in.): 9/16
Usable Width (in.): 36 Usable Length (in.): 42
