CART-330-M

Printer Friendly
Available
CART-330-M
CART-330-M CART-330-M CART-330-M CART-330-M CART-330-M

Steel Mechanical Scissor Cart with Hand Crank 18 In. x 28 In. 330 Lb. Capacity Blue/Silver

When lifting and transporting are both essential, look no further than the mechanical scissor cart. The centrally located hand crank allows the user to raise and lower the platform to a more exact level. A large platform gives the ability to load items in a variety of sizes. Since the platform can be maneuvered to a specific height, the unit can be positioned to best fit the users needs for a more ergonomically friendly experience. Poly casters are included for a smooth roll on a variety of surfaces.

  • Hand crank for precise positioning
  • Large capacity for lifting objects both big and small
  • Powder coated finish for long term toughness
  • Smooth steel top minimizes abrasions

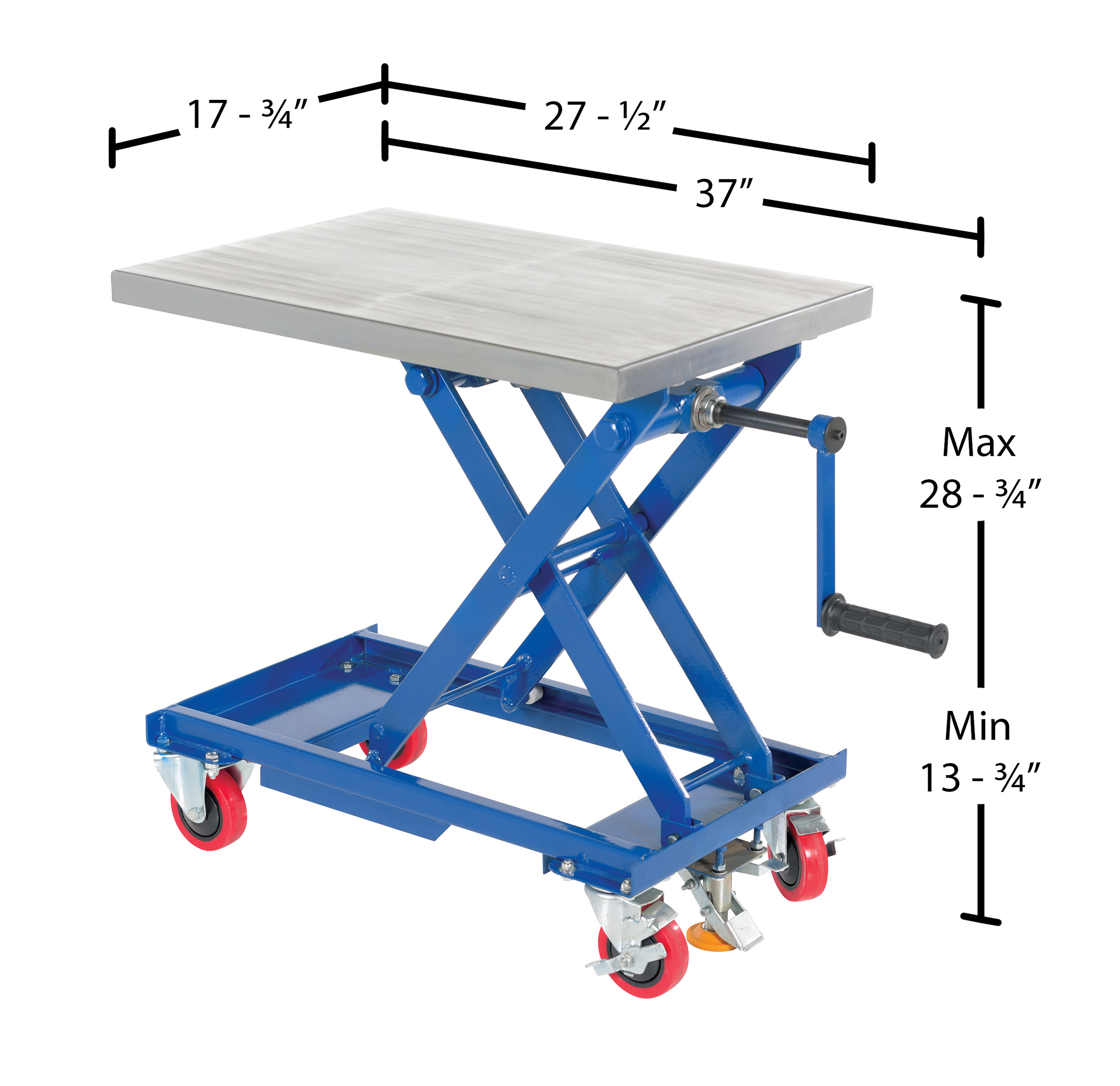

Total Ship Wt.(lbs.): 124 (only 1 package) Size: 17.75"W x 37"L x 13.75"H Color: Blue

Uniform Capacity (lb.): 330 Usable Width (in.): 17-3/4 Usable Length (in.): 27-1/2
Lowered Height (in.): 13-1/2 Raised Height (in.): 28-1/2 Operation Type: Hand Crank
Caster Quantity/Diameter/Width (in.): (4) 4x1.125 Caster Type: Poly Caster Quantity/Type: (2) Rigid, (2) Swivel w/brake
Overall Length Without Handle (in.): 29-3/4 Shaft Stick-Out From Table Edge Without Handle (in.): 2-1/8 Fame Thickness (in.): 1
Scissor Frame Width (in.): 9-5/8 Overall Scissor Frame Width (in.): 16 Caster Mount Length (in.): 3-1/8
Caster Mount Width (in.): 2-3/8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: CART-330-M
Available
CART-330-M

Steel Mechanical Scissor Cart with Hand Crank 18 In. x 28 In. 330 Lb. Capacity Blue/Silver

When lifting and transporting are both essential, look no further than the mechanical scissor cart. The centrally located hand crank allows the user to raise and lower the platform to a more exact level. A large platform gives the ability to load items in a variety of sizes. Since the platform can be maneuvered to a specific height, the unit can be positioned to best fit the users needs for a more ergonomically friendly experience. Poly casters are included for a smooth roll on a variety of surfaces.

  • Hand crank for precise positioning
  • Large capacity for lifting objects both big and small
  • Powder coated finish for long term toughness
  • Smooth steel top minimizes abrasions
Dimensions: 17.75"W x 37"L x 13.75"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215326384 GTIN: 00691215326384
Warranty: -- Shipping Weight: 124 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 330 Usable Width (in.): 17-3/4 Usable Length (in.): 27-1/2
Lowered Height (in.): 13-1/2 Raised Height (in.): 28-1/2 Operation Type: Hand Crank
Caster Quantity/Diameter/Width (in.): (4) 4x1.125 Caster Type: Poly Caster Quantity/Type: (2) Rigid, (2) Swivel w/brake
Overall Length Without Handle (in.): 29-3/4 Shaft Stick-Out From Table Edge Without Handle (in.): 2-1/8 Fame Thickness (in.): 1
Scissor Frame Width (in.): 9-5/8 Overall Scissor Frame Width (in.): 16 Caster Mount Length (in.): 3-1/8
Caster Mount Width (in.): 2-3/8
