Model: CART-40-10-DC-PSS

CART-40-10-DC-PSS

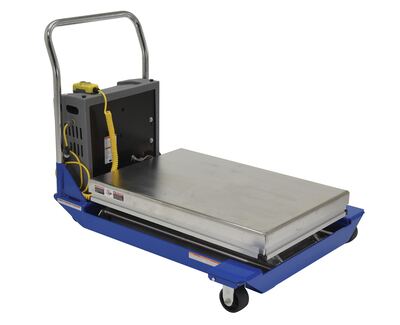

Partially Stainless Steel DC Powered Scissor Cart 48 In. x 40 In. 1000 Lb. Capacity Blue / Yellow

Tables provide unparalleled ergonomic support in lifting, palletizing, loading, and unloading applications. Carts are raised or lowered with either a 12V DC powered motor. Units roll smoothly with two (2) rigid and two (2) swivel 4" x 2" phenolic casters with brakes. Push handle is removable. Internal DC powered electric motor and one (1) 12V battery is included on DC units. Electric motor is rated at 1600 watts. Built-in battery charger is included (operated on 115V AC power). Push buttons to raise and lower lift are located on the power unit. Hand control on coil cord is also standard. Platform is equipped with perimeter pinch-point guard for OSHA compliance.

  • Partially stainless steel construction offers long lasting rugged use
  • Push handle is removable for user convenience
  • Phenolic casters with brakes make transportation easy
  • Platform perimeter pinch-point guard is OSHA compliant
Ship Weight (lbs.): 555 Size: 36"W x 59"L x 42.5"H Color: Silver Non-Returnable

Uniform Capacity (lb.): 1000 Platform Width (in.): 40 Platform Length (in.): 48
Lowered Height (in.): 10-1/2 Raised Height (in.): 42-1/2 Lift Speed (sec.): 15
Caster Quantity/Diameter/Width (in.): (4) 4 x 2 Caster Material: Phenolic Caster Type: (2) Rigid (2) Swivel with Brakes
DC Motor Voltage: 12 Battery Quantity: 1 Electric Motor Watts: 1600
AC Battery Charger Voltage: 115 Removable Handle Height (in): 36 Control: 2-Button Pendant

Marketing Specs.

MFG Model # (Series)
CART-40-10-DC-PSS
Product Name
Partially Stainless Steel DC Powered Scissor Cart 48 In. x 40 In. 1000 Lb. Capacity Blue / Yellow
UPC
691215320771
GTIN
00691215320771
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Scissor Carts
Taxonomy 5
Electric
Assembled Depth (in.)
59
Assembled Width(in.)
36
Assembled Height(in.)
42.5
Assembled Weight(lbs.)
561
Color/Finish
Silver
Material
Partial Stainless Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
China
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
31
Package Weight (in.)
555
Subclass
8
Freight Class
85
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120080
LTL Freight
LTL Palletized
UNSPSC
24101501
HTSUS Number
8428900390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
42
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Yes

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery


PDF Documents


Details For Model: CART-40-10-DC-PSS


CART-40-10-DC-PSS

Partially Stainless Steel DC Powered Scissor Cart 48 In. x 40 In. 1000 Lb. Capacity Blue / Yellow

Tables provide unparalleled ergonomic support in lifting, palletizing, loading, and unloading applications. Carts are raised or lowered with either a 12V DC powered motor. Units roll smoothly with two (2) rigid and two (2) swivel 4" x 2" phenolic casters with brakes. Push handle is removable. Internal DC powered electric motor and one (1) 12V battery is included on DC units. Electric motor is rated at 1600 watts. Built-in battery charger is included (operated on 115V AC power). Push buttons to raise and lower lift are located on the power unit. Hand control on coil cord is also standard. Platform is equipped with perimeter pinch-point guard for OSHA compliance.

  • Partially stainless steel construction offers long lasting rugged use
  • Push handle is removable for user convenience
  • Phenolic casters with brakes make transportation easy
  • Platform perimeter pinch-point guard is OSHA compliant
Dimensions: 36"W x 59"L x 42.5"H Sell UOM: EA-Each Color: Silver
Material: Partial Stainless Steel UPC: 691215320771 GTIN: 00691215320771
Warranty: -- Shipping Weight: 555 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1000 Platform Width (in.): 40 Platform Length (in.): 48
Lowered Height (in.): 10-1/2 Raised Height (in.): 42-1/2 Lift Speed (sec.): 15
Caster Quantity/Diameter/Width (in.): (4) 4 x 2 Caster Material: Phenolic Caster Type: (2) Rigid (2) Swivel with Brakes
DC Motor Voltage: 12 Battery Quantity: 1 Electric Motor Watts: 1600
AC Battery Charger Voltage: 115 Removable Handle Height (in): 36 Control: 2-Button Pendant
