Model Details

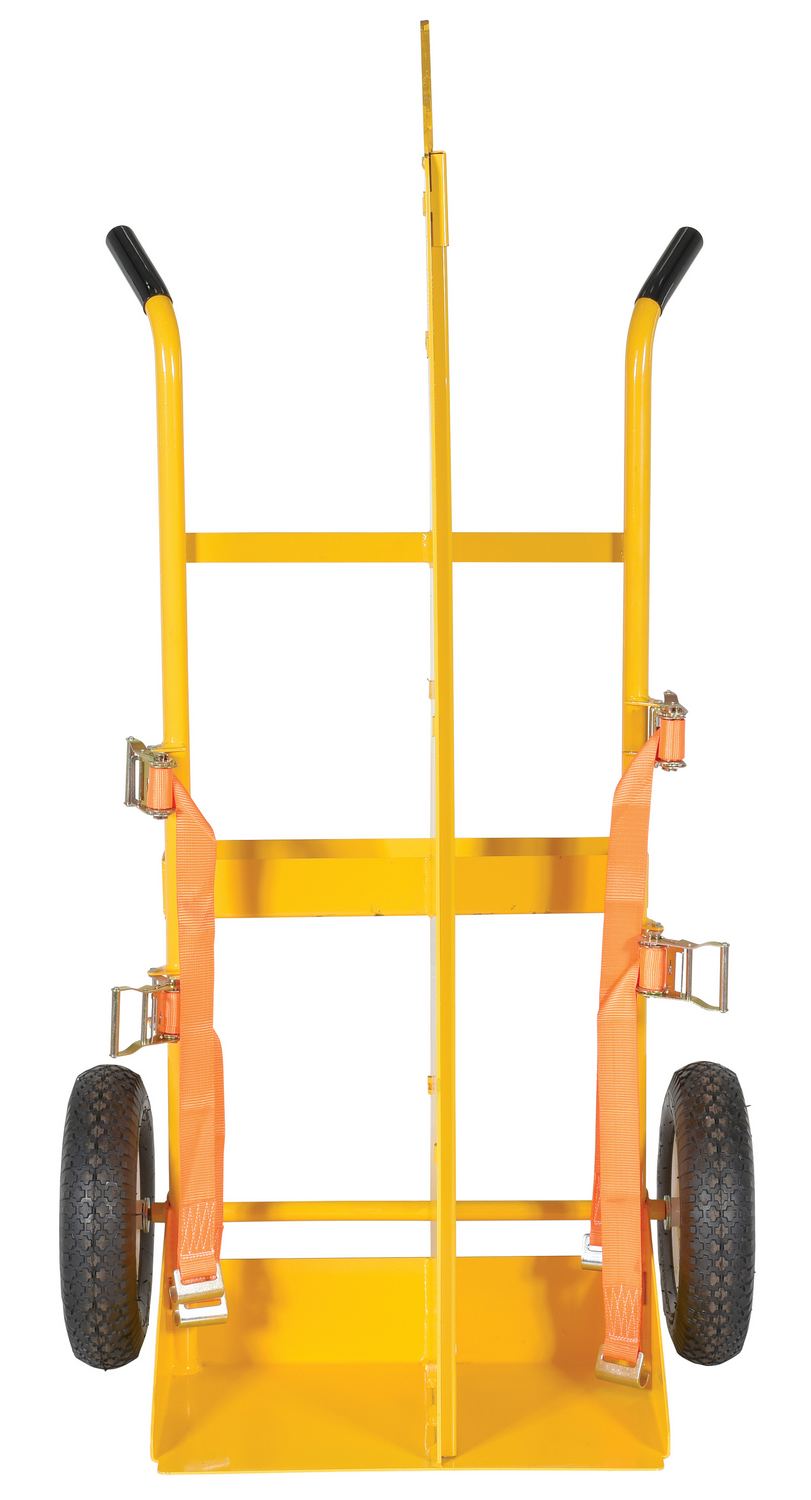

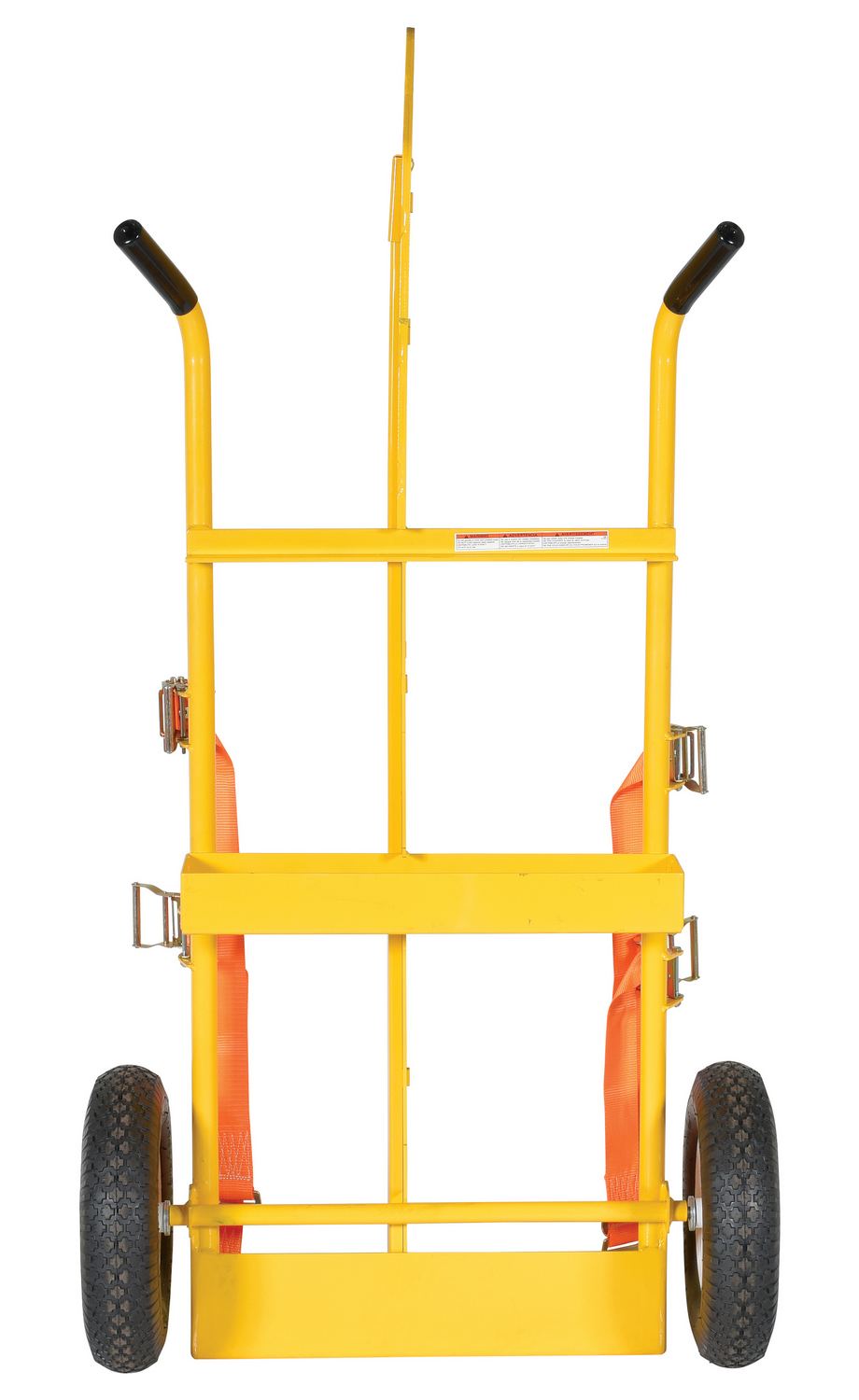

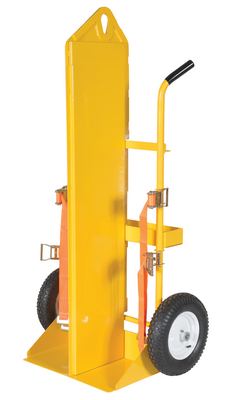

The welding Cylinder torch cart is designed for transporting cylinders and cutting torch. Includes two (2) tank compartments with heavy-duty ratchet straps. Convenient open-top storage tray. Brackets are included for holding cutting torch and hose. Sturdy handles and large wheels for tilt-n-go portability. Welded steel construction with powder coat finish. Not designed for use as a storage means for gas cylinders.
Uniform Capacity (lb.): 500 | Wheel Diameter (in.): 16 | Wheel (qty.): 2 |
Wheel Width (in.): 2-1/2 | Wheel Bearings (in.): 5/8 | Wheel Type: Pneumatic |
Material Thickness (in.): 7/16 | Cylinder Capacity (qty.): 2 | Base Plate Usable Quantity/Width (in.): (2) 12-11/16 - 10-7/16 |
Base Plate Length (in.): 14-5/16 | Handle Type: Double | Includes: Ratchet Straps |
Max. Tank Diameter Acetylene (cubic feet): 397, #5 Tank | Max. Tank Diameter Oxygen (mL): 260, #T Bottle | Tool Tray Length (in.): 24 |
Tool Tray Width (in.): 5 | Tool Tray Height (in.): 3 | Maximum Eye Diameter (in.): 2 |
Marinite 1 thickness (in.): 1/2 (approx. 13 mm) | OSHA: 1910.253 & 1926.350 | Overall Width (in.): 34-1/2 |
Overall Depth (in.): 23 | Overall Height (in.): 66-3/8 |
Details For Model: CYL-EH-FP |
||||||||||||||||||||||||||||||||||||||||
Steel Torch Cart-Lift Eye-Fire Proof 23 In. x 34-1/2 In. x 66-3/8 In. 500 Lb. Capacity YellowThe welding Cylinder torch cart is designed for transporting cylinders and cutting torch. Includes two (2) tank compartments with heavy-duty ratchet straps. Convenient open-top storage tray. Brackets are included for holding cutting torch and hose. Sturdy handles and large wheels for tilt-n-go portability. Welded steel construction with powder coat finish. Not designed for use as a storage means for gas cylinders.
|
||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||
