Model Details
The electric hydraulic scissor lift table is used by all types of manufacturing and warehouse facilities. Safety features include a patented pinch point perimeter toe guard to protect pinch points while lowering the table, fused push button control, internal safety velocity fuse to maintain platform height in the event of hose or fitting failure, integral maintenance prop, adjustable upper travel limit switch to stop the table at maximum height, and displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, and state-of-the-art lifetime lubricated bearings. The standard 56 frame electric motor is fully enclosed with additional voltage options available. Contact factory if platform dimensions are crucial.
Uniform Capacity (lb.): 6000 | Travel Time (sec.): 32 | Vertical Travel (in.): 36 |
Voltage/Phase: 460/3 | Hertz: 60 | Motor Horsepower: 2 |
Hydraulic Component Rating (psi): 3000 | Cord Length (in.): 96 | Push Button Hand Control: 24V AC |
Raised Height (in.): 44 | Lowered Height (in.): 8 | Platform Width/Length (in.): 48-3/8 x 48-3/8 |
Details For Model: EHLT-4848-6-44 |
|||||||||||||||||||||||||||||

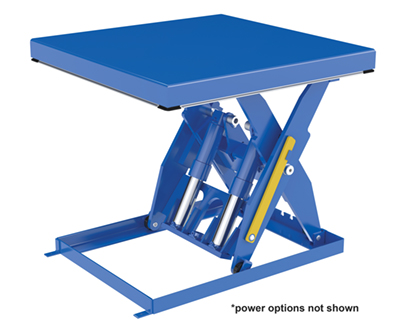

Steel Electric Hydraulic Lift Table 48 In. x 48 In. 6000 Lb. Capacity BlueThe electric hydraulic scissor lift table is used by all types of manufacturing and warehouse facilities. Safety features include a patented pinch point perimeter toe guard to protect pinch points while lowering the table, fused push button control, internal safety velocity fuse to maintain platform height in the event of hose or fitting failure, integral maintenance prop, adjustable upper travel limit switch to stop the table at maximum height, and displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, and state-of-the-art lifetime lubricated bearings. The standard 56 frame electric motor is fully enclosed with additional voltage options available. Contact factory if platform dimensions are crucial.
|
|||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
