Model Details

EM1-500-4250-6

EM1-500-4250-6

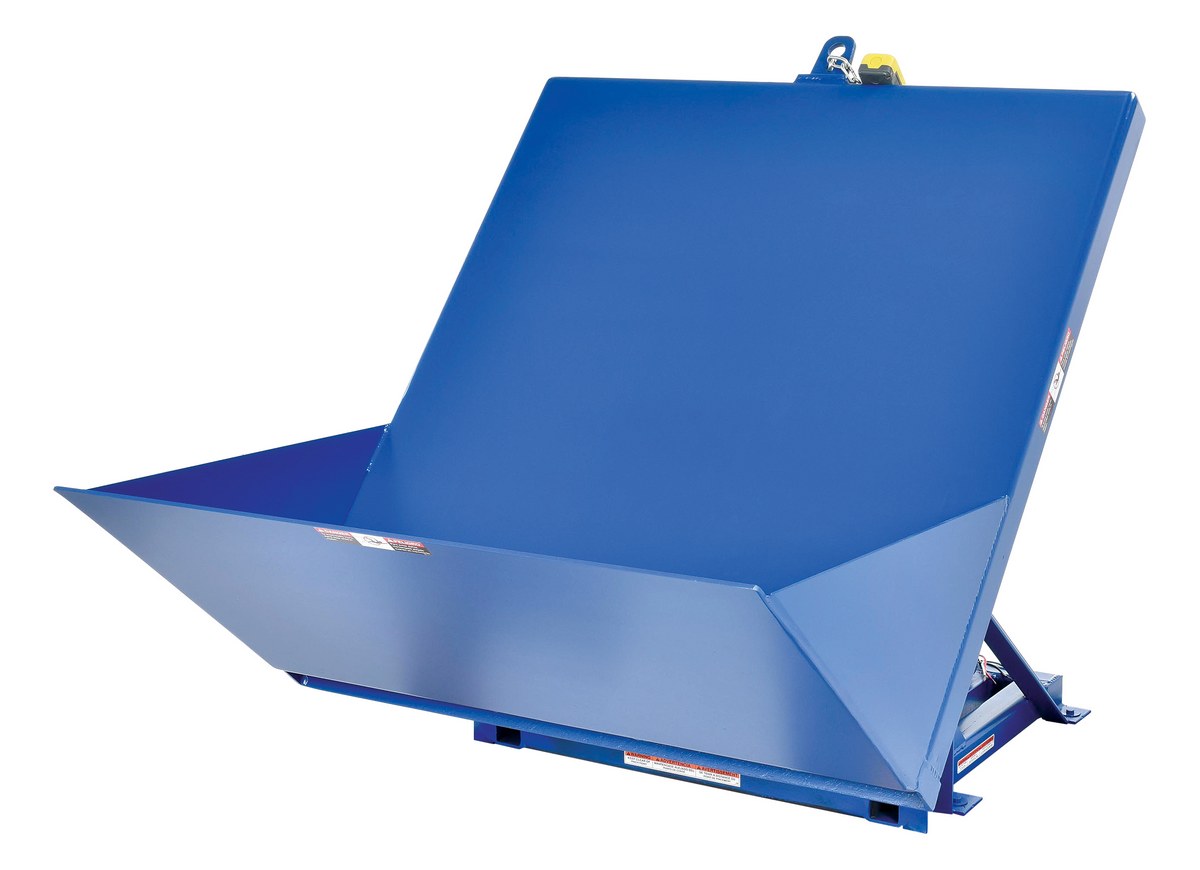

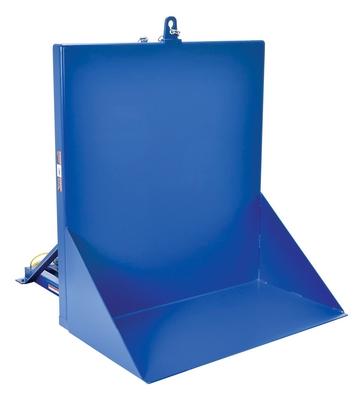

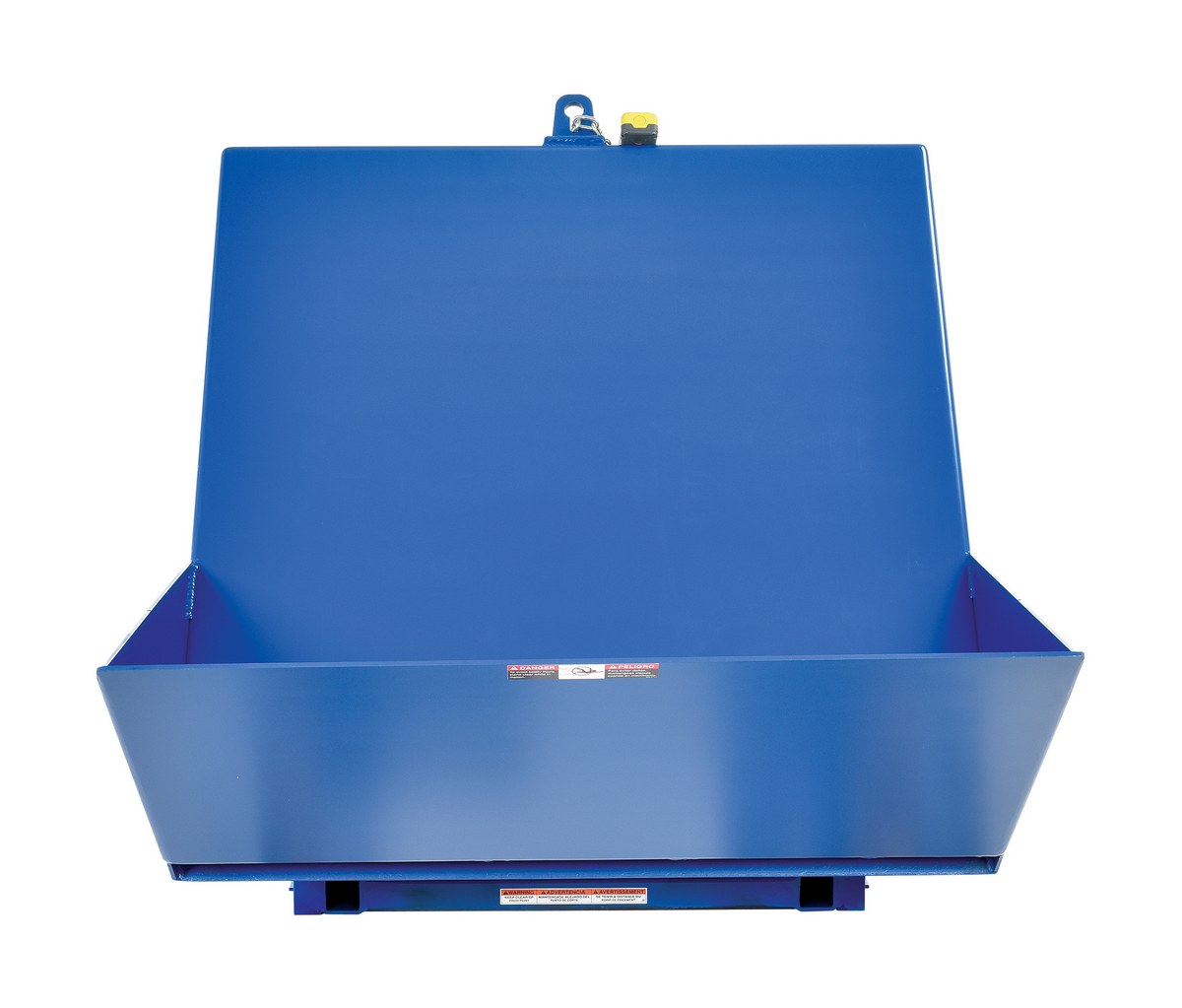

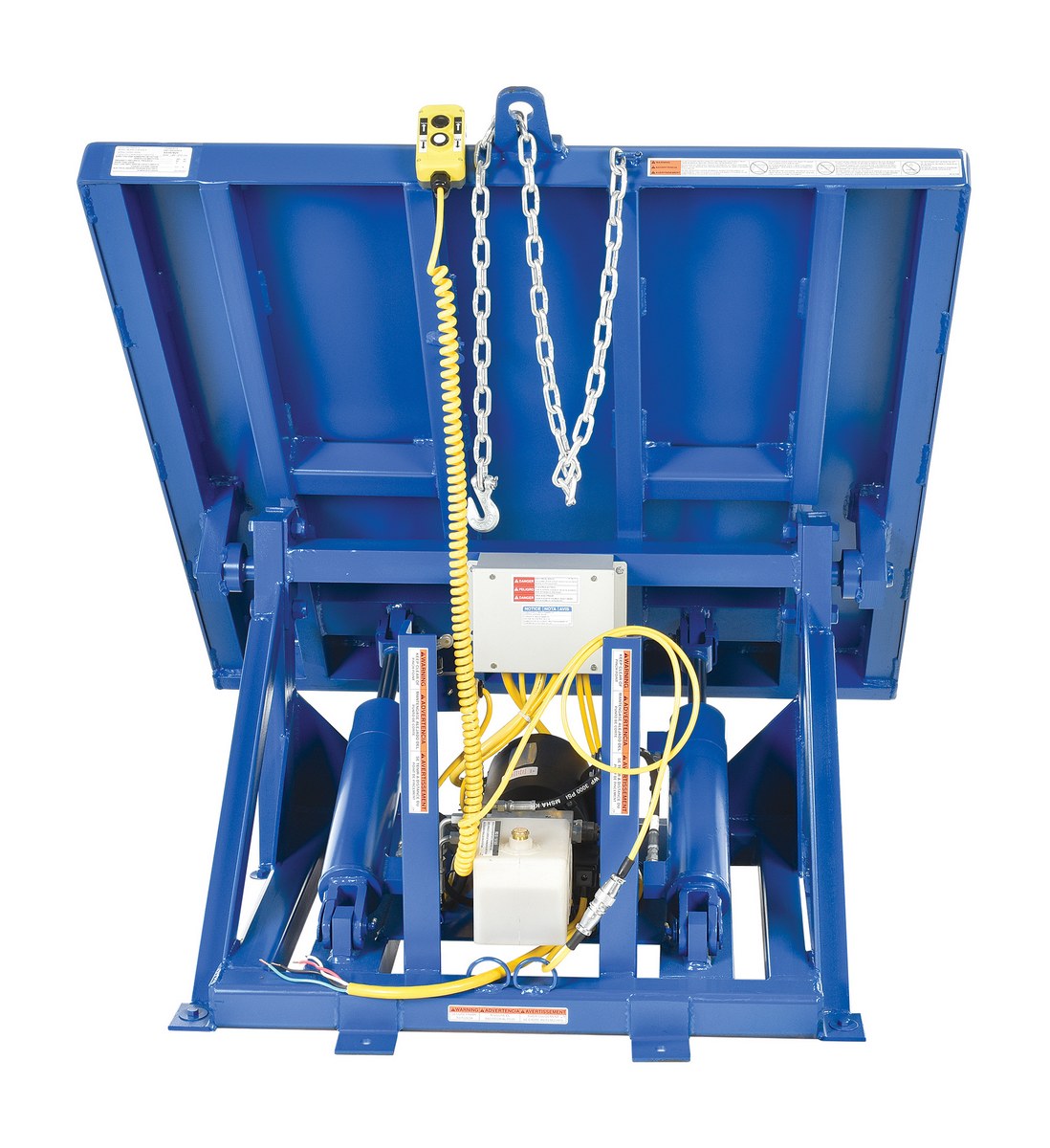

Steel Efficiency Master Tilt Table 90 Degree Tilt 42 In. x 50 In. 6000 Lb. Capacity Blue

The efficiency master tilt table tilts pallets, crates, boxes, or baskets to facilitate easy container loading or unloading. The table features all welded steel construction for years of durability. The unique design minimizes pinch points to meet OSHA requirements. It's ideal for upending products in shipping and receiving operations. The unit is equipped with an industrial quality motor that delivers the best torque with minimal amperage draw for maximum life. Standard voltage is 460/3PH with additional voltage options available. The tilt table has a standard push button hand control with a double acting cylinder for controlled tilt and return. The unit must be lagged to the floor.

  • Ergonomic design for minimal fatigue
  • Welded steel construction provides long lasting rugged use
  • A 90 degree tilt angle offers better ergonomics and operator comfort
  • Platform end lip safely supports containers when tilted
Total Ship Wt.(lbs.): 912 (only 1 package) Size: 46"W x 57.25"L x 54.75"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 6000 Usable Width (in.): 42 Usable Length (in.): 50
Maximum Tilt Degree: 90 Horizontal Height (in.): 24 Lip Height (in.): 24
Voltage/Phase: 460/3 Motor Horsepower: 2 Motor Frame: 56
Push Button Hand Control Voltage: 24 ANSI: MH 29.2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EM1-500-4250-6


EM1-500-4250-6

Steel Efficiency Master Tilt Table 90 Degree Tilt 42 In. x 50 In. 6000 Lb. Capacity Blue

The efficiency master tilt table tilts pallets, crates, boxes, or baskets to facilitate easy container loading or unloading. The table features all welded steel construction for years of durability. The unique design minimizes pinch points to meet OSHA requirements. It's ideal for upending products in shipping and receiving operations. The unit is equipped with an industrial quality motor that delivers the best torque with minimal amperage draw for maximum life. Standard voltage is 460/3PH with additional voltage options available. The tilt table has a standard push button hand control with a double acting cylinder for controlled tilt and return. The unit must be lagged to the floor.

  • Ergonomic design for minimal fatigue
  • Welded steel construction provides long lasting rugged use
  • A 90 degree tilt angle offers better ergonomics and operator comfort
  • Platform end lip safely supports containers when tilted
Dimensions: 46"W x 57.25"L x 54.75"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215018449 GTIN: 00691215018449
Warranty: -- Shipping Weight: 912 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 6000 Usable Width (in.): 42 Usable Length (in.): 50
Maximum Tilt Degree: 90 Horizontal Height (in.): 24 Lip Height (in.): 24
Voltage/Phase: 460/3 Motor Horsepower: 2 Motor Frame: 56
Push Button Hand Control Voltage: 24 ANSI: MH 29.2
