FHA-4-ALO-RF

Printer Friendly
Out of Stock - Please Contact Sales
FHA-4-ALO-RF

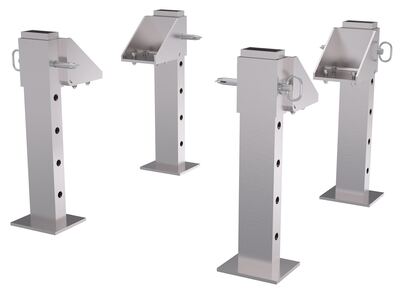

Aluminum Fixed Height Retro Fit Kit 4,000 lb. Capacity

A retro-fit kit allows an already working crane to be transformed into an even more foundation ally sound design. With a simple installation process, the retro fit kit lets the gantry crane be height adjustable at all four legs. Adjustment can be made in increments, utilizing the pre drilled holes.

  • Set of 4
  • Quick attachment to existing crane
  • Flat footed design provides surface stability
  • Aluminum construction
Assembled Wt.(lbs.): 13 Assembled Size: 7"W x 11.125"L x 23.625"H

Total Ship Wt.(lbs.): 54 (only 1 package) Package 1 Size: 24"W x 24"D x 12"H Color: Silver

Uniform Capacity (lbs.): 4,000 Lowered Height (in.): 1.5 Raised Height (in.): 17.5
Base Plate Width (in.): 6 Base Plate Width (in.): 7 Overall Width (in.): 12-3/8
Usable Width (in.): 7-3/4 Overall Length (in.): 9-1/4 Usable Length (in.): 7-3/4
Overall Height (in.): 23-5/8 Height to Bottom of Gantry Pad Adjustable (in.): 1-1/2 To 17-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: FHA-4-ALO-RF
Out of Stock - Please Contact Sales
FHA-4-ALO-RF

Aluminum Fixed Height Retro Fit Kit 4,000 lb. Capacity

A retro-fit kit allows an already working crane to be transformed into an even more foundation ally sound design. With a simple installation process, the retro fit kit lets the gantry crane be height adjustable at all four legs. Adjustment can be made in increments, utilizing the pre drilled holes.

  • Set of 4
  • Quick attachment to existing crane
  • Flat footed design provides surface stability
  • Aluminum construction
Dimensions: 7"W x 11.125"L x 23.625"H Sell UOM: -- Color: Silver
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 54 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lbs.): 4,000 Lowered Height (in.): 1.5 Raised Height (in.): 17.5
Base Plate Width (in.): 6 Base Plate Width (in.): 7 Overall Width (in.): 12-3/8
Usable Width (in.): 7-3/4 Overall Length (in.): 9-1/4 Usable Length (in.): 7-3/4
Overall Height (in.): 23-5/8 Height to Bottom of Gantry Pad Adjustable (in.): 1-1/2 To 17-1/2
