FL-LK-5EG

Steel Top Mount Floor Lock 6 to 7 In. Height Silver

Floor locks may be used on platform trucks, fixture dollies, or equipment with casters. Simple foot pressure immobilizes equipment. Locks when large friction face is pressed against the floor. To release simply kick release rod. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Units mount with pad 1." off the floor when retracted.

  • Easily attachable for immediate use
  • Simple foot operation
  • Large capacity for a variety of uses
  • Adjustable for surface levels

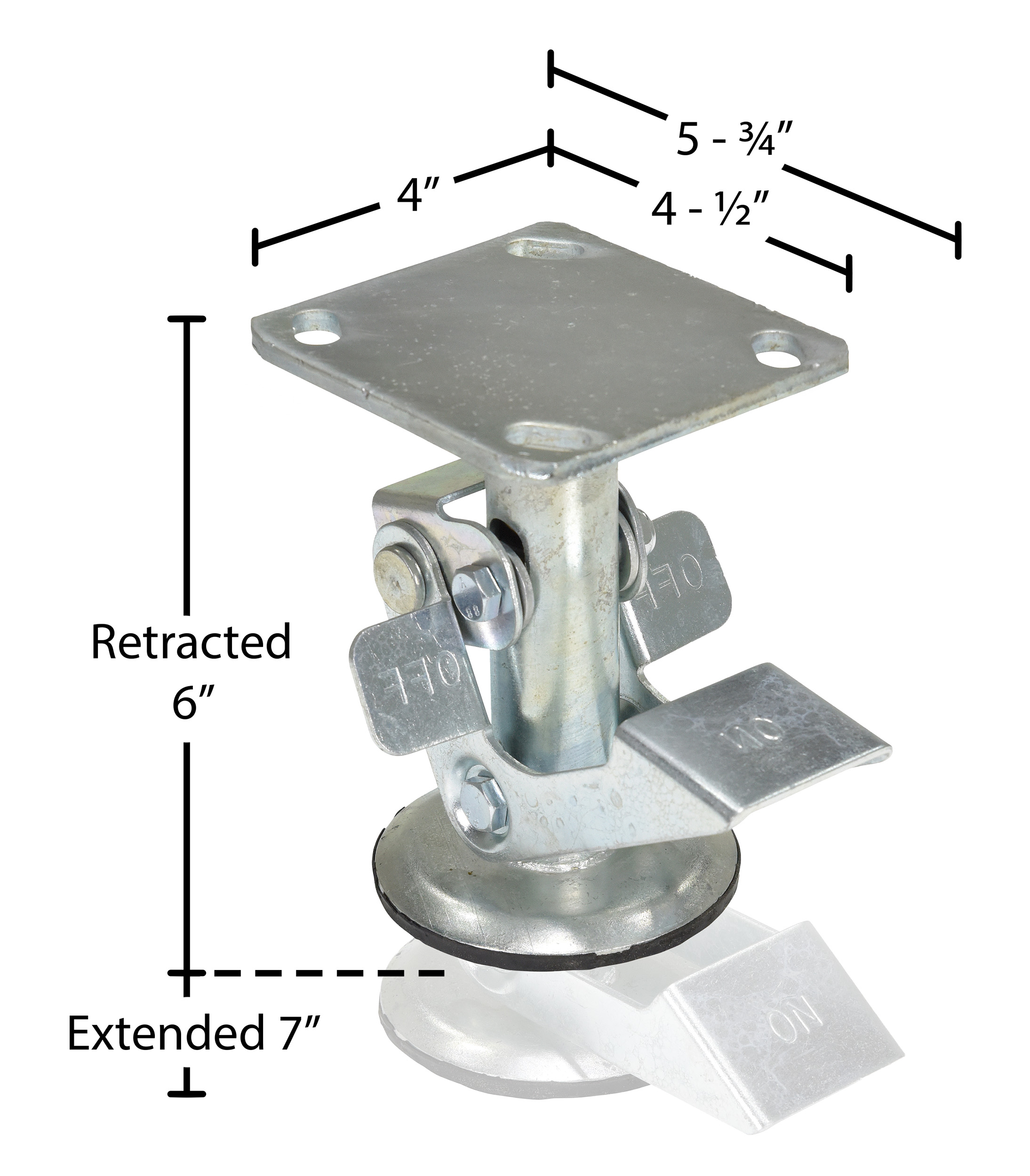

Total Ship Wt.(lbs.): 5 (only 1 package) Size: 5.75"W x 4"L x 6"H Color: Silver QuickShip

Mounting Height (in.): 7 Height Retracted (in.): 6 Caster size (in.): 5
Type: Foot pedal Mounting Type: Top Plate Base Plate Width (in.): 4
Base Plate Length (in.): 4-1/2 Base Plate Mounting Holes (qty.): 4 Mounting Bolt Diameter (in.): 3/8
Plate Thickness (in.): 1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: FL-LK-5EG
FL-LK-5EG

Steel Top Mount Floor Lock 6 to 7 In. Height Silver

Floor locks may be used on platform trucks, fixture dollies, or equipment with casters. Simple foot pressure immobilizes equipment. Locks when large friction face is pressed against the floor. To release simply kick release rod. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Units mount with pad 1." off the floor when retracted.

  • Easily attachable for immediate use
  • Simple foot operation
  • Large capacity for a variety of uses
  • Adjustable for surface levels
Dimensions: 5.75"W x 4"L x 6"H Sell UOM: EA-Each Color: Silver
Material: Steel UPC: 691215129992 GTIN: 00691215129992
Warranty: -- Shipping Weight: 5 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Mounting Height (in.): 7 Height Retracted (in.): 6 Caster size (in.): 5
Type: Foot pedal Mounting Type: Top Plate Base Plate Width (in.): 4
Base Plate Length (in.): 4-1/2 Base Plate Mounting Holes (qty.): 4 Mounting Bolt Diameter (in.): 3/8
Plate Thickness (in.): 1/4
