Model Details

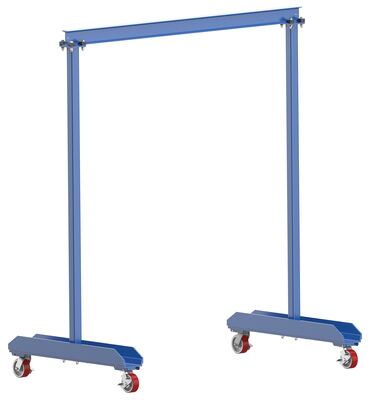

The work area portable steel Gantry crane is designed to maximize material handling requirements in light-duty lifting applications. Lightweight design allows for easy mobility. Do not move unit while loaded. Steel construction with powder coat finish. Bolt together installation. Hoist and trolley not included.
Uniform Capacity (lb.): 1,000 | Under I-Beam to Ground Length (in.): 90 | I-Beam (Flange Width x Height) (in.): 2-11/16 x 4 |
Base Width (in.): 47-3/4 | Overall I-Beam length (in.): 79-3/4 | I-Beam Usable length (in.): 69-3/4 |
Straddle Length (in.): 68 | Caster Quantity/Diameter/Width (in.): (4) 5x2 | Caster Material: Poly-on-Steel |
Caster Type: Swivel with Brake |
Details For Model: FPG-10 |
|||||||||||||||||||||||||||
Steel Portable Work Area Gantry Crane 81-1/2 In. x 47-3/4 In. x 94 In. 1,000 Lb. Capacity BlueThe work area portable steel Gantry crane is designed to maximize material handling requirements in light-duty lifting applications. Lightweight design allows for easy mobility. Do not move unit while loaded. Steel construction with powder coat finish. Bolt together installation. Hoist and trolley not included.
|
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
