Model Details

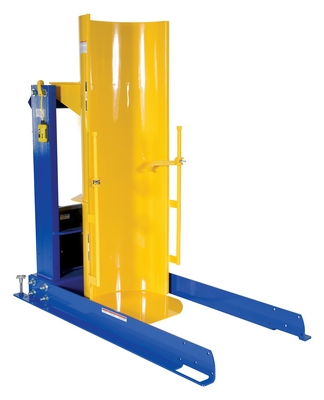

The Hydraulic drum dumper is what you need to dump heavy drums. Works with plastic, steel, and fiber drums. Dumper has a solid steel chute and all steel construction. Upper travel limit switch, emergency brass safety velocity fuse in cylinder, and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a coil cord standard.
Uniform Capacity (lb.): 750 | Dump Height (in.): 36 | Rotated Height (in.): 95-3/4 |
Level Height (in.): 60 | Accepts: 30 and 55-gallon drums | Motor Horsepower: 3/4 |
Single Phase (volts): 115 | Motor (Hz): 60 | Power Cord Length (ft.): 8 |
Hand Held Control Cord Length (ft.): 8 | Drum Rotation (deg.): 135 | Dump Angle (deg.): 45 |
Chute Diameter (in.): 24 | Raise Time (sec.): 42 | Motor Style: 56 Frame |
Cylinder Diameter (in.): 2-1/2 | Cylinder Length (in.): 18 | Chute Reach (in.): 14 |
Accepted Drum Diameter (in.): 16.5 to 23.5 | Accepted Drum Height (in.): 27.5 to 39.5 |
Details For Model: HDD-36-7-S |
|||||||||||||||||||||||||||||||||||||
Steel Stationary Hydraulic Drum Dumper 36 In. Dump Height 750 Lb. Capacity Blue / YellowThe Hydraulic drum dumper is what you need to dump heavy drums. Works with plastic, steel, and fiber drums. Dumper has a solid steel chute and all steel construction. Upper travel limit switch, emergency brass safety velocity fuse in cylinder, and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a coil cord standard.
|
|||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
