HDROP-50-HD

Printer Friendly
Available
HDROP-50-HD
HDROP-50-HD

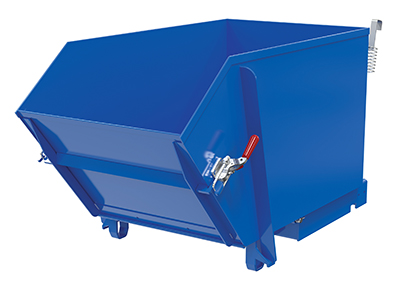

Steel Heavy Duty Self Dumping Hopper with Fold Down Front 1/2 Cubic Yard 6000 Lb. Capacity Blue

This self-dumping steel Hopper has a low-profile design with a drop-down front for easy shovel loading. The manual hand latches are used to secure the drop-down front. The manual pull-cable is used to dump the hopper from the seat of a fork truck, the dumper returns to the upright position when lowered to the ground.

  • Drop-down front design conveniently serves as a ramp
  • Included manual pull-cable dumps hopper from seat of fork truck
  • Full 90 degrees dump angle returns to upright position when lowered to ground
  • Features heavy-duty latch mechanism for worker safety
Assembled Wt.(lbs.): 306 Assembled Size: 30.125"W x 51.1875"L x 28.125"H

Total Ship Wt.(lbs.): 306 (only 1 package) Package 1 Size: 30"W x 52"D x 29"H Color: Blue / Silver (Base)

Uniform Capacity (lb.): 6000 Fork Pocket Centers (in.): 11-5/8 Front Lip Height (in.): 20-7/8
Dump Angle (degree): 90 Fork Pocket Width/Height (in.): 7 x 2 Hopper Type: Self-Dumping
Volume Capacity (cu. yds.): 1/2 Steel (gauge): 8 Overall Width (in.): 30-1/8
Overall Length (in.): 51-15/16 Overall Height (in.): 28-3/16 Inside Bin Width (in.): 24
Inside Bin Length (in.): 46-3/8 Inside Bin Height (in.): 23-11/32 Vertical Center of Gravity (in.): 10-7/8
Horizontal Center of Gravity (in.): 22-1/16

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: HDROP-50-HD
Available
HDROP-50-HD

Steel Heavy Duty Self Dumping Hopper with Fold Down Front 1/2 Cubic Yard 6000 Lb. Capacity Blue

This self-dumping steel Hopper has a low-profile design with a drop-down front for easy shovel loading. The manual hand latches are used to secure the drop-down front. The manual pull-cable is used to dump the hopper from the seat of a fork truck, the dumper returns to the upright position when lowered to the ground.

  • Drop-down front design conveniently serves as a ramp
  • Included manual pull-cable dumps hopper from seat of fork truck
  • Full 90 degrees dump angle returns to upright position when lowered to ground
  • Features heavy-duty latch mechanism for worker safety
Dimensions: 30.125"W x 51.1875"L x 28.125"H Sell UOM: -- Color: Blue / Silver (Base)
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 306 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 6000 Fork Pocket Centers (in.): 11-5/8 Front Lip Height (in.): 20-7/8
Dump Angle (degree): 90 Fork Pocket Width/Height (in.): 7 x 2 Hopper Type: Self-Dumping
Volume Capacity (cu. yds.): 1/2 Steel (gauge): 8 Overall Width (in.): 30-1/8
Overall Length (in.): 51-15/16 Overall Height (in.): 28-3/16 Inside Bin Width (in.): 24
Inside Bin Length (in.): 46-3/8 Inside Bin Height (in.): 23-11/32 Vertical Center of Gravity (in.): 10-7/8
Horizontal Center of Gravity (in.): 22-1/16
