HYD-15

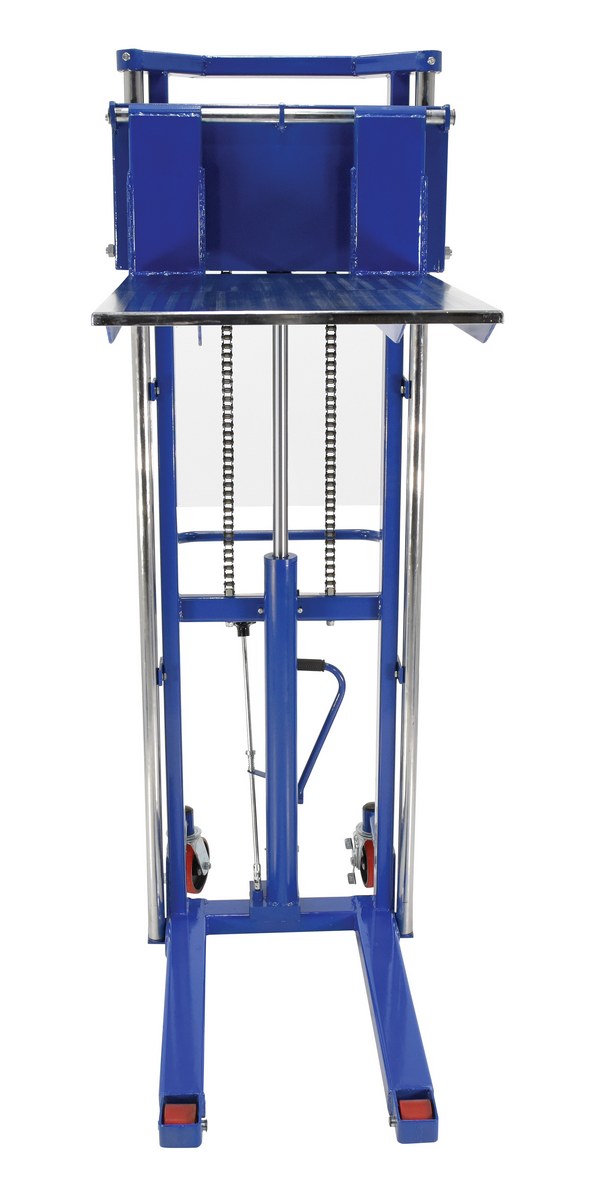

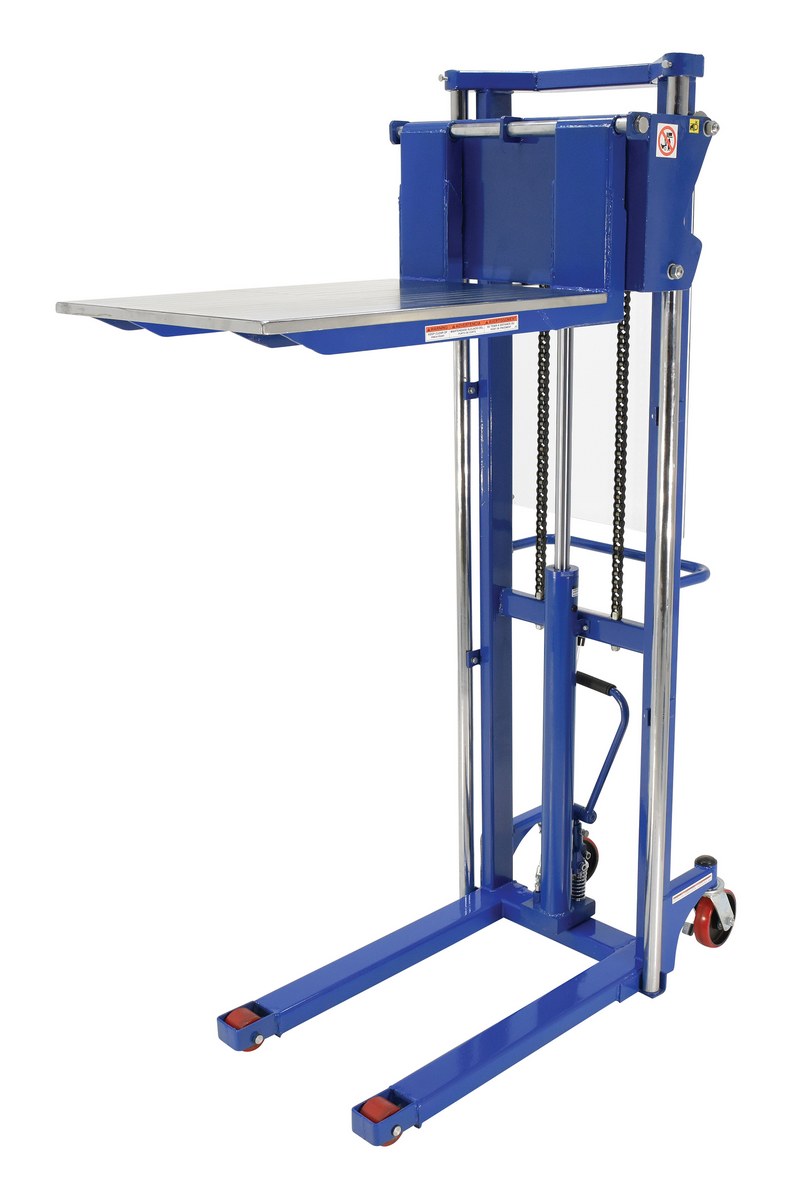

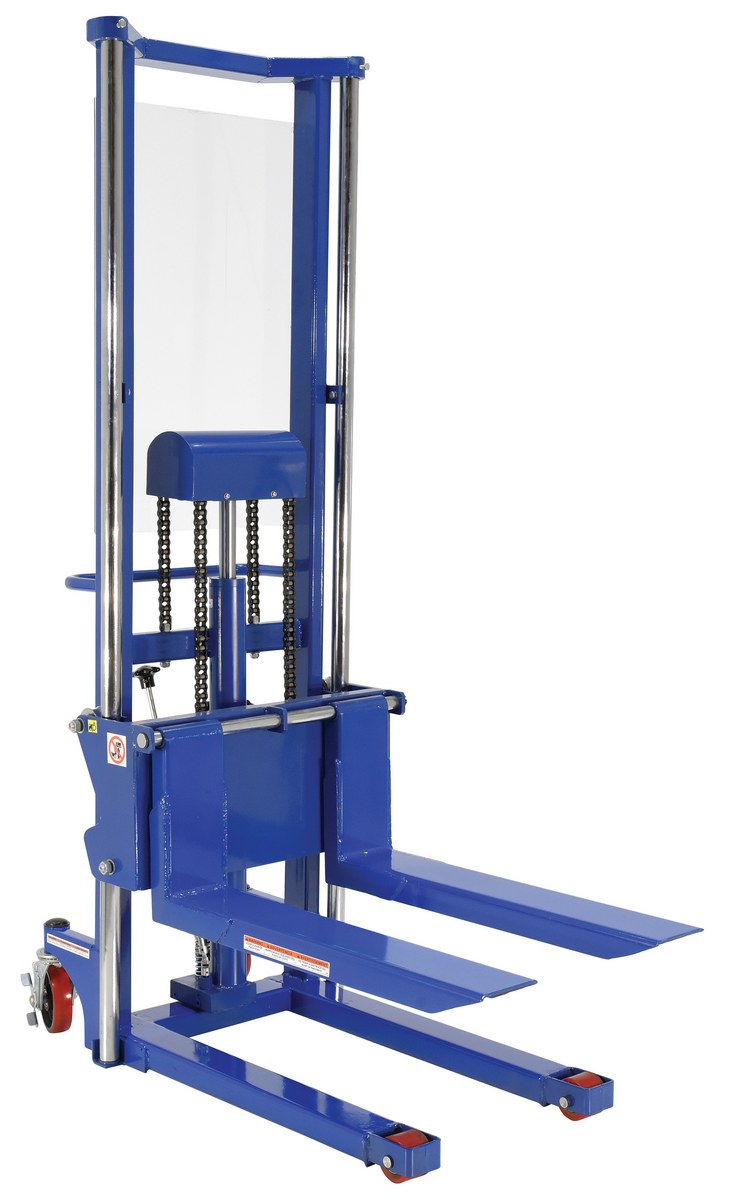

Steel Portable Foot Pump Hefti-Lift 51 In. x 79-3/8 In. 1500 Lb. Capacity Blue

The Hefti-Lift is a user friendly, portable hydraulic lift. The lift provides reliable, power lifting when moving and positioning loads. The non-slip chain is used for accurate positioning while the unit rolls easily on two rigid and two swivel poly-on-steel casters that includes a foot operated brake. The lift is all welded construction with a chrome platform and uprights. Not for use with pallets.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Removable platform allows operation requiring forks
  • Welded steel construction provides long lasting rugged use
Total Ship Wt.(lbs.): 479 (only 1 package) Size: 29"W x 51"L x 79.375"H Color: Blue QuickShip

Uniform Capacity (lb.): 1500 Platform Width/Length (in.): 23 x 31-1/2 Service Range (in.): 4 to 63
Operation: Foot Pump Platform Travel per Stroke (in.): 3/4 Individual Fork Width/Height (in.): 5-9/16 x 2-1/2
Fork Length (in.): 31-1/2 Overall Fork Width (in.): 22-7/8 Handle Height (in.): 42
Back Caster Quantity/Diameter/Width (in.): (2) 6 x 2 Back Caster Type: Swivel Front Caster Quantity/Diameter/Width (in.): (2) 3 x 2
Front Caster Type: Rigid Caster Material: Poly-on-Steel Outrigger Inside Dimension (in.): 11-3/4
Outrigger Outside Dimension (in.): 2-7/8 Overall Height (in.): 78 Overall Length (in.): 44
Overall Width (in.): 23-3/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HYD-15
HYD-15

Steel Portable Foot Pump Hefti-Lift 51 In. x 79-3/8 In. 1500 Lb. Capacity Blue

The Hefti-Lift is a user friendly, portable hydraulic lift. The lift provides reliable, power lifting when moving and positioning loads. The non-slip chain is used for accurate positioning while the unit rolls easily on two rigid and two swivel poly-on-steel casters that includes a foot operated brake. The lift is all welded construction with a chrome platform and uprights. Not for use with pallets.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Removable platform allows operation requiring forks
  • Welded steel construction provides long lasting rugged use
Dimensions: 29"W x 51"L x 79.375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215061254 GTIN: 00691215061254
Warranty: -- Shipping Weight: 479 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1500 Platform Width/Length (in.): 23 x 31-1/2 Service Range (in.): 4 to 63
Operation: Foot Pump Platform Travel per Stroke (in.): 3/4 Individual Fork Width/Height (in.): 5-9/16 x 2-1/2
Fork Length (in.): 31-1/2 Overall Fork Width (in.): 22-7/8 Handle Height (in.): 42
Back Caster Quantity/Diameter/Width (in.): (2) 6 x 2 Back Caster Type: Swivel Front Caster Quantity/Diameter/Width (in.): (2) 3 x 2
Front Caster Type: Rigid Caster Material: Poly-on-Steel Outrigger Inside Dimension (in.): 11-3/4
Outrigger Outside Dimension (in.): 2-7/8 Overall Height (in.): 78 Overall Length (in.): 44
Overall Width (in.): 23-3/4
