HYD-3

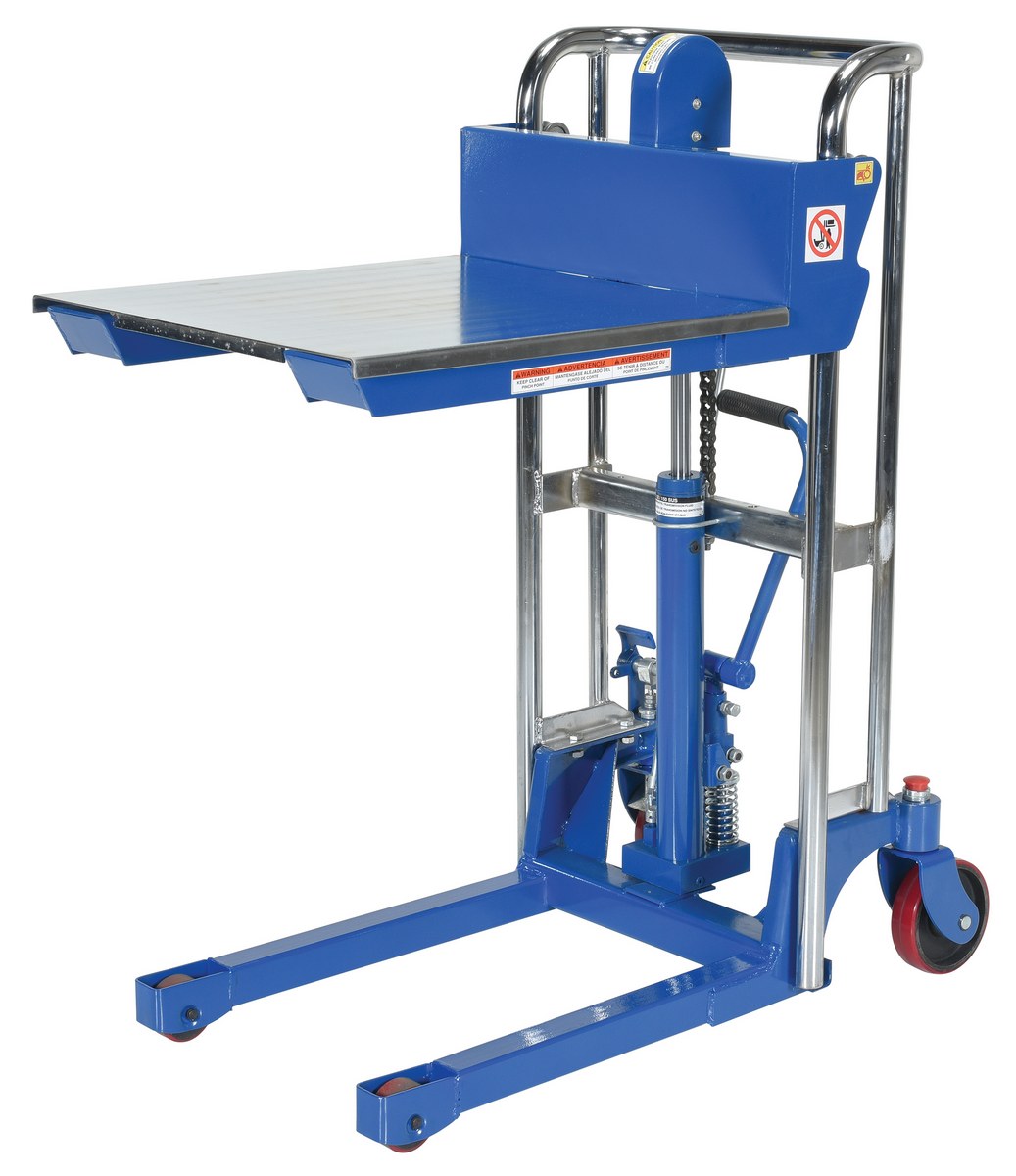

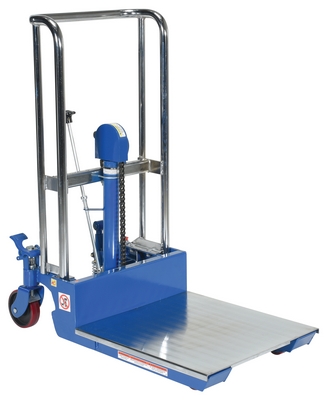

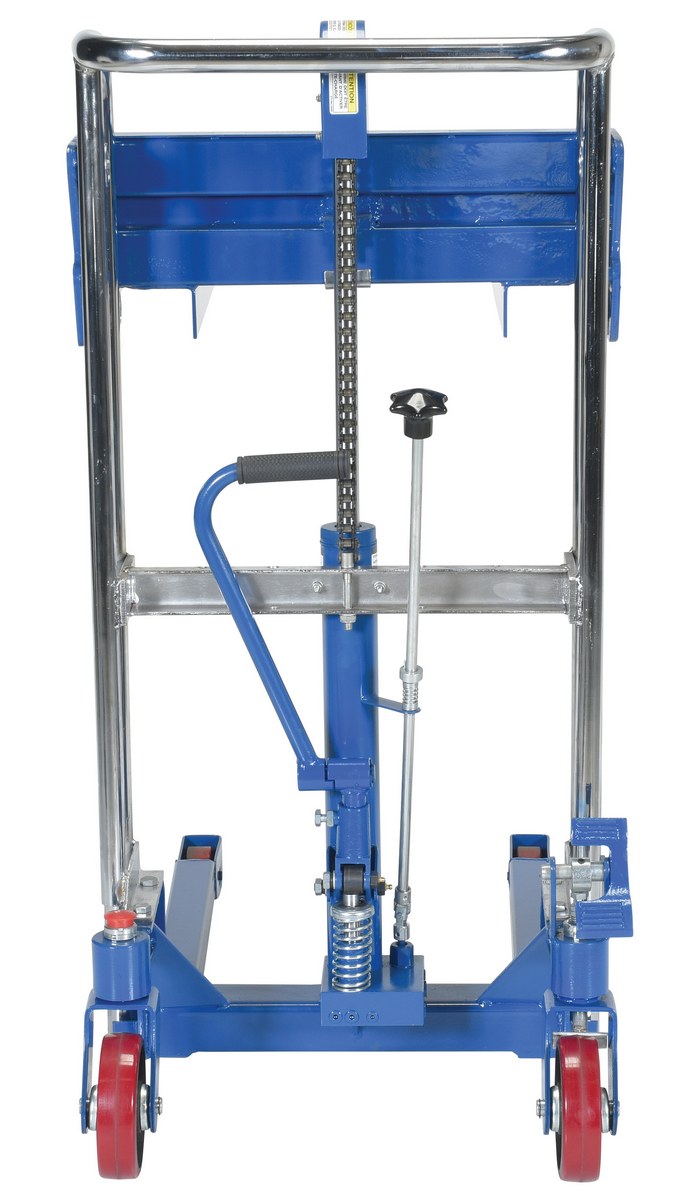

Steel Portable Welded Hydraulic Hefti-Lift 880 Lb. Capacity Blue

The Hefti-Lift units provide reliable powerful lifting when moving and positioning loads. The manual hydraulic foot pump yields 1" of platform travel per stroke. The units roll smoothly on two rigid and two swivel poly-on-steel casters with foot operated brake. The units are designed of welded steel construction with chrome platform uprights. Each fork is 4."W x 2."H, the fork length is the same as the platform length. Overall fork width is 22". Not for use with pallets.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Removable platform allows operation requiring forks
  • Welded steel construction provides long lasting rugged use
Total Ship Wt.(lbs.): 235 (only 1 package) Size: 23"W x 36"L x 55"H Color: Blue QuickShip

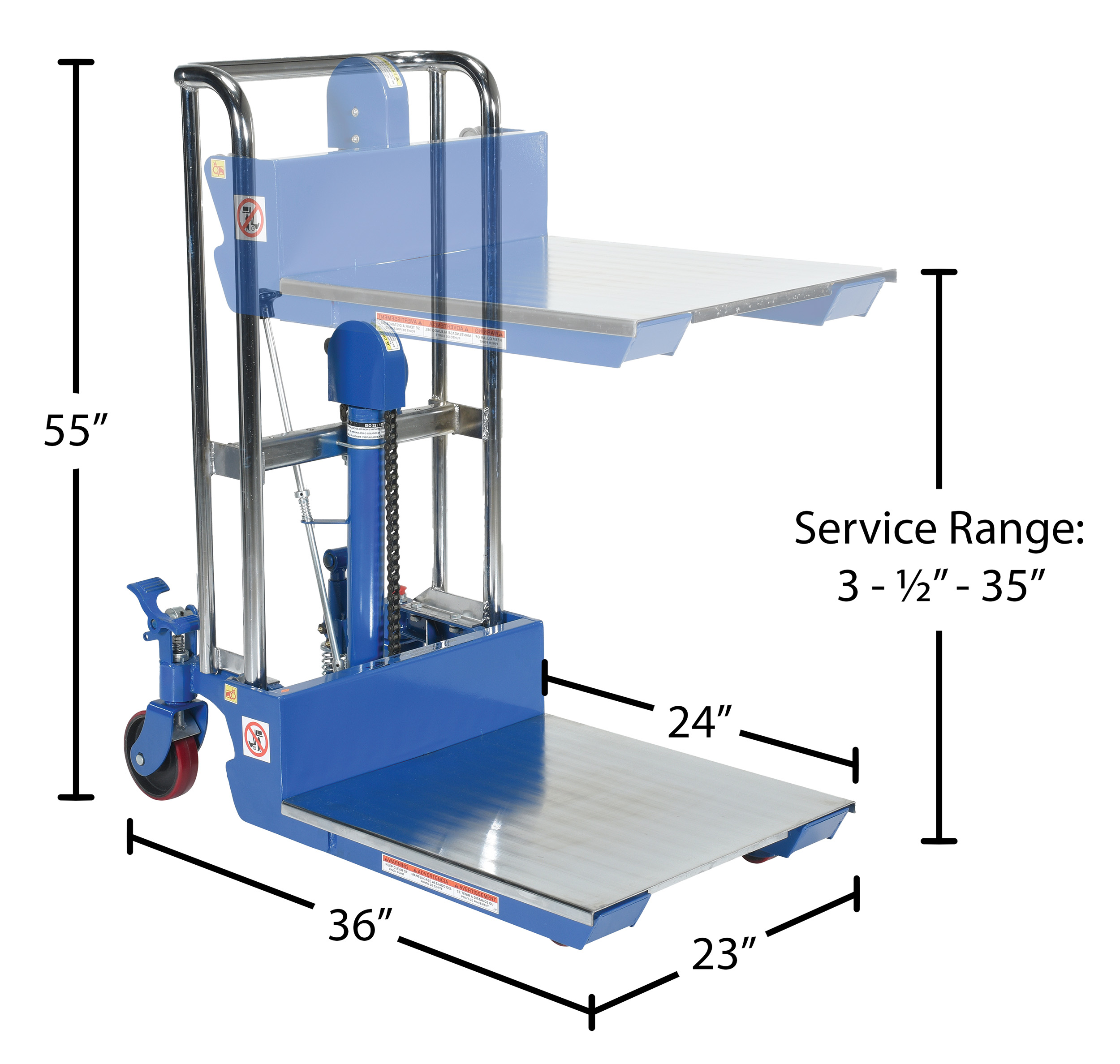

Uniform Capacity (lb.): 880 Platform Width/Length (in.): 23 x 24 Service Range (in.): 3-1/2 to 35
Operation: Foot Pump

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HYD-3
HYD-3

Steel Portable Welded Hydraulic Hefti-Lift 880 Lb. Capacity Blue

The Hefti-Lift units provide reliable powerful lifting when moving and positioning loads. The manual hydraulic foot pump yields 1" of platform travel per stroke. The units roll smoothly on two rigid and two swivel poly-on-steel casters with foot operated brake. The units are designed of welded steel construction with chrome platform uprights. Each fork is 4."W x 2."H, the fork length is the same as the platform length. Overall fork width is 22". Not for use with pallets.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Removable platform allows operation requiring forks
  • Welded steel construction provides long lasting rugged use
Dimensions: 23"W x 36"L x 55"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215129336 GTIN: 00691215129336
Warranty: -- Shipping Weight: 235 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 880 Platform Width/Length (in.): 23 x 24 Service Range (in.): 3-1/2 to 35
Operation: Foot Pump
