Model Details

JIB-CBX-25-10-10-BC

Printer Friendly
JIB-CBX-25-10-10-BC

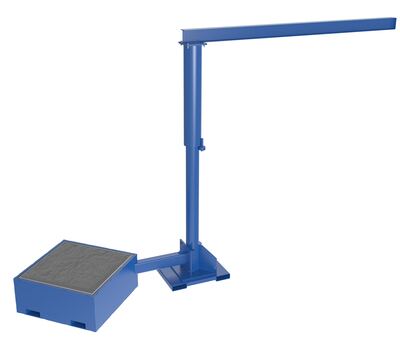

Steel Portable Offset Jib Crane with Filled Base 10 Ft. I-Beam 250 Lb. Capacity Blue

Offset base design allows for larger usable work area beneath I-beam. Allows for easy transportation of jib crane with fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Steel construction with blue painted finish. Units ship knocked down. Flatbed required for delivery. Not for use as a fork truck attachment. 10' under I-beam.

  • Includes built-in fork tubes
  • Concrete filled base for immediate use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability
Total Ship Wt.(lbs.): 3570 (Multiple Packages: P1: 700 lbs + P2: 2870 lbs) Size: 59.6875"W x 205.3125"L x 126.25"H Color: Blue

Uniform Capacity (lb.): 250 Overall I-Beam Length (in): 120 Usable I-Bean Length (in): 109-3/4
I-Beam Height (in.): 6 I-Beam Flange Width (in.): 4 Base Height (in.): 18
Rotation (degrees): 360 Offset Base Length (in.): 42-3/16 Offset Base Width (in.): 42-3/16
Fork Tube Width (in.): 7-1/2 Fork Tube Height (in.): 2-1/2 Fork Centers (in.): 24
Under I-Beam Height (in): 120-1/4 Operation Mode: Manual

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: JIB-CBX-25-10-10-BC
JIB-CBX-25-10-10-BC

Steel Portable Offset Jib Crane with Filled Base 10 Ft. I-Beam 250 Lb. Capacity Blue

Offset base design allows for larger usable work area beneath I-beam. Allows for easy transportation of jib crane with fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Steel construction with blue painted finish. Units ship knocked down. Flatbed required for delivery. Not for use as a fork truck attachment. 10' under I-beam.

  • Includes built-in fork tubes
  • Concrete filled base for immediate use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability
Dimensions: 59.6875"W x 205.3125"L x 126.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215127233 GTIN: 00691215127233
Warranty: -- Shipping Weight: 700 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 250 Overall I-Beam Length (in): 120 Usable I-Bean Length (in): 109-3/4
I-Beam Height (in.): 6 I-Beam Flange Width (in.): 4 Base Height (in.): 18
Rotation (degrees): 360 Offset Base Length (in.): 42-3/16 Offset Base Width (in.): 42-3/16
Fork Tube Width (in.): 7-1/2 Fork Tube Height (in.): 2-1/2 Fork Centers (in.): 24
Under I-Beam Height (in): 120-1/4 Operation Mode: Manual
