Model Details

PM5-2748-GYSG

Printer Friendly
PM5-2748-GYSG

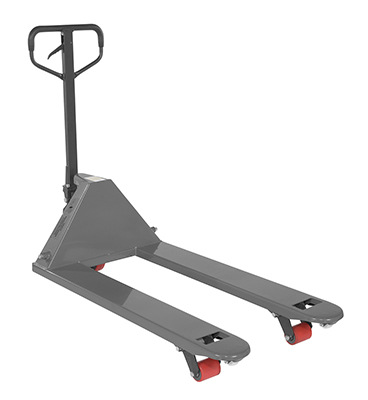

Steel Full Featured Pallet Truck 27 in x 48 in 5500 Lb. Capacity Gray Semi Gloss

The full featured pallet truck is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. The unit is equipped with internally mounted solid steel adjustable push rods. The spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement.

  • Ergonomic design requires minimal pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
Total Ship Wt.(lbs.): 210 (only 1 package) Size: 27"W x 61.1875"L x 49"H Color: Gray Semi Gloss

Uniform Capacity (lb.): 5500 Fork Width (in.): 8 Fork Length (in.): 48
Lowered Height (in.): 2-7/8 Raised Height (in.): 7-3/4 Fork Center (in.): 19
Caster Material: Poly on Steel Swivel Caster Diameter/Width (in.): 7 x 2 Power/Operation: Hydraulic Hand Pump
Handle Type: Push Handle Diameter/Height (in.): 1 x 49 Swivel Caster Quantity: 2
Rigid Caster Quantity: 2 Hardware Included: Yes Rigid Caster Diameter/Width (in.): 3 x 3-1/2
Hydraulic Fluid Capacity (Liter): 1/2 Caster Color: Red

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PM5-2748-GYSG
PM5-2748-GYSG

Steel Full Featured Pallet Truck 27 in x 48 in 5500 Lb. Capacity Gray Semi Gloss

The full featured pallet truck is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. The unit is equipped with internally mounted solid steel adjustable push rods. The spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement.

  • Ergonomic design requires minimal pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
Dimensions: 27"W x 61.1875"L x 49"H Sell UOM: EA-Each Color: Gray Semi Gloss
Material: Steel UPC: 691215363327 GTIN: 00691215363327
Warranty: -- Shipping Weight: 210 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 5500 Fork Width (in.): 8 Fork Length (in.): 48
Lowered Height (in.): 2-7/8 Raised Height (in.): 7-3/4 Fork Center (in.): 19
Caster Material: Poly on Steel Swivel Caster Diameter/Width (in.): 7 x 2 Power/Operation: Hydraulic Hand Pump
Handle Type: Push Handle Diameter/Height (in.): 1 x 49 Swivel Caster Quantity: 2
Rigid Caster Quantity: 2 Hardware Included: Yes Rigid Caster Diameter/Width (in.): 3 x 3-1/2
Hydraulic Fluid Capacity (Liter): 1/2 Caster Color: Red
