Model Details

PM5-2748-PA-Y

Printer Friendly
PM5-2748-PA-Y

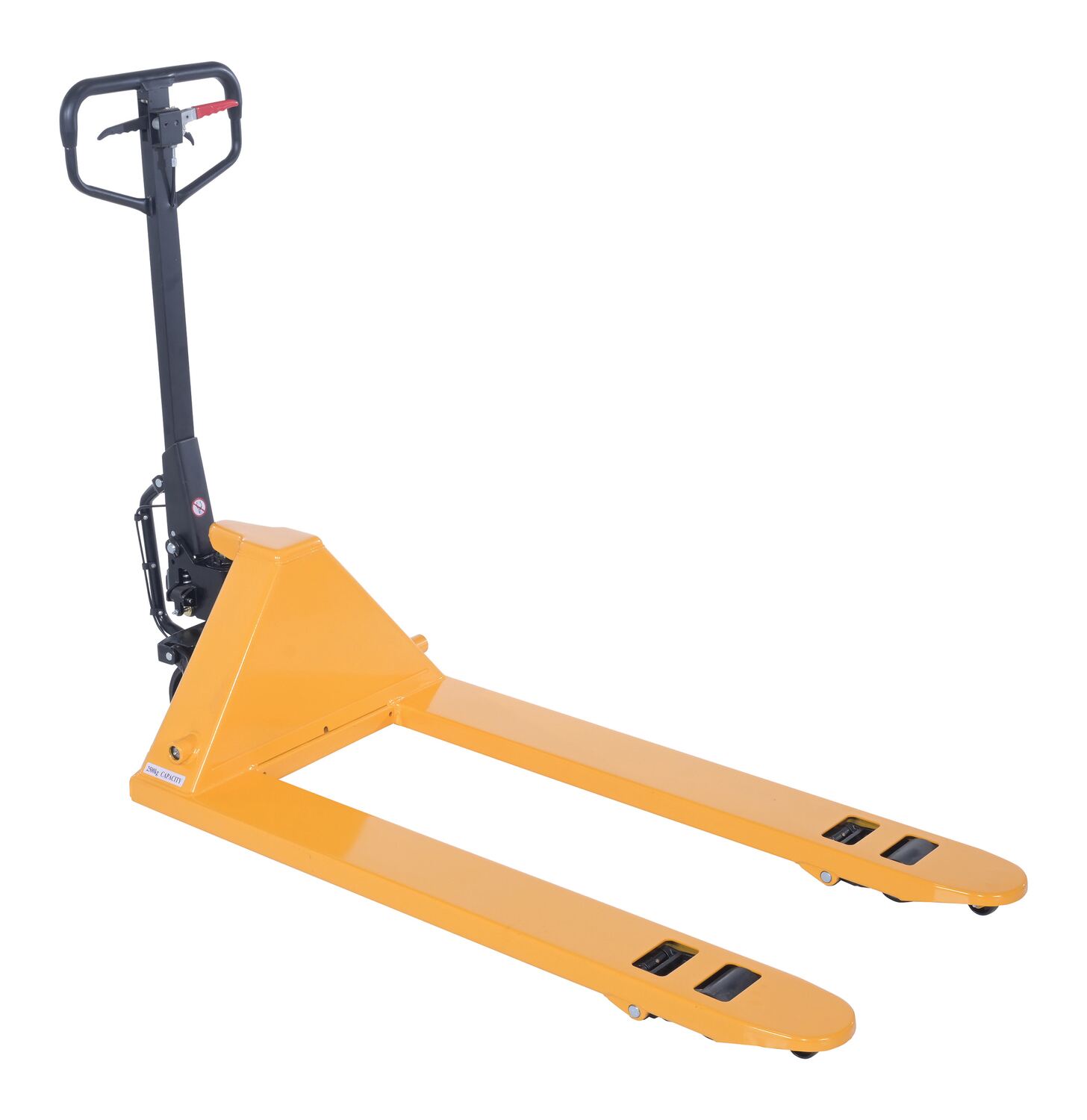

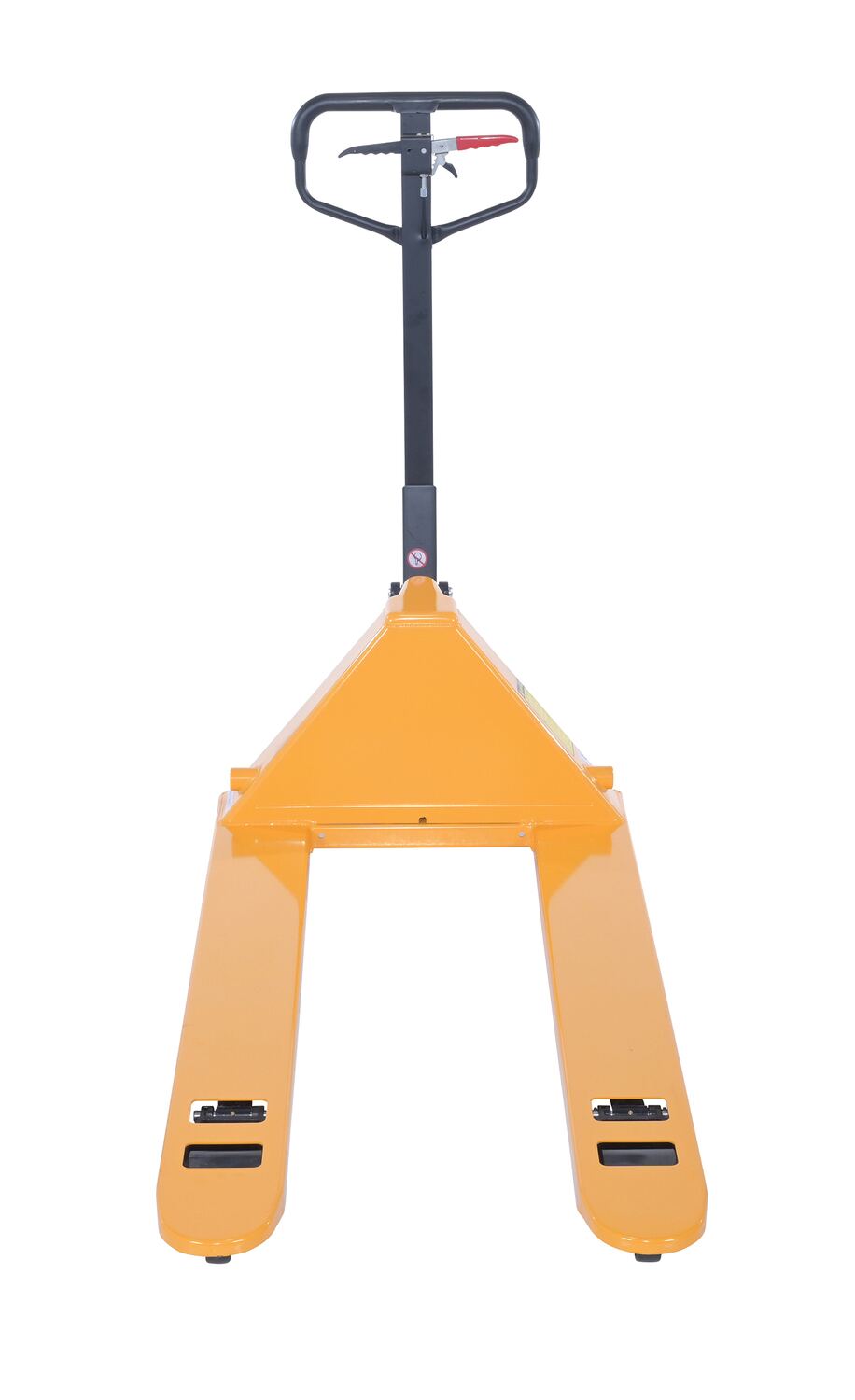

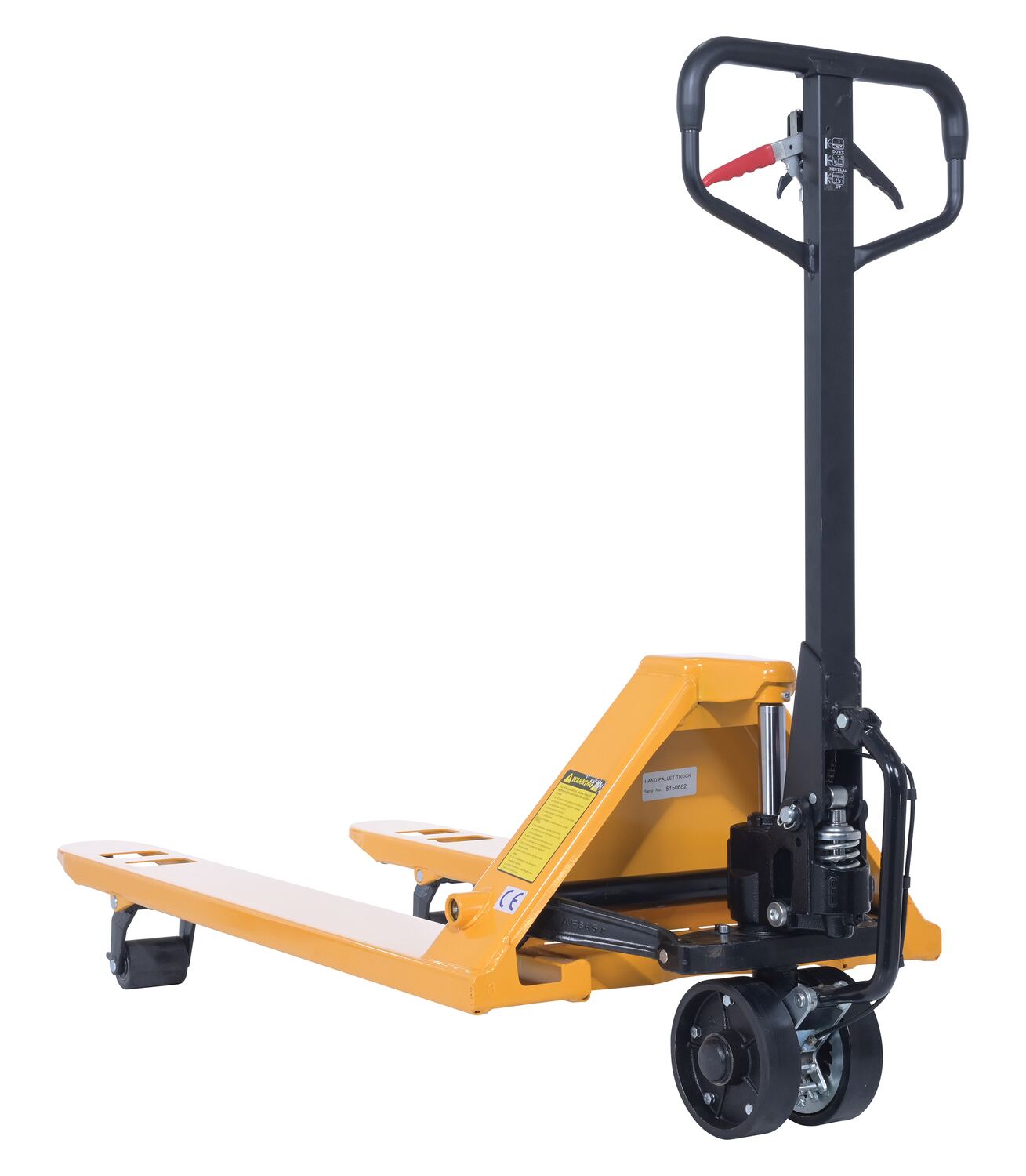

Steel Ergonomic Power Assist Pallet Truck 48 In. x 27 In. x 48 In. 5000 Lb. Capacity Yellow

The Ergonomic power assist pallet truck is for anyone who has operated a fully loaded pallet truck and knows the most strenuous part is getting the wheels to start rolling. This pallet truck solves this back backing problem. Pumping the handle of the pallet truck serves two purposes. First, it serves the traditional purpose of lifting the forks. Second, switch the power drive accumulator and by pulling the handle back, the pallet truck begins to roll automatically, thus reducing the pulling force.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life

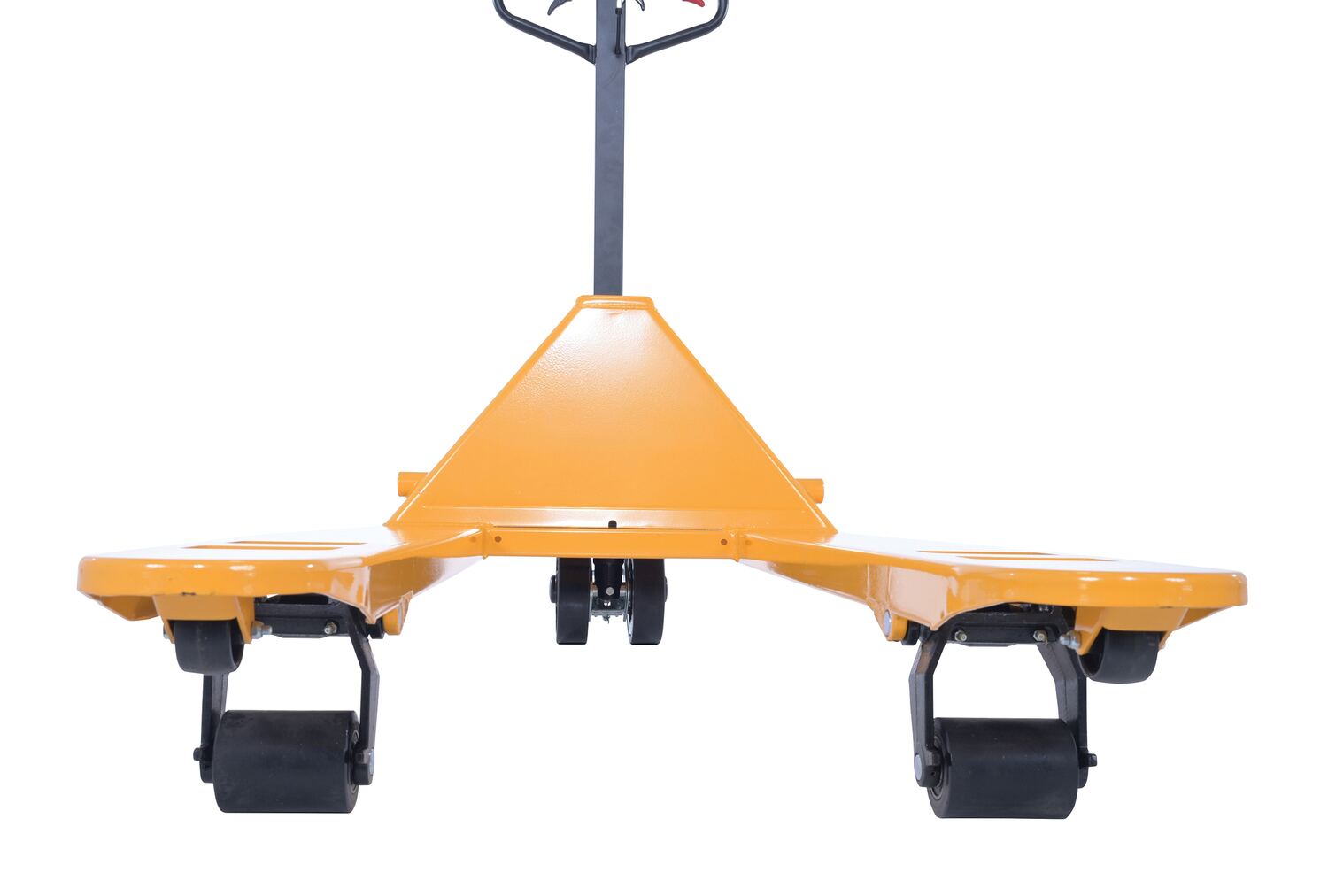

  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit

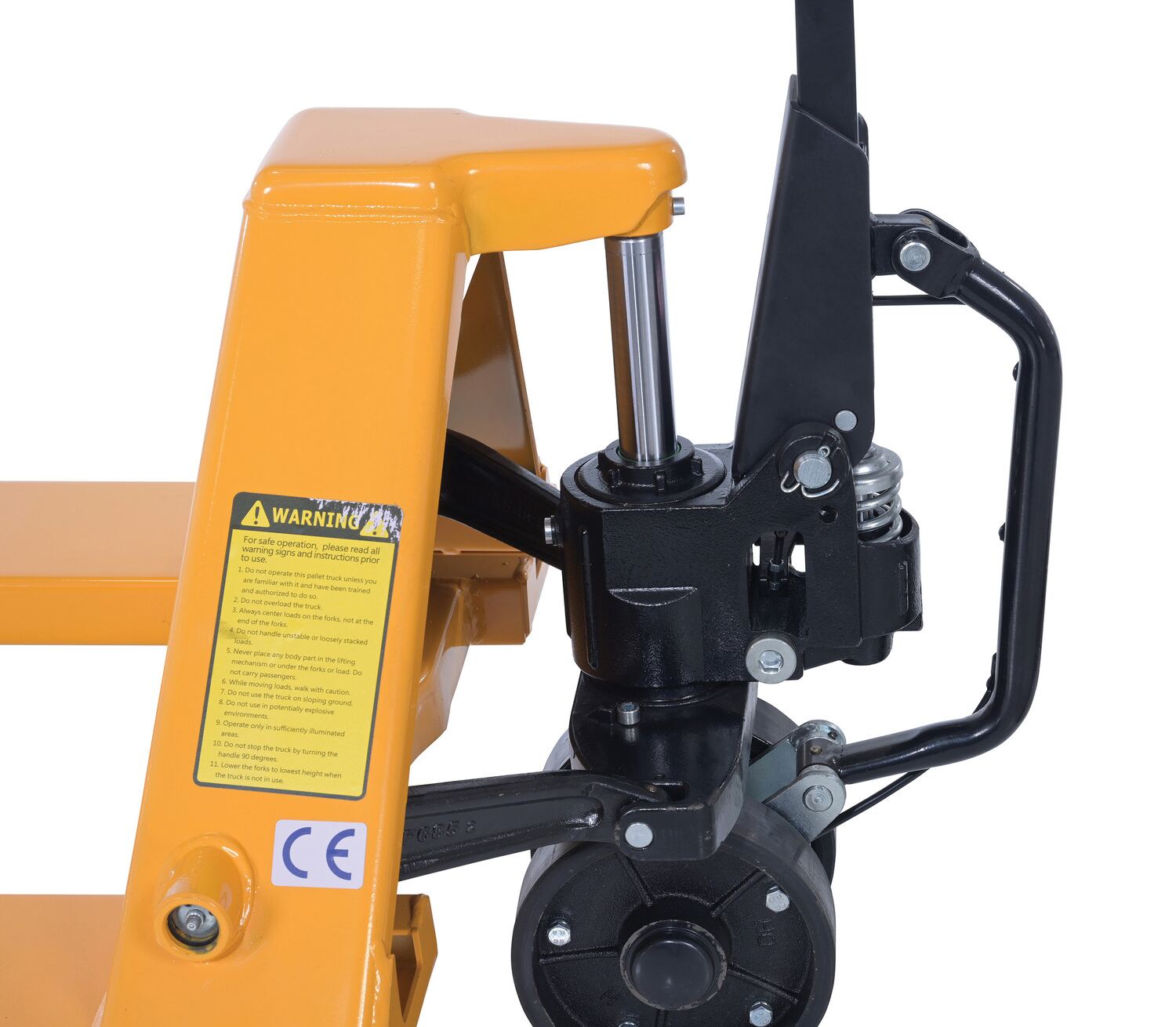

  • Chrome-plated hydraulic pump piston for long seal life
Total Ship Wt.(lbs.): 220 (only 1 package) Size: 27"W x 48"L x 48"H Color: Yellow QuickShip

Uniform Capacity (lb.): 5000 Overall Fork Width (in.): 27 Overall Fork Length (in.): 48
Lowered Height (in.): 3 Raised Height (in.): 7-1/2 Individual Fork Width (in.): 7
Steer Caster Material: Poly-On-Steel Steer Caster Diameter (in.): 7 Steer Caster Width (in.): 2
Load Roller Material: Polyurethane Load Roller Diameter (in.): 3 Load Roller Width (in.): 4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PM5-2748-PA-Y
PM5-2748-PA-Y

Steel Ergonomic Power Assist Pallet Truck 48 In. x 27 In. x 48 In. 5000 Lb. Capacity Yellow

The Ergonomic power assist pallet truck is for anyone who has operated a fully loaded pallet truck and knows the most strenuous part is getting the wheels to start rolling. This pallet truck solves this back backing problem. Pumping the handle of the pallet truck serves two purposes. First, it serves the traditional purpose of lifting the forks. Second, switch the power drive accumulator and by pulling the handle back, the pallet truck begins to roll automatically, thus reducing the pulling force.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
Dimensions: 27"W x 48"L x 48"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215091190 GTIN: 00691215091190
Warranty: -- Shipping Weight: 220 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: Sweden
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 5000 Overall Fork Width (in.): 27 Overall Fork Length (in.): 48
Lowered Height (in.): 3 Raised Height (in.): 7-1/2 Individual Fork Width (in.): 7
Steer Caster Material: Poly-On-Steel Steer Caster Diameter (in.): 7 Steer Caster Width (in.): 2
Load Roller Material: Polyurethane Load Roller Diameter (in.): 3 Load Roller Width (in.): 4
