PM5-PGL-2748

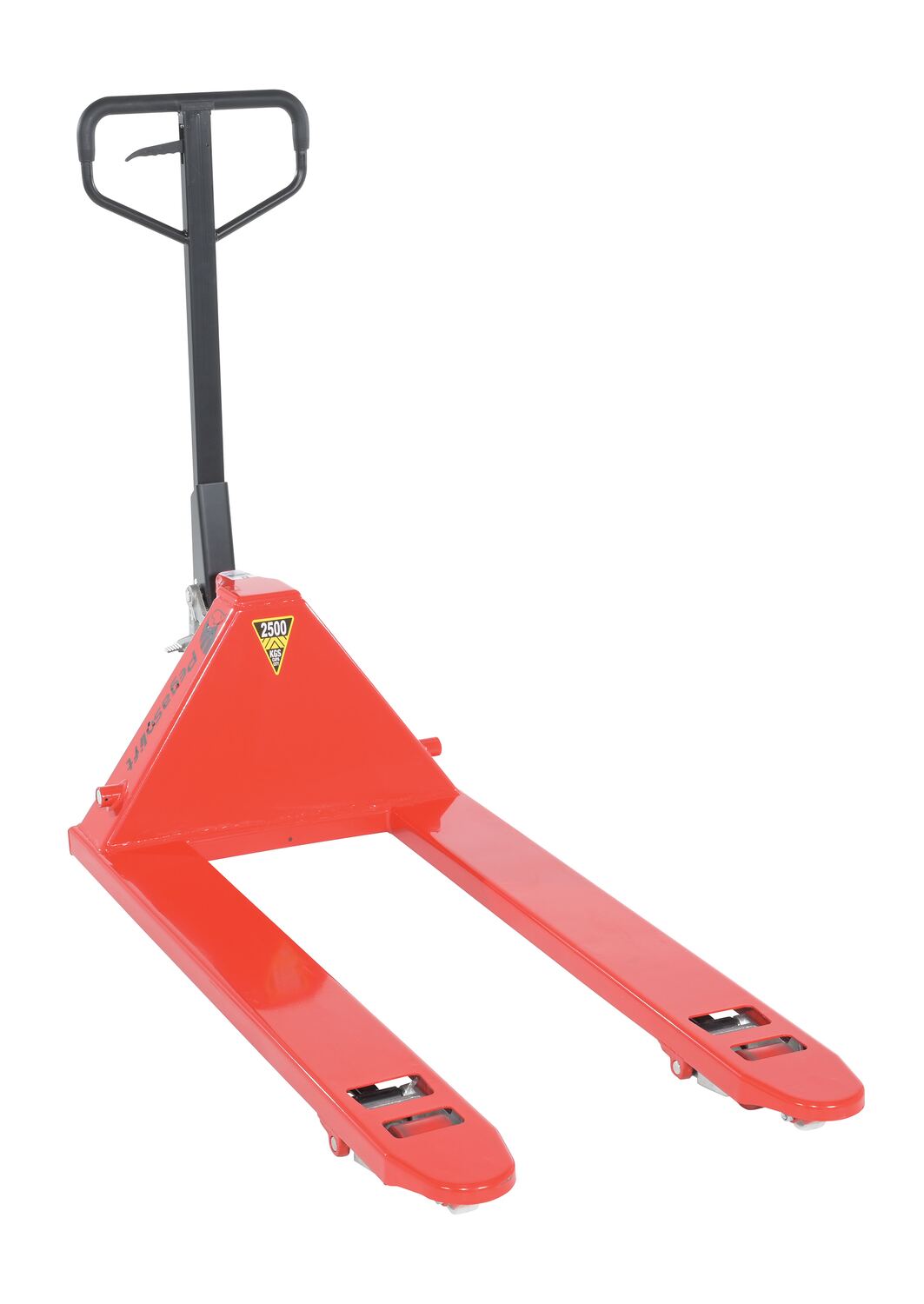

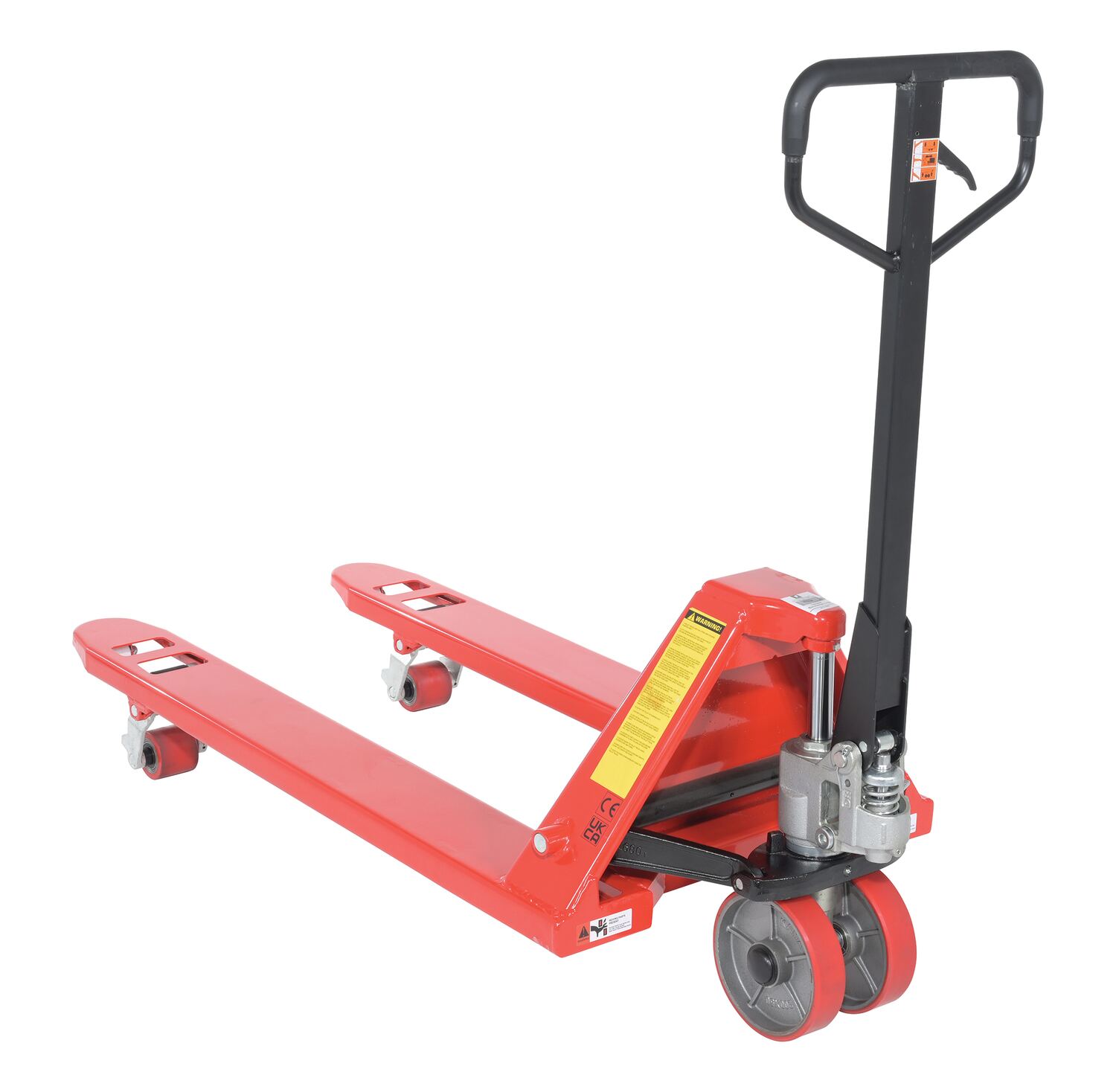

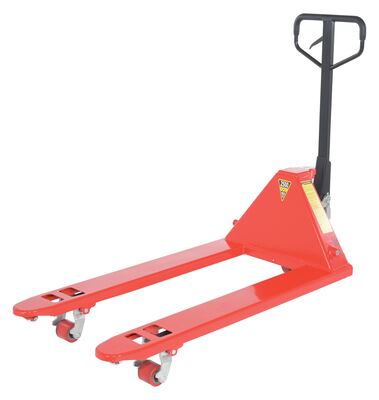

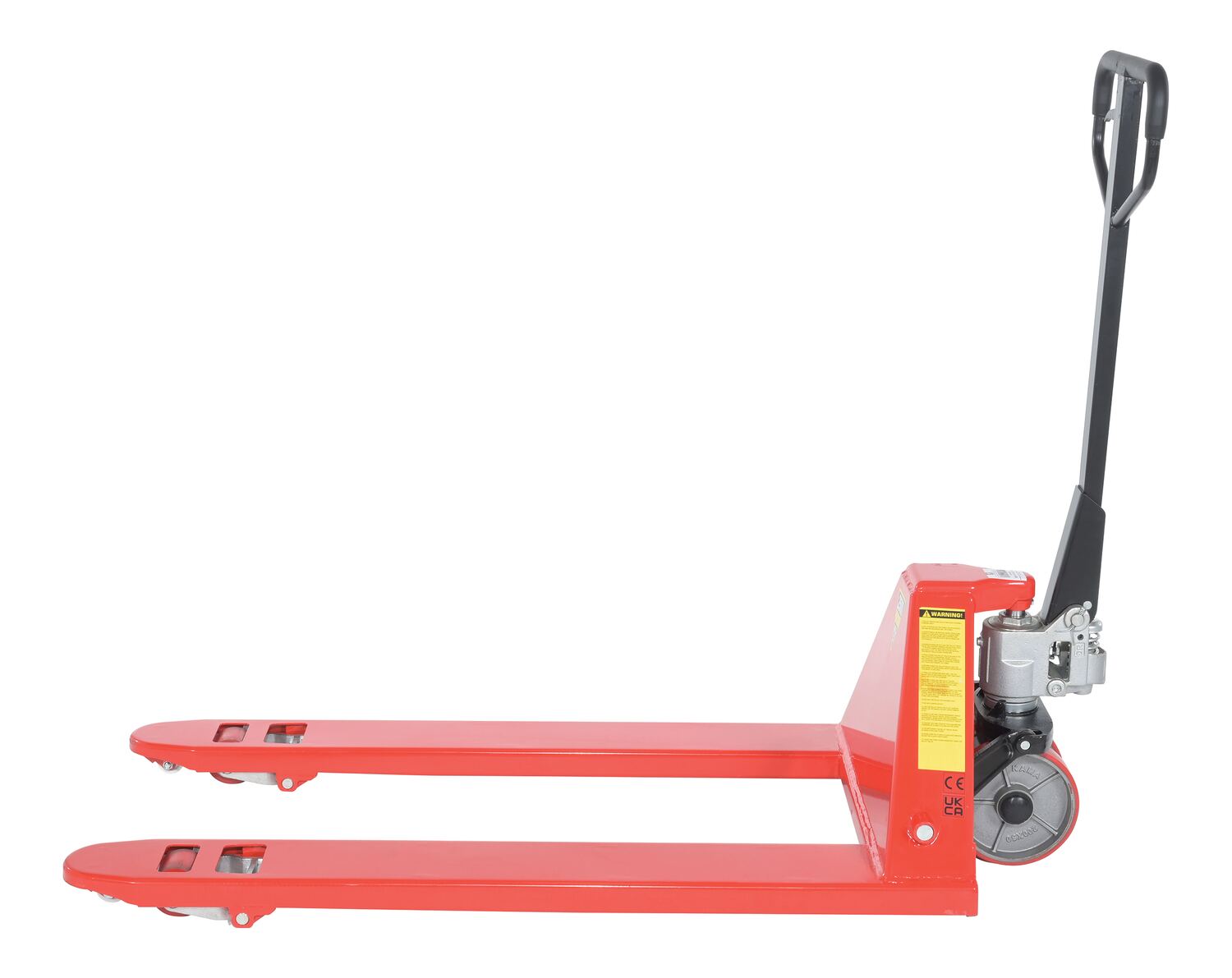

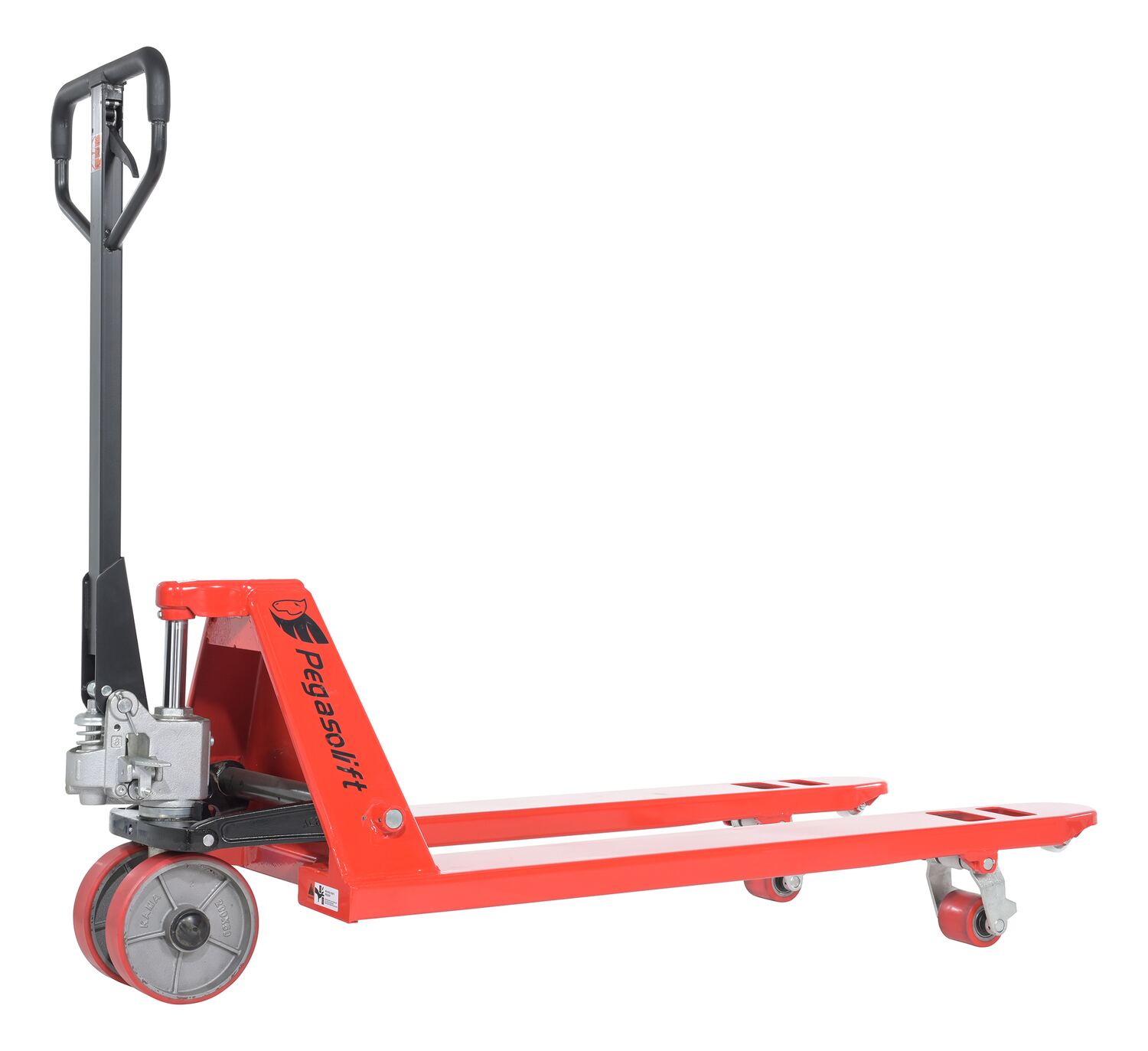

Steel Pegasolift Manual Pallet Truck 5.5K 27x48 5,500 Lb. Capacity Red

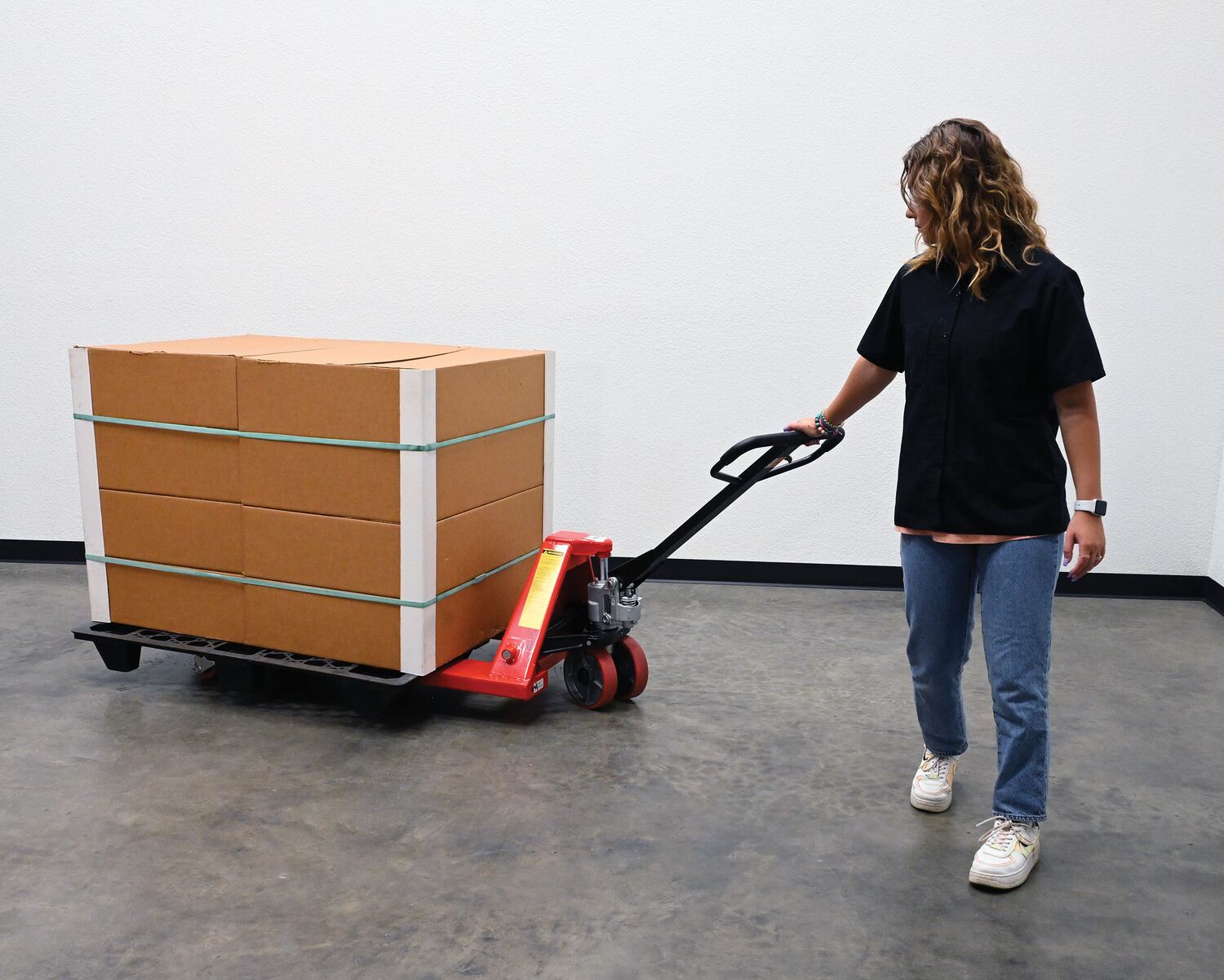

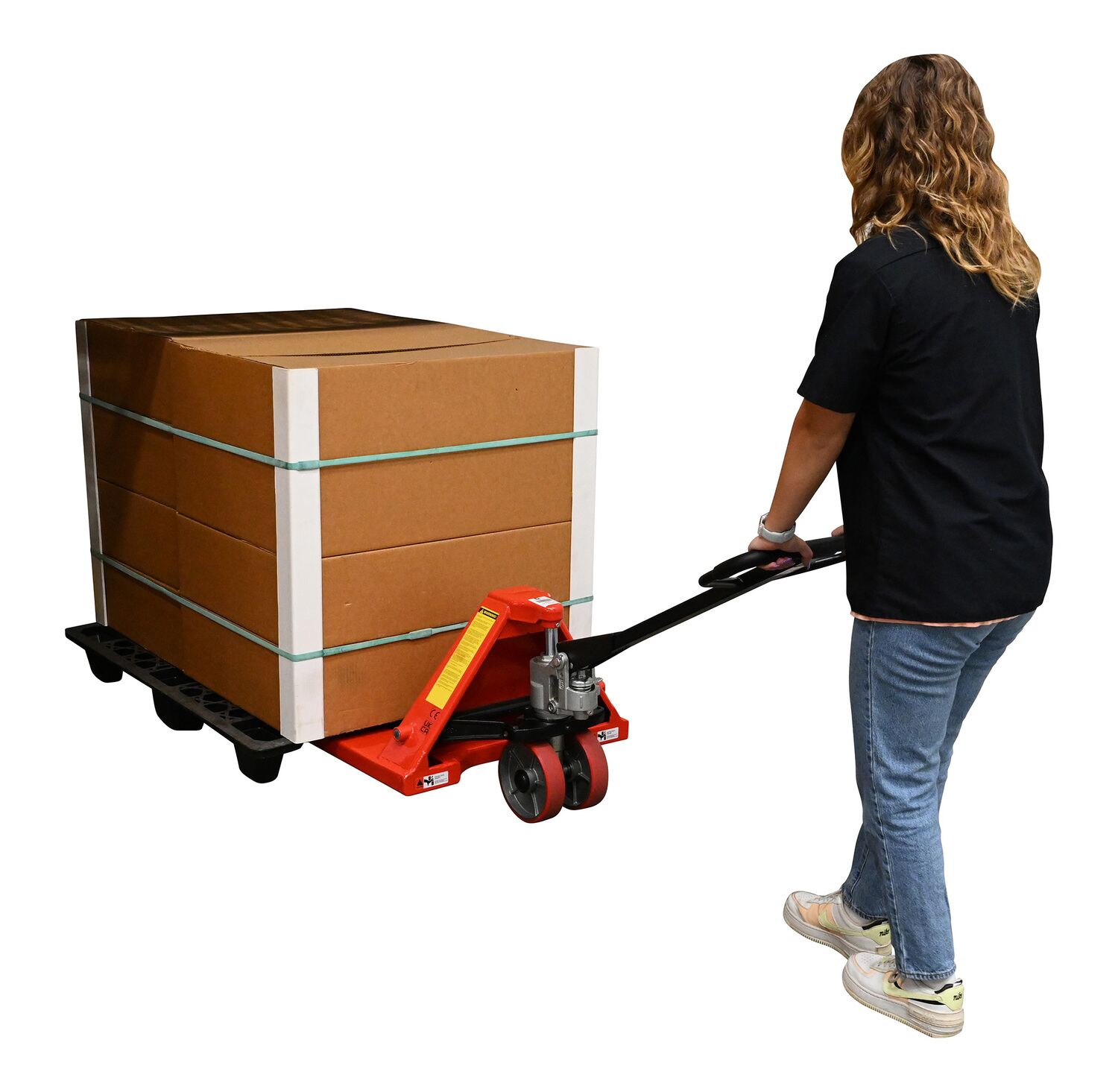

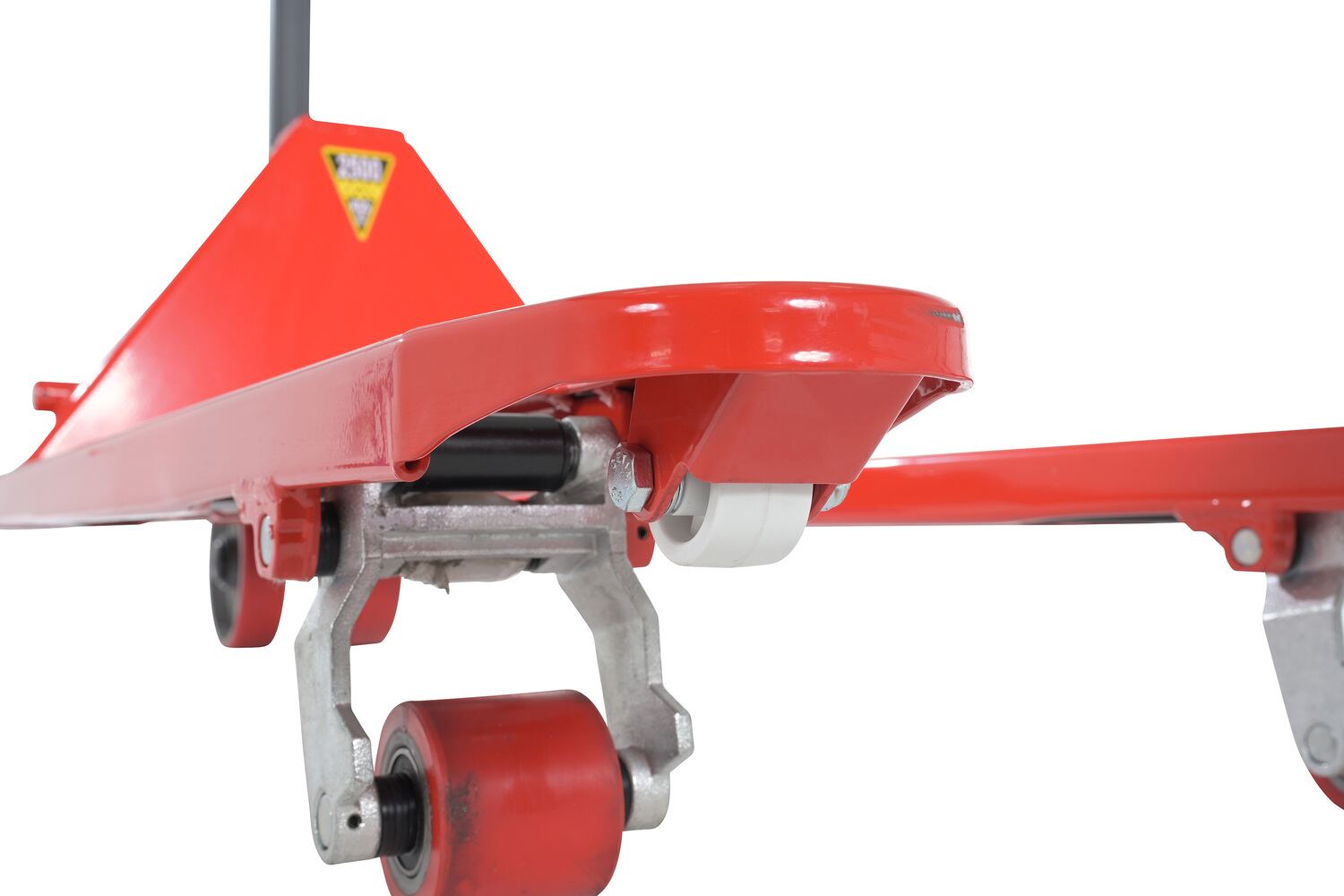

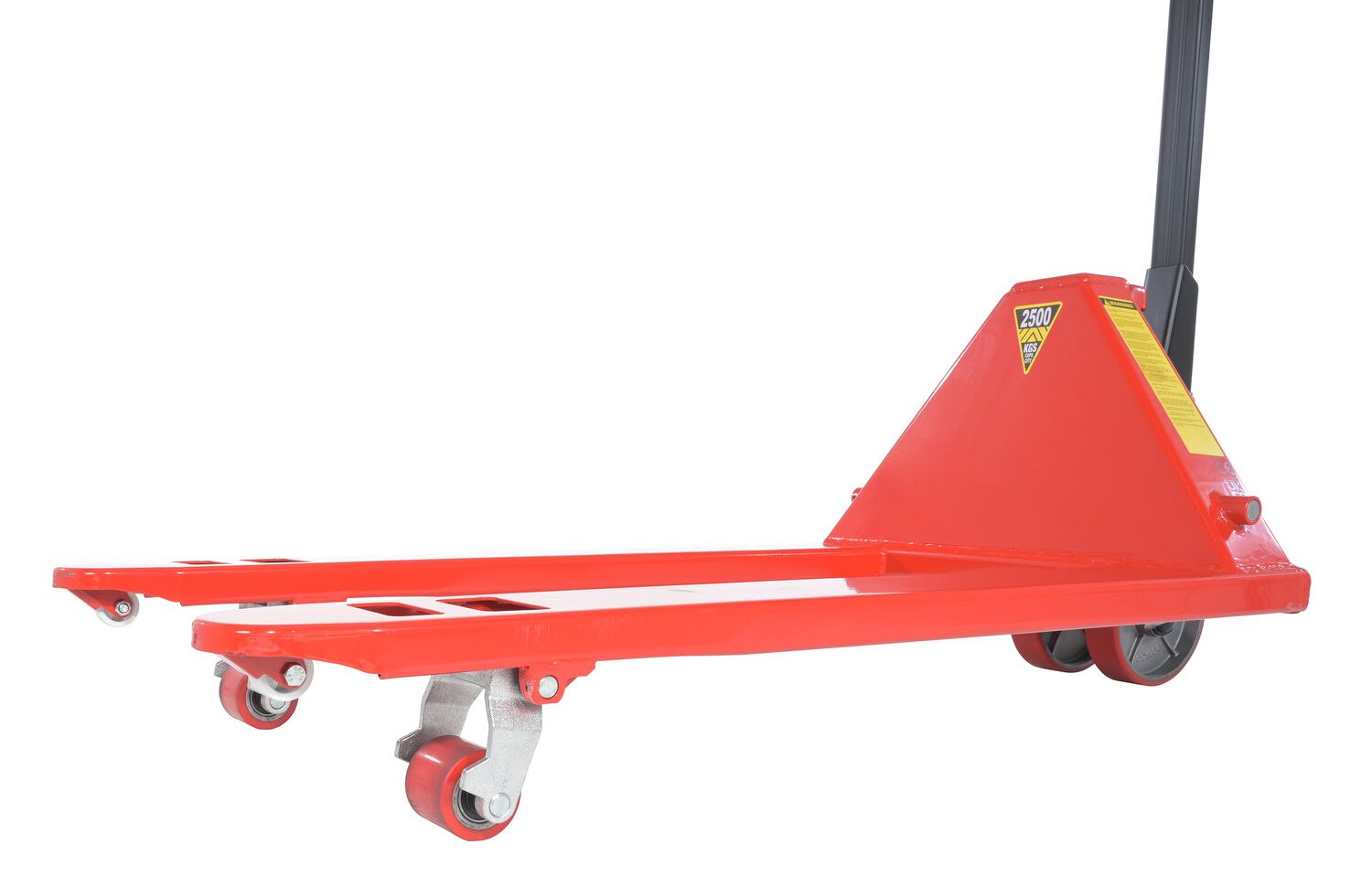

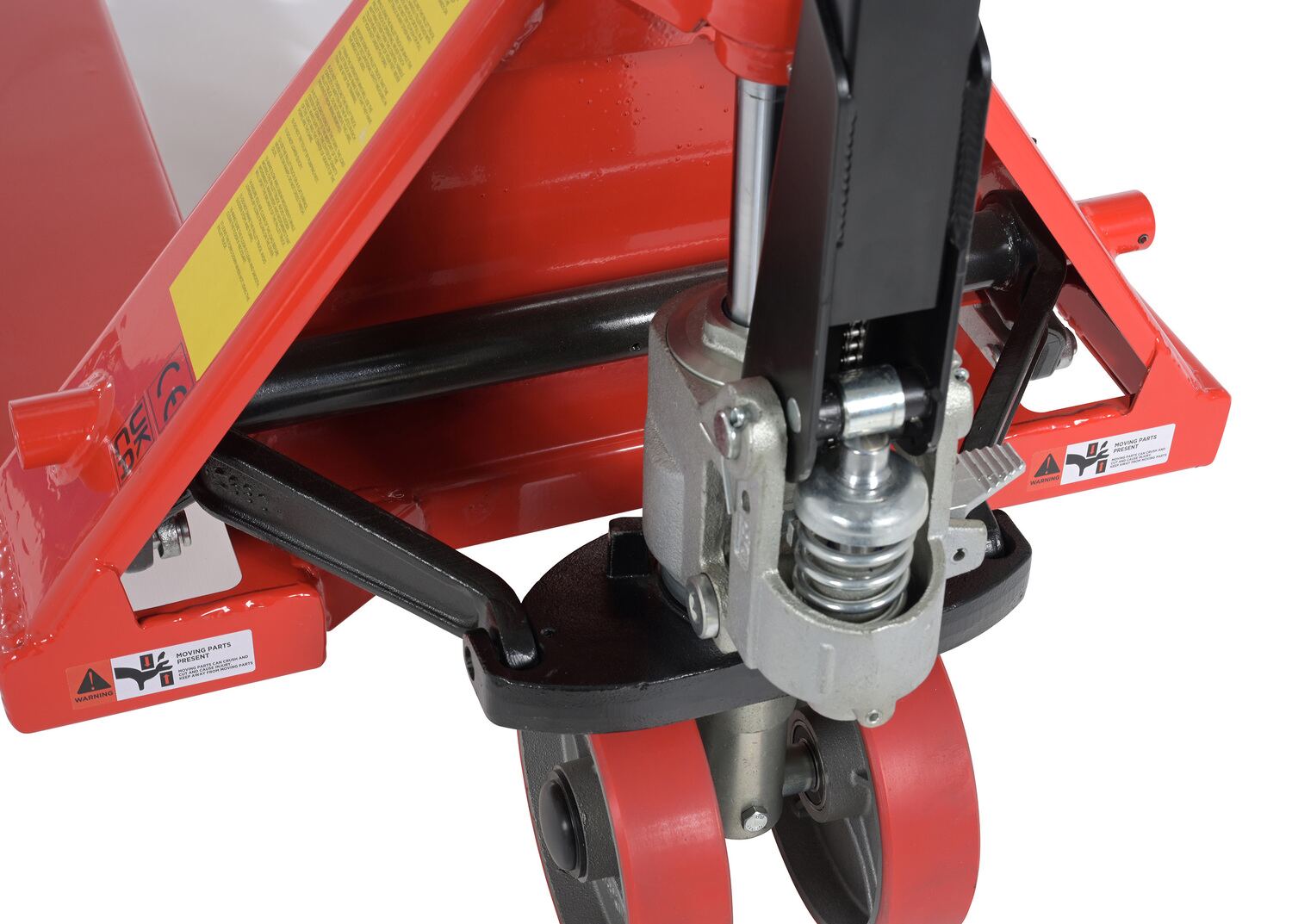

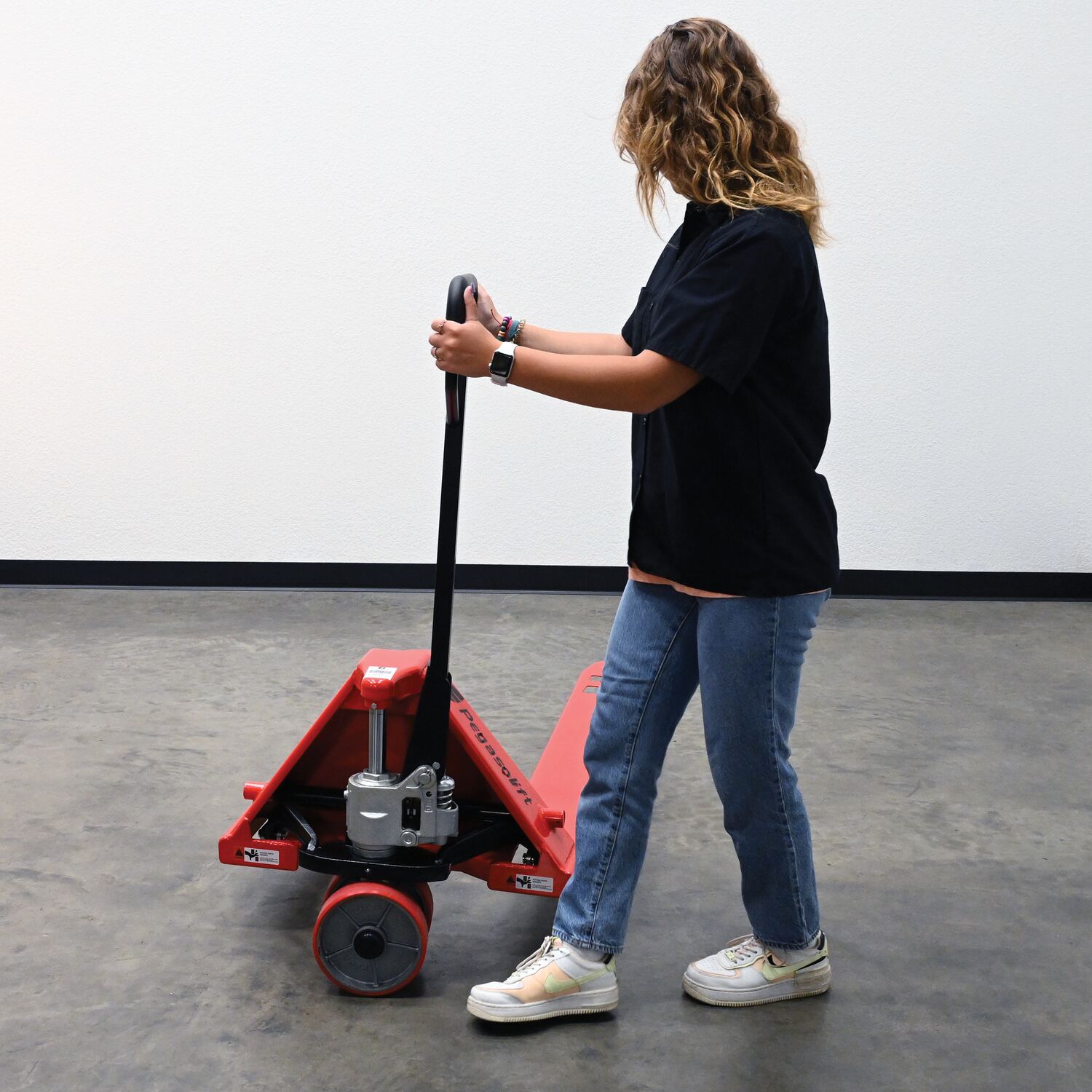

The full featured pallet truck is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. The unit is equipped with internally mounted solid steel adjustable push rods. A chrome-plated hydraulic pump piston supports long seal life, while the hydraulic pump design facilitates simple seal replacement when needed.

  • Bearing dust covers included on steering wheels
  • Reinforced triple-formed steel forks
  • Seventy-five (75) pounds of pulling force when fully loaded

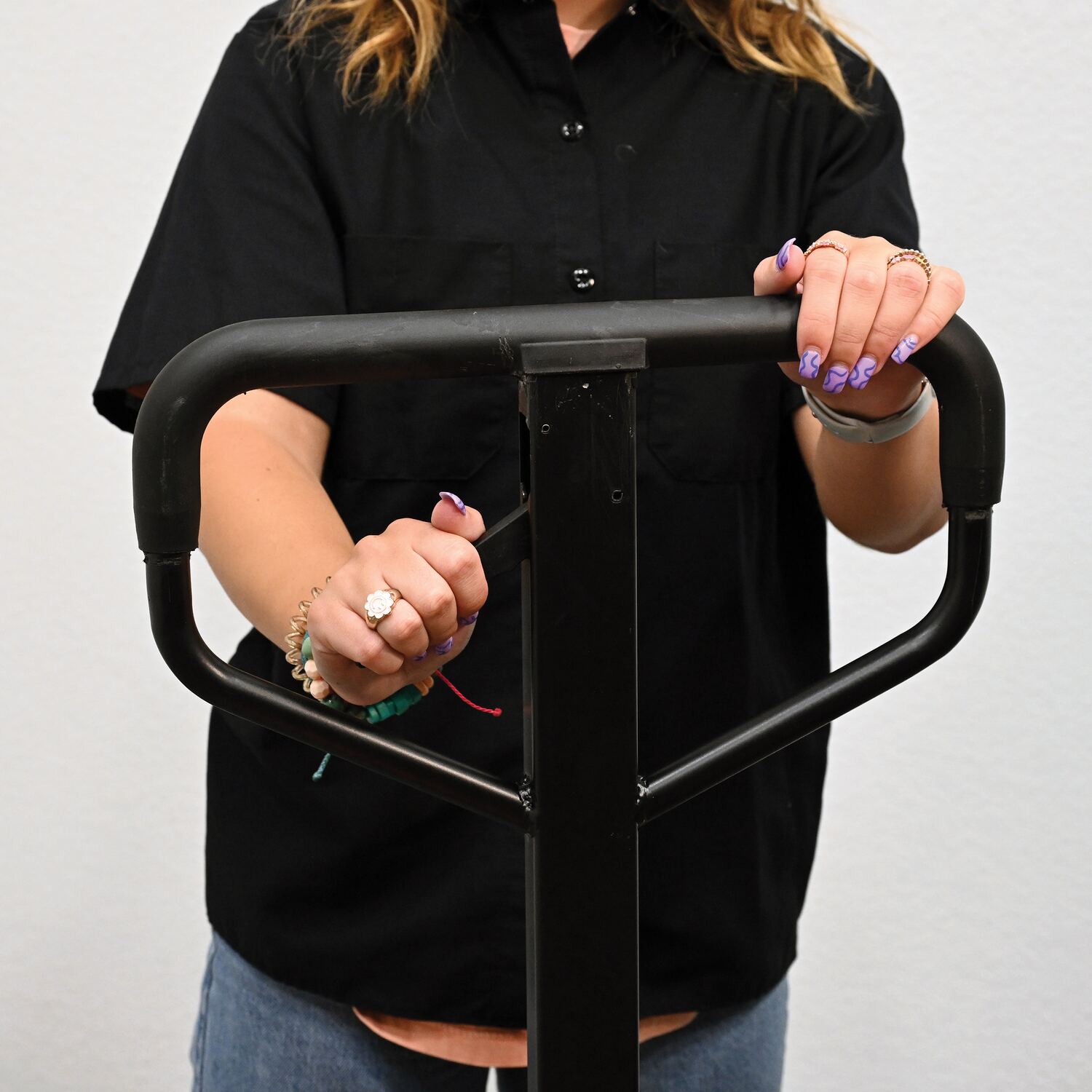

  • Spring loaded handle automatically returns to vertical position
Total Ship Wt.(lbs.): 223 (only 1 package) Size: 27"W x 61"L x 49"H Color: Red QuickShip

Uniform Capacity (lbs.): 5500 Overall Fork Width (in.): 27 Individual Fork Width (in.): 7
Fork Center (in.): 20 Fork Length (in.): 48 Handle Height (in.): 49
Handle Diameter (in.): 1.125 Caster Drive Quantity: 2 Caster Drive Diameter (in.): 7
Caster Drive Width (in.): 2 Caster Load Roller Quantity: 2 Caster Load Roller Diameter (in.): 2.75
Caster Load Roller Width (in.): 3.75 Usable Lowered Height (in.): 3.375 Usable Raised Height (in.): 7.875

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PM5-PGL-2748
PM5-PGL-2748

Steel Pegasolift Manual Pallet Truck 5.5K 27x48 5,500 Lb. Capacity Red

The full featured pallet truck is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. The unit is equipped with internally mounted solid steel adjustable push rods. A chrome-plated hydraulic pump piston supports long seal life, while the hydraulic pump design facilitates simple seal replacement when needed.

  • Bearing dust covers included on steering wheels
  • Reinforced triple-formed steel forks
  • Seventy-five (75) pounds of pulling force when fully loaded
  • Spring loaded handle automatically returns to vertical position
Dimensions: 27"W x 61"L x 49"H Sell UOM: EA-Each Color: Red
Material: Steel UPC: 691215376693 GTIN: 00691215376693
Warranty: -- Shipping Weight: 223 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: TR
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs.): 5500 Overall Fork Width (in.): 27 Individual Fork Width (in.): 7
Fork Center (in.): 20 Fork Length (in.): 48 Handle Height (in.): 49
Handle Diameter (in.): 1.125 Caster Drive Quantity: 2 Caster Drive Diameter (in.): 7
Caster Drive Width (in.): 2 Caster Load Roller Quantity: 2 Caster Load Roller Diameter (in.): 2.75
Caster Load Roller Width (in.): 3.75 Usable Lowered Height (in.): 3.375 Usable Raised Height (in.): 7.875
