POPUP-4048

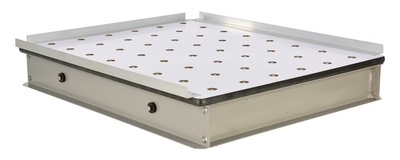

Steel Pop-Up Ball Transfer Platform 48 In. x 40 In. x 8-3/4 In. 250 Lb. Capacity Blue

The "pop-up" ball transfer platform is an economical way to increase usable height and product manipulation to any cart or table. A ball retraction handle is conveniently located on the side to secure load. Can be mounted to scissor carts or post tables.

  • "Pop-up" ball transfer platform is economical for simple applications
  • Increase usable height and product manipulation to any cart or table
  • Ball retraction handle is conveniently located on the side to secure load
  • Ideal to be mounted to scissor carts or post tables for optimal results
Total Ship Wt.(lbs.): 222 (only 1 package) Size: 40"W x 48"L x 8.75"H Color: Gray QuickShip

Uniform Capacity (lbs.): 250 Ball Spacing Width (in.): 4-1/2 Ball Spacing Length (in.): 5-1/4
Roller Ball (qty.): 48 Roller Ball Diameter (in.): 1 Roller Ball Raise Above Surface (in.): 0.25
Platform Usable Length (in.): 47-3/4 Platform Usable Width (in.): 41-3/8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: POPUP-4048
POPUP-4048

Steel Pop-Up Ball Transfer Platform 48 In. x 40 In. x 8-3/4 In. 250 Lb. Capacity Blue

The "pop-up" ball transfer platform is an economical way to increase usable height and product manipulation to any cart or table. A ball retraction handle is conveniently located on the side to secure load. Can be mounted to scissor carts or post tables.

  • "Pop-up" ball transfer platform is economical for simple applications
  • Increase usable height and product manipulation to any cart or table
  • Ball retraction handle is conveniently located on the side to secure load
  • Ideal to be mounted to scissor carts or post tables for optimal results
Dimensions: 40"W x 48"L x 8.75"H Sell UOM: EA-Each Color: Gray
Material: Steel UPC: 691215031141 GTIN: 00691215031141
Warranty: -- Shipping Weight: 222 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs.): 250 Ball Spacing Width (in.): 4-1/2 Ball Spacing Length (in.): 5-1/4
Roller Ball (qty.): 48 Roller Ball Diameter (in.): 1 Roller Ball Raise Above Surface (in.): 0.25
Platform Usable Length (in.): 47-3/4 Platform Usable Width (in.): 41-3/8
