SDG-10

Printer Friendly
Available
SDG-10
SDG-10 SDG-10 SDG-10

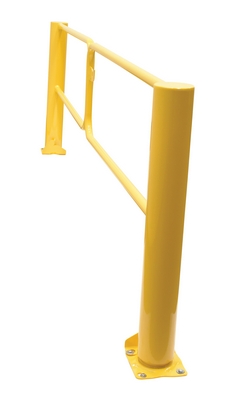

Steel Swivel Dock Gate Pair for 10 Ft. Door Yellow

Swivel dock gates are ideal for securing loading docks, parking lots, or other pathways. The gate features a steel construction for durability and a yellow powder coat finish for clear visibility. A chain and chain slots are provided on the ends of the gate arms for securing the gate in the close position, for added safety. Four built-in tabs are included on each gate (eight tabs per pair). These tabs allow a sign to be attached and secured in place between the upper and lower bars of the gate. The open design makes it easy for single or double sided signs to be utilized. Standard and custom sign designs are available separately.

  • May be positioned to swing in either direction
  • Includes pre-drilled mounting holes for easy attachment to designated surface
  • Swivel stop prevents gate from swinging too wide which is ideal for optimal results
  • All models come in pairs.
Total Ship Wt.(lbs.): 190 (only 1 package) Size: 137"W x 8"L x 42.0625"H Color: Yellow

Gate Quantity/Width (in.): (2) 61-3/16 Bollard Post Diameter (in.): 5-1/2 Base Width/Length (in.): 8 x 8
Mounting Hole Slots Quantity/Diameter (in.): (4) 7/8 x 1-1/4 Chain Size (in.): 3/16 Chain Length (in.): 10
Padlock Slotted Hole (in.): 3/8 x 7/8 Accommodates Door Size (ft.): 10

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: SDG-10
Available
SDG-10

Steel Swivel Dock Gate Pair for 10 Ft. Door Yellow

Swivel dock gates are ideal for securing loading docks, parking lots, or other pathways. The gate features a steel construction for durability and a yellow powder coat finish for clear visibility. A chain and chain slots are provided on the ends of the gate arms for securing the gate in the close position, for added safety. Four built-in tabs are included on each gate (eight tabs per pair). These tabs allow a sign to be attached and secured in place between the upper and lower bars of the gate. The open design makes it easy for single or double sided signs to be utilized. Standard and custom sign designs are available separately.

  • May be positioned to swing in either direction
  • Includes pre-drilled mounting holes for easy attachment to designated surface
  • Swivel stop prevents gate from swinging too wide which is ideal for optimal results
  • All models come in pairs.
Dimensions: 137"W x 8"L x 42.0625"H Sell UOM: PR-Pair Color: Yellow
Material: Steel UPC: 691215109369 GTIN: 00691215109369
Warranty: -- Shipping Weight: 190 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: PACK_OR_INNER_PACK Drawing Required? N
Gate Quantity/Width (in.): (2) 61-3/16 Bollard Post Diameter (in.): 5-1/2 Base Width/Length (in.): 8 x 8
Mounting Hole Slots Quantity/Diameter (in.): (4) 7/8 x 1-1/4 Chain Size (in.): 3/16 Chain Length (in.): 10
Padlock Slotted Hole (in.): 3/8 x 7/8 Accommodates Door Size (ft.): 10
