SM-UB-BFB-100

Printer Friendly
Available
SM-UB-BFB-100
SM-UB-BFB-100 SM-UB-BFB-100 SM-UB-BFB-100 SM-UB-BFB-100

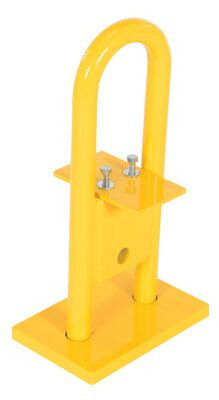

Steel Upper Bail Kit For Adjustable Spreader Beams SBM-BFB-100 Series 6 X 9.25 X 19.75 10,000 Lb. Capacity Yellow

Bail is great for an addition to the adjustable spreader beam. Bail is simple to attach and can be immediately utilized. Large loop can accommodate robust object hooks.

  • Solid steel construction provides rugged lasting use
  • Powder coat yellow offers a durable finish
  • Bail design allows it to be adjusted
  • Hardware is included
Assembled Wt.(lbs.): 36 Assembled Size: 9.25"W x 6"L x 19.75"H

Total Ship Wt.(lbs.): 38 (only 1 package) Package 1 Size: 10"W x 6"D x 20"H Color: Yellow

Chain Size Maximum Capacity: 4 In. Maximum Capacity (lb.): 10000 Overall Width (in.): 9-1/4
Overall Length (in.): 6 Overall Height (in.): 19-3/4 Removable Bolt for Positioning (in.): 3/4
Connection Style: Direct Connect

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: SM-UB-BFB-100
Available
SM-UB-BFB-100

Steel Upper Bail Kit For Adjustable Spreader Beams SBM-BFB-100 Series 6 X 9.25 X 19.75 10,000 Lb. Capacity Yellow

Bail is great for an addition to the adjustable spreader beam. Bail is simple to attach and can be immediately utilized. Large loop can accommodate robust object hooks.

  • Solid steel construction provides rugged lasting use
  • Powder coat yellow offers a durable finish
  • Bail design allows it to be adjusted
  • Hardware is included
Dimensions: 9.25"W x 6"L x 19.75"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 38 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Chain Size Maximum Capacity: 4 In. Maximum Capacity (lb.): 10000 Overall Width (in.): 9-1/4
Overall Length (in.): 6 Overall Height (in.): 19-3/4 Removable Bolt for Positioning (in.): 3/4
Connection Style: Direct Connect
