Model Details

← All Products- ← Packaging Equipment- ← Stretch Wrap Machines -← Powered Stretch Wrap Machines- SWA-70-R-4860-SCL

SWA-70-R-4860-SCL

Printer Friendly
Available
SWA-70-R-4860-SCL
SWA-70-R-4860-SCL SWA-70-R-4860-SCL SWA-70-R-4860-SCL SWA-70-R-4860-SCL SWA-70-R-4860-SCL

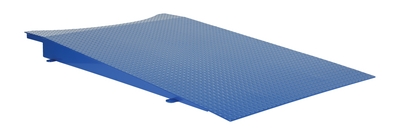

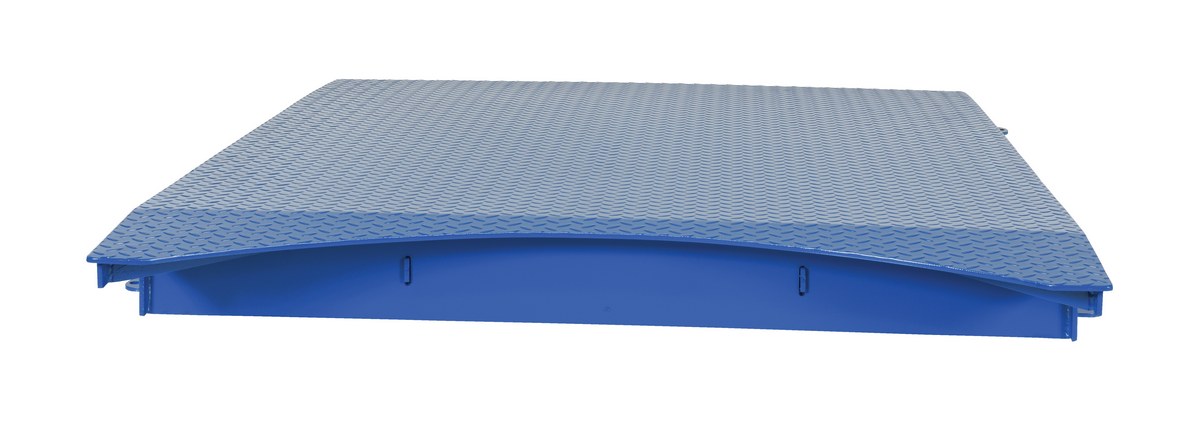

Steel Approach Ramp 48 In. x 60 In. 4,000 Lb. Capacity Blue For Use With Models SWA-70 + SWA-70-Scale

Optional approach ramp for wrap machine with scale.

  • Tread plate design provides a non-slip grip
  • Steel construction offers long lasting rugged use
  • High capacity design handles the heaviest loads
  • Ramp construction allows use without the need fork truck
Assembled Wt.(lbs.): 313 Assembled Size: 51.3125"W x 74.8125"L x 5.3125"H

Total Ship Wt.(lbs.): 352 (only 1 package) Package 1 Size: 52"W x 96"D x 11"H Color: Blue

Maximum Capacity (lb.): 4000 Usable Width (in.): 48 Slope: 1:12
Overall Length (in.): 74-13/16 Overall Height (in.): 5-5/16 Overall Width (in.): 51-5/16
Quantity Anchor Holes: 4 Anchor Hole Size: 5/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: SWA-70-R-4860-SCL
Available
SWA-70-R-4860-SCL

Steel Approach Ramp 48 In. x 60 In. 4,000 Lb. Capacity Blue For Use With Models SWA-70 + SWA-70-Scale

Optional approach ramp for wrap machine with scale.

  • Tread plate design provides a non-slip grip
  • Steel construction offers long lasting rugged use
  • High capacity design handles the heaviest loads
  • Ramp construction allows use without the need fork truck
Dimensions: 51.3125"W x 74.8125"L x 5.3125"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 352 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Maximum Capacity (lb.): 4000 Usable Width (in.): 48 Slope: 1:12
Overall Length (in.): 74-13/16 Overall Height (in.): 5-5/16 Overall Width (in.): 51-5/16
Quantity Anchor Holes: 4 Anchor Hole Size: 5/8
