Model Details

TG-1600-S-H-240-168

TG-1600-S-H-240-168

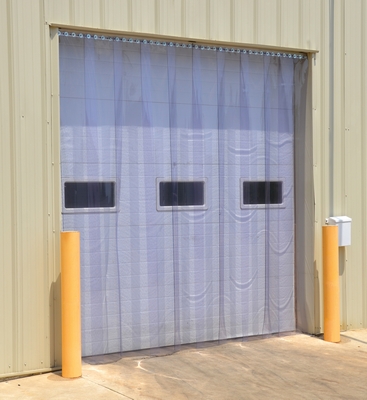

PVC Vinyl Strip Door 4/25 In. Standard Overlap Header Mount 240 In. x 168 In. Clear

Vinyl strip doors help control noise, dust, fumes, and smoke while minimizing drafts, reducing illnesses, and accidents. The strip doors offer visual clarity without sacrificing safety. The material design also deters UV rays during direct sunlight when applied to load docks and external doorways . The simple low cost design is easy to maintain. Standard material design meets USDA requirements and is great for refrigeration applications up to -10 degrees Fahrenheit. All doors are shipped pre-assembled and ready for installation. Installation hardware not included. Custom door sizes and material available, contact factory.

  • Vinyl strip design helps to minimize heating and cooling costs
  • Clear strips offer visual clarity & employee safety
  • Fire resistant vinyl construction is self-extinguishing
  • Smooth surface design allows user to comfortably enter & exit
Total Ship Wt.(lbs.): 1119 (only 1 package) Size: 240"W x 0.16"L x 168"H Color: Clear Non-Returnable

Mounting Design: Header Overlap Style: Standard PVC/Vinyl Thickness (in.): 0.16
Strip Width (in.): 16 Opening Width (in.): 240 Opening Height (in.): 168
Tensile Strength (PSI): 2635 Maximum Tensile Elongation (percent): 388 Graves Tear Load (lb.): 35.4
Graves Tear Extension (in.): 2.07 Load at 100% Elongation (lbs.): 32.2 Strength at 100% Elongation (PSI): 1181
Stiffness in Flexure - 23 degrees Celsius (PSI): 1805 Brittleness Temperature by Impact (degrees Celsius): .35 Recommended Operating Temperature - Range (degrees Fahrenheit): -10 to 140
Specific Gravity: 1.22 Haze Transmittance (percent): 6.30 Luminous Transmittance (percent): 82.80

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TG-1600-S-H-240-168


TG-1600-S-H-240-168

PVC Vinyl Strip Door 4/25 In. Standard Overlap Header Mount 240 In. x 168 In. Clear

Vinyl strip doors help control noise, dust, fumes, and smoke while minimizing drafts, reducing illnesses, and accidents. The strip doors offer visual clarity without sacrificing safety. The material design also deters UV rays during direct sunlight when applied to load docks and external doorways . The simple low cost design is easy to maintain. Standard material design meets USDA requirements and is great for refrigeration applications up to -10 degrees Fahrenheit. All doors are shipped pre-assembled and ready for installation. Installation hardware not included. Custom door sizes and material available, contact factory.

  • Vinyl strip design helps to minimize heating and cooling costs
  • Clear strips offer visual clarity & employee safety
  • Fire resistant vinyl construction is self-extinguishing
  • Smooth surface design allows user to comfortably enter & exit
Dimensions: 240"W x 0.16"L x 168"H Sell UOM: EA-Each Color: Clear
Material: PVC Vinyl UPC: 691215041317 GTIN: 00691215041317
Warranty: -- Shipping Weight: 1119 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Mounting Design: Header Overlap Style: Standard PVC/Vinyl Thickness (in.): 0.16
Strip Width (in.): 16 Opening Width (in.): 240 Opening Height (in.): 168
Tensile Strength (PSI): 2635 Maximum Tensile Elongation (percent): 388 Graves Tear Load (lb.): 35.4
Graves Tear Extension (in.): 2.07 Load at 100% Elongation (lbs.): 32.2 Strength at 100% Elongation (PSI): 1181
Stiffness in Flexure - 23 degrees Celsius (PSI): 1805 Brittleness Temperature by Impact (degrees Celsius): .35 Recommended Operating Temperature - Range (degrees Fahrenheit): -10 to 140
Specific Gravity: 1.22 Haze Transmittance (percent): 6.30 Luminous Transmittance (percent): 82.80
