Model Details

TM-20-AIR

TM-20-AIR

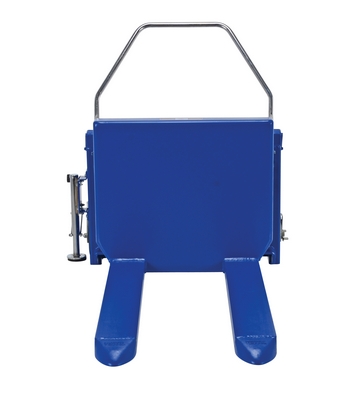

Steel Tilt Master Reciprocating Air/Oil Power 2,000 Lb. Capacity Blue

The tilt master lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. The lift has a thin profile to allow the user to get as close to the load as possible, a standard floor lock and rolls easily on the phenolic steering wheels. It is designed to be used with open bottom pallets or skids. The unit is powered by an air pneumatic motor.

  • Folding ergonomic handle
  • Two rigid and two swivel casters provide smooth and efficient mobility
  • 90 Degree tilt angle allows for better ergonomic access
  • Ergonomic push handle folds down when not needed for better access
Total Ship Wt.(lbs.): 621 (only 1 package) Size: 41.0625"W x 75.5625"L x 28.3125"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 2000 Fork Adjustment (in.): Fixed at 26 (OD) Operator Reach (in.): 7-1/4
Fork Width (in.): 6 Fork Length (in.): 38-1/8 Rotated Height (in.): 33
Lowered Height (in.): 3-1/2 Maximum Tilt Degree: 90 Power: Reciprocating Air/Oil
Wheel Diameter (in.): 8 Wheel Width (in.): 3 Wheel Type: Phenolic
Folding Handle Length (in.): 20 Load Center (in.): 20

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TM-20-AIR


TM-20-AIR

Steel Tilt Master Reciprocating Air/Oil Power 2,000 Lb. Capacity Blue

The tilt master lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. The lift has a thin profile to allow the user to get as close to the load as possible, a standard floor lock and rolls easily on the phenolic steering wheels. It is designed to be used with open bottom pallets or skids. The unit is powered by an air pneumatic motor.

  • Folding ergonomic handle
  • Two rigid and two swivel casters provide smooth and efficient mobility
  • 90 Degree tilt angle allows for better ergonomic access
  • Ergonomic push handle folds down when not needed for better access
Dimensions: 41.0625"W x 75.5625"L x 28.3125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215042215 GTIN: 00691215042215
Warranty: -- Shipping Weight: 621 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 2000 Fork Adjustment (in.): Fixed at 26 (OD) Operator Reach (in.): 7-1/4
Fork Width (in.): 6 Fork Length (in.): 38-1/8 Rotated Height (in.): 33
Lowered Height (in.): 3-1/2 Maximum Tilt Degree: 90 Power: Reciprocating Air/Oil
Wheel Diameter (in.): 8 Wheel Width (in.): 3 Wheel Type: Phenolic
Folding Handle Length (in.): 20 Load Center (in.): 20
