Model Details

TMS-20-AIR

TMS-20-AIR

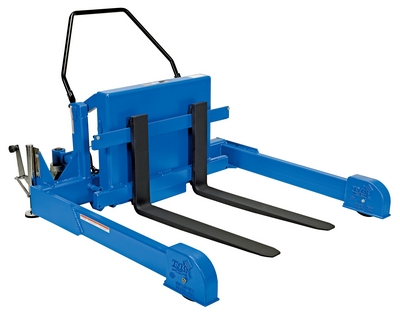

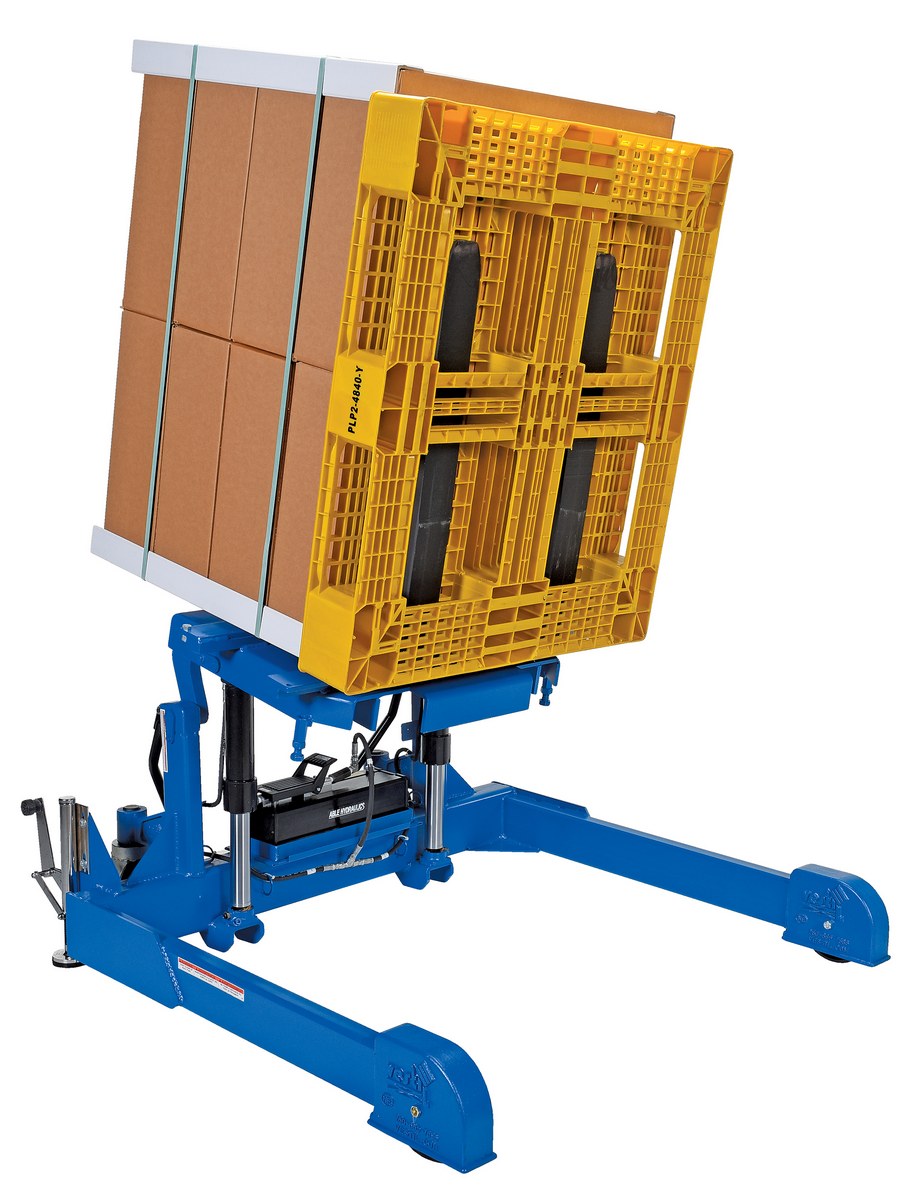

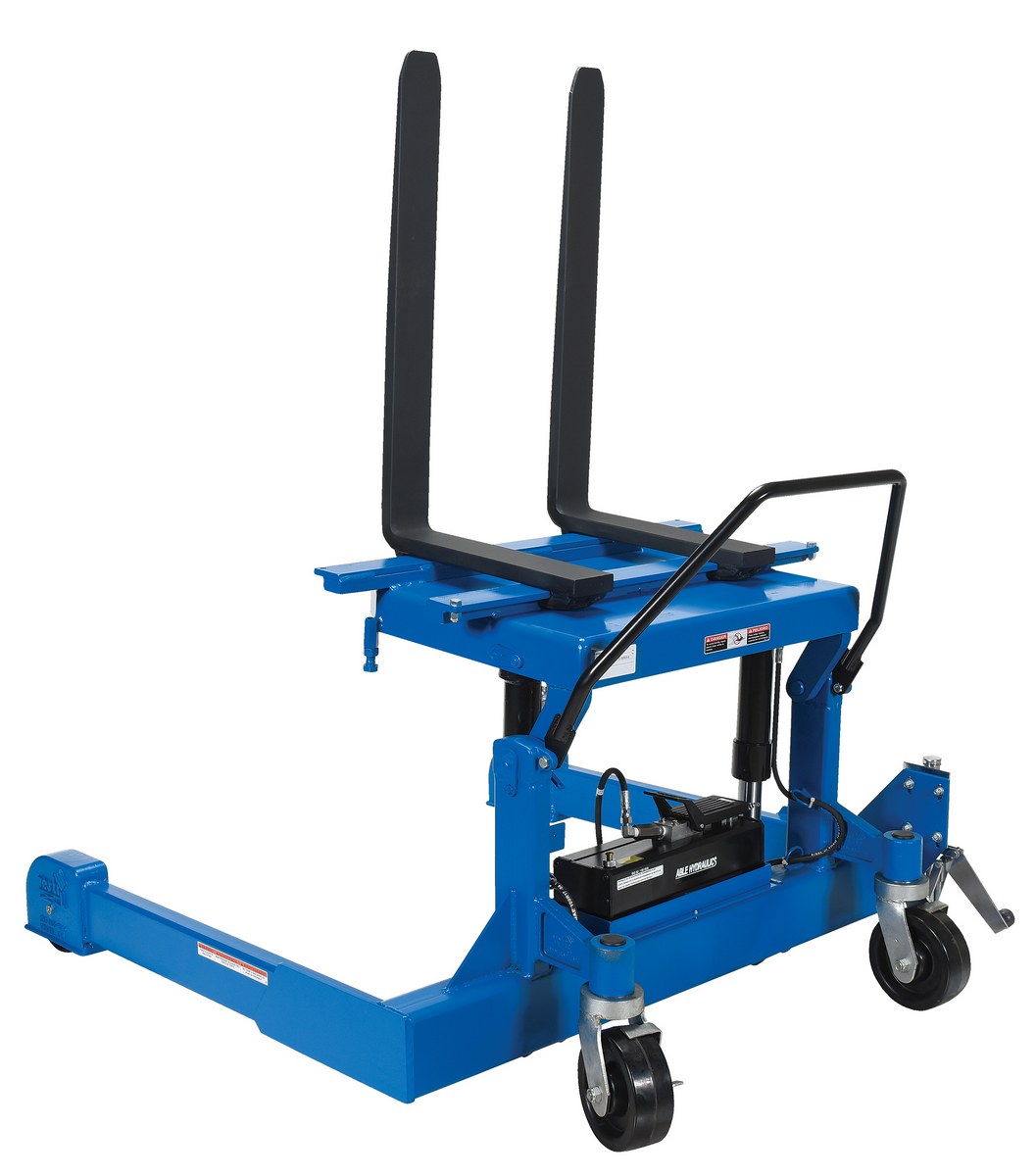

Steel Tilt Master Straddle Reciprocating Air/Oil Power 2,000 Lb. Capacity Blue

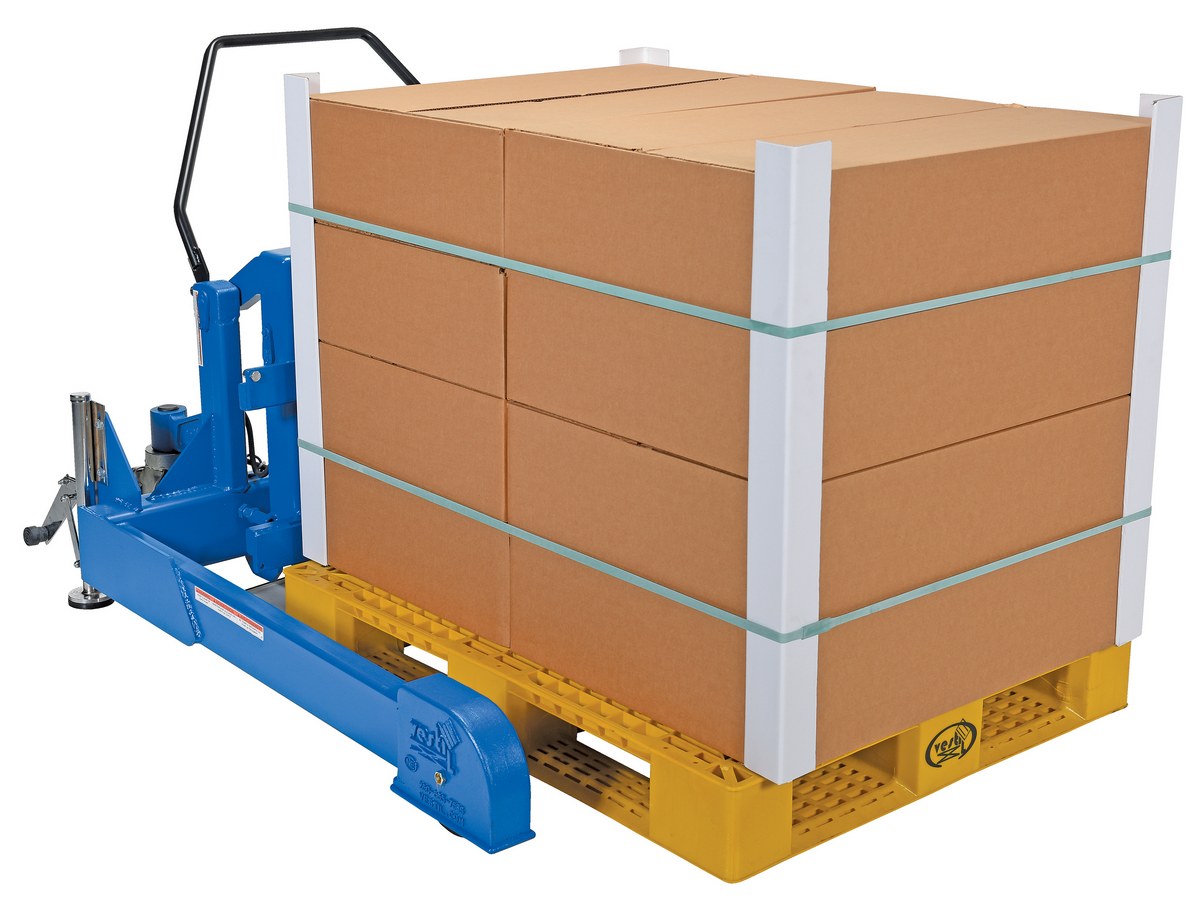

The tilt master straddle lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. This lift has a thin profile to allow the user to get as close to the load as possible. It also has a standard floor lock and rolls easily on the phenolic steering wheels. Lift is designed to be used with virtually any kind of container or pallet. The unit is powered by an air pneumatic motor.

  • Folding ergonomic handle
  • Two rigid and two swivel casters provide smooth and efficient mobility

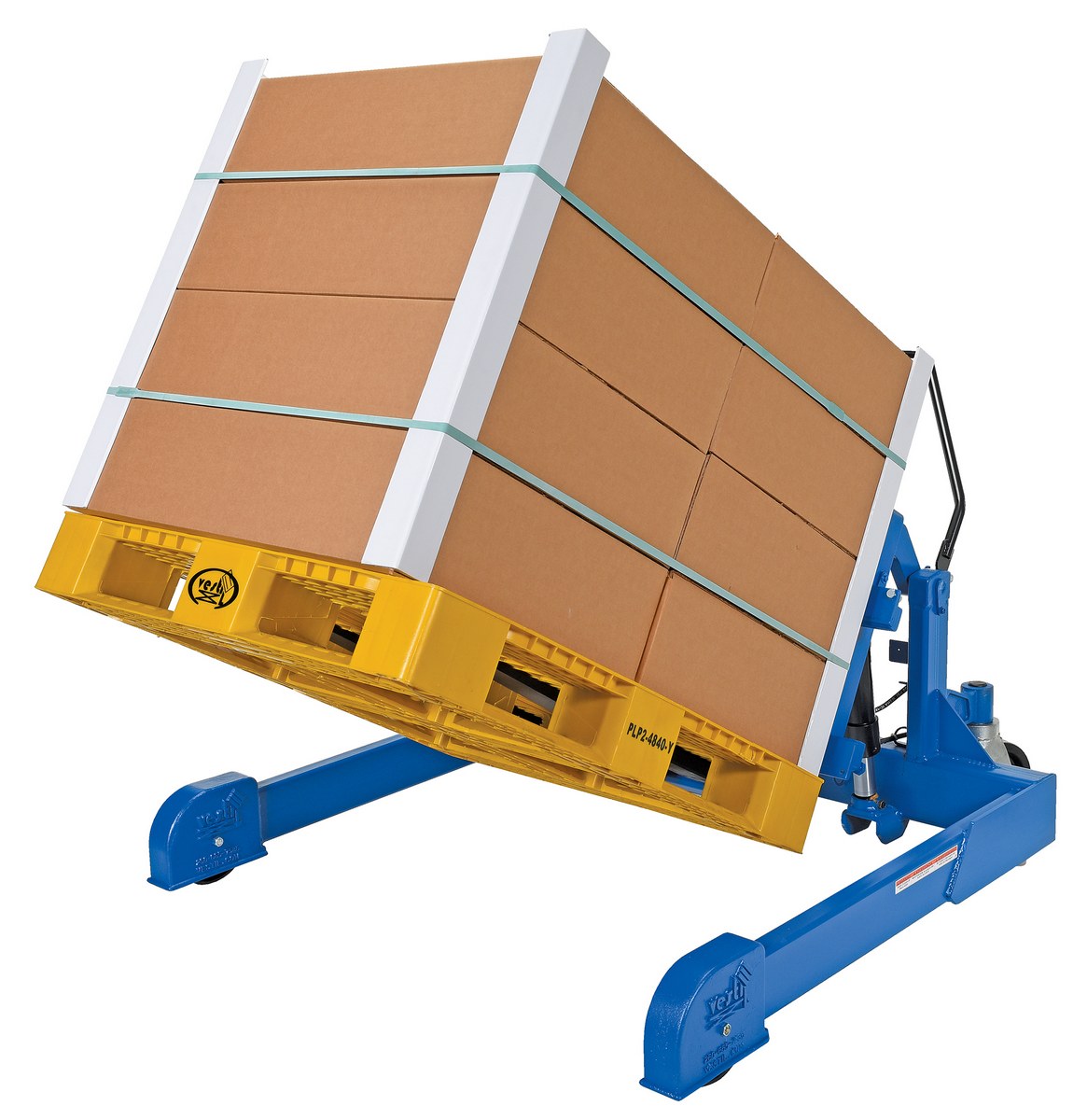

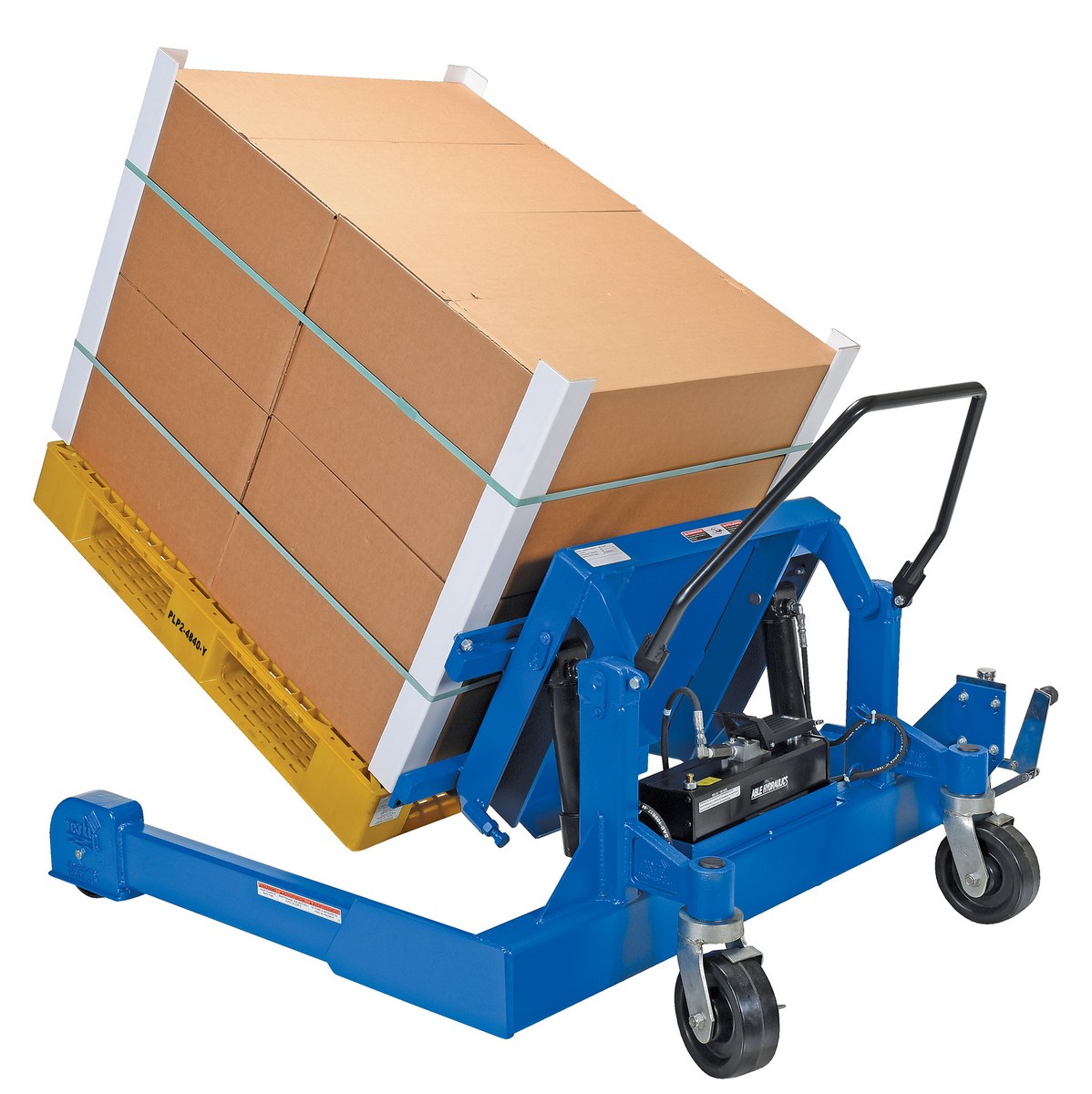

  • 90 degree tilt angle allows for better ergonomic access
  • Ergonomic push handle folds down when not needed for better access
Total Ship Wt.(lbs.): 881 (only 1 package) Size: 57.25"W x 72.8125"L x 29.25"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 2000 Fork Adjustment Minimum I.D (in.): 1/2 Fork Adjustment Maximum I.D. (in.): 28-1/2
Operator Reach (in.): 13-1/2 Fork Width (in.): 4 Fork Length (in.): 35
Rotated Height (in.): 37 Lowered Height (in.): 3 Maximum Tilt Degree: 90
Power: Reciprocating Air/Oil Wheel Diameter (in.): 8 Wheel Width (in.): 3
Wheel Type: Phenolic Folding Handle Length (in.): 20 Load Center (in.): 18

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TMS-20-AIR


TMS-20-AIR

Steel Tilt Master Straddle Reciprocating Air/Oil Power 2,000 Lb. Capacity Blue

The tilt master straddle lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. This lift has a thin profile to allow the user to get as close to the load as possible. It also has a standard floor lock and rolls easily on the phenolic steering wheels. Lift is designed to be used with virtually any kind of container or pallet. The unit is powered by an air pneumatic motor.

  • Folding ergonomic handle
  • Two rigid and two swivel casters provide smooth and efficient mobility
  • 90 degree tilt angle allows for better ergonomic access
  • Ergonomic push handle folds down when not needed for better access
Dimensions: 57.25"W x 72.8125"L x 29.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215042352 GTIN: 00691215042352
Warranty: -- Shipping Weight: 881 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 2000 Fork Adjustment Minimum I.D (in.): 1/2 Fork Adjustment Maximum I.D. (in.): 28-1/2
Operator Reach (in.): 13-1/2 Fork Width (in.): 4 Fork Length (in.): 35
Rotated Height (in.): 37 Lowered Height (in.): 3 Maximum Tilt Degree: 90
Power: Reciprocating Air/Oil Wheel Diameter (in.): 8 Wheel Width (in.): 3
Wheel Type: Phenolic Folding Handle Length (in.): 20 Load Center (in.): 18
